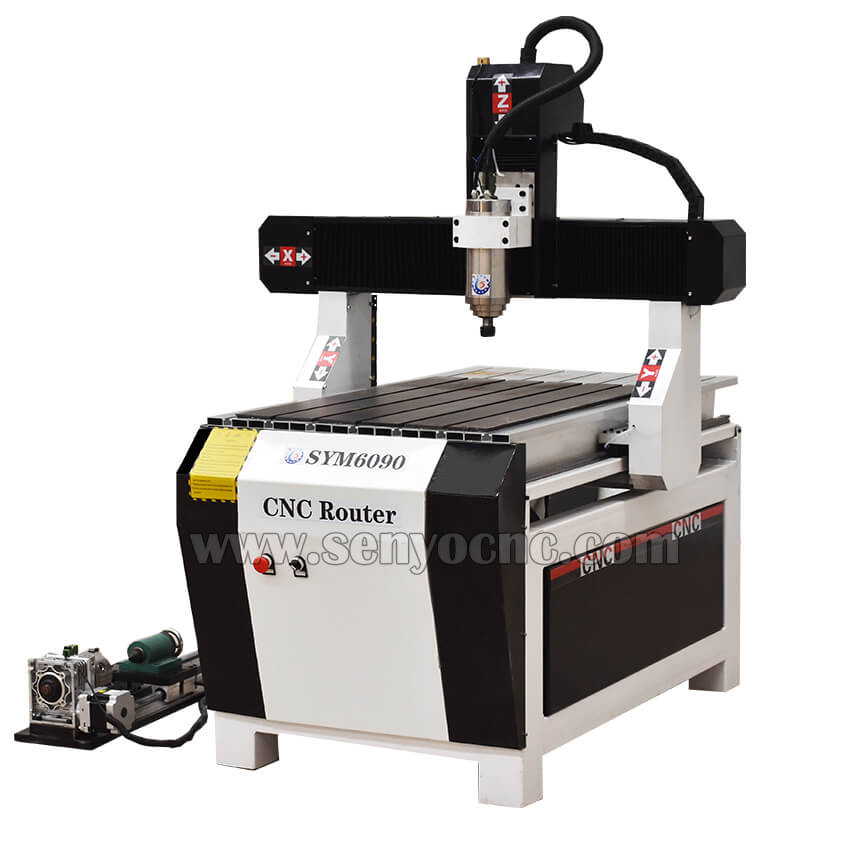

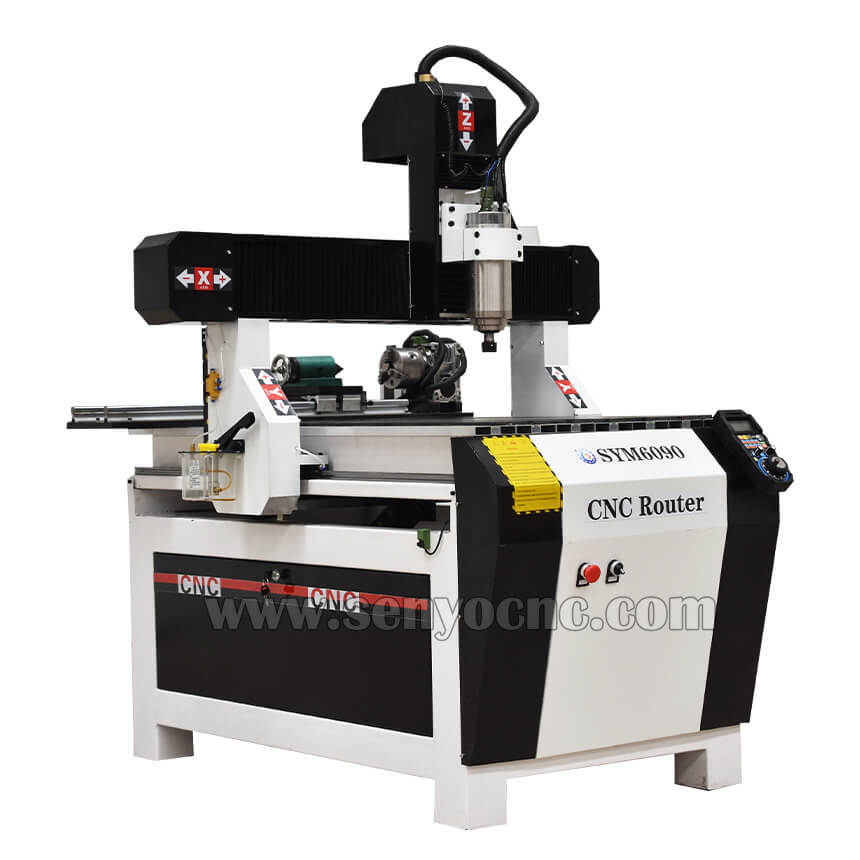

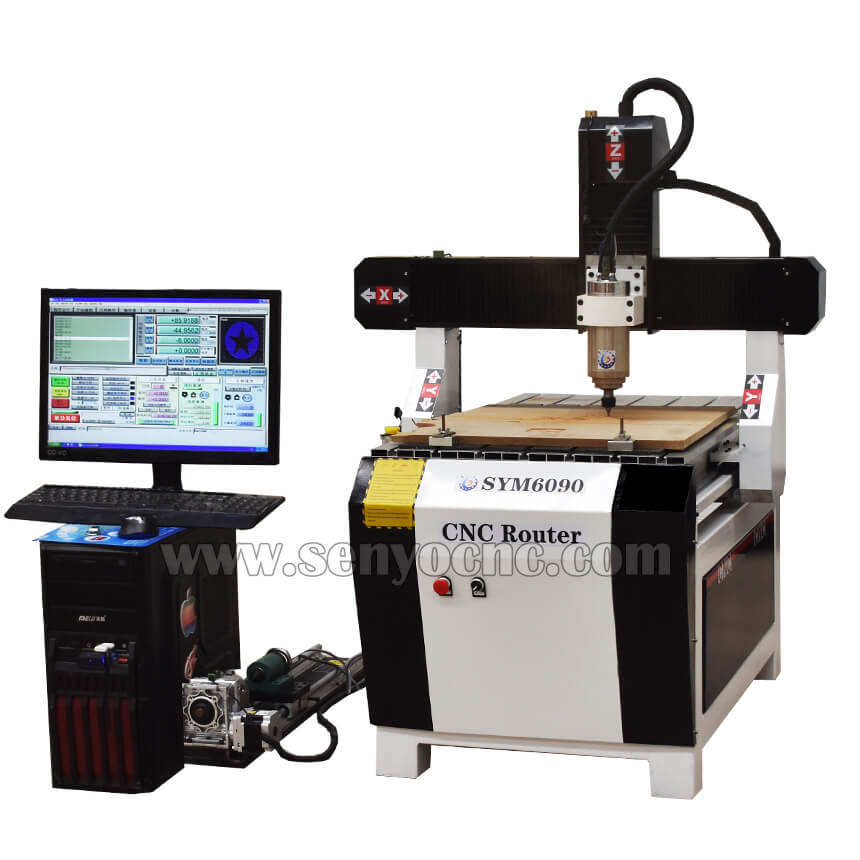

Introduction Of Woodworking 3D model making machine
The machine is desktop style, which only need small space for it. Although it is small but is still a high quality machine,
all the machine body is iron cast structure, which is with strong rigidity.
The machine can process many different materials, such as: metal, aluminum, brass, stone, wood, acrylic, MDF, plywood, ABS, OSB, foam etc.
It is widely used in mold, furniture, , stone, gift, decoration, and metal processing industry.
The machine can do 2D or 3D engraving, milling, cutting, drilling work.
No matter for the serious hobbyist or for the commercial shop, We will be your best choice.
Advantage Of 3D Model Making Machine
1. 4x4 CNC router table can meet any processing in non-metal/soft-metal materials,
such as solid wood, MDF, acrylic, plastic, aluminum, copper, brass, etc.;
2. Small size takes little space, but powerful at carving 3D surface, cylinder object, and automatic woodworking;
3. CNC kit of the rotary device is essential for the processing of cylindrical workpieces;
4. CNC kits of ATC spindle, manages and picks up the right bits during woodworking,
no need any manual assistant, saves time and labor, automatic your woodworking;
5. LNC Controller brings this 4x4 CNC machine high stability and simple and convenient operation;
6. Brand CNC router kit ensures the CNC machine durable and longer life
Product Parameters Of 3D Model Making Machine
Working area | 600(X)mm*900Y)mm*200(Z)mm |
Machine Structure | Cast iron structure |
Working table | Aluminum alloy T Slot with PVC protection layer |
Cooling system | Water cooling system |
Moving type | Gantry moving |
Guide rail | Linear square guide rail, Hiwin, Taiwan, diameter 20mm |
Transmission | Lead ball screw for XYZ-axis |
Driving mode | Stepper motor and driver for XYZ-axis |
Spindle motor | 1.5kw water cooling |
Spindle speed | 0-24000rpm |
Inverter | BEST 1.5kw |
Voltage | AC 220V±10%, 50/60Hz, single phase |
Traveling speed | >10000mm/min |
Engraving speed | >6000mm/min |
Machine accuracy | 0.03mm |
Control system | NC Studio controller(standard); DSP or Mach3 4 axis control system for desktop computer for option |
Suitable software | Artcam, Type3, Ucancam V9,etc |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Running environment temperature | 0-45 ºC |
Relative humidity | 30%-75% |
Certificate | CE |
Product Details Of 3D Model Making Machine

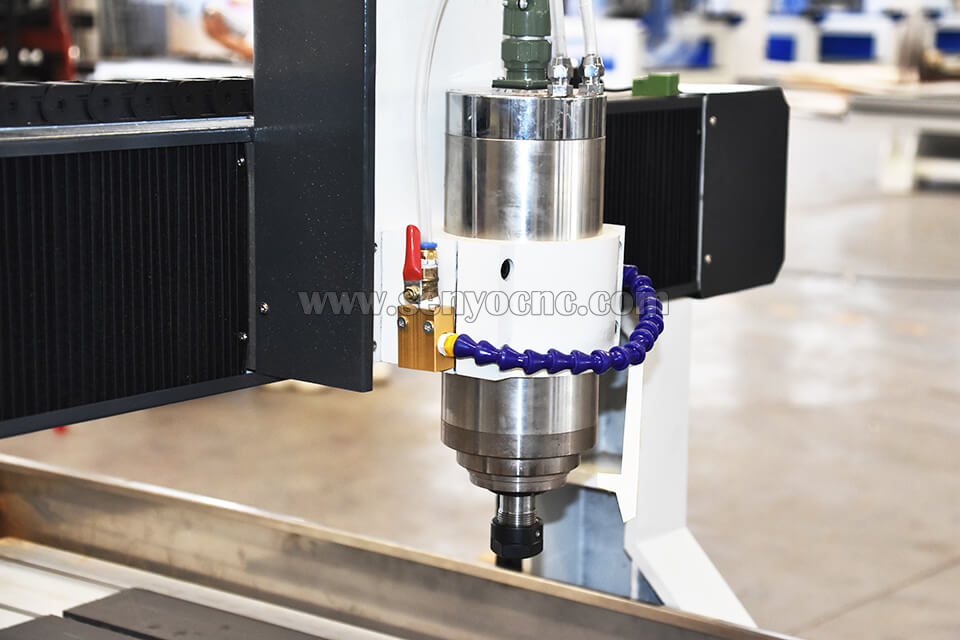

- High precision
- Long-life
- Higher Power

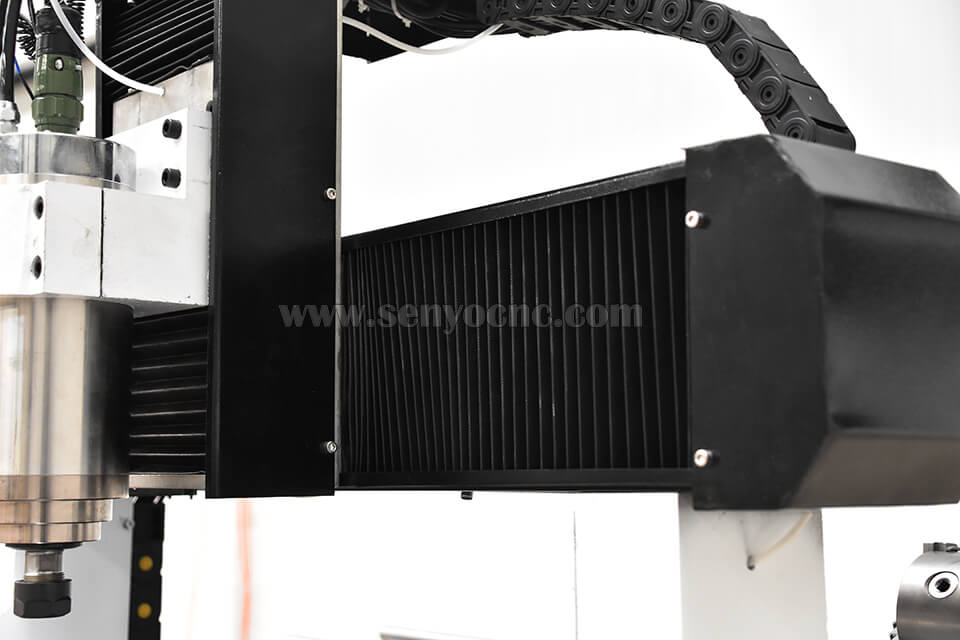

Taiwan HIWIN linear guide with Helical rack
High-quality line drag line, neat, clean, simple and efficient
- High precison
- Running smoothly
- Long-life

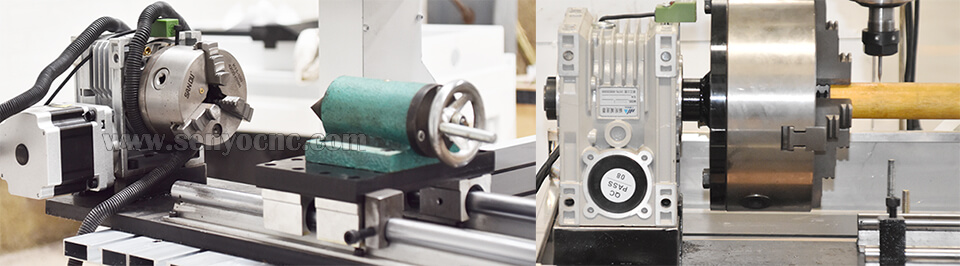

Optional rotary shaft, four axis four linkage engraving machine can engrave 360 °, which is a necessary kit for three-dimensional engraving

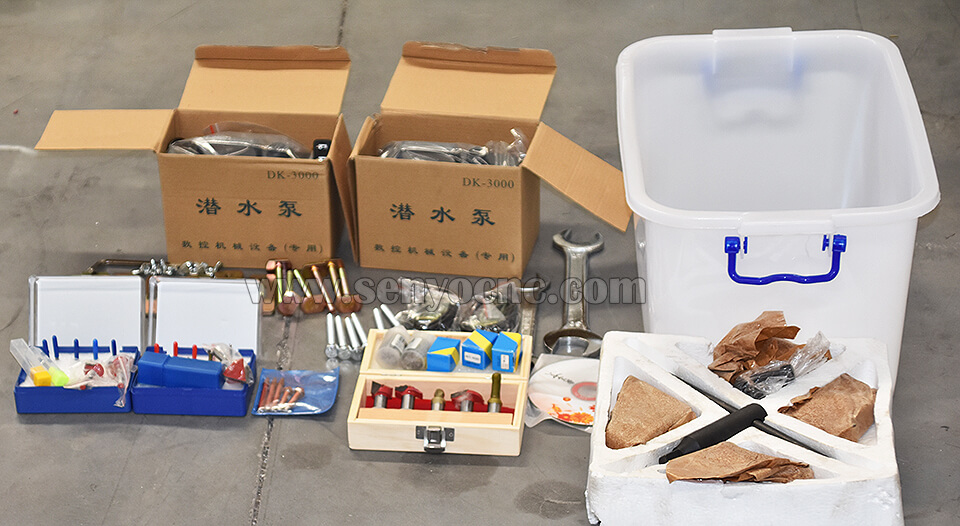

Tools Machine Include All Operation Parts
Application Of 3D Model Making Machine
1.Wood furniture industryWave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,
cupboard doors, interior doors, sofa legs, headboards and so on
2. Advertising industrySignage; Logo; Badges; Display board; Meeting sign board; Billboard. Advertising filed,
sign making, acrylic engraving and cutting, crystal word making,
blaster molding, and other advertising materials derivatives making.
3. Die industryA sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand ,
plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decorationwood crafts; gift box; jewelry box.
5. OthersRelief sculpture and 3D engraving and Cylindrical object.

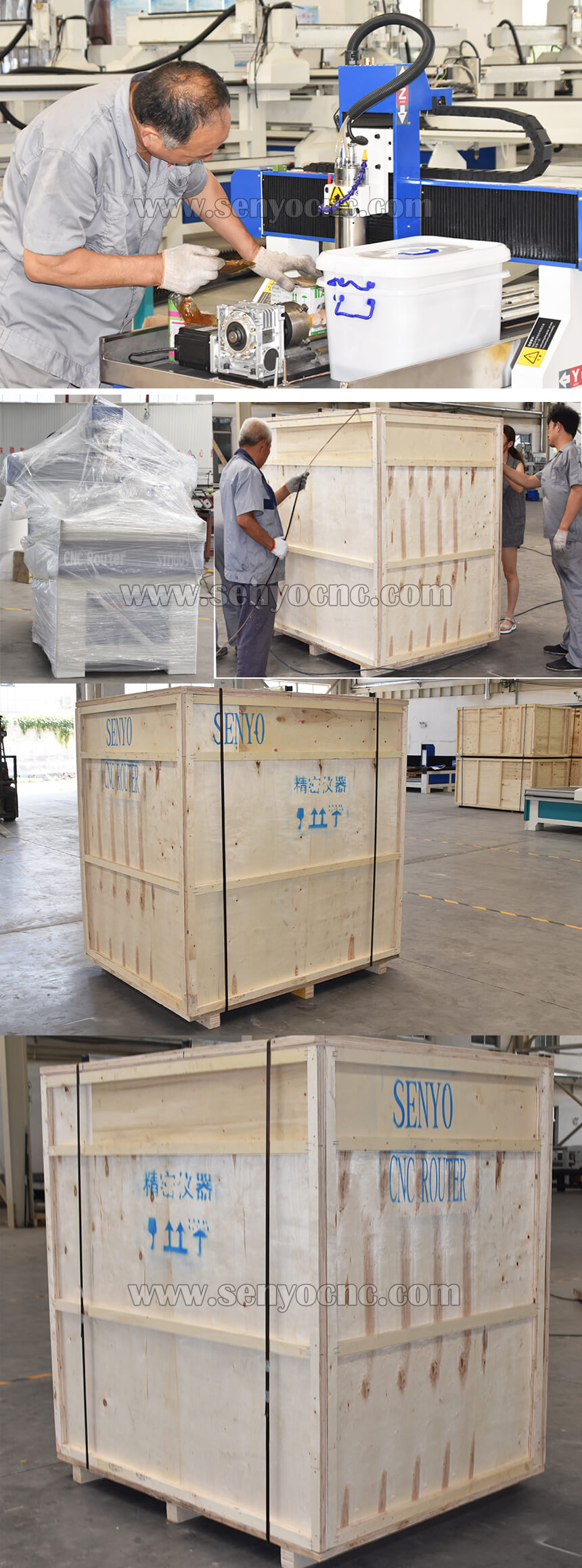

Packing & Delivery
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.

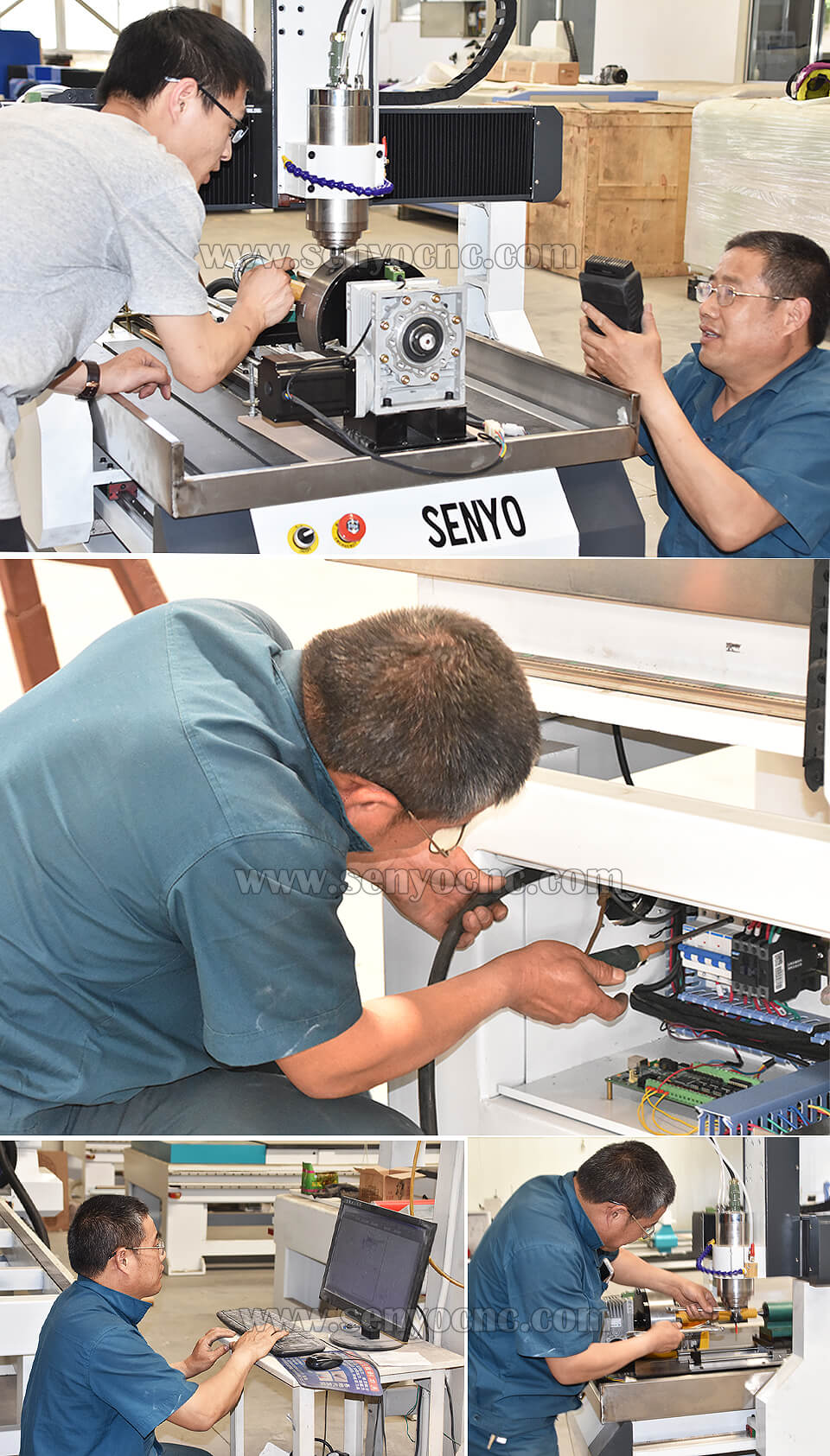

Enginner Test Of 3D Model Making Machine
As a professional CNC router manufacturer from China, SENYOQC has all kinds of CNC router for sale, such as 3 axis CNC router series,
4th axis CNC router series, 4 axis CNC router series and 5 axis CNC router series.
You can get the best CNC router price from manufacturer directly without any CNC router distributor.
Don't hesitate any more, tell us your needs to buy a affordable CNC router from SENYOQC.
International Shipping
Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS.
You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements,
we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
