1. Professional laser optical system, imported lens and mirrors, stable and reliable;
2. Efficient and stable programming and control system , easy to learn and user-friendly, compatible with a variety of CAD drawing formats, intelligent layout to save costs, automatic cutting path, matching to save processing time;
3. Low energy consumption and low use cost;
4. High cutting efficiency, high cutting quality, no noise;
5. High precision motor guide rail, pure copper gear and good quality rack , while ensuring the processing efficiency and accuracy Greatly improve the equipment running stability and reliability.
What is Acrylic Laser Cutter?
Acrylic is a transparent plastic homopolymer known more usually by the trade name "plexiglass". Acrylic is very similar to polycarbonate in that it is suitable for using as an impact resistant alternative to glass. There are clear, white, black, bullet-resistant, mirrored, matte finish, non-glare, sandblasted (frosted), or UV filtering acrylic sheets in the world. When you work on acrylic engraving and cutting in your work shop or home shop, you should buy a laser cutter with CO2 laser source. So, Let's take a guide to learn what is a laser cutter for acrylic?
What is Plastic Laser Cutter?
A laser plastic cutting machine is a type of CNC laser cutter for polyethylene terephthalate (PET or PETE), high-density polyethylene (HDPE), polyvinyl chloride (PVC or vinyl), low-density polyethylene (LDPE), polypropylene (PP), polystyrene (PS or styrofoam), and other plastics.
Plastic laser cutting machine is mainly used to cut various polymer materials such as engineering plastics, foam plastics, general plastics. The laser plastic cutting machine has accurate cutting, fast speed, simple operation, personalized processing process and precision, simulation display of laser head running track, multiple path optimization functions, and adopts professional automatic typesetting system to ensure maximum materials & costs saving.
Best Acrylic Laser Cutting Machine Features

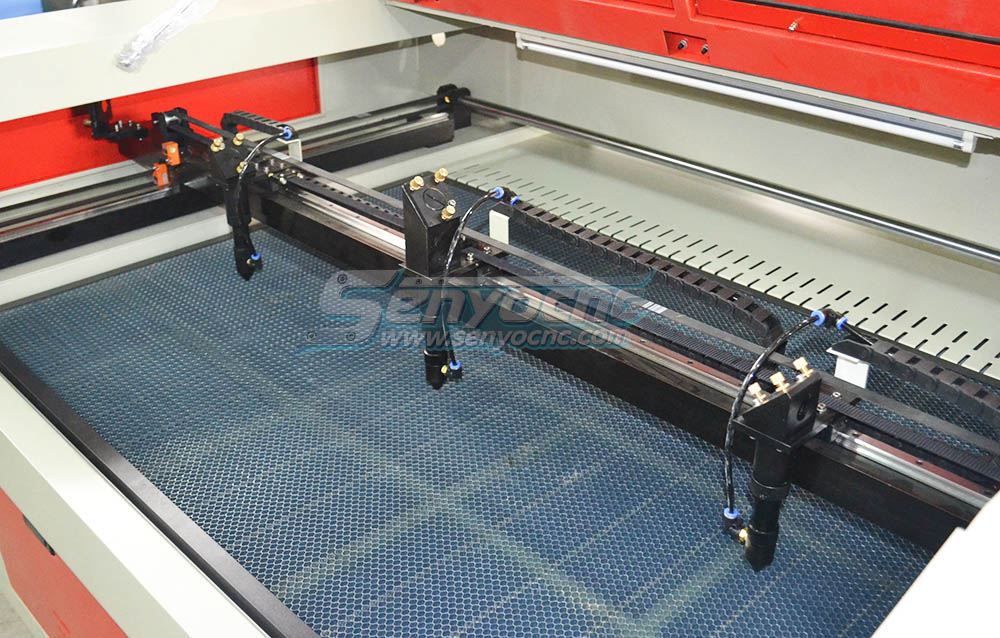

1. Taiwan HIWIN square linear guide rail installed on X Y axis, make sure the works stably and precisely.
2. The acrylic laser cutter machine is equipped with square tube framework, with more than 40% higher fuselage strength than iron sheet structure. This design prevents the laser machine from quivering, resonance and distortion during long term work.

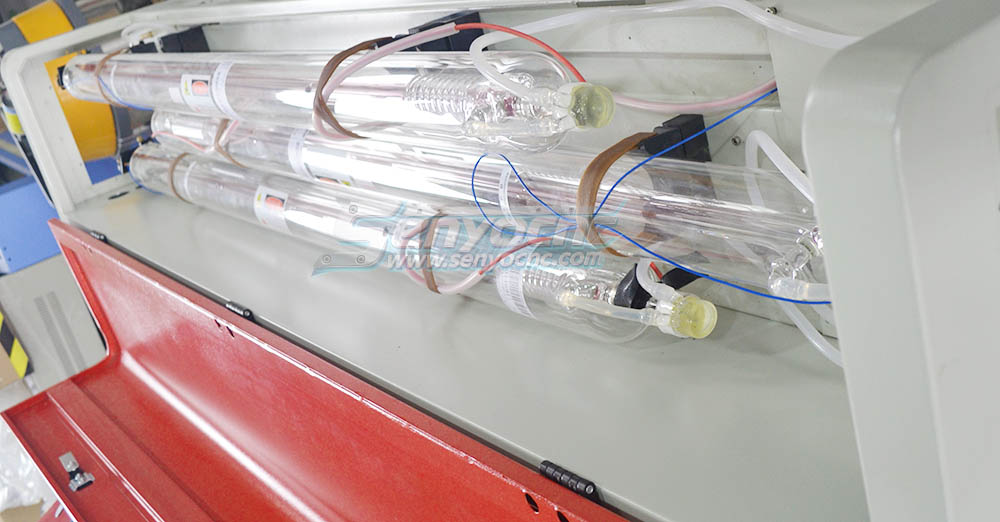

3. New-style high-efficiency laser tube is adopted. Laser beam is more stable than the traditional type. Usage age is more than 10000 hours.
4. Red dot position system is added in standard configuration, contributing to simple and precise working position.
5. Humanized and modern appearance showing RECI's consistent humanity idea, making operation and maintenance quite easy.

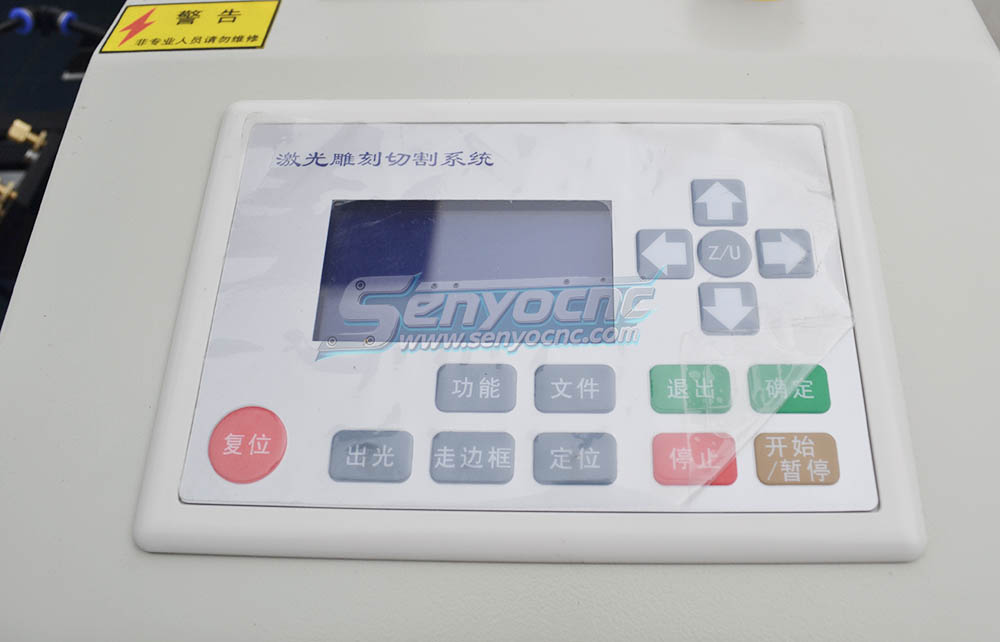

6. Advanced DSP control system, with professional motion control chip, has the function of consecutively high-speed curve cutting and the shortest path selection, which largely improves your working efficiency.
7. USB offline control system makes the operation more convenient and faster.
8. Automatic up-down table can be chosen for thicker materials and higher objects.
Techology Paramaters

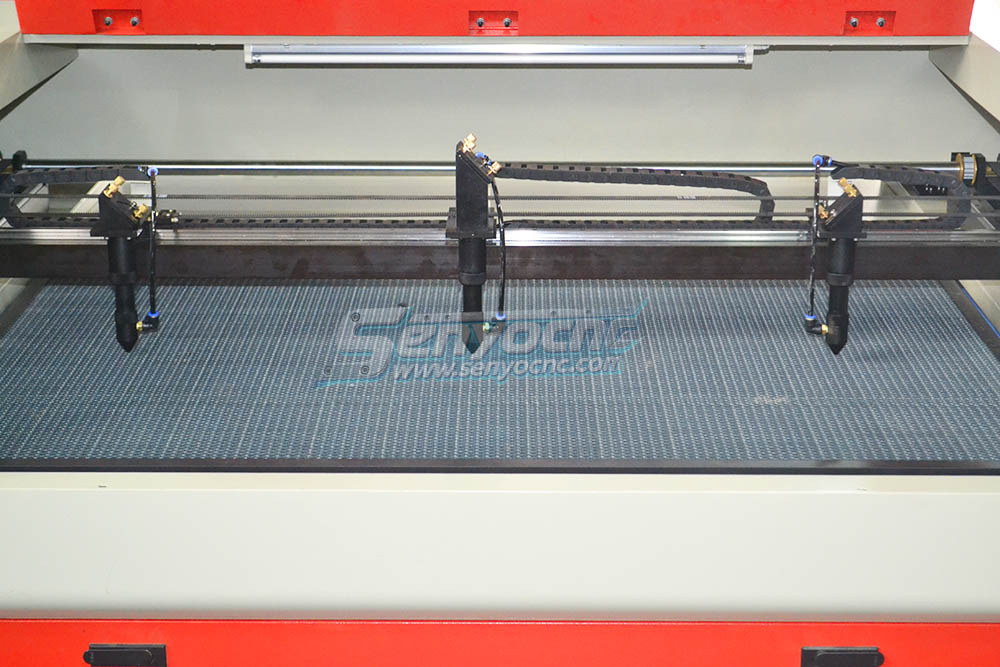

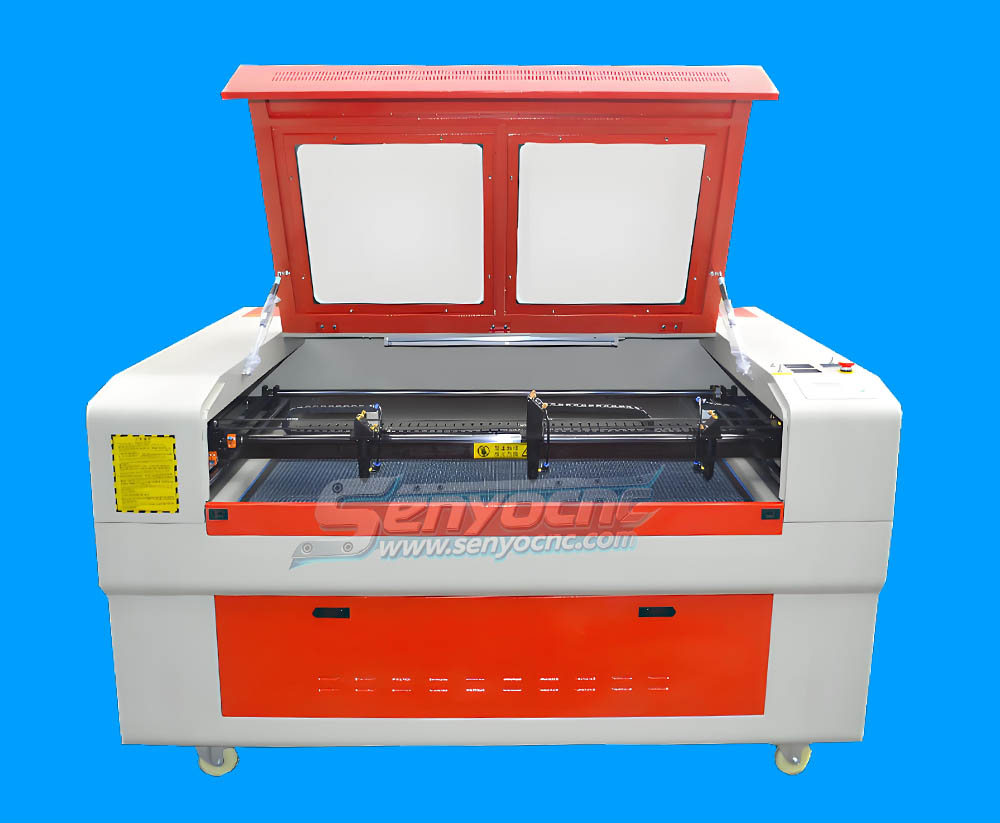

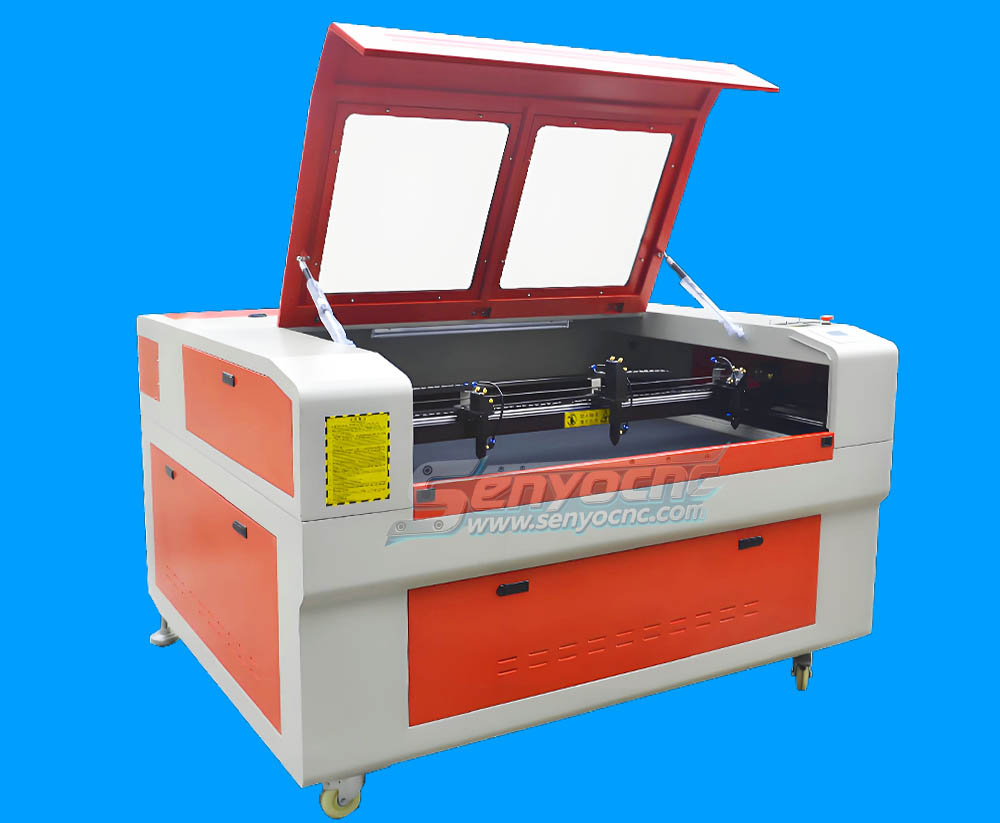

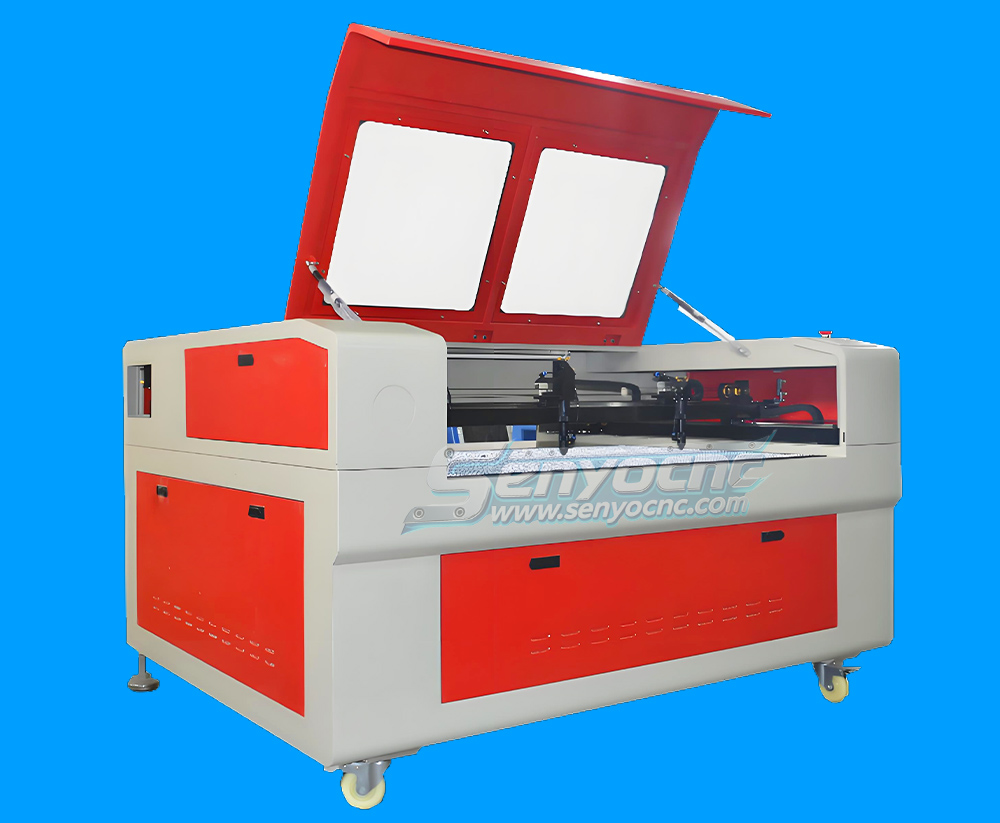

Model | SYJ1610-3 heads |
Working Table Size | 1600mm*1000mm |
Laser Tube brand | EFR/ reci/YONGLI |
Warranty of Laser tube | for Global Warranty |
Lifetime of Laser tube | 10000 Hours |
Control System | RUIDA |
Working Table | Thickened honeycomb platform or blade platform |
Long material pass through front and back | Support |
Laser Power | All can choose |
Cutting Speed | 1-10000mm/min |
Engraving Speed | 1-60000mm/min |
Resolution | ±0.05mm/1000DPI |
Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
Support Files | BMP,HPGL,PLT,DST and AI |
Interface | USB2.0 |
Software | RD works |
Computer system | Windows XP/win7/ win8/win10 |
Motor | Stepper Motor |
Power Voltage | AC 110 or 220V±10%,50-60Hz |
Power cable | European Type/China Type/America Type/UK Type |
Working Environment | 0-45℃(temperature) 5-95%(humidity) |
Power consumption | <2000W (Total) |
Position system | Red-light pointer |
Cooling way | Water cooling and protection system |
Package | Standard plywood case for export |
Warranty | All life free tech support, one year warranty, except consumables |

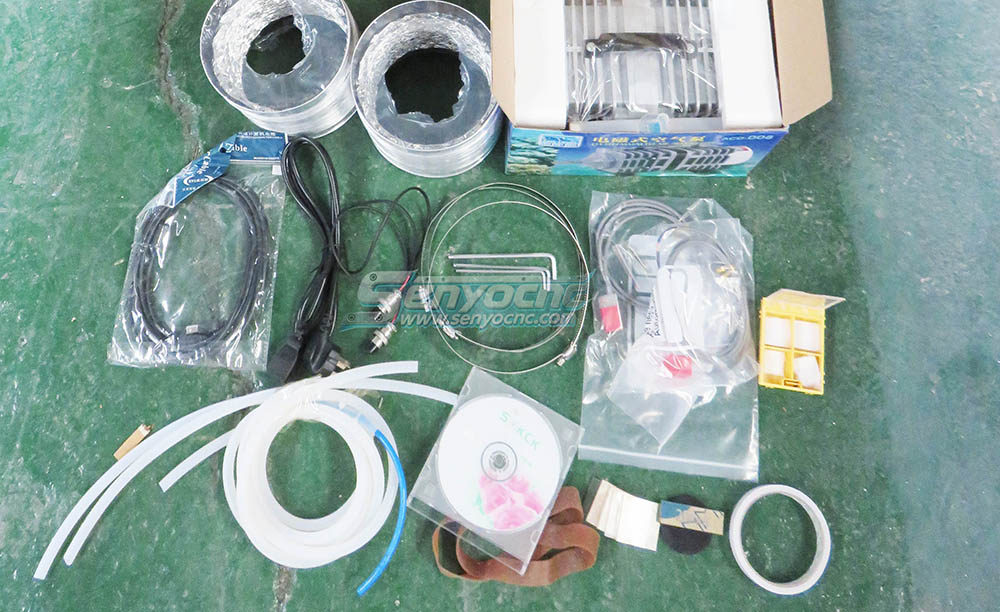

Optional parts | Spare focus lens Spare reflecting mirror Spare rotary for cylinder materials Industrial Water Chiller |
Applicable Industries
Electronics Industry, clothing industry, leather industry, furniture industry, decoration industry, arts and crafts industry, advertising industry, packaging and printing industry, model industry (building model, aviation and marine model, wooden toys) , industrial panel cutting, punching, proofing, drawing line precision processing areas.
>> Printing and packaging industry: Rubber laser engraving (laser engraving machine) ; paper products laser cutting machine (flannelette paper cutting laser cutting machine, paper hanging money (money) laser cutting machine) and so on.
>> Arts and crafts industry: Bamboo laser engraving machine; Wood Laser Engraving Machine; Mahogany laser Engraving Machine; two-color Plate Laser Engraving Machine; box laser engraving machine and so on.
>> Advertising industry: plexiglass laser Engraving (cutting) machine; various kinds of plaque laser production;. Two-color plate laser engraving and so on. Leather clothing industry: all kinds of shoes, artificial leather cutting and surface pattern carving, cutting; all kinds of clothing, fabric textile pattern cutting.
>> Garment Industry: Laser cutting machine, large format laser cutting machine;
>> Model Industry: Construction Model Laser Carving (cutting) production; aviation, navigation, model laser carving (cutting) production; Cartoon Character Model Laser Engraving (cutting) production, industrial sample model laser engraving (cutting) production.
Working Samples Project
How to Buy an Affordable Laser Cutter ?
How to purchase a budget-friendly laser with local pickup or global shipping? This is an annoyance you have to face after browsing and researching. You can do the majority of your shopping online by following the 8 buying steps below. Let's walk you through each step of the buying process.
Step 1. Request A Consult.
You can have a free pre-sales consultation with our sales manager, stating the type of wood you would like to cut, its size and thickness, as well as the shape and profile you require. You can find a variety of power and table size options. We will suggest you the affordable model with fast speed, high precision, good quality, and professionalism to match your specific needs.
Step 2. Get Free Quotation.
We will offer you with our detail quotation based on your consulted cutter. You will get the best machine specifications and the affordable price within your budget.
Step 3. Sign A Contract.
You need to review the purchase agreement to ensure that it accurately reflects your needs and the details of the laser wood cutter you specified, including payment information, terms and conditions, and then sign a contract to stipulate the responsibilities of both parties to ensure the completion of the buying process.
Step 4. Build Your Machine.
We will place a production order with the manufacturing plant and start the machine building process as soon as receiving your signed sales contract and deposit. During the manufacturing process, we will keep you updated with the latest news about your cutter with pictures or videos.
Step 5. Inspection.
The entire manufacturing process is subject to regular inspections and strict quality control. Your machine is inspected before leaving our factory to ensure it is free of defects and can cut wood as you expect.
Step 6. Shipping & Transportation.
After you confirm that the machine meets your requirements, we will start shipping to the agreed address according to the terms of the contract. You can ask for transport information at any time.
Step 7. Custom Clearance.
Customs clearance is an essential step in cross-border transactions. We will provide you with all the documents required for customs clearance at any time.
Step 8. Support & Service.
We can provide professional technical support and free customer service by phone, email, Skype, WhatsApp, online live chat, remote service. We also provide door-to-door service for all types of wood laser cutters in some areas.
Laser Cut Wood Tips
With the development of optoelectronic technology, laser cutting technology has a wider range of uses, and customers' requirements for cutting accuracy have also increased. Generally, there are four factors that affect laser cutting: cutting speed, laser power, cutting accuracy, and material. The first three factors are determined by the quality of the laser equipment itself, and the material is determined by the outside.
Wood is the most commonly used material for laser machining. Generally speaking, it is easy to engrave and cut. Light-colored woods such as birch, cherry or maple can be well gasified by laser, so they are more suitable for engraving & cutting. It has its own characteristics, and some are denser, so before cutting wood, you should first study the characteristics of wood.
The basic principle of wood laser cutting is basically the same as that of laser engraving. Both use high-energy-density laser beams to convert heat energy, which instantly causes wood thermal decomposition and carbonization, thereby removing part of the material. Compared with laser engraving, laser cutting cutting requires a lot of energy, and laser engraving does not need to cut through the workpiece, so the energy required is relatively small. Laser wood cutting generally uses non-contact cutting methods. Compared with traditional mechanical cutting methods, laser wood cutting has significant advantages such as no wood chip pollution, no tool wear, no need to change tools, and no noise pollution. Not only the patterns cut out are more beautiful than those cut out by traditional machine tools, but also the cost-saving effect is obvious.
For Our Work Steps
1.Before-sale,we will try to know your requirement about our cnc router specification and what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,
calling, video or mail.
Factors Affecting Laser Cutting Performance
Laser cutting machines provide impressive precision and speed, but various factors can influence their performance. Understanding these factors ensures optimal cutting results and enhances the machine’s lifespan. Below are key aspects that affect laser cutting performance for both metal and nonmetal materials:
1. Material Type and Thickness
The type and thickness of the material being cut significantly impact the laser’s ability to achieve clean cuts. Thicker materials, particularly metals, may require higher laser power or slower cutting speeds, while softer materials like plastics and wood can be cut more easily.
2. Laser Power and Focus
Laser power and focus play a critical role in achieving precise cuts. Higher power allows for faster cutting of thicker materials, while proper focusing ensures that the laser beam stays sharp and accurate, preventing errors and inconsistencies.
3. Cutting Speed
The speed at which the laser moves affects the cut quality. Faster speeds can lead to incomplete cuts or poor edge quality, while slower speeds may improve accuracy but increase production time. Finding the right balance is crucial for optimal results.
4. Gas Assist and Pressure
The type of assist gas (such as oxygen, nitrogen, or air) and the pressure used during cutting help remove molten material and prevent oxidation. For metals, oxygen can improve cutting speed, but nitrogen can produce cleaner edges. Incorrect gas pressure can lead to rough edges or excessive heat.
5. Material Surface Quality
The surface finish of the material can also impact cutting efficiency. Materials with rough surfaces or contaminants may cause the laser beam to scatter, resulting in inaccurate cuts. A clean, smooth surface allows for more precise and efficient cutting.
6. Beam Quality
Beam quality, which refers to the laser's focus and consistency, is essential for achieving clean cuts. A high-quality beam results in better precision and smoother edges, while a poor beam may cause uneven cuts or excessive heat in the material.
7. Environmental Conditions
External factors such as temperature, humidity, and air quality can affect the performance of a laser cutter. For example, excessive moisture in the air can lead to condensation inside the machine, potentially causing damage or inaccurate cuts.
How To Use?
It is very dangerous for a CO2 laser cutter to break down during work. Novices must be trained by professionals before they can operate independently. SENYO experts have summarized 13 easy-to-follow steps for safe work based on experience as follows.
1. Prepare the materials to be cut and fix them on the workbench.
2. Call the corresponding parameters according to the material and thickness.
3. Select the corresponding lens and nozzle according to the cutting parameters, and check whether they are in good condition.
4. Adjust the cutting head to the appropriate focus.
5. Check and adjust the centering of the nozzle.
6. Calibration of cutting head sensor.
7. Check the cutting gas, enter the command to open the auxiliary gas, and observe whether it can be ejected from the nozzle well.
8. Trial cut the material, check the cross-section, and adjust the process parameters until the production requirements are met.
9. Prepare the cutting program according to the drawing required by the workpiece, and import it to the controller.
10. Move the cutting head to the starting point to be cut, and press "Start" to execute the cutting program.
11. The operator is not allowed to leave the machine tool during the cutting process. In case of emergency, quickly press the "Reset" or "Emergency Stop" button to terminate the operation.
12. When cutting the first workpiece, stop cutting to see if it meets the requirements.
13. Pay attention to check the auxiliary gas flow when cutting, and replace it in time when the gas is insufficient.
How To Maintain?
A CO2 laser cutter must be cared for and maintained regularly and regularly, so that it can engrave and cut more accurately and at a higher speed for you, which can also prolong the service life of the machine. We summarizes 13 maintenance tips for everyone as follows.
1. When using the machine, the device should be turned on or off in strict accordance with the correct boot sequence.
2. The machine shell, laser power supply, and computer power supply must be well grounded. Regularly check whether the grounding screw is rusted or loose, and clean and fasten it in time.
3. Before starting work every day, observe whether the focusing lens is polluted, and clean it in time if any. Please be careful not to use too much force when cleaning the reflector, otherwise it will cause the optical path to shift! The maintenance of reflective lenses and focusing lenses at all levels should follow the principle of "cleaning in time if there is pollution". Special lens cleaner must be used for cleaning.
4. Before each machine works, please check whether each limit switch is working normally, so as to ensure that the equipment will not have collisions that affect the accuracy of the equipment during the working process. In addition, please pay attention to adjust the focal length and lock it tightly to ensure that the processing effect will not be affected by the decrease of the focal length, or even mechanical collision will occur.
5. If the moving parts such as trolley pulleys, slideways and linear guide rails are polluted or corroded, it will directly affect the processing effect. They should be cleaned regularly and lubricated on the guide rails to prevent rust.
6. After a long time of use (especially cutting), the honeycomb platform will stick to processing waste and even block the honeycomb holes. It may smoke or even burn when exposed to beam. It should be removed regularly.
7. The cooling water should be kept clean and replaced regularly. During processing, check whether the water level is sufficient and whether the water temperature is too high. It is strictly forbidden to use inferior circulating water. Poor-quality water can seriously affect the laser power and greatly shorten the service life of the laser tube. The damage to the tube caused by the use of poor-quality water by the user is not covered by the warranty. It is recommended to use pure water. The amount of cooling water should not be less than 30 liters, and the submersible pump must be submerged. During the working process of the machine, the water temperature must be checked at any time (the best working water temperature is 25~30°C, the maximum water temperature cannot exceed 35°C, and the minimum water temperature cannot be lower than 5°C). Once the water feels warm, it should be changed immediately. The water change method that does not affect the work is to discharge part of the hot water and then flush with cold water. Every three days, the water tank, water pump (especially the filter sponge of the water pump) and the water inlet and outlet hoses must be cleaned.
8. The laser tube is cooled by circulating water, so some white scale will appear in the tube after long-term use. We can add a small amount of vinegar to the circulating water, then take out the groove and rinse its interior with clean water to keep it in the best working condition and prolong its service life.
9. Pay attention that the smoke exhaust port and the exhaust duct cannot be blocked, and check and remove the obstruction at any time to keep it unblocked.

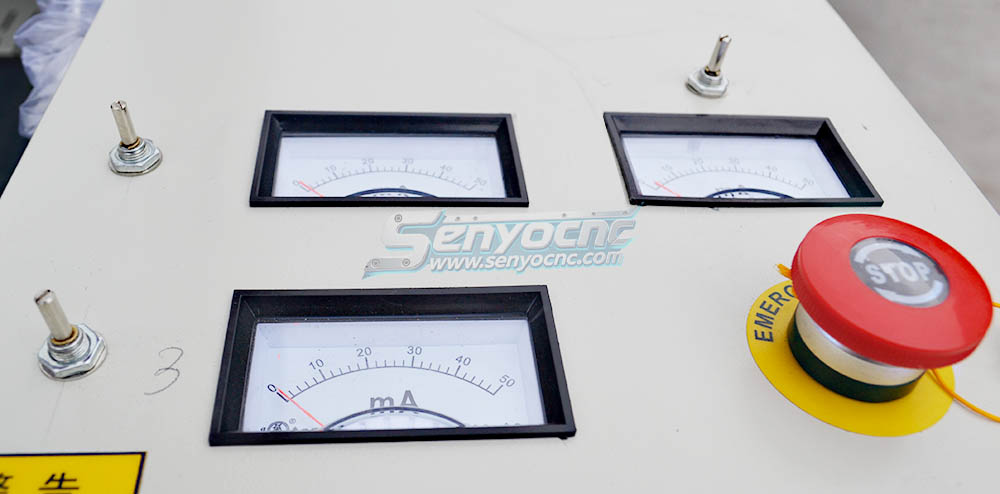

10. Adjust the light intensity not to exceed 20MA to prevent rapid aging of the laser tube.
11. Before starting work every day, the lens must be cleaned once.
12. Clean the reflector carefully on the machine, otherwise the optical path must be readjusted.
13. The third radiation mirror and focusing mirror must be removed and cleaned. After cleaning, the lens installation must be firm, but not too tight, so as not to break the lens.
14. Before each operation, please pay attention to the focal length. Inaccurate focal length will seriously affect the engraving effect.
15. After each operation, the work surface should be cleaned briefly. When cleaning, be careful not to fly dust.
16. Cleaning should be done after each operation. When doing cleaning work, when the power is cut off, you can gently push the beam and trolley, but it is strictly forbidden to push and pull violently.
17. Check the water protection switch regularly (once in half a month) to determine whether it is working normally.
18. Every other week, the guide rails must be cleaned, and lubricating oil should be added to the moving guide rails.
19. Every other week, clean up the peripherals of the machine (such as fans and air pumps).
20. After the machine works every day, it should be cleaned well. In the case of power failure, you can slowly push the focusing lens group and the X-axis guide rail seat, and it is strictly forbidden to push and pull violently. The bed body should be kept clean, especially the two linear guide rails. It is required to clean the oil stains on the guide rails and guide rail seats after work every day; transformer oil must be added to the linear guide rails and sliders before starting work the next day.
Package Of Machine
• The hobby laser cutting engraving machine is packed with cling films first and then film bags.
• The laser machine is packed with wooden case which is reinforced with the iron bar on the top and bottom.
• With this kind of package, all our laser machine can protect well during long trip by sea or by air.
Warranty
• The whole hobby laser engraving cutting machine: one year.
• CO2 Laser tube: 12 months (this is what laser tube supplier offer to us).
• Laser lens and mirrors: for one month. If the accessories are broken because of quality problems during warranty time, we will change it by free.
• 24 hour technical support online like skype, whatsapp, remote, you can calling us if urgent.
• We offer free training in our factory, and our engineers available to service machinery overseas, but the round-trip air tickets, hotel and meals for the engineers should be paid by our buyer.
1. CO2 laser cutting machine
2. CO2 laser engraving machine
3. CO2 laser cutter
4. Best CO2 laser machine
5. CO2 laser engraving
6. CO2 laser cutting for metal/wood/acrylic
7. CO2 laser machine for sale
8. CO2 laser machine price
9. Affordable CO2 laser cutter
10. CO2 laser cutting technology
