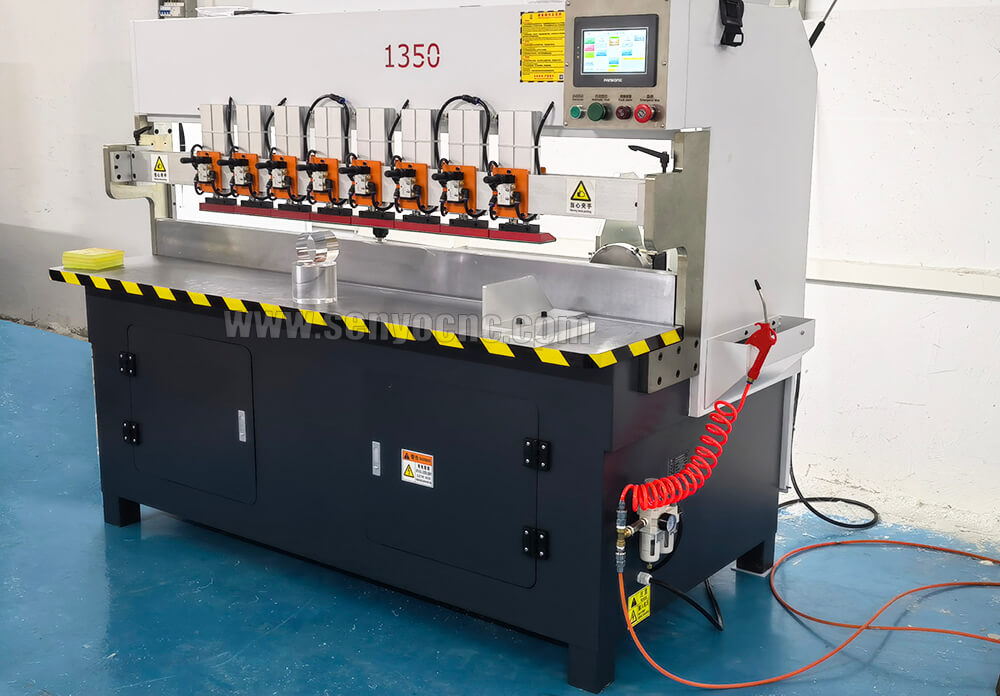

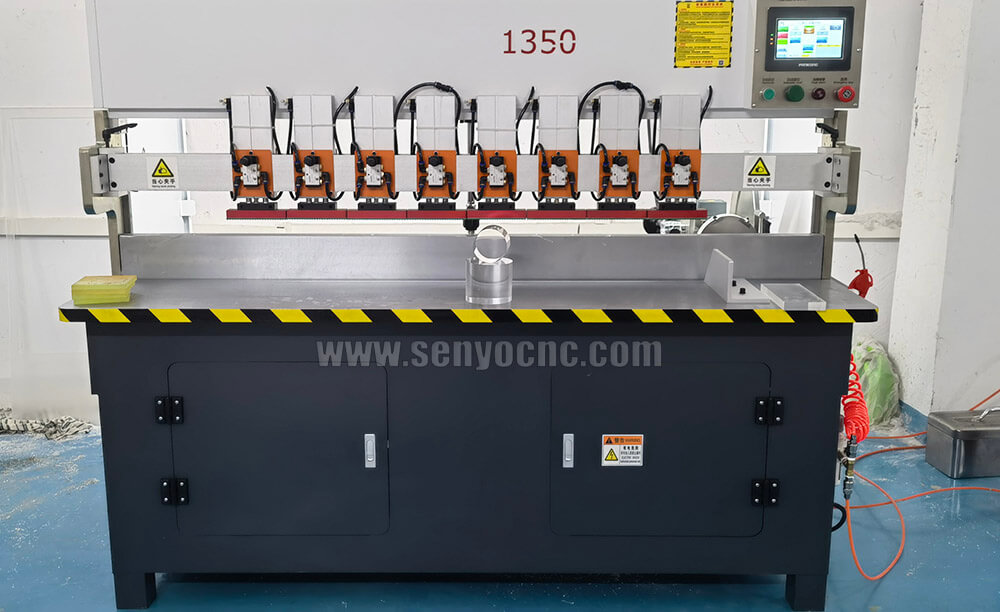

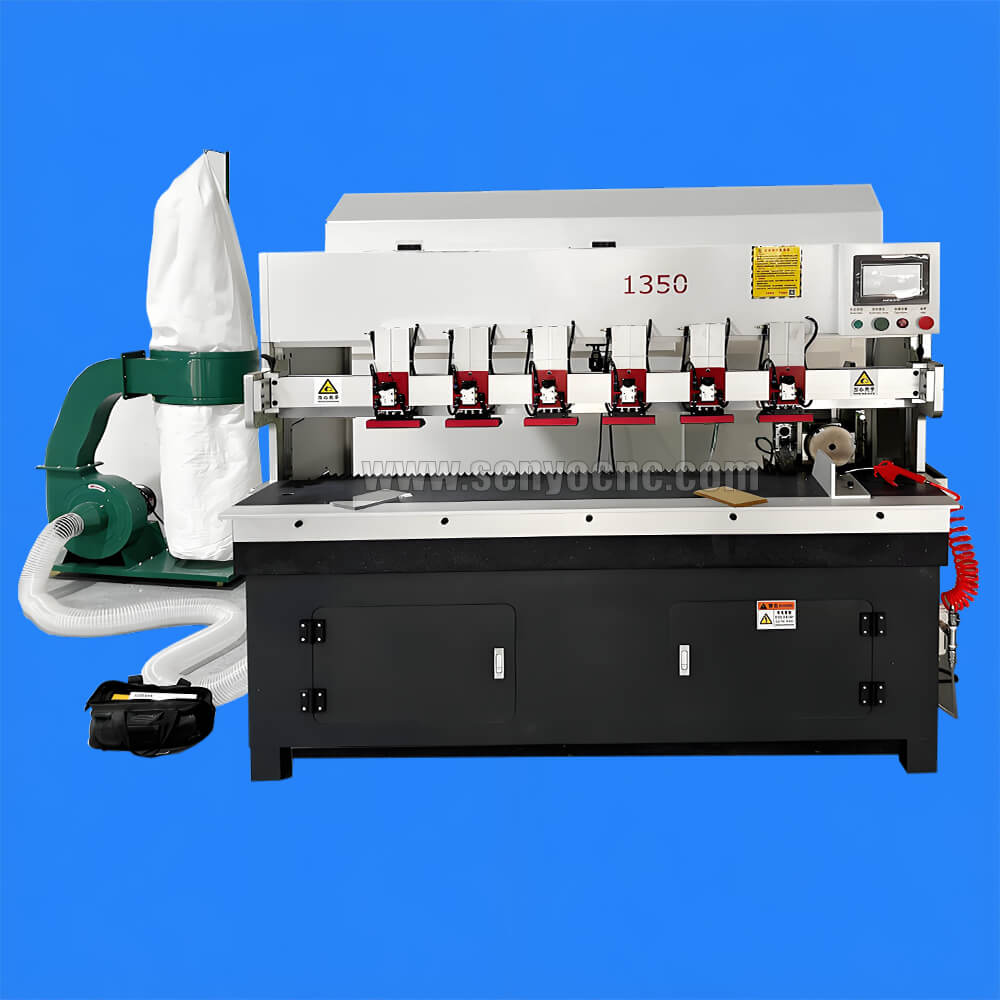

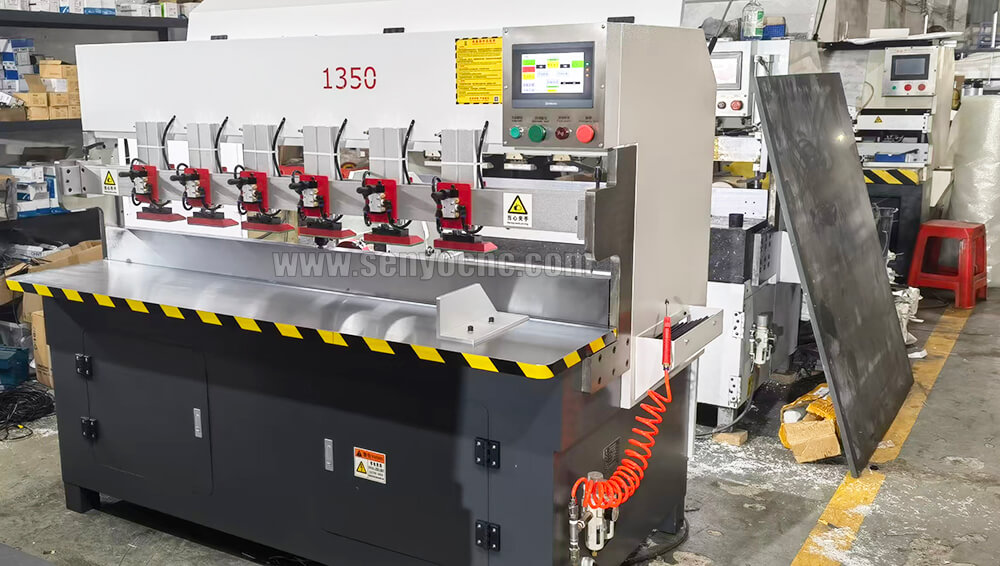

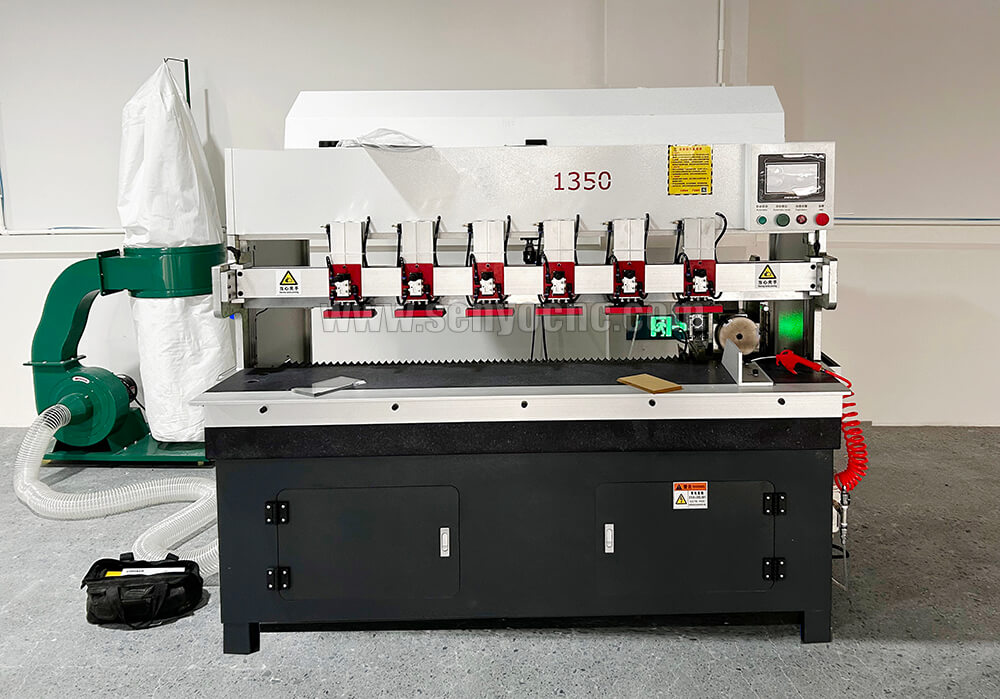

The 1350 Acrylic Diamond Edge Polishing Machine is a professional polishing solution designed for processing medium-size plastic sheets such as acrylic (Plexiglass), PVC, PE, PP, and PS materials.
It is developed for customers who require efficient edge finishing with high-quality optical polishing results.
1350 Acrylic Diamond Polish Machine is suitable for small and medium enterprises ,
which configures variable frequency electronic spindle, great motor and stable and logical control circuit,
greatly improving the reliability and security of the equipment.
Besides, this Machine uses diamond cutters to cut the surface of Plexiglass(Acrylic) and the light guide plate precisely to a minor effect,
which perfectly shows edges and shapes, transparency, neat, Straightness .no ash, low noise, low loss .
A machine to save labor for 3-5 people. this machine is Suitable for high-grade acrylic products, crystal products precision polishing processing.
Created high quality products and high efficiency, it’s best machine for acrylic manufacturer.
This machine uses a precision diamond polishing system and high-speed spindle motor to achieve smooth, bright, and transparent acrylic edges.
The diamond abrasive tool removes rough edges quickly and creates a clean, polished surface suitable for high-end acrylic products.
The 1350 model provides a larger working capacity compared with compact models and is suitable for processing advertising signs, acrylic furniture parts, display products,
industrial plastic components, and customized acrylic applications.
Machine Specification
Name | SYPL-1350 diamond surface polish plexiglass bevel edge acrylic polisher machine | |
Configuration | 1. Dongguan Taiwan-funded (Tianyi frequency conversion spindle motor), strong strength, stable performance, better polishing effect. 2. Use Taiwan TBI brand high-precision screw drive, and high-precision Taiwan PMl linear guide. 3. The working platform is made of natural marble, and the technical performance is more stable, ensuring that it will not be deformed for permanent use. 4. Using Taiwan Yonghong PLC and Taiwan Yonghong touch screen operation control system, stable logic control circuit, simple and easy to use. 5. Using Kedong frequency converter, Dongling servo drive and Dongling servo motor assembly to make the machine more stable. | |
Specification | Working volatge | 380V(3 phase,50-6-Hz) |
Total power | 3KW | |
Spindle speed | 0-10000R/Min | |
Cutting speed | 0- 1000mm/Min | |
Polish angle | 0 °- 60° | |
Cutting speed | 0 – 1·5mm | |
Cutting way | Automatic | |
Working area | 120mm X 1350mm(thickness*Length) | |
Air compressor | ≥ 0.45Mpa | |
Dust collector pipe port diameter | 80mm | |
Control system | Yonghong PLC touch screen operation control | |
Inverter | Kedong inverter | |
Driver | Dongling servo motor and driver | |
Transmission | Taiwan TBI screw, PMI square liner guide transmission | |
Wooden package size | 245*120*155cm(L*W*H) | |
Application | (Acrylic, plexiglass, light guide plate PS MS) and other materials polishing | |
Gross/Net weight | 1100kg/1200kg | |
Extra standard | One set of hexagonal key for tools and one set of polish knives (to ensure that the air pipe and power supply can be used) | |
Main Features:
* Professional diamond polishing technology for acrylic sheets
* Suitable for multiple plastic materials: PMMA, PVC, PE, PP, PS
* High-speed spindle ensures stable and efficient polishing
* Produces clear, transparent, and smooth polished edges
* Suitable for straight polishing and bevel edge processing
* Ideal for advertising, decoration, and acrylic fabrication industries
Parts Detials

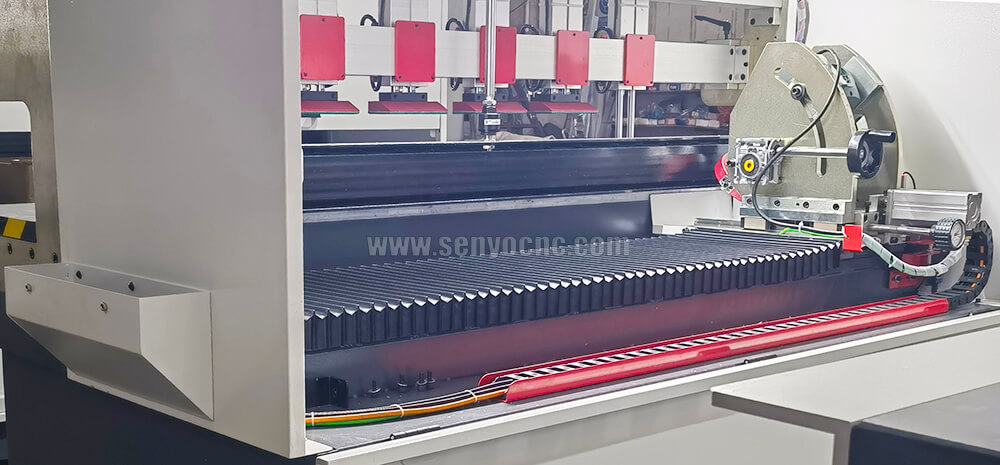

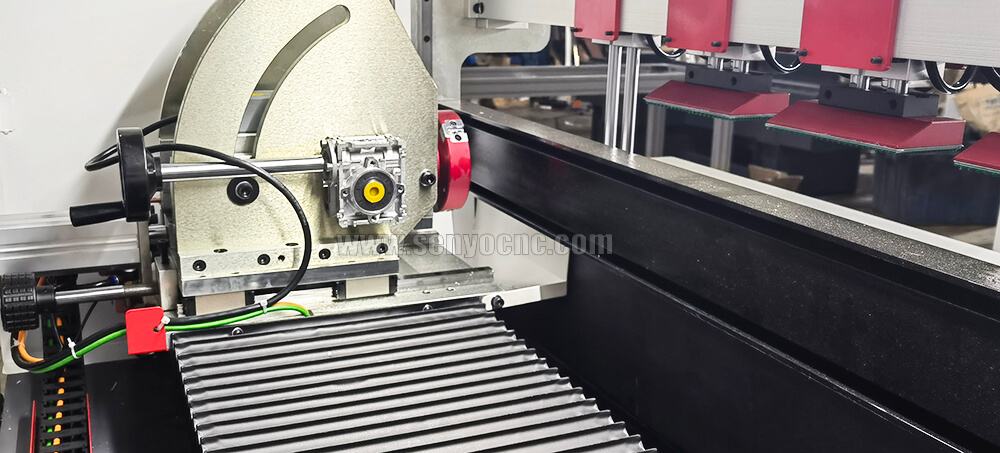

The cutterhead is detachable, with fast tool installation and accurate tool adjustment;

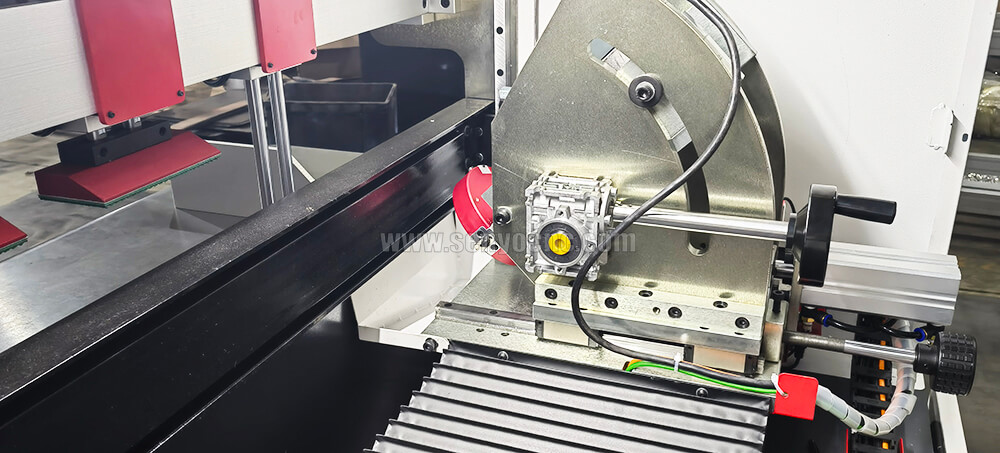

0-60 degree straight angle adjustable polishing, easy to handle different products

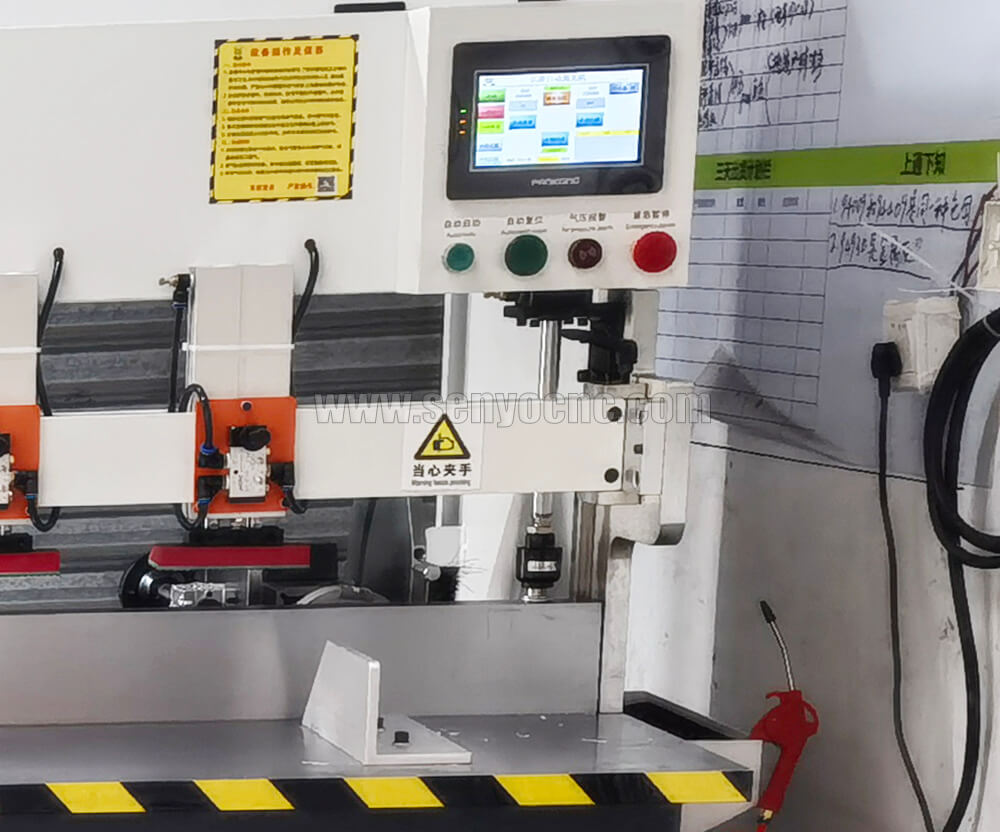

Stable material pressing, no damage to materials, simple operation, fast material clamping;
Acrylic Furniture & Interior Decoration IndustryIn the furniture and interior decoration industry, acrylic materials are commonly used for modern furniture, partitions, decorative panels,
Customized designs. The Acrylic Diamond Polish Machine provides precise edge polishing for acrylic panels,
Ensuring clean and elegant edges without scratches or rough surfaces.
It helps manufacturers achieve premium-quality products with a high-end transparent crystal appearance.

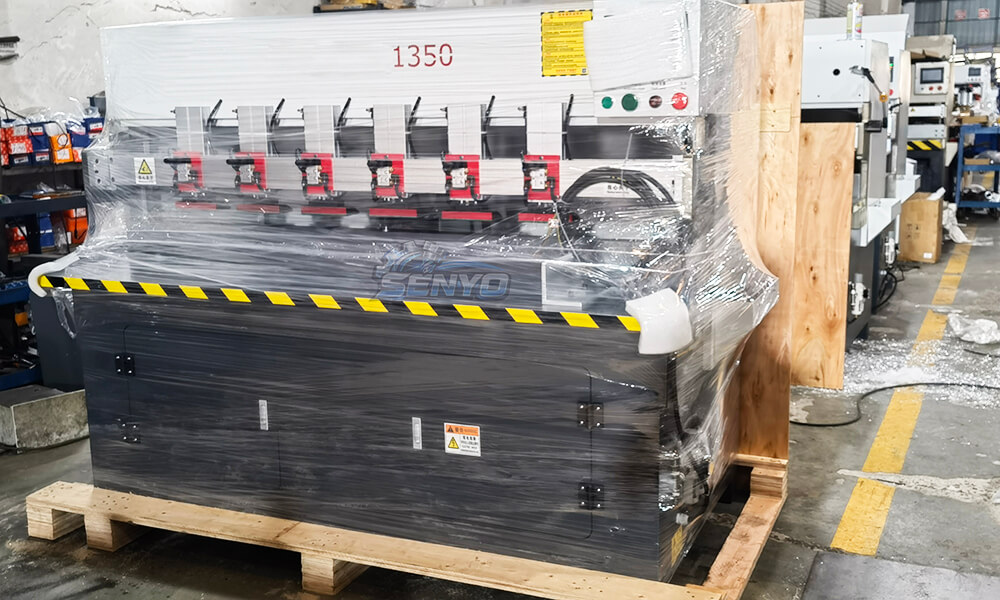

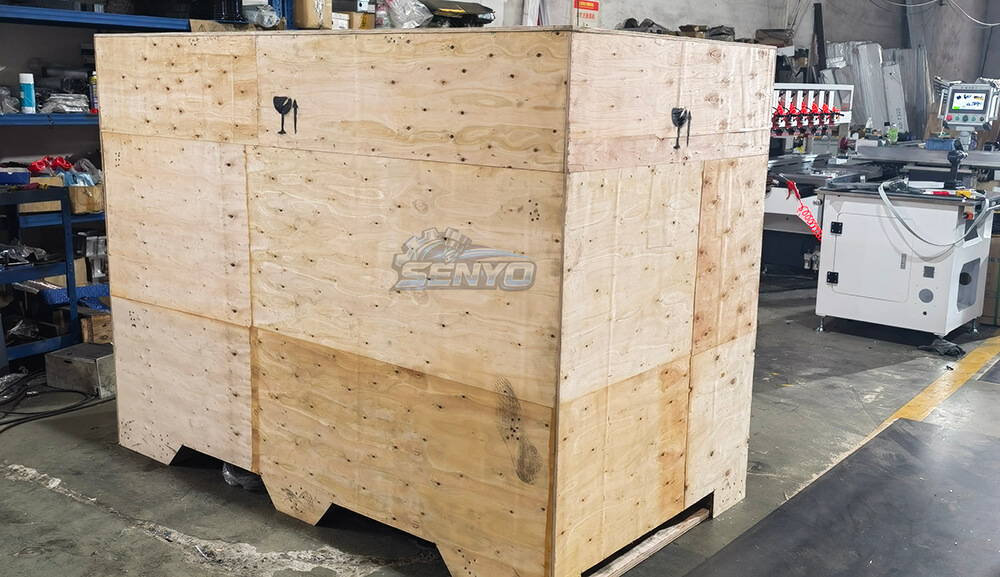

Packaging Details:
• Outside package: Standard marine export plywood case.
• Inner package: Stretch film and plastic film for humidity.
We can package according to your requests.
Training
1. Installation video and User's Manuals and instructions with the machine.
2 .Remote training.
3. Overseas training
service, but the round-tickets and accommodation should be paid by client.
Warranty And Service
• 24 months whole machine warranty and maintenance for a lifetime.
• Free installation and testing before shipping and free training for operators
• Advice for the best CNC solutions for customer's requirements.
• Free training and sample making.
• 7/24 free service and support.
* CNC Acrylic Polishing Machine
* Automatic Acrylic Polishing Machine
* Industrial Acrylic Polisher
* Acrylic Processing Machine
* Plastic Sheet Polishing Machine
* Plastic Edge Polishing Machine
* Precision Acrylic Polisher
* Acrylic Fabrication Machine
* Acrylic Cutting And Polishing Machine
• Next: 1650 Acrylic Diamond Edge Polishing Machine with High-Speed Spindle – Large Size Plexiglass Polisher
Neuter Oxy-Hydrogen Flame Polishing Machine for Acrylic & Plastic Edge Finishing

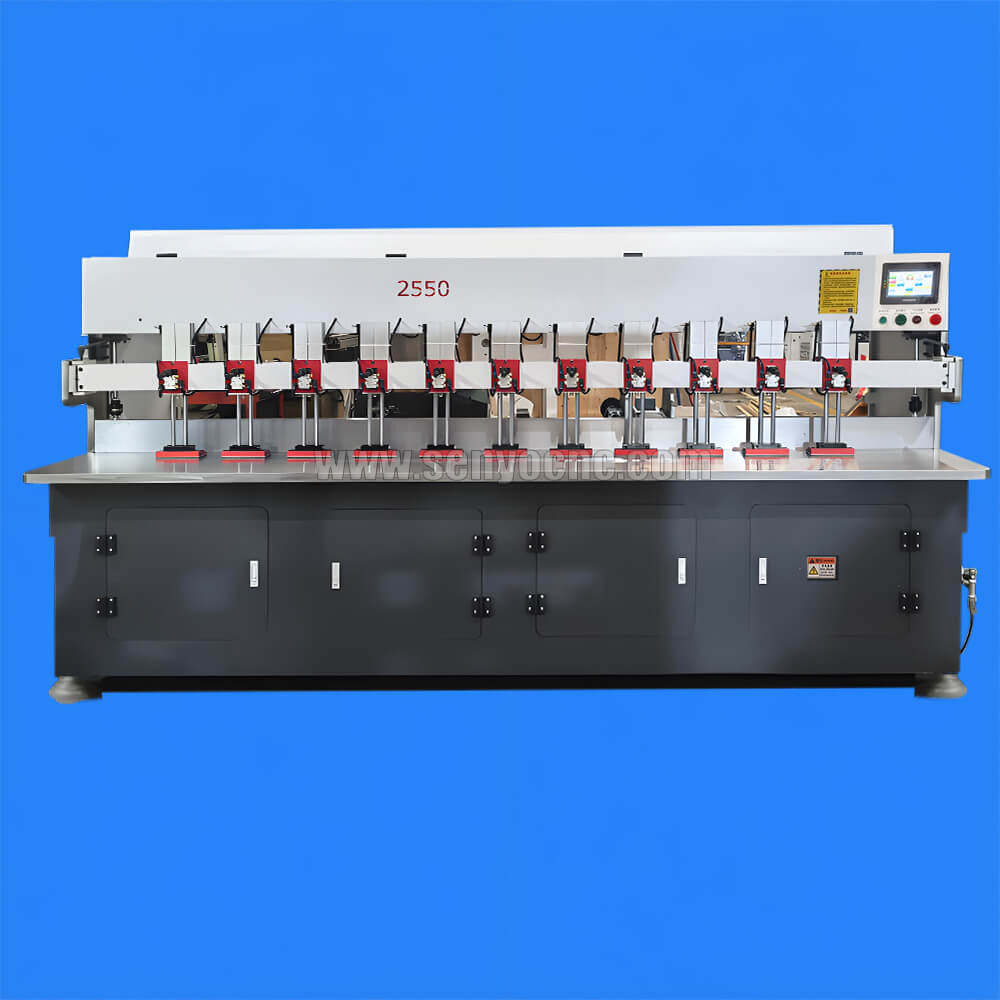

2550 3100 Acrylic Diamond Edge Polishing Machine for Large Plexiglass Sheets – Industrial Acrylic Polisher

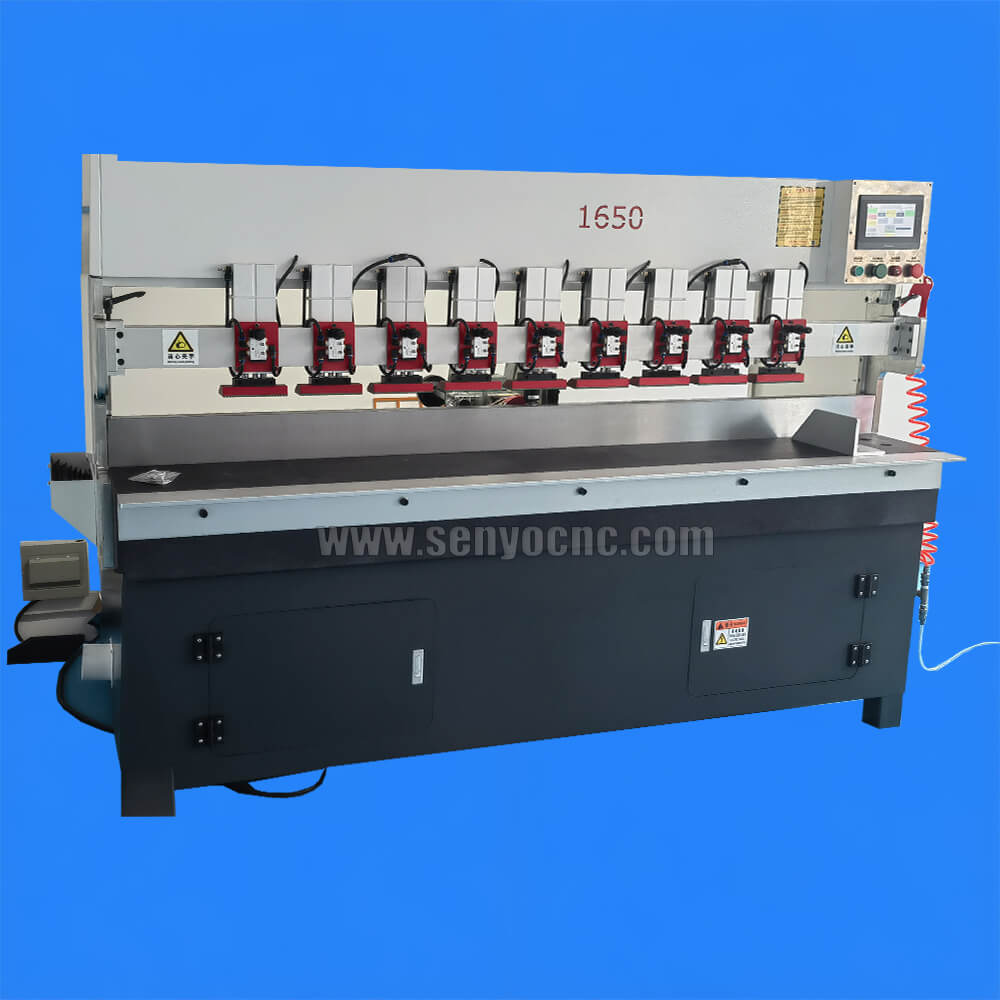

1650 Acrylic Diamond Edge Polishing Machine with High-Speed Spindle – Large Size Plexiglass Polisher
1350 Acrylic Diamond Edge Polishing Machine for Plexiglass Sheets – High Speed Acrylic Polishing Equipment

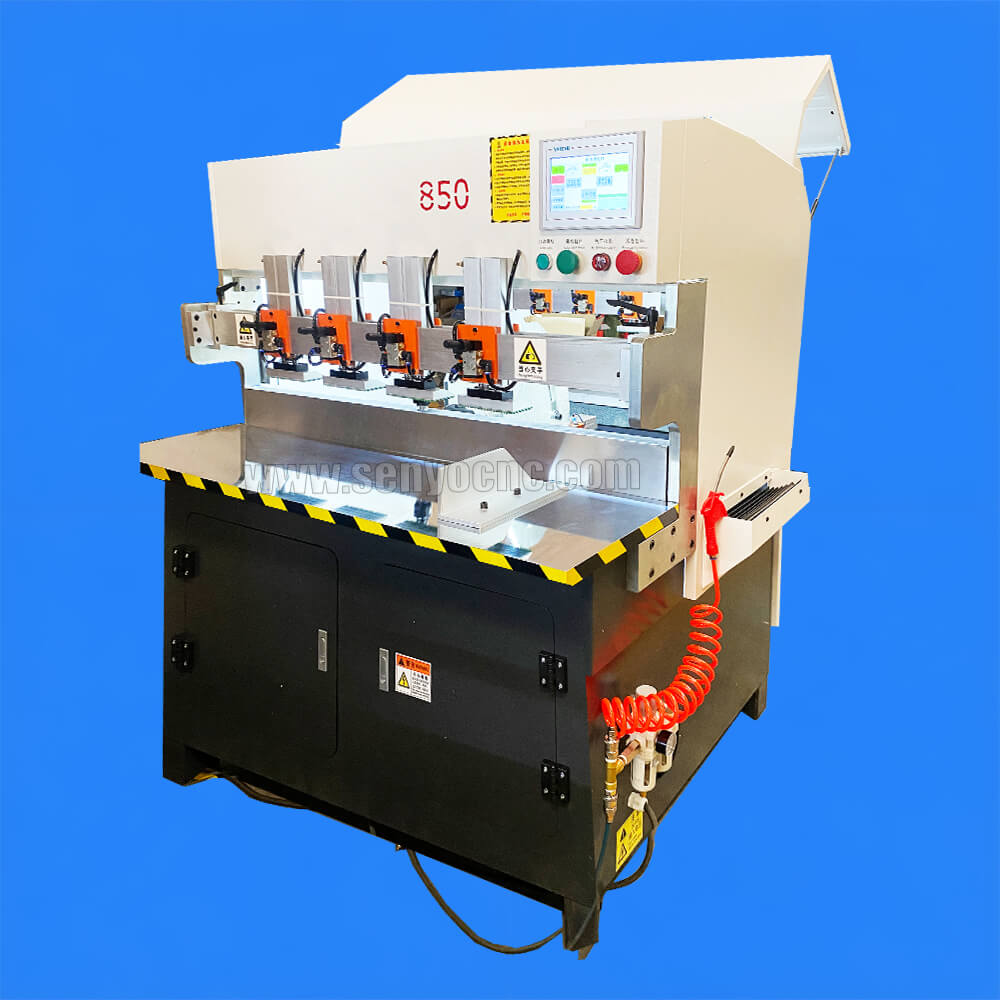

850 Acrylic Diamond Edge Polishing Machine for PVC/PE/PP/PS/Plexiglass Sheets – Compact High Precision Acrylic Edge Polisher
