This multifunctional 4+1 axis stone bridge cutting machine is ideal for complete kitchen countertop processing.
It supports automatic 45° miter cutting, sink hole cutting, slot milling, recess processing and edge finishing, providing an efficient solution for countertop manufacturers.
Machine Design Option
Advantage

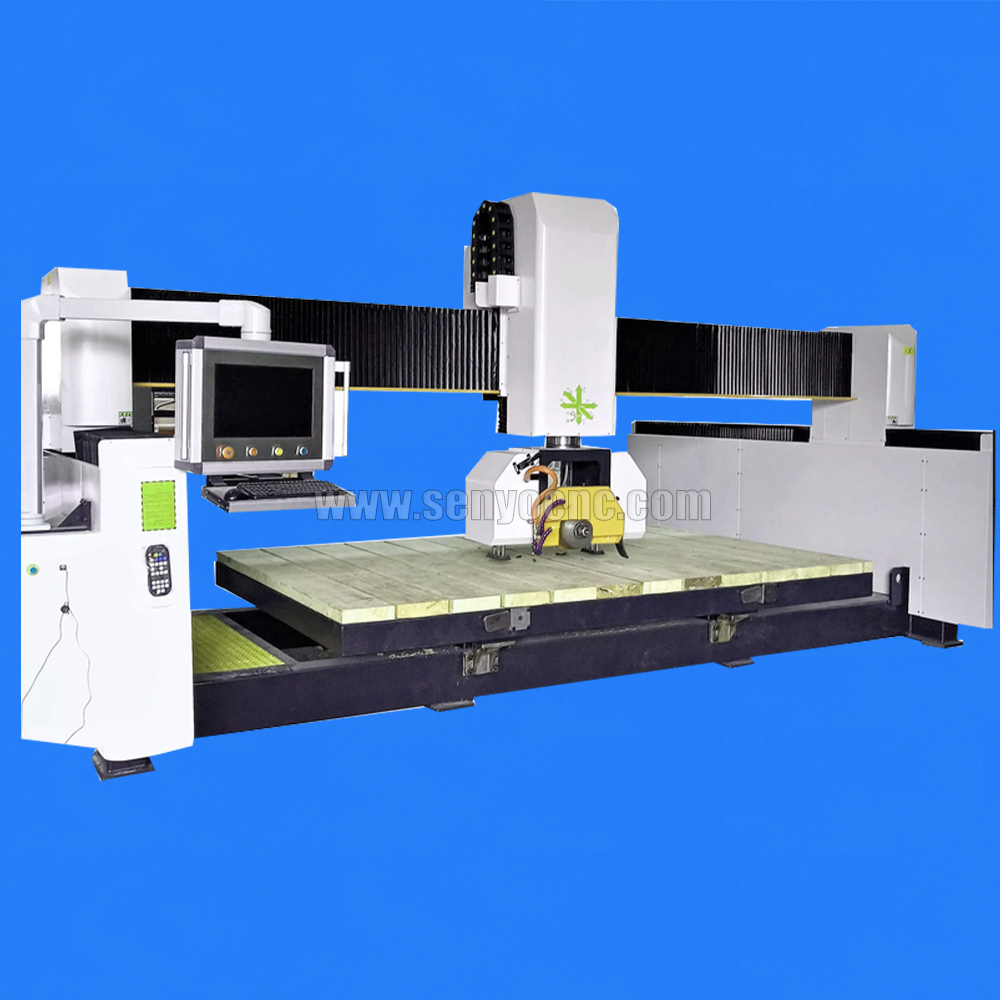

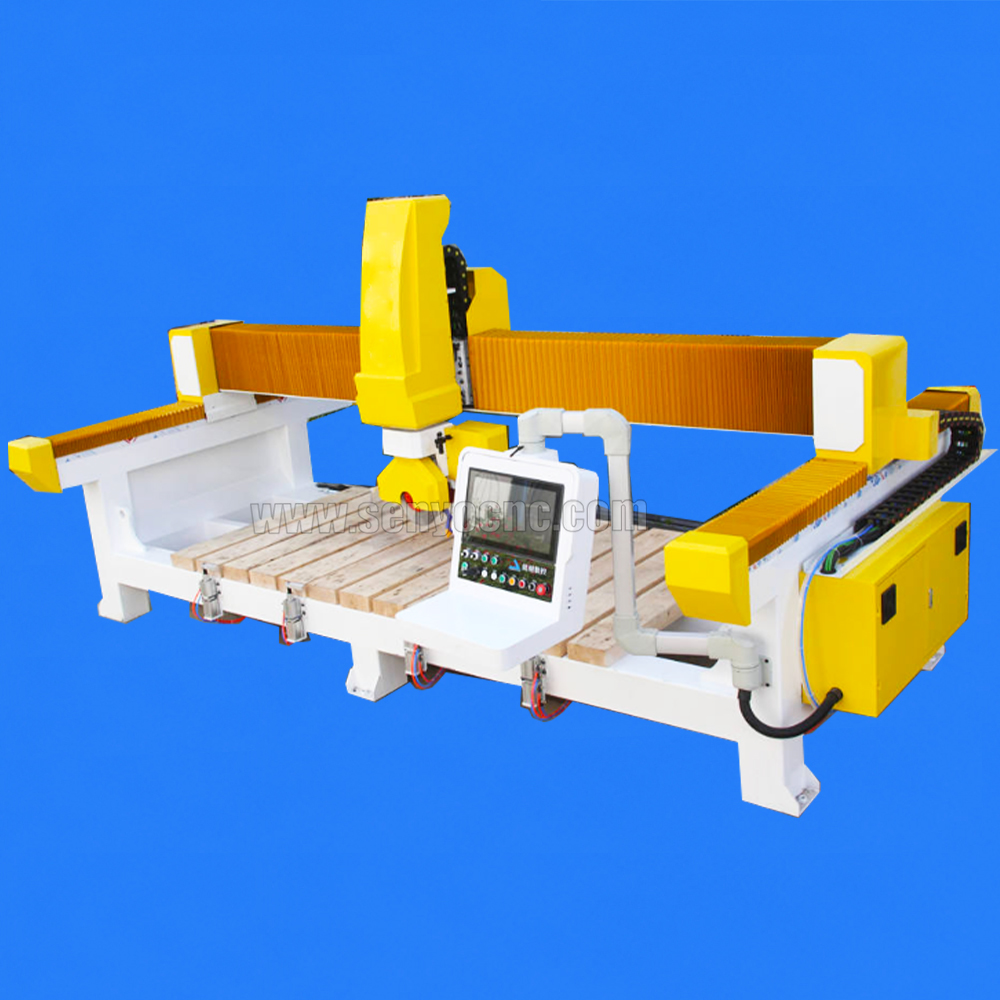

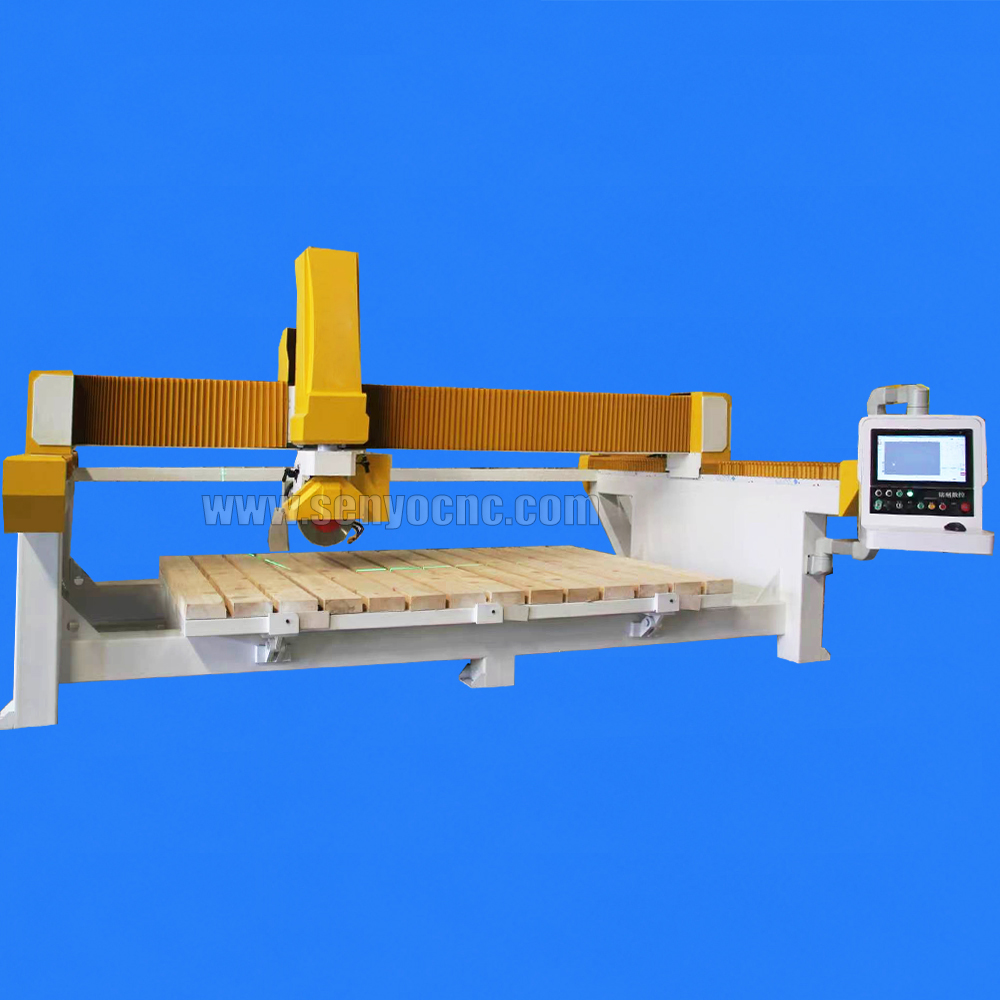

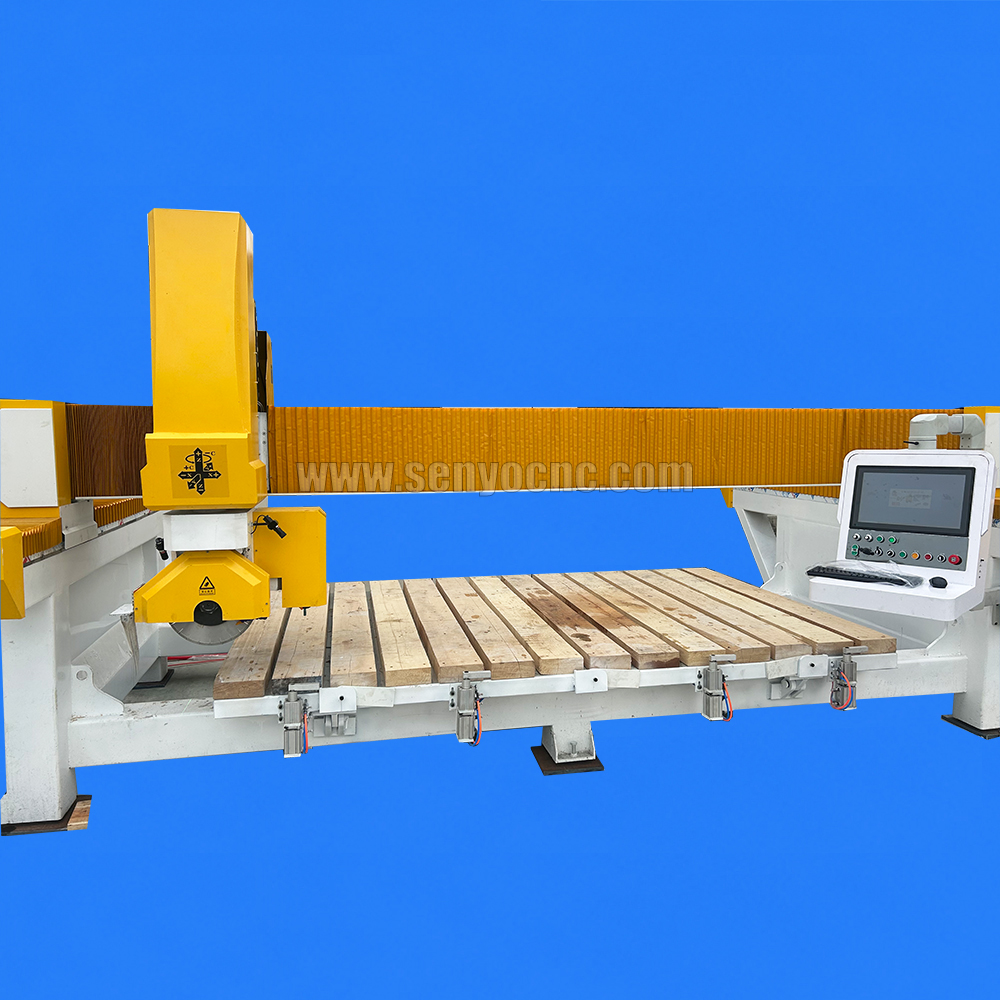

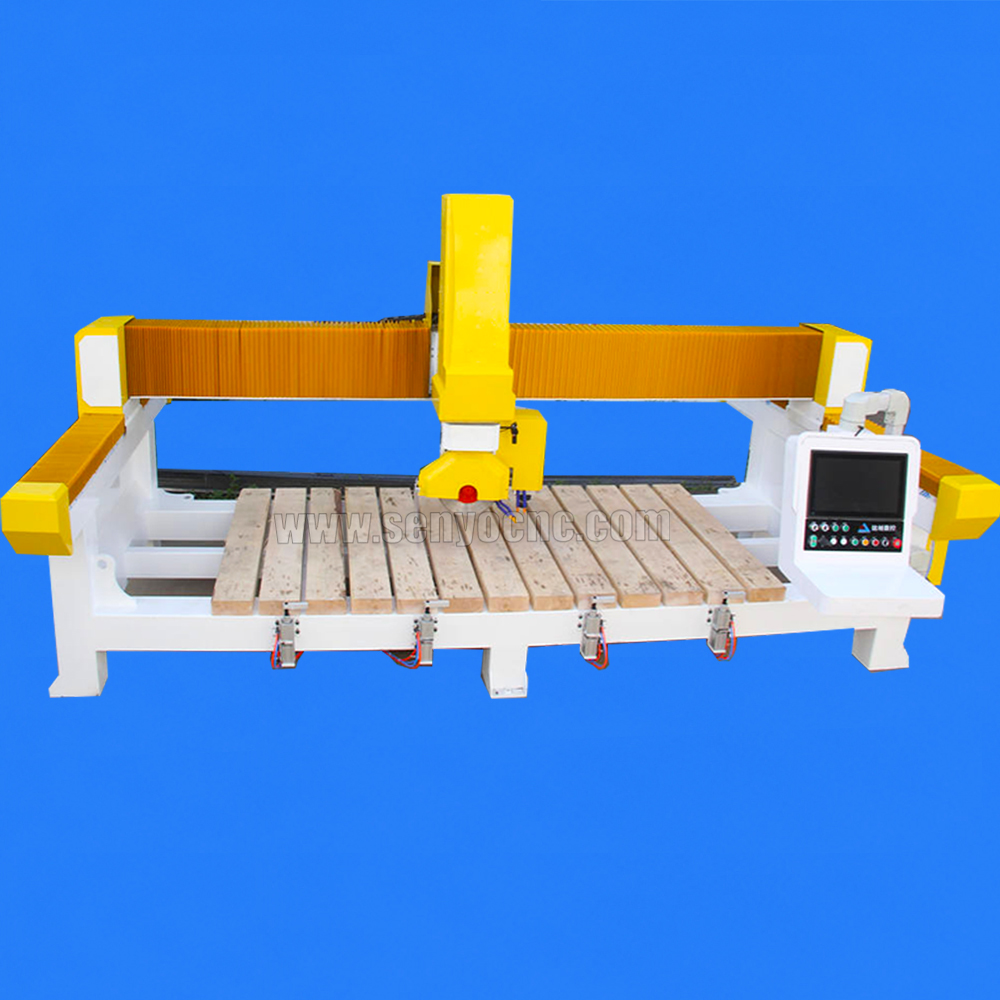

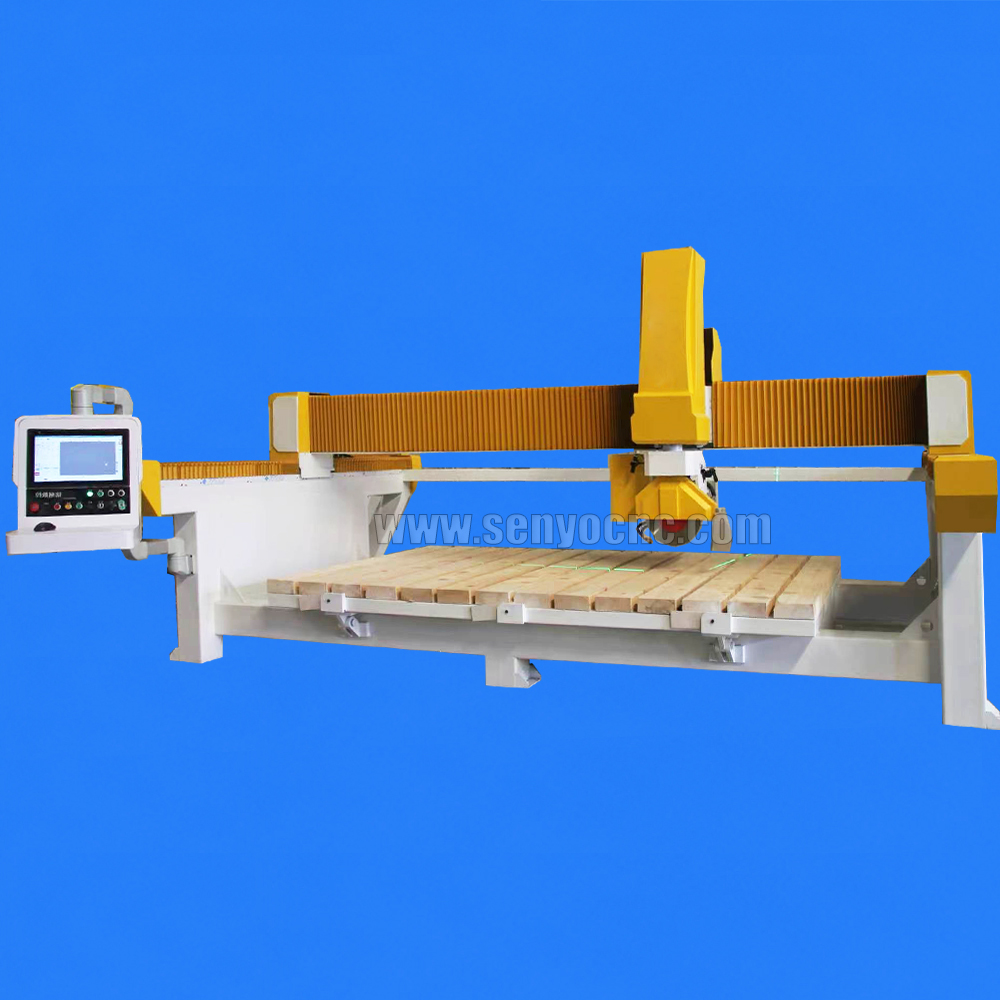

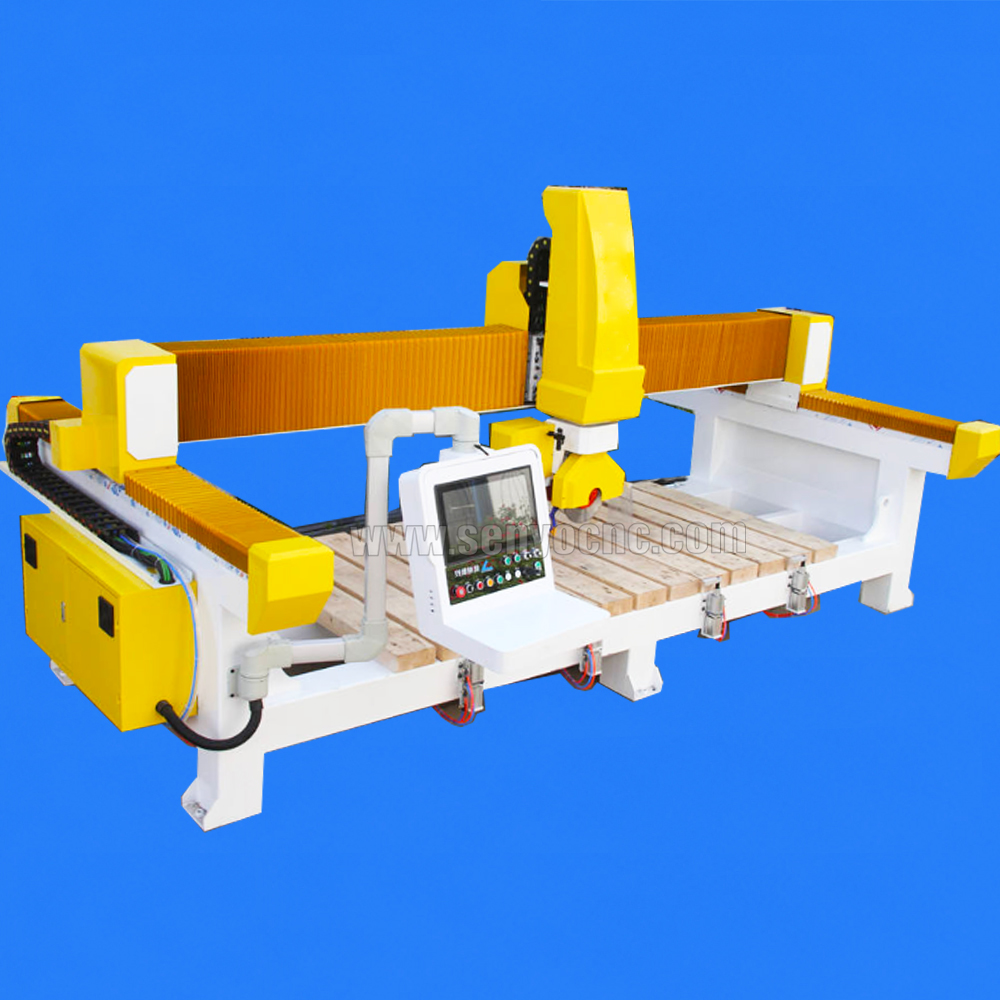

4+1 Axis CNC Bridge Saw for Kitchen Countertop Cutting, Sink Cutouts, Grooving & Edge Processing
This
4+1 axis CNC bridge saw machine is a multifunctional stone processing
solution specially designed for kitchen countertop fabrication.
It
combines precision bridge saw cutting with CNC milling and edge
processing functions, helping countertop manufacturers complete multiple
operations on one machine.
The machine is suitable for processing granite, marble, quartzite, quartz and other stone materials.
It
can perform straight cutting and automatic 45° miter cutting, making it
suitable for countertop cutting and edge-to-edge joint preparation.
With
the CNC milling function, the machine can accurately process kitchen
sink cutouts, cooktop openings, grooves, drainage slots, recesses and
other customized shapes.
It also supports edge processing and finishing, reducing the need for additional manual processing equipment.
The
4+1 axis configuration provides flexible tool movement and enables
complex countertop machining while maintaining high positioning
accuracy.
It is particularly suitable for professional stone fabrication workshops, kitchen countertop manufacturers and custom stone processing businesses.
Features
The high-efficiency stone bridge cutting machine designed by iGOLDENCNCadopts high-strength mechanical structure,
which is very suitable formanufacturers who process special-shaped stone in batches.
Imported linearguide rails are used to ensure accuracy and provide a set of competitiveconfigurations. Popular applications include
Stone countertops with digging basin holes and European borders: suitable for cabinet artificial stone, quartz stone, granite,
marble countertops and sinks,kitchen countertops, bathroom countertops, special-shaped bar counters,stone coffee table countertops, basin hole cutting, back-arc water forming Andpolishing, etc.;

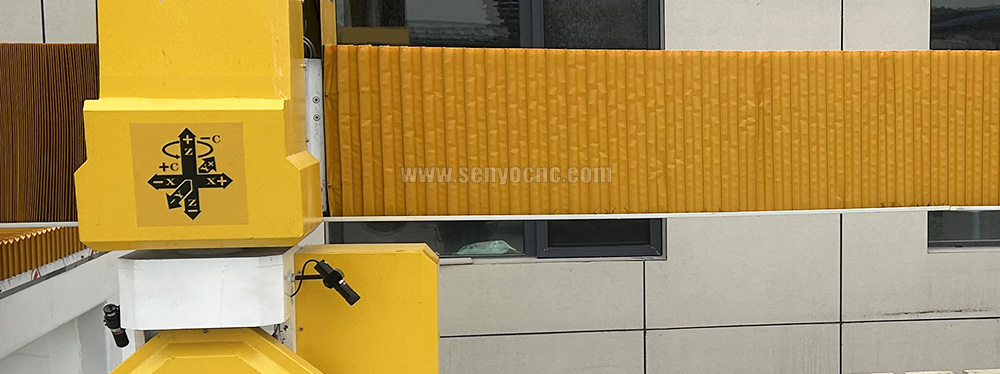

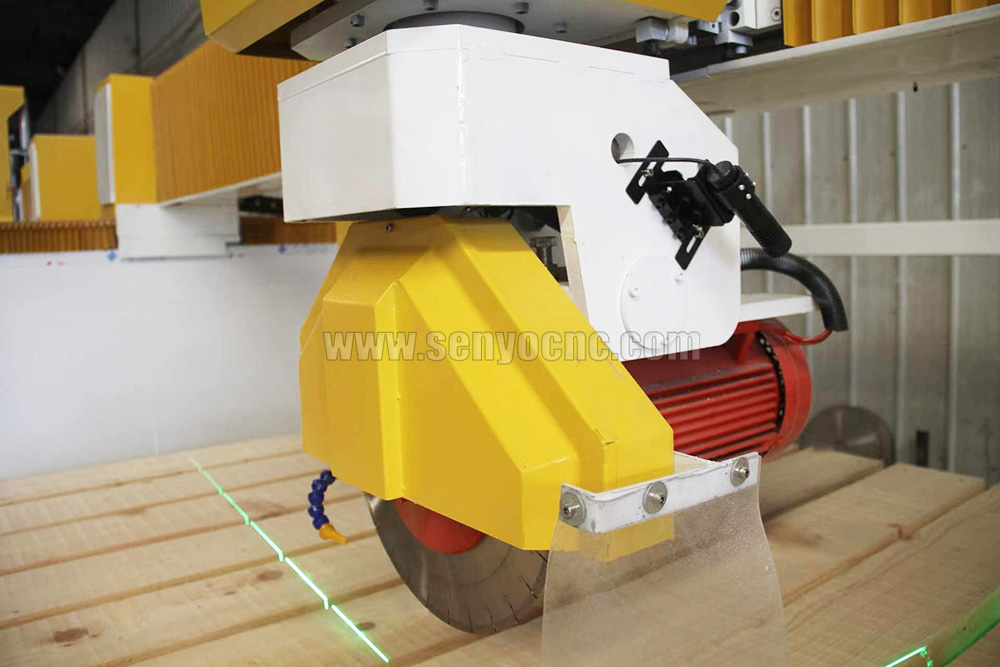

Parts Detials
Specification

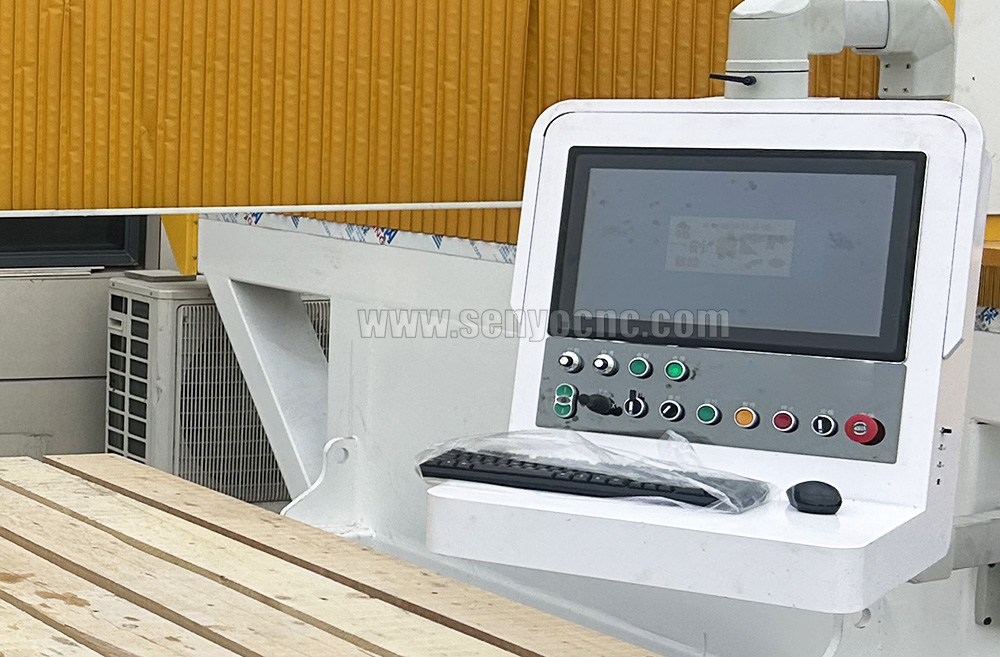

control system | Self developed bridge cutting customization system (touch, manual input) |
Tilt angle of saw blade | 0-45° |
Main motor power | 15KW |
Standard RPM | 2800r /min |
Electric spindle | 7.5kw |
Sports power (W) | 18.5kW |
voltage | 380V/50Hz |
transmission | X/Y gear rack+planetary gearbox+Z ball screw |
guide rail | 30 straight square guide rails |

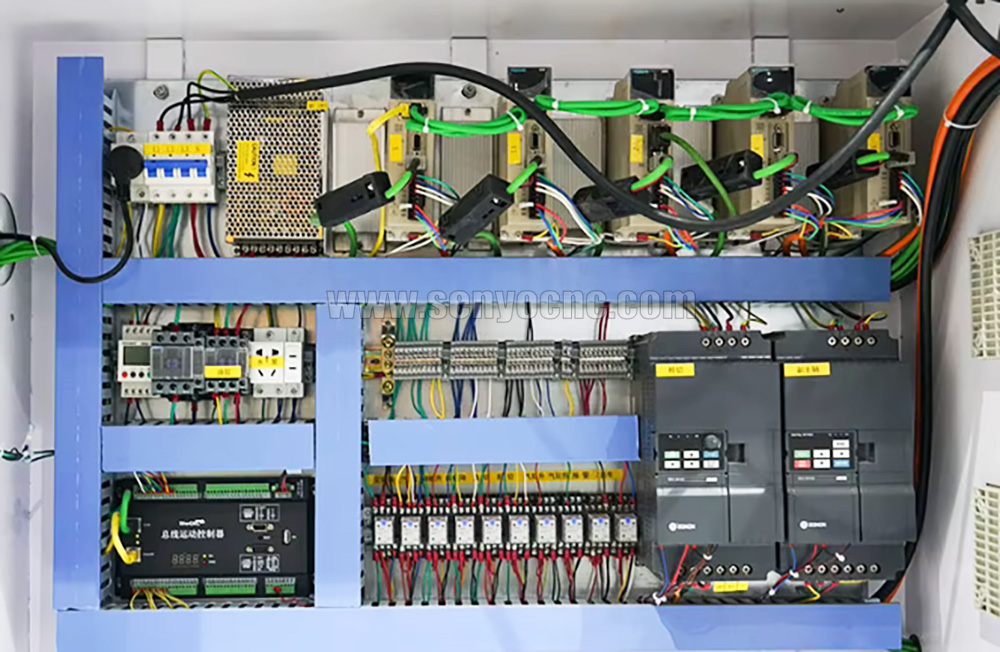

XYZ motion system | Communication 1.5KW bus servo |
Cutting speed of X-axis | 1-12000 millimeters per minute |
Y-axis cutting speed | 1-12000mm/min |
Z-axis cutting speed | 1-2000 millimeters per minute |
Water consumption | 3.5m³h |
Video factory inspection | can provide |
cutting object | Natural stone materials such as slate, quartz, marble, granite, and ceramic tiles |
Provide after-sales service | Engineers can provide on-site overseas services |

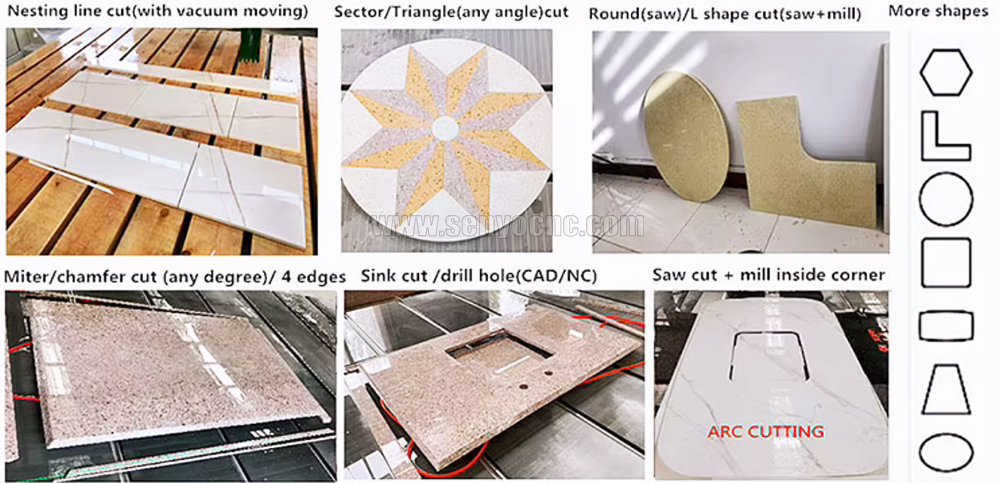

Cutting applicable shapes | Horizontal and vertical cutting, 45 degree chamfer, diamond shaped, trapezoidal, circular, fan-shaped, elliptical |
Main Applications
* Kitchen countertop cutting
* Quartz and granite slab cutting
* Automatic 45° miter cutting
* Sink and cooktop hole cutting
* Groove and drainage slot milling
* Recess and pocket processing
* Countertop edge processing
* Custom stone countertop fabrication
Working Project
Package & Shipping
1.Outside package: Standard marine export plywood case.
2. Inner package: Stretch film and plastic film for humidity.
3. We can package according to your requests.
Buying Considerations
The right CNC machine for your project is going to provide a higher margin on ROI and is a valuable investment for the future. So, a versatile CNC router is always going to support you financially. Some key factors can assist you in finding the best CNC router model for your business. Have a look at them.
• CNC routers are available for various industries. Therefore, assess your needs according to the type of your projects and materials.
• Keep in mind the volume of your projects as well.
• Balance between cost and features. Consider the long-term value of investment while choosing your model.
• A promising warranty assures a better quality of the machine.
• Look for brands providing training resources and community support.
Warranty And Service
• 24 months whole machine warranty and maintenance for a lifetime.
• Free installation and testing before shipping and free training for operators
• Advice for the best CNC solutions for customer's requirements.
• Free training and sample making.
• 7/24 free service and support.
