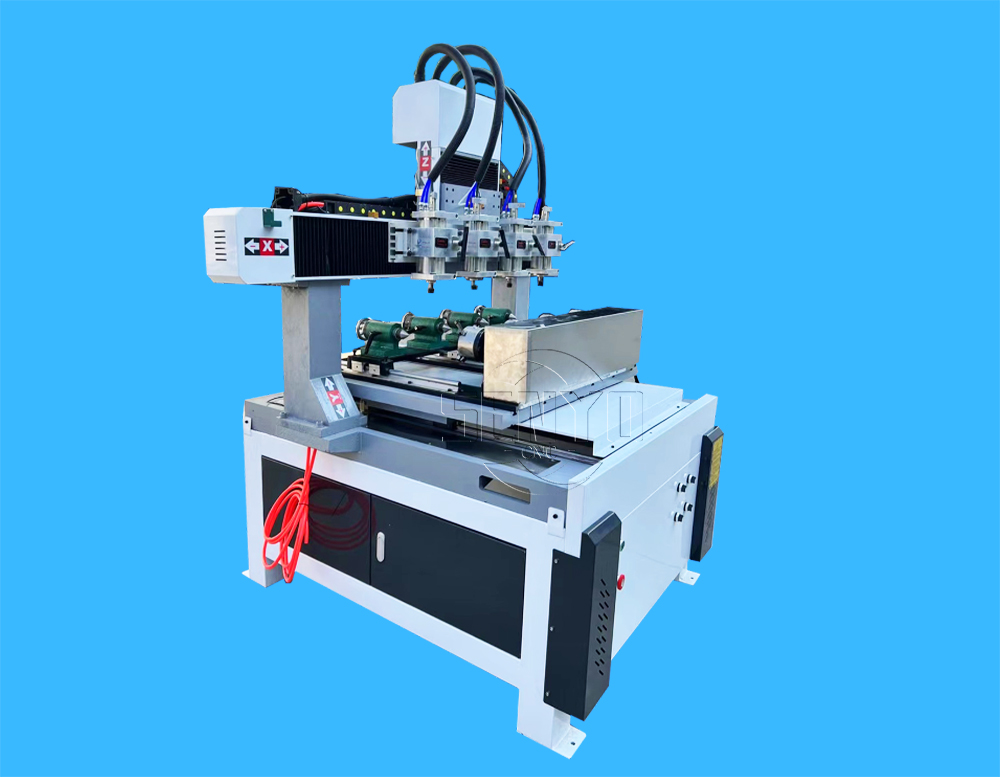

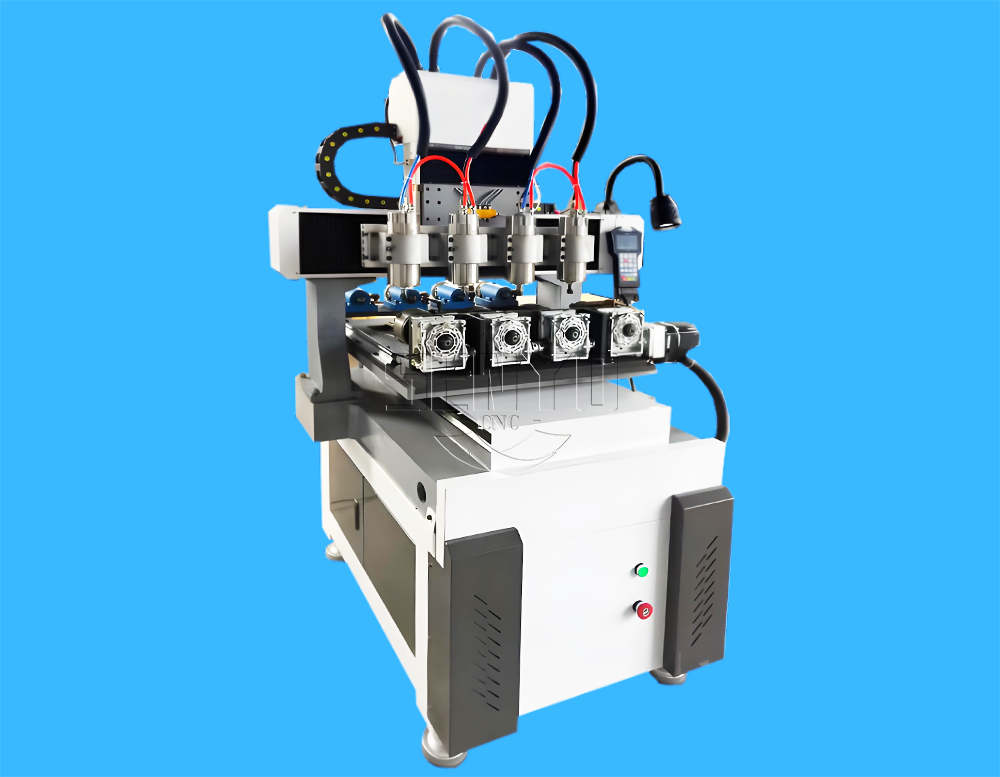

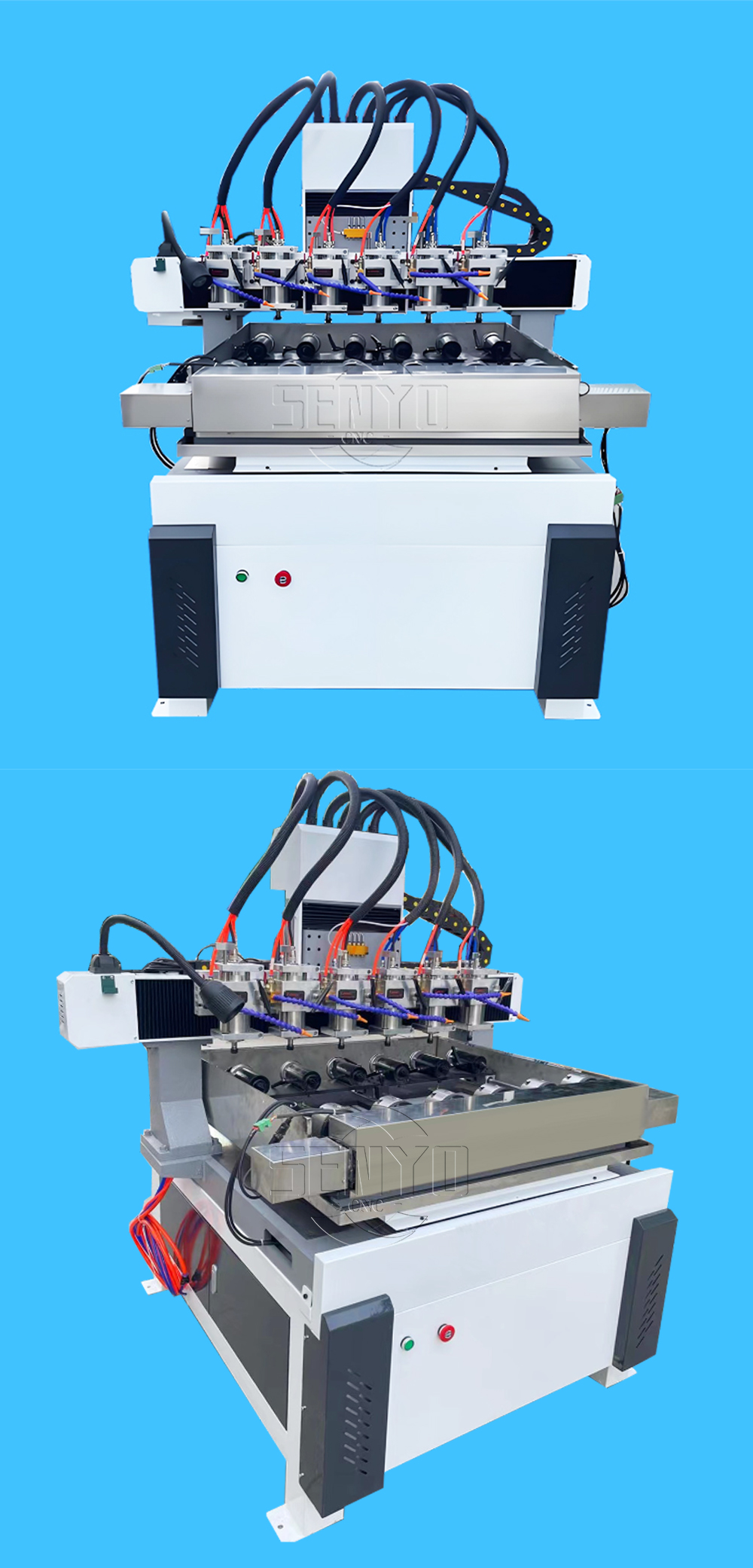

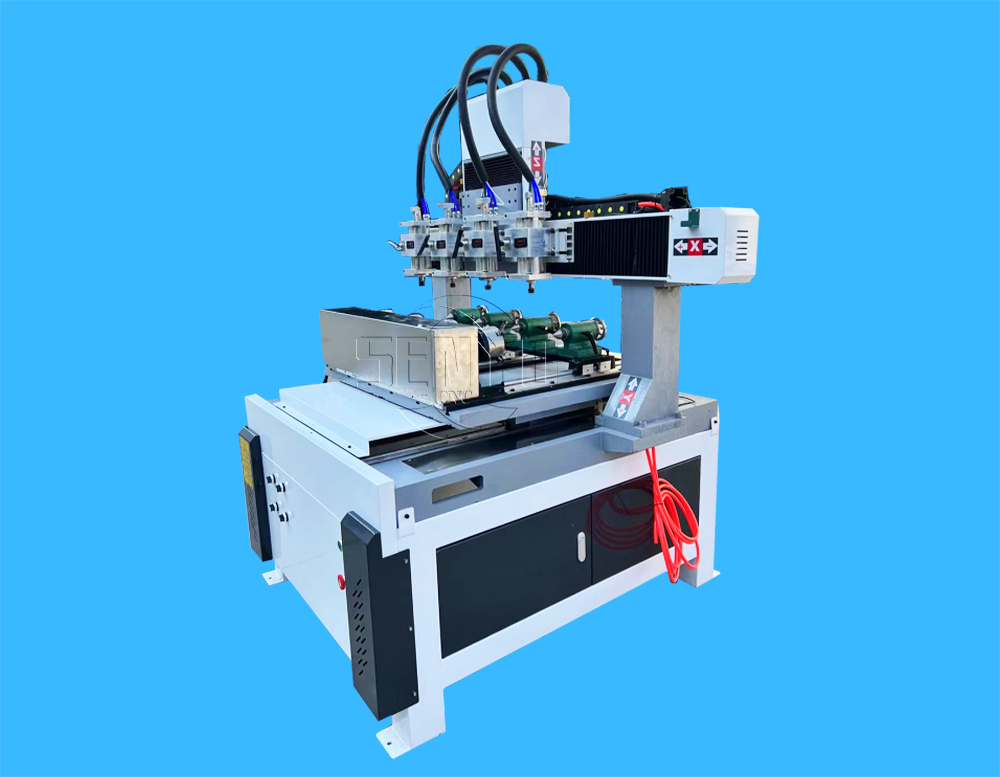

Small CNC Jade Carving Machine Features:
1. Internal cast lathe bed, solid and stable, without distortion.
2. Imported ball screws ensures stable and smooth movement of the machine.
3. Water-cooling brushless spindle, low noise, vigorous cutting strength
4. Subdivision driver ensures fast speed and high accuracy.
5. Dust-proof and water-proof design ensures the maintenance more easily.

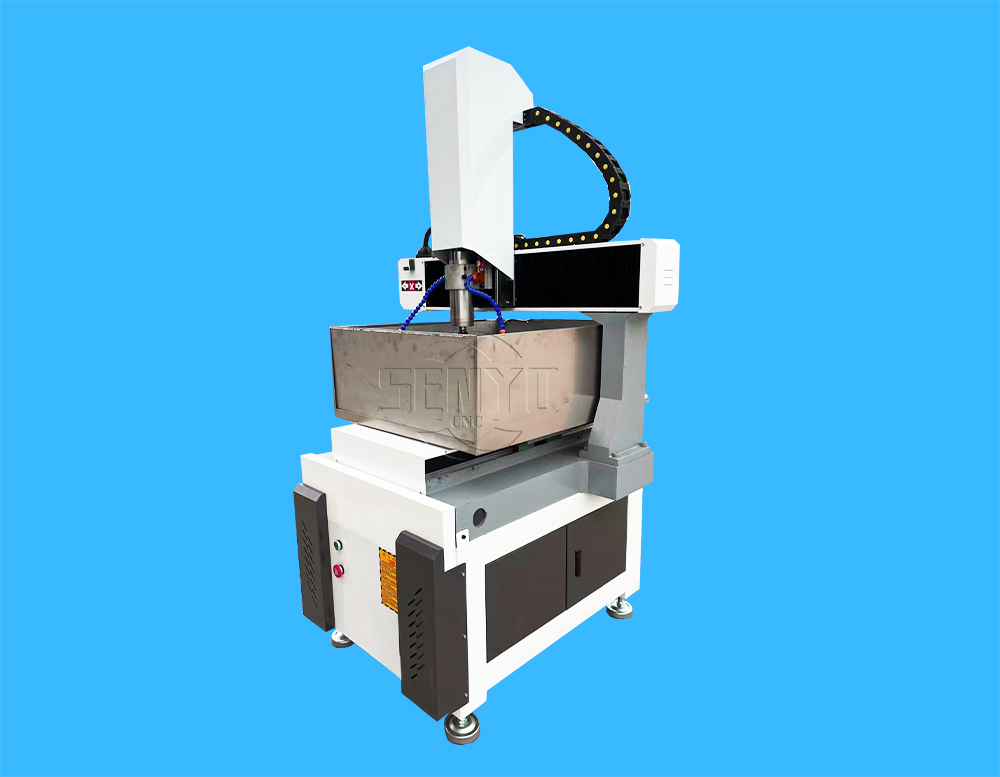

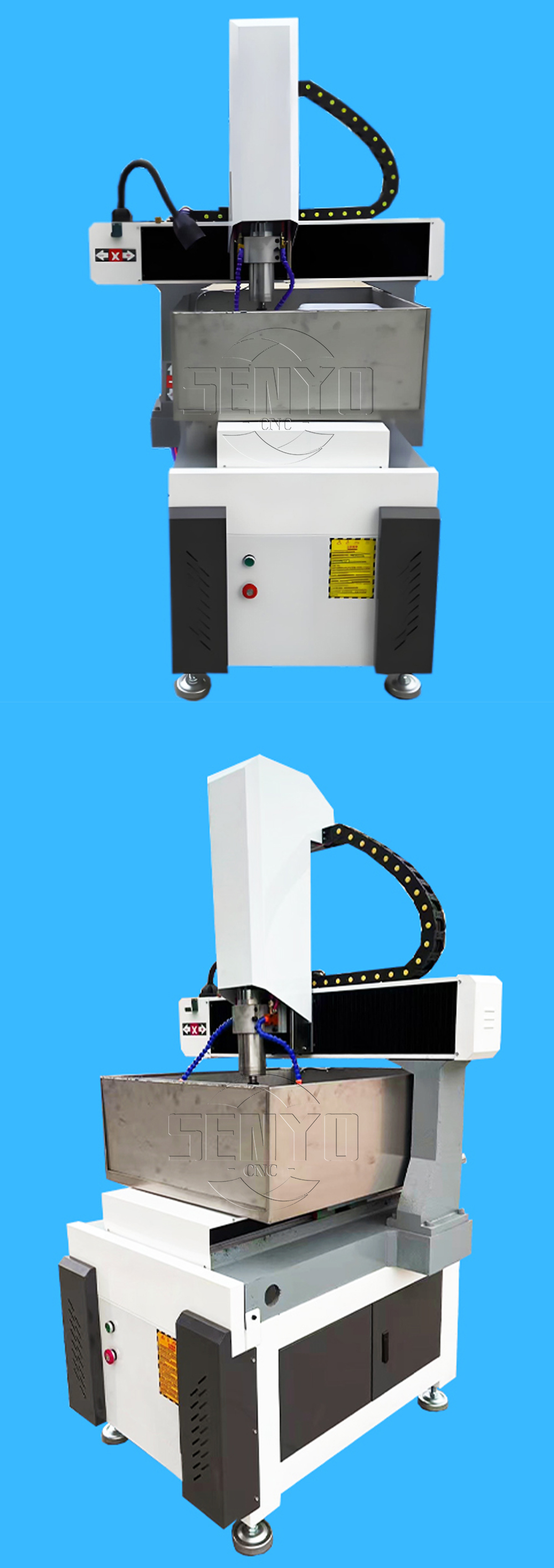

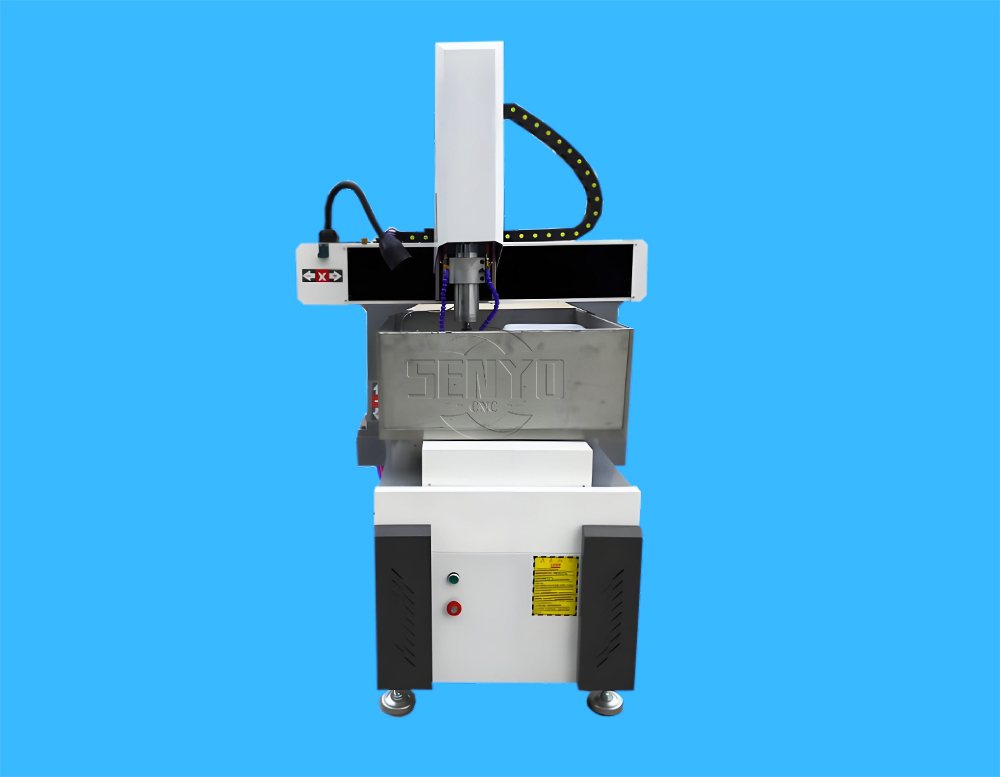

4040 6060 MODEL small size cnc router with stainless steel sink to engrave aluminum, copper, etc

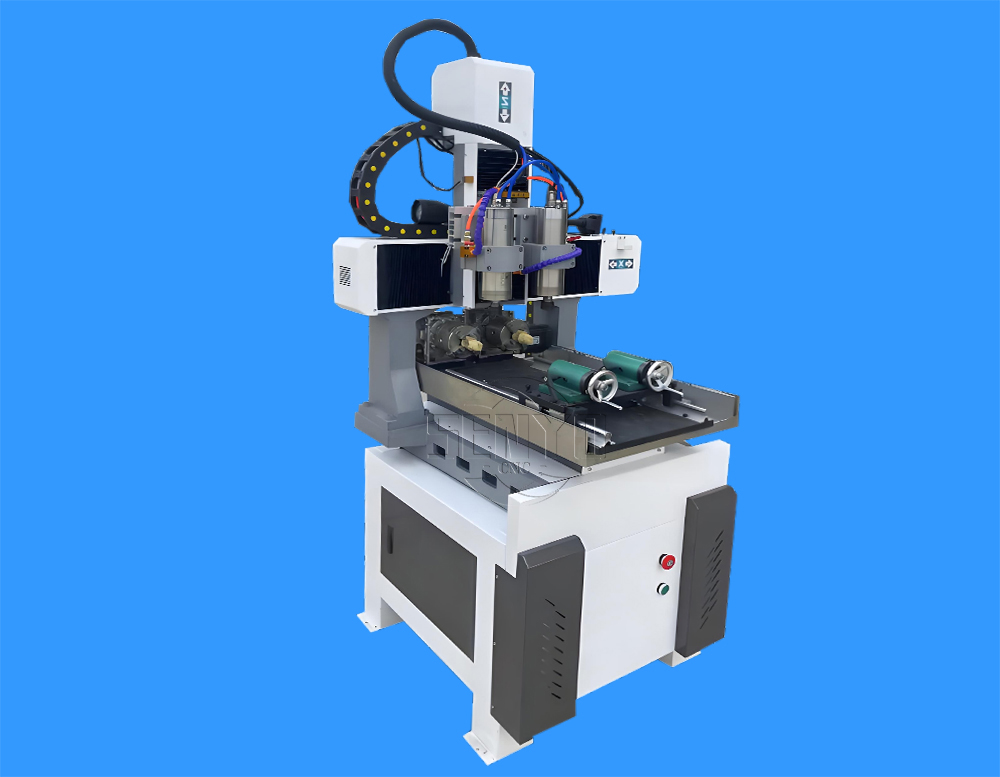

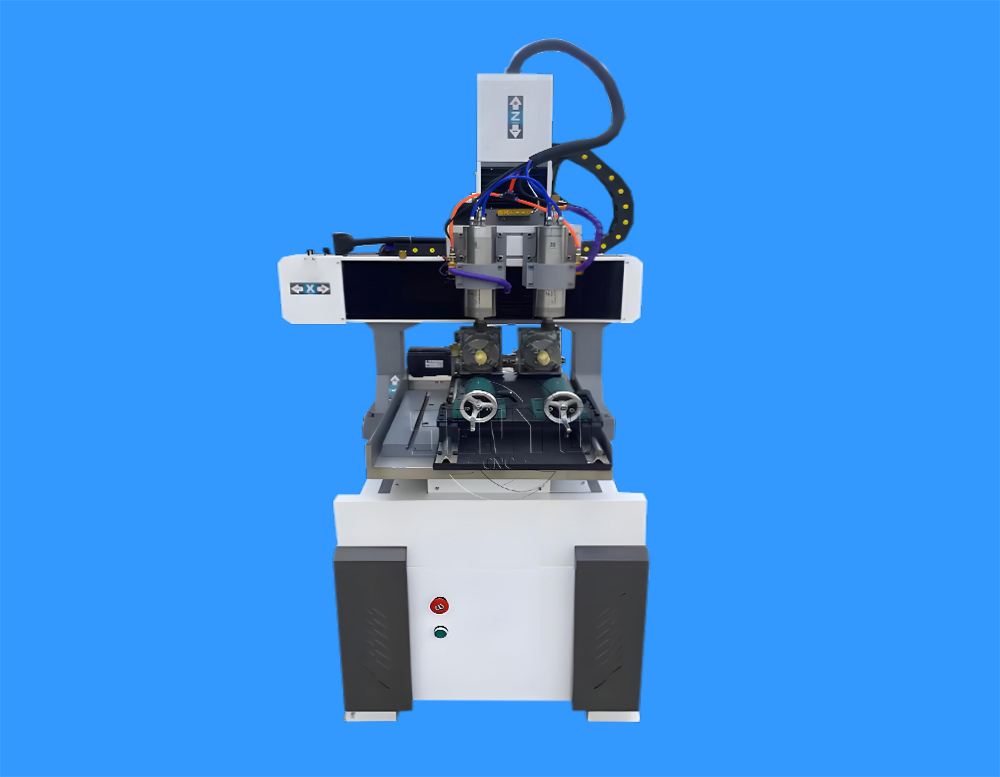

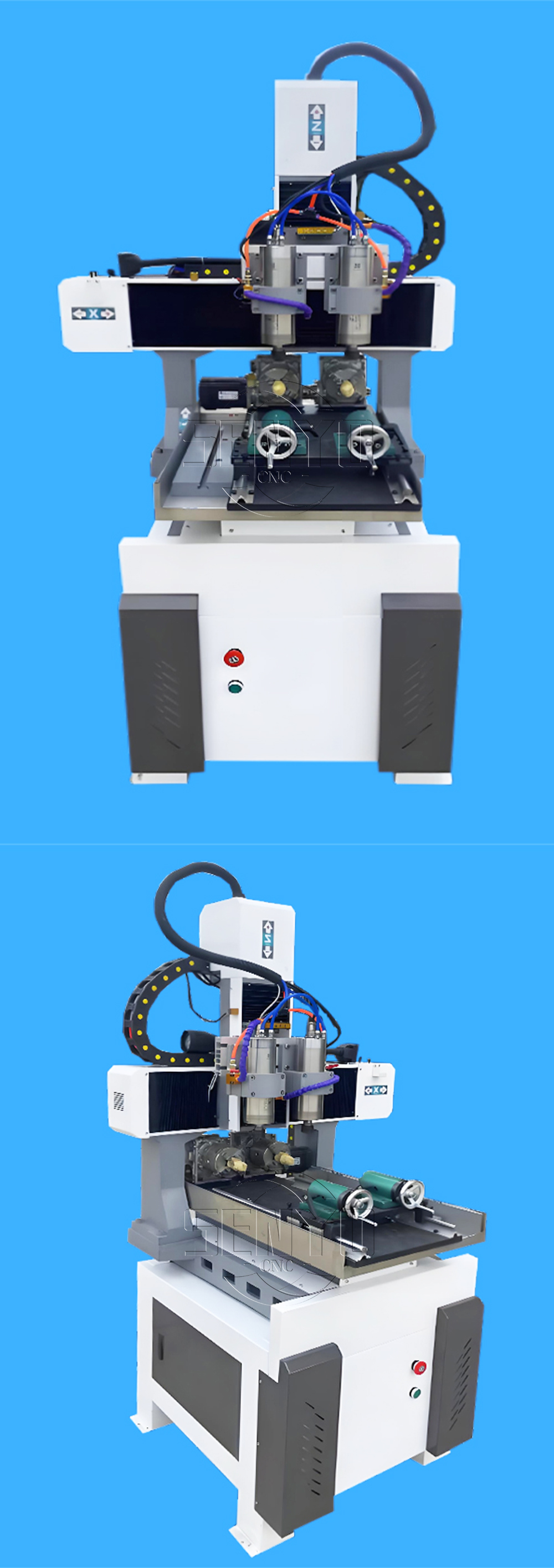

4040 6060 MODEL cnc router with two spindles for engraving two pieces wood at the same time
Detials Parts
Casting iron bed structure with casting iron gantry bar, with lamps
2.2KW or 3.2KW water cooling spindle
Control cabinet, including electric parts, inverter, drivers, and control mainboard

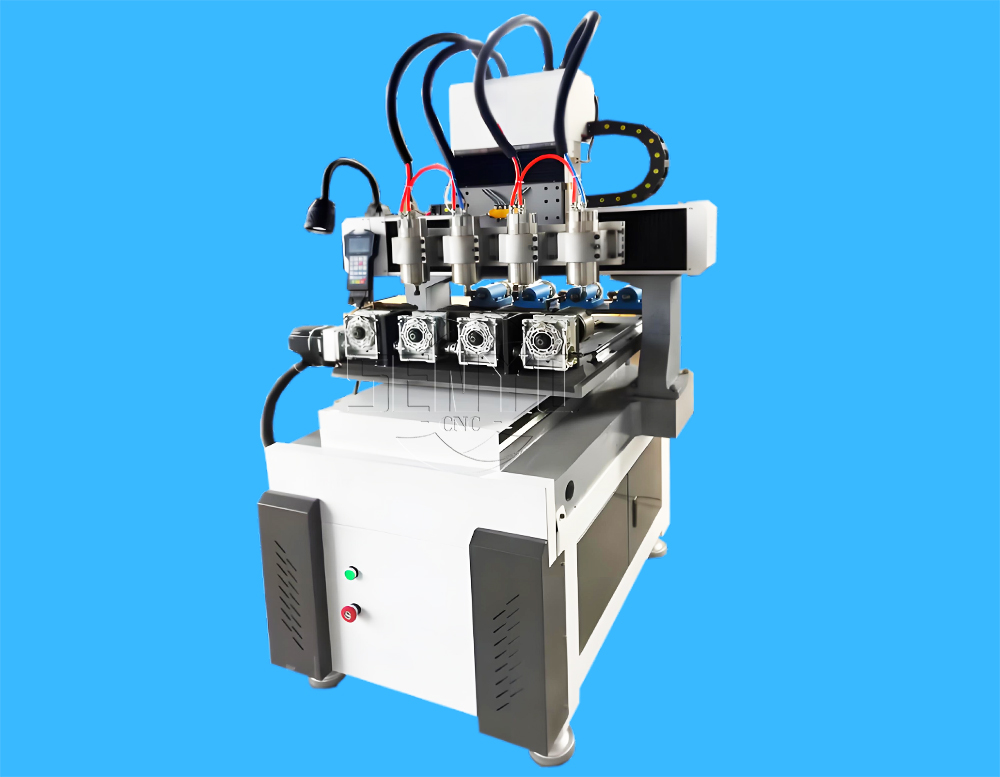

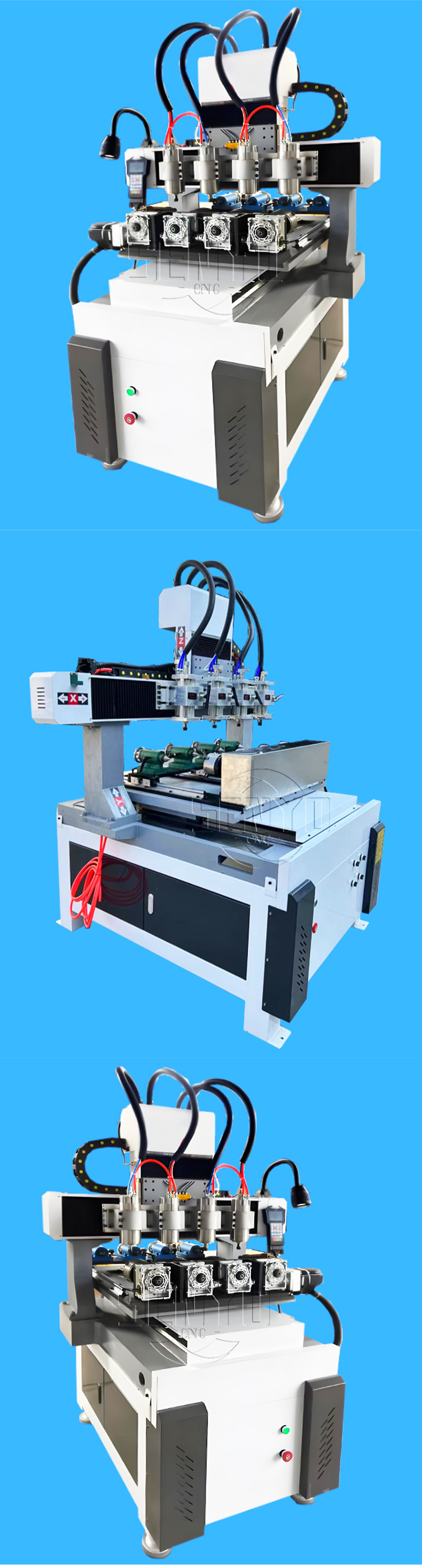

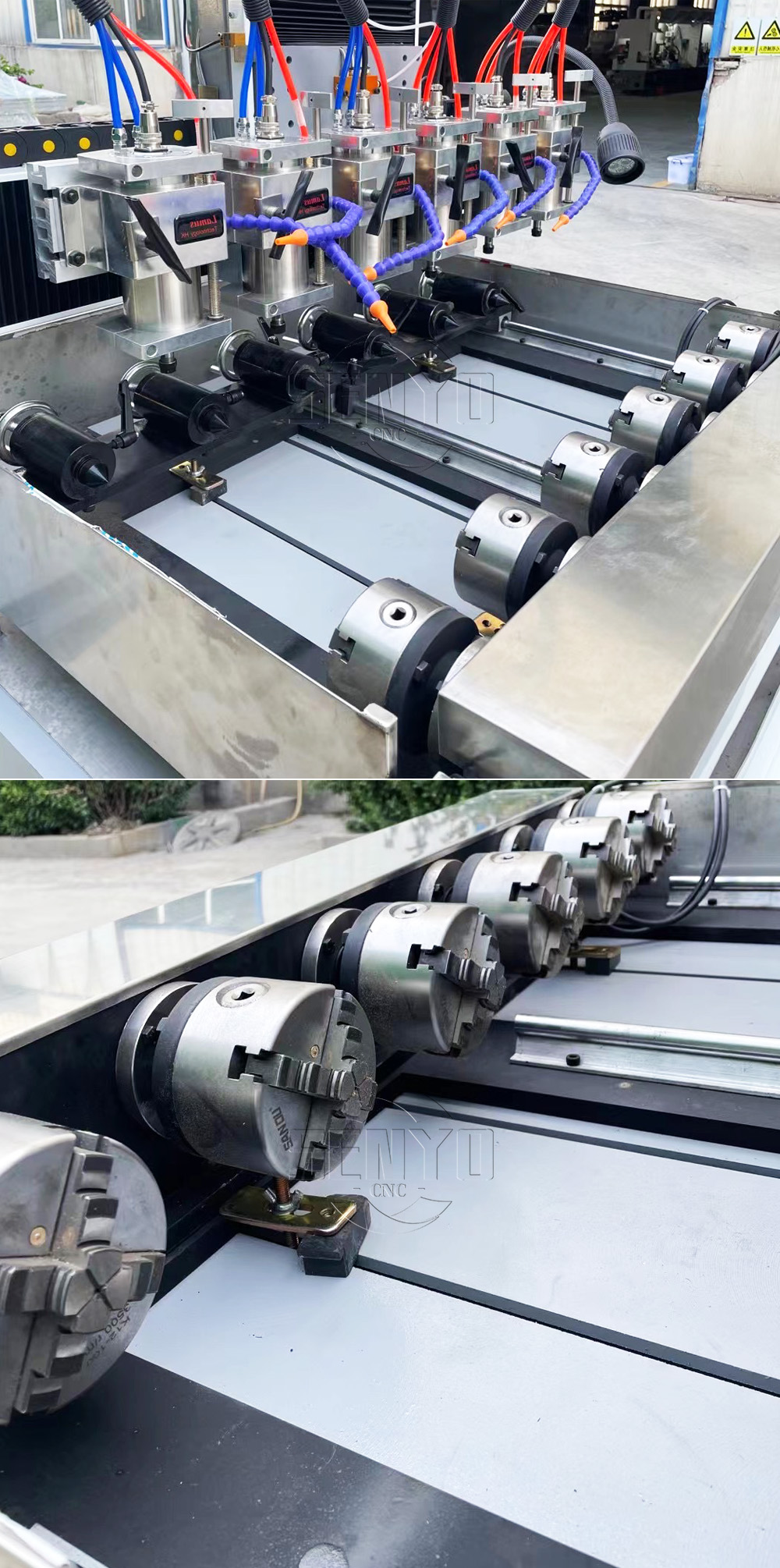

casting iron table with stainless steel sink, with rotary attachment
stepper motor and driver
NC Studio / Richauto A18 DSP control system
Applicable Materials of Small CNC Jade Carving Machine
Jade, Jewellery, PMMA, PVC Sheet, ABS sheet, KT sheet, Timber, Gemstone, Marble, Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics, etc.
Applications of Small CNC Jade Engraving Machine
1. It is widely used for carving jewelry and other jades with water tank.
2. It is suitable for acrylic, PVC, wood, marble, mould, metal, stone, handicraft.
Projects of Small CNC Jade Carving Machine:
Working Sample Projects of Small CNC Jade Engraving Machine
Small CNC Jade Carving Machine Technical Parameters
| Model Name | SYMS6060 |
| Working Area(X*Y*Z) | 600mm*600mm*150mm |
| Spindle Power | 2.2KW |
| Lathe Table | cast iron table |
| XYZ guide rail | Square Rail |
| XYZ transmission | Ball Screw |
| Spindle | water cooling |
| Inverter | 2.2KW |
| Driver | leadshine |
| Operation Software | NC studio |
| Typeset Software | Ucancam,Type3 Artcut (English) |
| Processing accuracy | <0.05mm/300mm |
| Reposition Accuracy | 0.02mm |
| Max Moving Speed | 6000mm/min |
| Max Engraving Speed | 4000mm/min |
| Tool Diameter | φ3.175mm, φ4mm, φ6mm |
| Working Voltage | 220V |
| Optional Equipment | 3.2KW Spindle Power |
| Square rail transmission | |
| Water Tank | |
| Vacuum Table with air pump | |
| DSP handle | |
| Dust collecting system |
For Our Work Steps
1.Before-sale,we will try to know your requirement about our cnc finer laser specification and what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.
Packing & Shipping
1. Outside package: Standard plywood package.
2. Inner package:Stretchy film and plastic protective film for humidity.
3. We can package according to your requirements.
For
standard machines, 7-15 working days after payment.
For LCL Shipping (Less than Container Load),it is recommended to use export standard fumigation-free wooden boxes, which are
stronger and suitable for long-distance transportation.For FCL Shipping (Full Container Load).
it can be loaded directly at the factory without wooden boxes, and the maximum number of machines can be loaded to reduce costs.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
