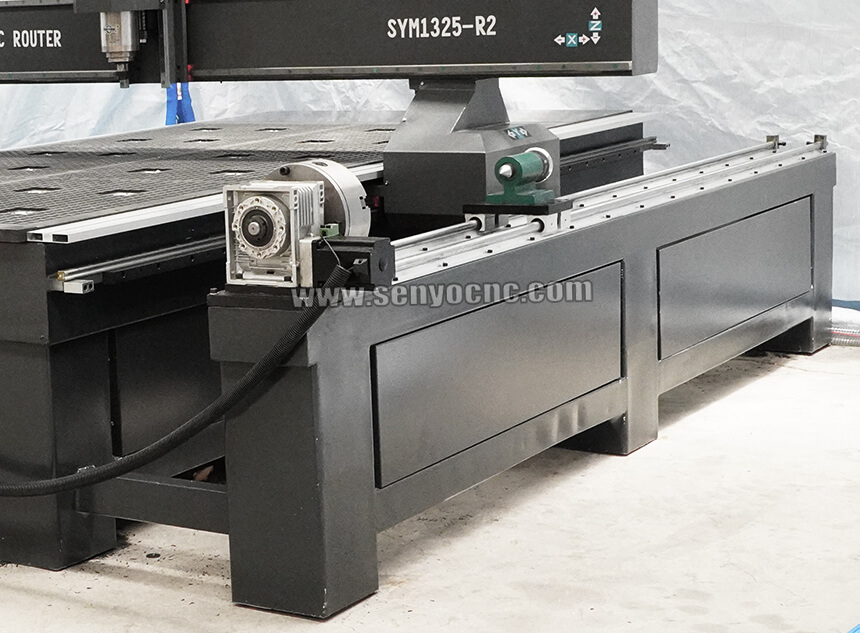

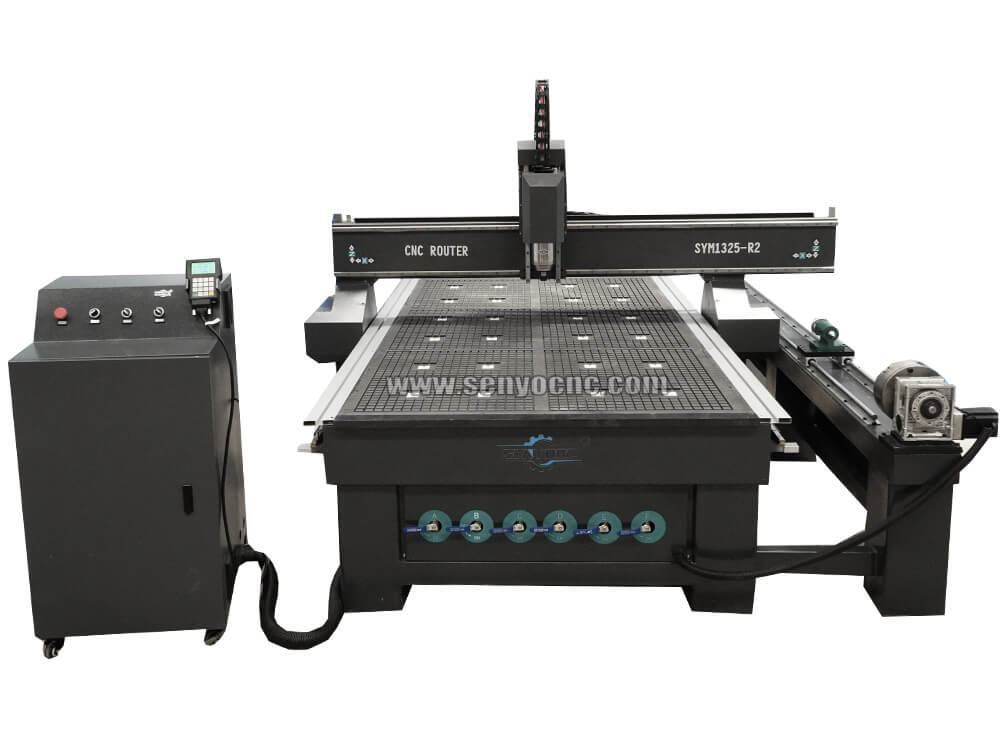

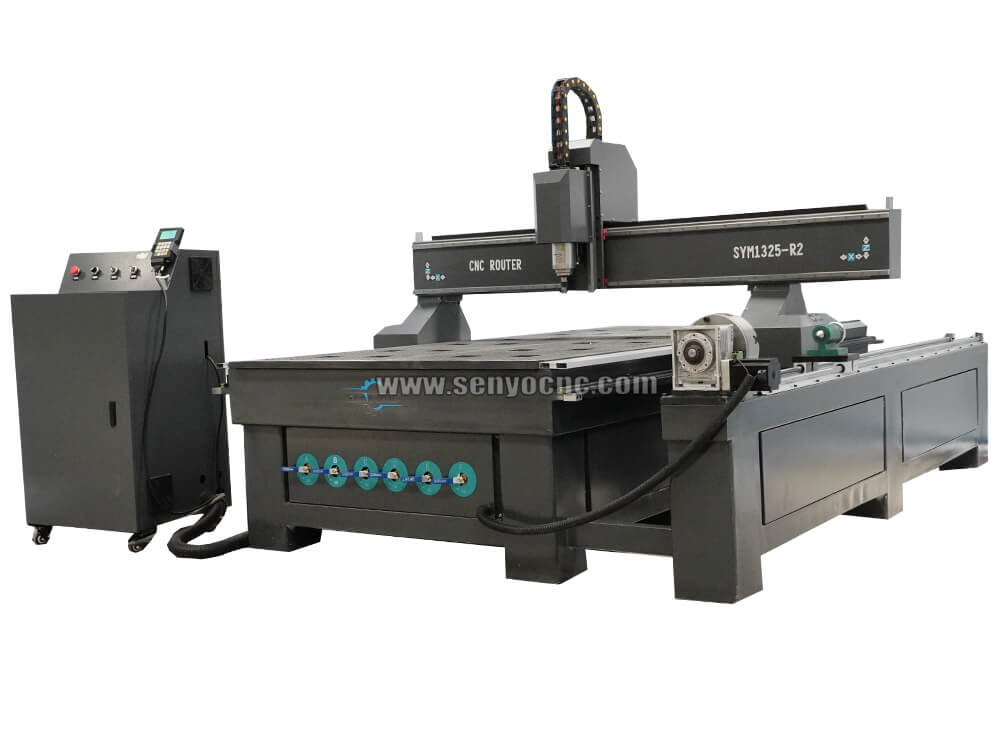

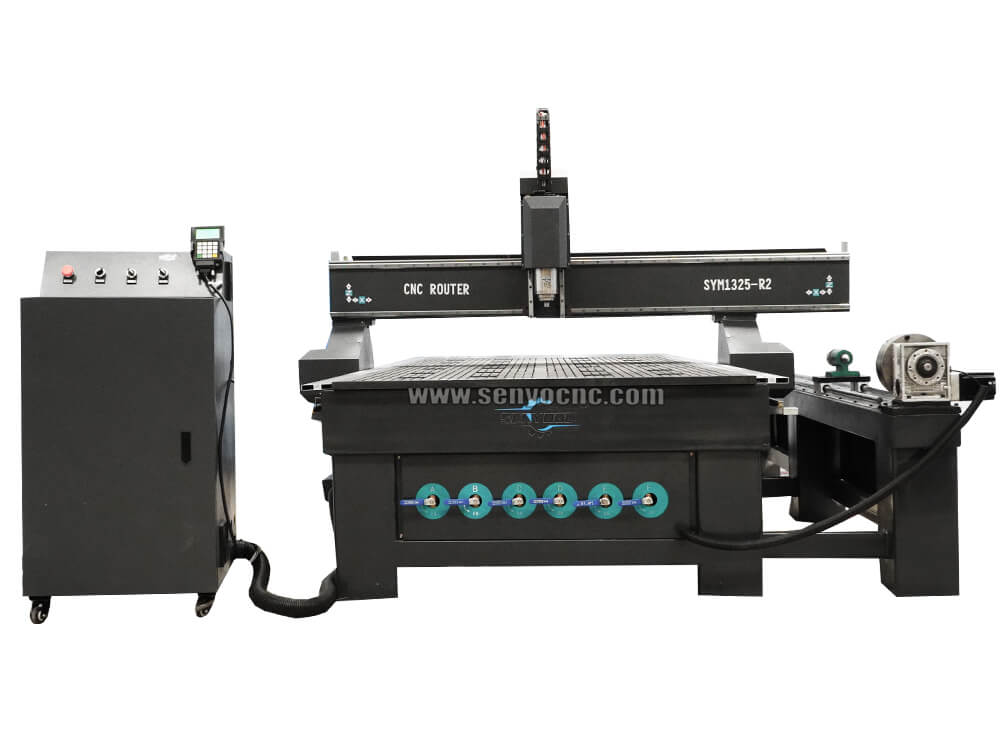

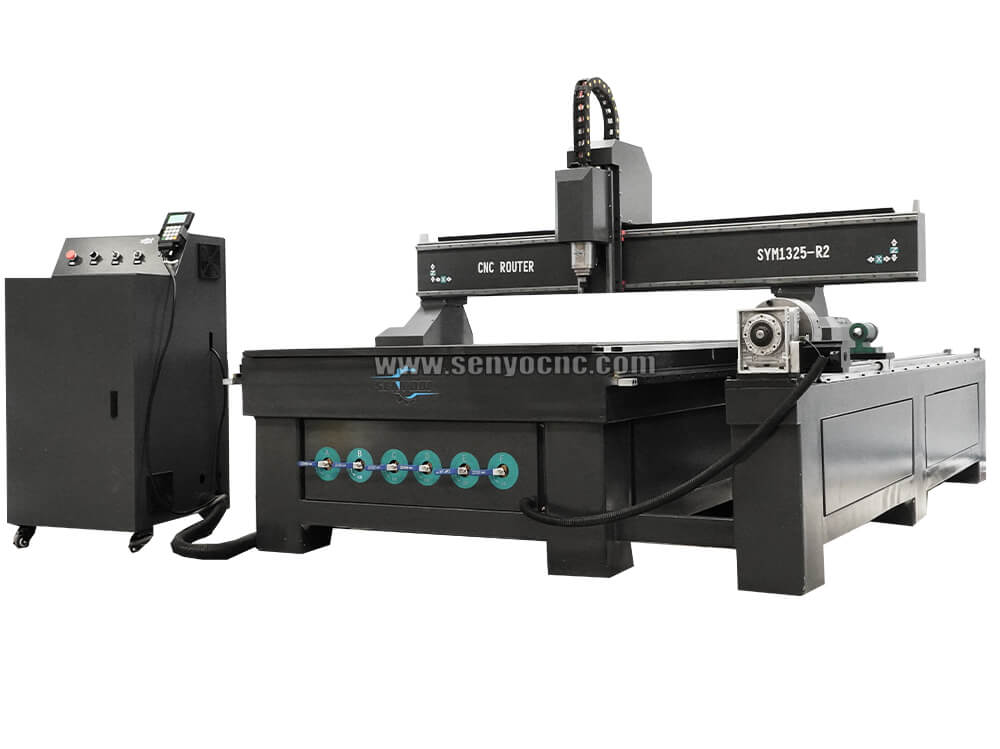

What is CNC Router Lathe Machine (Rotary CNC Router)?

CNC router lathe machine (rotary CNC router) is a type of multifunctional CNC machine kit with 4x8 table size for flatbed full sheet cutting, relief carving, and 4th axis for 3D rotary milling. The T-slot vacuum table is used for board cutting, edging, carving, drilling and grooving, and the rotary device for turning, like a lathe machine. The axis of rotation is the geometric straight line on which the rotationally symmetrical action is performed. The rotary axis is the geometric straight line on which the rotationally symmetrical action is performed.

When the rotation action acts on the image (or molecule), the vertical distance between any point in the image and the rotary axis (line) must always be kept constant. Suppose the base angle of rotation α=2π/n, since the number of independent and unequal rotation motions within the range of 2π angle is "n", the axis corresponding to the basic rotation motion L (2π/n) is called n-fold rotary axis, denoted as "n". The symmetry order of the n-fold rotary axis is "n".

What Are The Functions Of Rotary Axis?

1. Calculating the rotary cutting path does not need to expand the surface.

2. There is no need to rotate the workpiece repeatedly, the tool path calculation is completed at one time.

3. Reduce the finishing allowance, the tool path can be roughed in layers.

4. Realize partial rotation carving, the angle range and length range can be set.

5. Affected by the accuracy of the fixture, the machining of irregularly rotating workpieces usually adopts multi-face rotation positioning machining. There are always seams between different machining directions.

6. Rotary machining without positioning joints adopts the integral method of rotating shaft, and the cylinder engraving machine generates an automatically closed rotary cutting path.

How To Use A Rotary Axis?

1. Put it directly on the platform, so that the gantry needs to be heightened, and the size of the platform will not affect the plane carving. The rotating shaft can be put on and taken down at any time.

2. Put the side of the platform, the diameter of the rotating shaft affects whether the gantry is heightened. If the diameter is large, the gantry needs to be heightened. If the diameter is 10cm, it is not necessary.

3. The table surface sinks as a whole, put the rotation axis under the platform, if carving a plane, place the platform on the rotary axis for carving.

4th Rotary Axis CNC Router Lathe Machine Specifications

4th Rotary Axis CNC Router Lathe Machine Features & Advantages

The rotary CNC router machine adopts 8mm steel machine welding bed, after hundred times’ special vibrate experiment, we ensure that the lathe will not deform during their long-term working hours. With enhanced welding technicals, we supply the best CNC machine kits with good stability, longer life span and amazing accuracy rate.

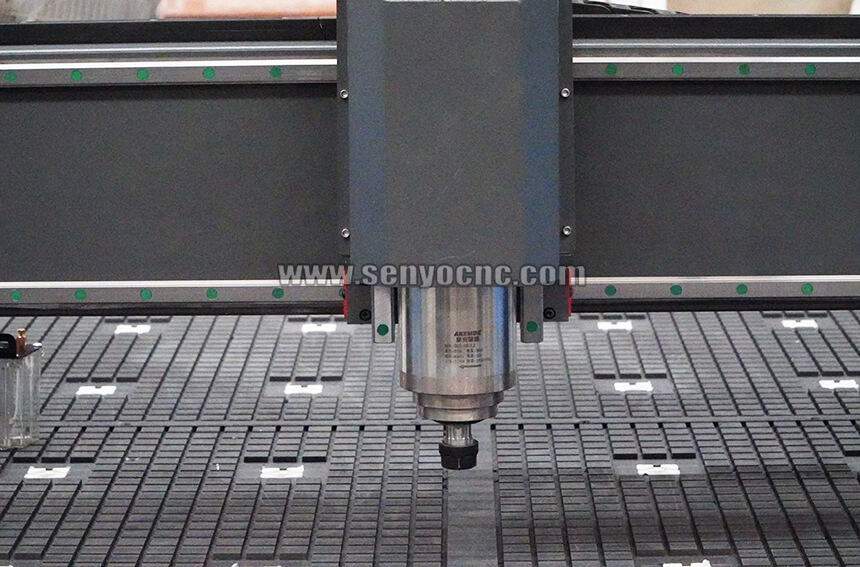

3000 Watts water cooling spindle with better cooling effect, almost no noise with long service life.

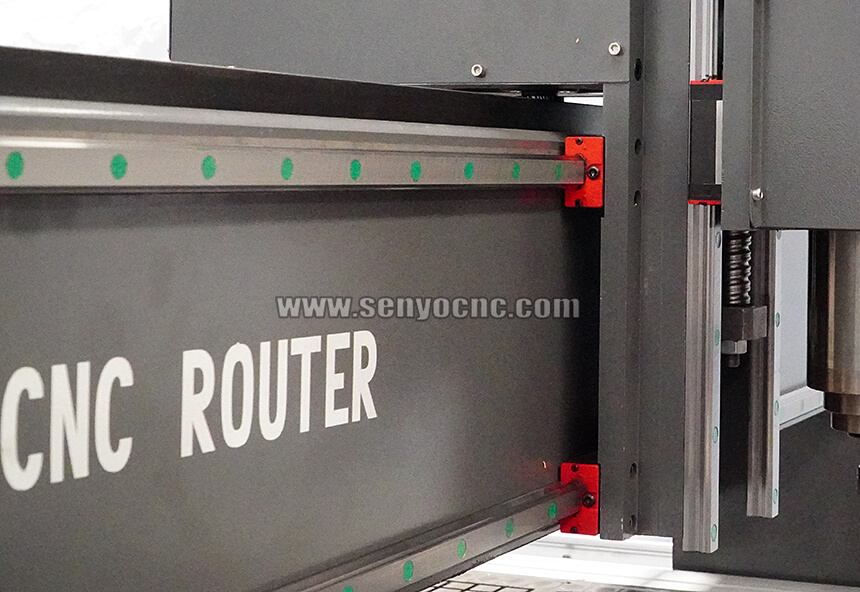

Taiwan Hiwin square rails has more higher precision, less wear and tear can maintain high accuracy. It's applied to high-speed move and greatly reduce the drive horsepower the machine required. What’s more, it can bear the load from left and right, up and down at the same time.

 Leadshine stepper motor and driver won't lose step when it work, which can guarantee the positional accuracy of the motor.

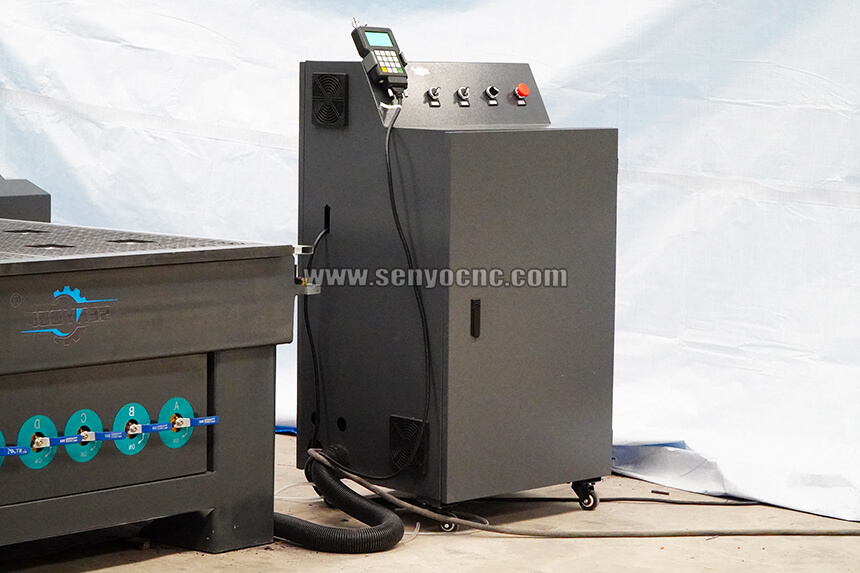

DSP control system which is easy to operate and learn, especially for the beginner.

Software: compatible with Type3, Artcam, Castmate, Ucancam and other CAD/CAM design softwares.

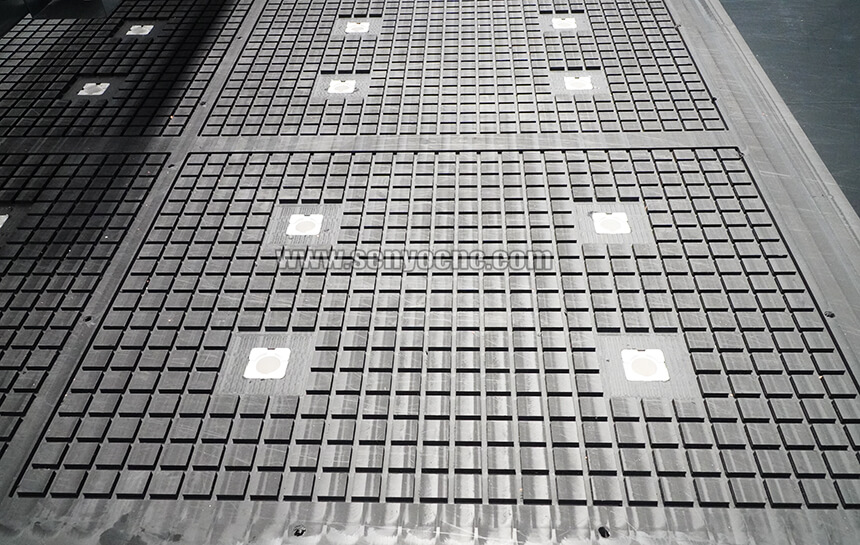

T-slot vacuum table: The vacuum table has T-slot mounting devices incorporated into the tables to enable fixtures and material blanks to be clamped directly to the table. Clamps are provided.

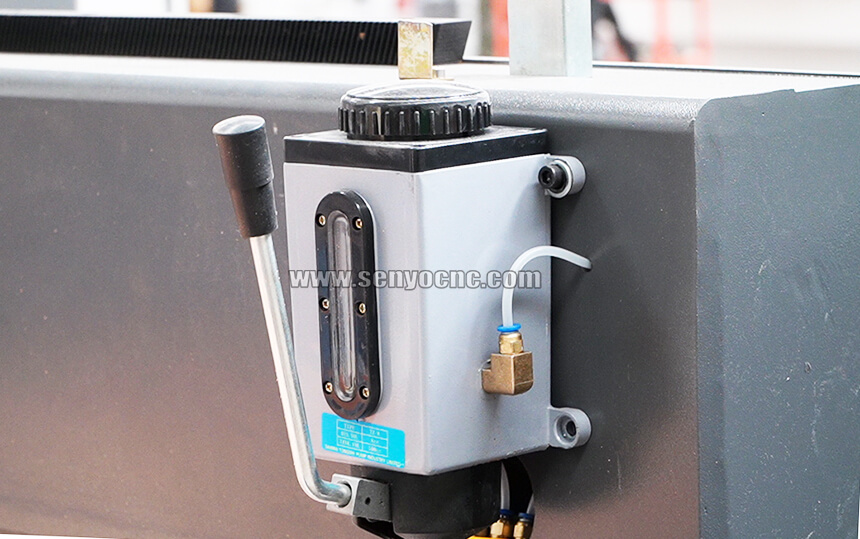

Oil lubrication system: No oily odors, low noise and libration, maintenance-free.

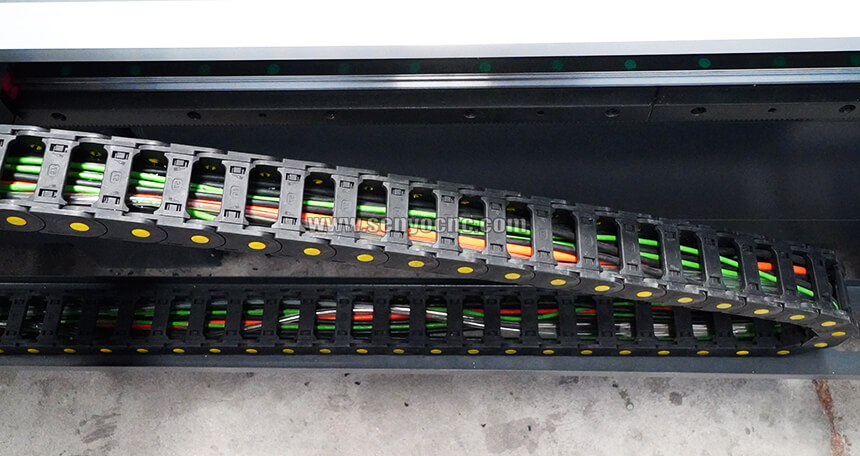

Belt for wires is professional and good looking

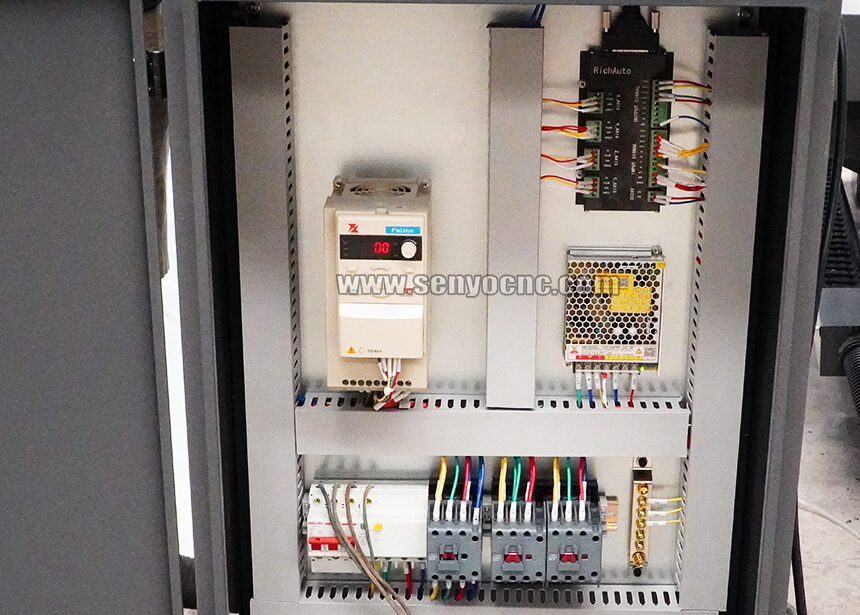

Professional wire connetion in control box .

4th Rotary Axis CNC Router Lathe Machine Application

Wood working:

Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door, avoid wind, process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the  board,mahjong table,  computer table and the assistant process of the  household effect

Advertising:

Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.

Model industry:

It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials

such as man-made marble, sand, plastic board PVC materials, wood board etc.

Other field:

It can engrave many image, engrossment,It is widely used in artistic industry.

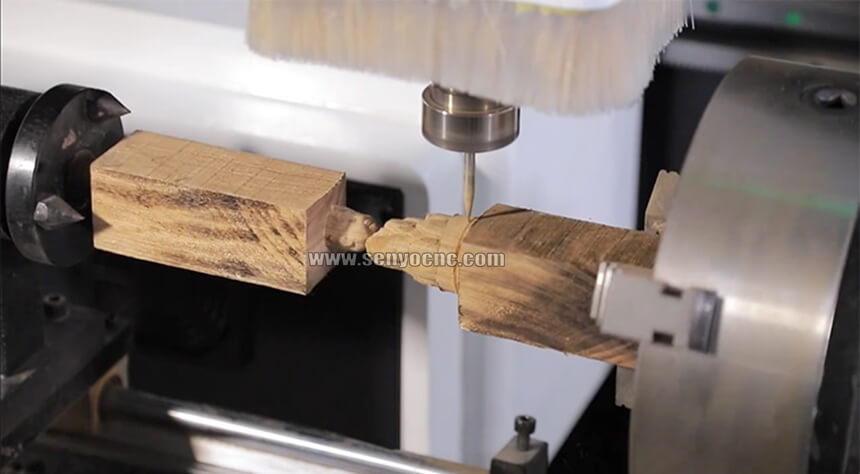

4th Rotary Axis CNC Router Lathe Machine Work Projects

Packing & Shipping Package Details

1.Outside package: Standard plywood package.

2. Inner package:Stretchy film and plastic protective film for humidity.

3. We can package according to your requirements. Shipping Details For standard machines, 7-15 working days after payment; For non-standard machines and customized machines according to clients' specific requirements, it will be 15 to 30 working days after payment.

Service & Support

1.Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.
