What Are The Functions Of Rotary Axis?
1.Calculating the rotary cutting path does not need to expand the surface.
2. There is no need to rotate the workpiece repeatedly, the tool path calculation is completed at one time.
3. Reduce the finishing allowance, the tool path can be roughed in layers.
4. Realize partial rotation carving, the angle range and length range can be set.
5. Affected by the accuracy of the fixture, the machining of irregularly rotating workpieces usually adopts multi-face rotation positioning machining. There are always seams between different machining directions.
6. Rotary machining without positioning joints adopts the integral method of rotating shaft, and the cylinder engraving machine generates an automatically closed rotary cutting path.

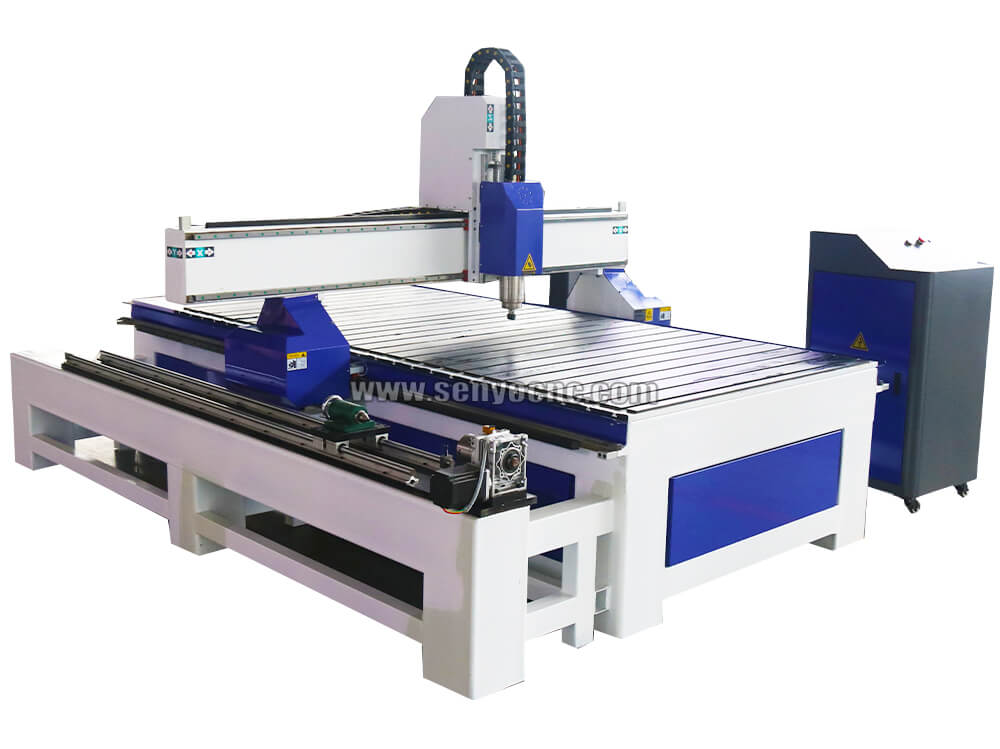

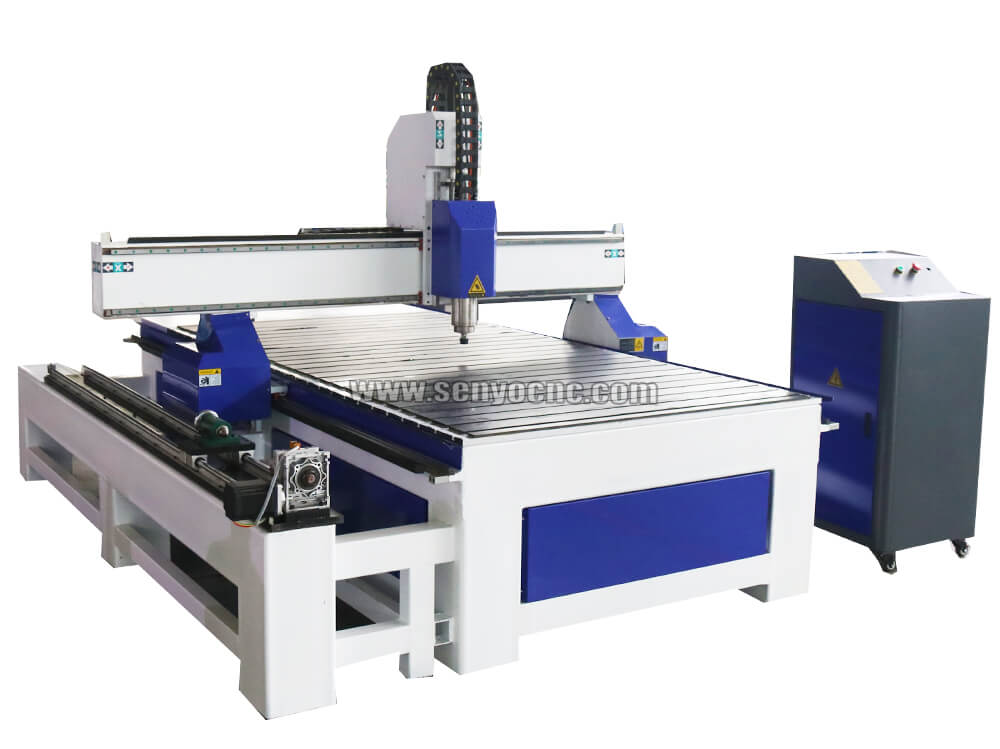

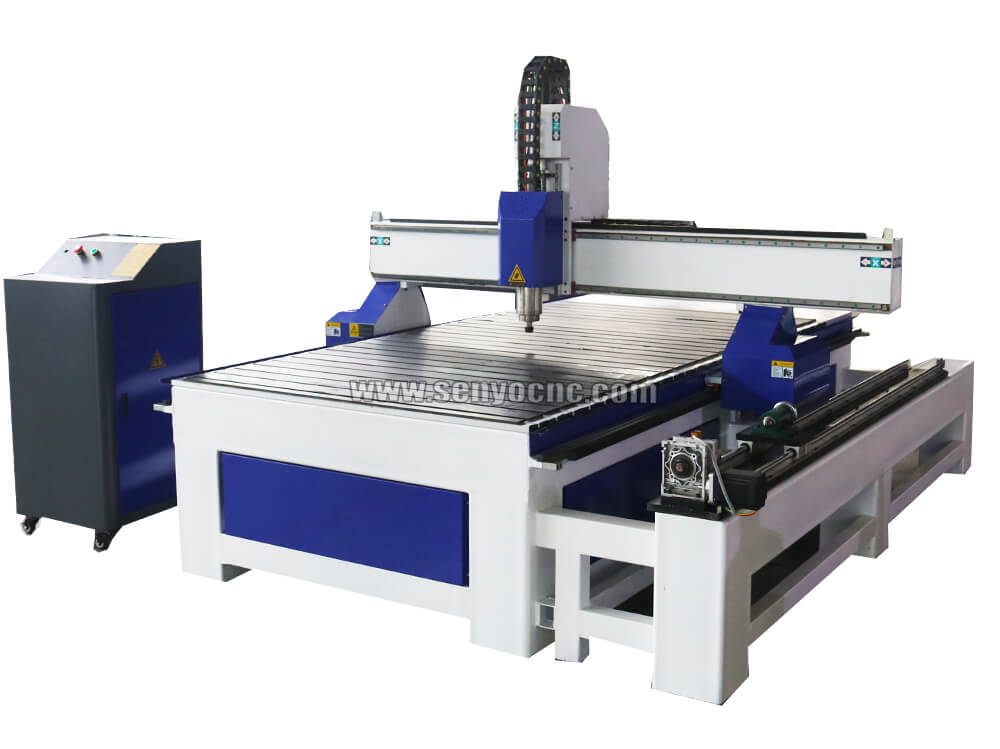

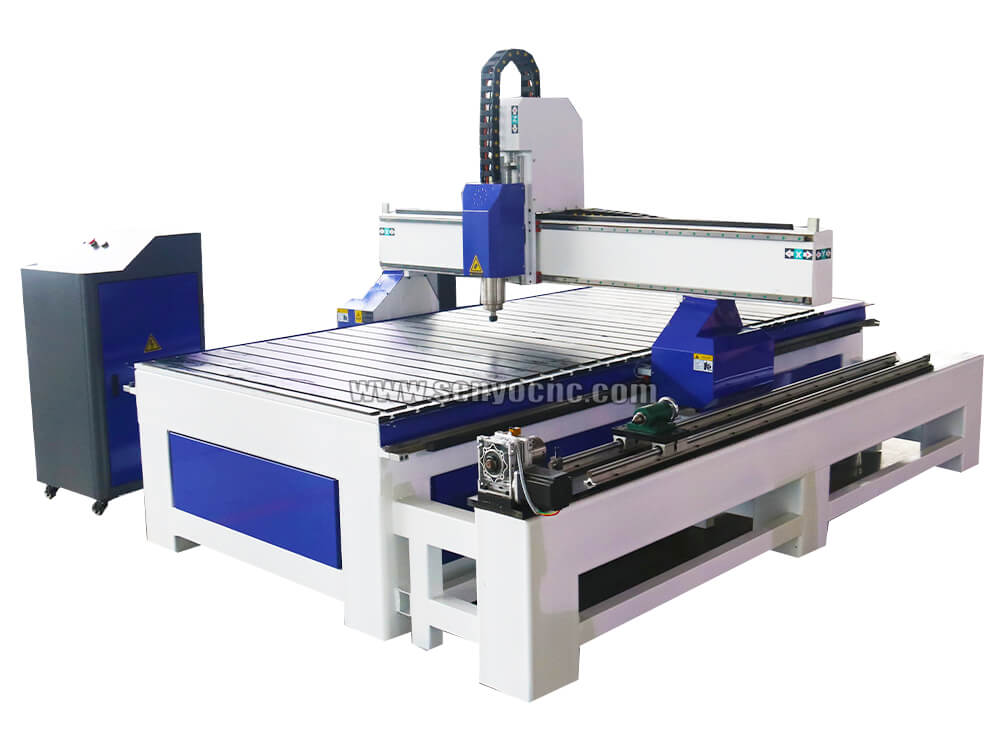

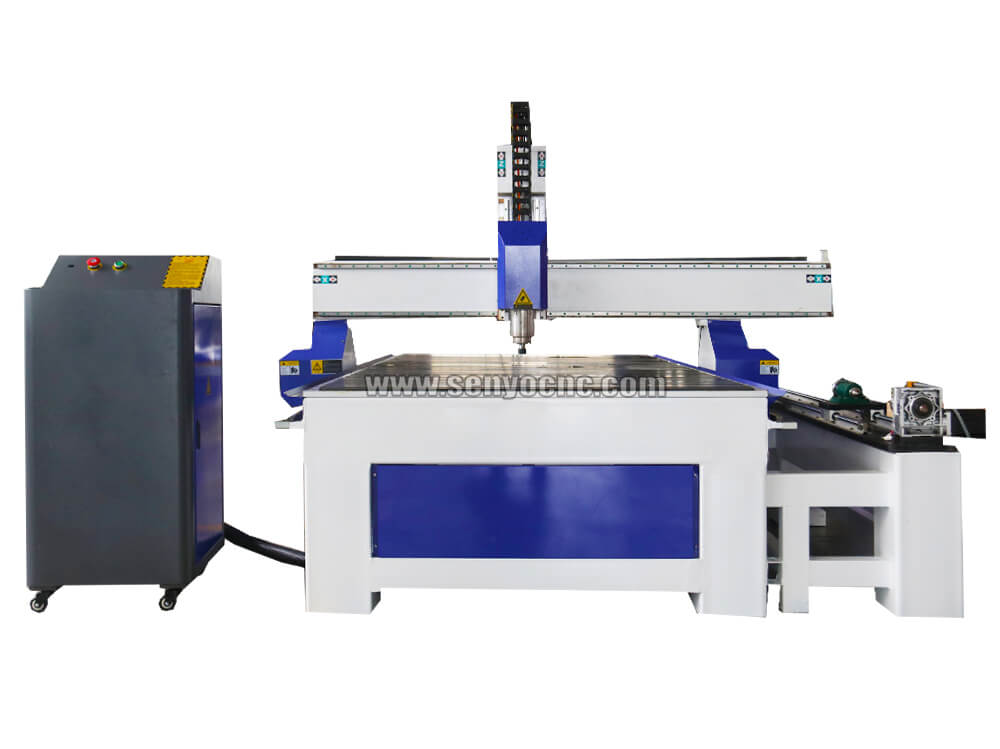

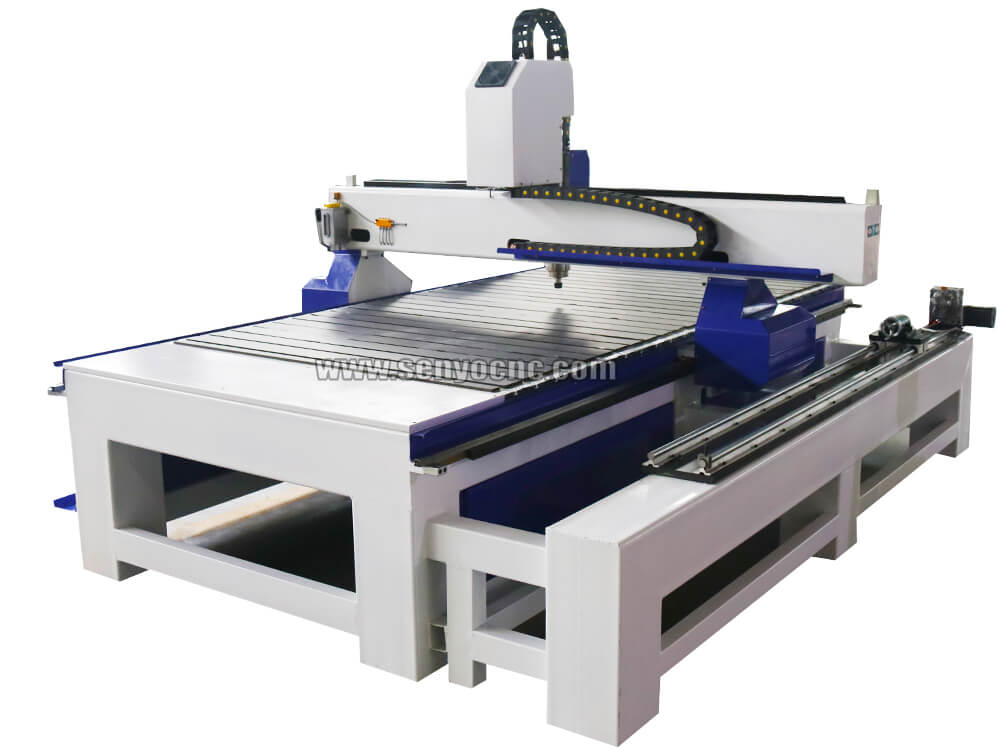

Specification of 4 axis 1325 CNC Wood Carving Machine for Furniture
Brand | SENYOQC | |||
Structure | Welded by seamless square steel tube | |||
X,Y,Z working area | 1300*2500*200mm | |||
Guide rail | X,Y,Z Taiwan HIWIN linear square guide rail | |||
Transmission | X,Y high precision rack and pinion | |||
Z Taiwan TBI rolling ball screw | ||||
Workpiece fixture | T-slot | |||
Drive system | Stepper motor , Hybrid servo motors and drivers
| |||
Spindle | 3KW water-cooled spindle | |||
Spindle rotating speed | 6000-24000rpm | |||
Max. engraving speed | 20000mm/min | |||
Accuracy | <0.04/300mm | |||
Collect | ER20 | |||
Cutter diameter | 3.175mm, 4mm, 6mm, 12.7mm | |||
Control system | DSP | |||
Software compatiliby | Type3/Artcam/Artcut/Ucancam/JDpaint etc. | |||
Working voltage | 220V 380V, 50HZ 60HZ | |||
Command language | G-code,*uoo, *mmg, *plt, ENG, HPGL | |||
Computer interface | USB | |||
Flash memory | 128M(U Disk) | |||
Environment temperature | 0-45 centigrade | |||
Relative humidity | 30%-75% | |||
Maintainance | Oil lubricating system | |||
Optional | Air-cooling spindle, rotary head, vacuum adsorption |
Main Features

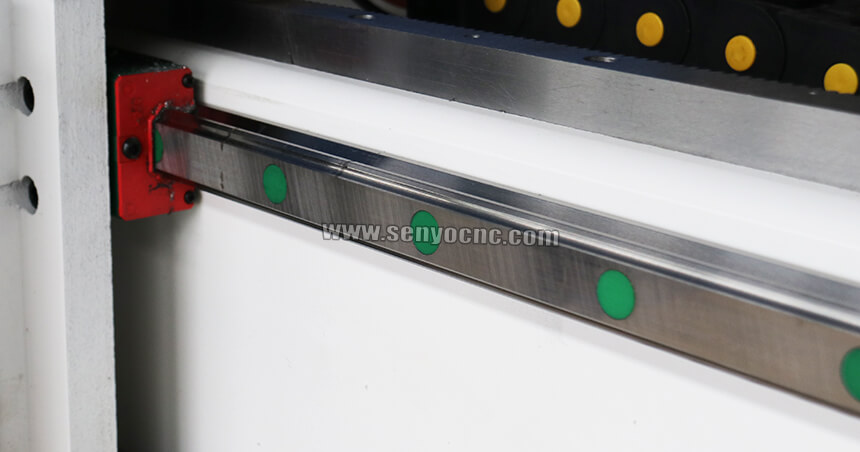

Using high-precision Hiwn linear guide rail, X Y adopts high-precision helical gear transmission, which has large bearing capacity,stable operation, high precision, long service life and accurate lower cutter.

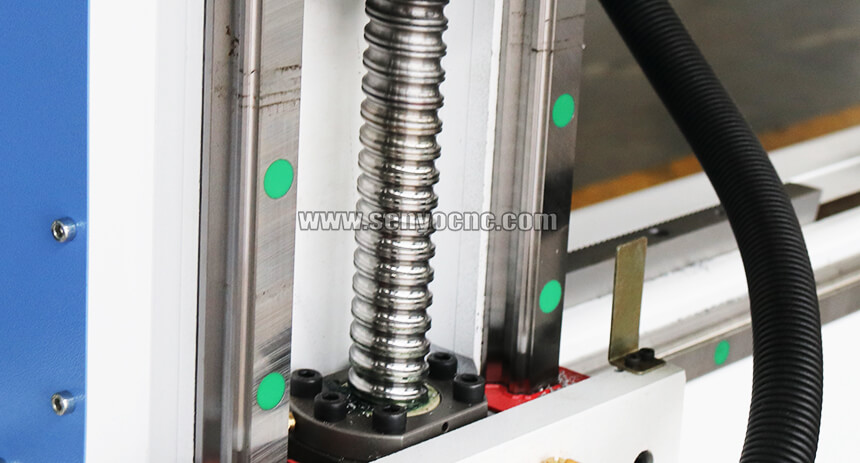

TBI Ball screw transmission

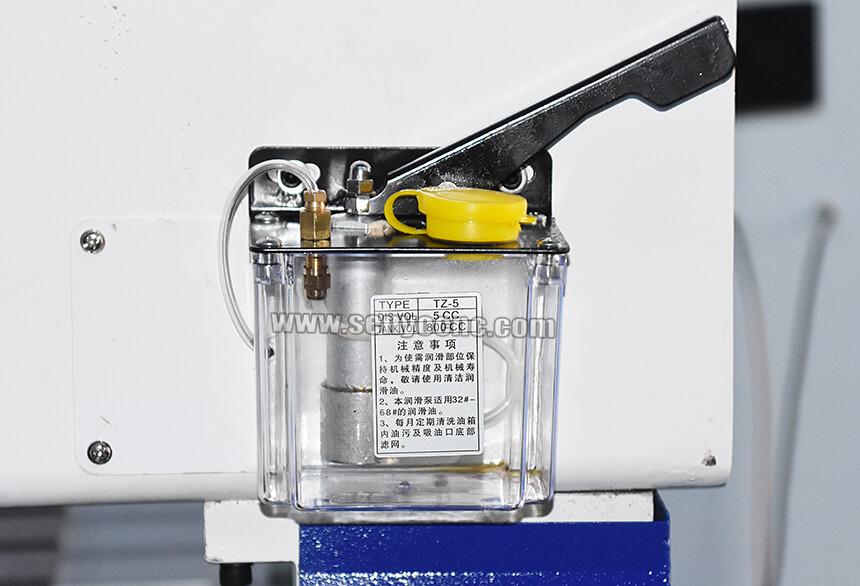

Oil lubrication

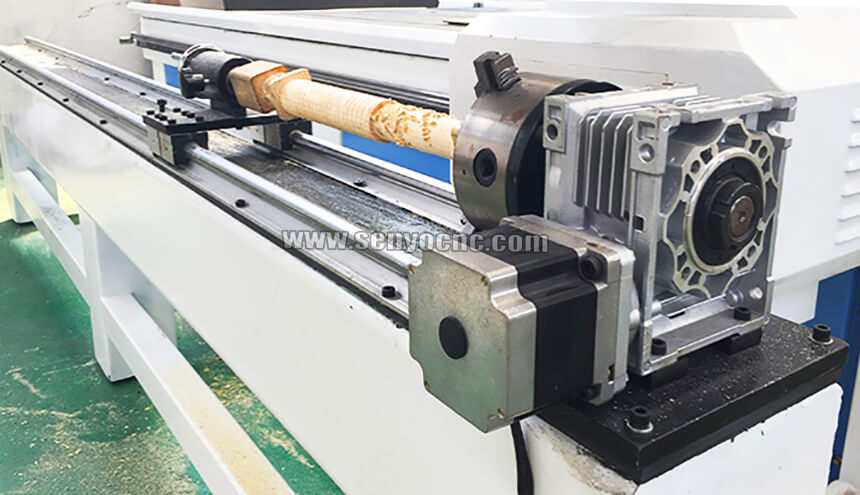

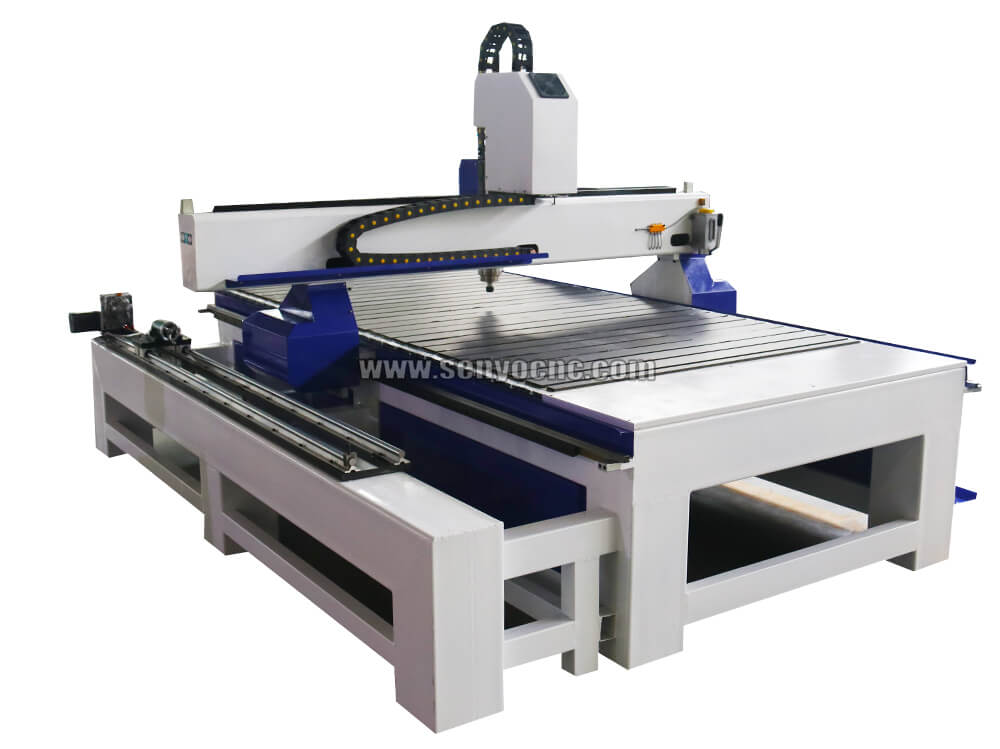

Rotary Device

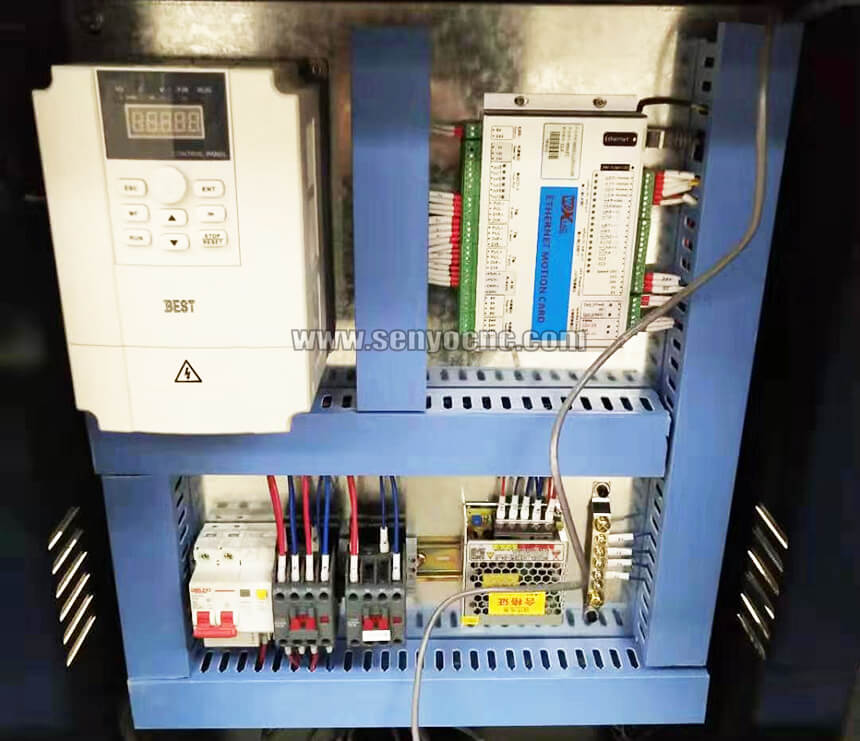

Independent control box with Professional wire connection
Application of 4 axis 1325 CNC Wood Carving Machine
Wood working:
Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door, avoid wind, process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table, computer table and the assistant process of the household effect
Advertising:
Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
Model industry:
It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
Other field:
It can engrave many image, engrossment,It is widely used in artistic industry.

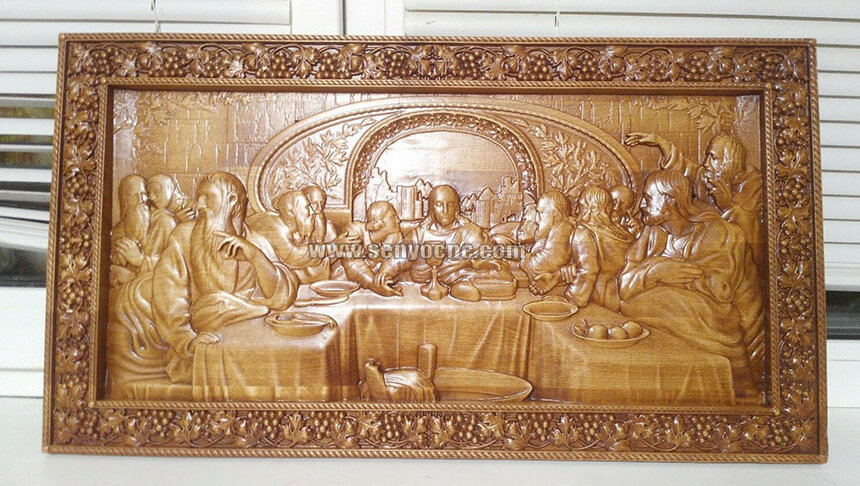

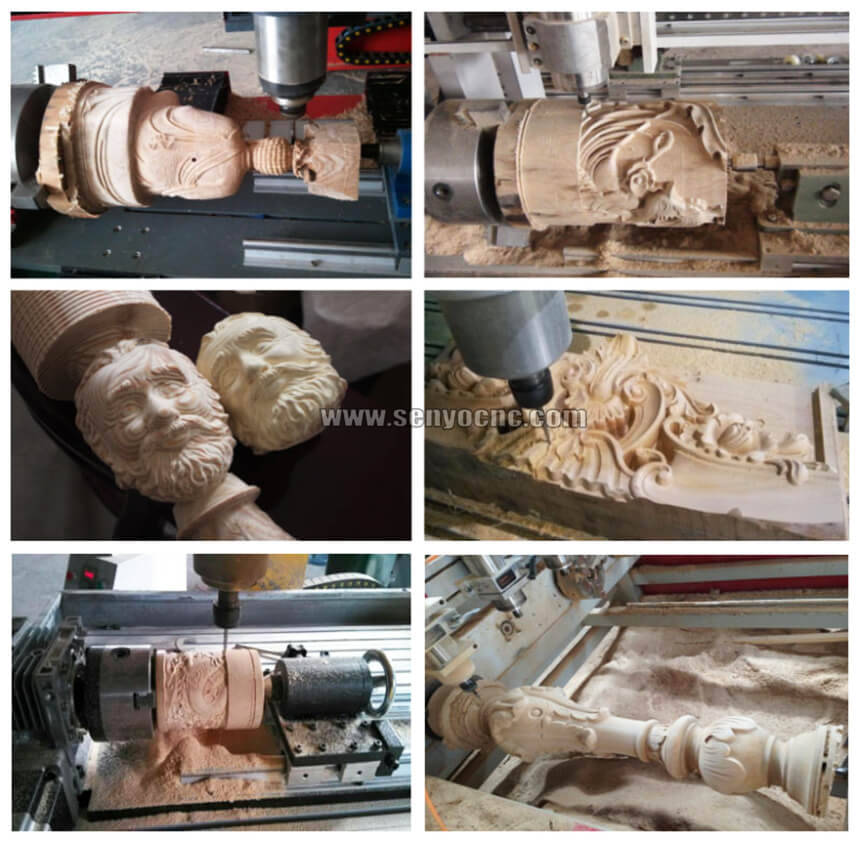

Samples of 4 axis 1325 CNC Wood Carving Machine for Furniture

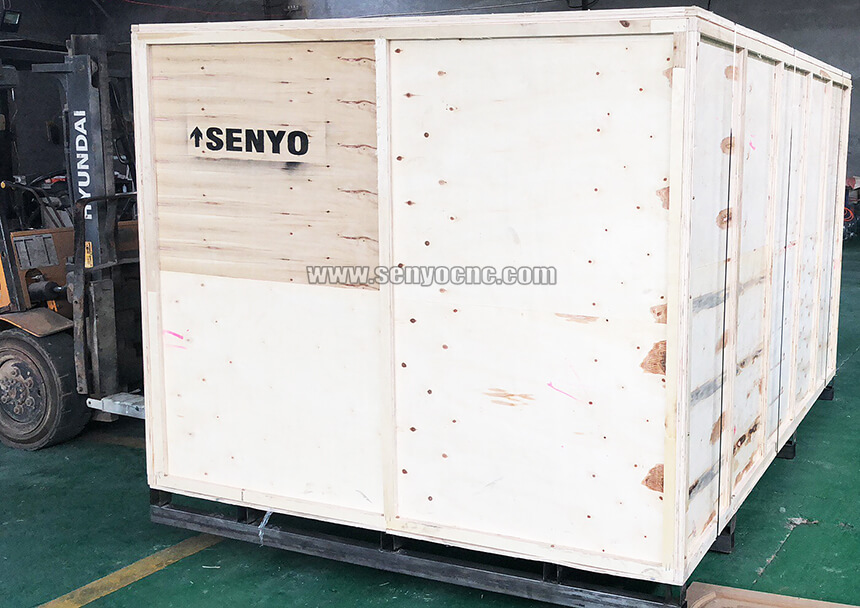

Packaging detail
1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film for humidity.
3). CNC router achine packing size:3240*2150*2120mm ,GW: 1100kg
Shipping detail
1) CNC Router machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
3) Some extra spare parts (Pipe,limit switches etc)
Service & Support
1.Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
FAQs
1.I want to buy a 3 axis cnc router,what suggestion can you give?
For small size,we have 300*400mm, 400*400mm, 600*900mm; for bigger size,we have 1200*1200mm, 1200*2400mm, 1300*2500mm and so on. Customization is also ok.
2. If machine have any problem after I receive it, how can I do ?
Free parts will be sent to you within warranty time, and there is technical support from our professional engineer. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3.I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype.
4.How long can the machine be finished?
Normal, it would be 7-10 days; For non-normal machines or special machines according the client will be within 20 days.
5.Could you help me to arrange the shipment?
Of cause, we can offer our client FOB,CFR or CIF price,even EXW price. If possible we can help to arrange the shipment
6.Have you exported to our country?
We have been in this field for 10 years,we have CE certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and others
