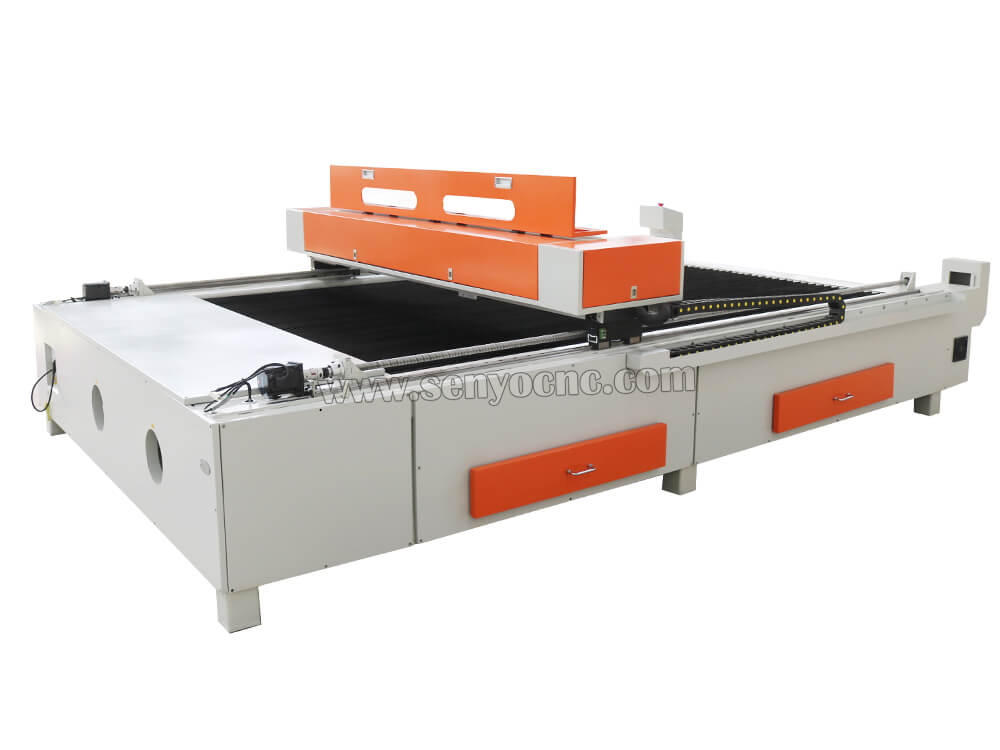

SYJ1530H

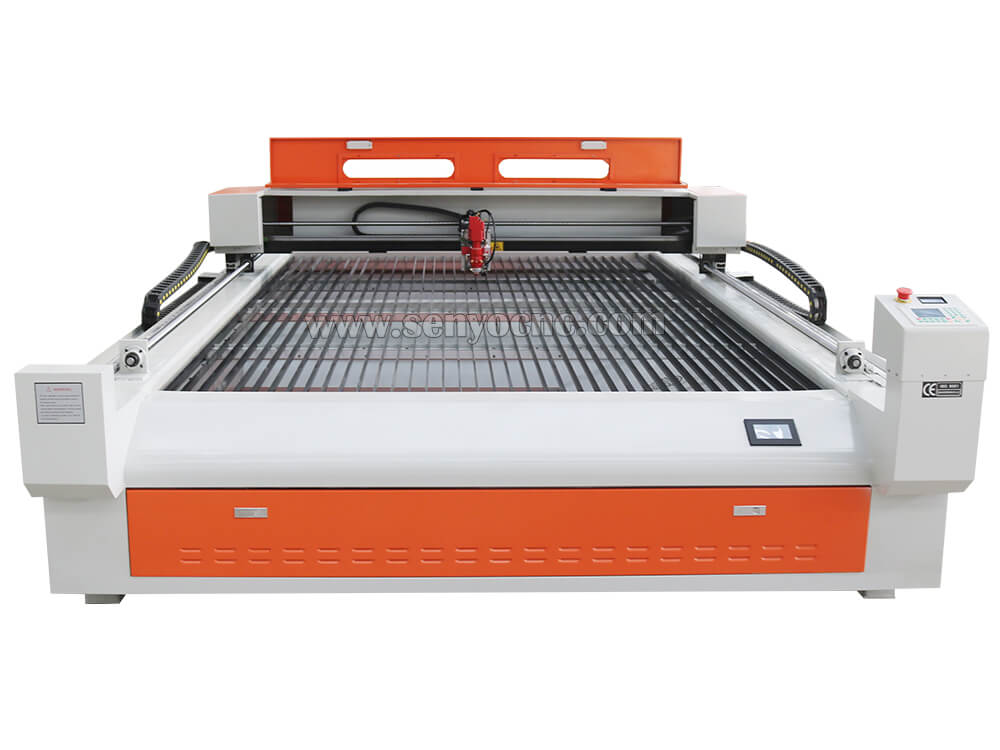

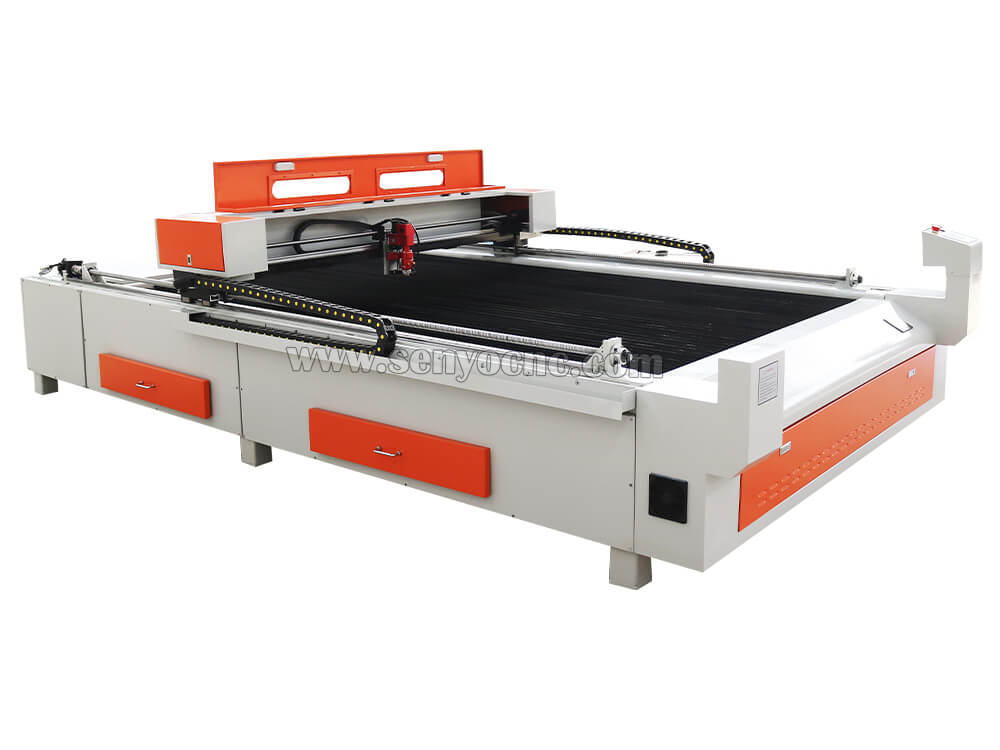

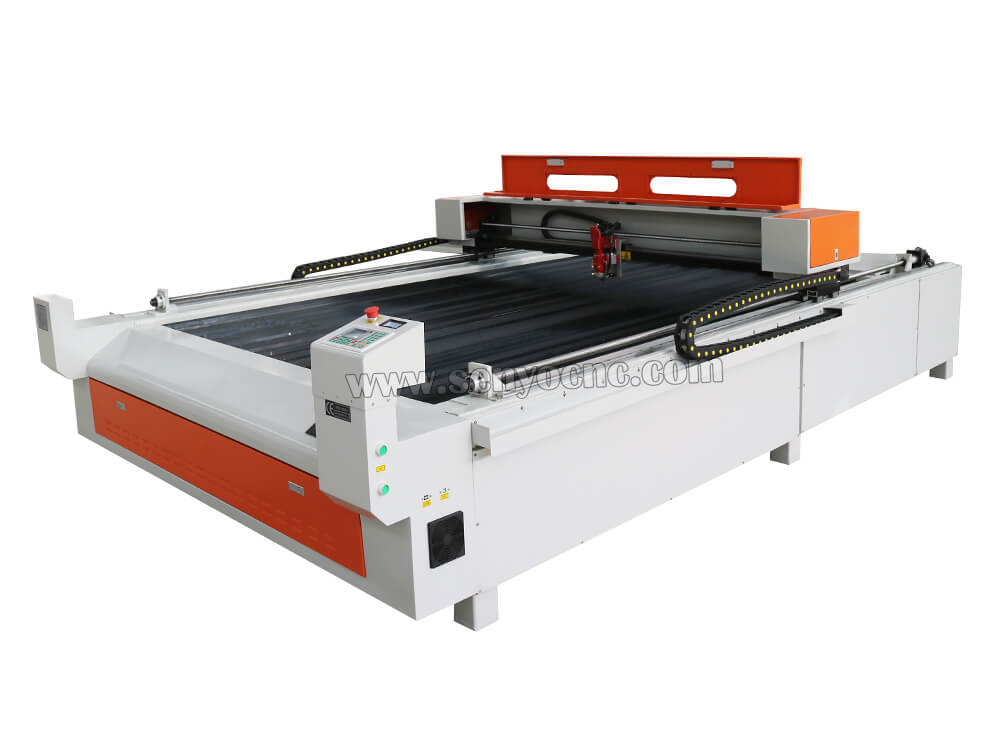

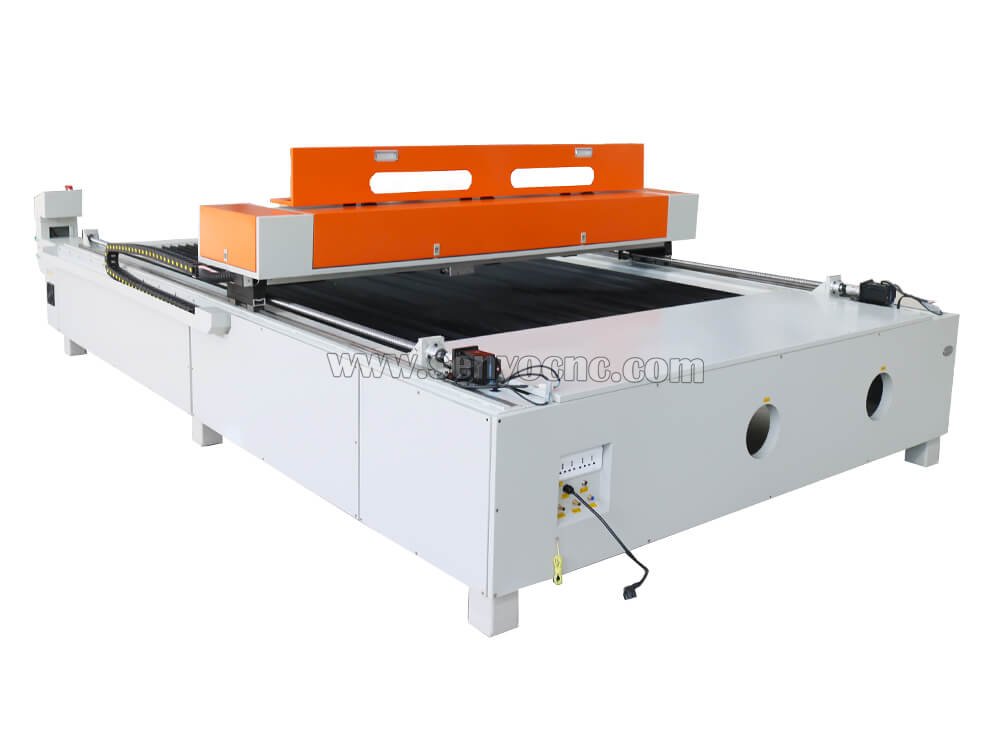

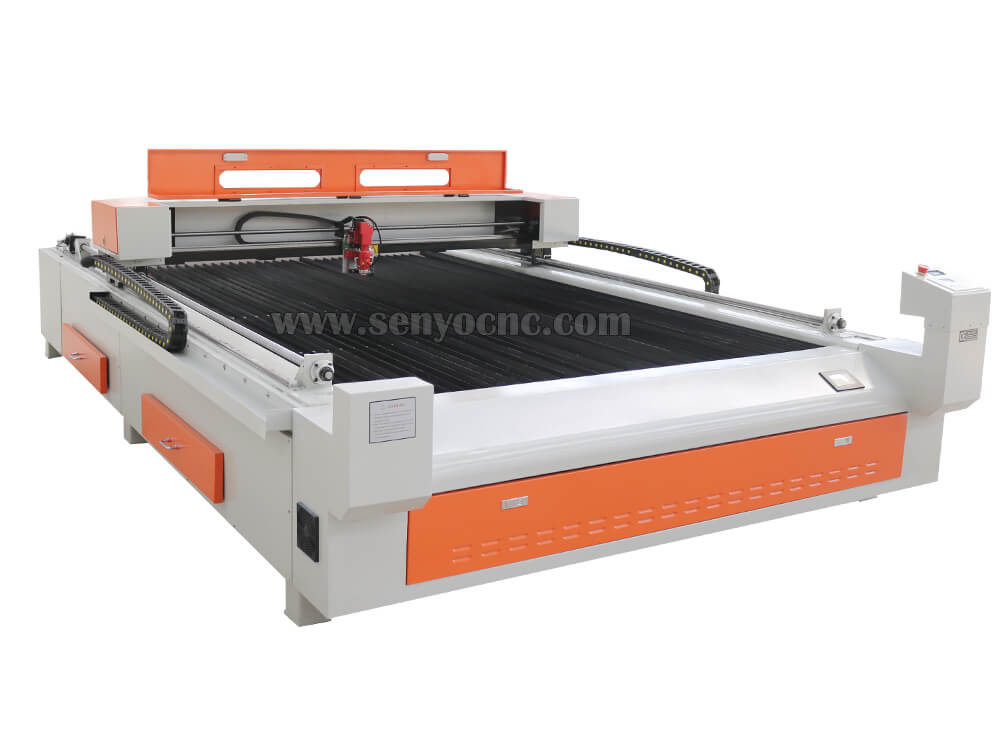

CO2 Laser Cutting Machine
1512
SENYOQC
/5 based on 200votes/5 based on votes
8000usd / Set
8000usdto 13000usd / Set According to Configurations
200Sets / Month In stock! From - Jinan Senyo Machinery Co.,Ltd / Month In stock! From - Jinan Senyo Machinery Co., Ltd
T/T(Telegraphic Transfer), Mastercard, Visa, e-Checking
1.Mix Cutting: It supports both Metal and Non-Metal Cutting, can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF, PVC board, paper, fabric, etc.
2.Adopt 150w / 180w / 260w / 300w Laser Tube, high power, 10000 hours long life span.
3. Adopt Japan Imported Servo Motor and Ball Screw Transmission Rod: with fast speed and high precision.
4.Dynamic Auto-Focusing Metal Sheet Laser Cutting Head: When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.
5. Advanced LCD Touch Screen+ USB port+ DSP Offline Control: which can not only work without computer, but also connect to U disk, USB communication.
6. LCD Control System own 128M Big Memory: which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw,
Photoshop and some other kinds of graph disposal software.
7.Imported high precision linear guide rail and professional optical system:
dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.
8. Professional Strip work table: meets the needs of diversified laser process;
9.Water Cooling System with Alarm Protection: adopt CW-5000 or CW-6000 Water Chiller with temperature display,
which can avoid over burning, to protect the water circulation from electricity-off.
10.Equipped with luxury Consumables: Imported Focus Lens and reflect mirror, makes high efficiency and steady.
11. High speed stepper subdivision driver control: numeral timing, simulation quantum control laser power, little error,
repetition high precision, engrave 1×1mm little English character perfect.
12.Red Light Pointer: realizes the exact position without laser.
13.Matched Professional cutting software: is particularly designed and written for both metal and non-metallic cutting,
with high compatibility, support any computer operating system.
Specification
Model | SYJ1530H |
Working Area | 1500mm*3000mm |
Laser Power | 150w 180w / 260w / 300w |
Transmission Method & Driving System | Standard
Machine use Belt Transmission + Chinese Top Brand "Leadshine" Step
Motor and Driving System (Optional Machine use Ball Screw Transmission + Japan IMported Yaskawa Servo Motor and Driving System) |
Laser Type | CO2 Sealed Laser Tube, 10.6um |
Cooling Type | Water Cooling, 150w-180w Machine use CW-5000, 260w-300w Machine use CW-6000 |
Working Table | Stainless steel and knife table |
Laser Output Control | (0-100% Set by Software ) |
Smallest Character Engraving | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
Highest Scanning Precision | 4000DPI |
Positioning Accuracy | ±0.02mm/m |
Positioning Speed | 20m/min |
Max. Cutting Thickness | 40mm |
Max. Cutting Speed | 20m/min |
Controlling Software | DSP Control System |
Graphic Format Supported | BMP, PLT, DST, DXF, and AI, etc |
Compatible Software | CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software |
Drive System | High-precision 3-phase Stepper Motor |
Auxiliary Equipment | Exhaust Fan and Air Exhaust Pipe |
Controlling software | Off-computer controlling system |
Working voltage | AC110-220V ±10%/10A,50-60HZ |
Power | <2000W |
Parts Detials

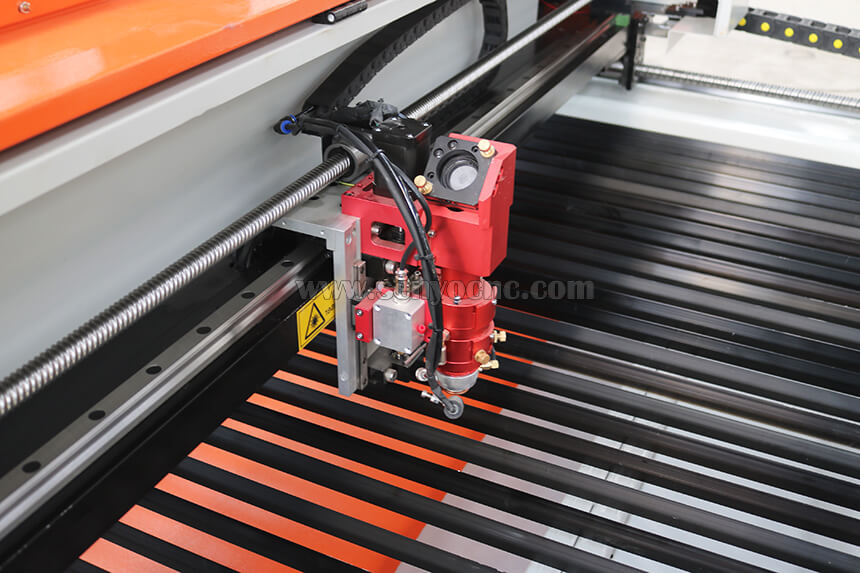

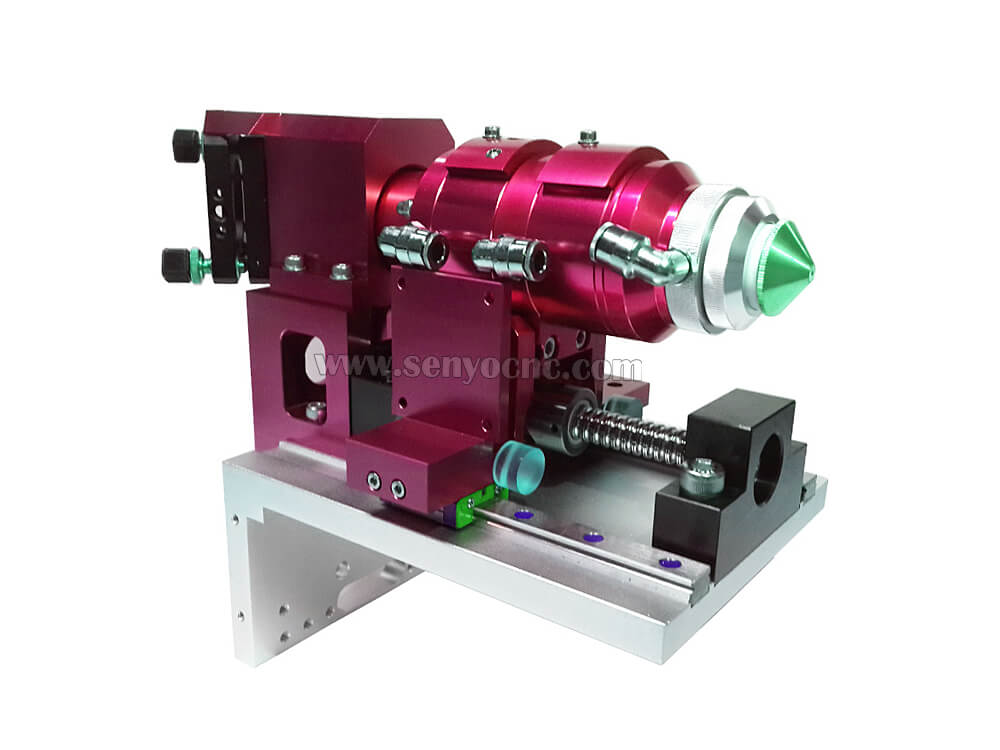

Laser head
The cone-shaped cutting nozzle is adopted, and the shape of the gas jet is conducive to the cutting of thin metal plates.
Cutting non-metal is also available.
It has good air tightness and can withstand higher gas pressure during metal cutting,there is a Z-axis transmission part,
which can move up and down to accurately track the focus position.
When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically.
Realize the accuracy of cutting effect.Pre-view and pre-run function
Simulate the laser cutting path,Pre-run the cutting path in advance.
Ensure finding the accurate cutting position
Unique Mirrors and Lens Cooling Technology
All mirrors and lens is cooled by water ,Takes the mirror heat during working

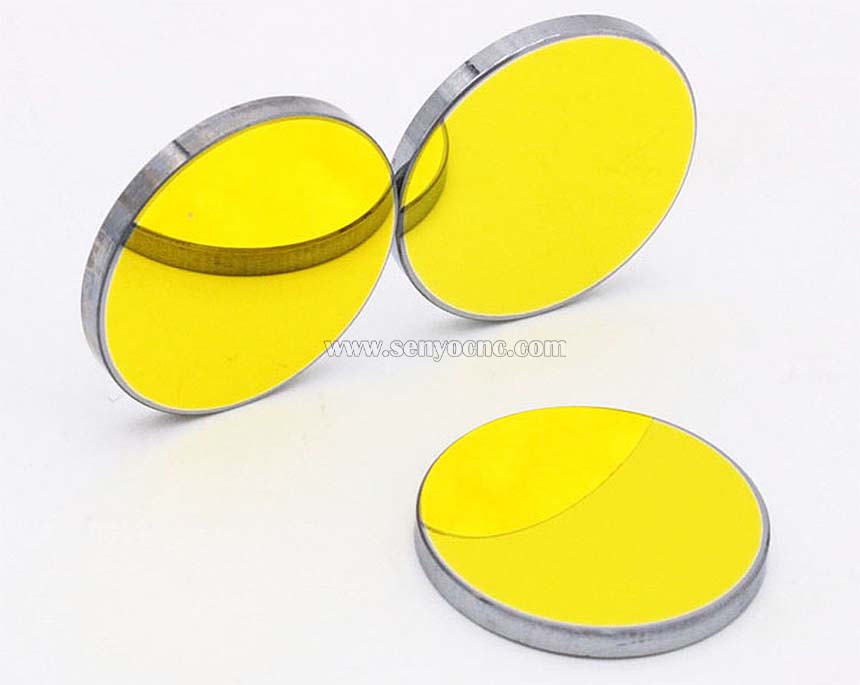

USA Brand Imported Mirrors & Lens,Equipped with luxury consumables
Imported reflect mirror and focus lens, Makes high efficiency and steady.

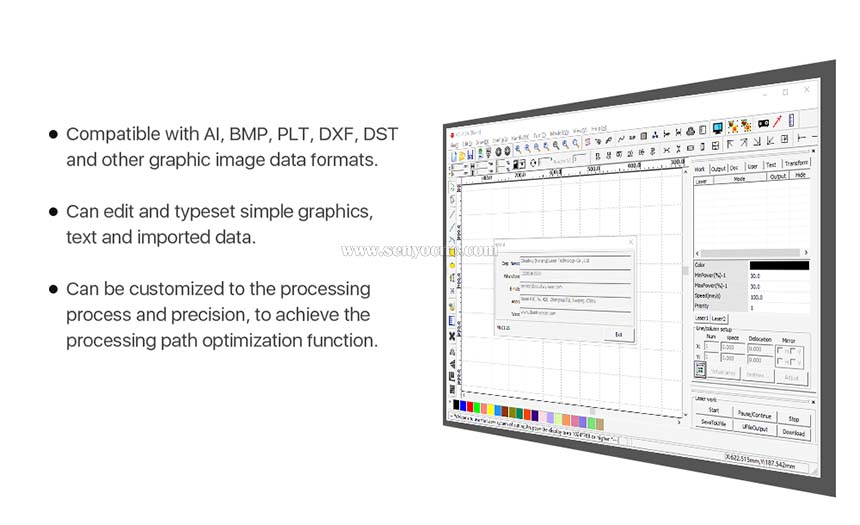

Laser Cut Software

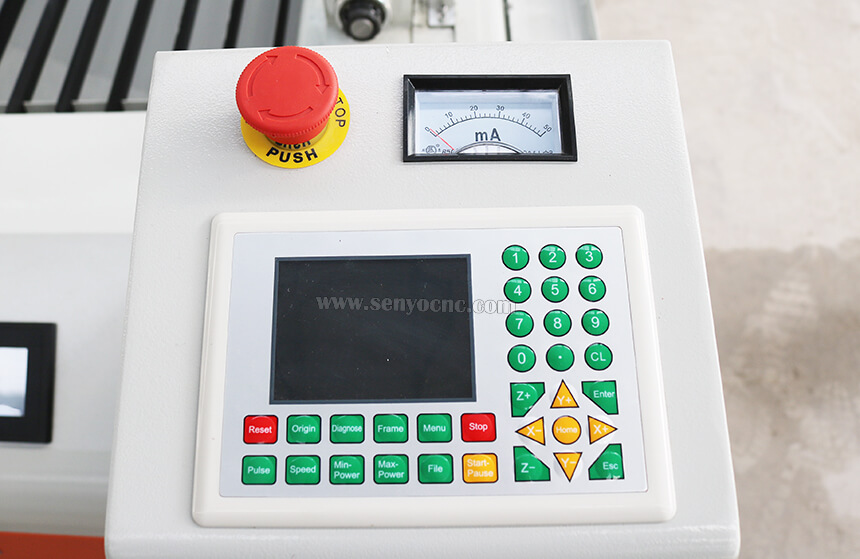

RUIDA controller

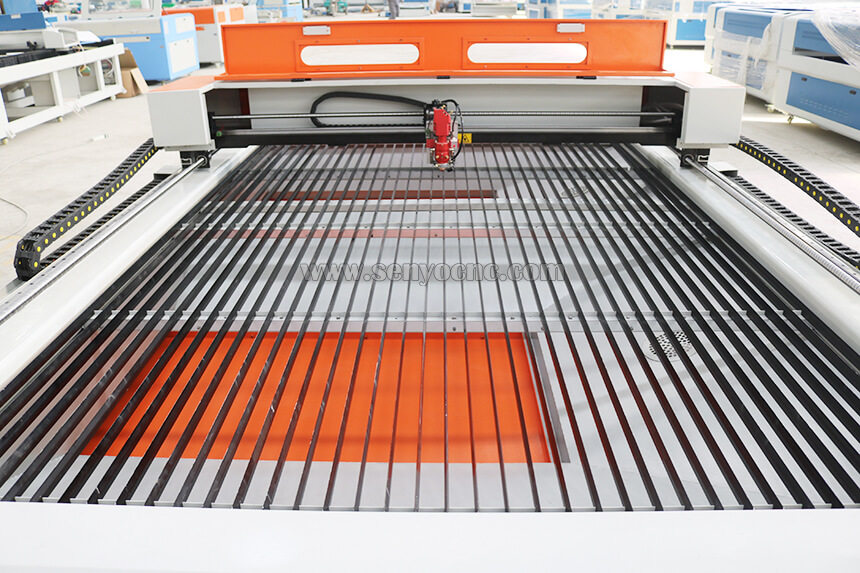

Thicken Strip Working Table Specially Used for Cutting ,Meets the need of diversified laser procession
Heavy Loading Suitable for cutting heavy and hard products

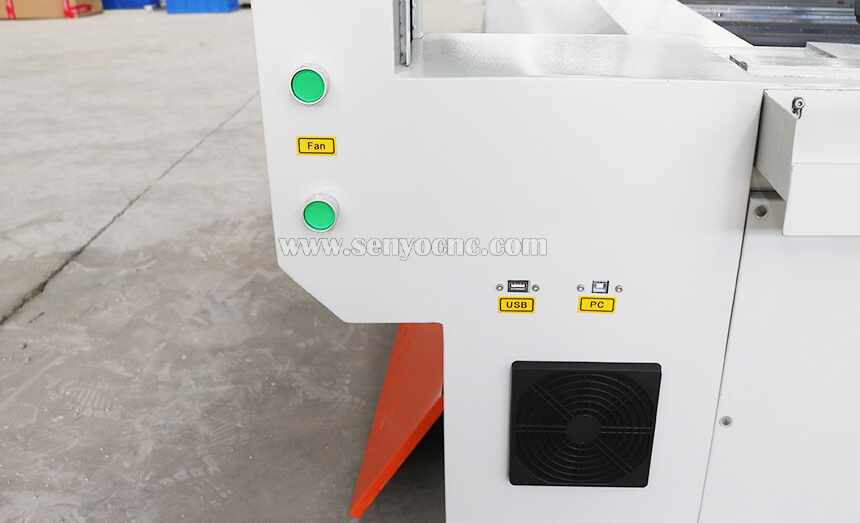

USB Interface, Support offline work.

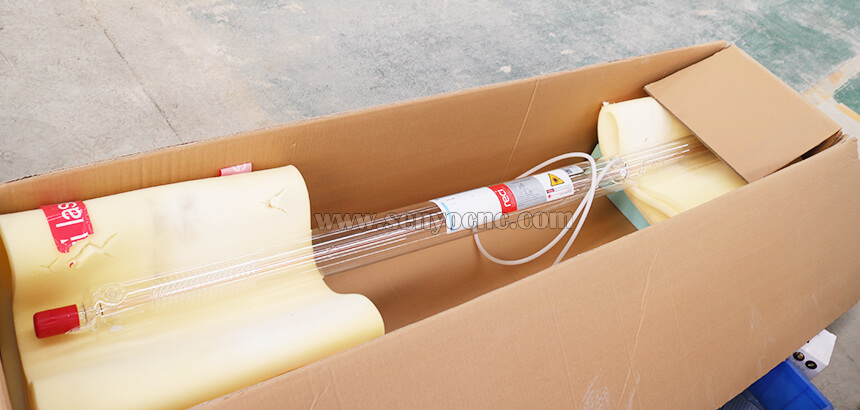

High Quality Famous Laser Tube . Available for global warranty
RECI / YONGLI / EFR multiple brands co2 laser tube available, strictly select laser tube supplier to ensure stable output and long service life of laser tube

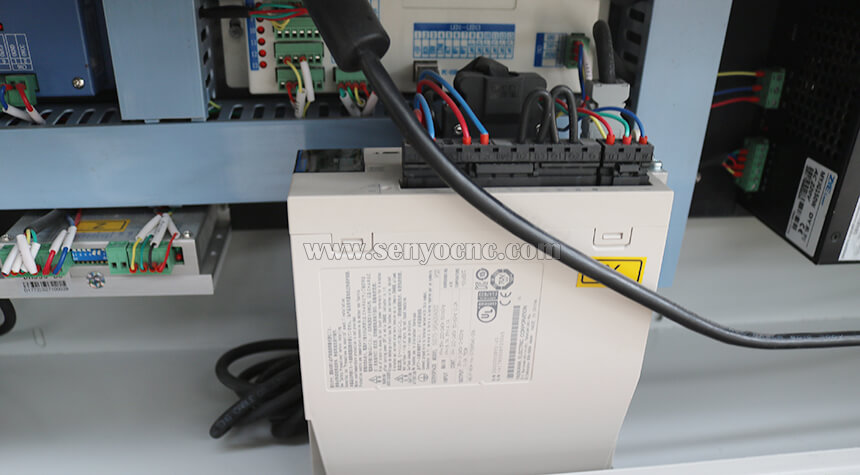

Motor And Drive
Leadshine stepper / Yaskawa/Delta / Panasonic / Fuji
According to machining accuracy requirements multiple brands available

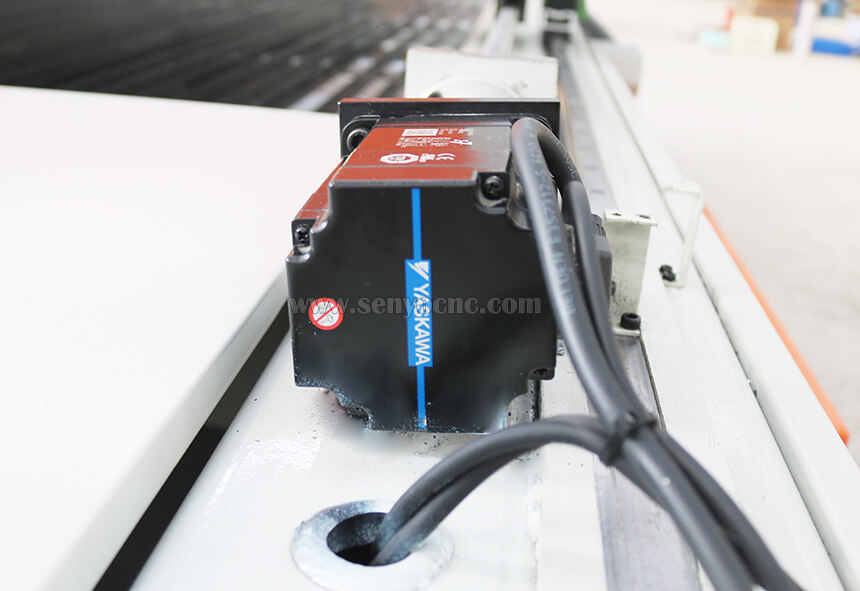

The X/Y axis uses a high-precision Servo motor to
improve response speed and cutting engraving accuracy.
The average small brand used by other manufacturers is more accurate and has a longer service life.

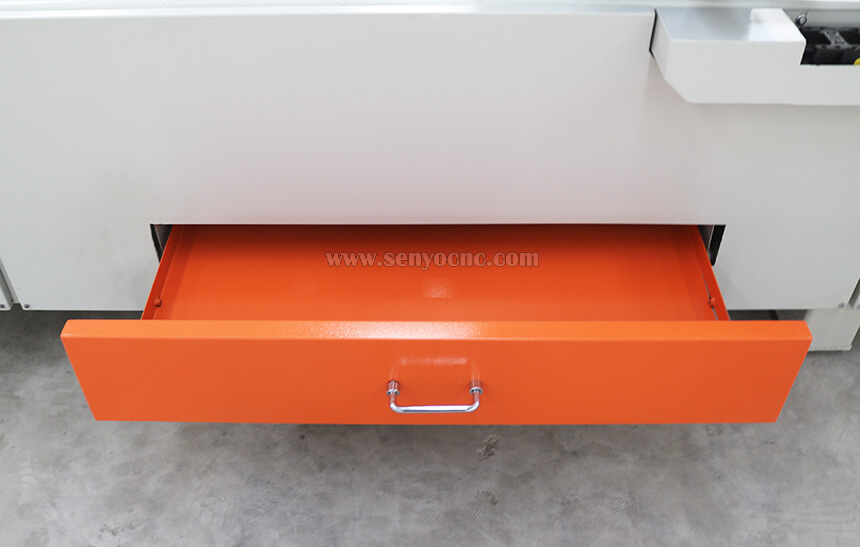

Drew Convient Take Out All Small Cutting Works

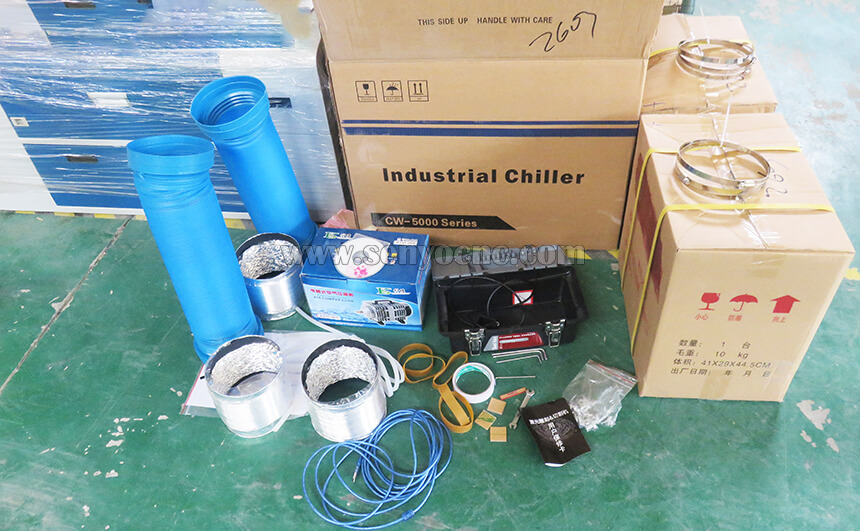

Tools , Machine With Complately Tools
Tools for maintaining the machine are included.
If the sheet metal
is not flat,the system can sense a distance from the nozzle to the
metal surface and follow the surface up
and down to automatically adjust the certain focus distance for keeping high precision cutting quality,the laser beam is expanding ,
so the working area is bigger,the more difficult the machine is to get the same cutting quanlity over the whole working area,
the fixed beam optical system can guarantees the
consistent beam power and quanlity over the whole working area so that
the machine can get the same cutting quanlity, high efficiency,high precision,stable performance and long life.
150W cutting speed
material | Stainless | Carbon steel | Acrylic | MDF | |||||
Thickness /(mm) | 0.5 | 1 | 1.5 | 0.5 | 1 | 1.5 | 10 | 20 | 10 |
Speed /(mm/min) | 2700 | 1800 | 1000-1200 | 3000 | 1800 | 1000-1200 | 200 | 90-120 | 300-400 |
260W cutting speed
material | Carbon steel | Stainless | Galvanized sheet | |||||
Thickness /(mm) | 1 | 2 | 1 | 1.5 | 2 | 0.8 | 1.2 | 1.5 |
Speed/(mm/min) | 2000 | 1600 | 3000 | 1600 | 1200 | 2500 | 1500 | 1000 |
Materials | 40w | 50w | 60w | 80w | 100w | 130w | 150w |
wood | 1.5mm | 3.5mm | 5.5mm | 8.5mm | 10.5mm | 11.5mm | 13.5mm |
plywood | 0.5mm | 2.5mm | 4.5mm | 8.5mm | 10.5mm | 11.5mm | 13.5mm |
class | / | / | / | / | / | / | / |
leather | 0.5mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 5.5mm | 6.5mm |
acrylic | 1mm | 3.5mm | 9mm | 13mm | 17mm | 20mm | 23mm |
pvc | 0.5mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 5.5mm | 6.5mm |
pleixglass | 0.5mm | 1.5mm | 3.5mm | 7.5mm | 9.5mm | 11.5mm | 14.5mm |
plastic | 0.5mm | 0.5mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 5.5mm |
rubber | 1mm | 1.5mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 5.5mm |
crystac | / | / | / | / | / | / | / |
clothing | 1mm | 1.5mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 6.5mm |
bamboo | 0.5mm | 1mm | 1.5mm | 2.5mm | 3.5mm | 4.5mm | 5.5mm |
paper | 0.5-5mm |
Applicable Industries
Metal and Non-metal laser cutter has been widely used in manufacture billboard high-low voltage
electric cabinet kitchenware motor vehicle underground train machinery metal crafts etc.
Applicable Materials
Suit for metal and alloy and non-metal materials, such as stainless steel, carbon steel, alloy steel, spring steel,
copper sheet, aluminum sheet, gold, silver titanium sheet wood, paper, leather, cloth, organic glass, resin, acrylic
woolens, plastic, wollens, plastic, rubber, ceromlctile, crystal, bowlder, bamboo etc.

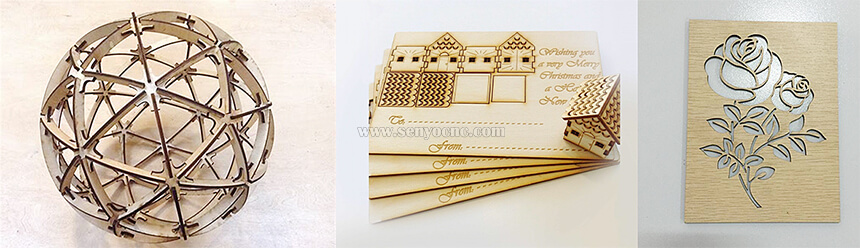

Working Project

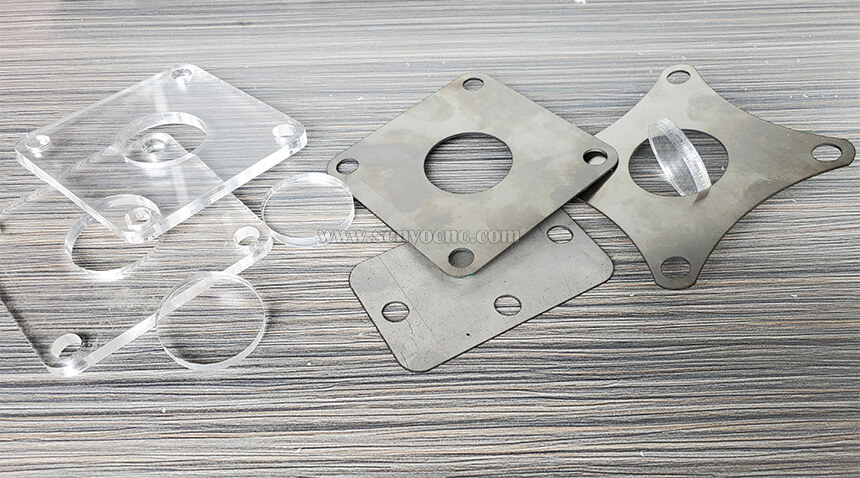

Cutting
Acrylic,perspex,wood,MDF,plywood,veneer,paper,leather,rubber,fabric,cloth,canvas,foil,
leather,fur,foam,plastic,PES,PC,PA,PE,PP,composite material,PVC, etc.

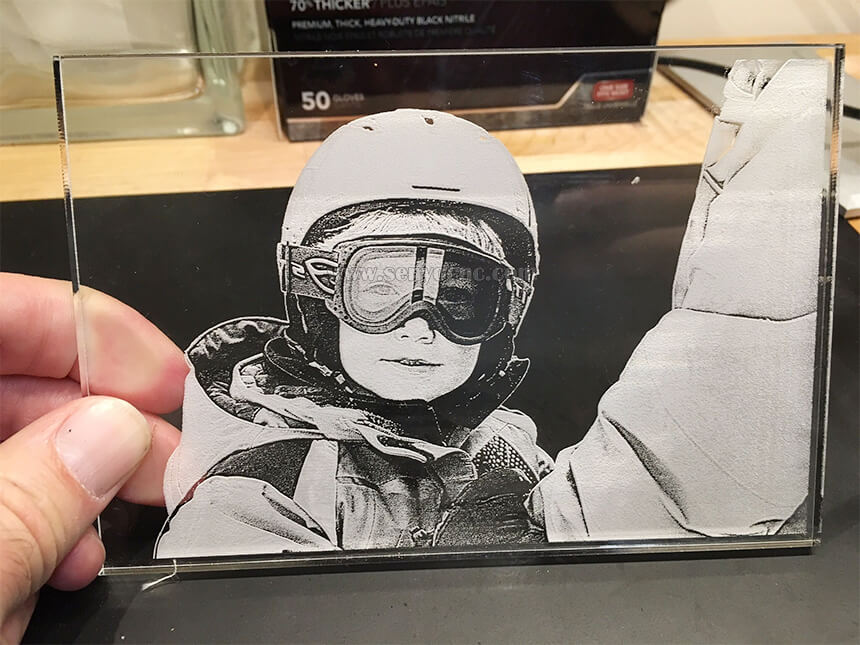

Engraving
Acrylic,perspex,wood,MDF,plywood,stone,marble,glass,jade,crystal,metal coating,paper,leather,rubber,fabric,cloth,plastic ,PVC, etc.

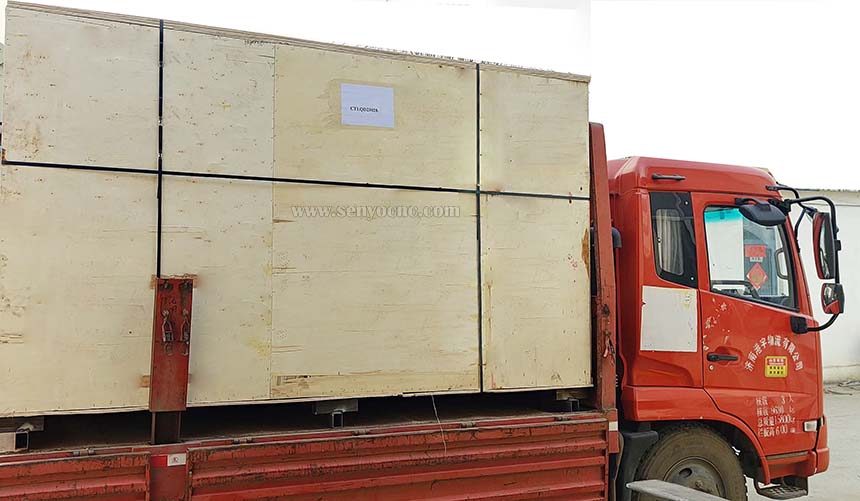

Package & Shipping
We have a strict packing process to ensure that the machine will be in good condition during transportation
1.Ensure each part of the machine is clean and tidy before packaging
2.Each accessory is wrapped in a recyclable plastic bag, then wrapped in cardboard.
3.Place the machine neatly (like a cube as much as possible) and add a thicker foam to the corners that are easy to bump
4.Packing in wooden cases of suitable export standard plywood( fill the corners with recyclable plastic foam),then seal the
case and fasten it with high quality stainless steel nails and steel straps.
5.Then seal the case and fasten it with high quality stainless steel nails and steel straps
6.We will write the corresponding shipping marks on the cases according to the customer's requirements
7.Print or spray paint safety sign in wooden box.
International Shipping
Around the World All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS.
You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements.
we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
