What This Machine Use For ?

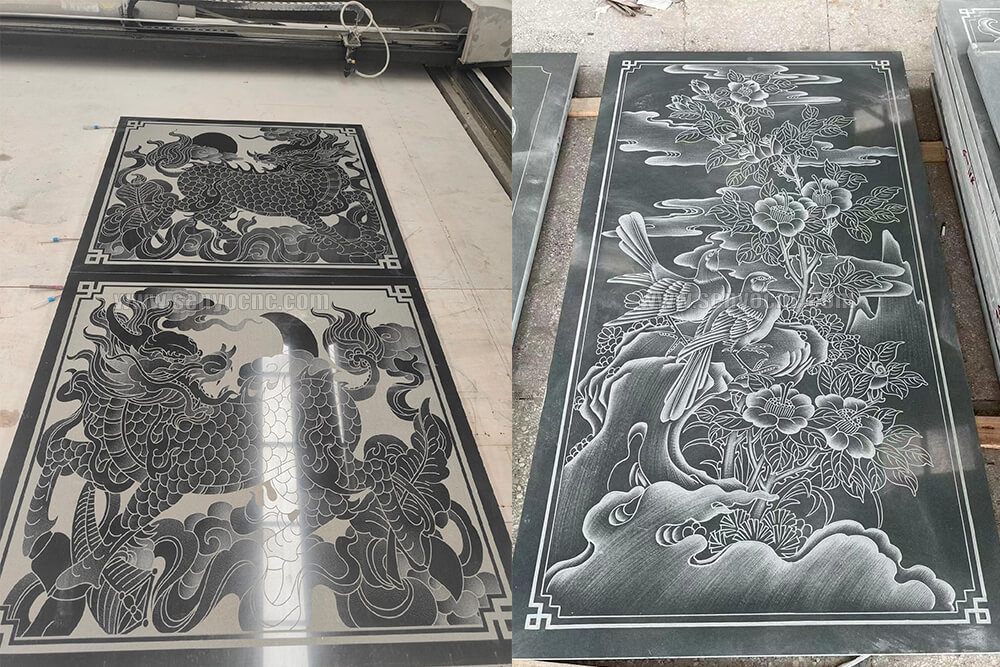

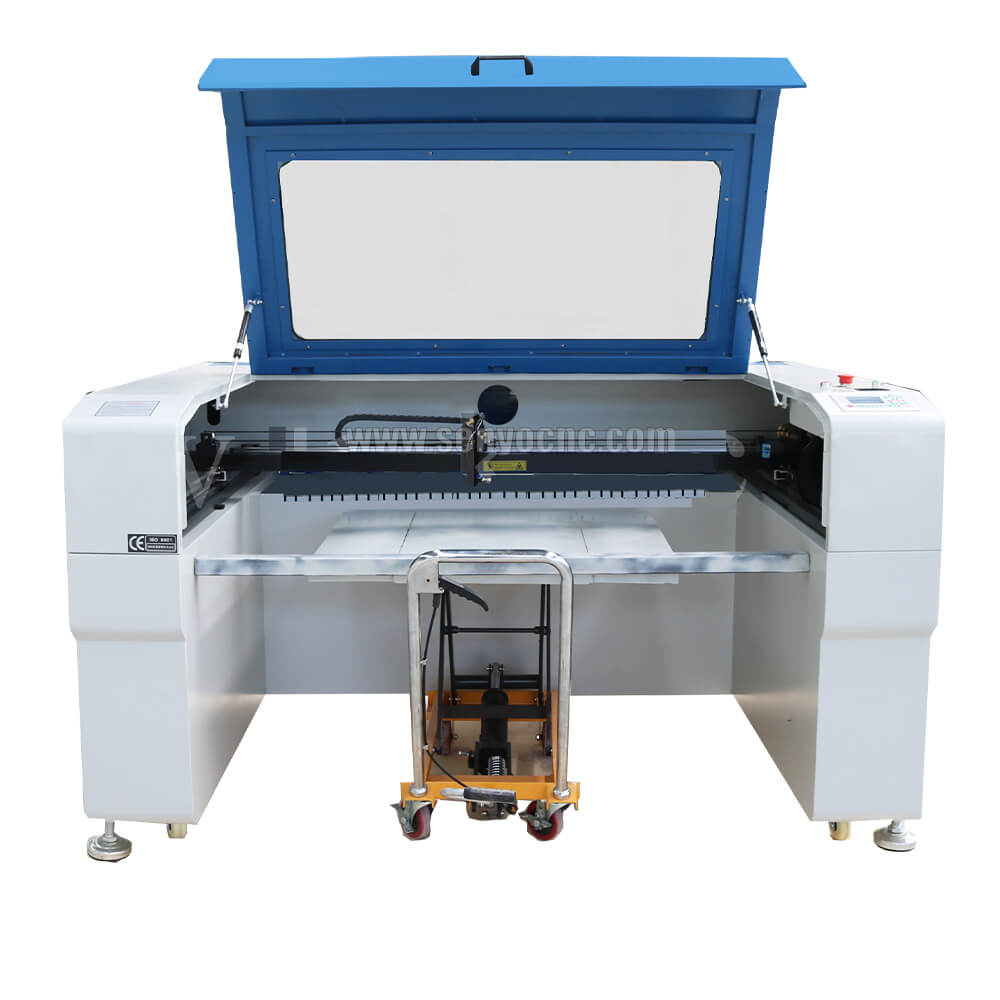

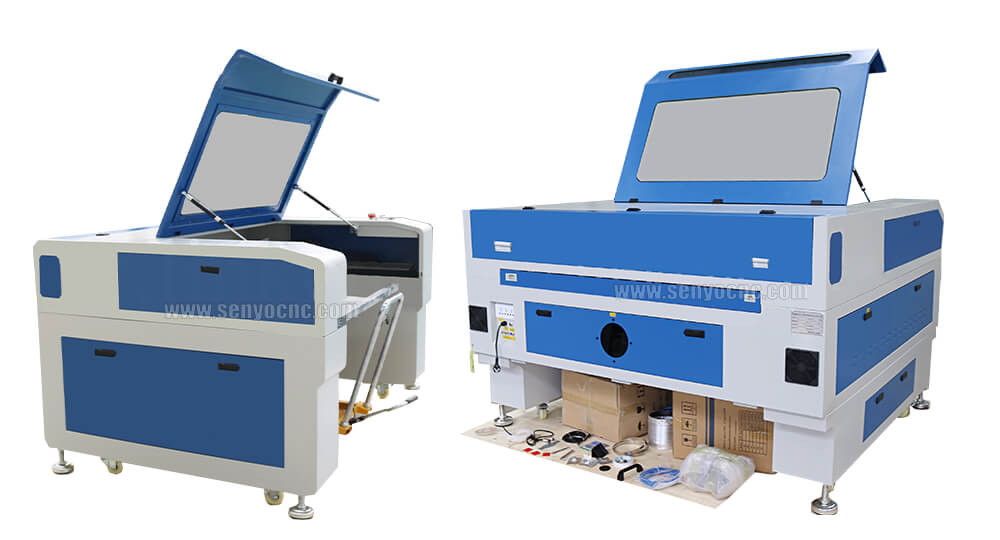

This stone marble granite engraving machine is mainly design for huge marble stone engraving work.

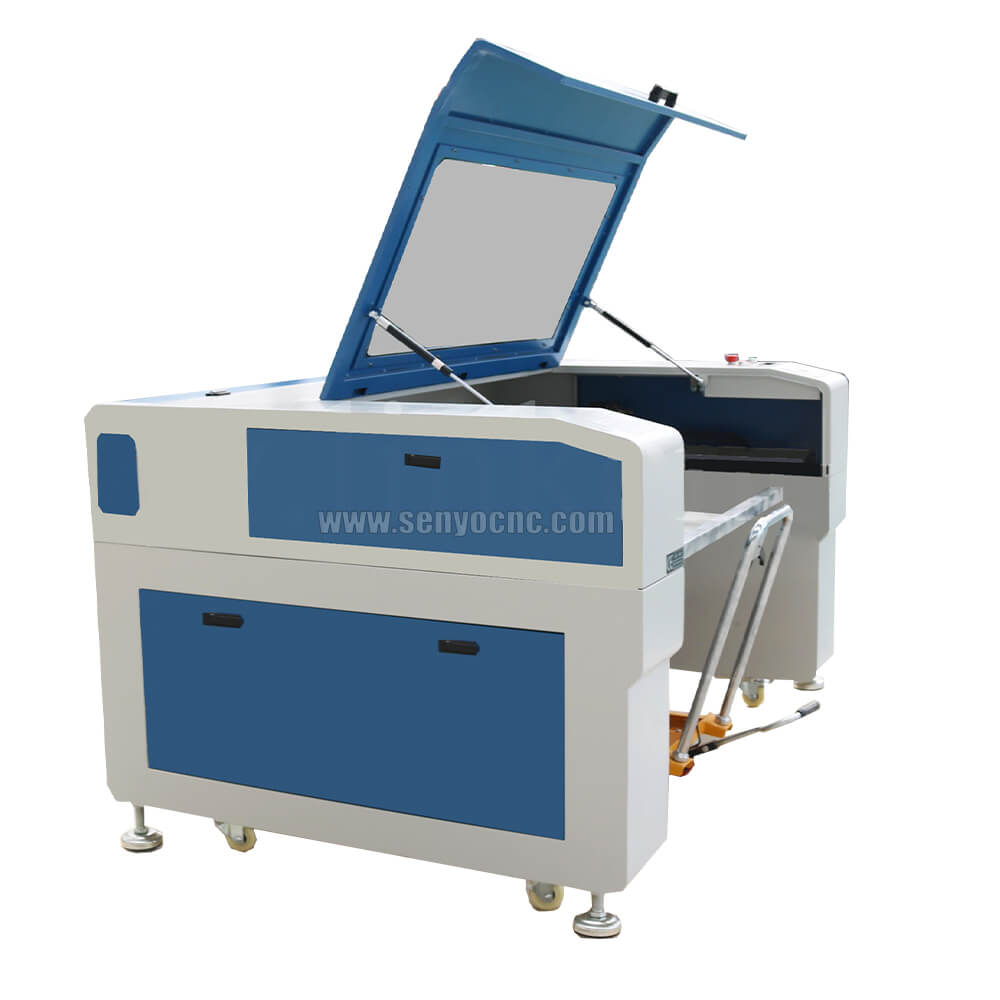

The machine with universal wheels can easy move around to put on any huge marble stone.
With the 260mm electric up down distance, can put on almost all thick marbles stones include tombstones.
This stone laser engraving machine with working area of 1300x900mm, or 1600x1000mm (63*39 inch),
the working area and up down distance can also customize according requirements.
Though this laser engraving machine specal suit for marble engraving work,
it can also use to engrave cut other nonmetal material like wood, MDF, acrylic,etc. Thus have a widely usage for almost all industry.
The laser beams work by increasing the temperature of the surface of the stone in no time.
Due to the abrupt changes in the temperature and increasing to a very high point, the stone is engraved.
The color on the surface of the material changes, or some particles from the surface are removed.
If the color is only changed, you only see the marking with almost no deep cuts. If the power is too high,
some material from the surface is removed, but it is still minimal. You need to adjust the power and speed of the laser according to your needs.
Also, you need to select the right type of laser for this purpose.
A CO2 laser is a preferred option for engraving stone. Due to its wavelength, it can be easily absorbed by stone, making it an ideal laser to engrave stones.
Advantages of Engraving Stone
* No physical contact, No wear and tear on the object
* Fast engraving, Quick results
* Incredible accuracy up to 0.0004 inches
* Intricate Designs available being engraved fine details
* Waste-free process
How Many CO2 Laser Watt to Engrave Stone?
The commonly available CO2 lasers have an optical power of 60W or more.
This power is more than enough to engrave stone. Without using 100% power, you can engrave the material at an excellent speed.
There is no exact setting for any laser machine for a specific material.
The settings depend on the type of laser, optical power, and other variables.
The best way is to run a power and speed test and figure out the best settings according to your needs.
However, for a rough idea, we can still give you an example. A 60W CO2 laser can engrave stone at 30% power and 320mm/s. At this speed and power, there is only one pass needed to engrave stone.
If you get lighter results after engraving, you can increase the power or decrease the speed. Increasing power is a more suitable option as it will finish engraving quickly.

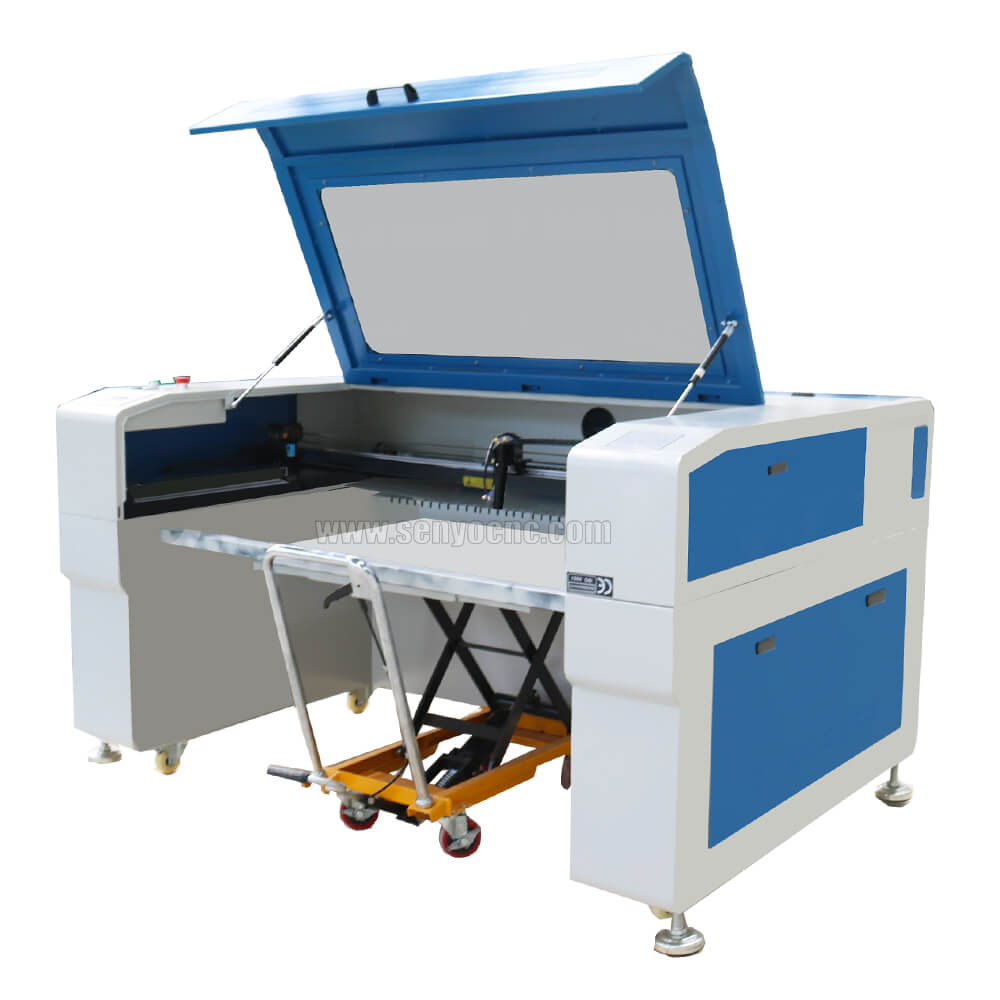

Machine Advantage

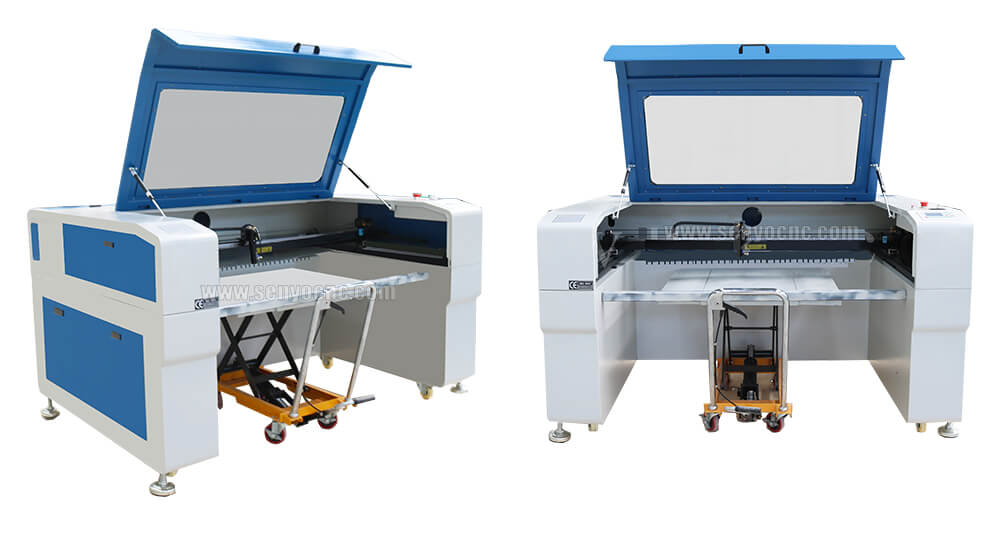

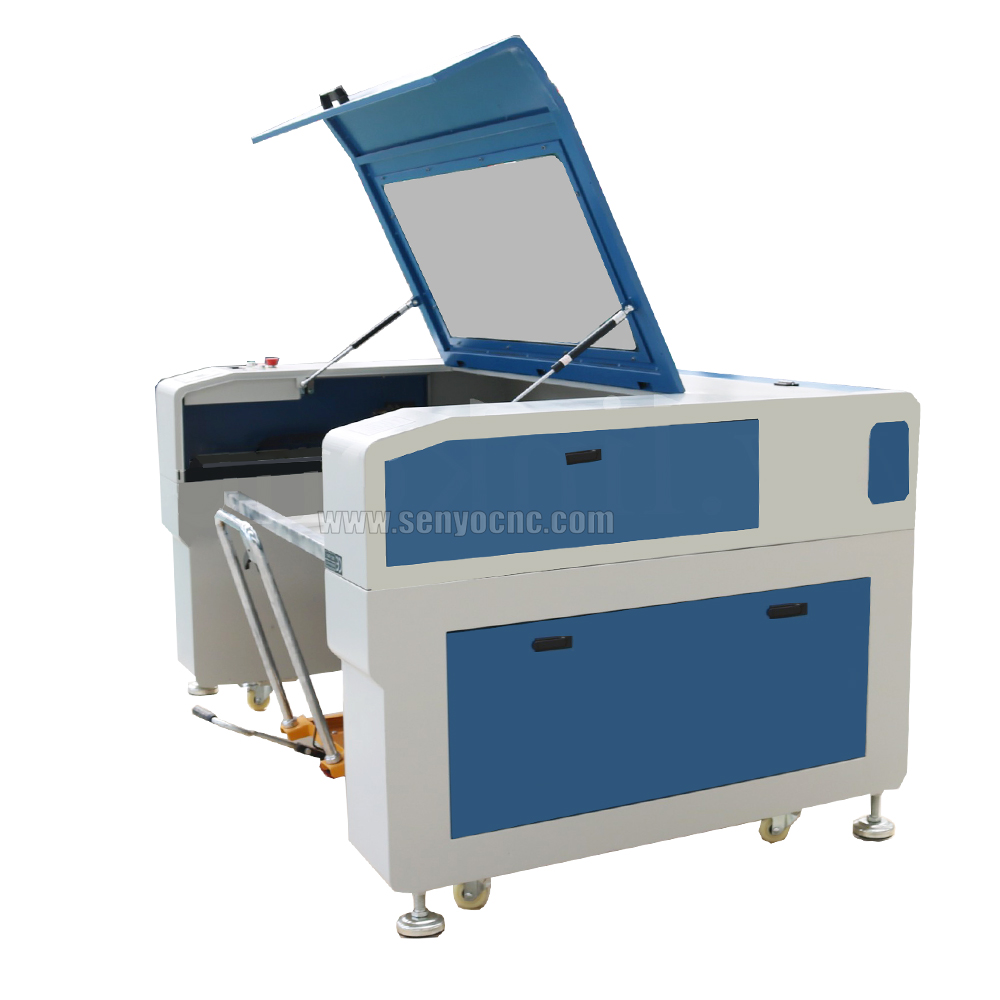

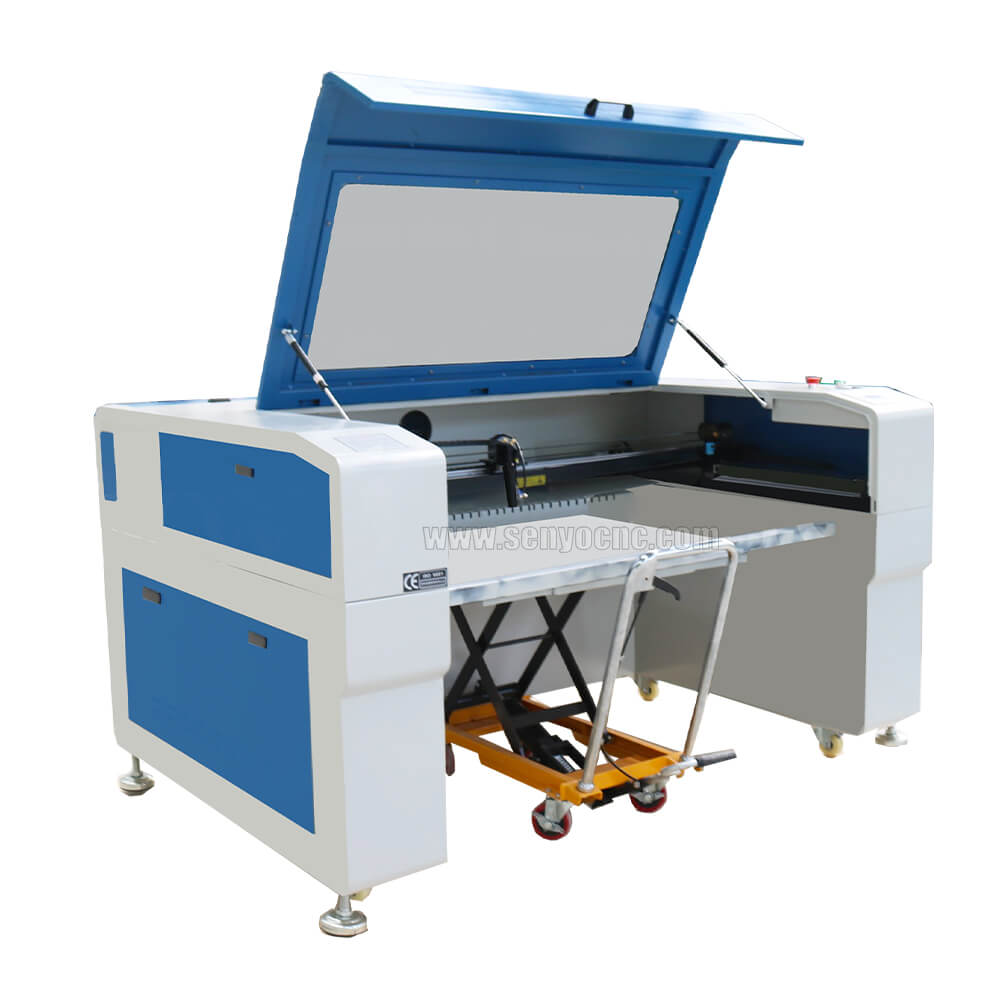

1. Compact structure, universal and fixed wheel, flexible to move.

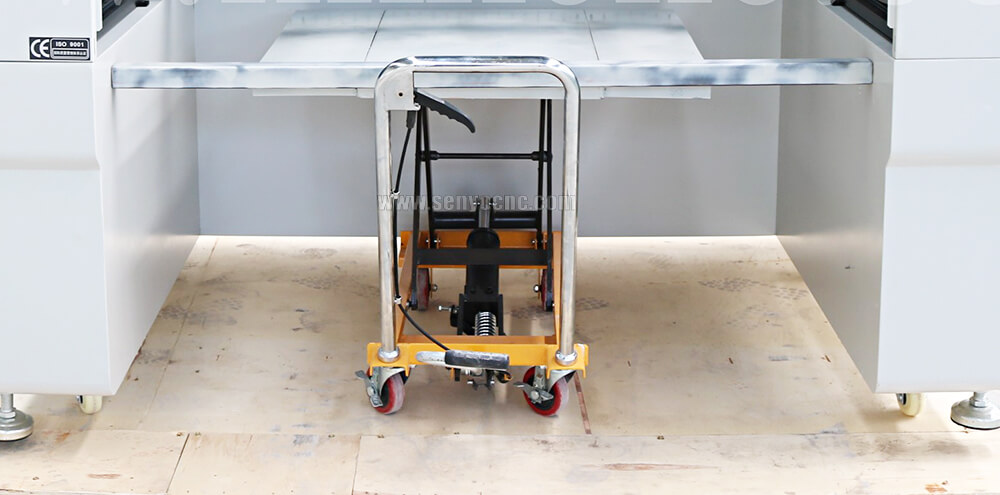

2. Motorized Downwards structure, Z axis travel 400mm.

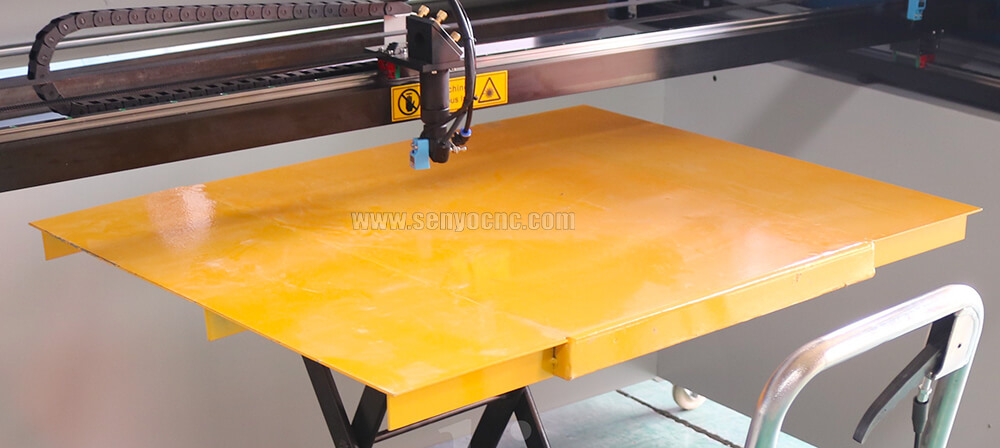

3. Machine body can touch ground, good for loading onto job to engrave Professional engraving platform
Two color for platform optional

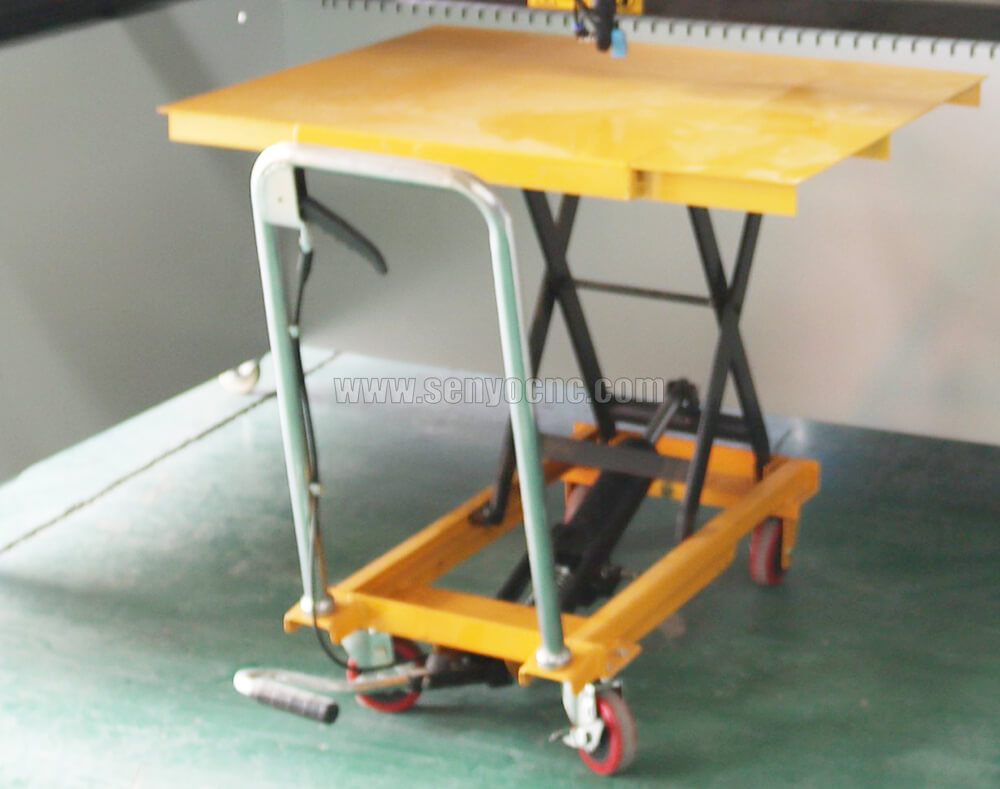

4. Z axis by leadscrew. Suitable to load onto any size work piece.
5. Transparent visible tempering glass windows.
6. Linear Guide rail, 3Ph stepper motor. Servo motor optional

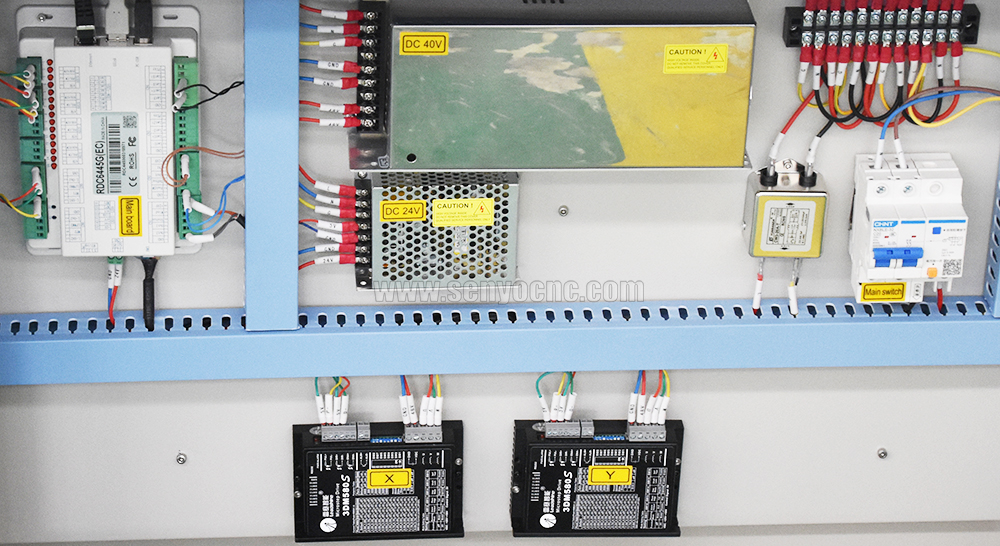

Professional wire connection and top drivers motors

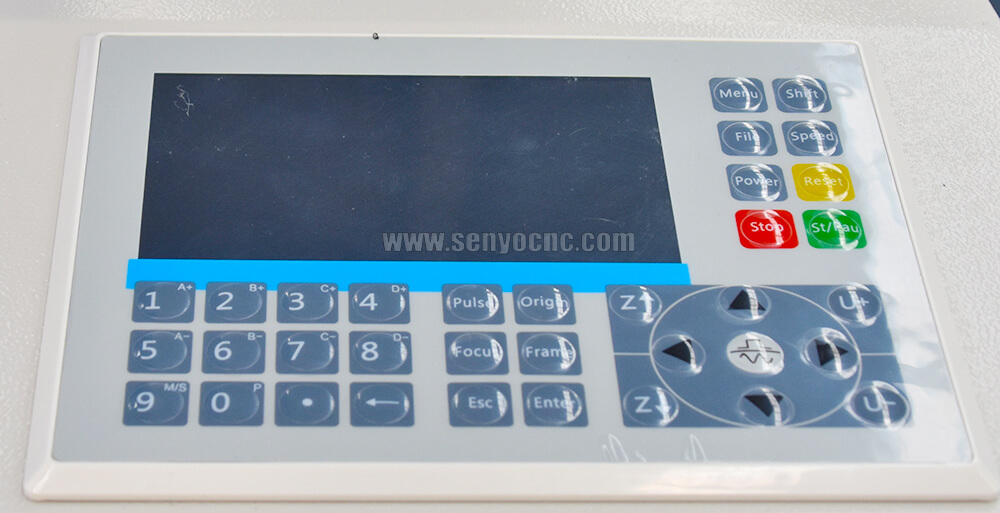

Ruida RDC6445G Control System
1, 5 inch big LCD display.
2, With Z+/Z- buttons, one button control up down of worktable.
3, With "Focus" button, one button control auto focus the worktable suit for different thick material.
4, With 0-9 numbers, easy set parameters for files.
Above control panel with emergency stop, key switch, Ammeter.
RDWorksV8 Software
Easy operate, compatible with Photoshop, AutoCAD, etc. users can use other software to make design then import files to RDWorks to
work. Files format support: AI, DXF, PLT, DST, BMP, DSB, EPS, DAT, NC, RDB, GIF, JPG, JPEG, JPE, JFIF, PNG, MNG, ICO, CUR,TIF,TIFF, etc.
RDworks V8 software Support 15 different language:English, Japanese, French, German, Portuguese, Polish, Spanish,
Russian,Korean,Vietnamese, Indonesian, Italian, Turkrish, Arabic.

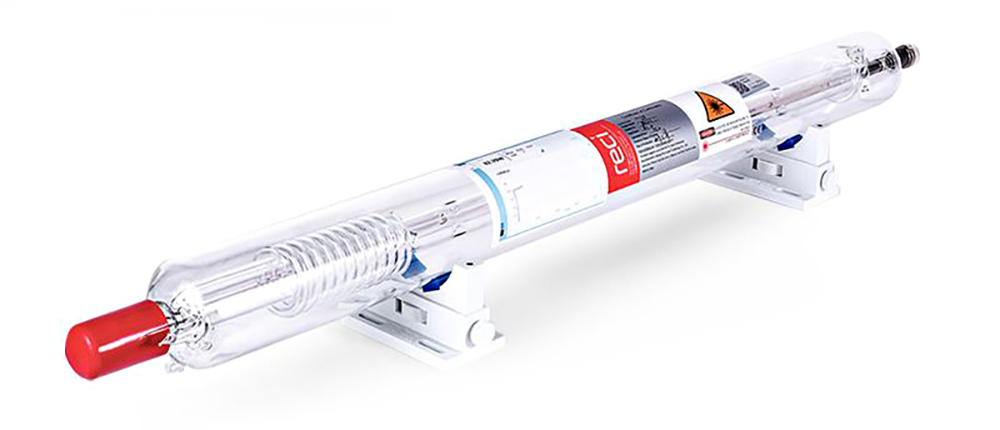

Standard Reci W2 90W-100W Laser Tube
China top brand Reci brand W2 90-100W CO2 laser tube, with estimate 10,000 hours life span and 18 month warranty.
Optional power:
Reci W1 75-90W/ W4 100-130W
W6 130-150W/ W8 150-180W
Optional glass tube: EFR, Yongli, Reci ,Factory tube

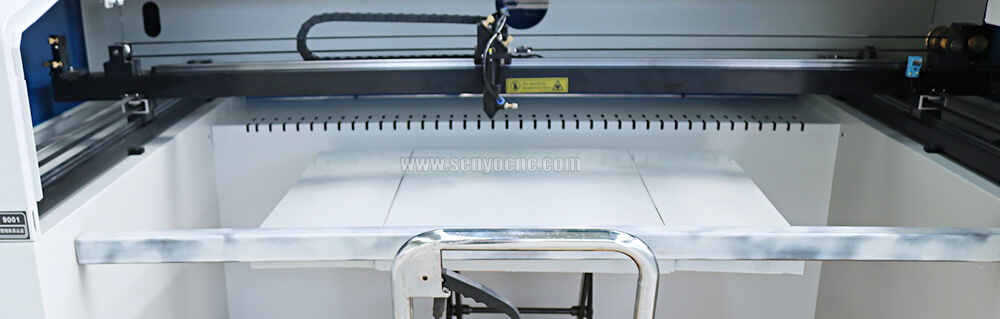

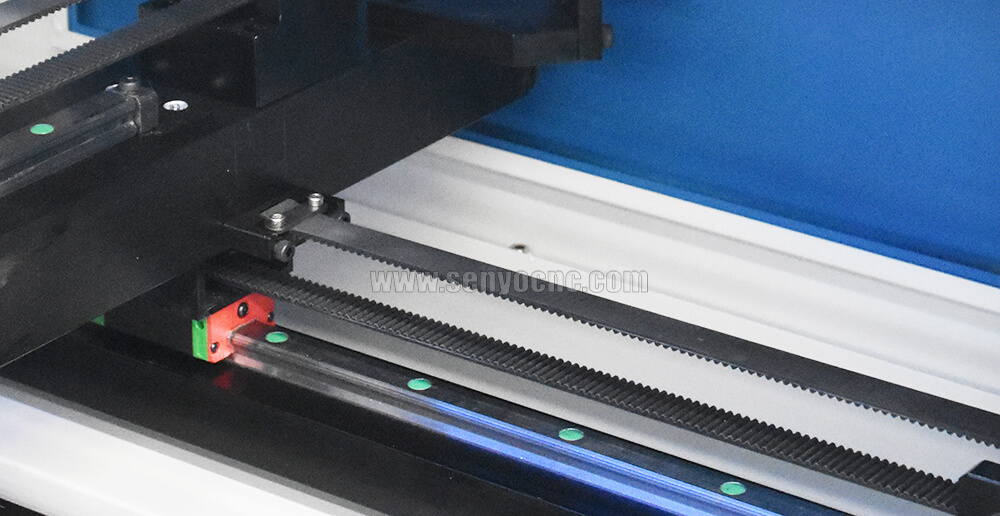

Square Rail Guide +Taiwan Belt
PMT square rail guide and top belt, high precise and high smooth, durable with long life span than normal belt.

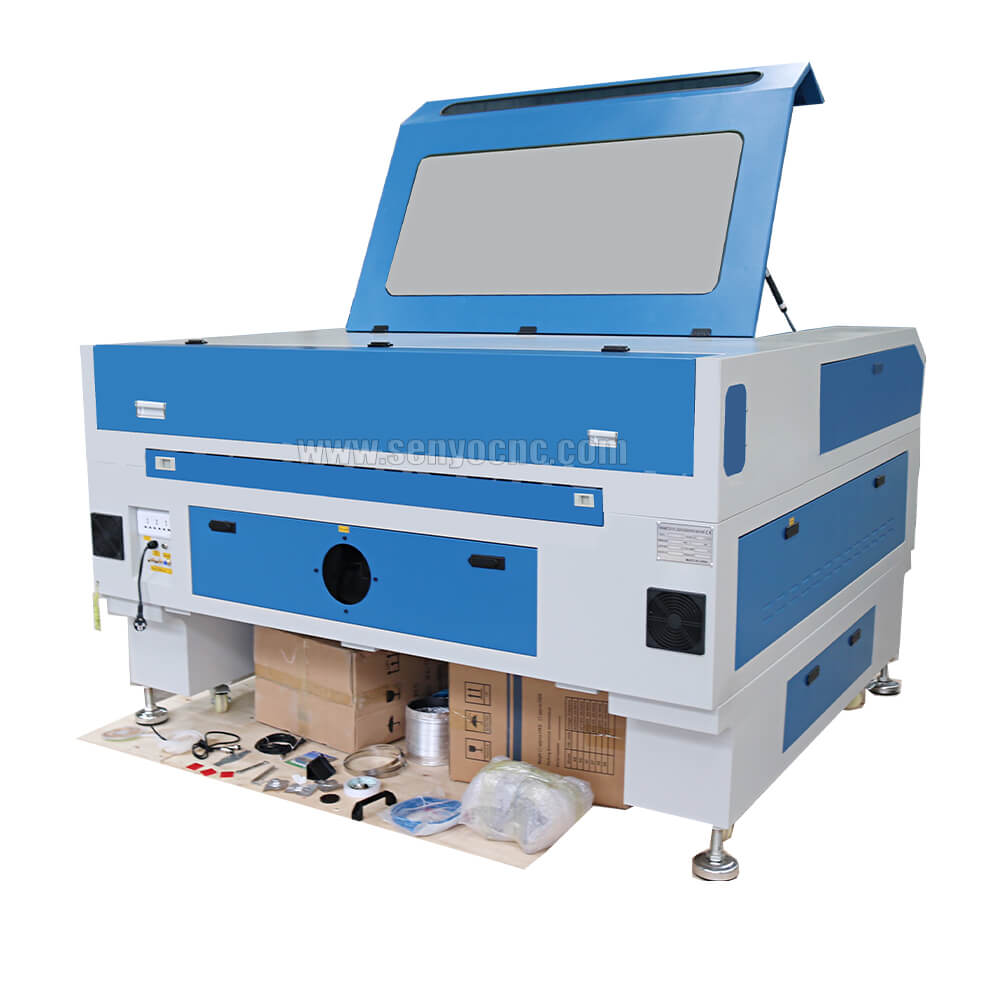

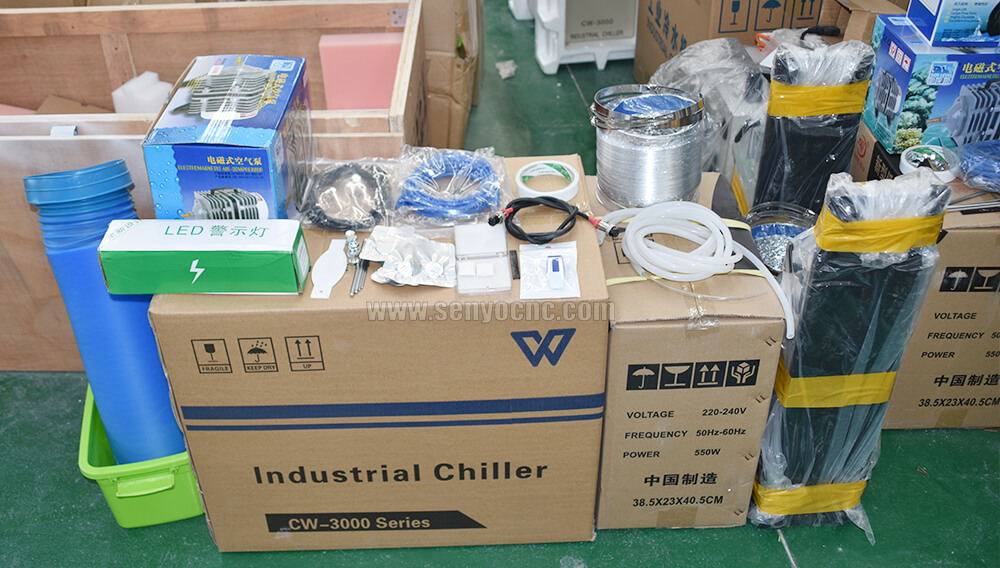

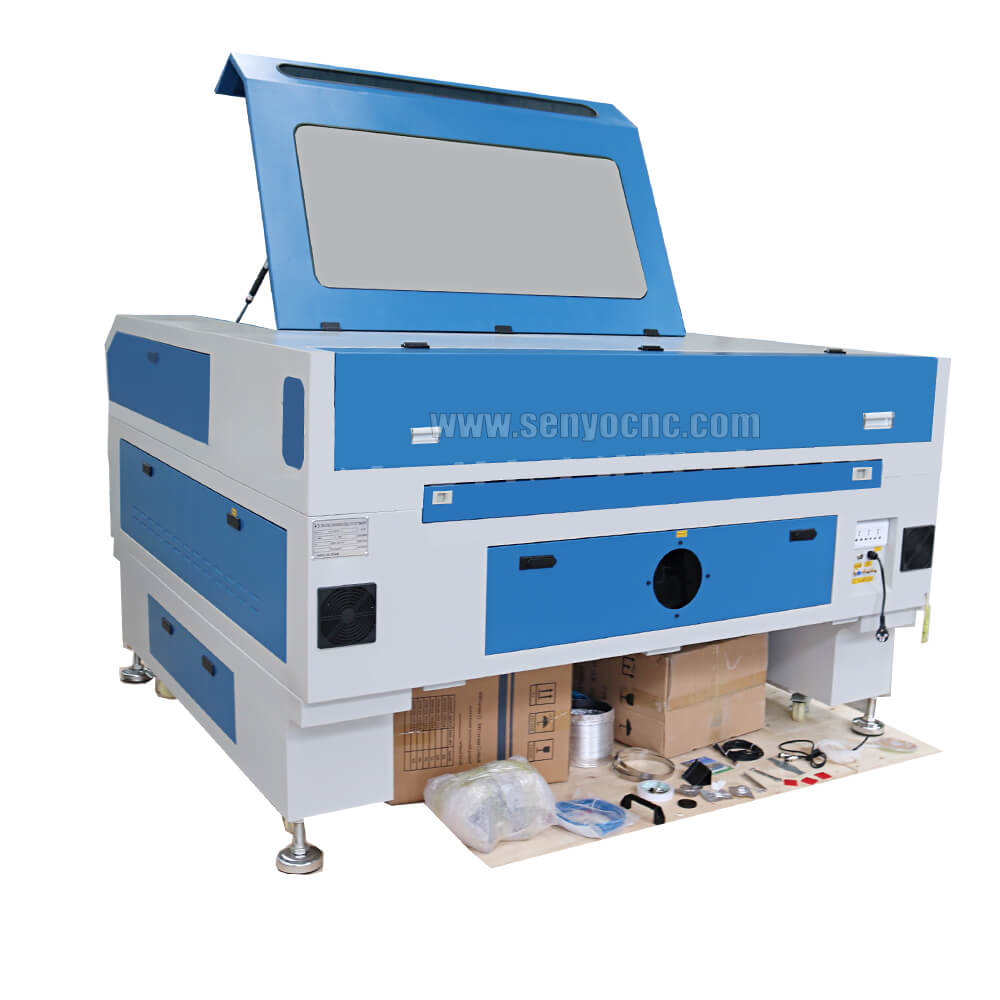

Machine with all parts for your operation
Water chiller or water pump will choose depend on laser power
Rotary is optional parts for round materials engraving.
Applicable materials:

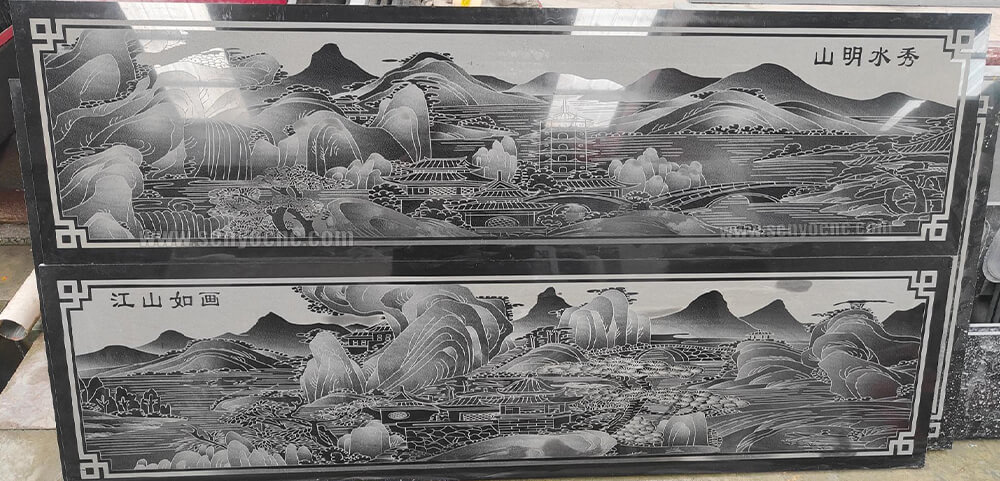

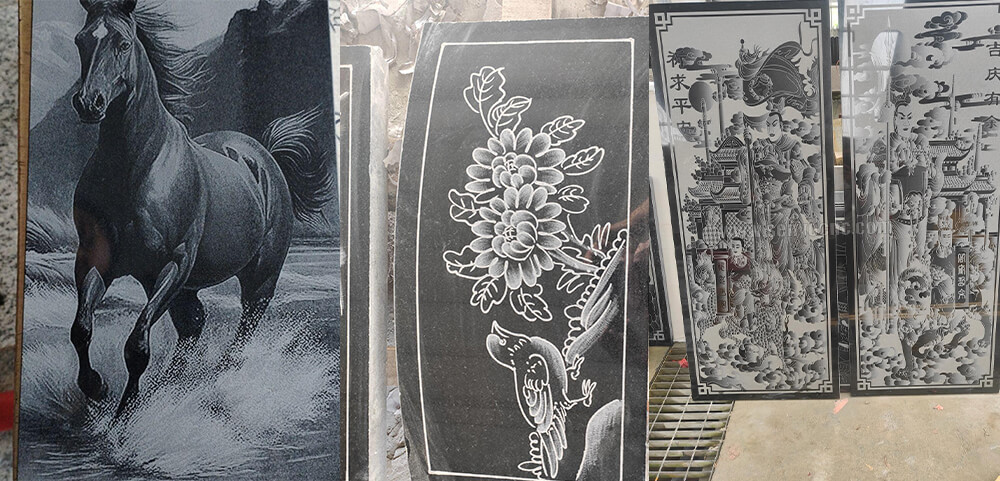

Marble, stone, tombstone,
wood, bamboo, organic glass, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries
This stone engraving machine mainly design for tombstone engraving work, like engraving portrait on granite.
But it can also use to other industry like advertisement, gift, shoes, toys, computers, garments, model cutting,building, packaging, etc.
Paramaters
Brand | SENYOQC |
Model | SYJ1390S |
Working area | 1300*900mm |
Laser power | 60w,80w,100w,130w,150w |
Laser type | CO2 laser tube,RECI brand,>10000 hrs service life |
Cooling ways | Water cooling |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-40000mm/min |
Laser output control | 0-100% controlled by software |
Min engraving size | English letters,1*1mm |
Scanning resolution | 4000DPI |
Locating accuracy | ≤0.01mm |
Controlling software | DSP controlling system,RDWORKS V8 |
Format supported | DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc |
Software environment | Windows xp/7/8/10 |
Compatible software | Coreldraw,Autocad |
Color separation output | Yes |
Slope engraving | Yes |
Driving system | High precision stepper motor with belt |
Auxiliary accessories | Exhaust fan,fume tubes,air pump |
Working table | Blades table or Honey comb |
Applicable materials | Acrylic,wood,plywood,MDF,glass,stone,plastic,rubber ,leather |
Working environment Temperature | 0-45℃,Humidity5-95%(no condensate water.) |
Power supply | 110v/220v,50hz/60hz |
Package&Shipping
1.Machine packaged in fumigation-free wooden case.
2. Inner package: Stretchy film and plastic film for humidity and dustproof.
3.For standard machines, 7-15 working days after payment;
For non-standard machines and customized machines according to clients' specific requirements, it will be 15 to 30 working days after payment.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.Laser tube depend on laser tube brand .
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
