What Is CNC Router Lathe Machine (Rotary CNC Router)?
CNC router lathe machine (rotary CNC router) is a type of multifunctional with 4x8 table size for flatbed full sheet cutting, relief carving, and 4th axis for 3D rotary milling. The T-slot vacuum table is used for board cutting, edging, carving, drilling and grooving, and the rotary device for turning. The axis of rotation is the geometric straight line on which the rotationally symmetrical action is performed. The rotary axis is the geometric straight line on which the rotationally symmetrical action is performed. When the rotation action acts on the image (or molecule), the vertical distance between any point in the image and the rotary axis (line) must always be kept constant. Suppose the base angle of rotation α=2π/n, since the number of independent and unequal rotation motions within the range of 2π angle is "n", the axis corresponding to the basic rotation motion L (2π/n) is called n-fold rotary axis, denoted as "n". The symmetry order of the n-fold rotary axis is "n".
What Are The Functions Of Rotary Axis?
1. Calculating the rotary cutting path does not need to expand the surface.
2. There is no need to rotate the workpiece repeatedly, the tool path calculation is completed at one time.
3. Reduce the finishing allowance, the tool path can be roughed in layers.
4. Realize partial rotation carving, the angle range and length range can be set.
5. Affected by the accuracy of the fixture, the machining of irregularly rotating workpieces usually adopts multi-face rotation positioning machining. There are always seams between different machining directions.
6. Rotary machining without positioning joints adopts the integral method of rotating shaft, and the cylinder engraving machine generates an automatically closed rotary cutting path.
How To Use A Rotary Axis?
1. Put it directly on the platform, so that the gantry needs to be heightened, and the size of the platform will not affect the plane carving. The rotating shaft can be put on and taken down at any time.
2. Put the side of the platform, the diameter of the rotating shaft affects whether the gantry is heightened. If the diameter is large, the gantry needs to be heightened. If the diameter is 10cm, it is not necessary.
3. The table surface sinks as a whole, put the rotation axis under the platform, if carving a plane, place the platform on the rotary axis for carving.
4th Rotary Axis CNC Router Lathe Machine Features & Advantages
1. The rotary CNC Router machine adopts 8mm steel machine welding bed, after hundred times’ special vibrate experiment, we ensure that the lathe will not deform during their long-term working hours. With enhanced welding technicals, we supply the best CNC machine kits with good stability, longer life span and amazing accuracy rate.
2.Famous water cooling spindle with better cooling effect, almost no noise with long service life.
3. Taiwan Hiwin square rails has more higher precision, less wear and tear can maintain high accuracy. It's applied to high-speed move and greatly reduce the drive horsepower the machine required. What’s more, it can bear the load from left and right, up and down at the same time.
4. Leadshine stepper motor and driver won't lose step when it work, which can guarantee the positional accuracy of the motor.

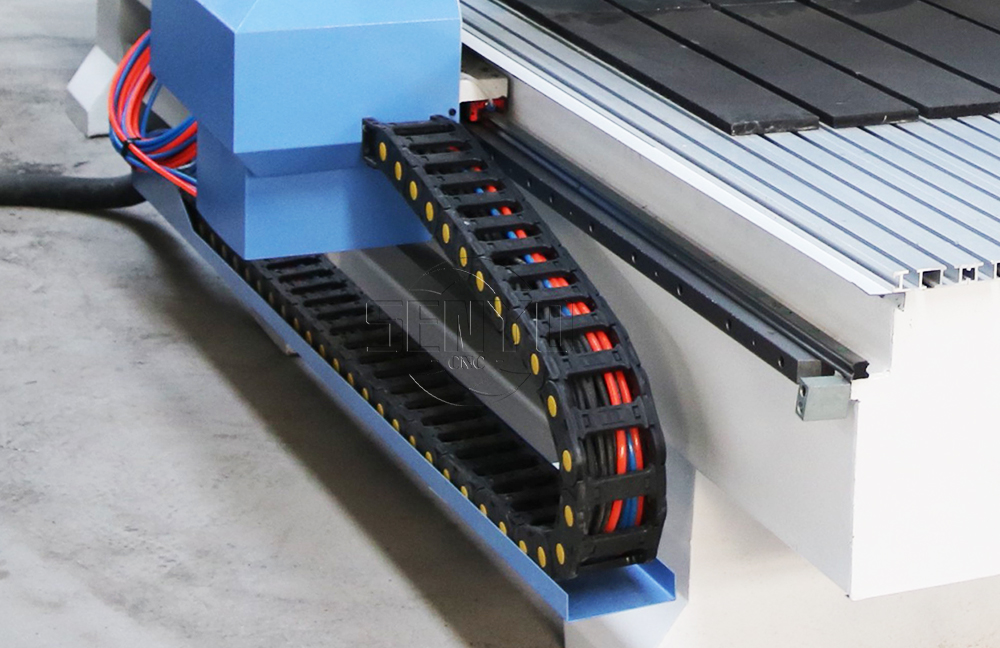

Best wire connection with beautiful detials.
5. Control system which is easy to operate and learn, especially for the beginner.

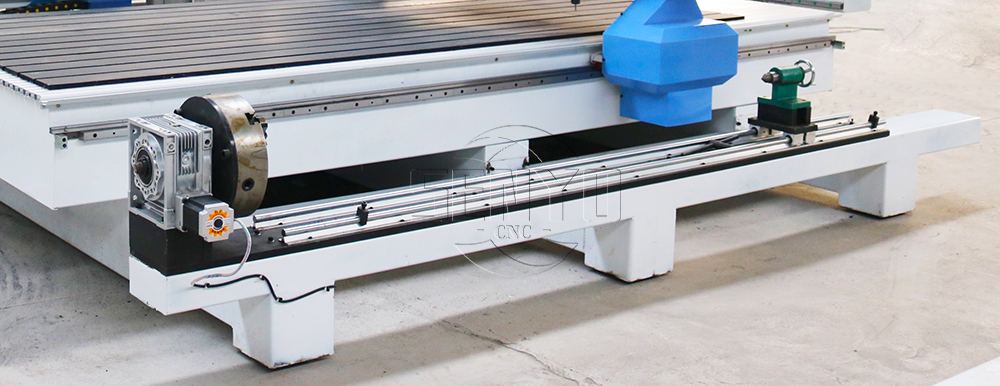

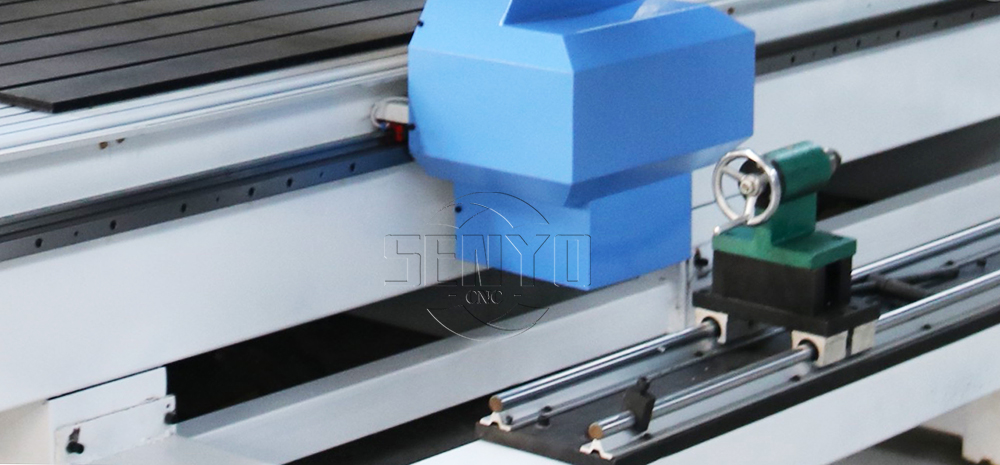

6. The 4th axis rotary device is conveniently for round materials working.
7. Software: compatible with Type3, Artcam, Castmate, Ucancam and other CAD/CAM design softwares.
8. T-slot vacuum table: The vacuum table has T-slot mounting devices incorporated into the tables to enable fixtures and material blanks to be clamped directly to the table. Clamps are provided.
9. Oil lubrication system: No oily odors, low noise and libration, maintenance-free.
Note: It is recommended that one pump of the oiler once a month will be sufficient to keep your machine lubricated.
Multi-Head 4 Axis CNC Wood Carving Machine Applications
This machine is mainly used for 3D woodworking, relief carving, hollowing, and some 2D woodworking projects, such as Roman columns, stair handrails, chair legs, and more cylindrical projects.
Woodworking: 3D wave board processing, furniture like solid wood door, kitchen cabinets, wardrobe cabinets, tables, beds, computer desk and cylinders like table legs, sofa legs, wooden craft, paint door, screen, craft fan window processing, shoe polisher, game cabinets and panel, mahjong table, auxiliary processing.
Advertising: Advertising sign, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative product.
Mold Making: Engraving wood, foam, EPS, copper, aluminum mold, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.
Other Industries: A variety of large-scale relief sculpture, shadow carving, widely used in the craft making industry.

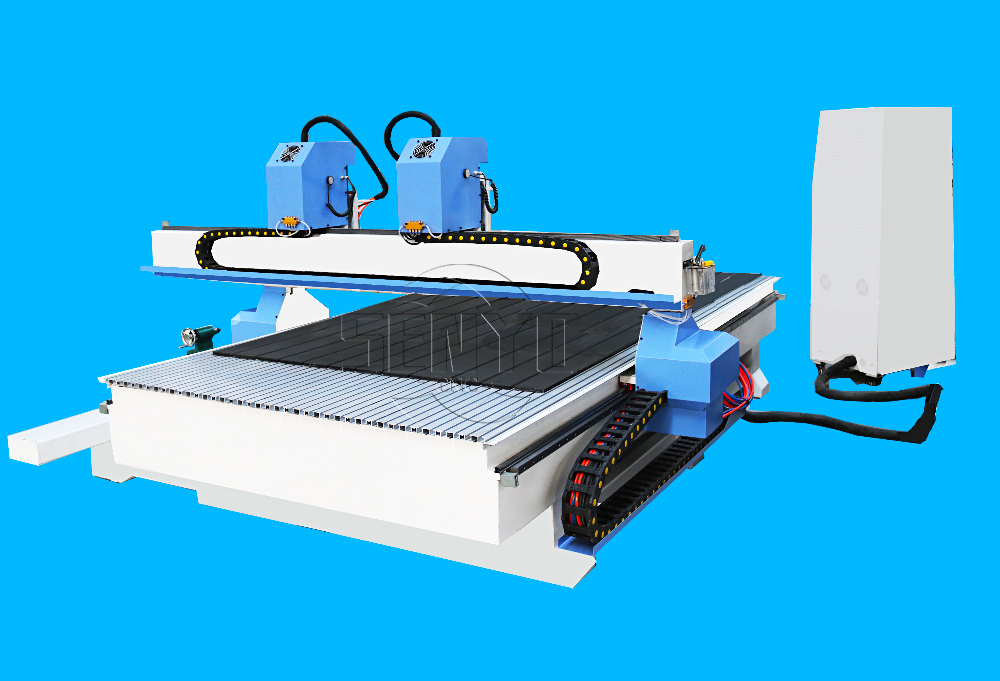

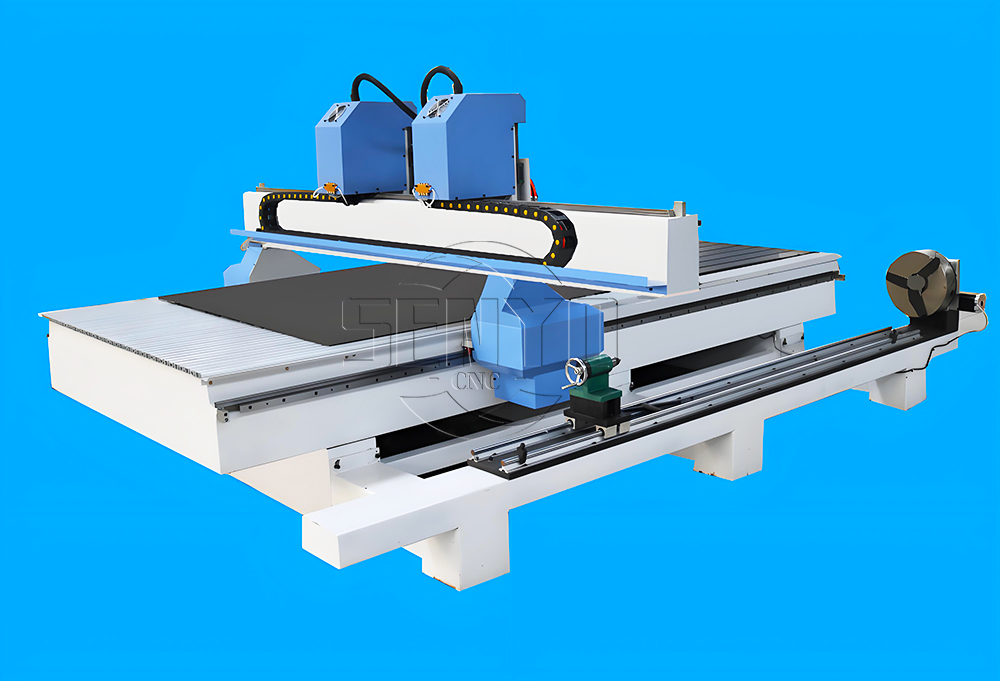

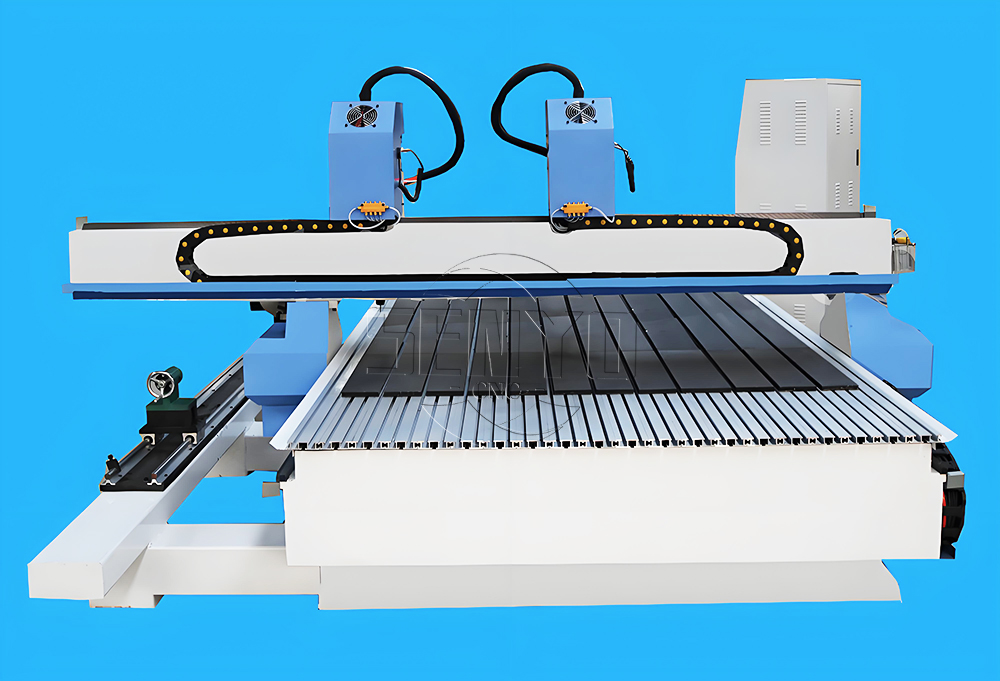

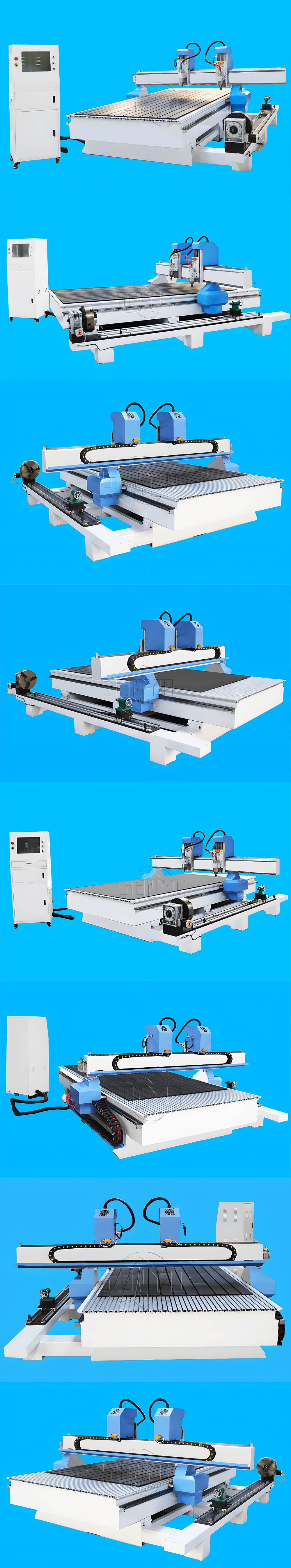

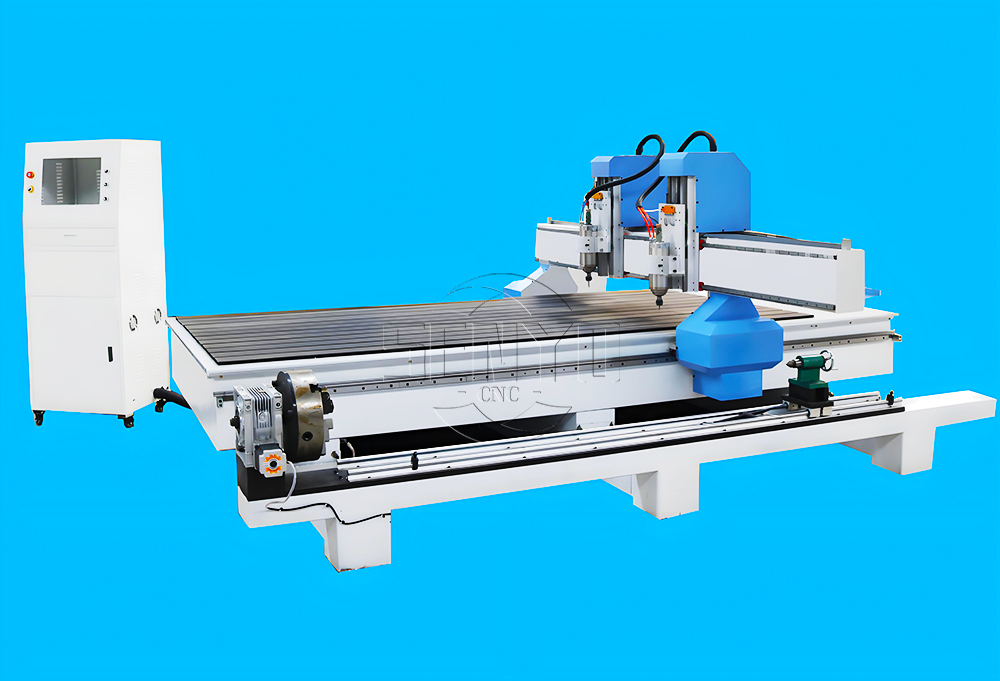

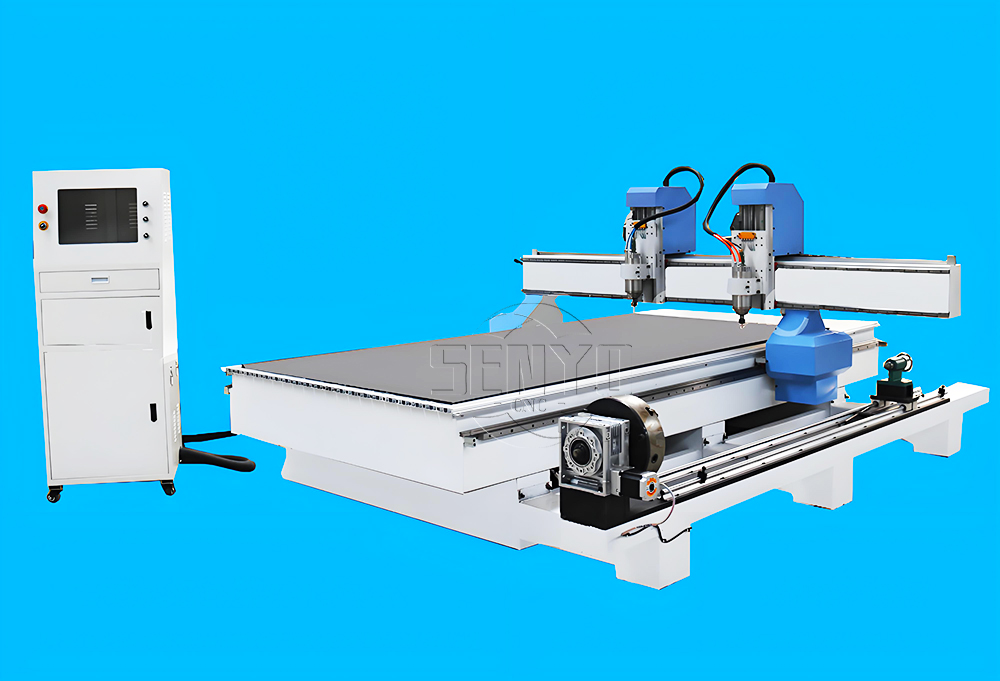

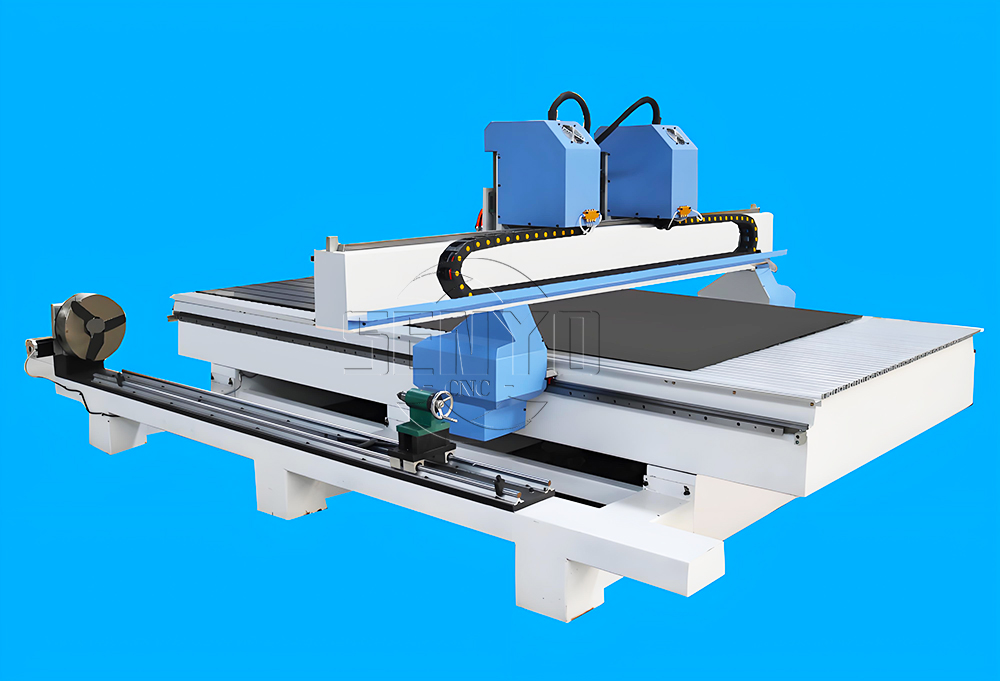

Multi-Spindle 4 Axis CNC Wood Engraving Machine for Custom Woodworking Projects
Multi-Head 3D CNC Wood Carving Machine Features

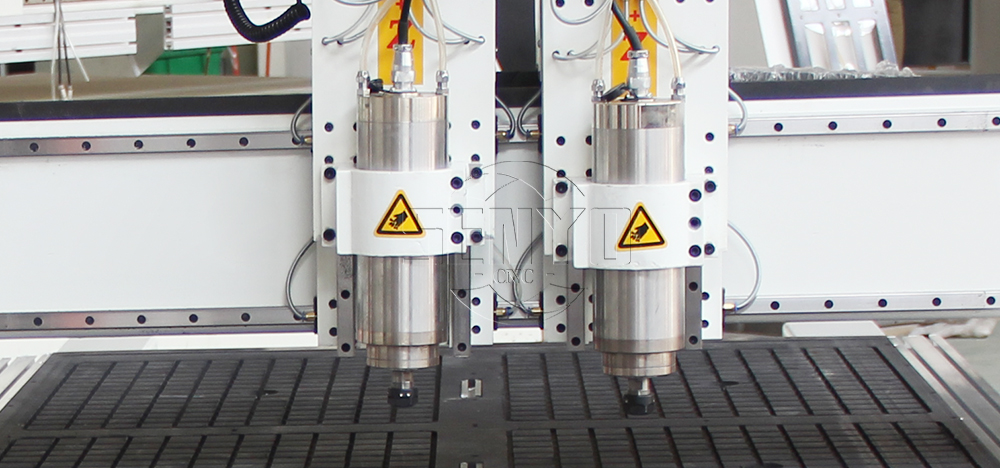

1. 4th axis CNC wood router with rotary axes and 2 spindles, which can work at the same time or independently, and every one's max effective working area is 300mm (diameter) by 2500mm (length).
2. The whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
3. It can not only do rotary engraving but also flat engraving. It can engrave several materials at one time, which greatly increasing the working efficiency.
4. Taiwan TBI dual screw-nut anti-gap ballcsrew with high accuracy and long life.
5. Equipped with high speed spindle motor, low noise and high performance division drive.
6. Adopted with advanced controlled system, with simple operating software, its easy to learn.
7. Powerful compatibility for most of software such as: Type3, Artcam, Proe, Wentai, CAD/CAM.
8. Humanized design, convenient for removing and installing
9. XYZ axis use anti-dust system, prevent dust during working, make sure the long life span of square parts.
10. 4th axis rotary CNC router with four heads has the function of re-carving after break point and power failure.
Multi-Spindle 3D 4 Axis CNC Wood Carving Machine Technical Parameters
Model | SYM1325-2H-R2 |
X,Y,Z Working Area | 1300x2500x200mm |
X,Y,Z Reposition Accuracy | ±0.03mm |
Table Surface | T-slot Table |
Frame | Welded Structure |
Driving system | Helical Rack and Pinion Drive |
Guide way | Taiwan Hiwin square rails |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 2.2KW/3.2kw water-cooling spindle |
Spindle Speed | 0-24000rpm |
Drive Motors | Stepper System |
Working Voltage | 220V,single phase or 380V,3 phase |
Command Language | G Code |
Operating System | RichAuto DSP control system |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER20 |
Software Compatibility | Artcam Software and JDpaint software or other CAD software |
N/G weight | 1200/1300kg |
Package dimension | 3300*2150*1800mm |
For Our Work Steps
1.Before-sale,we will try to know your requirement about our cnc finer laser specification and what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.

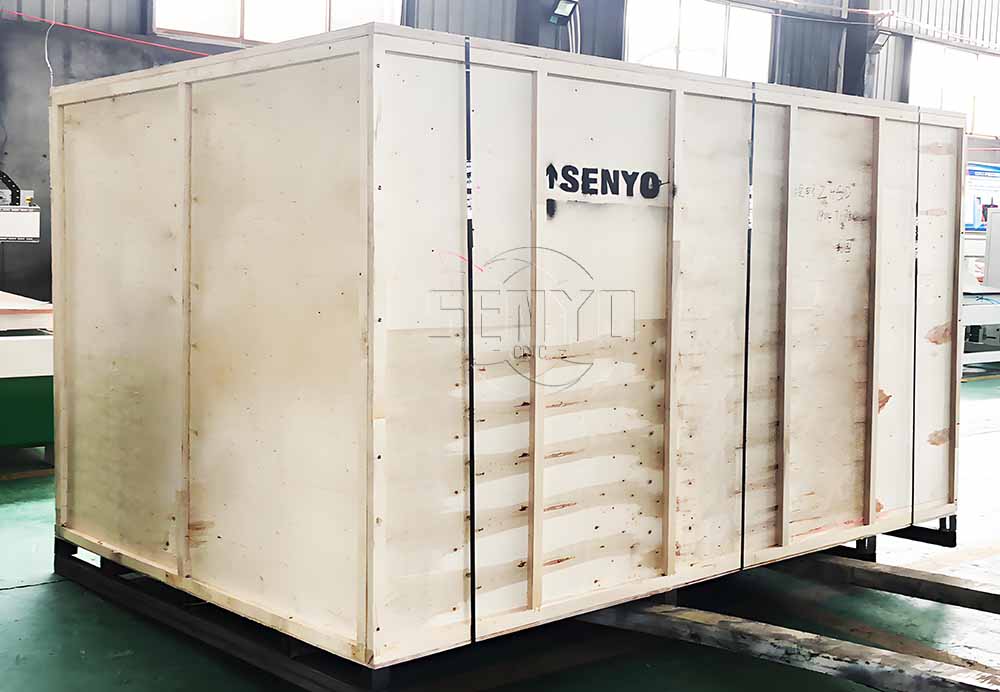

Packing & Shipping
1. Outside package: Standard plywood package.
2. Inner package:Stretchy film and plastic protective film for humidity.
3. We can package according to your requirements.
For
standard machines, 7-15 working days after payment.
For LCL Shipping (Less than Container Load),it is recommended to use export standard fumigation-free wooden boxes, which are
stronger and suitable for long-distance transportation.For FCL Shipping (Full Container Load).
it can be loaded directly at the factory without wooden boxes, and the maximum number of machines can be loaded to reduce costs.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
