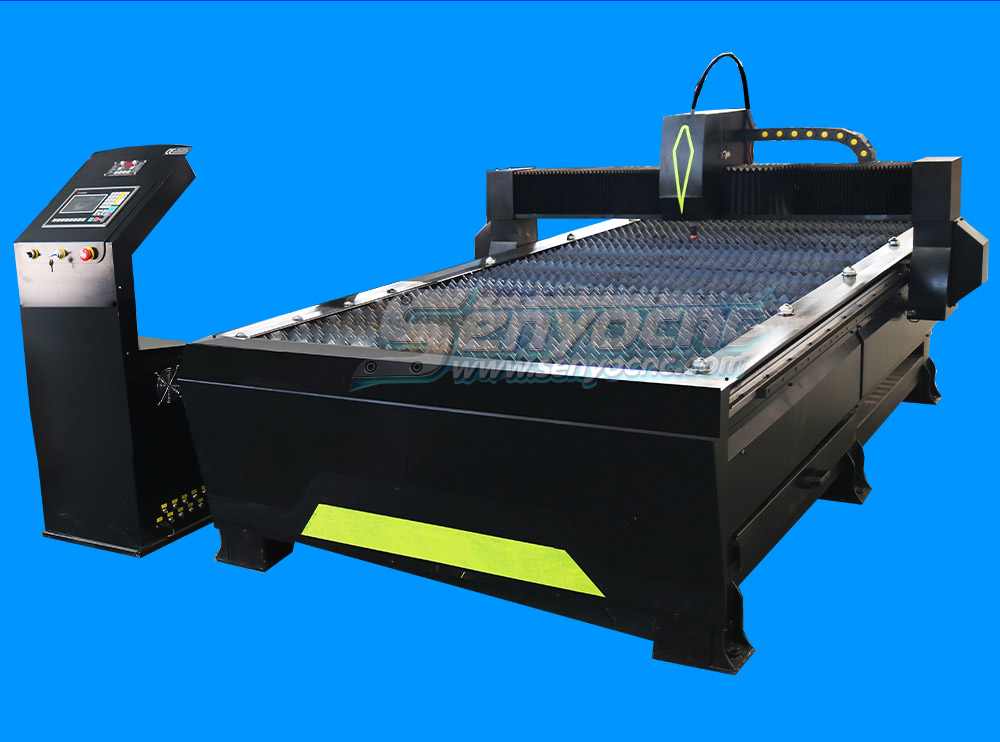

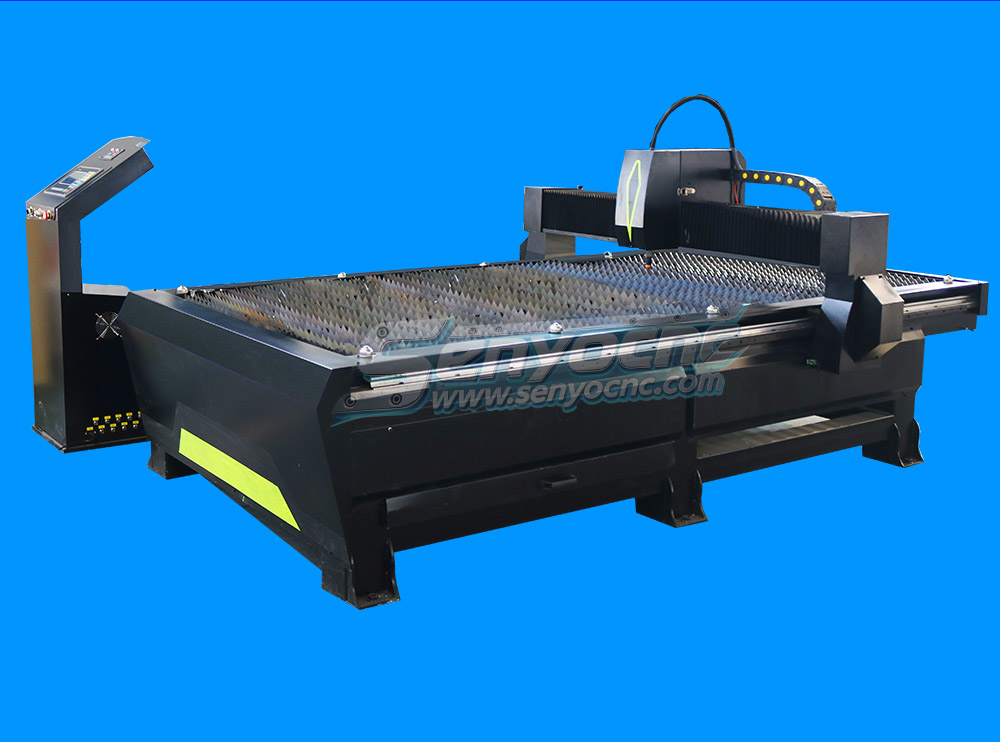

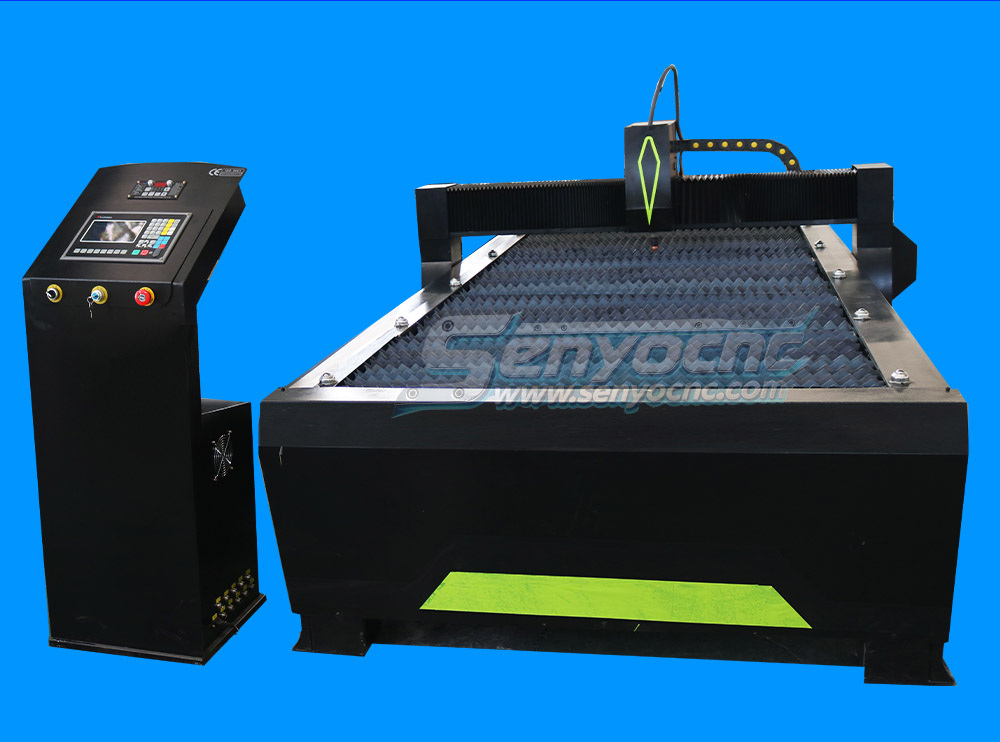

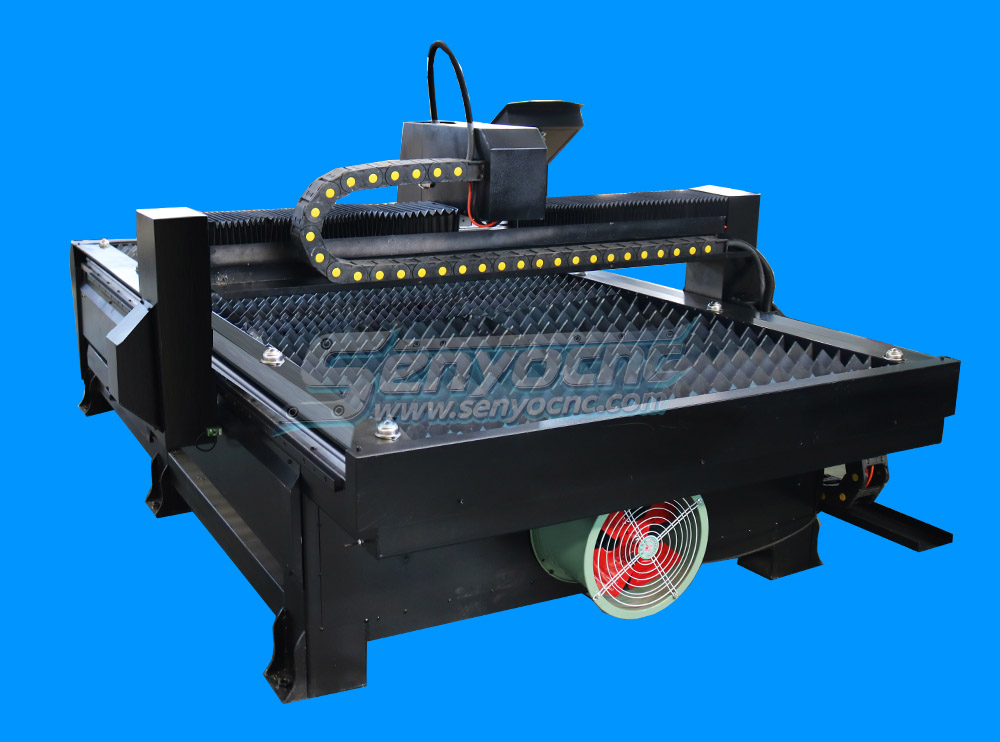

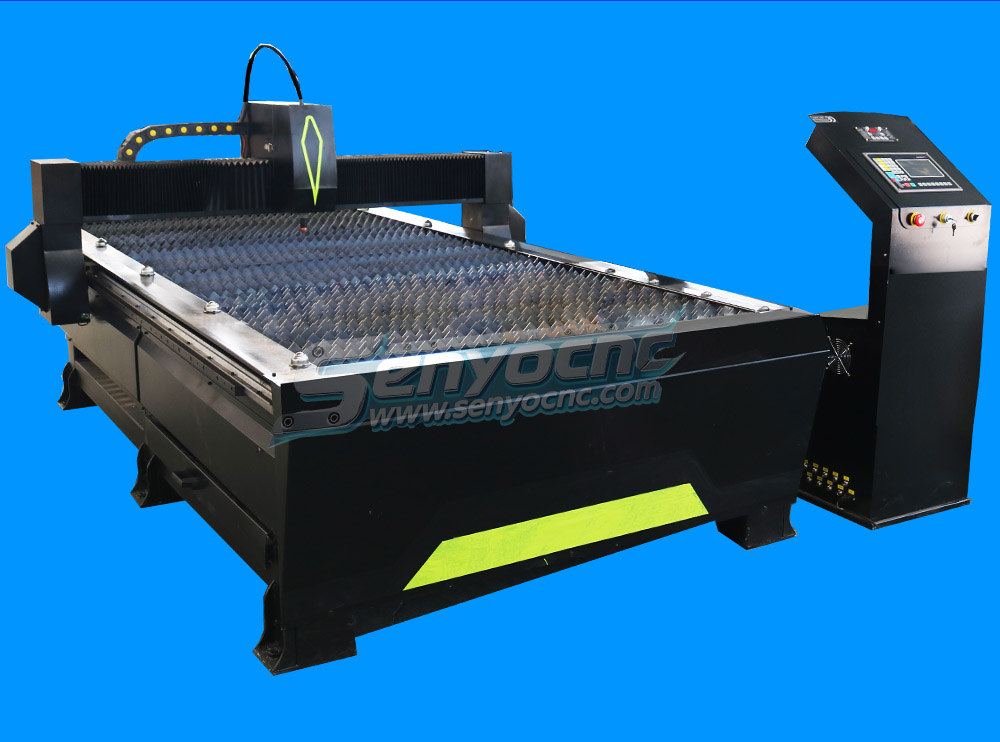

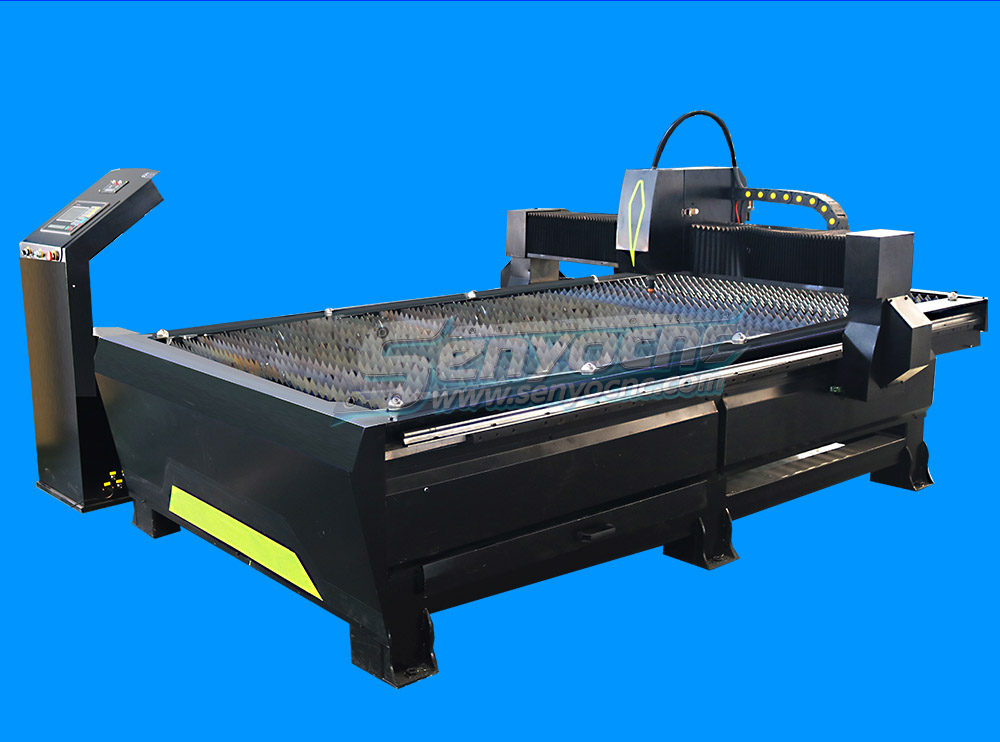

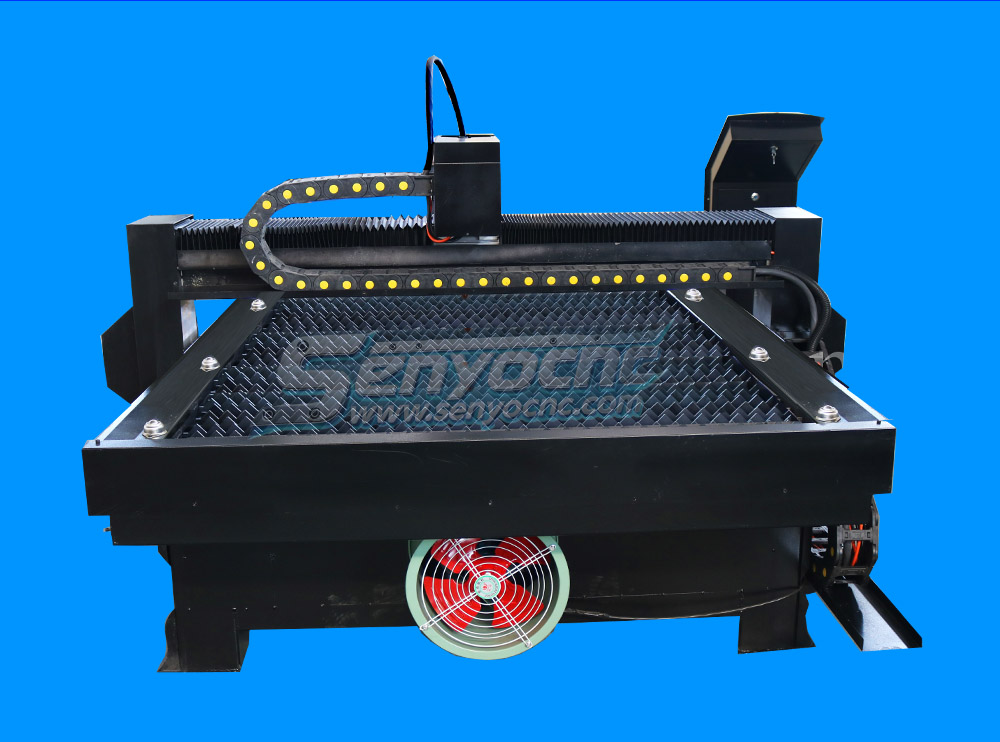

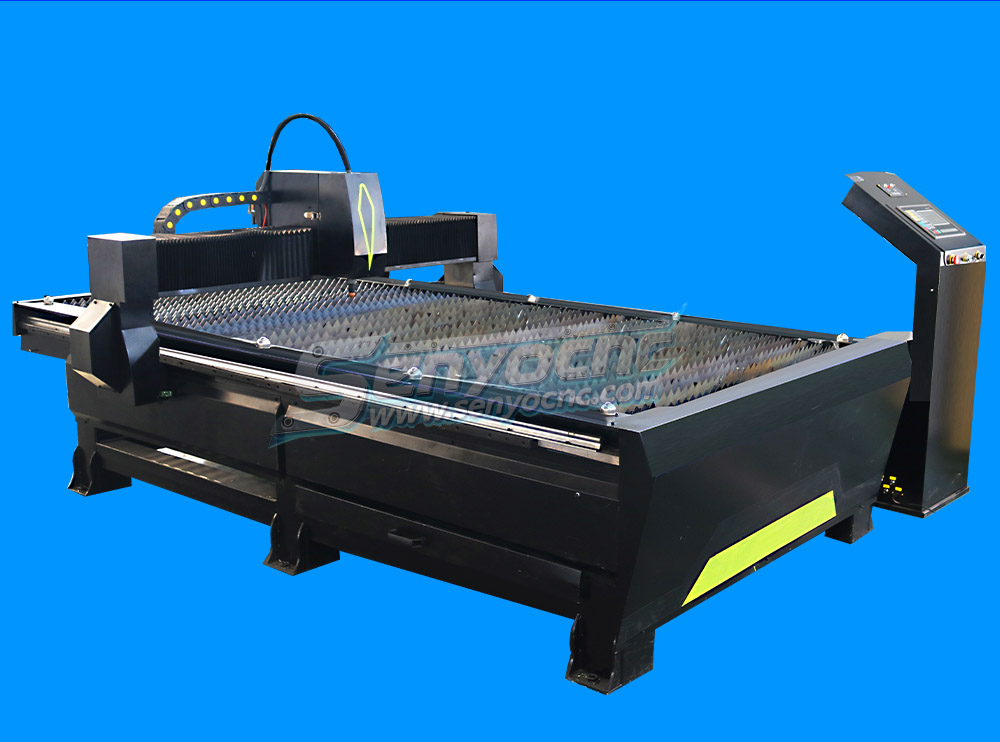

High-definition CNC plasma cutters are cutting instruments that use plasma, a superheated ionized gas, to produce precise cuts in metals. These devices are widely used in industries that require high accuracy, such as metal fabrication, automotive, and manufacturing. High-definition plasma cutters make cleaner, smoother cuts with less waste than traditional plasma cutters.
Operators can program intricate designs into these machines thanks to CNC (Computer Numerical Control) technology. Once programmed, the machine can cut consistently without human intervention. This increases manufacturing efficiency and guarantees that every cut meets the needed criteria.
A variety of metals, such as copper, aluminum, and steel, can be cut with high-definition plasma cutters. They save time and money by reducing the need for additional finishing stages thanks to their accuracy and rapid cutting speed. These gadgets are essential equipment for metalworking businesses trying to boost productivity and enhance product quality.
Features
1. Welded structure of thickening square tube, together with top brand guide rail to ensure high running speed and accuracy.
2. Plasma power supply together with a highly sensitive arc pressure adjuster. Self-adjusting can choose the best distance between the plasma gun and the working piece automatically to ensure high-accuracy cutting.

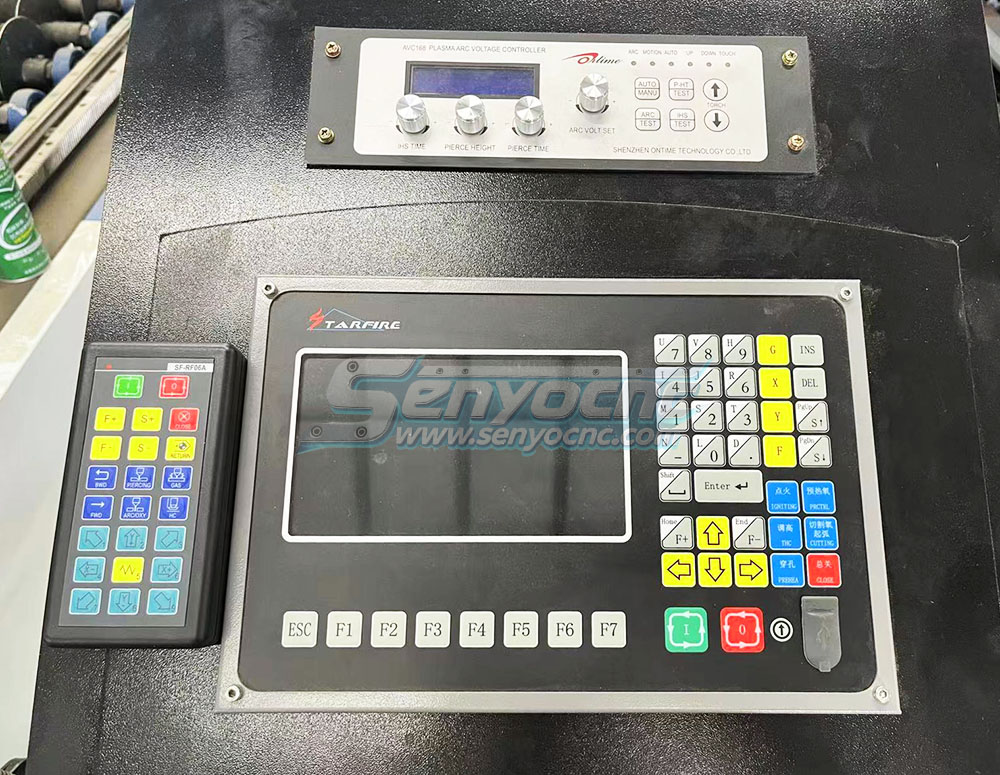

3. High definition CNC pasma cutter for sheet metal uses STARFIRE control system with FastCAM software for auto material saving function, large capacity storing function, convenient to read and process.
4. The plasma cutting torch with a professional cooling system can quickly cool the surface of the material to avoid burr and residue.
5. The high-precision rack and pinion driven stepper motor allows the CNC plasma cutting machine to operate with low noise, smooth movement and precise coordinate positioning.
6. Perfect software compatibility, such as Ucancam, Type3, and ArtCAM.
Technical Parameters
Model | SYP1330 |
Table Size | 1300x3000mm |
Frame | Square tube Integral guide |
X/Y/Z Rail | Taiwan HIWIN Linear guide |
Transmission | X/Y rack and pinion,Z Taiwan TBI Ball Screw |
Motor driver | Stepper Motor driver |
Cutting Thickness | 3mm-30mm stainless steel |
Working Voltage | 380V,3 PH |
Software | ArtCAM/Type 3/Ucancam |
Packing dimension | 2280mm*3950mm*1550mm |
Lathe bed | Very thick steel structure |
Machine Power | 8.5kw |
Reposition precision | 0.02mm |
Processing precision | 0.1mm |
Maximum cutting speed | 12000mm/min |
Torch Height control mode | Automatic |
Control system | STARTfire |
Motors | Stepper motor |
Software | Startcam |
Weight | 1800KGS |
Plasma Air Pressure | Max.0.8Mpa |
Working Temperature | -10°C-60°C. Relative Humidity, 0-95% |
LCD Display Dimension | 7 Inches |
More Hot Sales Models Option
Parameters: | SYP1325 | SYP1530 | SYP2030 |
Working material | Stainless steel/Iron sheets, Aluminum sheets, Galvanized sheets, Titanium Plates | ||
Working Area | 1300x2500mm | 1500x3000mm | 2000*3000mm |
Cutting Thickness | (45A)0.3-8mm | (45A)0.3-8mm | (45A)0.3-8mm |
Brand: LGK/US-Cutmaster/US Hypertherm (optional) | (65A)0.5-12mm | (65A)0.5-12mm | (65A)0.5-12mm |
(85A)0.5-15mm | (85A)0.5-15mm | (85A)0.5-15mm | |
(105A)0.5-18mm | (105A)0.5-18mm | (105A)0.5-18mm | |
(125A)0.5-25mm | (125A)0.5-25mm | (125A)0.5-25mm | |
(200A)0.5-30mm | (200A)0.5-30mm | (200A)0.5-30mm | |
Cutting Speed | 0-6000mm/min | 0-6000mm/min | 0-6000mm/min |
Moving Speed | 0-12000mm/min | 0-12000mm/min | 0-12000mm/min |
Power | 8.5KW-10.5KW | 8.5KW-10.5KW | 8.5KW-10.5KW |
Input Voltage | 3 phase 220/380V | 3 phase 220/380V | 3 phase 220/380V |
Power Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
Files Transfer | USB Interface | USB Interface | USB Interface |
Arc | Untouched Arc Striking | Untouched Arc Striking | Untouched Arc Striking |
Torch Height Controller | Torch Height Controller | Torch Height Controller |
Specification

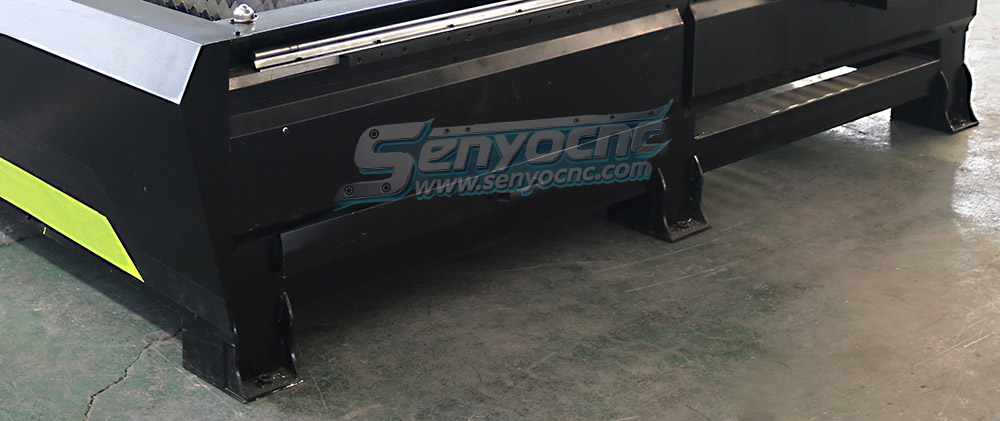

1.Welded lathe bed of thick-wall profiled steel, more solid and stable.
2.Reasonable lathe table design, thicker steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame.
3.The level difference of whole double-deck platform remains in 0-1.5mm.
4.Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
5.High accuracy and speed rack transmission,Lower noise, stable and accurate coordinates movement.
6.power
supply together with high sensitive Touch Height Controller.
Self-adjusting to choose the best distance between plasma head and work
piece automatically in order to ensure cutting accuracy.
Advantages
Metal cutting processes are made easier, faster, and more precise with high-definition CNC plasma cutters.
They are crucial tools for companies seeking to boost production, cut expenses, and maintain high-quality standards.
The following are the primary advantages that make these devices popular across sectors.
• Precision and Clean Cuts: These devices provide extremely precise cuts with clean edges.
Their accuracy saves time during post-processing by removing the need for extra sanding or grinding.
Excellent quality cutting is achieved even with thin materials and complex designs.
• Faster Production: High-definition plasma cutters operate at high speeds, completing tasks faster than other cutting methods.
This speed allows businesses to meet tight deadlines and increase their overall productivity.
• Versatile Material Handling: These machines can cut a variety of metals, including stainless steel, carbon steel, and aluminum.
Their versatility makes them valuable for industries such as automotive, construction, and manufacturing.
• Cost Savings: Long-term savings are advantageous for firms, despite the substantial initial investment.
Automation minimizes labor expenses by reducing manual intervention, while an efficient cutting process minimizes material waste.
• User-Friendly Operation: These plasma cutters are simple to use because they have CNC control.
Because of the machine's basic software, even a novice can figure out how to operate it with little to no training.
Application
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.
Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and
other metal plate and tube.

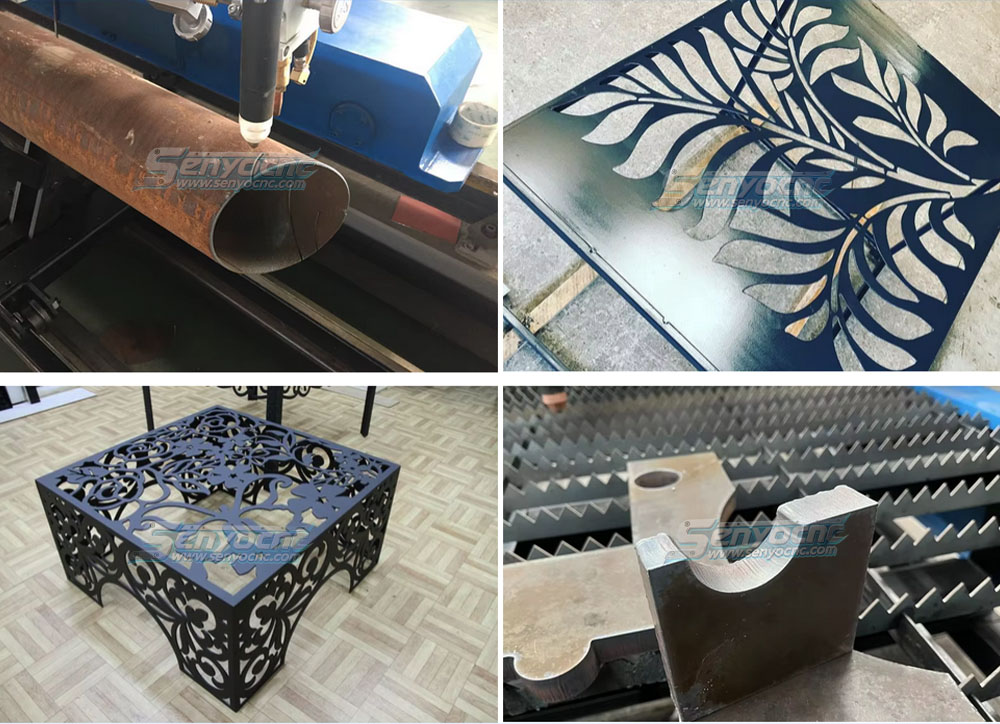

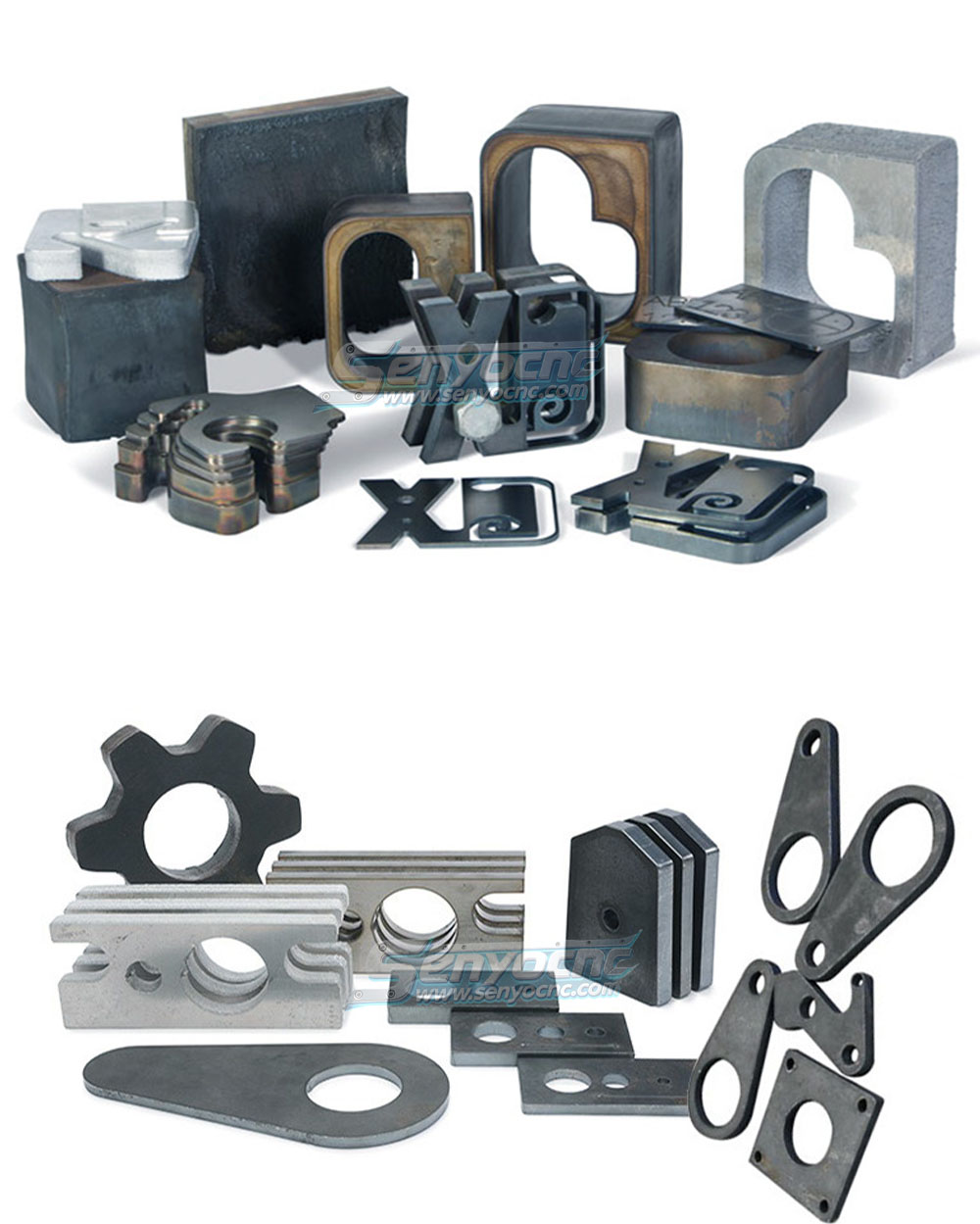

Working Samples Project
Components of a CNC Plasma Cutting Table
Knowing the components and parts of a CNC plasma cutting table is always a firsthand lesson for any beginner. The primary components are,
1. Plasma Torch
2. CNC Controller

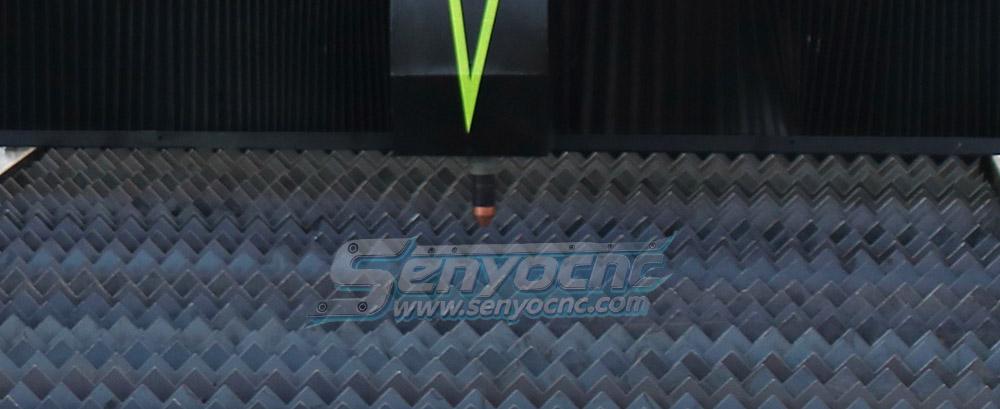

3. Cutting Bed
4. Power Source
5. Software
6. Motion Control System
7. Torch Height Control (THC) and

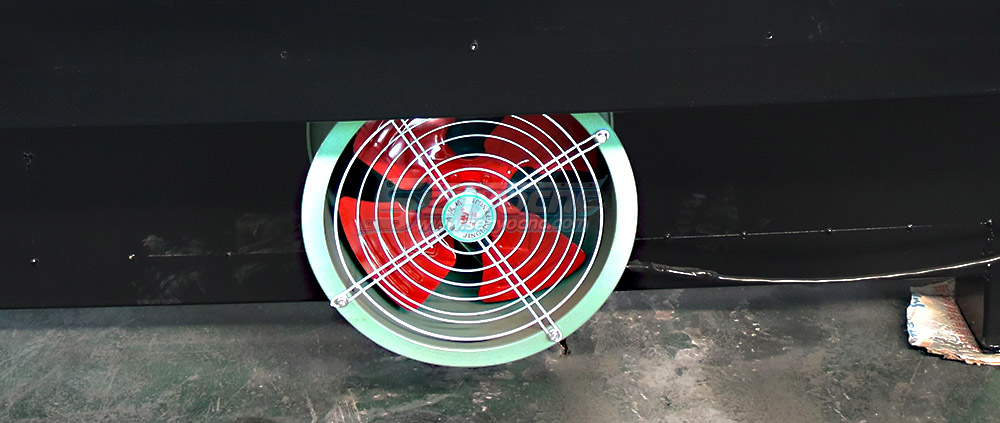

8. Fume Extraction System
Tips for Maximizing Efficiency and Performance
It is important to measure and ensure the maximum efficiency of your cutting table to achieve ultimate profit out of your production.
A few tips can boost your table’s performance in the long run. Additionally, you will find your CNC plasma cutting table a more cost-effective tool in the long run.
⇲ Regular maintenance is a must to ensure all components are in optimal condition.
⇲ Regular calibration is similarly important to maintain accuracy and consistency in cutting.
⇲ Use high-quality consumables such as electrodes, nozzles, and cutting tips.
⇲ Optimize cutting parameters by experimenting with different settings.
⇲ Make sure the material is properly secured before starting the machining.
⇲ Train the operator on nesting software and advanced software features.
⇲ Monitor performance metrics and quality of production routinely
Pros & Advantages
✔ Consumable parts have the longest life in the industry.
✔ Pilot arc circuit increases pilot arc current precisely when needed, significantly reducing nozzle wear.
✔ The Hypertherm quick-disconnect torch assembly provides easy switching between hand torch and machine torch, and it also features a stress-relief design for durability.
✔ Ease of Use - Easy and convenient gas regulation and current regulation.
✔ Very safe to use When the wearing parts are removed, the interlock device will prevent the machine from starting.
✔ With a special voltage fluctuation compensation device, there is no need to worry about the impact of voltage fluctuations on the machine.
✔ All equipment is equipped with a standard CNC/automatic machine interface, enabling automatic control and quick transfer to machine operation.
✔ New "fan on demand" function minimizes dust inhalation.
✔ Torch lead sheath made of AC chemistry resists jet and cut-through capabilities of molten metal.
✔ Accurate fault alarm indicator light makes it easier for you to operate and maintain.
✔ Auto-voltage™ automatic voltage regulation capability, which can automatically adapt to various input power sources of 200V-600V and three-phase.
✔ Coaxial-assist™ technology increases cutting speed.
✔ The Boost Conditioner™ input voltage compensation circuit compensates for fluctuations in the input voltage, which improves the performance of low-voltage lines, motor generators, and input power (fluctuations).
✔ Design for reliability improves downtime and greatly reduces investment.
✔ CNC interface and Easy Torch Removal (ETR™) are versatile for both handheld and machine use.
Cons
✔ Higher price than ordinary plasma power supply.
✔ Compared with the fiber laser cutting machine, the plasma cutting gap is larger, the cutting end surface is rougher and not smooth enough, and the cutting precision is lower.
Safety Considerations
Safety measurements are very important steps while working with plasma cutters. Plasma cutting involves high-temperature electrical currents which come with significant safety hazards. Proper safety measures are a must to avoid any unwanted exploration.
A few probable hazards that can occur due to the lack of safety considerations are,
⇲ Risk of high voltage electric shock
⇲ A densely heated plasma arc can cause fire and eventually potential to burn
⇲ Hazardous gases and fumes can cause severe health issues
⇲ Risk of eye injury from UV radiation
Now the 5x19 Hypertherm Plasma Cutter is equipped with various safety features. To minimize risk and ensure safe operation several features are added. Such as,
⇲ Thermal overload protection
⇲ Emergency stop button
⇲ Machine Guarding
⇲ Voltage monitoring system and
⇲ Safety interlocks
Proper training and availability of safety equipment including PPI and Glasses are recommended before start using the plasma cutter.
Environmental Impact
Like any industrial process plasma cutting can impact the environment to a great extent. It is necessary to consider the environmental impact of plasma cutting to minimize the chances of affecting our environment badly.
Plasma cutting can result in several environmental changes including,
⇲ Air pollution due to excessive fume, smoke, and bi-product
⇲ Uncontrolled usage will affect excessive power consumption
⇲ Off-cuts and scrap materials can be responsible for polluting the environment directly
⇲ Additional water usage as coolant and the chemical bots mixed within water particles can contaminate it to a greater extent
It is a matter of hope that the advanced technology of the Hypertherm plasma cutter utilizes electricity consumption. Implementing strategies to minimize wastage and emissions can help save the environment from pollution. Optimizing the machine parameters will also make a helpful impact on overall environmental detoxification.
Packaging Details
• Outside package: Standard marine export plywood case.
• Inner package: Stretch film and plastic film for humidity.
We can package according to your requests.
How to Choose the Right CNC Plasma Cutter for Your Business?
Choosing the correct CNC plasma cutter is crucial in ensuring smooth operations and maximum efficiency.
A well-chosen tools can satisfy your company's needs, increase production, and reduce downtime. Here are the most essential factors to consider before making your decision.
Identify Your Needs
Understand the types of metals you’ll be working with and their thickness.
If your projects involve a mix of thin and thick materials, opt for a machine that can handle a wide range of thicknesses effectively.
The right cutter ensures smooth, precise cuts across all material types, avoiding quality issues.
Machine Size and Work Area
Match the machine’s cutting bed size with the size of your metal sheets.
If you frequently work with larger sheets, a bigger machine will save time by reducing the need for repositioning materials.
Make sure the machine fits your workspace without compromising safety or ease of access.
Software Compatibility
Ensure the machine’s software integrates seamlessly with your design tools like CAD or CAM.
A user-friendly interface will minimize errors and help your team quickly adapt to the workflow. Software that supports automation features can further boost productivity.
Check Power Requirements
Verify that your facility’s electrical system can support the plasma cutter.
Machines requiring higher voltage may need special wiring or upgrades to your power supply. Planning for these requirements helps avoid costly installation delays.
Customer Support and Maintenance
Choose a brand with reliable technical support and easy access to spare parts.
This ensures any operational issues are resolved quickly, keeping your production schedule on track. Regular access to maintenance guides and troubleshooting assistance ensures smoother long-term operations.
Maintenance Tips for High-Definition CNC Plasma Cutters
Proper maintenance keeps your high-definition CNC plasma cutter running efficiently and prevents unexpected breakdowns. Routine care helps extend the machine’s lifespan, ensures consistent performance, and reduces the chance of costly repairs. Follow these essential tips to keep your plasma cutter in top shape.
Keep the Machine Clean
• After every use, clean the machine to remove dust, slag, and metal particles.
• A clean machine operates smoothly and maintains cutting precision over time.
• Regular cleaning prevents buildup that could interfere with the machine’s moving parts and cutting quality.
Inspect Consumable Parts
• Regularly inspect nozzles and electrodes for signs of wear or damage.
• Worn consumables can reduce cut accuracy and disrupt the production process.
• Prompt replacement ensures uninterrupted operation and high-quality results.
Lubricate Moving Parts
• Lubricate rails, bearings, and other moving components to reduce friction.
• Proper lubrication helps prevent wear and tear, extending the machine's lifespan.
• Smooth operation ensures precision cuts and reduces stress on the mechanical system.
Monitor Electrical Connections
• Periodically check that all electrical connections are tight and secure.
• Loose wires can lead to malfunctions or short circuits, damaging internal systems.
• A quick inspection prevents unexpected downtime and costly repairs.
Update Software and Firmware
• Install the latest software and firmware updates from the manufacturer.
• Updates often include performance improvements, bug fixes, and new features.
• Staying current ensures the machine runs efficiently and reliably over time.
Warranty And Service
• 24 months whole machine warranty and maintenance for a lifetime.
• Free installation and testing before shipping and free training for operators
• Advice for the best CNC solutions for customer's requirements.
• Free training and sample making.
• 7/24 free service and support.
1. CNC Plasma Cutting
2. CNC Plasma Machine
3. Plasma Cutter CNC
4. CNC Plasma Cutting Services
5. CNC Plasma Cutting Machine for Sale
6. Affordable CNC Plasma Cutting
7. Plasma Cutting Machine for Metal
8. CNC Plasma Cutting System
9. Plasma Cutter for Steel
10. CNC Plasma Machine Manufacturers
• Previous: Special Size 1.5M*6M Large Size Metal Sheet Cutting Plasma Cutting Machine

Fiber metal Laser Sensor And Its Application
Category: SENYO NEWS 11th Mar, 2021A CNC wood router will use 3D machining in relief carving, the effect is more artistic beauty, but also has a strong sense of three-dimensional 3D, realization of this function is to ...
Precision Cutting Stents with Fiber Lasers

A CNC wood router will use 3D machining in relief carving, the effect is more artistic beauty, but also has a strong sense of three-dimensional 3D, realization of this function is to ...
How to Laser Cut Copper and Other Reflective Metals

Laser cutting of mild steel and stainless steel has a long history and has been one of the primary applications for CO2lasers. However CO2lasers have not traditionally offered a good solution for cutting highly reflective materials.Fiber lasers have an emission wavelength of around
Laser Cutting Machine Inspection Process For Manufacture

SENYOCNC Have Strict quality monitoring will be carried out when the parts are in the factory.
How Control Costs Use of UV Printers ?

UV flatbed printers are rapidly being used by more and more manufacturers, thanks to its efficient production efficiency, and the control of production costs also needs to arouse our attention.
Why UV flat printing machine is popular in market ?

For the majority of designers, give full play to the creative ability, the design sample can be arbitrarily modified on the computer, the effect on the computer, is the effect after the finished product, customer satisfaction can be directly produced. UV flat printing pattern fine, rich and clear layers, high artistry, strong three-dimensional sense, many high precision equipment can also print photography and painting style patterns.
How does UV ink jet printer save UV ink?

UV inkjet printer use process is an important consumable UV ink, reasonable use of equipment, can save UV ink , it can be said to be the best choice to directly save the cost. In the process of using some skills you need to be familiar with, the following small make up to share with you:1. Try to us
Waterjet Machine delivery and Shipping

Please tell us your max working size and what materials will cutting , also what max cutting thickeness.If you have Working photo sample please also send us , it will be helpful to choose machine with suitable models .
Waterjet Machine finish manufacture 5axis

Waterjet cutting technology is one of the fastest growing major machine tool processes in the world due to its versatility and ease of operation.
Waterjet Machine delivery and Shipping

Waterjet cutting technology is one of the fastest growing major machine tool processes in the world due to its versatility and ease of operation.There are multiple advantages to adding waterjet cutting capabilities to your shop.We are company leading ultrahigh-pressure waterjet system so
How to Create Connected Text – Inkscape for Laser Cutting

Step 1: Create Some TextFirst, we need some text to work with. To create the text, select the Text Tool (keyboard shortcut: T), click somewhere on the canvas, and type your text.You can use the drop-down list on the top left to select your desired font.Step 2: Convert Text to PathNext, we need to tu

Jacob from United States
I am a beginner at CNC, I’ve never used a CNC machine before and with in a day I was carving. An awesome machine for a beginner to learn as hobbyists. I used the manual and the help video. One hour to assemble and test, very friendly and easy to use. It’s a good buy for the money. I would definitely recommend this machine to someone getting into CNCs.

Weinstein from France
I've been using CNC plasma SYP2060-300A and I am very impressed with this unit.
This unit is of higher quality, made in China. Five stars all the way!

10w uv laser from American
Best supplier ! I bought 3 machines for laser and router , thank you Aillen ! --Alec

12KW Fiber Cutting - 2000X6000mm -- 이병헌 from Korea
Good machine for metal cut ! Thanks Senyo , Its prefect , I like your business patient kind!

I am a furniture manufacturer, and this machine is very good and fast. thanks Senyoqc Team ! from Bangladesh

Metal ArtWork from Denmark
The plasma cutting machine makes my artistic creation more convenient and precise!! Created more artistic ideas and value! Thank you Aillen team!

Thanks for 3D CNC Router, so much 3D works, just everyday use machine works.that is what makes the magic happen. from
Thanks for 3D CNC Router, so much 3D works, just everyday use machine works.that is what makes the magic happen.

I'm getting a little bit closer to completing more art deco jewelry use fiber laser marking machine.Thank you Senyo from
I'm getting a little bit closer to completing more art deco jewelry use fiber laser marking machine.Thank you Senyo

Thank you Senyo for SYJ1290-150W! from
Retired, ex mainframe systems programmer. Now full-time recreational woodworker majoring in puzzles, pens, boxes, Toys and occasional small furniture. Thank you Senyo for SYJ1290-150W!

CNC Router I love woodworking and the Joy in the Journey! It's a Blessing! from Ricky
CNC Router I love woodworking and the Joy in the Journey! It's a Blessing!
