A CNC plasma cutter is a thermal metal cutting tool that uses an automatic computer numerical controller with CAM software to direct an ionized gas torch up and down, forward and backward, left and right along a tool path designed by CAD software, cutting through metals to create personalized straight and curved edges, contours and shapes, which is professional to cut mild steel, stainless steel, carbon steel, galvanized steel, hot rolled steel, cold rolled steel, iron, brass, copper, aluminum, bronze, titanium and a variety of alloys for automotive manufacturing, welding, repair and restoration, shipbuilding, industrial machinery, commercial construction, aerospace, as well as scrap and salvage operations.
What Is A CNC Plasma Cutting Table?
A CNC plasma cutting table is an important part of the cutting machines. It is a sophisticated piece of equipment consisting of a cutting bed, a plasma torch, a CNC controller, a power source, and specialized software.
Various materials, most commonly metals are cut and shaped in the most precise way with minimal wastage.
A high-temperature plasma ark generated by the torch melts through the material and is cut into shapes following the CNC-programmed pathways.
The plasma cutting table can hold heavy-weight metals as well.
The 4x8 bed size is the most common configuration among others. This is popular due to its versatility and manageability.
Purpose of The Cutting Table
In manufacturing and fabrication, CNC plasma cutting tables offer more usability. Primarily a table enables efficient and precise cutting of various materials.
Parts and manufacturing items with complex shapes and intricate designs require high accuracy.
A CNC plasma cutting table enables both accuracy and precision with less wastage.
They feature versatility with a wide range of metals on work, such as steel, aluminum, stainless steel, copper, and more.
CNC plasma tables can rapidly cut through materials that offer maximum productivity.
These tables offer the production of specific and custom parts and components.
Therefore, featuring more customization and better efficiency CNC plasma cutting tables are gaining popularity day by day.
Advantage
Table type cnc plasma tube cutter cutting machine choose light duty gantry ,good rigidity ,less Inertia of Motion.
Duel size stepper motors driving with Taiwan square orbits ,smooth power transmission ,high accuracy.
Small cutting edges, tidy, no metal scrap, working with metal bending machine, Notching machine etc to form a working line.
High cutting speed with much lower cost compare to fiber laser cutting equipment, save cost and energy.
CNC controlled movement, Auto Arc striking, stable working performance.
Features
1. High precision CNC plasma cutting machine is widely used in cutting letters and drawings of industries manufacturing and advertising filed.
2.Reliable driving system which requires no maintenance. Rigid welded metal structure, high precision gantry, X Y Z axis use Taiwan HIWIN square rail guide and high precision rack gear driving system to ensure the rapid working speed and high accuracy.
3.Clean and smooth cutting edge, do not need further processing.
4.Wholly cold-roll machine structure, this increase rigidity and eliminates vibration during working.
Applicable Industries and Materials
Widely used in military-industrial complex, heavy machinery, aviation industry, nuclear energy,
electricity farming and outdoor advertising, etc.
Applicable for cutting carbon steel as well as ferrous alloys, cast iron, high-alloy steels; titanium, aluminum and its alloys, tungsten, copper, stainless steel, etc.
The 1500X6000mm plasma table is suitable for various applications. We already know the purpose of the table.
CNC plasma tables are already being used in almost every industry.
This configuration is highly demandable with high versatility and efficiency.
Here we will point out the usability and applications of CNC plasma cutting tables one by one.
⇲ Metal Fabrications
⇲ Signage and Artwork
⇲ Architectural Metalwork
⇲ Decoration Industry
⇲ Automotive Aftermarket
⇲ Metal Art and Sculpture
⇲ Kitchenware
⇲ Agricultural Machinery
⇲ Marine Industry
⇲ Prototyping and Small Batch Production and so on.

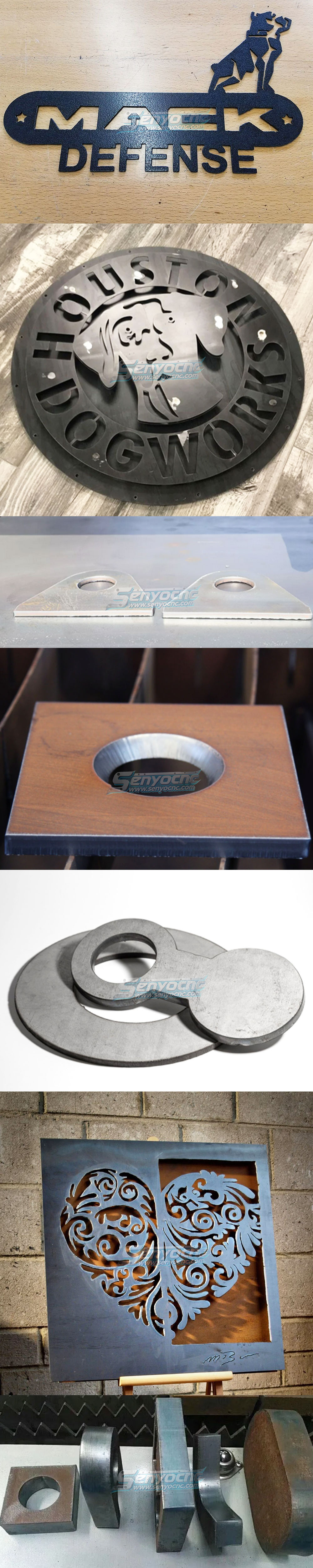

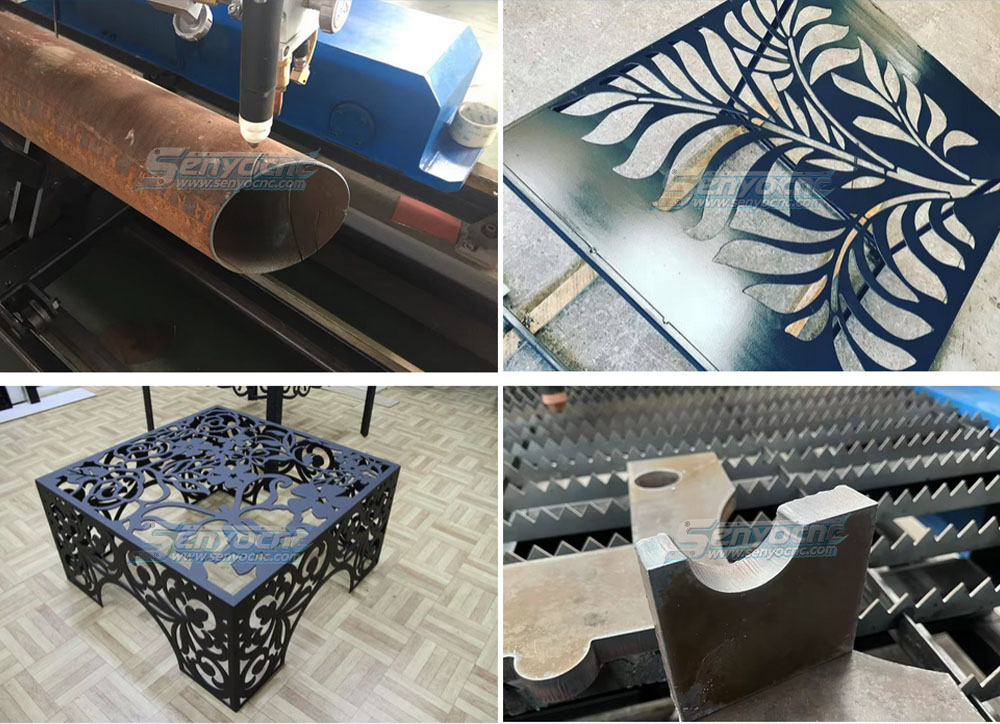

Working Samples Project

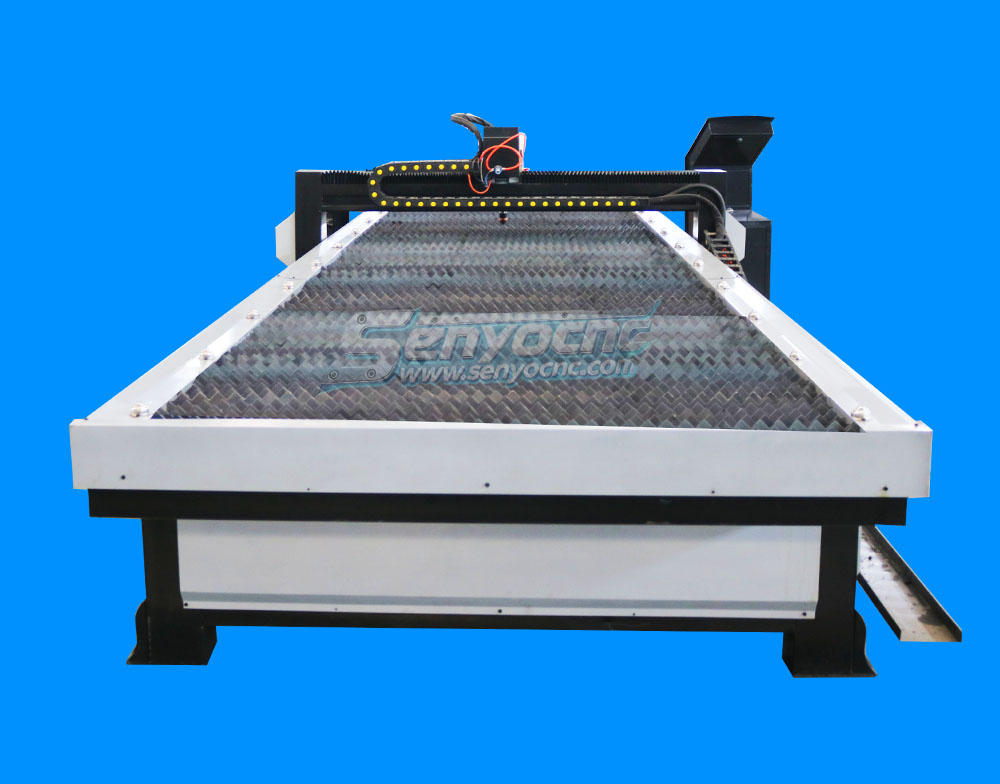

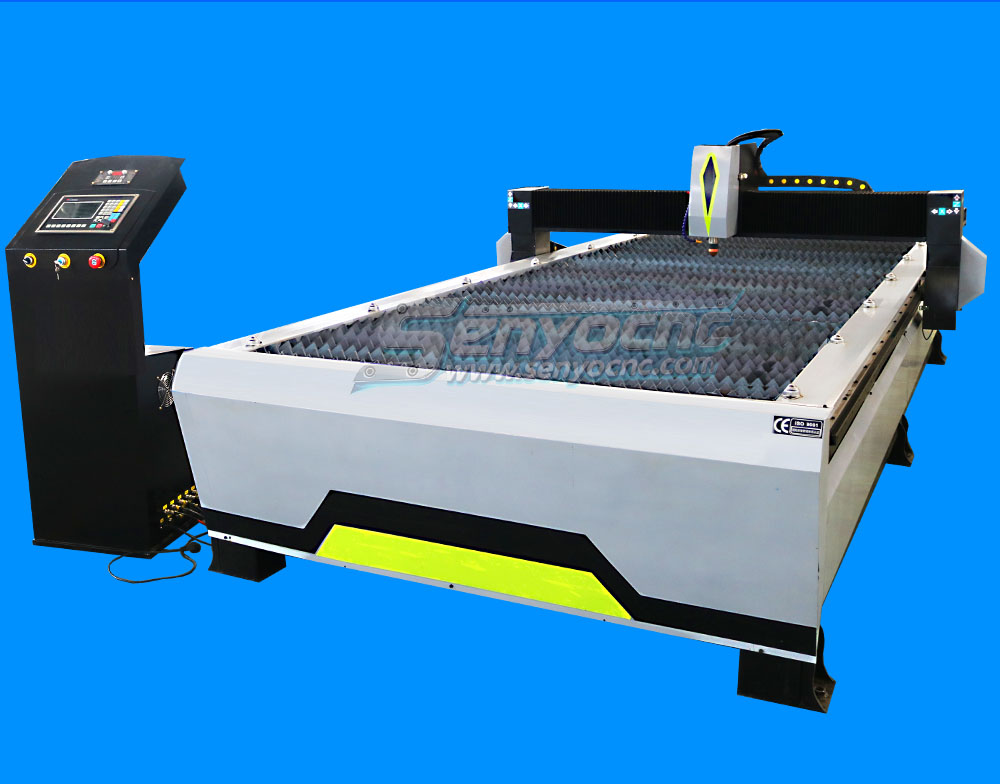

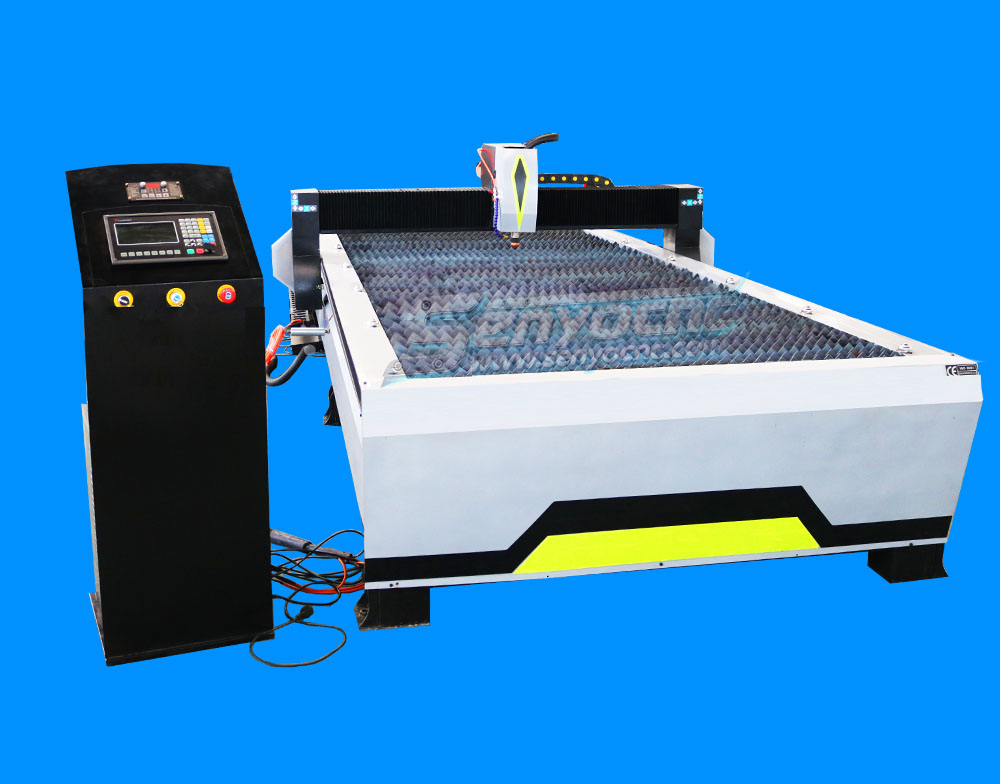

Techology Paramaters
Machine Model | SYP1560 |
X Y Working Area | 1500mm*6000mm |

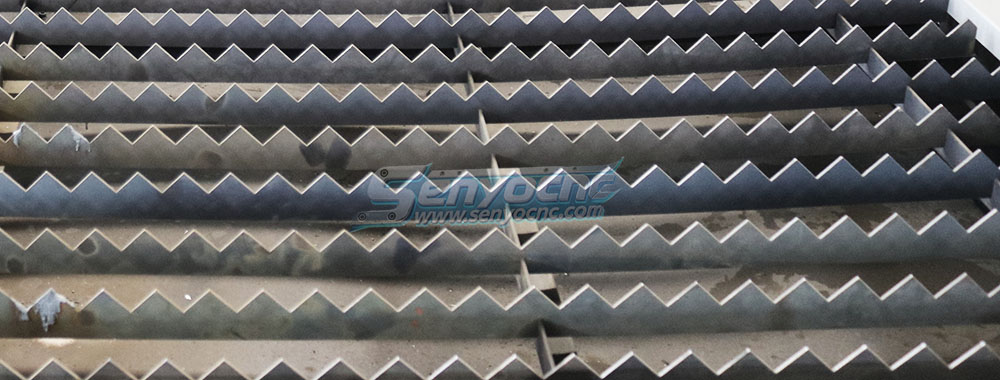

Table Structure | Blade / Sawtooth worktable |
X Y Axis Driving Mode | High precision rack and pinion |
XY Axis Guide | Taiwan HIWIN square rail |

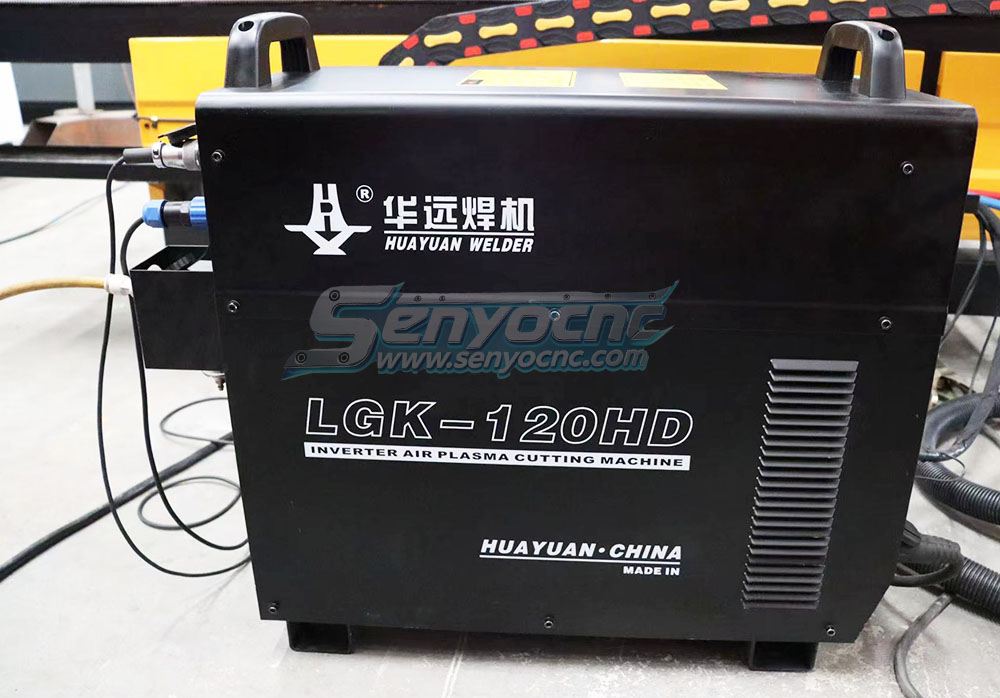

Plasma Sources | HUAYUAN LGK series 63A (Optional: 100A/120A/160A/200A) Or American imported Hypertherm Powermax series |
Cutting Thickness | 0.2 to 55mm(depends on different plasma sources) |
Max. Traveling Speed | 21000mm/min |
Cutting Sped | 100mm- 16000mm/min |

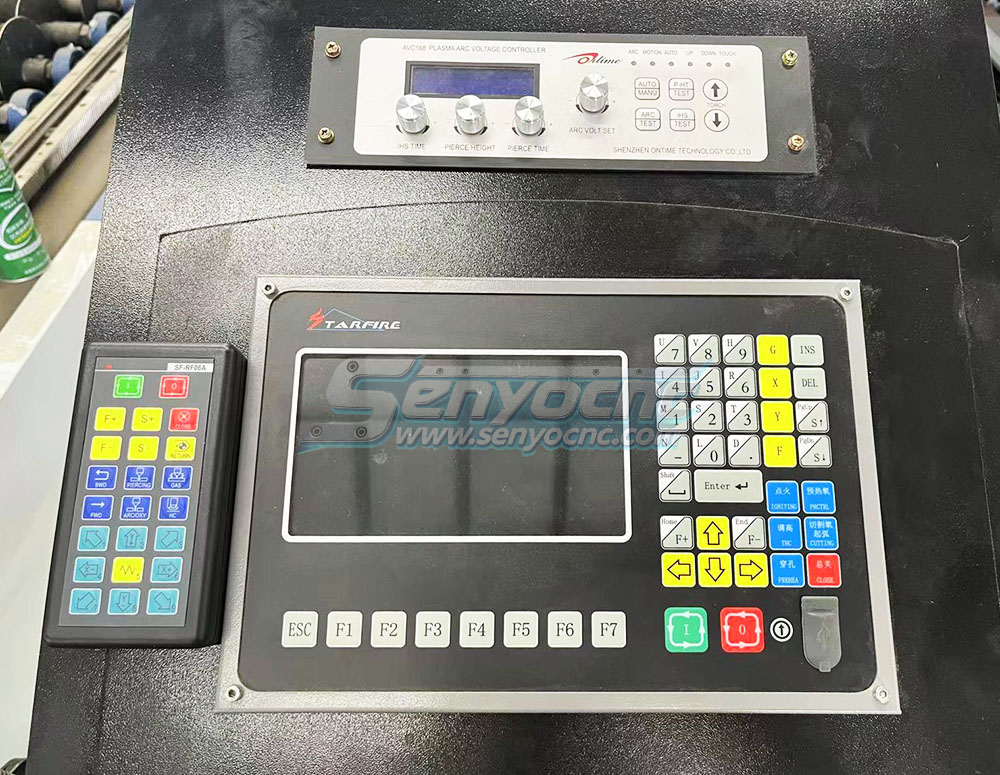

Operation System | START controller with auto THC torch height controller |
Driving Mode | Powerful stepper motor |
Position Accuracy | ±0.02mm |
Re-position accuracy | ≤0.02mm |
Fume Exhausting System | YES |
Auto Lubrication System | YES |
Working Voltage | AC380V 50HZ |

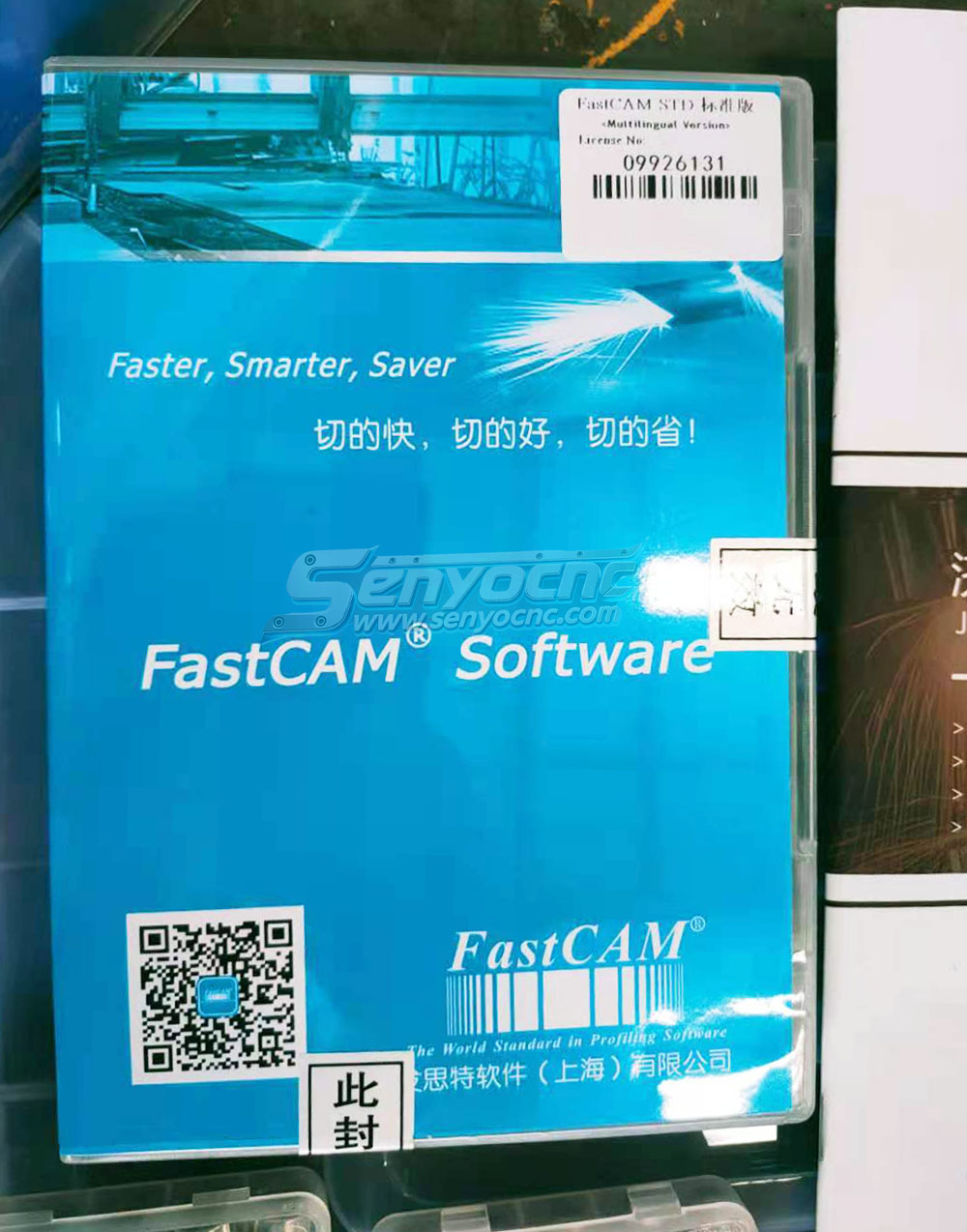

Software | Artcam, Ucancam, Fastcam |
Applicable Materials | Iron sheets, aluminum sheets, galvanized sheet, titanium plates ..... |
Net Weight/Gross Weight | 1800KGS /1900KGS |
Package Dimension | 6670mm*2280mm*1560mm |
Plasma Cutting Capacity
China Huayuan Power | USA Hypertherm Power | ||
---|---|---|---|
Power supply | Cutting thickness | Power supply | Cutting thickness |
63A | 8mm | 45A | 8mm |
100A | 15mm | 65A | 10mm |
120A | 20mm | 85A | 12mm |
160A | 30mm | 105A | 18mm |
200A | 40mm | 125A | 25mm |
200A | 30mm |
Significance and Advantages in Metal Fabrication
This is perhaps the most popular configuration of a CNC plasma cutting table for any industry. It is significant in metal fabrication and cutting. Several key reasons for being a proper choice are given here.
1. Versatility: Metal sheets of 5feet by 19 feet are considered standard for industrial manufacturing. The 1500x6000mm bed size provides a versatile platform and allows fabricators to work with a variety of sheet sizes.
2. Optimal Material Usage: The5x19 size allows fabricators to nest multiple parts on a single sheet. This minimizes costly material waste.
3. Cost-effectiveness: 5x19 CNC plasma cutting tables offer a balance between size and affordability. Despite having a big size bed they require less space to set up.
This offers accessibility to small to medium-sized fabrication shops and businesses while still being manageable in less space.
4. Ease of Integration: These tables are workflow-friendly with a standard setup that requires no extra modification to the workspace and are easy to integrate.
5. Adaptability to Various Projects: A diverse range of fabrication and manufacturing features makes them adaptable to small to large metal fabrication.
Whether fabricating small components or cutting larger panels and sheets, the 5x19 size provides enough space to handle a diverse range of fabrication tasks.
Components of a CNC Plasma Cutting Table
Knowing the components and parts of a CNC plasma cutting table is always a firsthand lesson for any beginner. The primary components are,
1. Plasma Torch
2. CNC Controller
3. Cutting Bed
4. Power Source
5. Software
6. Motion Control System
7. Torch Height Control (THC) and
8. Fume Extraction System
Tips for Maximizing Efficiency and Performance
It is important to measure and ensure the maximum efficiency of your cutting table to achieve ultimate profit out of your production.
A few tips can boost your table’s performance in the long run. Additionally, you will find your CNC plasma cutting table a more cost-effective tool in the long run.
⇲ Regular maintenance is a must to ensure all components are in optimal condition.
⇲ Regular calibration is similarly important to maintain accuracy and consistency in cutting.
⇲ Use high-quality consumables such as electrodes, nozzles, and cutting tips.
⇲ Optimize cutting parameters by experimenting with different settings.
⇲ Make sure the material is properly secured before starting the machining.
⇲ Train the operator on nesting software and advanced software features.
⇲ Monitor performance metrics and quality of production routinely.
Pros & Advantages
✔ Consumable parts have the longest life in the industry.
✔ Pilot arc circuit increases pilot arc current precisely when needed, significantly reducing nozzle wear.
✔ The Hypertherm quick-disconnect torch assembly provides easy switching between hand torch and machine torch, and it also features a stress-relief design for durability.
✔ Ease of Use - Easy and convenient gas regulation and current regulation.
✔ Very safe to use When the wearing parts are removed, the interlock device will prevent the machine from starting.
✔ With a special voltage fluctuation compensation device, there is no need to worry about the impact of voltage fluctuations on the machine.
✔ All equipment is equipped with a standard CNC/automatic machine interface, enabling automatic control and quick transfer to machine operation.
✔ New "fan on demand" function minimizes dust inhalation.
✔ Torch lead sheath made of AC chemistry resists jet and cut-through capabilities of molten metal.
✔ Accurate fault alarm indicator light makes it easier for you to operate and maintain.
✔ Auto-voltage™ automatic voltage regulation capability, which can automatically adapt to various input power sources of 200V-600V and three-phase.
✔ Coaxial-assist™ technology increases cutting speed.
✔ The Boost Conditioner™ input voltage compensation circuit compensates for fluctuations in the input voltage, which improves the performance of low-voltage lines, motor generators, and input power (fluctuations).
✔ Design for reliability improves downtime and greatly reduces investment.
✔ CNC interface and Easy Torch Removal (ETR™) are versatile for both handheld and machine use.
Cons
✔ Higher price than ordinary plasma power supply.
✔ Compared with the fiber laser cutting machine, the plasma cutting gap is larger, the cutting end surface is rougher and not smooth enough, and the cutting precision is lower.
Safety Considerations
Safety measurements are very important steps while working with plasma cutters. Plasma cutting involves high-temperature electrical currents which come with significant safety hazards. Proper safety measures are a must to avoid any unwanted exploration.
A few probable hazards that can occur due to the lack of safety considerations are,
⇲ Risk of high voltage electric shock
⇲ A densely heated plasma arc can cause fire and eventually potential to burn
⇲ Hazardous gases and fumes can cause severe health issues
⇲ Risk of eye injury from UV radiation
Now the 5x19 Hypertherm Plasma Cutter is equipped with various safety features. To minimize risk and ensure safe operation several features are added. Such as,
⇲ Thermal overload protection
⇲ Emergency stop button
⇲ Machine Guarding
⇲ Voltage monitoring system and
⇲ Safety interlocks
Proper training and availability of safety equipment including PPI and Glasses are recommended before start using the plasma cutter.
Environmental Impact
Like any industrial process plasma cutting can impact the environment to a great extent. It is necessary to consider the environmental impact of plasma cutting to minimize the chances of affecting our environment badly.
Plasma cutting can result in several environmental changes including,
⇲ Air pollution due to excessive fume, smoke, and bi-product
⇲ Uncontrolled usage will affect excessive power consumption
⇲ Off-cuts and scrap materials can be responsible for polluting the environment directly
⇲ Additional water usage as coolant and the chemical bots mixed within water particles can contaminate it to a greater extent
It is a matter of hope that the advanced technology of the Hypertherm plasma cutter utilizes electricity consumption. Implementing strategies to minimize wastage and emissions can help save the environment from pollution. Optimizing the machine parameters will also make a helpful impact on overall environmental detoxification.
Packaging Details
• Outside package: Standard marine export plywood case.
• Inner package: Stretch film and plastic film for humidity.
We can package according to your requests.
Warranty And Service
• 24 months whole machine warranty and maintenance for a lifetime.
• Free installation and testing before shipping and free training for operators
• Advice for the best CNC solutions for customer's requirements.
• Free training and sample making.
• 7/24 free service and support.
1. Metal Fabrication CNC Plasma Cutting
2. Industrial Plasma Cutting
3. Custom Plasma Cutting
4. CNC Plasma Cutting for Automotive
5. CNC Plasma Cutting for Construction
6. Sheet Metal Plasma Cutting
7. Precision CNC Plasma Cutting
8. CNC Plasma Cutting for Stainless Steel
9. CNC Plasma Cutting for Aluminum
• Previous: 1500x6000mm CNC Plasma Cutting Machine with Rotary and Drilling Head
• Next: Top CNC Plasma Cutters for Automotive, Aerospace, and Manufacturing Industries
