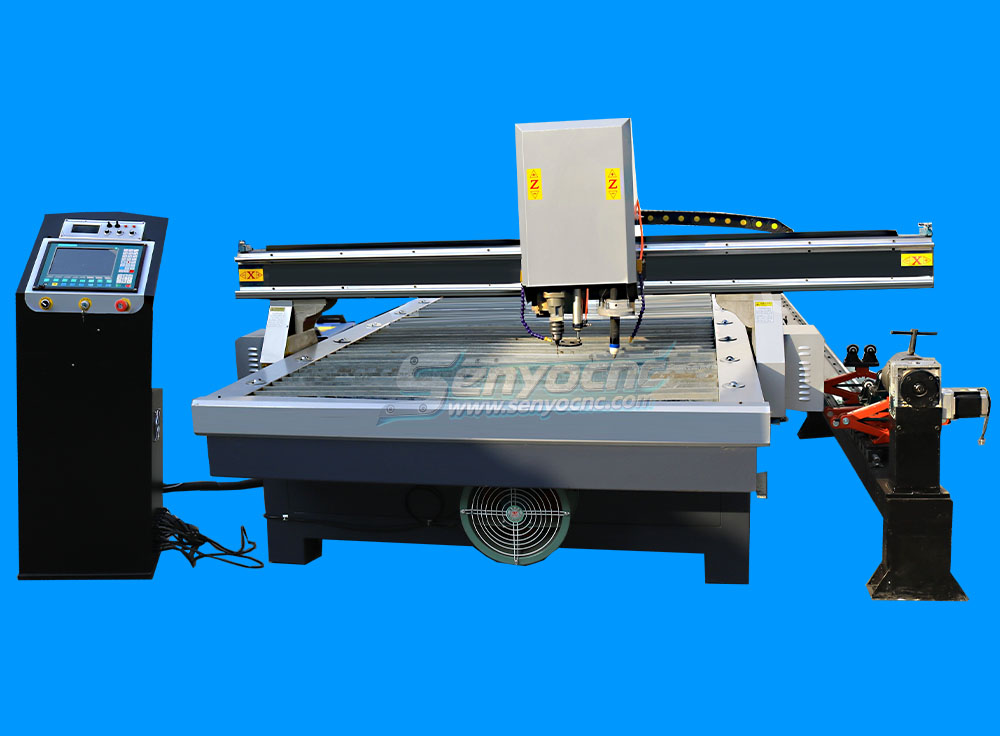

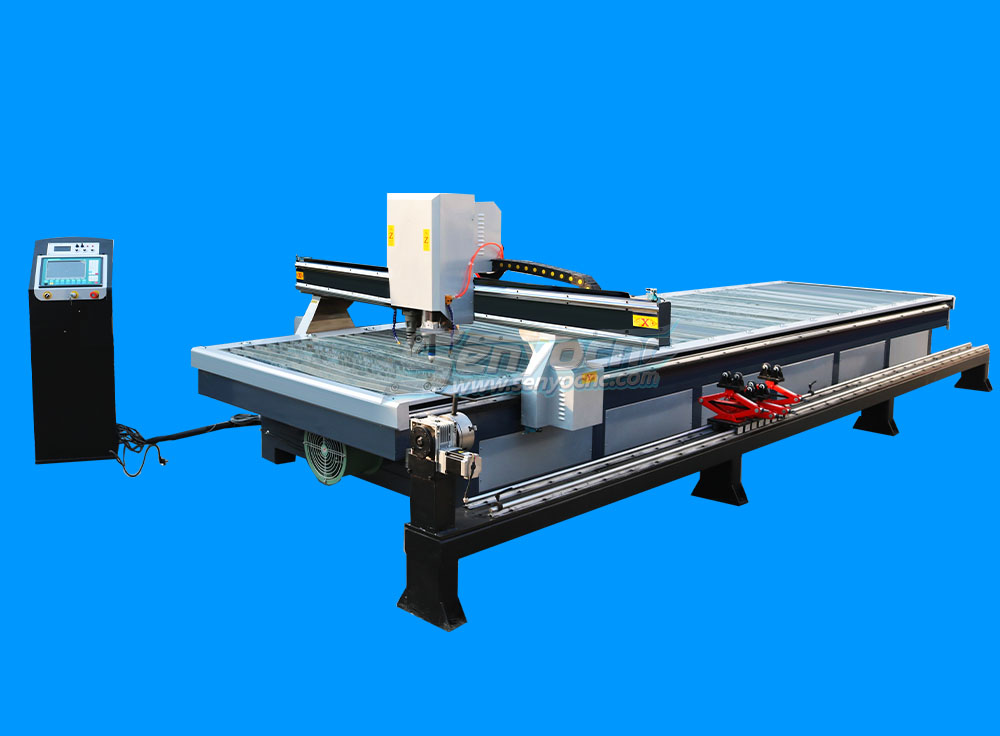

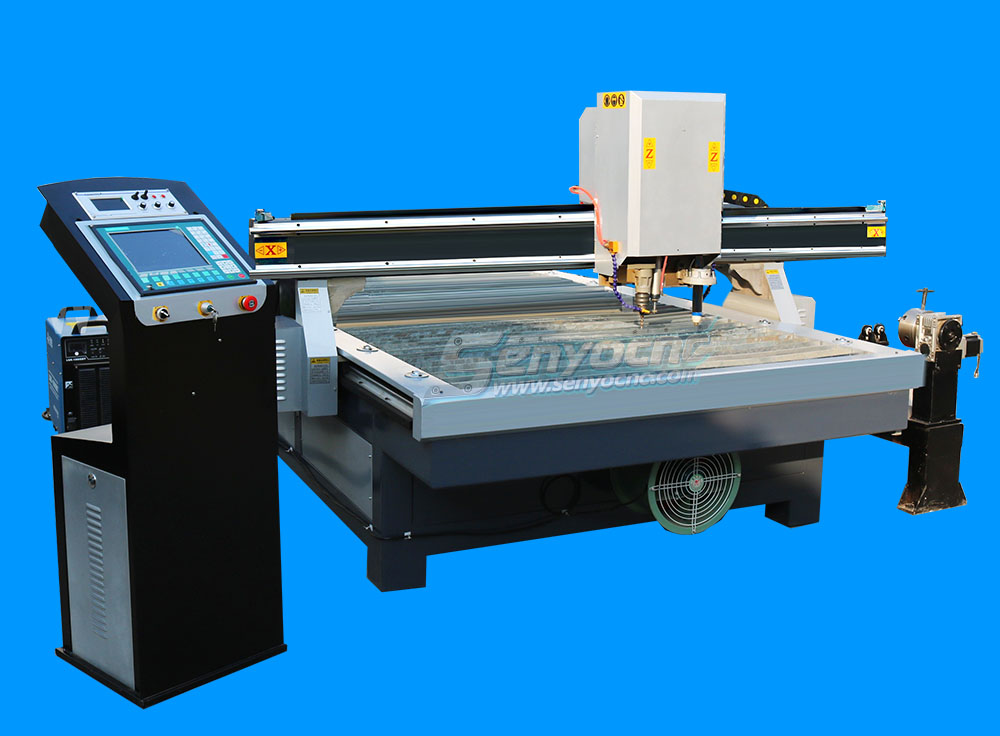

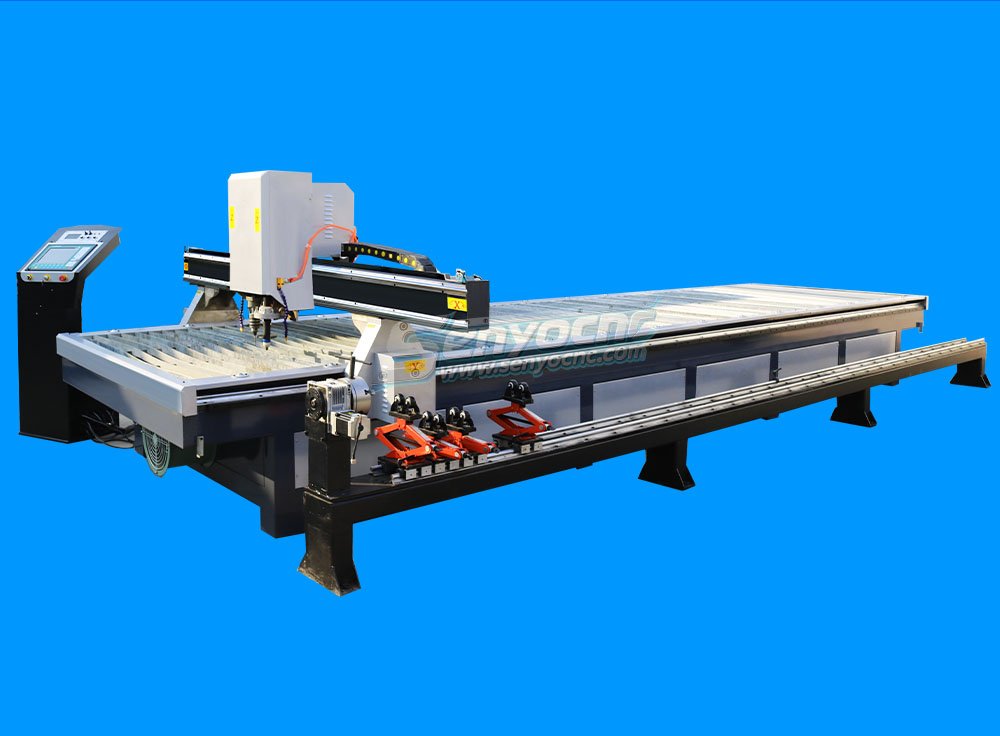

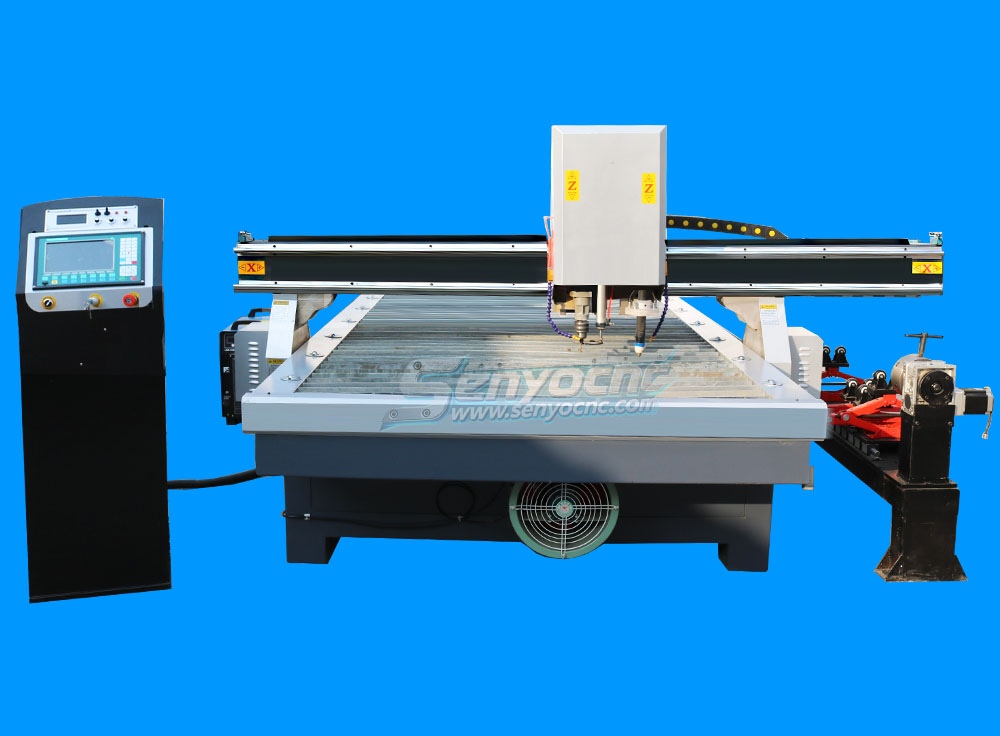

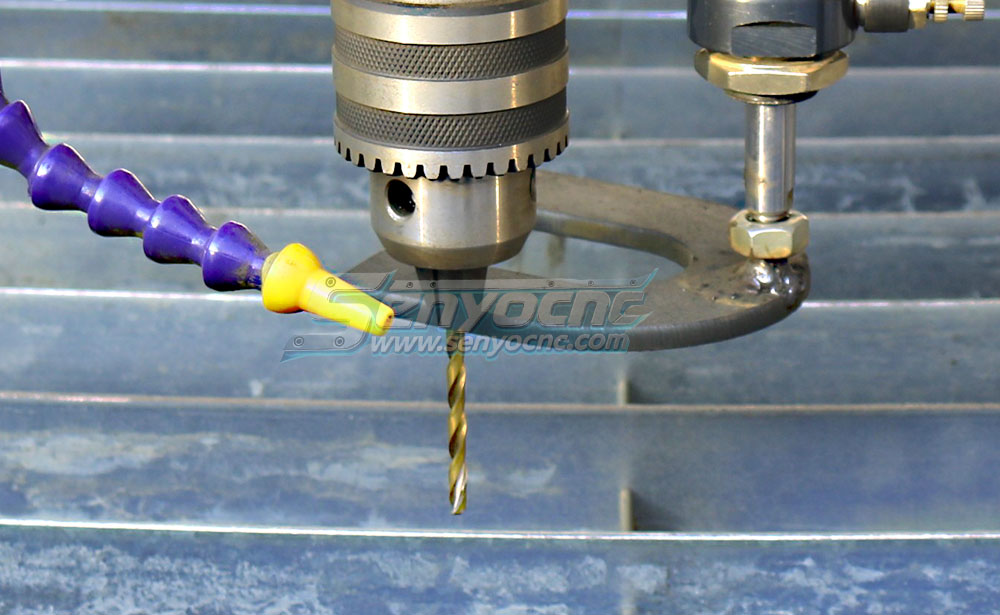

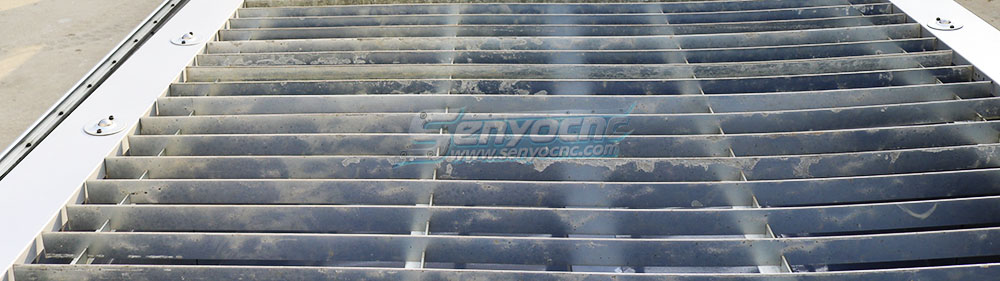

Details of table plasma cutting machine with drilling head

Technical Parameters of Affordable CNC Plasma Cutting Drilling Machine

Machine Features

CNC cutting machine is a kind of equipment which dedicated to a variety of carbon steel, stainless steel, aluminum, copper and other metal materials. The equipment in the industrial computer control, adopt high-temperature plasma arc or flame cutting on the plate can be cut in any graphics and text, it is widely used in shipbuilding, pressure vessel manufacturing, machinery manufacturing, steel processing industries.

When using a plasma arc cutting, not only can cut carbon steel, but also cutting stainless steel, aluminum, copper and other metal materials, maximum cutting thickness determined by the plasma source with the decision. Normally, the device used by the U.S. sea treasure produced plasma power, plasma cutting speed relative to the oxyacetylene cutting speed, high efficiency, effectively educe the overall cost.

Optional Flame cutting head When using oxyacetylene or other oxyfuel, only cutting carbon steel, cutting thickness 6 ~ 120mm, such as the use of special cutting torch, cutting nozzle and specialty gases, gas, maximum cutting thickness up to 300mm. Oxyfuel cutting, plasma cutting with respect to the slow, but a thick steel plate can be cut, and the use of low cost.

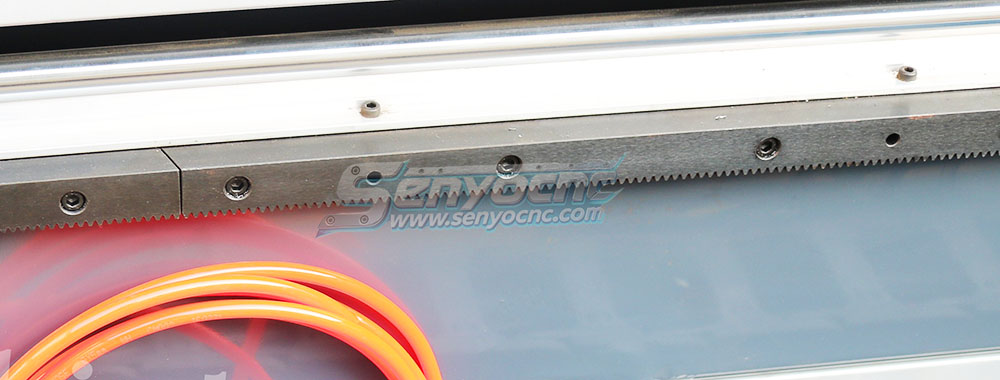

The device mechanical structure gantry form, from the main end beam, secondary-side beams, and beams composed of portal frame, driven by AC servo motor, walking on the rails. CNC cutting trolley through the slider fixed to the beam front, driven by a servo motor, through the gear rack drive, walk by the linear guides.

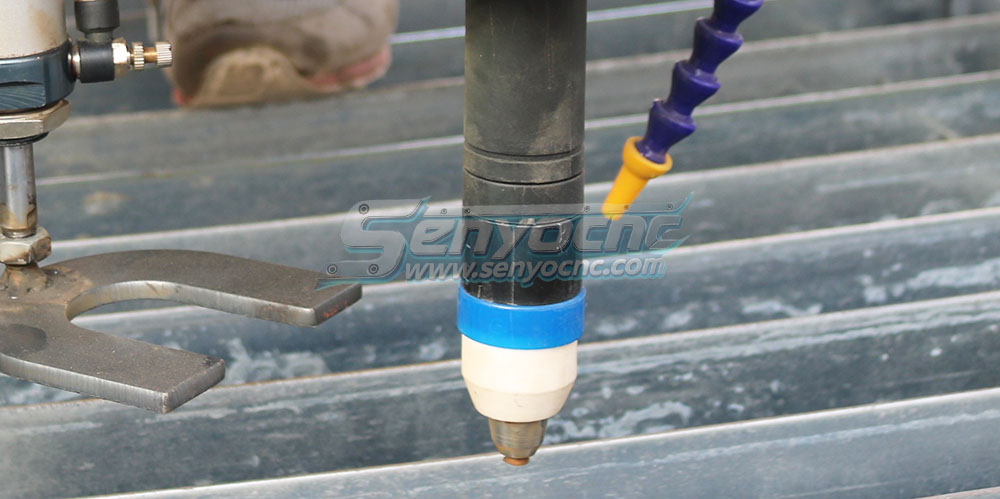

The device is also equipped with automatic torch height adjustment device and automatic arc ignition device, the use of automatic
nesting software programming, enabling automatic control of the cutting process.

Equipment used graphics file programming language international common CNC Programming Language - G code language. G-code file can be edited manually, or use the device supporting FASTCAM automatic nesting software programming or other programming software for automatic programming and nesting, easy programming, sheet utilization.

Two Type Of Plasma Source

1. Chinese Huayuan Power Supply Cutting Capacity:

- 63A cutting thickness: 8mm

- 100A cutting thickness: 15mm

- 120A cutting thickness: 20mm

- 160A cutting thickness: 30mm

- 200A cutting thickness: 40mm

2. USA Hypertherm Power Supply Cutting Capacity:

- 45A cutting thickness: 8mm

- 65A cutting thickness: 10mm

- 85A cutting thickness: 12mm

- 105A cutting thickness: 18mm

- 125A cutting thickness: 25mm

- 200A cutting thickness: 30mm

Application

Advertising industry, arts and handicrafts cutting, kinds of metallic materials, such as Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.

Charateristics:

1. high intensive plasma arc energy, temperature, fast speed

2. Light beam design, good rigidity, light weight and tiny moving inertia.

3. Small cutting gap, no residua.

4. Plasma cutting machine Y axis adopts double moters with double drivers. XYZ axis round raill, moving smoothly, with high accuracy. (Option:squar raill)

5. Excellent cutting 3D illuminated letters for advertising and channel letters on metal surface board.

6. Plasma Cutter working together with other advertising machines, such as CNC Router etc, improving working efficiency.

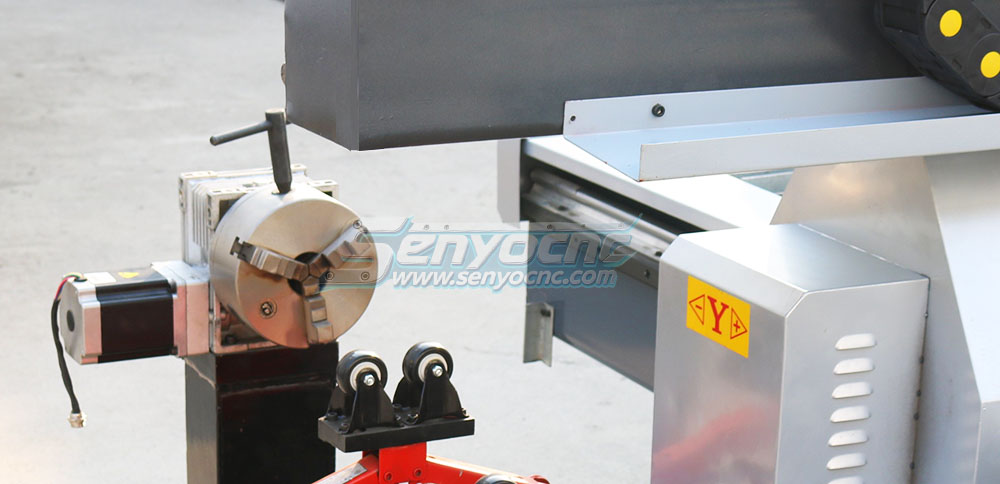

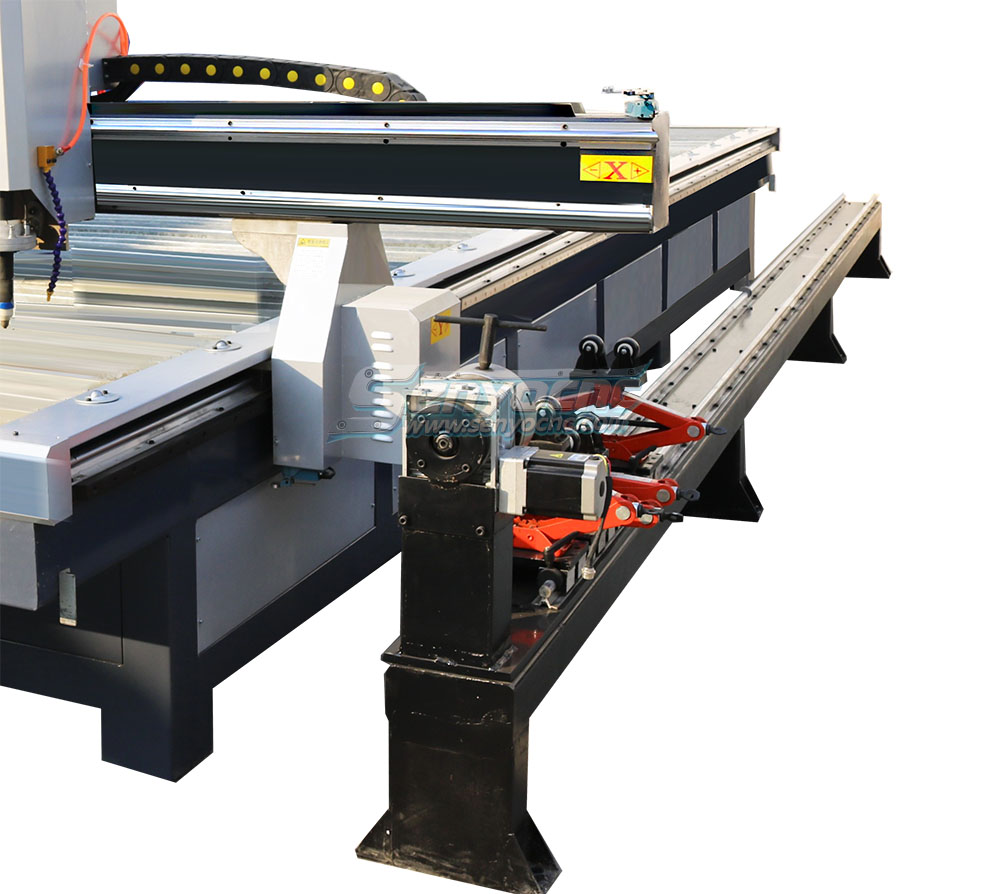

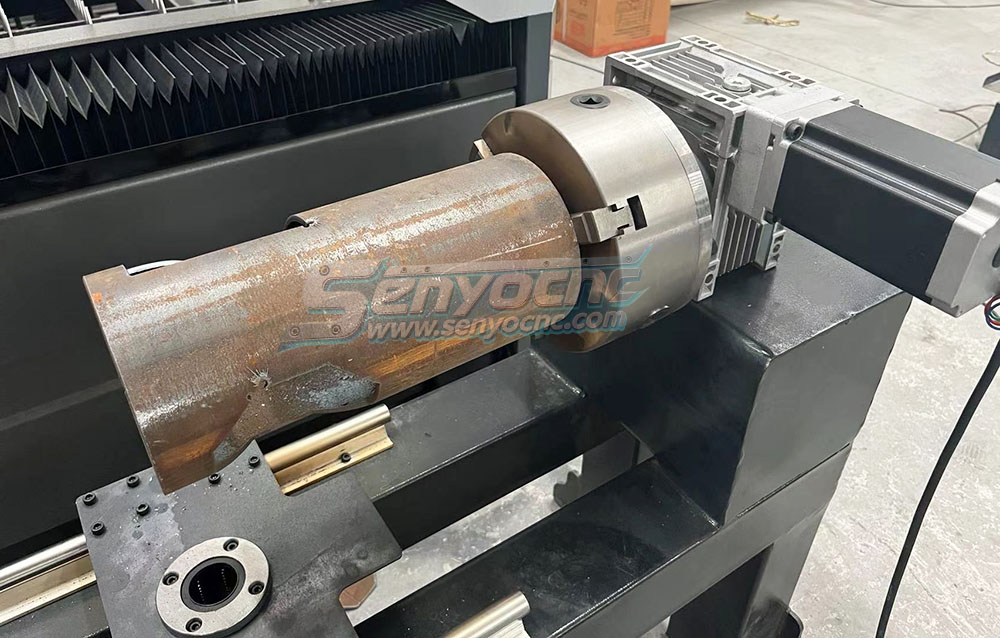

7. The rotary device can used for cutting round shape materials.

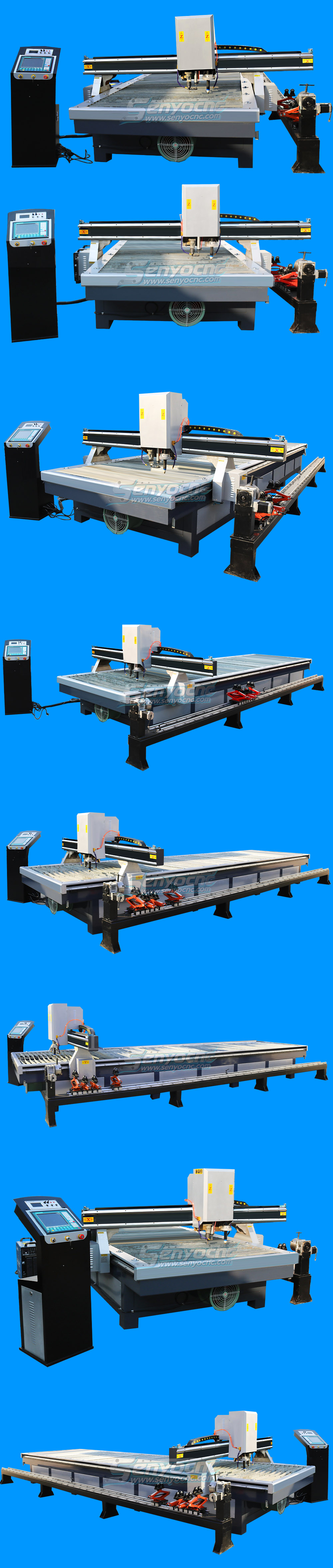

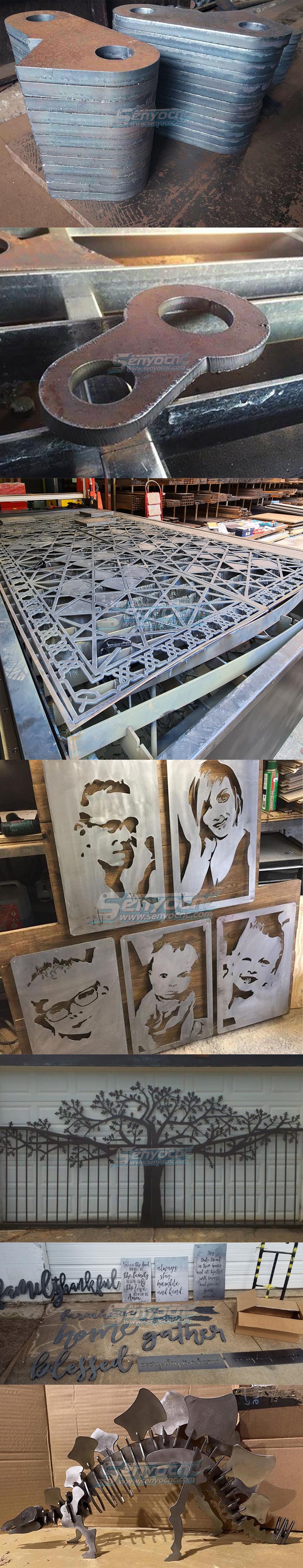

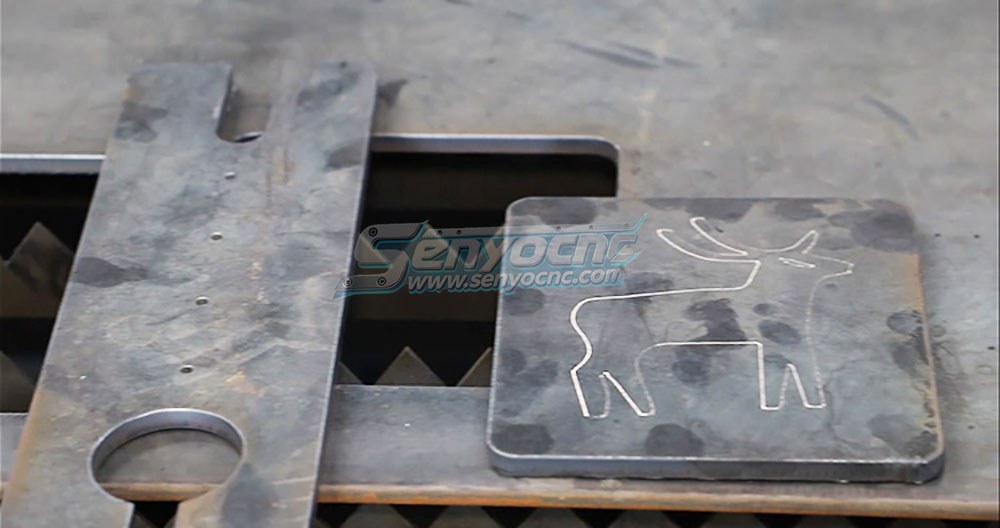

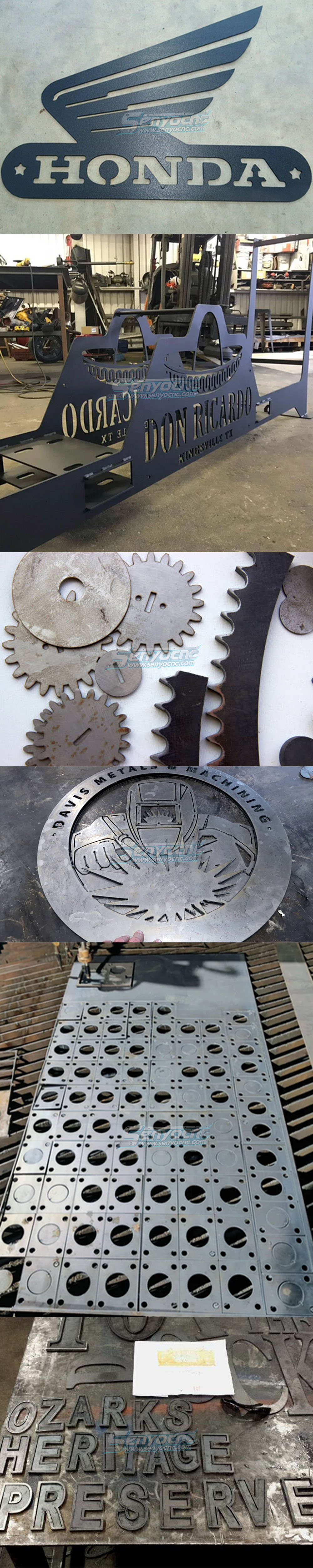

Working Samples Project

Pros & Advantages

✔ Consumable parts have the longest life in the industry.

✔ Pilot arc circuit increases pilot arc current precisely when needed, significantly reducing nozzle wear.

✔ The Hypertherm quick-disconnect torch assembly provides easy switching between hand torch and machine torch, and it also features a stress-relief design for durability.

✔ Ease of Use - Easy and convenient gas regulation and current regulation.

✔ Very safe to use When the wearing parts are removed, the interlock device will prevent the machine from starting.

✔ With a special voltage fluctuation compensation device, there is no need to worry about the impact of voltage fluctuations on the machine.

✔ All equipment is equipped with a standard CNC/automatic machine interface, enabling automatic control and quick transfer to machine operation.

✔ New "fan on demand" function minimizes dust inhalation.

✔ Torch lead sheath made of AC chemistry resists jet and cut-through capabilities of molten metal.

✔ Accurate fault alarm indicator light makes it easier for you to operate and maintain.

✔ Auto-voltage™ automatic voltage regulation capability, which can automatically adapt to various input power sources of 200V-600V and three-phase.

✔ Coaxial-assist™ technology increases cutting speed.

✔ The Boost Conditioner™ input voltage compensation circuit compensates for fluctuations in the input voltage, which improves the performance of low-voltage lines, motor generators, and input power (fluctuations).

✔ Design for reliability improves downtime and greatly reduces investment.

✔ CNC interface and Easy Torch Removal (ETR™) are versatile for both handheld and machine use.

Cons

✔ Higher price than ordinary plasma power supply.

✔ Compared with the fiber laser cutting machine, the plasma cutting gap is larger, the cutting end surface is rougher and not smooth enough, and the cutting precision is lower.

Safety Considerations

Safety measurements are very important steps while working with plasma cutters. Plasma cutting involves high-temperature electrical currents which come with significant safety hazards. Proper safety measures are a must to avoid any unwanted exploration.

A few probable hazards that can occur due to the lack of safety considerations are,

⇲ Risk of high voltage electric shock

⇲ A densely heated plasma arc can cause fire and eventually potential to burn

⇲ Hazardous gases and fumes can cause severe health issues

⇲ Risk of eye injury from UV radiation

Now the 5x10 Hypertherm Plasma Cutter is equipped with various safety features. To minimize risk and ensure safe operation several features are added. Such as,

⇲ Thermal overload protection

⇲ Emergency stop button

⇲ Machine Guarding

⇲ Voltage monitoring system and

⇲ Safety interlocks

Proper training and availability of safety equipment including PPI and Glasses are recommended before start using the plasma cutter.

Environmental Impact

Like any industrial process plasma cutting can impact the environment to a great extent. It is necessary to consider the environmental impact of plasma cutting to minimize the chances of affecting our environment badly.

Plasma cutting can result in several environmental changes including,

⇲ Air pollution due to excessive fume, smoke, and bi-product

⇲ Uncontrolled usage will affect excessive power consumption

⇲ Off-cuts and scrap materials can be responsible for polluting the environment directly

⇲ Additional water usage as coolant and the chemical bots mixed within water particles can contaminate it to a greater extent

It is a matter of hope that the advanced technology of the Hypertherm plasma cutter utilizes electricity consumption. Implementing strategies to minimize wastage and emissions can help save the environment from pollution. Optimizing the machine parameters will also make a helpful impact on overall environmental detoxification.

Packaging Details

• Outside package: Standard marine export plywood case.

• Inner package: Stretch film and plastic film for humidity.

We can package according to your requests.

Warranty And Service

• 24 months whole machine warranty and maintenance for a lifetime.

• Free installation and testing before shipping and free training for operators

• Advice for the best CNC solutions for customer's requirements.

• Free training and sample making.

• 7/24 free service and support.
