Features and Advantages of Industrial ATC CNC Router Machine with Four Spindles
1. The CNC router ATC is equipped with 4 kinds of cutters, there is no need to change the cutters when engraving or cutting.
The program can work automatically. The advantage is low investment. High profit, low maintenance, easy to operate. It is also very easy for beginner to operate.
2. Machine with shanlong control system with computer .
3. The whole CNC router machine ATC is welded with thick seamless steel structure, the stability is good, not easy to be deformed, Gross weight 1100kgs,
even 5 people can not move it. The CNC router machine adopts gantry movement, it can process any kinds of materials freely.
4.
High quality Taiwan imported HIWIN Linear guide has much longer life 10
times of life-time than round guide, two line sliding track, heavy
loading, stable working, high precision and long lifetime.
5. This CNC router ATC is suitable for machining any kinds of materials in bulk.
6. Well compatibility: CAD/CAM designing software. TYPE3/Artcam/Castmate/ Wentai.

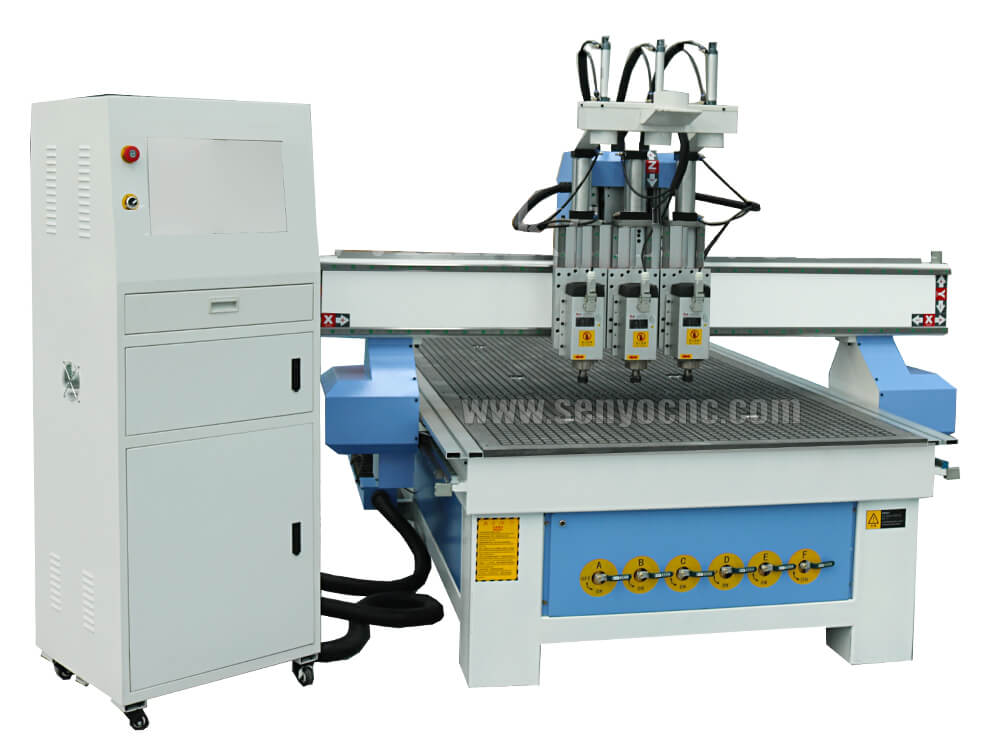

Machine have 3 heads process for choose . Model SYM1325-3G

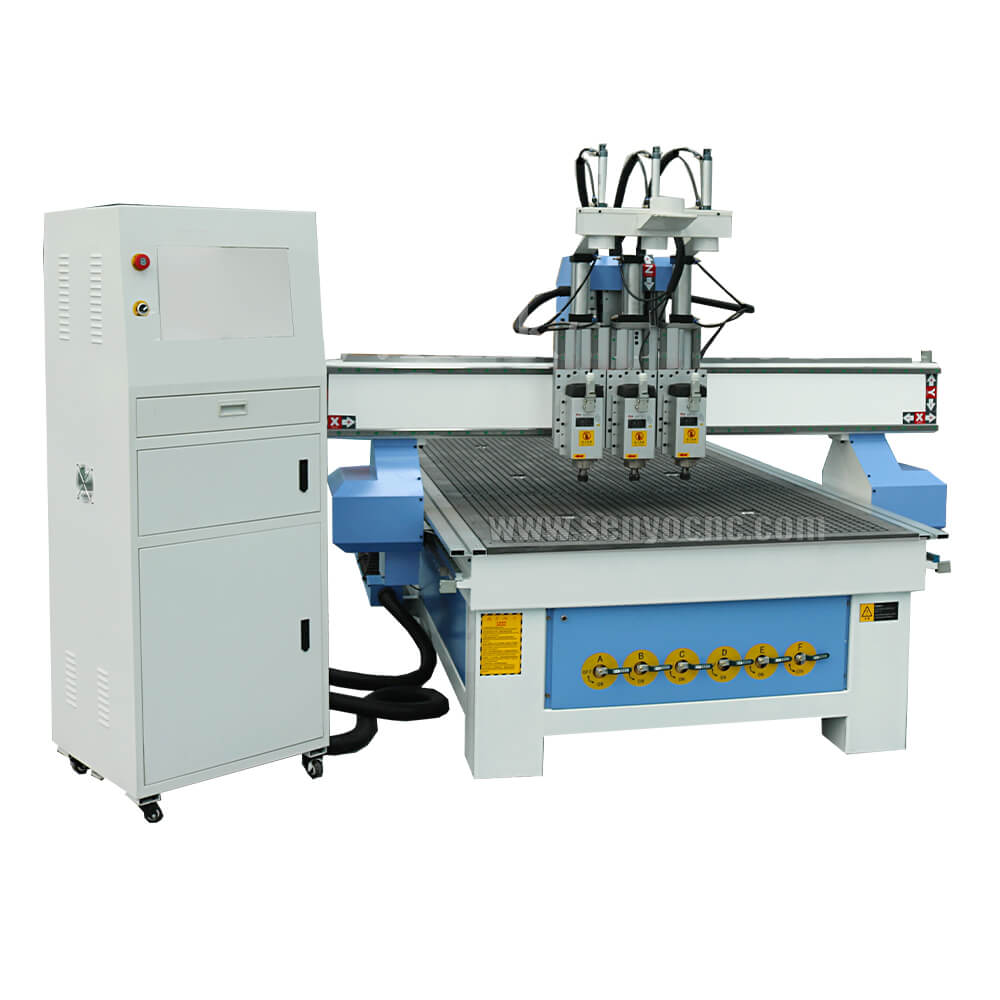

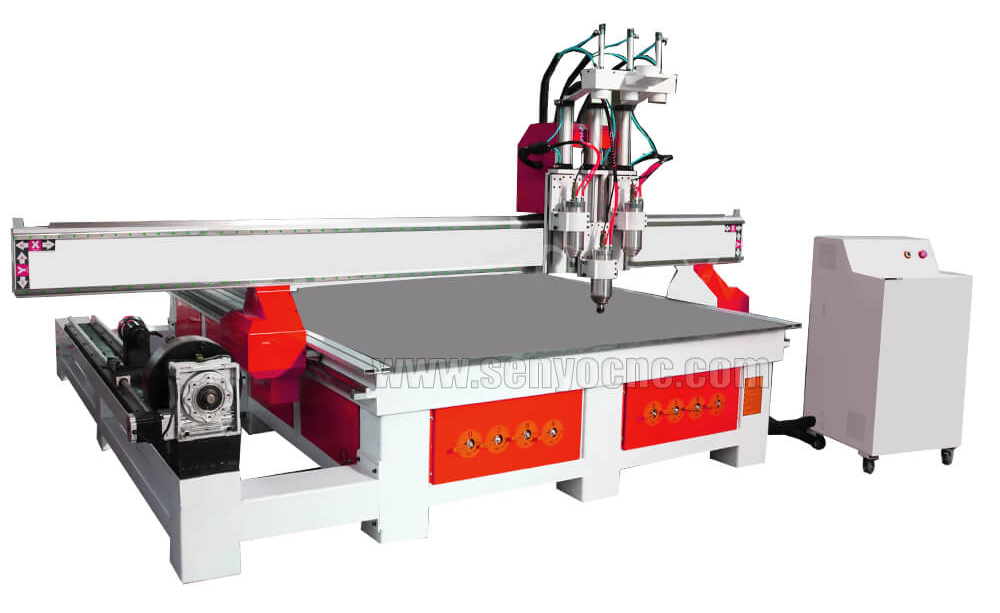

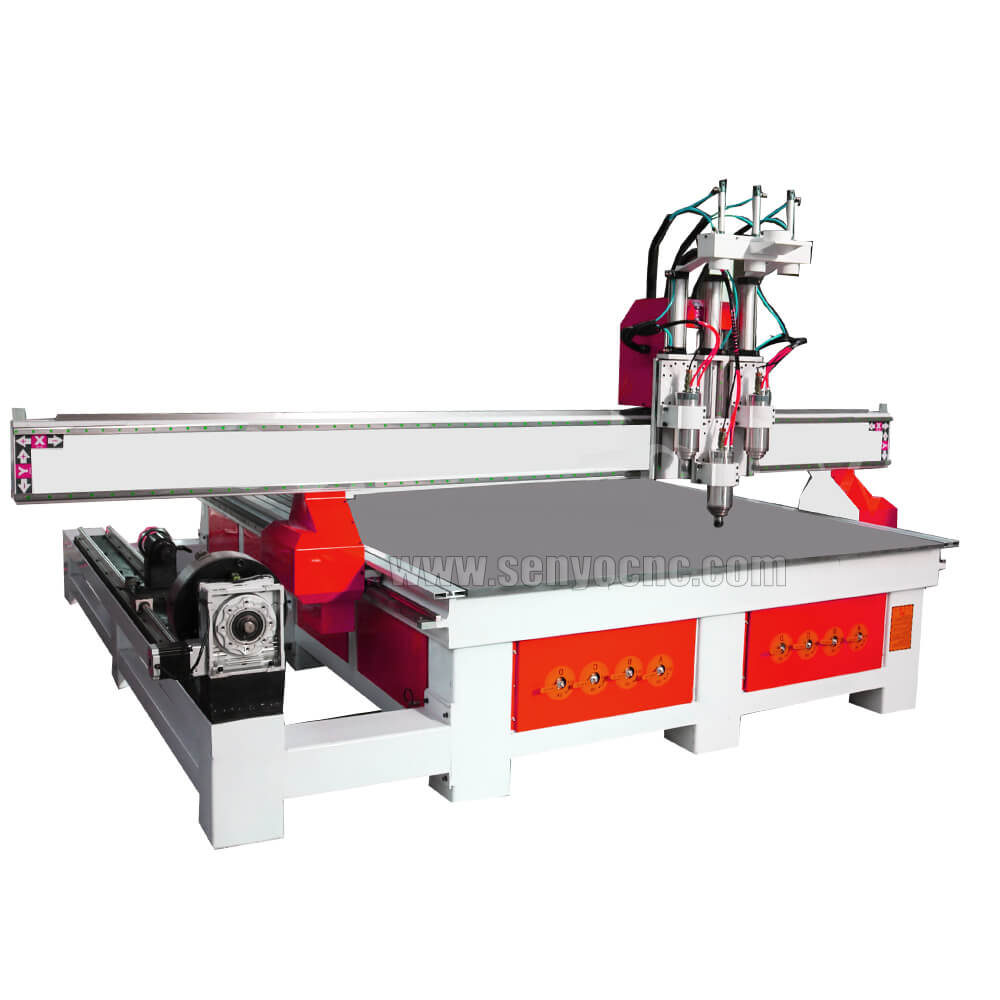

Machine have 3 heads with rotary 4 axis , Model SYM1325-3GR2

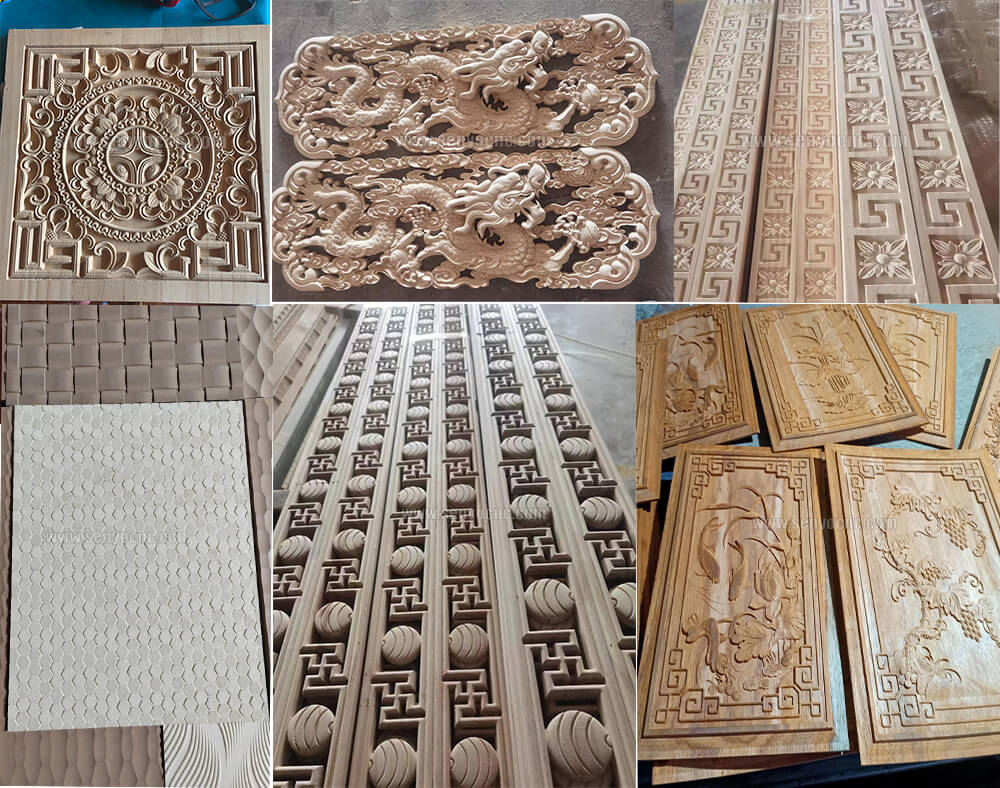

Applications of Industrial ATC CNC Router Machine with Four Spindles

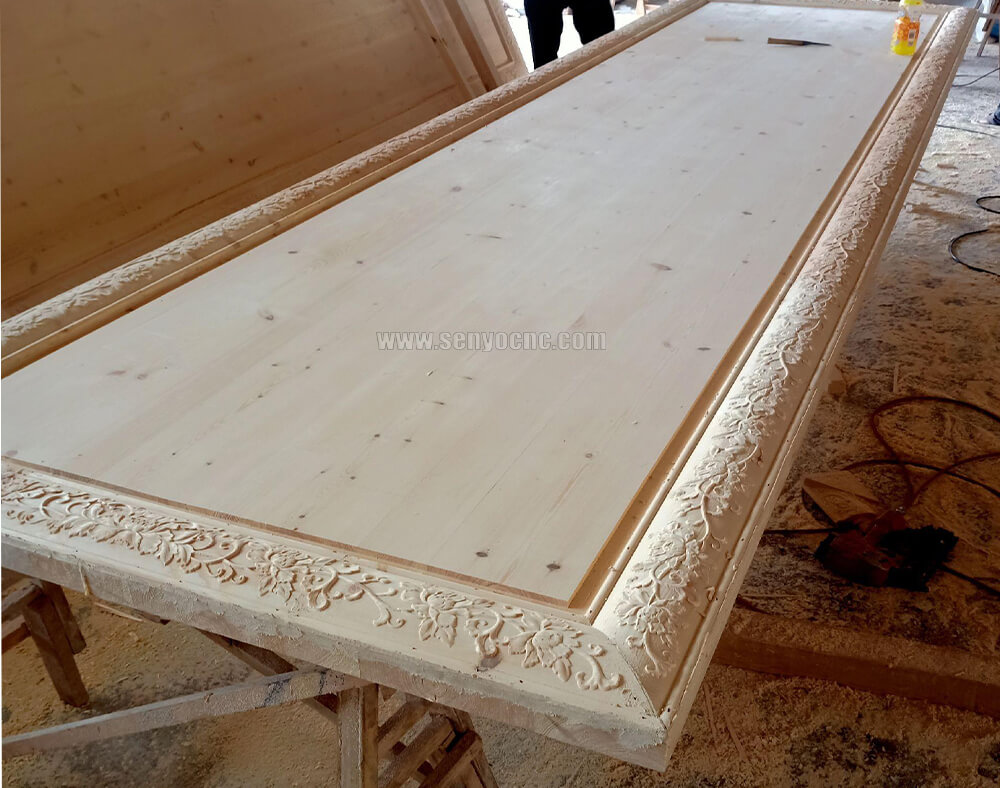

Furniture: Panel furniture, official furniture, wooden door, cabinet, plate, tables, chair.
Wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
Panel processing: insulating part, working of plastic; PCB; stone, marble, acrylic, PVC, MDF, organic glass and the cutting of cooper, aluminum, and other soft metals.

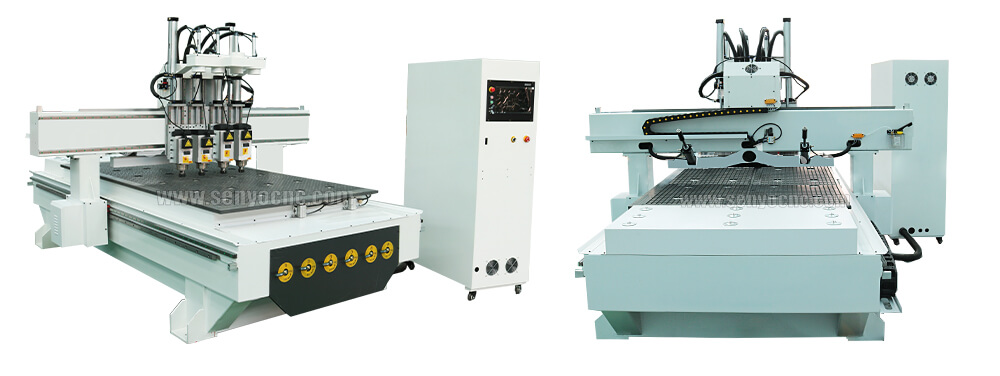

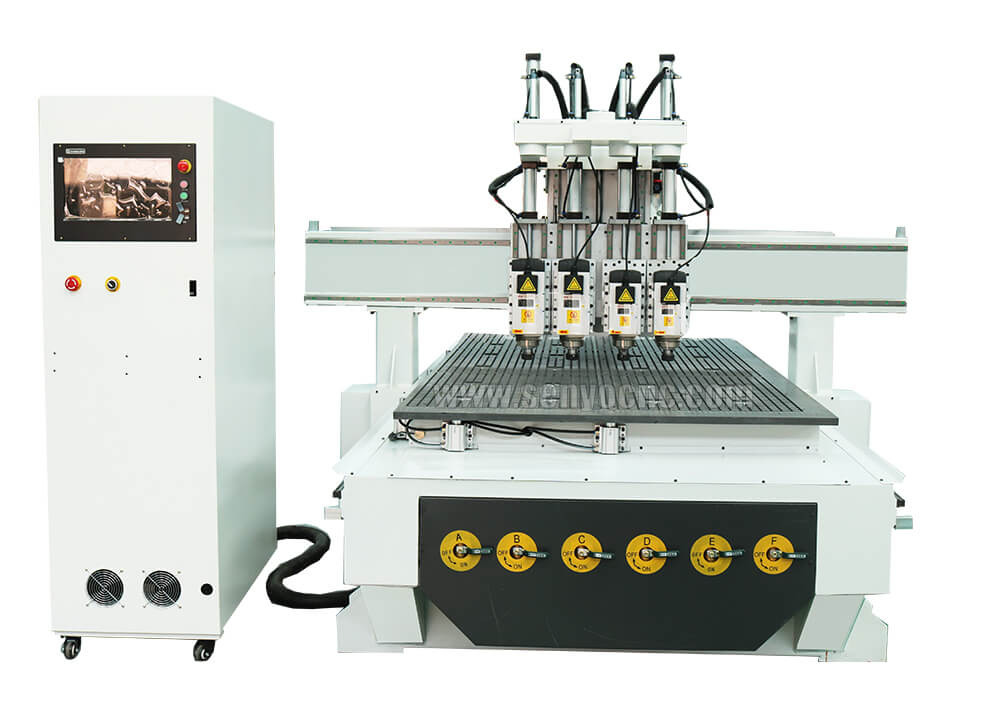

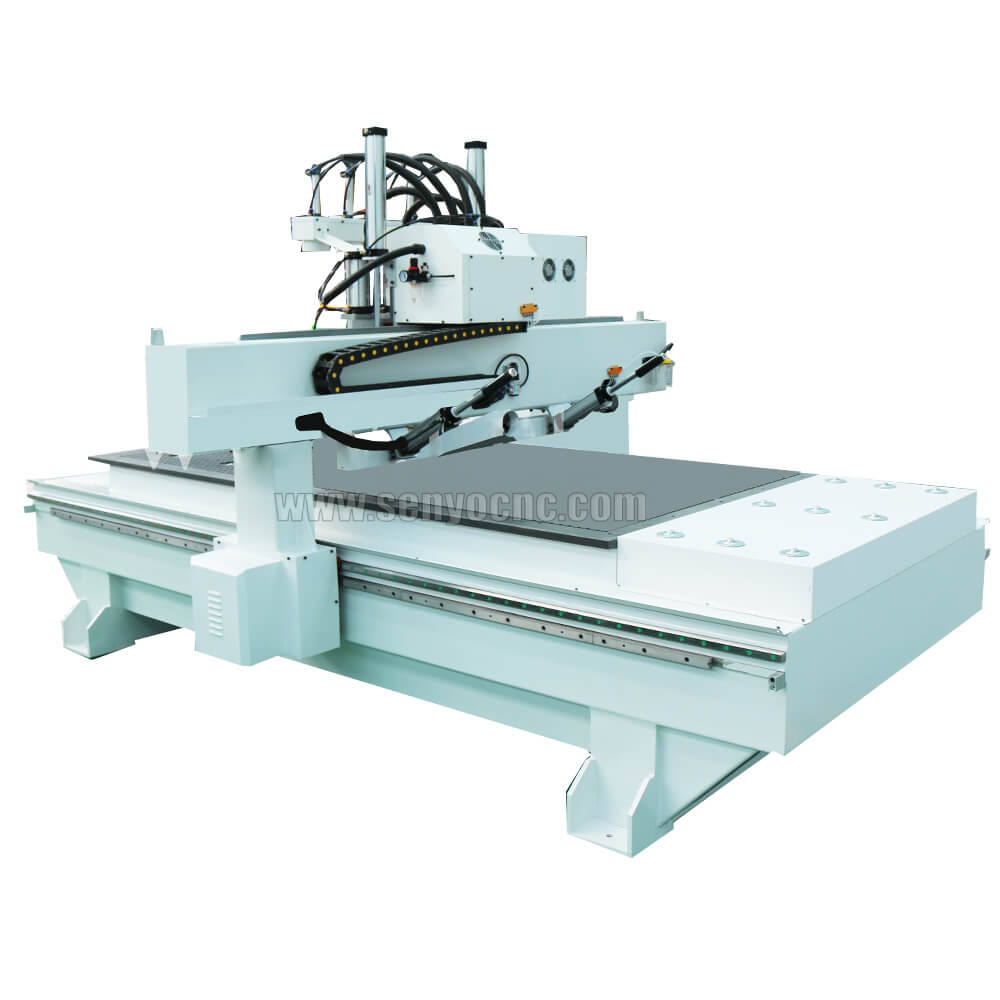

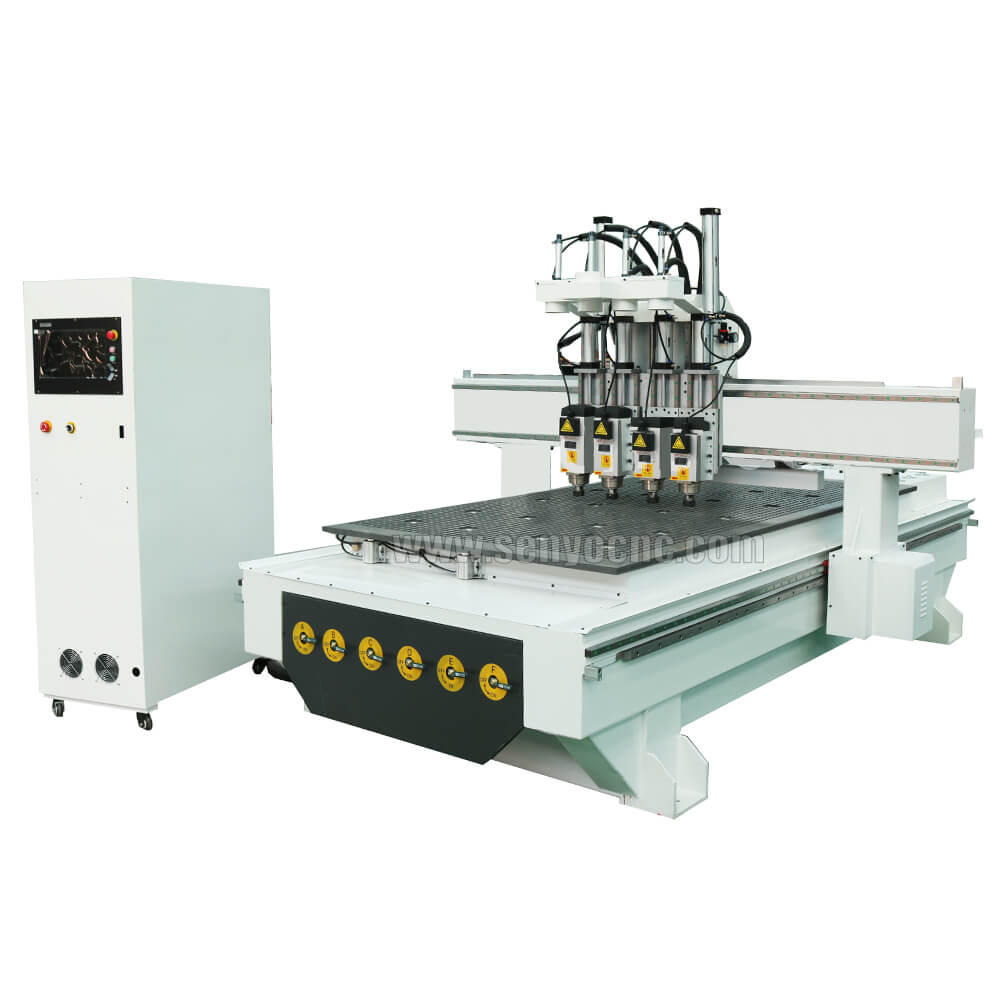

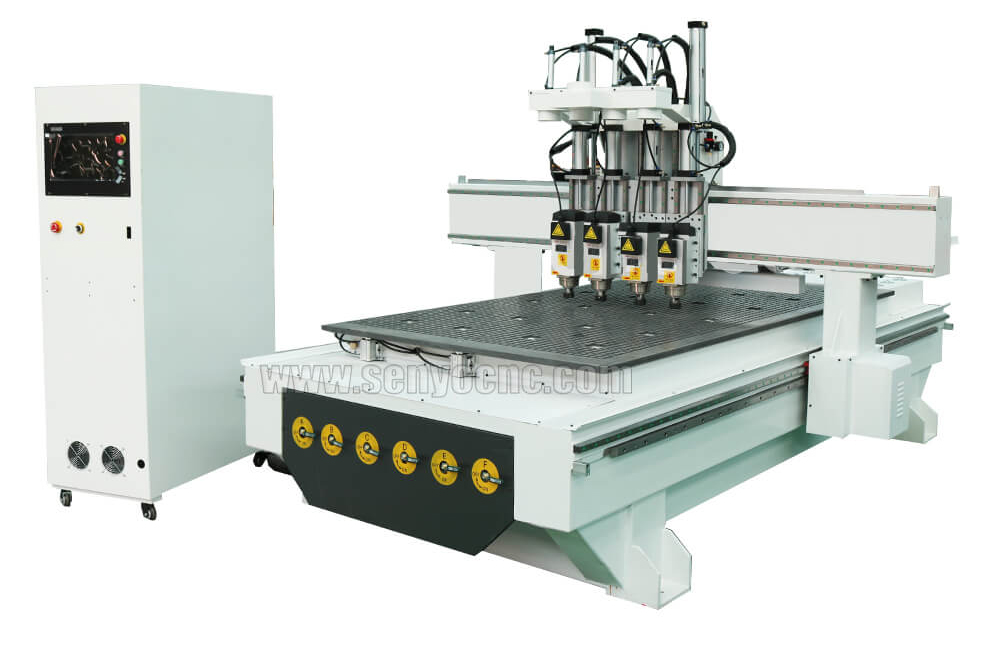

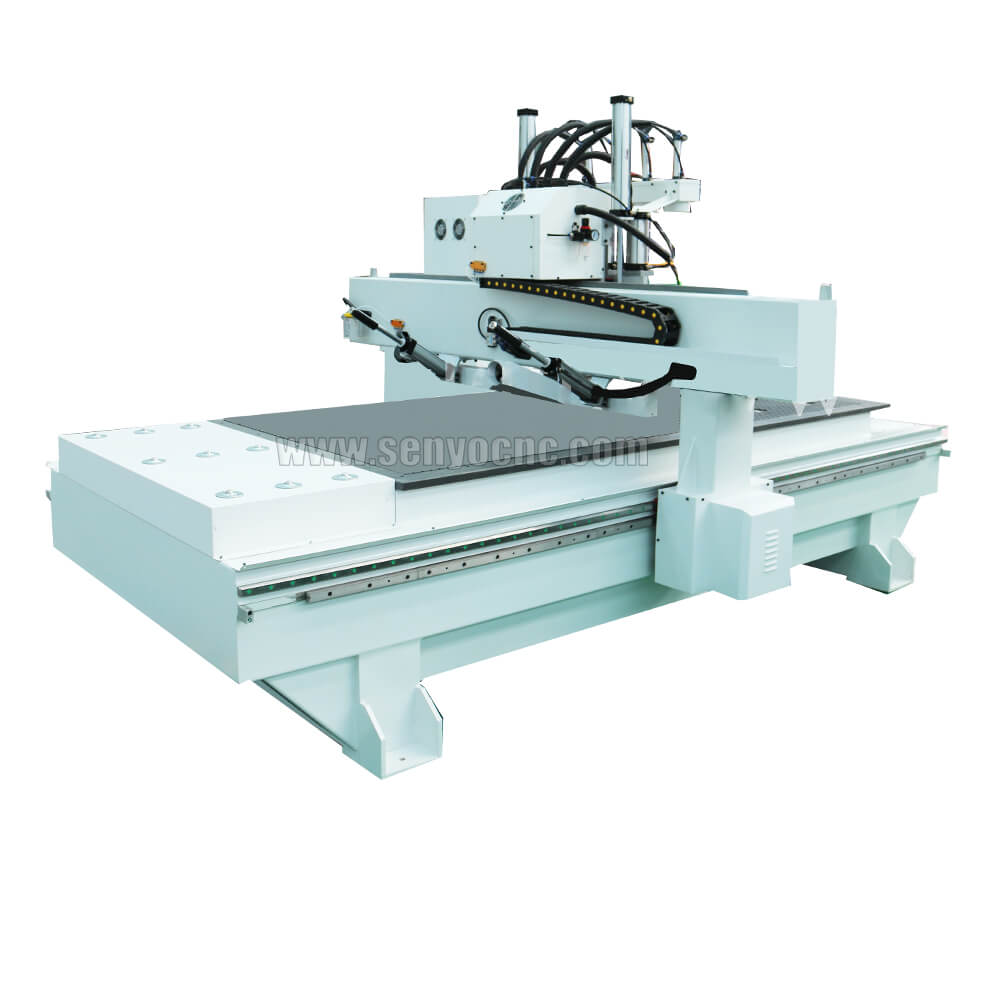

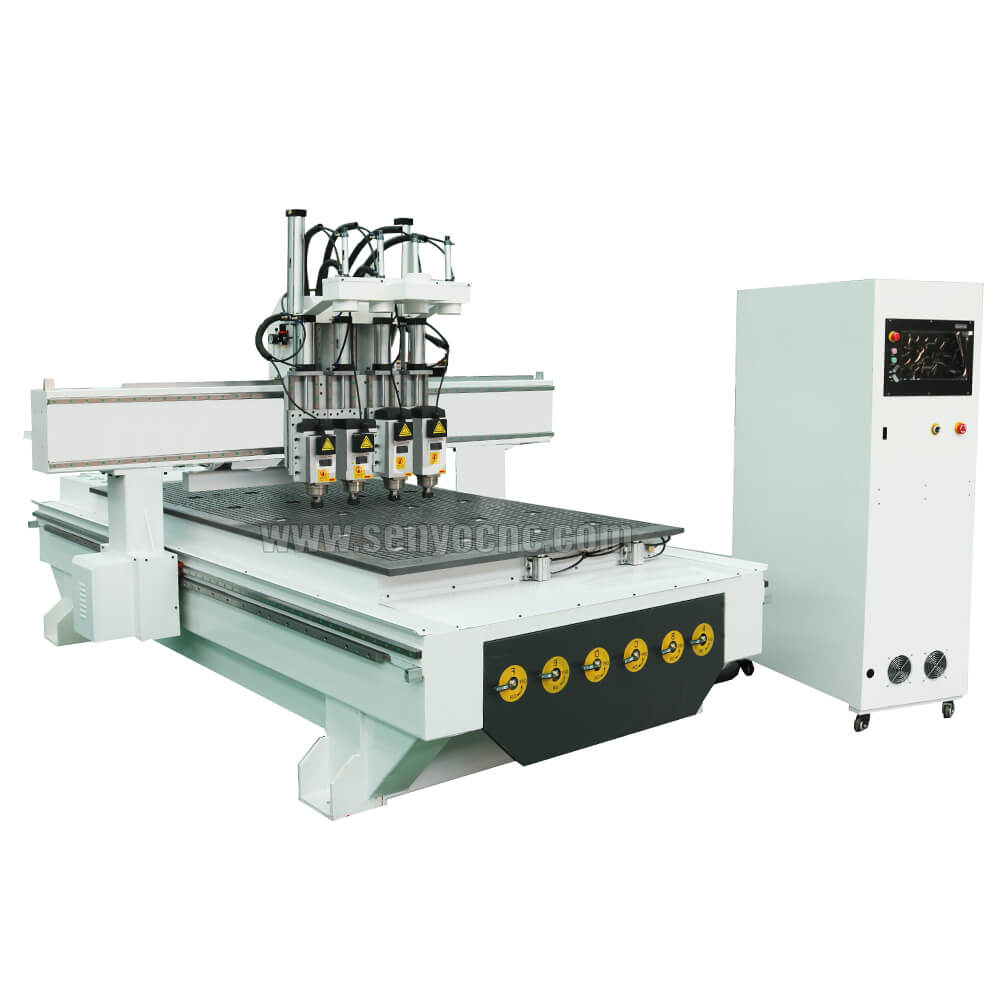

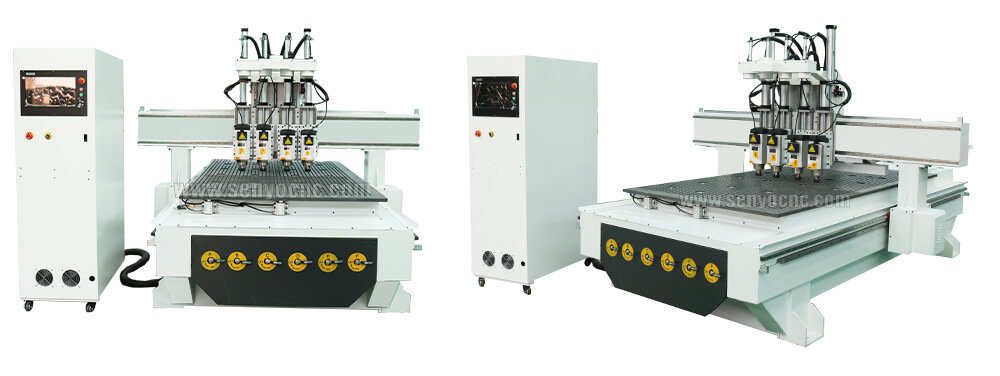

Industrial ATC CNC Router Machine with Four Spindles

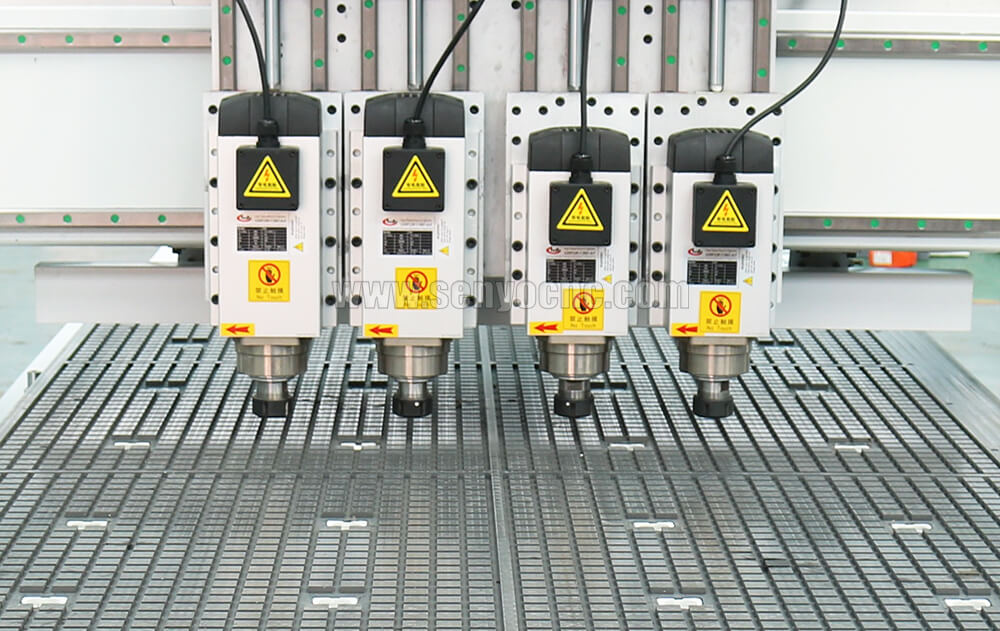

Air cooling spindle
2*6kw + 2*4.5kw Air cooling spindle , which can achieve cutting, drilling, carving, and slotting
Air cooling offers greater torque, which contributes to a powerful cutting force.

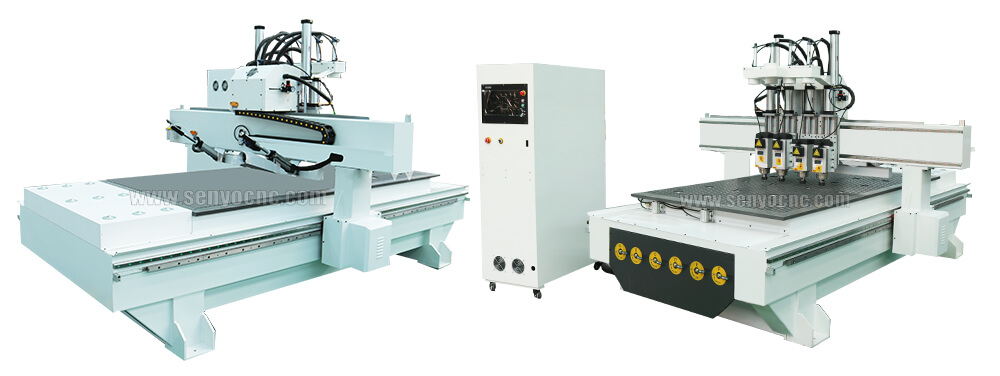

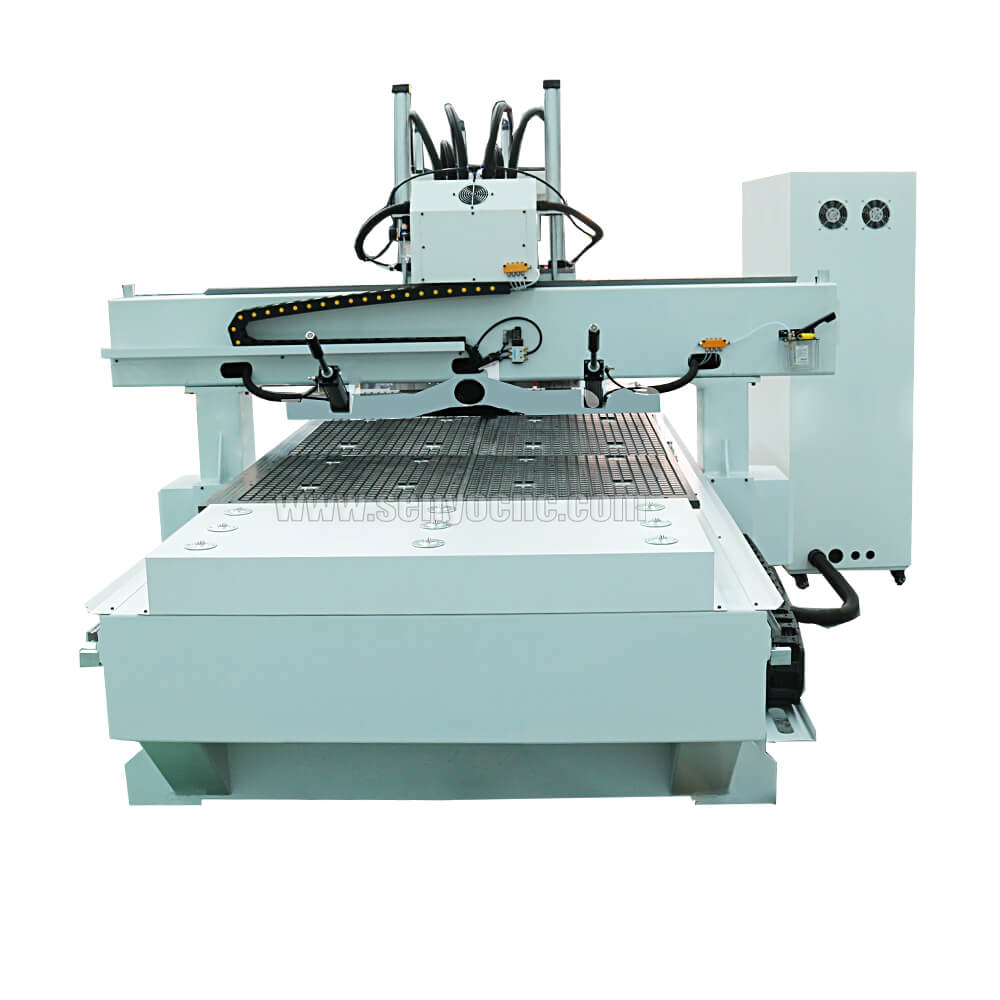

Heavy Machine Base with High Precision
Made from thick square tube and processed by imported CNC processing center, so the
machine have high precision and working stability.
We can also do other sizes, we have high flexibility, so if you have requirements, we will definitely meet your needs.
Those device can help you to load and unload the sheet, Humanized design, greatly improve the work efficiency.

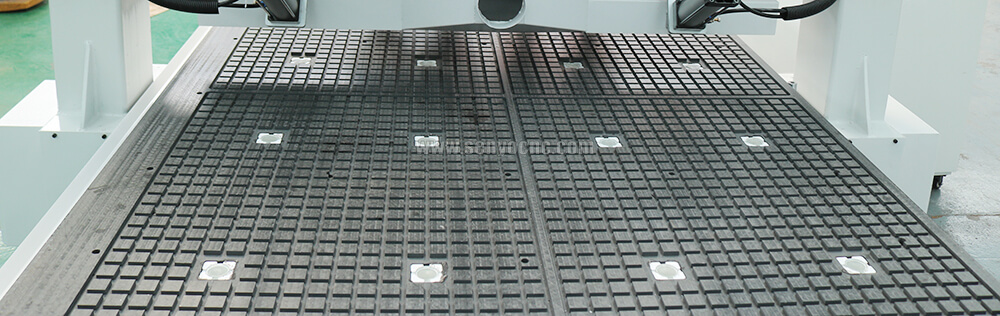

The
adsorption area is divided into 7 sections, and the vacuum adsorption
area can also be customized according to the size of the material you
process

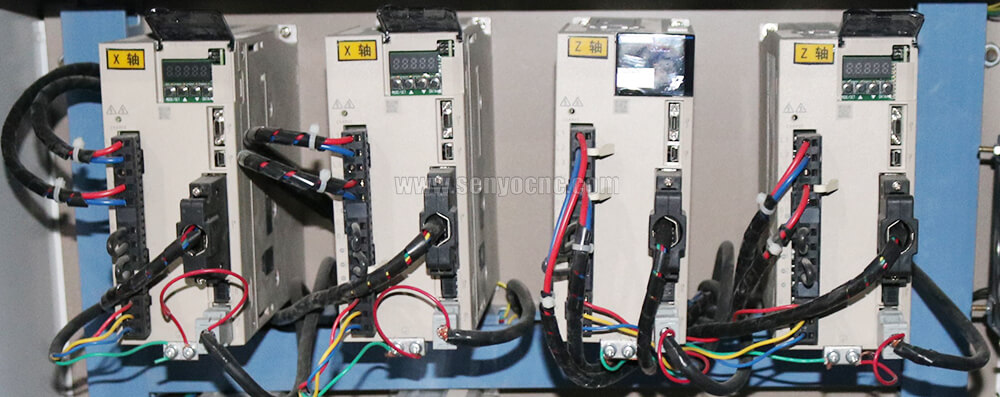

Servo motor
Our CNC Router machine is equipped with 1.5kw Leadshine servo motor, which has many advantages of high efficiency, high output power,
more constant torque at higher speed, quiet operation, high acceleration and high accuracy..

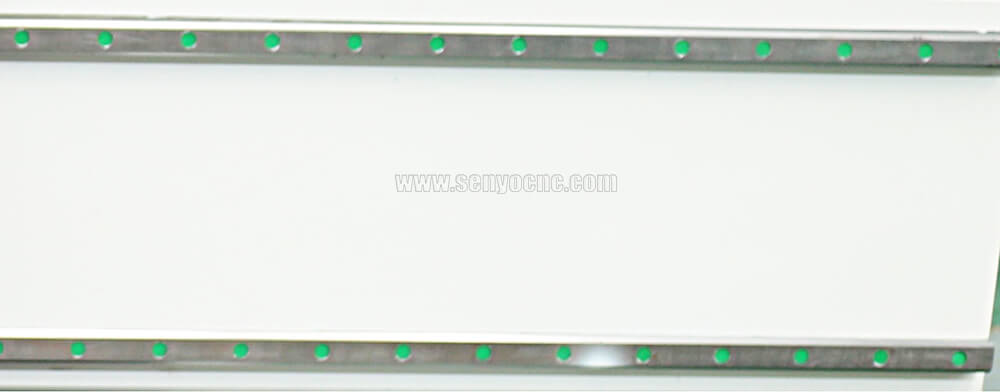

Rail and Rack
30M Hiwin guide rail, the wide guide rail and its straightness can ensure the accuracy of
our machine, which has high rigidity
LNC control system
LNC specializes in PC-based CNC controllers. Our machine is equipped with LNC control system, which is easy to operate and durable
Technical Parameters of Industrial ATC CNC Router Machine with Four Spindles
Model | SYM1325-4GA2 |
X,Y,Z Working Area | 2100x3000x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum Table |
Frame and gantry | frame steel (8mm),aging treatment and steel structure(12mm) |
X, Y Structure | WMH HMRON Helical Rack and Pinion Drive, Hiwin Linear square rails |
Z Structure | Hiwin Linear square rails |
Max. Power Consumption | (Without Spindle) 4.5Kw |
Max. Rapid Travel Rate | 30000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 2*4.5kw and 2*3.5kw air cooling spindle |
Spindle Speed | 0-18000RPM |
Drive Motors | Japan 750w Yaskawa servo motor and driver |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
Command Language | G code |
Operating System | Original Syntec controller system |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER32 |
X,Y Resolution | <0.03mm |
Software Compatibility | UcancameV9 Software |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Packing Size | 3300X2000X2000mm |
N.W. | 1700KG |
G.W. | 2000KG |
Optional Parts | automatic oil-fitting system |
Syntec Control System | |
Vacuum Pump | |
Rotary System | |
Mist-cooling System | |
850WYaskawa/Panasonic Servo Motors |
Packing & Shipping

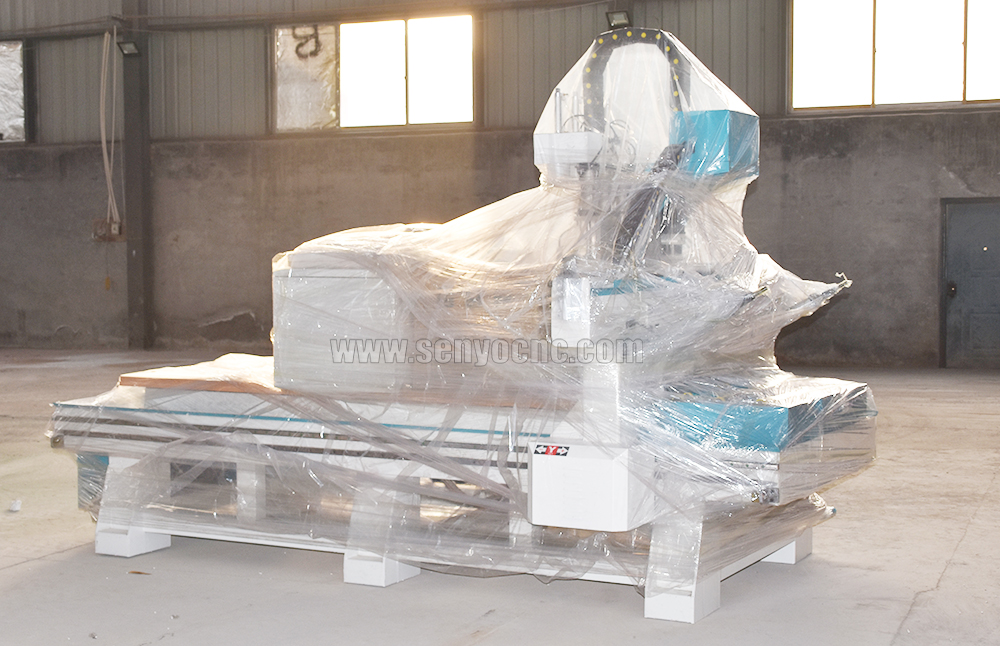

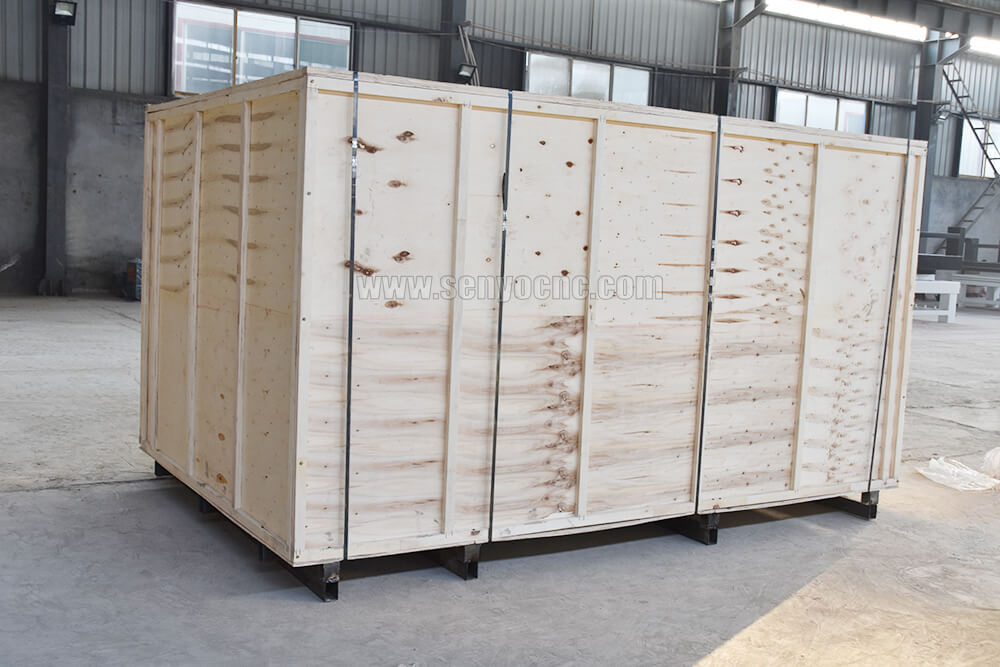

1. Outside package: Standard plywood package.
2. Inner package:Stretchy film and plastic protective film for humidity.
3. We can package according to your requirements.
For standard machines, 7-15 working days after payment;
For non-standard machines and customized machines according to clients' specific requirements, it will be 15 to 30 working days after payment.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
