The nesting CNC machine is numerical control equipment explicitly molded for the manufacturing of panel furniture. Its main function is to cut wooden boards.While processing, the cutting machine includes cutting, punching, grooving, and other processes.Generally, through the blueprint of intelligent software, nesting CNC machine automatically heightens the typesetting design, generate the effect map, and perform operations such as spontaneous modifications, and involuntarily generate diverse paths. Therefore, it saves and ameliorates sheet utilization. Fortunately, the CNC nesting machine is commonly used in the furniture industry such as a cabinet, wardrobe, solid wood, paint-free, solid wood composite, and suite doors. Imagine what one CNC nesting machine has done for various homes, and office doors. If you want to bring panel furniture to life, the nesting CNC machine is your best buddy.
Demonstration Video
Product Descriptions

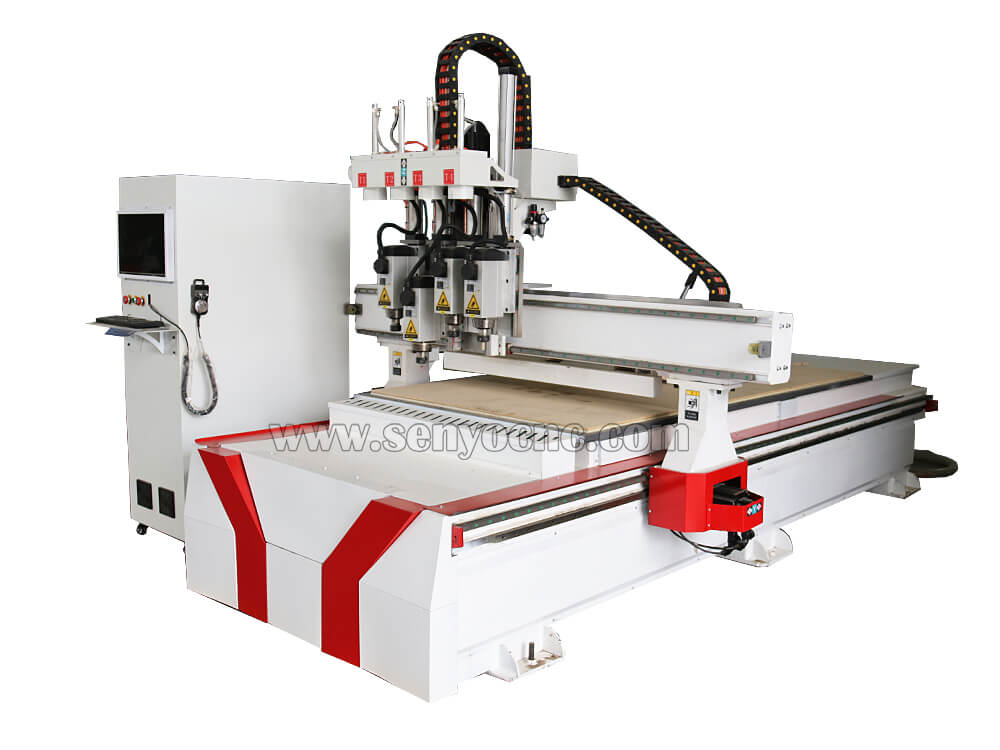

Molde Design A2

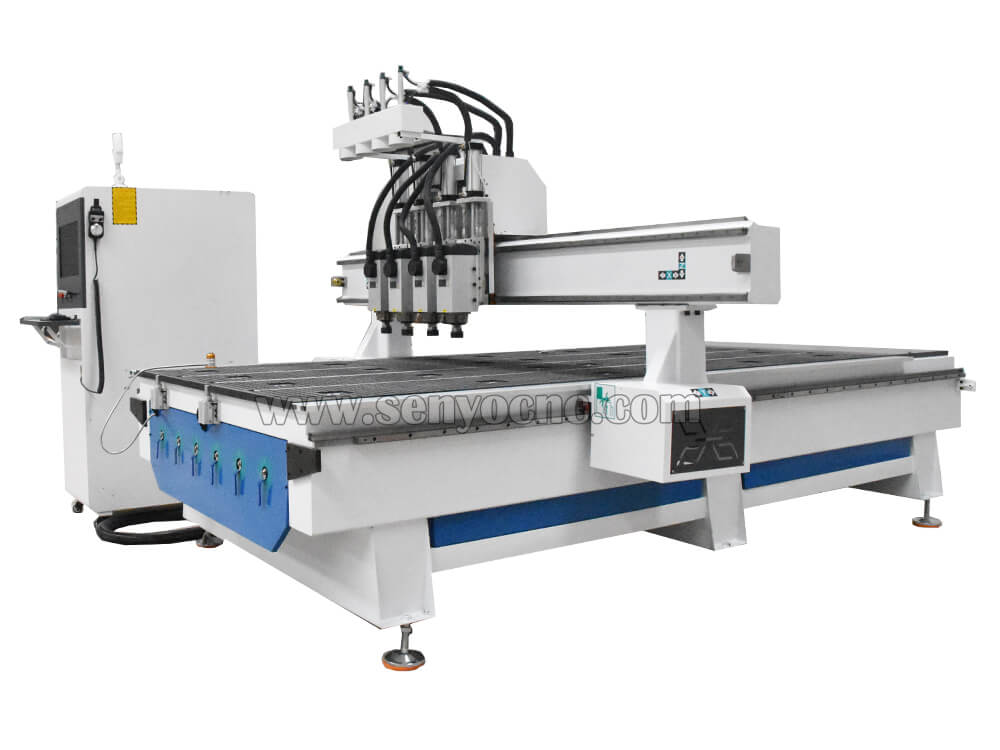

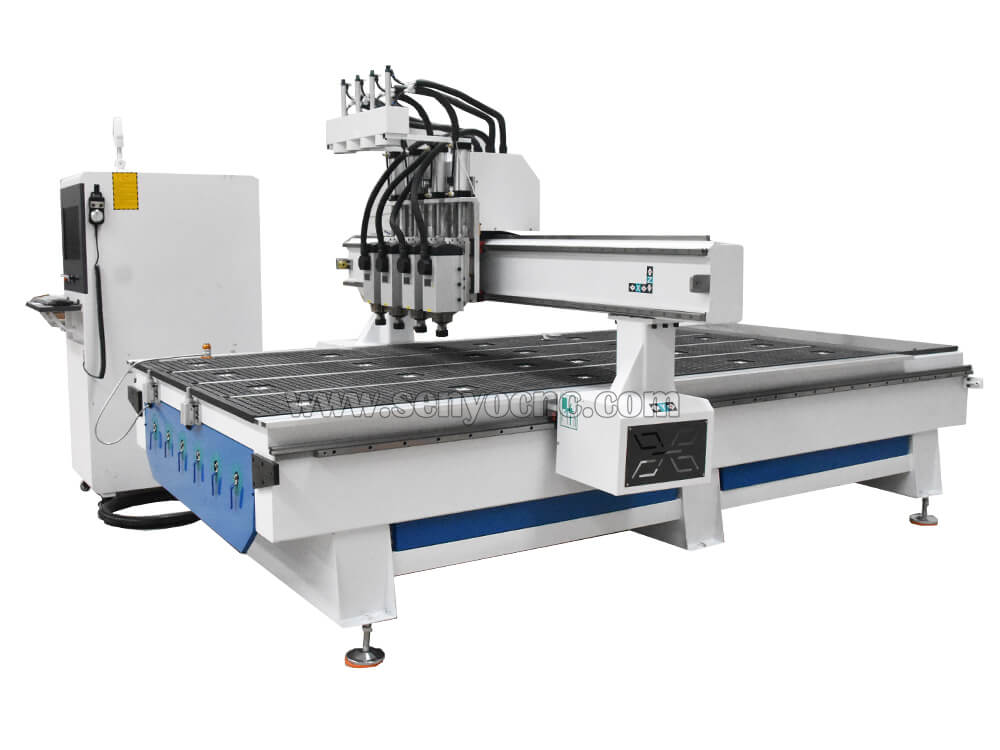

Molde Design A1

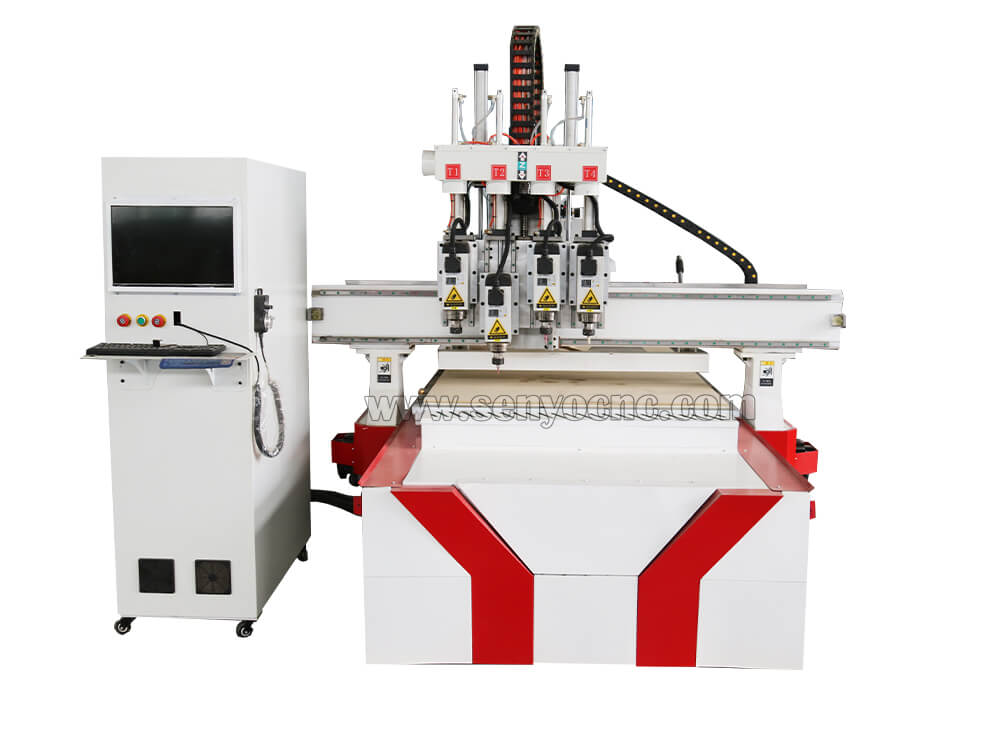

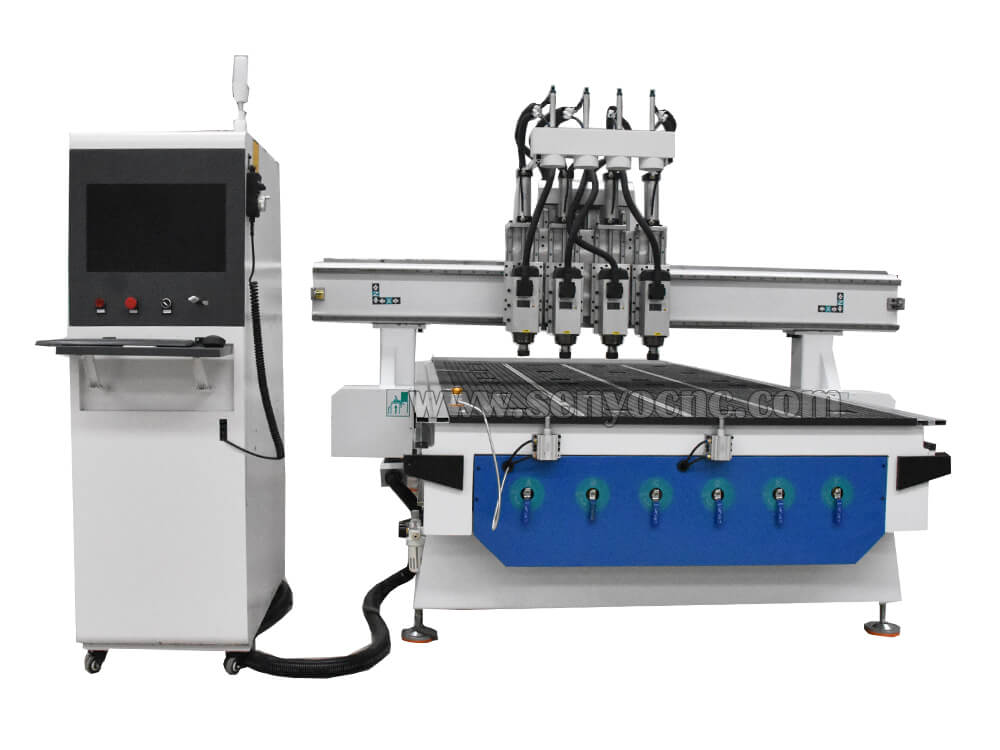

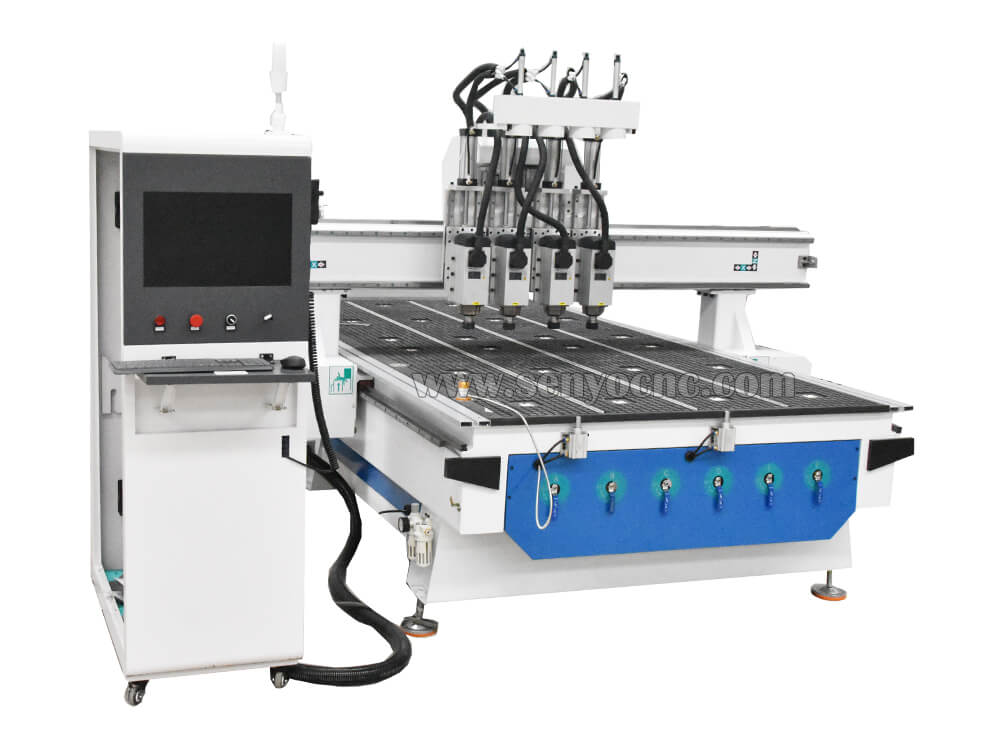

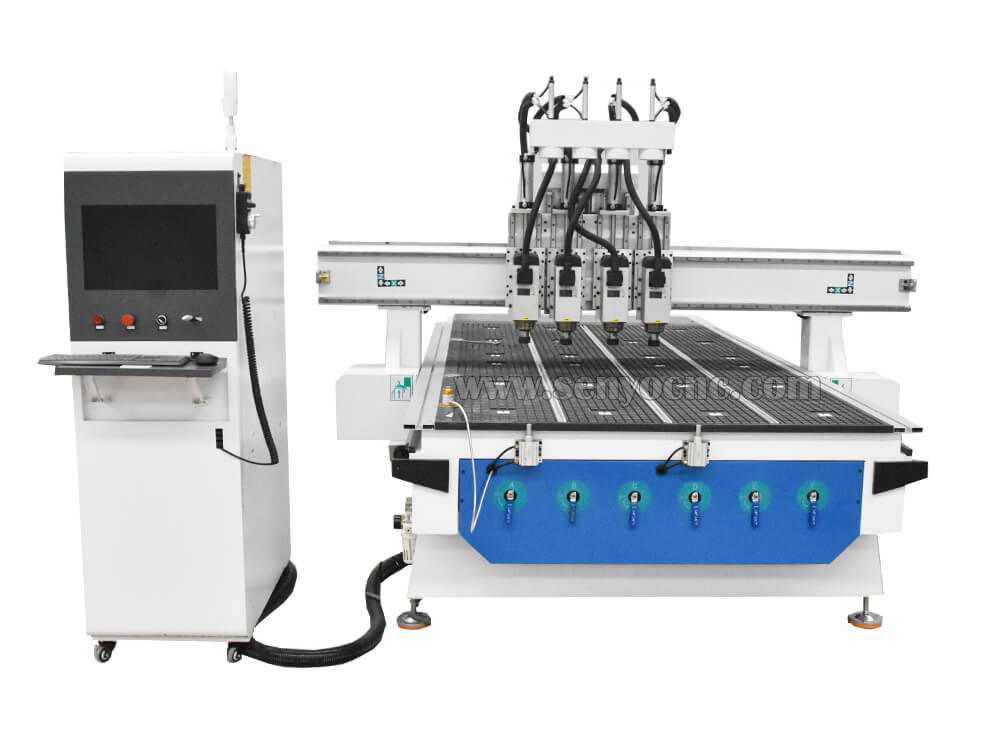

What is a Profitable 4x8 CNC Router ?
4x8 CNC router table refers to a CNC machine with working table size of 4' x 8', 48" x 96" or 1300mm x 2500mm.

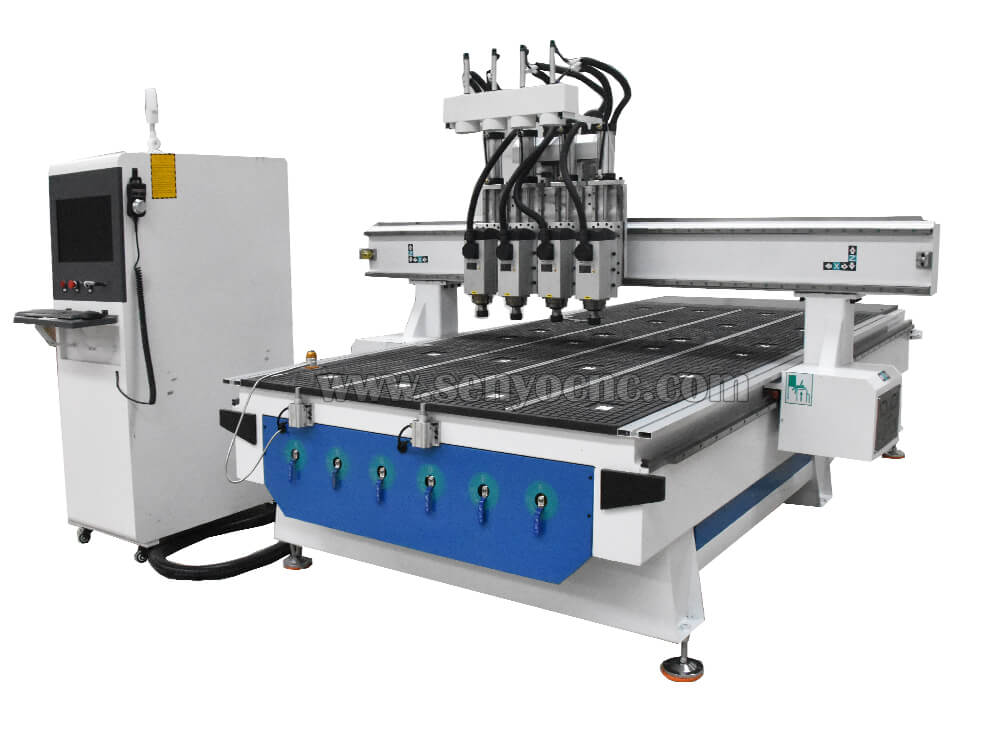

The profitable 4x8 CNC router table is type of wood CNC machine with multi-spindles designed for changing tools easily while it is working.
For example, when you make a workpiece by two, three or four tools to make different patterns,
the beneficial 4x8 CNC router machine can short the time of adjusting and checking the tools.
After turning on the 4x8 CNC machine and once adjusting the tool, the profitable CNC router can complete all the work absolutely
at the same time and you can choose a horizontal side spindle to process keyhole slot, which can increase the accuracy and the additional time.

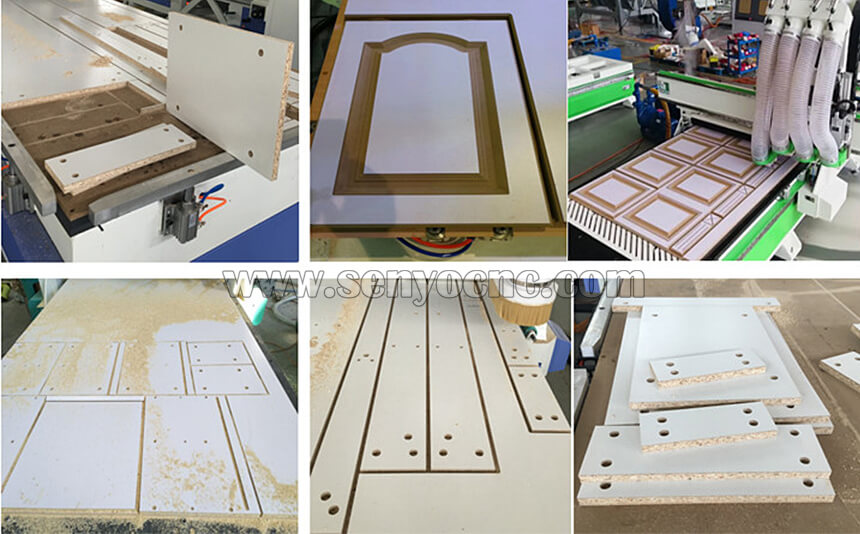

Solvable Processing
1 Cutting:It can cut various non-metallic materials with different thicknesses.
2 Drilling:The four spindles are pneumatically switched to solve the required hole position when drilling,can drilling different size holes.
3 Grooving:Can be grooved on both sides,the head of the machine is equipped with four spindles,
and the tools loaded on the spindle are 6mm,8mm,10mm,15mm when processing the cabinet.
which can process three-in-one holes, two-in-one holes and milling .invisible grooves, U-shaped lock grooves, and wooden shovel grooves with high efficiency.
4 Milling:can milling of different shapes for different kinds of plates
5 Engraving/carving:Can carry out three-dimensional plane carving on solid wood board and high-density fiberboard.
6 Hollow cutting:The milling cutter can be used to complete a beautiful hollowing effect on a variety of materials.
Features
1. Top Brand Square Linear Rail, high accuracy, heavy burthen.
2. High accuracy Rack Rail travel method with high speed.
3. Lathe bed adopts strong welded steel tube to avoid distortion.
4. Advanced international technology vacuum with double cavity.

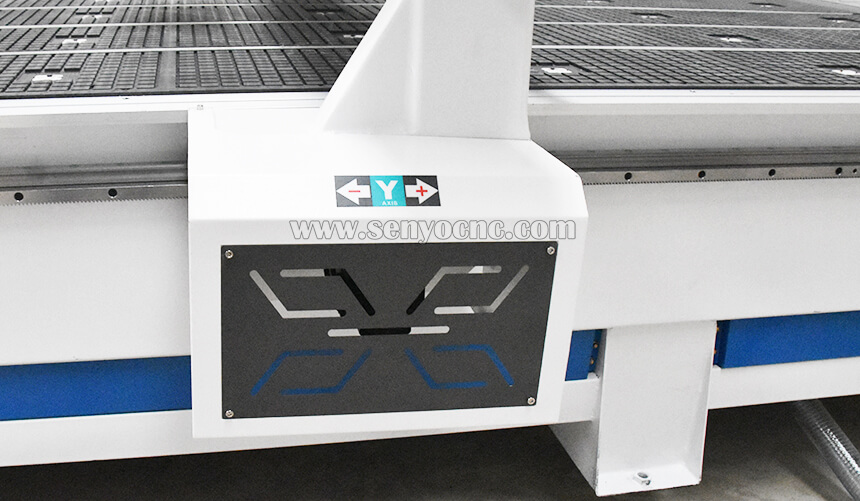

5. Y axis adopts double motors to keep stable moving.
6. Intelligent protecting working fable.
7. Humanization design of lathe bed vacuum and easy to work.
8. Two, three or four spindles change automatically with higher performance.
Specification
Worktable size | 1300*2500mm |
Machine body | Thick square tube, aging treatment, five axis metal machining center processing |
Guide rail | Taiwan Hiwin straight square rail 25mm |
Control system | Shanlong |
Servo motor | Leadshine 1500w |
Reducer | Japan SHIMPO brand |
Machine head structure | HQD air cooling spindle 6.0kw*2 pcs+4.5kw*2 pcs |
worktable | Vacuum worktable 6 zones |
Positioning | 3+2 auto positioning cylinder |
Pusher | Automatic material pushing system, secondary dust removal |
Vacuum pump | 5.5kw water pump |
VFD | BEST brand 7.5kw |
Electrical part | Delixi electronic components, high flexible shielding cable |
lubrication | Electric timing lubrication system |
Control cabinet | Integrated control operating system box |
Overall dimension | 3600*2300*2300mm |
weight | 2500kg |
Parts Detials
HQD Air famous spindle, water cooling, 24000rpm.

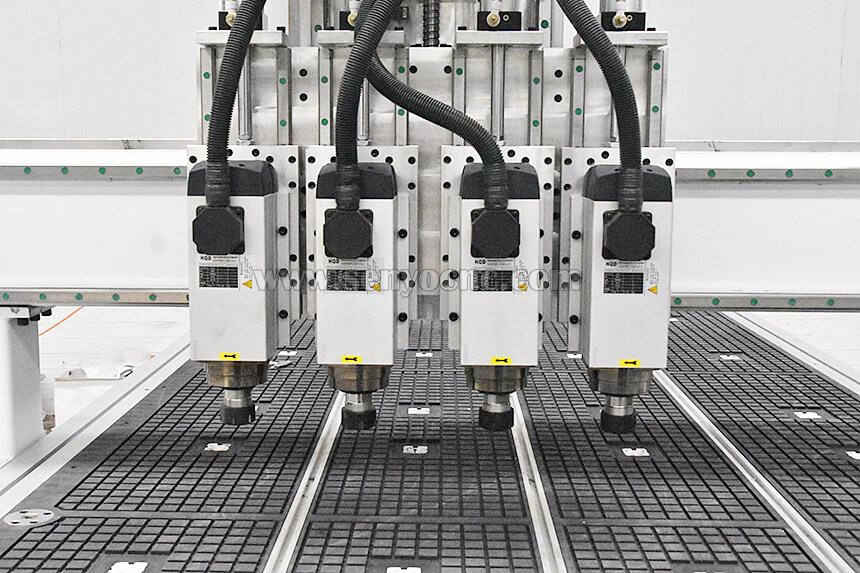

The Four spindles work one by one. All the spindles with dust collector system.
7.5kw Best Inverter, imported from Taiwan

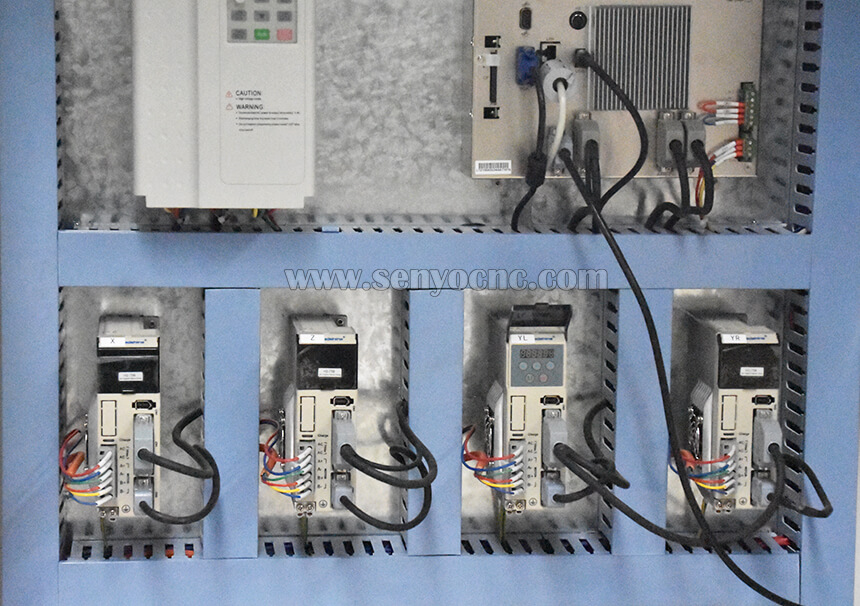

4 sets of High precision and strong driver

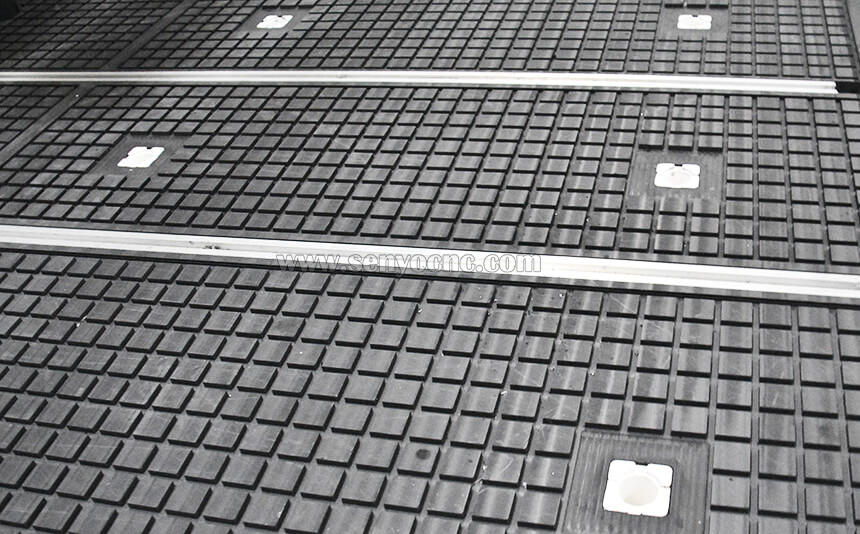

Vaccum Table . Patent design 50MM adsorption caliber, PVC pipe connection sealing good, plate do not run
Servo Motor And Driver
Application

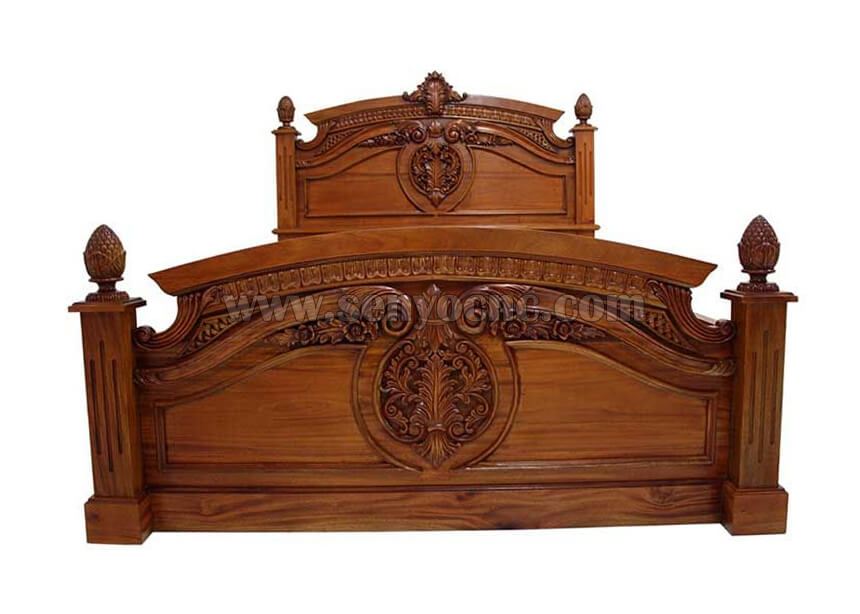

Furniture: Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
Plate processing: Insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs,
anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper
aluminum plate engraving and milling process.
Package & Shipping
1. Wipe the machine clean before packing.
2. Brush oil on all rails and racks to prevent rust.
3. Put wooden boards on the table to prevent the table from being attrited.
The accessories are fixed on the wooden boards of the machine with packing straps to prevent the accessories from moving.
4. The anti-rust film bag is put on the machine to prevent rust, water and scratched
The plastic film is wrapped around the anti-rust film bag for reinforcement.
5. Then pack it in a fumigation free plywood box.
6. Finally fix the wooden box with steel belt.
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS.
You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements.
We will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
