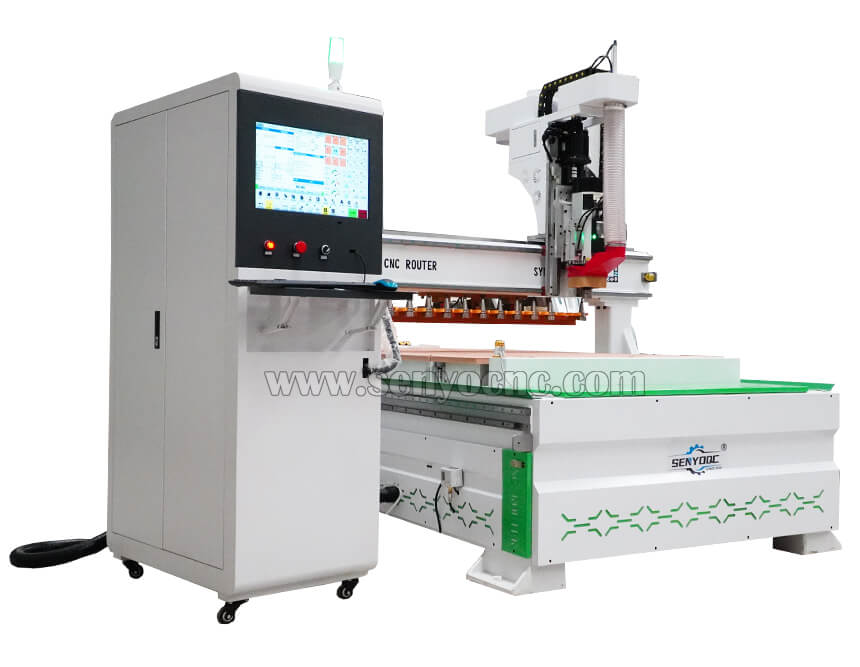

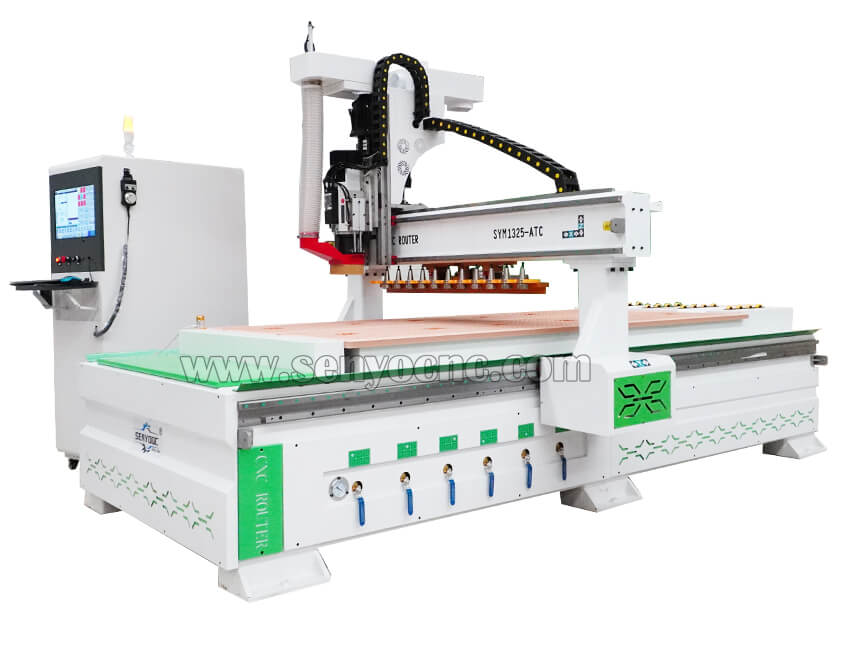

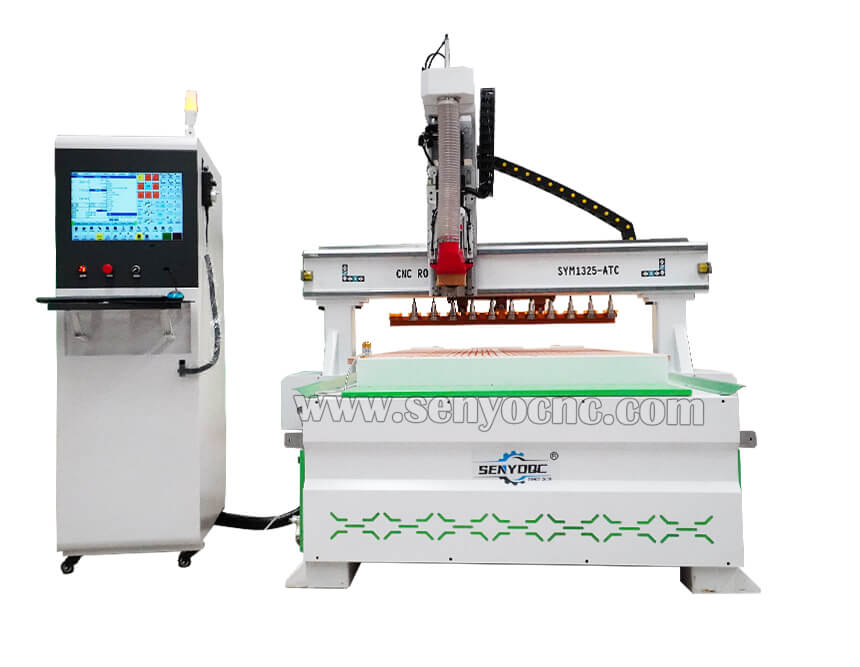

SYM1325-ATC Tool Changer Design On Gantry

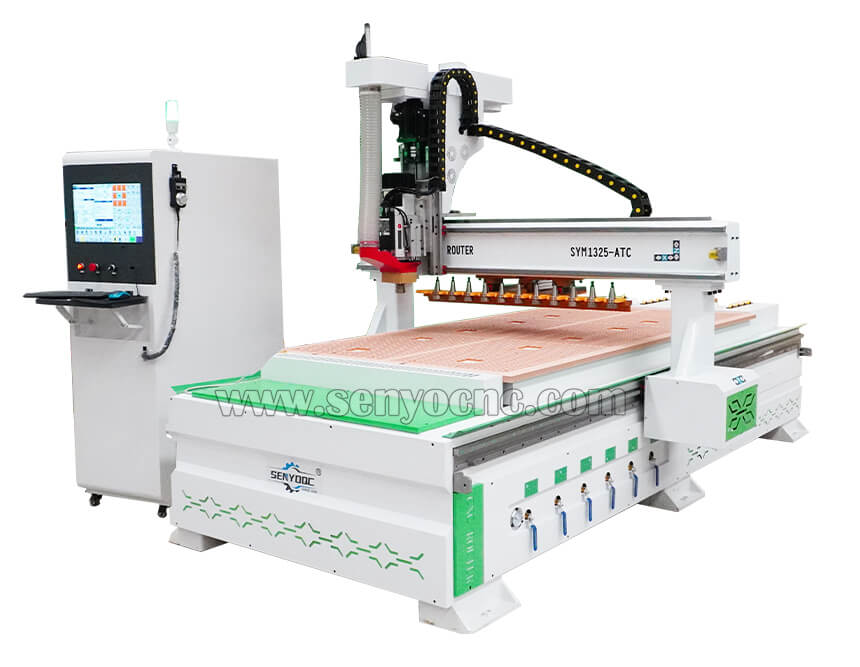

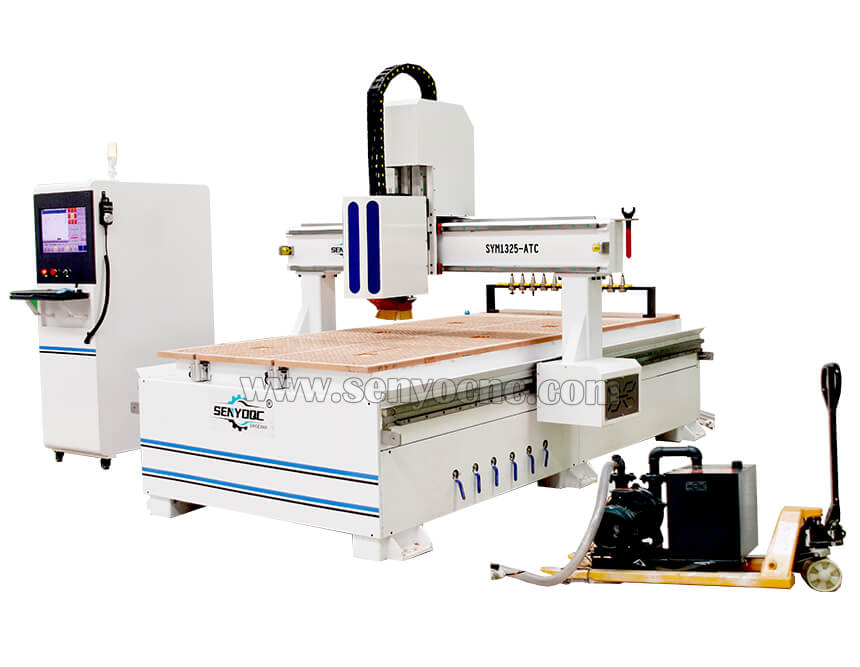

SYM1325-ATC Tool Changer Design on Worktable
Features Of Auto Tool Changer Router
1.Stable Structure: the overall steel structure welded, the vibration (tempering) aging treatment, long-term use of no deformation.
2.Machine
adopts Taiwan SYNTEC/LNC control system, high-performance industrial
control system, which has the excellent and stable quality,
good
maintenance and can control to process the completion of the multi-level
3D sculpture, with fast and smooth three-dimensional processing,
carving and cutting.
3.The

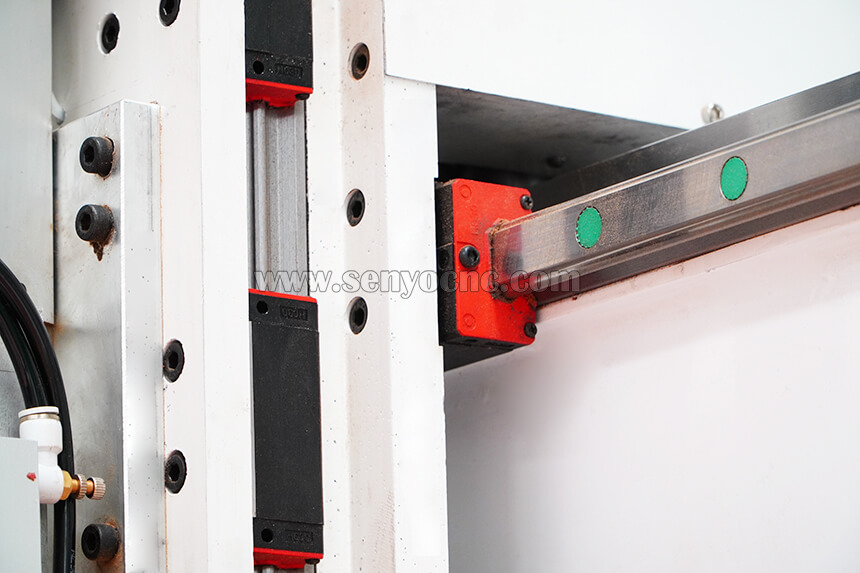

linear guide rail adopts Taiwan Hiwin 25mm linear square orbit, double
row and four-ball slider, lo-ading capacity, smooth running, keeping
high accuracy.
4.The
machine worktable adopts the international leader vacuum technology,
surface density, deformat-ion, high adsorption capacity,
which can
strongly absorb different materials, convenient maintenance. au-tomatic
lubrication, only need to hand gently press can achieve the whole
machine maintenance.
5.The software compatibility: compatible type3/Castmate/Artcam/ Wentai/Mastercame and other design software.

Application Of Auto Tool Changer Router
1. Advertisement: engraving and cutting
of various labels and number plate, marble, etc for artistic effects on
materials including marble, brass, steel, and other metallic material.
2.
Crafts: engraving characters of any language and patterns on gifts and
souvenirs, primitive processing and shaping of artistic crafts, and
stiletto.
3. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
4. Architectural models: engraving fine window, fencing and wall patterns, etc.
5. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
6. Label: engraving character, number, and other pattern on label for products and on product directly.
7. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.

Technical Parameters Of Auto Tool Changer Router
Model | SYM1325ATC |
X,YWorking Area | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
Z axis travel | 200mm, option: 300mm, 400mm, etc. |
Spindle type | 9kw ATC air cooling spindle,18000rpm, ER32 collets |
Inverter type | 11kw |
Drilling bank | Optional |
Tool magazine | Linear tool magazine Option: Carousel type auto tool changer |
Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
Control system | Taiwan LNC controller optionTaiwan SYNTEC controller |
Driving system | Leadshine AC servo option: Yaskawa servo motor |
Reducer | Optional |
Machine structure | Heavy duty body |
Work table | Aluminum T-slot & vacuum work table |
Positioning cylinder | Optional: 5 pieces (X2,Y3) |
Linear guide | Taiwan Original Linear guide |
Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
Lubrication system | Automatic lubrication system |
Tool calibration | Auto tool sensor calibration |
Cables | Germany cables |
Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
Command language | G Code |
Traveling speed | 60m/min |
Working speed | 0-25m/min |
Re-positioning accuracy | ±0.03mm |
System resolution | ±0.0025mm |
Working accuracy | ±0.07mm |
Working air pressure | 0.8MPa |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Detailed Images Of Auto Tool Changer Router

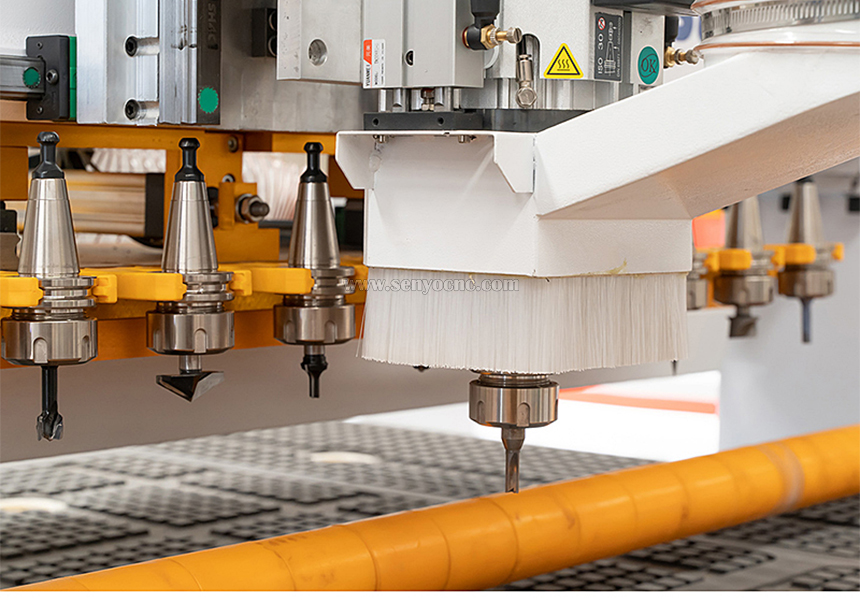

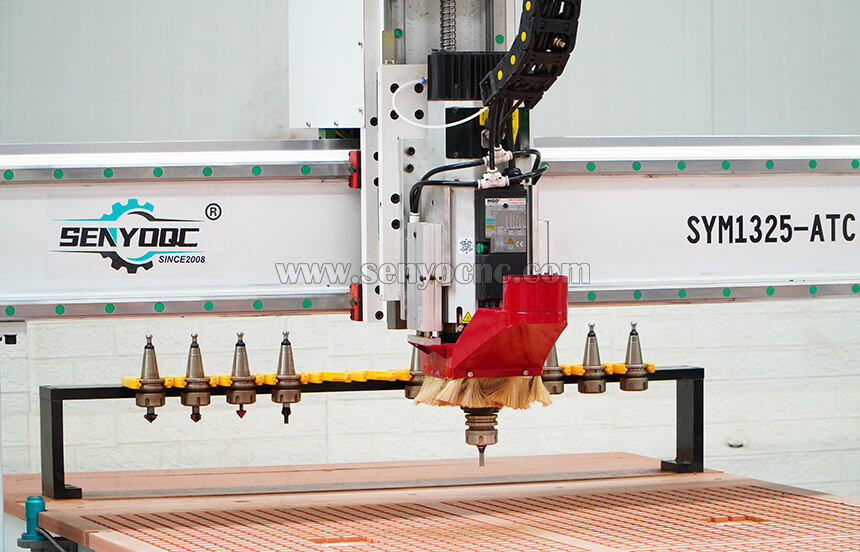

9KW HQD air cooling ATC spindle with tools line magazine,big power ,high speed with multifuction

Equipped with 10-12 knife straight line knife library, can quickly and freely change the tool.

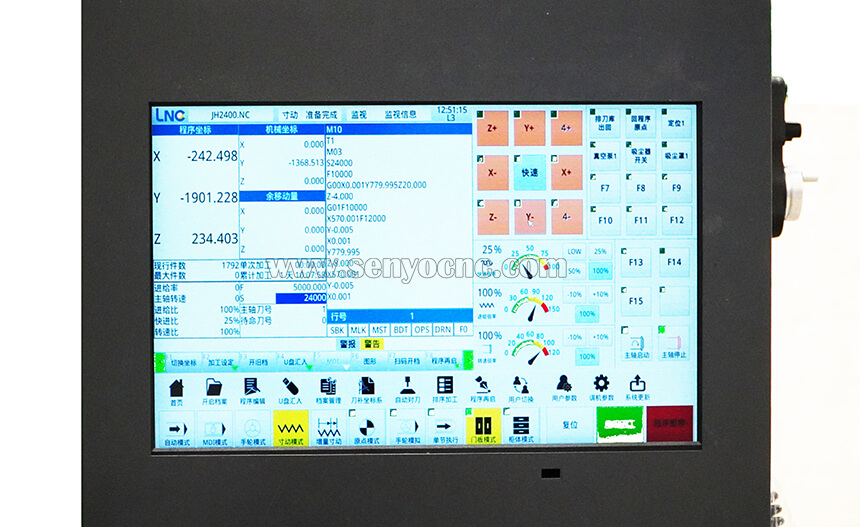

High efficient control system,speed control with the easy one button operation control with the easy one button operation.
Enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. Support for multiple languages.

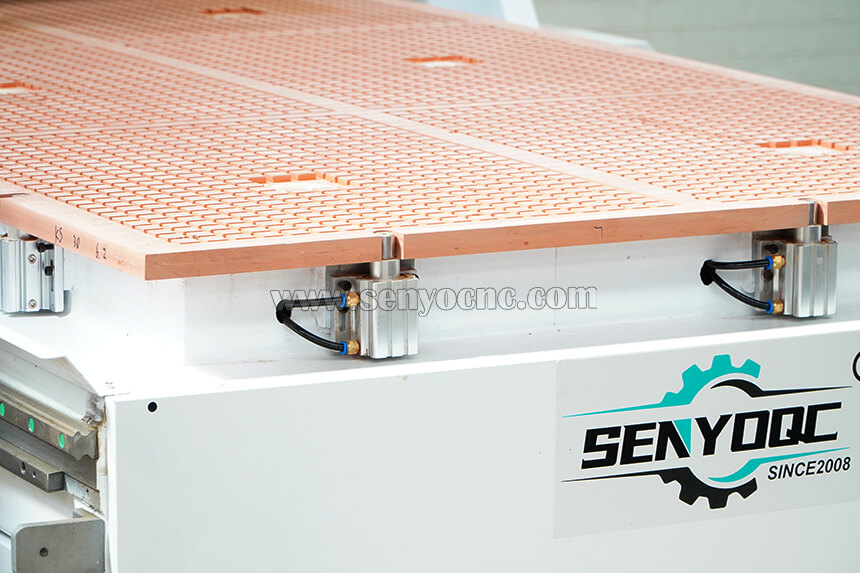

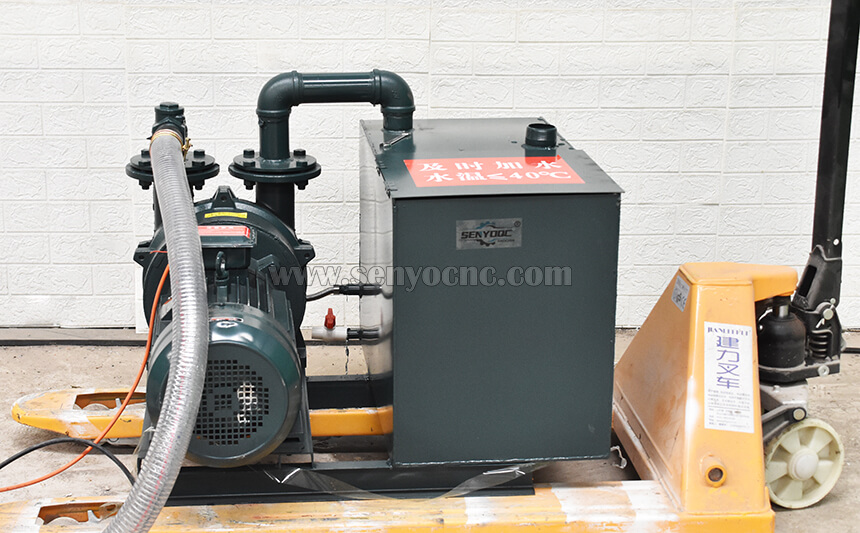

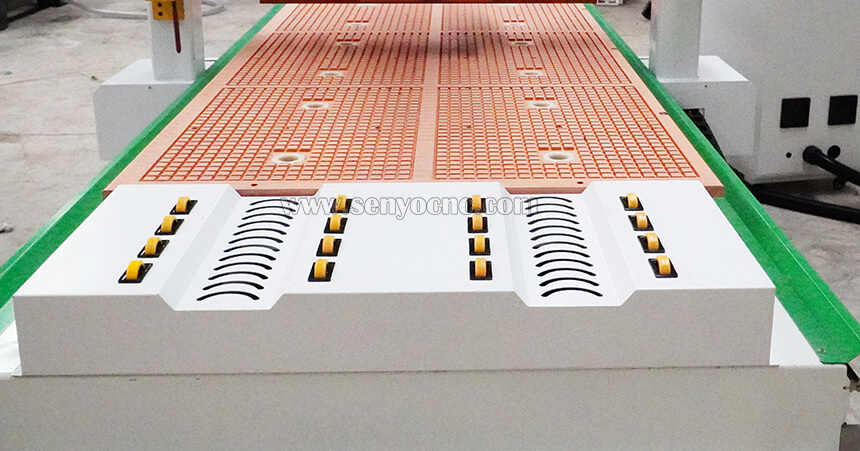

Vacuum table with T-slot, Equipped with professional vacuum system, adopt integral adsorption base

With the high strength engineering- plastics surface,one time forming, adopt high-power professional vacuum pump, strong adsorption capacity.
The surface of the vacuum table is multi-zoned, which allows the operator to easily switch from full-plate processing to smaller part processing

(requiring smaller segmented areas). The area can be easily closed by the control valve on the front of the machine.
The gasket can also be wired to adapt to various material sizes and styles.
It also includes a heavy-duty aluminum
T-slot profile at multiple locations on the surface of the workbench. This T-slot can accommodate square M6 T-nuts.

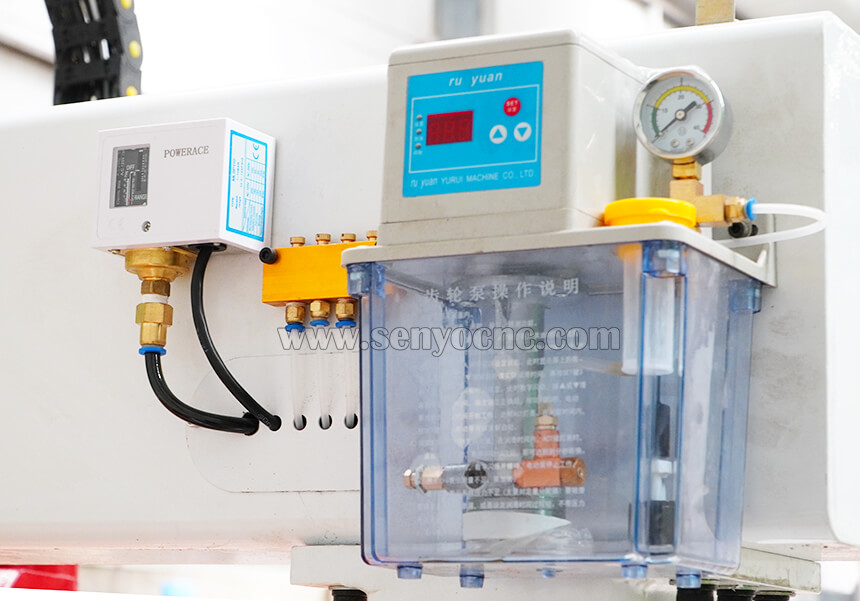

The machine comes the whole lubrication system to make sure all the transmission system will be well lubricated,
which will make the machine service life longer.

The CNC router uses precision helical gear racks on the X and Y axis.
The rack is installed upside down to help prevent dust and debris from accumulating on the drive system,
thereby ensuring smooth movement and long-term reliability.
The precision gearbox is directly connected to the stepper motor and pinion gear.
This eliminates belt stretching errors and ensures high-speed processing while the system accurately positions the spindle.

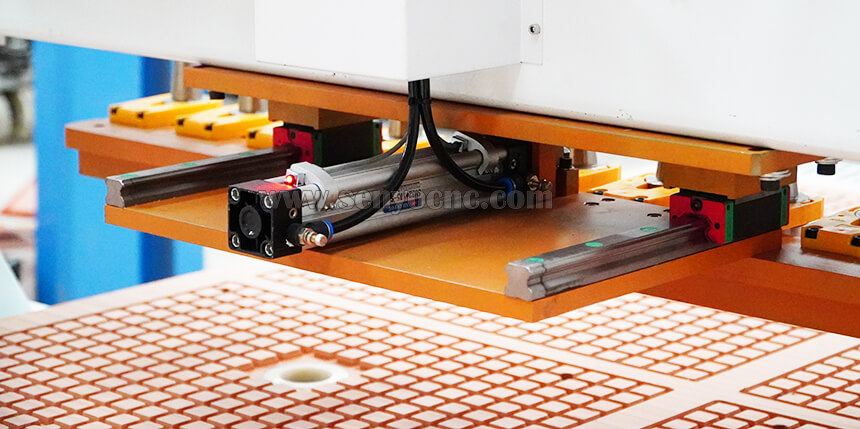

Devices for fixing materials

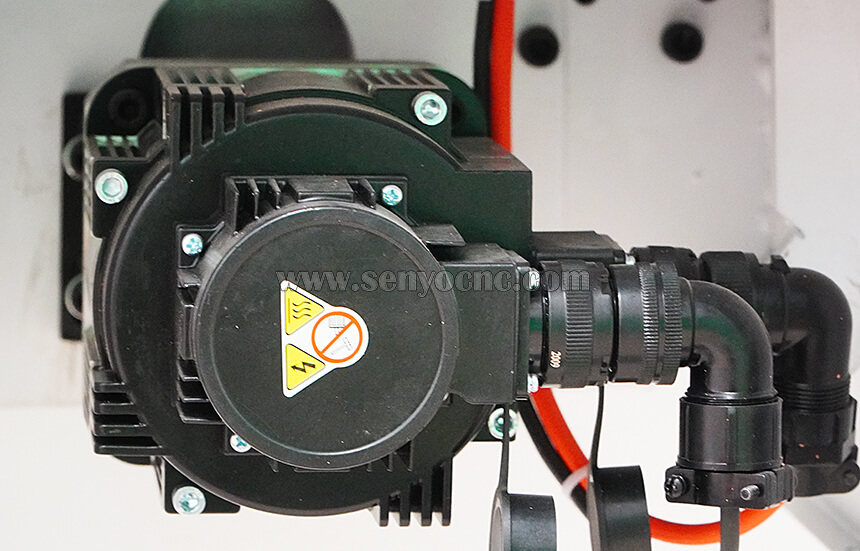

Famous Servo motor and driver,high stability and procision , high speed and long service time
With high -performance 1.5kw servo motor, the Machine can work in high precision.The servo motor runs smoothly.

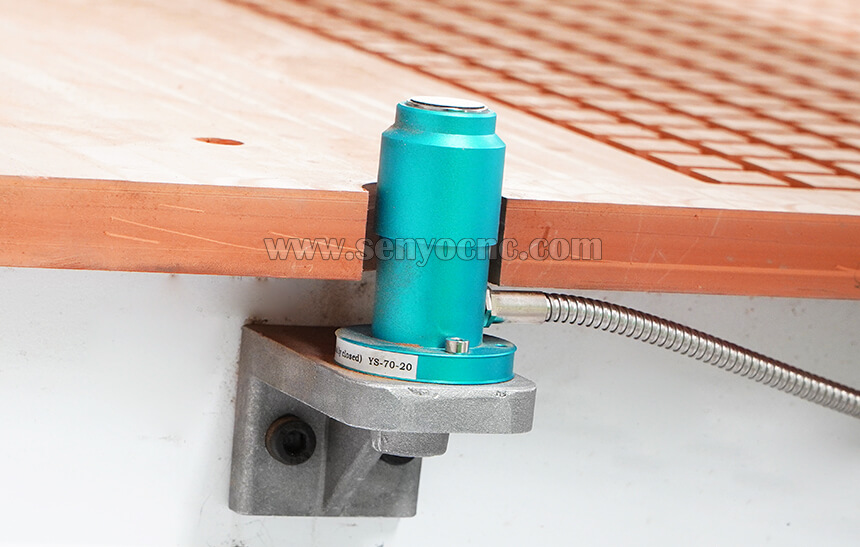

Tool Sensor

Applicable Industries
Furniture Industry,Decoration Industry,Musical Instrument Industry,Mould Industry,Craft Industry,Advertising Industry
Applicable Materials

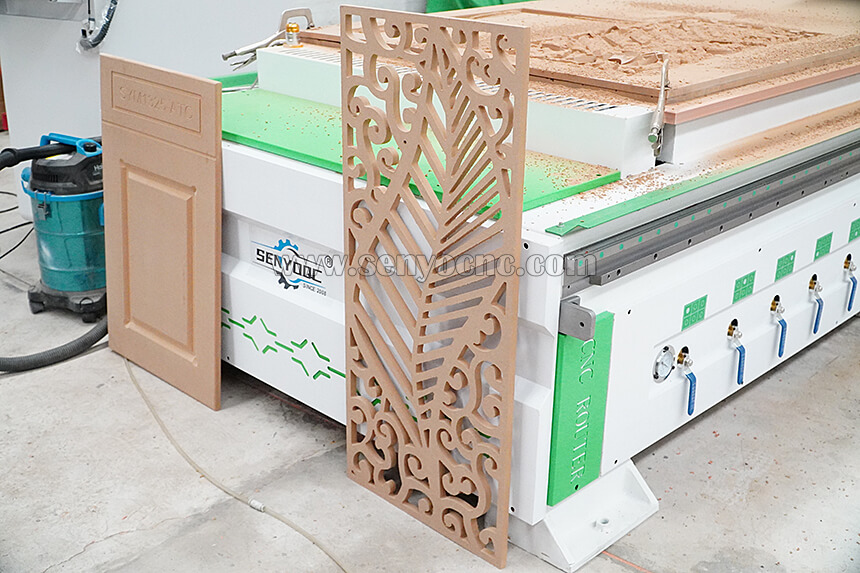

Very popular in: Furniture industry: wooden doors, windows, folding screens, tables, chairs,
and many other materials such as plastic board, PVC sheet, dual color board, aluminum, etc.

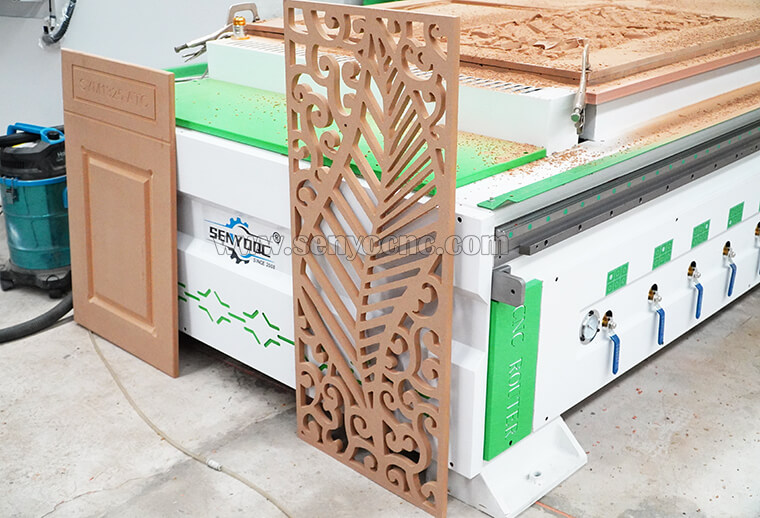

Working Project Of Auto Tool Changer Router

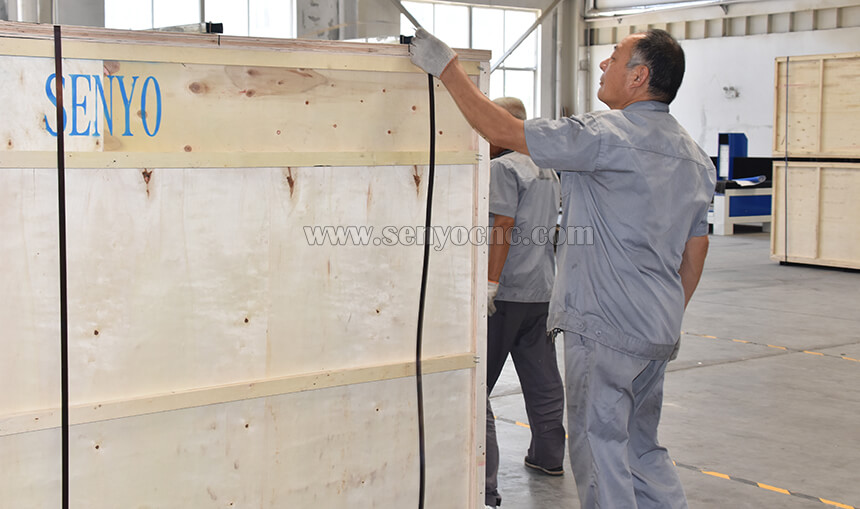

Package & Shipping

Things To Consider When Buying 5x10 CNC Router
Drive System
At present, the driving system of the engraving machine is mainly divided into two types:
The stepping system and the AC servo system.
The stepping system belongs to the semi-closed loop system, and the precision is calculated by the step angle.
The AC servo system belongs to the closed-loop mode completely, and there is a measurement feedback system inside, so the accuracy is relatively high.
If the funds are sufficient, users who have higher requirements on the engraving machine can choose the machine with the AC servo drive system.
CNC Controller
The control system of the 5x10 CNC machine is currently dominated by Weihong controller, DSP controller, MACH3 controller, LNC control system,
and SYNTEC controller. The difference is not too more, and users can choose according to their actual needs.
CAD/CAM Software
There are many CAD/CAM softwares for CNC machines,but the most common ones on the market are TYPE3 and Artcam.
These softwares can import CAD drawings well, and can further do simple graphic processing.
Transmission Mode
There are three transmission modes of the CNC machine, namely screw drive, rack drive and synchronous belt drive.
The advantages and disadvantages of different transmission modes are different. You can choose according to your actual needs.
Trial Machining Before Buying
Before the official purchase of the machine, you can conduct a trial machining first, use the pattern that needs to be cut from yourself, and see what the sample actually cut by the machine is, so that you can know what you want.
International Shipping
Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS.
You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements,
we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
ATC tool changer, Wood furniture cnc machine, CNC Router, Auto tool changer cnc router machine,1325 CNC Router
• Previous: Nesting CNC router ATC tool changer with drilling wood machine designed for cabinet door making
• Next: Woodworking Furniture 4 Spindle Atc Cnc Router Machine
