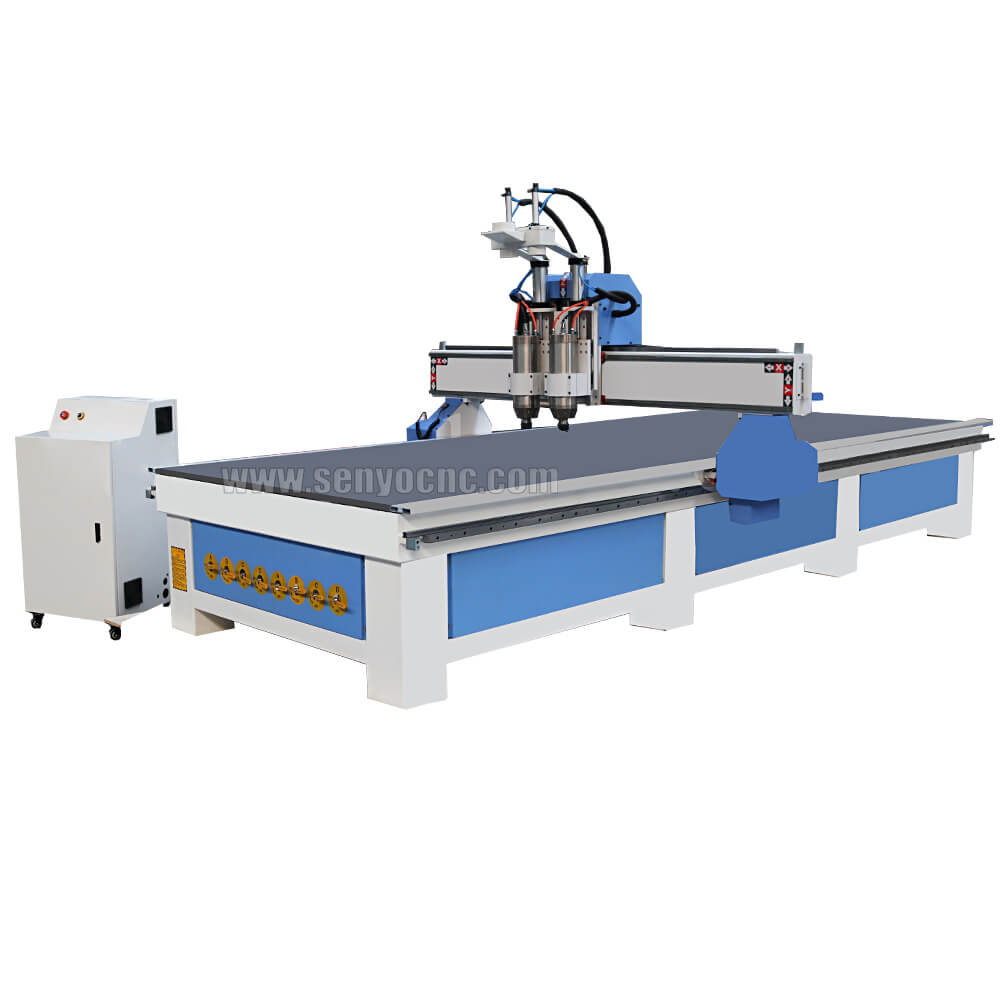

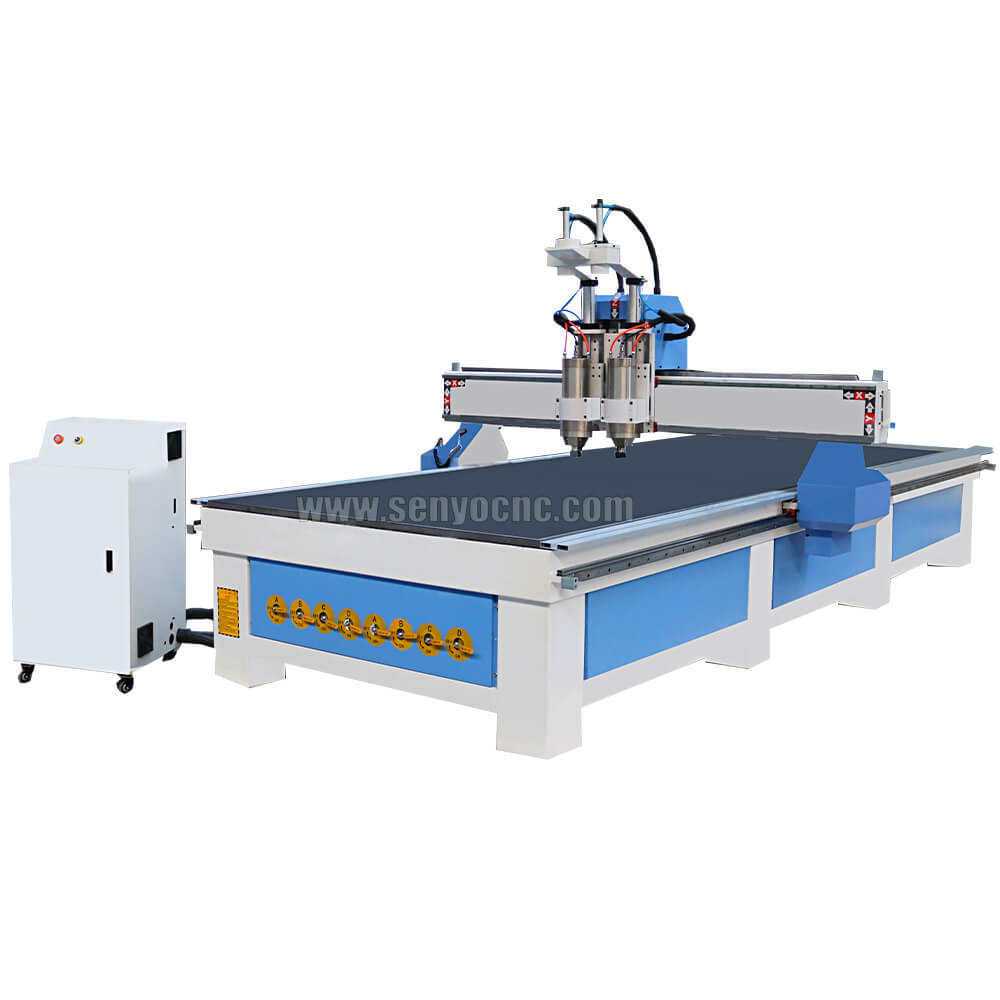

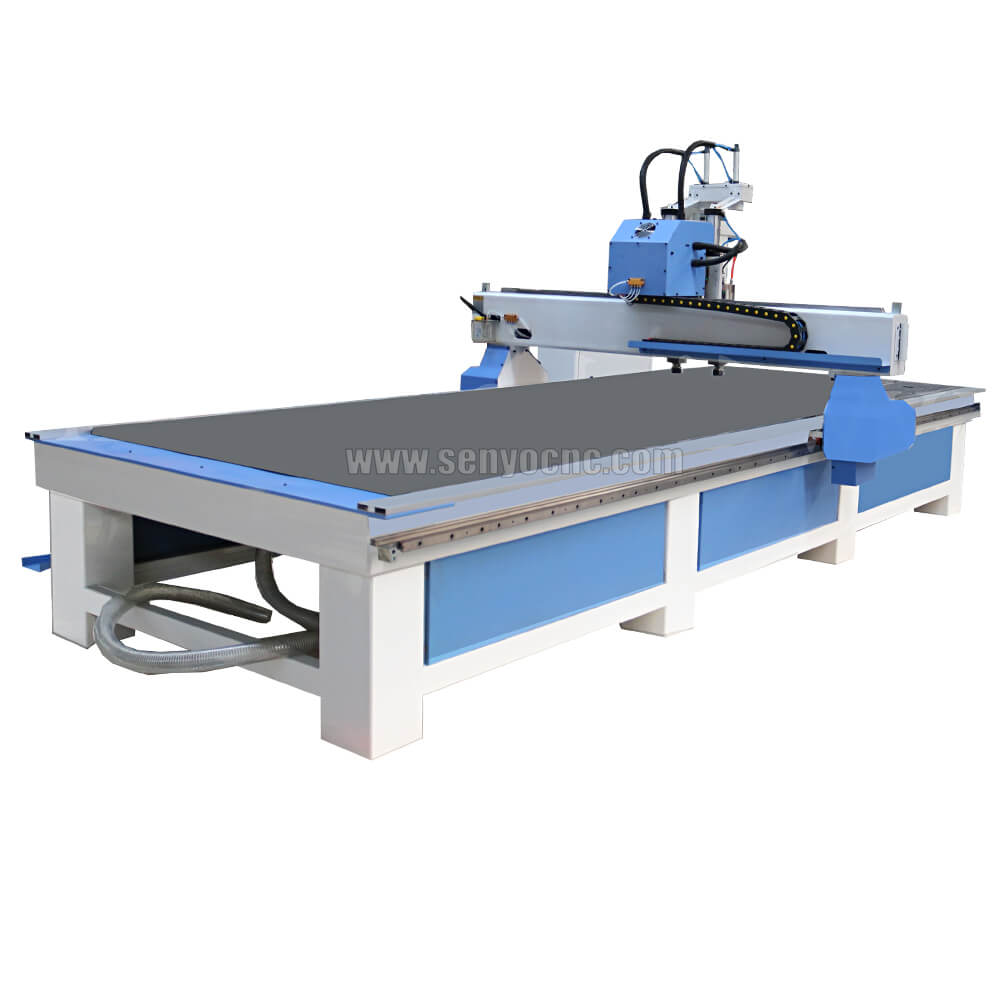

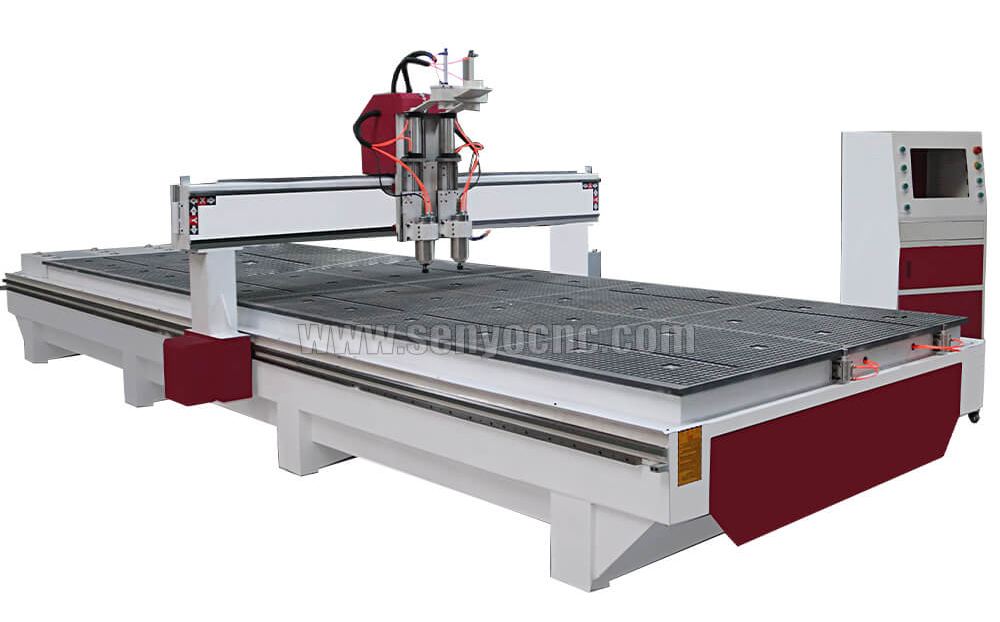

Furniture industry Multi-heads two process spindle CNC router for wooden furniture
This is a cost-effective multifunctional atc cnc router machine;
it can assemble two different specifications of tools at the same time to complete the work more quickly;
it is suitable for cutting, grooving, proces-sing invisible parts, drilling, milling, and other processes at one time Complete, without interruption of the tool change process.
Solvable Processing
1. Drilling: Adopts different diameter drills to drill different sizes of holes on various boards.
2. Grooving: With suitable tools to do grooving or slotting, it also can finish Clamex joint slots for Lamello.
3. Cutting: Suitable for regular shapes and irregular shapes cutting, also can do edging.
4. Milling: Adopts different shapes of CNC milling tools to achieve beautiful designs.
5. Hollow-cutting: Solve production of the carved screens, separating boards, or other products that need to be hollowed cut.
6. Carving/engraving: 2D carving design on wooden, composite, or other soft raw materials.
If you need to do 3D design, please contact us to inquire about other 4/5 axis CNC machines for you.

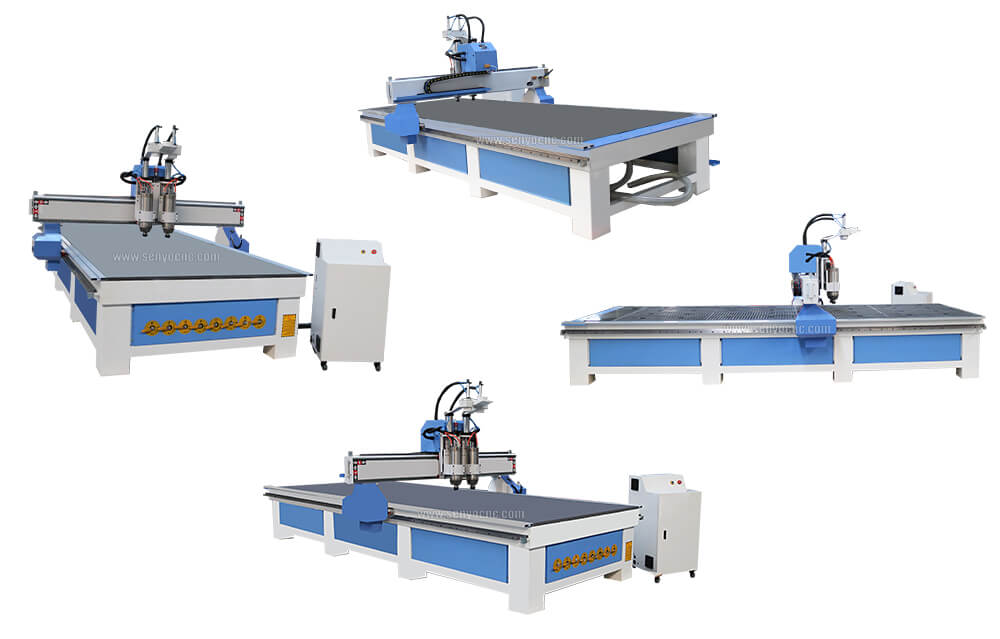

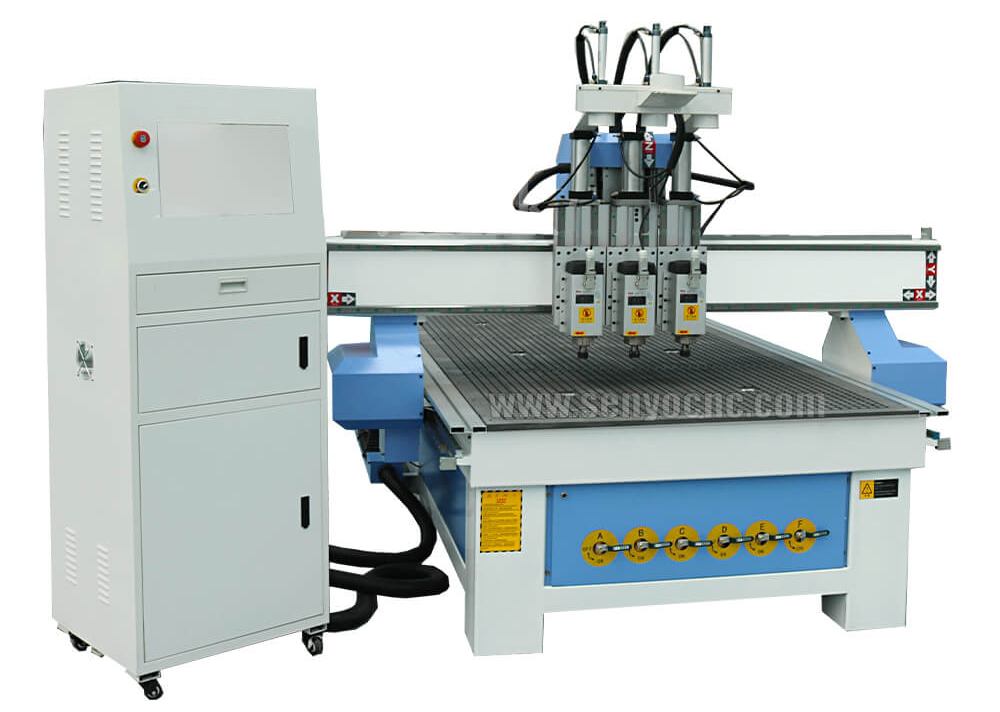

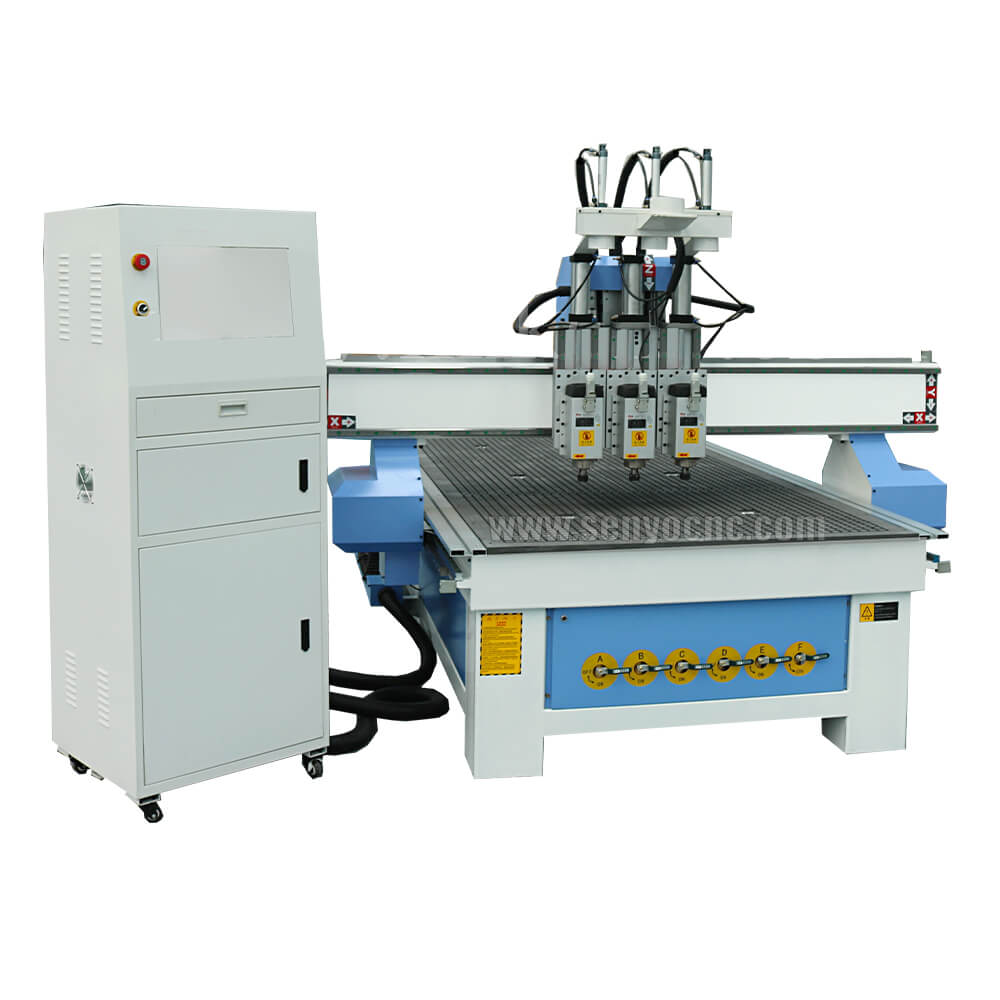

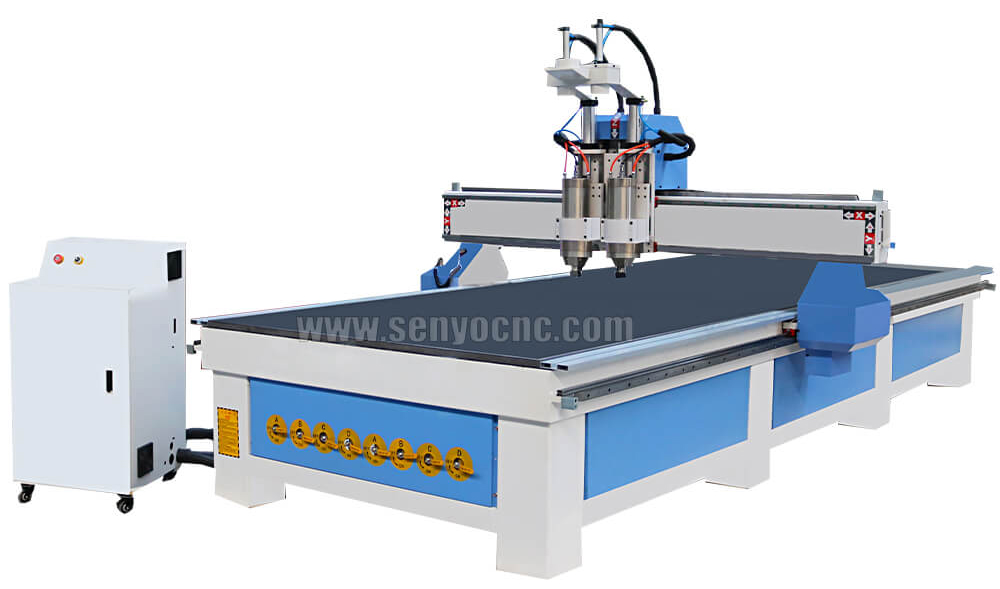

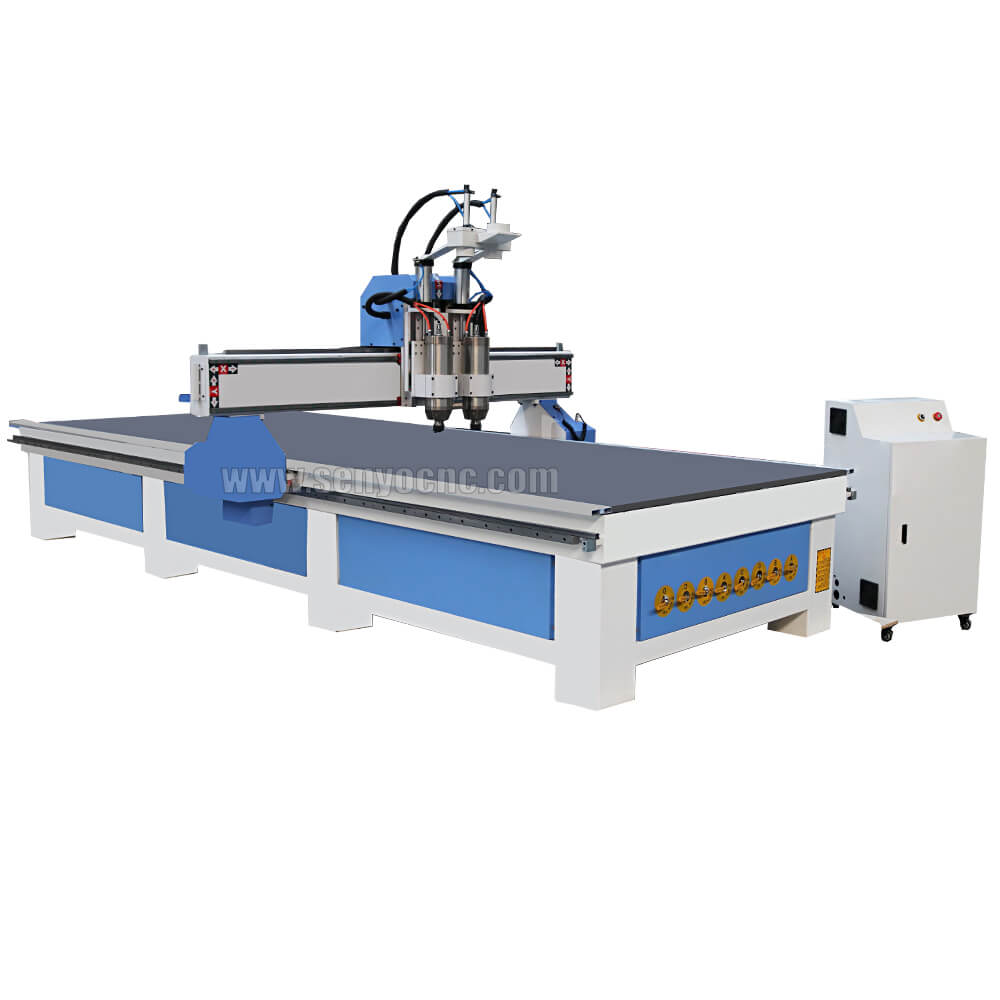

Machine With 3 heads , Model SYM1530-3G

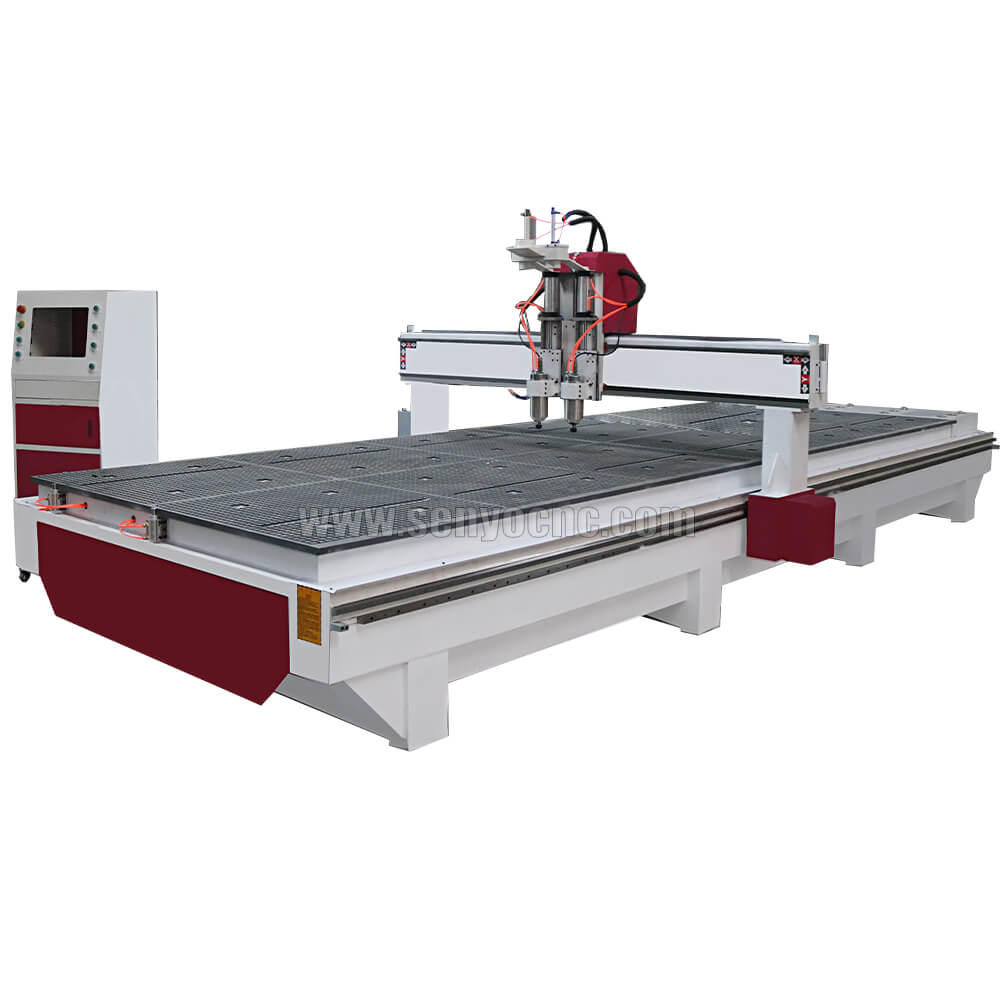

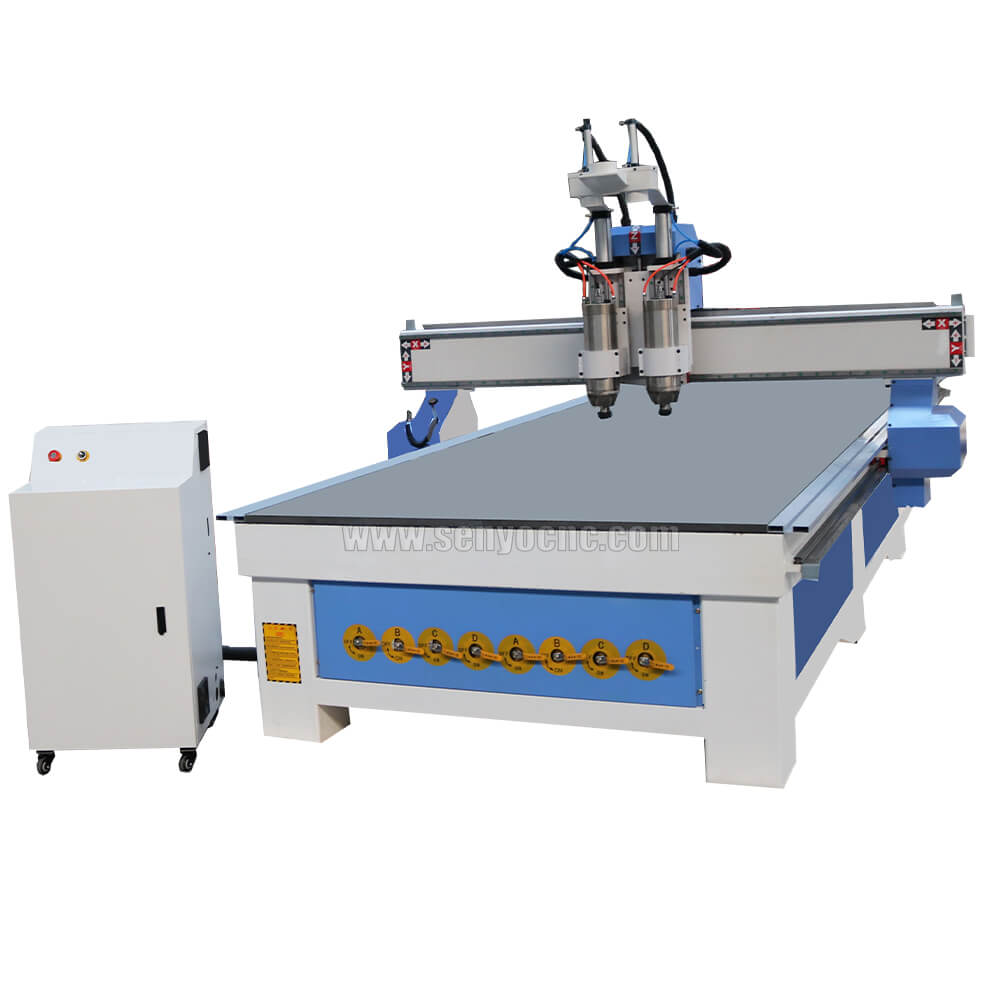

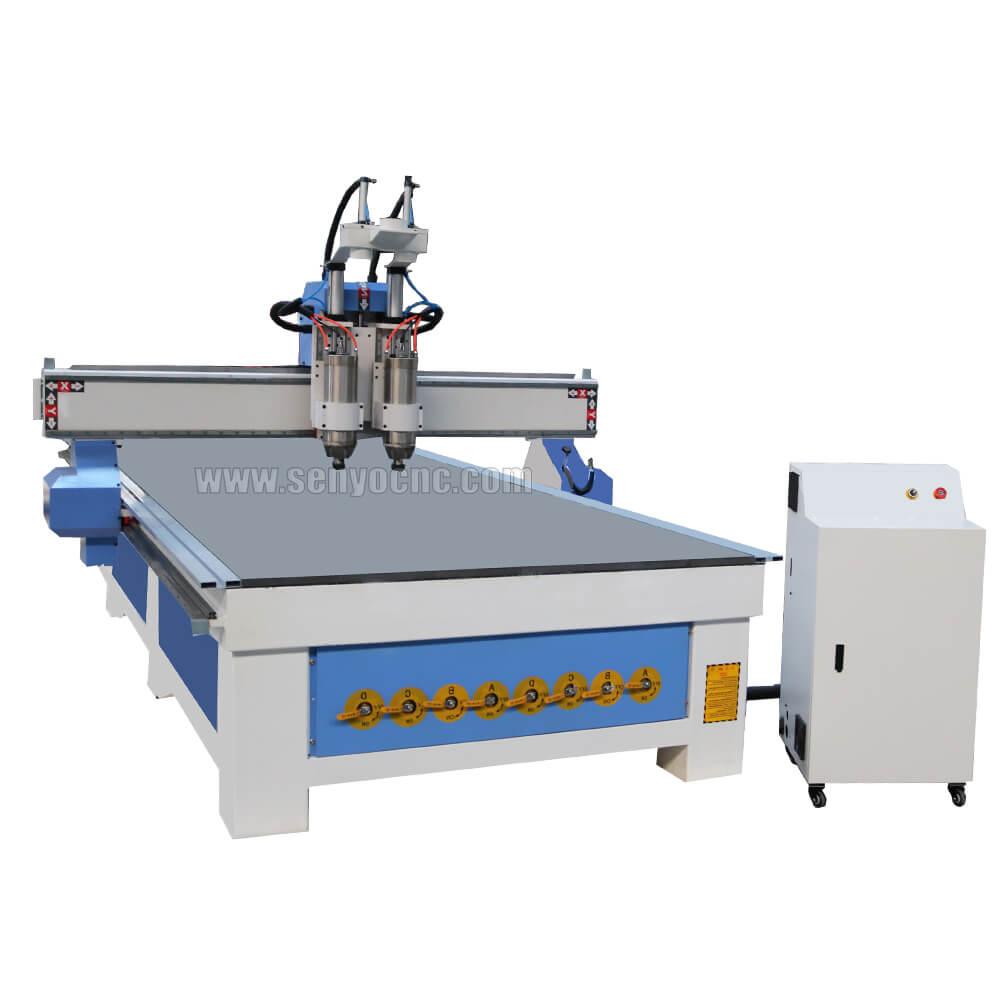

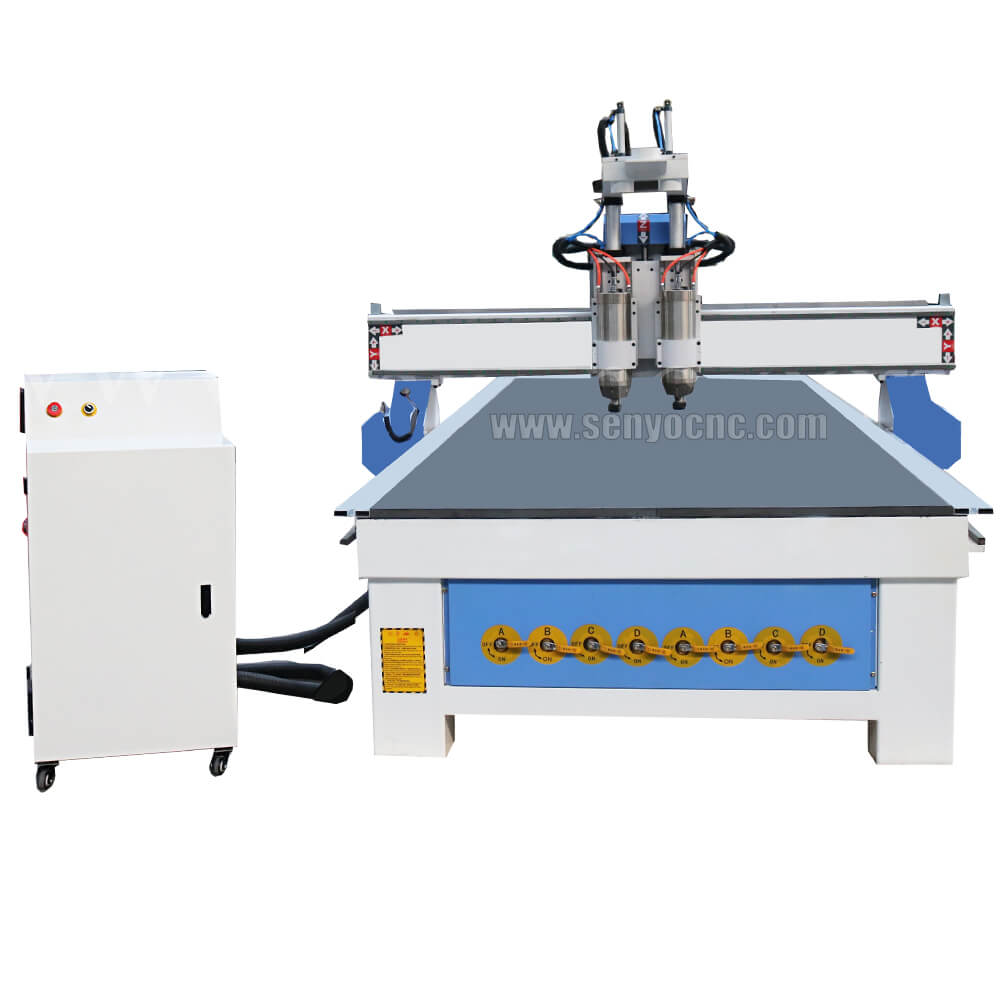

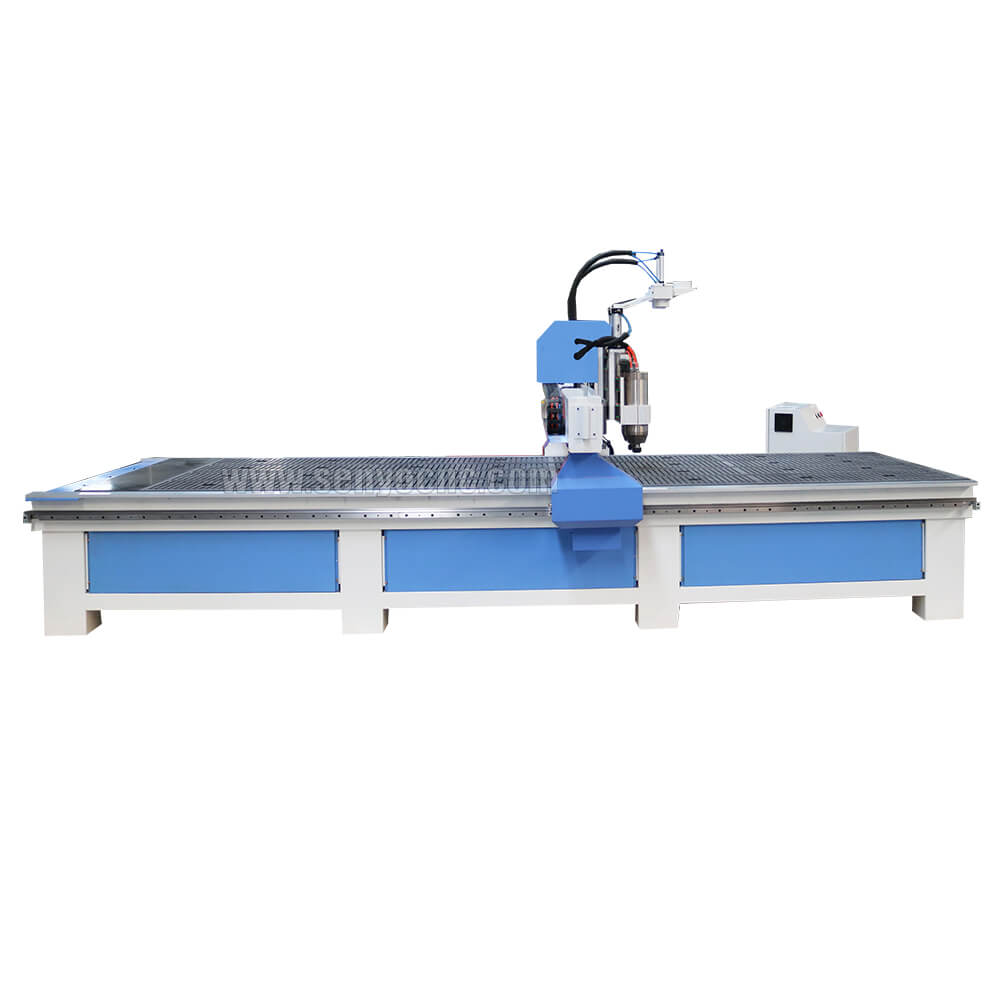

Machine working length 6000mm (6 meters), Model SYM1560-2GA2
ATC CNC Wood Carving Machine Feature
High efficiency: multiple spindle motors work at the same time to complete product processing in large quantities.

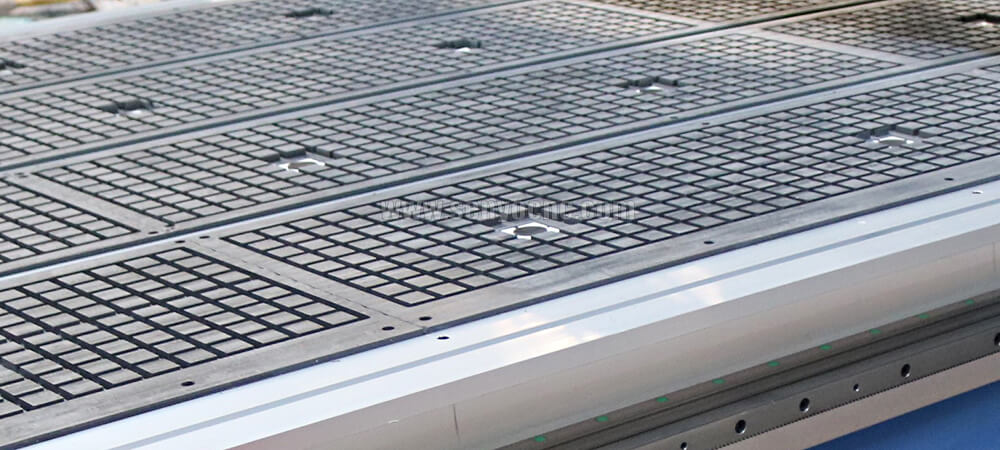

Adopt advanced technology for vacuum adsorption tables, which can strongly adsorb materia-ls of different areas.
2. Fast engraving speed: high-speed drive motor and driver, high-precision rack drive, and strong cutting spindle make the engraving speed faster.
3. Stable operation: Imported linear square guide rail, large bearing capacity, stable operation, high prec-ision, long life, and high precision of imported ball screws.

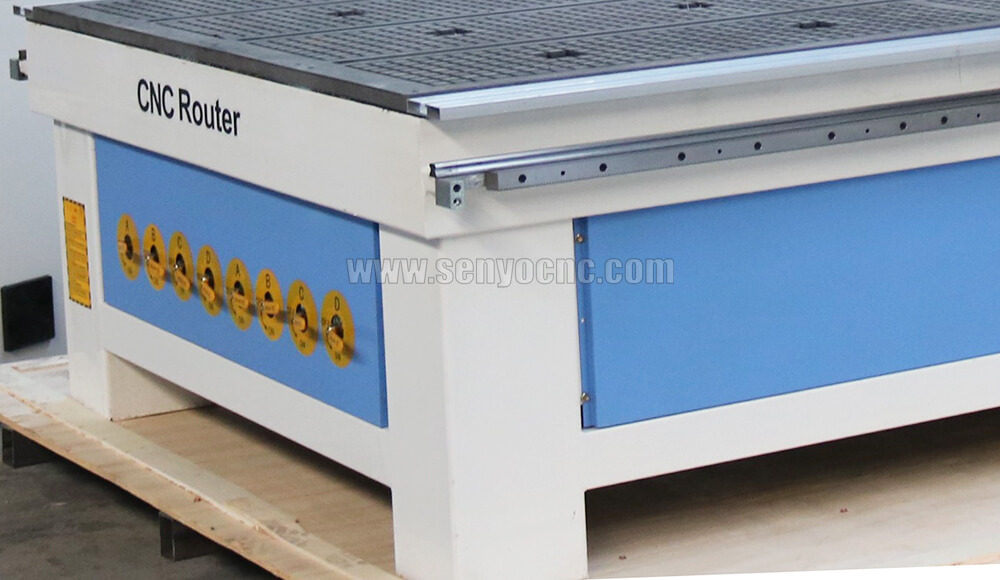

Rugged and durable: The whole bed is welded with steel structure, strong rigidity, strong strength, and long-term high-speed operation without deformation.
Longmen-type movement strengthens the table, st-urdy and durable.

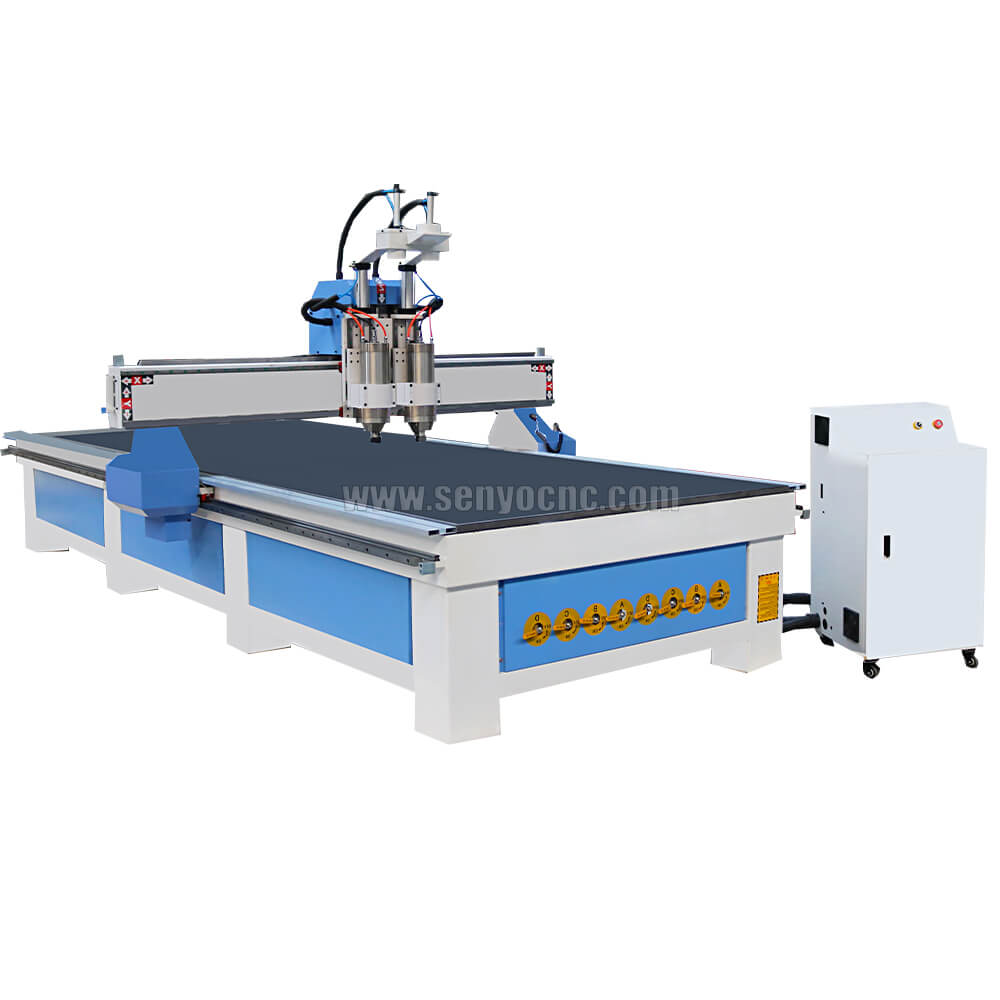

2/3/4 Processes Spindles
Through the automatic change of independent electric spindles, the automatic machining of multi-process is completed.
Tool change in 0 seconds The air-cooling high-power spindle is used to achieve precision higher, longer service life,
uniform speed, running stable, rapidly change the necessary props at random, saving the machining time and enhancing the working efficiency;

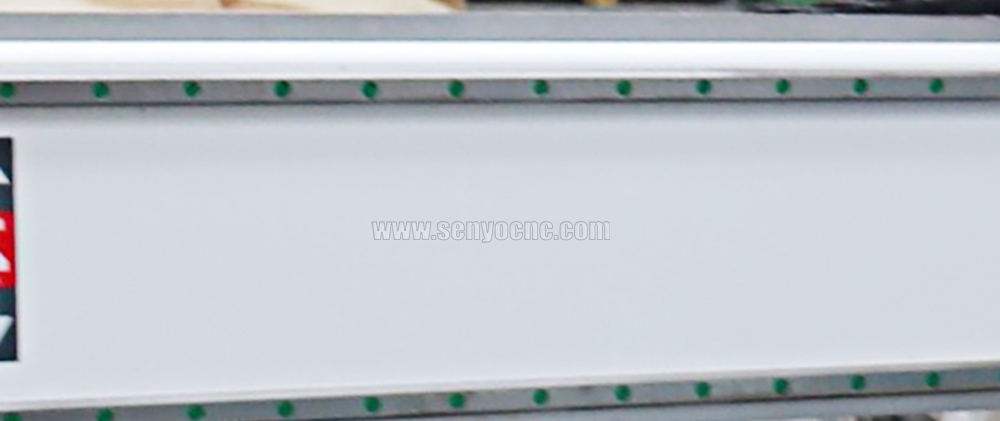

Guide rails and racks
The screw rack transmission with high precision is used and a servo motor with high resolution and fine mixing is equipped.
The imported straight guide rail is used, with high rigidity and levelness and flexible transmission;Imported Square Liner Rail, high accuracy, heavy burthen.

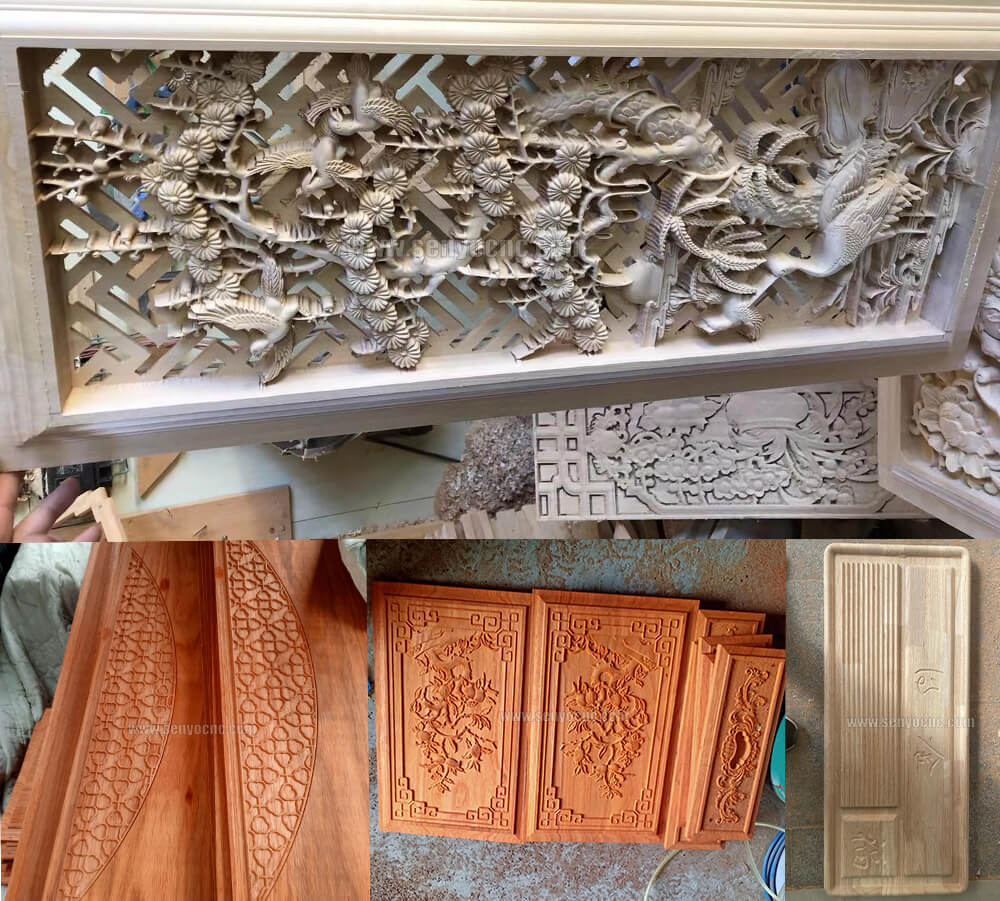

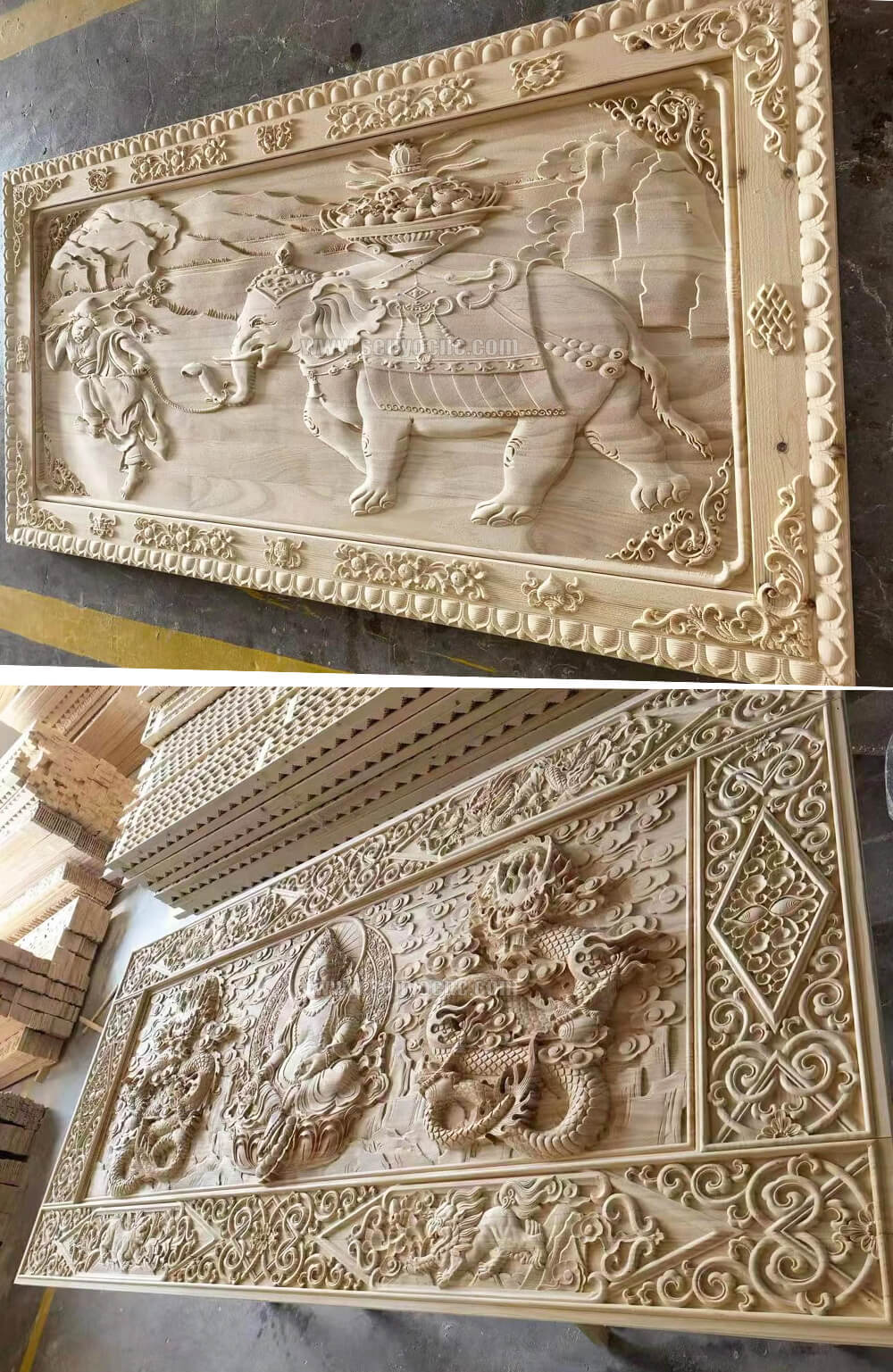

ATC CNC Wood Carving Machine Applications
Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
The wood products: Three-dimensional wave plate processing, cupboard doors, wooden doors,
window processing,video game cabinets and panels, computer table and Plate furniture auxiliary processing.
The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
Decorate industry: Acrylic, PVC, MDF,
artificial stone, organic glass, plastic and soft metals such as copper,
aluminum plate engraving and milling process.
ATC CNC Wood Carving Machine Paramaters
Four Processes CNC Router Furniture Making Machine | |
Model | SYM1325-2GA1 |
Voltage | AC380V 50HZ 3HP Three-phase Four-wire |
Work Plan | X1250*Y2480*Z200mm |
Table Structure Size | Vacuum Adsorption Table 1260*2480 6 Partitions 24 Holes |
Bed Structure | Heavy-duty Double-layer Unloading Trapezoidal Bed |
Transmission | XY Rack & Pinion Driver,Z ball Screw Transmission |
Frequency Converter | Tetran / Fuling 7.5KW |
Spindle | 6kw Air Cooling Spindle*4 |
Spindle Speed | 0-18000rmp |
Driver & Motor | Leadshine / Yaskawa / Delta |
Run Command | G Code |
Control System | Taiwan LNC / SENTEC System |
Plate Fixing | 7.5kw Water Circulation Vacuum Pump |
Dust Removal | 5.5kw High Power Dust Collector |
Packing & Shipping
1. Outside package: Standard plywood package.
2. Inner package:Stretchy film and plastic protective film for humidity.
3. We can package according to your requirements.
For standard machines, 7-15 working days after payment;
For non-standard machines and customized machines according to clients' specific requirements, it will be 15 to 30 working days after payment.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
ATC cnc router, 2 spindle tool changer cnc ,automatic cnc router tool change machine,cnc router,furniture woodwork machine
