Industrial 5x10 CNC woodworking machine comes with dual rotary ATC kits with 2 drum tool changers,Including 24 router bits, which is an automatic CNC wood router table for cabinets and furniture making.
Demonstration Video
Product Descriptions

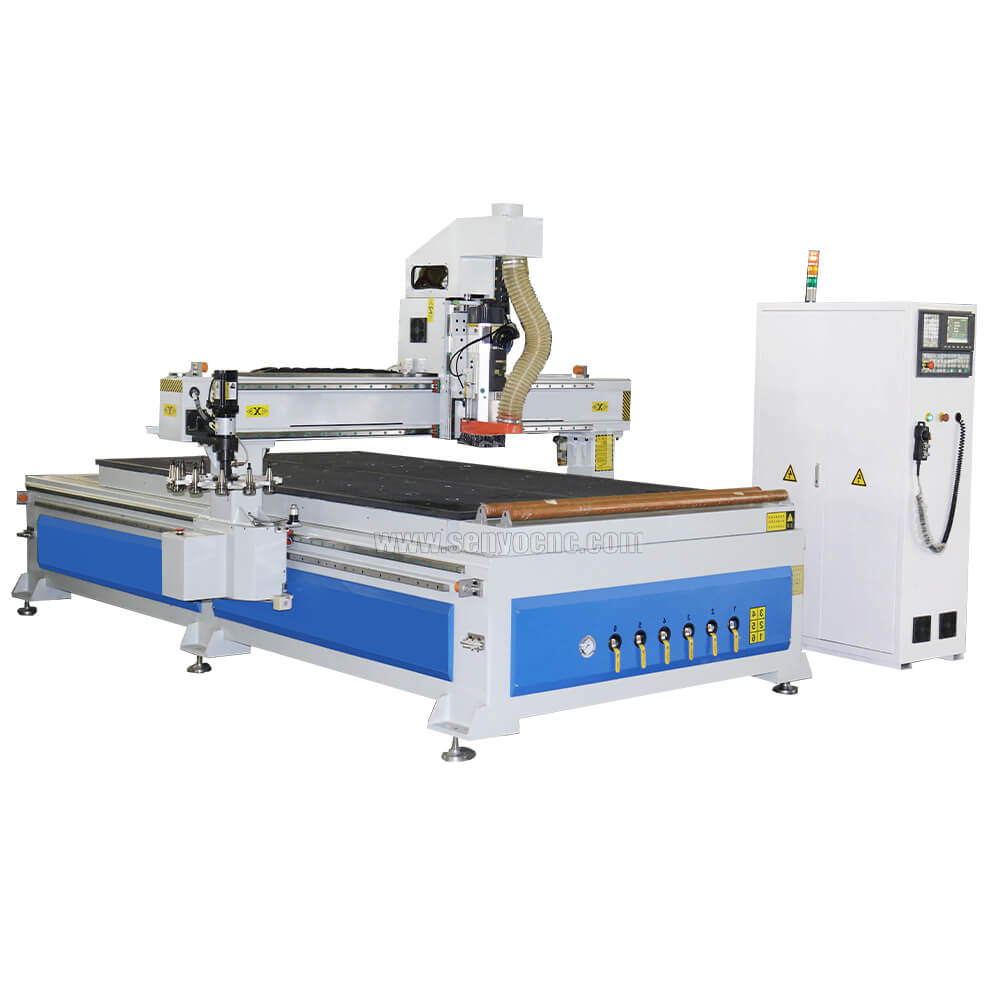

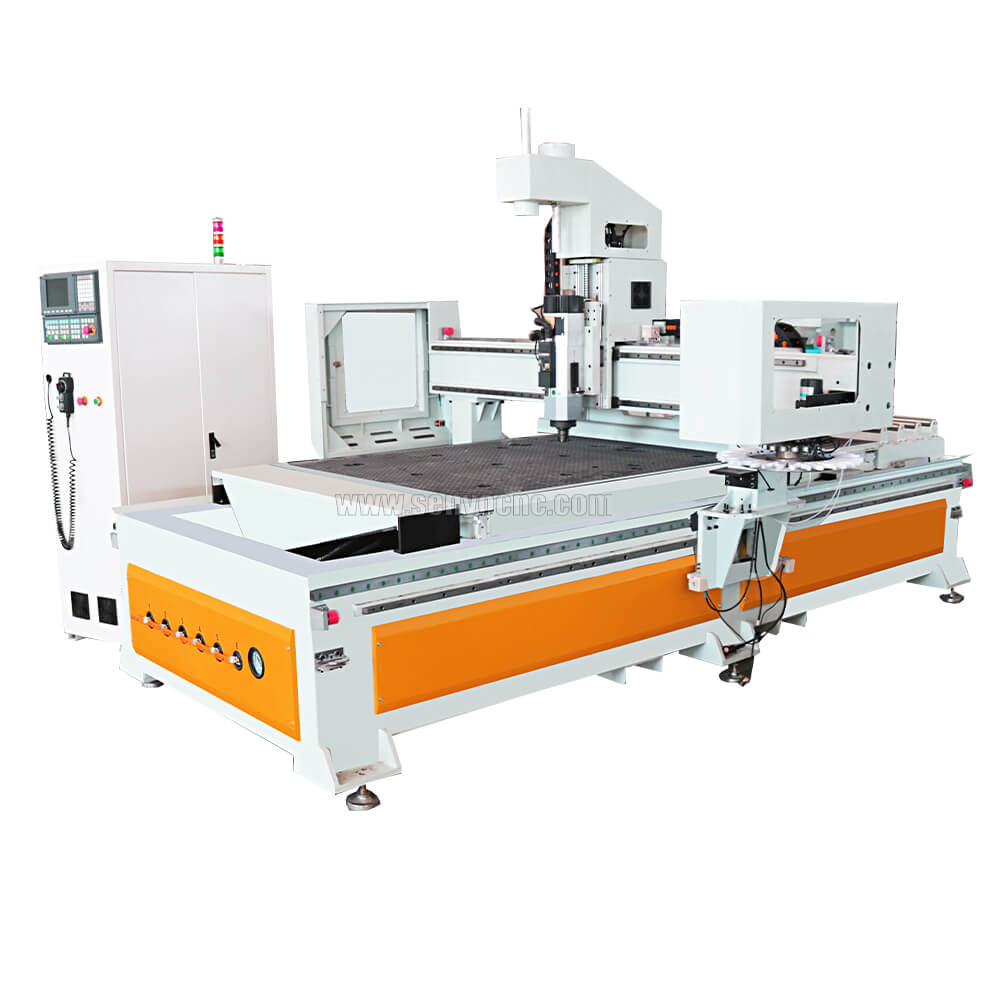

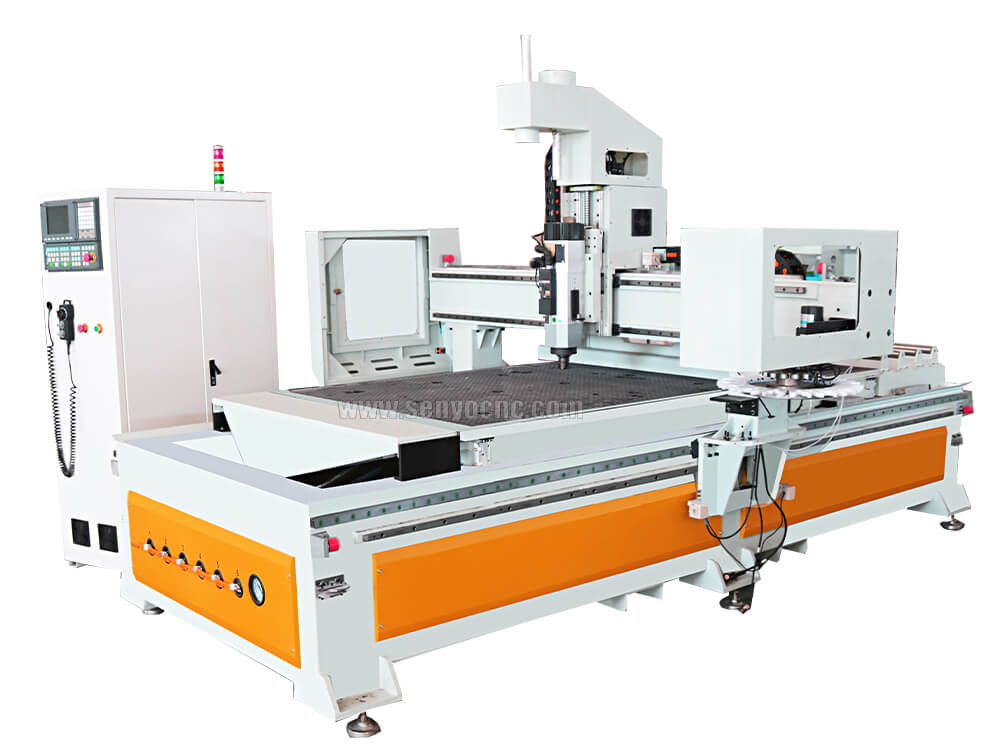

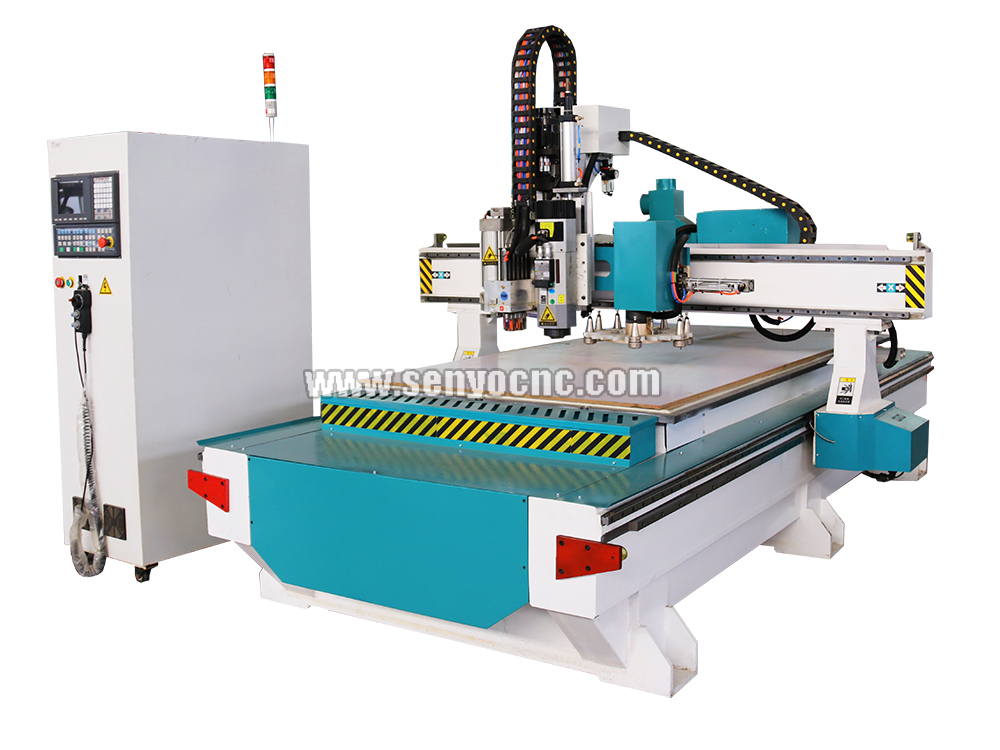

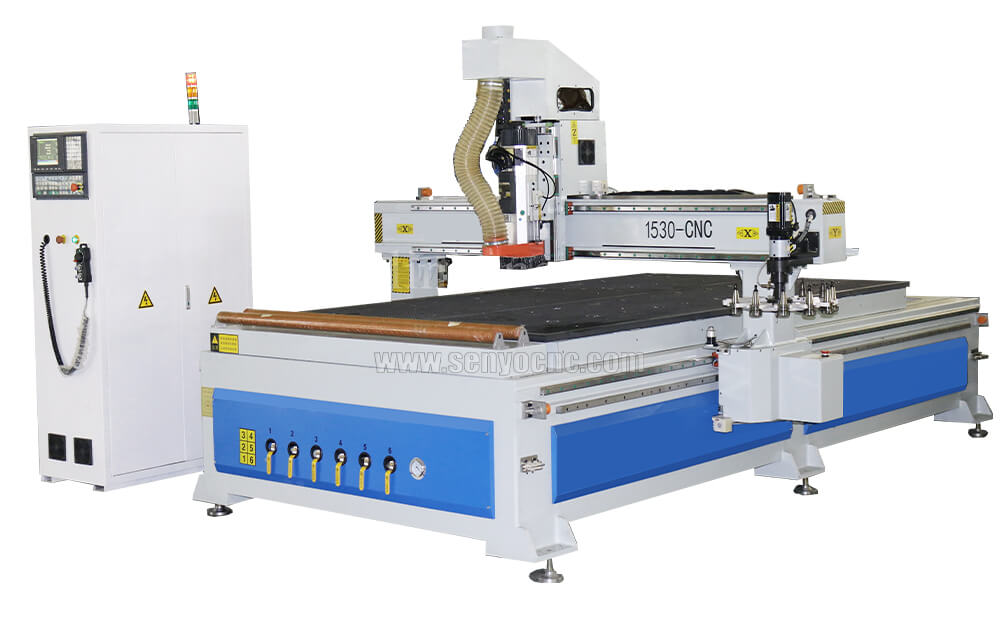

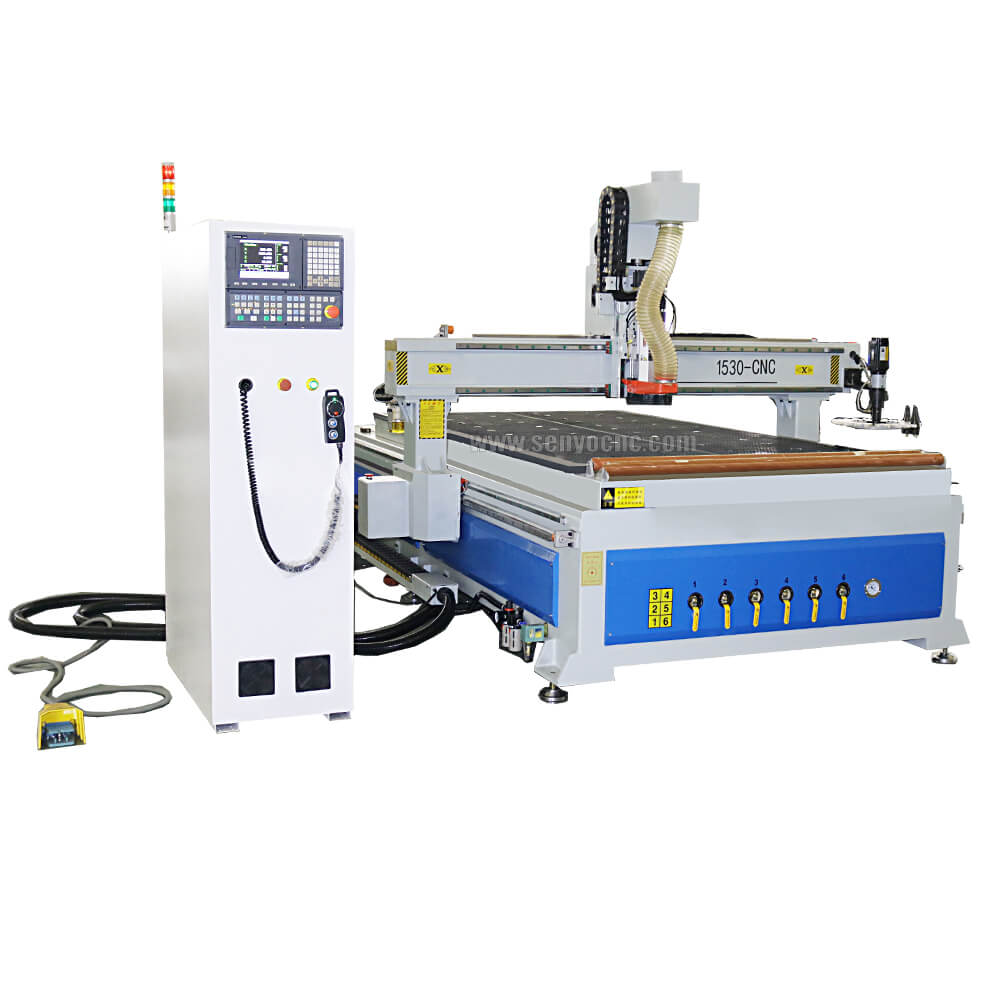

Industrial 5x10 CNC woodworking machine comes with dual rotary ATC kits with 2 drum tool changers,

Including 24 router bits, which is an automatic CNC wood router table for cabinets and furniture making.

Tool change machine cnc  (19).jpg


Features of Industrial 5x10 CNC Woodworking Machine with Dual ATC Kits

The whole machine uses high quality seamless welded steel structure,

the assembly contact surface is used scraping process, the whole structure high-temperature aging treatment

upright and support plate, using aluminum cast process that ensures the high stability.

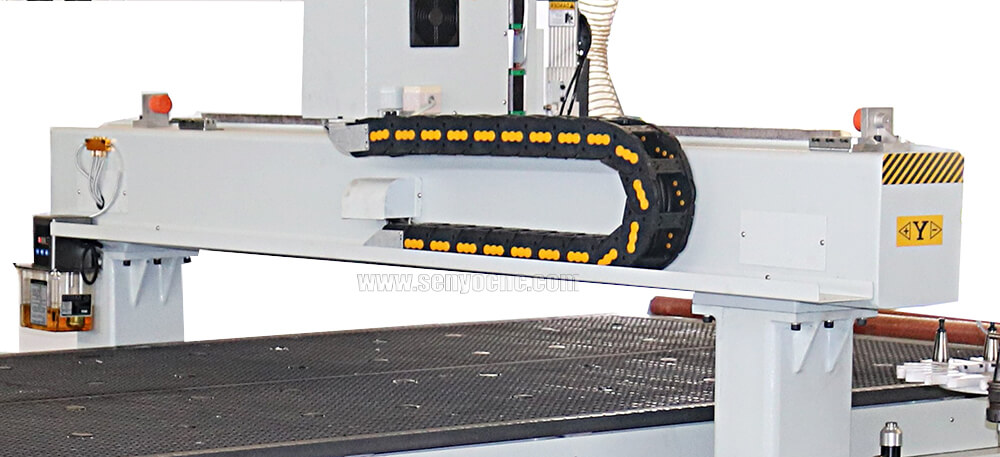

Driving rail adopts original Taiwan Hiwin 30mm square lead rail.


Z axis adopts Taiwan TBI original coarse pitch precise rubbing screw rod, high precision transmission.

Italian high-speed HSD 9KW air-cooled spindle motor with guaranteed cooling system to work for a long time.


Machine color for choose, Spindle with hood design For Choose .


1500W servo drive system, torque, high precision, fast and stable performance.

Taiwan LNC controller software, good compatibility, compatible with Type3, ArtCAM, Castmate, Artcut, and more CAD/CAM software.

 Multi-dimensional 3D machining allows for fast and smooth 3D cutting, milling, and carving.

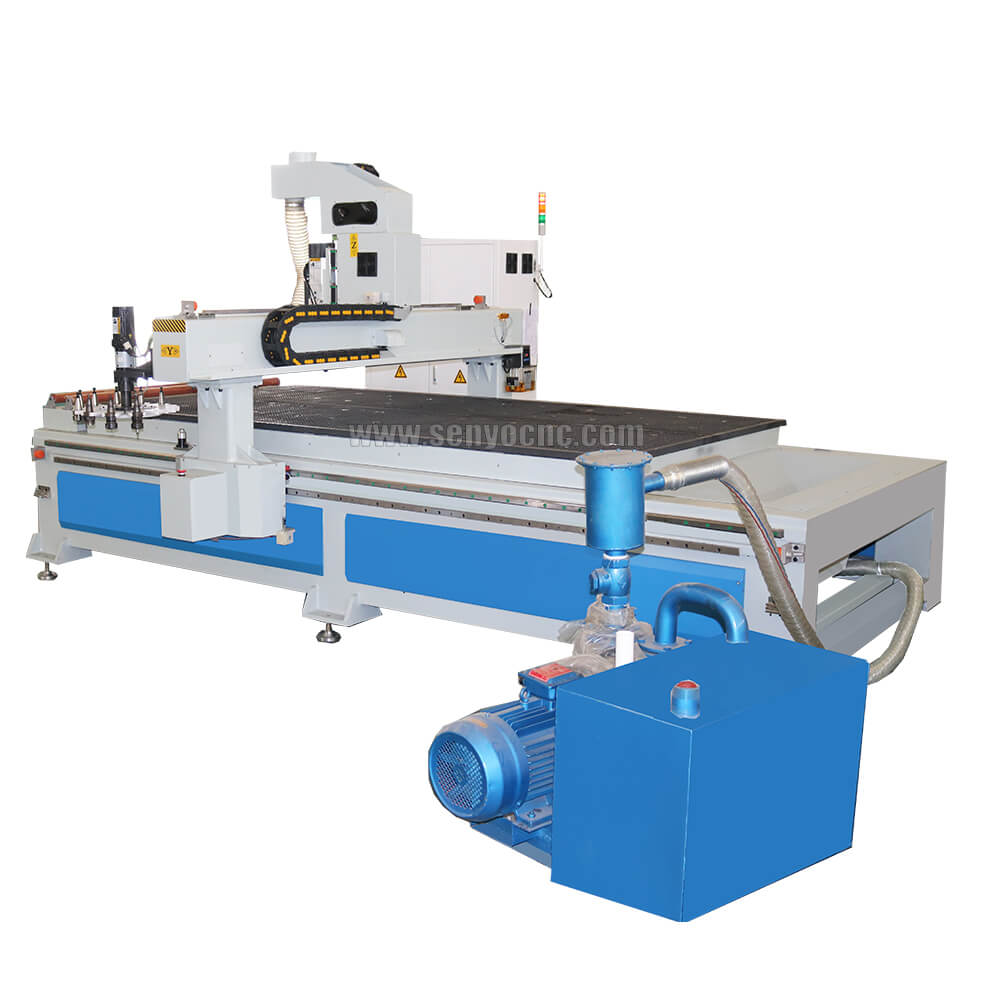

Vacuum adsorption table is an international leader technic made of high strength rigid plastic,

high-absorption edge and strong adsorption of different sizes of materials, density, non-deformation.

Auto-oiling lubrication system, easy to operate, greatly improve the life of the various components of the machine.



Applications of Industrial 5x10 Dual ATC CNC Router Machine for Woodworking

SYM1530D2 is applied in industrial board cutting, mould manufacturing & processing

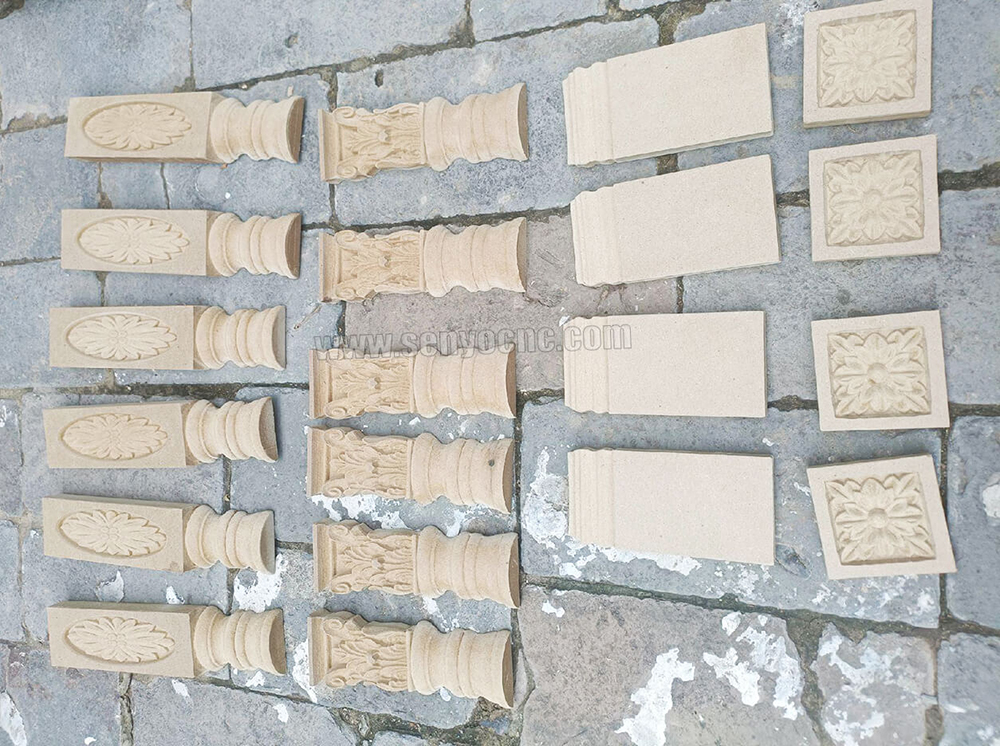

Wooden products processing



building decorating & furnishing



stone, glass, copper, aluminum and advertising products processing.

Woodworking



Furniture making, musical instruments, wooden crafts, solid wood furniture

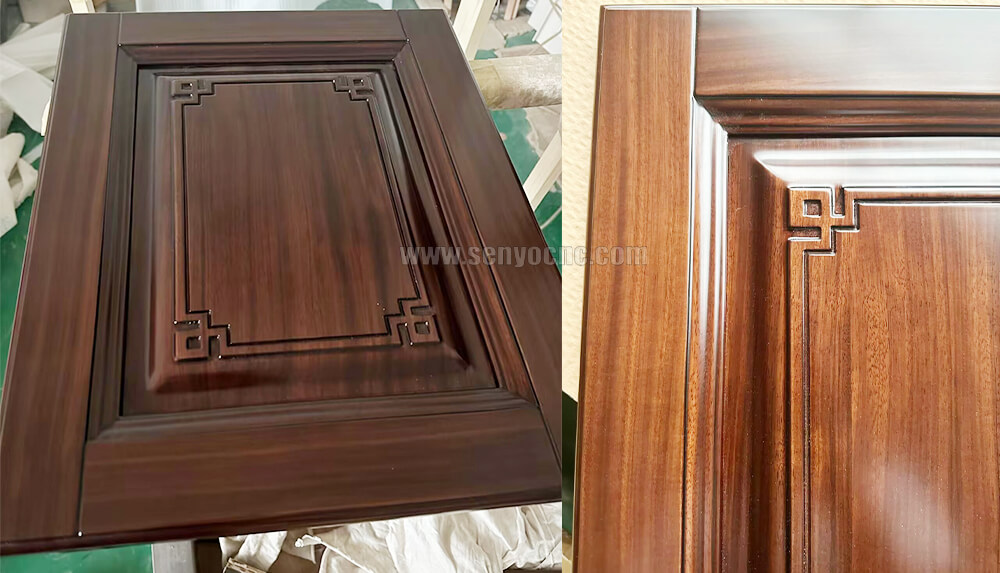

MDF paint-free door, wood composite door, cabinet, kitchen doors



Windows, and night table.

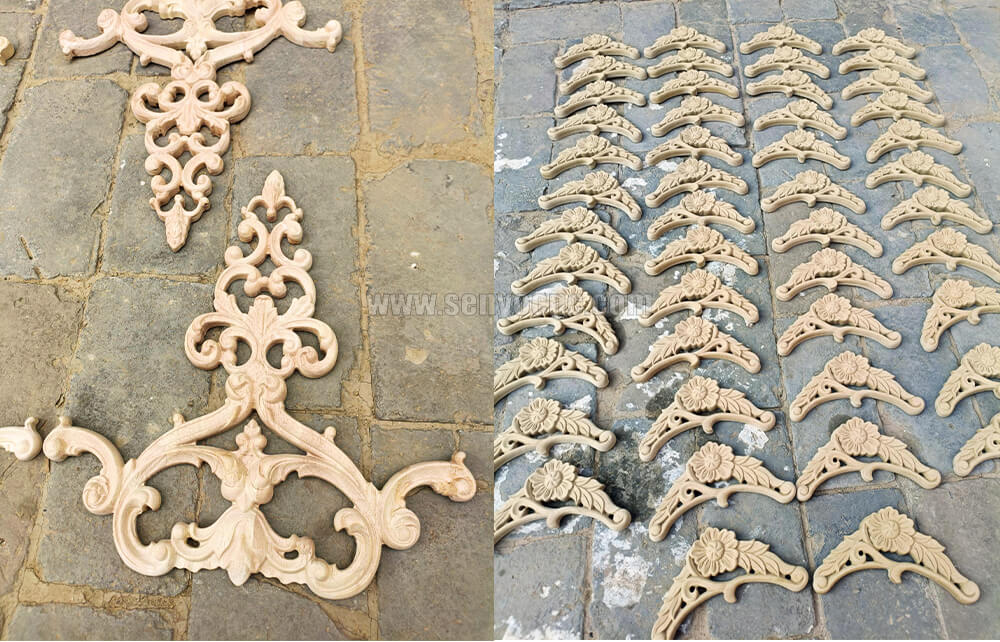

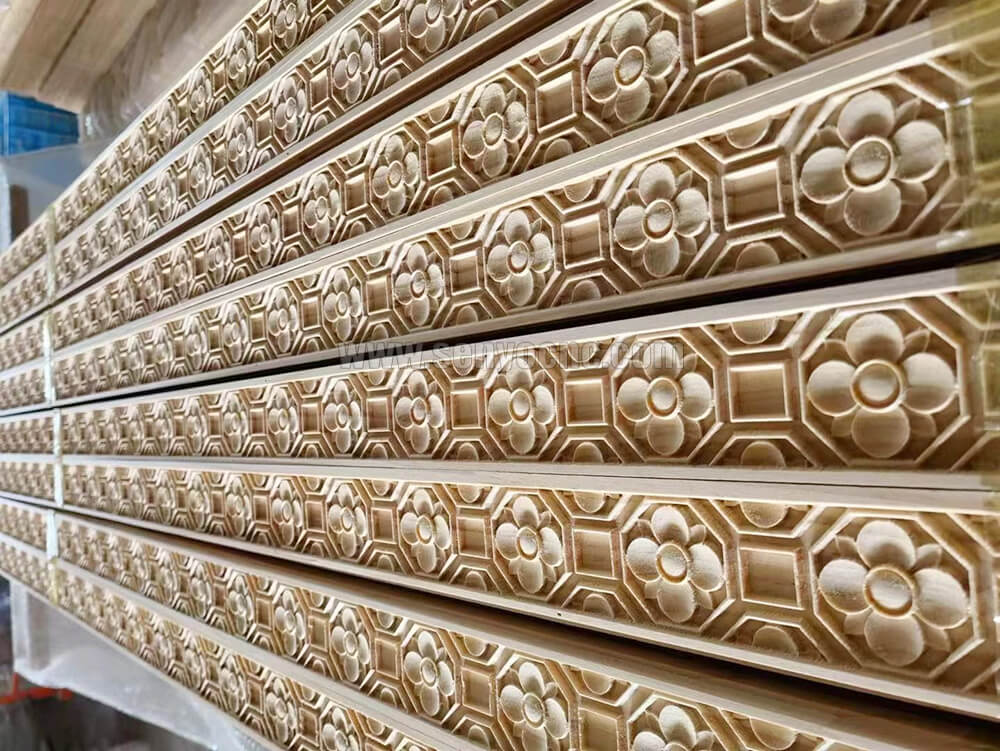

Art model, wall art, screen relief

Tool change machine cnc  (25).jpg


Decorations, gifts wrapping, waved plate, electrical cabinets panels



Sports equipment, and other wooden industrial products.



Technical Parameters of Industrial 5x10 CNC Woodworking Machine with Dual ATC Kits

Model

SYM1530D2A1

Table Size

5x10

Working Area

1500*3000*300mm

Lathe Structure

Seamless welded steel structure

X,Y Structure

Rack and pinion, gear drive,


Taiwan Hiwin H30 square guide rails

Z Structure

Z axis Taiwan TBI ball screw,


Taiwan Hiwin H30 square guide rails

Max. Idling Speed

60m/min

Spindle

HSD 9.0kw air-cooling spindle

Spindle Speed

0-24000r/min, variable speed

Working Voltage

AC380V/50Hz

Motor and driver

1500W Leadshine AC servo

Command

G code (HPGL,U00,mmg,plt)

Operating System

LNC control system

Diameter of Cutter

φ3.175-φ12.7, ISO30

Cooling Mode

Air-cooling

Dust-collect Function

Yes

Work Holding

By suction or clamp

Tool Magazine

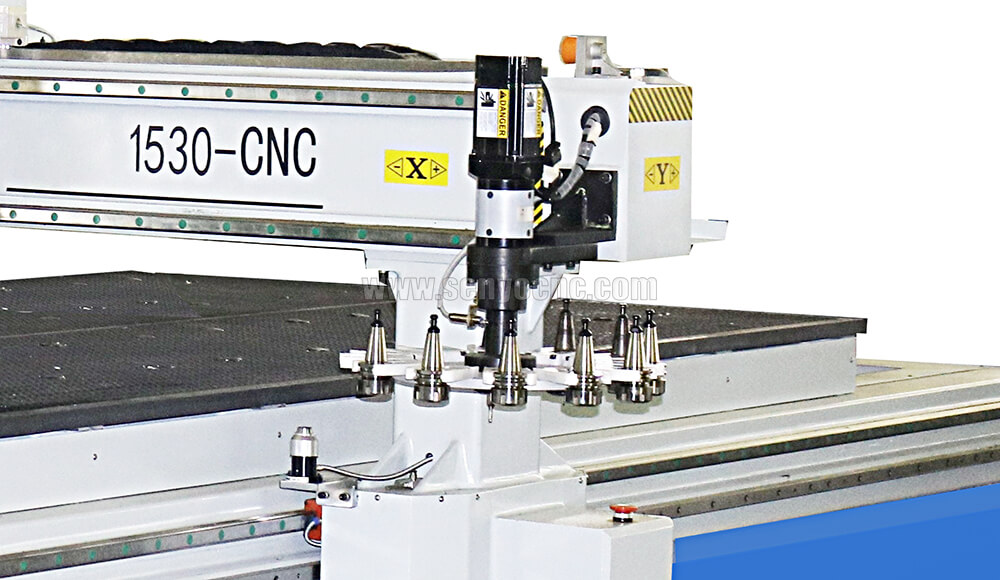

Drum type automatic tool changer with 24 tools



Packing & Shipping

1. Outside package: Standard plywood package.

2. Inner package:Stretchy film and plastic protective film for humidity.

3. We can package according to your requirements.

For standard machines, 7-15 working days after payment


Tool change machine cnc  (10).jpg


Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.


Related Products
CNC Router 2 Heads Wood Craft Acrylic Plastic Engraving Signs Carving

CNC Router 2 Heads Wood Craft Acrylic Plastic Engraving Signs Carving

Automatic Tool Change Multi Spindle Three Heads 4 Axis Cnc Wood Router for Furniture,doors,cabinets

Automatic Tool Change Multi Spindle Three Heads 4 Axis Cnc Wood Router for Furniture,doors,cabinets

ATC Processing CNC Equipment Automatic Tool Changer CNC Quartz Stone Machining

ATC Processing CNC Equipment Automatic Tool Changer CNC Quartz Stone Machining

Small ATC CNC Router Automatic Tool Changer with Rotary 4 Axis Machine For Sale

Small ATC CNC Router Automatic Tool Changer with Rotary 4 Axis Machine For Sale

ATC 3D CNC Woodworking Router with 4th Axis Rotary Table

ATC 3D CNC Woodworking Router with 4th Axis Rotary Table

Best 5x10 CNC Router with Tool Changer for Woodworking

Best 5x10 CNC Router with Tool Changer for Woodworking

Cabinet Door Woodworking Furniture With Disc Round Tools changer and uploading unloading table

Cabinet Door Woodworking Furniture With Disc Round Tools changer and uploading unloading table

Industrial 5x10 CNC Woodworking Machine with Dual ATC Kits

Industrial 5x10 CNC Woodworking Machine with Dual ATC Kits

2 Spindle Full Automatic Wood Carving CNC Router atc cnc nesting machine

2 Spindle Full Automatic Wood Carving CNC Router atc cnc nesting machine

Dual Spindles Wood CNC Machine with 1500x3000mm Table Size for Sale

Dual Spindles Wood CNC Machine with 1500x3000mm Table Size for Sale

Industrial ATC CNC Router Machine with 4 Spindles for Sale

Industrial ATC CNC Router Machine with 4 Spindles for Sale

Woodworking Furniture 4 Spindle Atc Cnc Router Machine

Woodworking Furniture 4 Spindle Atc Cnc Router Machine

Auto Tool Changer Router Cnc Machine ATC 3D Woodworking CNC Router industrial equipment

Auto Tool Changer Router Cnc Machine ATC 3D Woodworking CNC Router industrial equipment

Nesting CNC router ATC tool changer with drilling wood machine designed for cabinet door making

Nesting CNC router ATC tool changer with drilling wood machine designed for cabinet door making

>
<
···
Related Videos
>
<
···
Related Projects
The Apprentice Maze Puzzle Box

The Apprentice Maze Puzzle Box

Box laser cutting software share

Box laser cutting software share

laser marking and engraving for the jewelry industry

laser marking and engraving for the jewelry industry

Copper cutting for fiber laser cutting machine

Copper cutting for fiber laser cutting machine

Aluminum Cutting for fiber laser cutting machine

Aluminum Cutting for fiber laser cutting machine

CS Laser Cutting Factors that Affect the Process

CS Laser Cutting Factors that Affect the Process

Stainless steel Fiber Laser Cutting

Stainless steel Fiber Laser Cutting

2d&3d wood MDF carving and cutting

2d&3d wood MDF carving and cutting

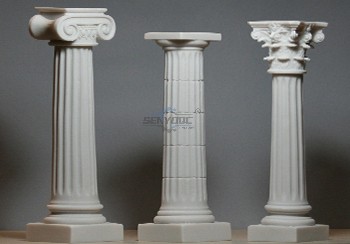

3D CNC Router for Stone Relief Carving Projects

3D CNC Router for Stone Relief Carving Projects

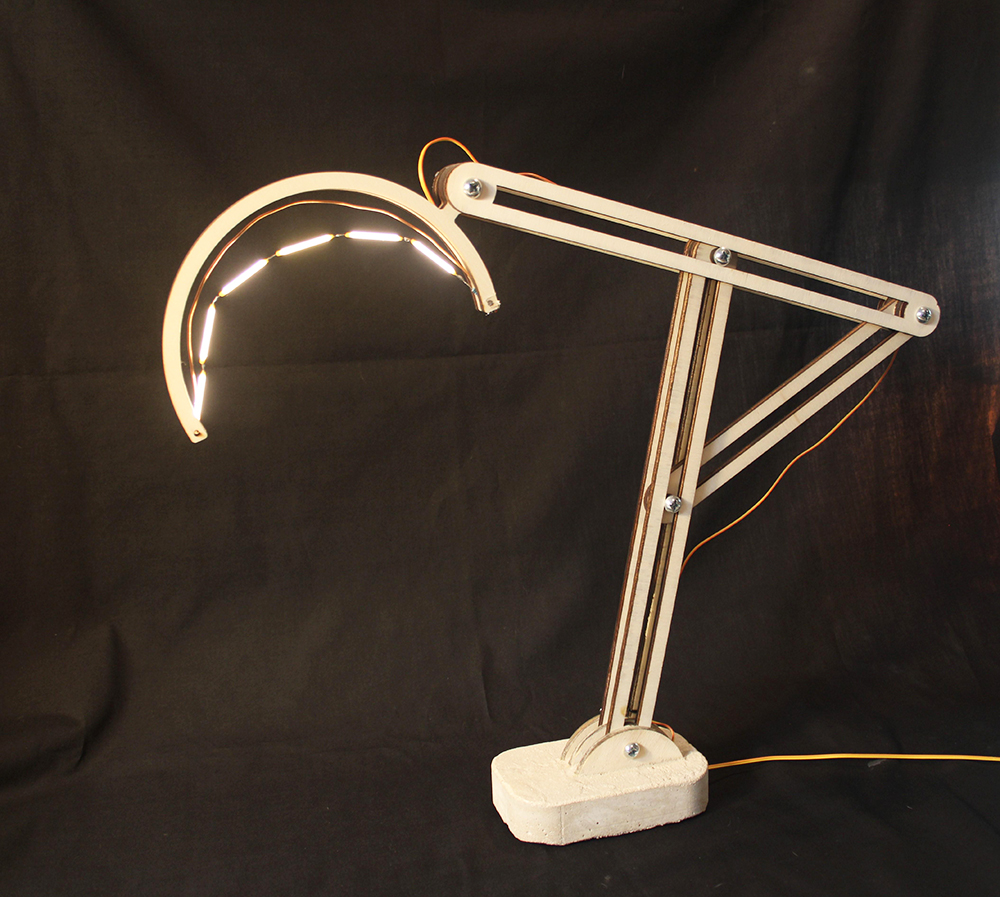

Laser Cut Adjustable Table Lamp

Laser Cut Adjustable Table Lamp

CO2 Laser cutting Baby Birth Block

CO2 Laser cutting Baby Birth Block

CO2 laser cutting and engraving for 6 Sided Box Puzzle

CO2 laser cutting and engraving for 6 Sided Box Puzzle

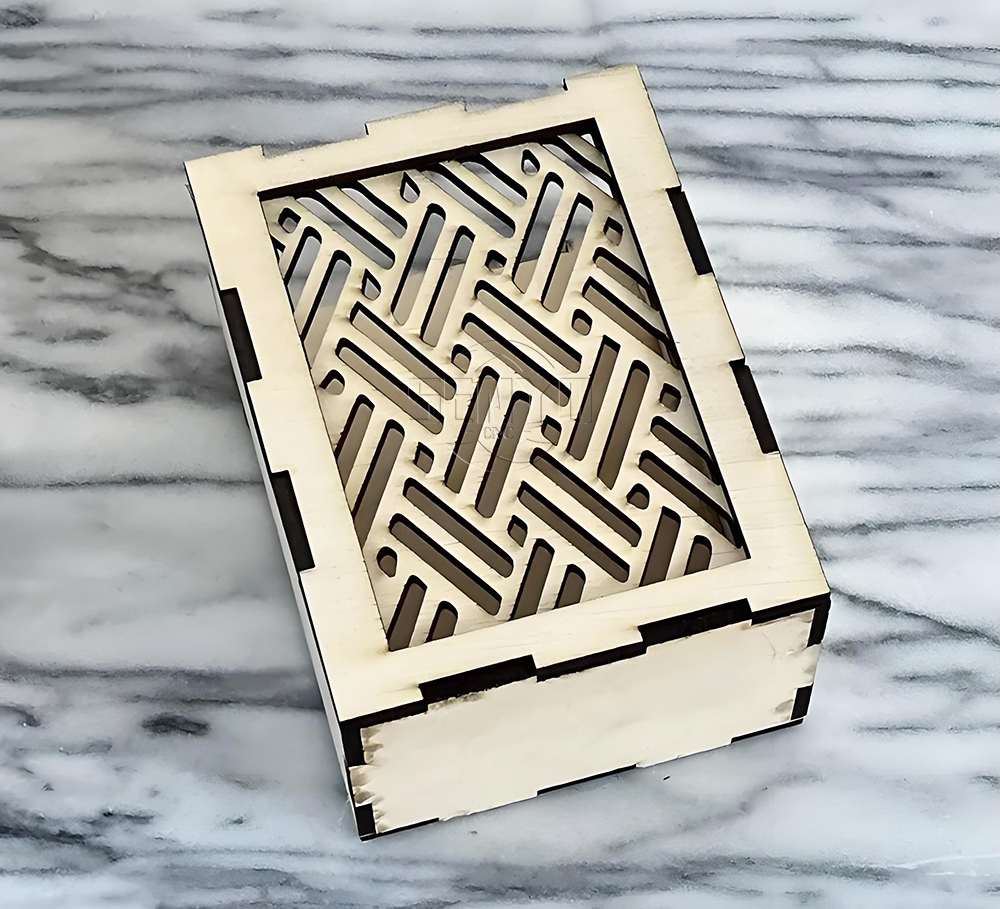

Co2 laser wood cut Illuminated Pattern Box

Co2 laser wood cut Illuminated Pattern Box

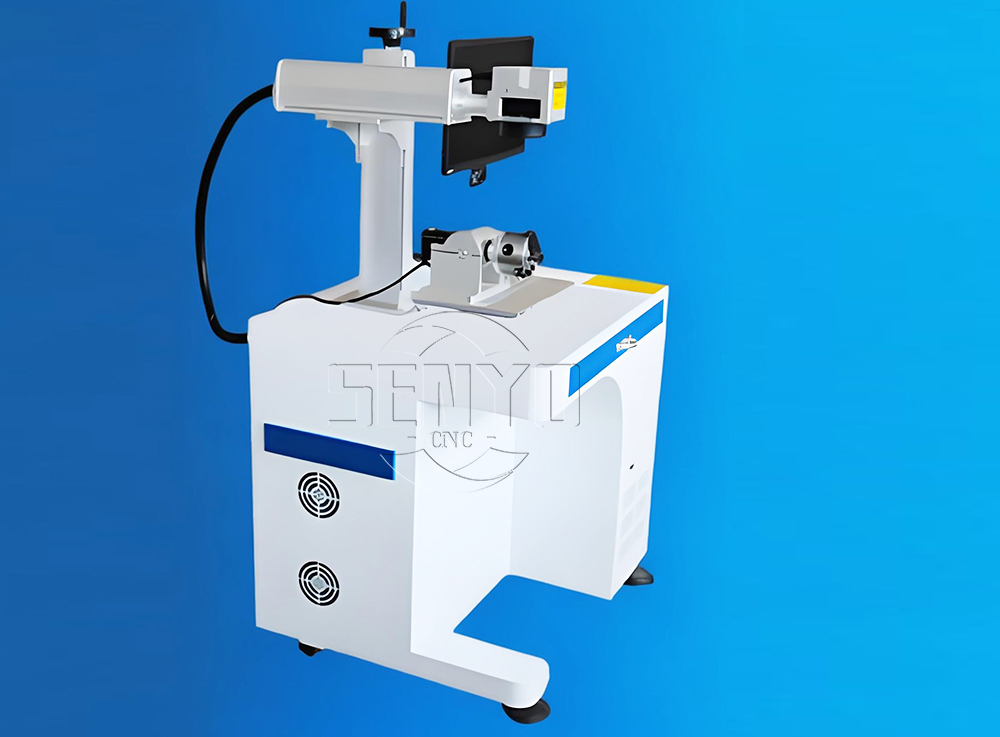

Engrave Round Parts With 50W Fiber Laser Marking Machine

Engrave Round Parts With 50W Fiber Laser Marking Machine

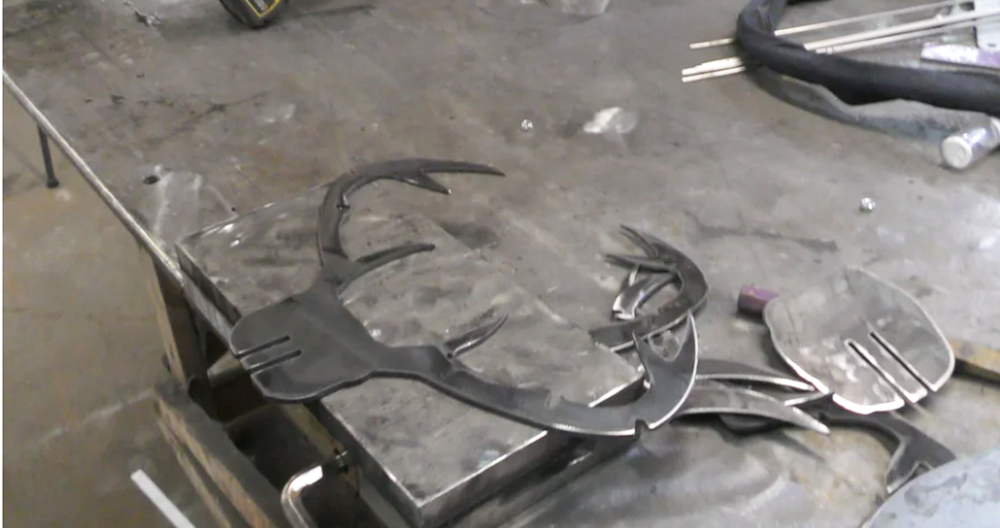

CNC Plasma Cut Deer Head

CNC Plasma Cut Deer Head

Relief Map on a CNC Router

Relief Map on a CNC Router

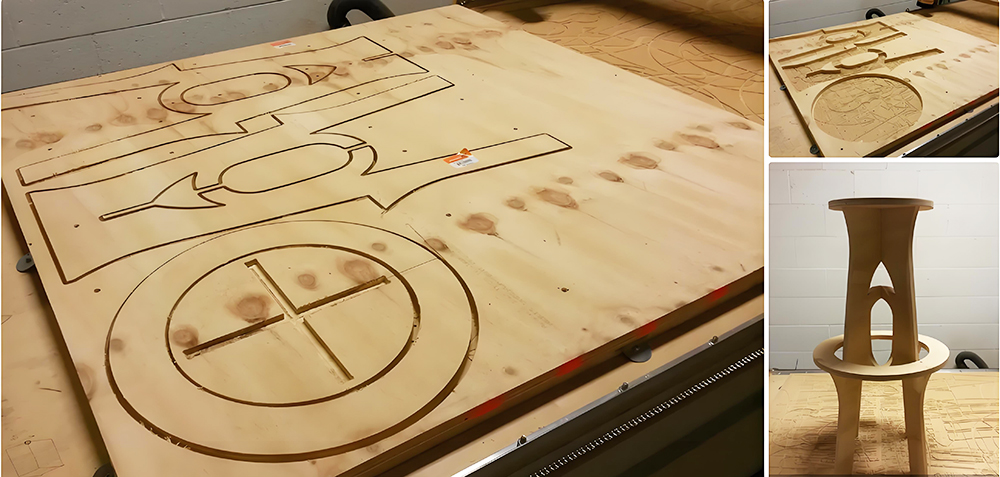

CNC Router Bar Stool

CNC Router Bar Stool

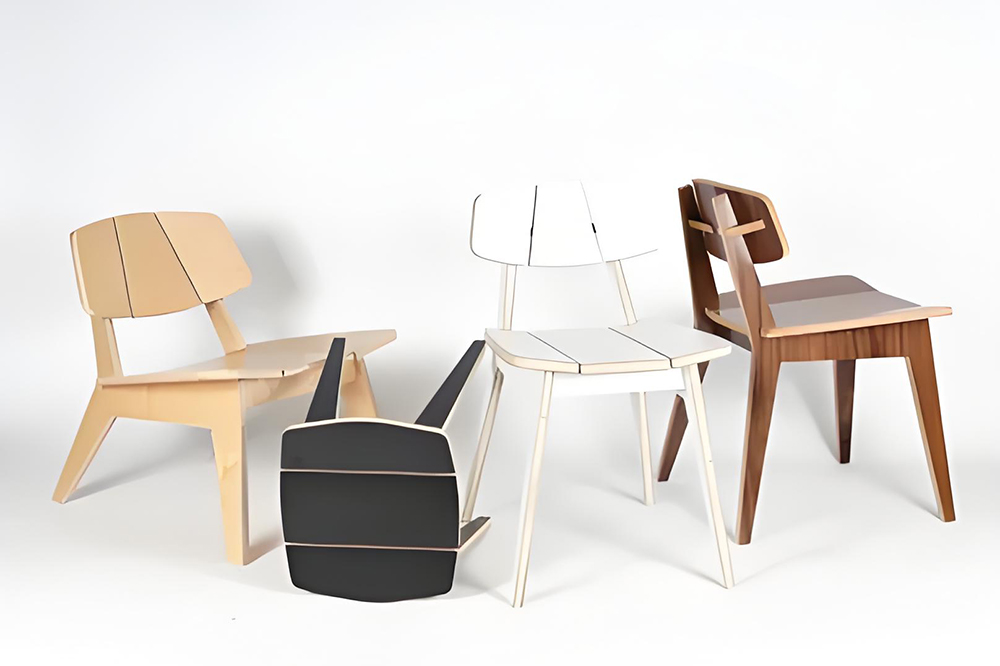

Wood Chair Made With CNC Router

Wood Chair Made With CNC Router

Competitive Price New Design Waterjet Machine 3 axis Cutting Machine

Competitive Price New Design Waterjet Machine 3 axis Cutting Machine

Typical industries that use waterjet technology

Typical industries that use waterjet technology

What main benefits to waterjet cutting ?

What main benefits to waterjet cutting ?

DTF Printer Machine Application

DTF Printer Machine Application

Typical fields of application

Typical fields of application

UV Laser Marking Machine For Glasses Engraving

UV Laser Marking Machine For Glasses Engraving

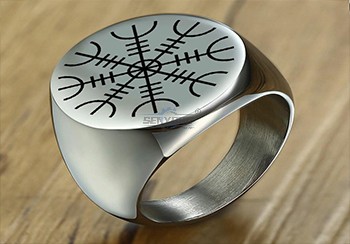

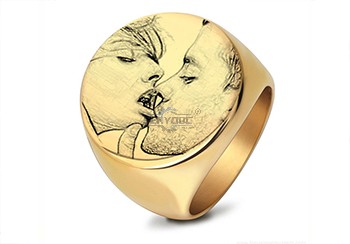

GOLD Engraving -Fiber laser marking work

GOLD Engraving -Fiber laser marking work

Sover Engraving -Fiber metal engraving and marking

Sover Engraving -Fiber metal engraving and marking

3D Marking Logo deep engraving -Fiber marking machine

3D Marking Logo deep engraving -Fiber marking machine

MOPA Fiber Laser Marking Machine Application and Samples

MOPA Fiber Laser Marking Machine Application and Samples

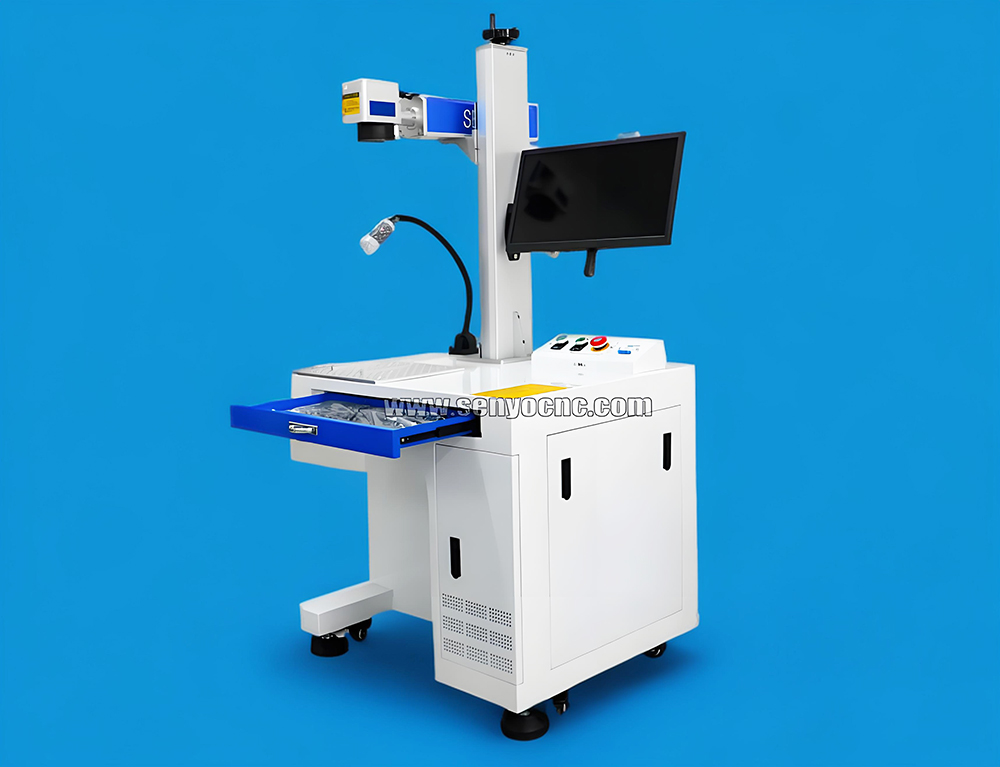

Fiber Laser Engraving and Marking Machine for Metalworking Projects

Fiber Laser Engraving and Marking Machine for Metalworking Projects

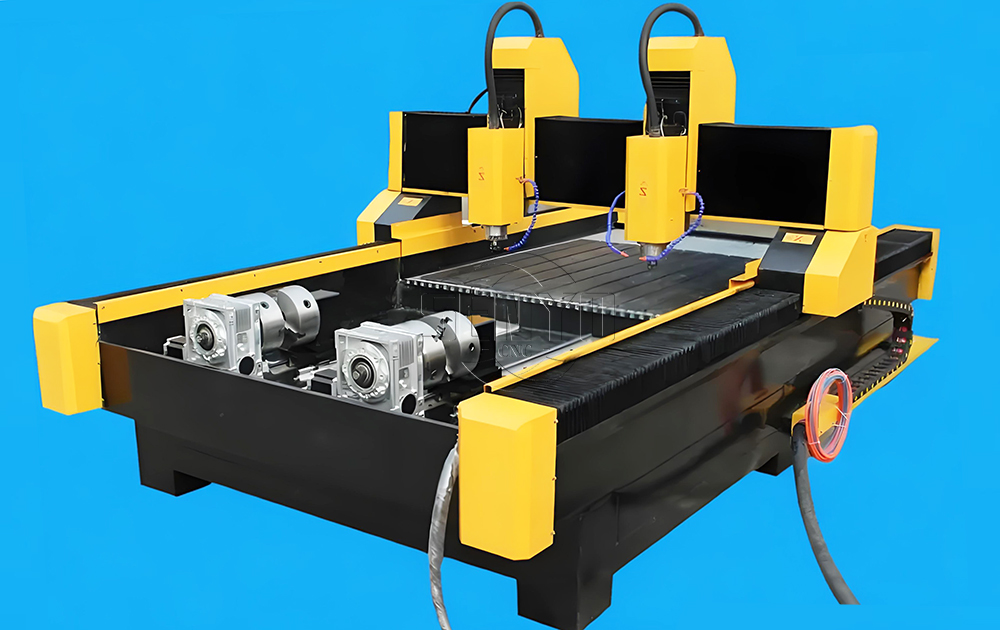

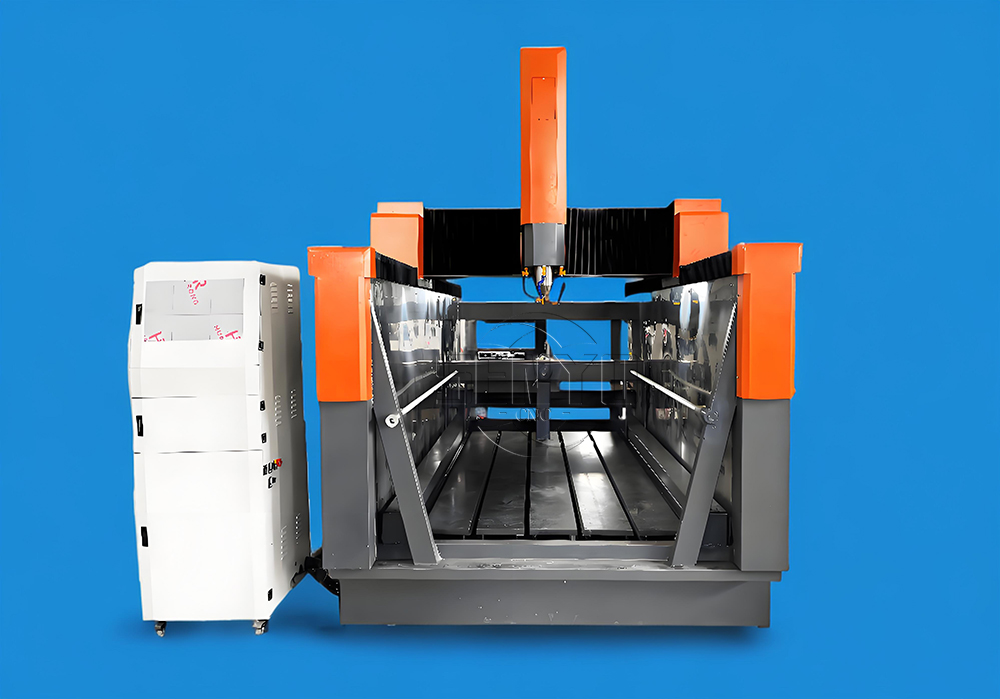

Stone shaft Rotary use engrave cnc router machine

Stone shaft Rotary use engrave cnc router machine

>
<
···
Related Stories
Fiber metal Laser Sensor And Its Application
Fiber metal Laser Sensor And Its Application
Category: SENYO NEWS 11th Mar, 2021

A CNC wood router will use 3D machining in relief carving, the effect is more artistic beauty, but also has a strong sense of three-dimensional 3D, realization of this function is to ...

  • Precision Cutting Stents with Fiber Lasers
    Precision Cutting Stents with Fiber Lasers
    11th Mar, 2021

    A CNC wood router will use 3D machining in relief carving, the effect is more artistic beauty, but also has a strong sense of three-dimensional 3D, realization of this function is to ...

  • How to Laser Cut Copper and Other Reflective Metals
    How to Laser Cut Copper and Other Reflective Metals
    03rd Sep, 2021

    Laser cutting of mild steel and stainless steel has a long history and has been one of the primary applications for CO2lasers. However CO2lasers have not traditionally offered a good solution for cutting highly reflective materials.Fiber lasers have an emission wavelength of around

  • Laser Cutting Machine Inspection Process For Manufacture
    Laser Cutting Machine Inspection Process For Manufacture
    10th Jan, 2025

    SENYOCNC Have Strict quality monitoring will be carried out when the parts are in the factory.

  • How Control Costs Use of UV Printers ?
    How Control Costs Use of UV Printers ?
    25th Aug, 2024

    UV flatbed printers are rapidly being used by more and more manufacturers, thanks to its efficient production efficiency, and the control of production costs also needs to arouse our attention.

  • Why UV flat printing machine is popular in market ?
    Why UV flat printing machine is popular in market ?
    25th Aug, 2024

    For the majority of designers, give full play to the creative ability, the design sample can be arbitrarily modified on the computer, the effect on the computer, is the effect after the finished product, customer satisfaction can be directly produced. UV flat printing pattern fine, rich and clear layers, high artistry, strong three-dimensional sense, many high precision equipment can also print photography and painting style patterns.

  • How does UV ink jet printer save UV ink?
    How does UV ink jet printer save UV ink?
    25th Aug, 2024

    UV inkjet printer use process is an important consumable UV ink, reasonable use of equipment, can save UV ink , it can be said to be the best choice to directly save the cost. In the process of using some skills you need to be familiar with, the following small make up to share with you:1. Try to us

  • Waterjet Machine delivery and Shipping
    Waterjet Machine delivery and Shipping
    21st Aug, 2024

    Please tell us your max working size and what materials will cutting , also what max cutting thickeness.If you have Working photo sample please also send us , it will be helpful to choose machine with suitable models .

  • Waterjet Machine finish manufacture 5axis
    Waterjet Machine finish manufacture 5axis
    21st Aug, 2024

    Waterjet cutting technology is one of the fastest growing major machine tool processes in the world due to its versatility and ease of operation.

  • Waterjet Machine delivery and Shipping
    Waterjet Machine delivery and Shipping
    21st Aug, 2024

    Waterjet cutting technology is one of the fastest growing major machine tool processes in the world due to its versatility and ease of operation.There are multiple advantages to adding waterjet cutting capabilities to your shop.We are company leading ultrahigh-pressure waterjet system so

  • How to Create Connected Text – Inkscape for Laser Cutting
    How to Create Connected Text – Inkscape for Laser Cutting
    03rd Sep, 2021

    Step 1: Create Some TextFirst, we need some text to work with. To create the text, select the Text Tool (keyboard shortcut: T), click somewhere on the canvas, and type your text.You can use the drop-down list on the top left to select your desired font.Step 2: Convert Text to PathNext, we need to tu

  • leave a message
  • *Your Name:

  • *Your Email:

  • *Product:

  • *Your Requirements:

  • Most Helpful Reviews

    Jacob from United States

    I am a beginner at CNC, I’ve never used a CNC machine before and with in a day I was carving. An awesome machine for a beginner to learn as hobbyists. I used the manual and the help video. One hour to assemble and test, very friendly and easy to use. It’s a good buy for the money. I would definitely recommend this machine to someone getting into CNCs.

    Weinstein from France

    I've been using CNC plasma SYP2060-300A and I am very impressed with this unit.

    This unit is of higher quality, made in China. Five stars all the way!

    Stone Engraving CNC Router from 🇪🇸 Javier García | Spain

    We produce customized stone plaques, decorative lettering, and engraved architectural details.

    The CNC machine is useful for turning digital artwork into physical engravings, especially when a project involves multiple lines of text or repeated patterns.

    We consider the machine a practical investment for expanding our services. Before starting each job, our operators check the stone dimensions, tooling requirements, and program settings to ensure the machining process matches the material and design.

    3-in-1 Laser Welding Machine from 🇩🇪 Felix Müller | Germany



    Our metalworking business produces customized stainless steel products and light fabrication components.

    We were interested in a multifunction laser system that could support suitable welding tasks and other compatible processing functions.

    The actual capabilities depend on the machine configuration and accessories supplied. We appreciate being able to discuss technical specifications before choosing equipment, especially when considering different materials and production requirements.

    Marble CNC Router from 🇺🇸 William Harris | United States

    Our stone workshop produces customized marble signs, engraved lettering, and decorative stone panels for residential and commercial projects.

    We needed a CNC machine capable of following digital designs when engraving text and decorative patterns into stone.

    The machine provides a practical solution for these applications when configured with suitable tools and cutting parameters.

    It has expanded the range of customized work we can consider, particularly projects requiring consistent lettering and carefully positioned decorative elements.

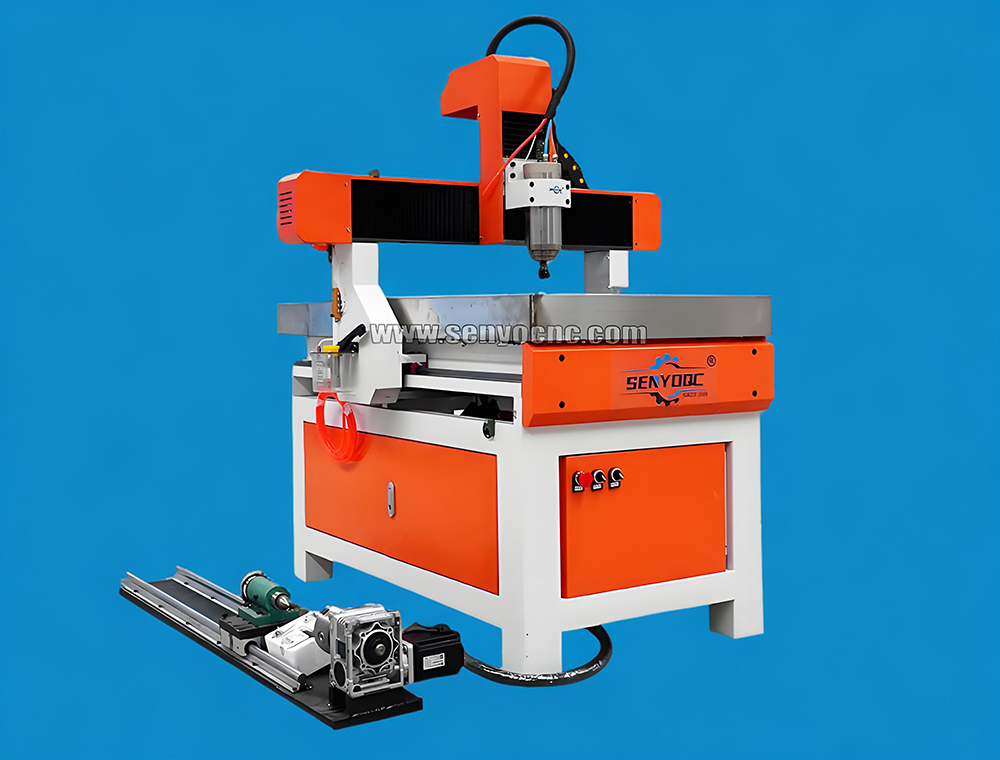

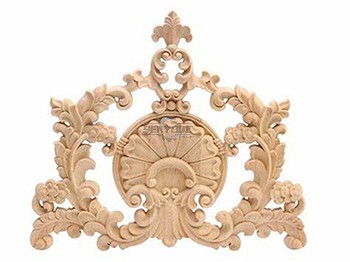

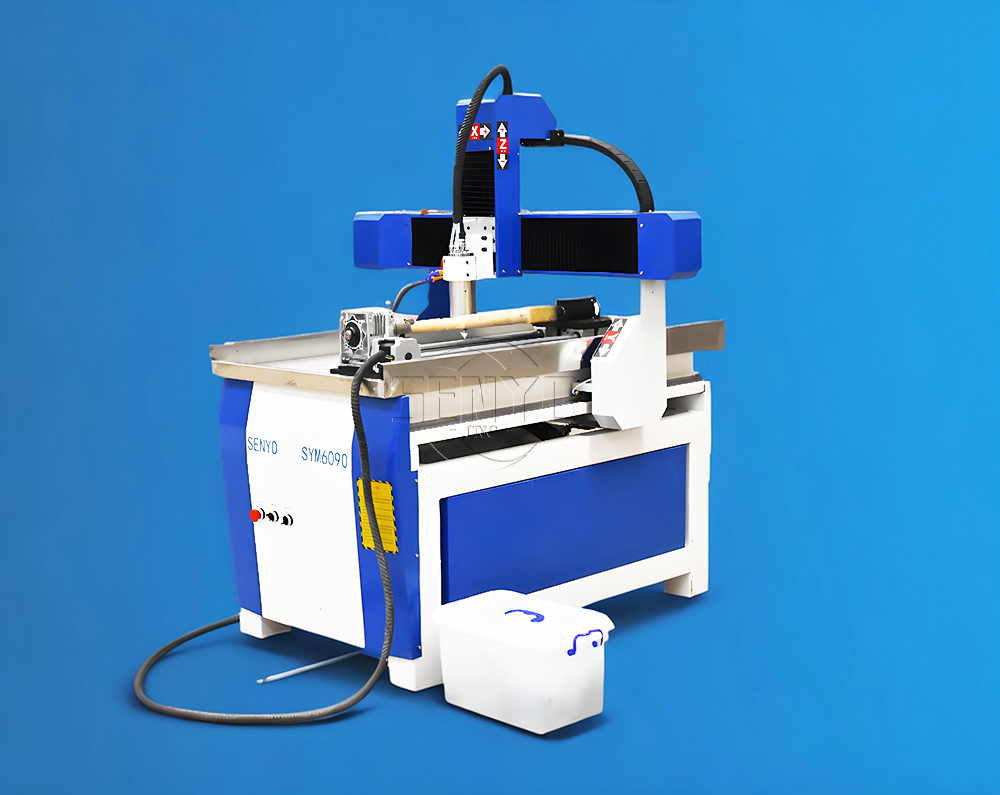

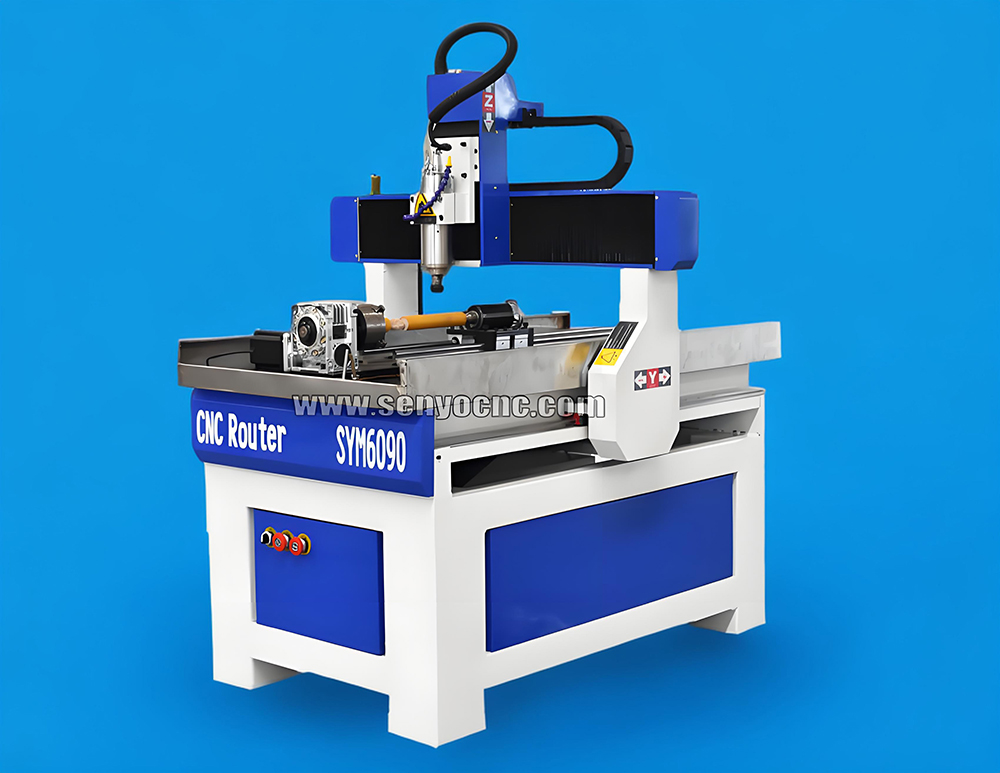

    4-Axis CNC Router from 🇮🇹 Marco Rossi | Italy

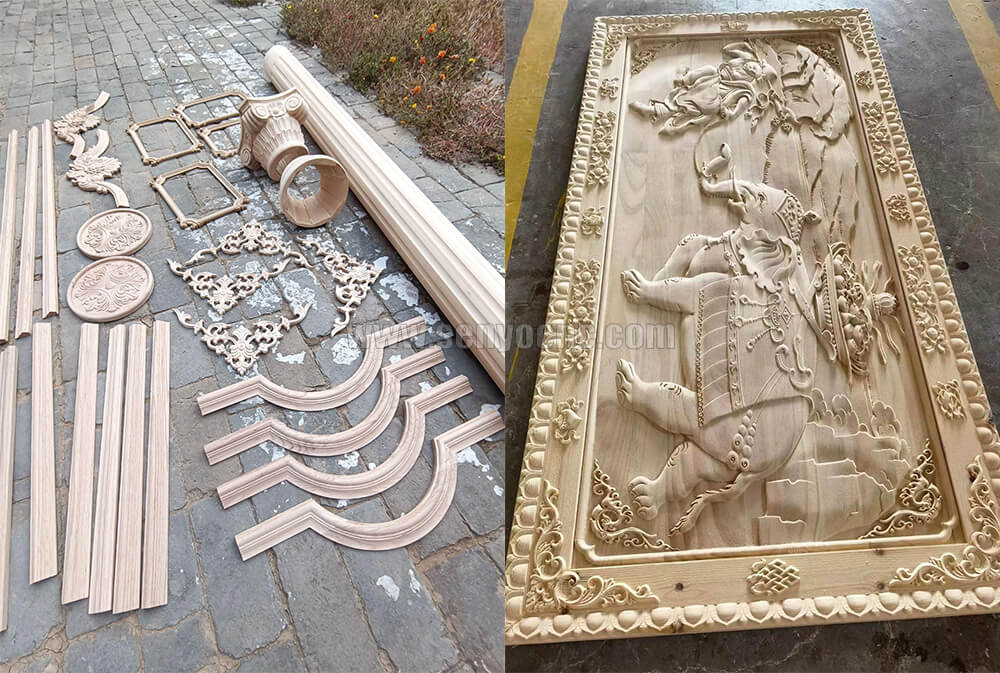

    Our company produces customized wooden components with curved surfaces and decorative details.

    We selected a four-axis CNC router because some projects require machining from different angles rather than working only on flat surfaces.

    The machine gives us additional possibilities for creating three-dimensional shapes and more complicated designs. It has helped us explore new product ideas and take on machining tasks that are difficult to complete efficiently using conventional woodworking equipment alone.

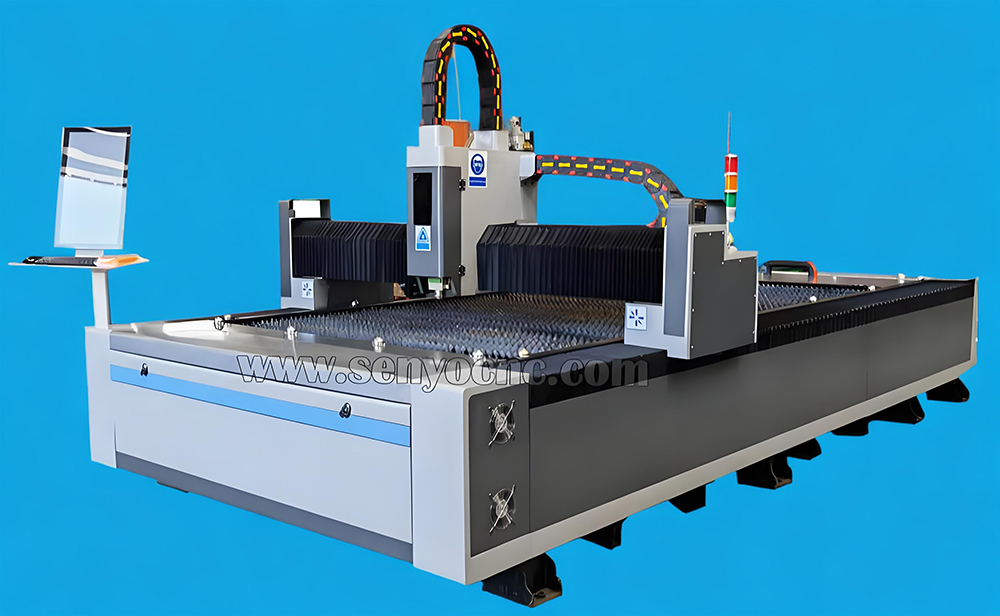

    Fiber Laser Cutting Machine SYJ1530-30000W from 🇦🇪 Omar Hassan | United Arab Emirates

    Our fabrication business supplies metal components for commercial interiors, equipment enclosures, and customized industrial projects.

    Different orders require different shapes, hole patterns, and dimensions, making digital cutting an important capability.

    A fiber laser cutting machine can support these tasks when configured for the materials we process. We value the opportunity to prepare cutting layouts from digital drawings and organize repeat orders more systematically.

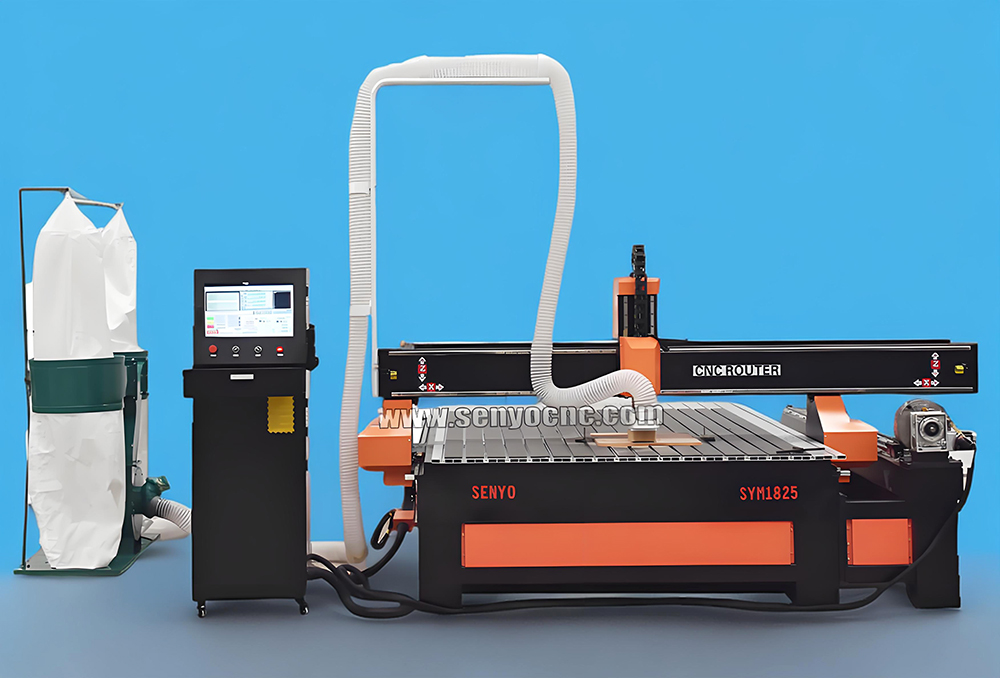

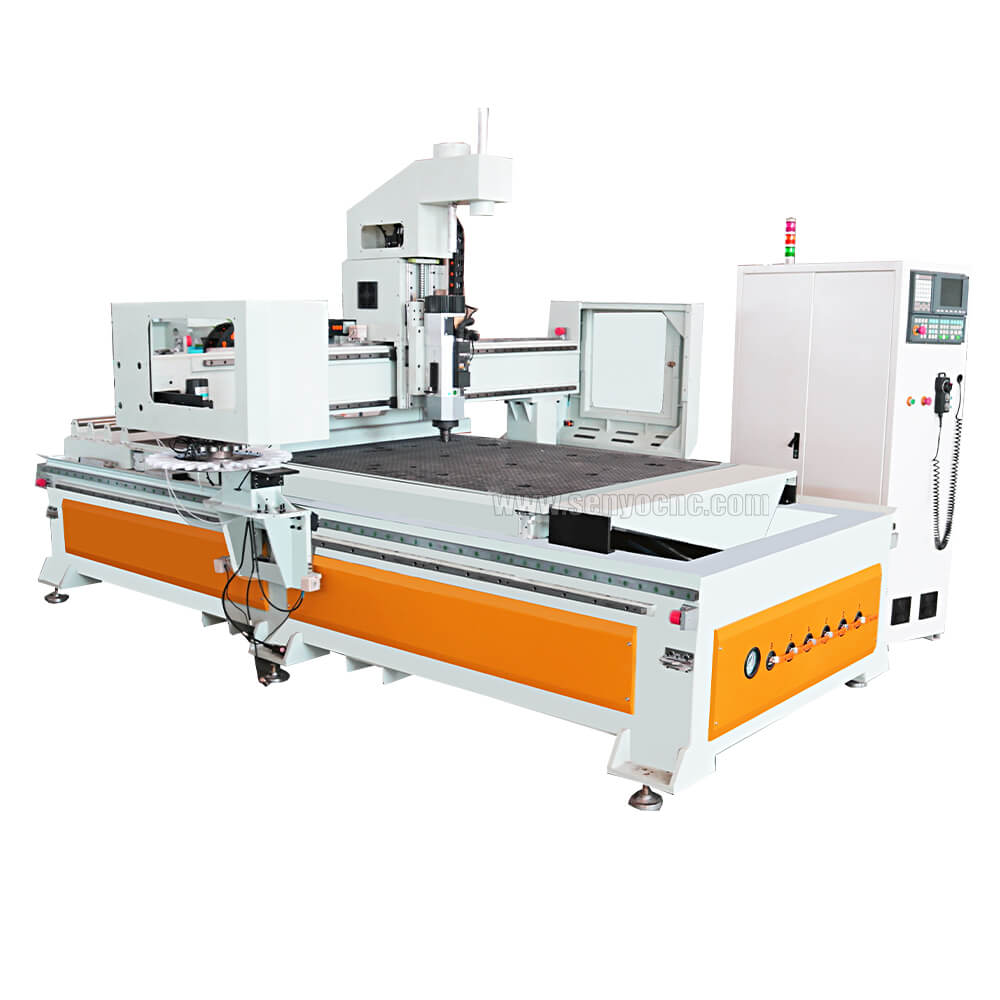

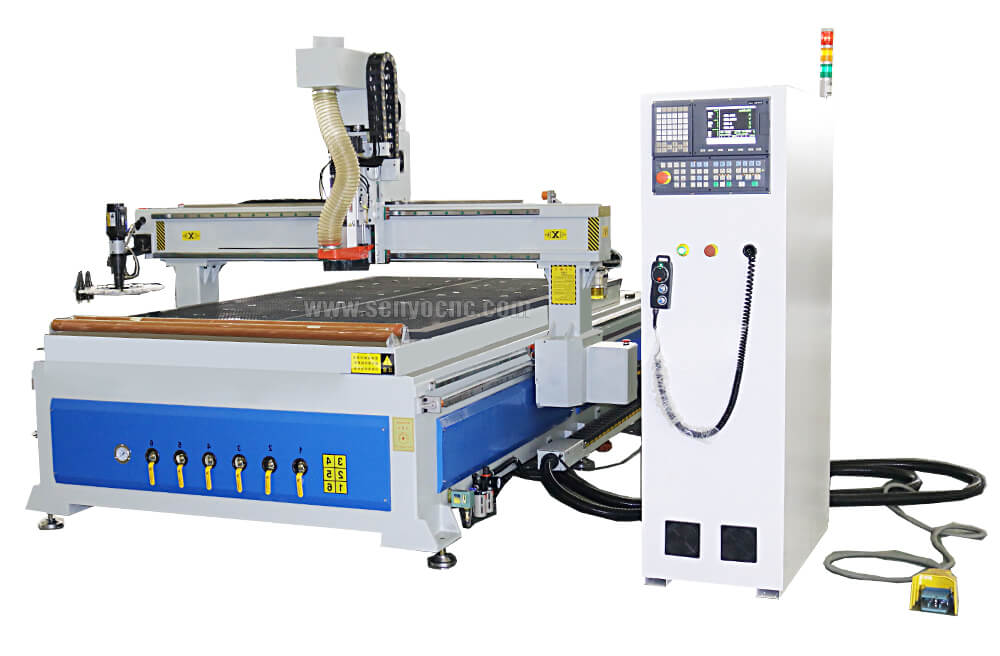

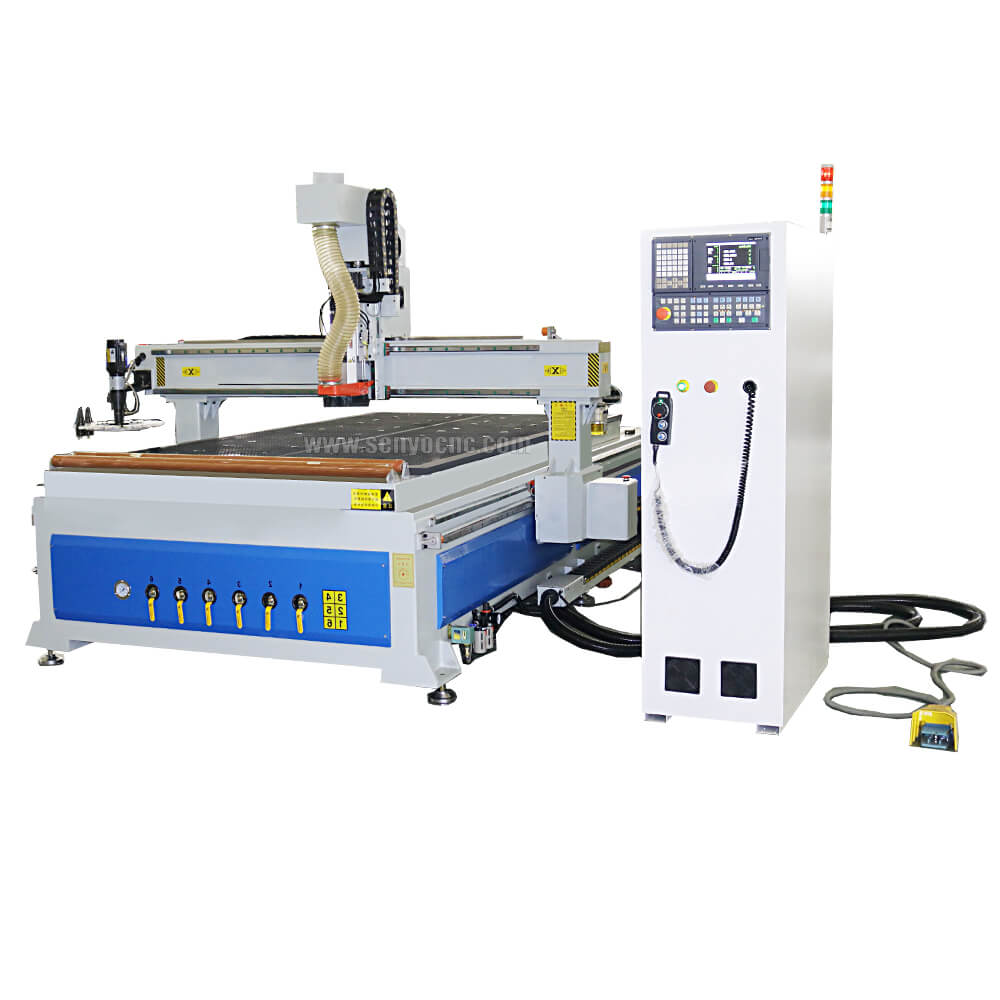

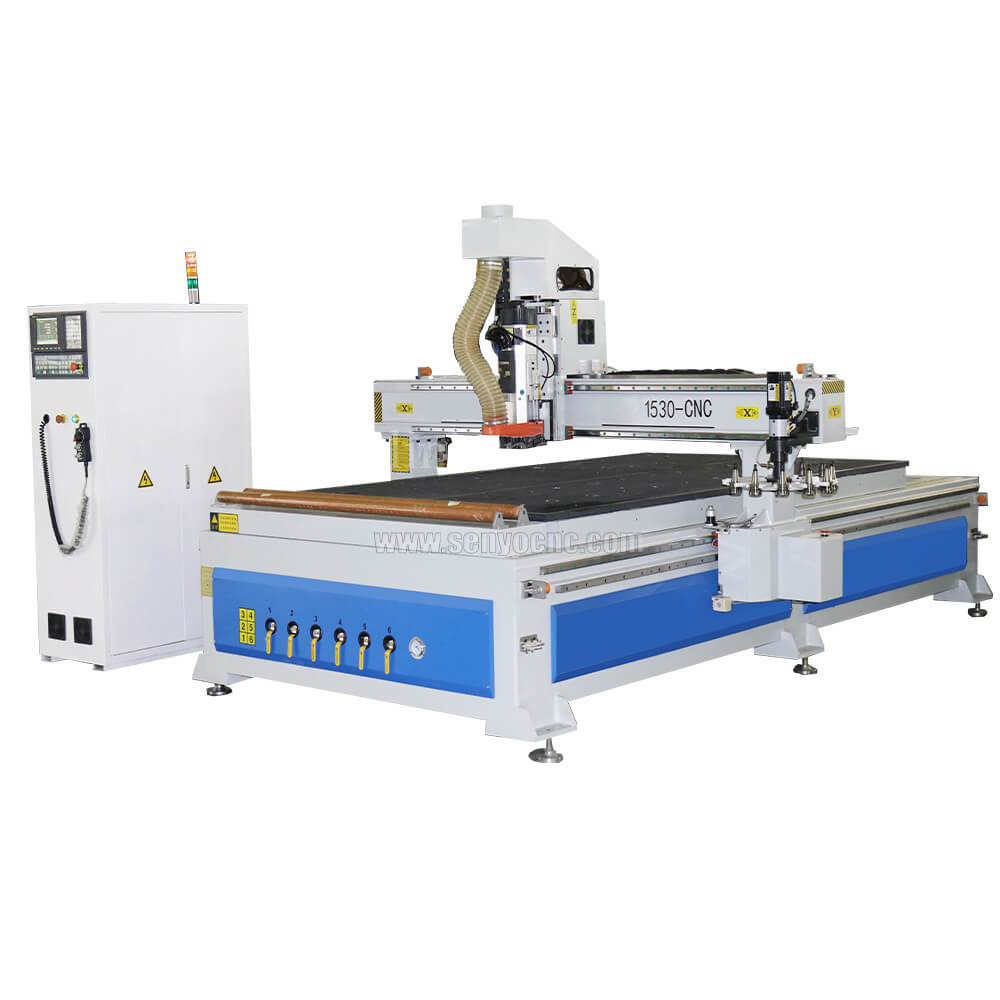

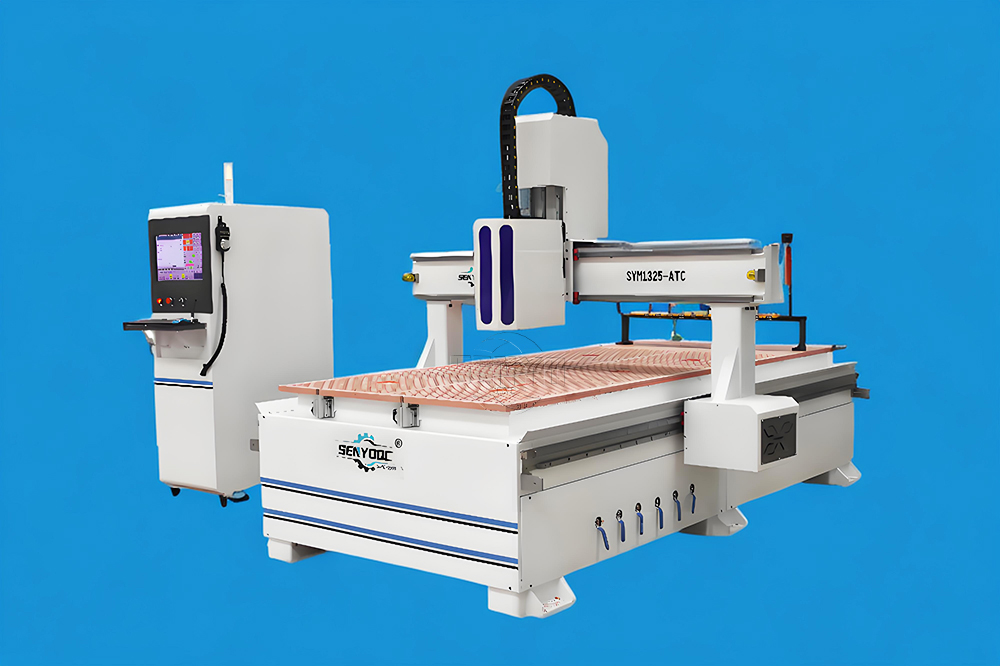

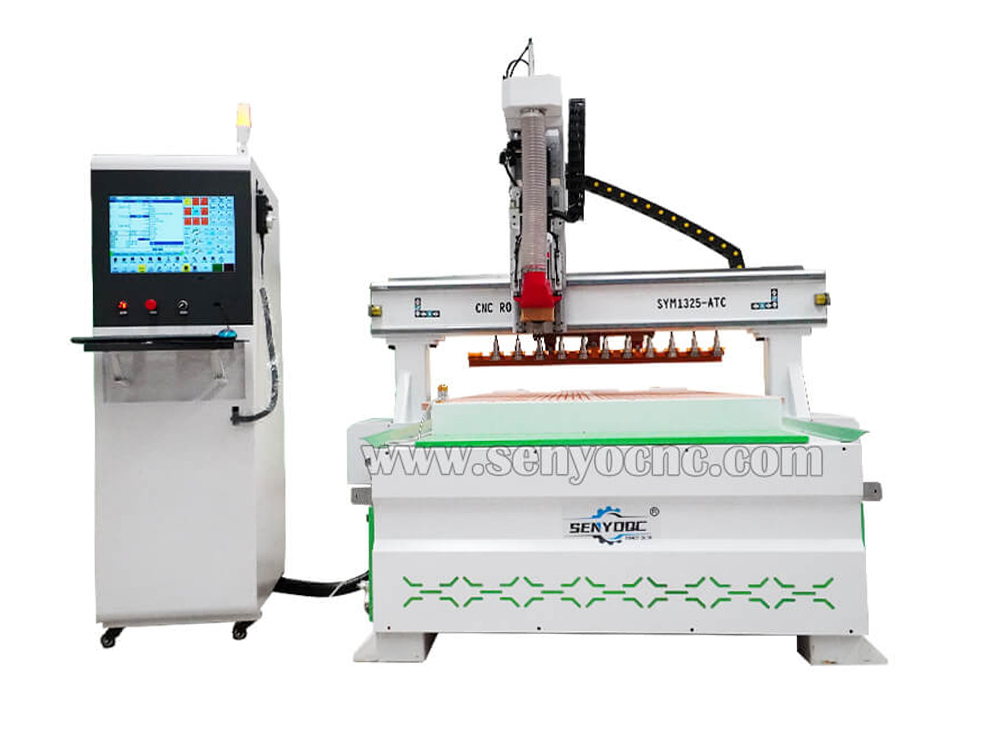

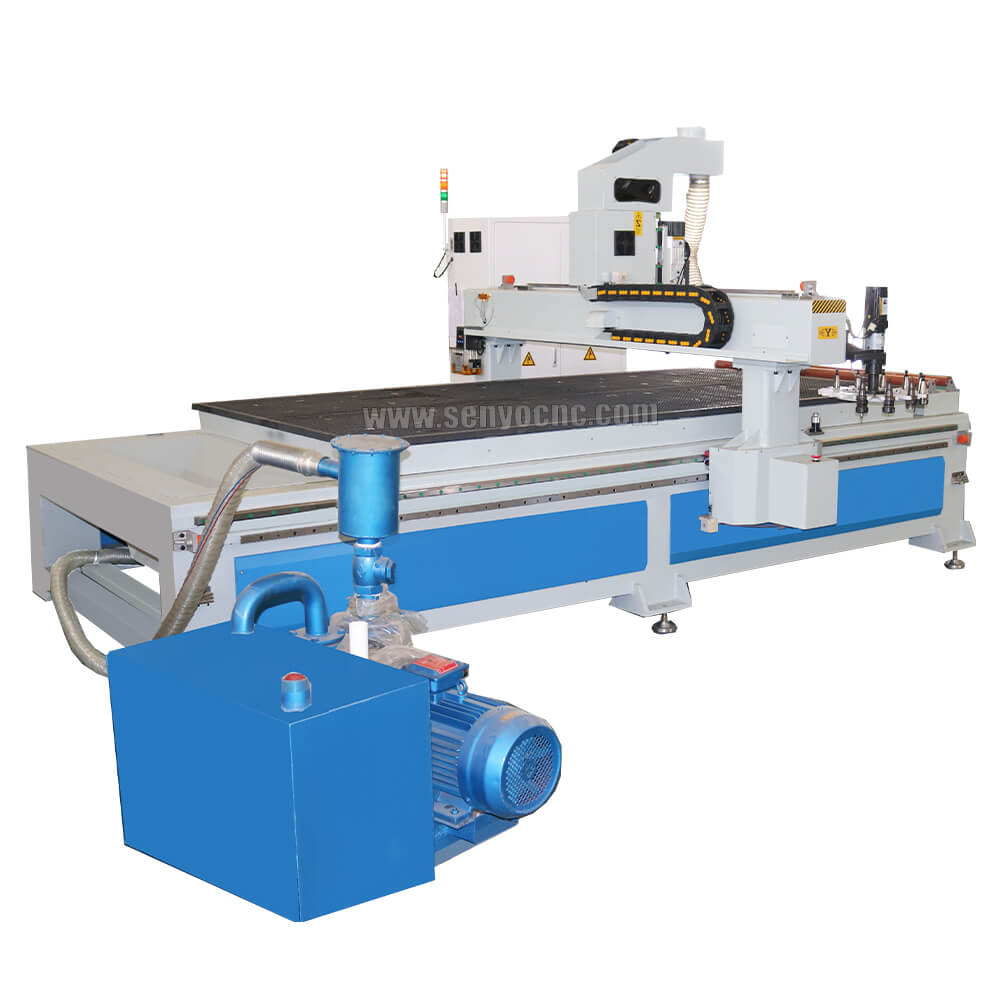

    ATC CNC Router with Vacuum Table from 🇨🇦 Daniel Brown | Canada

    We manufacture cabinet doors and furniture panels from sheet materials, so holding large workpieces securely is important.

    A vacuum table can help keep suitable panels in position during machining when the material and setup are appropriate.

    Combined with automatic tool changing, the CNC router supports jobs involving several cutting and engraving operations.

    We appreciate having a machine that can accommodate different production requirements although we always confirm workholding conditions before processing a new material.

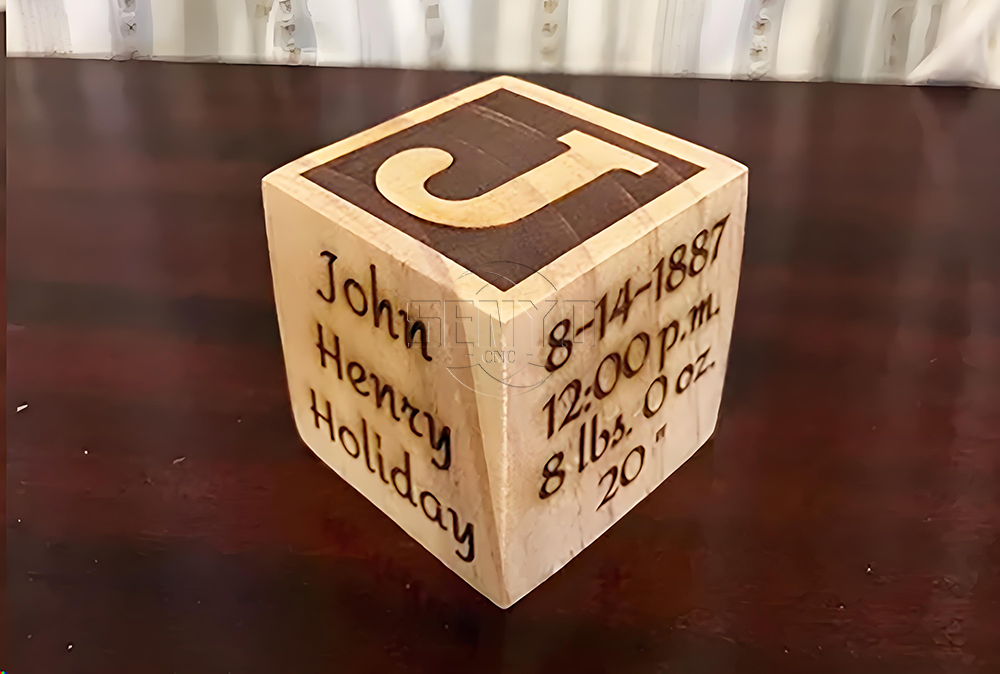

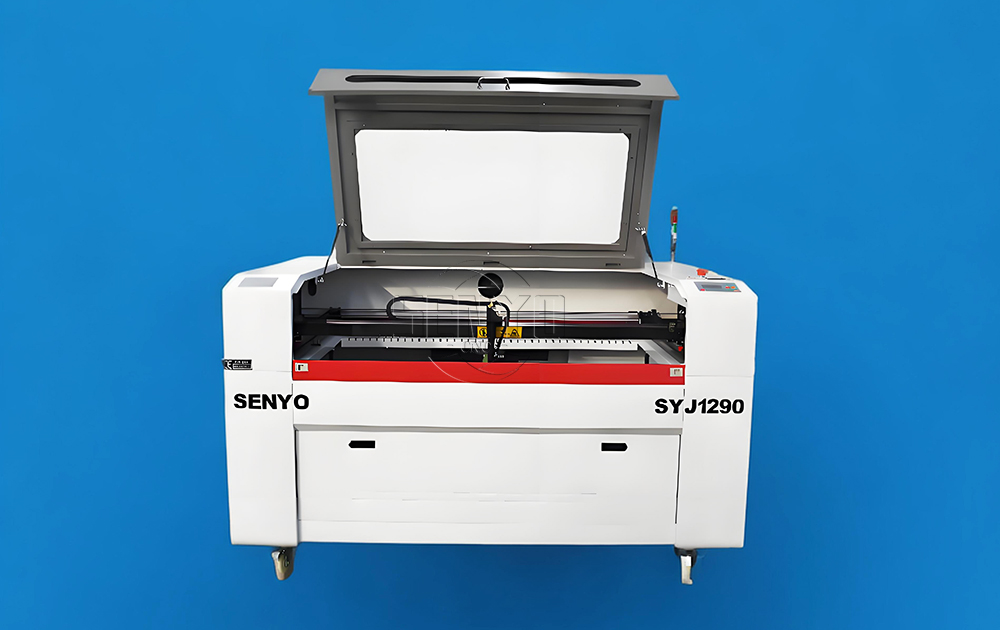

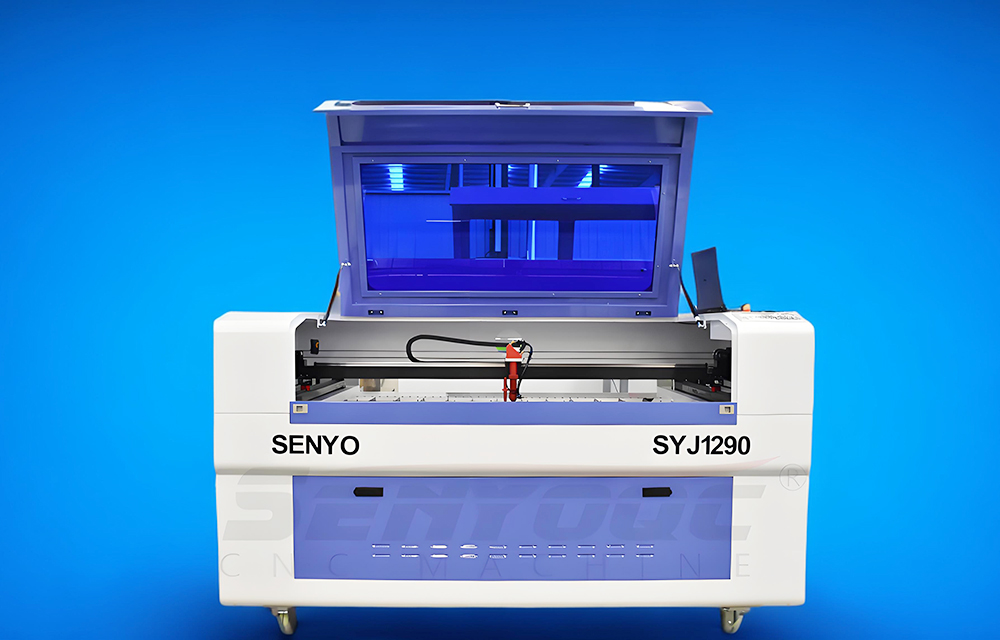

    CO₂ Laser Engraver SYJ1290 from 🇬🇧 Oliver White | United Kingdom

    We sell personalized gifts, wooden keepsakes, and engraved decorative products through our online store.

     Many orders require customer names, dates, logos, or small illustrations to be added to the finished product. A CO₂ laser engraver is useful for these customized jobs because it can process suitable designs from digital files.

    The machine allows us to consider a broader range of personalized products and organize our work around repeatable settings for similar materials.

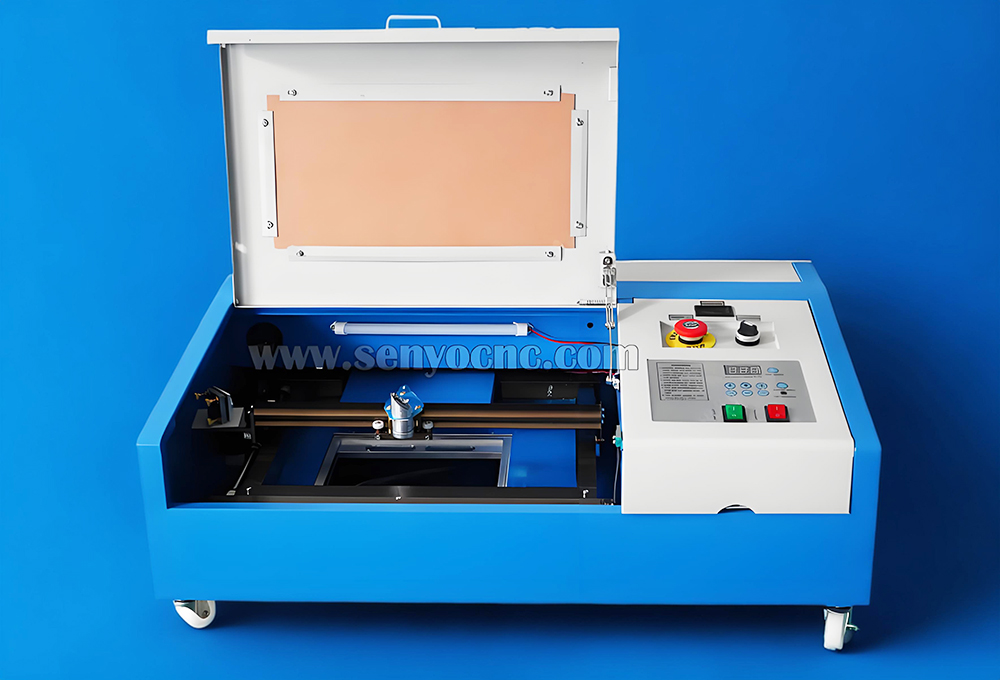

    CO₂ Laser Engraver from 🇬🇧 Oliver White | United Kingdom

    We sell personalized gifts, wooden keepsakes, and engraved decorative products through our online store.

    Many orders require customer names, dates, logos, or small illustrations to be added to the finished product.

     A CO₂ laser engraver is useful for these customized jobs because it can process suitable designs from digital files.

    The machine allows us to consider a broader range of personalized products and organize our work around repeatable settings for similar materials.

    manager@senyocnc.com SENYOCNC +86 1525 3141 880 +86 1525 3141 880 2061579344
