Automatic tool changer (ATC) CNC Router machine is suitable for the processing of various complex products or a variety of processing.
It can be equipped with12 tools according to the different production process requirements of customers.
There are two tool change modes for inline tool change and disc tool change.
Widely used, including engraving, milling, chamfering, side milling, drilling, cutting, grooving, etc.
Machine
adopts Taiwan SYNTEC/LNC control system, high-performance industrial
control system

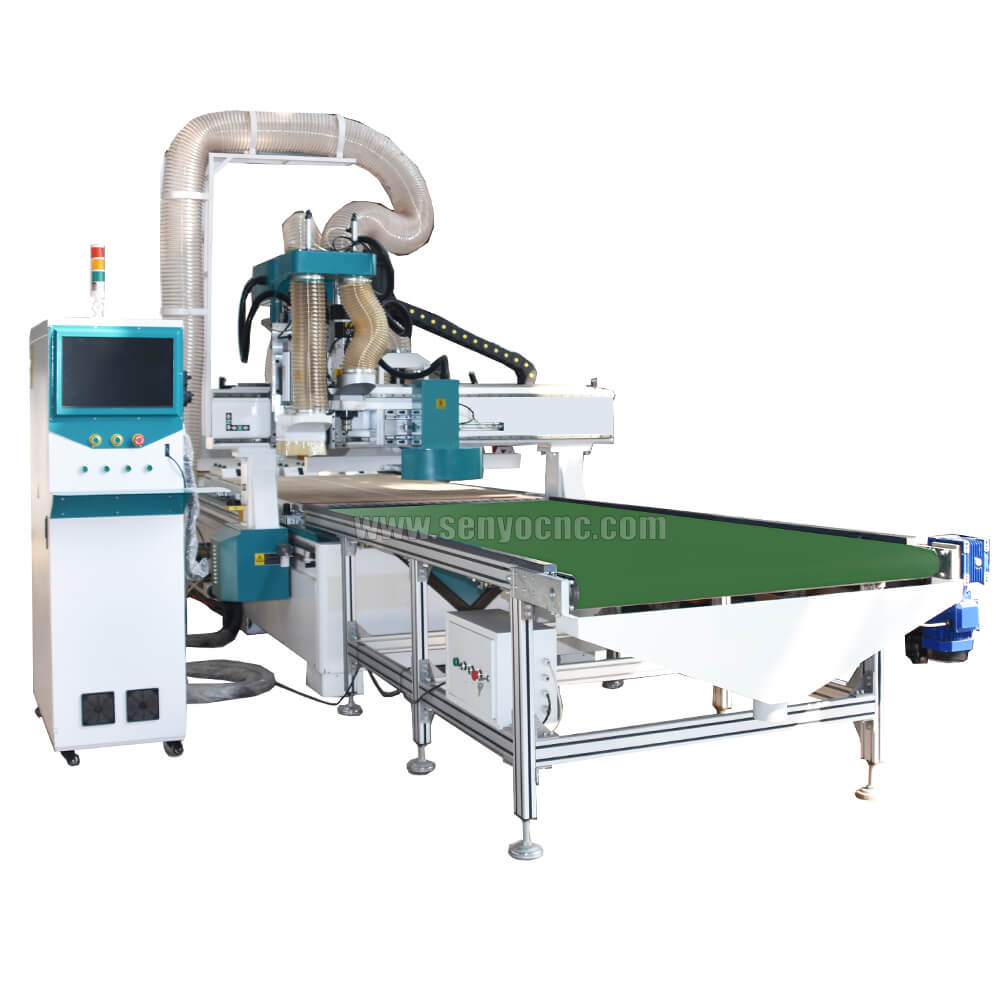

Machine with A2 Structure , Model SYM1325D2A2U
Machine color optional
Which has the excellent and stable quality, good maintenance and can control to process the completion of the multi-level 3D sculpture
With fast and smooth three-dimensional processing, carving and cutting.
Stable Structure: the overall steel structure welded, the vibration (tempering) aging treatment, long-term use of no deformation.

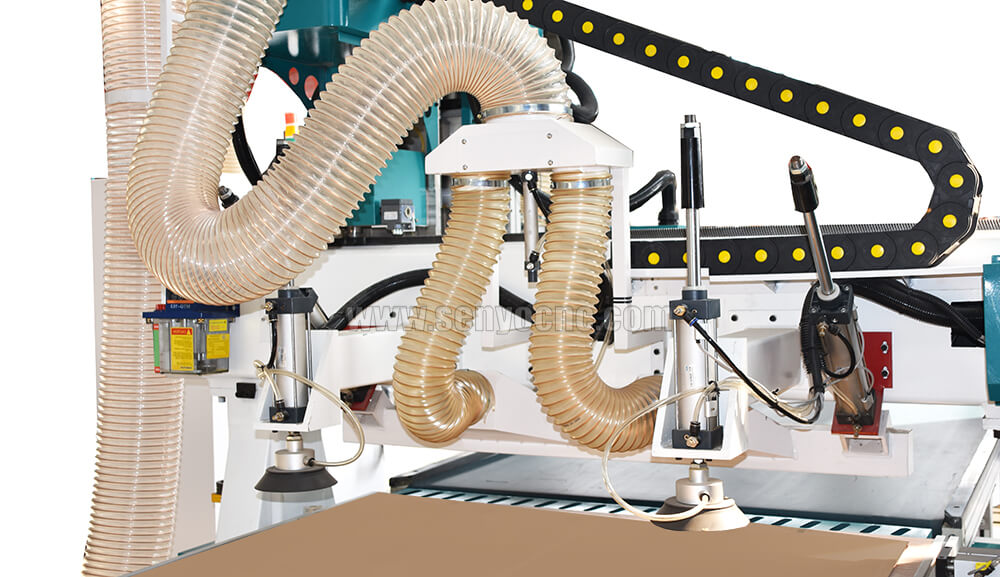

Machine Parts Detials

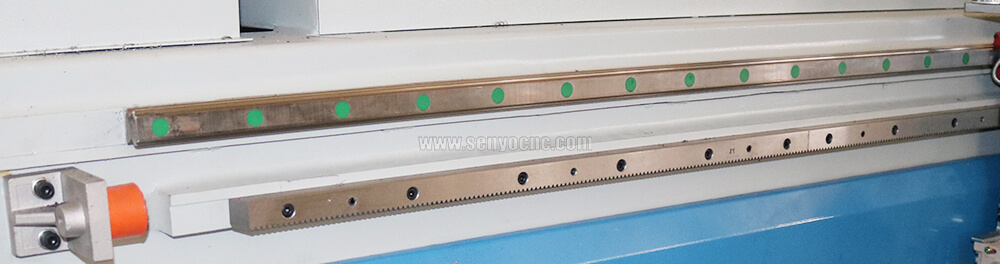

The linear guide rail adopts Taiwan Hiwin 25mm linear square orbit, double row and four-ball slider,
Loading capacity, smooth running, keeping
high accuracy.
The
machine worktable adopts the international leader vacuum technology,
surface density, deformation
High adsorption capacity, which can strongly absorb different materials, convenient maintenance. au-tomatic lubrication
Adopt Taiwan HIWIN imported linear guide rail, make sure the machine square the accuracy and can withstand large load
Mechanical and electrical design, selection of straight-a excellent brand electrical accessories,will failure rate to a minimum.

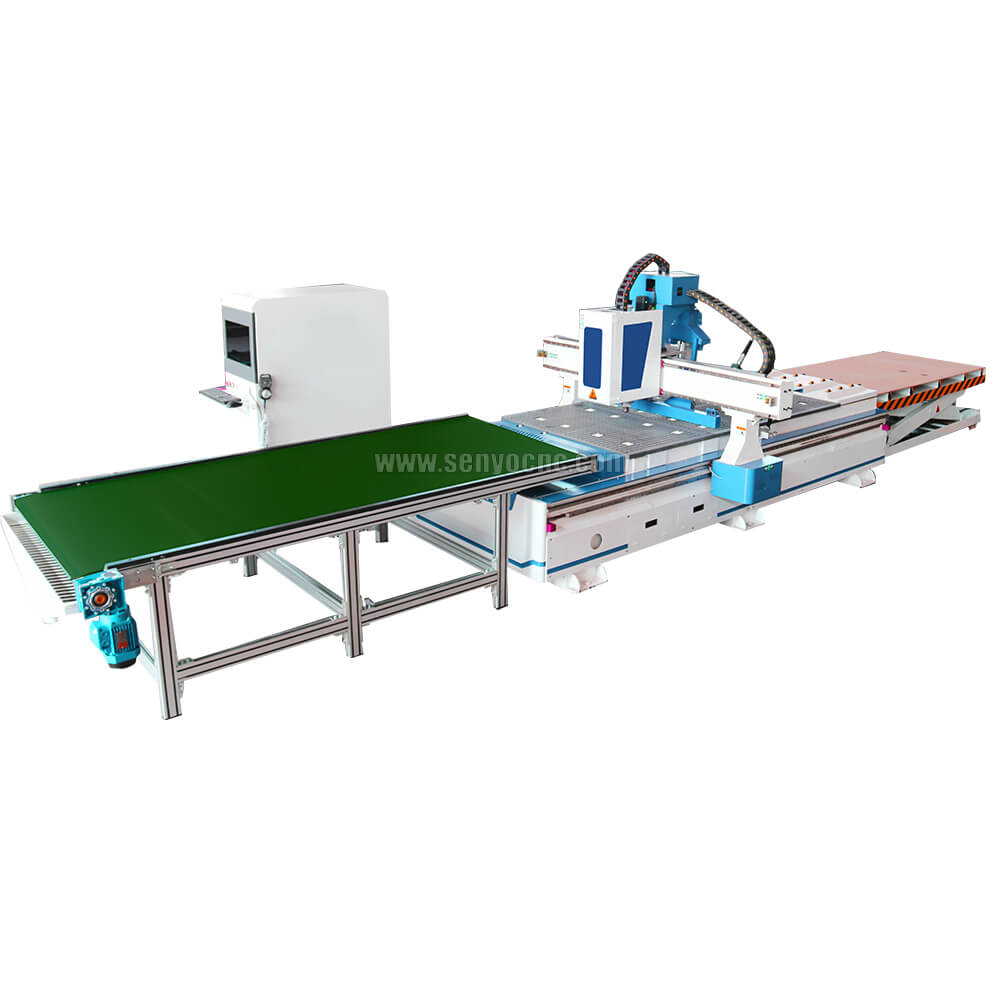

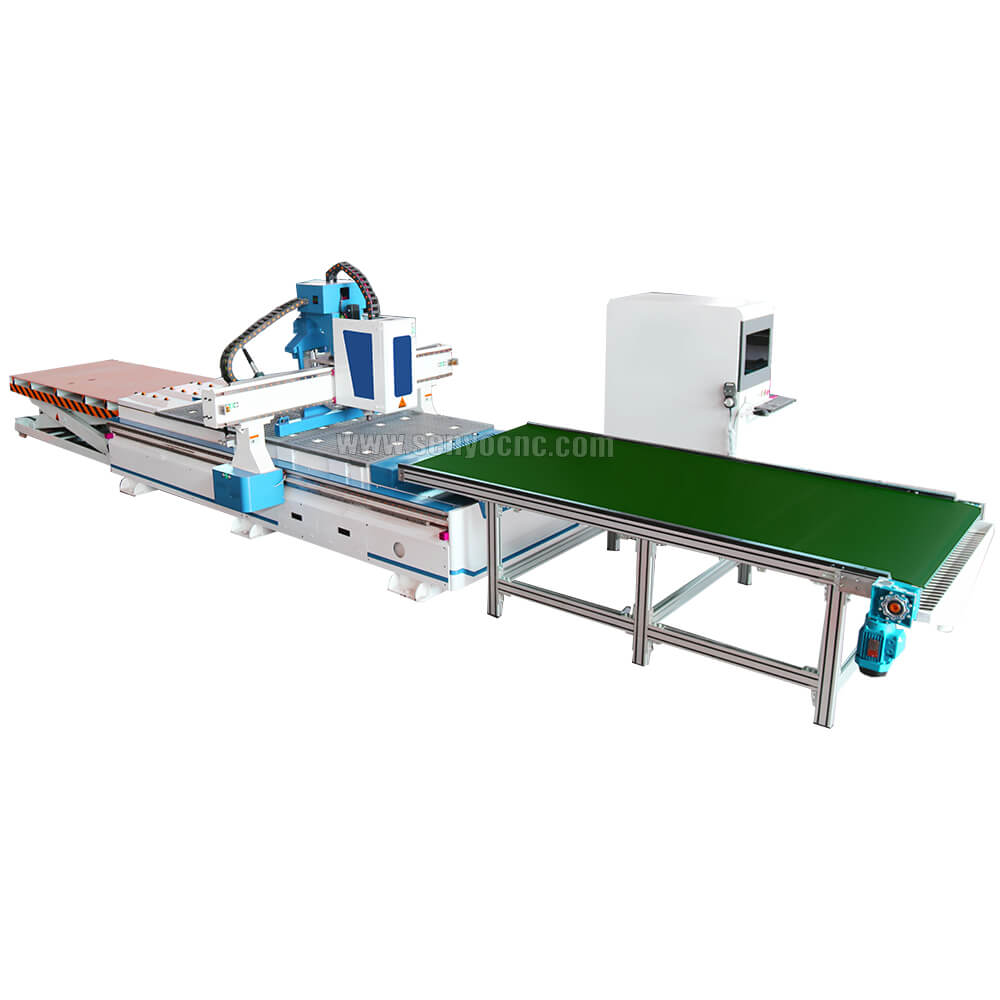

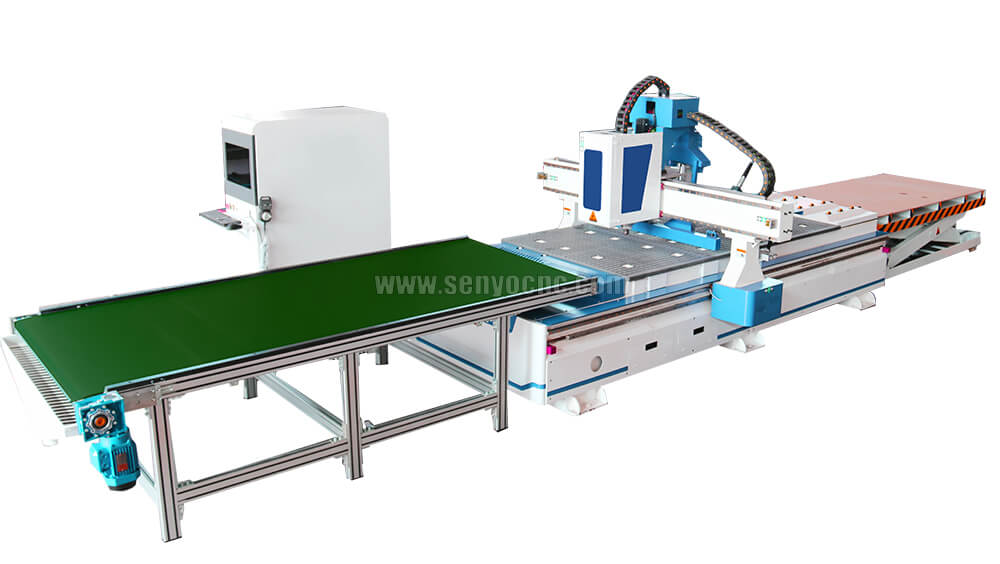

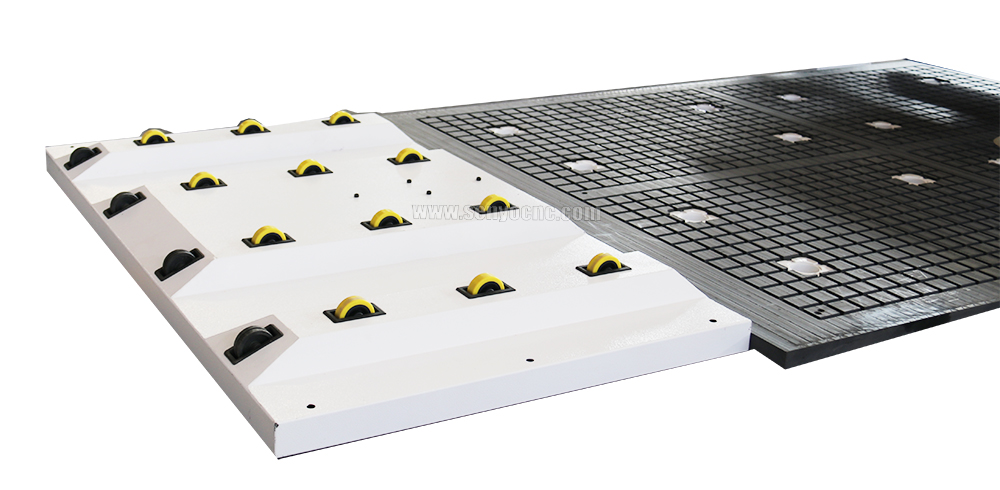

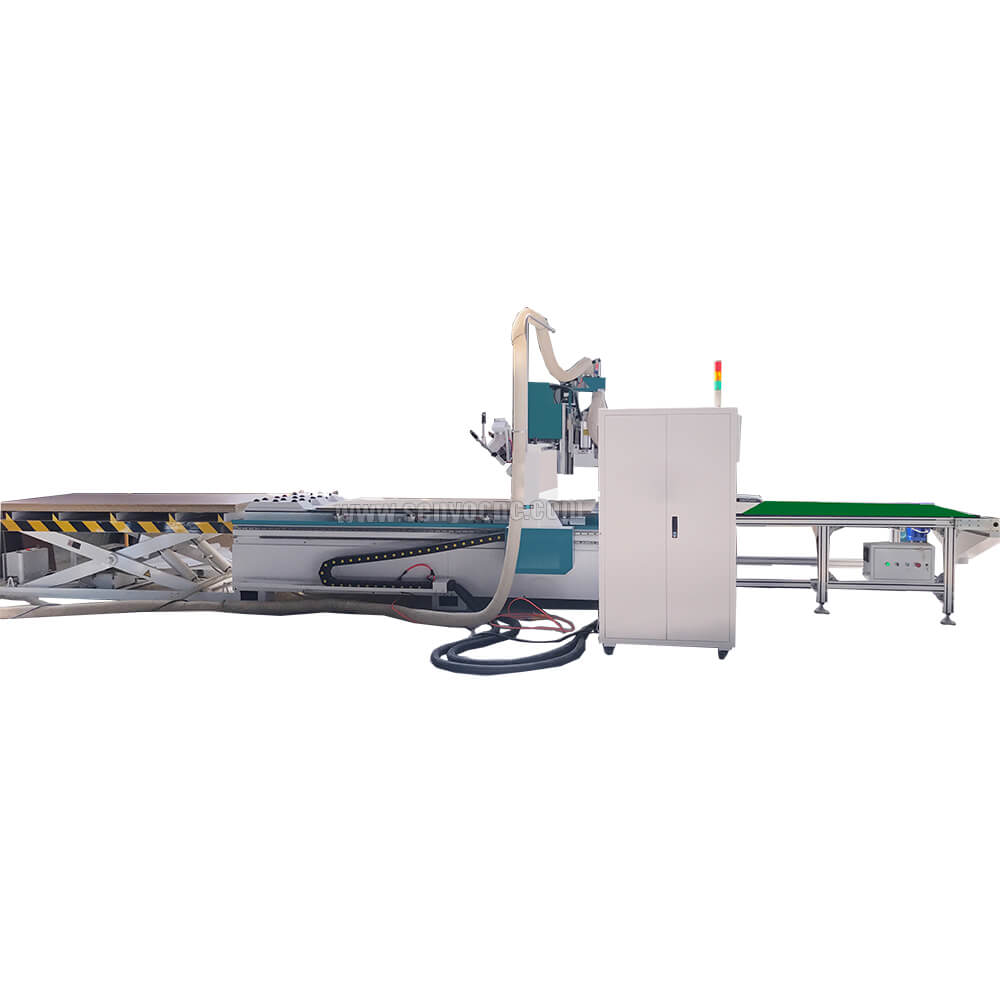

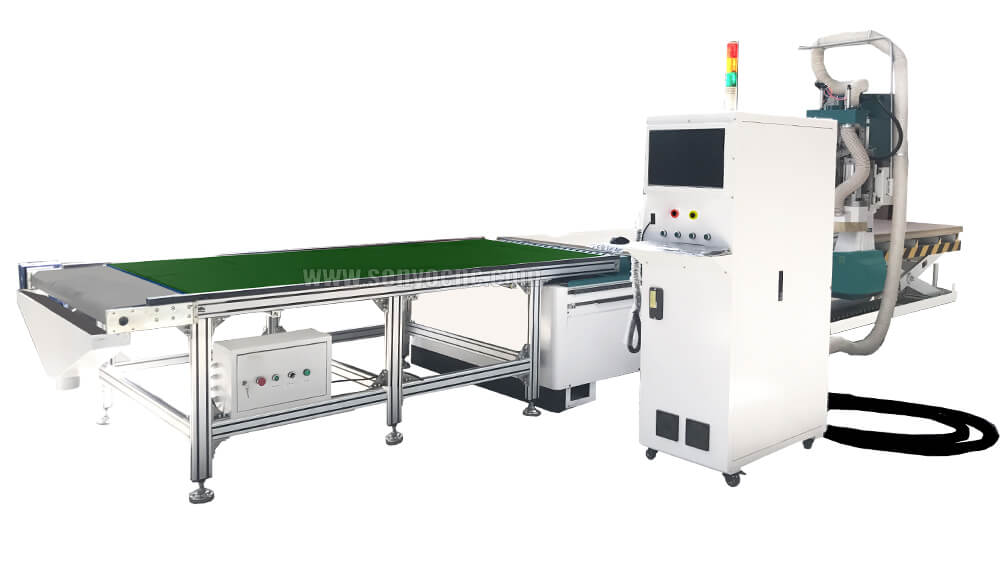

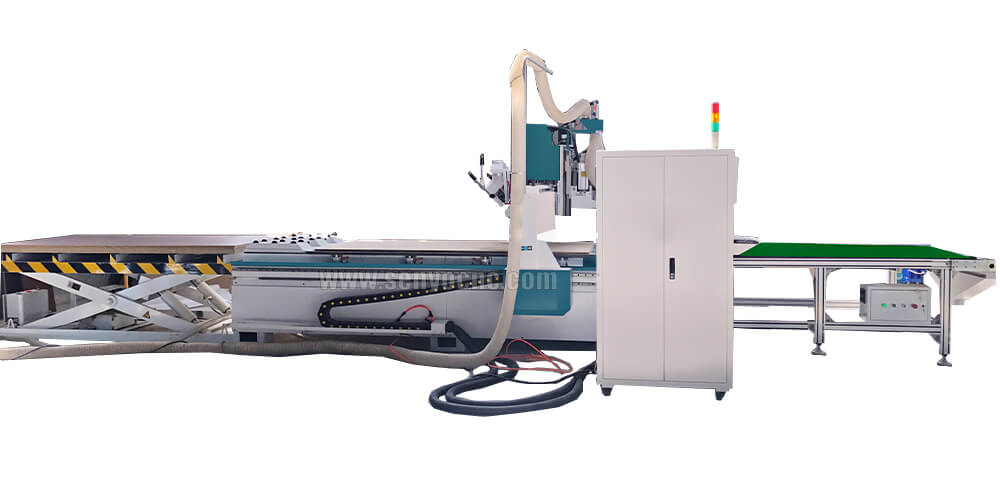

Machine with uploading worktable
Only need to hand gently press can achieve the whole
machine maintenance.
The software compatibility: compatible type3/Castmate/Artcam/ Wentai/Mastercame and other design software.
High accuracy, long service time, steady movement

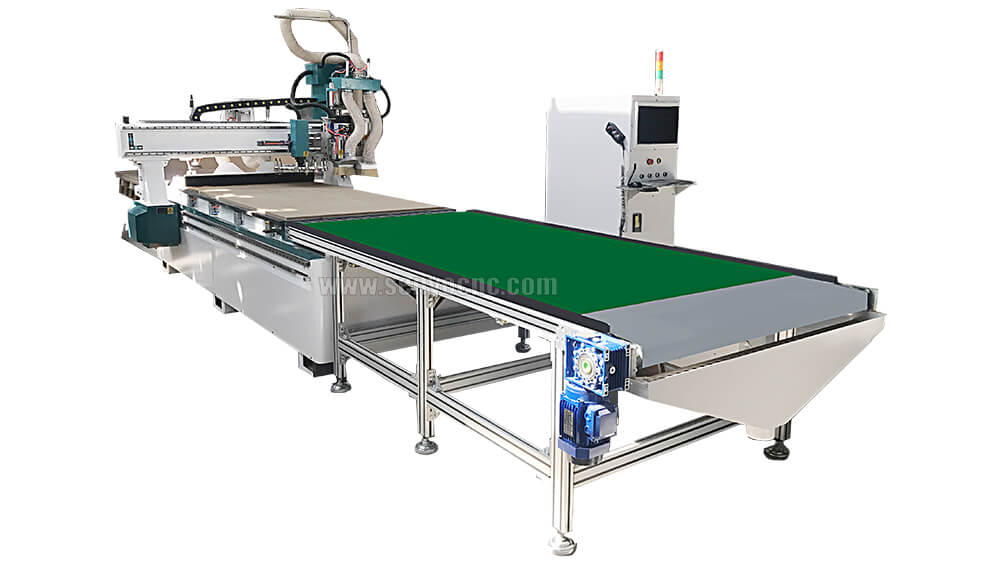

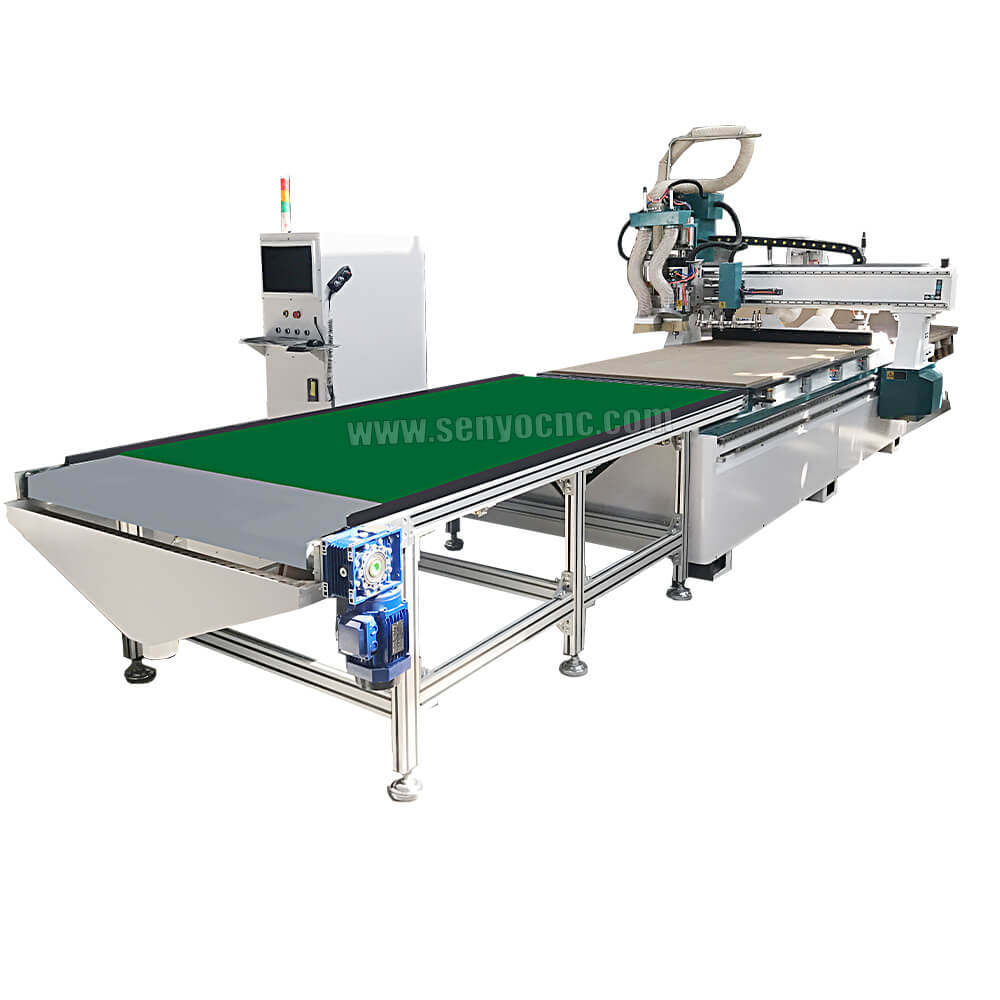

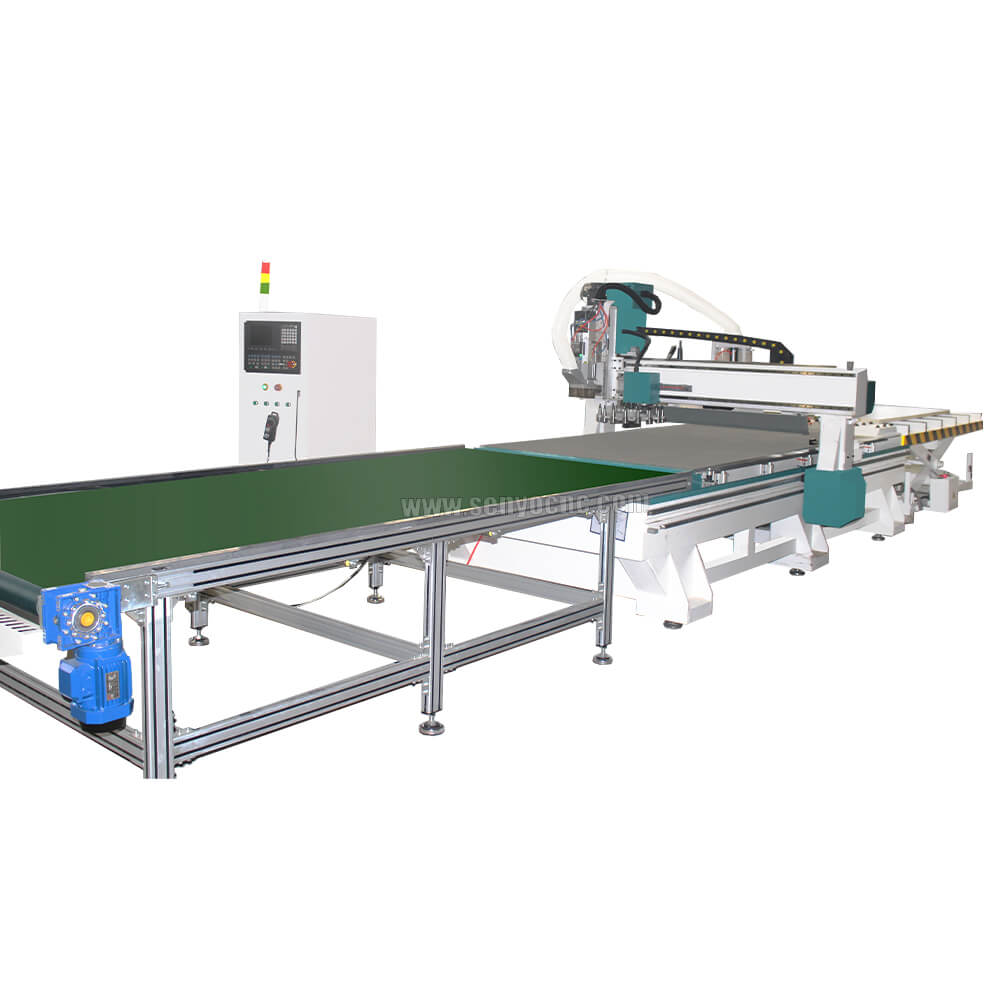

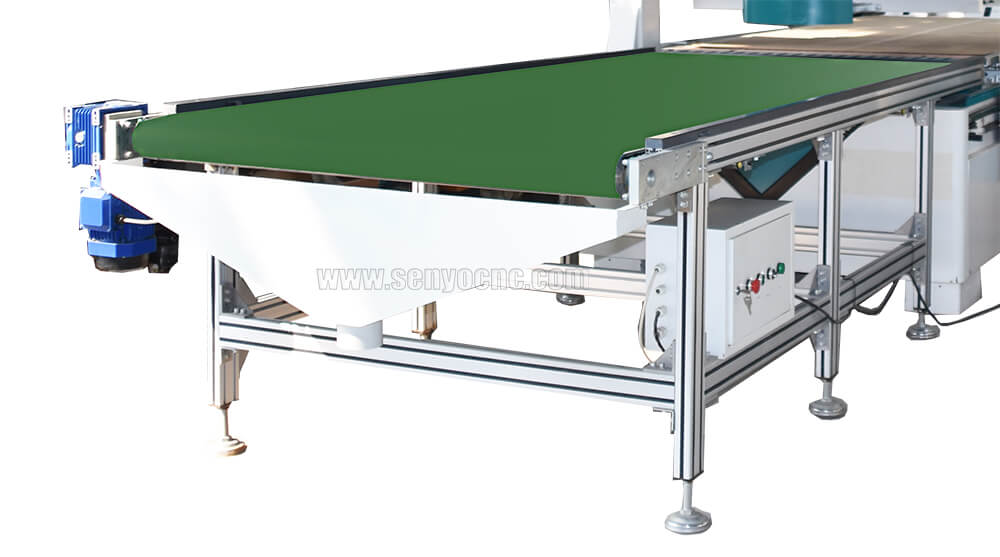

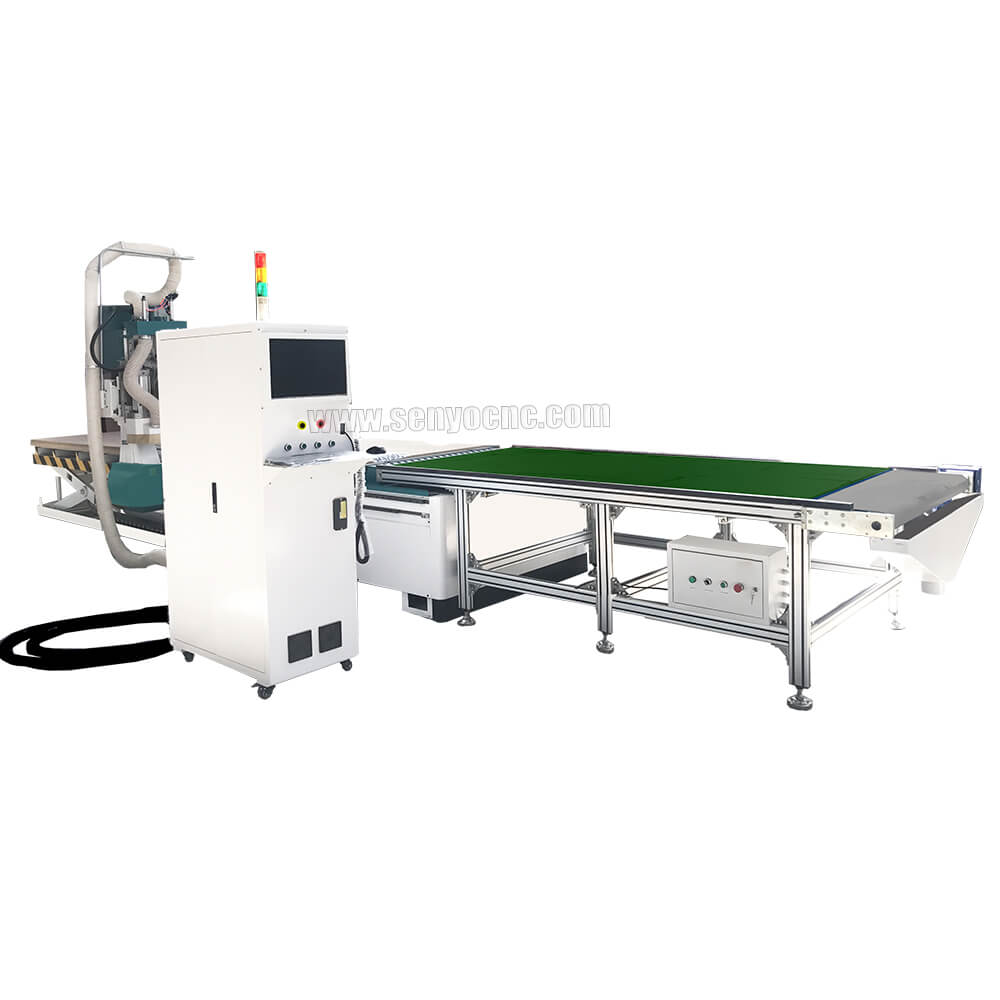

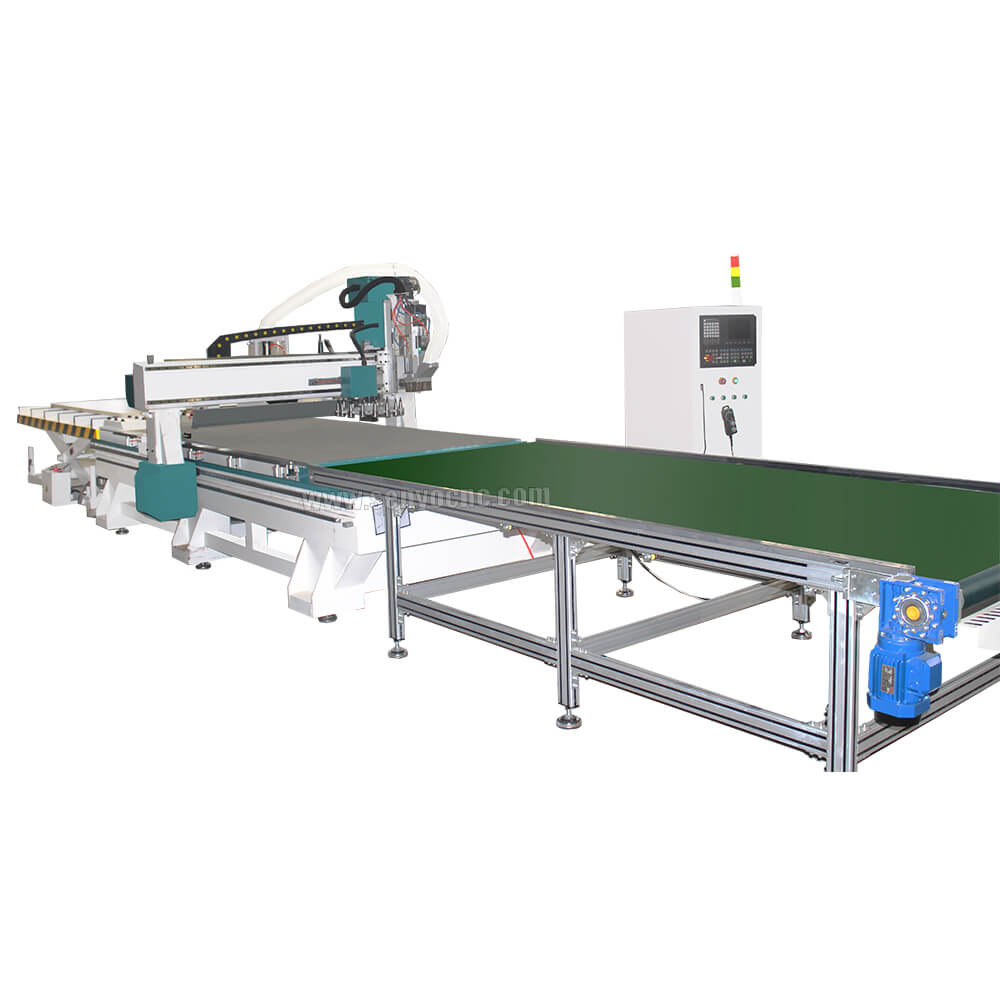

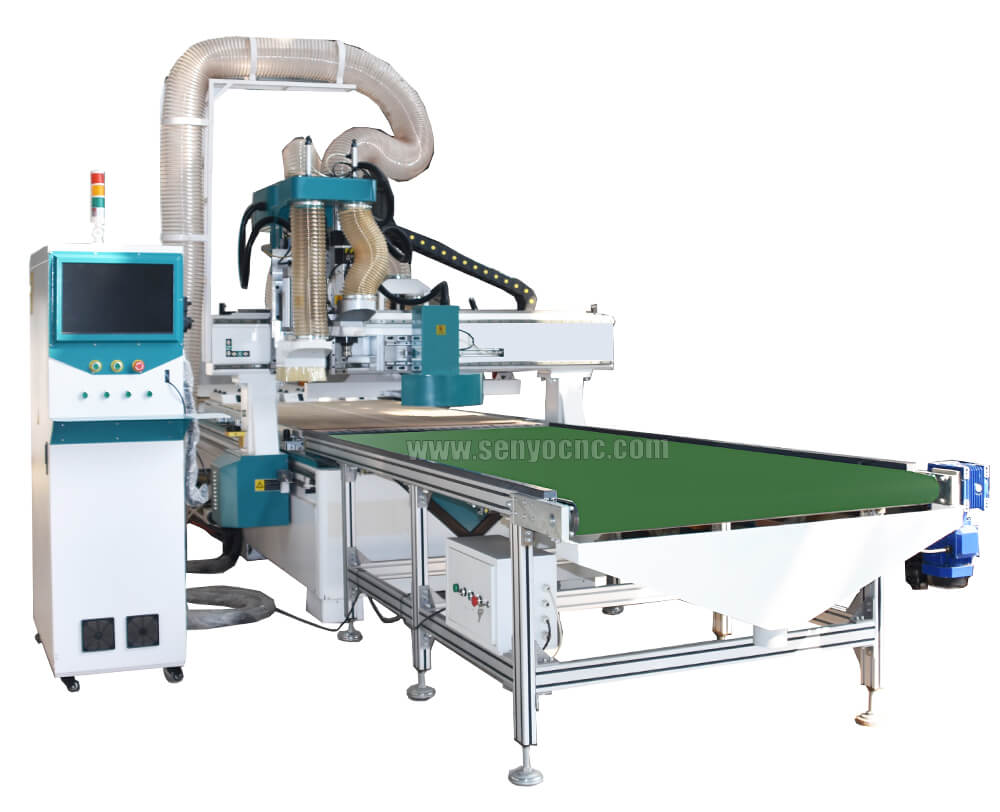

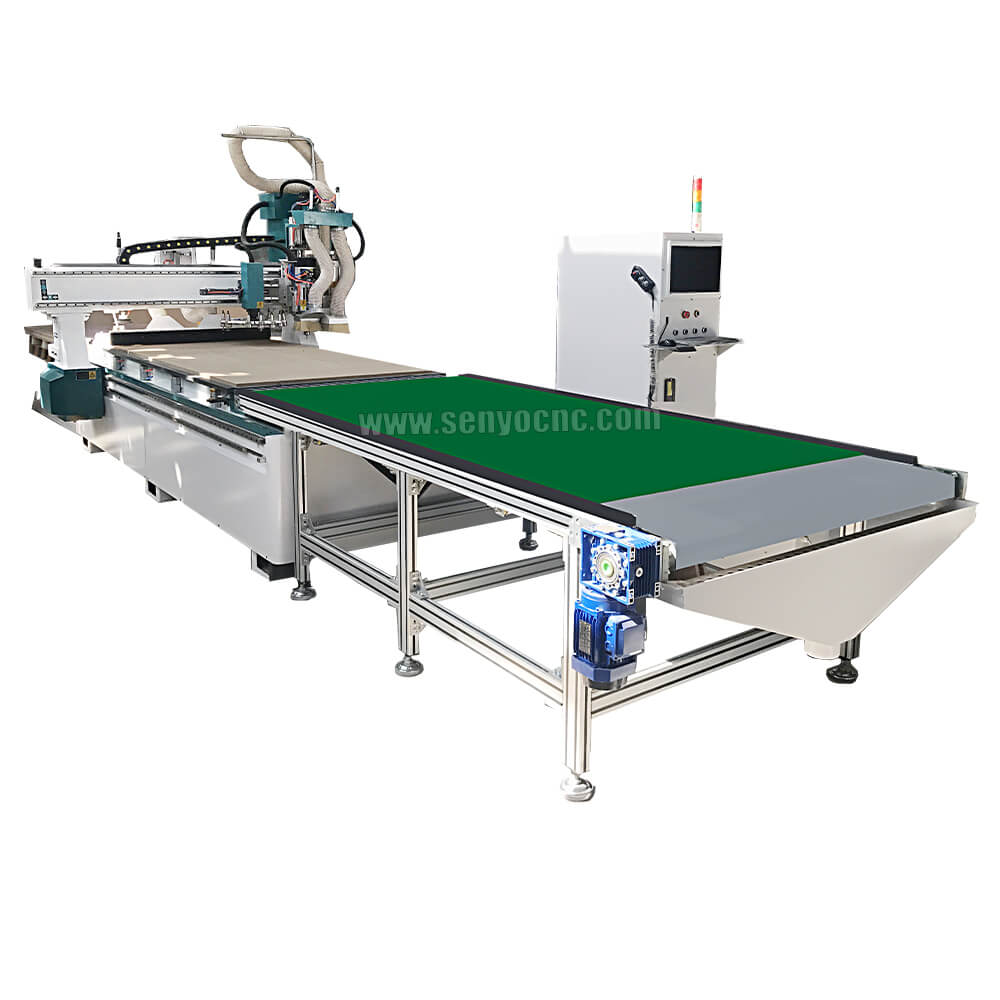

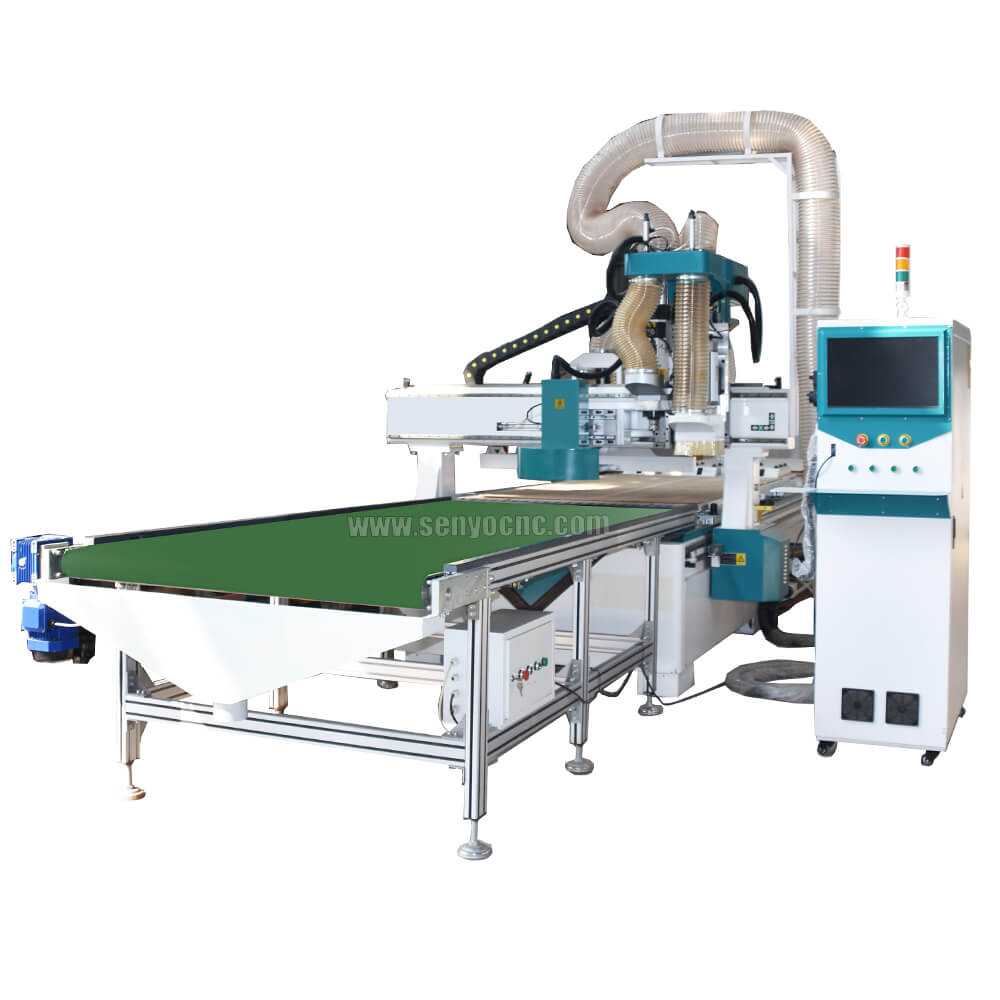

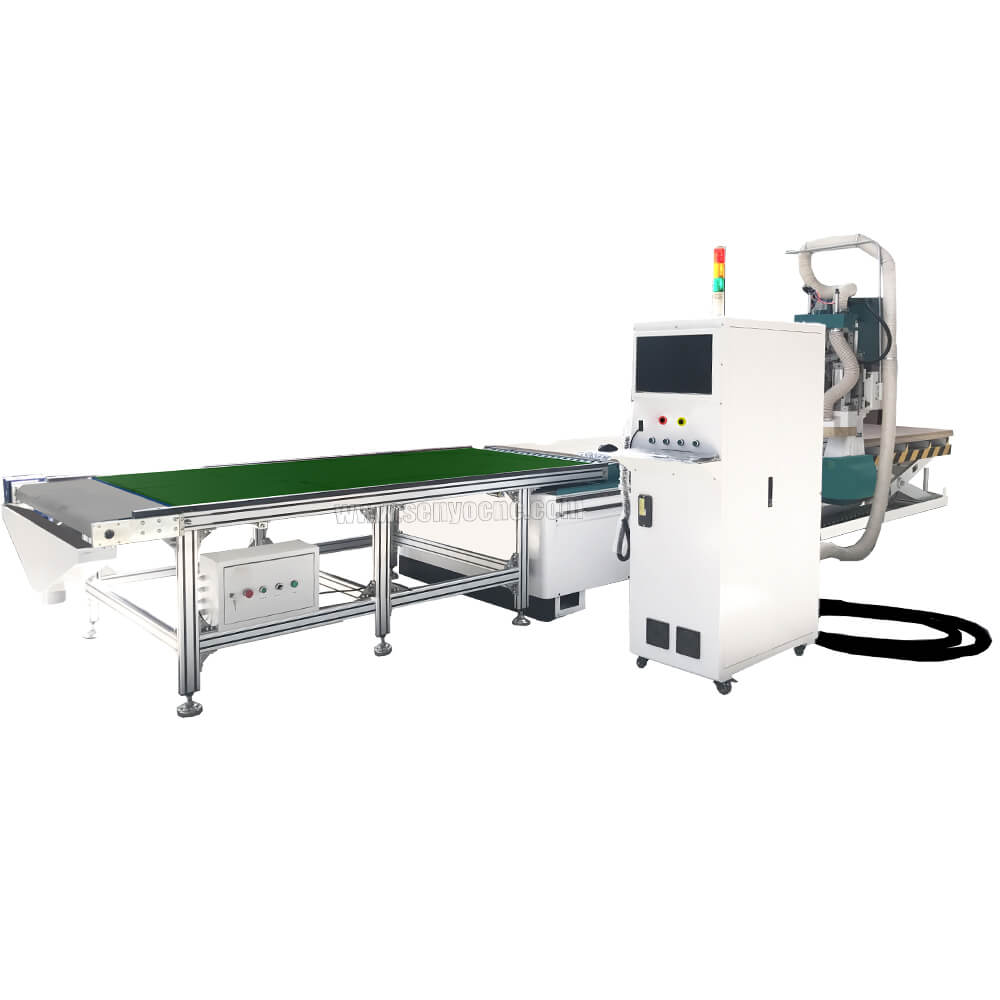

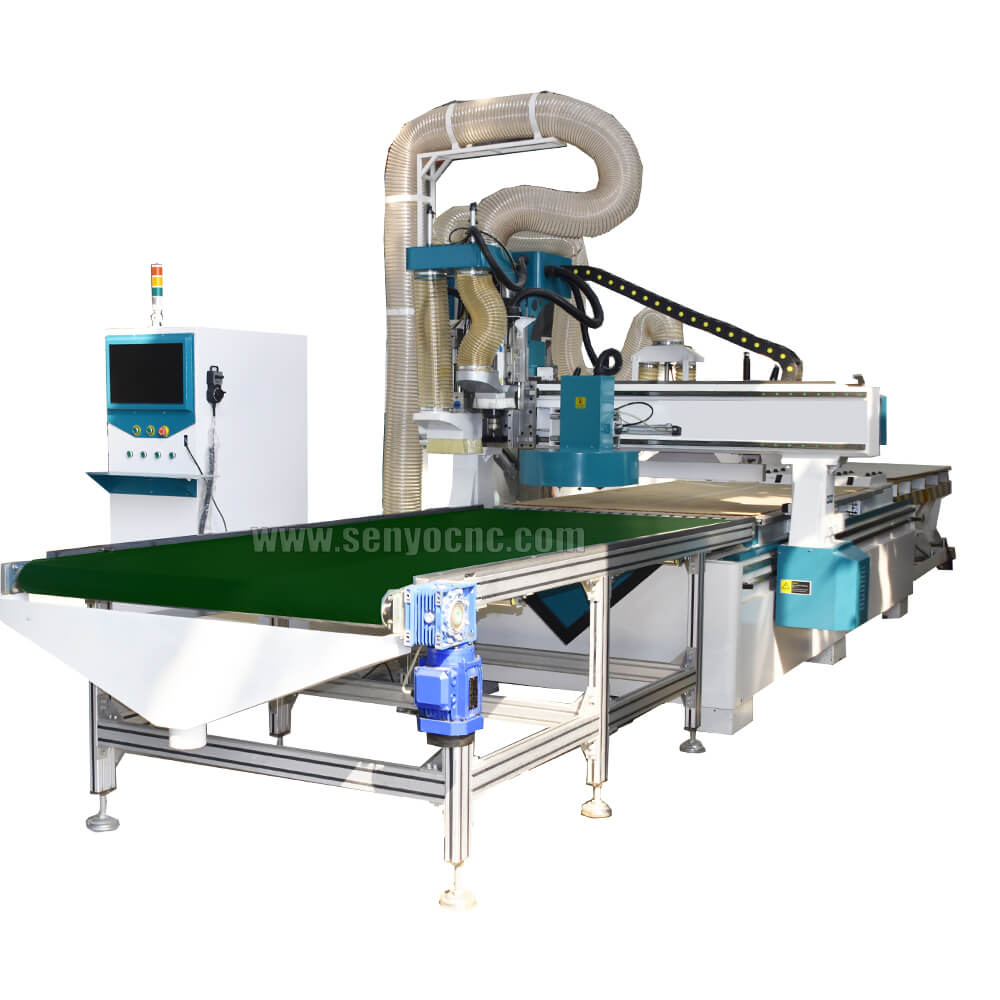

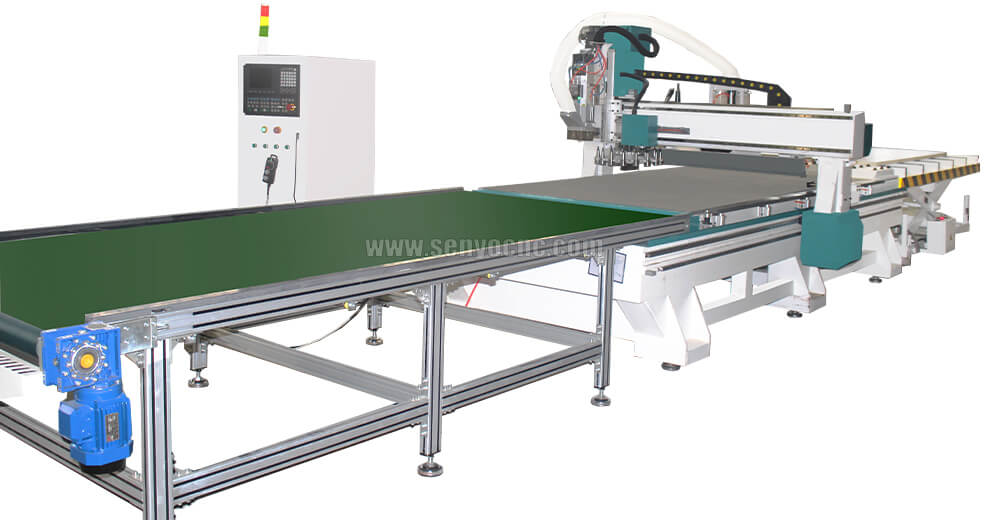

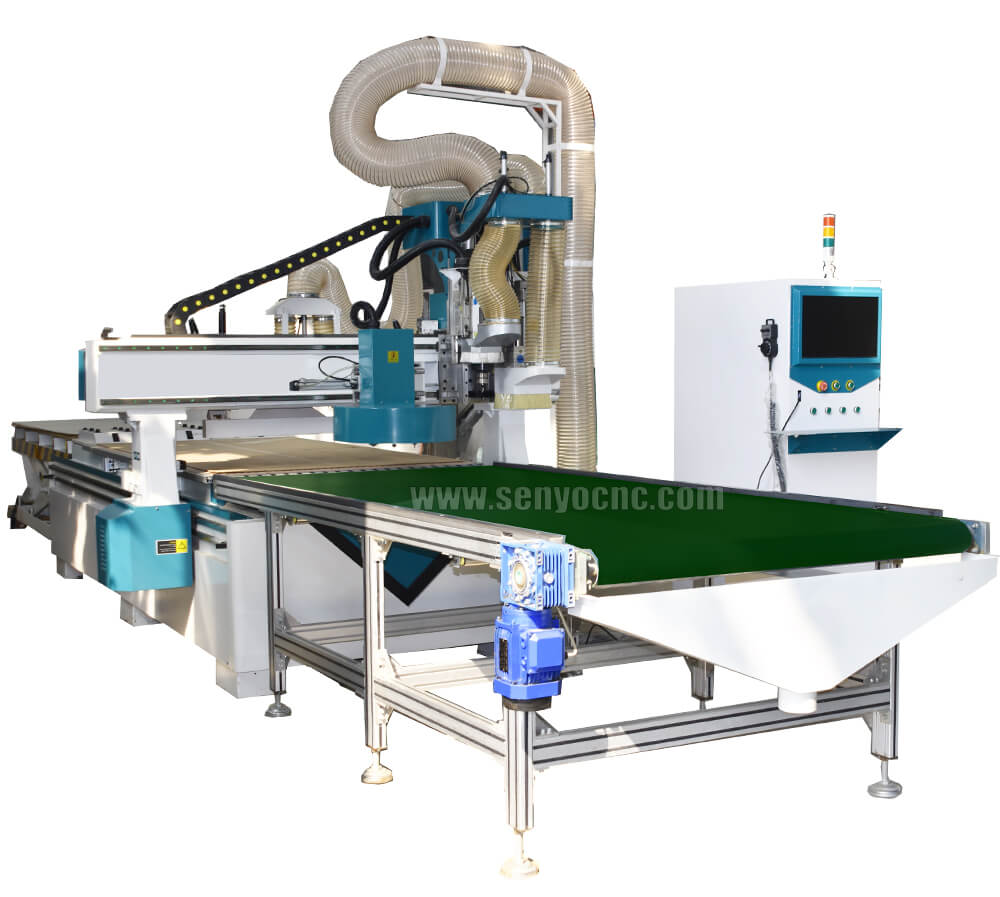

Machine with Vaccum worktable and unloading roller
Application
Ideal for panel furniture, solid wood furniture
Office furniture, wooden

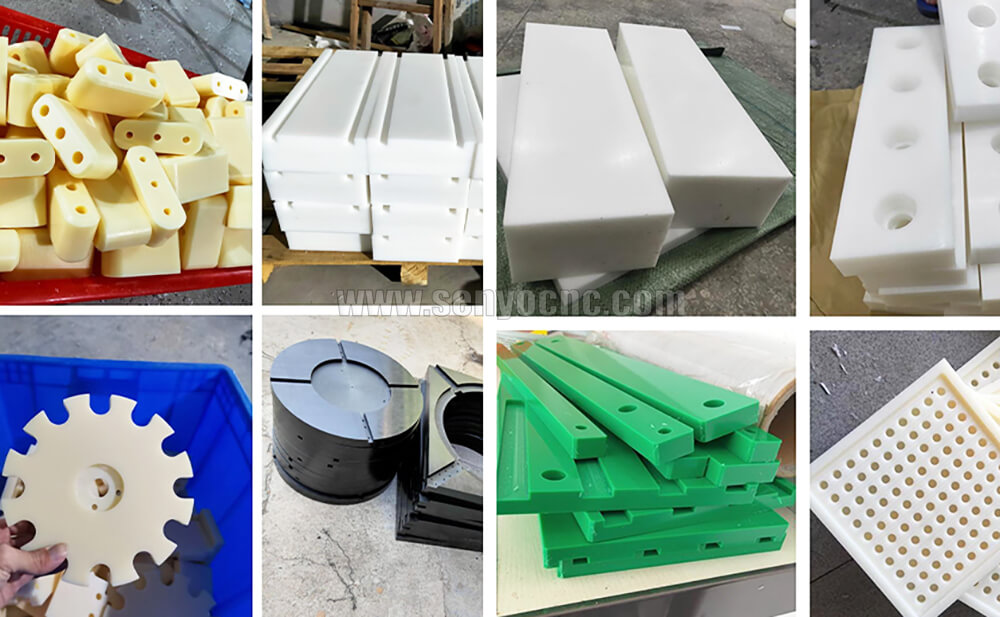

door productions, as well as other non-metal and softmetal applications.
Craft sash, composite gates
2D engraving

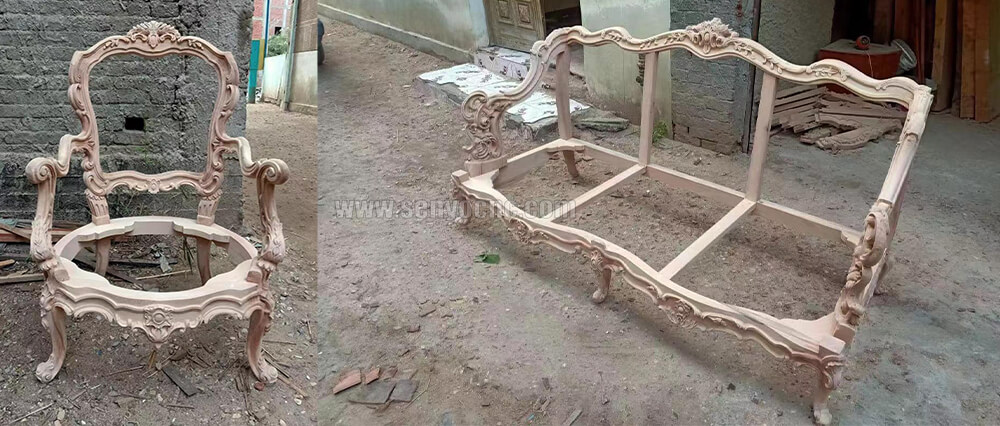

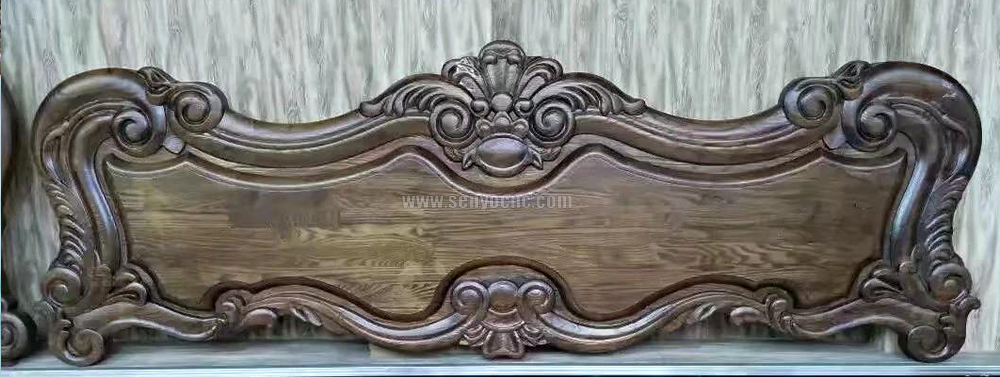

Wood Furniture Industry: Wave Plate, fine pattern, antique
furniture
Wooden door, screen
sofa legs, headboards and so on

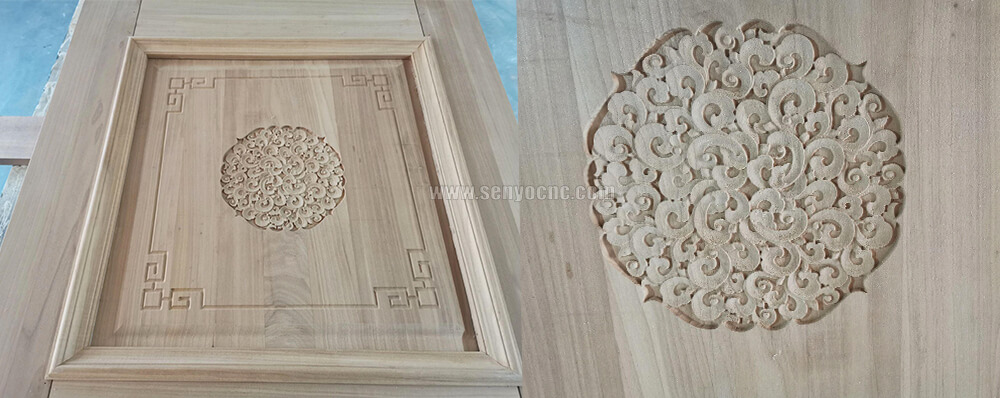

Cupboard doors, interior doors
Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
Machine Paramaters
Model | SYM1325D2A1U | SYM1530D2A1U | SYM2030D2A1U | SYM2040D2A1U |
Working area | 2500 x 1300m | 3000 x 1500mm | 3000 x 2000mm | 4000 x 2000mm |
Z axis | 300mm, 400mm, 500mm 600mm for choose | |||
Table Surface | Vacuum and T-slot table | |||
Vacuum pump | 7.5KW Water type (Air type optional) | |||
Spindle power | ATC 9.0kw air cooling spindle, 24000 rpm; ( HQD, HSD optional) | |||
Control system | Taiwan SYNTEC control system Taiwan LNC control system WEIHONG NK280 optional | |||
Motor and drives | Japan YASKAWA servo motor and drives | |||
Inverter | Taiwan 11KW Delta Inverter | |||
Guide rail | Taiwan HIWIN square guide rails | |||
Ball screw | Taiwan TBI 3210 ball screw | |||
Transmission way | High precision helical rack and pinion | |||
Technical Parameter | ||||
Spindle power | 9.0KW | |||
Spindle speed | 24000 rpm | |||
Traveling Positioning Accuracy | ±0.01/2000mm | |||
MAX. Traveling Speed | ≥50000mm/min | |||
MAX. Cutting Speed | ≥25000mm/min | |||
Commend Code | G Code | |||
Working voltage | AC380V/3P/50HZ | |||
Packing & Shipping
1. Outside package: Standard plywood package.
2. Inner package:Stretchy film and plastic protective film for humidity.
3. We can package according to your requirements.
For
standard machines, 7-15 working days after payment.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
Tool change cnc router machine ,ATC CNC Router, cnc router , round tool change machine, cnc wood center,Loading and unloading cnc router machine
