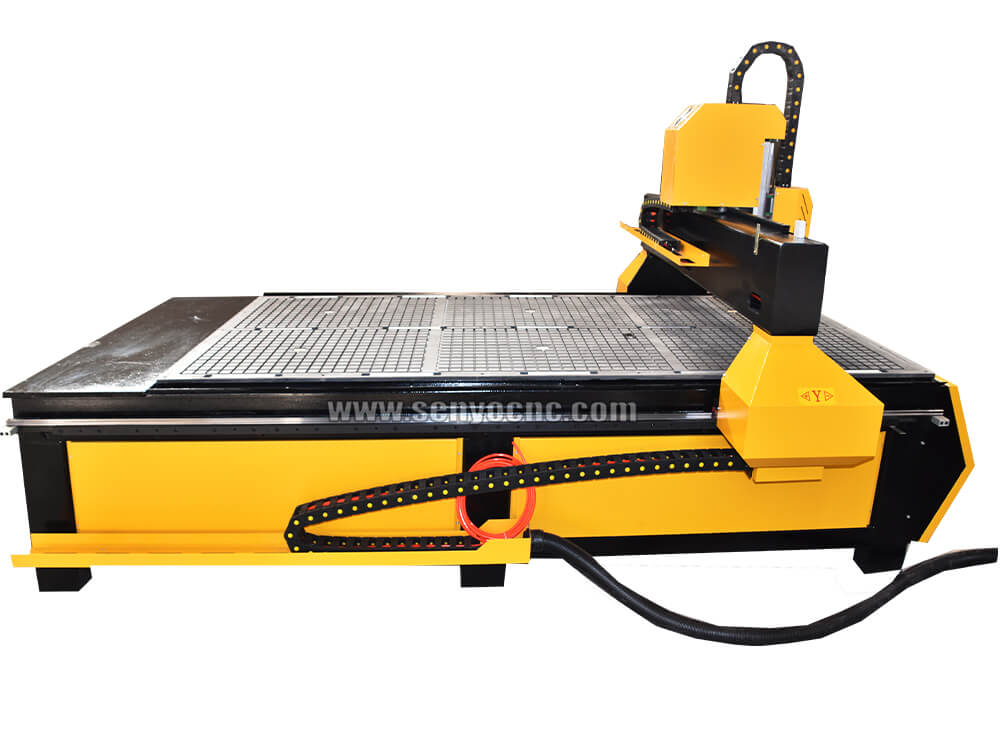

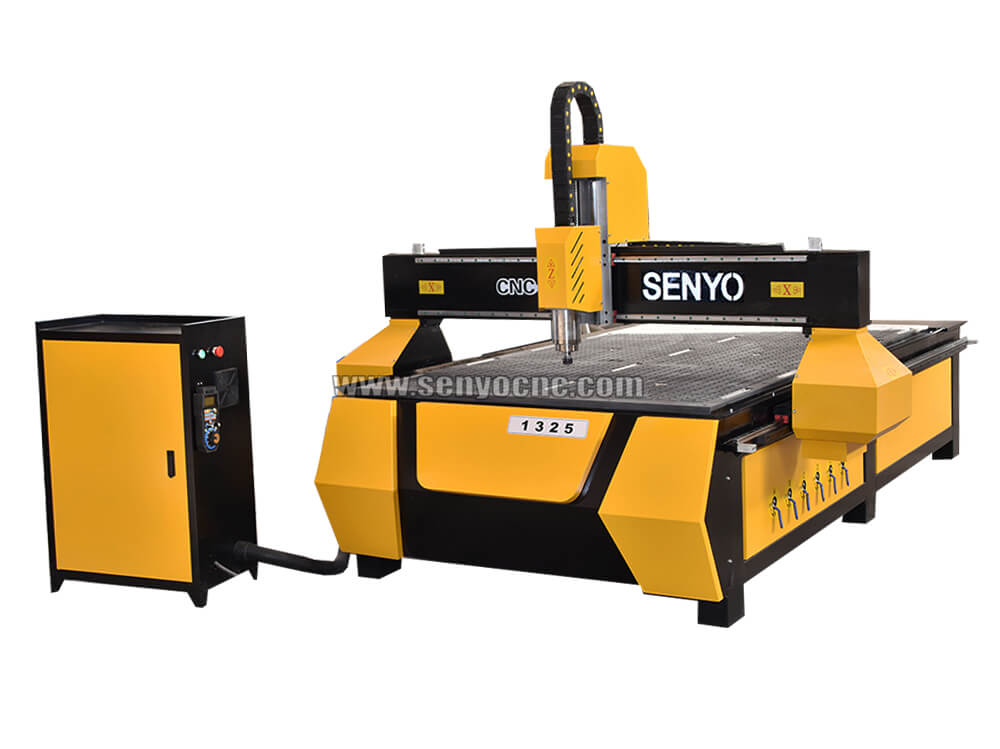

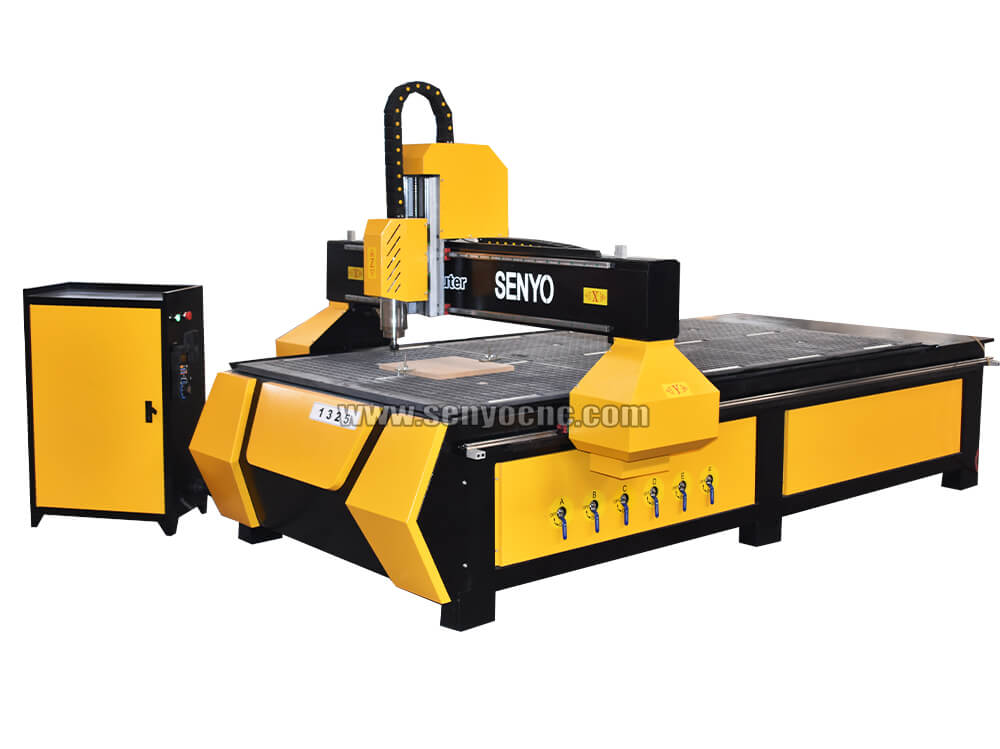

SYM1325 is a low cost CNC router machine with 4' x 8' size, which is mainly used for popular woodworking such as home door making, cabinet making, woodcrafts making, furnitures and decorations. This is a cheap CNC router kit within your budget.
Cheap CNC Wood Router Kit Applications
Woodworking industry
Wooden door, furniture and decoration, Cabinet Making, Wood crafts making, Redwood carving, Archaized furniture and other industries.
Advertising industry
Double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, acrylic and jade article.
Electronic industry
Circuit, insulation materials, LED screen, family appliance shell and model carving.

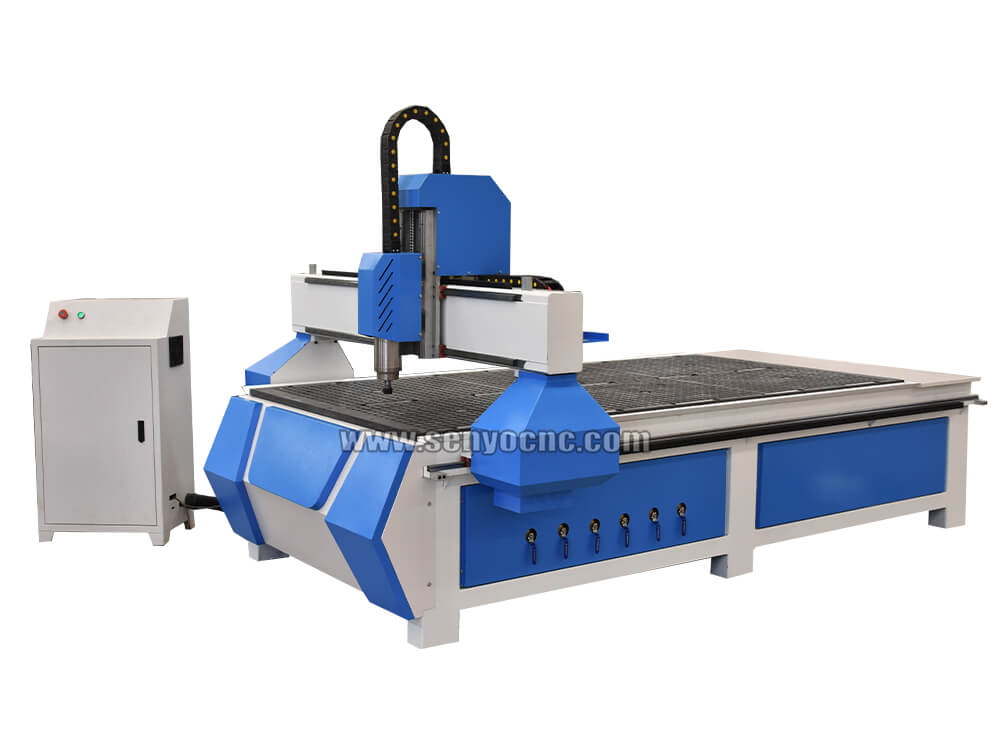

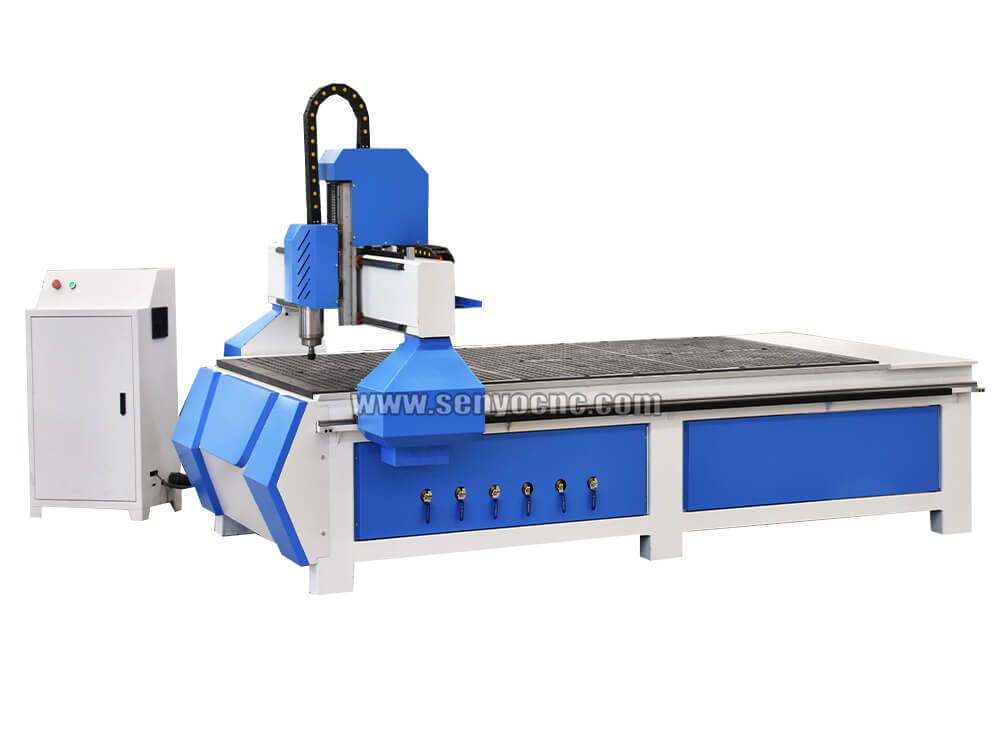

SYM1325 with blue design
Technical Parameters of Cheap CNC Wood Router Kit
Brand | SENYOQC |
Model | SYM1325 |
Working Area | 1300x2500x200mm |
Table Size | 4x8feet |
Traveling Positioning Accuracy | ±0.03/300mm |
Reposition Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
Frame Welded Structure | X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings Z Structure Hiwin Rail Linear Bearings and Ball Screw |
Max Power Consumption | 3.0KW (Without Spindle) |
Max Rapid Travel Rate | 33000mm/min |
Max Working Speed | 25000mm/min |
Spindle Speed | 0-24000RPM |
Spindle Power | 3.0/4.5/6.0KW |
Drive Motors | Stepper System |
Working Voltage | AC380V/50/60Hz, 3PH (Option: 220V) |
Command Language | G Code |
Operating System | DSP System (Options: Nc-studio / Mach3) |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER25 |
X,Y Resolution | <0.03mm |
Software Compatibility | Type3/UcancameV9 Software(Option: Artcam Software) |
Running Environment | Temperature 0-45 Centigrade Relative Humidity 30%-75% |
Packing Size
|
3170X2100X1750mm |
Weight | N.W. 1100KG G.W. 1280KG |
Features of Cheap CNC Wood Router Kit

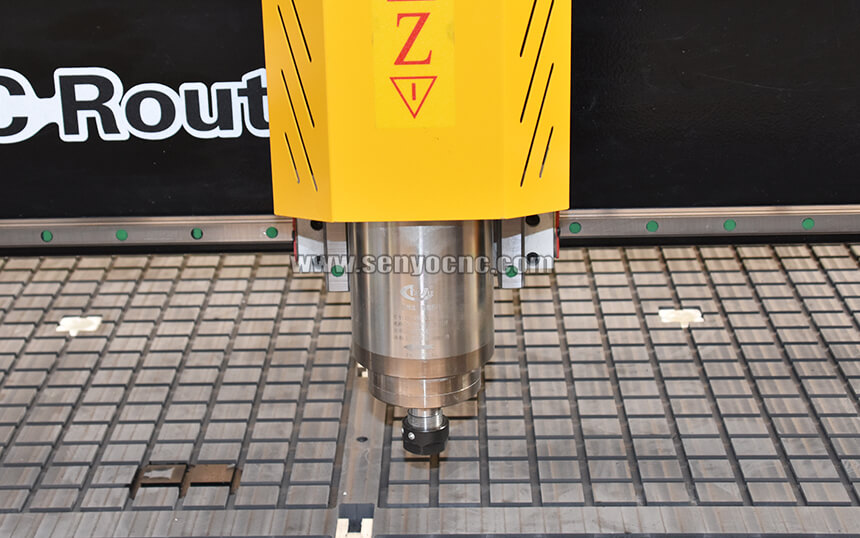

China water cooling spindle, more powerful, low noise, not easy to break cutters,suitable for engraving and cutting work .

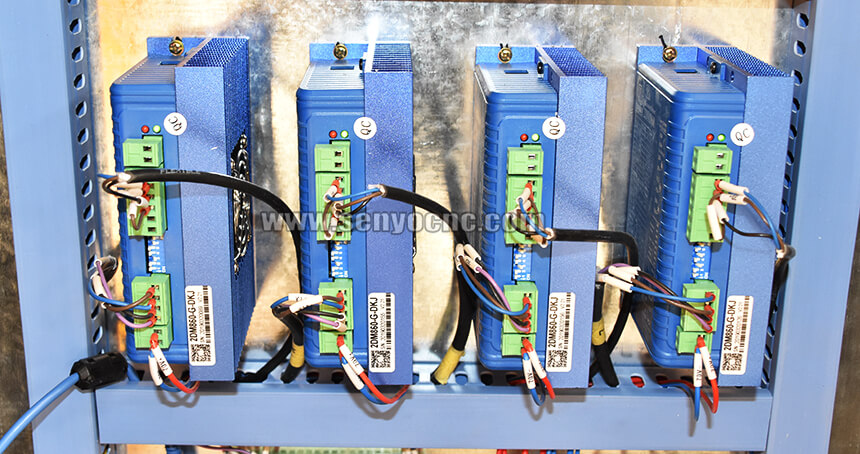

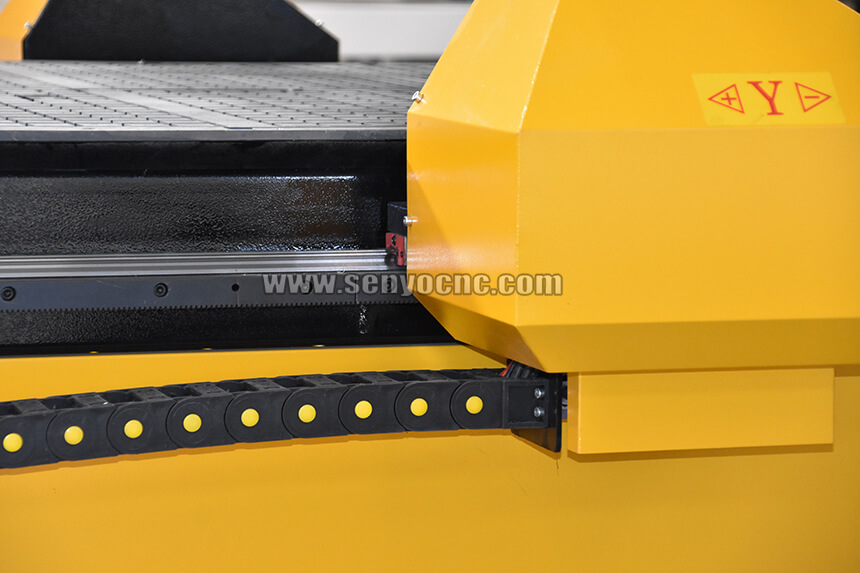

Y axis with double Leadshine stepper motor and driver, moving stably.

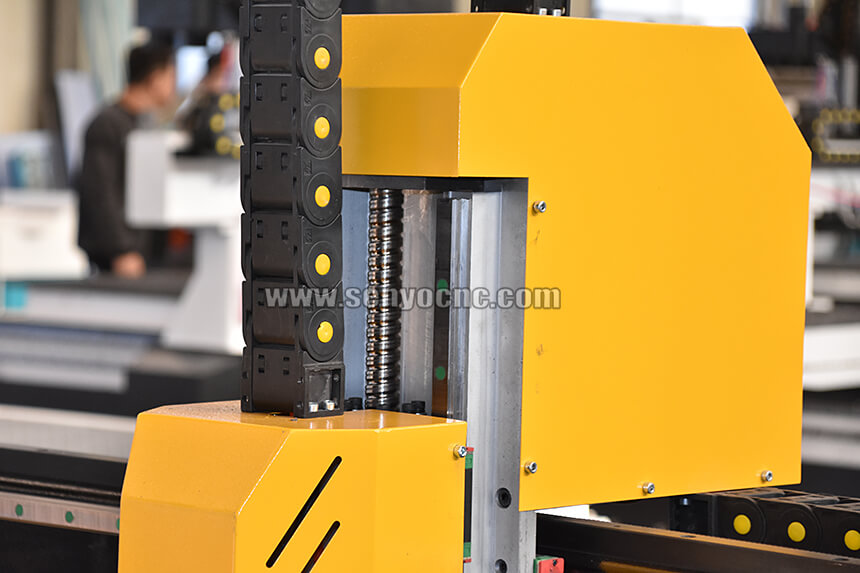

Z Structure Hiwin Rail Linear Bearings and TBI Ball Screw transmission

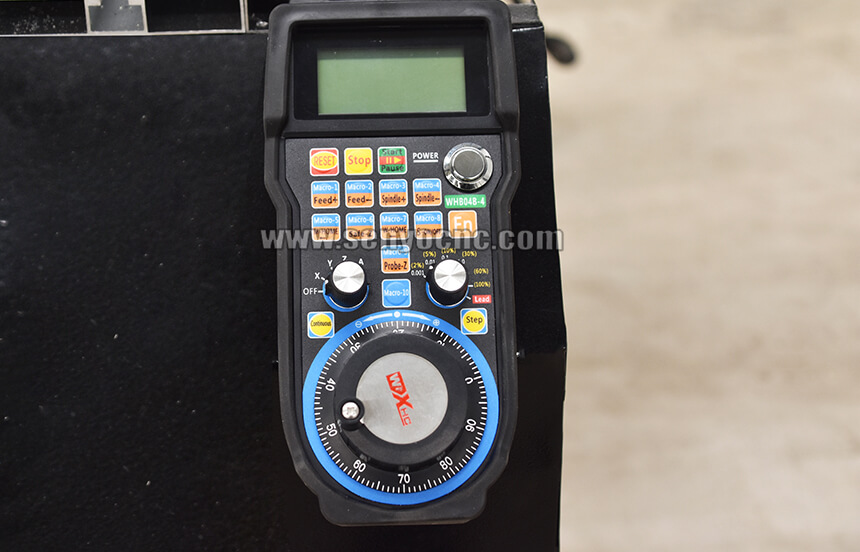

Mach3 System with operation handle wheel

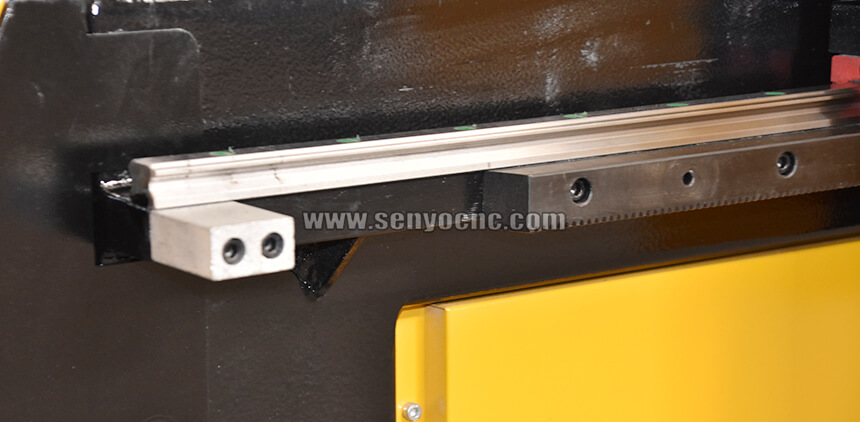

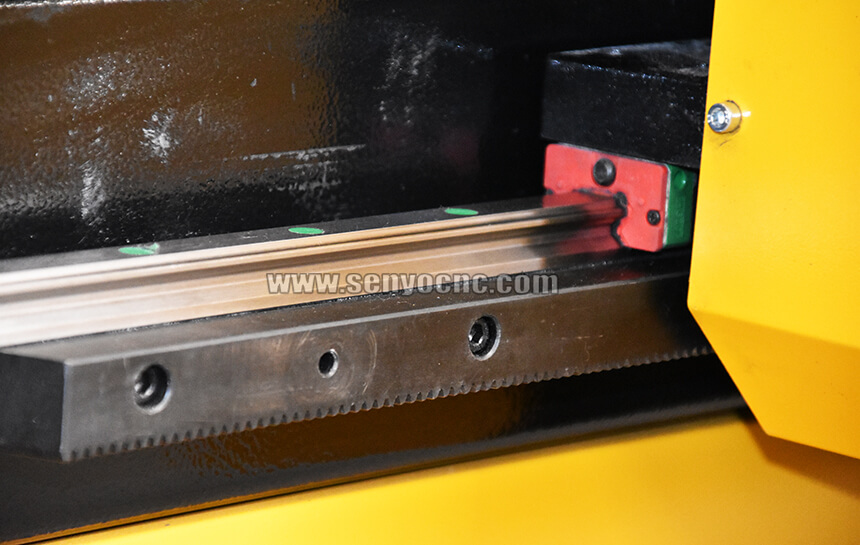

High-precision ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision. Strong and thick belt for mechanical transmission. The rack with 1.25 helical tooth mold guarantees the quick and high precise transmission.
High temperature tempering treatment, welded steel tube T type machine bed and gantry, high rigidity, bearing strength better.
Hard Switch

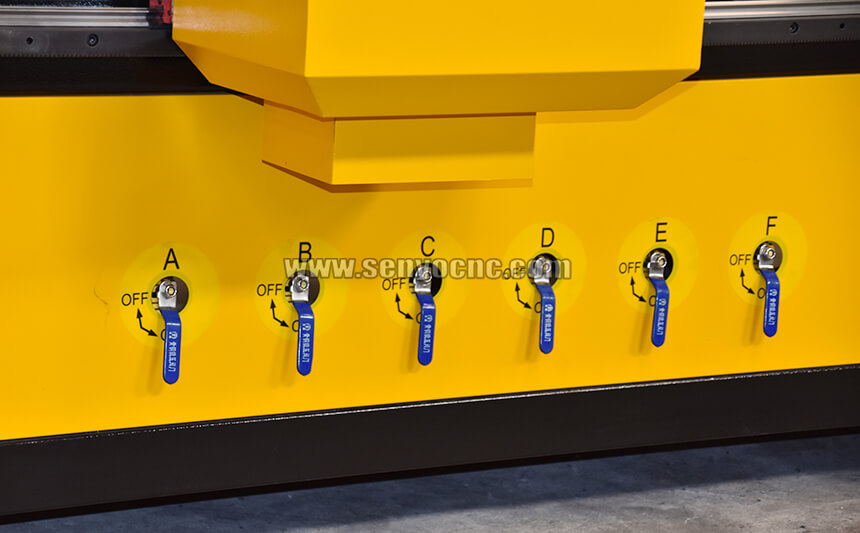

Vacuum and T-slot Combined (Option: T-slot Table)

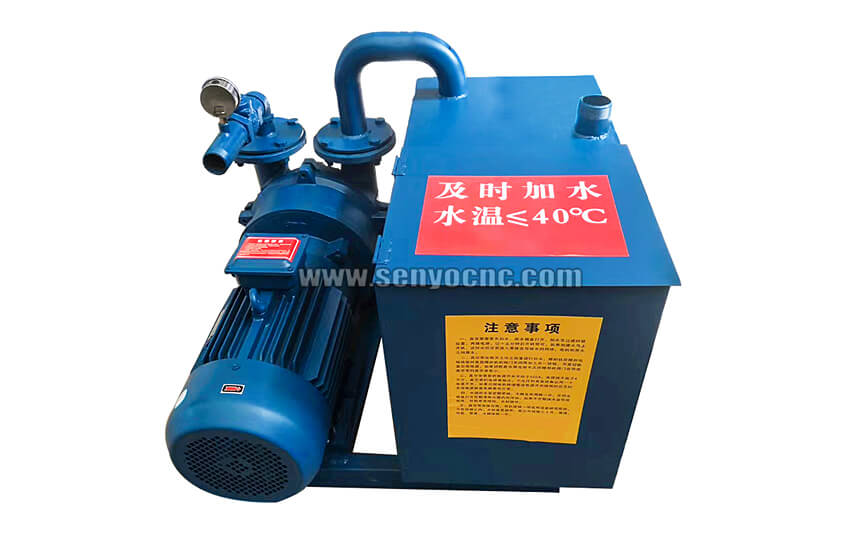

Vaccum pump
Orderly electronic box make the machine keep stable working

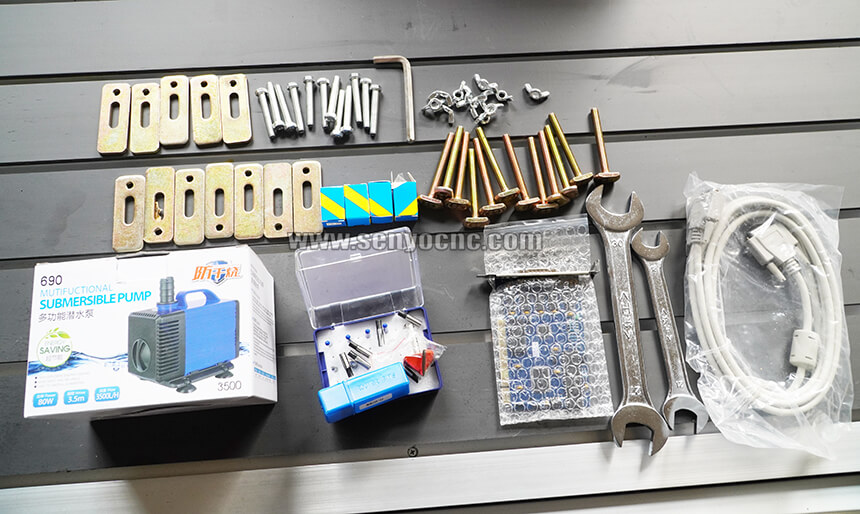

Wood CNC Router Accessories
Most Popular CNC Router for Woodworking Projects
As a professional CNC router manufacturer from China,we has all kinds of CNC router for sale, such as 3 axis CNC router series, 4th axis CNC router series, 4 axis CNC router series and 5 axis CNC router series. You can get the best CNC router price from manufacturer directly without any CNC router distributor. Don't hesitate any more, tell us your needs to buy a affordable CNC router from SENYOQC.
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
