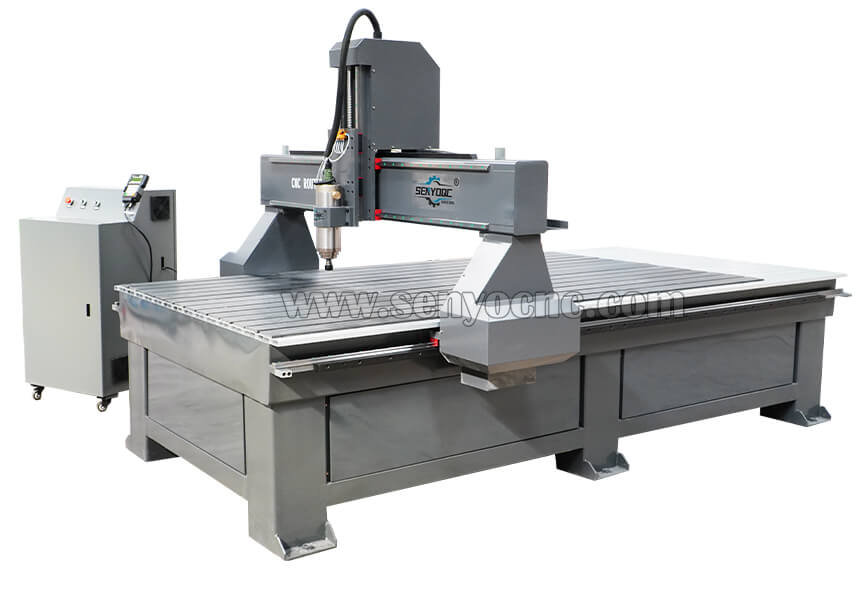

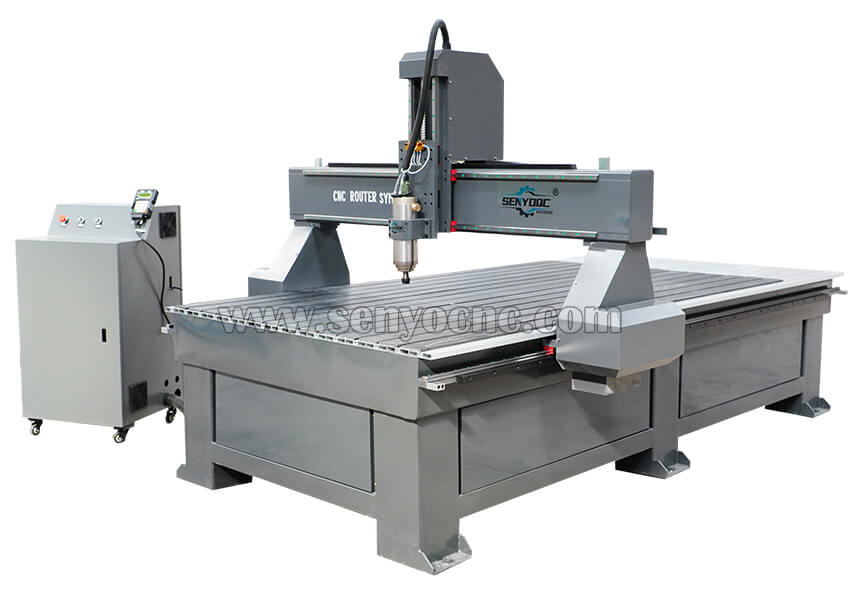

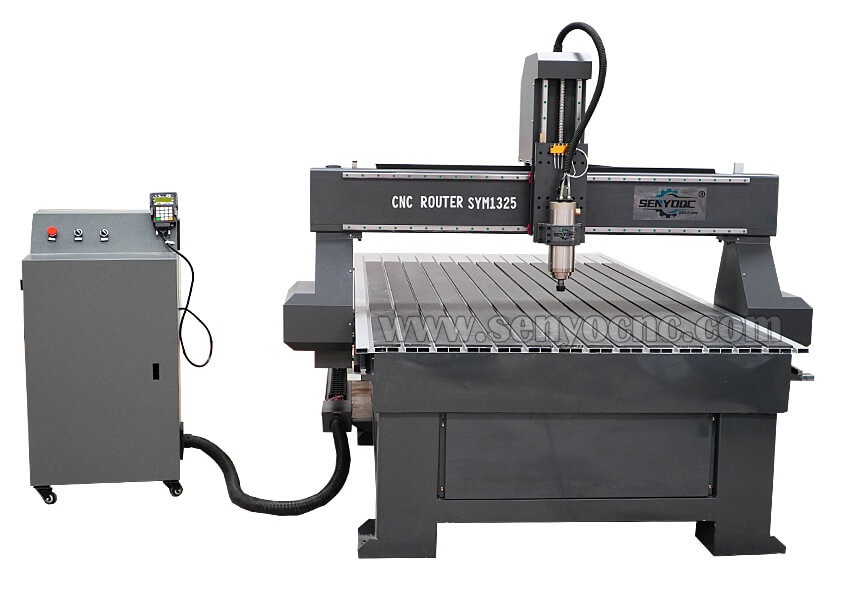

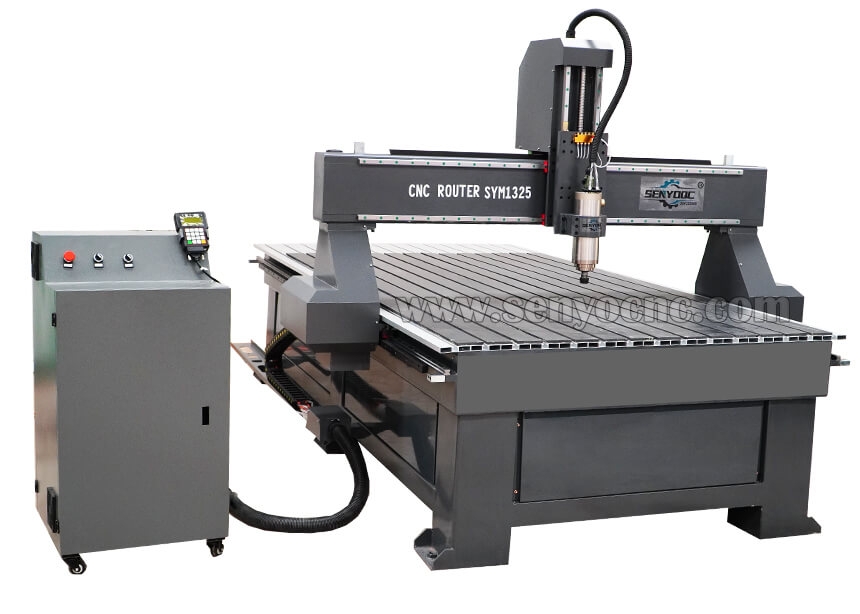

SYM1325 3 Axis

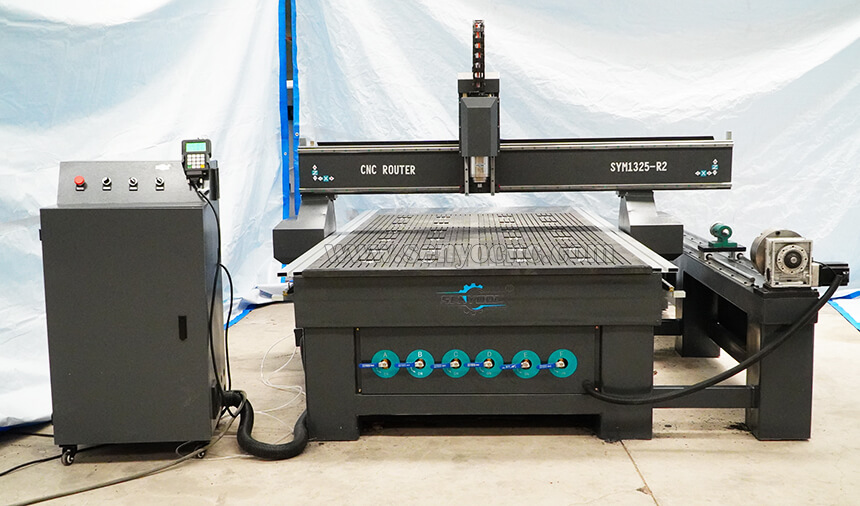

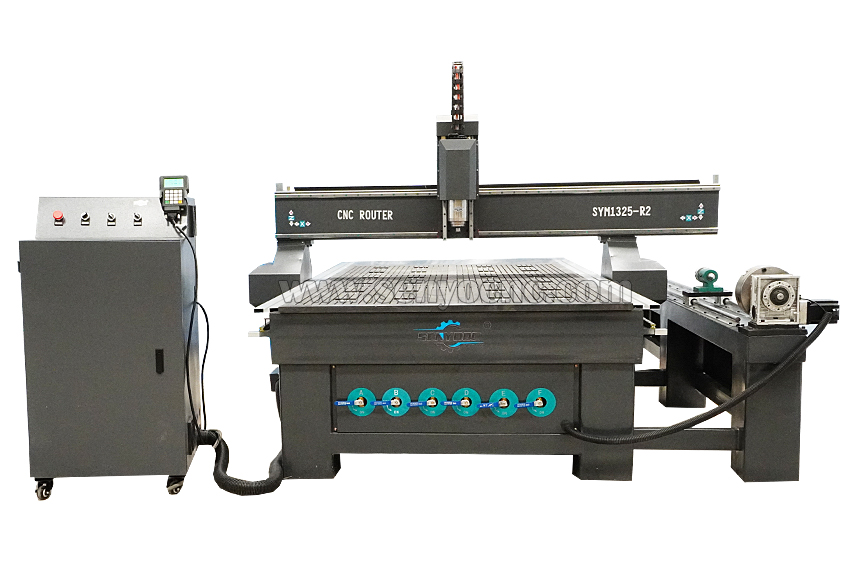

SYM1325 4 Axis
SYM1325 is a low cost CNC router machine with 4' x 8' size, which is mainly used for popular woodworking such as home door making,
cabinet making, woodcrafts making, furnitures and decorations. This is a cheap CNC router kit within your budget.

Applicable of Wood Router 4x8 cnc router
1.Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors
and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of car,
bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon
mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Features of Wood Router 4x8 cnc router
1.High temperature tempering treatment, welded steel tube T type machine bed and gantry, high rigidity, bearing strength better.
2.Y axis with double Leadshine stepper motor and driver, moving stably.
3.Linear square guide rail with automatic oil lubrication device, ensuring long life time working ,reduce the time of machine maintenance.
4. China air or water cooling spindle, more powerful, low noise, not easy to break cutters,suitable for engraving and cutting work .
5. Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.

Technical Parameters of Wood Router 4x8 cnc router
Working area | 1300*2500*200mm |
Working Voltage | 380V/3PH/50Hz (option) |
Table | T slot worktable |
Control System | DSP A11 control with handle for easy operation |
Control box | Independ Heavy Frame Control Box |
Spindle | Chinese 3kw air cooling spindle |
Spindle Speed | 0-24000RPM |
Inverter | 3 KW Fuling inverter |
Drive Motors | Stepper Motor and Leadshine 860H drive |
Lubrication | Manual Oil Lubrication System |
Option | Oil Mist Cooling device; Vacuum pump, dust collector; |
X, Y, Z Guide rail | 20# Taiwan HIWIN Linear Guide Rails |
Helical rack | X axis and Y axis |
Z transmission | Taiwan TBI Ball Screw |
Limited Switch | Japan Omron Limited Switch and soft limit switch |
Wire | High Soft Shjeld with Copper Wire to Protect Against Static Electricity |
Accessories | Tool box, adjusting screw, clamps, collets, tool, cutter, spanner etc |
Parts of Wood Router 4x8 cnc router

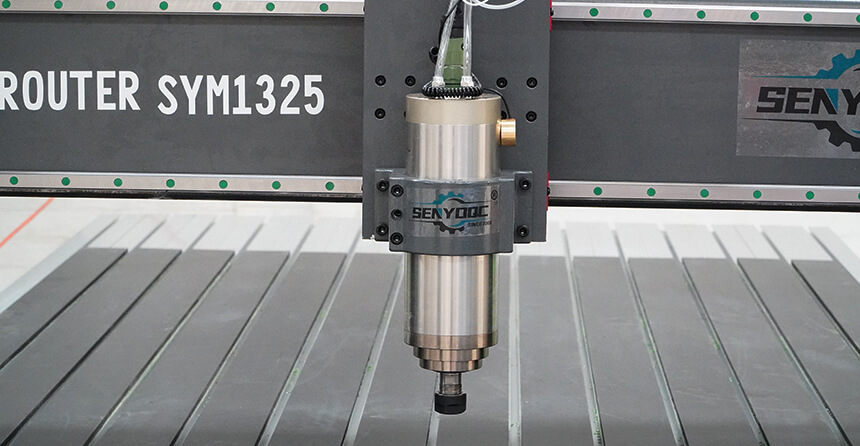

3KW Water Cooling Spindle With strong cutting ability,low noise,it can ensure the machine working for long time.

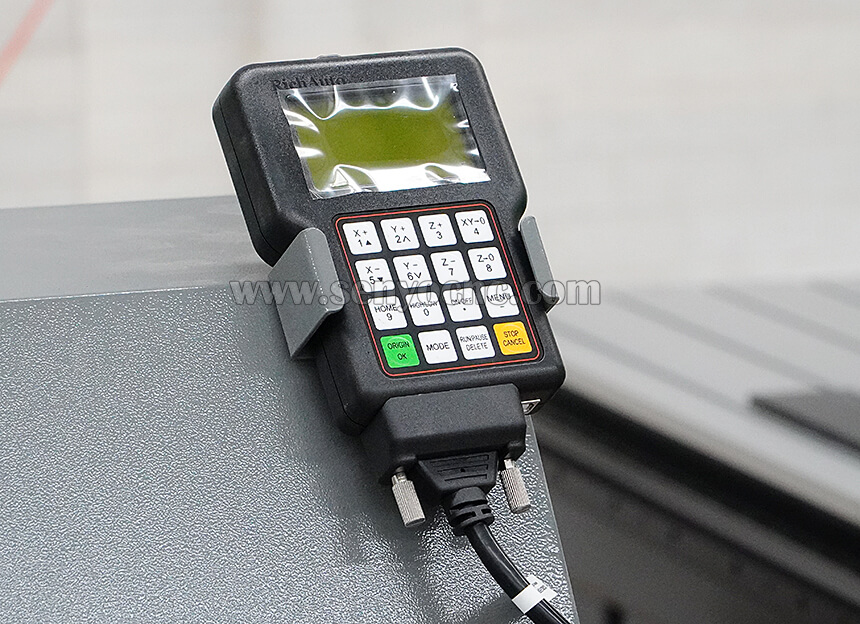

Dsp Control System
With strong cutting ability,low noise,it can ensure the machine working for long time

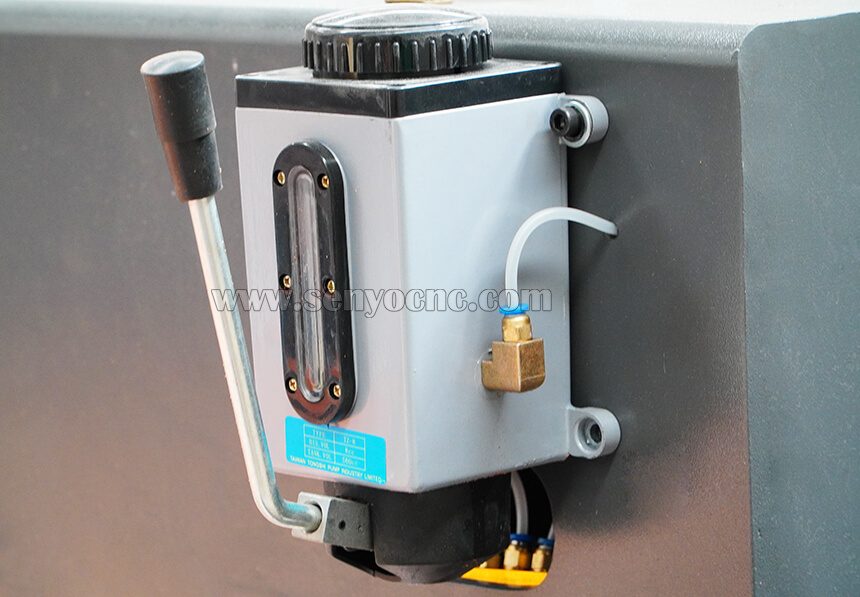

Manual Lubrication System
This machine is eqlpped with a lubricating oil pump.The lubrication effect is achieved by manual lubrication.

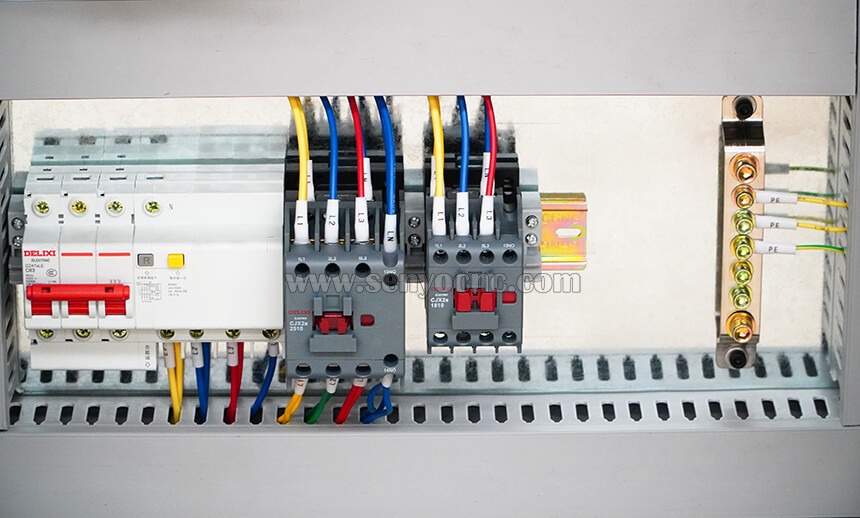

Electronic Components

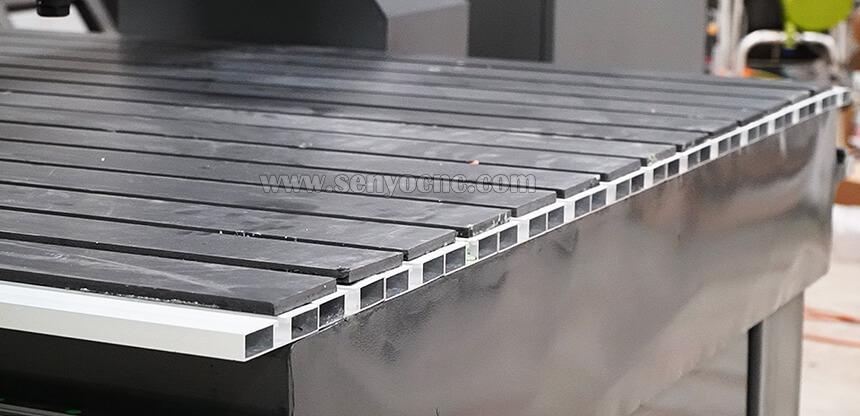

T slot Worktable

Stepper Motor

XYZ Transmission Way
Rack gear transmission for X and Y axis,higher running speed and efficiency,saving cost.
Z axis with precision ball screw , high precision and more durable.

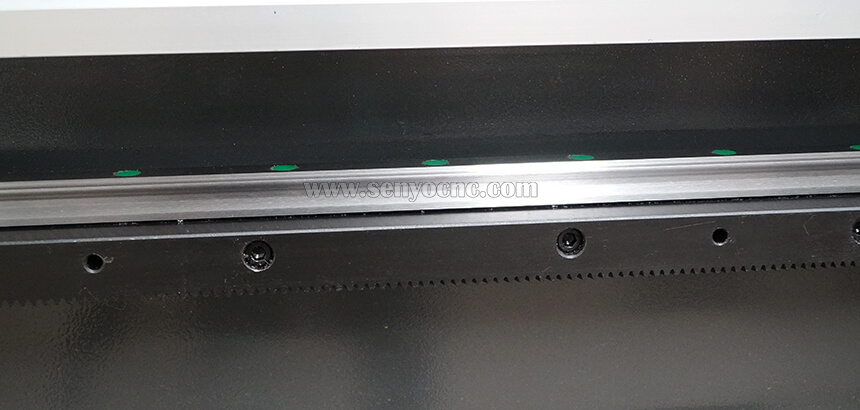

Hiwin Sqare Rail Guide with high transmission precision.

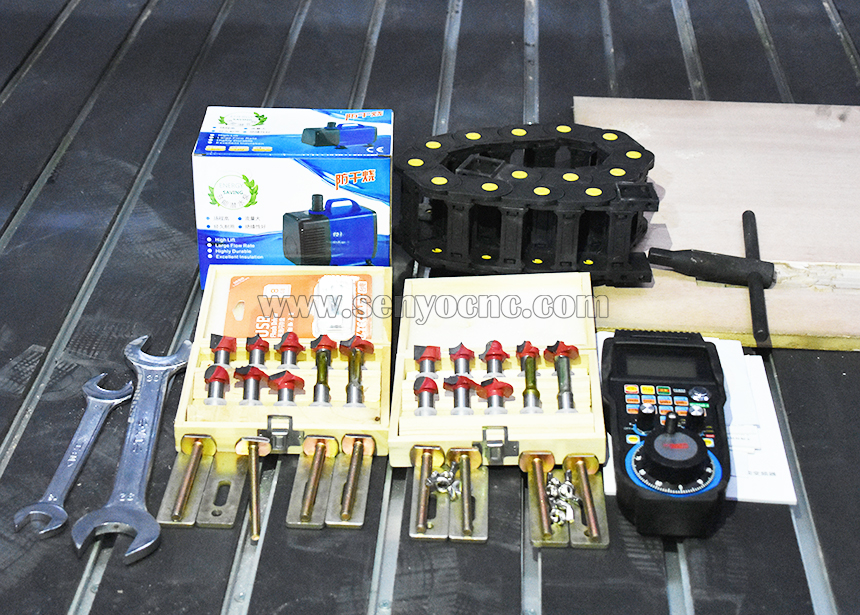

Tools

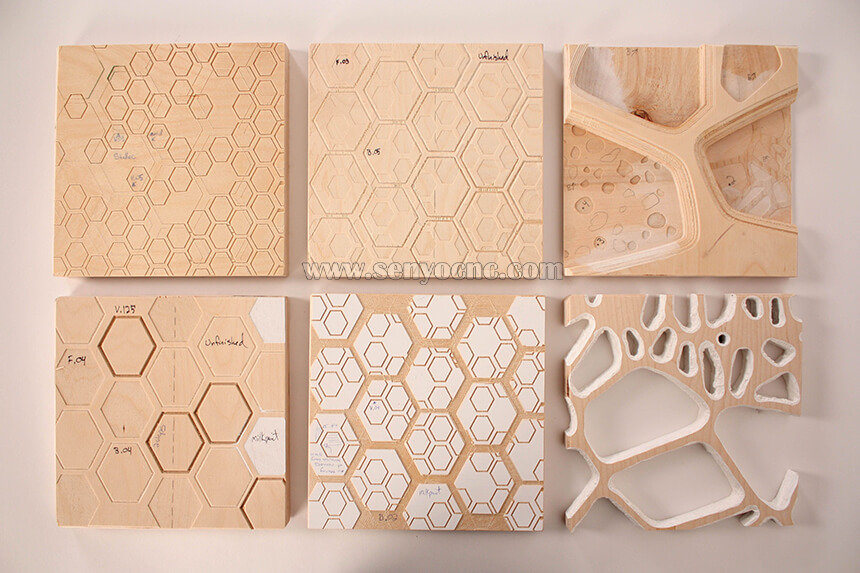

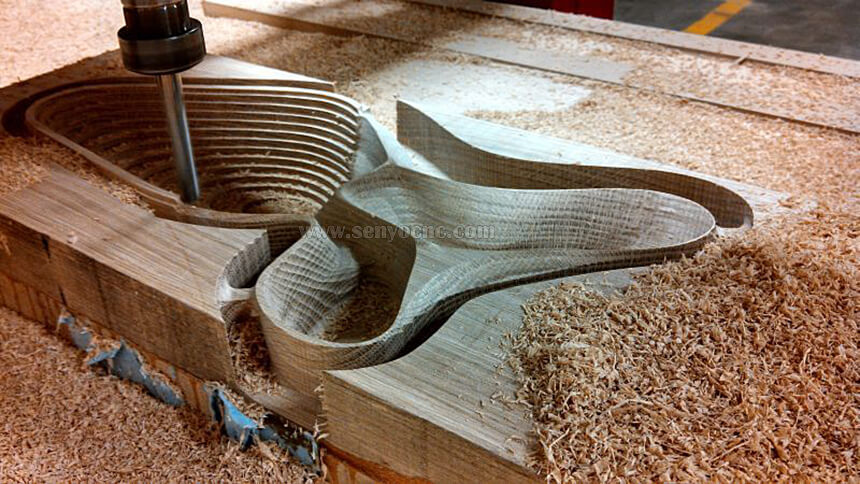

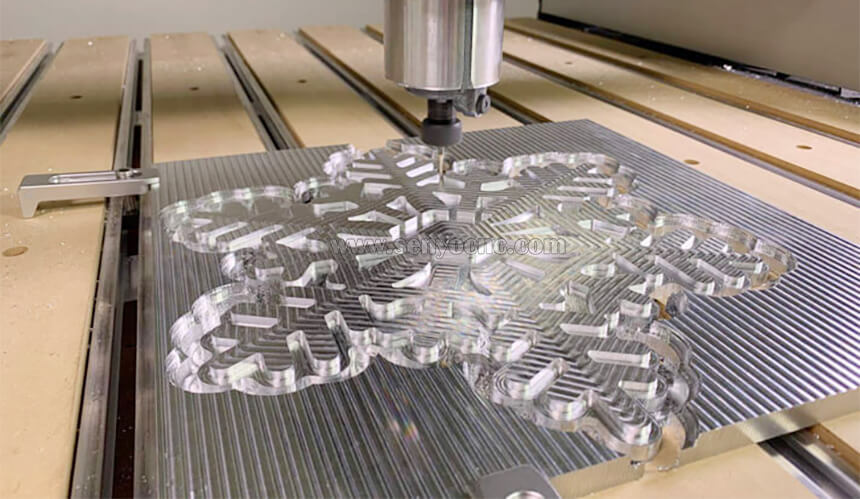

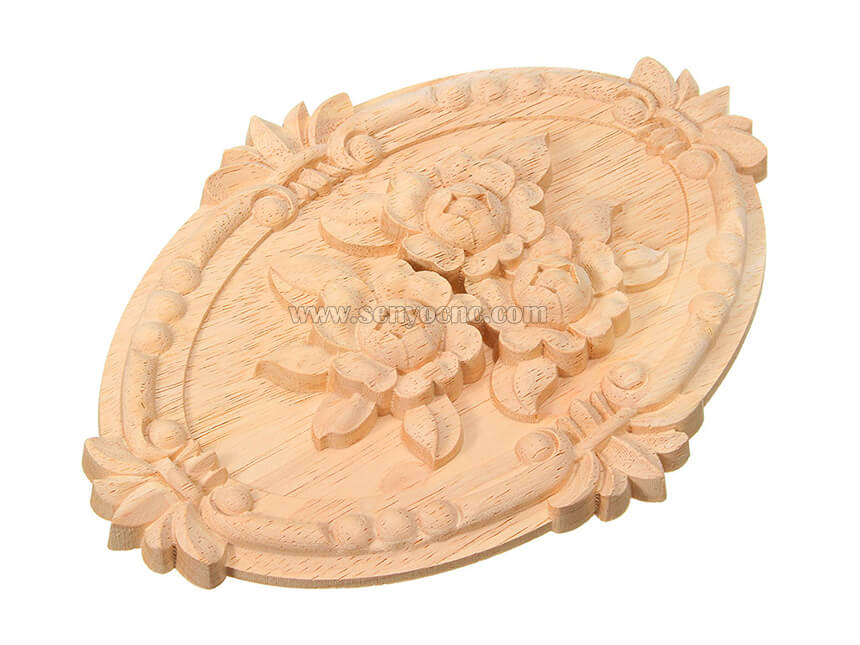

4x8 CNC Router for Woodworking Projects

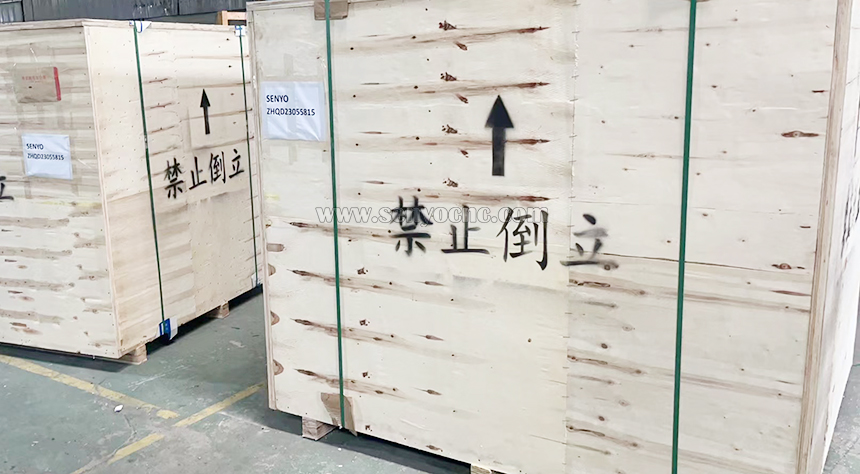

Packge & Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.

As a professional CNC router manufacturer from China, SENYOQC has all kinds of CNC router for sale, such as 3 axis CNC router series,
4th axis CNC router series, 4 axis CNC router series and 5 axis CNC router series.
You can get the best CNC router price from manufacturer directly without any CNC router distributor.
Don't hesitate any more, tell us your needs to buy a affordable CNC router from SENYOQC.
International Shipping
Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS.
You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements,
we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight
CNC Router, 1325 Wood CNC, 3d CNC Router, Wood Cutting, Wood Router Machine
