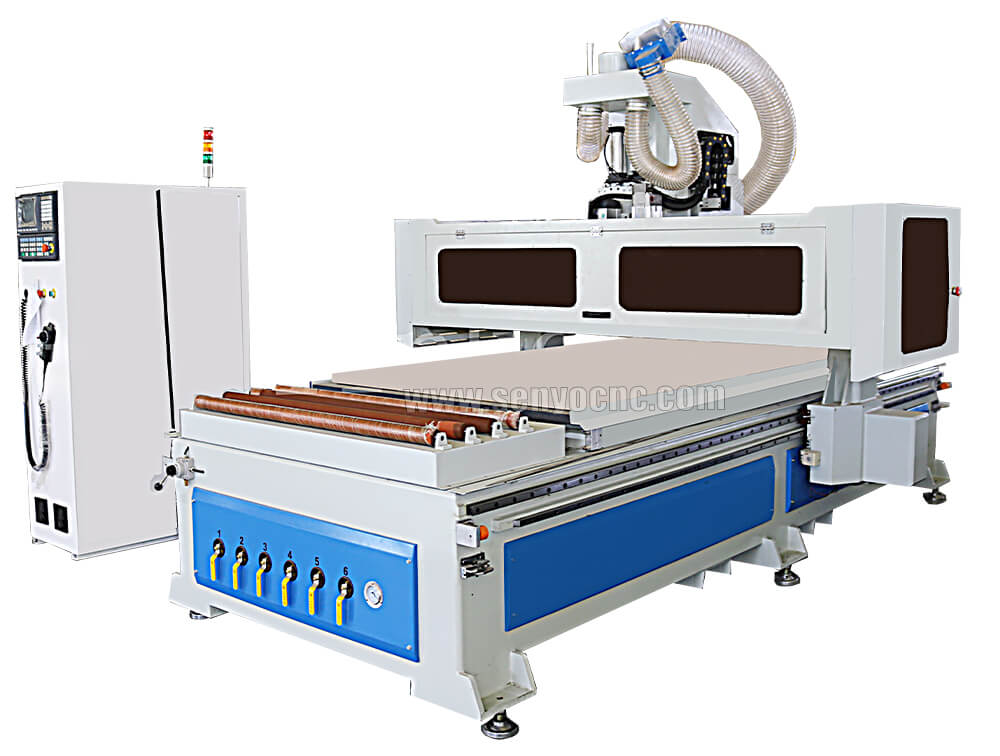

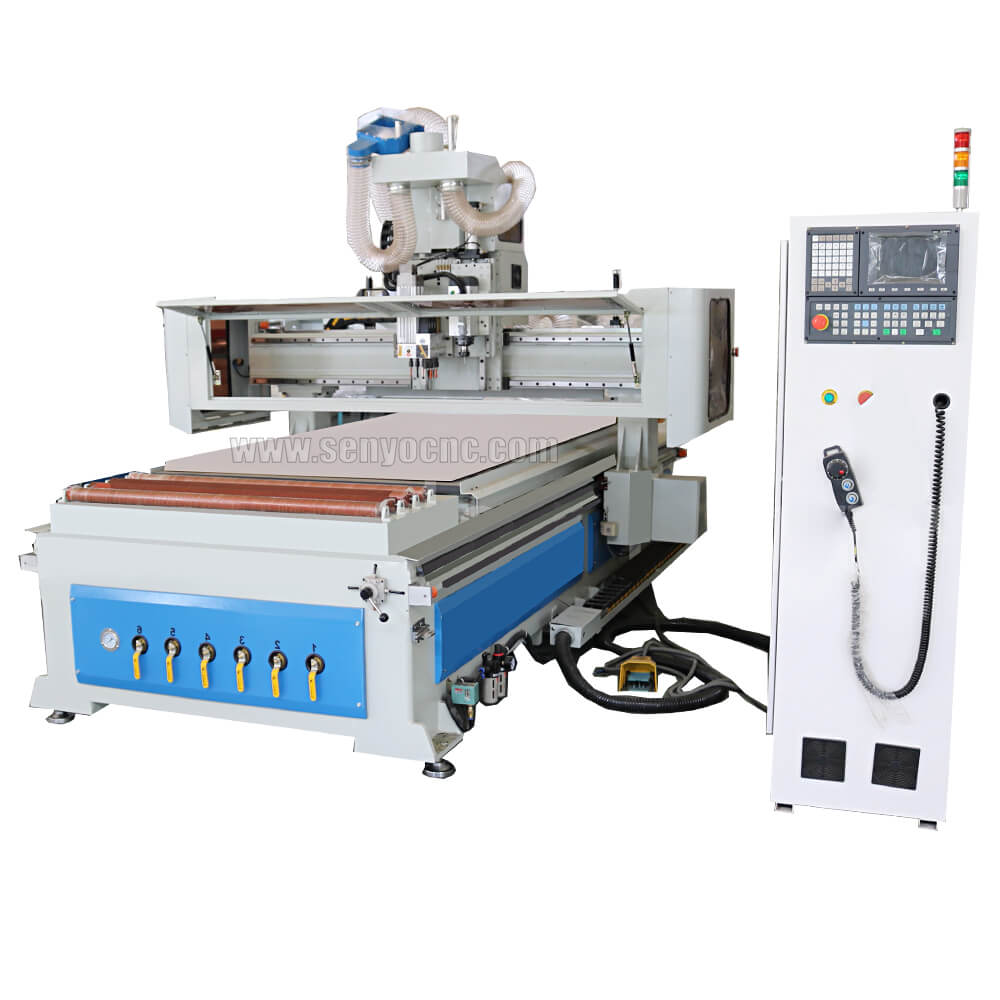

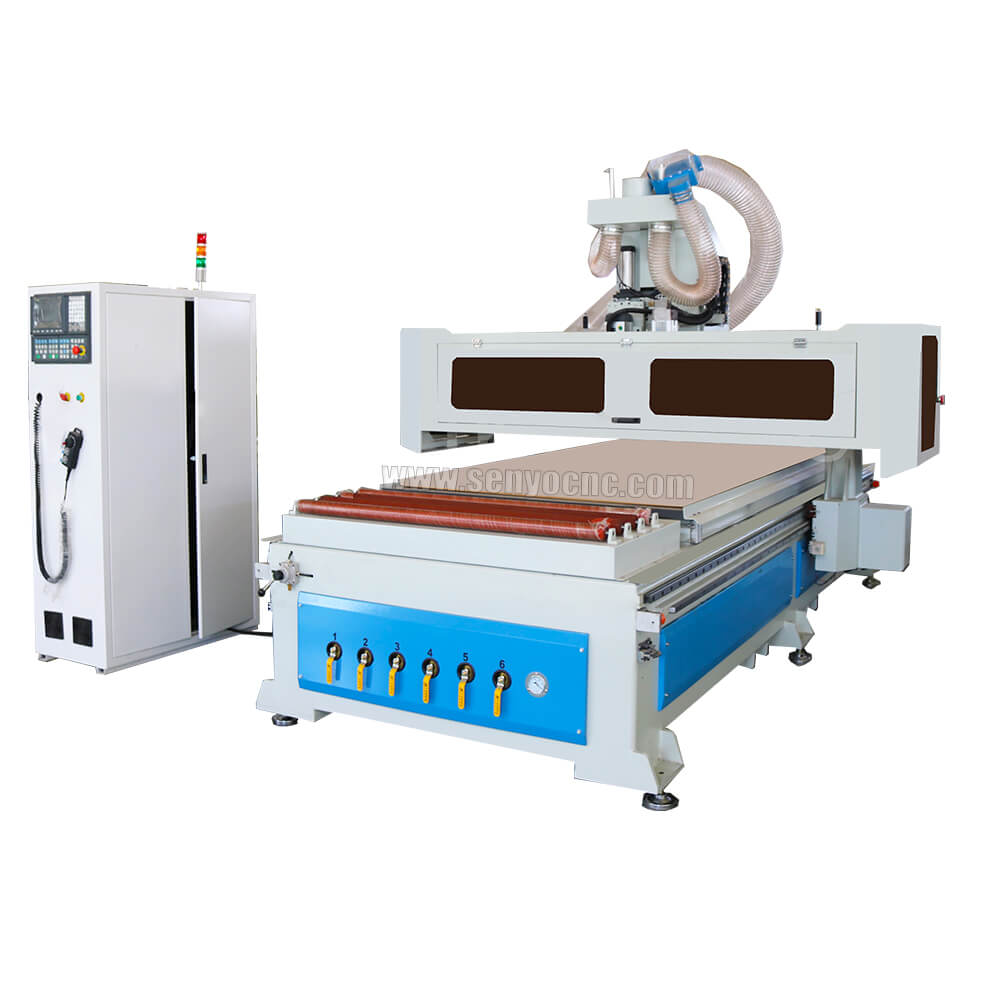

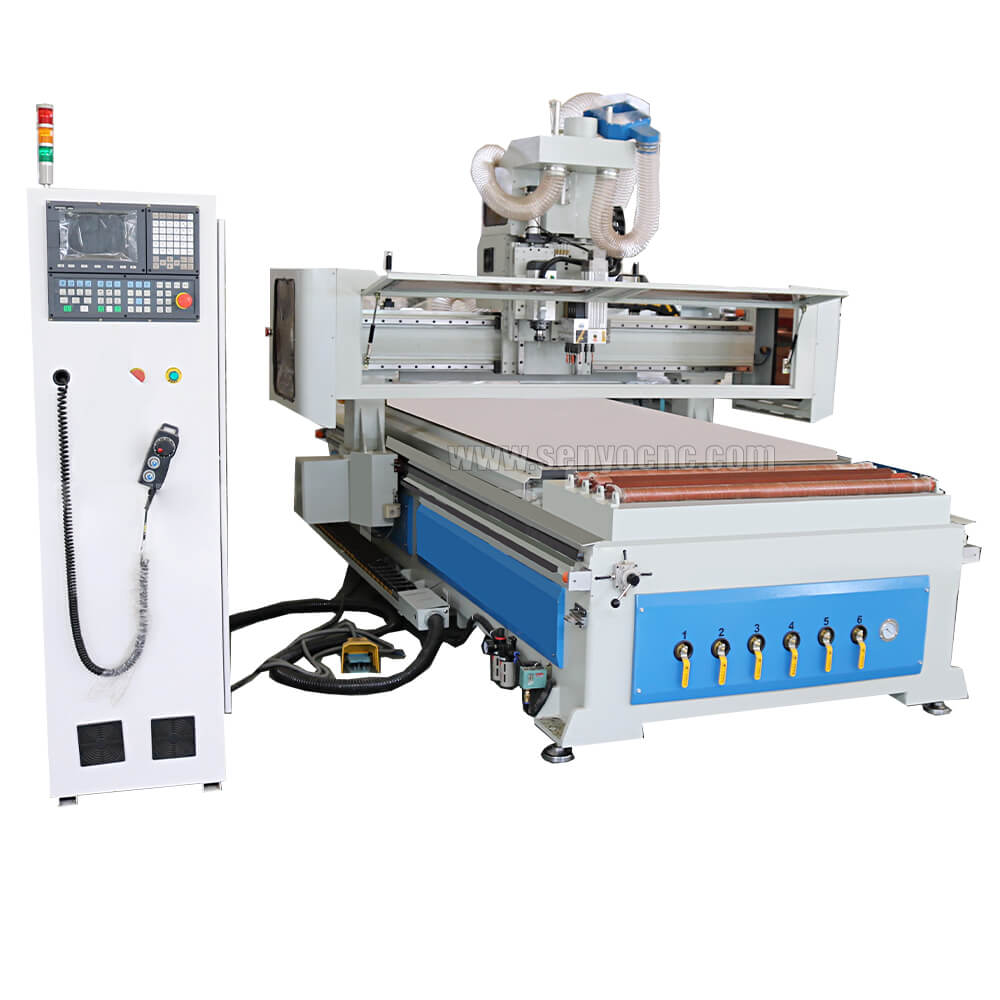

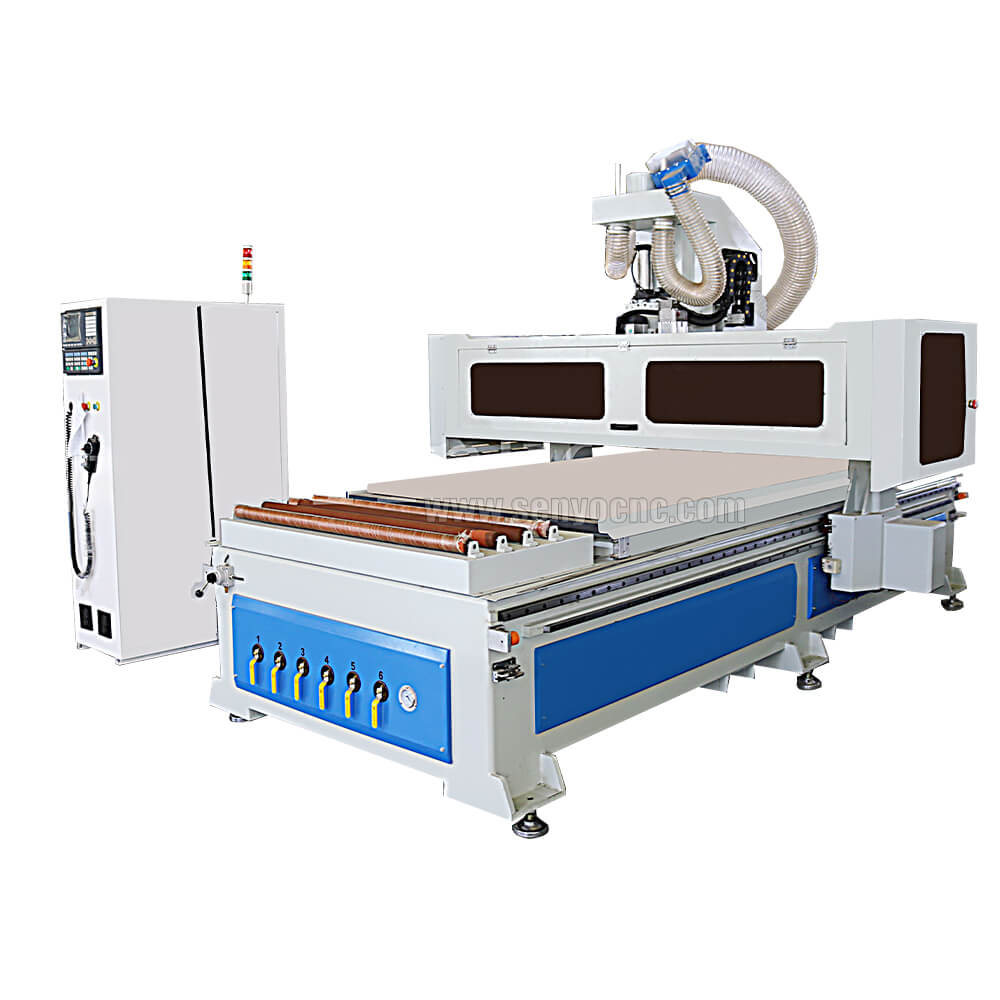

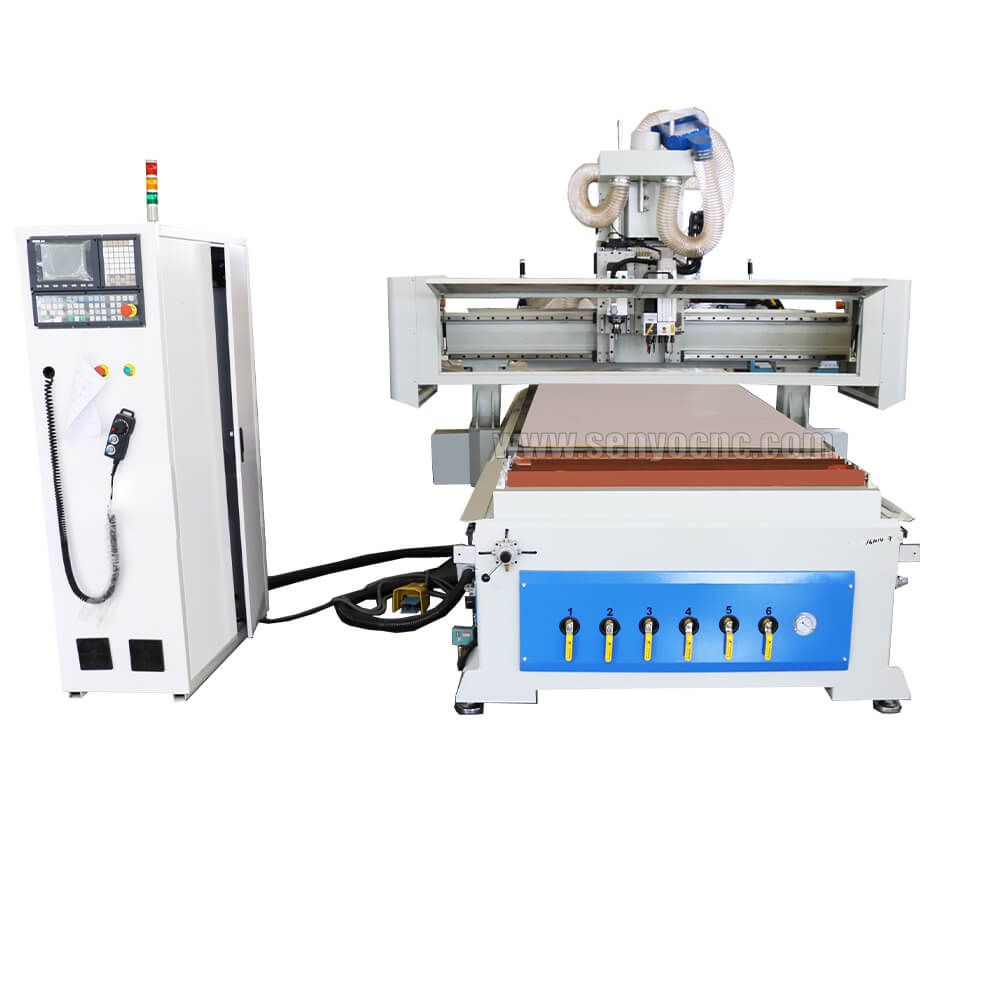

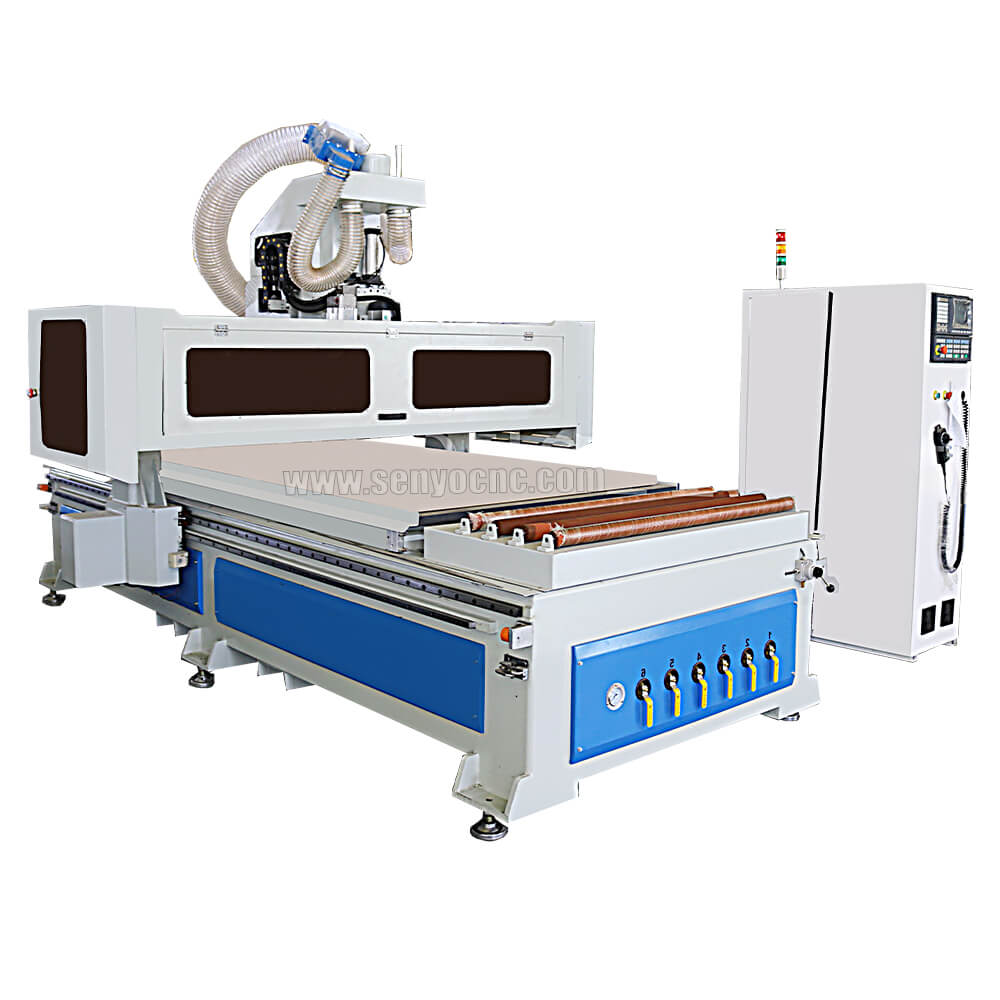

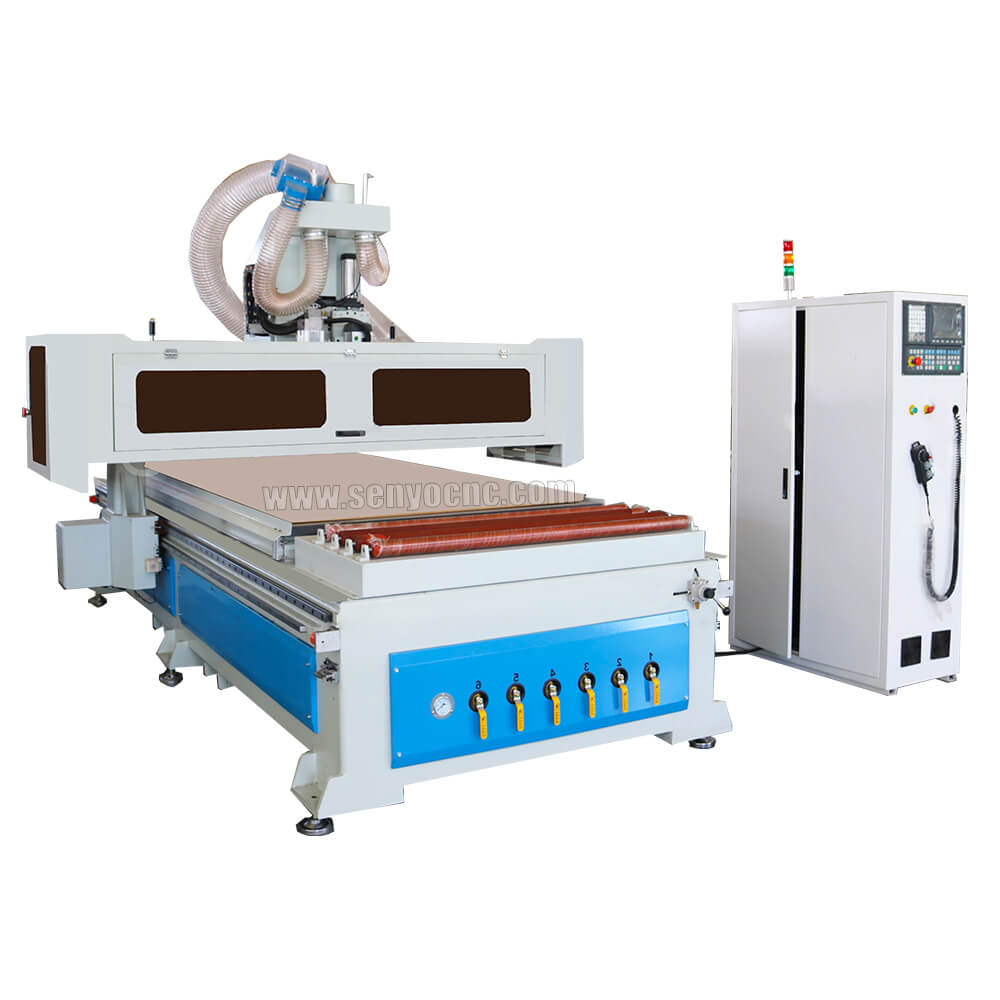

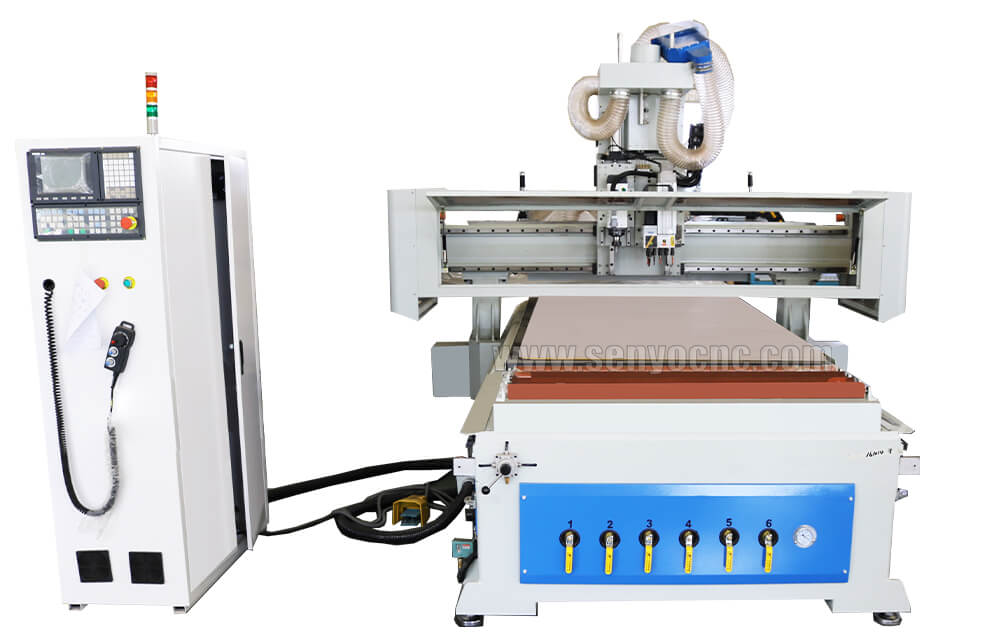

Nesting CNC wood cutting machine with automatic loading and unloading tables.
It is capable of handling a wide variety of milling, drilling, contouring, boring, shaping, grooving
Routing and engraving
projects, it also choose auto labeling device .

9KW ATC spindle with vertical drilling bank.
With auto loading unloading table, can save a lot of labor for working.

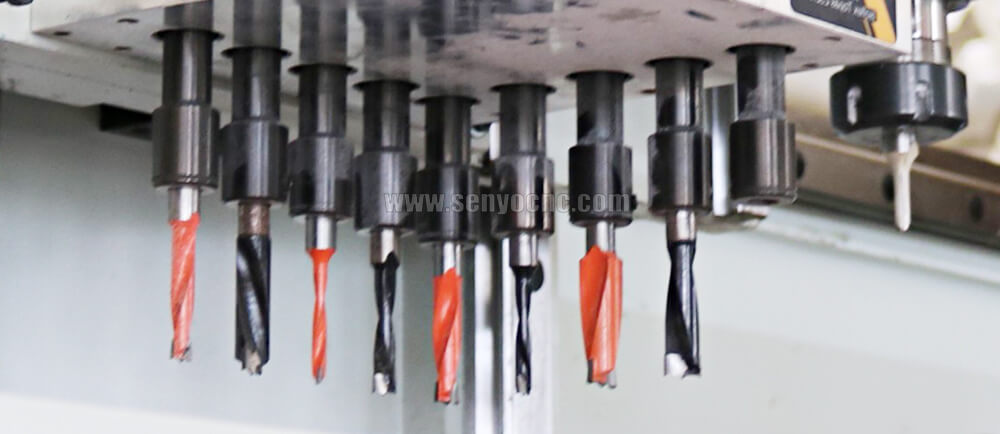

5+4 boring drilling head

It can hold 9 drill bits of different diameters, with pneumatic switching and fast switching speed.
Multiple drill bits can be used together to drill multiple holes at one time,
Which greatly improves the drilling efficiency and thus the overall processing efficiency.

Advantages of Nesting CNC Wood Cutting Machine for Custom Furniture Maker

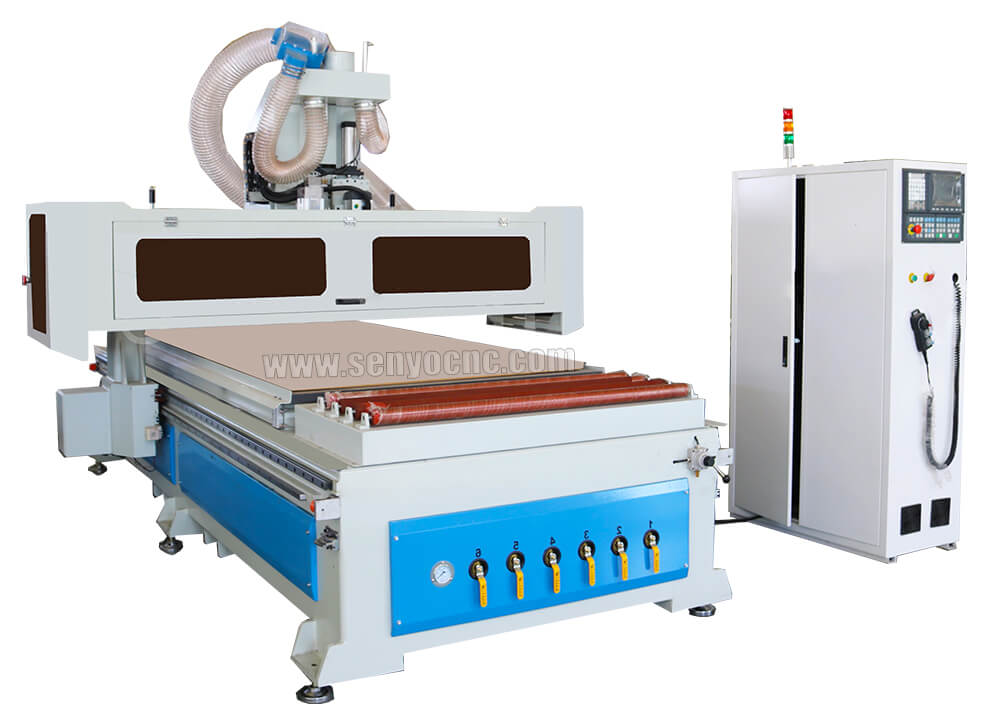

Highly automated nesting cnc router machine with automatic loading and unloading system Optional.
The complete work cycle of loading, nesting, drilling and unloading is carried out automatically,
which results in maximum productivity and zero down time.

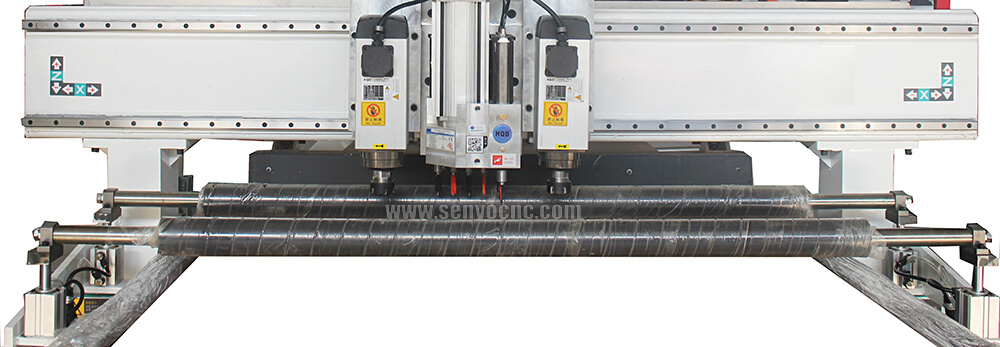

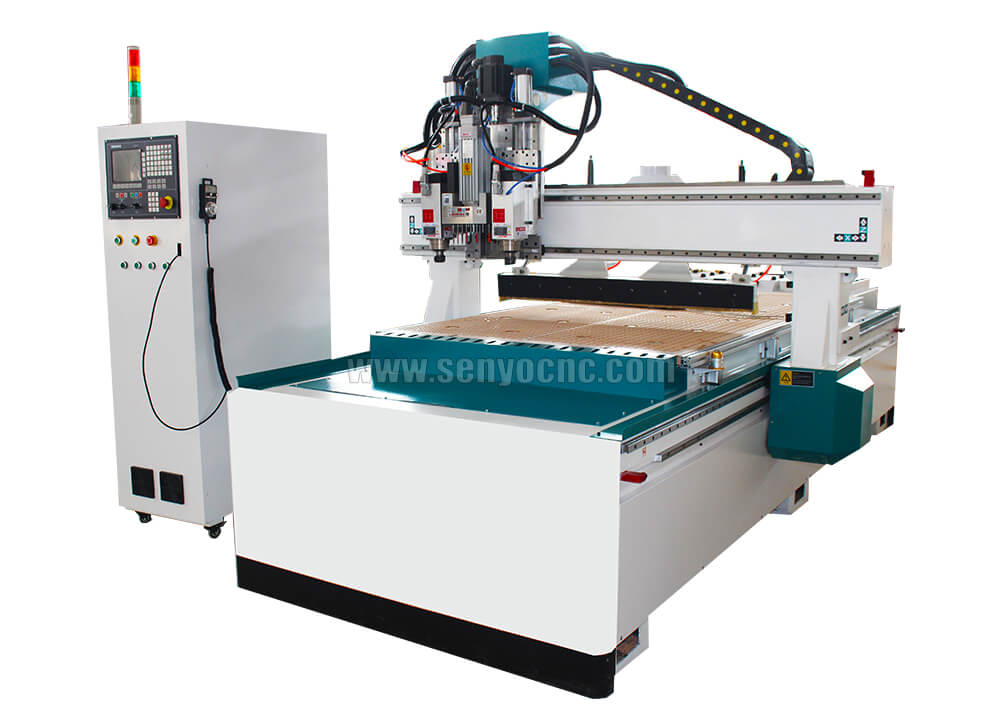

Machine with Two spindle and drilling head design option.

Machine detials Parts
Humanizing design of the machine control interface,very simple to operate, requiring only minimal training of operator, high efficiency.
First class components--ATC spindle, 1500W servo motors and drivers, high precision planetary gear reducers, etc,stable performance and long service life.
Strong 7.5KW vacuum pump and table, high adsorption capacity, can be strong adsorption of materials of different sizes, density, no deformation.
Truly versatile: nesting, routing, vertical drilling, cutting,side milling and edge grinding all in one. It is well-suited for panel furniture, office furniture, cabinets production.
9.0KW ATC air cooling spindle with roller

5+4 boring drilling head

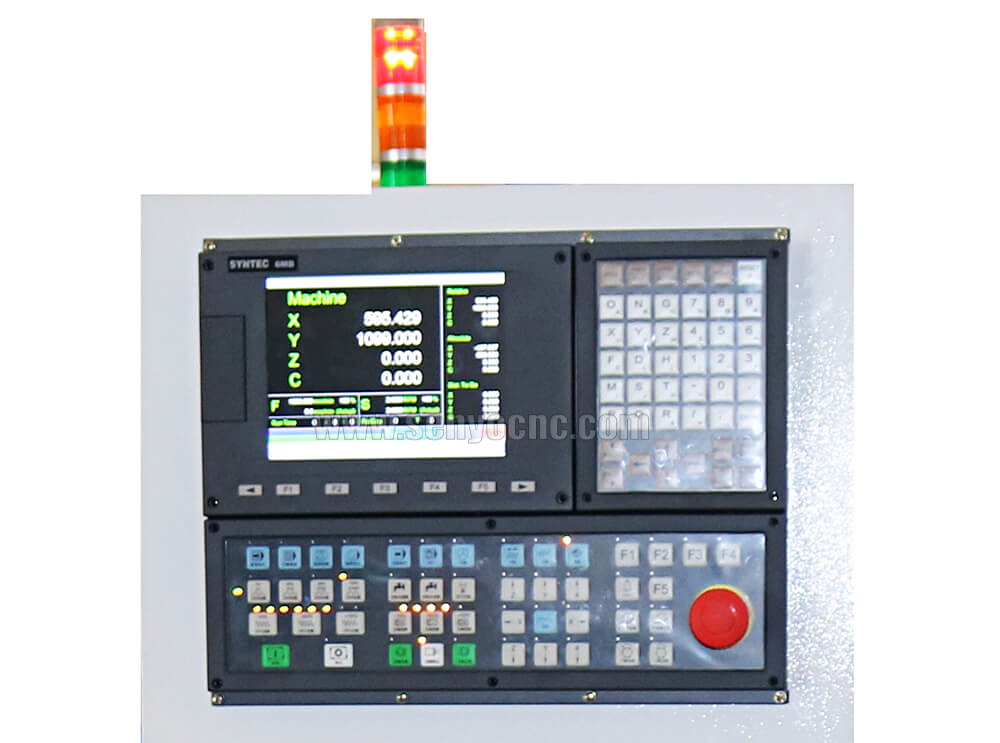

Syntec 6MB Control system

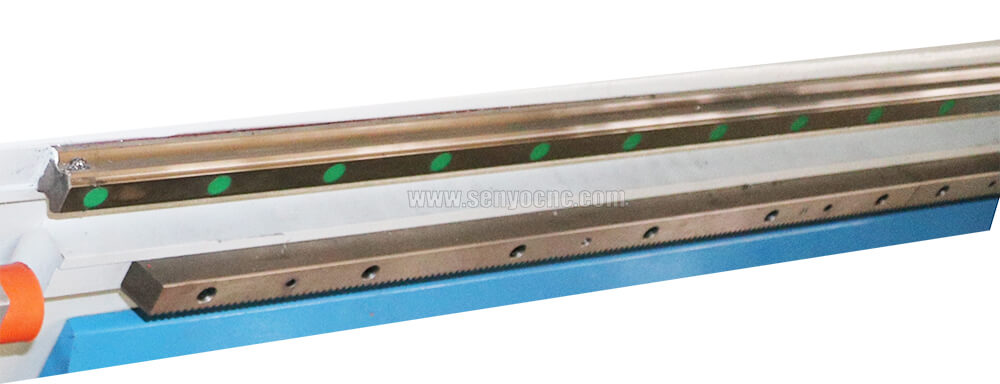

Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission, Hard limit switch

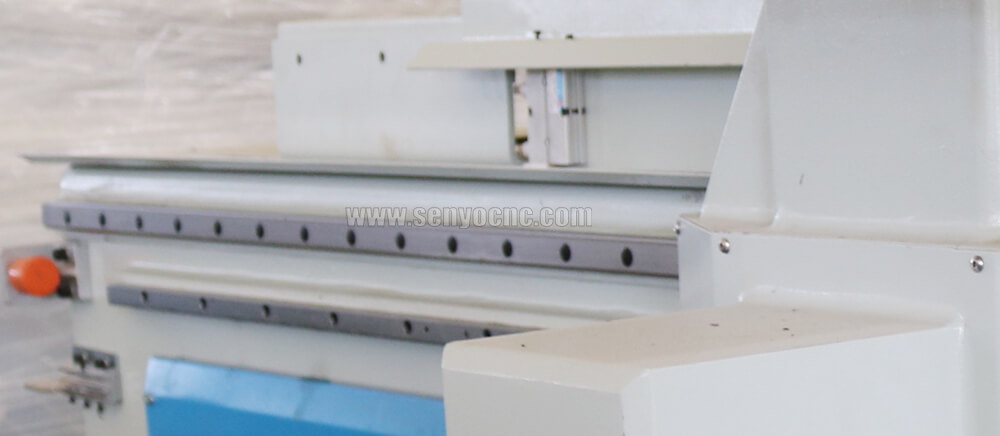

Hiwin 30 guide rail

Applications of CNC Nesting Wood Cutter for Modern Furniture & Home Decor

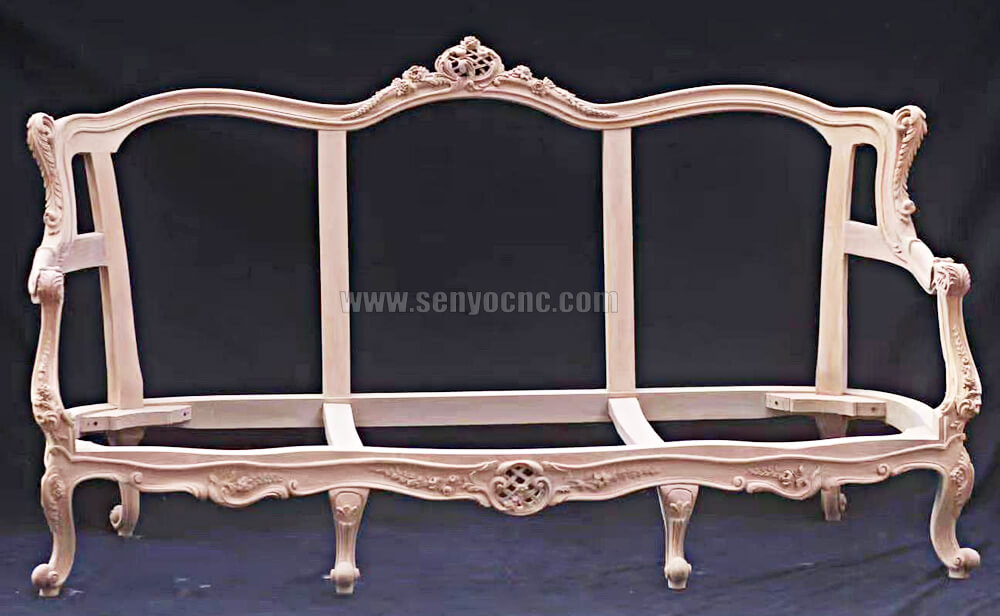

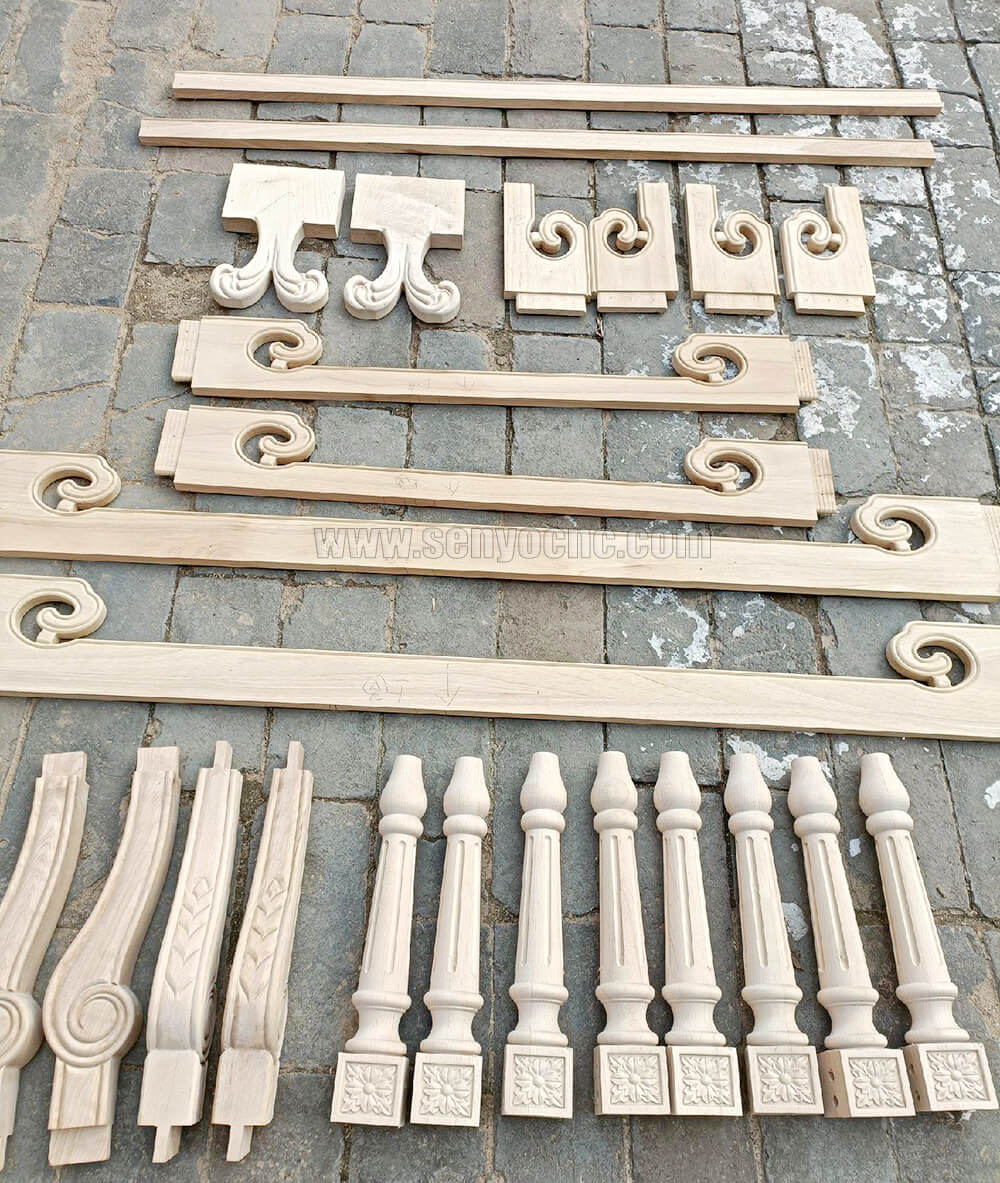

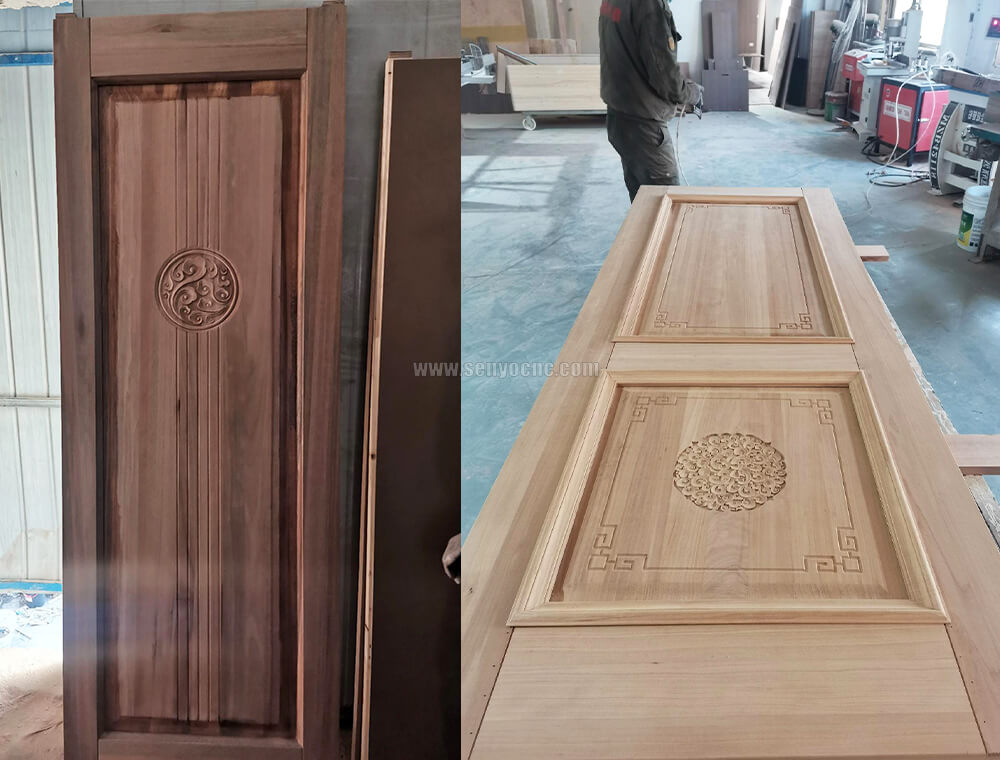

1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.

2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.

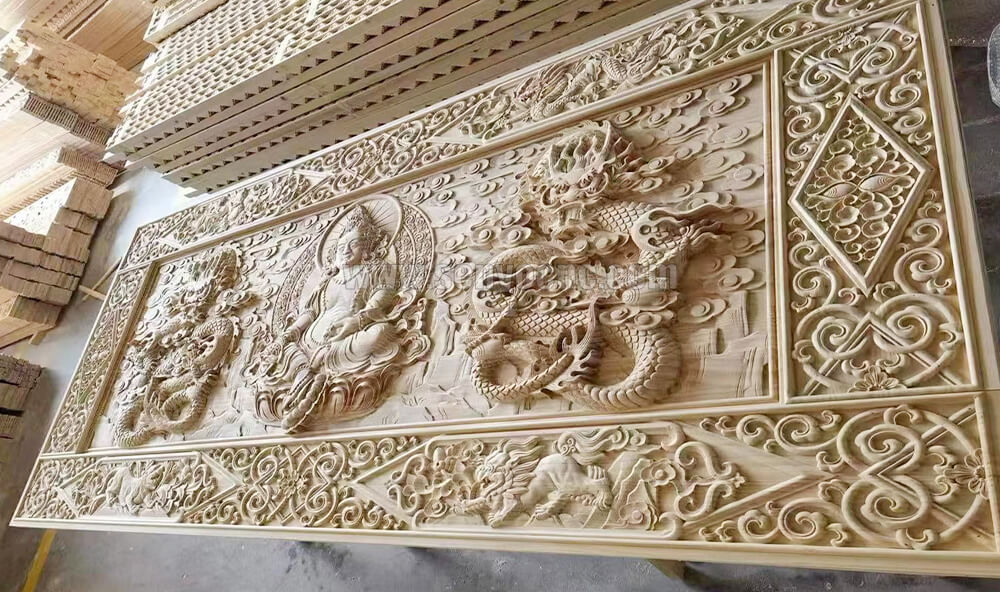

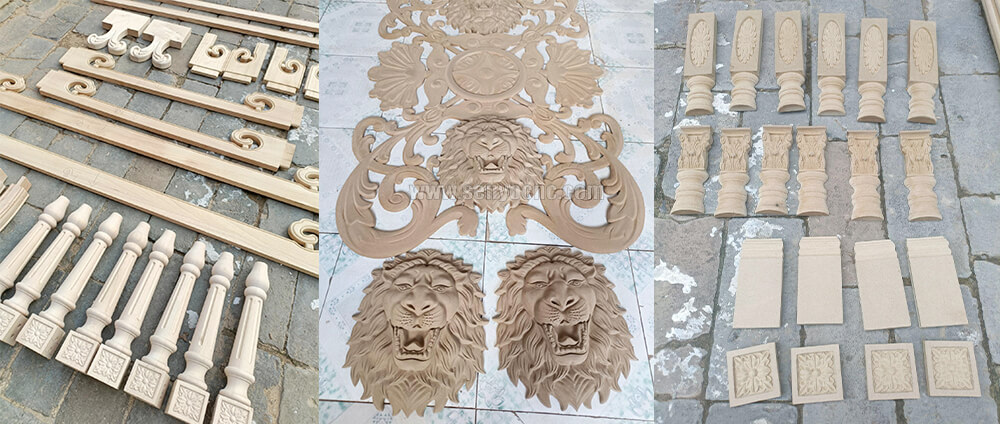

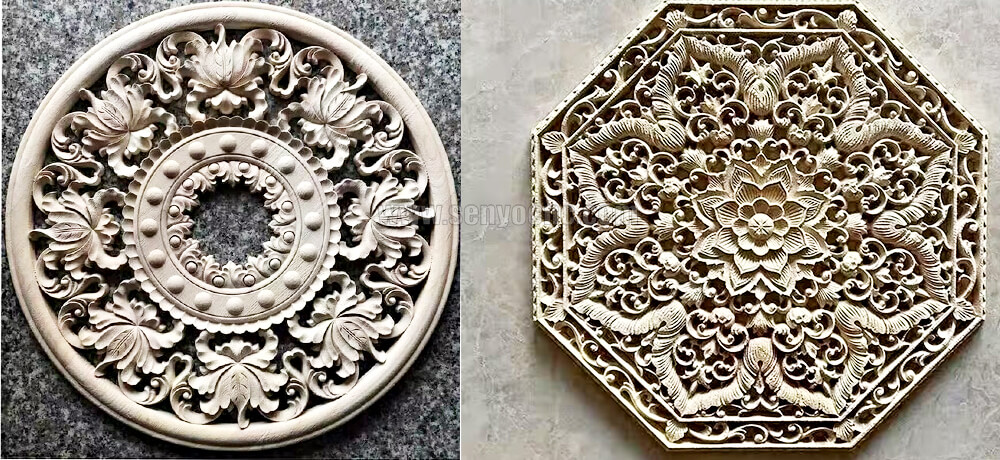

3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards
double-color boards and so on for achieveing effects of exquisite patterns and characters.

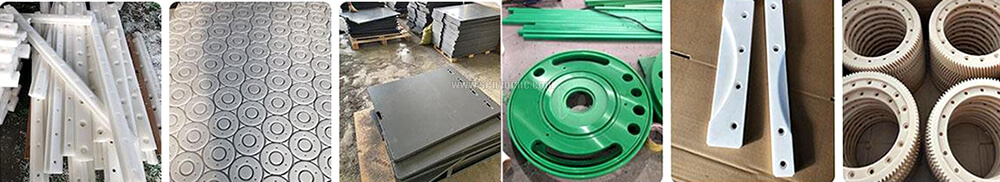

4. Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones
Organic glass, plastics and soft metal sheets such as copper and aluminum.

5. Suitable for compound processing pattern milling, sawing and drilling. It belongs to the price and high-efficiency machining equipment.

6. Slab countertops can do the whole board adsorotion processing directly without the preparation of material cutting.

7. The machine's drilling pattern is multi-function drilling.
It is equipped with any arrangement combination of vertical drilling, side drilling, single drilling and group drilling, etc.

8. Suitable for processing display counters, artifical stone flow management units, petrochemical PF filter plates

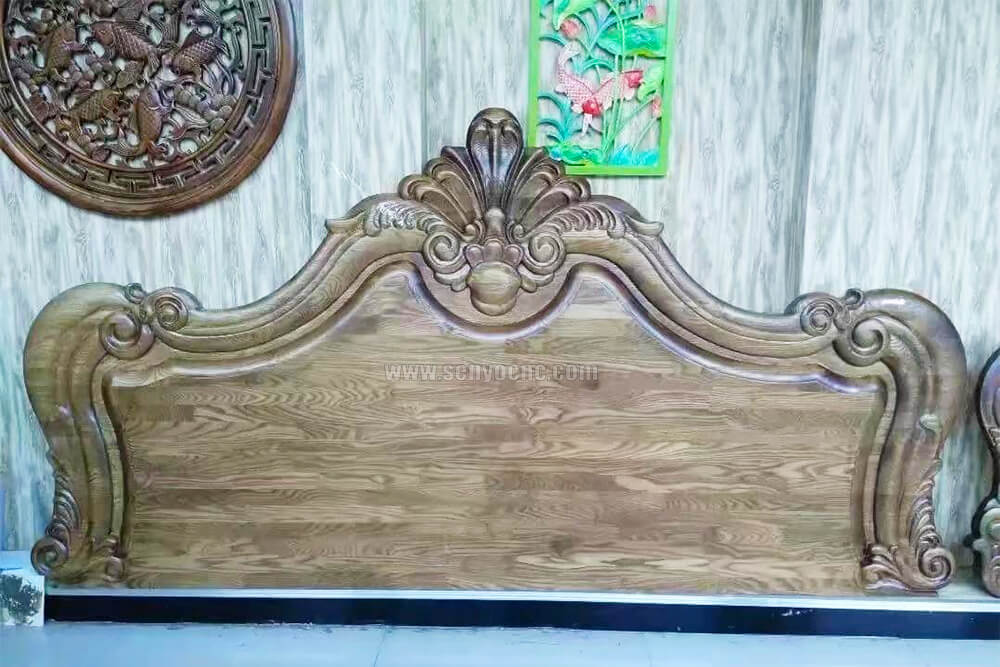

headboard, insulation plates, styrofoam model, yacht bedroom, OA office desktop.

Technical Parameters of CNC Nesting Wood Cutter
Model | SYM1530-D2D |
Table size | 1500mmx3000mmx300mm |
Repositioning resolution | ±0.02mm |
Max running speed | 50m/min |
Max cutting speed | 30m/min |
Tool magazine | Linear Type 12 tools |
Working voltage | 380V/3 Phase/50HZ or 220V/3 Phase/Single phase/60HZ |
Spindle | 9.0KW HQD air cooling |
Spindle speed | 24000r/min |
Driving system | Leadshine servo motor and drivers 1500W |
Software | Artcam |
Optional Items for CNC Nesting Wood Cutter
Spindle | 9.0KW HSD HSK-F63/ISO30 |
Table Design | Vacuum&T-slot table combined |
Vacuum Pump | 2.2KW with single phase |
Hold Down System | Pressure rollers following with spindle for a hold-down on the workpiece |
Driving System | Yaskawa servo motors |
Operation System | Syntec, Weihong,etc |
Pneumatic drill | 5+4 drilling bank |
Tool magazine | Disc tool changer 12 tools |
Protection Device | laser light curtain |
Packing & Shipping
1. Outside package: Standard plywood package.
2. Inner package:Stretchy film and plastic protective film for humidity.
3. We can package according to your requirements.
For
standard machines, 7-15 working days after payment.

Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
