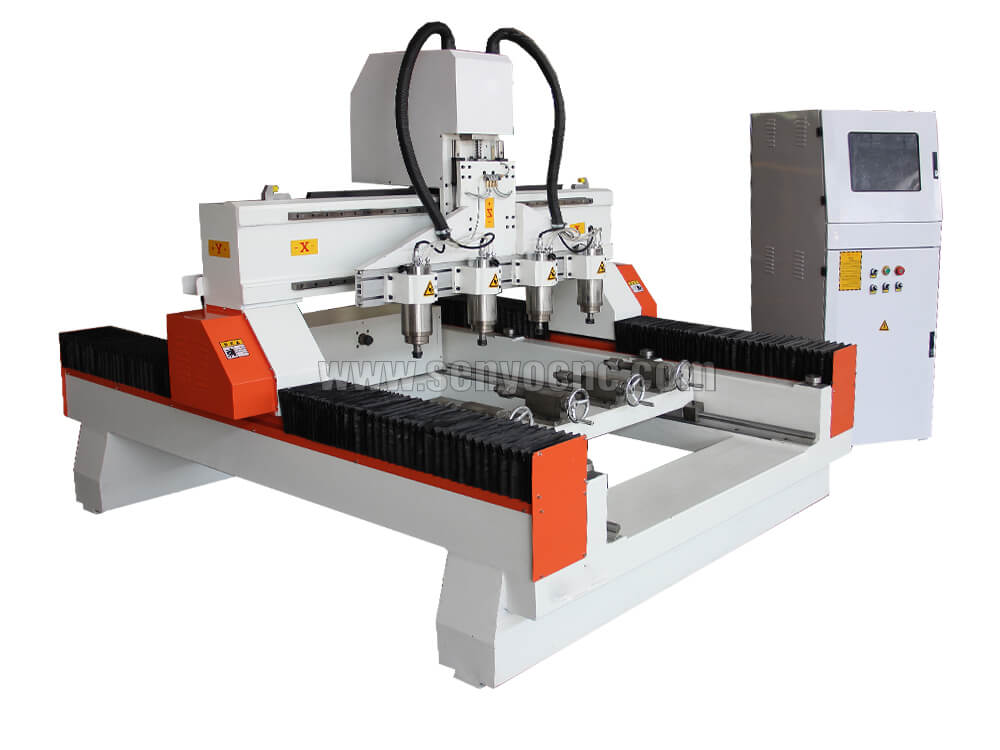

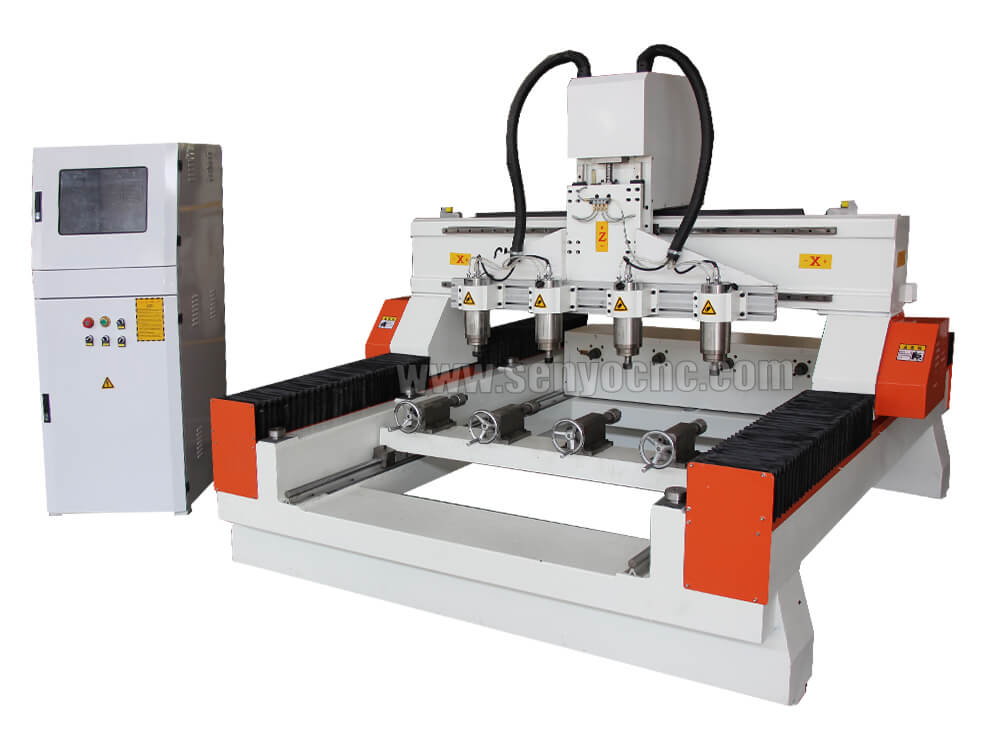

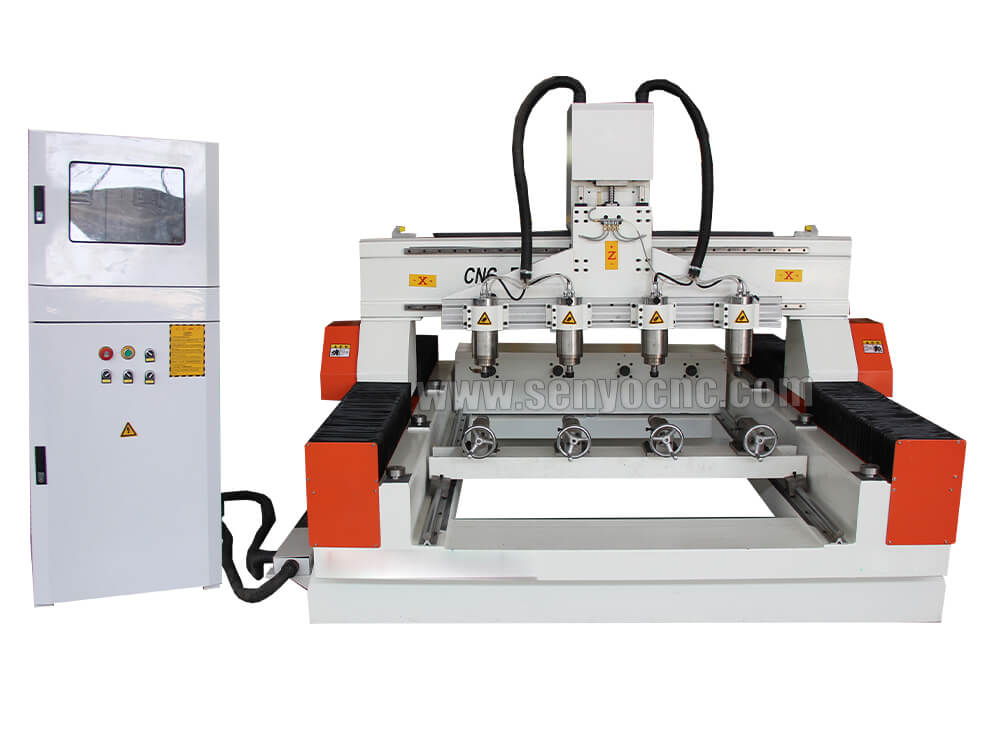

3D Engraving Multi Heads CNC Router:
1. 3D engraving multi heads CNC router with 4 rotary axis can work at same time, high work efficiency.
2. 4 spindle work same time.
3. Notable plate, a model especially for round subjects.
Advantage
1. The 3d CNC wood carving machine assembly in welded steel with fixed table and mobile gantry, solid, resistant and never deformation.
2. Multi heads can work at the same time or alone, this improves the efficiency of the work, practical and economical.
3. We can manufacture the machine with multi-heads according to the customer's requirements, as well as the worktable surface.
4. The 3d CNC wood carving machine equipped anti-dust equipment ensure a longer machine life.
5. Select the best machine accessories to minimize the failure rate.
6. Multiple compatible software such as Type 3, Artcam or Castmate, as well as a variety of CAD / CAM design software
Paramaters
Work area | 1300*2500*200 |
Travelling speed | 20m/min(MAX) |
Working speed | 12m/min(MAX) |
Working voltage | AC220V(Optional 380V) |
Spindle power | Water cooled 2.2KW*4-24000RPM |
Device architecture | One molding process,space saving cabinet (380V for the normal external
cabinet)high structural stability ,high precision and small |
Driving system | XYZ: 86 high torque stepper drive motor and drive |
Rack and pinion | The new alloy hardened helical gear rack + alloy hardened helical gear rack |
Guide Rails | Taiwan Original 20 guide rails +Taiwan TBI 2510 ball screw |
Operating system | NC studio/Mach3/DSP |
Platform structure | Without worktable or add move table Aluminum profile + fixture |
Electrical accessories | Omron, Chint |
Inverter | Best |
Power cable | High-soft high-speed shielding cable, |
Lubrication system | Oil pump centralized lubrication control |
Security system | Overtravel protection, electrical protection etc. |
Dust collector | Optional 2.2KW vacuum cleaner,Vacuum pipe,Vacuum hood |
Fastenings | The transmission parts are fixed with high strength class screws, |
Accuracy | Each axis is fixed rigidly, and the locating pin is added |
Quality Control | Incoming material, process, delivery full control, |
Parts Detials

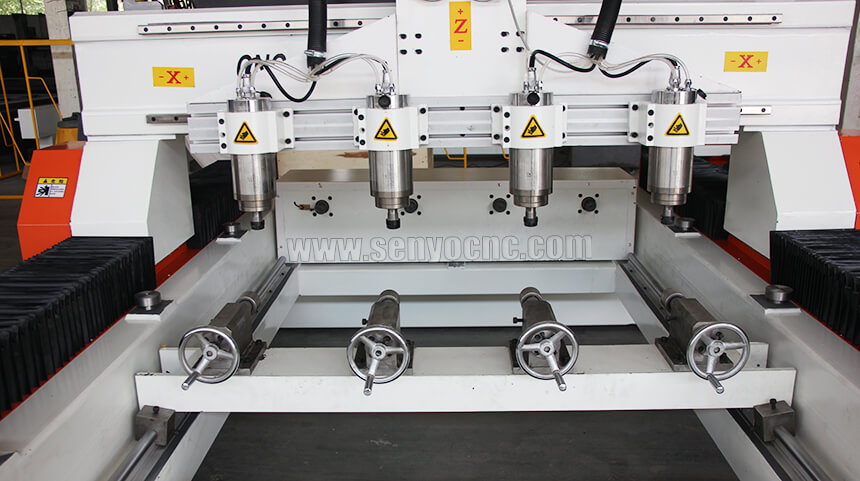

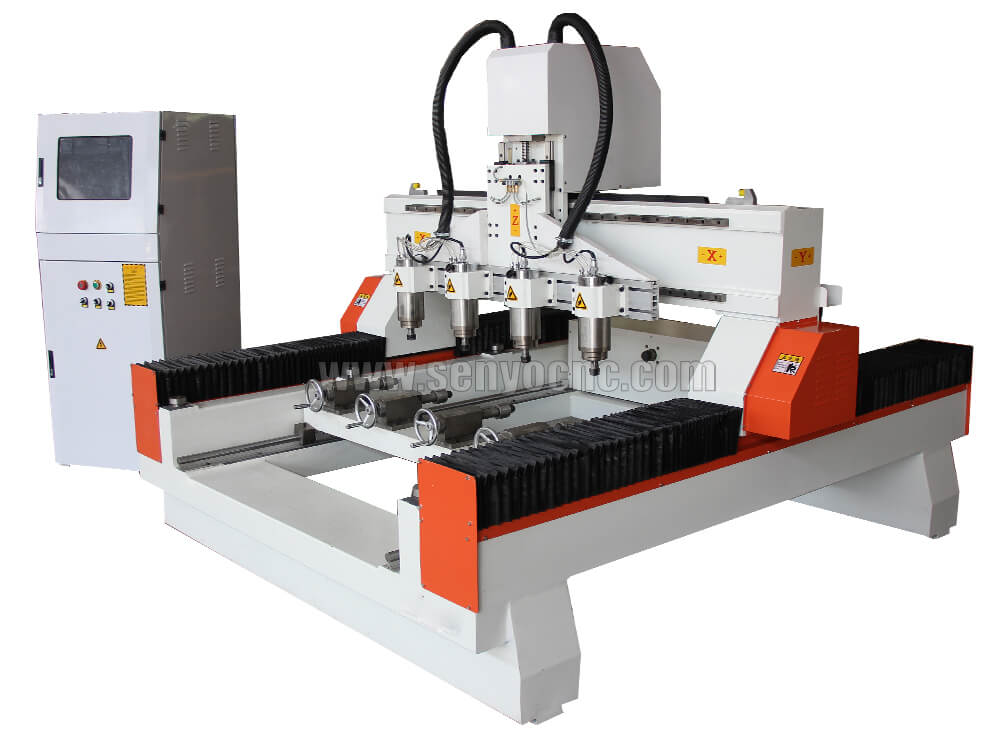

Multi spindles 4 spindles, 4 rotary axis, higher working efficiency.

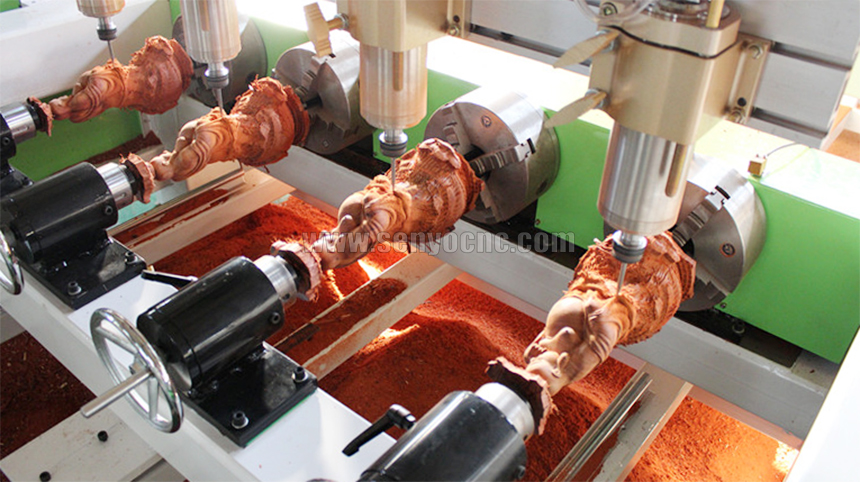

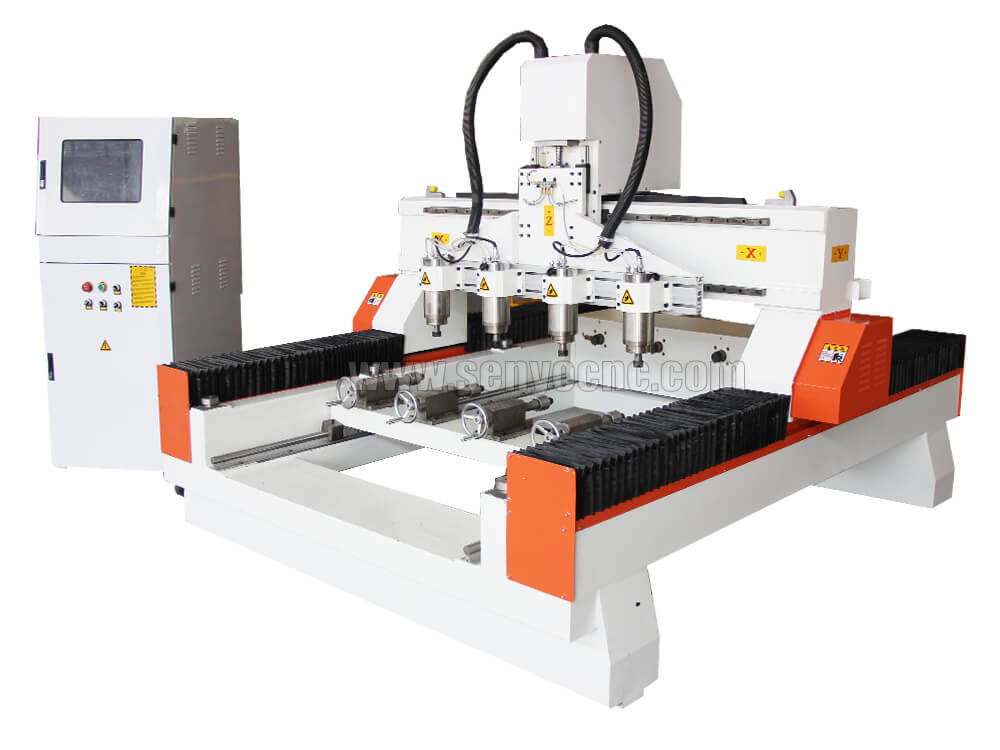

Multi rotary devices big chuck. Could be made according to your requirements.

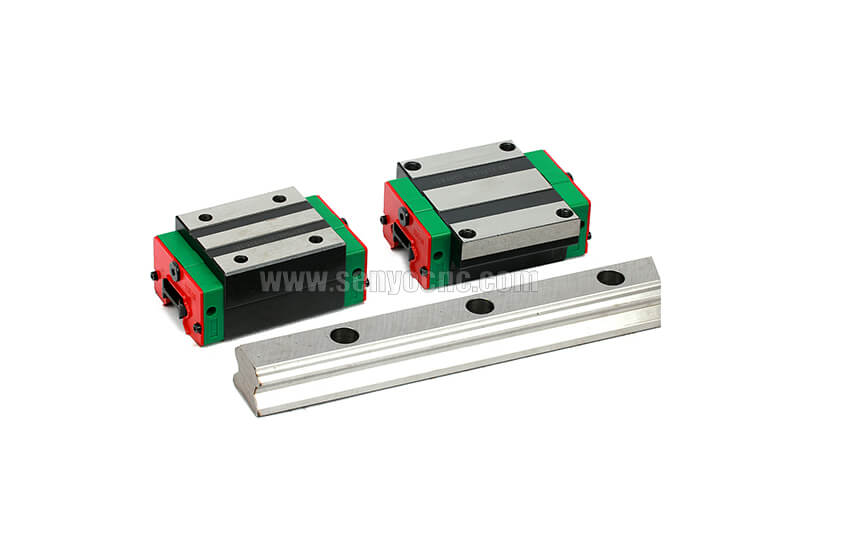

Import Hiwin Square linear rail in ths industry, support working in good precision .

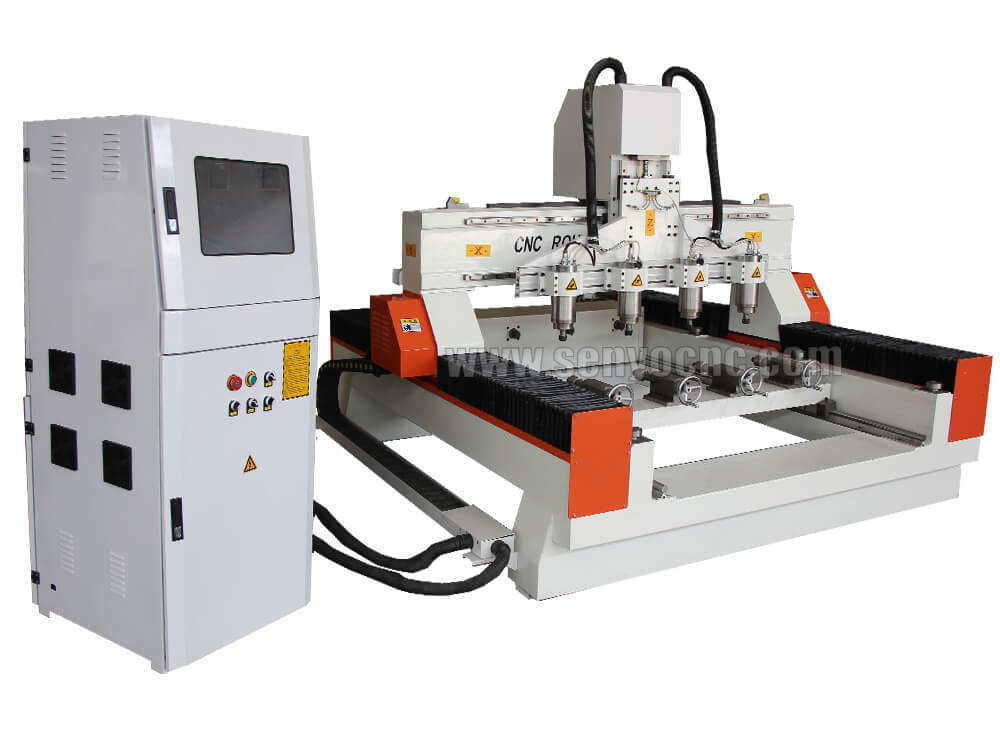

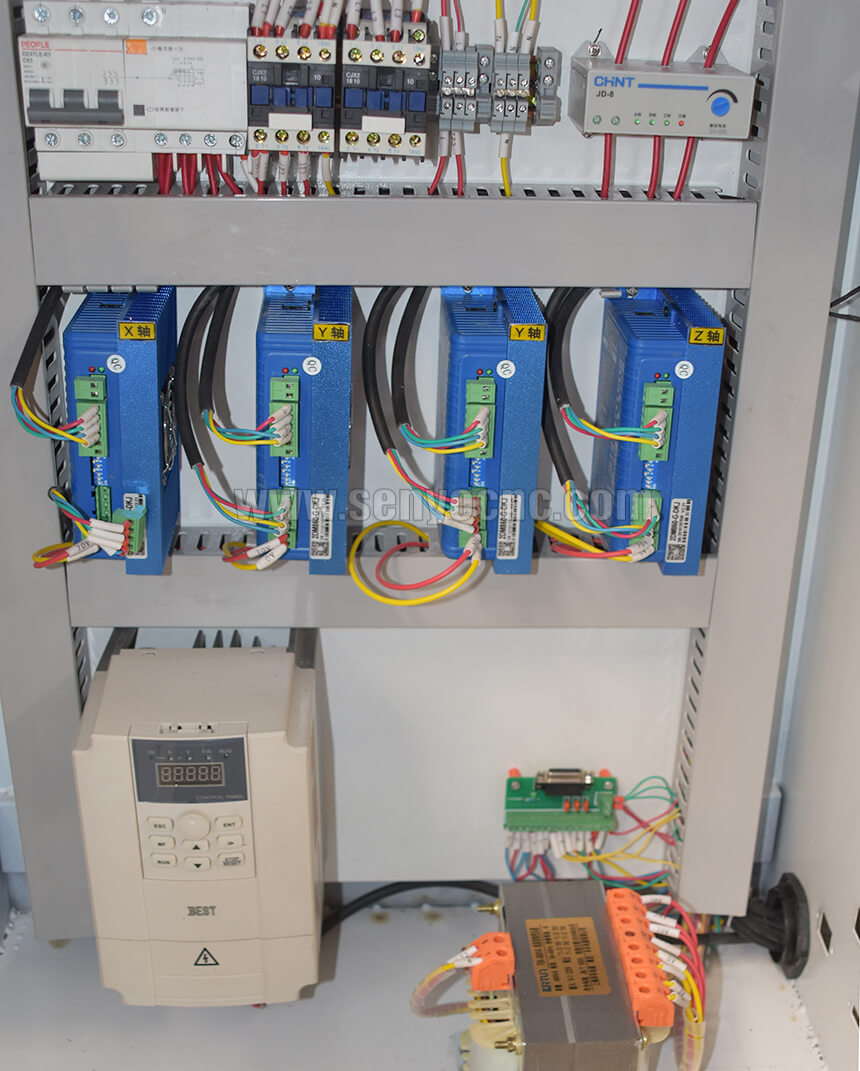

Independent control box, with Professional wire connection .

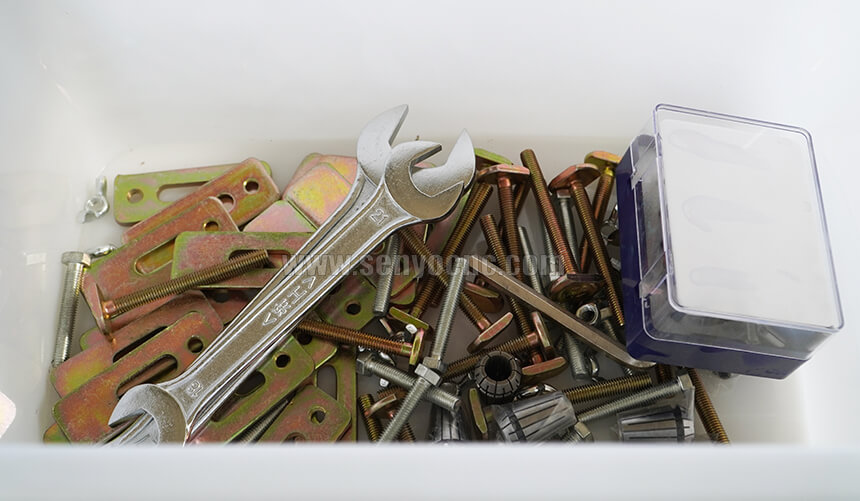

Machine with Complately Tools for Operation
Application
1. It is mainly aimed at the relief furniture industry, with multiple processing functions, and round wood relief carving technology;
2. Dragon column, relief furniture, stair handrail, decoration industry, three-dimensional processing technology, complex technology;
3. It can carve 360 ° human body, Buddha statue, sculpture, handicraft, furniture, etc.
4. Processing three-dimensional technology, complex technology;
Woodworking industry:Three dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and furniture auxiliary processing.
Advertising signs, logo production, acrylic, plastic cutting, production of decorative materials, forming system module, etc.
Furniture industry: Solid wood furniture, solid wood doors, decorative materials, computer tables, panel furniture, office furniture, wooden.
Package & Shipping
Firstly, packed the cnc router machine with stretch film for clearing and damp proofing.
Secondly, put the cnc router machine in plywood case for safety and clashing.
Thirdly, transport the plywood case into container.
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
