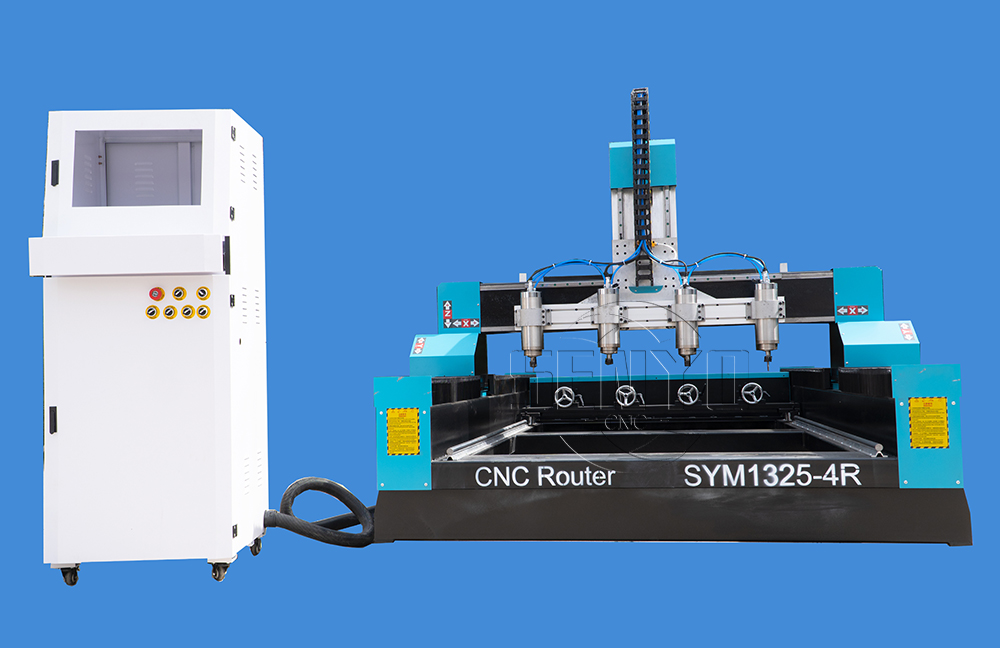

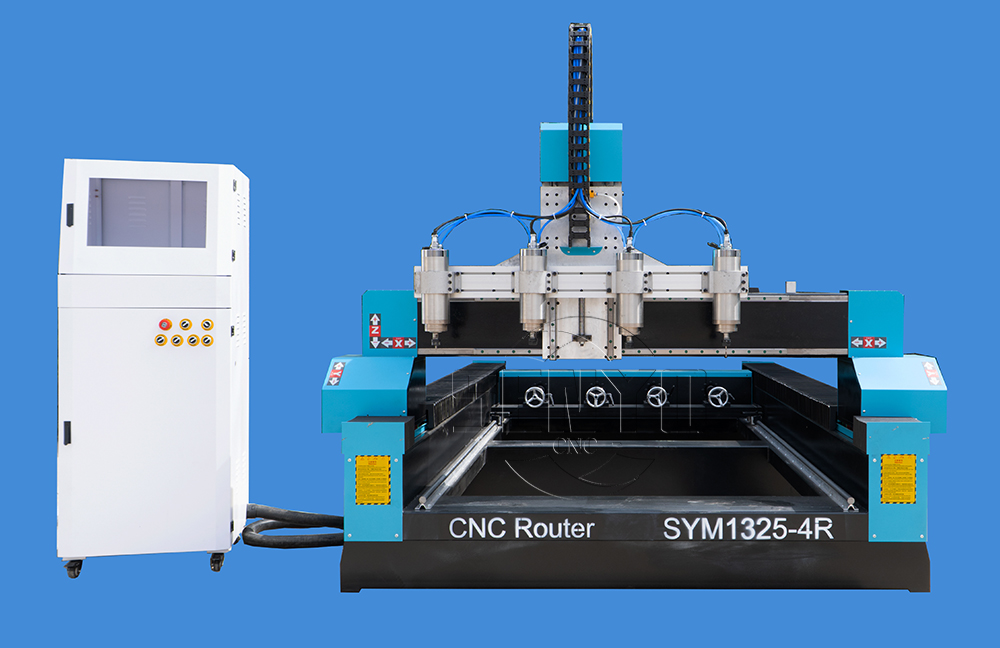

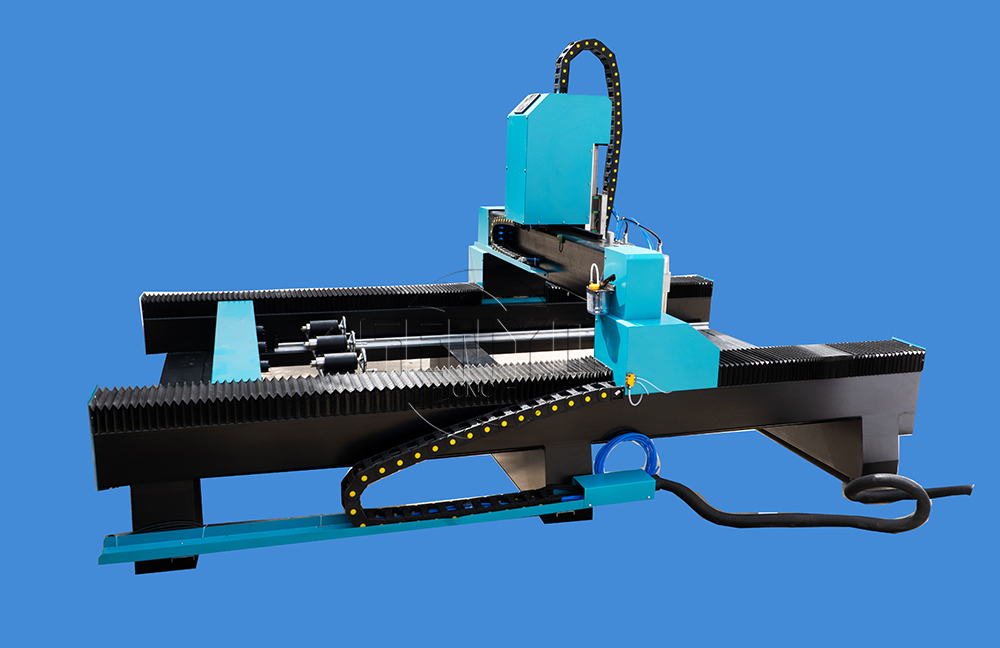

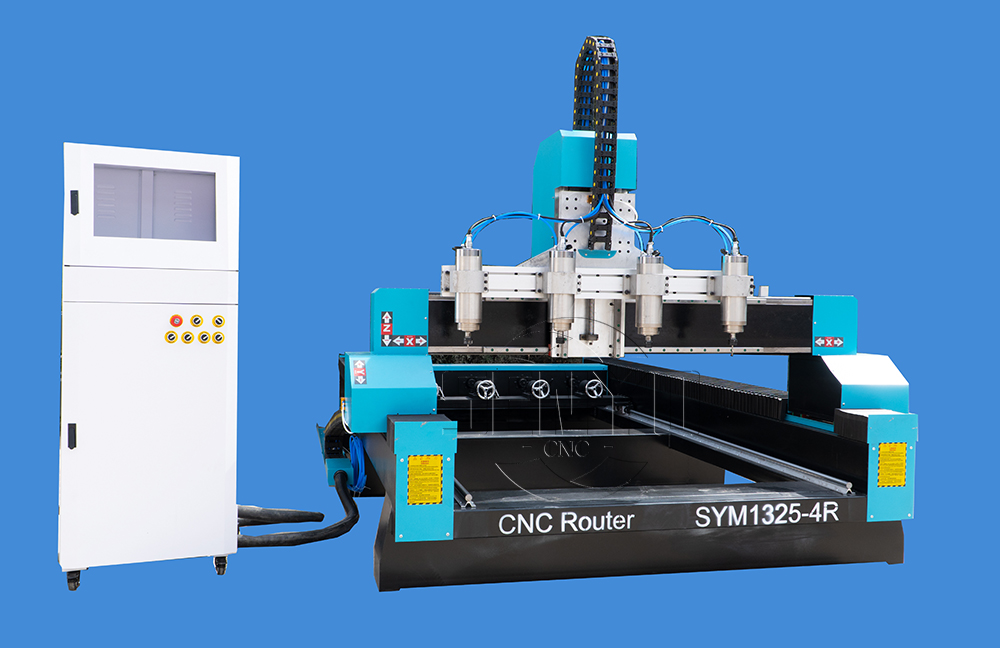

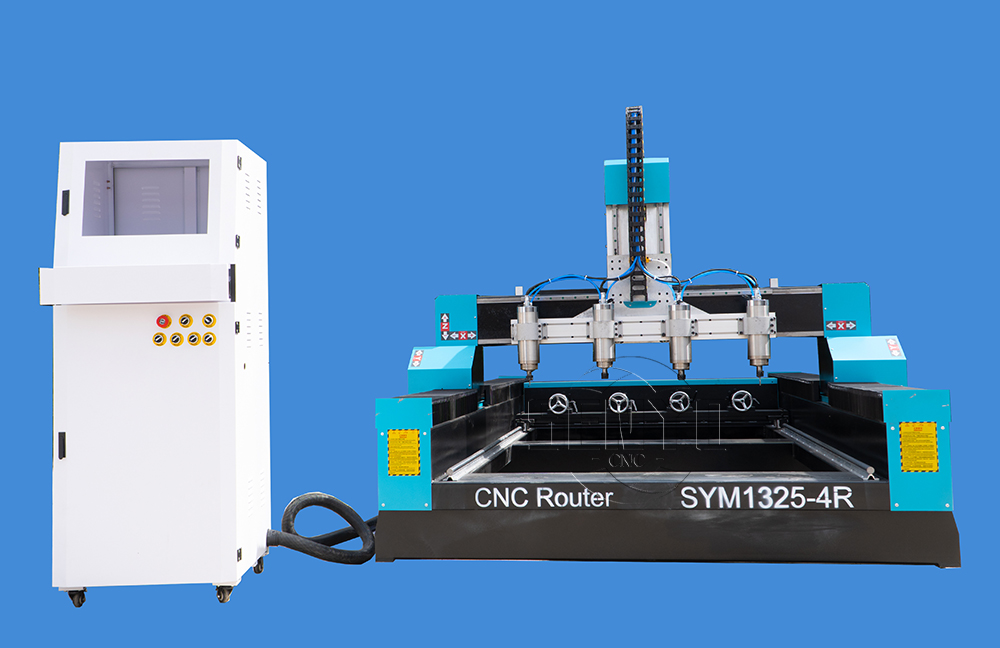

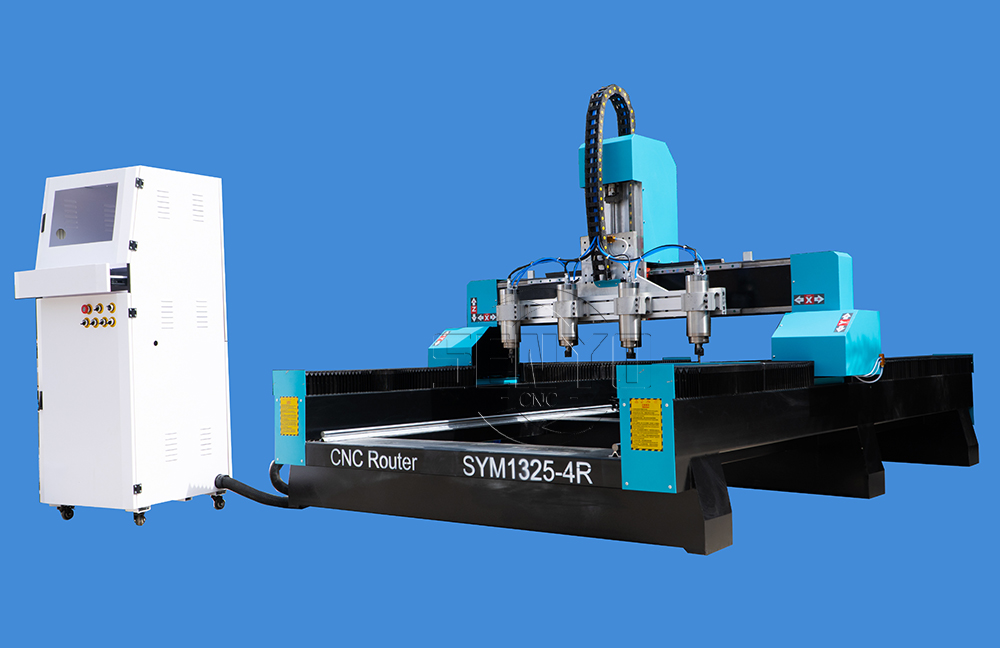

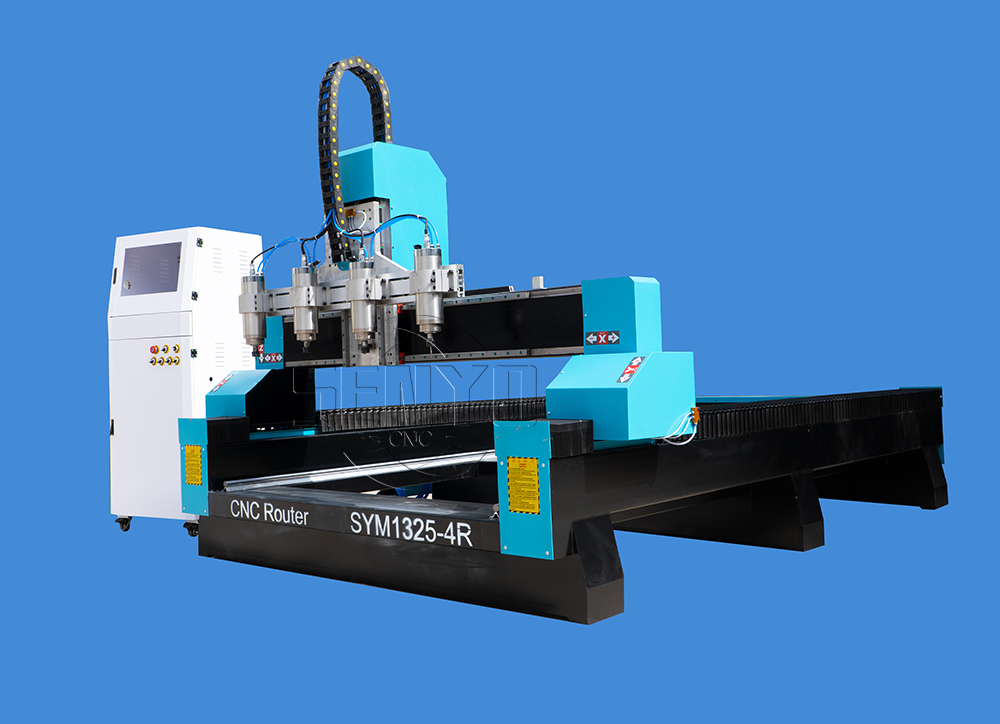

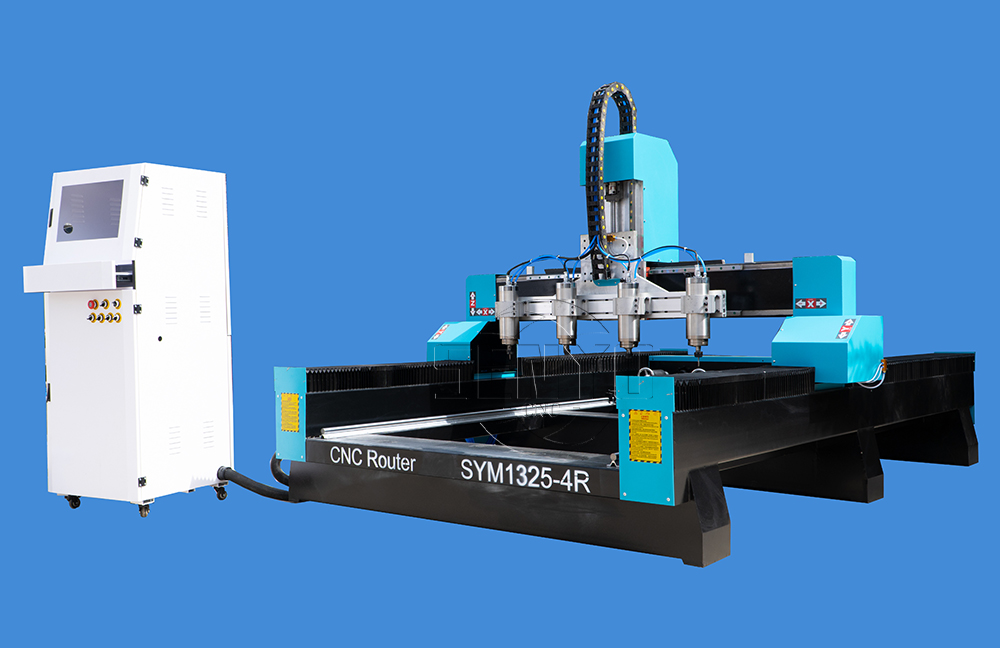

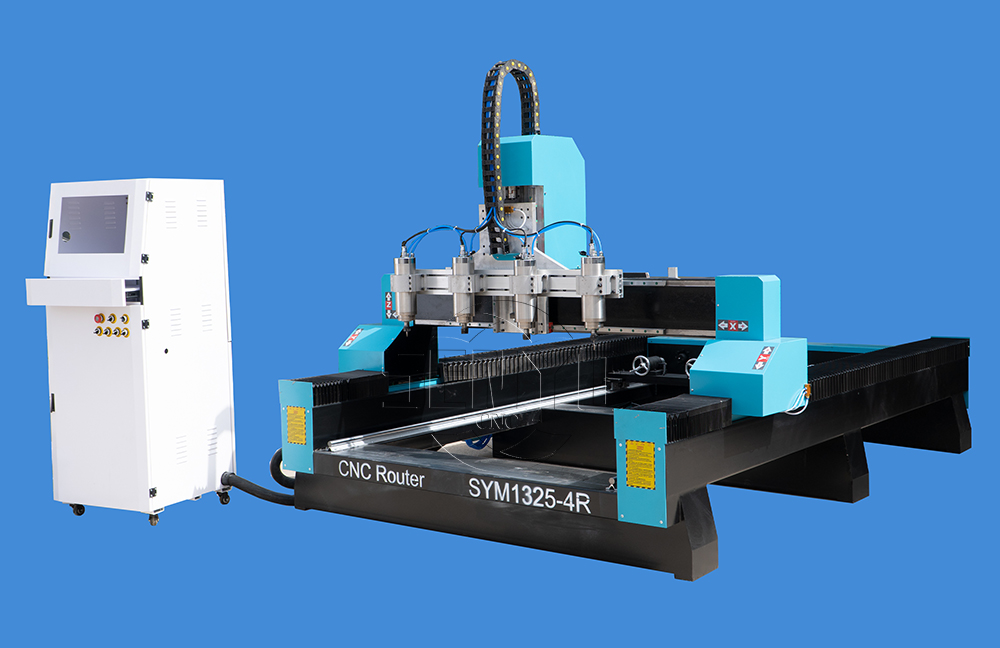

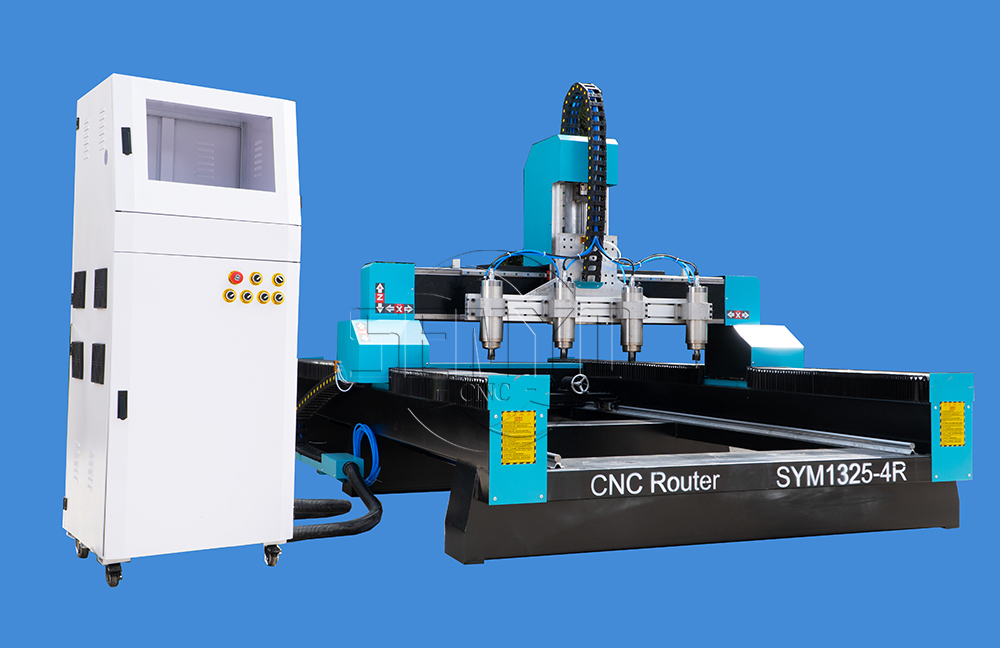

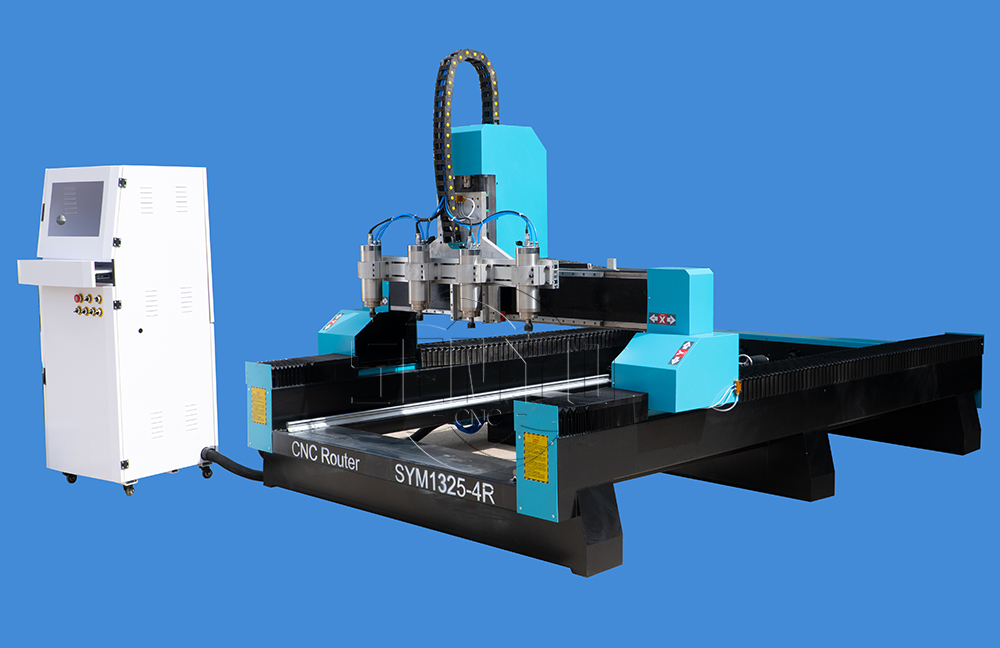

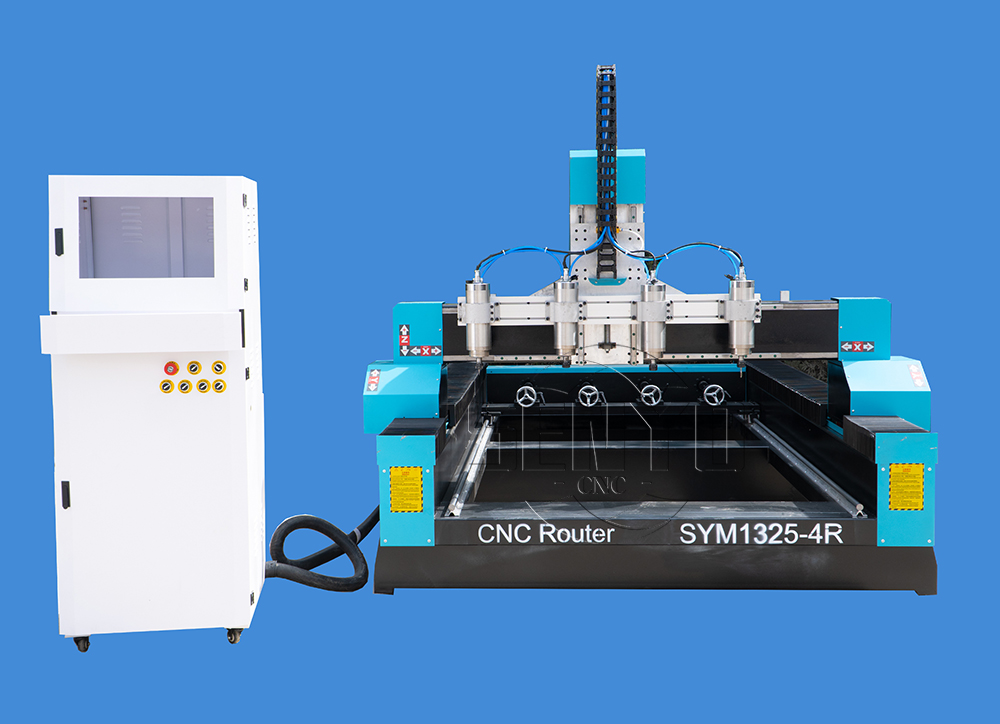

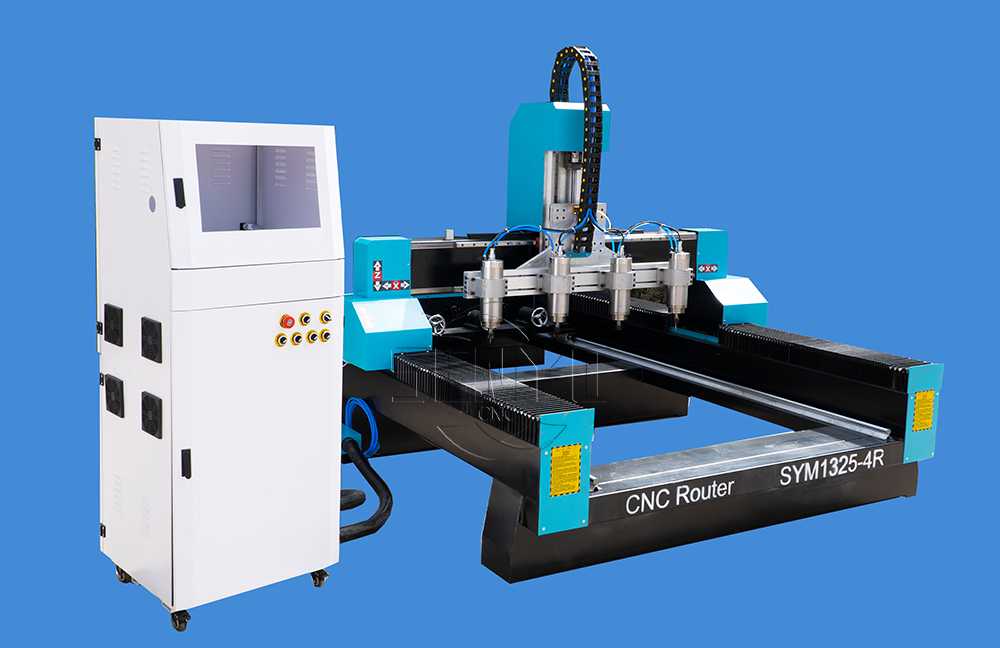

The Multi-4th rotary axes 3D CNC router machine is a specialist in carving, cutting, and shaping different materials into intricate 3D designs. As opposed to the standard CNC routers, which work on 3 axes linearly-that is, X-axis, Y-axis, and Z-axis-this machine has one additional rotary axis to rotate the material during its operation process. This adds to its versatility, enabling it to make detailed cylindrical and spherical objects.

With this addition, a 4th rotary axis makes them very ideal for complex projects. This addition will give them great accuracy on carving, especially for curved surfaces like columns, sculptures, and cylindrical objects. The industries where this feature can be used are furniture design, architectural modeling, and custom making of pieces of decoration. These machines work with wood, plastic, and some types of metal.

In general, a 3D CNC router with a 4th rotary axis will provide additional functionality and enlarged possibilities of design. This is a perfect choice for a business or hobbyist looking to make complex, high-quality 3D projects efficiently and accurately.

Multi-Head 3D CNC Wood Carving Machine Features

1. Multi heads can work at the same time to improve the same design engraving efficiency.

2. Multi heads use powerful spindle , working long time all day .

3. Multi-head CNC routers can use only one head to process and increase the working area.

4. Heads amounts and working area can be changed according to client's requests.

5. Four rotaries and 4 heads, which can work at the same time .

Parts Detials

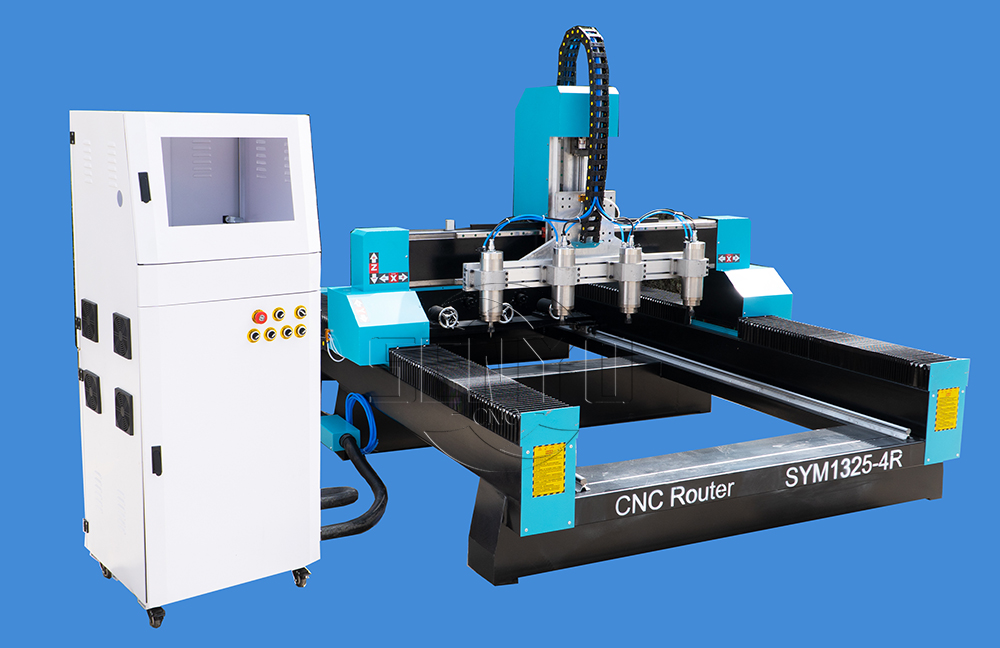

1. 4th axis CNC wood router with 4 rotary axes and 4 spindles, which can work at the same time or independently, and every one's max effective working area is 300mm (diameter) by 1600mm (length).

2. The whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.

3. It can not only do rotary engraving but also flat engraving. It can engrave several materials at one time, which greatly increasing the working efficiency.

4. Taiwan TBI dual screw-nut anti-gap ballcsrew with high accuracy and long life.

5. Equipped with high speed spindle motor, low noise and high performance division drive.

6. Adopted with advanced controlled system, with simple operating software, its easy to learn.

7. Powerful compatibility for most of software such as: Type3, Artcam, Proe, Wentai, CAD/CAM.

8. Humanized design, convenient for removing and installing

9. XYZ axis use anti-dust system, prevent dust during working, make sure the long life span of square parts.

10. 4th axis rotary CNC router with 4 heads has the function of re-carving after break point and power failure.

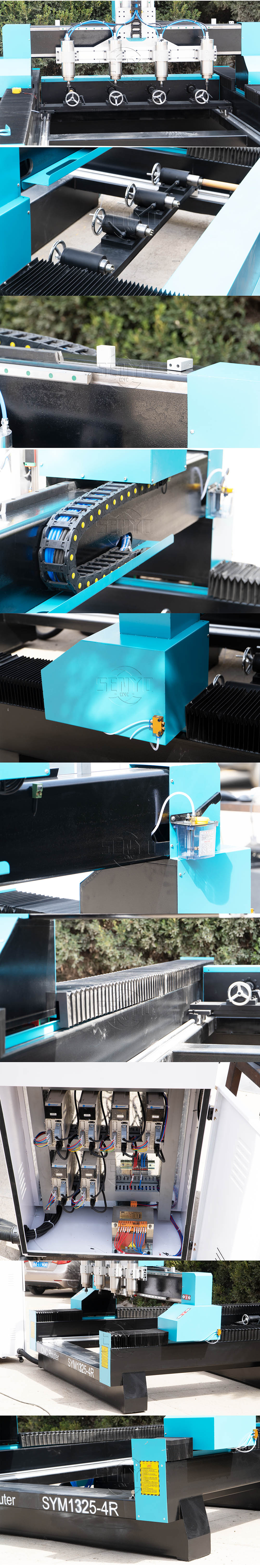

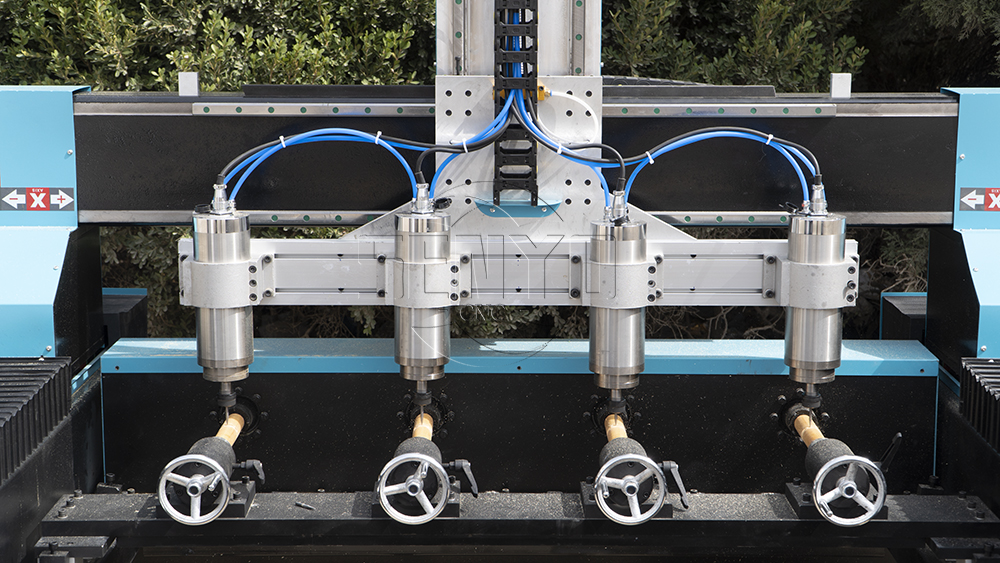

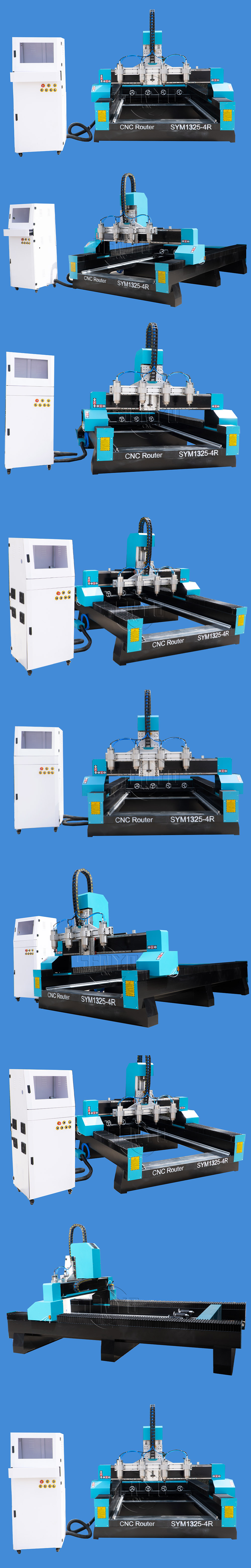

Parts Show

Multi-Spindle 3D 4 Axis CNC Wood Carving Machine Technical Parameters

Multi-Head 4 Axis CNC Wood Carving Machine Applications

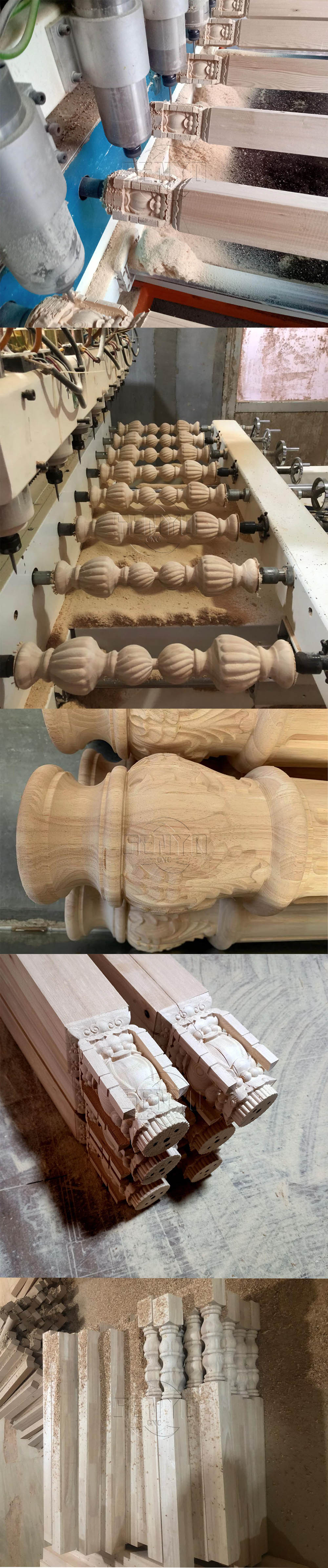

This machine is mainly used for 3D woodworking, relief carving, hollowing, and some 2D woodworking projects, such as Roman columns, stair handrails, chair legs, and more cylindrical projects.

Woodworking: 3D wave board processing, furniture like solid wood door, kitchen cabinets, wardrobe cabinets, tables, beds, computer desk and cylinders like table legs, sofa legs, wooden craft, paint door, screen, craft fan window processing, shoe polisher, game cabinets and panel, mahjong table, auxiliary processing.

Advertising: Advertising sign, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative product.

Mold Making: Engraving wood, foam, EPS, copper, aluminum mold, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.

Other Industries: A variety of large-scale relief sculpture, shadow carving, widely used in the craft making industry.

The 3D CNC carving machine is very suitable for furniture bulk production such as desk legs, stair handrails, and other column or cylinder products.

The 3D cylinder engraving machine can process 3D sculptures and complex artworks, it can easily process 360-degree human bodies, Buddhist statues, sculptures, artworks, furniture products such as desk legs, stair handrails, and so on.

Multi-Spindle 4 Axis CNC Wood Engraving Machine for Custom Woodworking Projects

Why Choose a CNC Router with Multi 4th Rotary Axes for Complex Designs?

When equipping a CNC router with multi 4th rotary axes, there is a new dimension for design possibilities that it allows. It becomes the vital tool in intricate and detailed works that demand a degree of accuracy and versatility. This is the reason why such machines stand in opposition.

Enhanced Design Capabilities

With the 4th rotary axis, it is possible to make complex 3-dimensional designs that are impossible with the standard CNC router. This allows for carving and shaping in curved or cylindrical surfaces, making it ideal for sculptures, pillars, and decorative pieces. Its advanced capabilities make it the favorite for professionals in industries related to architecture and fine art.

Increased Efficiency

The rotary axis minimizes manual adjustments during the machining process. By rotating the material automatically, the machine can work on multiple sides of an object without interruption, saving both time and effort. This streamlined process significantly boosts production speed without compromising quality.

More Precision

A CNC router with a 4th rotary axis ensures high accuracy, even down to the minute details. This makes it ideal for projects requiring consistency and fine craftsmanship, like making jewelry boxes or custom furniture elements. Every cut and carve is just as perfect as in the design specifications.

Material Versatility

These machines are compatible with a wide range of materials, from wood and plastic to foam and even some metals. This makes it possible to take on various projects, ranging from artistic creations to industrial applications. Be it softwood or heavy-duty aluminum, the machine provides excellent performance.

Cost-Effective for Complex Projects

Investing in a machine with a multi 4th rotary axis reduces the need for additional tools or labor for complex designs. Its multifunctionality streamlines the production process, making it a cost-effective solution in the long run. Over time, it lowers production costs while increasing output and overall efficiency.

Perfect for Creative Professionals

Artists, furniture designers, and architects can use this machine to bring intricate ideas to life. Its ability to execute detailed and precise designs makes it indispensable for creative industries. This machine bridges the gap between imagination and reality, enabling unique and sophisticated creations.

Installation and Setup Tips for 3D CNC Router Machines

Installation and proper setup of your 3D CNC router machine are quite crucial for one to have the best performance from the machine over a long period. The following tips will get you on a very good start toward realizing full potential with your machine on creative and industrial projects.

• Pick the Correct Location: Place the machine in a well-ventilated, clean, and spacious area for smooth operations and access. Ensure the surface is firm and level to avoid vibrating motions that will affect its precision.

• Check Electrical Requirements: Ensure the power is within the voltage and current limits of the machine. It is advisable to provide a dedicated circuit to the machine to avoid electrical malfunction and to protect the machine against power fluctuations.

• Assemble with Care: Next, follow the manufacturer's instructions and assemble the machine step by step to avoid overlooking or misplacing components. Also, use recommended tools to ensure that all parts are well fitted.

• Install Software Appropriately: Ensure to install compatible CNC software on your computer and connect it to the machine. Update drivers and firmware to the latest versions for better functionality and performance.

• Calibrate for Accuracy: Align the axes and tools for accuracy of operation. Test cuts on scrap materials to test the alignment of the machine.

• Training of the Operator: Understand yourself or your personnel with the controls and safety features of the machine. Proper training minimizes the risks of errors and improves productivity.

For Our Work Steps

1.Before-sale,we will try to know your requirement about our cnc finer laser specification and what kind of work

you will do .then we will offer our best solution for your requirement.

2.During production: we will send photos of machines during making. so you can know more details about

the procession of making your machines.

3.Before shipping,we will take delivery photo and confirm  the specification of order to avoid the mistake.

Machine will be adjusted before it is delivered.

4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the

approximate date of arrival.

5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .

6.About teaching:  there are some manual and video about how to use machine , if you have question

about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.

Packing & Shipping

1. Outside package: Standard plywood package.

2. Inner package:Stretchy film and plastic protective film for humidity.

3. We can package according to your requirements.

For standard machines, 7-15 working days after payment.

Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.
