Advantage
* 8 separate buttons to control each spindle working
* Easy servo (closed loop) motor has same encoder to communicate with driver, over loading protect and alarm.
* Taiwan square linear guide and block, quality guaranteed
* Imported high precision ball screw transmission
* 8pcs 2.2KW spindle, with same working effect
* Italy or China brand air cooled spindle for option
* Generating 8 copies at the same time, high working efficiency
* Big steel beam with thickness steel
Specification

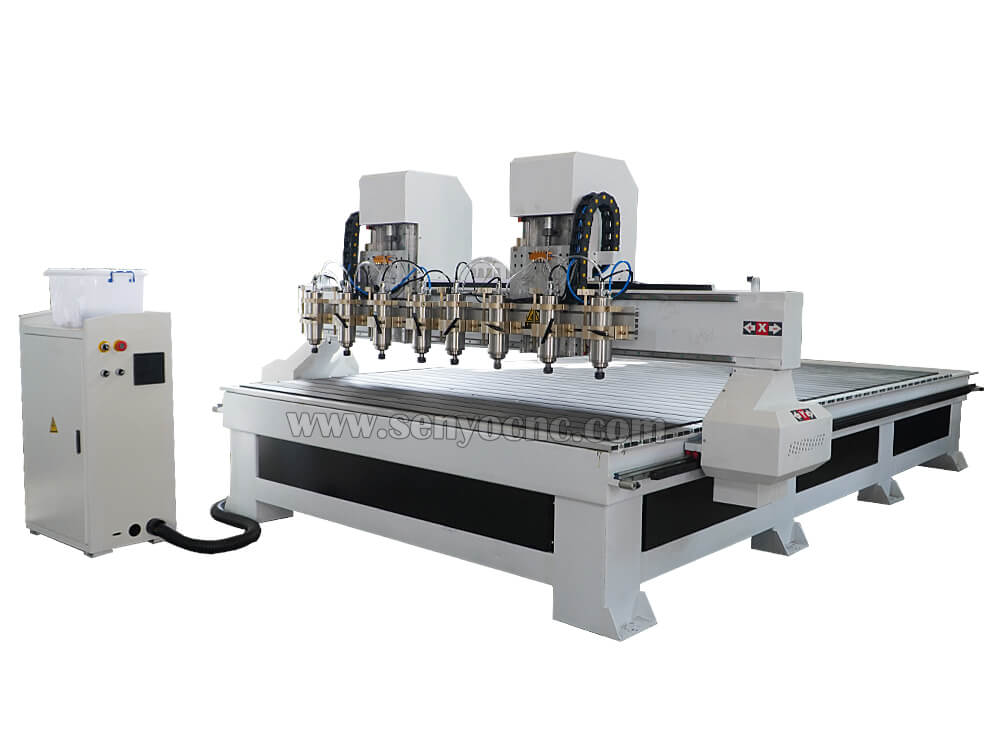

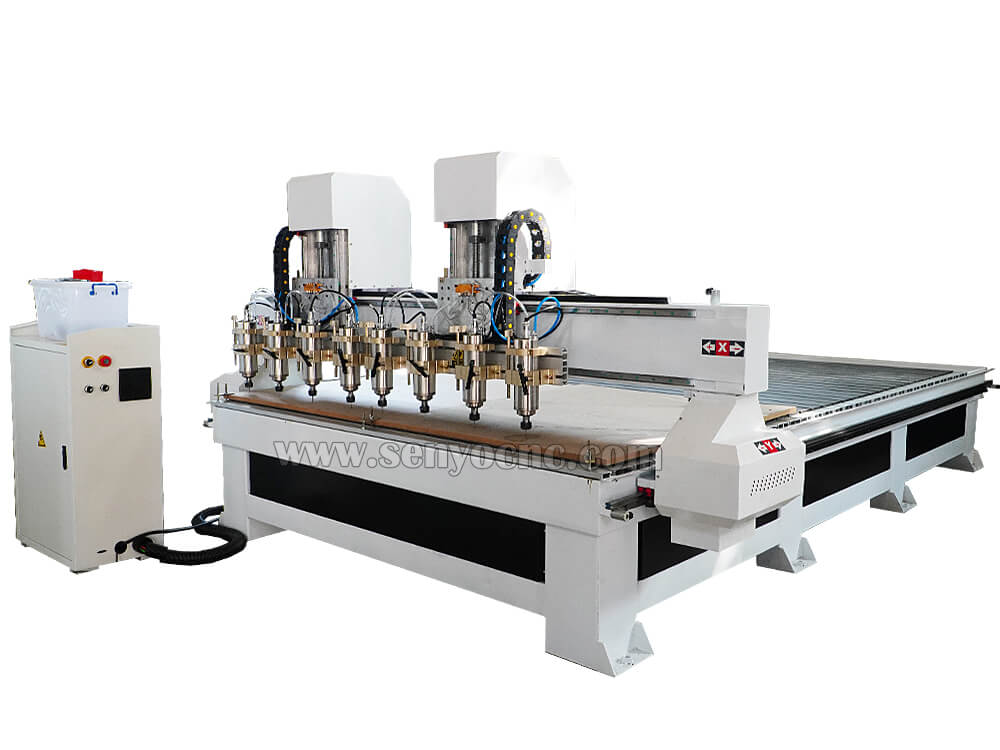

Machine model | SYM1530 8 heads wood cnc router |
Structure | big steel beam with thickness steel |
X Y Z axis travel distance | 1500x3000x200 mm |
Feeding height | 200 mm |
Spindle | 8pcs of 2.2kw spindle, water cooled (24000rpm) |
Drive motor | easy servo motor drive (hybrid) |
Working table | aluminum profile T-slot table |
Guide rail | Taiwan square linear guide rail |
Transmission | X/Y axis - gear rack, Z axis - TBI ball screw |
Working precision | 0.05 mm |
Positioning precision | 0.01 mm |
Lubrication | Semi-automatic type |
Tool sensor | Included |
Control system | NC-Studio |
Command code | G code |
Working voltage | AC220V/380V, 50/60Hz |
Parts Detials

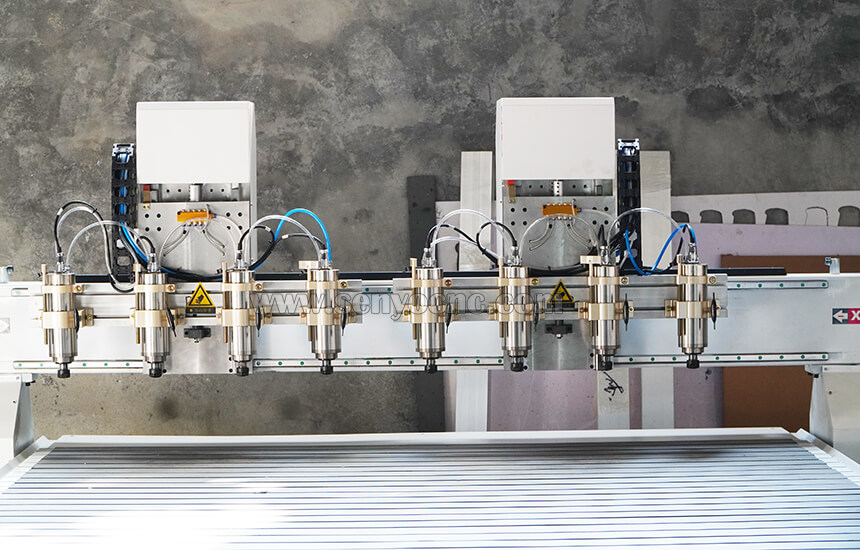

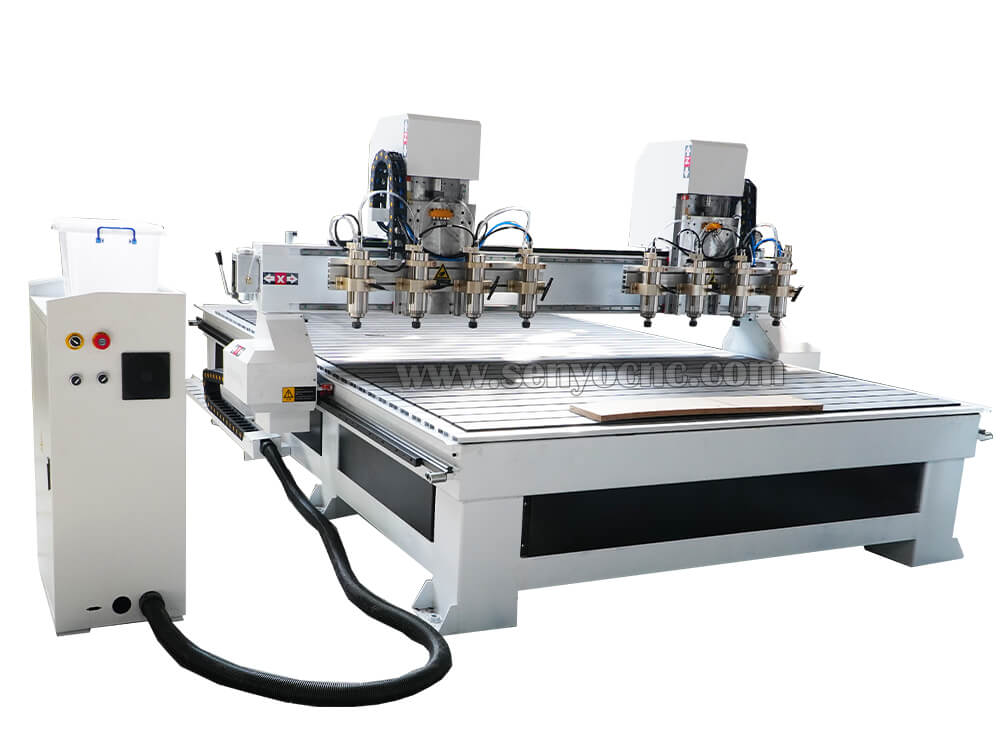

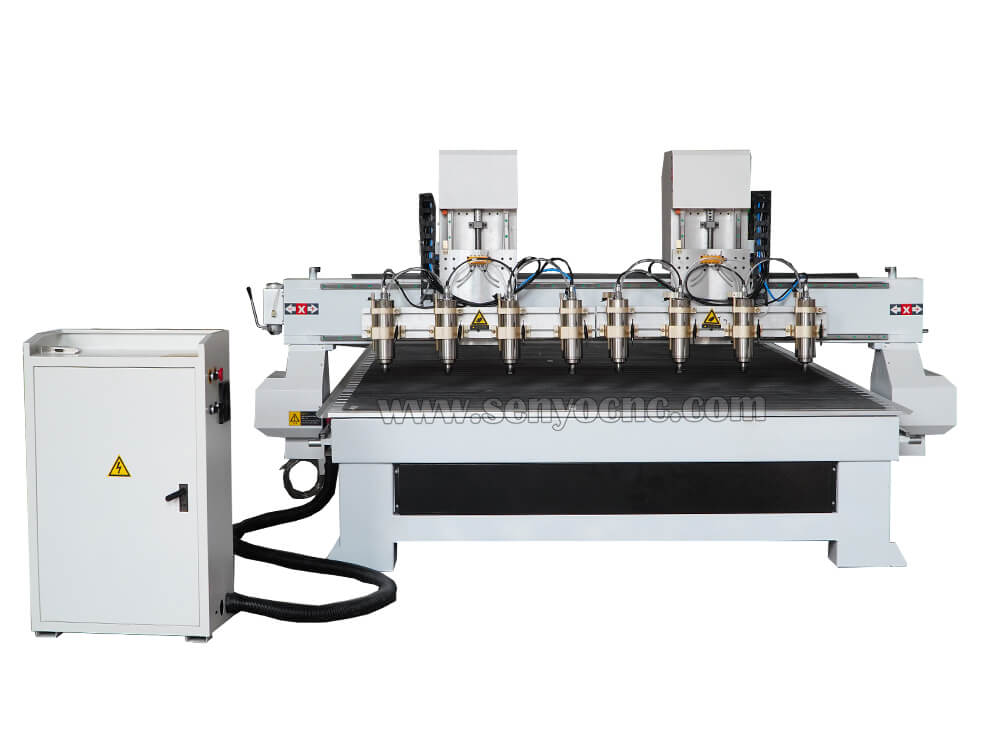

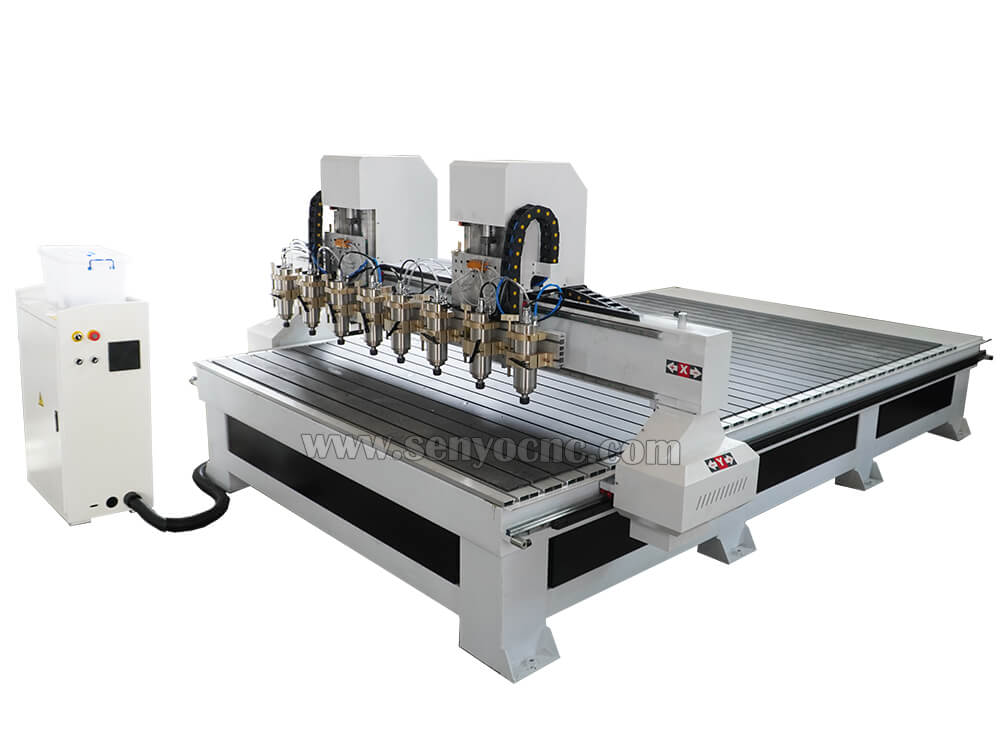

8 heads
cnc router. each head is installed with 2.2kw spindle. standard one is
water cooling 6000-24000rpm.

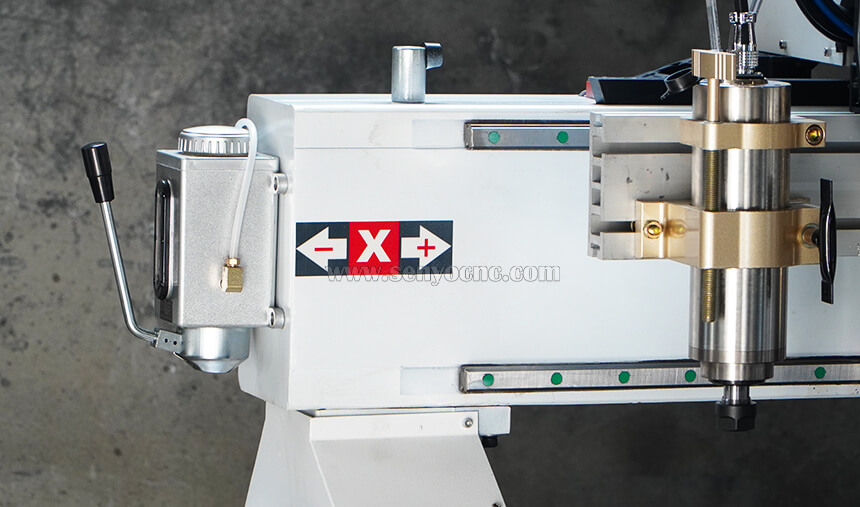

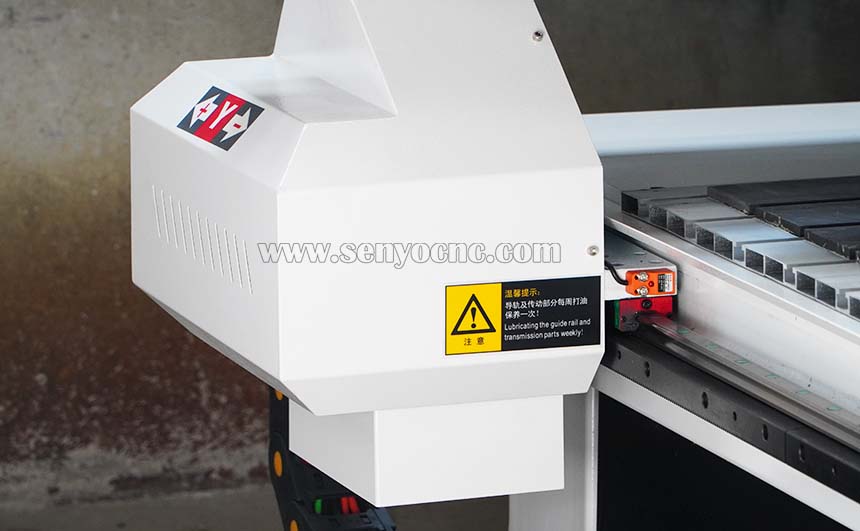

Equipped with oil injector, Provide good lubrication for the guide rail and rack of the machine.
High precision guide rail One guide rail is equipped with multiple sliding blocks, and the machine runs stably.
Rack guide rail is installed on both sides,with low vibration, high stability, high machining accuracy and long service life.

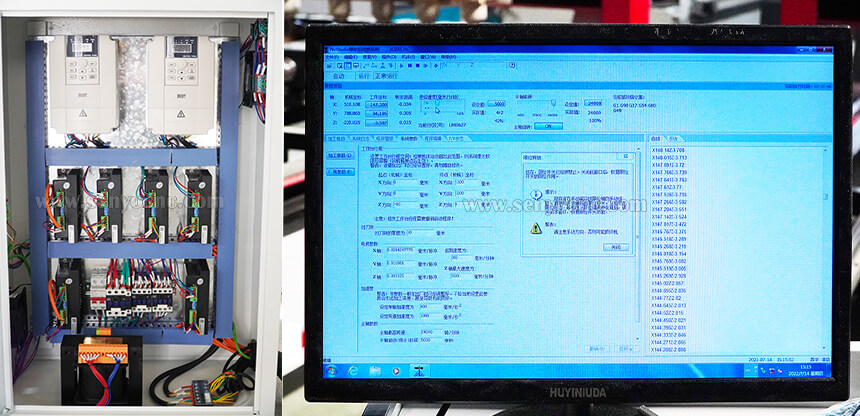

NC-Studio Controller
The Controller is easier to learn and master, and the operation is simpler
The function and processing are slightly inferior.It can also adjust
the spindle speed, feed speed and other parameters in real time.
Inverter from Best brand, over current load protection and alarm controller can avoid damage of your work and machine.
Hybrid Servo Motor
Easy
servo (closed loop) motor has same encoder at back to communicate with
driver.
30% higher performance than common stepper motor. Over loading protecting and alarm give the best way to get servo performance possibility.

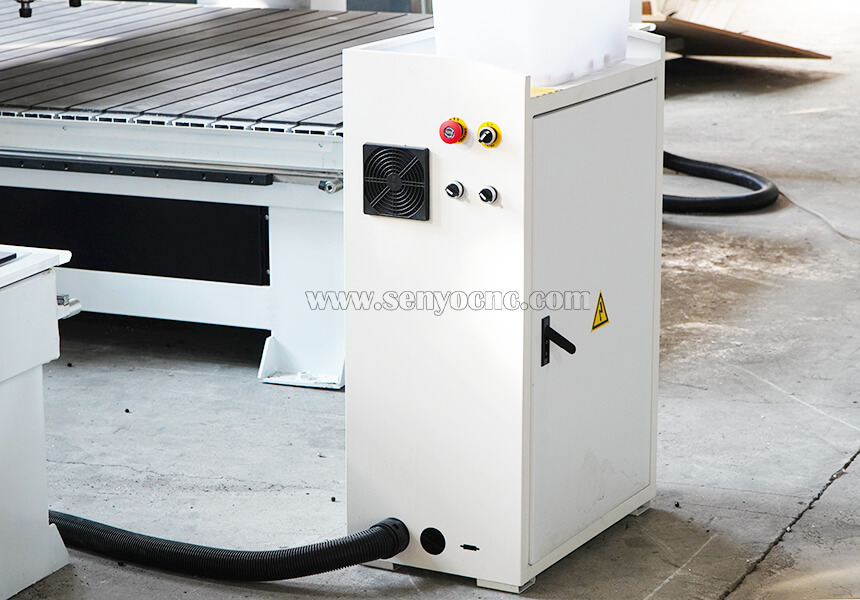

Independ Control box of 8 spindle head cnc router, separate buttons can control each spindle to work or stop

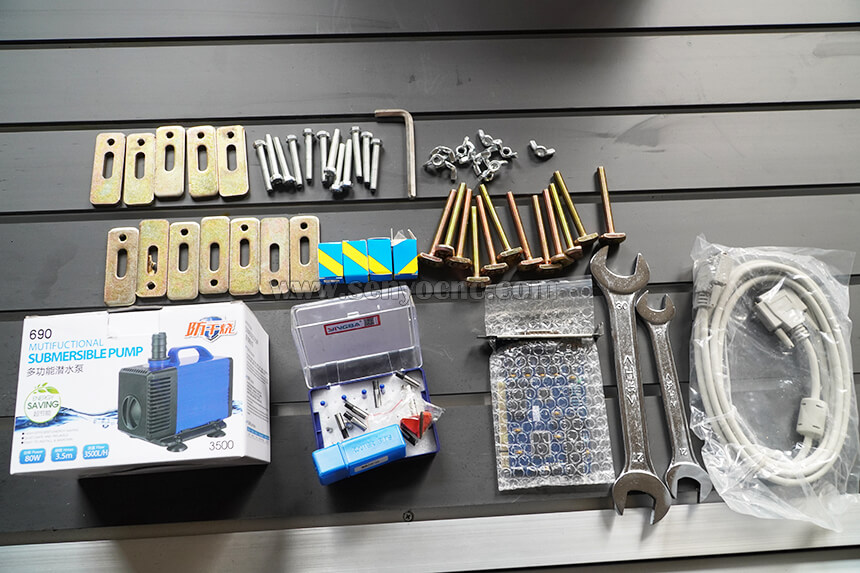

Tools , Machine Including Compately working tools .
Application
Wood furniture industry
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising industry
Advertising identification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.

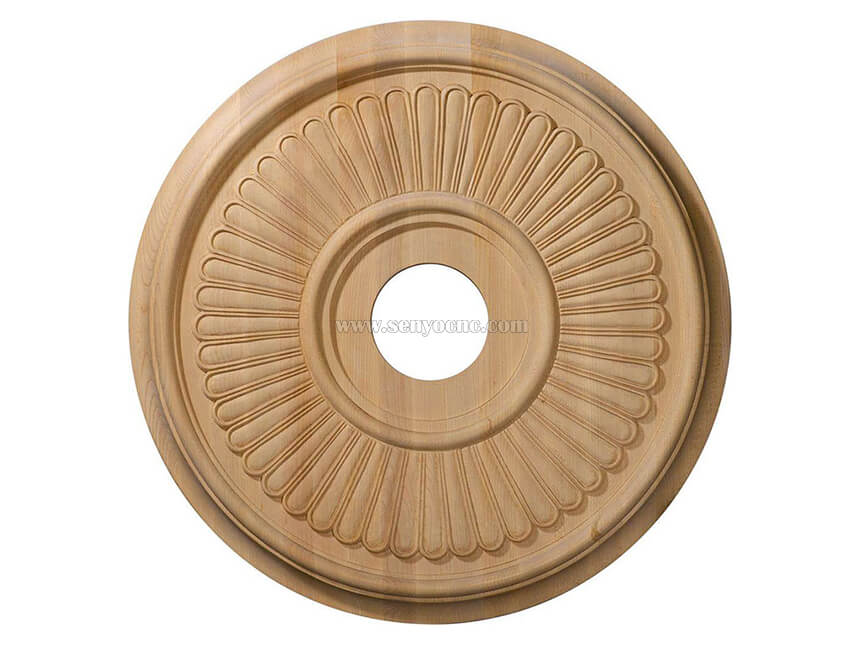

Relief sculpture and 3D engraving. Cylindrical object.

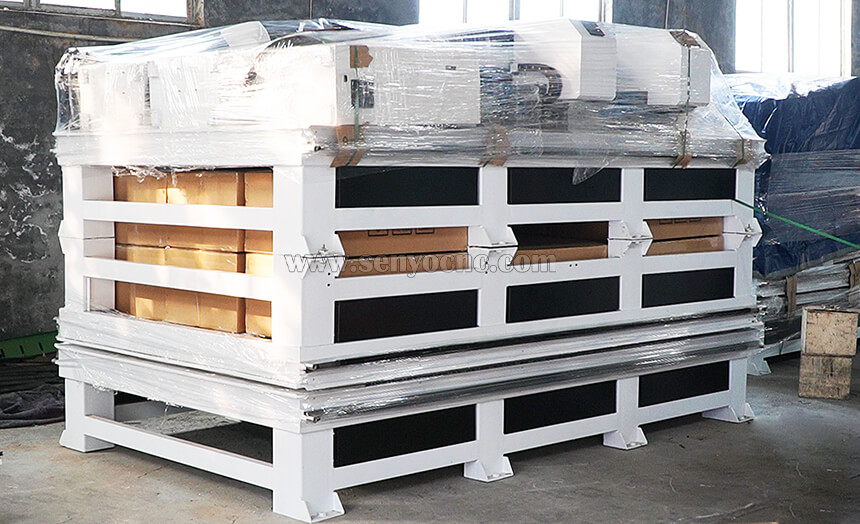

Package & Shipping
If each machine is sent separately by LCL by sea, it will be wrapped in stretch film first, and then packed in a fumigation-free wooden box for shipment.
Ship By Container
If the machine is shipped by full container, it is usually directly wrapped in stretch film and reinforced with a steel wire rope in the container
or it can also be packaged in a wooden box and then shipped in the container.
Packaging Improving for multi heads multi 8 spindles 3d engraving carving cnc router machine
The machine all covers will be protected by the foam board -The middle layer is wrapped with environmental protection material ;
And the outermost layer is wrapped with PE stretch film.
About the package
The machine control cabinet and other machine accessories are put on the machine bed.
Then,the machine will be wrapped with PE stretch film in
case of damage in transit.
All CNC machines are packaged with the plywood case and the wooden case
will be fix on the pallet,
the shipping mark will be labeled on the
surface of the wooden case.
If the machine is customized even the size is bigger, the machine needs
disassembling.
International Shipping
Around the World All the CNC routers can be shipped worldwide by sea,by air or by international express logistics via DHL, FEDEX, UPS.
You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements.
We will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
