Advantage
1.Separate keyboard control system:easy to lean and convenient to operate.The customers are able to master the application in a short time.
2.Advanced numerical control system and intelligent anti-transgress-process protection system this function could prevent machine crashes
When the design zone is beyond the process zone,lntelligent process speed control this function could control the process speed,
Which could increase the efficiency prolong the cutter life and increase the rate of finished products.
3.Dust-suction system: the dust suction system could absorb the saw dust and keep machines clean,
Which maintains epuipments as well;the dust suc- tion system takes place of the physical flat panel fixation which save the timeof load and unload time of slabs.
4.Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national an international soft-ware.
(such as Mastercam,Typ3,UG,Artcam,Caxa).Advance 3D in the files and is prediction algorithm can make sure of the evenness of polyline and the space curve precision of curve lones.
Specification
Model | SYM1325-3D / SYM1530-3D / SYM2030-3D / SYM2040-3D |
X, Y Working size | 1300*2500mm / 1500*3000mm / 2000*3000mm/2000*4000mm |
Z feed Height | 200mm |
Table Surface | Vacuum table with T-slot table, 5.5kw vacuum pump |
Vacuum pump | 5.5kw or 7.5kw |
X, Y Structure | Rack and Pinion, Taiwan Linear Square Guide Rail |
Z Structure | Taiwan Linear Square Guide Rail and Ball Screw |
Max. Power Consumption | (Without spindle) 2.0Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 3.2kw / 4.5kw / 5.5kw water cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Stepper motor and driver |
Working Voltage | AC220V or 380V /50/60Hz |
Command Language | G code |
Control System | NCstudio / DSP / Mach3 |
X,Y,Z repositioning Accuracy | ±0.01mm |
X,Y Resolution | <0.01mm |
Software | Artcam |
Running Temperature | 0 degree - 45 degree |
Relative Humidity | 30% - 75% |
Optional Parts | Panasonic / Yaskawa Servo motors |
Parts Detial:

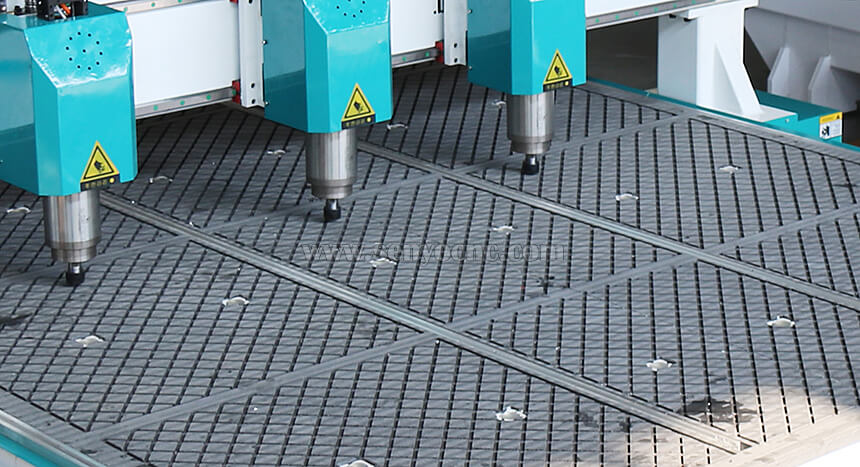

Spindle World Famous brand 3kw water cooling spindle. ER25 collet.

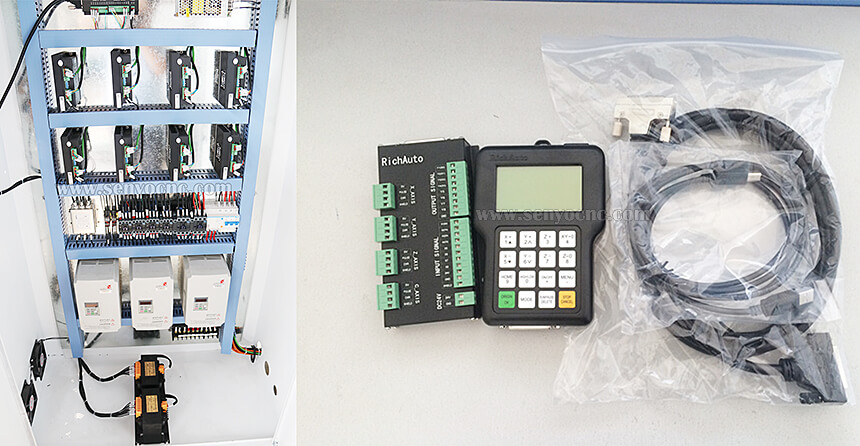

RichAuto DSP A11 control system. Large storage space, fast reading speed. Intelligent processingmemory,
Supports power fail safeguard and breakpoint function.

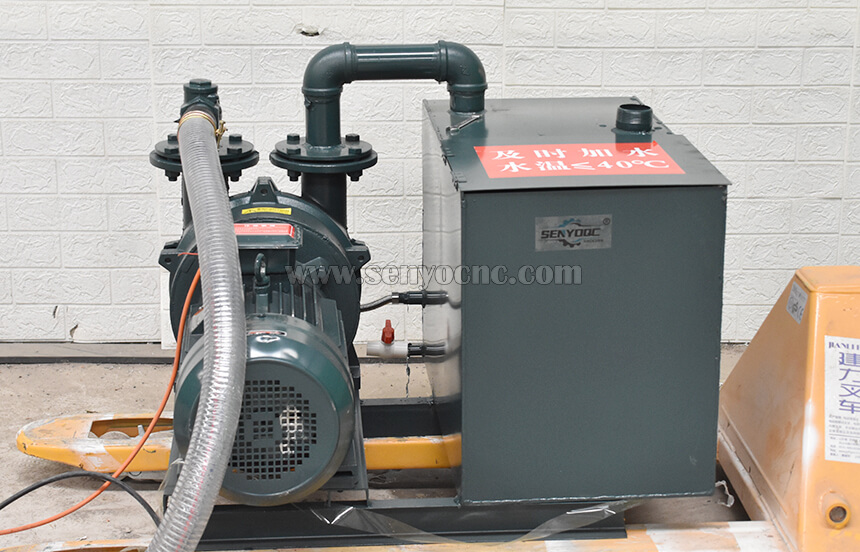

Water Vaccum Pump Powerful and Good Work Function

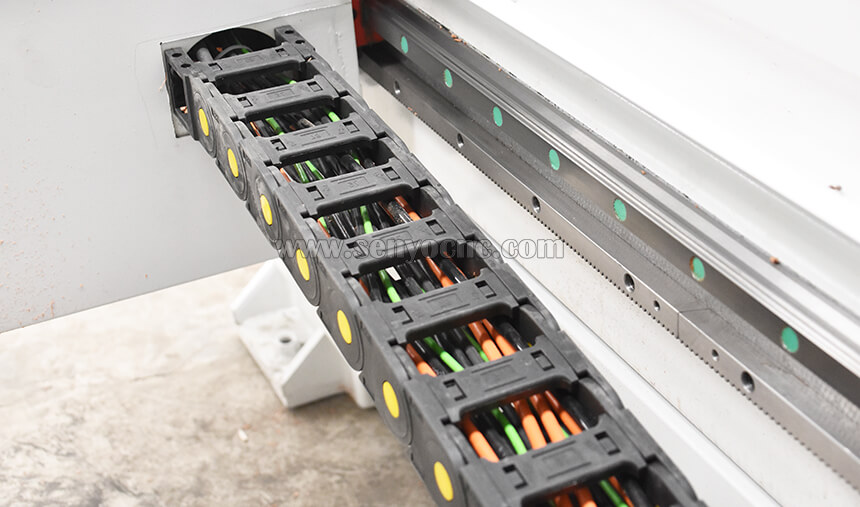

Hiwin linear guide rail, XY axis gear and rack transmission
Zaxis TBI higher precision Ball Screws, ensure fast speed, big loading capacity, low noise, and longer time working

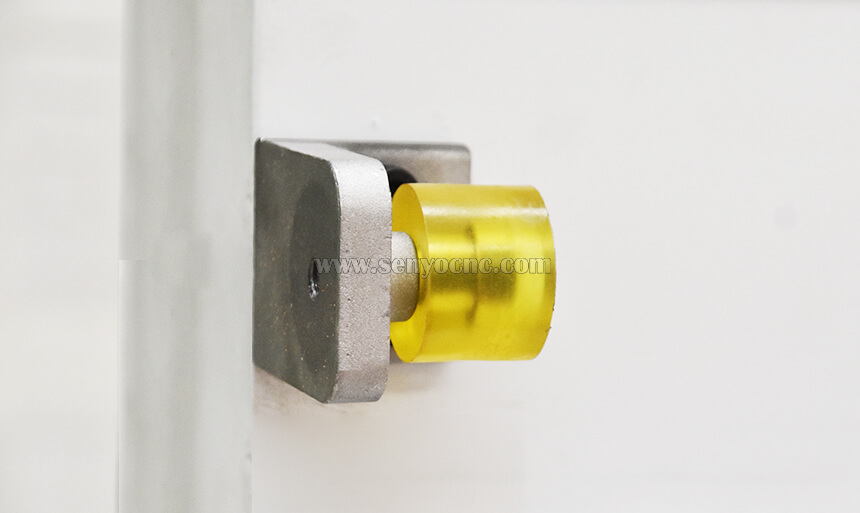

Hard Limit Switch
Electronic control components from famous brand

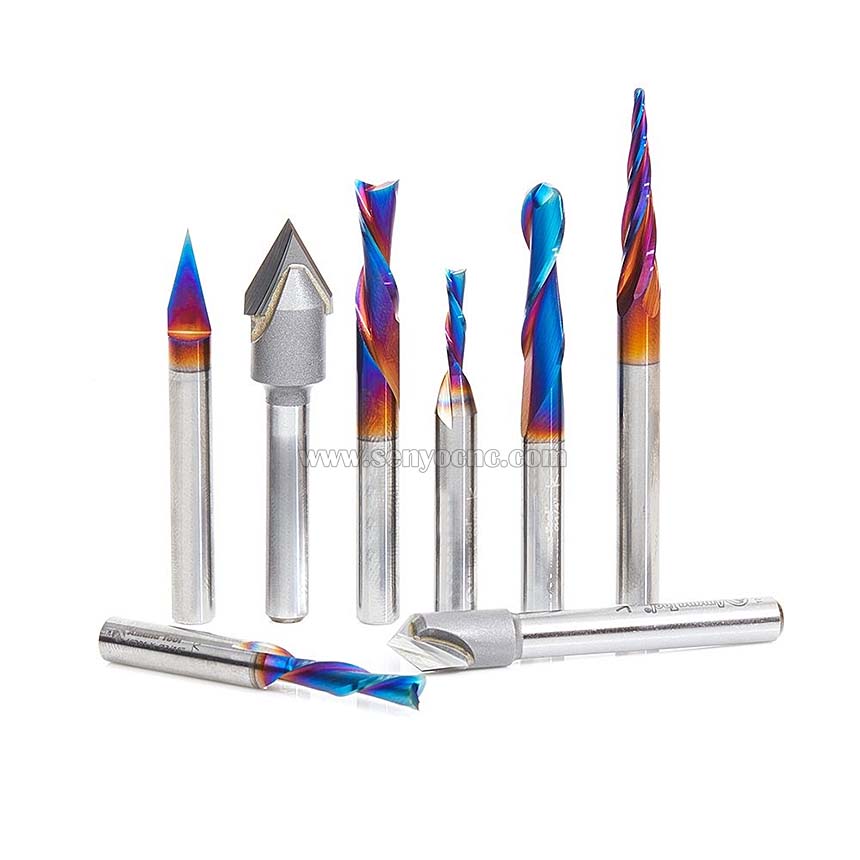

Machine With Different Working Size Tools
Application
1.The Advertising nidustry: CNC router can engrave all kinds of signage, trademark, nameplates, badge, decorative gift,
embossed meTal, certificate, souvenir, photo frame, furniture decoration.
2.Small-scale woodworking industry: CNC router can be used for solid wood furniture, mahogany furniture, MDF paint door,
solid wood door, composite door, cupboard door and window, bedside cabinet, folding screen etc.
3.Artwork industry CNC router can process wooden carft, mural art of wood, artwood, embossed, jeweery, cometics package, musical instrument.
4.Soft metal processing: CNC router can engrave electronic component, integrated circuit, electronic plastic case, electronic product model,
circuit board, electronic Light bix, computer and mobile phone keyboard, engraving a variety of electronic products.
5.stone industry, stone tablet processing industry, art relief, advertising industry, decoration and decoration industry, ceramics industr
Shipping & Package
Inside Packing
Use professional Stretch Film to cover the whole lathe
Stretch film package with foam protection in each corner.

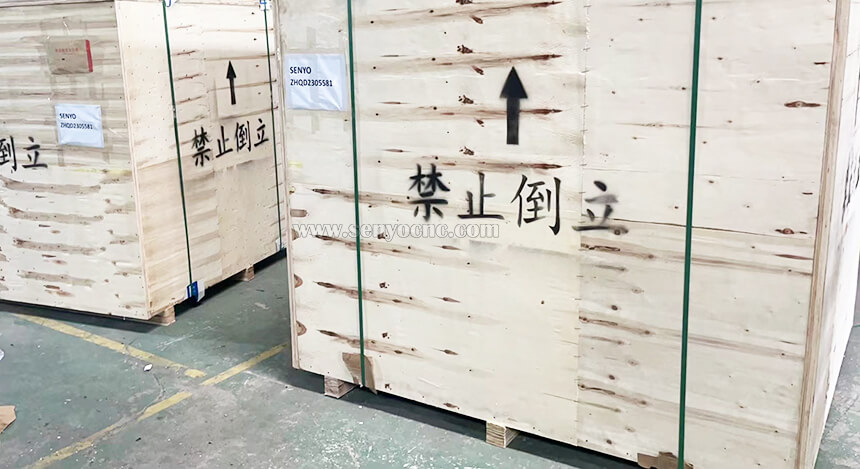

Outside Packing
Sandard export wooden cases and pylwood cases
Save space as much as possible for container loading
Transport
We support shipping, air, land and express
You can choose the most suitable way of transport
If you have any special request for packing, we can do it.
International Shipping
Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS.
You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements.
We will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.

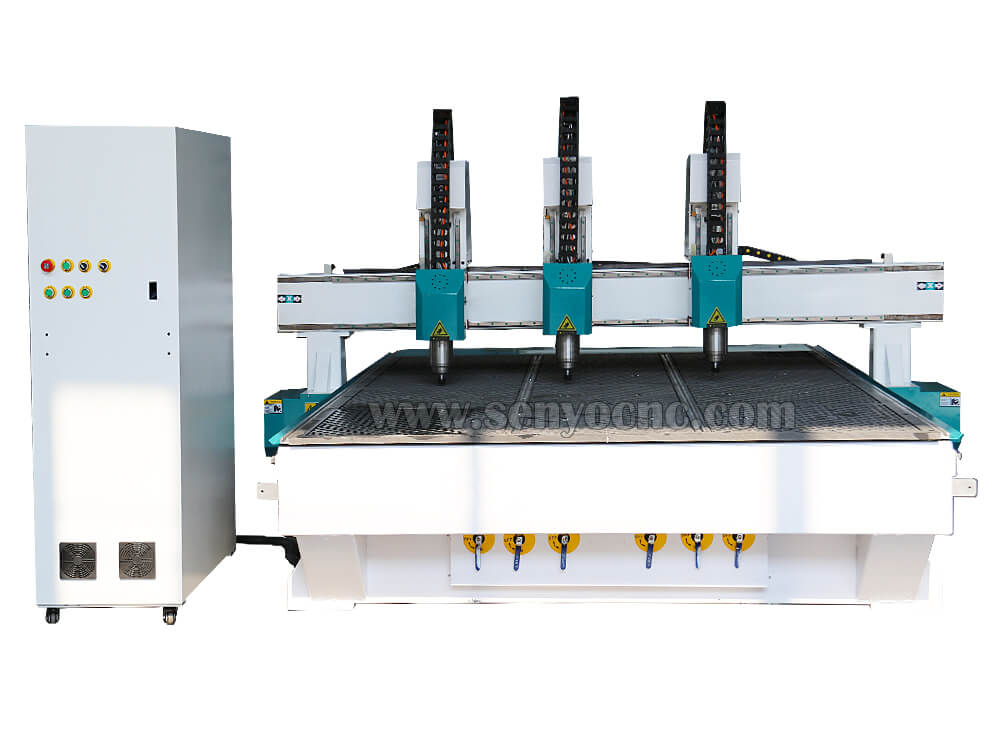

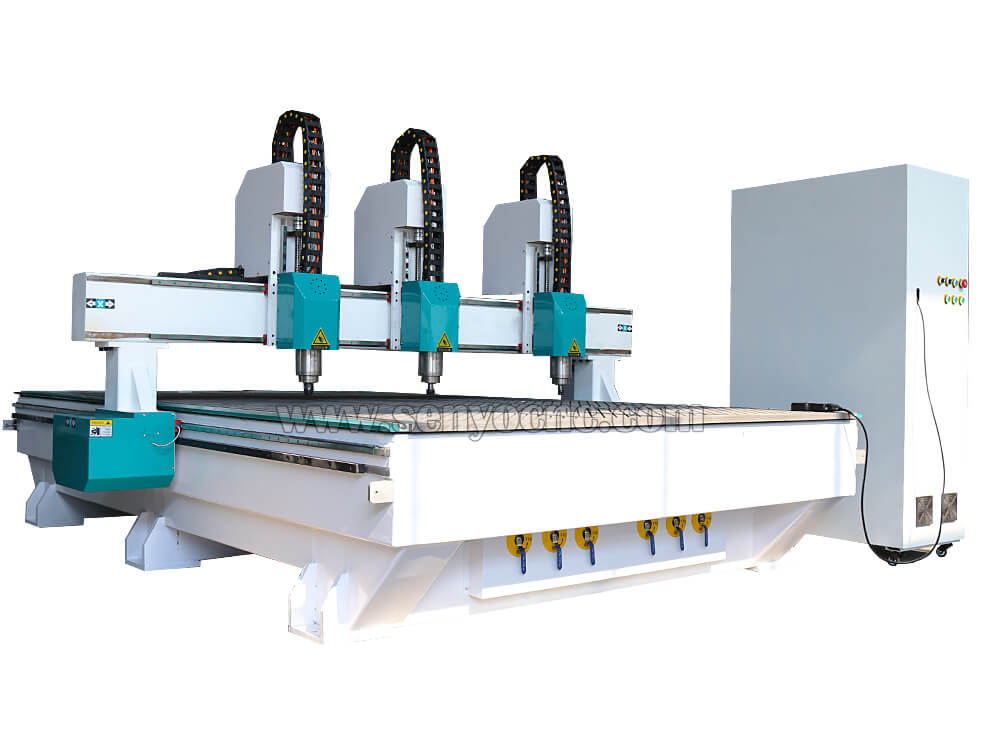

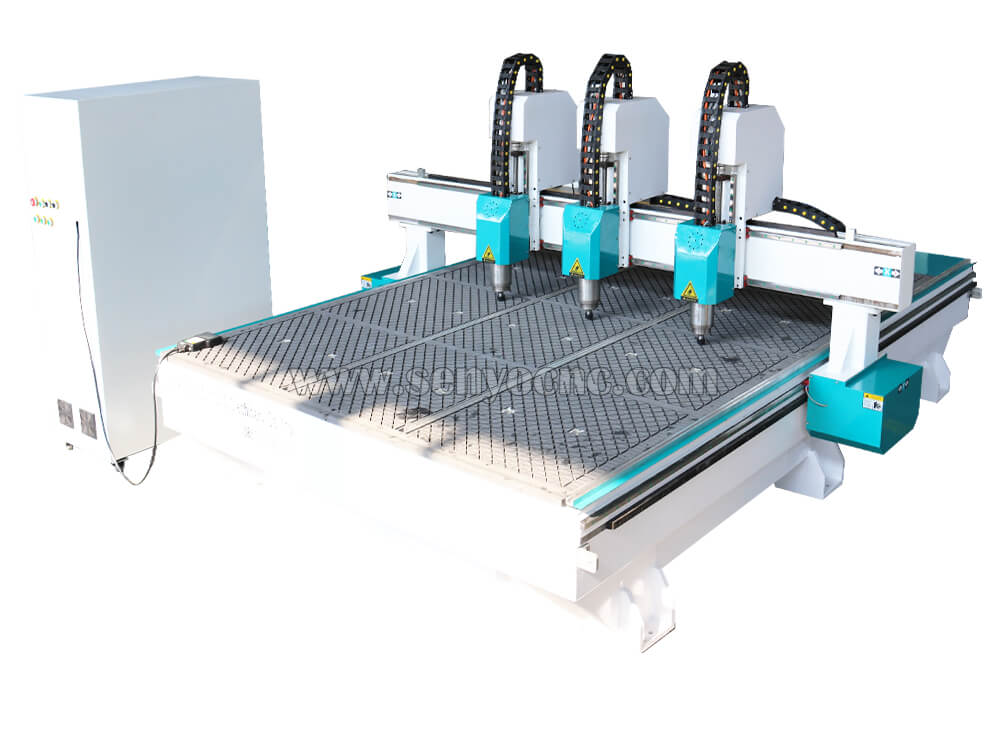

CNC Router ,Wood Cutting Machine,3D wood Router,Three Independent head cnc router Machine,3d wood carving cnc router
