What kind of material the machine can make?
Engrave and cut on hard wood, MDF, Aluminum and plastic composite panel, Acrylic sheet, ABS double color sheet,
PVC foam sheet,wooden sheet, PCB Aluminum sheet etc.

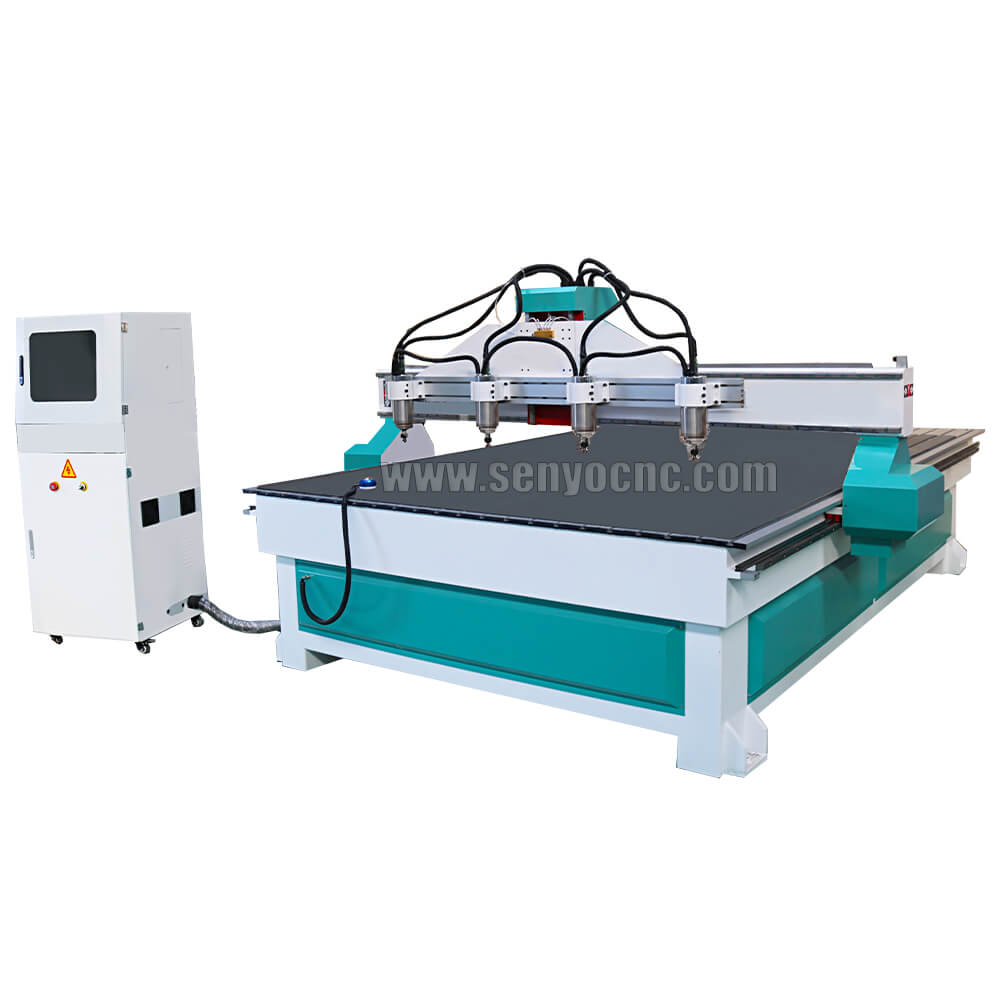

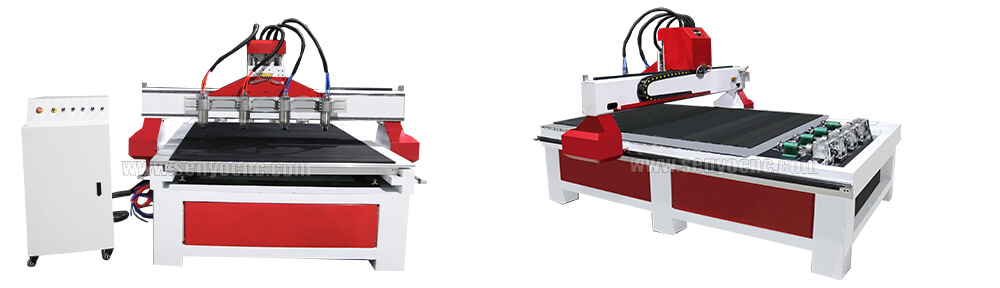

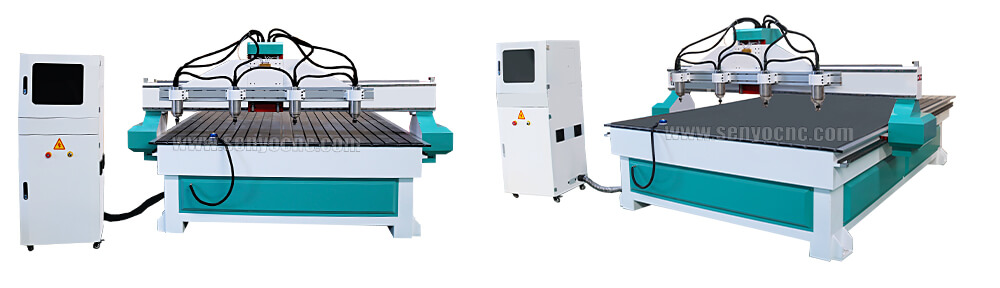

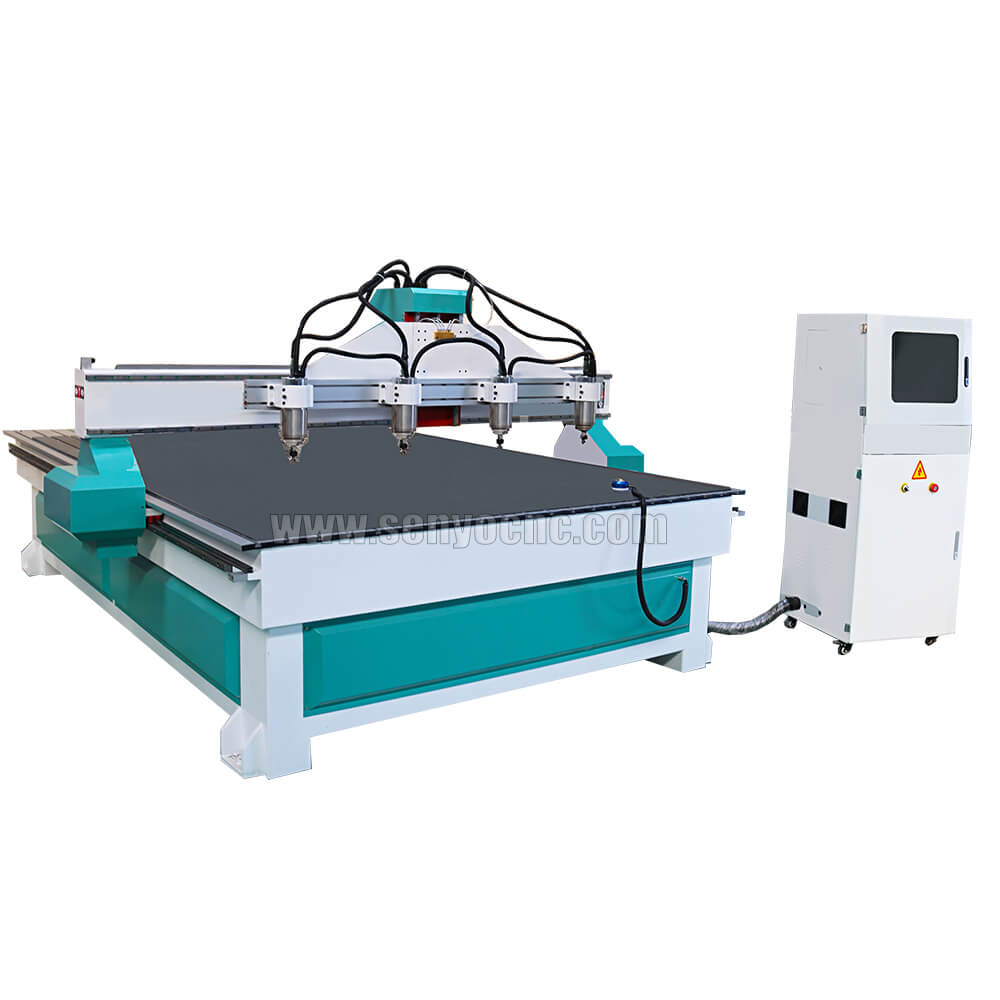

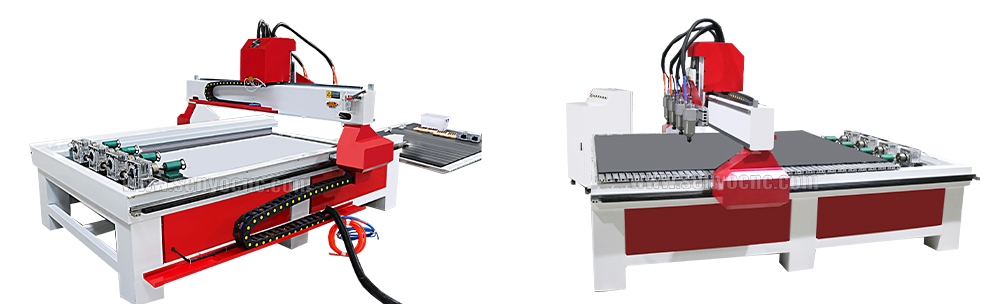

3 Axis 4 heads wood cnc router machine design Model SYM1325-4

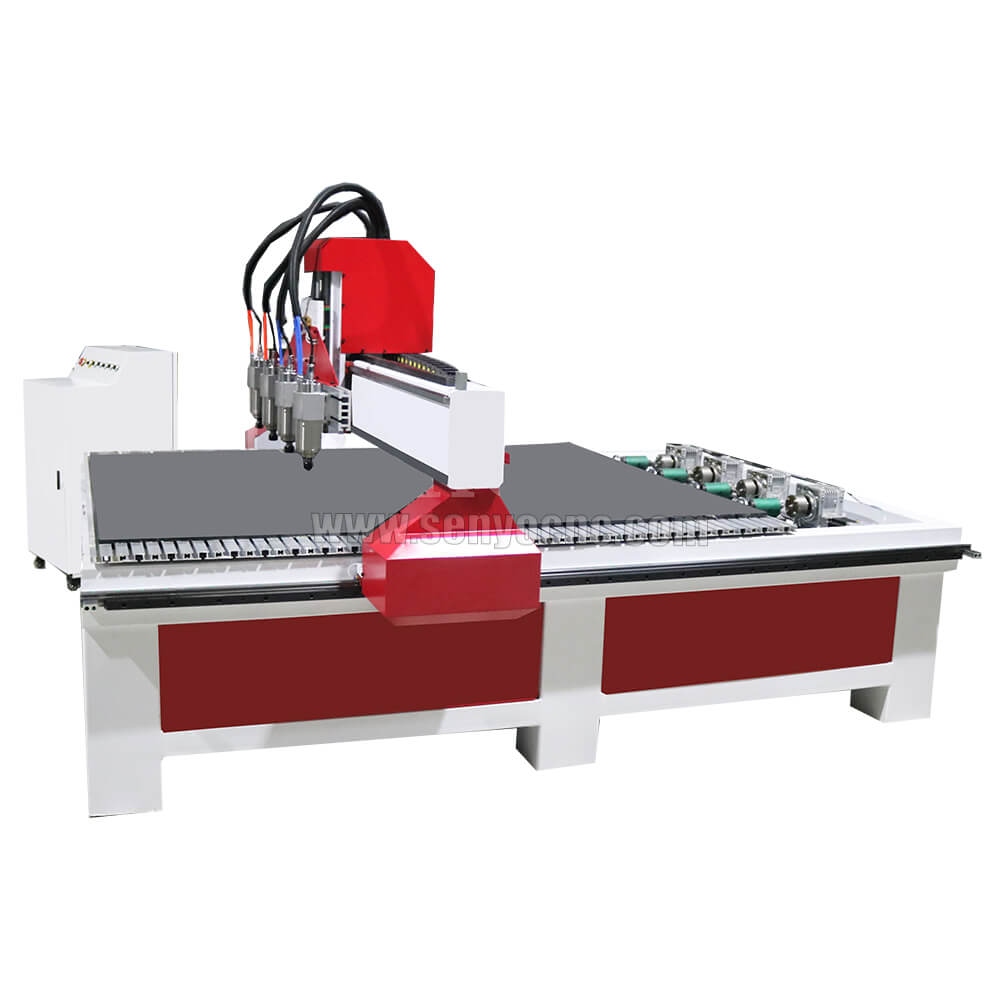

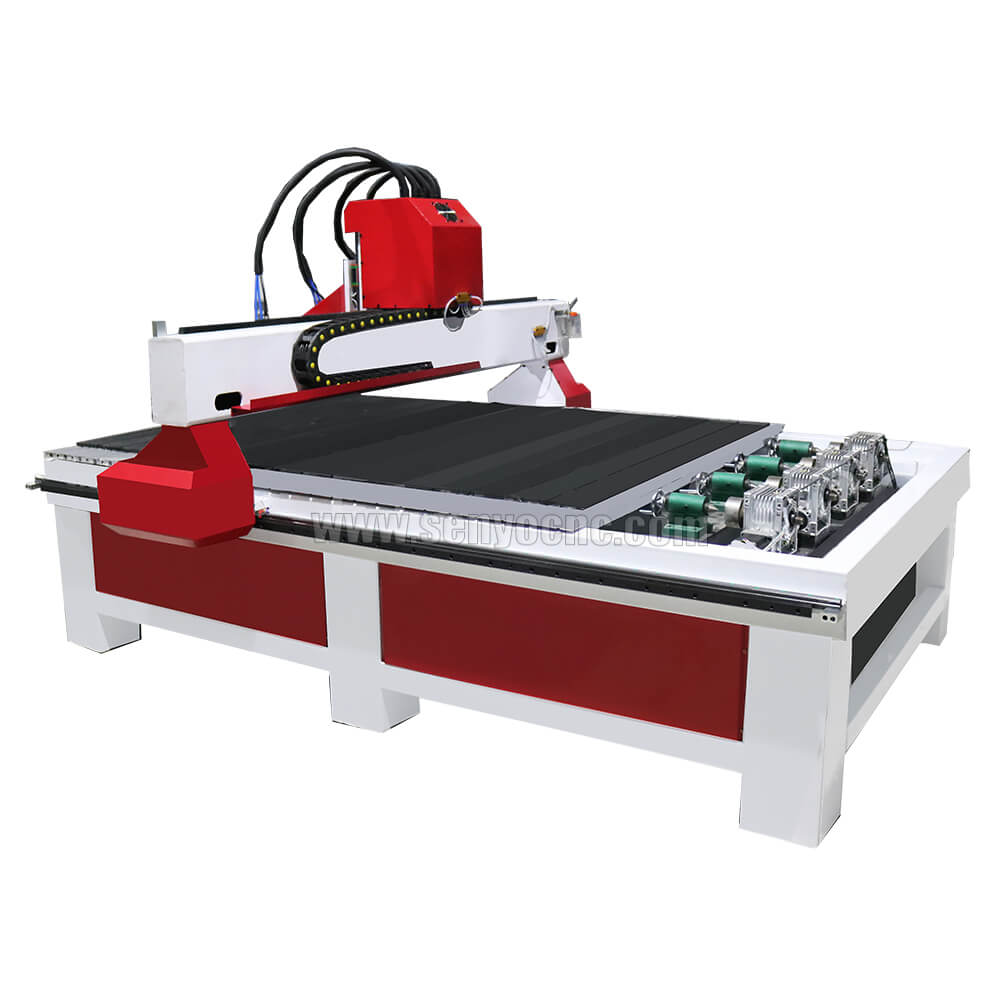

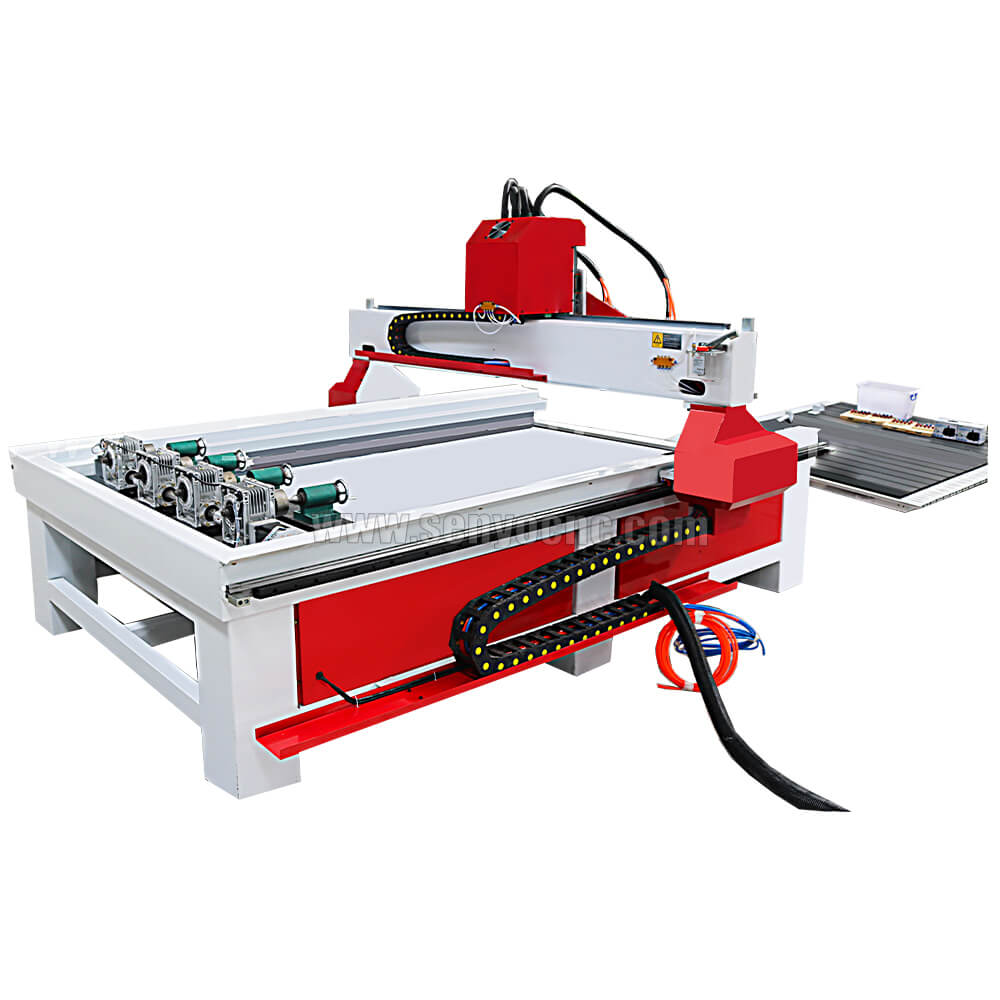

4 Axis 4 heads wood cnc router machine design with Rotary Model SYM1325-4R

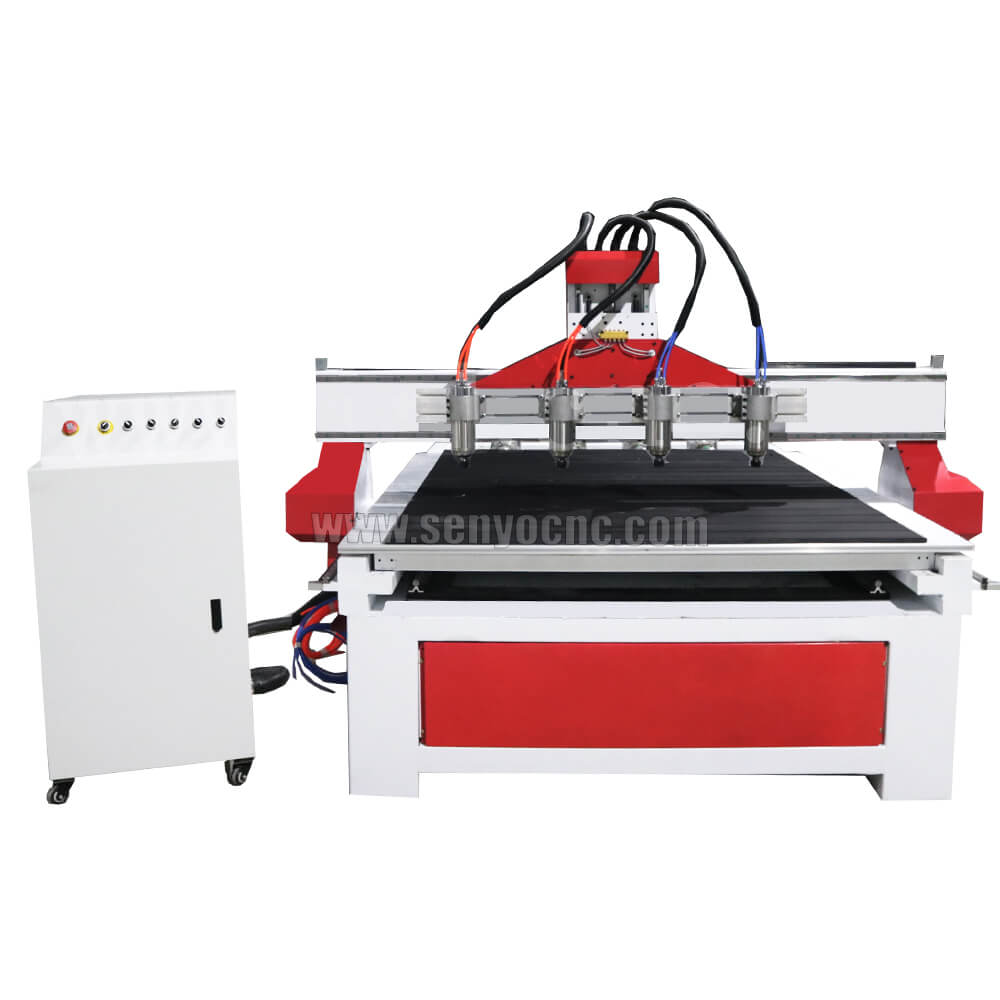

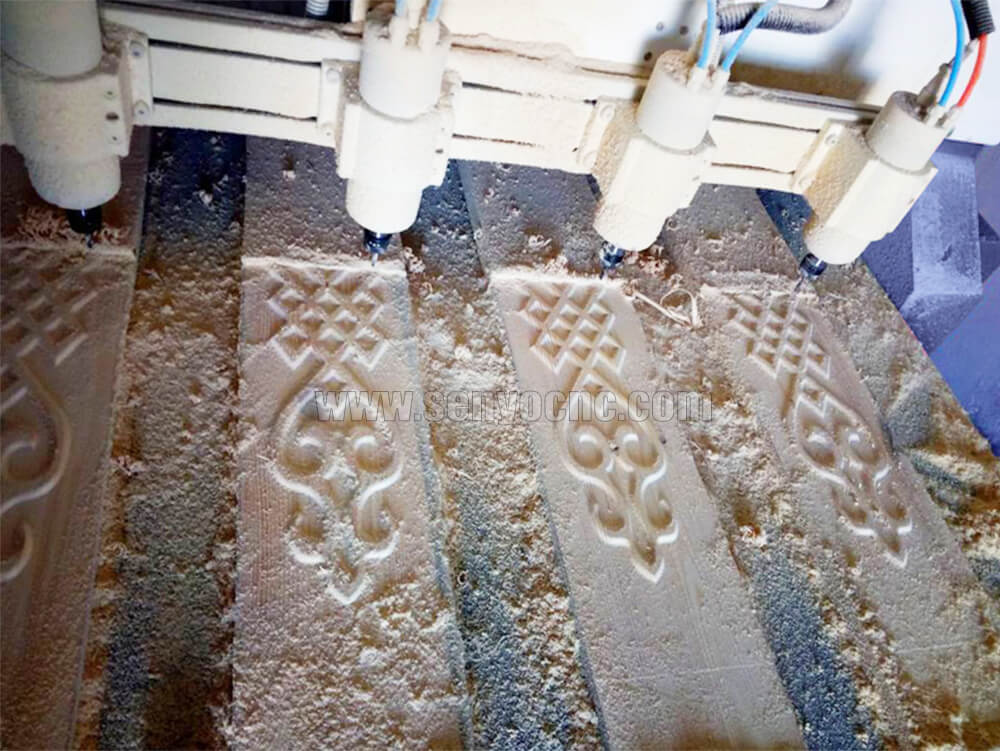

Multi-Head 3D CNC Wood Carving Machine Features

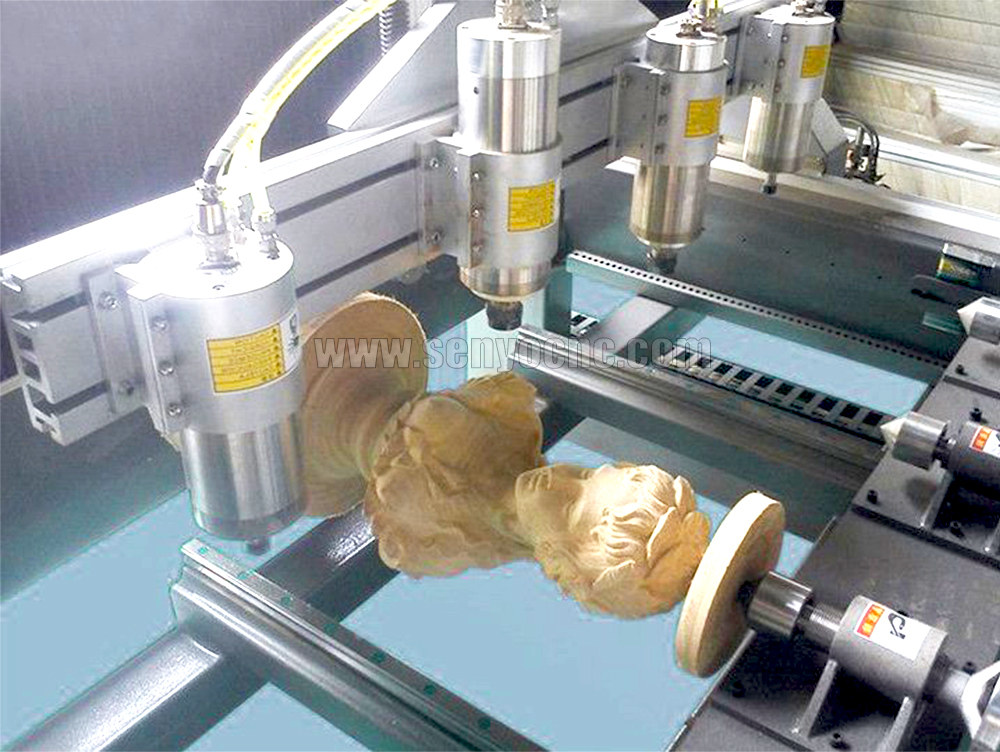

4th axis CNC wood router with four rotary axes and four spindles,
which can work at the same time or independently, and every one's max effective working area is 300mm (diameter) by 1600mm (length).

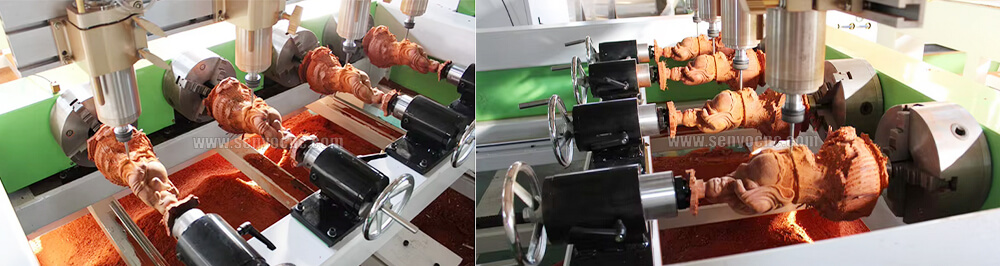

4th axis rotary CNC router with four heads has the function of re-carving after break point and power failure.
Equipped with high speed spindle motor, low noise and high performance division drive.

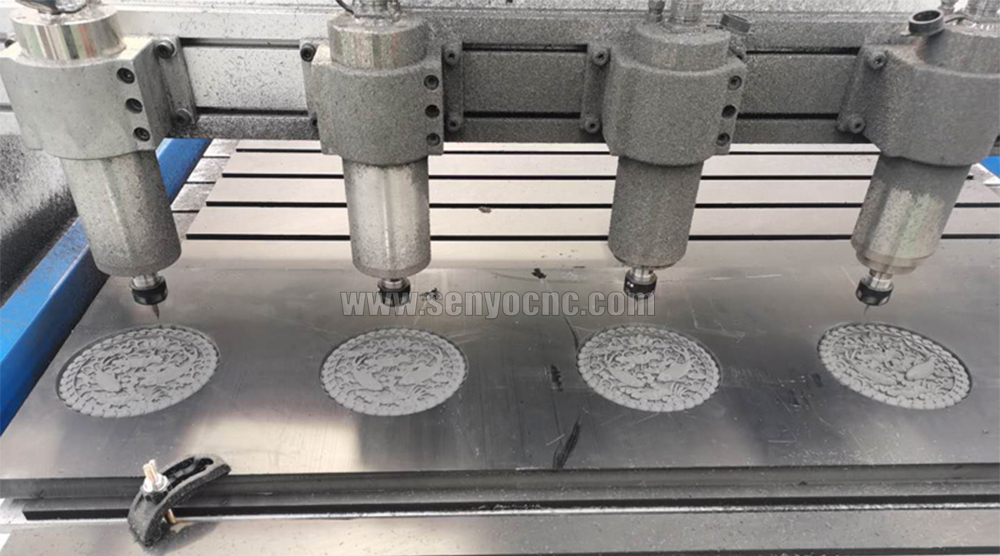

It can not only do rotary engraving but also flat engraving. It can engrave several materials at one time, which greatly increasing the working efficiency.
Taiwan TBI dual screw-nut anti-gap ballcsrew with high accuracy and long life.

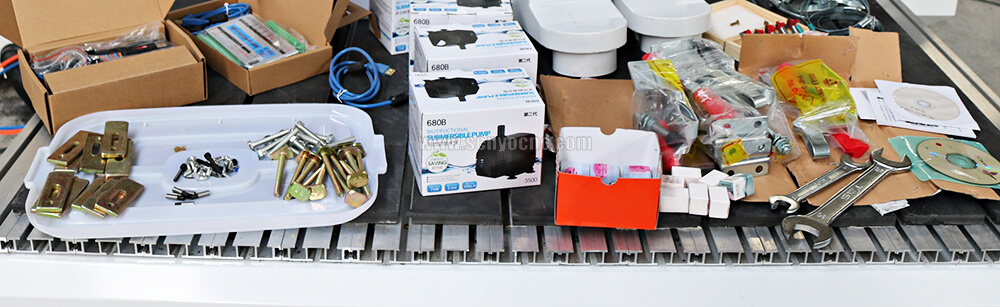

Machine with all parts for operation.

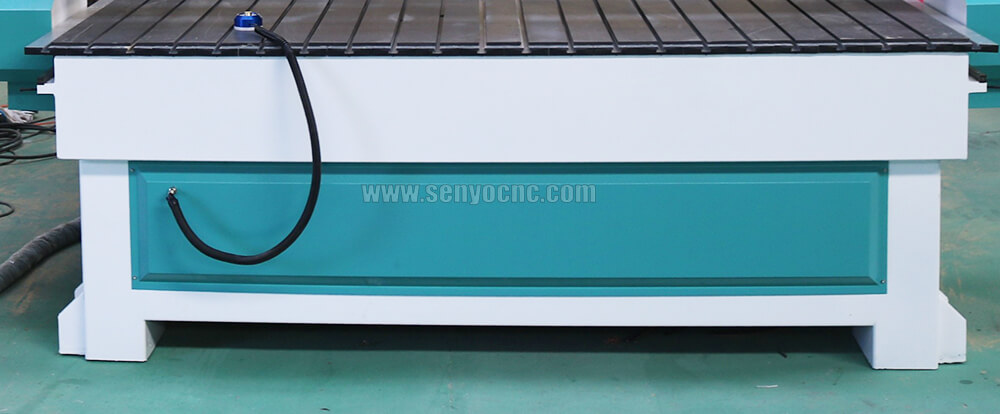

The whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
XYZ axis use anti-dust system, prevent dust during working, make sure the long life span of square parts.

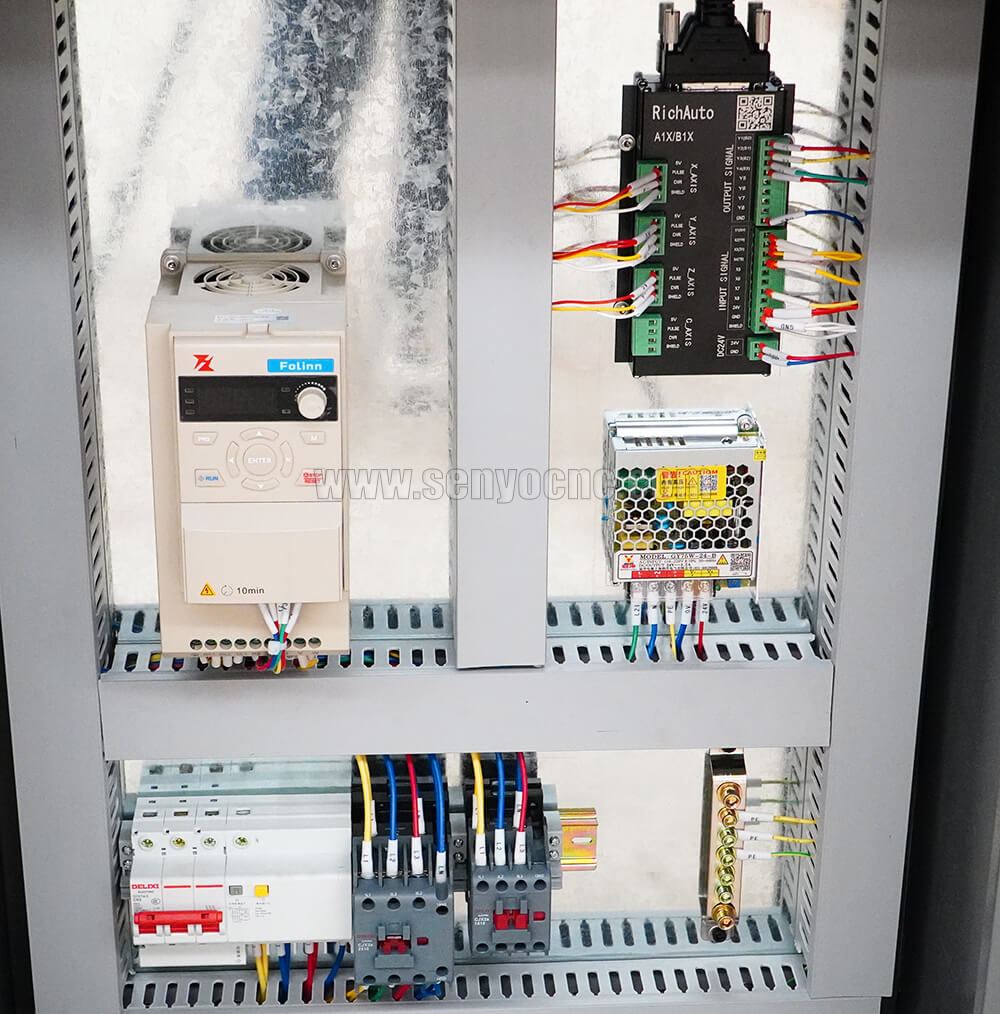

Machine use best parts , professional good wire connections for detials.
Multi-Spindle 3D 4 Axis CNC Wood Carving Machine Technical Parameters
Model | SYM1325-4R |
X,Y,Z Working Area | 1300x2500x200mm |
X,Y,Z Reposition Accuracy | ±0.03mm |
Table Surface | T-slot Table |
Frame | Welded Structure |
Driving system | Helical Rack and Pinion Drive |
Guide way | Taiwan Hiwin square rails |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 3kw water-cooling spindle |
Spindle Speed | 0-24000rpm |
Drive Motors | Stepper System |
Working Voltage | 220V,single phase or 380V,3 phase |
Command Language | G Code |
Operating System | RichAuto DSP control system |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER20 |
Software Compatibility | Artcam Software and JDpaint software or other CAD software |
N/G weight | 1000/1100kg |
Package dimension | 3300*2150*1800mm |
Applications
This machine is mainly used for 3D woodworking, relief carving, hollowing,
and some 2D woodworking projects, such as Roman columns, stair handrails, chair legs, and more cylindrical projects.
Woodworking: 3D wave board processing, furniture like solid wood door, kitchen cabinets, wardrobe cabinets, tables, beds,
computer desk and cylinders like table legs, sofa legs, wooden craft, paint door, screen,
craft fan window processing, shoe polisher, game cabinets and panel, mahjong table, auxiliary processing.
Advertising: Advertising sign, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative product.
Mold Making: Engraving wood, foam, EPS, copper, aluminum mold, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.
Other Industries: A variety of large-scale relief sculpture, shadow carving, widely used in the craft making industry.
Multi-Spindle 4 Axis CNC Wood Engraving Machine for Custom Woodworking Projects

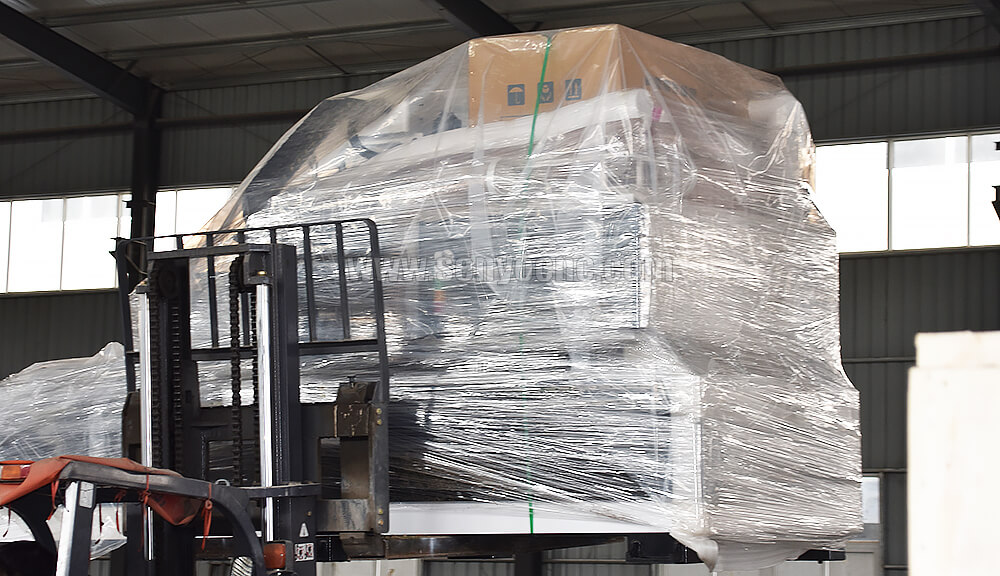

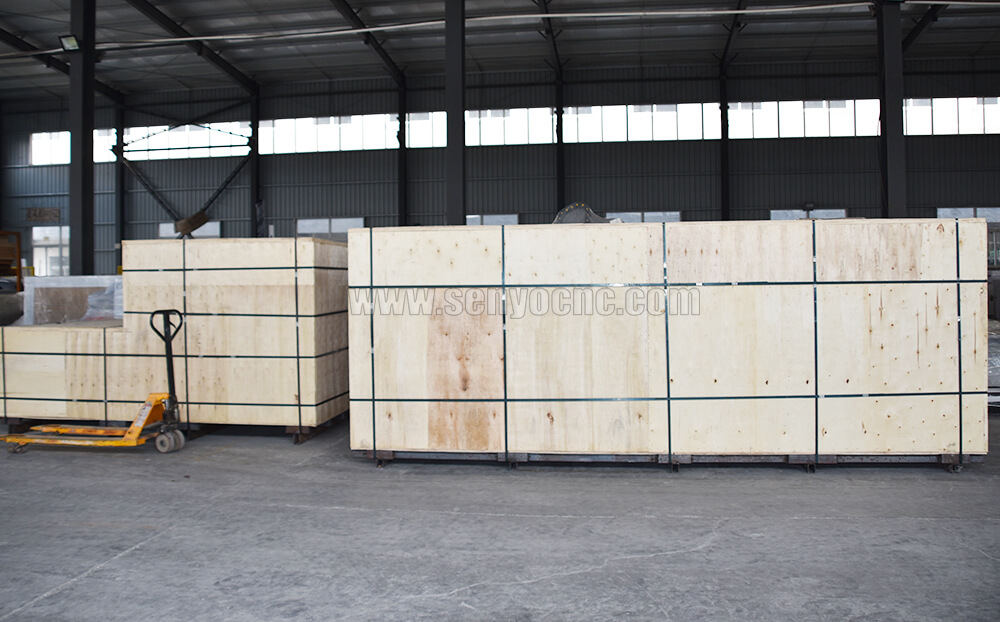

Packaging Details
• Inner package: Stretch film and plastic film for humidity.
• Outside package: Standard marine export plywood case.
We can package according to your requests.
Delivery Detail: Shipped in 10 working days after payment.
Quality Control
• We have a skilled and strict quality inspection team during material procurement and production.
• All finished machines we deliver are 100% strictly tested by our quality control department and engineering department.
OEM Service
• We have rich experience and welcome customized and OEM orders.
• All OEM services are free, customers only need to provide us with your logo image, functional requirements, colors, etc.
• No minimum order quantity required.
• None of your personally identifiable information (such as your name, address, email address, bank information, etc.)
will be disclosed or shared with any third party.
• Contact: All your inquiries, questions or help will be responded within 24 hours, even on holidays,
if you have any urgent questions, please feel free to call us.
Warranty And Service
• 24 months whole machine warranty and maintenance for a lifetime.
• Free installation and testing before shipping and free training for operators
• Advice for the best CNC solutions for customer's requirements.
• Free training and sample making.
• 7/24 free service and support.
