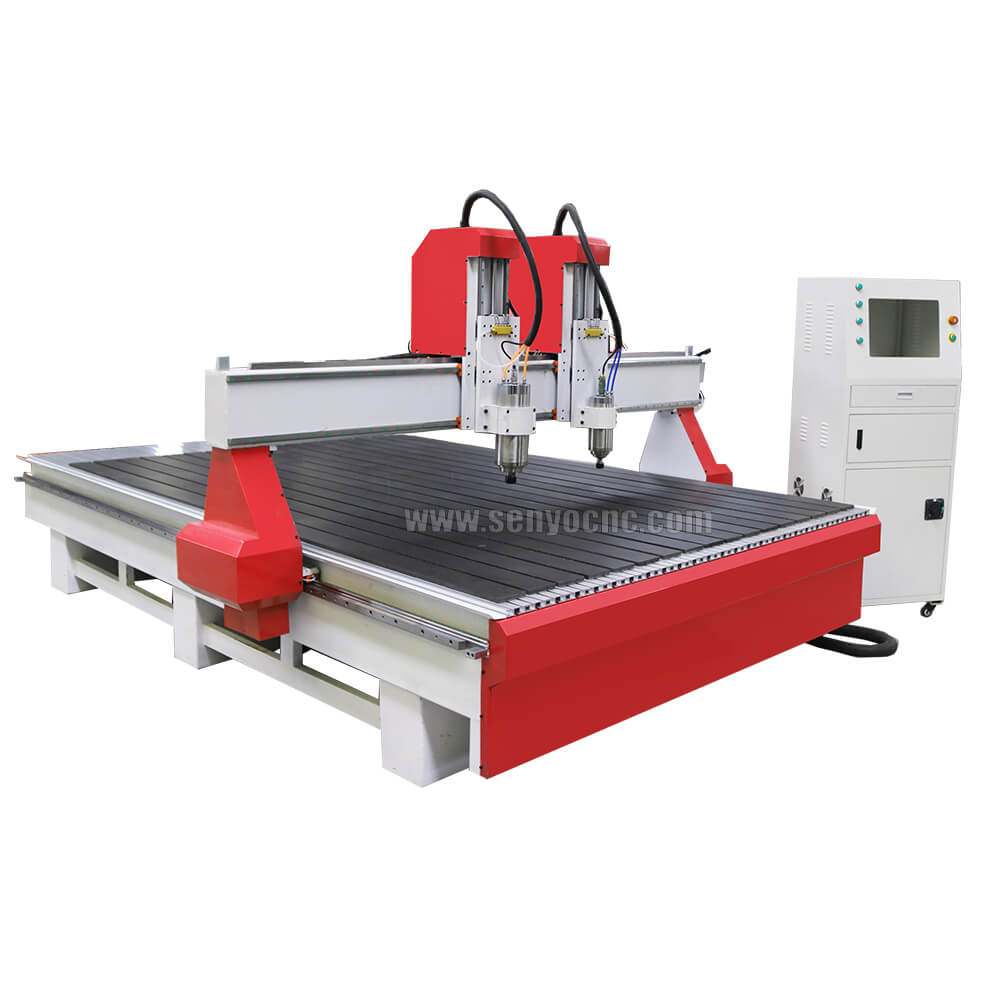

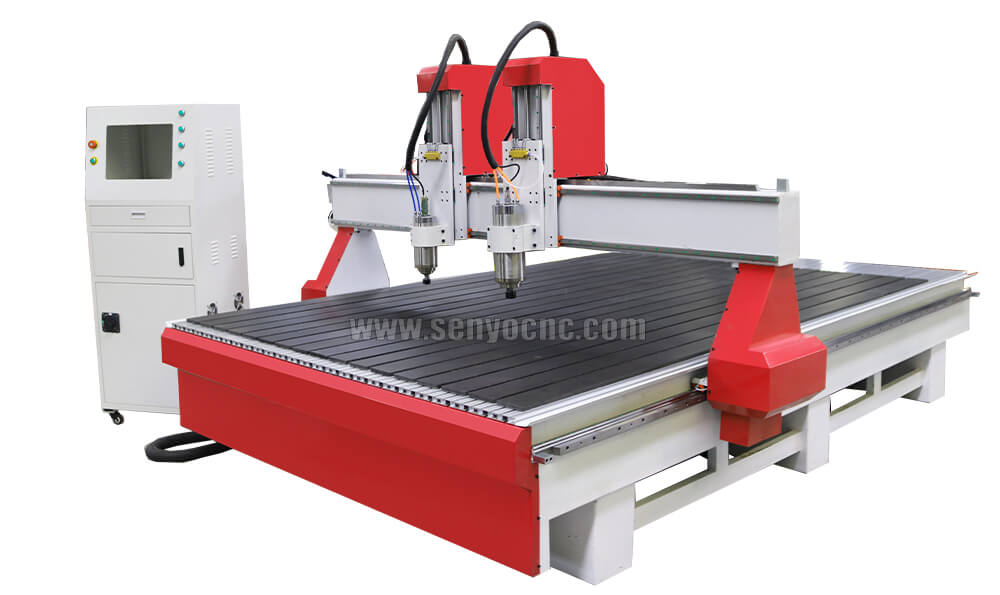

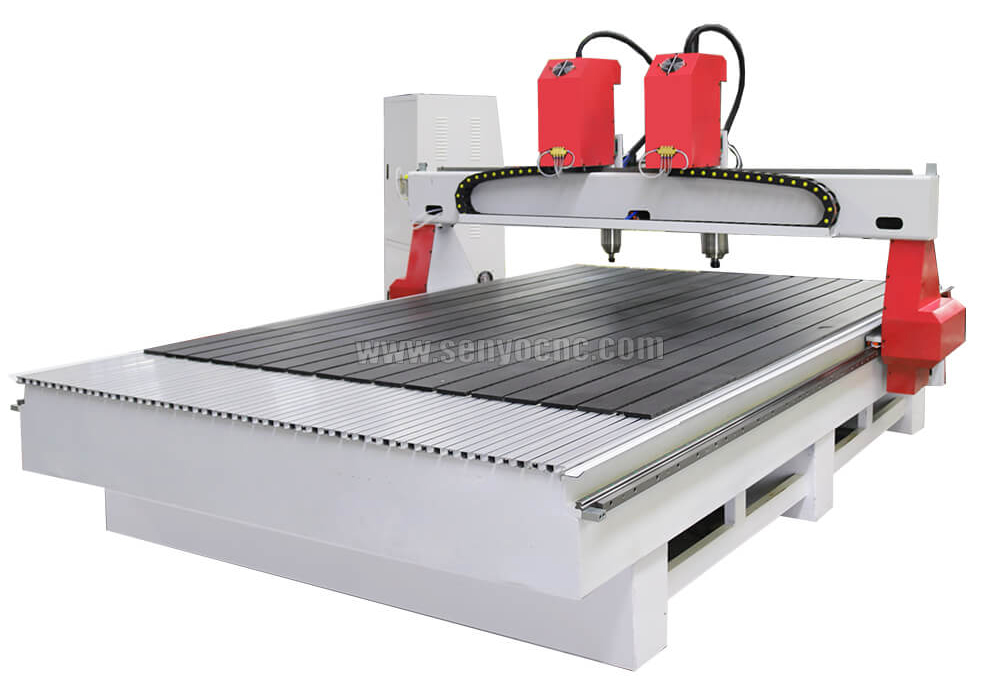

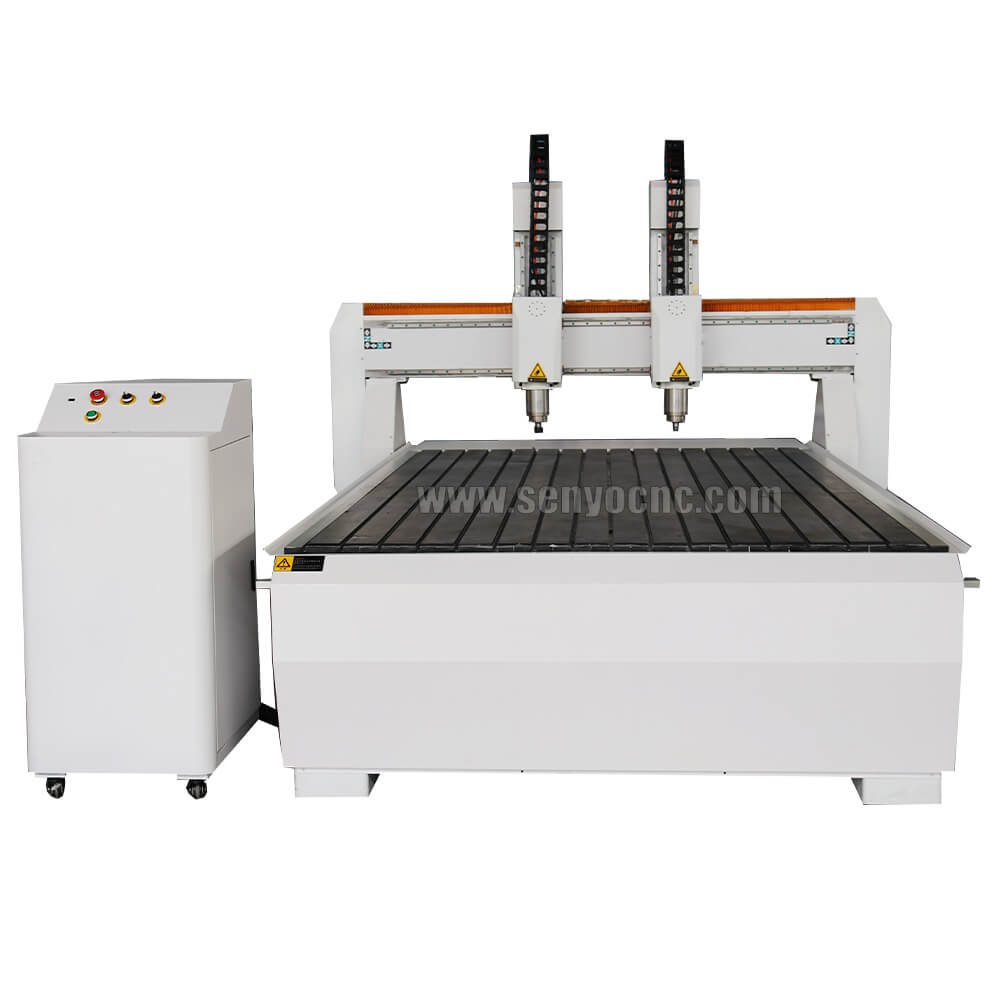

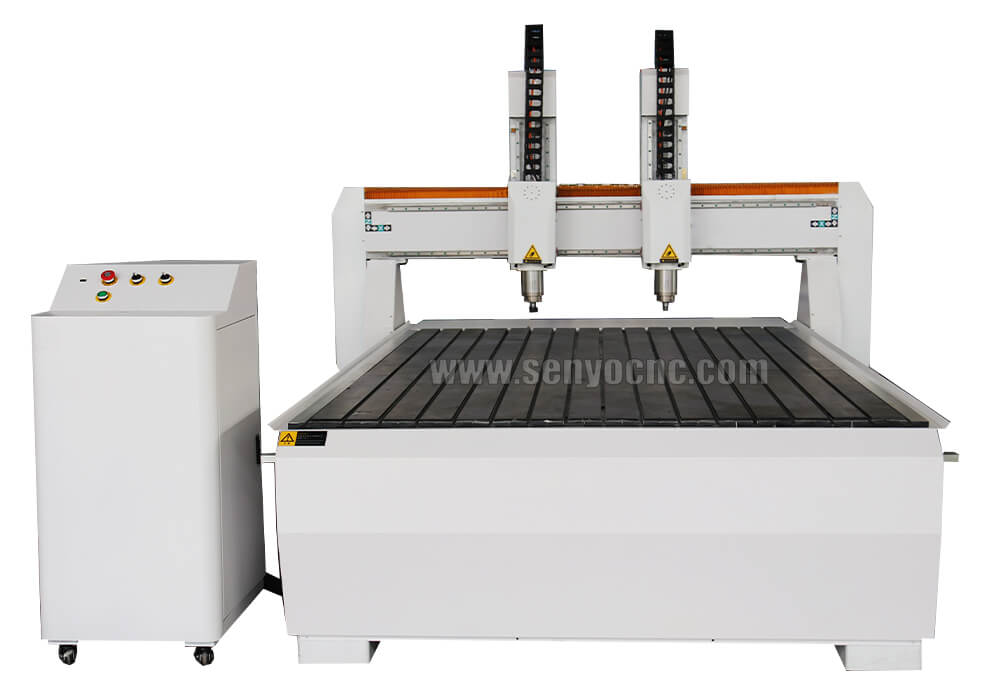

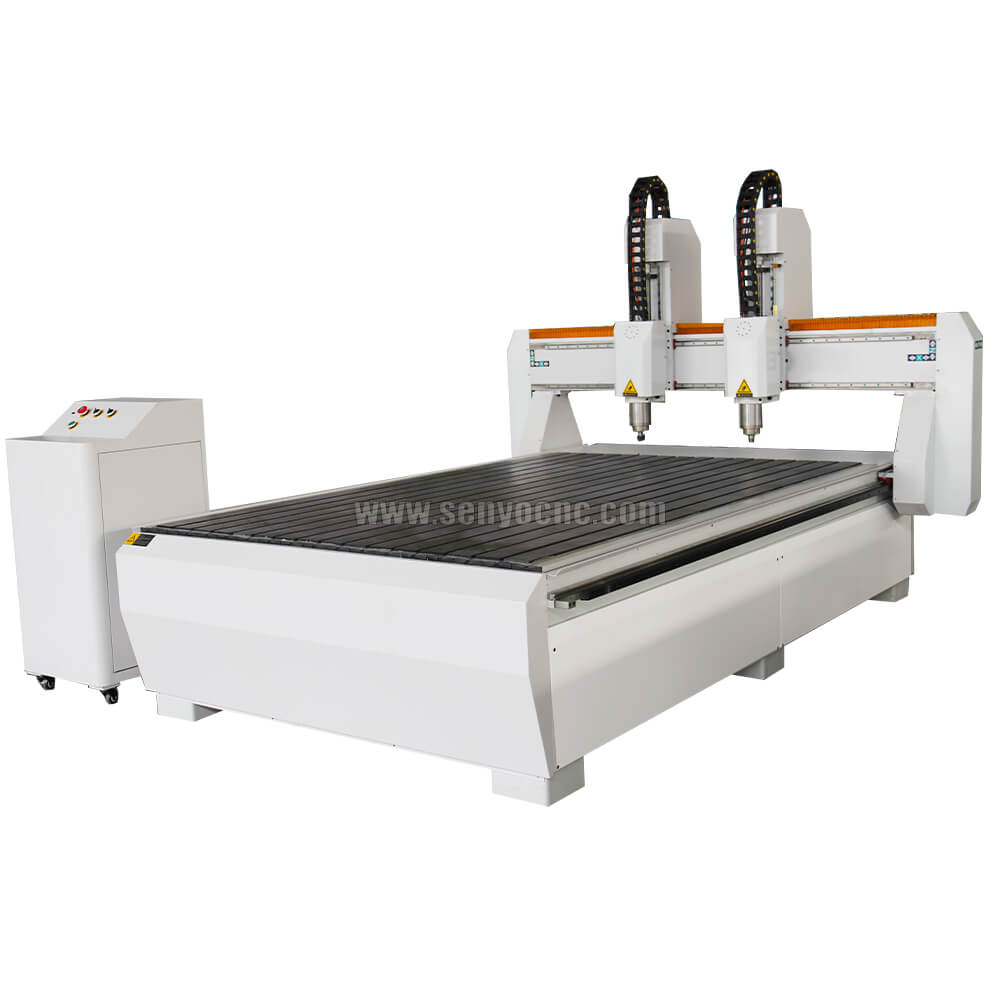

Advantages of Dual Spindles Wood CNC Machine with 4x8 Table Size:
4x8
wood CNC machine with two spindles is customized for changing the tools
with two spindles.
It's not only economic, but also can realize
automatic tool change,
save the time of manual tool change and improve
the working speed and precision.
And it can cut two work pieces at the same time to reach the same effect.

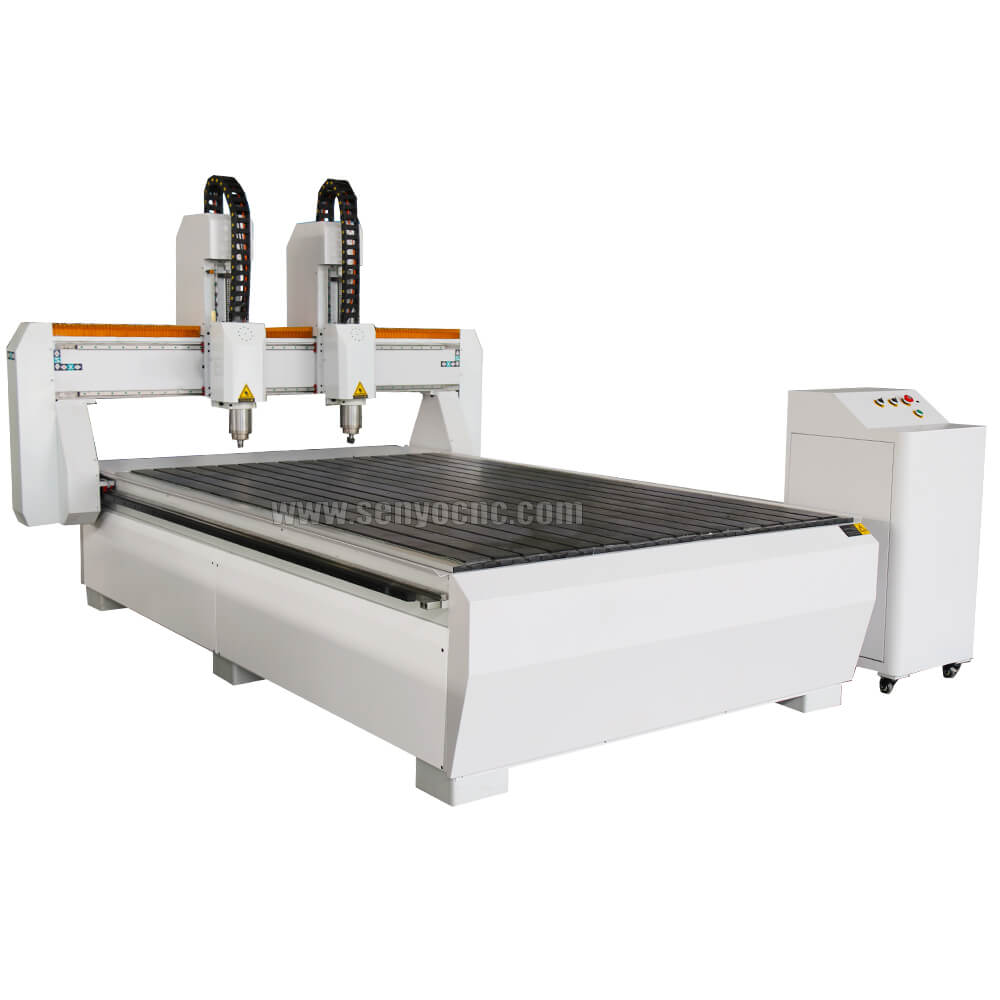

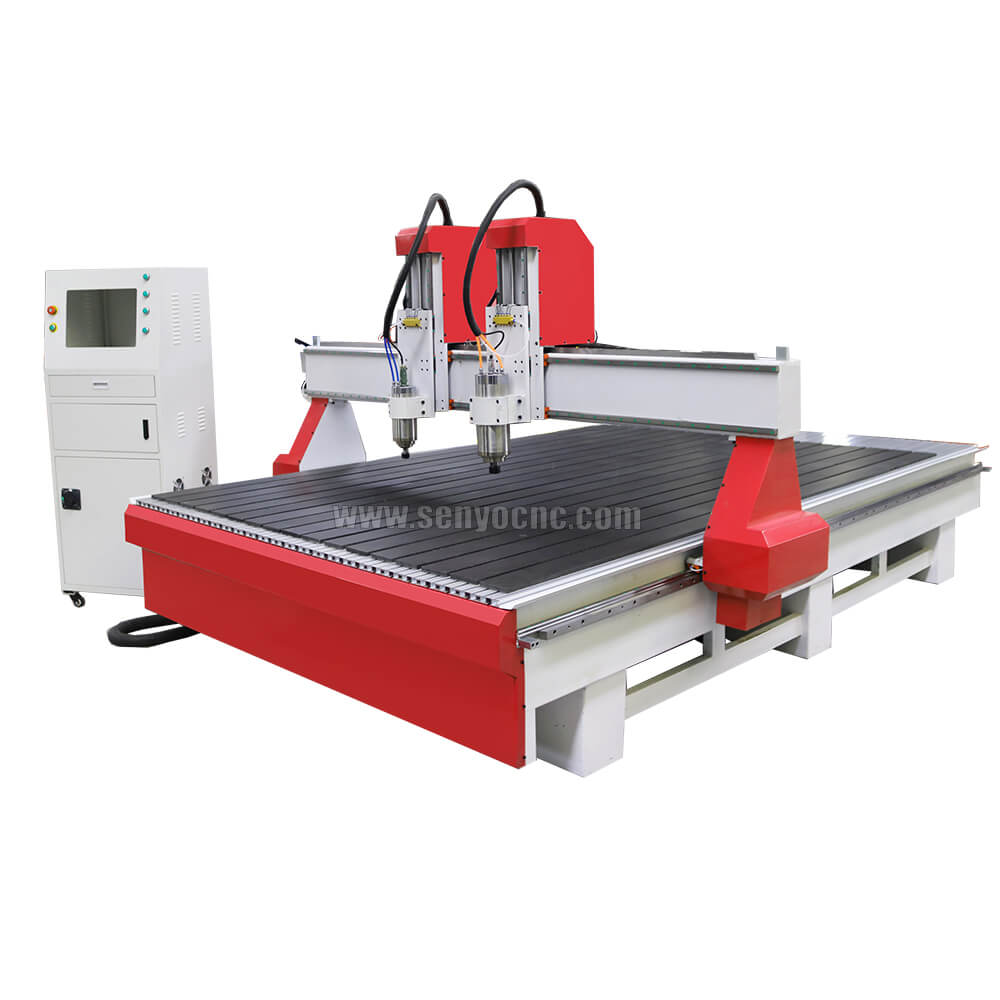

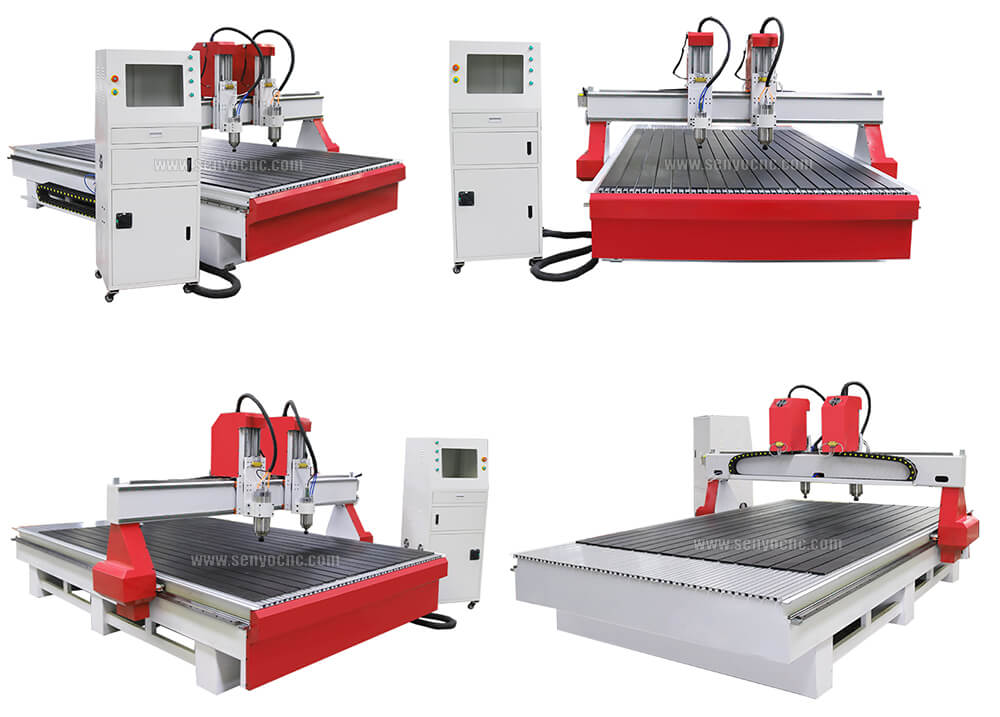

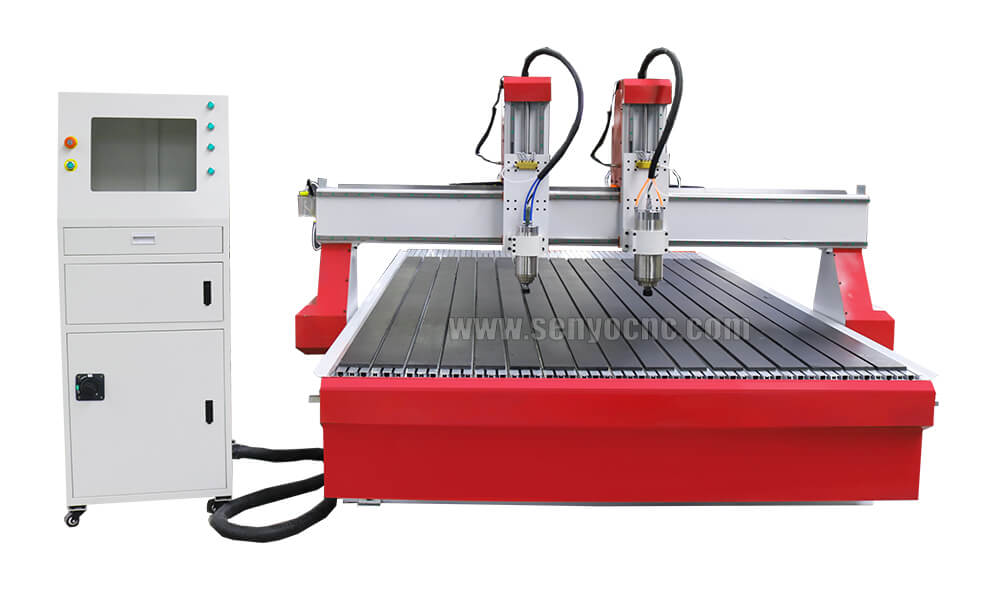

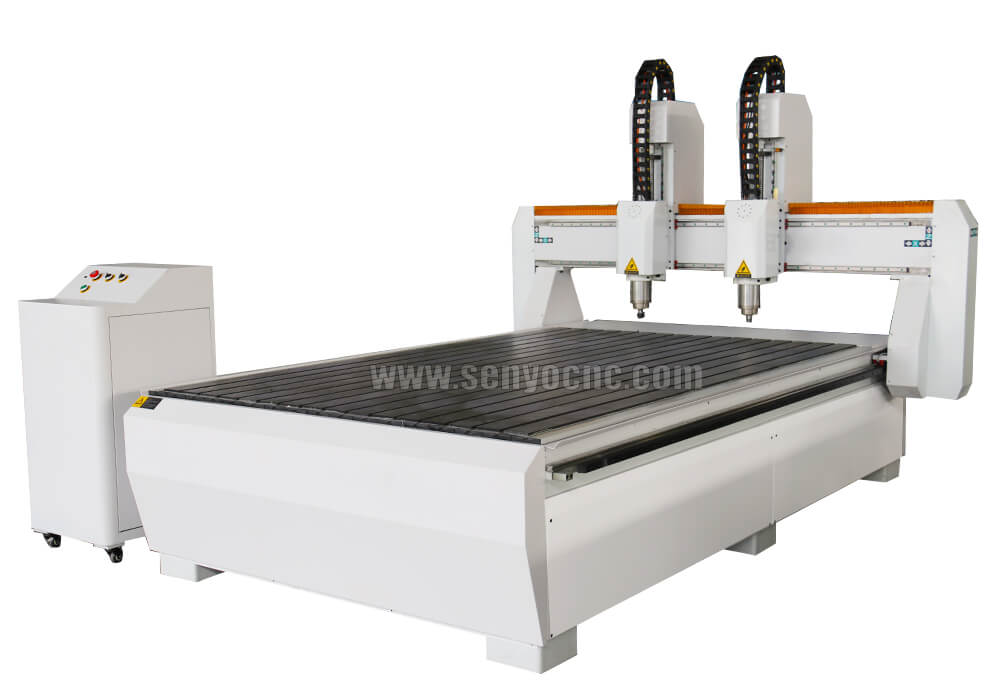

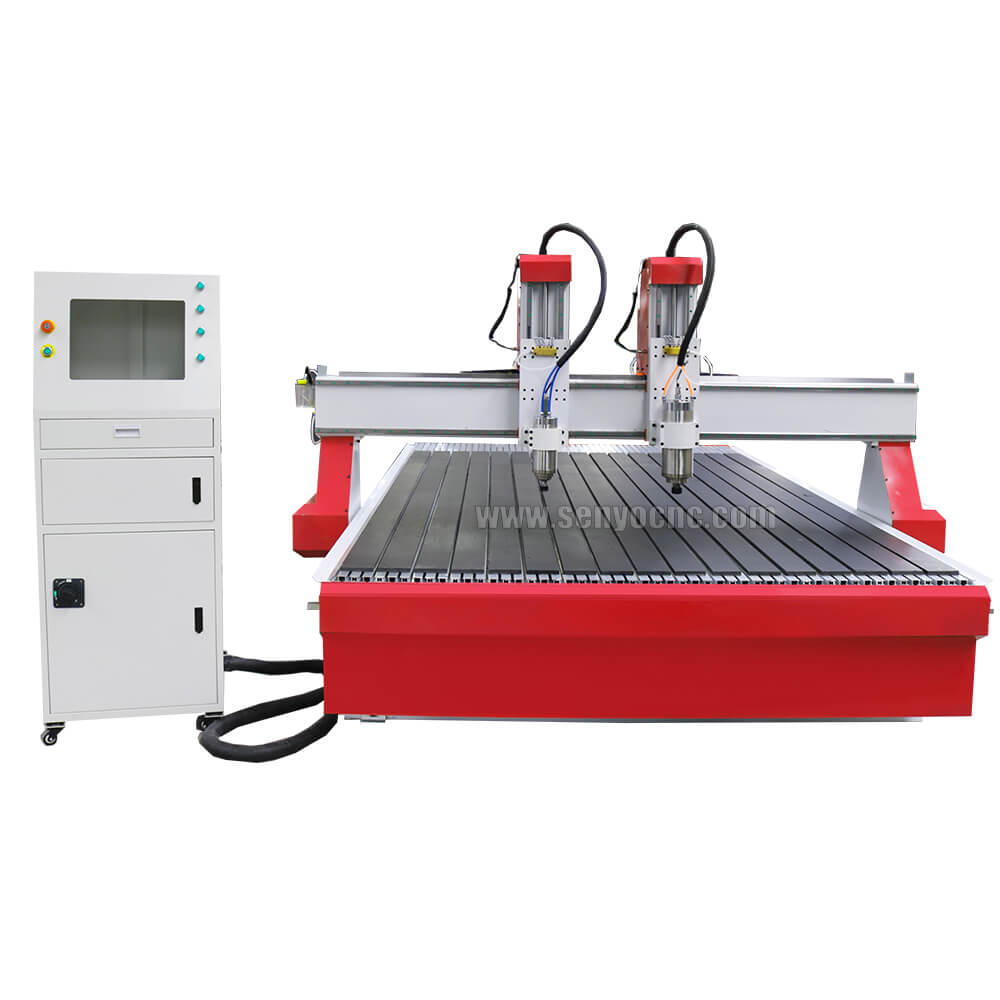

Machine have A1 design and color for optional, Model SYS1325-2HA1A
What's more, this wood CNC machine could mirror-sculpture (same engraving path, but in opposite directions)
by changing the cables, which is widely used for door making.

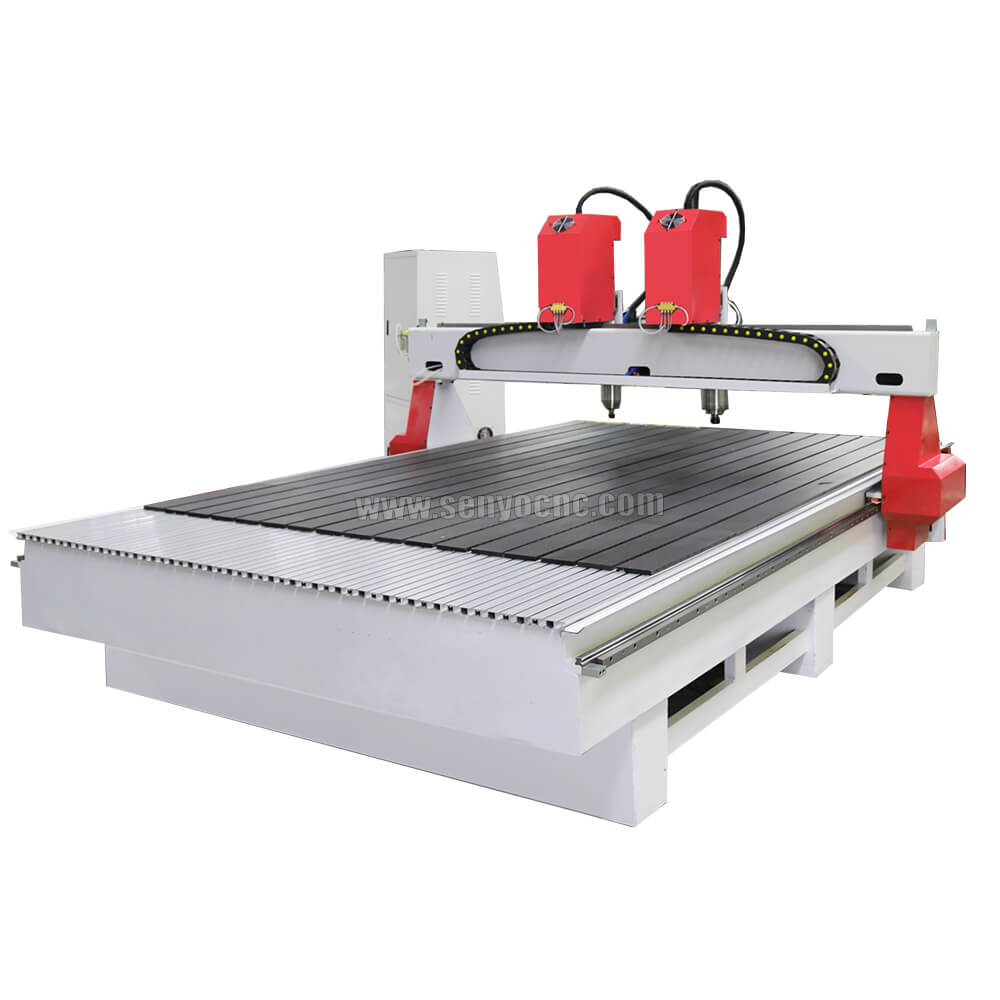

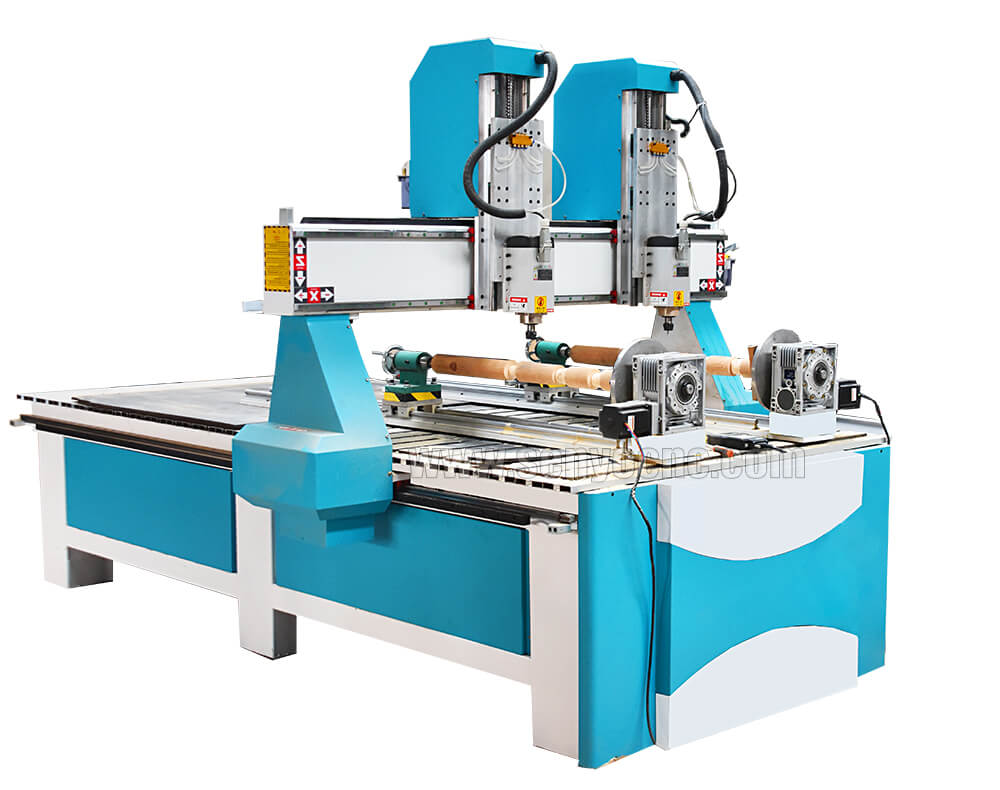

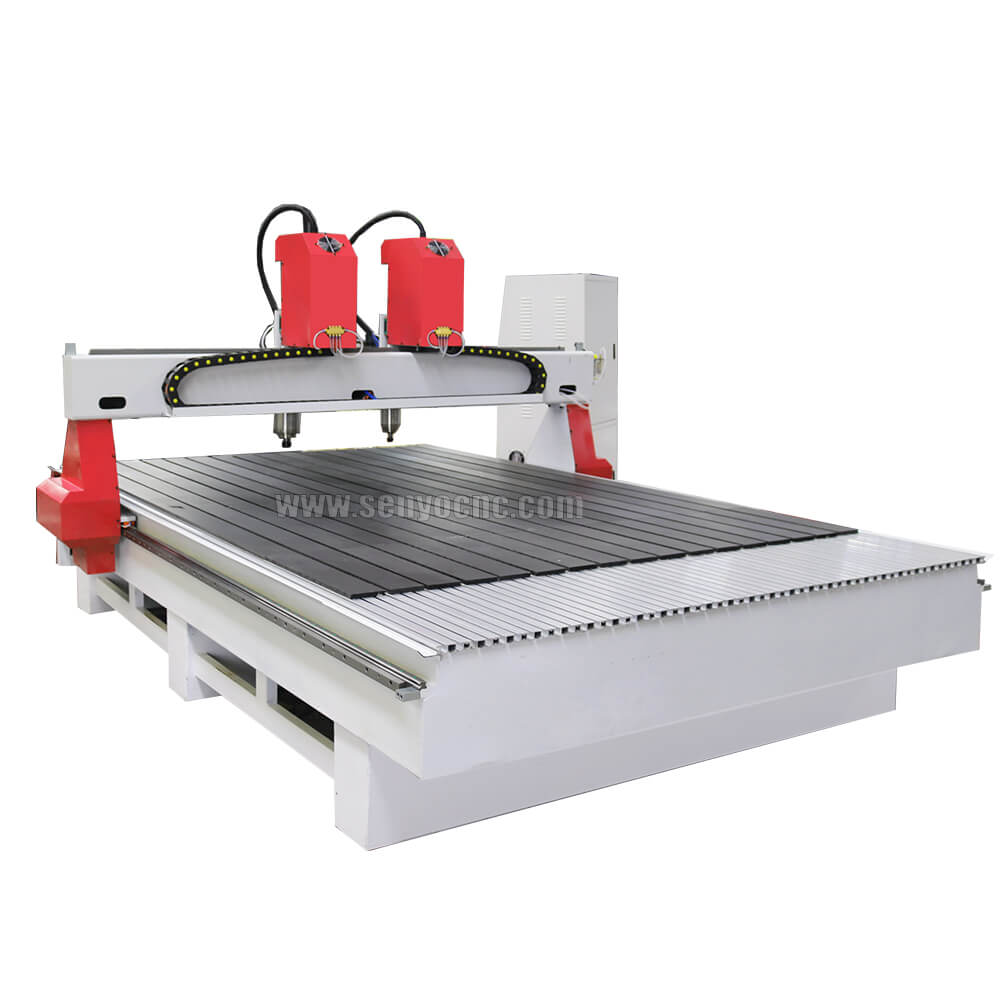

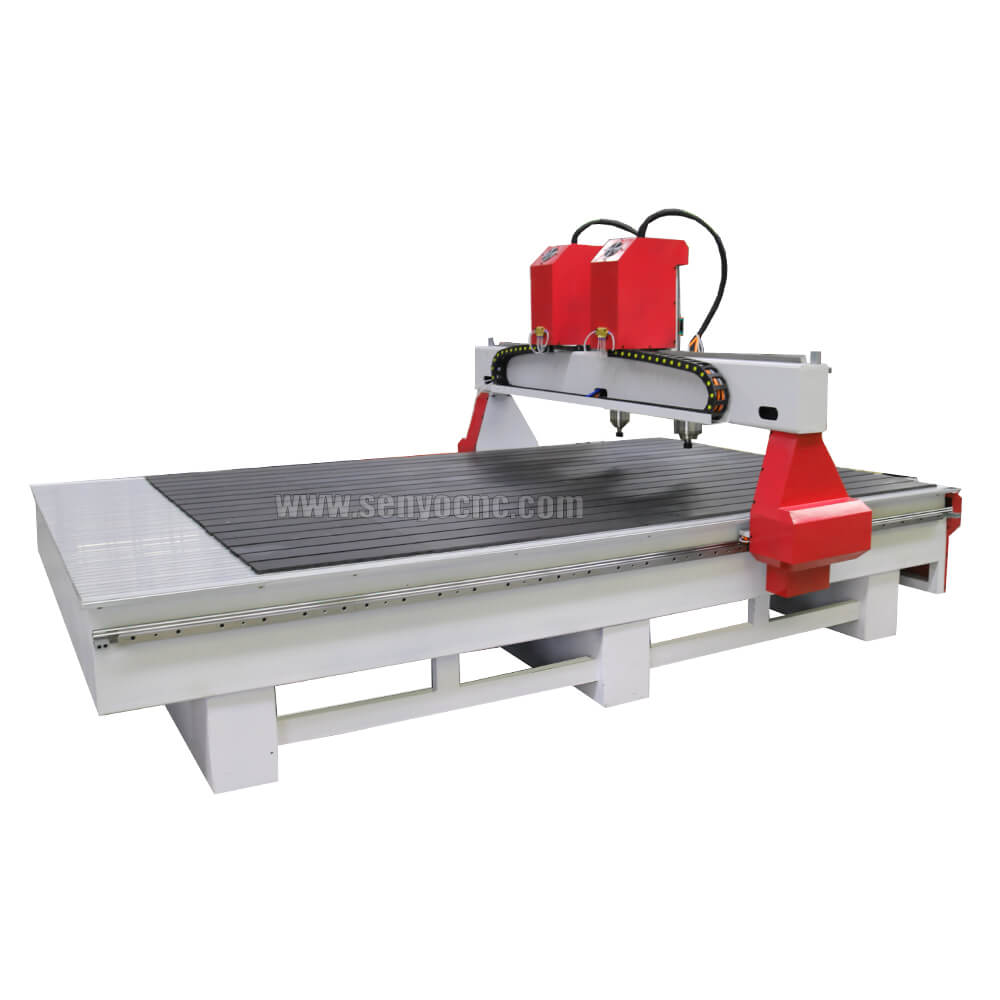

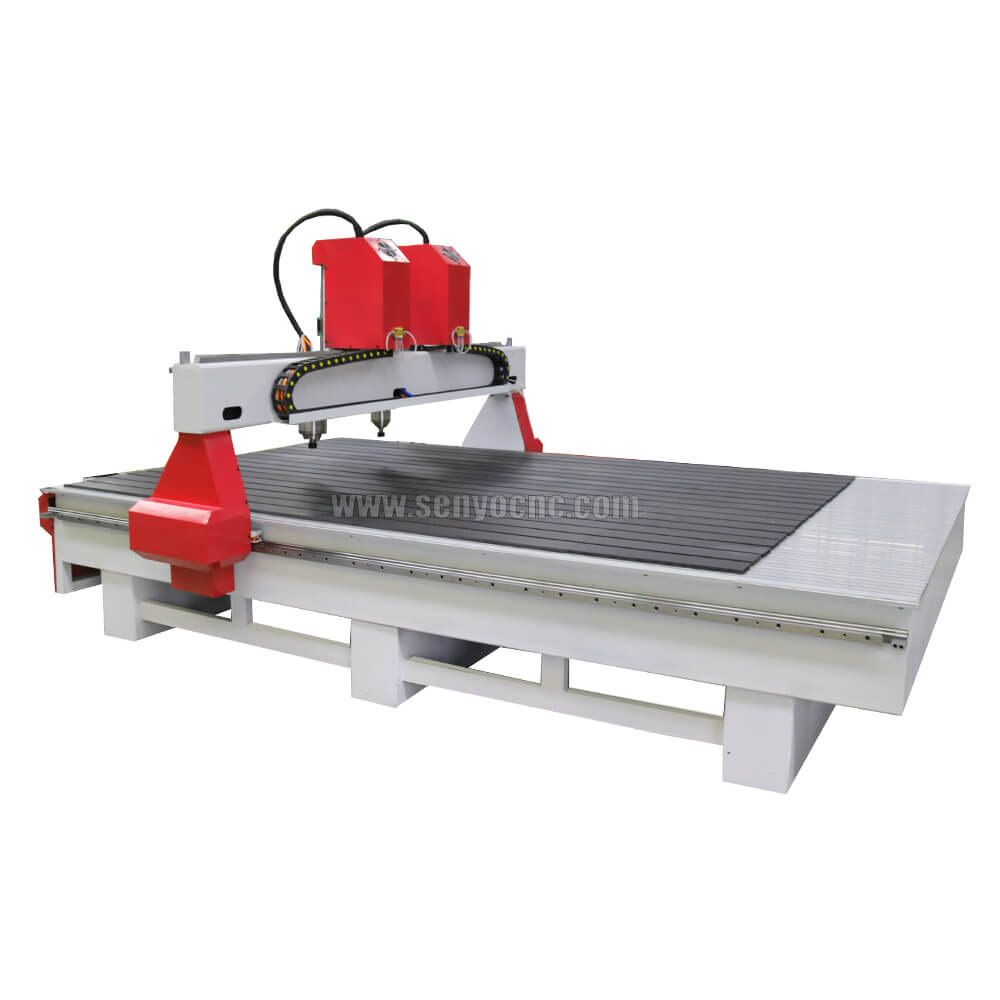

Machine With Rotary on worktable design ,Model SYM13252H2R
Features of 4x8 Wood CNC Machine with Dual spindles:

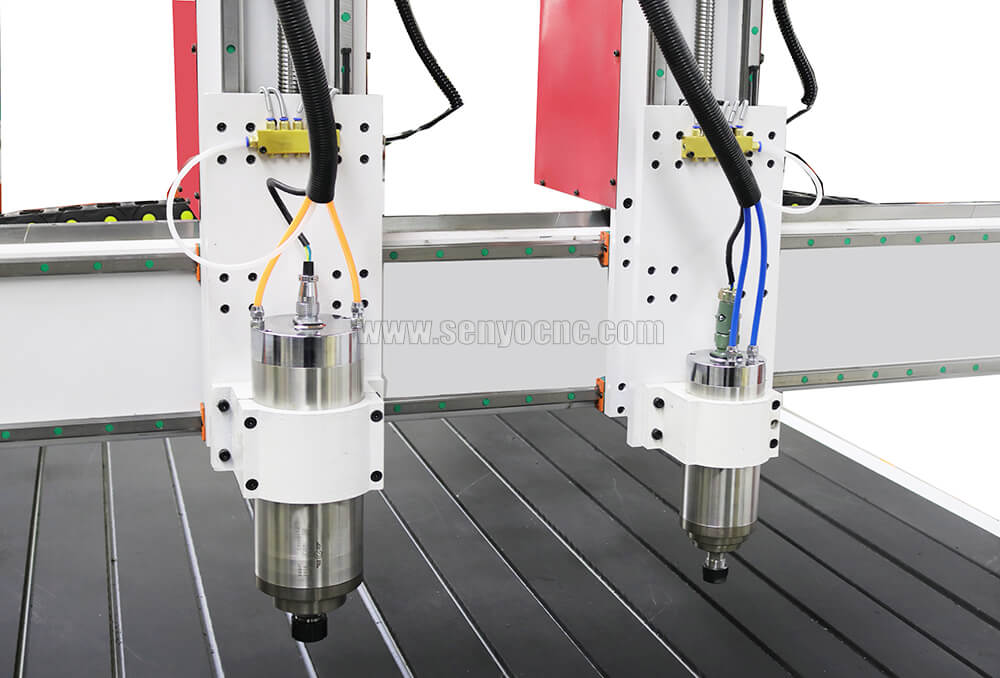

High power spindles have constant power, low noises and super strong cutting force, which improve working efficiency greatly.
The whole CNC wood machine is welded with thick square seamless steel structure, the stability is excellent, not easy to be deformed.

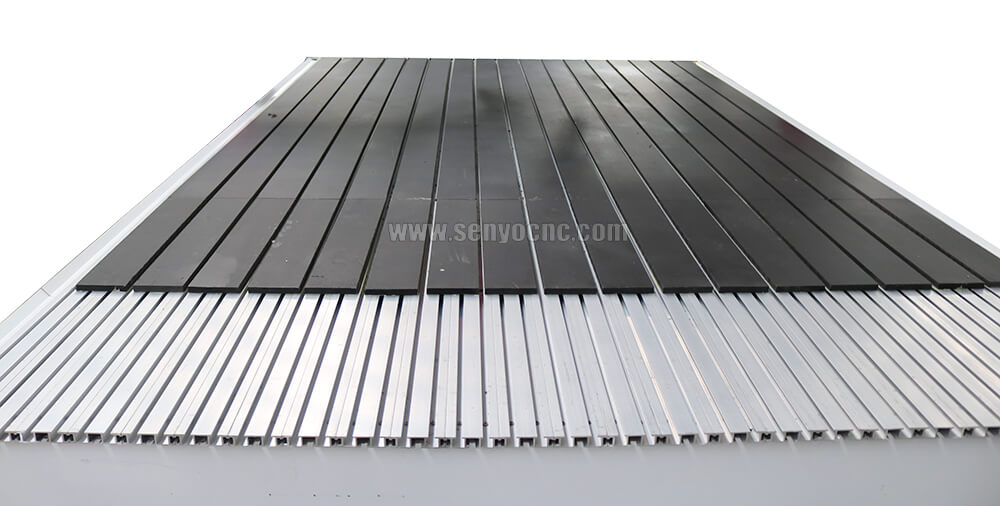

T slot worktable

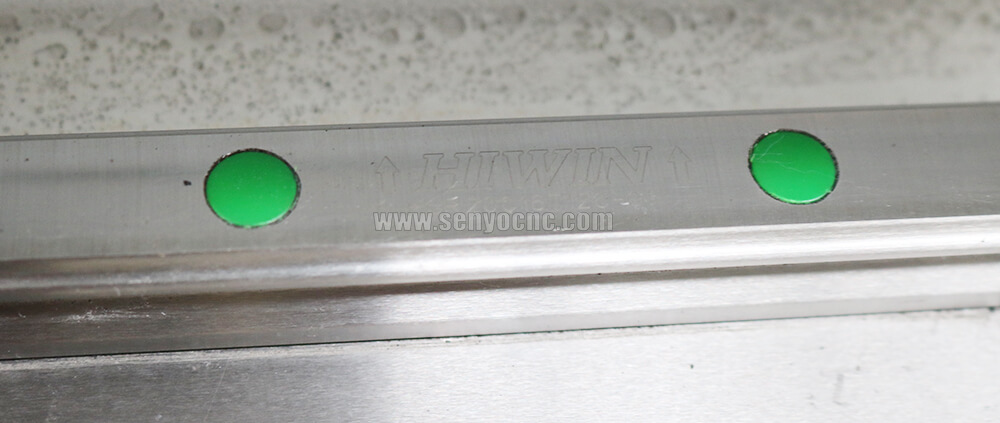

Three axis adopt high precision square orbit, X and Y axis adopt rack
and pinion transmission, fast working,
high efficiency and low cost. Z axis adopts Taiwan TBI ball screw transmission with high precision and long life time.
Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai, etc.
The 4x8 wood CNC machine has the function of re-carving after break point and power failure.

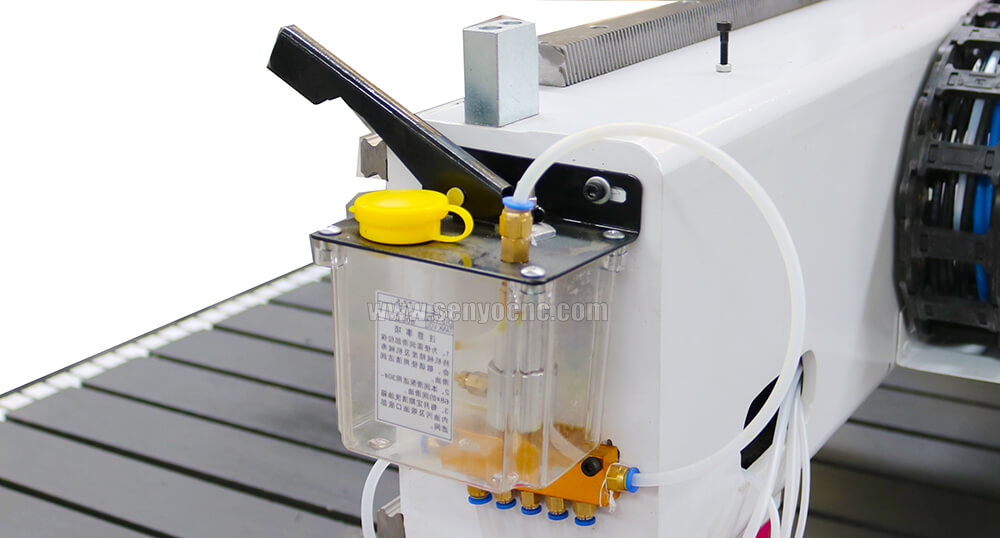

Perfect oil lubrication system makes maintenance much easier. And electric limit switch on all axis, make sure the machine running well.

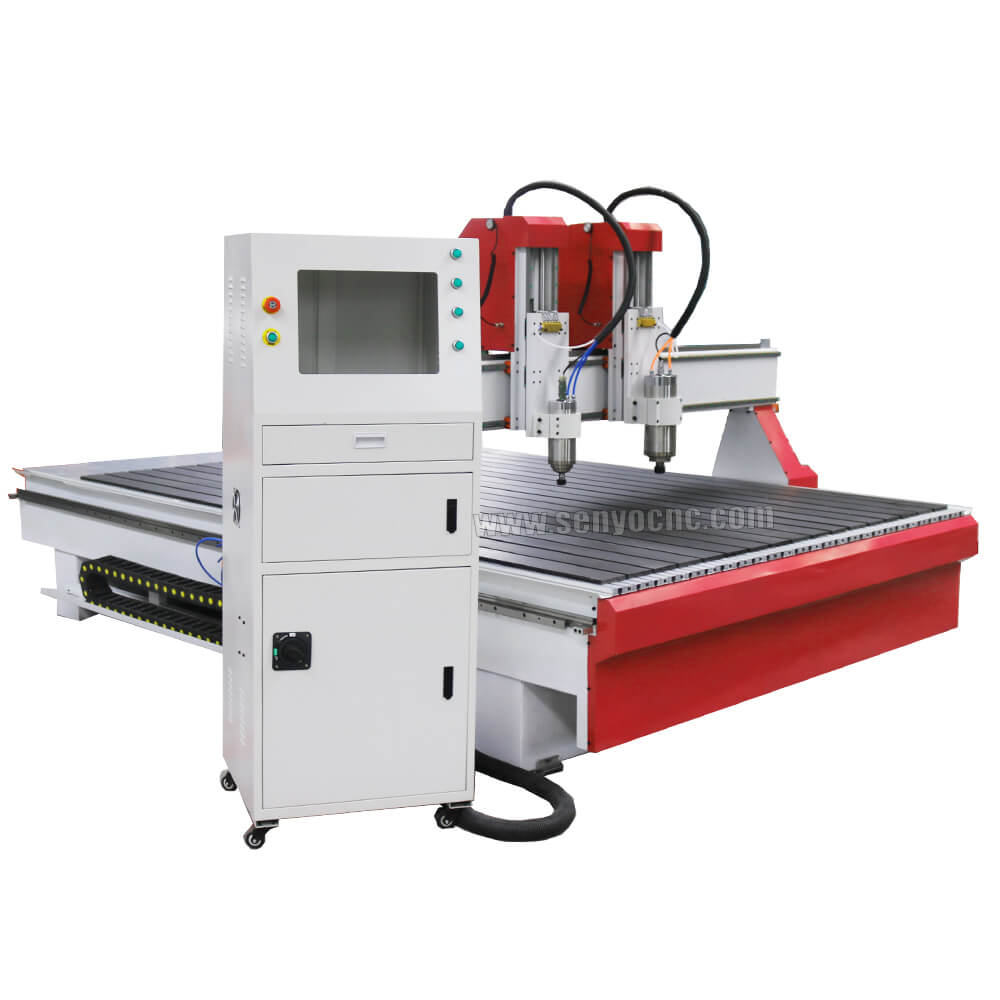

Independent control box make control easier.
The 4x8 wood CNC machine has the function of forecasting process time.
Adopting advanced NCstuido /Mach3/DSP system, convenient operation.

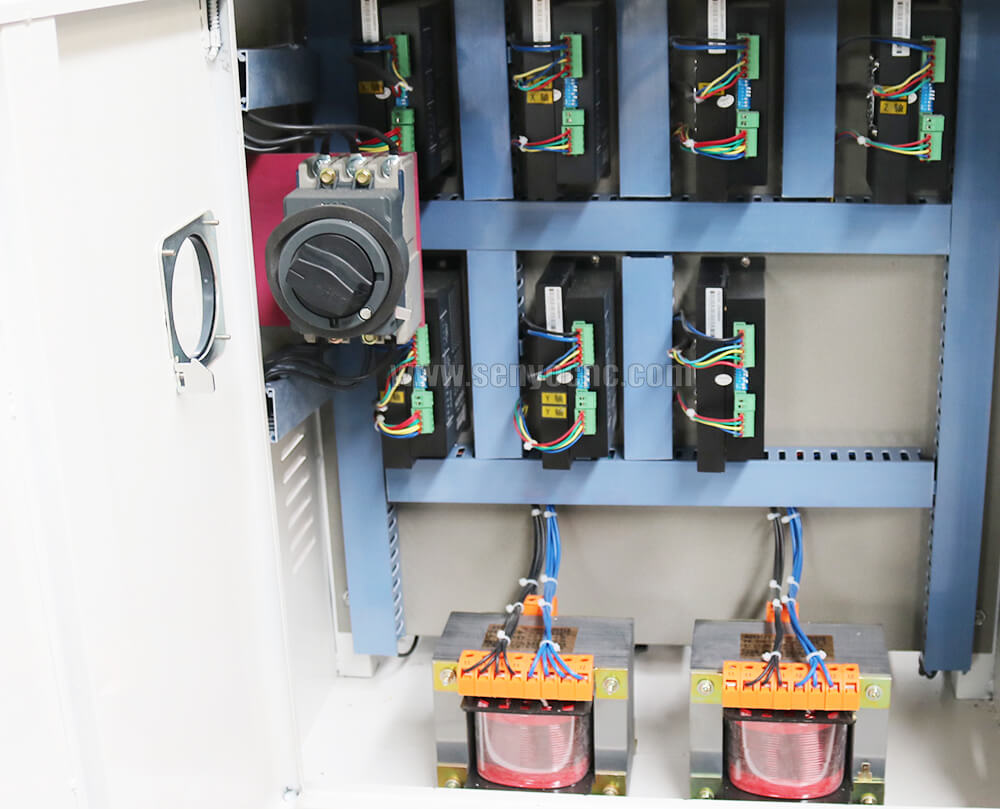

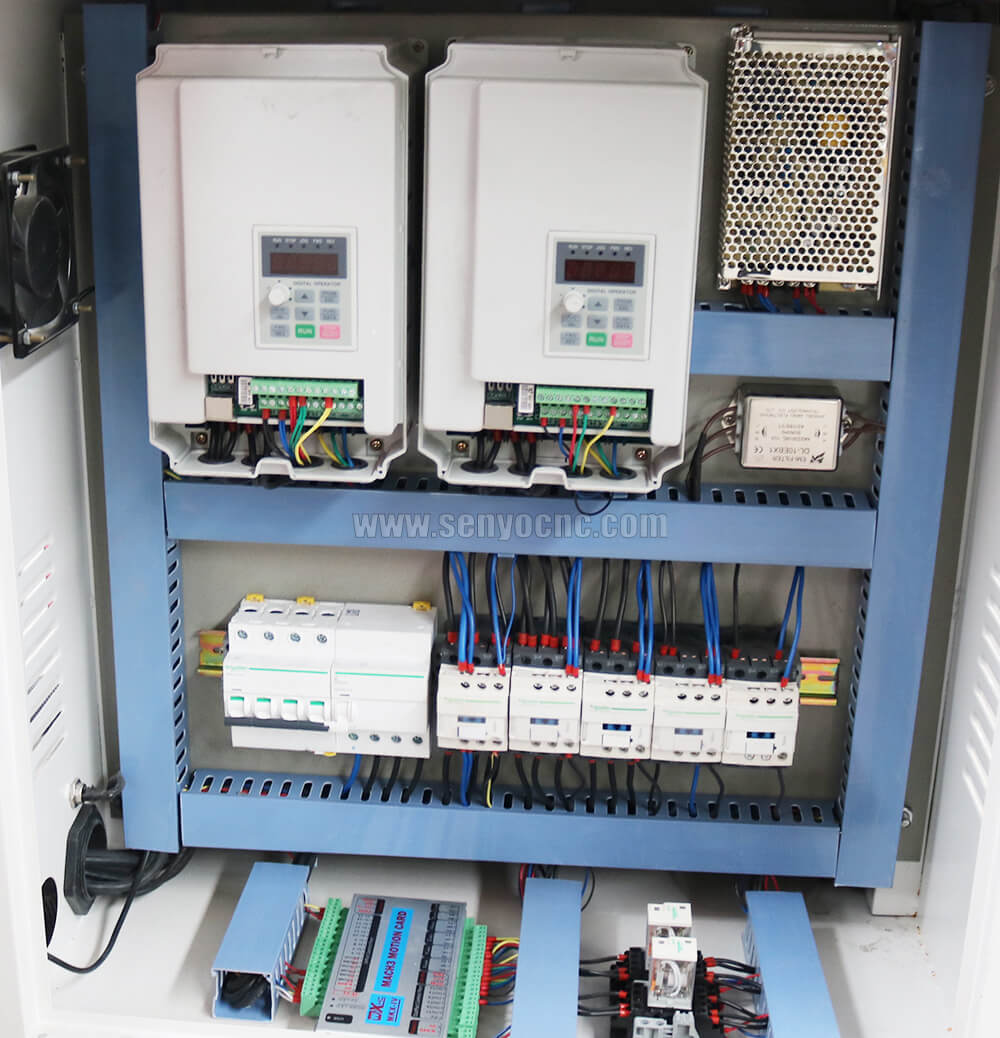

Machine professional wire connection
Famous brand drivers and motors have characteristics such as powerful strength, high machining speed.
We will provide you a set of cutter, and a tool box with other necessary accessories.
Applications of Dual Spindles Wood CNC Machine with 4x8 Table Size:
Woodworking industry:

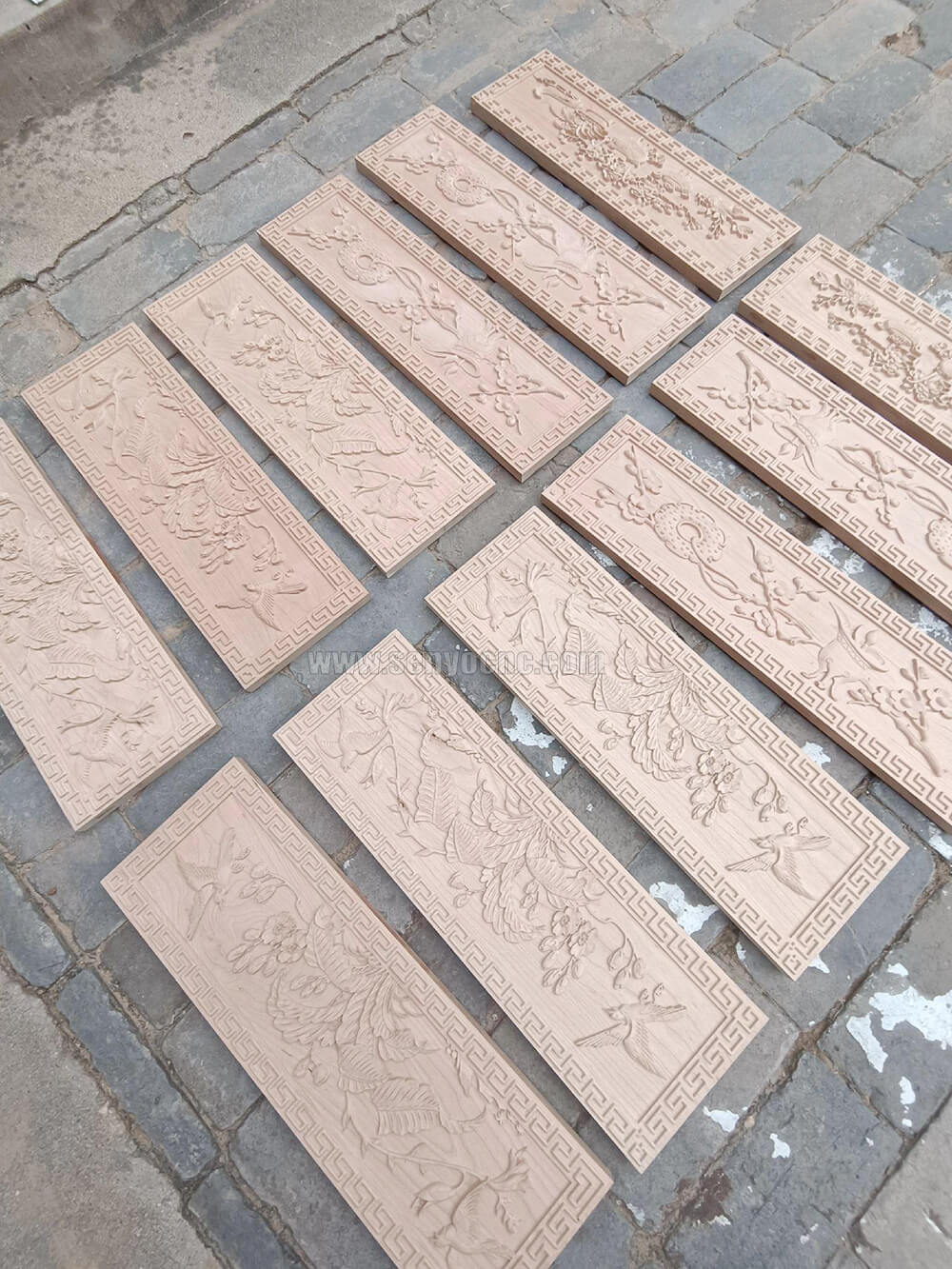

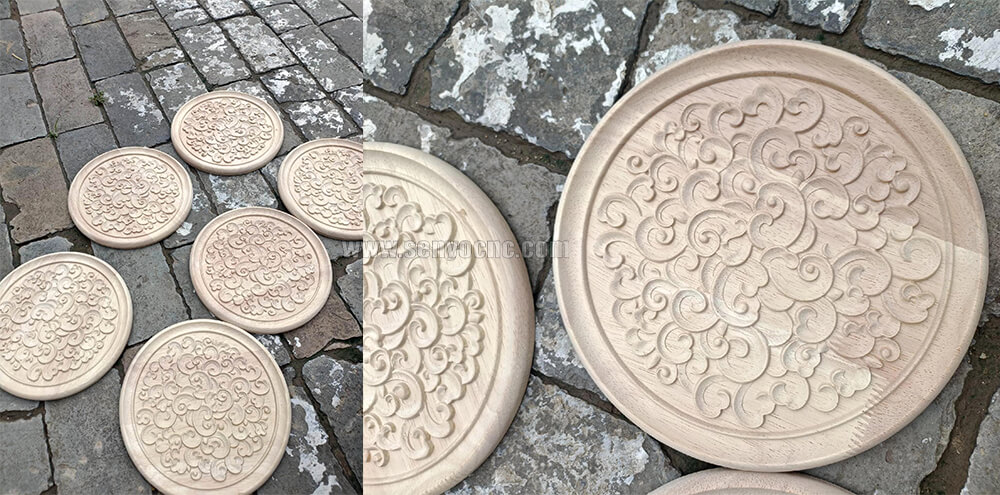

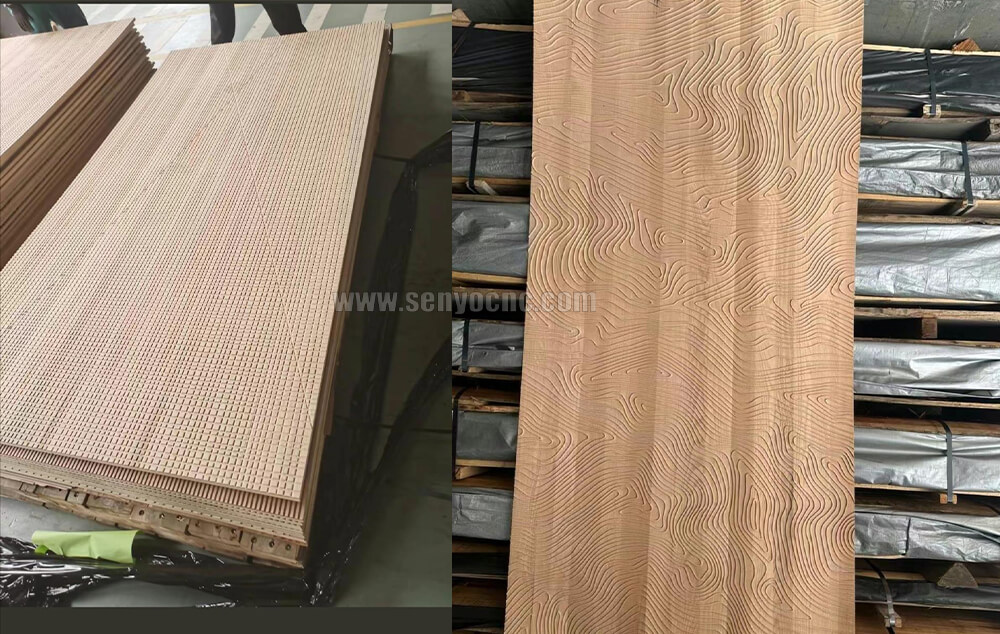

Three dimensional wave plate processing
Cupboard doors, wooden doors

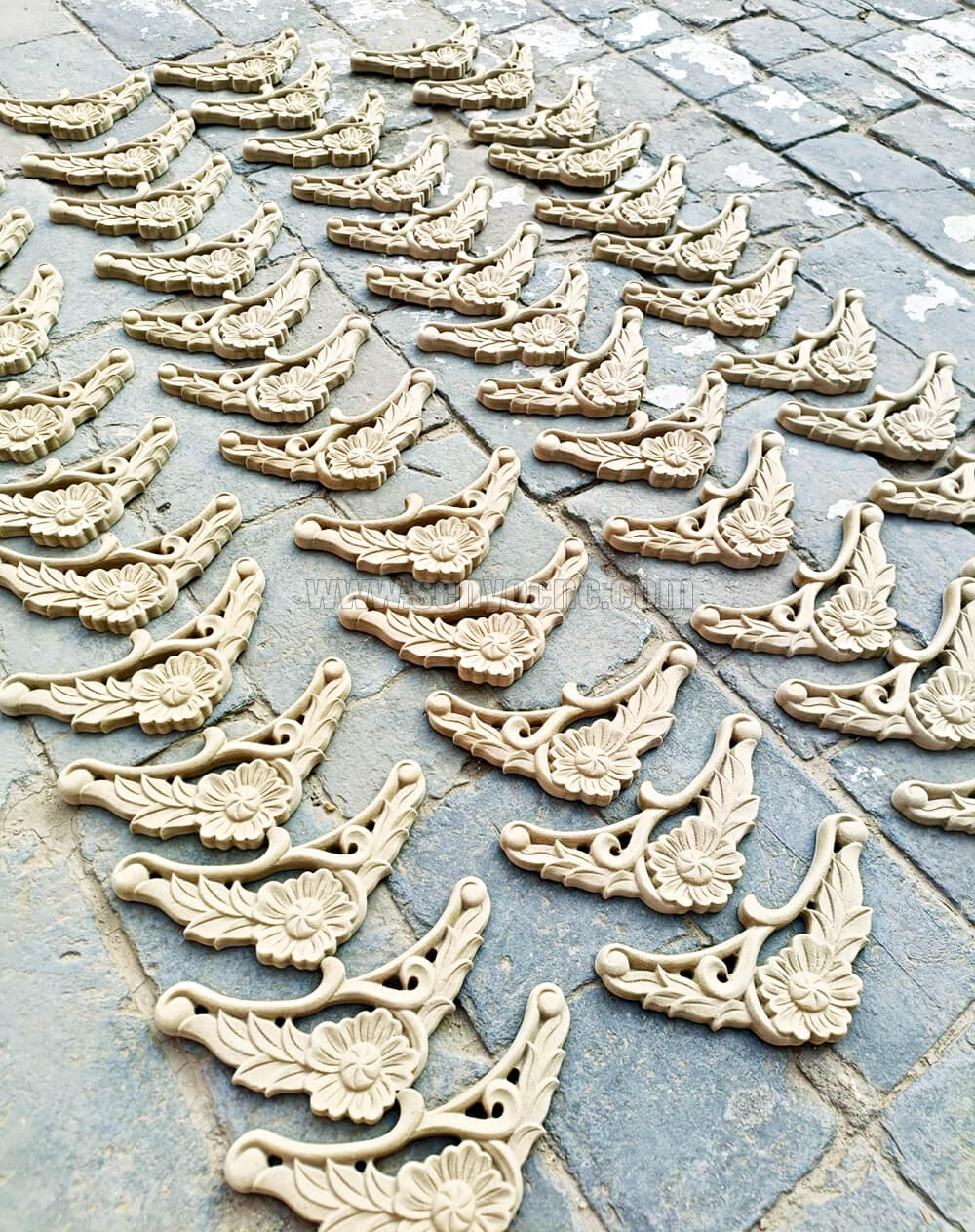

Furniture auxiliary processing.
Cabinets and panels, computer table
Advertising industry:

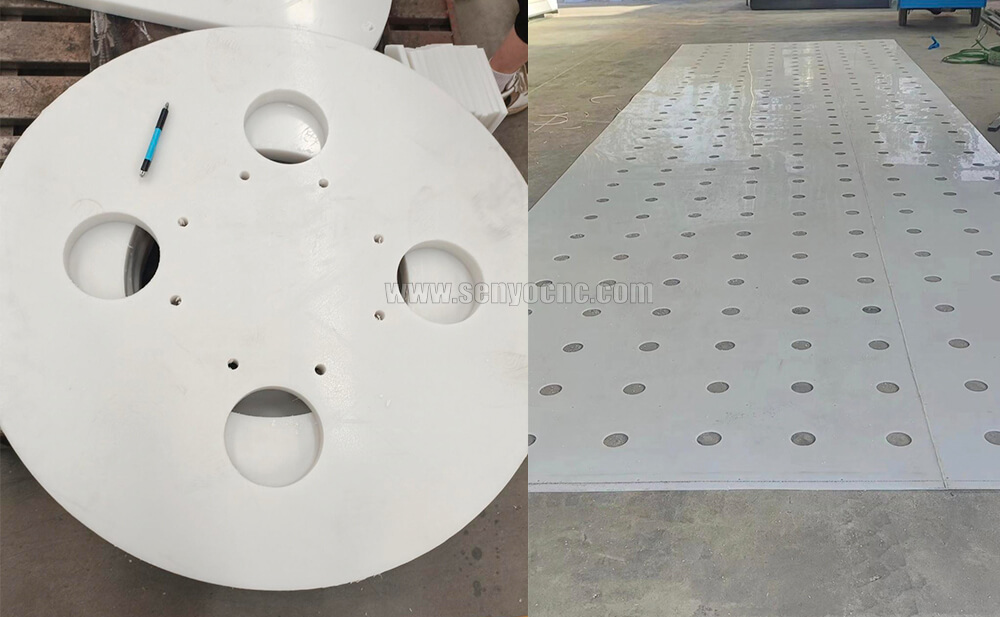

Advertising signs making, logo production, acrylic, plastic cutting
production of decorative materials, forming system module, etc.
window
processing
Technical Parameters of 4x8 Wood CNC Machine with Dual spindles
Model | SYM1325-2HA2 |
Working Size | 1300mm*2500mm*200mm |
Body structure | Steel tubes |
X, Y Structure | rack and pinion drive |
Z Structure | Ball Screw/option gear wheel |
X, Y Resolution | <0.01mm |
Max Moving Speed | 32000mm/min |
Max Engraving Speed | 20000mm/min |
XYZ traveling positioning accuracy | 0.03/300mm |
XYZ repositioning accuracy | 0.03mm |
Spindle power | 3kw/4.5kw/5.5KW (can be choices) |
Spindle Speed | 24,000rpm |
Table style | T-slot table (option vacuum table) |
Dust collection | Can add or not |
Voltage | AC220V/50HZ/60HZ,380V/50HZ |
Drive type | Stepper (Option servo) |
Working Dictate | G Code ,HPGL |
Operating system | DSP control system |
Interface | USB |
Flash memory | 128M(U Disk) |
Packing & Shipping
1. Outside package: Standard plywood package.
2. Inner package:Stretchy film and plastic protective film for humidity.
3. We can package according to your requirements.
For
standard machines, 7-15 working days after payment
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
