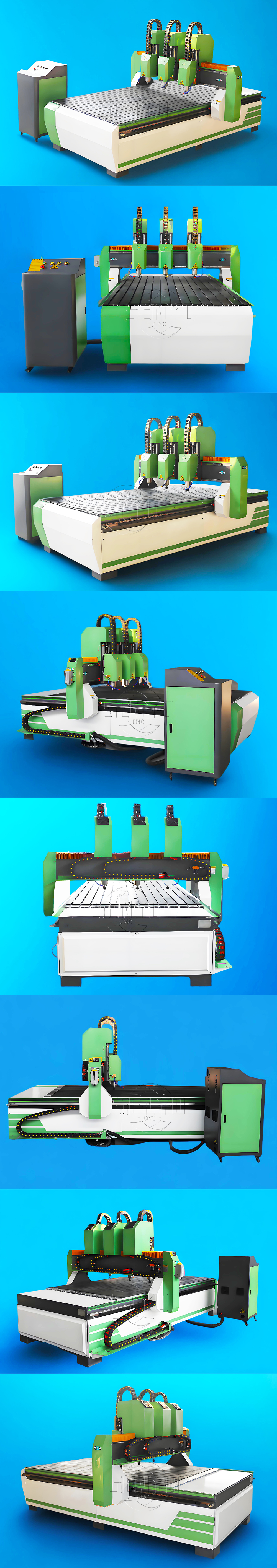

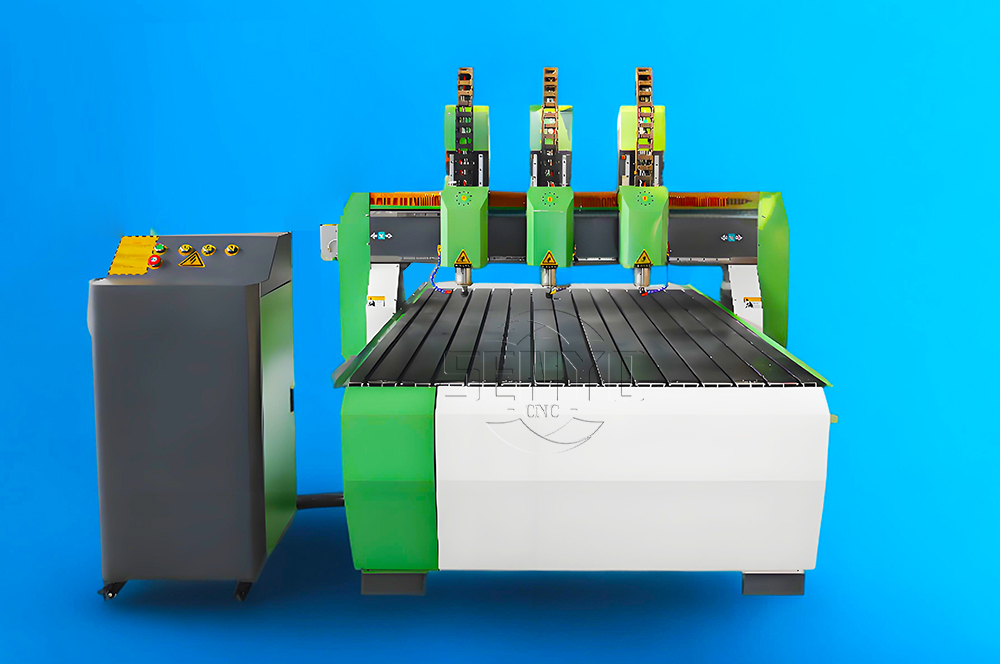

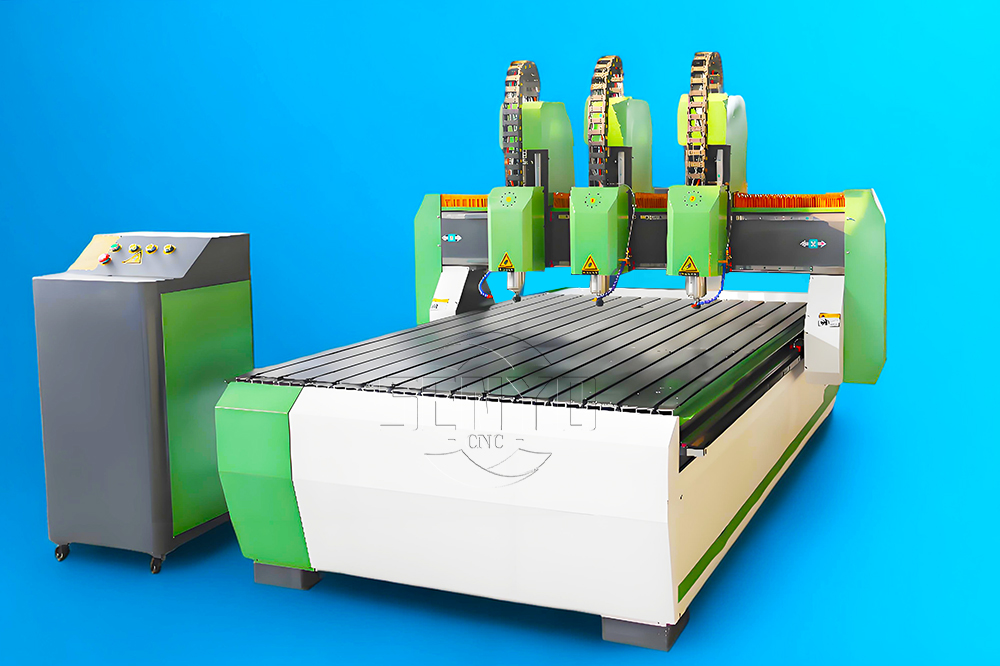

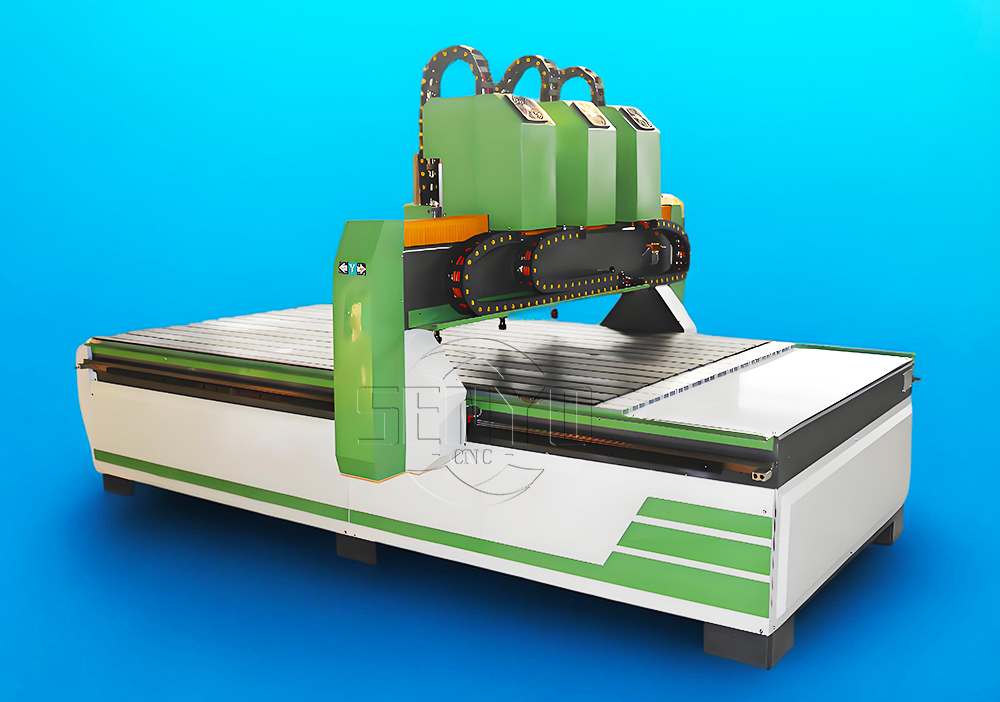

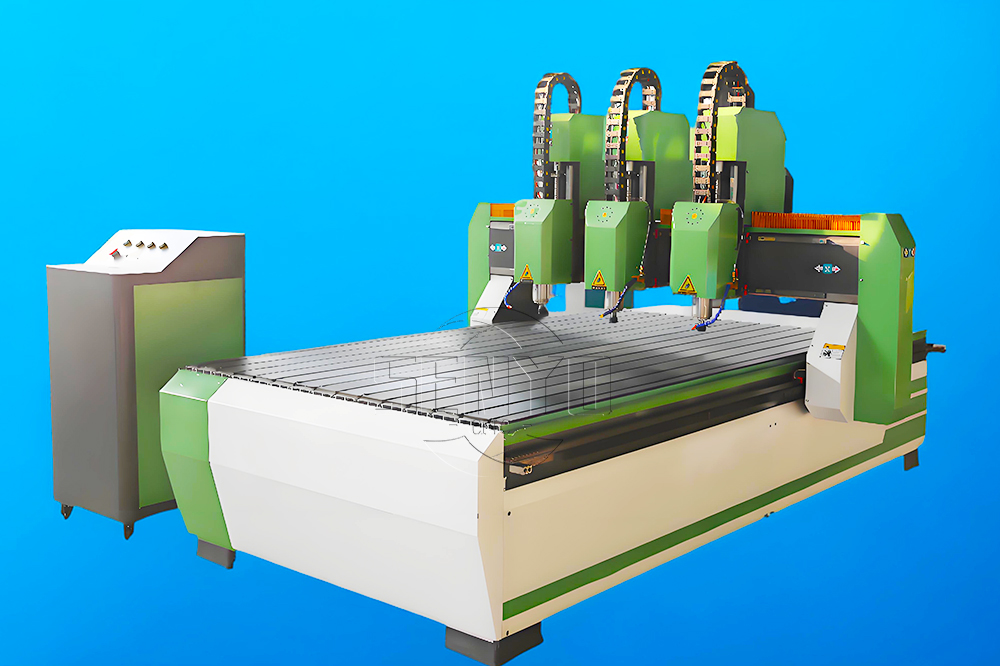

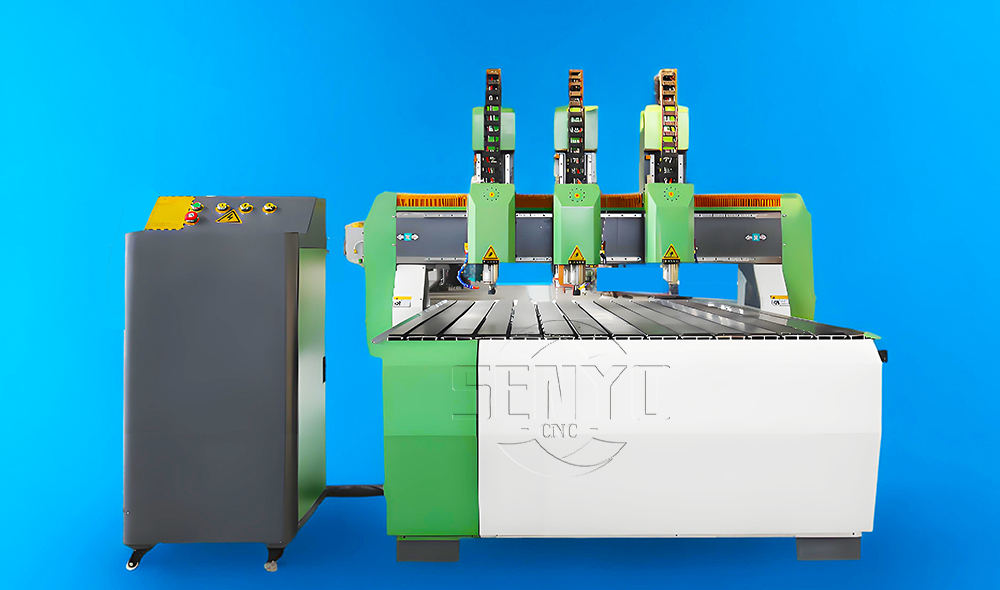

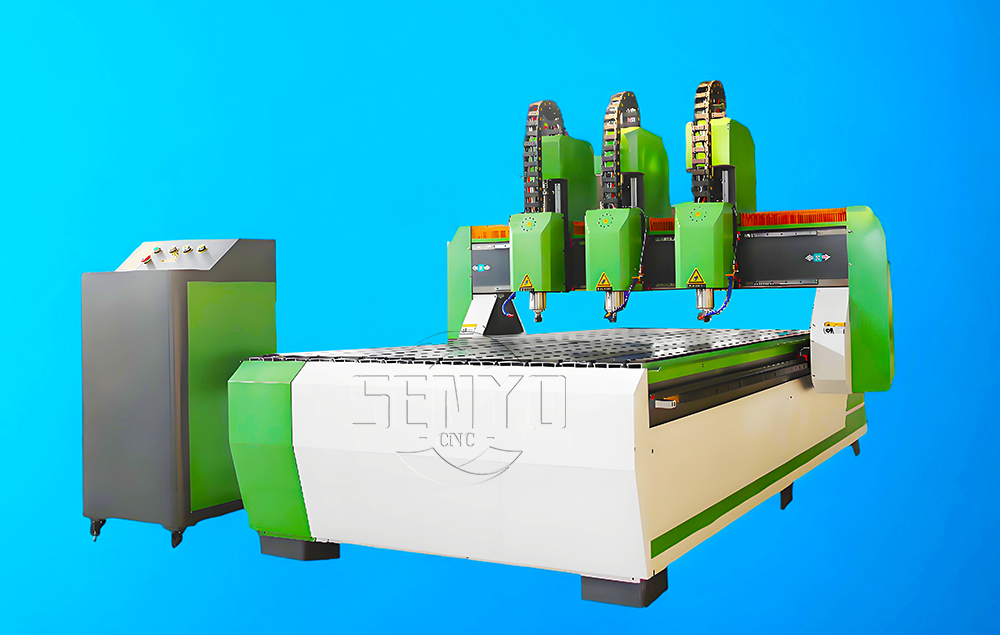

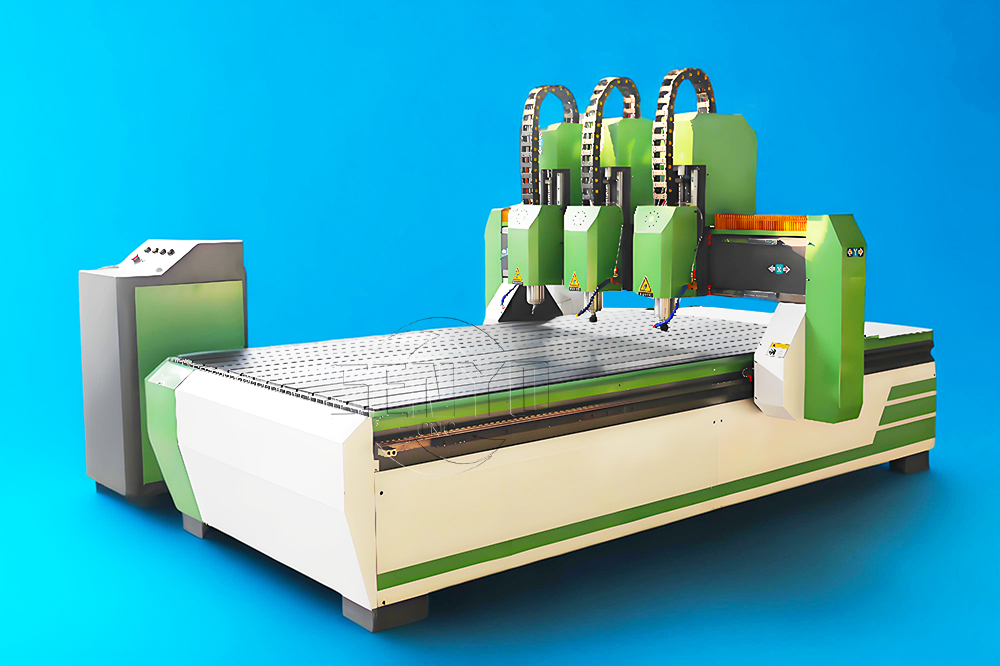

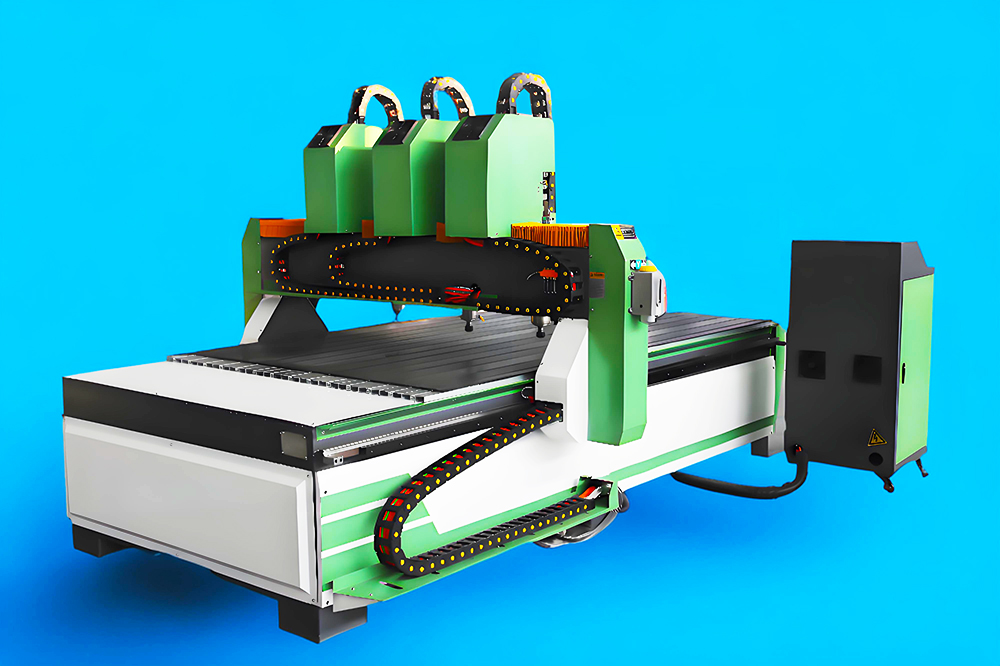

SENYOCNC 3 Spindle CNC Router The machine has an all-steel structure and is equipped with a famous domestic spindle, Taiwan's precision Hiwin linear guides and bearings, German precision spiral racks on the X and Y axes, TBI ball screw Z-axis driver, and stepper motor. Various control methods can be selected.3 spindle This feature will greatly help increase efficiency.The machine can perform engraving, drilling, cutting, grooving and many other differe
Demonstration Video


Product Descriptions

Machine Features


1) Using Professional Dust Collecting System.
2)Advanced digit-control system, handle operation and large liquid crystal display brings out more convenient operation.

   Simpler maintenance and more human nature on the design of the machine
3) The three axes use linearity square guide rail and drive which could meet different cutting demand and has high cutting precision.
4) Unique intelligent calculation fully develops the potential of the electric machinery and leads to high speed processing.

     The synchronization of curves and straight lines, smoother curves and race speed at 12m/min.
5)  Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them
6)  This model uses domestic-leading PCI controlling system.

      It uses imported square shape guide rail and the transmission is steady. It adopt high-precision level gear transmission.


Machine Advantage

1. Heavy-duty and thicker, the bed body is made of all-steel material, which is more stable and longer in use.
2. The main shafts are domestic famous air-cooled and water-cooled main shafts.

     If necessary, the HSD air-cooled main shafts from Italy can be replaced with higher quality and better effect.
3. Vacuum working table, equipped with a vacuum pump, can make the material fixing more stable.

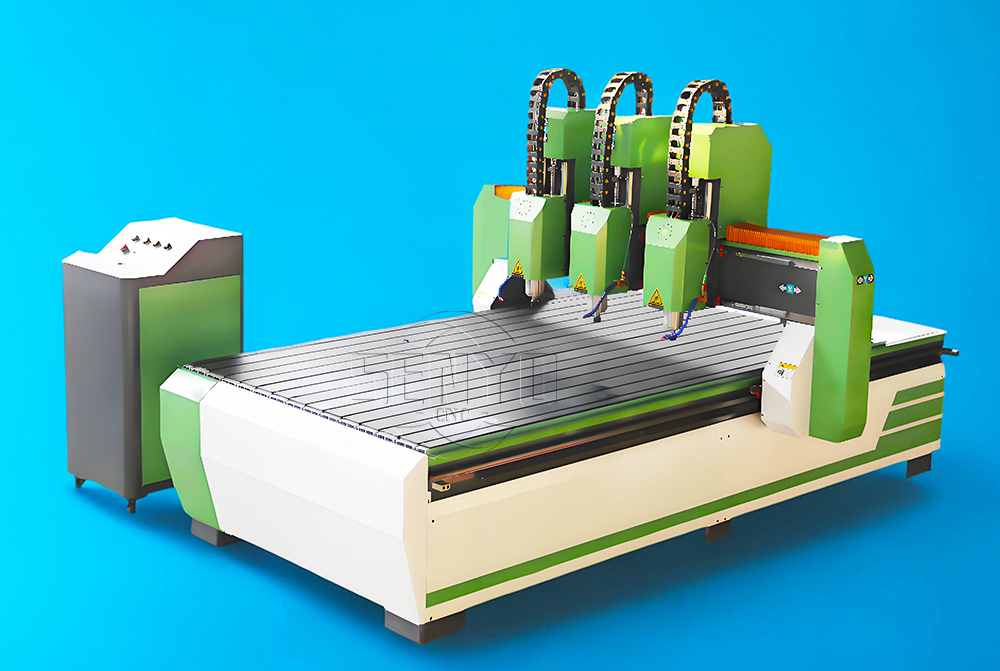

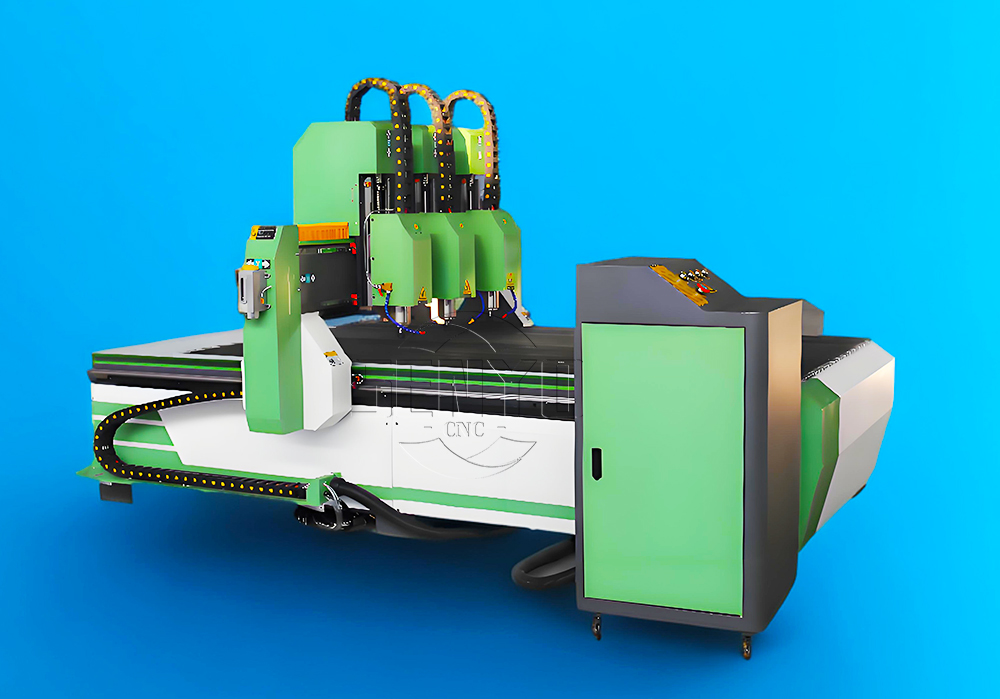

3 spindle cnc router machine.jpg



Machine Configuration

1.    Working Voltage:380V,3 Phase,AC50/60hz
2.    Working size:1300mm*2500mm*200mm
3.    Heavy Duty Square steel tube frame lathe bed
4.    X,Y axis Rack&pinion transmission ensures fast speed and high accuracy
5.    Z axis with high precision TBI Ball screw
6.    High Precision Taiwan Hiwnin Square Rail with X,Y,Z axis
7.    450B large power stepper motor and driver system
8.    Best inverter
9.    3 sets 2.2KW water Cooling Spindle
10.  T-slot aluminum combined pvc working table
11.  DSP  Handled Control system (Mach3/Nc-studio Option)
12.  ARTCAM software
13.  Lubrication system for X,Y,Z axes
14.  Collets size from 3.175-12.7mm
15.  10 pcs woodworking tools
16.  Whole suit of maintenance tools


Machine Parts Introduce

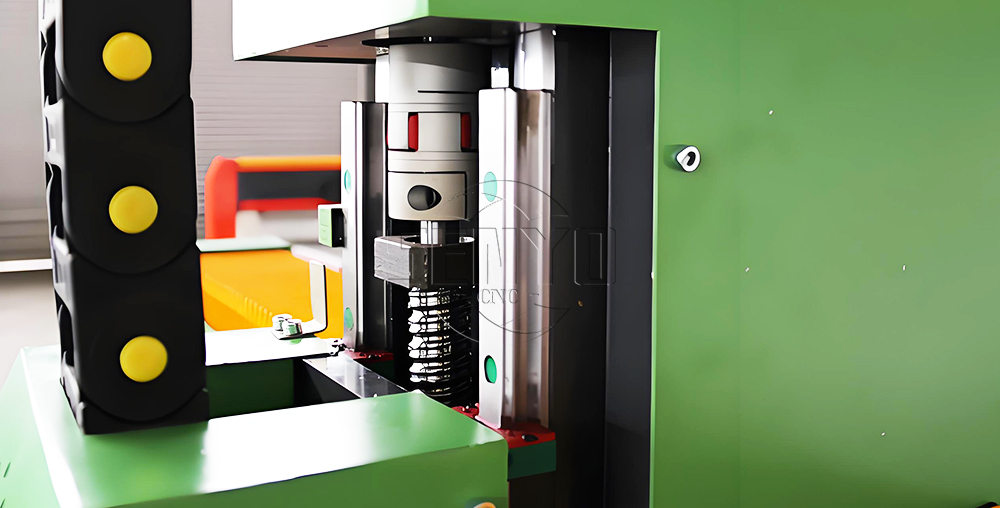

The three parts are the main shaft of the machine, the screw drive and the guide rail.

The main shaft works under the control and limitation of the screw drive and the guide rail.


3 spindle cnc router machine  (1f0x).jpg


The material is quickly and accurately engraved and cut to make the finished product more useful Quality, occupy more markets.

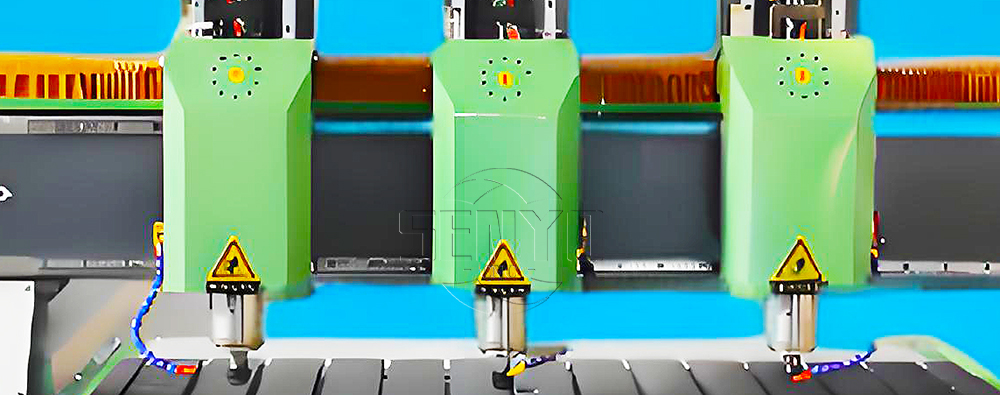

well  known water cooling spindle,high concentricityand verticality,high ,precision,long life time steady working,easy to ,start up.


3 spindle cnc router machine  (1c).jpg

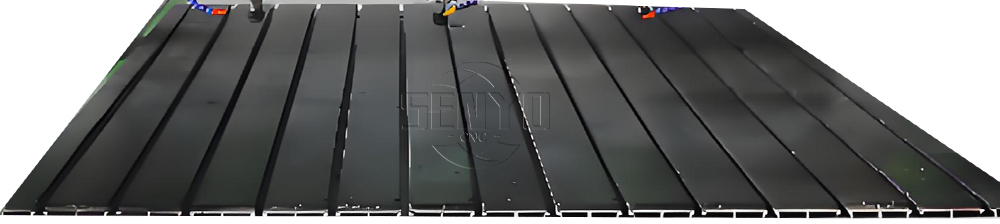

T-slot with Thick PVC Rigidity and strong body.Stable table structure. Popular exterior design.

3 spindle cnc router machine  (1fx0).jpg

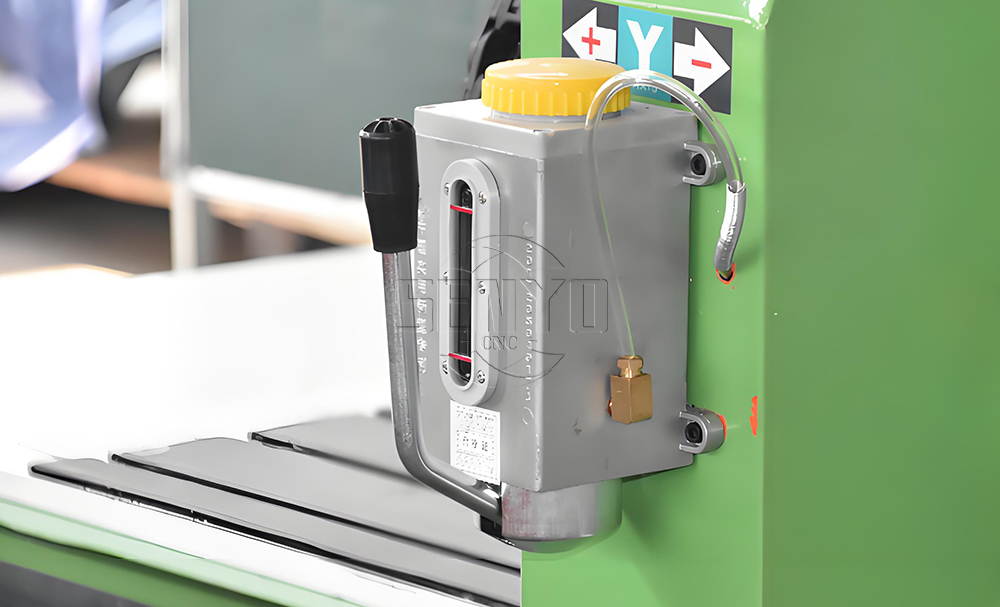

Oilling Lubrication System Manual/Automatic Oiling System. Easy to operate, low price, make the whole machine work smoothly.

3 spindle cnc router machine  (parts1).jpg



This is the control system of the machine. Through the control system, the operation of the entire machine is set, the running path and speed are controlled,

and the work is completed. The control system has seven different brands in three different ways for selection.

You can purchase selectively according to your work needs.

Rack and pinion transmission for large stroke, high precision, large torque  transmission.CNC machine tool

This is the machine's motor, drive and vacuum table.

After receiving the information from the computer, the motor and drive operate according to the program.

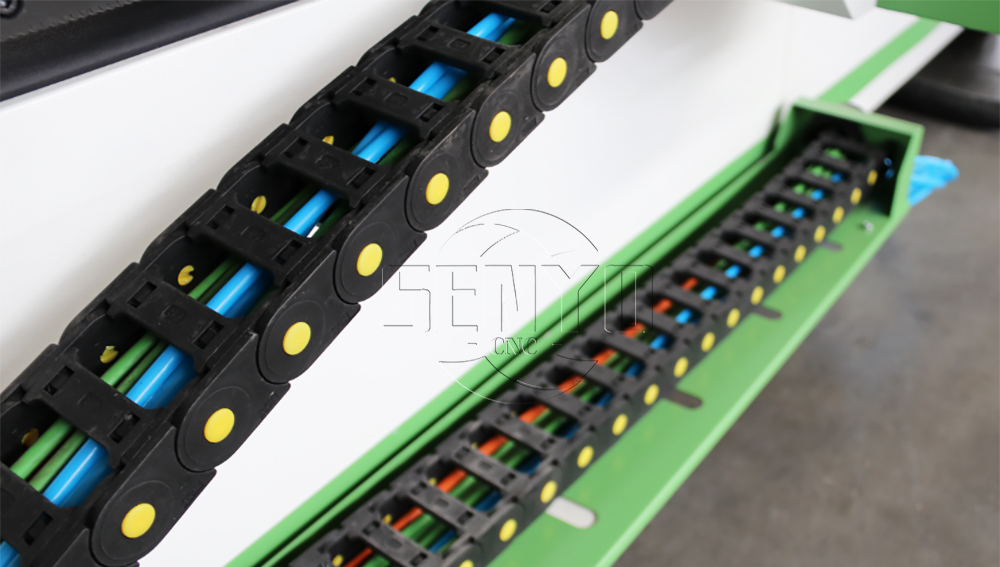

Machine wire connection use big size belt , good working and easy for collection.



All the electrical components are housed and wired in a mobile, double door electrical enclosure.

This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.

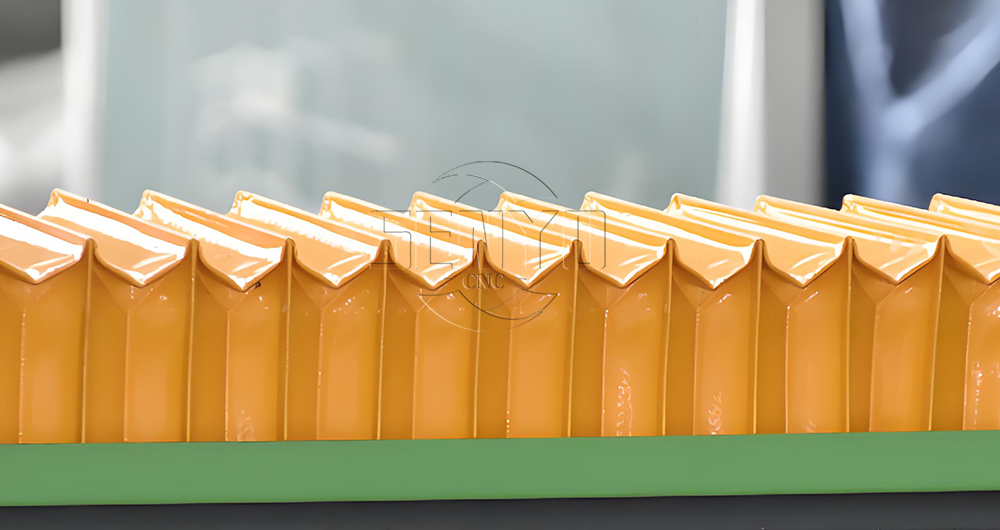

Machine with dust cover on xy axis . It will proect rail guide in best working condition.




Application & Industry

This engraving machine is mainly used for non-metallic engraving and cutting, such as wood, stone, acrylic, etc.

This machine has a fast marking speed, accurate and beautiful patterns, and can complete the tasks specified by the system quickly and well.

1. Woodworking Processing of various furniture such as door, window, cabinet, craft wood door, screen, etc.

2. Advertisement Engraving and cutting various labels and number plates.

3. Art craft Engraving characters of any language and graphics on gifts and souvenirs. Balustrade, furniture legs st-air railing,

cylinder items, handrail, desk or chair legs, the human body, avatar, 3D cylinder mold, and a variety of rotational symmetry.

Applicable Materials Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble,

and other nonmetal materials and light metal materials.

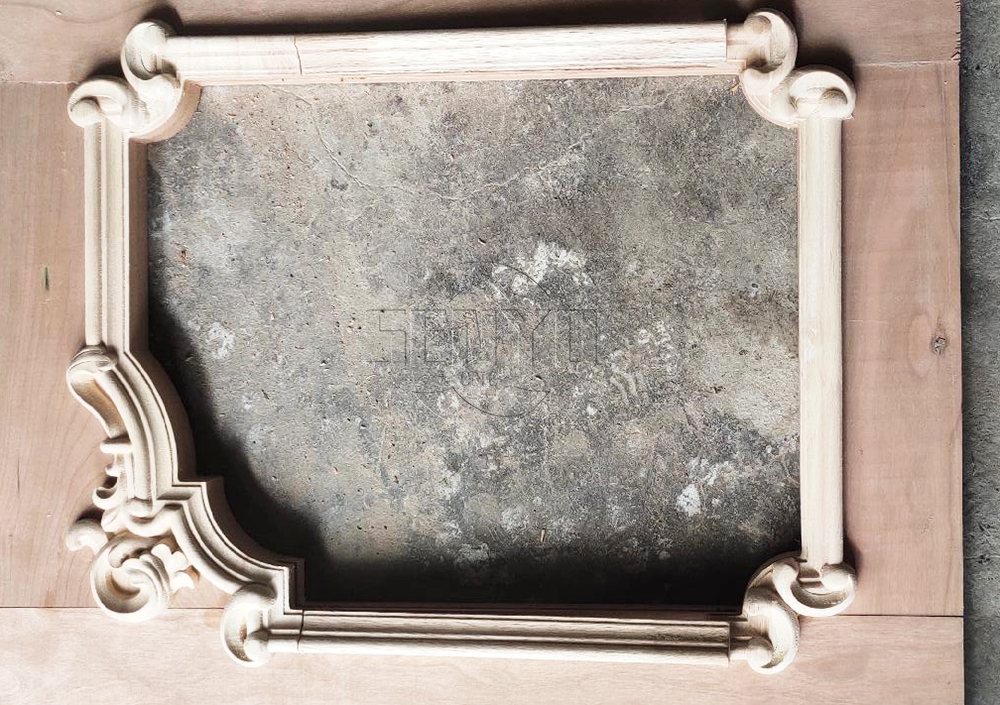

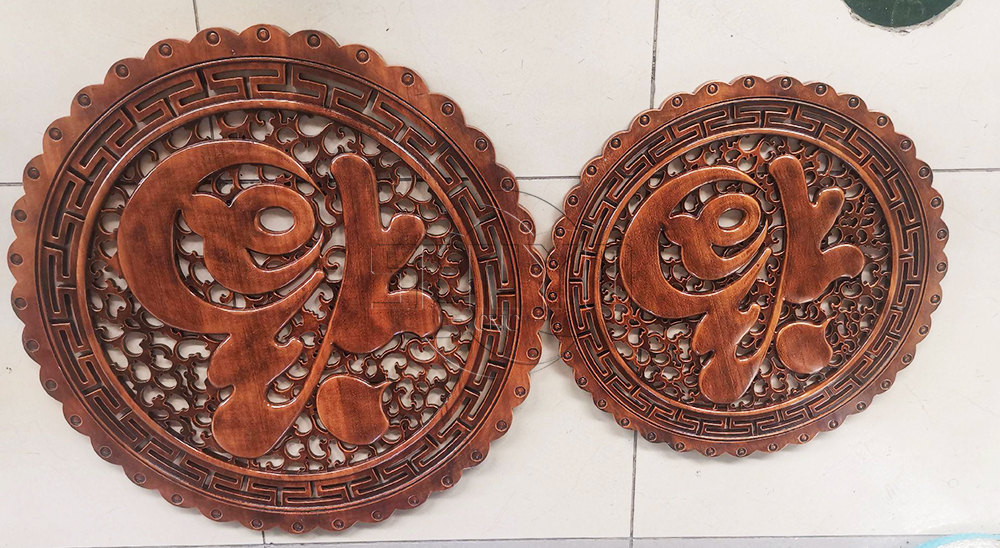

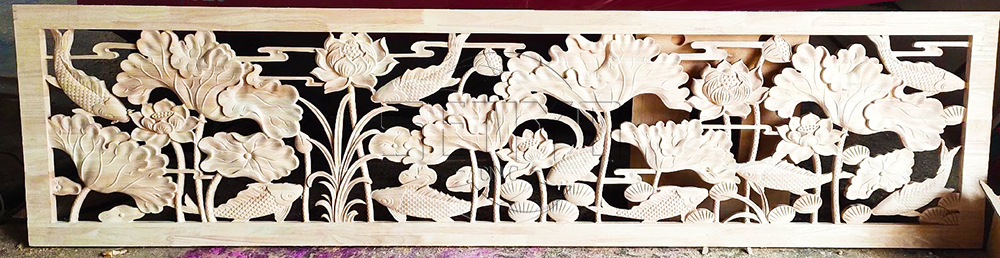

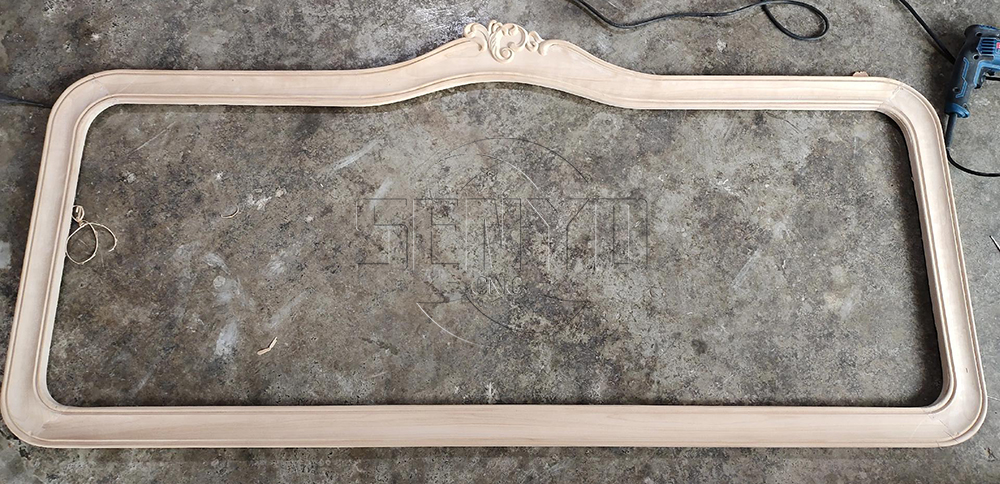

Project Show





Techology Paramaters


Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

Table Size

1750×3740mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Positioning Accuracy

±0.05mm

Lathe Structure

Welded Structure

X, Y Structure

Rack gear Transmission, Shaft Linear Bearings

Z Structure

TBI Ball Screw, Shaft Linear Bearings

Max. Consume power

15Kw

Max. Speed

0-32000mm/min

Max. Working Speed

0-20000mm/min

Spindle Power Motor

3*2.2KW Water-coolant Spindle

Spindle Speed

0-24000RPM

Drive Mode

Steppor Motor and driver

Working Voltage

AC220V/380V, 50/60Hz

Command

G Code, *uoo, *mmg, *plt

Operating System

DSP (Mach3/ NC-STUDIO Optional)

Interface

USB

Flash Memory

512M

Collet

ER20

X,Y Working Delicacy

<0.01mm

Software

Ucancam, Artcam,Type3

Running Circumstance

Temperature: 0℃~45℃ Relative humidity: 30%~75%



For Our Work Steps

1.Before-sale,we will try to know your requirement  what kind of work

you will do .then we will offer our best solution for your requirement.

2.During production: we will send photos of machines during making. so you can know more details about

the procession of making your machines.

3.Before shipping,we will take delivery photo and confirm  the specification of order to avoid the mistake.

Machine will be adjusted before it is delivered.

4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the

approximate date of arrival.

5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .

6.About teaching:  there are some manual and video about how to use machine , if you have question

about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.


Packing & Shipping

The machine is packed with great care and tough material.

The machine is packed with cling films first and then film bags.

The machine is packed with wooden case which is reinforced with the iron bar on the top and bottom.

With this kind of package, all our laser machine can protect well during long trip by sea or by train.


For LCL Shipping (Less than Container Load),it is recommended to use export standard fumigation-free wooden boxes.

Which are stronger and suitable for long-distance transportation.

For FCL Shipping (Full Container Load),it can be loaded directly at the factory without wooden boxes.

And the maximum number of machines can be loaded to reduce costs.


cnc machine package  (7).jpg


Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. If you need any component of the machine, we will provide most affordable price for you.

5. Friendly English version manual and operation video CD disk.
