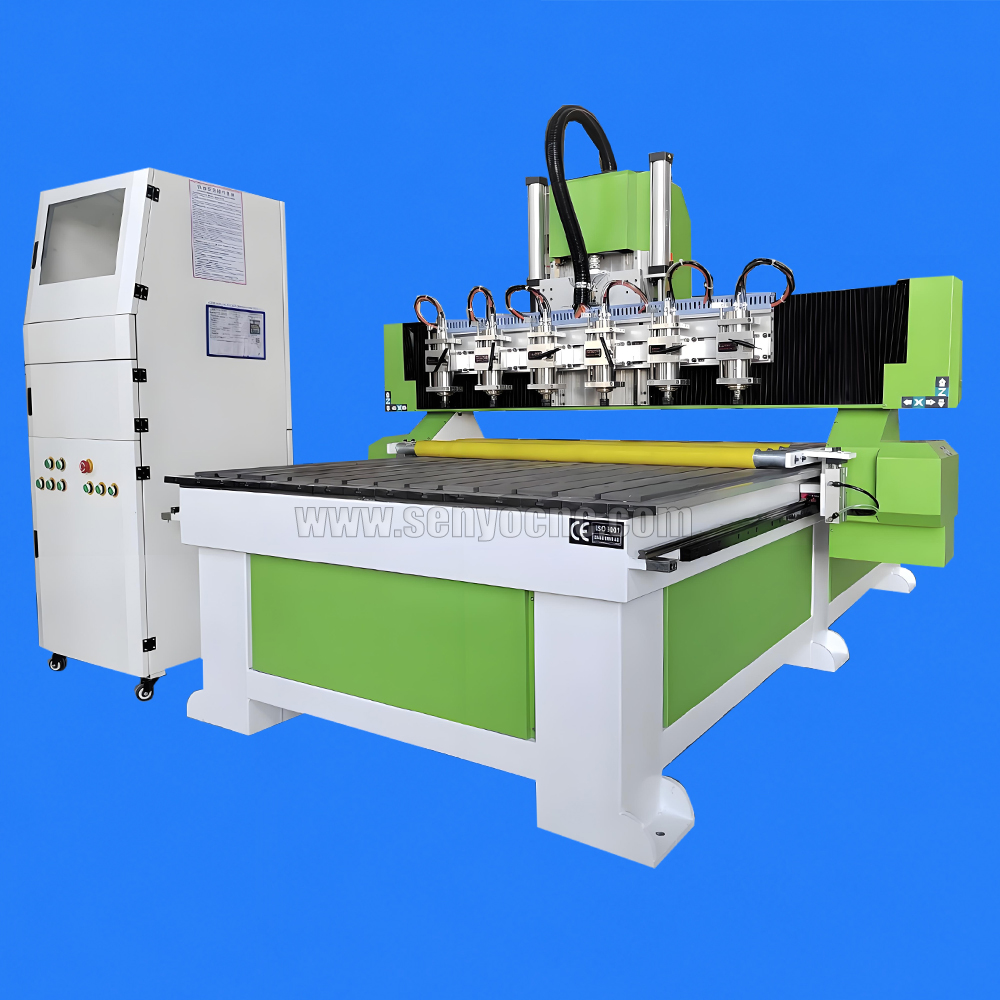

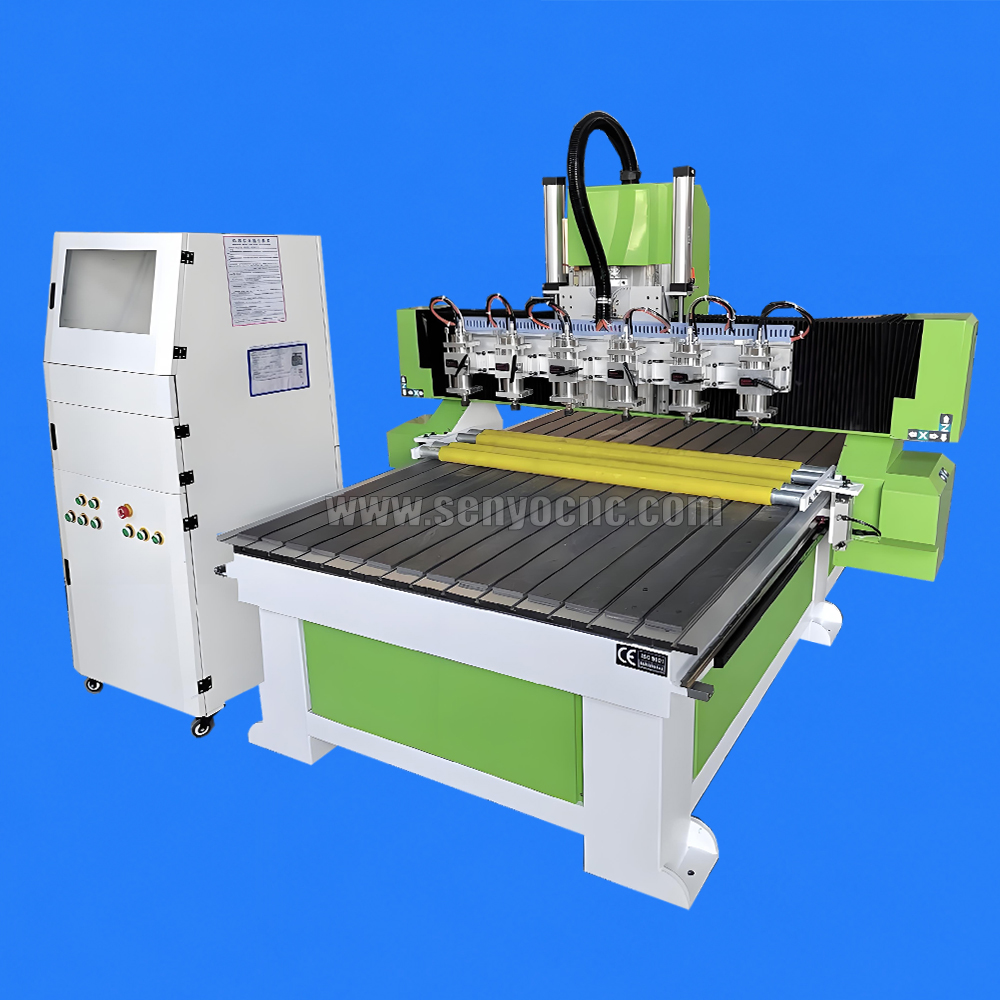

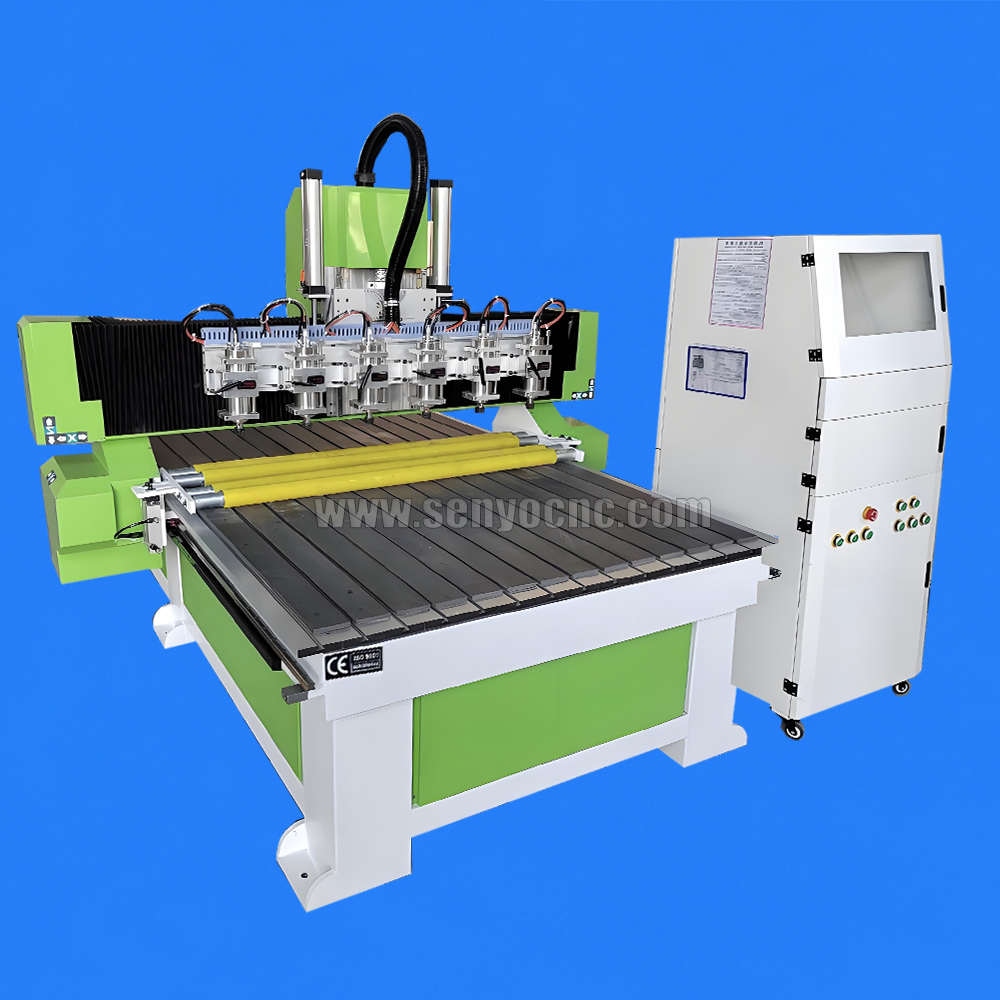

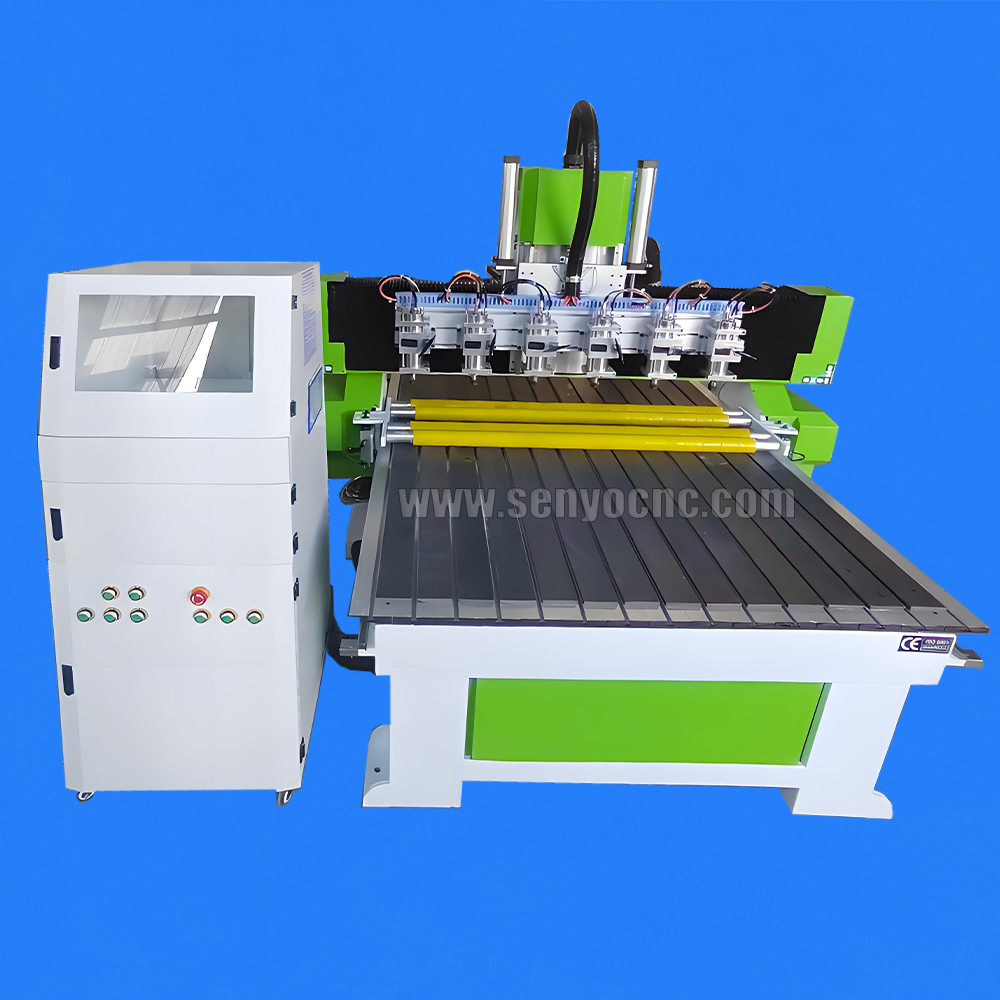

The 6 Heads CNC Router Machine with Roller Table is an industrial-grade multi-head CNC engraving machine designed for high-volume production in woodworking and advertising industries.
Featuring six independent spindle heads and a roller-assisted working table, this machine provides stable material fixing and continuous processing for large quantities of similar products.

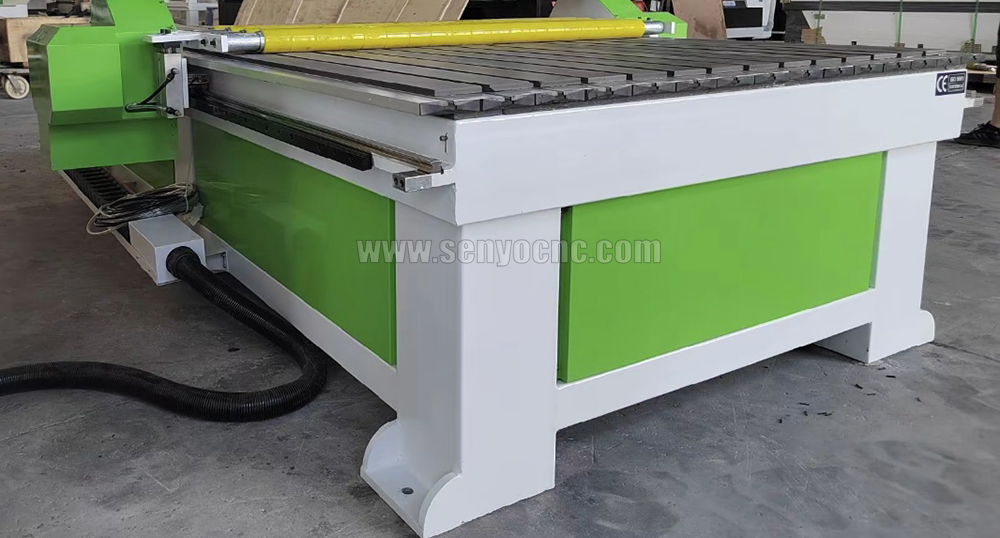

The roller table design helps workers easily load and position long boards, panels, and sheet materials while maintaining stable feeding and accurate machining.

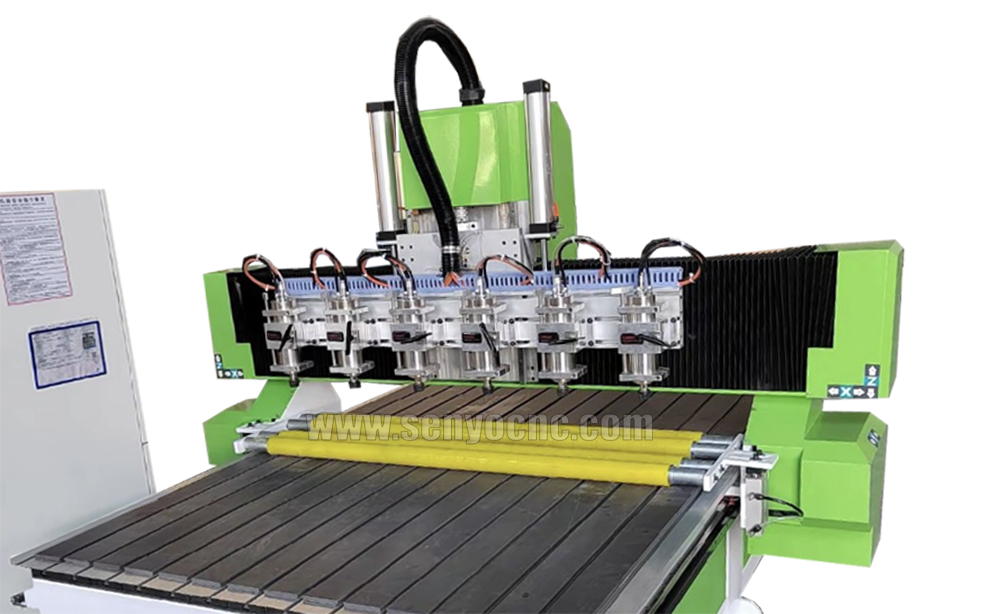

The six-head configuration allows multiple workpieces to be processed at the same time, significantly increasing production capacity compared with traditional single-head CNC routers.
This machine is especially suitable for manufacturers producing wood doors, cabinet panels, furniture parts, decorative panels, and advertising products where high efficiency, repeatability, and consistent quality are required.
Main Features:

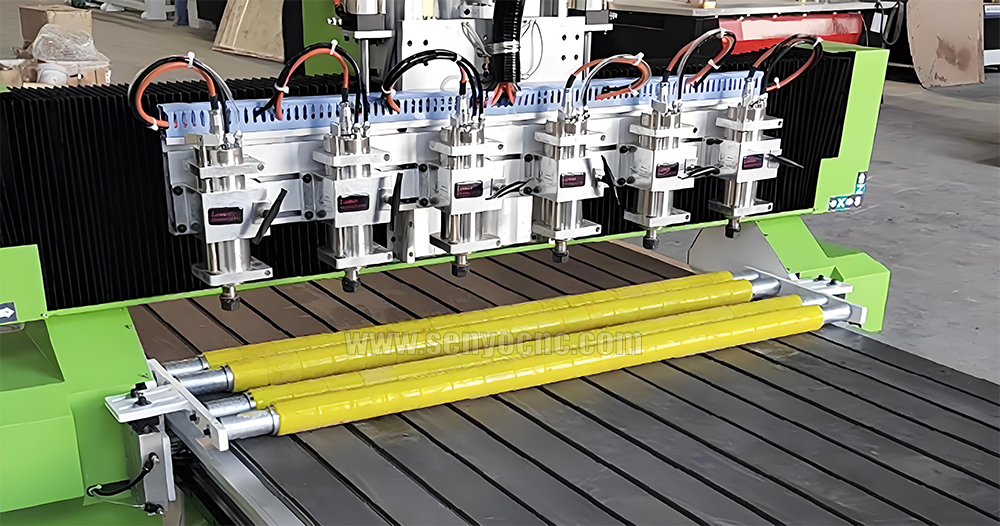

* 6 spindle heads for high productivity
* Roller working table for convenient material loading and positioning
* Stable fixing system for long and heavy materials
* Suitable for batch production of identical designs
* Strong machine body with excellent vibration resistance
* High precision guide rails and transmission system
* Powerful spindle motors for fast cutting and engraving
* Professional CNC control system for easy operation
* Supports automatic and continuous production
Techology Paramaters
| No | Description | Parameter |
| 1 | Material size | 1300x2500mm |
| 2 | Z size | 200mm/300mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.05mm |
| 5 | Table Surface | Aluminum T-slot Table(Option: Vacuum table) |
| 6 | Frame | Square pipe Welded Structure |
| 7 | X, Y axis transmission | Ball Screw |
| 8 | Z axis transmission | Ball Screw |
| 9 | Max. traveling speed | 40000mm/min |
| 10 | Max. working speed | 25000mm/min |
| 11 | Rail Configuration | 25 square rail |
| 12 | Spindle Power | Water-cooling 2.2KW*6 (HQD air cooling spindle option) |
| 13 | Spindle rotationg Speed | 0-24000RPM |
| 14 | Drive Motors | Servo /Stepper Drive Motors |
| 15 | Working Voltage | 380v 220V/50Hz 60Hz |
| 16 | Operating System | DSP system/Mach3/NC-Studio |
| 17 | Command Language | G code, u00, mmg, PLT, HPG |
| 18 | Software Compatibility | Powermill |
| 19 | Packing and Size | Wooden case |
Applications:
* Wooden doors production
* Cabinet door engraving
* Furniture panel processing
* Decorative wall panels
* MDF cutting and engraving
* Advertising boards
* Wooden signs
* Packaging industry
* Interior decoration products
* Mass production woodworking projects
Processing Materials:
* Wood
* MDF
* Plywood
* Acrylic
* PVC foam board
* Composite panels
* Plastic sheets
* Other non-metal materials
Working Project Show:
Product Advantages:
* Higher production efficiency with 6 working heads
* Saves manpower and reduces processing time
* Excellent repeatability for large orders
* Stable operation for long working hours
* Ideal for furniture factories and industrial workshops
Packaging Details:
• Outside package: Standard marine export plywood case.
• Inner package: Stretch film and plastic film for humidity.
We can package according to your requests.
Troubleshooting
Error 1: After opening the software, the computer prompts "Cannot open the card, query card prompt".
1. Check whether the driver of the board is installed properly, or change the board to a PCI slot.
2. Reinstall the two data cables and check if there is any broken needle.
3. Replace the board.
Error 2: Open the software prompt: Three-axis alarm, initialization error signal.
1. Check whether the two data cables of the computer and the machine are connected properly.
2. Check whether the fuse of the adapter board in the control box is burned out, and replace the fuse.
3. Check whether the power supply is normal.
Mistake 3: The routing is misplaced or the size is wrong.
1. Check whether the path of the routing software is correct or not.
2. Check the gap size of the screw rod and whether the fastening screw of the polished rod is loose.
3. Check whether the software parameters are set correctly.
Error 4: The spindle motor does not rotate or reverse.
1. Check the inverter parameter settings.
2. Check whether the signal wire of the inverter is connected reversely.
Error 5: The phenomenon of smashing the bit occurred.
1. The power of the Z-axis motor is not enough, and the coupling is loose.
2. The current of the Z-axis driver is too small, or the signal wire is connected incorrectly.
Buying Considerations
The right CNC machine for your project is going to provide a higher margin on ROI and is a valuable investment for the future.
So, a versatile CNC router is always going to support you financially.
Some key factors can assist you in finding the best CNC router model for your business. Have a look at them.
• CNC routers are available for various industries. Therefore, assess your needs according to the type of your projects and materials.
• Keep in mind the volume of your projects as well.
• Balance between cost and features. Consider the long-term value of investment while choosing your model.
• A promising warranty assures a better quality of the machine.
• Look for brands providing training resources and community support.
Warranty And Service
• 24 months whole machine warranty and maintenance for a lifetime.
• Free installation and testing before shipping and free training for operators
• Advice for the best CNC solutions for customer's requirements.
• Free training and sample making.
• 7/24 free service and support.
