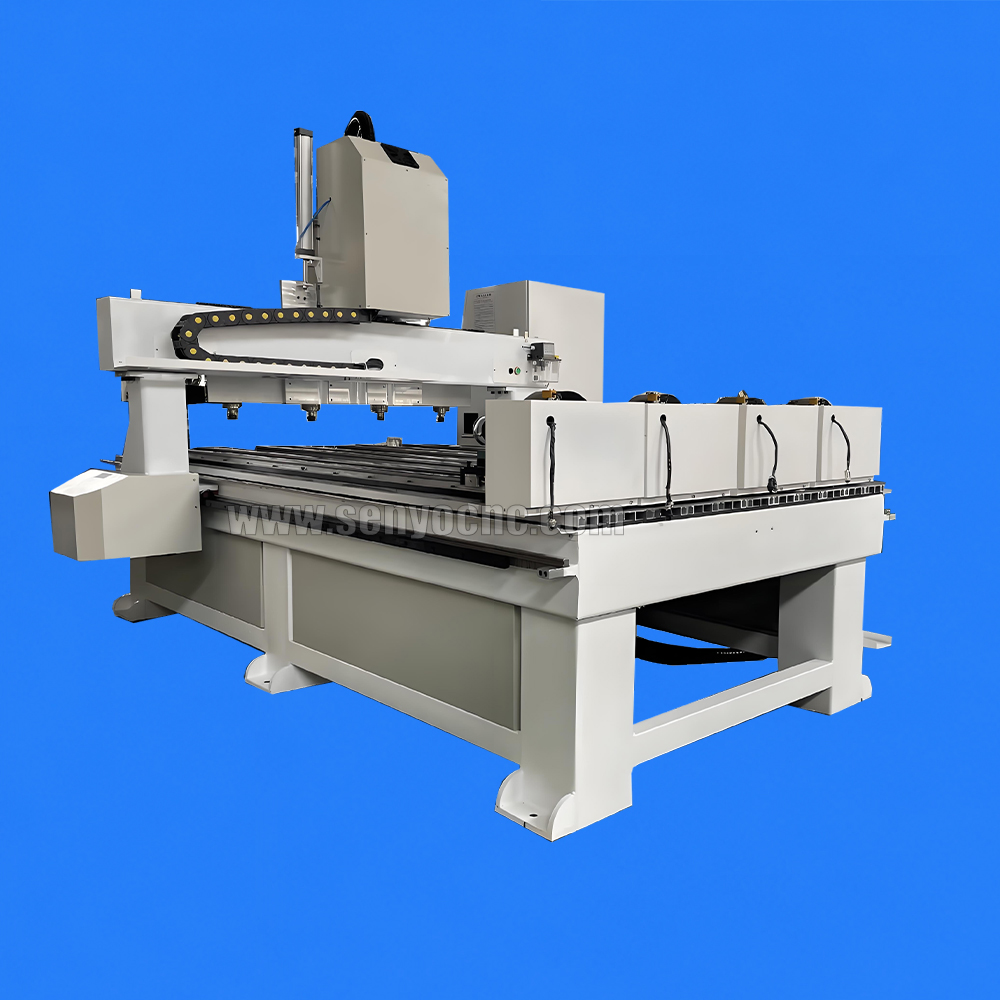

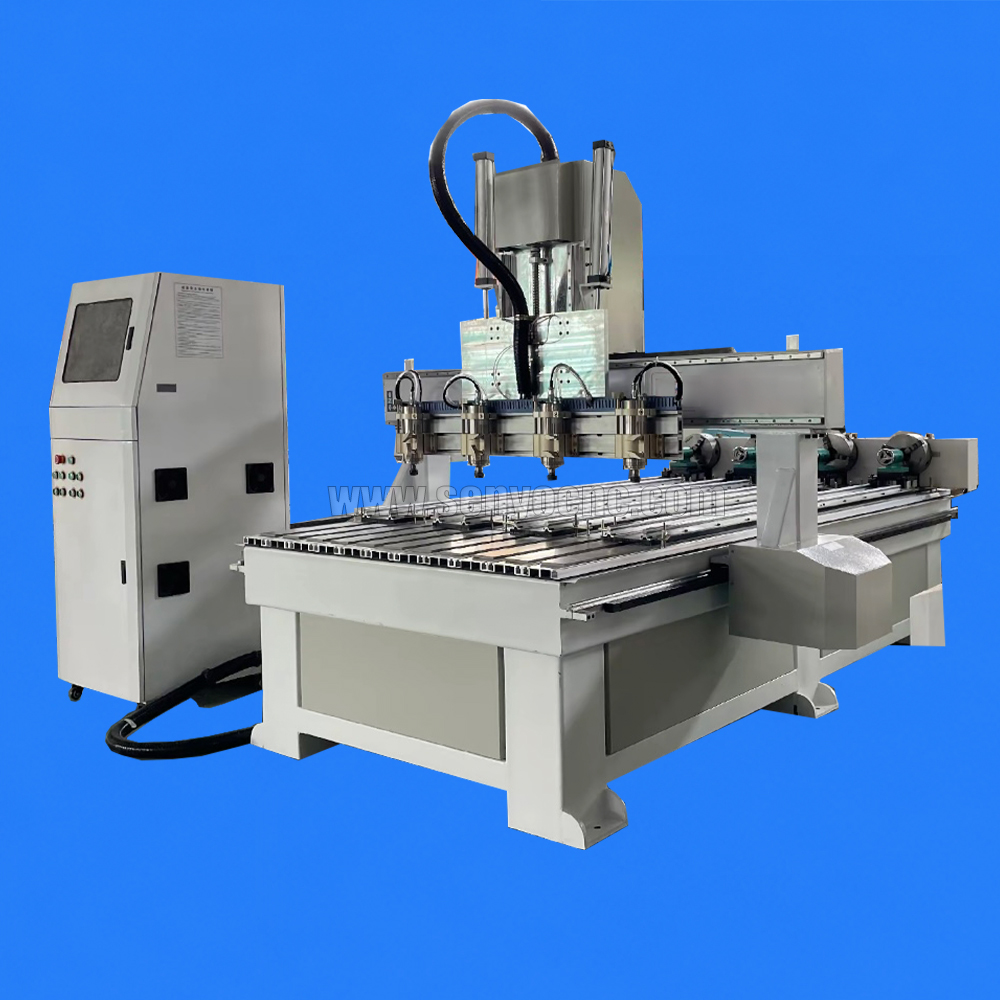

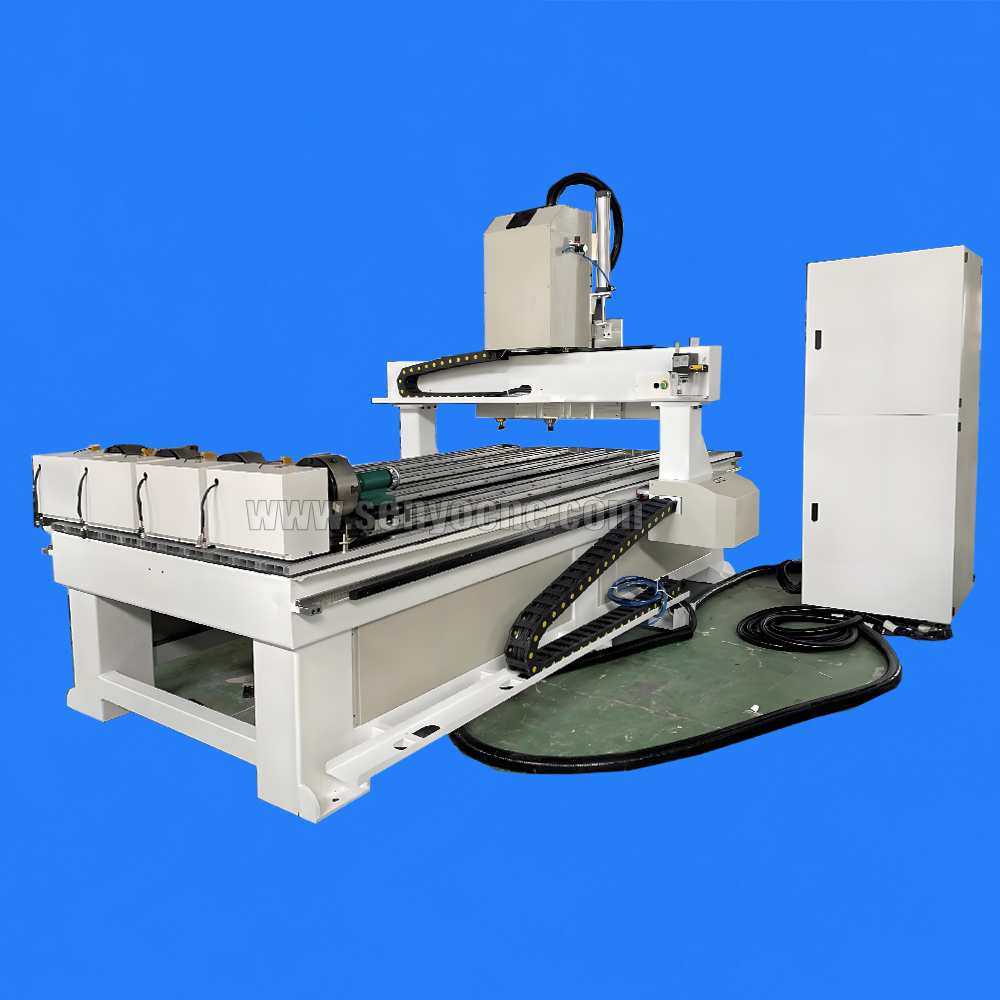

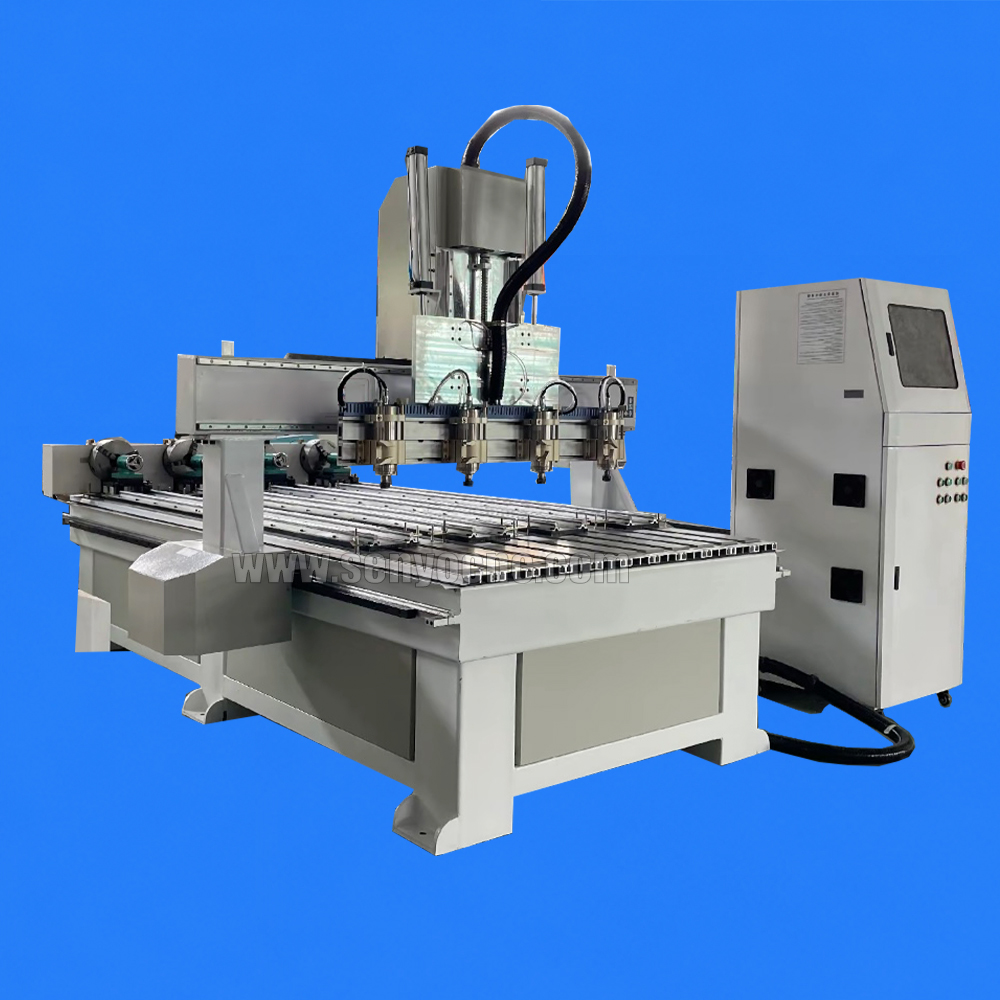

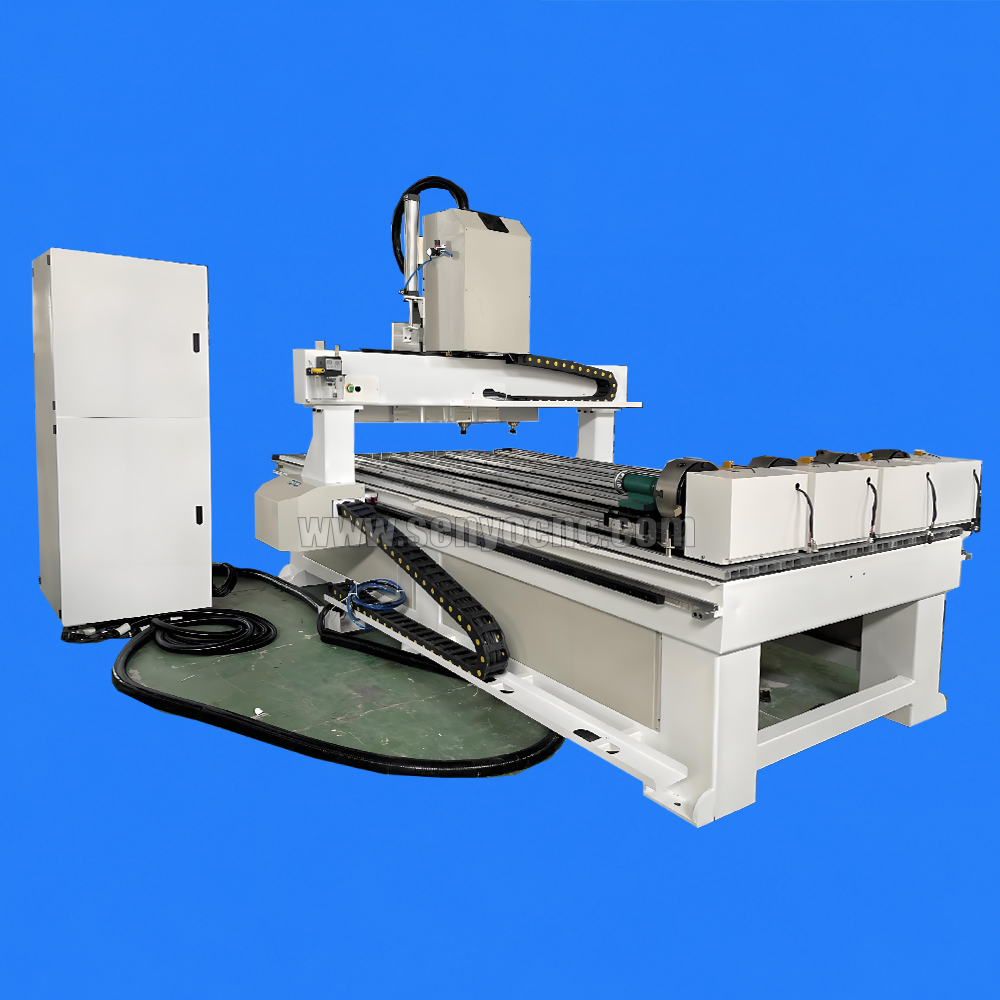

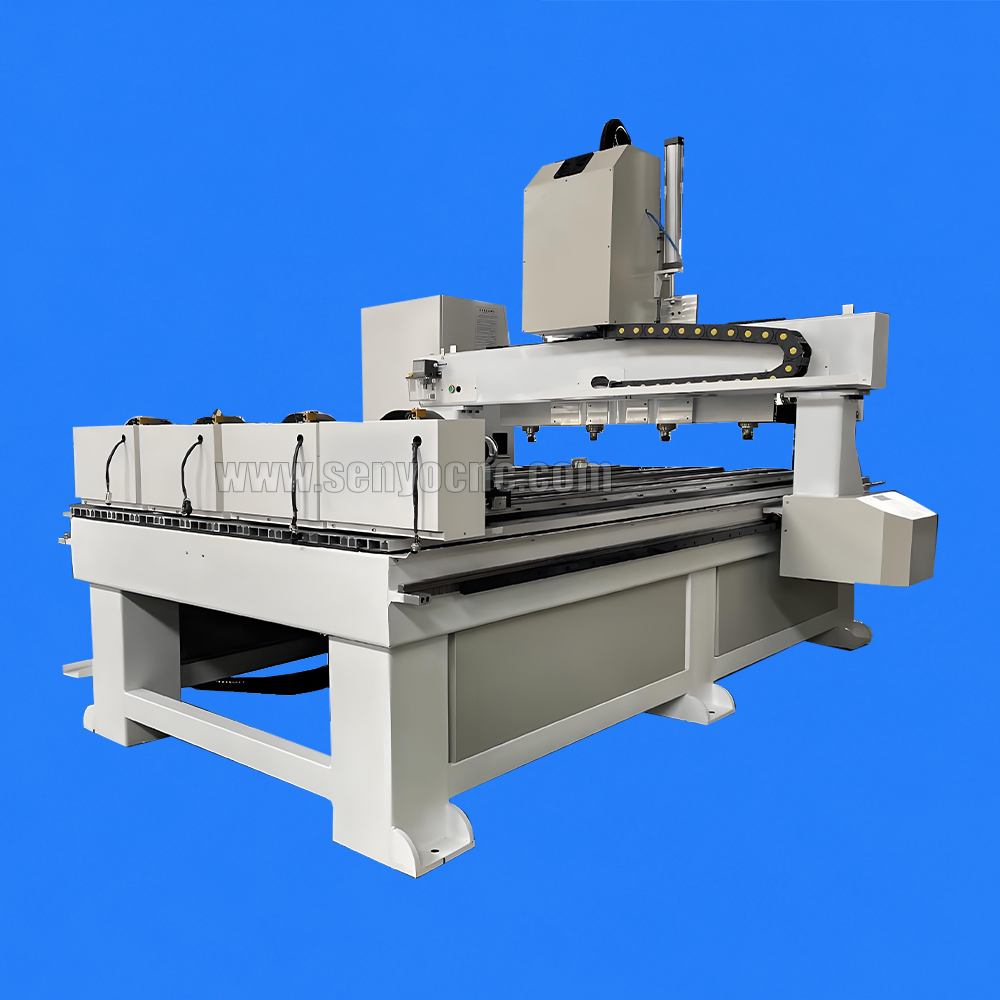

The 4 Heads CNC Router Machine with Movable 4 Rotary Axis is a high-efficiency CNC carving solution designed for professional woodworking workshops,
Furniture manufacturers, and customized product processing. Equipped with four independent spindle heads and four movable rotary devices installed on the worktable,
This machine allows users to process multiple flat and cylindrical materials simultaneously, greatly improving production efficiency and reducing labor costs.
The movable rotary system provides flexible positioning according to different workpiece sizes, making it ideal for engraving and carving wood columns,
Chair legs, stair handrails, baseball bats, decorative pillars, cylinder-shaped crafts, and other irregular round materials.
With a heavy-duty machine structure, high precision linear guide rails, powerful spindle system, and reliable CNC control system,
This router ensures stable operation, accurate carving details, and long service life.
The multi-head design supports batch production, making it an excellent choice for factories requiring high output and consistent quality.
Machine Specification:
Model | SYM1325-4R |
Working area | 2100*1500*300mm |
Control system | Richauto A18 / NK105 control system |
Spindle 1 | HQD 2.2kw water cooling spindle *6pcs ( 0-24000rpm ) |
Motor and Driver | Leadshine AC servo motor and driver 1500W/ Stepper moror driver |
Inverter | Fuling inverter/Best Inveter |
Table surface | T-slot table ( Rotary can removed) |

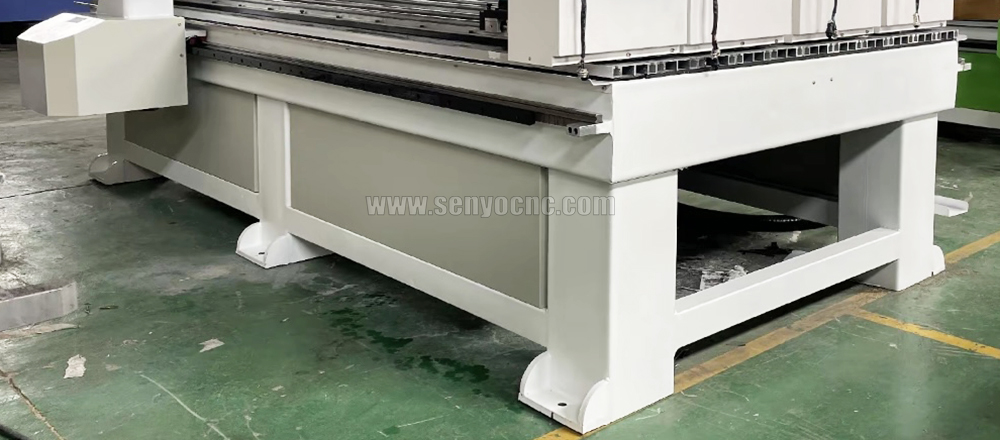

Structure | Heavy Duty 10mm Steel machine bed; 12mm Moving Steel Gantry |
Lubrication system | Manual lubrication system |
Transmission | X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw X,Y axis: Taiwan Hiwin square guide rails with 30mm |
Electric Parts | Schneider brand |
Tool Sensor | Automatic probe |
Rotary Device | 4Pcs Diameter 200mm * Length 1500mm |
Software | UG/Artcam/Ucancam / Fushion360 etc |
Working Voltage | 380V or 220V /3phase |
Optional | HQD Air cooling spindle |
Taiwan Delta / Japan Yaskawa servo motor and driver | |
Taiwan LNC / Syntec control system |
Main Features:

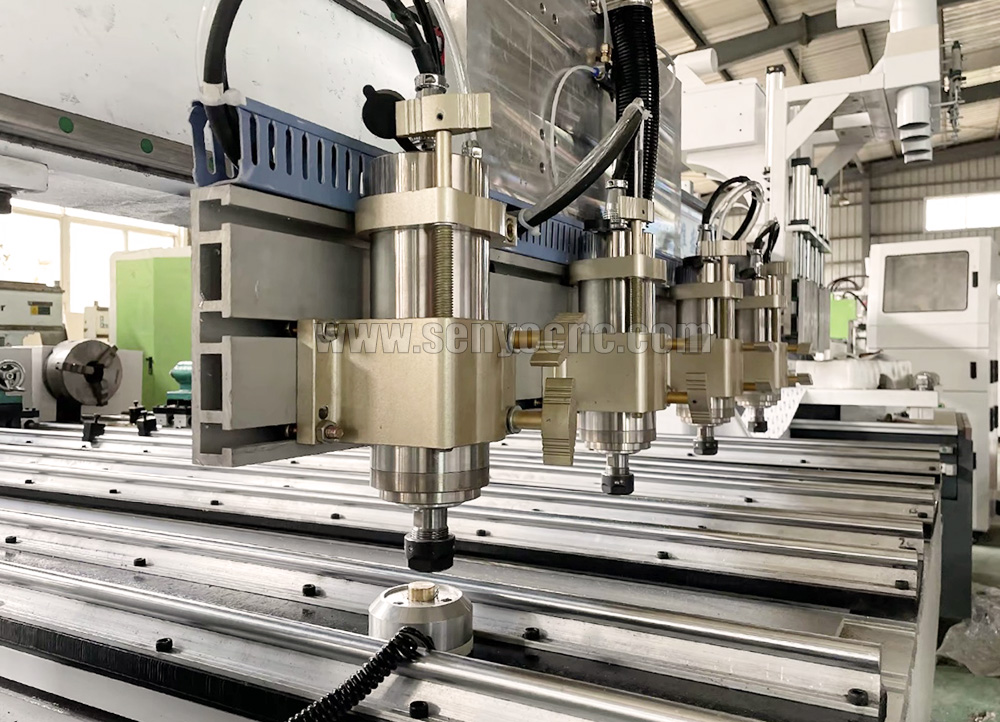

* 4 independent spindle heads for simultaneous multi-piece processing
* 4 movable rotary axes installed on the worktable for cylindrical engraving
* Flexible rotary position adjustment according to material length and diameter
* Suitable for both flat engraving and 3D cylindrical carving
* Heavy-duty steel frame structure for stable operation
* High-speed spindle with excellent cutting performance
* Precision transmission system for smooth movement and accurate details
* Compatible with various CAD/CAM design software
* Suitable for customized production and mass manufacturing
Working Industry
1. Advertising industry: Acrylic, two-color board, PVC, ABS board, aluminum-plastic board engraving and cutting,
All kinds of signs, badges, signage, copper, fonts, all kinds of signs, trademarks and other materials.
3. Mold processing: architectural model, physical model, bronzing mold, high frequency mode.
Micro injection mold, shoe mold, badge, embossing mold, biscuit, chocolate, candy mold.
4. Seal industry: Easily engraving on horns, plastics, organic boards, wood, storage mats, etc.
5.Woodworking industry: furniture decoration, musical instrument industry, wooden handicraft industry.
large-area plate flat engraving, solid wood furniture, solid wood art murals.
MDF paint-free doors, composite doors, cabinet doors, screen engravings, etc.
6.Mold industry: can engrave different molds, wood molds, aviation wood molds, propellers, automotive foam molds and so on.
Applications:
* Solid wood furniture components
* Chair legs and table legs
* Stair railings and handrails
* Wooden columns and pillars
* Baseball bats and sports equipment
* Wooden crafts and decorations
* Religious statues and sculptures
* Door and cabinet decoration
* Customized cylindrical wood products
Processing Materials:
* Solid wood
* MDF
* Plywood
* Acrylic
* PVC
* Plastic
* Foam
* Soft metals (optional configuration)
Working Project
Packaging Details:
• Outside package: Standard marine export plywood case.
• Inner package: Stretch film and plastic film for humidity.
We can package according to your requests.
Troubleshooting
Error 1: After opening the software, the computer prompts "Cannot open the card, query card prompt".
1. Check whether the driver of the board is installed properly, or change the board to a PCI slot.
2. Reinstall the two data cables and check if there is any broken needle.
3. Replace the board.
Error 2: Open the software prompt: Three-axis alarm, initialization error signal.
1. Check whether the two data cables of the computer and the machine are connected properly.
2. Check whether the fuse of the adapter board in the control box is burned out, and replace the fuse.
3. Check whether the power supply is normal.
Mistake 3: The routing is misplaced or the size is wrong.
1. Check whether the path of the routing software is correct or not.
2. Check the gap size of the screw rod and whether the fastening screw of the polished rod is loose.
3. Check whether the software parameters are set correctly.
Error 4: The spindle motor does not rotate or reverse.
1. Check the inverter parameter settings.
2. Check whether the signal wire of the inverter is connected reversely.
Error 5: The phenomenon of smashing the bit occurred.
1. The power of the Z-axis motor is not enough, and the coupling is loose.
2. The current of the Z-axis driver is too small, or the signal wire is connected incorrectly.
Buying Considerations
The right CNC machine for your project is going to provide a higher margin on ROI and is a valuable investment for the future.
So, a versatile CNC router is always going to support you financially.
Some key factors can assist you in finding the best CNC router model for your business. Have a look at them.
• CNC routers are available for various industries. Therefore, assess your needs according to the type of your projects and materials.
• Keep in mind the volume of your projects as well.
• Balance between cost and features. Consider the long-term value of investment while choosing your model.
• A promising warranty assures a better quality of the machine.
• Look for brands providing training resources and community support.
Warranty And Service
• 24 months whole machine warranty and maintenance for a lifetime.
• Free installation and testing before shipping and free training for operators
• Advice for the best CNC solutions for customer's requirements.
• Free training and sample making.
• 7/24 free service and support.
#4HeadsCNCRouter
#MultiHeadCNCMachine
#RotaryAxisCNC
#WoodCarvingMachine
#3DAutomaticCarvingMachine
#FurnitureCNCRouter
#CylindricalEngravingMachine
#WoodworkingMachine
#SculptureCNCRouter
#IndustrialCNCMachine
• Previous: One Holder Dual Spindle Mini CNC Router Machine for Wood, MDF, Acrylic, PVC & Small Parts Batch Engraving
1530 CNC Router Machine Two Holders 10 Spindles for High-Efficiency Multi-Head Woodworking Production
1530 CNC Router Machine One Holder 6 Spindles with T-Slot Worktable for Large Size Wood Panel Processing
1530 CNC Router Machine One Holder 6 Spindles with Vacuum Table, Table Rollers & Dust Collection System
1325 CNC Router Machine One Holder 6 Spindles with T-Slot Worktable for Multi-Head Wood Furniture Engraving

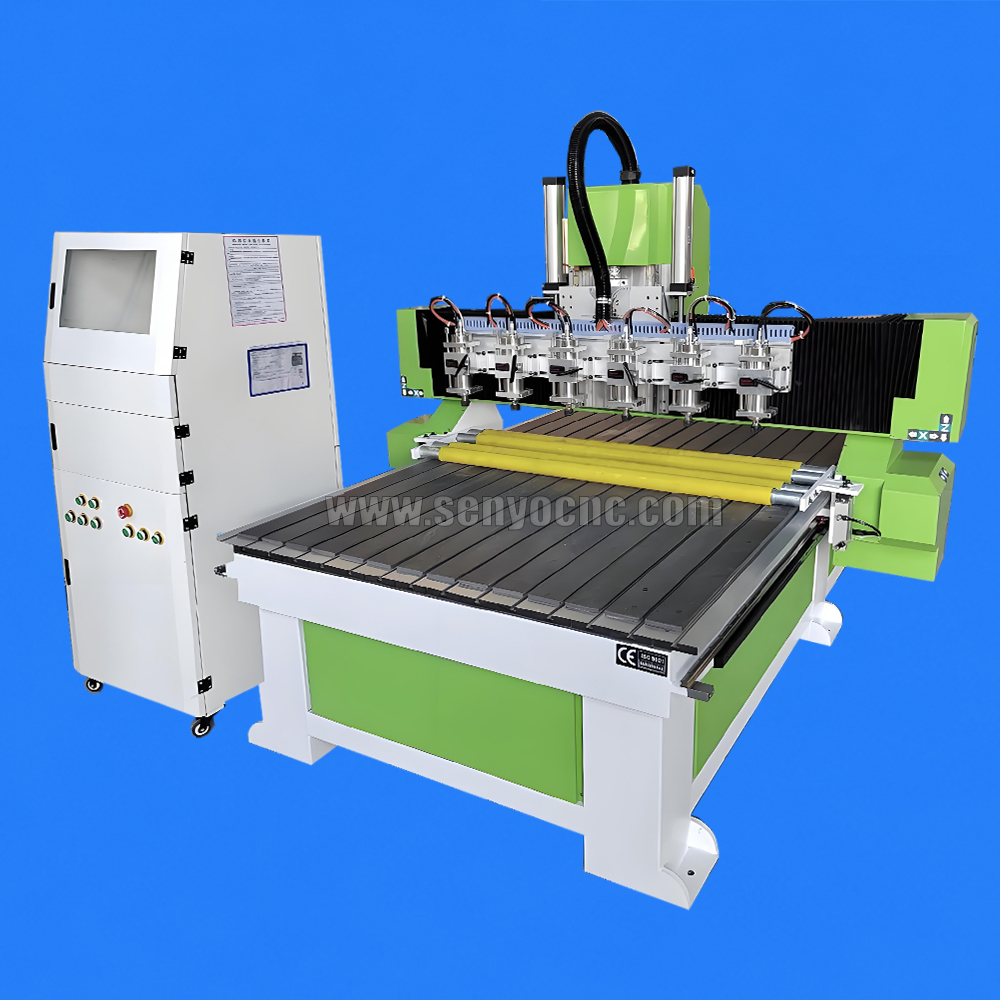

6 Heads CNC Router Machine with Roller Feeding Table for Fixed Material Processing and High Efficiency Woodworking Production
