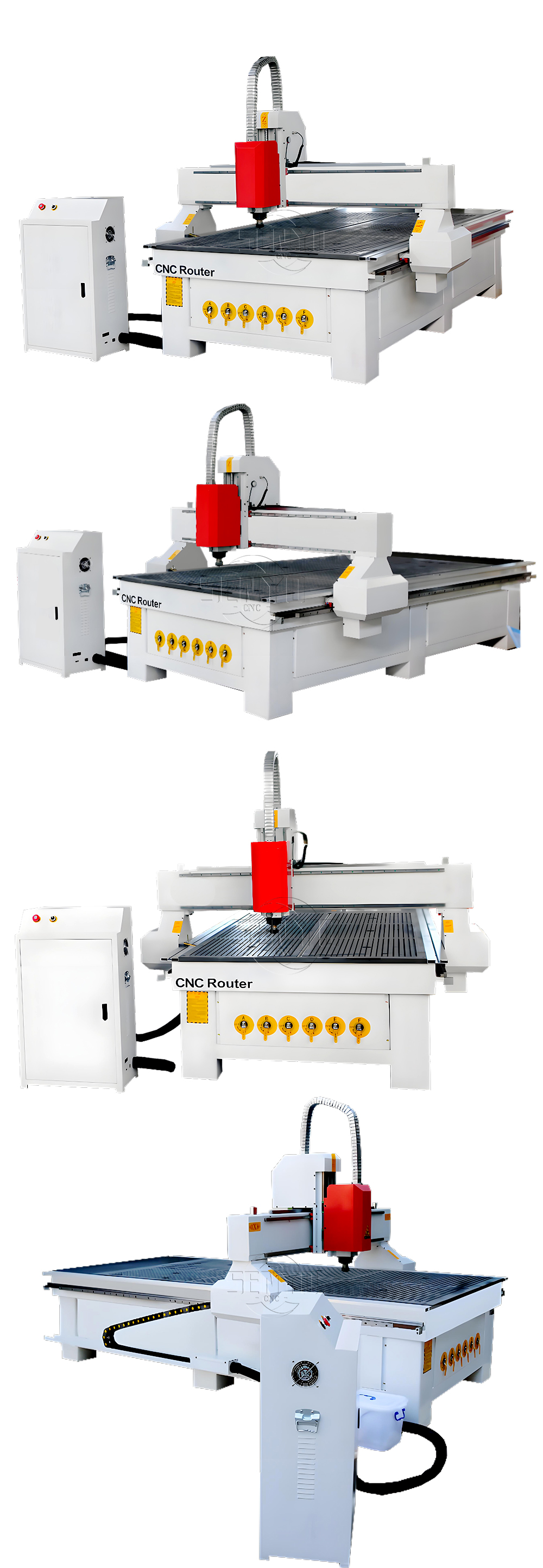

Best 4x8 Wood CNC Router Machine for Sale

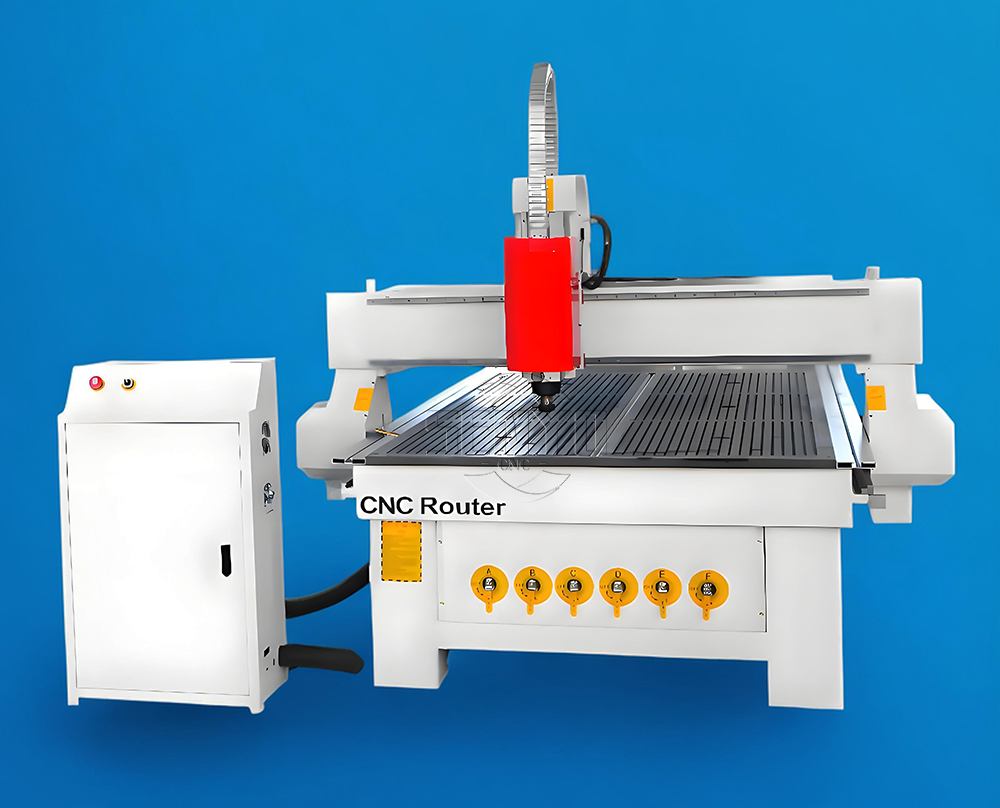

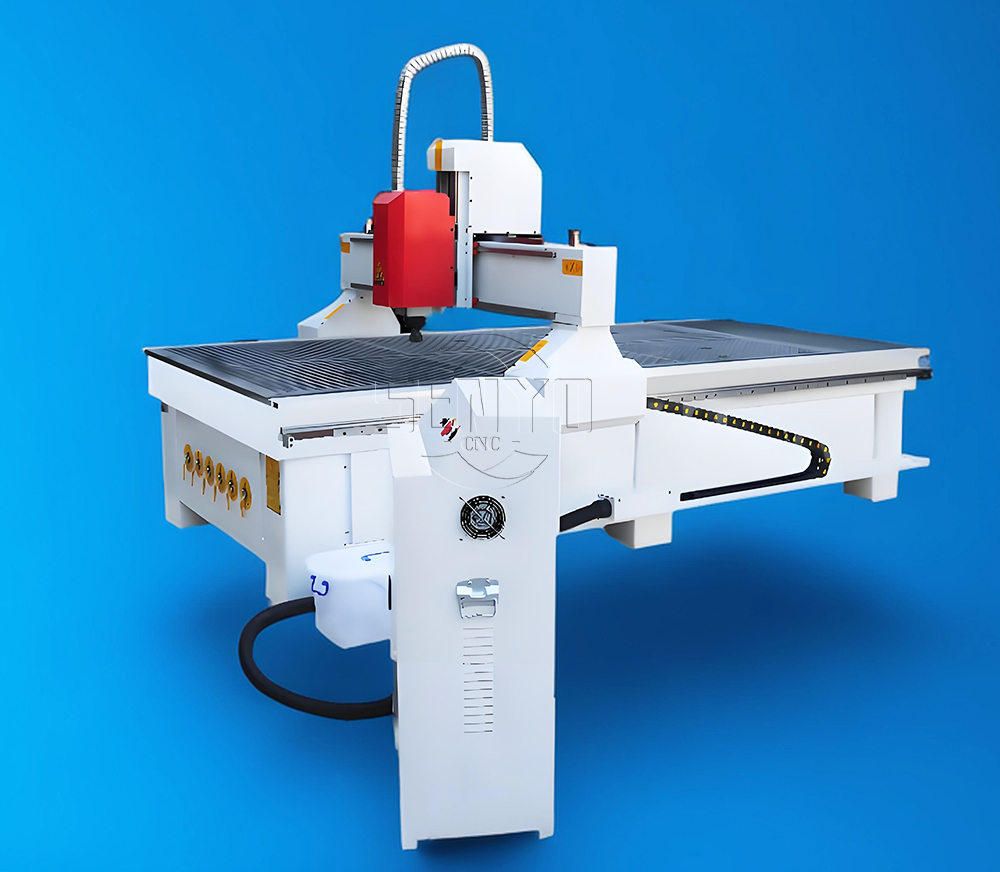

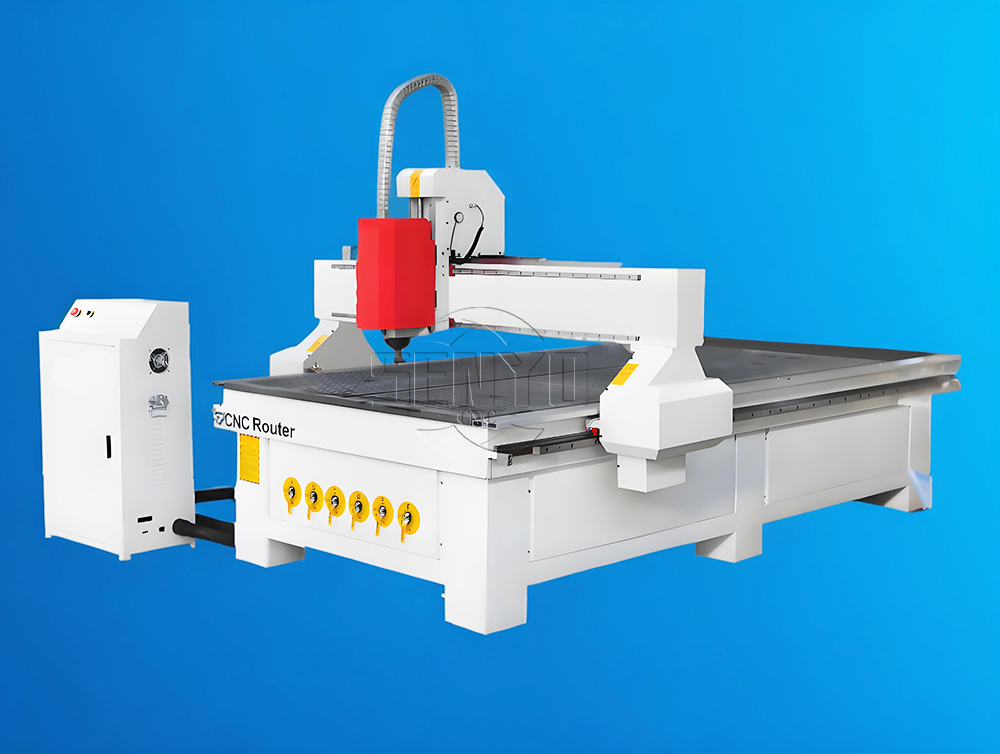

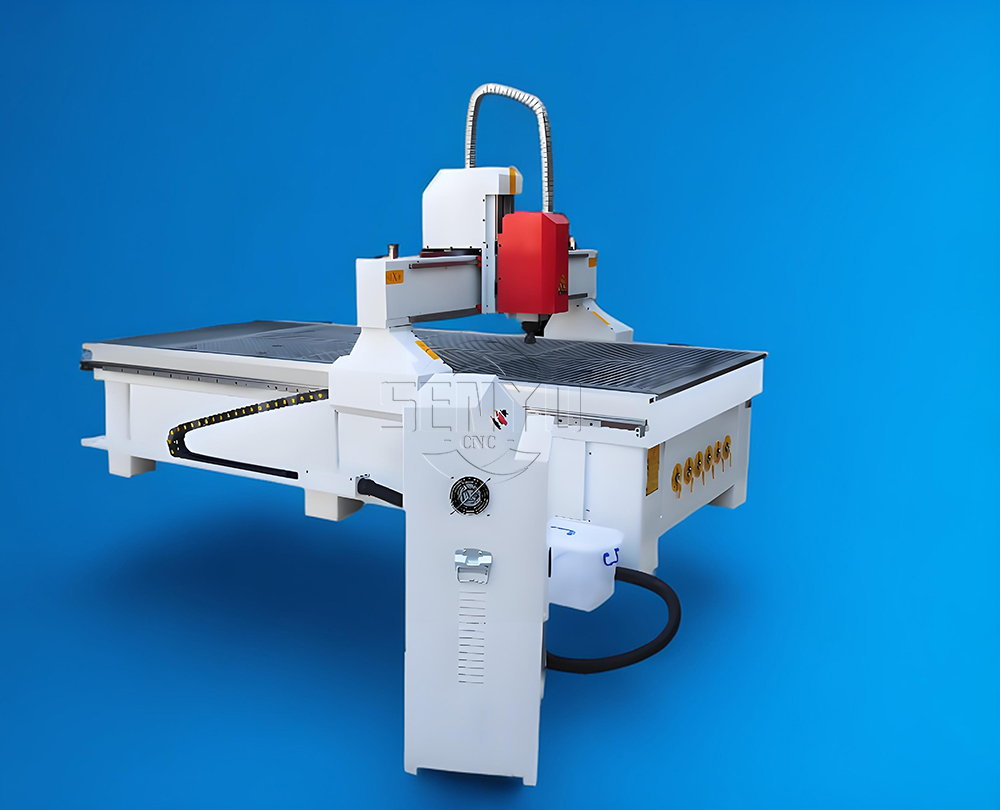

What Is 4x8 CNC Router?

4x8 CNC router is one of the most popular computer numerical controlled machine tool with a handheld router as a spindle,

and 4 x 8 feet (48 x 96 in inches) table top for full sheet woodworking, which is also known as 48x96 CNC router table kit,

1325 CNC router machine. 4x8 stands for the table size with 4 feet (48 inches, 1300 millimeters) in width,

What is CNC Vacuum Table?

The CNC vacuum table is a workbench composed of bakelite boards with 6, 8, or 24 sections,

which uses a vacuum pump to ensure the suction strength and the stability of the workpiece on the table to ensure

that the workpiece will not vibrate and shake during the work of the CNC router machine.

How Does CNC Vacuum Table Work?

The vacuum table is connected to the bottom of the CNC router machine by a vacuum pump through a pipeline.

There are many suction holes on the vacuum table. When we put the workpiece on it,

the workpiece will be firmly adsorbed by the negative pressure generated by the vacuum pump.

The machine starts to work at this time on the table, and the entire loading and unloading process does not exceed ten seconds with high efficiency and speed.

 It is very suitable for making wood doors and cabinet furniture.

The suction holes on the CNC vacuum table will automatically close when there is a large amount of air intake,

thereby avoiding increasing the load of the vacuum system in order to ensure the vacuum suction effect,

and avoiding strong airflow between the vacuum table and the workpiece.

Machine Features

1. Z axis feeding height 200mm
2. Square tube welded steel frame structure-8mm thickness
3. Aluminum T-slot table and vaccumtable
4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis Ball screw
5. X, Y, Z axis Taiwan square rails PMI
6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver
7. 3.0KW water cooling spindle and 3.7kw Fuling inverter, other spindles are optional
8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional

Machine Detials Parts Introduce With Photos

MA860 Leadshine drivers: Built-in micro-subdivision technology and automatic tuning of power-on parameters function;

low noise, low vibration, low heat, high torque output features.86BYG-450B stepper motors: open loop; nema 34, , 6nM size; power about 480w/each set

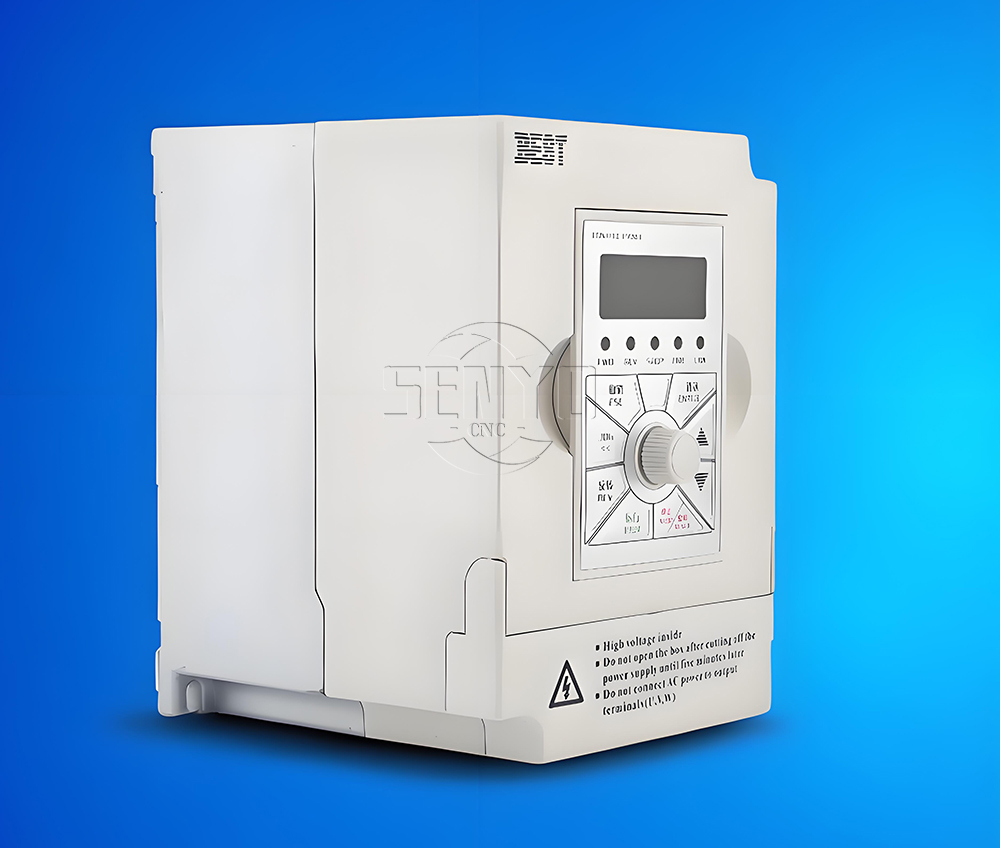

Best inverter, famous brand in Chinese market, which is specialized for cnc router machine processing industry,

and has special Marco code function for cnc router, adopt reasonable wiring technolog, more stable and reliable.

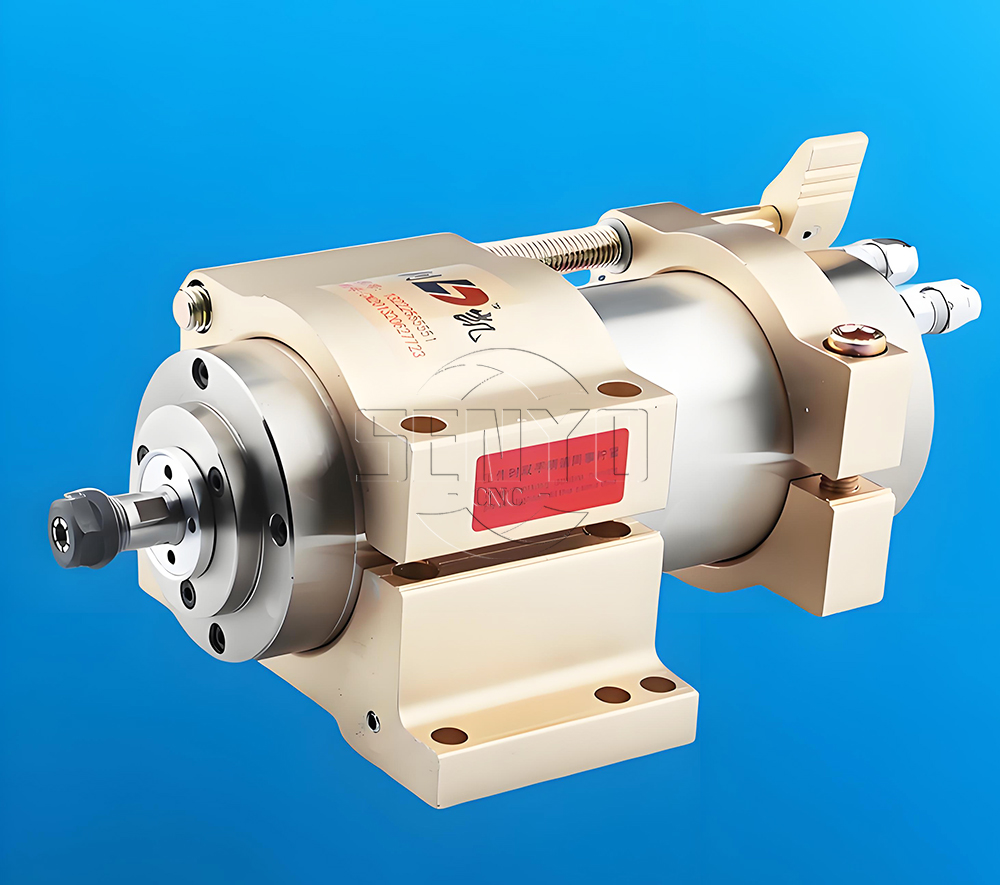

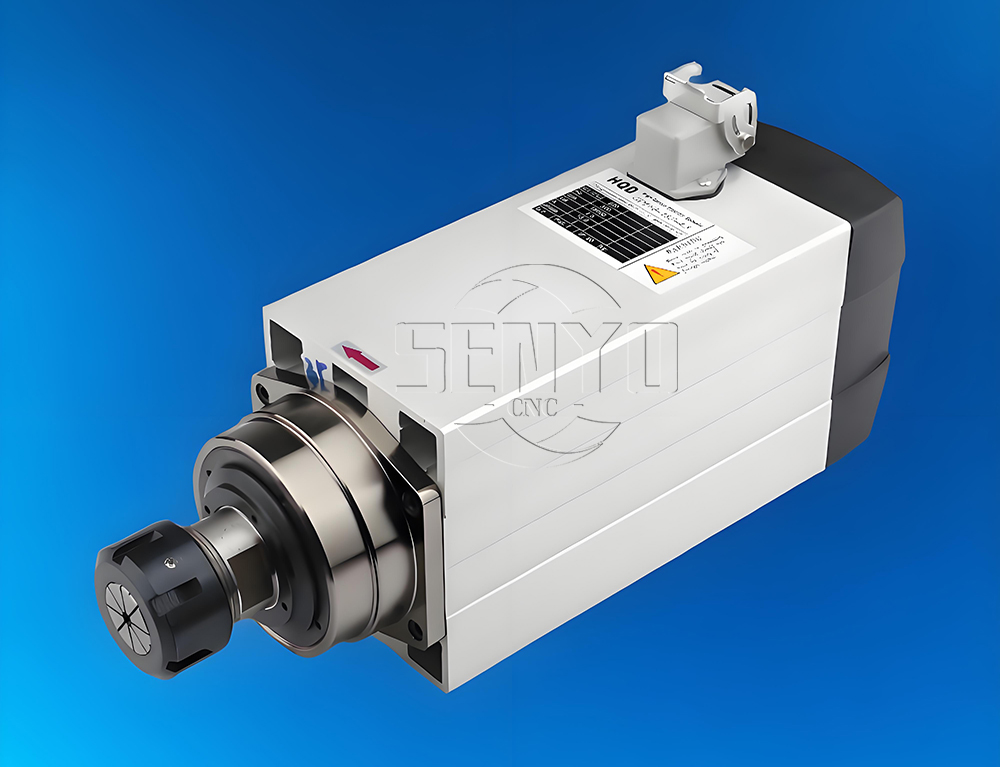

HQD High torque and fast speed.Powerful spindle motor, high precision and efficiency.

Water Cooling 3kw for optional

Vacuum Table  Rigidity and strong body.Stable table structure.Popular exterior design.

Aluminum T-slot table with PVC. 9mm yellow hard PVC board; Which can fix the material by clamps by the T-slot table;

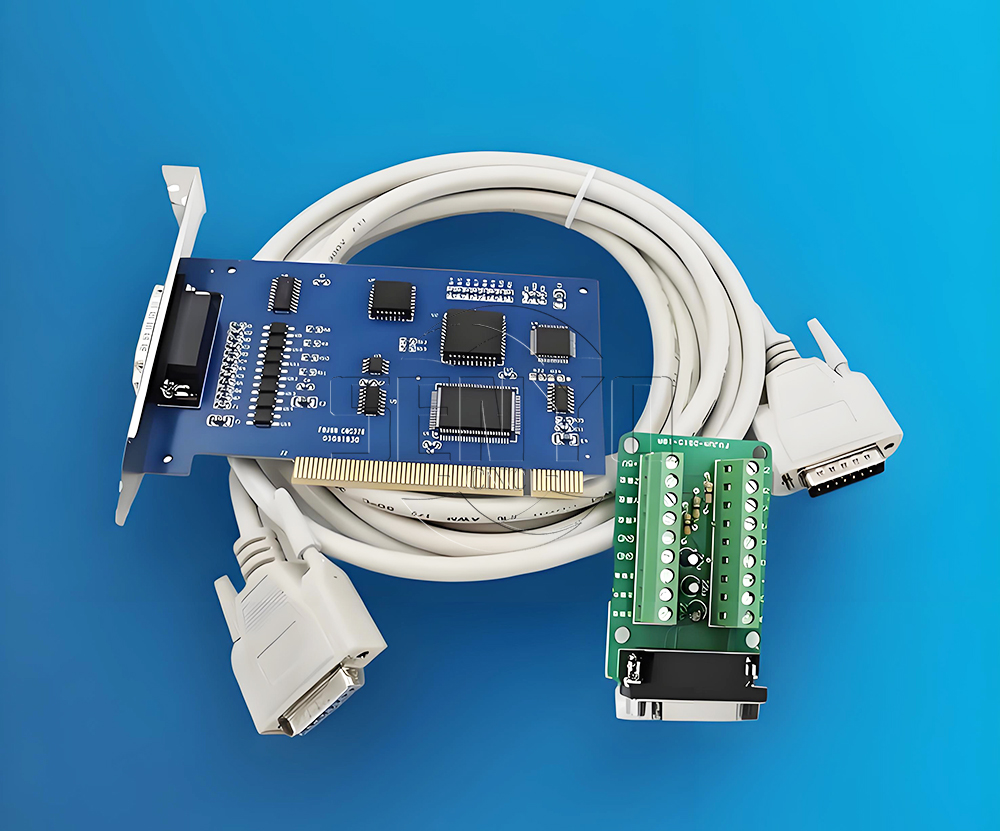

NC Studio Control System Stable system and high processing. Strong anti-interferen-ce ability, self programmin-g.Display processing track.

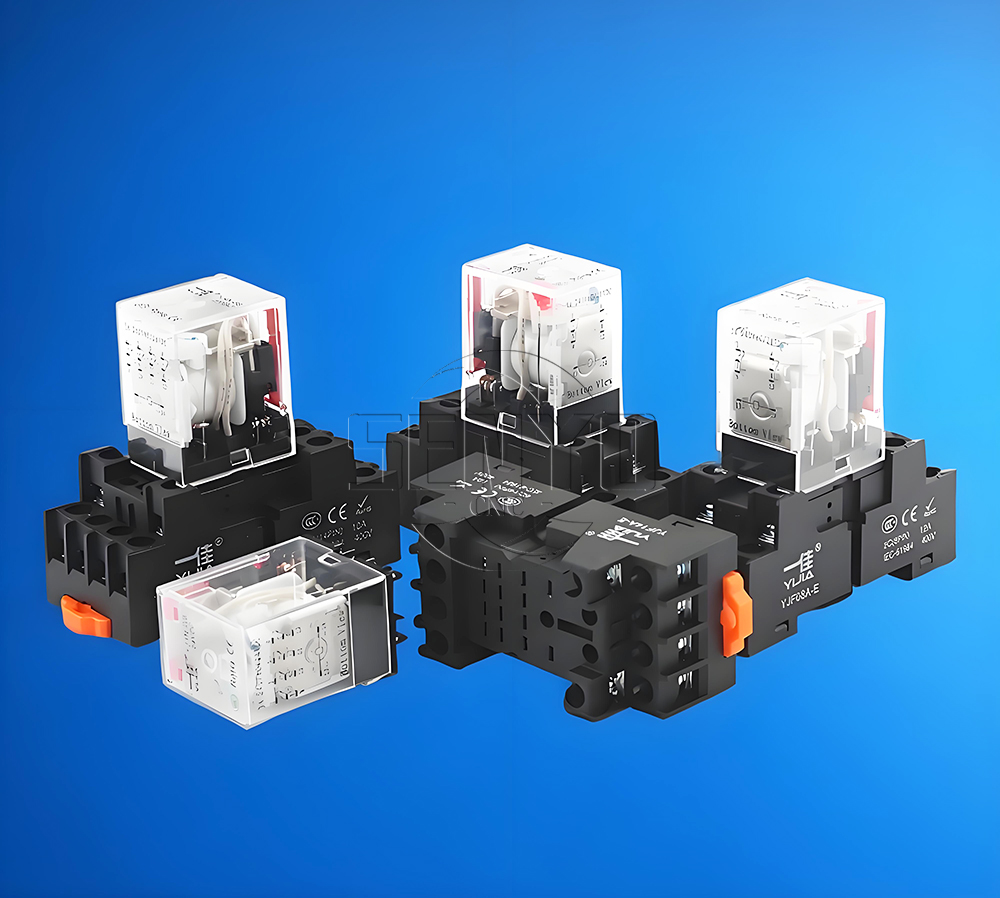

Machine accessories parts for electric is famous best brand in china  .

Application

1. Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.

2. Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.

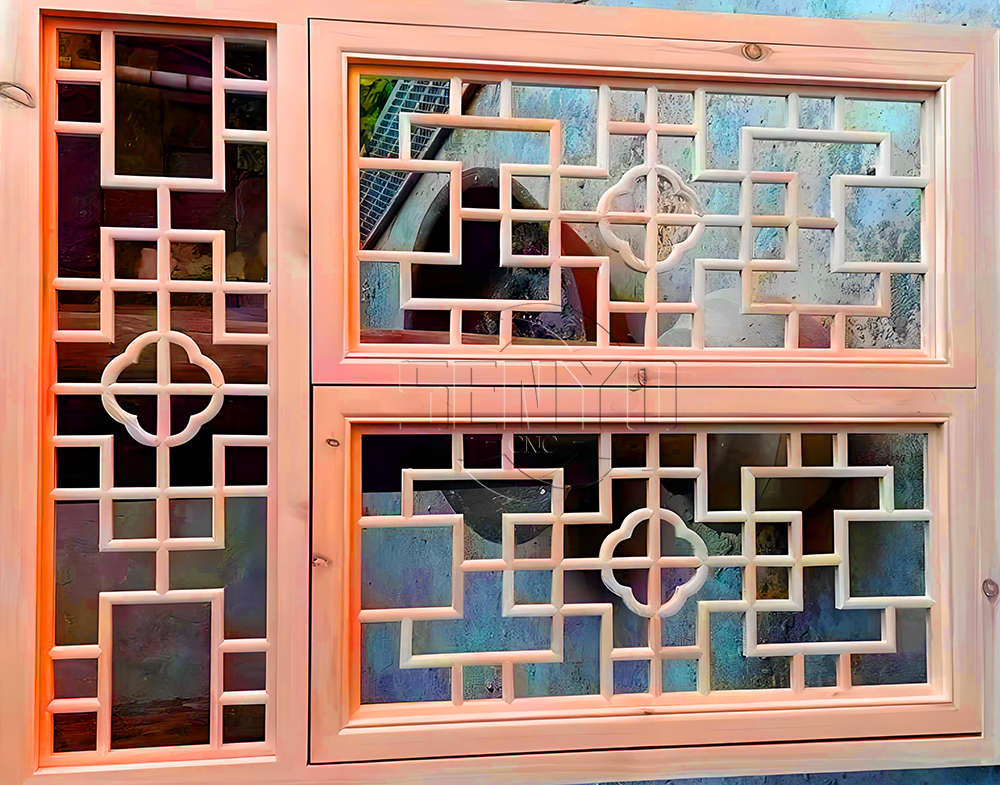

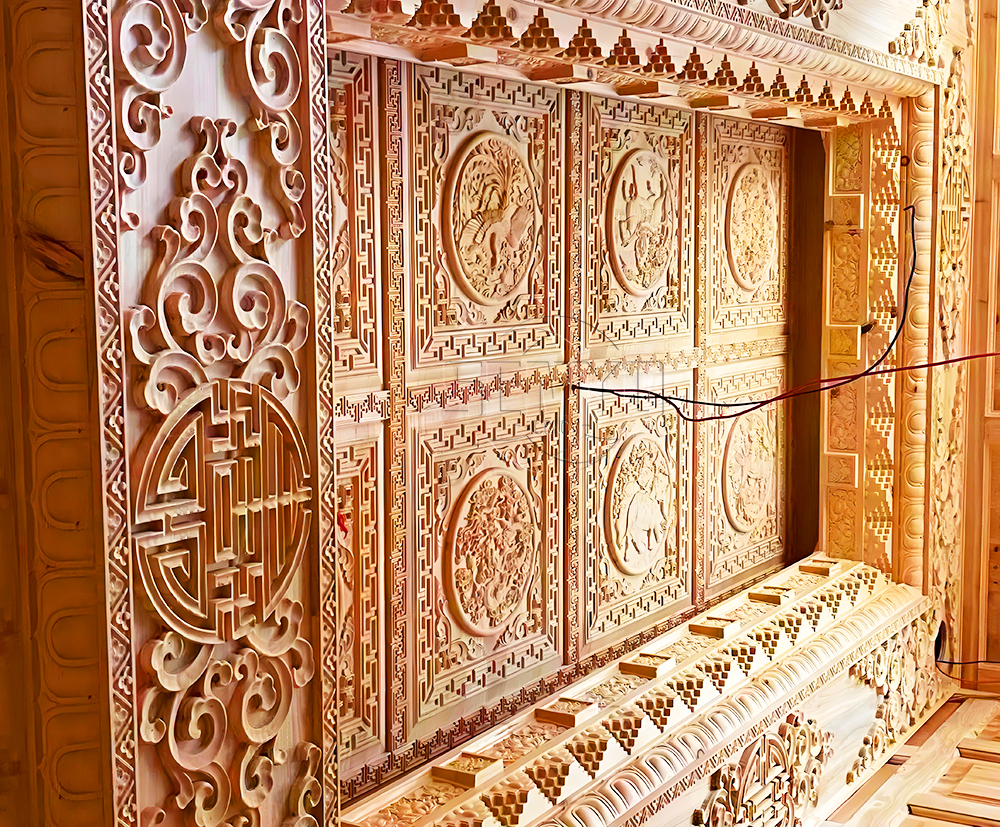

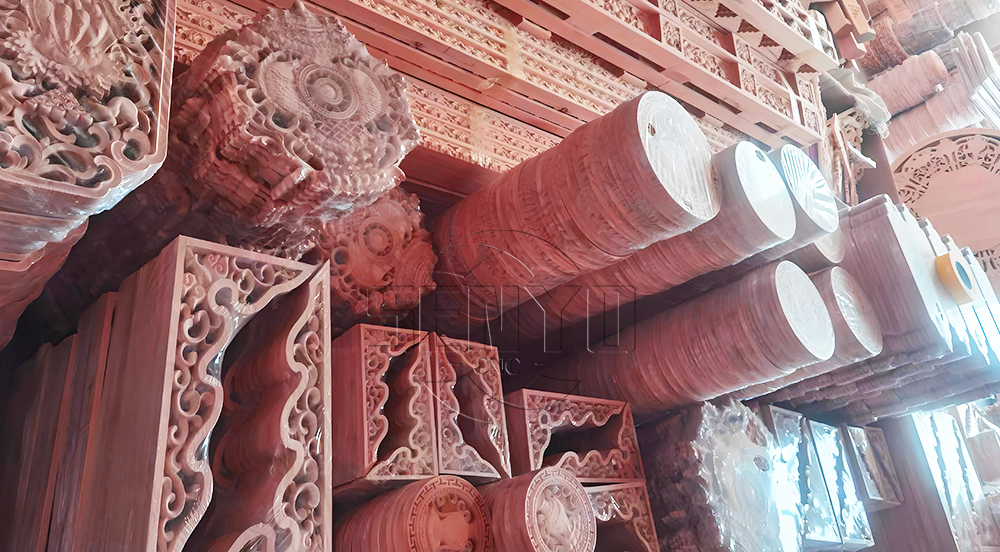

3. Wood working industry: mainly used in redwood classical and antique furniture, wood carving, gifts wooden box ,

redwood jewelry boxes, inkstone cutting, decorative products sculpture, fine jewelry carving.

4. Model industry: company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers,

signs of decoration, shoes, badge, embossed mould, biscuit, candy, chocolate mould.

5. Other lines: also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relievo.

Techology Paramaters

Troubleshooting

The 4'x8' CNC wood router machine will inevitably have some problems during the day-to-day work.

Some of the reasons are due to the configuration of the machine itself, and some of the reasons are caused by the misoperation of the user.

Below we have listed some common problems and solutions for reference:

1. When setting the origin, the reason is sometimes shifted forward or shifted to the right and the shift distance is uncertain:

1.1. The limit switch is out of order. The limit switch has been closed and then bounced when the system returns to the system origin. Just change the limit switch.

1.2. The drive line is loose. Try to fix it tightly.

2. When the machine starts to reset, it makes an abnormal sound or always tops the limit switch:

2.1. The limit switch cannot be touched, just correct it.

2.2. The contact of the drive line is not good, just fix the drive line.

2.3. The limit switch wire is not connected properly, just connect the wire properly.

2.4. The limit switch is damaged, just replace it.

3. The reason why the machine cannot engrave at the origin:

3.1. Whether the layout size of the file matches the machine.

3.2. Check whether there is an offset (OFFSET) and whether the layout setting is correct.

4. The reason why the spindle motor suddenly stops or rotates slowly during the working process:

4.1. If the working voltage is unstable or overloaded, just add a voltage stabilizer.

4.2. Check whether the middle line is connected well and whether the end of the line is unsoldered.

For Our Work Steps:

1.Before-sale,we will try to know your requirement about our cnc router specification and what kind of work

you will do .then we will offer our best solution for your requirement.

2.During production: we will send photos of machines during making. so you can know more details about

the procession of making your machines.

3.Before shipping,we will take delivery photo and confirm  the specification of order to avoid the mistake.

Machine will be adjusted before it is delivered.

4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the

approximate date of arrival.

5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .

6.About teaching:  there are some manual and video about how to use machine , if you have question

about it. we will have professional technicist to help you install and teach how to use through skype ,

calling, video or mail.

Packing & Shipping

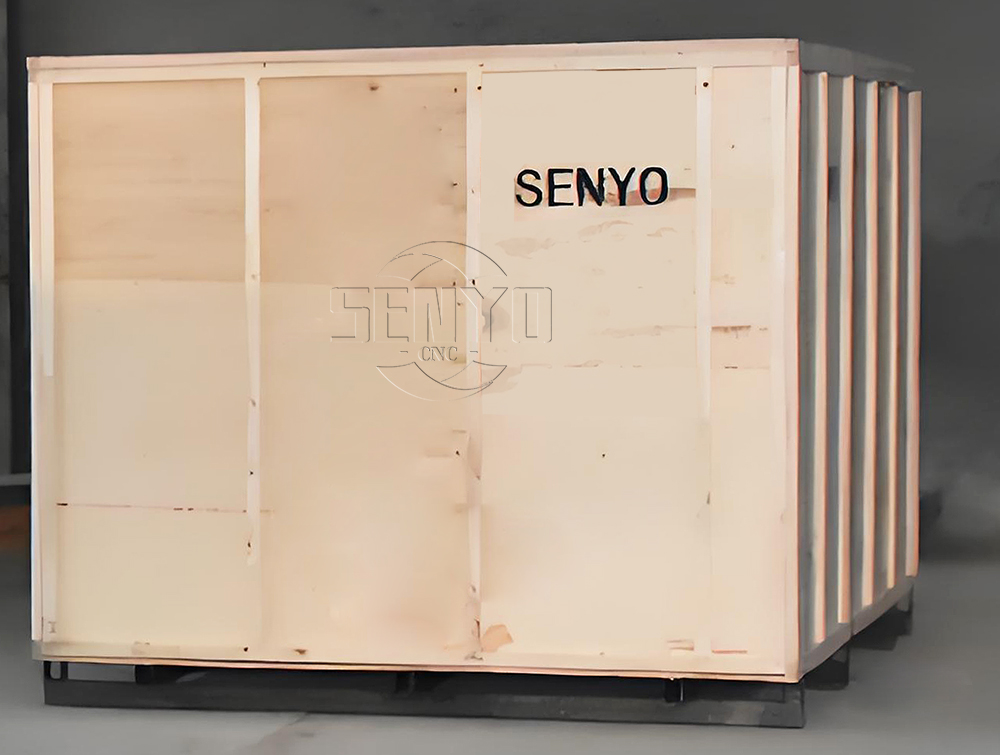

1. Outside package: Standard plywood package.

2. Inner package:Stretchy film and plastic protective film for humidity.

3. We can package according to your requirements.

For standard machines, 7-15 working days after payment.

Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.
