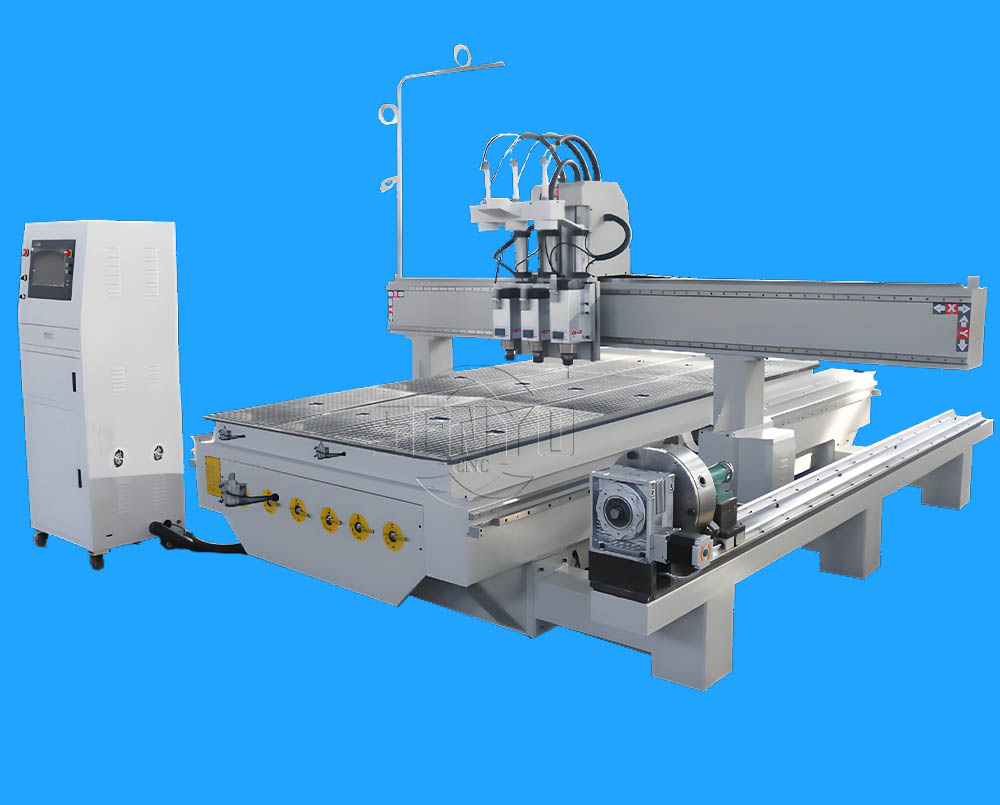

Industrial ATC CNC router machine with four spindles is used for panel furniture, office furniture, wood doors, cabinets, tables, chairs, windows, decorations.4th axis CNC wood router with four rotary axes and four spindles, which can work at the same time or independently, and every one's max effective working area is 300mm (diameter) by 1600mm (length).
Demonstration Video


Product Descriptions

The CNC router for cabinet making relates to a Three process double station double pusher material opening machine. The feeding machine consists of a working bench.which is equipped with a two working table along the length direction of the platform support at the top of the workbench support.There is a Y moving mechanism above the bench bracket. The two transverse symmetrical Y to the rack in the Y moving mechanism is fixed on both sides of the platform bracket.

The transverse beam in the moving mechanism at the Y. The top is fixed with a X direction rack with a transverse setting of X to the moving mechanism.Z direction moving mechanism on the left side of the moving mechanism along the direction of the feeding.Z to the driving motor in the Z moving mechanism is fixed vertically on the X slide plate in the X to the moving mechanism.Z direction slide plate in the Z moving mechanism is equipped with a processing device. The opening machine can make maximum use of the working time of the opening machine, high processing efficiency, convenient feeding and unloading, and can avoid the droop of the drag chain. The cabinet making CNC router is suitable for kitchen cabinet making, cabinet door making, corner cabinet making, decorative cabinet making. home cabinet making, wall cabinet making, wood cabinet making, base cabinet making and other custom cabinet making in bathroom, garage, living room, and office.

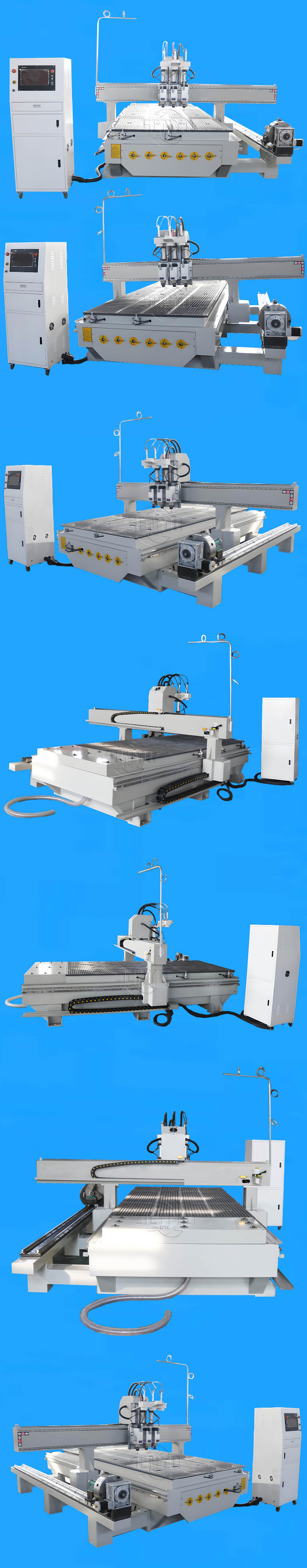

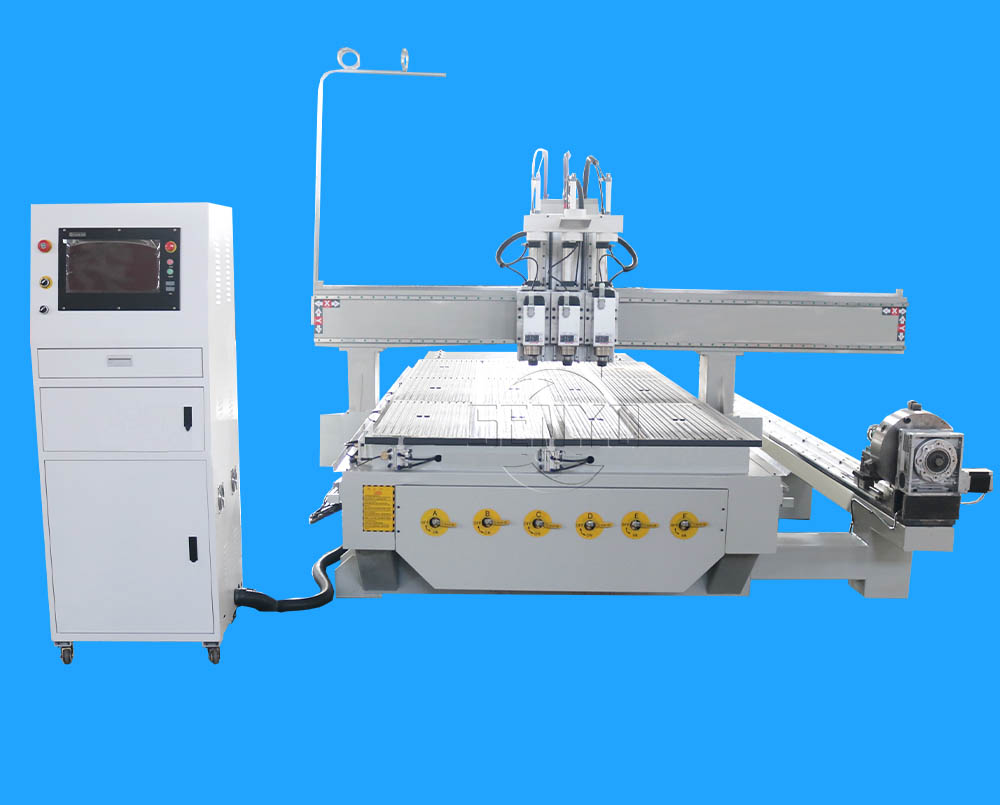

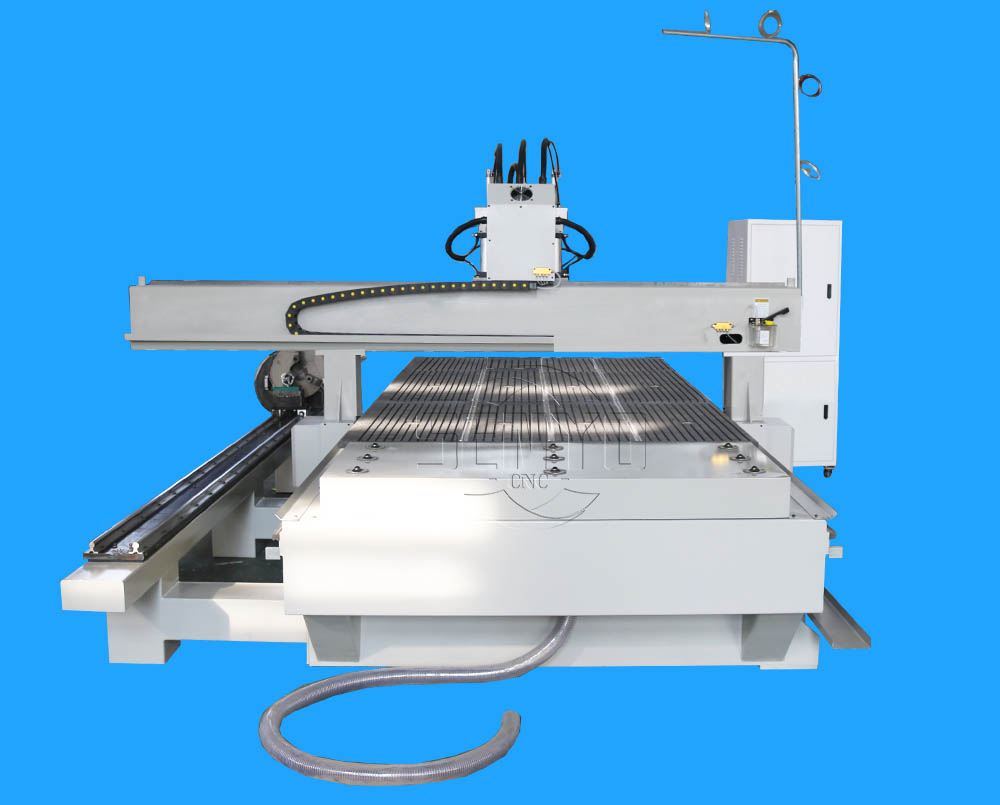

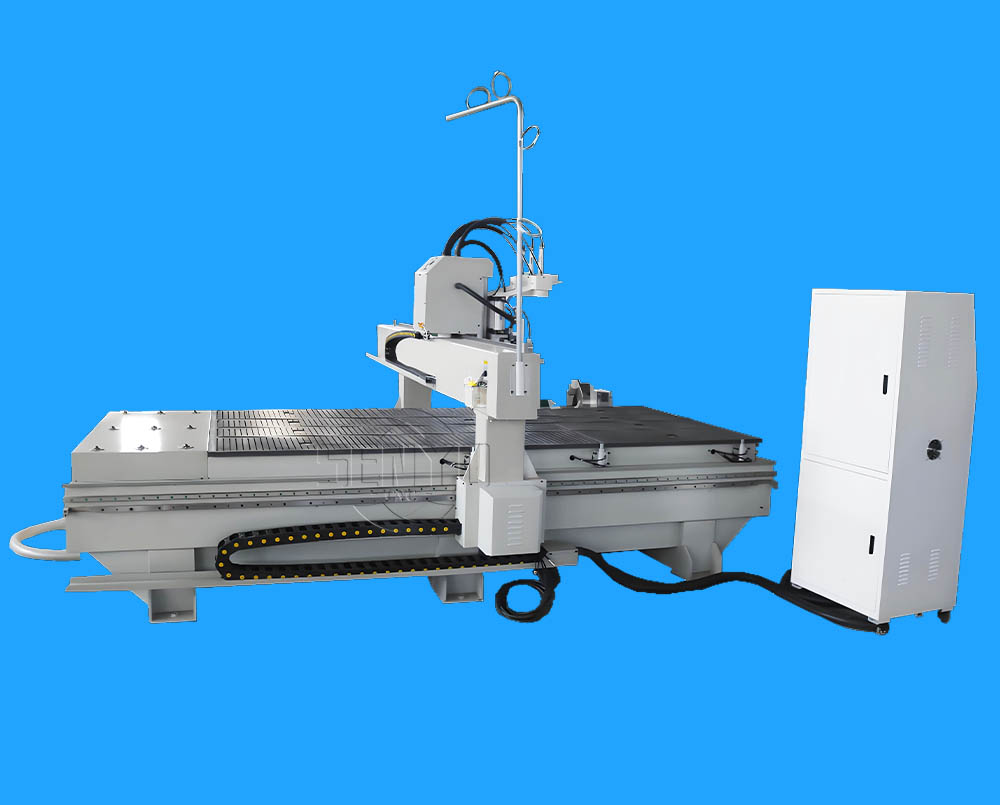

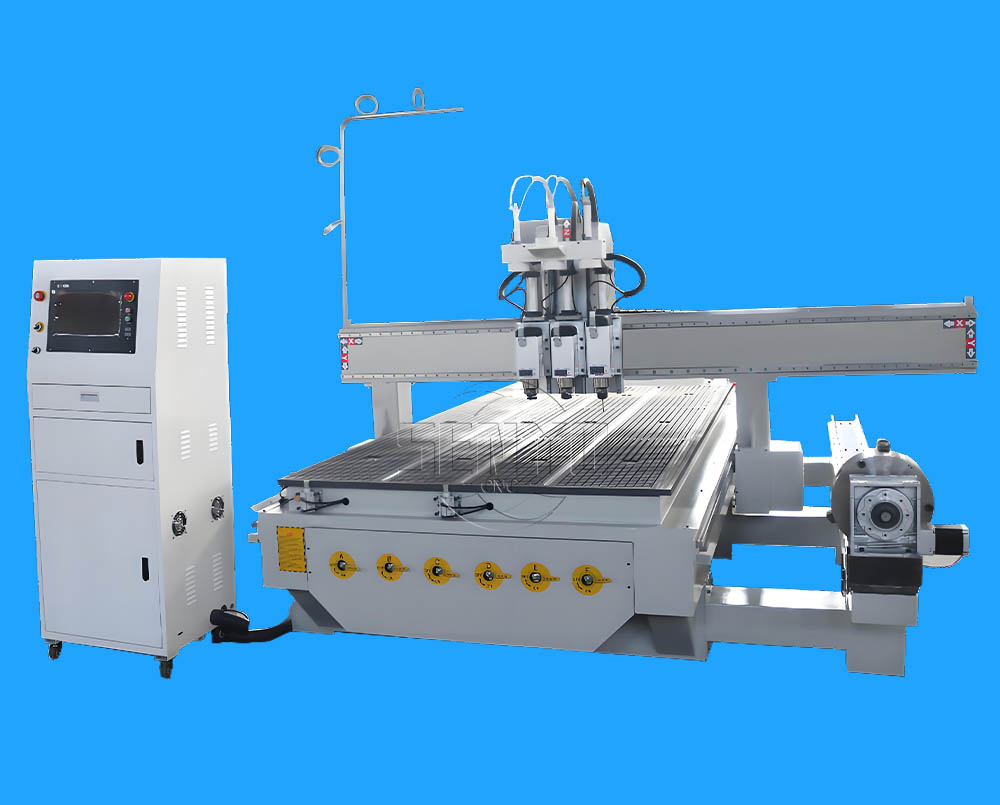

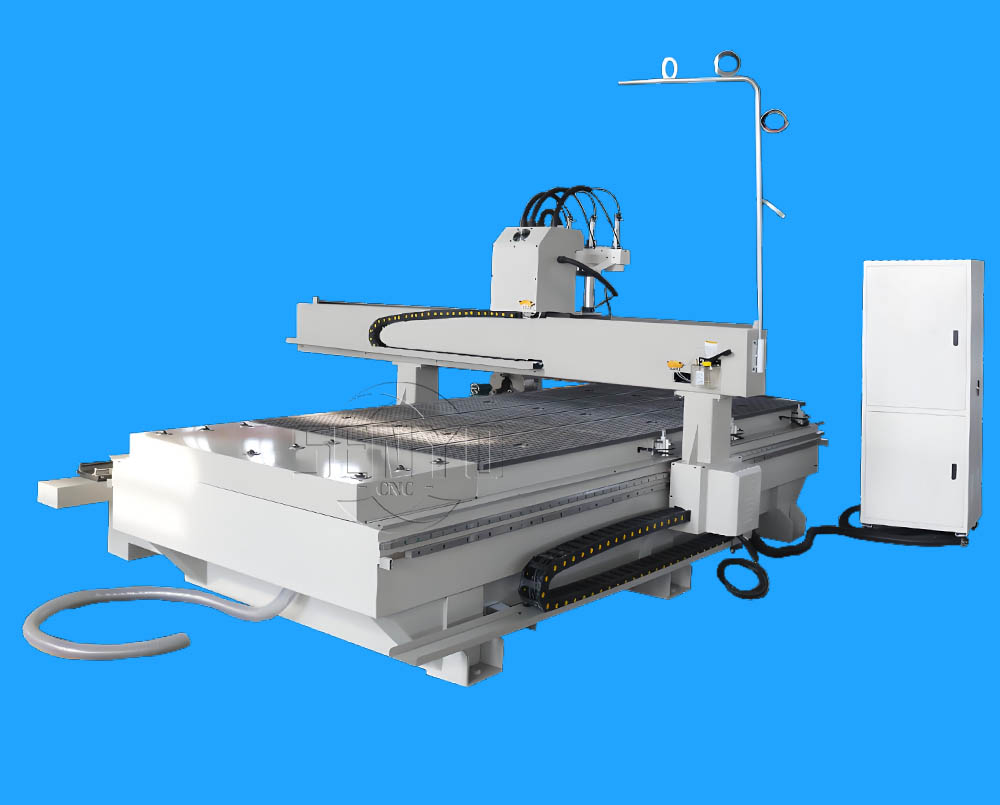

ATC 4 axis cnc router  (3).jpg


Features and Advantages

The CNC router ATC is equipped with 3 kinds of cutters, there is no need to change the cutters when engraving or cutting.

The program can work automatically. The advantage is low investment.

High profit, low maintenance, easy to operate. It is also very easy for beginner to operate.



Shanlong DSP or MACH3 control system

The whole CNC router machine ATC is welded with thick seamless steel structure, the stability is good, not easy to be deformed, Gross weight 1100kgs, even 5 people can not move it. The CNC router machine adopts gantry movement, it can process any kinds of materials freely.

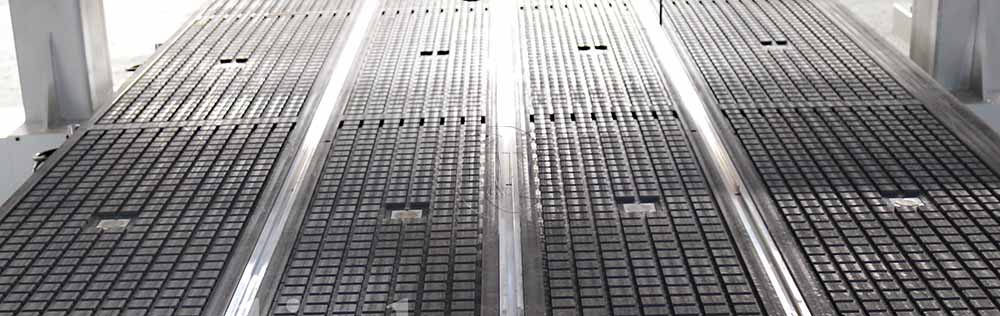

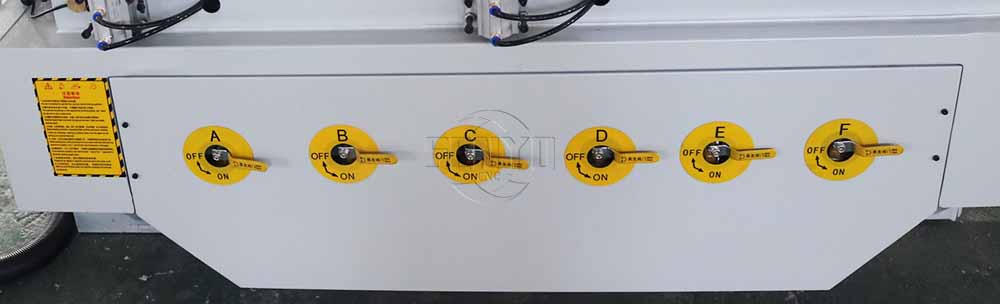

Vaccum worktable with 5.5kw vaccum pump. Dust collect .

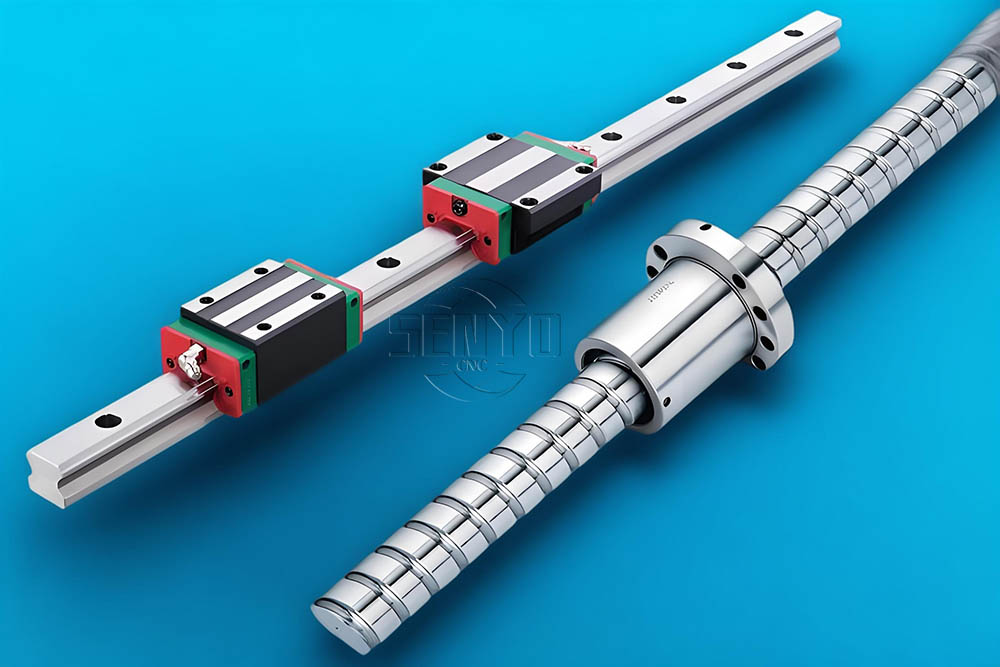

High quality Taiwan imported HIWIN Linear guide has much longer life 10 times of life-time than round guide, two line sliding track, heavy loading, stable working, high precision and long lifetime.




This CNC router ATC is suitable for machining any kinds of materials in bulk.

Well compatibility: CAD/CAM designing software. TYPE3/Artcam/Castmate/ Wentai

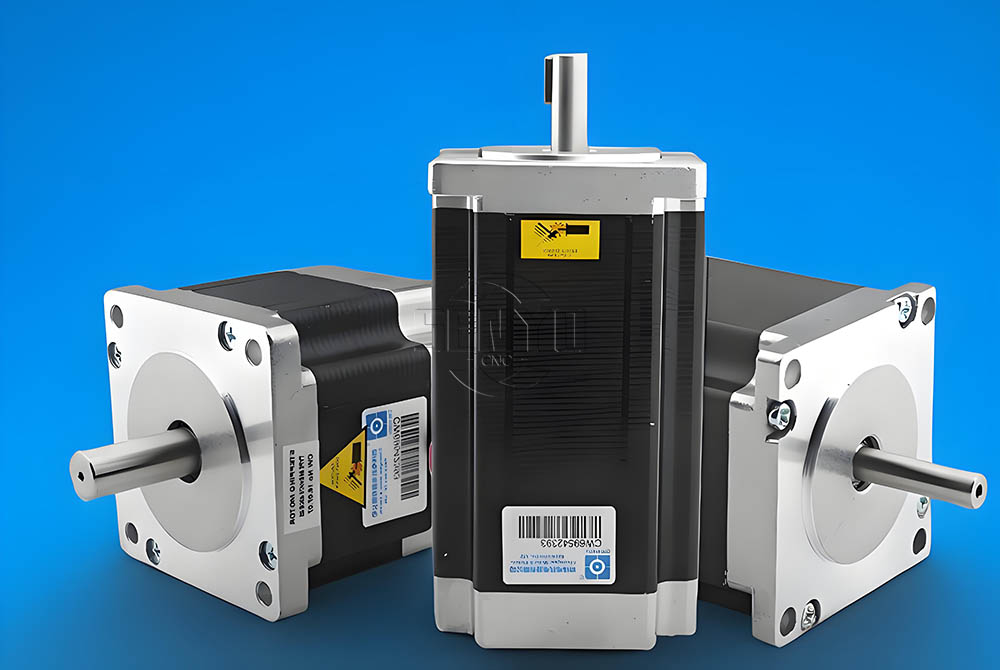

Servo motor driver with reducer

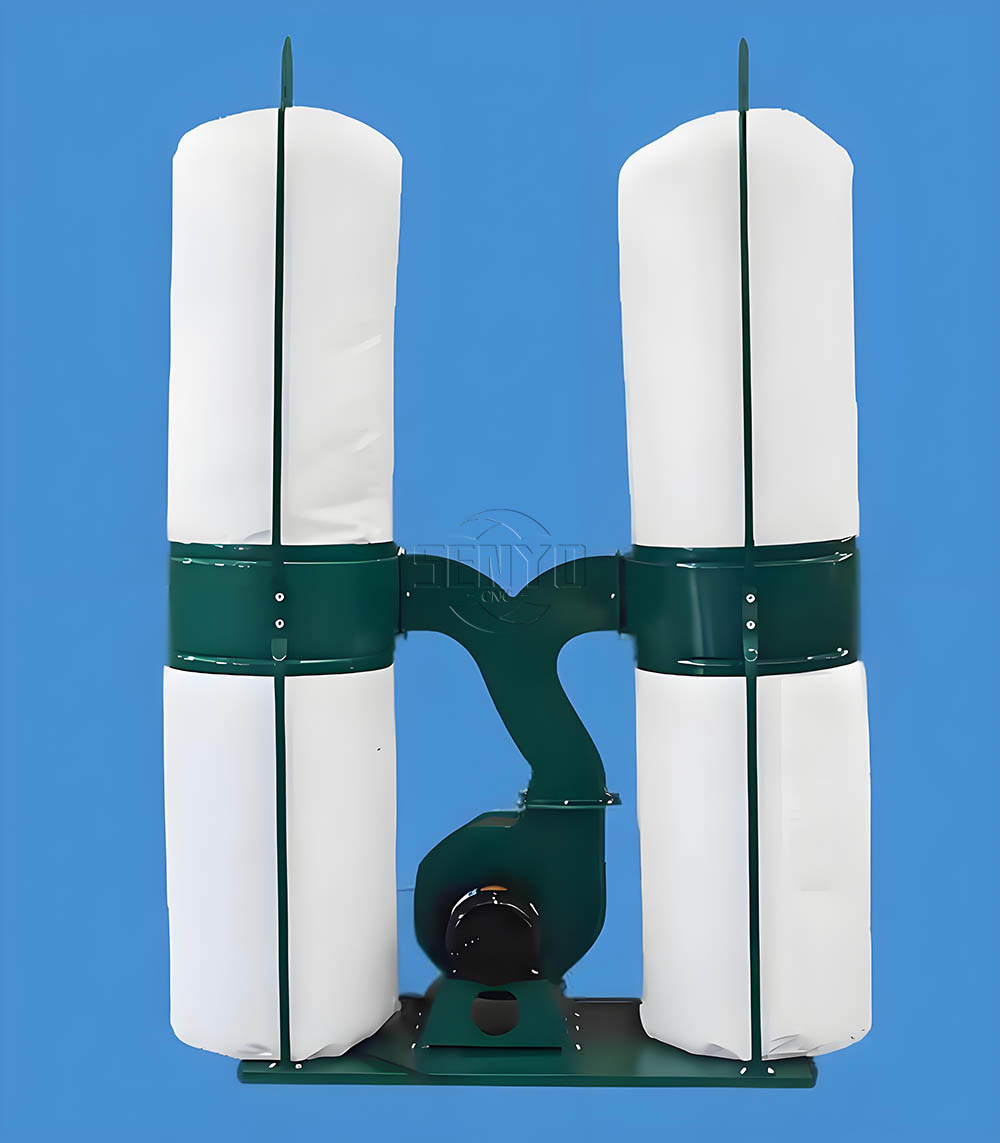

Dust collect 2 bags 3kw


dust collect.jpg


Applications

Furniture: Panel furniture, official furniture, wooden door, cabinet, plate, tables, chair.

Wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

Panel processing: insulating part, working of plastic; PCB; stone, marble, acrylic, PVC, MDF, organic glass and the cutting of cooper, aluminum, and other soft metals.


Working Project Samples

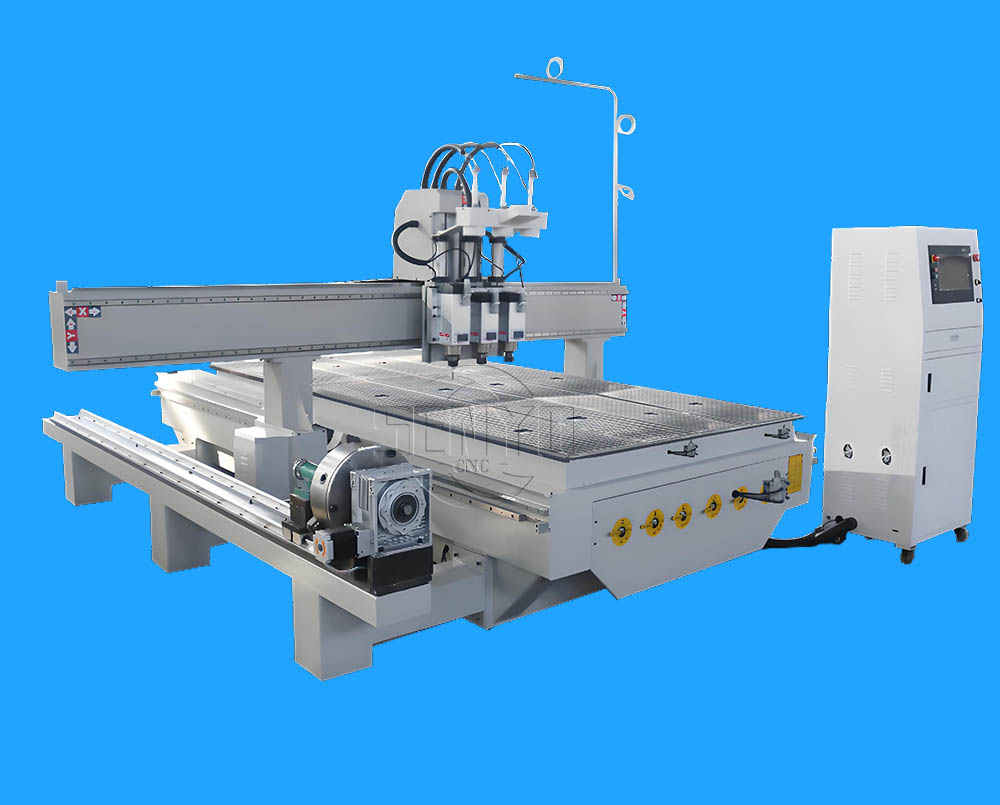

ATC 4 axis.jpg


Technical Parameters

ModelSYM1530-G3A2 4 Axis
X,Y,Z Working Area1500x3000x200mm
X,Y,Z Traveling Positioning Accuracy±0.03/300mm
X,Y,Z Repositioning Accuracy±0.03mm
Table SurfaceVacuum Table
Frame and gantryFrame steel (8mm),aging treatment and steel structure(12mm)
X, Y StructureHelical Rack and Pinion Drive, Hiwin Linear square rails
Z StructureHiwin Linear square rails
and TBI Ball Screw
Max. Power Consumption(Without Spindle) 4.5Kw
Max. Rapid Travel Rate30000mm/min
Max. Working Speed25000mm/min

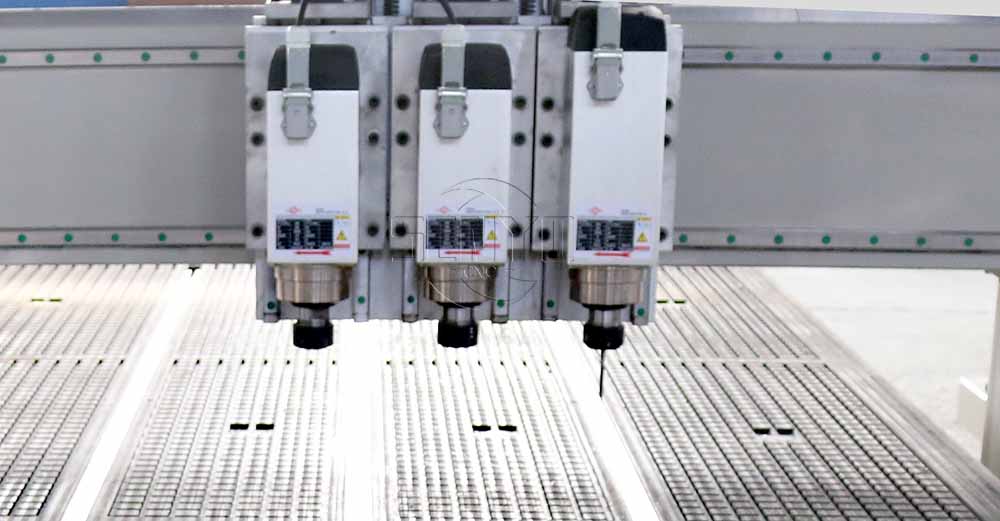

Spindle Power1*4.5kw and 2*3.5kw air cooling spindle
Spindle Speed0-18000RPM
Drive MotorsServo motor and driver
Working VoltageAC380V/50/60Hz,3PH (Option: 220V))
Command LanguageG code
Operating SystemOriginal Syntec controller system
Computer InterfaceUSB
Flash Memory128M(U Disk)
ColletER32
X,Y Resolution<0.03mm
Software CompatibilityUcancameV9 Software
Running Environment Temperature0 - 45 Centigrade
Relative Humidity30% - 75%
Packing Size3300X2000X2000mm
N.W.1700KG
G.W.2000KG
Optional Partsautomatic oil-fitting system
Syntec Control System
Vacuum Pump
Rotary System
Mist-cooling System
850WYaskawa/Panasonic Servo Motors


Packing & Shipping

1.  Outside package: Standard marine export plywood case.

2.  Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

   Improved package, much more strong and environmental protection.





For Our Work Steps


1.Before-sale,we will try to know your requirement about our cnc router specification and what kind of work

you will do .then we will offer our best solution for your requirement.

2.During production: we will send photos of machines during making. so you can know more details about

the procession of making your machines.

3.Before shipping,we will take delivery photo and confirm  the specification of order to avoid the mistake.

Machine will be adjusted before it is delivered.

4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the

approximate date of arrival.

5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .

6.About teaching:  there are some manual and video about how to use machine , if you have question

about it. we will have professional technicist to help you install and teach how to use through skype ,

calling, video or mail.


Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.
