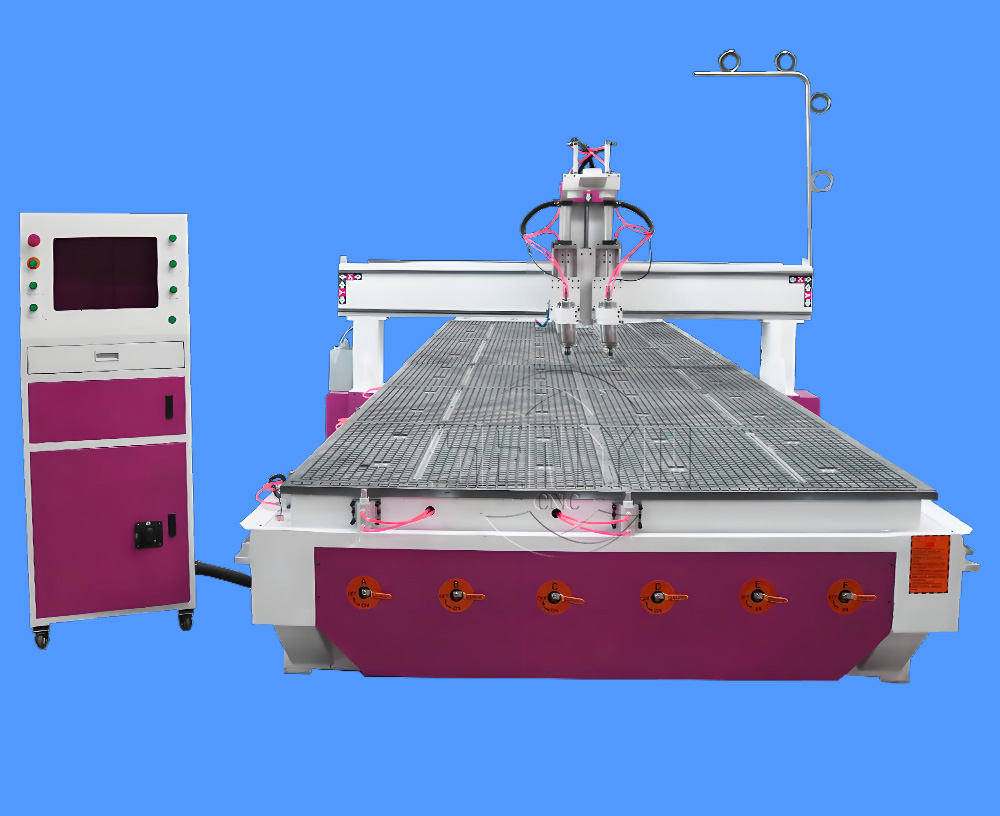

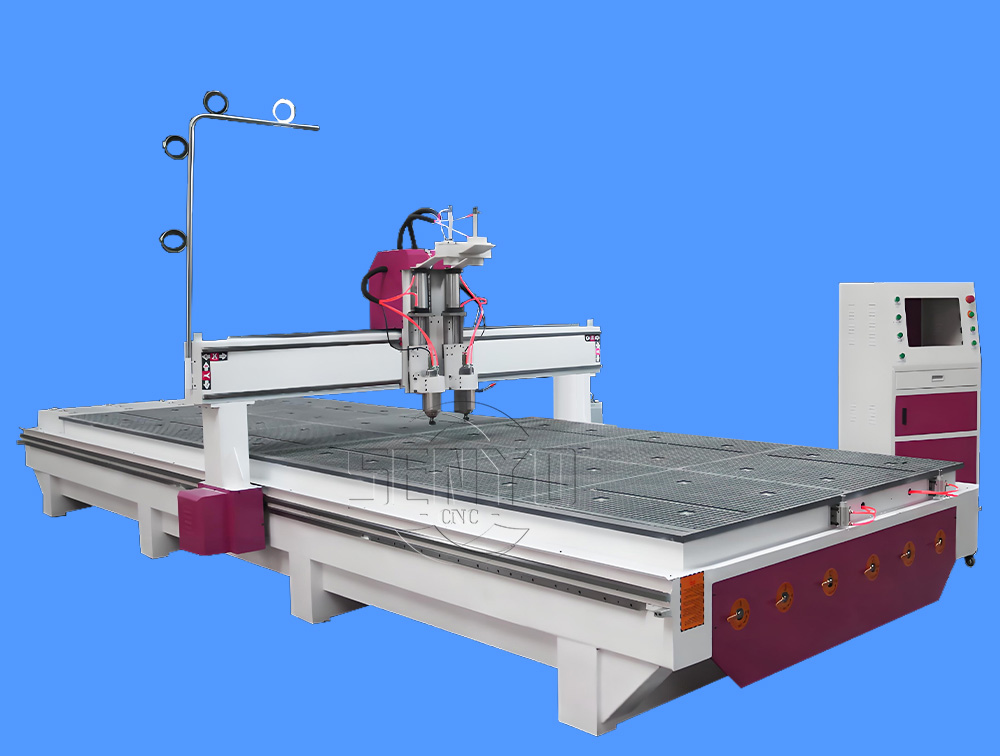

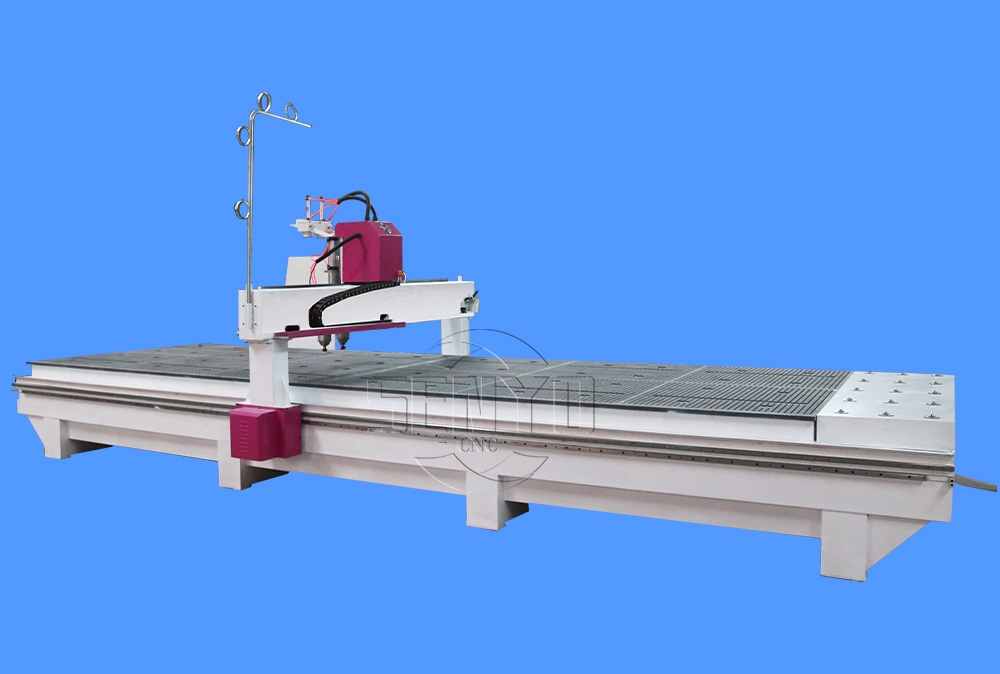

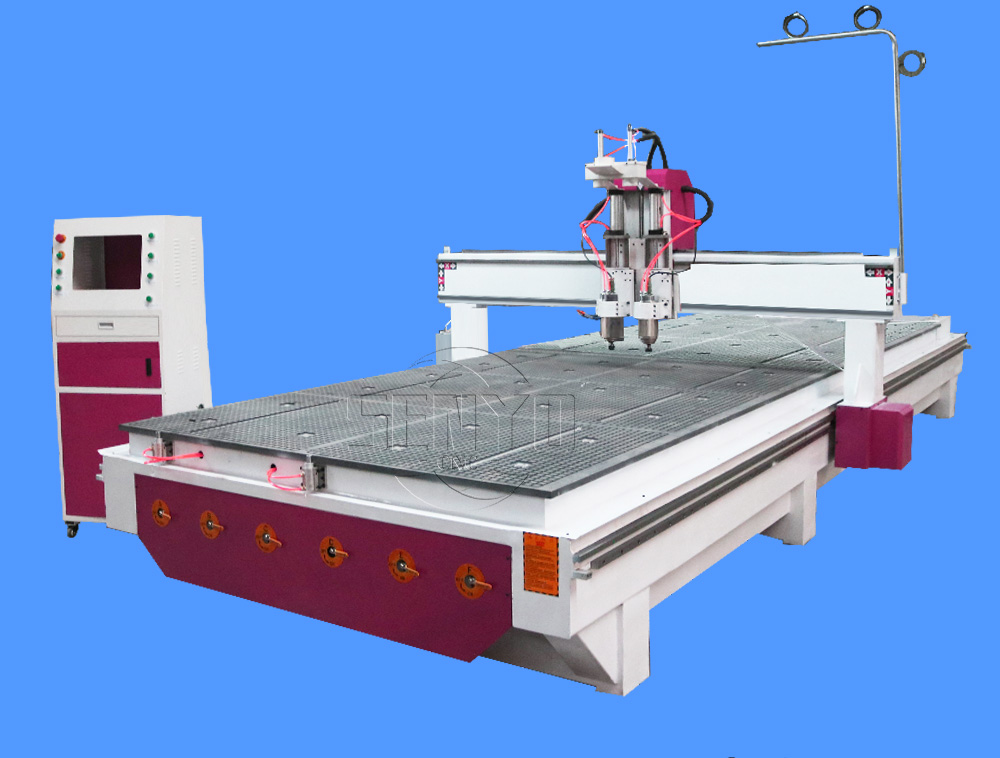

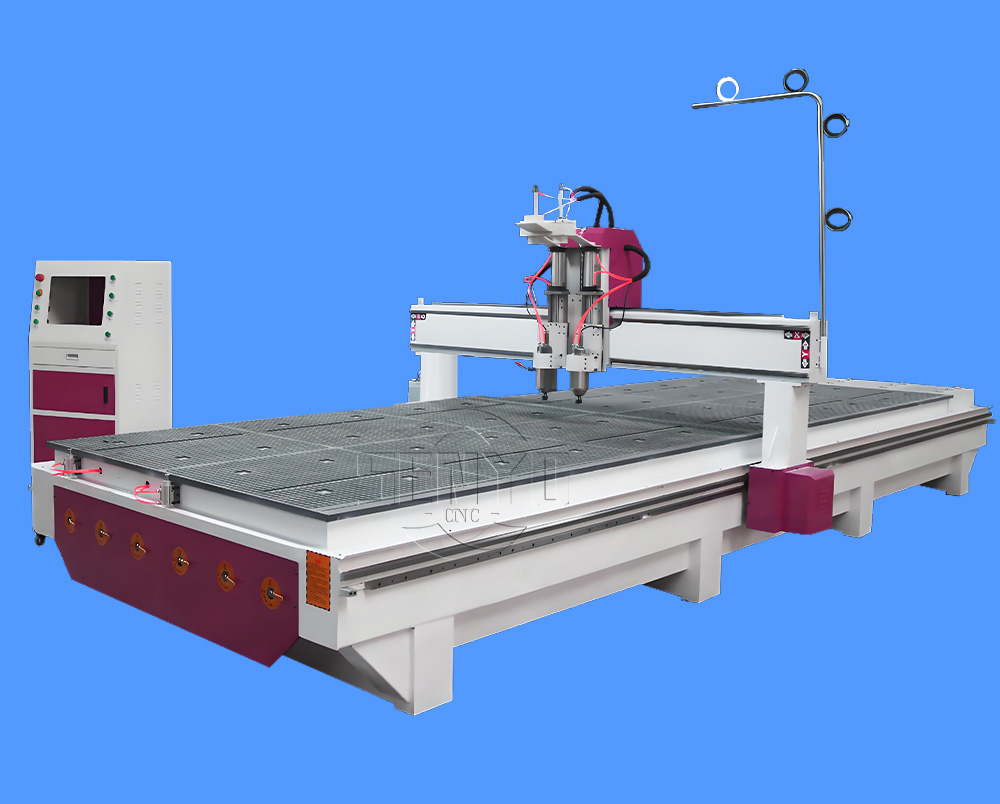

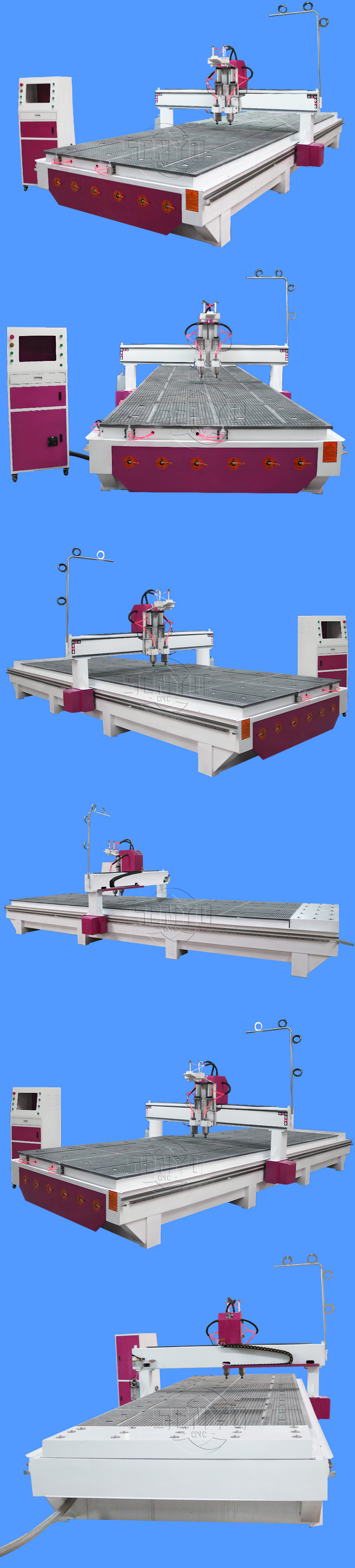

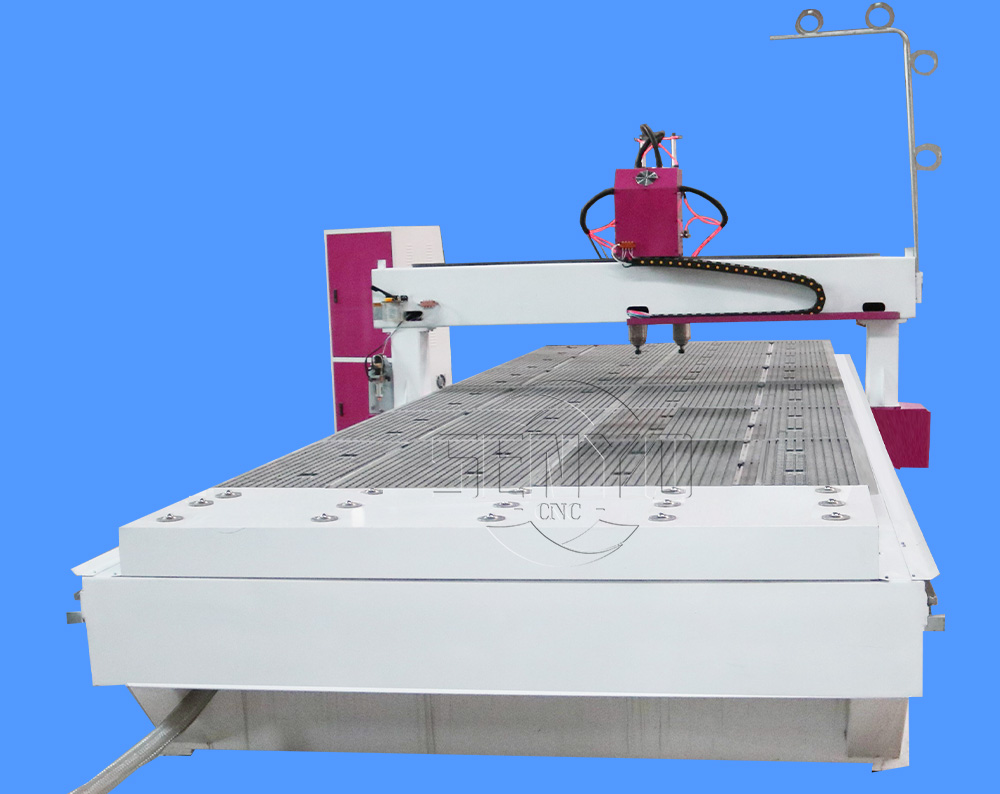

Multi head woodworking CNC engraving machine has multiple spindles which are responsible for different engraving or cutting programmes.
It is widely used in various industries such as furniture, advertisement, handicraft processing, model and so on.
With high working efficiency, it is the best choice for various wood carving industries.
Dual process: Two independent spindles
Parts Detials

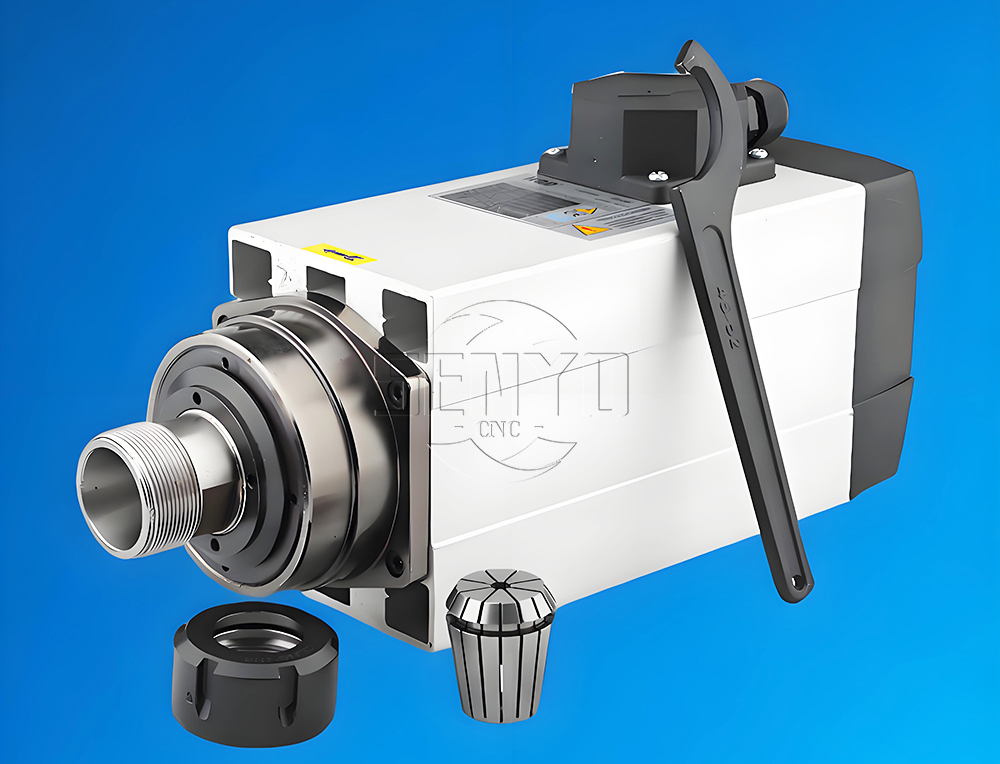

3.2KW water-cooled spindle / 3.5KW Air Cooling Spindle
HQD water/air-cooled spindle, a well-known brand in China, has obtained CE certification.
The engraving pattern is fine and clear, and cutting sheet is flat and smooth.
The two spindles work independently and are auto replaced according to the program, which is suitable for processing complex pattern designs on one sheet.
Mach3 controller
It is the most common software for CNC machines in the world, support Wnxp Wn7 Win10, doesn't need driver installed.

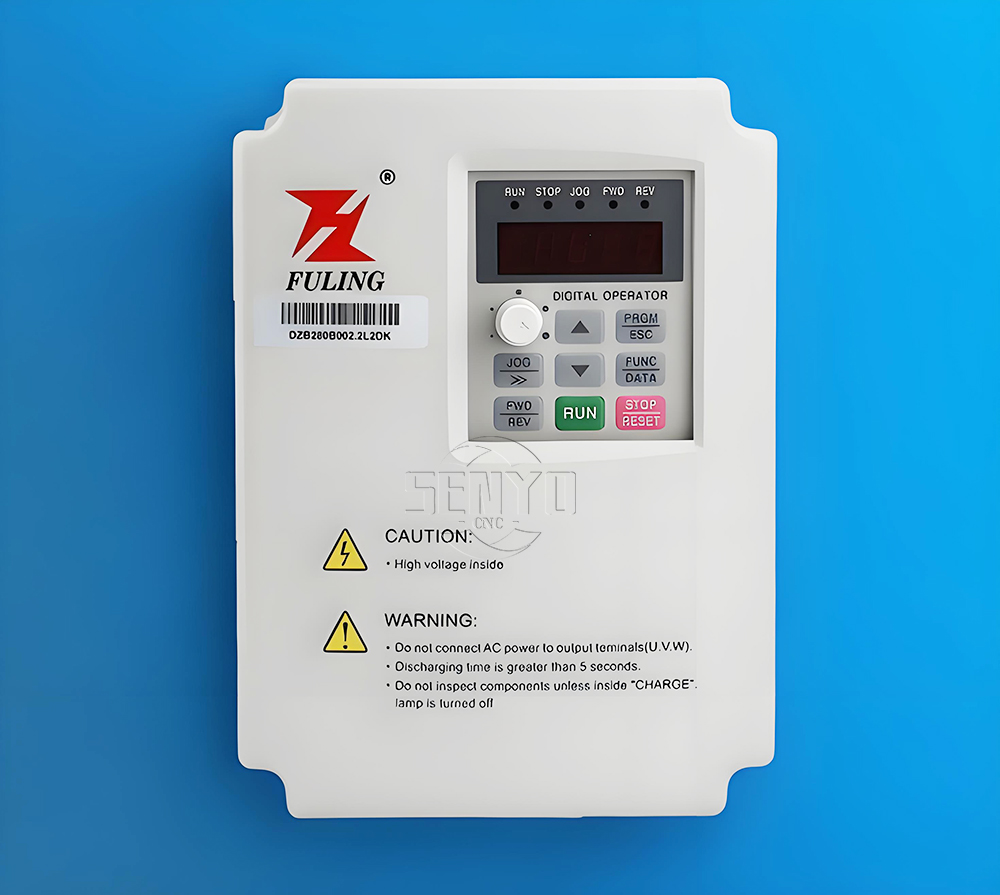

Fuling or Best inveter
Belt best quality

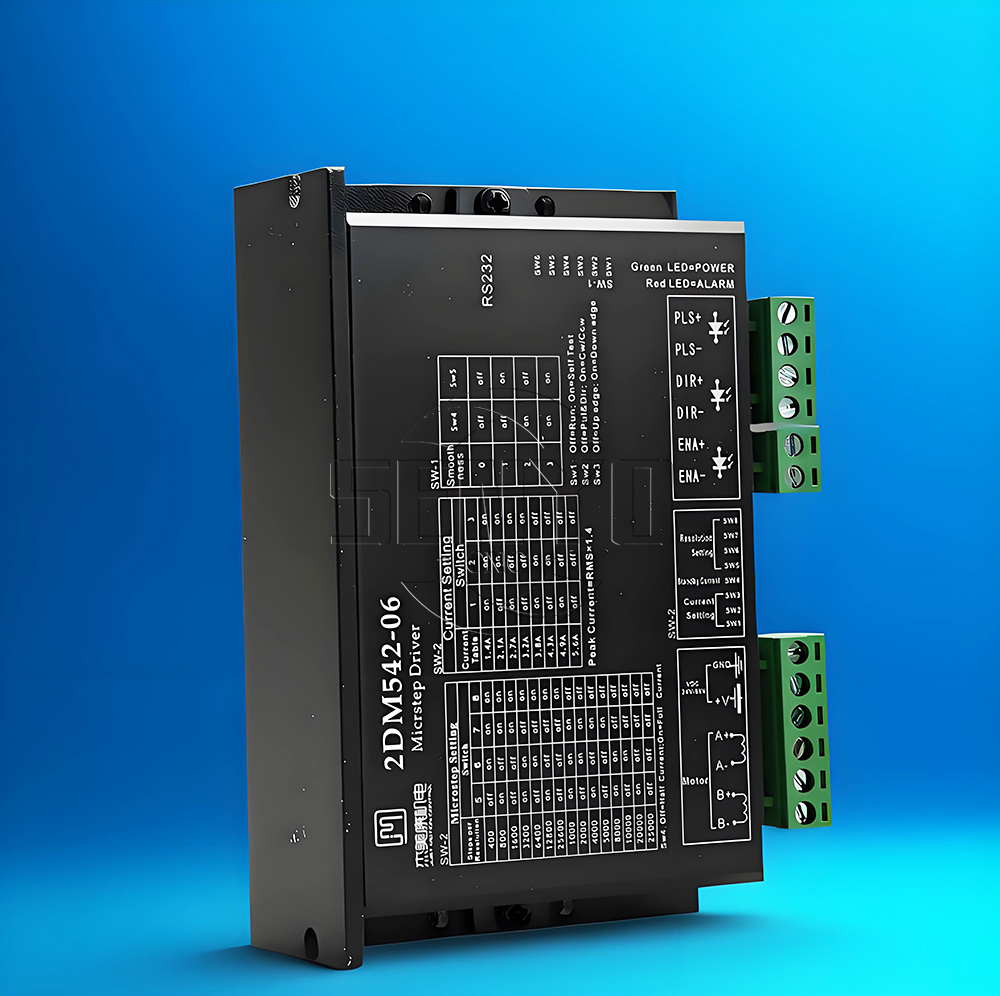

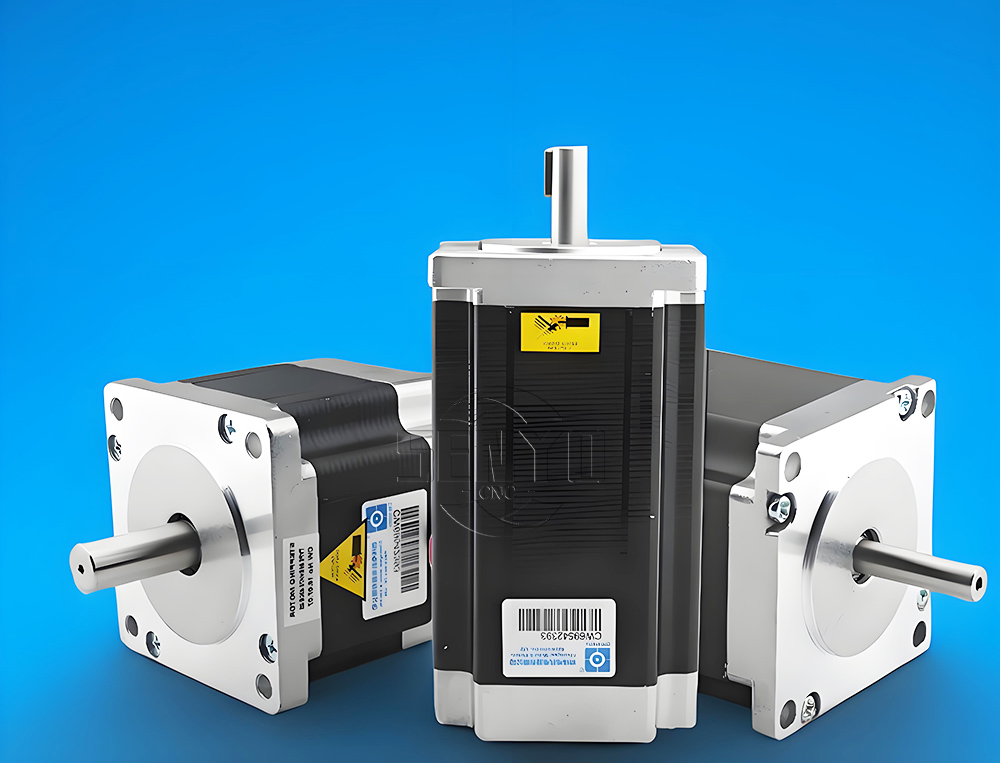

Leadshine stepping motor
The motor generates little heat and energy consumption is low. Smooth operation, low vibration and noise.
The response speed is fast, suitable for frequent start and stop. Cheap and good performance.
Motor Option: Delta servo motor ; Yaskawa servo motor
(The Yaskawa servo motor has resonance suppression function to ensure that the machine runs smoothly at high speed.)
5.5kw air vacuum pump
The air between the workpiece and the worktable surface is extracted to form a negative pressure, so as to achieve the purpose of fixing on the worktable.
The vacuum adsorption technology is applied to the woodworking CNC router to greatly improve the work efficiency.
Lubricating system
Auto lubricating system, one touch can finish periodic maintenance easily.
Trasmission

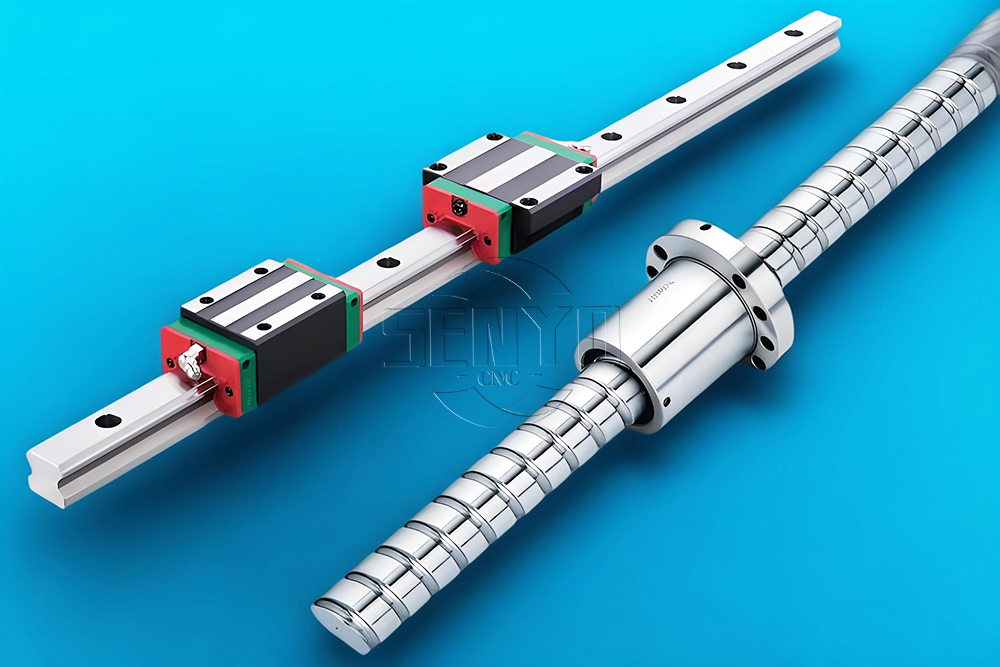

The XY axis uses the guide rail rack and the Z axis uses the ball screw.
Taiwan Hinwin guide rail Rail works with slider, drive the machine move, with good bearing capacity.
T-slot table and fixed pressure plate
The vacuum table with good quality wind pump,it has T-slot mounting devices incorporated into the tables to enable fixtures and material blanks to be clamped directly to the table.Clamps are provided.Of course, you can also choose T-slot table without vacuum pump.

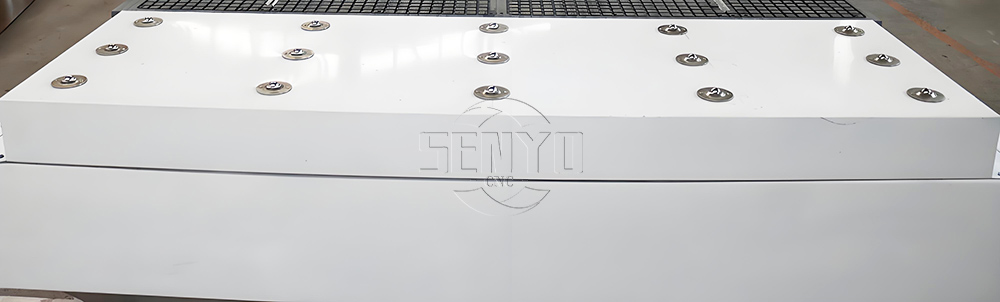

Machine with roller
Safety system
ATC CNC router has the unique safety protection system and provides external emergency stop function for equipment users. This function can effectively protect the personal safety of the equipment users, meet the European safety CE standards, and is very popular among users
[Our other options]

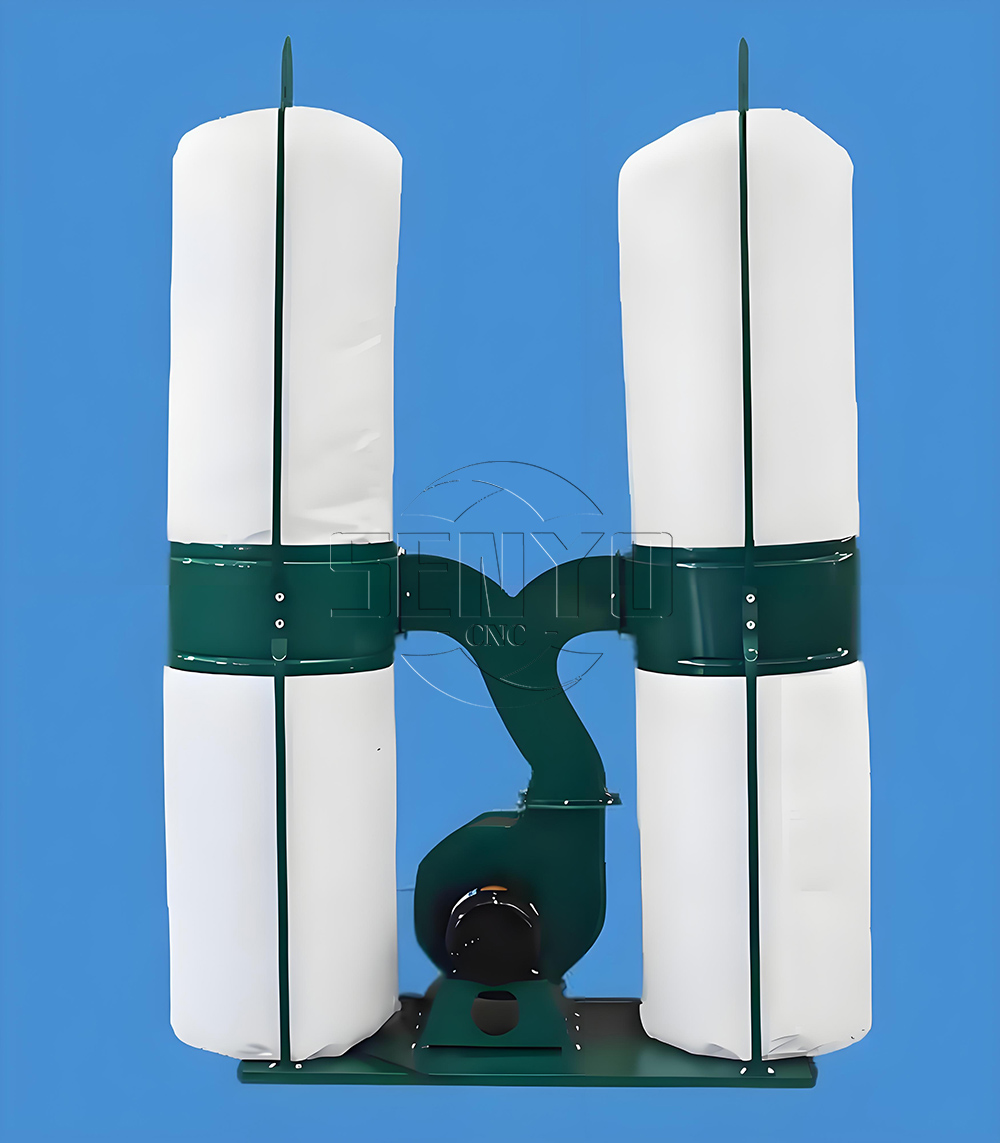

Double Bags Dust Collector / Linear Tool Changer / Disc Tool Changer / Horizontal Spindle / Cutting Saw / Boring Unit
Applications
Furniture: Panel furniture, official furniture, wooden door, cabinet, plate, tables, chair.
Wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
Panel processing: insulating part, working of plastic; PCB; stone, marble, acrylic, PVC, MDF, organic glass and the cutting of cooper, aluminum, and other soft metals.
Applications Industry
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, sofa legs, headboards ,game cabinets etc.
2. Advertising Industry: advertising identification, sign making, acrylic engraving and cutting, crystal word making and other advertising derivatives making.
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts.
4. Architectural models: engraving fine window, fencing and wall patterns, etc.
What if I want to engrave three-dimensional (3D )shapes?
It is possible!
If you want to carve three-dimensional (3D )model --- you can use three-axis engraving machine + rotary axis!
Also,
4-axis engraving machine --- the spindle can rotate 180 °
5-axis engraving machine --- the spindle can rotate 360°
Packing & Shipping
1. Outside package: Standard marine export plywood case.
Improved package, much more strong and environmental protection.
For Our Work Steps
1.Before-sale,we will try to know your requirement about our cnc router specification and what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,
calling, video or mail.
Before shipment---Factory technicians will carry out debugging and testing to ensure that there is no problem with the machine before deciding whether to proceed to the next step!
After the shipment is confirmed - the corresponding staff who contacted you will send you pictures and videos of the machine to confirm with you. After confirming that there is no error, will be packed - waiting for delivery instructions.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
