Product Introduction

Buyer's Reviews
Affordable CNC wood router kit is an entry-level beginner-friendly CNC router machine with full-size 5x10 T-slot working table for woodworking.
Demonstration Video


Product Descriptions

What Makes a 5x10 CNC Router Ideal for Woodworking?

The size, accuracy, and adaptability of a 5x10 CNC router make it perfect for woodworking applications. This kind of router is quite useful for working with larger wood panels, which is why both professional and amateur woodworkers use it. Why a 5x10 CNC router is unique?

1. Large Work Area: The 5x10 size allows you to work on large projects and full-size plywood sheets without having to chop them down first. Time is saved, and waste is reduced.

2. Extreme Precision and Consistency: CNC routers ensure consistency in every item by producing carvings and cuts with extreme precision. For intricate patterns or finely detailed carpentry, such as that found in furniture and cabinets, this is crucial.

3. Versatility: From simple cuts to complex three-dimensional carvings, it may be used for a wide range of woodworking tasks. Because of its versatility, you may create a wide range of projects with just one machine.

4. Efficiency and Speed: By automating the cutting process, CNC routers save labor expenses and increase productivity. This is quite helpful for businesses looking to increase output.

5. Simple to Use: Even starters can easily begin creating with the help of the user-friendly software that comes with modern CNC routers.

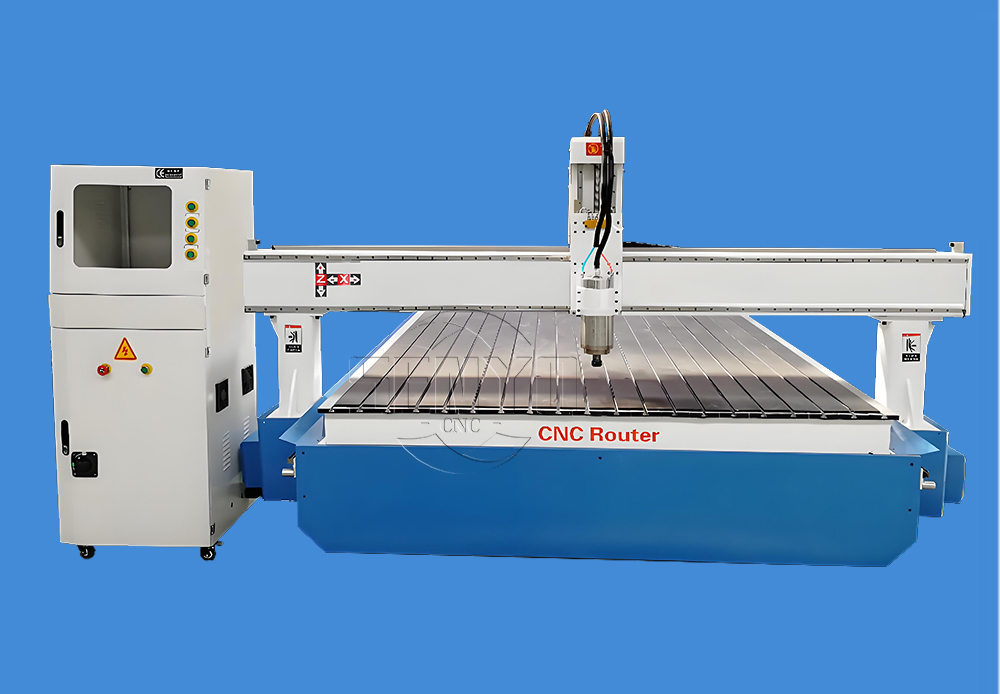

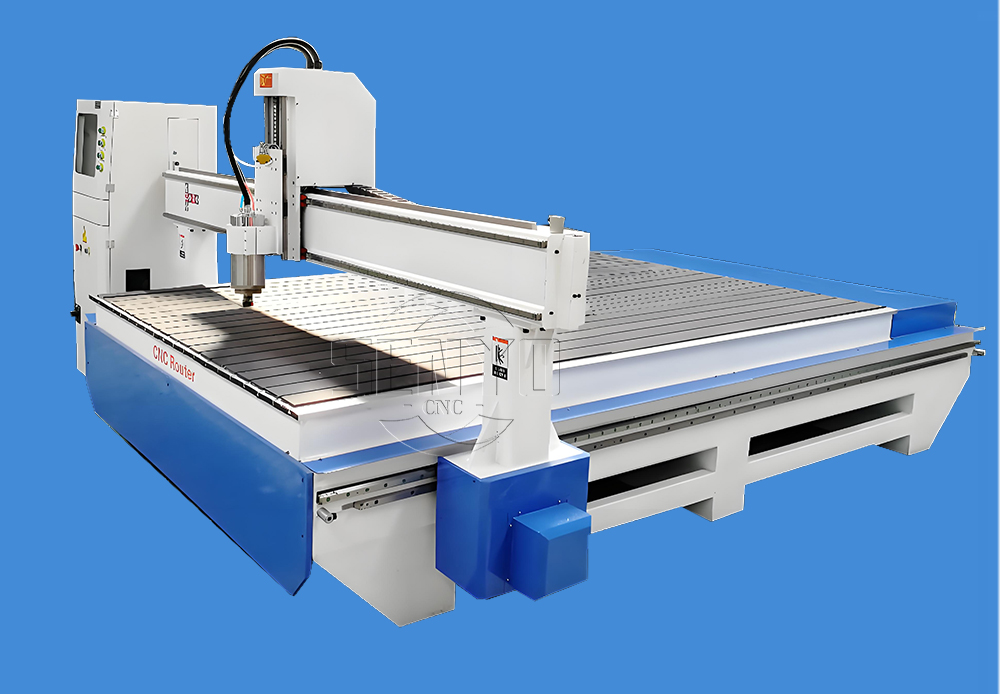

1530 cnc router  (6).jpg


Technical Parameters

ModelSYM1530
Working Area1500x3000x200mm
Table Size5x10
Traveling Positioning Accuracy±0.03/300mm
Reposition Accuracy±0.03mm
Table SurfaceT-slot Table(Option:Vacuum and T-slot Combined )
FrameWelded Structure
X, Y StructureRack and Pinion Drive, Hiwin Rail Linear Bearings
Z StructureHiwin Rail Linear Bearings and Ball Screw
Max Power Consumption3.0KW (Without Spindle)
Max Rapid Travel Rate20000mm/min
Max Working Speed15000mm/min

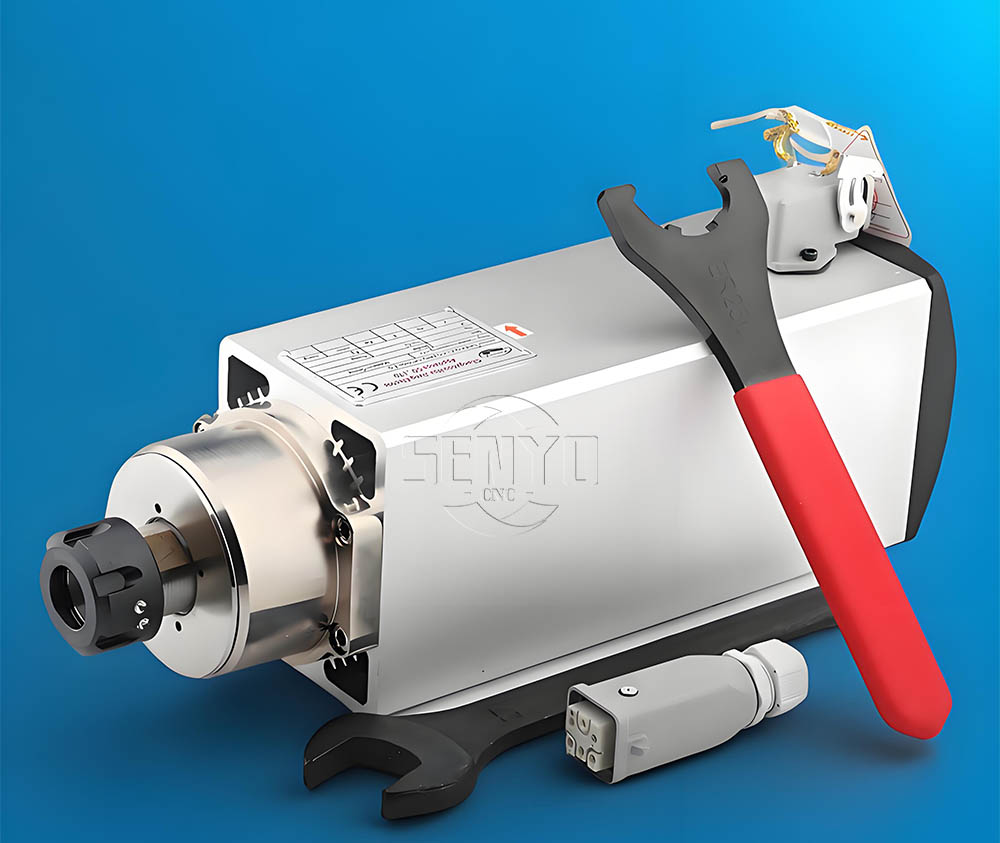

Spindle Power3.0KW/6.0KW
Spindle Speed0-24000RPM
Drive MotorsStepper System
Working VoltageAC380V/50/60Hz, 3PH (Option: 220V)
Command LanguageG Code
Operating SystemDSP System (Options: Mach3)
Computer InterfaceUSB
Flash Memory128M(U Disk)
ColletER20 / ER25
X,Y Resolution<0.03mm
Software CompatibilityType3/UcancameV9 Software(Option: Artcam Software)
Running Environment Temperature0-45 Centigrade
Relative Humidity30%-75%
Packing Size3170X2100X1750mm
N.W.1200KG
G.W.1400KG



Woodworking industry
Wooden door, furniture and decoration, Cabinet Making, Wood crafts making, Redwood carving, Archaized furniture, and other industries.


Advertising industry
Double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, acrylic, and jade article.


Electronic industry
Circuit, insulation materials, LED screen, family appliance shell, and model carving.

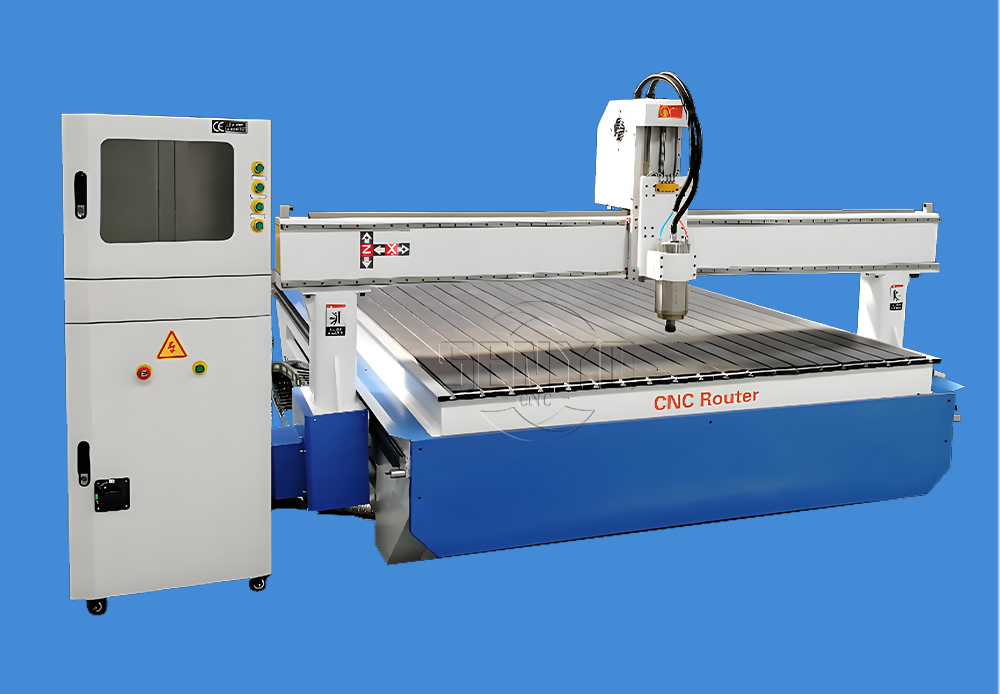

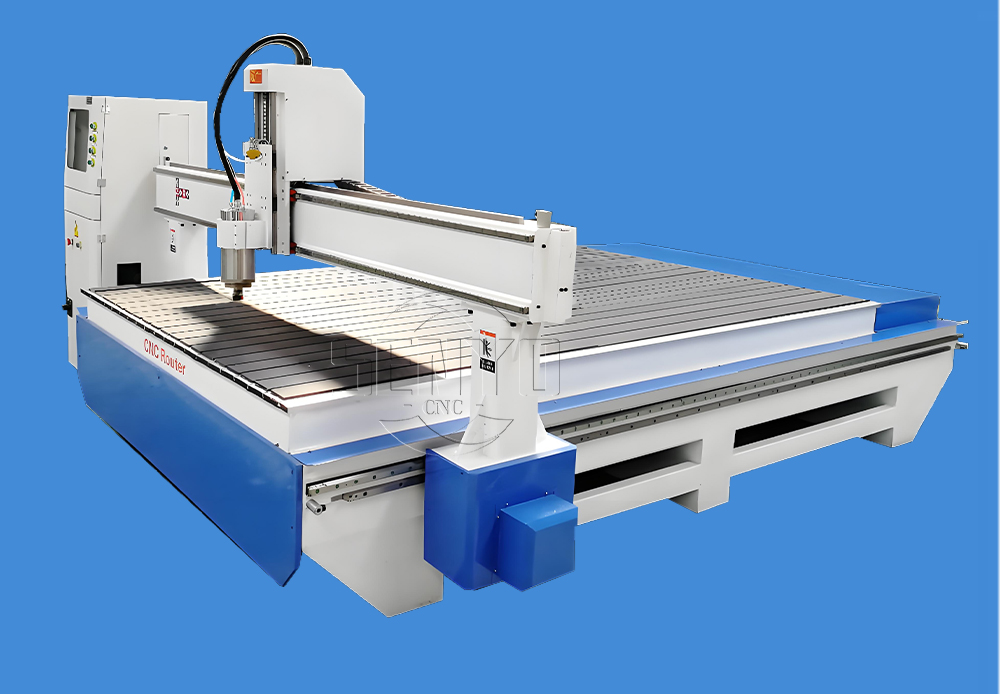

1530 cnc router.jpg

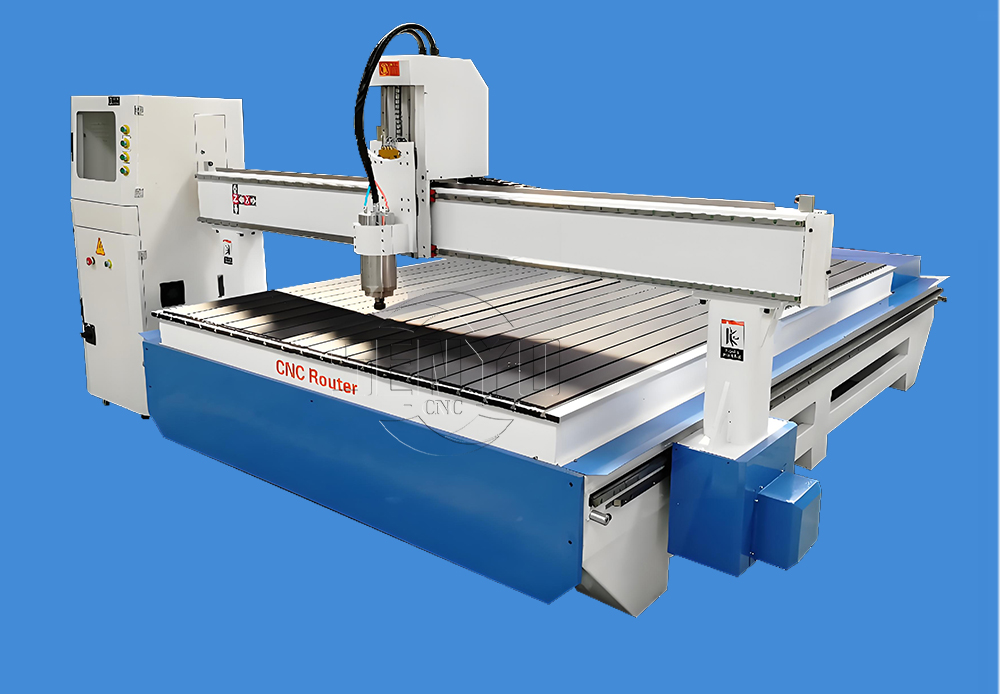

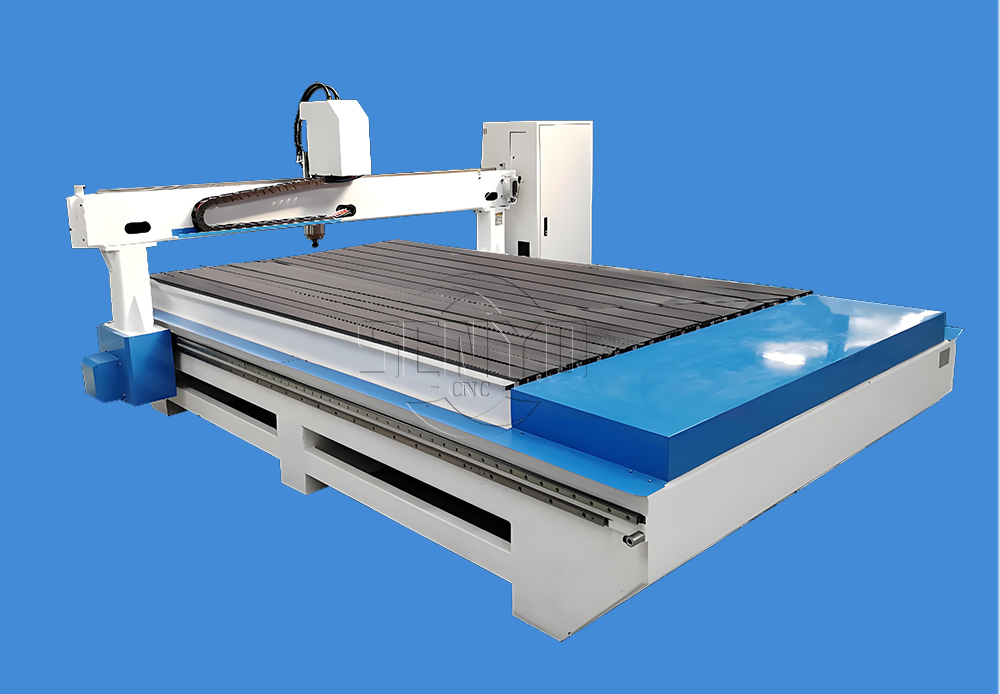

1530 cnc router  (4).jpg

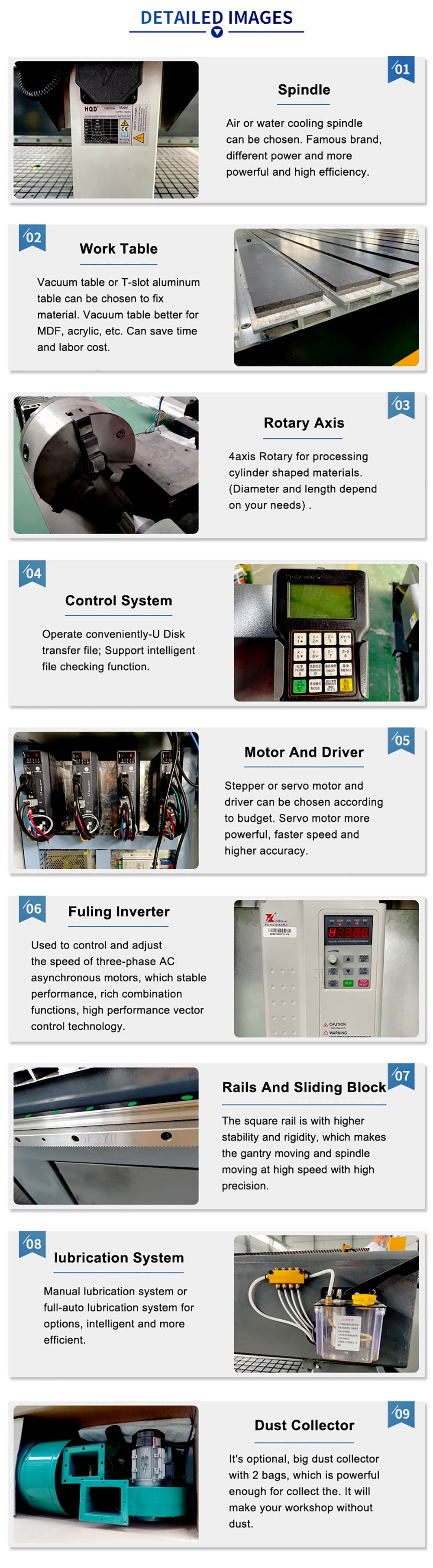

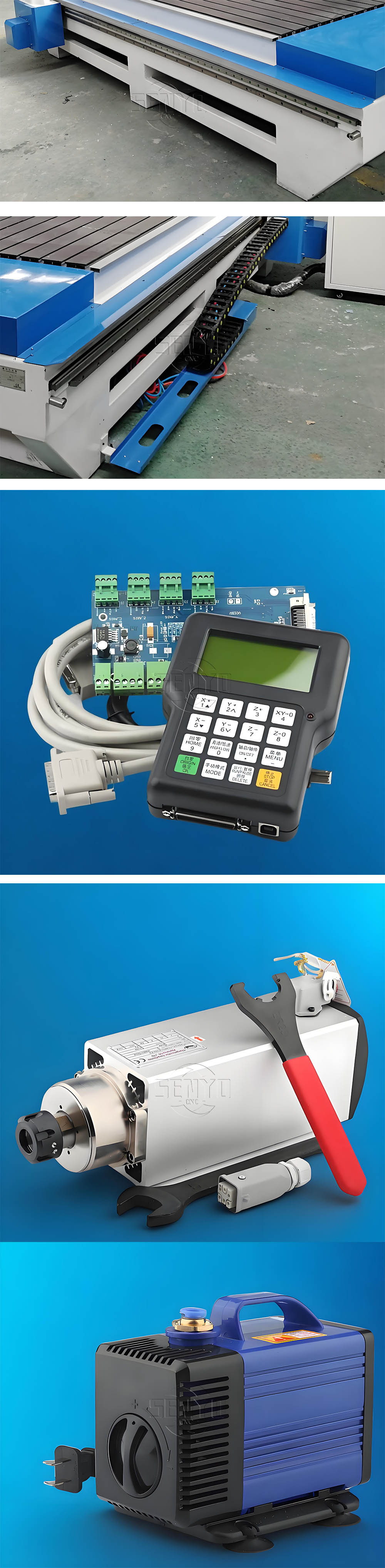

1530 cnc router PARTS.jpg

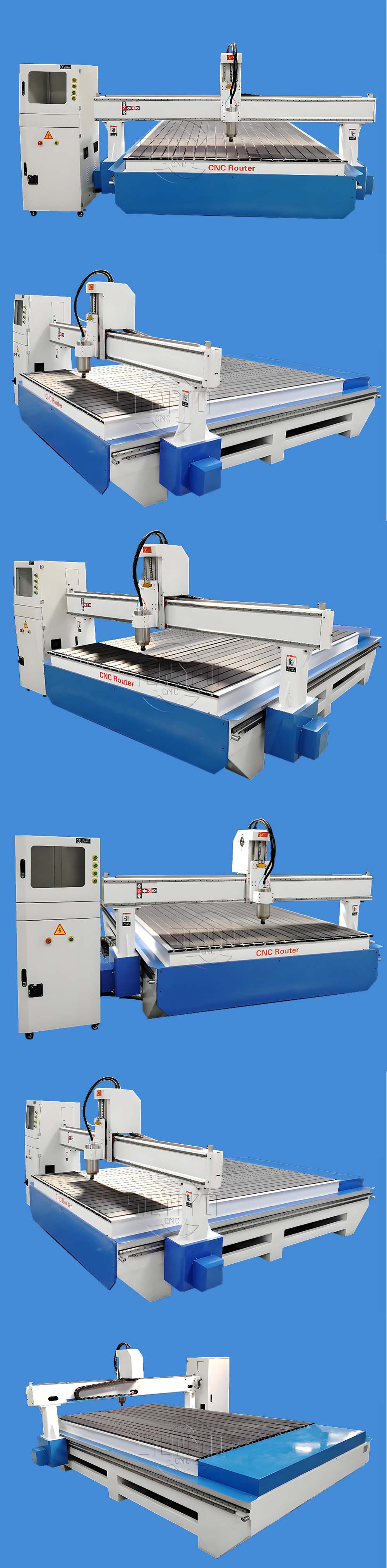

1530 cnc router  (7).jpg


Are Cheap CNC Router Kits Worth the Investment?

Whether or not cheap CNC router kits are a wise purchase depends on your needs, goals, and planned purpose. Cost-effective kits can help make beginning CNC machining more affordable, but there are a few things to keep in mind.

• Reduced Initial Cost: For those on a tight budget or novice users, inexpensive kits are an excellent option. They offer a free and low-cost method of learning CNC machining.

• Basic functions: Although they don't have the sophisticated capability seen in higher-end models, inexpensive kits may nevertheless do basic tasks like cutting, engraving, and carving. Usually, this is more than sufficient for beginners or easy projects.

• Structure: Cheaper kits may come with lower-quality, faster-wearing parts. More expensive technologies may require maintenance or upgrades sooner rather than later.

• Possibility for Learning: Assembling and using a low-cost CNC kit is a great method to get experience. You'll be able to learn practical skills and comprehend how the equipment operates.

• Limitations: These kits might not be suitable for highly exact work, large-scale projects, or labor-intensive activities. Your needs could become more than the equipment can handle.

Cheap CNC router kits could be helpful for starter projects, small-scale projects, or simple chores. At some point, investing in a more durable gadget for frequent or professional use can be wise



For Our Work Steps:

1.Before-sale,we will try to know your requirement about our cnc router specification and what kind of work

you will do .then we will offer our best solution for your requirement.

2.During production: we will send photos of machines during making. so you can know more details about

the procession of making your machines.

3.Before shipping,we will take delivery photo and confirm  the specification of order to avoid the mistake.

Machine will be adjusted before it is delivered.

4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the

approximate date of arrival.

5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .

6.About teaching:  there are some manual and video about how to use machine , if you have question

about it. we will have professional technicist to help you install and teach how to use through skype ,

calling, video or mail.


Packing & Shipping

1. Outside package: Standard plywood package.

2. Inner package:Stretchy film and plastic protective film for humidity.

3. We can package according to your requirements.

For standard machines, 7-15 working days after payment.

For LCL Shipping (Less than Container Load),it is recommended to use export standard fumigation-free wooden boxes, which are stronger and suitable for long-distance transportation.

For FCL Shipping (Full Container Load),it can be loaded directly at the factory without wooden boxes, and the maximum number of machines can be loaded to reduce costs.




Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.
