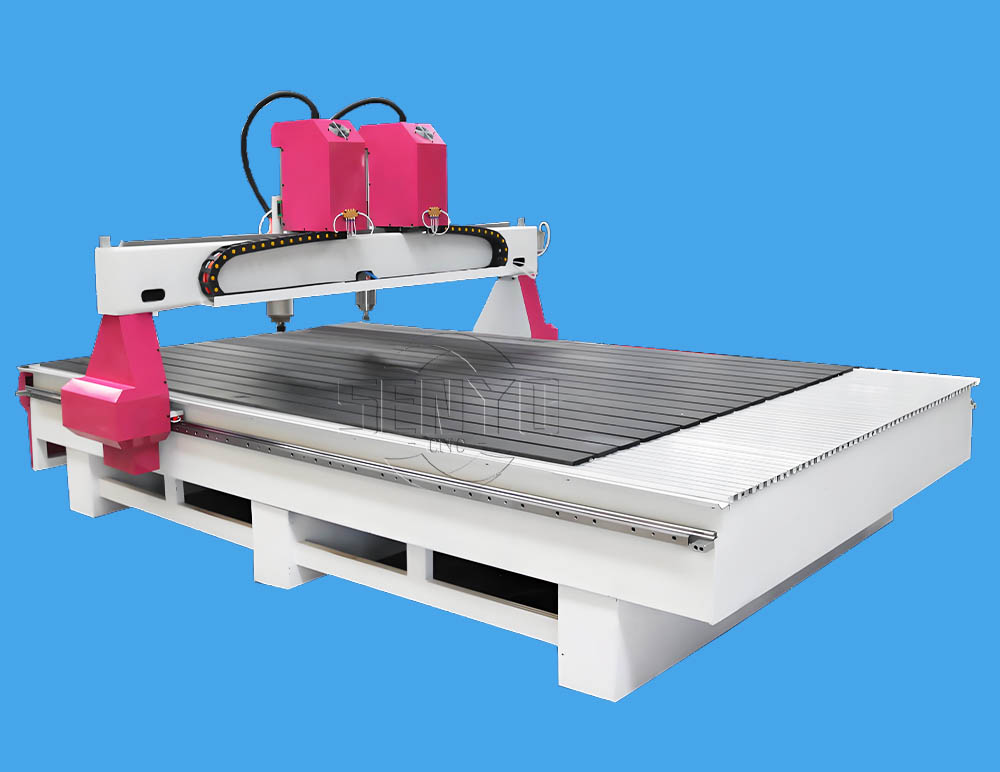

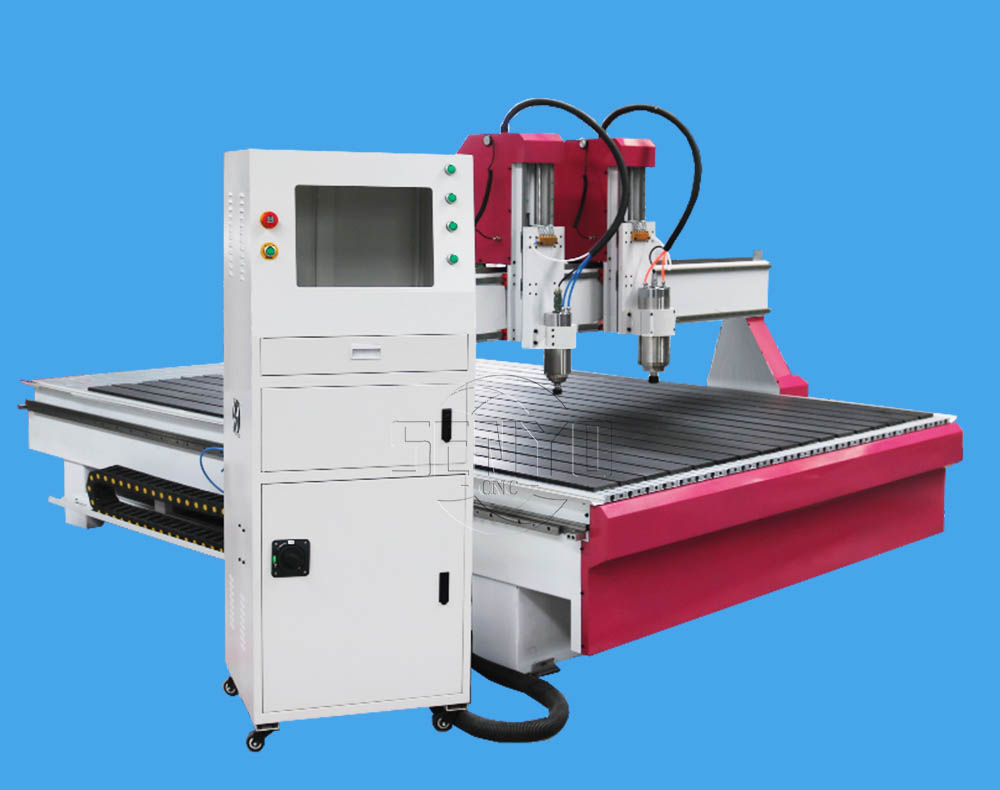

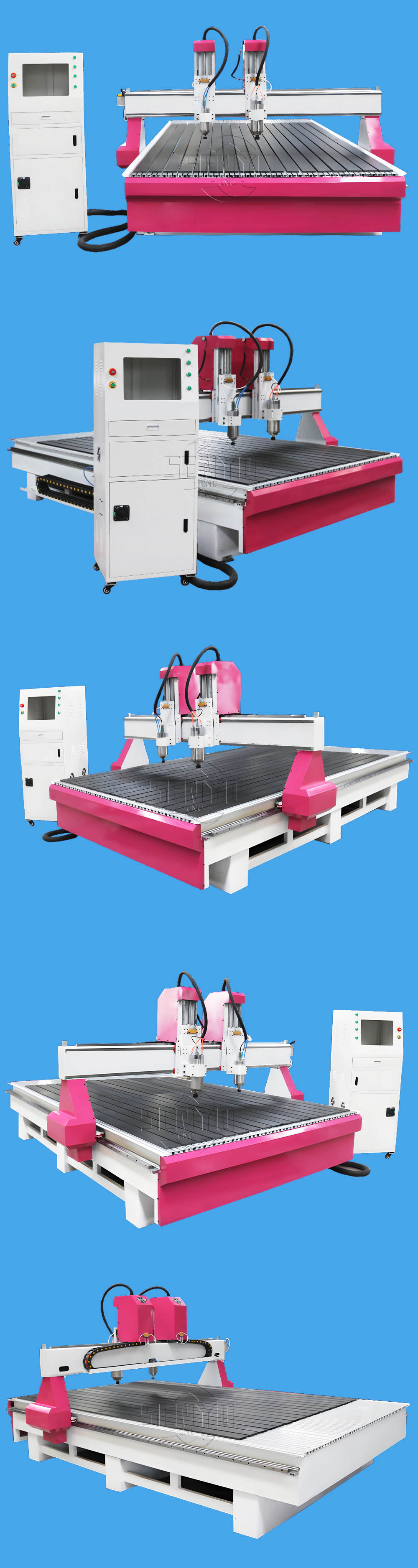

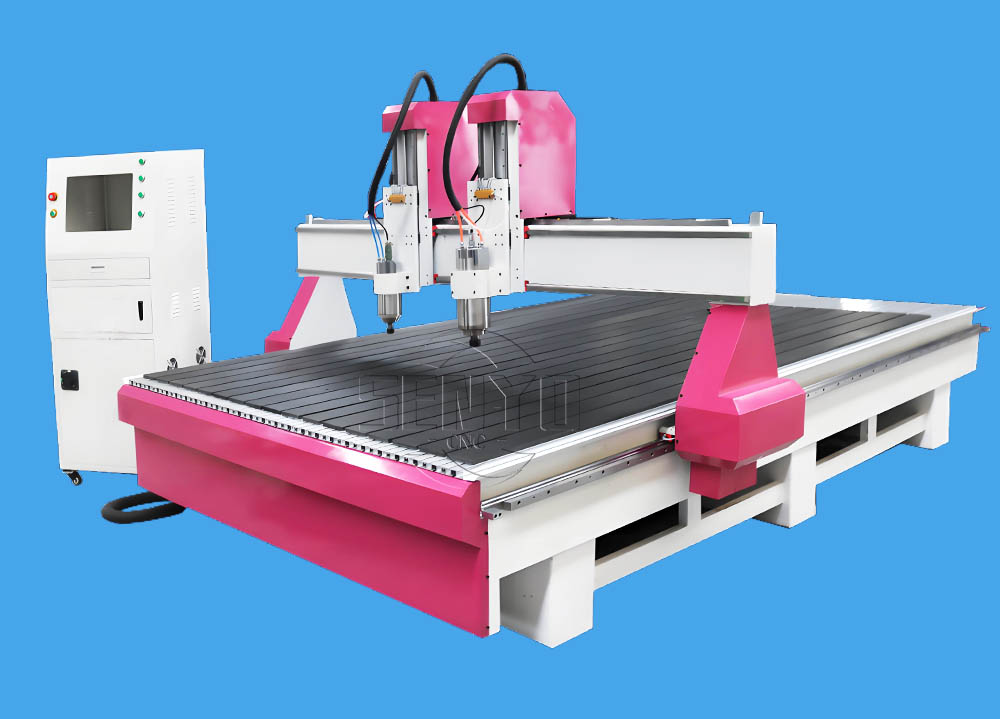

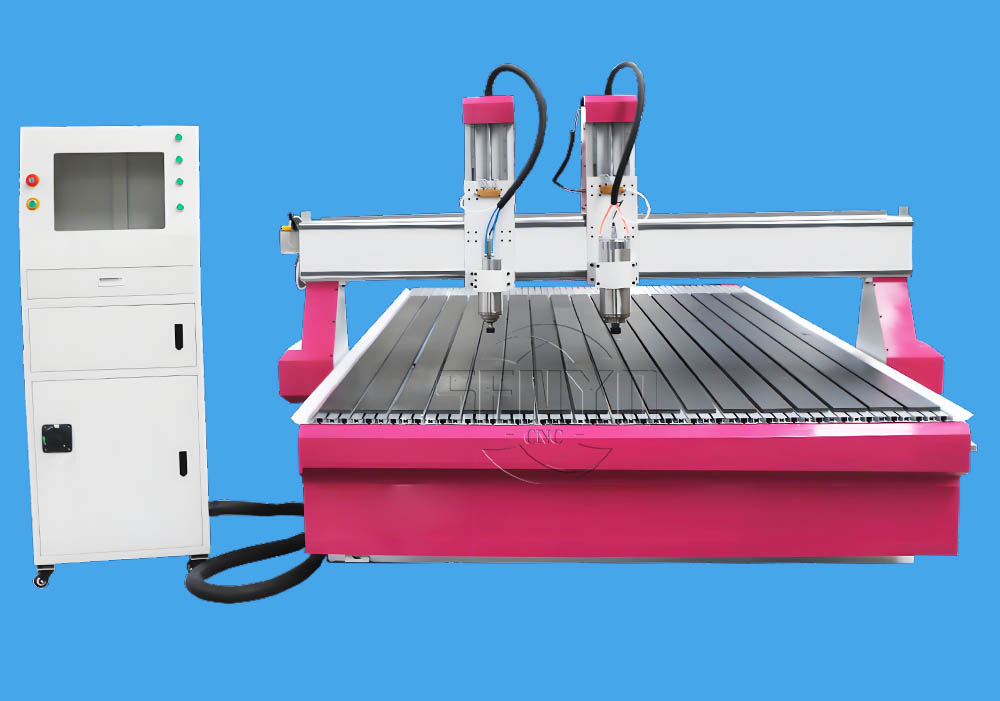

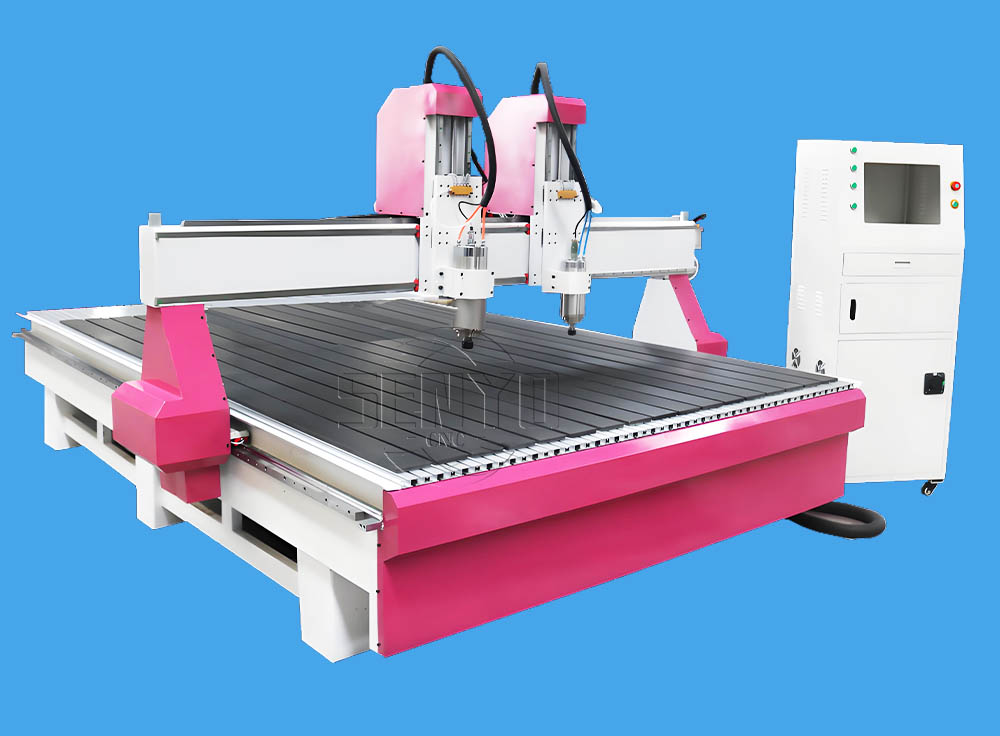

Advantages of Dual Spindles Wood CNC Machine
5x10 wood CNC machine with two spindles is customized for changing the tools within 2-4 pieces. It's not only economic, but also can realize automatic tool change, save the time of manual tool change and improve the working speed and precision. And it can cut two work pieces at the same time to reach the same effect. What's more, this wood CNC machine could mirror-sculpture (same engraving path, but in opposite directions) by changing the cables, which is widely used for door making.
CNC router 1530 with 5x10 is popular for
woodworking, cabinet making, home decorations, mold making, sign making,
arts, and crafts.
Now the best budget 5x10 CNC wood router machine for sale at affordable price.

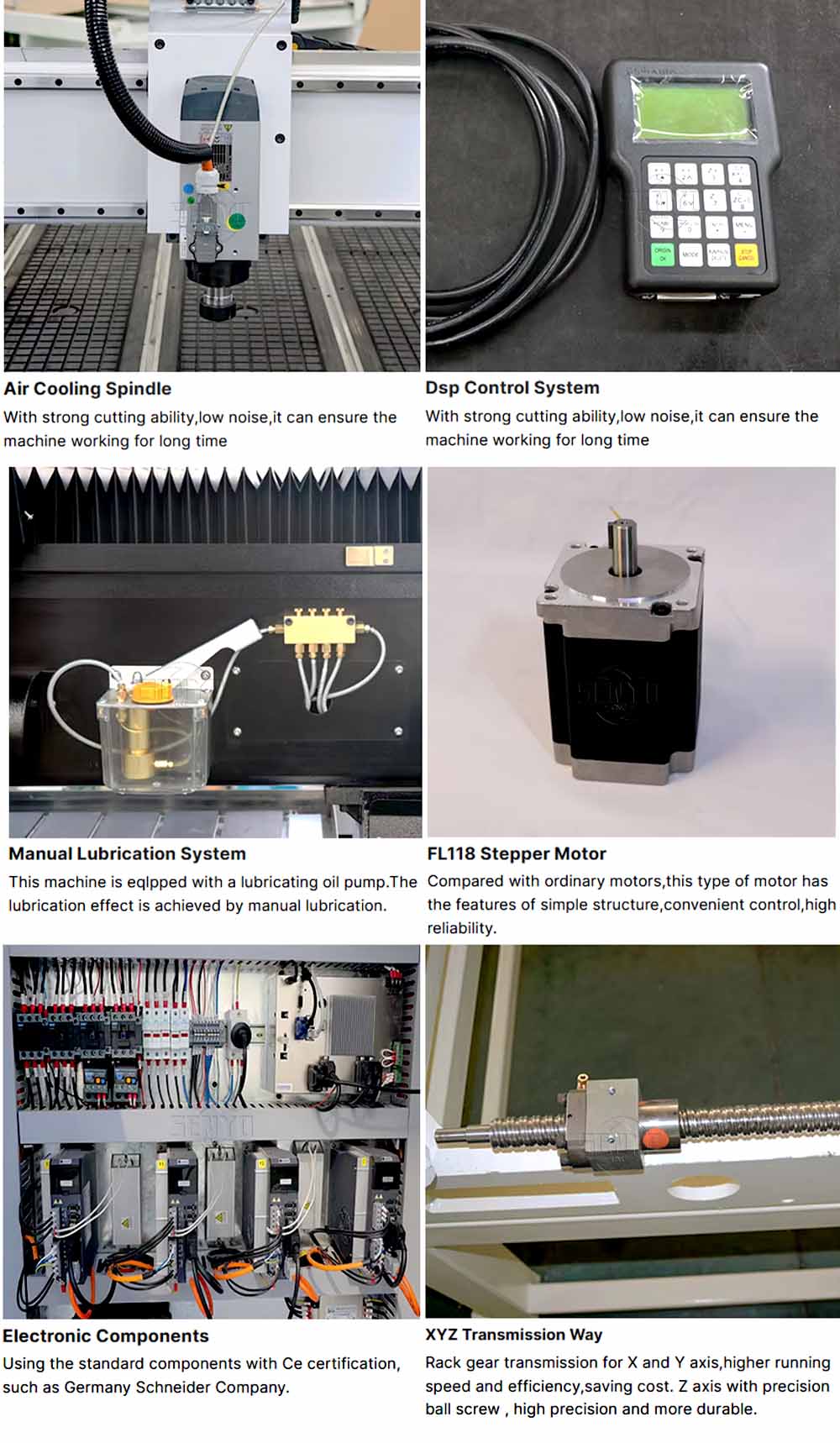

Machine Features
◆ Adopting a heavy-duty machine frame formed by CNC planer-type milling machine provides much stronger strength and stability.
◆ High accuracy Hiwin linear guide , high accuracy helical gear rack transmitting, higher stability and precision
◆ Enlarged cast iron supporting frame, ensure transmission stability
◆ Featuring advanced FPGA-based color LCM or online special control system, independent power supply, and strong anti-interference performance for rapid calculations.
◆ Support transmitting file from USB flash disk directly, multiple files can be saved simultaneously
◆ Has power off restoration, continue processing at break point, auto tool height adjusting device, repeat processing, support 9 coordinates setting, user friendly design
◆ Standard configured 3kw air cooling spindle motor, high power, high efficiency.
◆ Be compatible with many CAD/CAM software like Type3/Artcam/Casmate/Proe/UG/Artgrave etc
◆ Independent control cabinet, strong and weak electricity separated, easy maintenance
◆ Can optional the vacuum system and dust collector system
Techology Paramaters
Model | SYM1530A2-2H T Slot table |
X, Y Working size | 1500*3000mm |
Z feed Height | 200mm |
Table Surface | T-slot table |
X, Y Structure | Rack and Pinion, Linear Square Guide Rail |
Z Structure | Linear Square Guide Rail and Ball Screw |
Max. Power Consumption | (Without spindle) 2.0Kw |
Spindle Power | 3kw Air-cooled spindle |
Inverter | Folinn/Best |
Drive Motors | Stepper motor and driver |
Oil Lubrication | Include |
Voltage | AC380V/220V 50/60Hz |
Control System | DSP control system |
Optional Parts | 1. different type spindle (air colling spindle or water cooling spindle) 2. 3KW to 9KW is optional 3. High-grade cooling system (chiller, it has alarming system) 4. double-head or ATC 5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles, logs etc) 6. servo motors (China brand or Japan brand) 8. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc) 9. NC studio control system or DSP a11 controller 10. other customerized features like color outlook ,vacuum pump 11 Aluminium T-slot table and vacuum table is optinal Note: Above are the main optional, not all the machines can add above optional, please contact us, we will give you suggestions, thanks. |
Multipurpose CNC Wood Cutting Machine Applications
1. Furniture Making: Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2. Woodworking: Voice box, game cabinets, computer tables, sewing machines table, instruments.
3. Plate Processing: Insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4. Decorations: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
It is suitable for carving and making of wooden doors and furniture. Machines can sculpt all kinds of patterns.
1) Mould: wood,wax, wood, gypsum,foams,wax.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments
Project Working Pictures
Packing & Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
For Our Work Steps
1.Before-sale,we will try to know your requirement about our cnc router specification and what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,
calling, video or mail.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
