Product Introduction

Buyer's Reviews
How Does It Work?5x10 CNC router drives the X, Y, Z three-axis linear motion with the computer, and controls the tool with the spindle on the Z axis to cut along the tool path designed by the CAD/CAM software, and finally cuts the designed pattern on 5 feet x 10 feet plywood and sheet goods for woodworking.
Demonstration Video


Product Descriptions

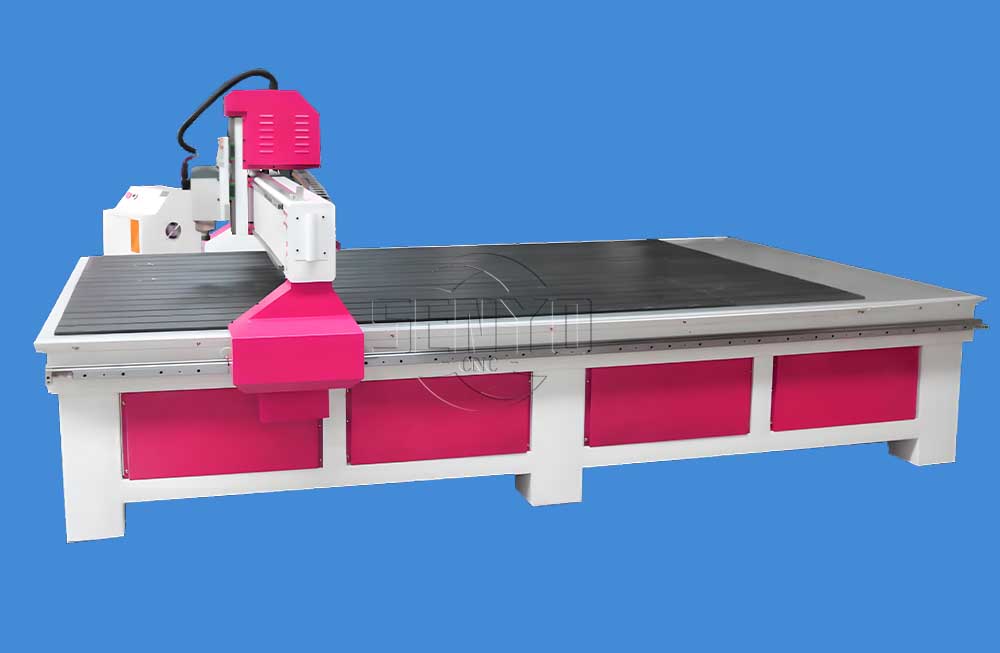

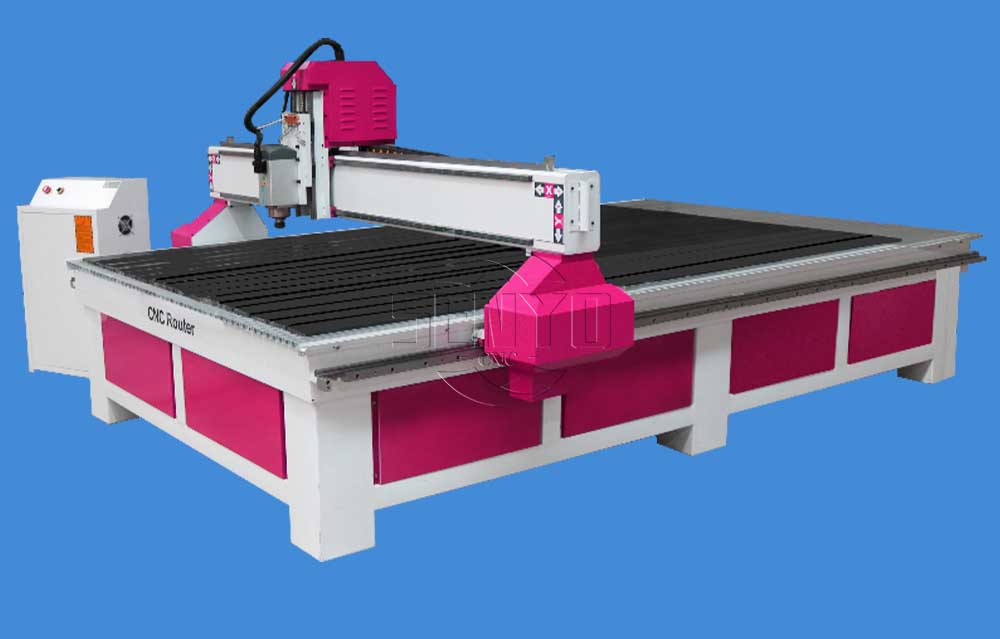

What Is 5X10 CNC Router?

5X10CNC router is one of the most popular computer numerical controlled machine tool with a handheld router as a spindle, and Option size 4' x 8' (48" x 96" in inches) table top for full sheet woodworking, which is also known as 48x96 CNC router table kit, 1325 CNC router machine. 4x8 stands for the table size with 4 feet (48 inches, 1300 millimeters) in width, and 8 feet (96 inches, 2500 millimeters) in length, which is also known as 4' x 8', 4 by 8, 4 feet by 8 feet, 4 ft x 8 ft, 48x96, 48" x 96", 48 inches by 96 inches, 1325, 1300mm x 2500mm, 1300mm*2500mm, and 130cm x 250cm.

It is an automatic professional CNC machine for woodworkers all over the world, which is ideal for cabinet making, door making, furniture making, sign making, logo making, wood crafts making, decorations, and most woodworking projects & plans.


1530 CNC ROUTER (1).jpg

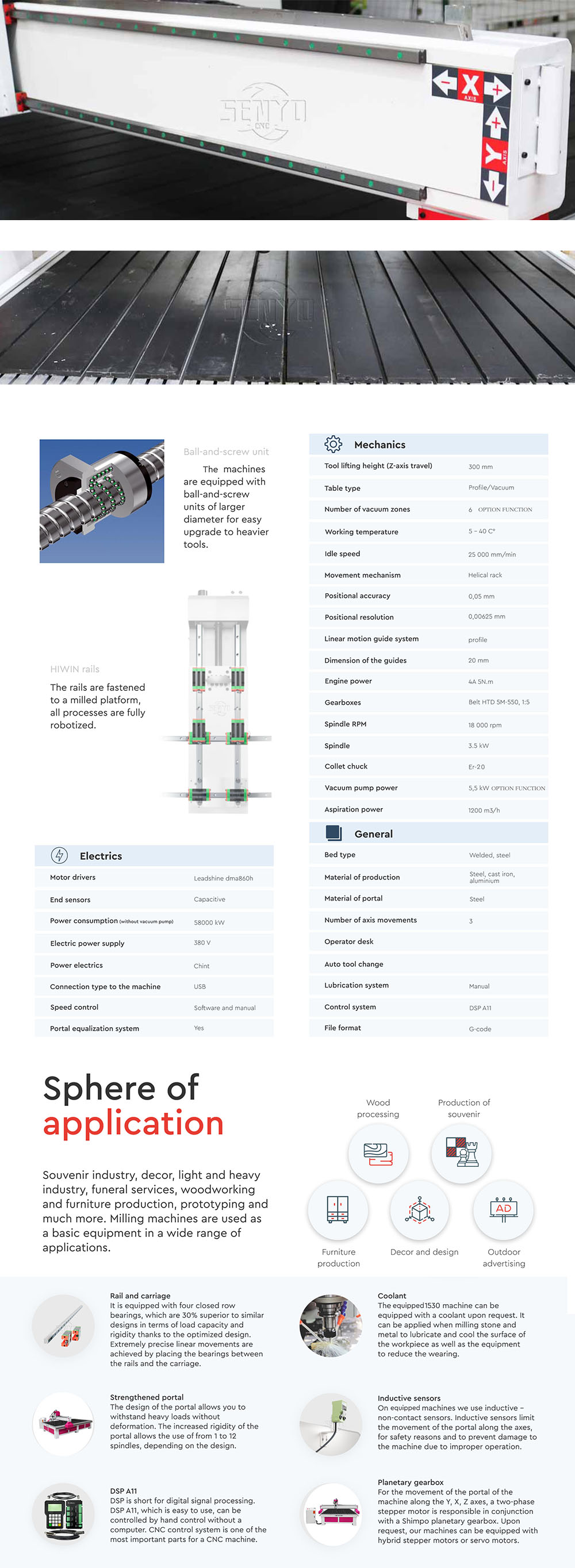

Advantages & Benefits

5x10 CNC machining is capable of higher accuracy & precision, improved safety, faster speed, greater versatility & flexibility, increased productivity, repeatability, and cost-effective in most applications from home shops to industrial manufacturers.

• The bed frame is constructed from thick-walled steel pipes. The bed has undergone finite element analysis (FEA) and designed to provide a rigid and stable processing platform for the machine tool, and all bed components have been stress-relieved before the bed is processed.

• High-precision ball screw which moving smoothly to ensure the machine's high precision.

• High-performance driver motor to ensure the machine's high speed and accuracy.

• Perfect design and high quality accessories to minimize the machine's failure rate.

• Breakpoint specific memory to keep the carving status when power off, machining time forecast and other functions in case of the accidental power outages.

• The table top adopts vacuum adsorption table top, which is made of bakelite, which is resistant to high temperature and corrosion, and can strongly absorb wood, MDF, and non-metallic materials with different sizes. The vacuum adsorption table is divided into six machining areas, which can be processed in a single area or at the same time, which has improved the working efficiency.

• The embedded DSP numerical control system adopts USB transmission, which can realize the function of continuous carving and power-off memory. The standard 128M flash memory can realize completely offline operation, processing time prediction and other humanized functions, and the performance of relief carving is excellent.

• Most professional CAD/CAM software compatibility. The creative works are compatible with most free and paid graphic design software (e.g. AutoCAD, AlphaCAM, PowerMill, MasterCAM, ArtCAM, Fusion 360, hyperMill, UG & NX, SolidWorks, SolidCAM, BobCAD, Solid Edge, ScultpGL, K-3D, Antimony, DraftSight, CATIA, Smoothie 3D, CAMWorks, SprutCAM, HSM.).

• It can cut a full 5x10 sheet of plywood, MDF, wood, or aluminum with high cutting speed.

1530 CNC ROUTER (8).jpg


Applications

The 5x10 CNC router can easily carve and cut everything from soft wood and acrylic to hard stone and glass, as well as cutting and milling aluminum and copper. In terms of size limitations, it can handle everything from small-sized projects to full-sized projects up to 4 feet by 8 feet. In terms of application, it can be used in small businesses, integrated into large-scale industrial manufacturing, and even used for education, training and scientific research.

• Furniture Making: Cabinets, office furniture, home furniture, chairs, tables, doors, and windows.

• Woodworking: Computer tables, game cabinets, voice box, sewing machines table, music instruments, wood balusters & spindles, table legs, and some cylinder woodworking projects.

• Decorations: MDF, organic glass, artificial stone, PVC, acrylic, plastic and soft metals such as aluminum, copper, brass cutting and milling.

• Industrial Manufacturing: Sign making, plastic chemical components, insulation part, bowling tracks, inner body of car, stairs, epoxy resin, anti bate board, PCB, ABS, PE, PP, and other carbon mixed compounds.



Woodworking Materials

wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk,
musical instruments,etc;
Advertising:
billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox mold,
stamp, mould, etc;
Die industry:
copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC, etc;
Decoration:

acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.

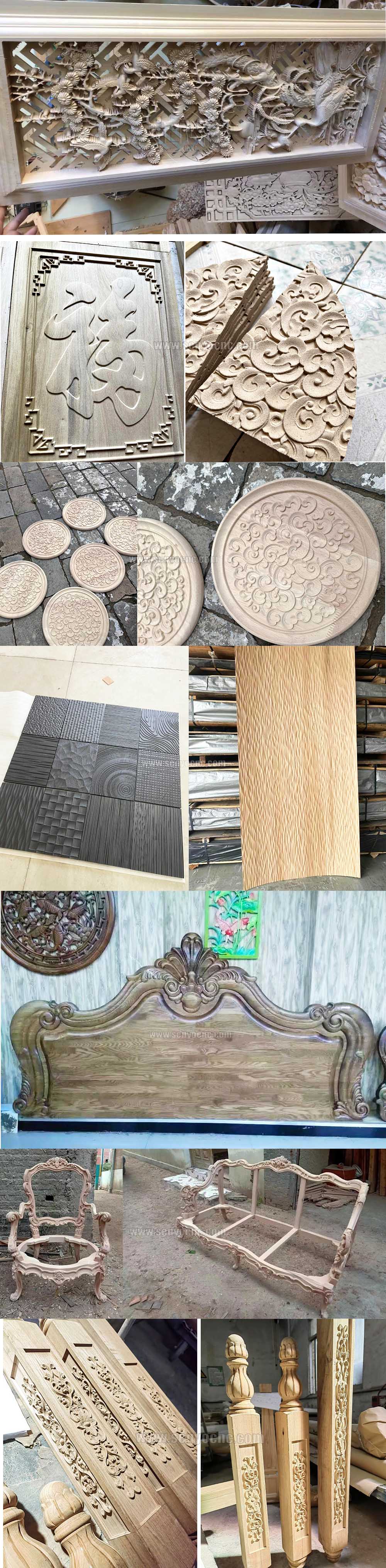

Working Project Show




Technical Parameters

ModelSYM1530A1-T slot Worktable
Working Area1500x3000x200mm
Table Size5x10 feet (1500x3000mm)
Traveling Positioning Accuracy±0.03/300mm
Repositioning Accuracy±0.03mm
Table SurfaceT-slot Table(Option:Vacuum and T-slot Combined)
FrameWelded Structure
X, Y StructureHiwin Rail Linear Bearings, Rack and Pinion Drive
Z StructureBall Screw, Hiwin Rail Linear Bearings
Max Power Consumption3.0KW (Without Spindle)
Max Rapid Travel Rate33000mm/min
Max Working Speed25000mm/min
Spindle Power3.0KW 3.5KW
Spindle Speed0-24000RPM
Drive MotorsStepper System
Working VoltageAC380V/50/60Hz,3PH (Option: 220V))
Command LanguageG Code
Operating SystemDSP System (Options: NCstudio/Mach3 PC Software)
Computer InterfaceUSB
Flash Memory128M (U Disk)
ColletER20
X, Y Resolution<0.03mm
Software CompatibilityType3/UcancameV9 Software (Option: Artcam Software)
Running Environment Temperature0 - 45 Centigrade
Relative Humidity30% - 75%
Packing Size3300X2220X1800mm
N.W.1400KG
G.W.1680KG
Optional PartsAir Cooling Spindle
Dust Collector
Vacuum Pump
Easy servo motor
Mist-cooling System
Yaskawa servo motor

Packing & Shipping

1.  Outside package: Standard marine export plywood case.


2.  Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.

   Improved package, much more strong and environmental protection.





For Our Work Steps

1.Before-sale,we will try to know your requirement about our cnc router specification and what kind of work

you will do .then we will offer our best solution for your requirement.

2.During production: we will send photos of machines during making. so you can know more details about

the procession of making your machines.

3.Before shipping,we will take delivery photo and confirm  the specification of order to avoid the mistake.

Machine will be adjusted before it is delivered.

4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the

approximate date of arrival.

5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .

6.About teaching:  there are some manual and video about how to use machine , if you have question

about it. we will have professional technicist to help you install and teach how to use through skype ,

calling, video or mail.



Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.
