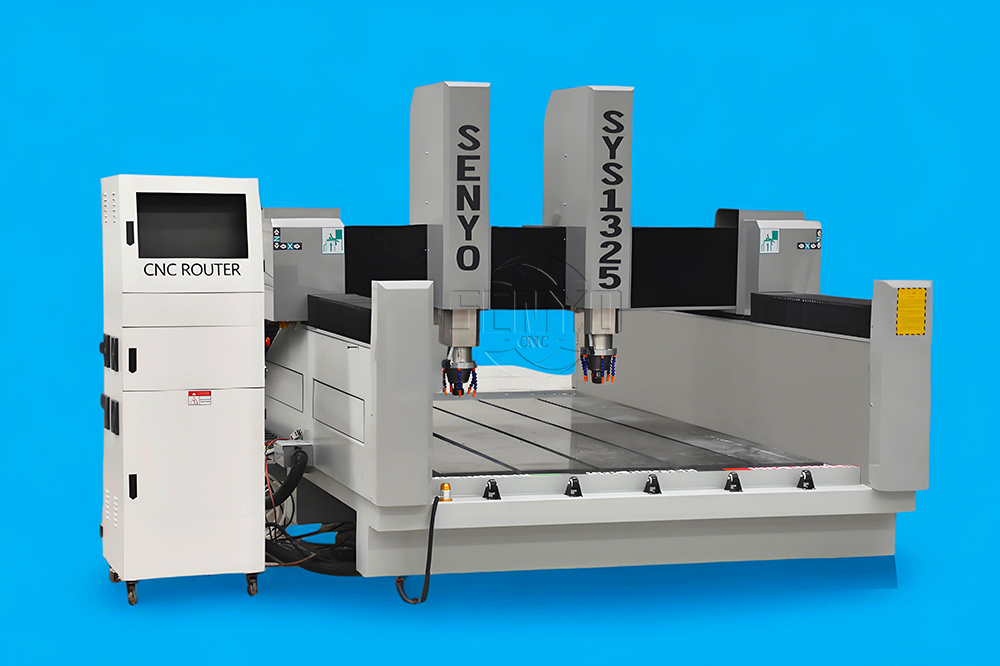

Main Features
1) Adopt NcStudio CNC control system large color screen display, easy and simple to operate.
2) Break to rusume function. Continue carving from break point after power resuming from failure.
3) Compatible with Artcam JD Paint CAM software and other software programs.
4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy..
5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption.
6) Aircraft-quality surface oxidized aluminum profile table which adding thicken PVC board, Enhancing the loading capacity of the platform.
7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.

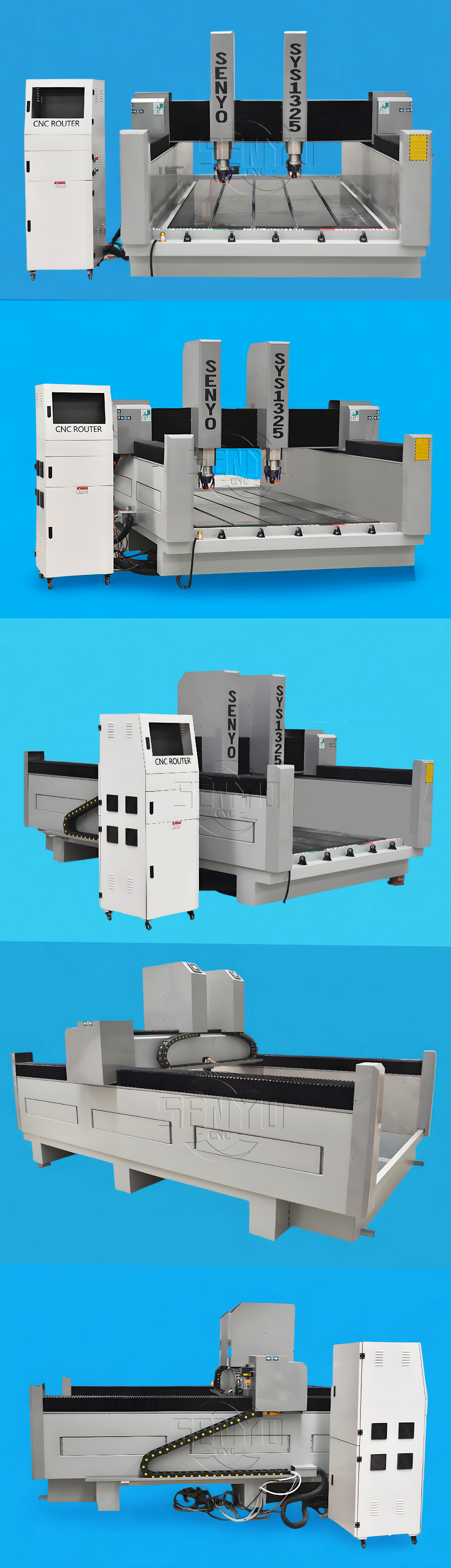

Parts Detials Introduce

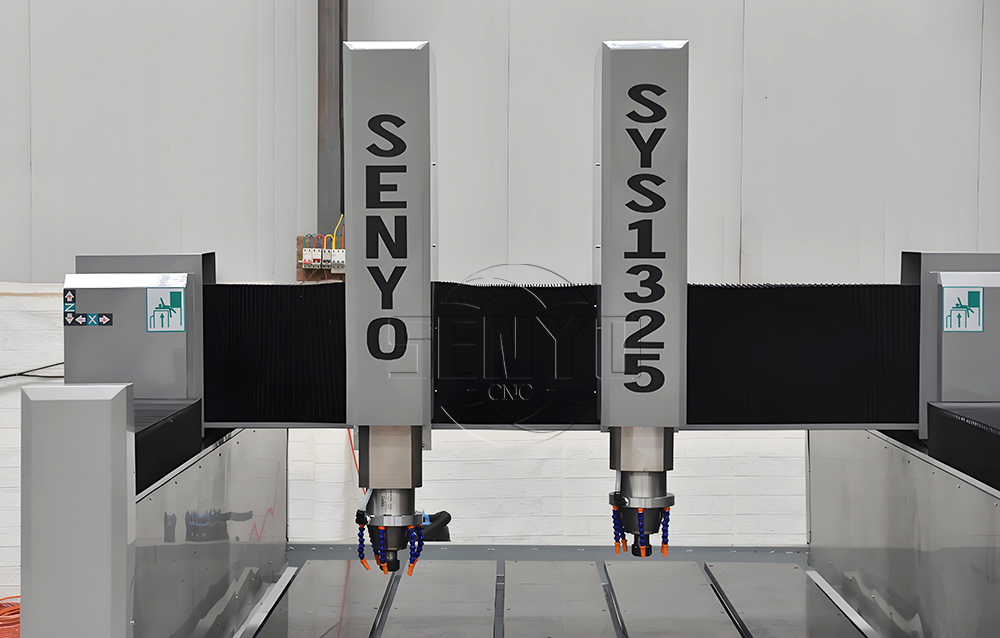

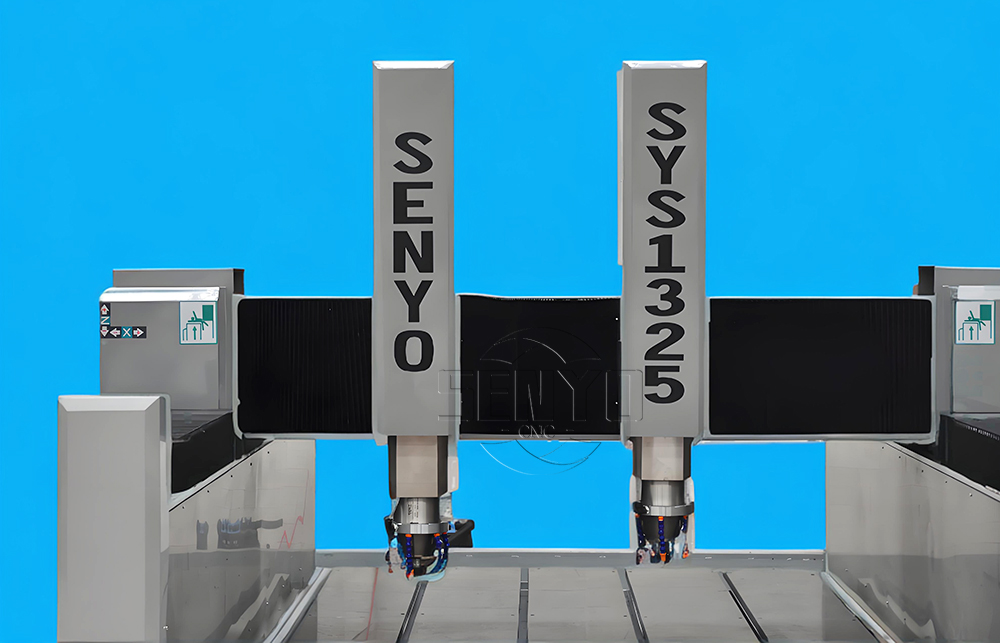

The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.

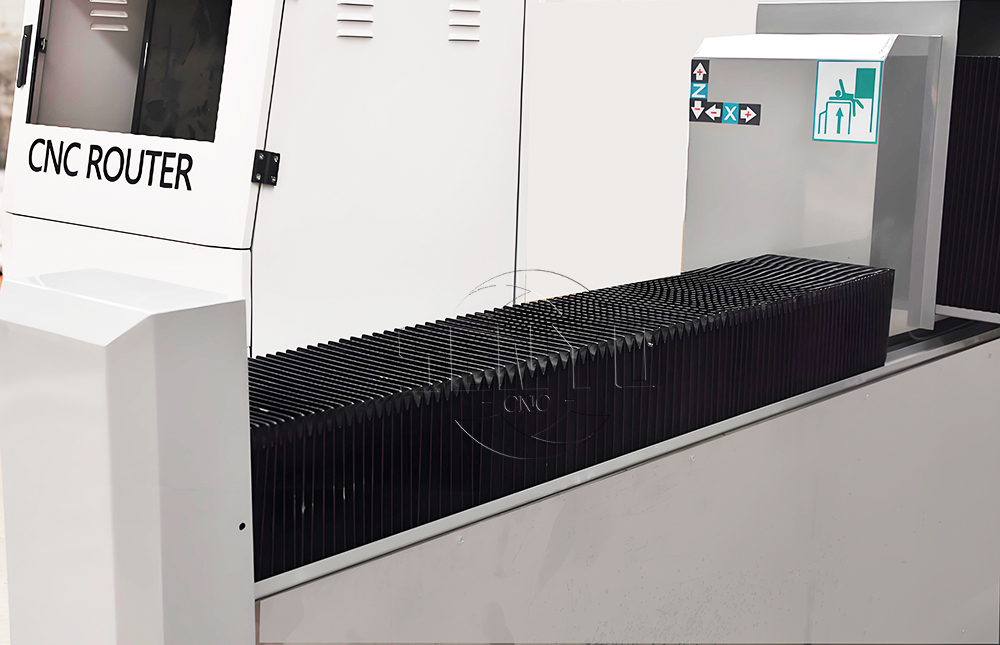

The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.
High-performance driven motor to ensure that the machines high speed and accuracy.

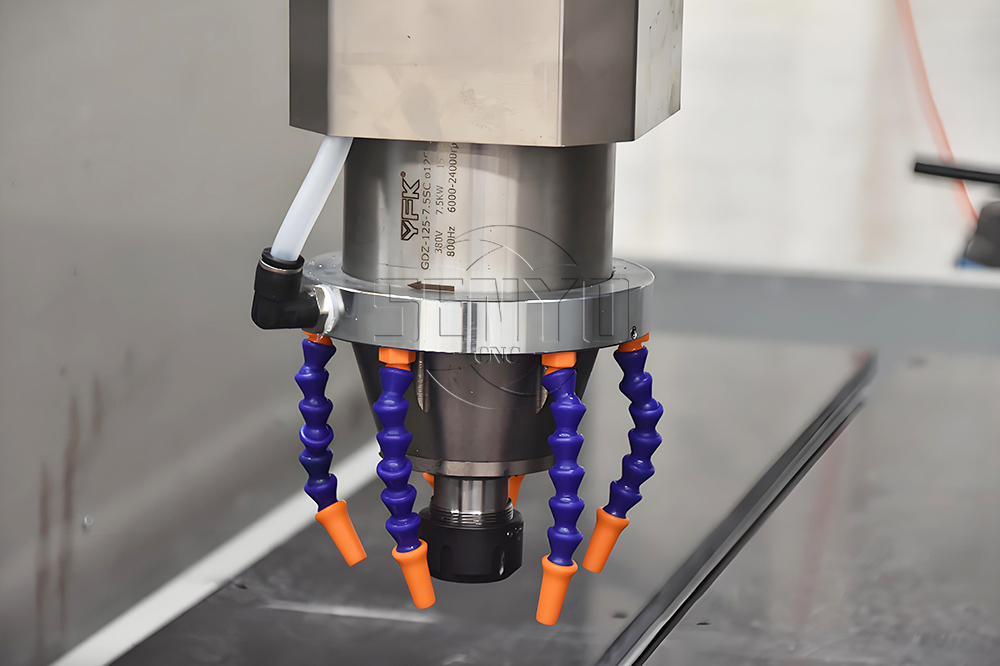

Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.

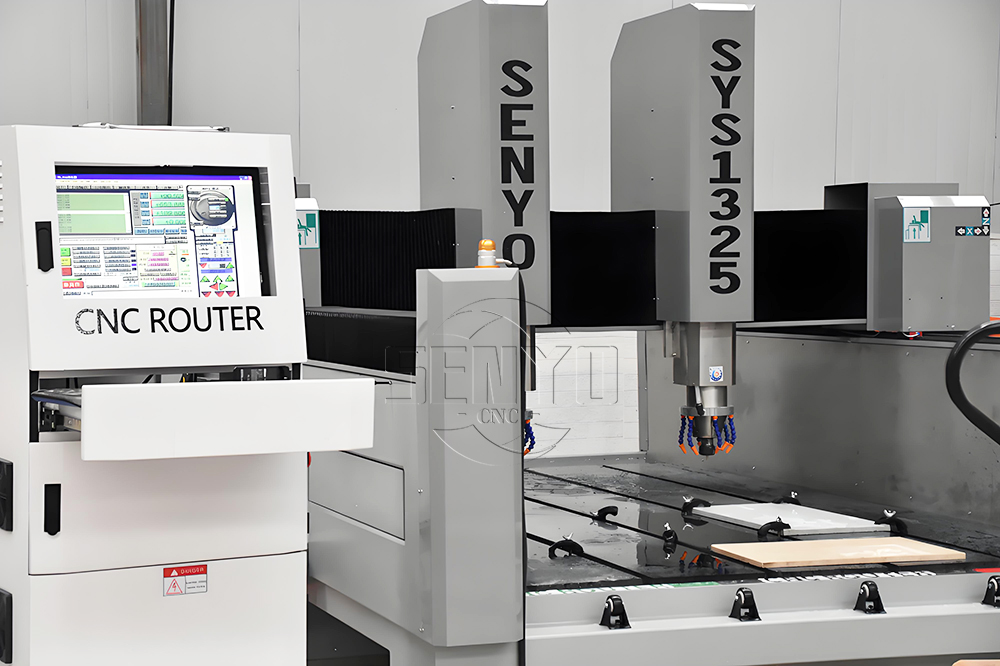

Easy to use Mach3 / NC Studio / DSP controller works with all industry standard CAD/CAM software.
High grade Hiwin square rail, XY axis German helical rack and pinion, Z axis high precision TBI ball screw.

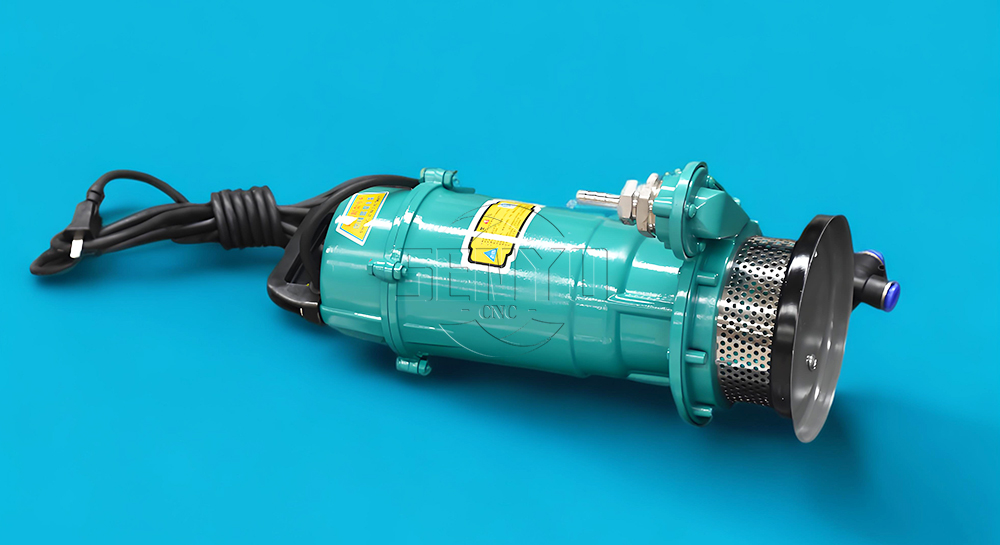

Powerful water pump for tool spindle cooling .

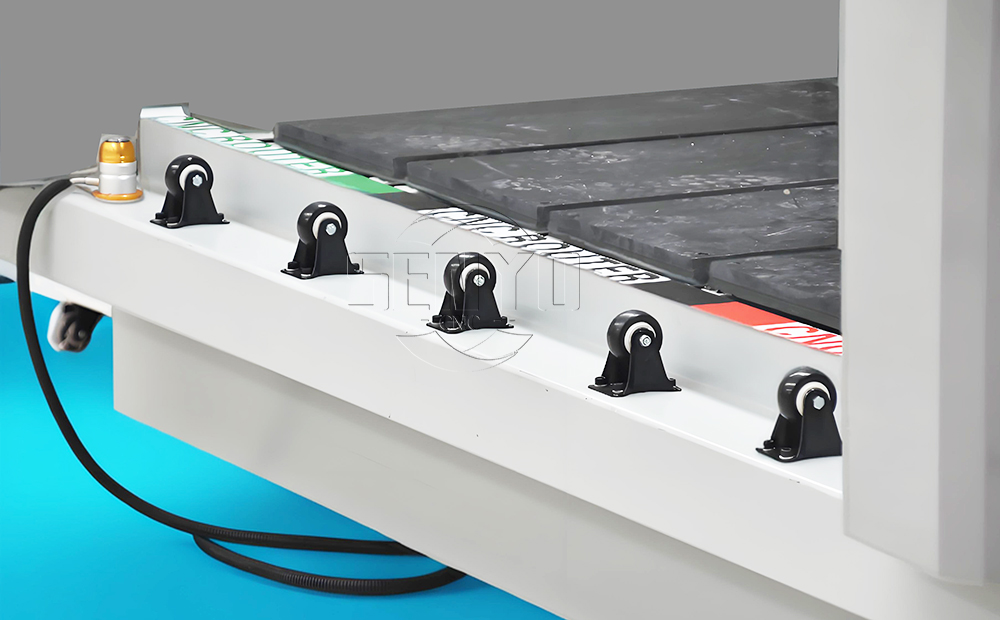

Table Roller for feeding materials uploading and downloading.
5.5KW Water Cooking spindle Best and Famous In china.

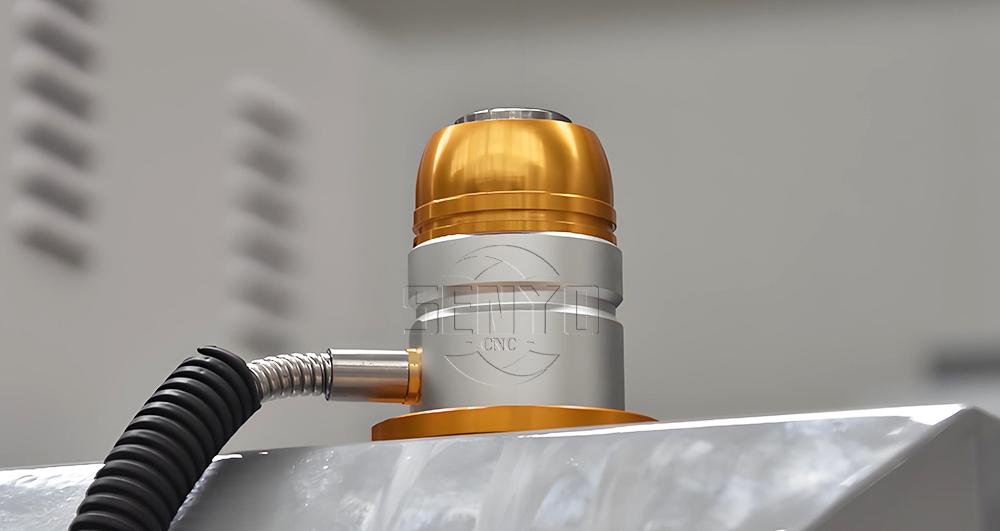

Automactic Tool sensor

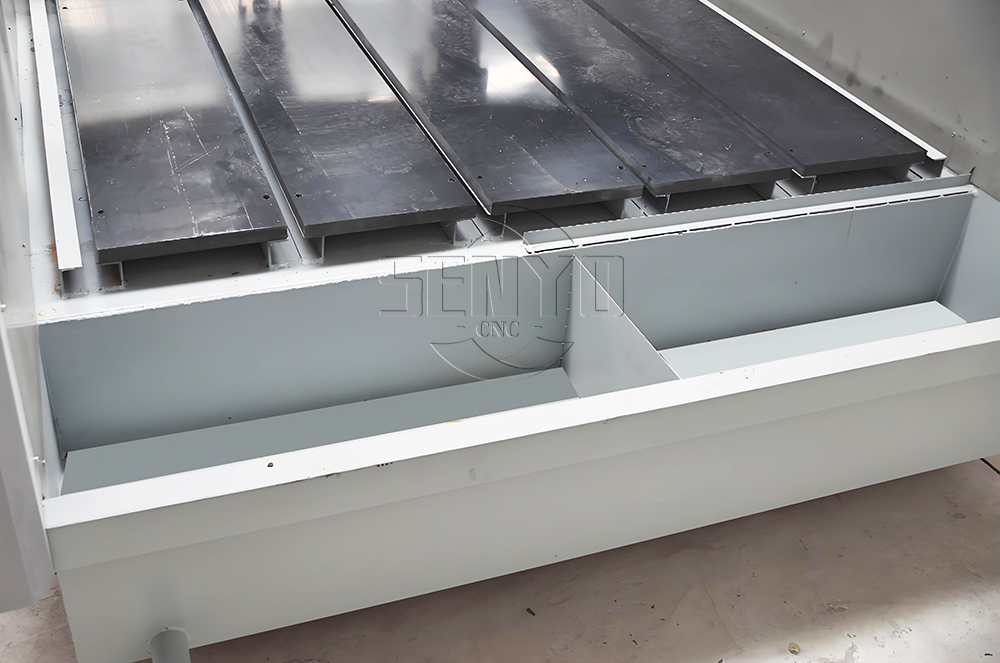

Water Tank Big size and useful Working for cycle the water cooling.
Application Materials & Industry

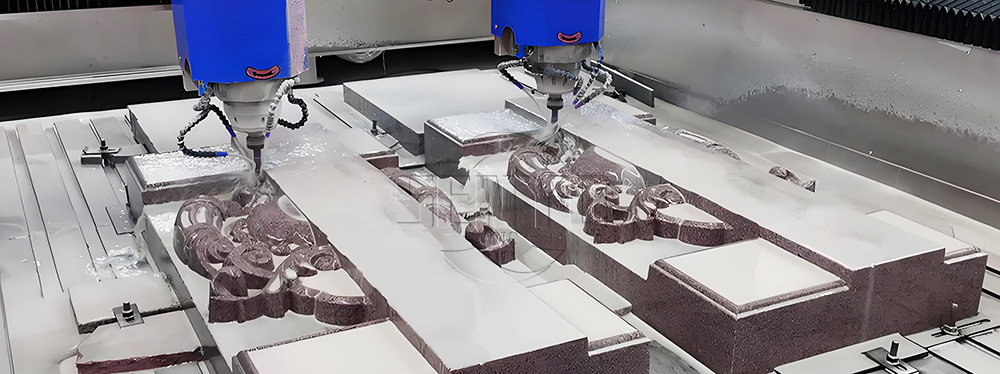

This stone CNC router craving machine mainly suit for stone, granite, marble engrave cutting work.
But it also suit engrave and cut on soft wood,hard wood, MDF, Aluminum and plastic composite panel.
Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum sheet etc.
1. Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,
Cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,
Blaster molding, and other advertising materials derivatives making.
3. Mold Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,
Plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

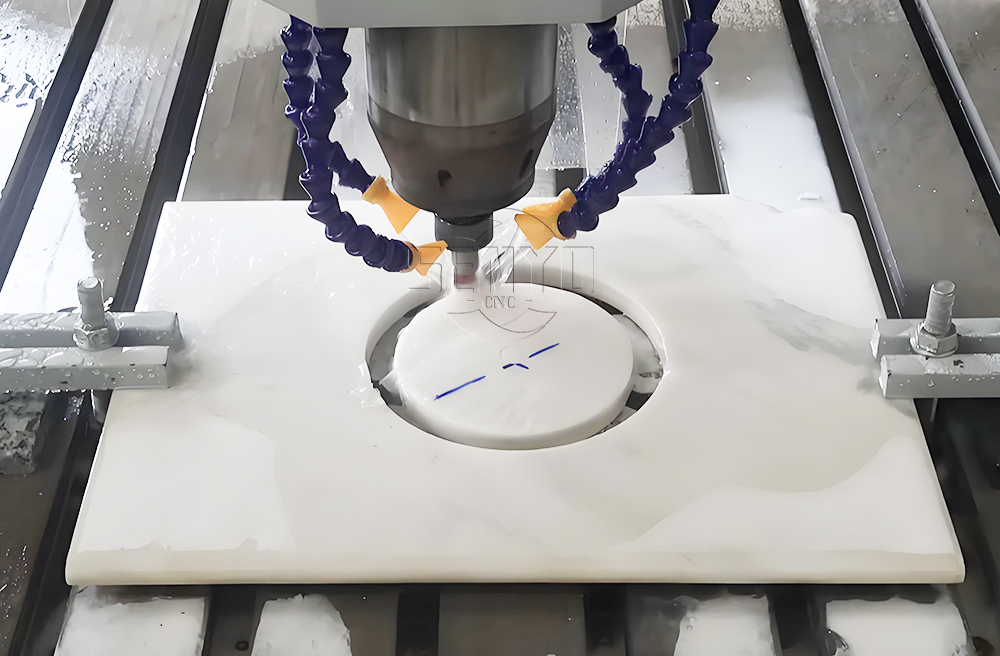

CNC Stone Carving Machine equipped with NCstudio CNC control system, is a reliable and versatile machine for engraving,
drilling, lettering, cutting all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass.
It's also workable for die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC , etc.

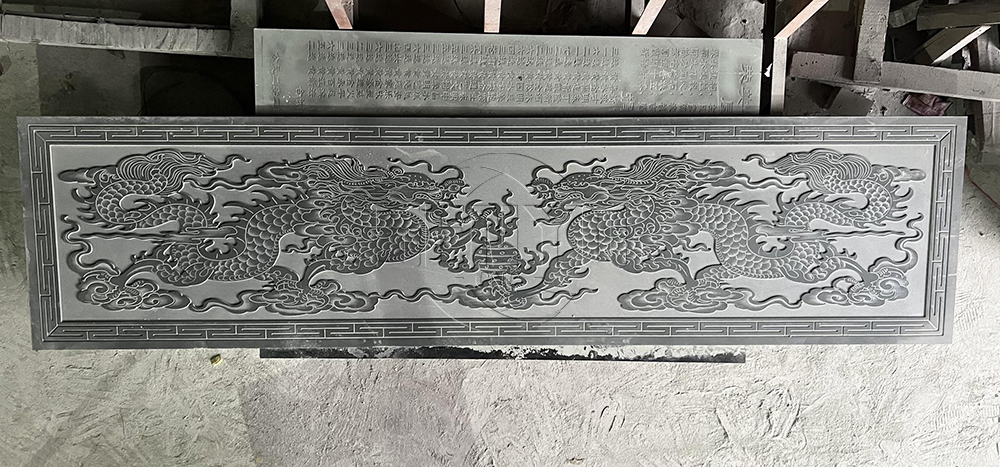

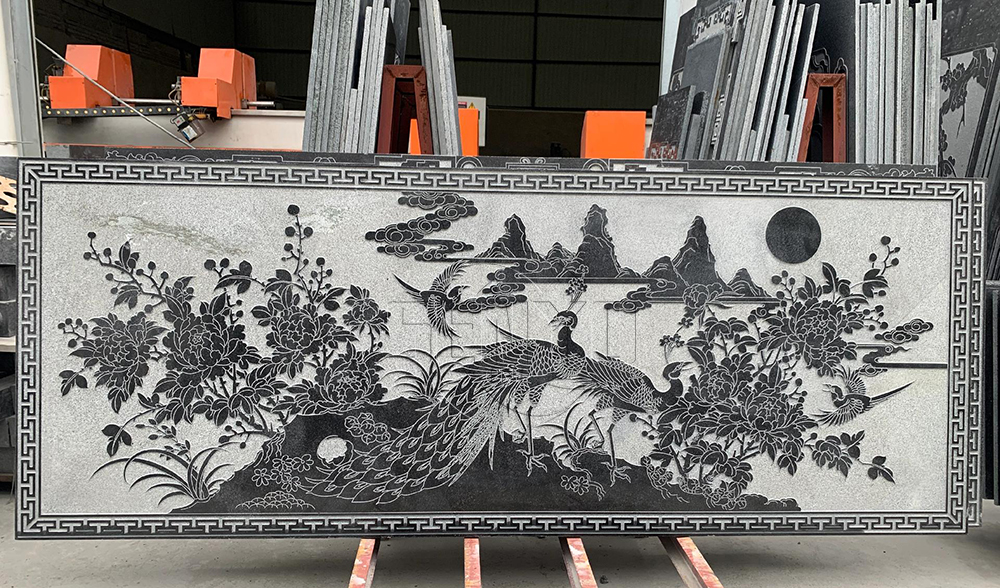

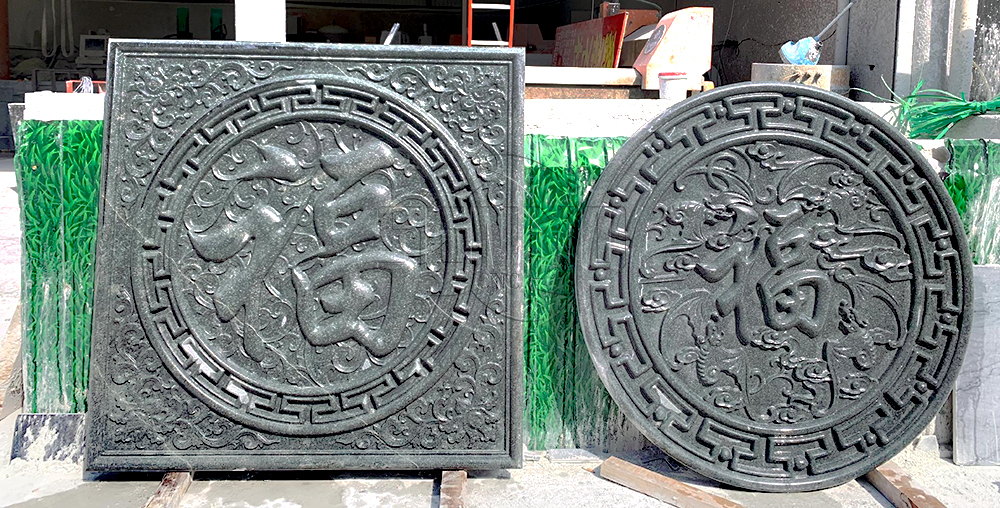

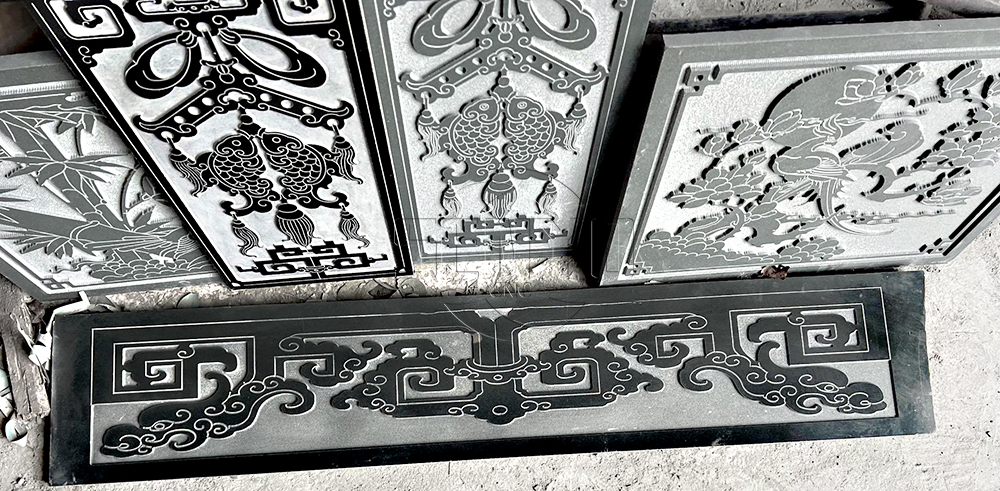

Machine Work Projects
Techology Paramaters
X Y Working area | 1300*2500mm |
Z axis travel | 300mm, option: 500mm, 600mm, 700mm, etc. |
Machine Body | 8mm thickness welded steel tube, cast iron vertical shafts and steel gantry |
Spindle | 5.5kw HQD water cooling |
Spindle speed | 24000rpm |
Driving motor | Stepper/Servo motor and driver |
Inverter | Fuling inverter |
Control system | DSP/NC Studio/ Mach3 |
Interface | USB |
Table Surface | T-slot aluminum+Good PVC |
Guide rail | Hiwin linear square guide rail |
Transmission | X/Y rack and pinion, Z ball screw |

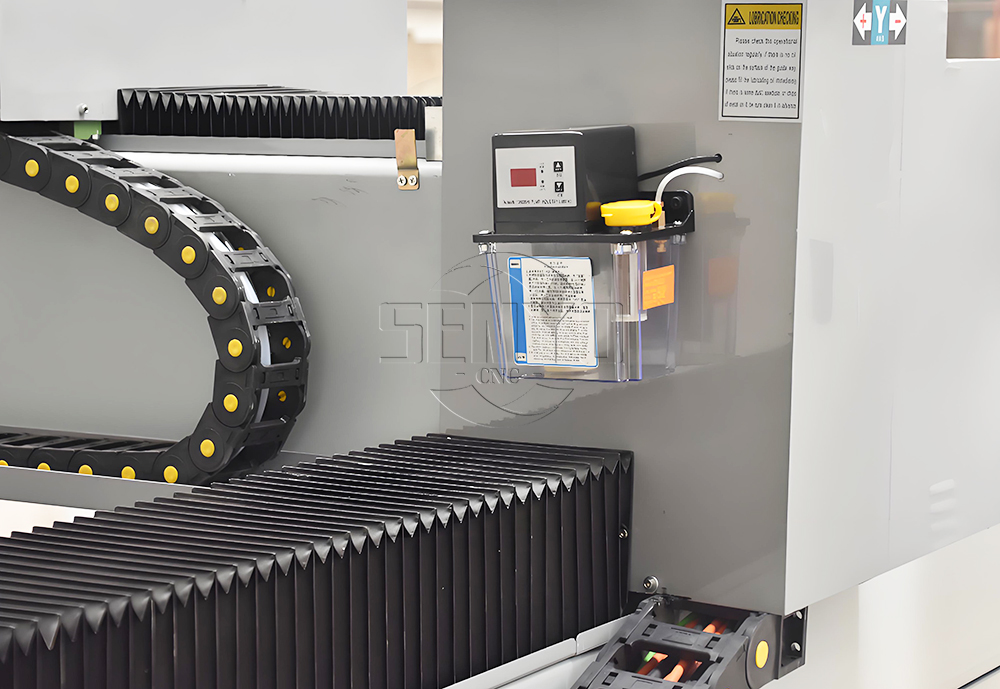

Lubrication system | Manual lubrication system |
Tool Calibration | Automatic tool sensor calibration |
Cables | Germany Igus cables with CE, cUL certificate |
Compatible software | Artcam, Powermill, Fusion 360, etc. |
Command language | G Code & M Code |
Traveling speed | 40m/min |
Working speed | 0-20m/min |
Re-positioning accuracy | ±0.03mm |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
For Our Work Steps
1.Before-sale,we will try to know your requirement what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.
Packing & Shipping
The machine is packed with great care and tough material.
The machine is packed with cling films first and then film bags.
The machine is packed with wooden case which is reinforced with the iron bar on the top and bottom.
With this kind of package, all our laser machine can protect well during long trip by sea or by train.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. If you need any component of the machine, we will provide most affordable price for you.
5. Friendly English version manual and operation video CD disk.
