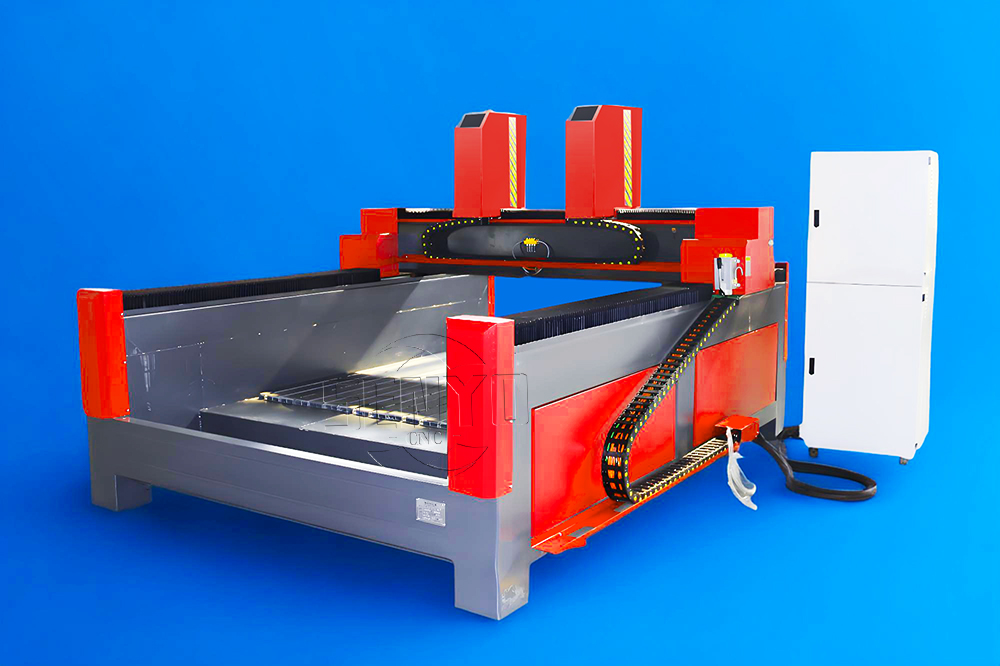

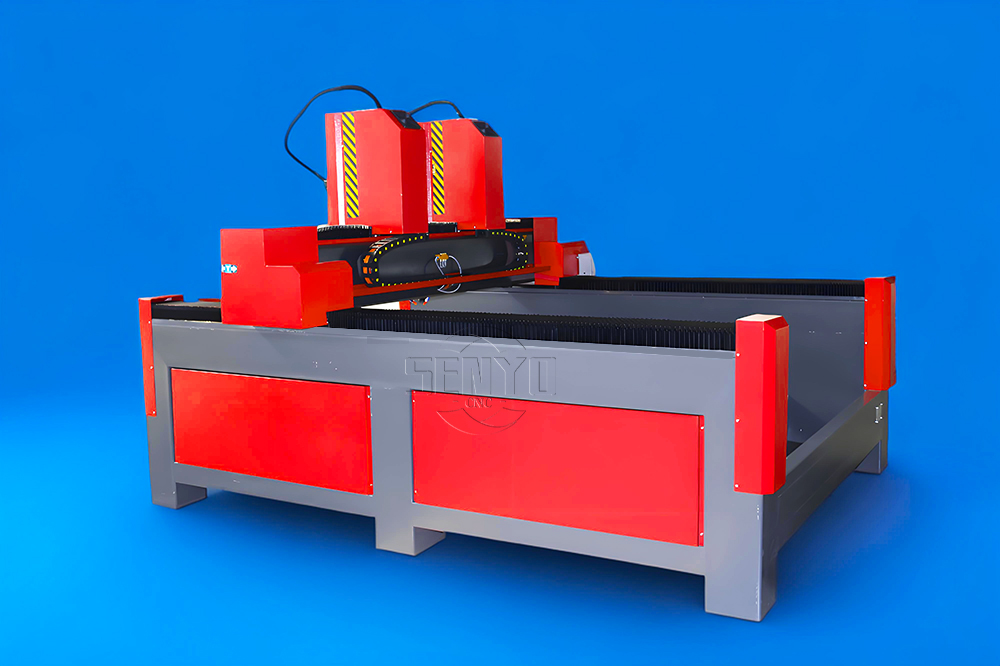

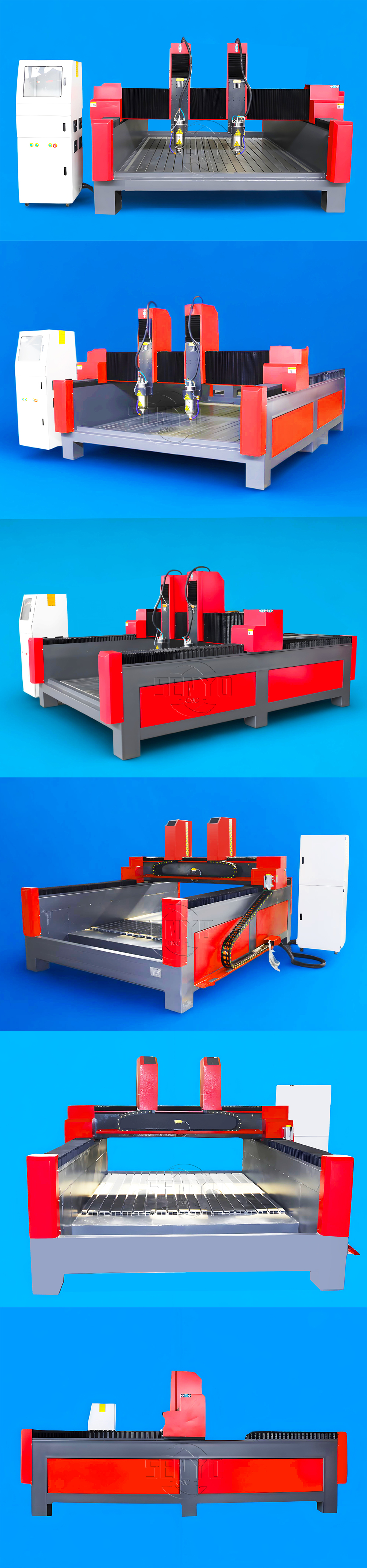

Advantage and specialties

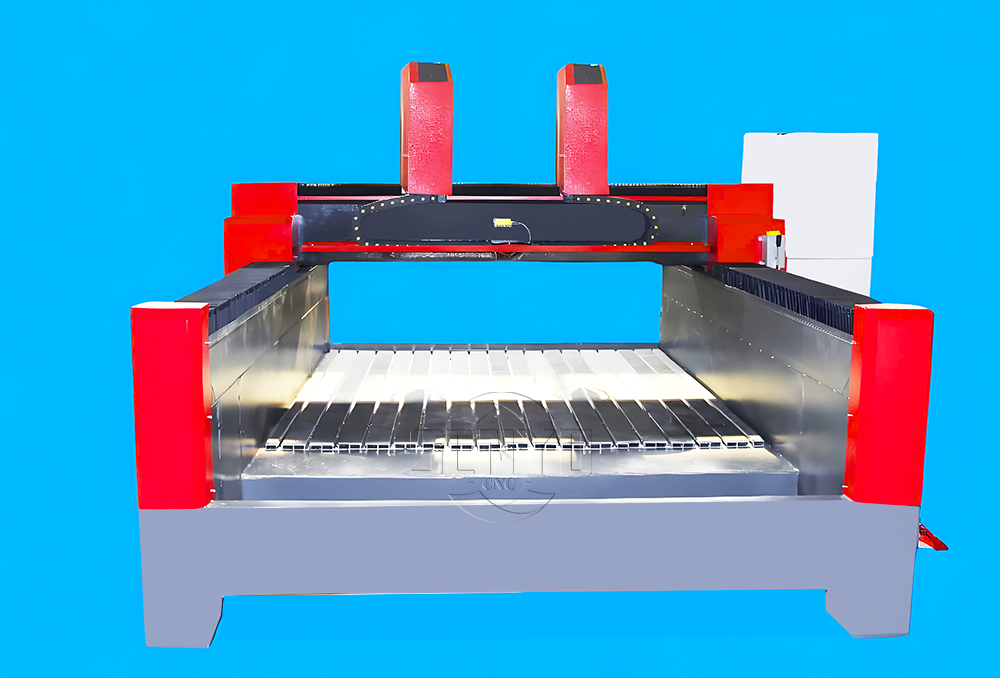

1.T type heavy duty Machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.

2. The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.

3. The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.

4. High-performance driven motor to ensure that the machines high speed and accuracy.

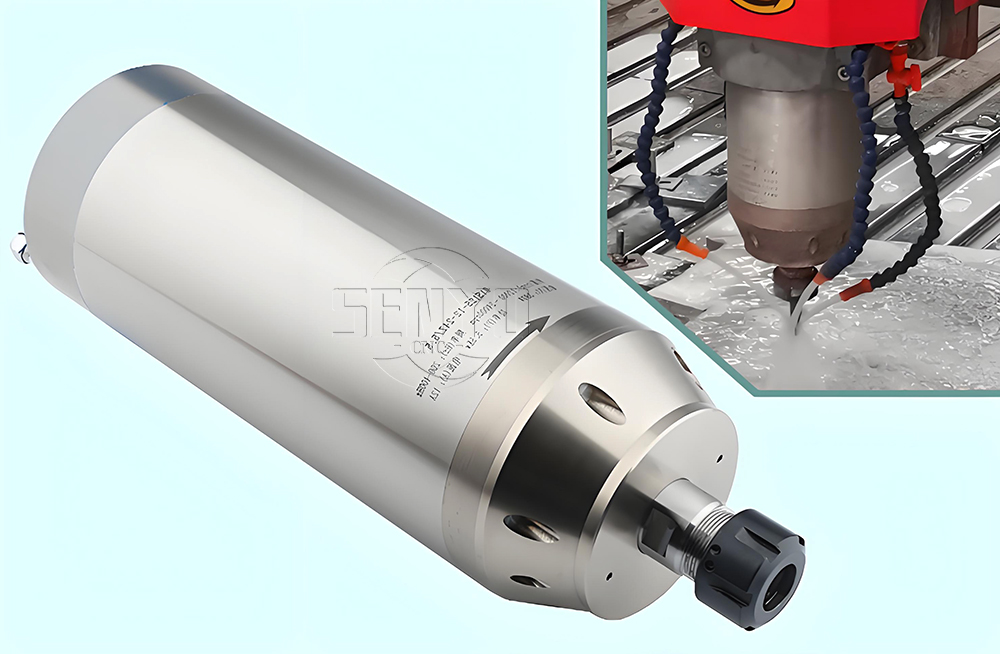

5. Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.

6. Easy to use DSP controller works with all industry standard CAD/CAM software

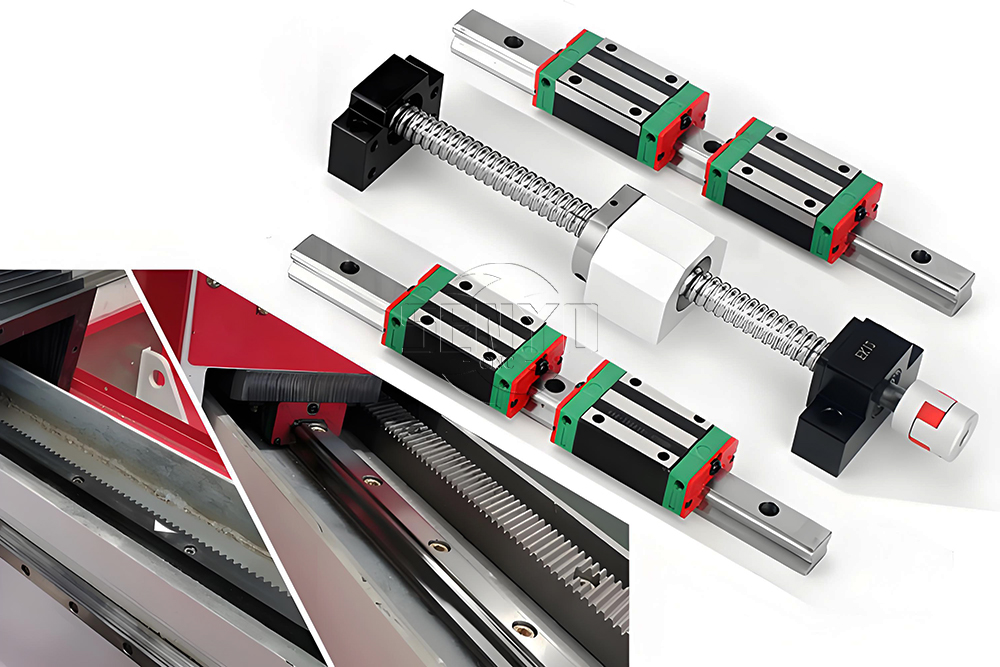

7.High grade Hiwin square rail

8. XY axis German helical rack and pinion

9. Z axis high precision TBI ball screw

10. 900*1500mm, 1300*1800mm, 1300*2500mm, 1500*3000mm,1800*2500mm standard

sizes (Special sizes available upon request.)

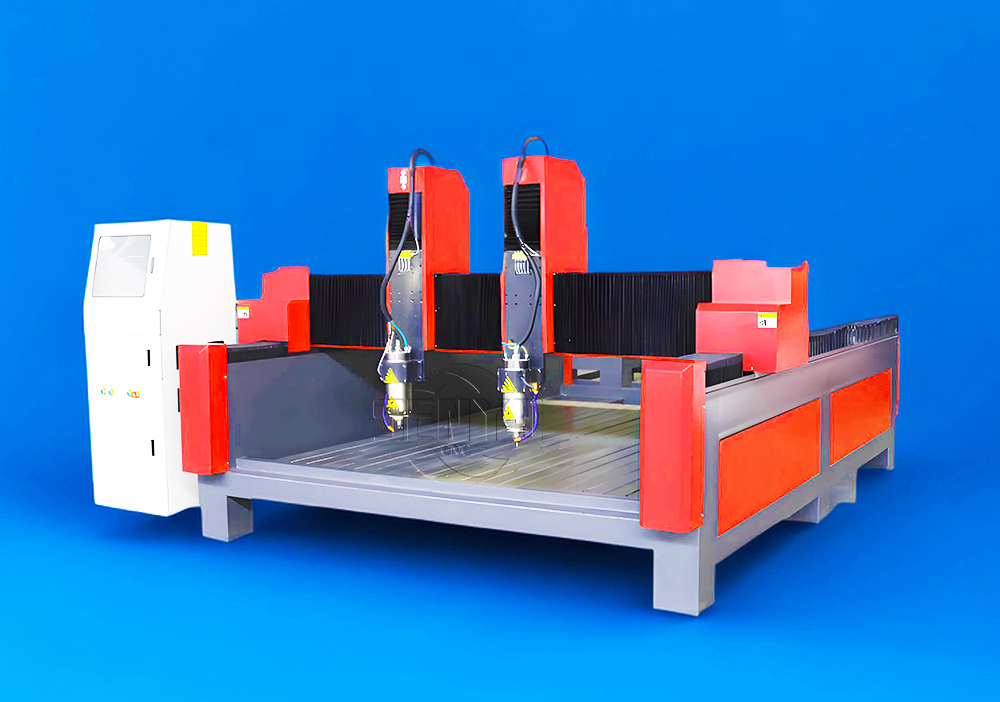

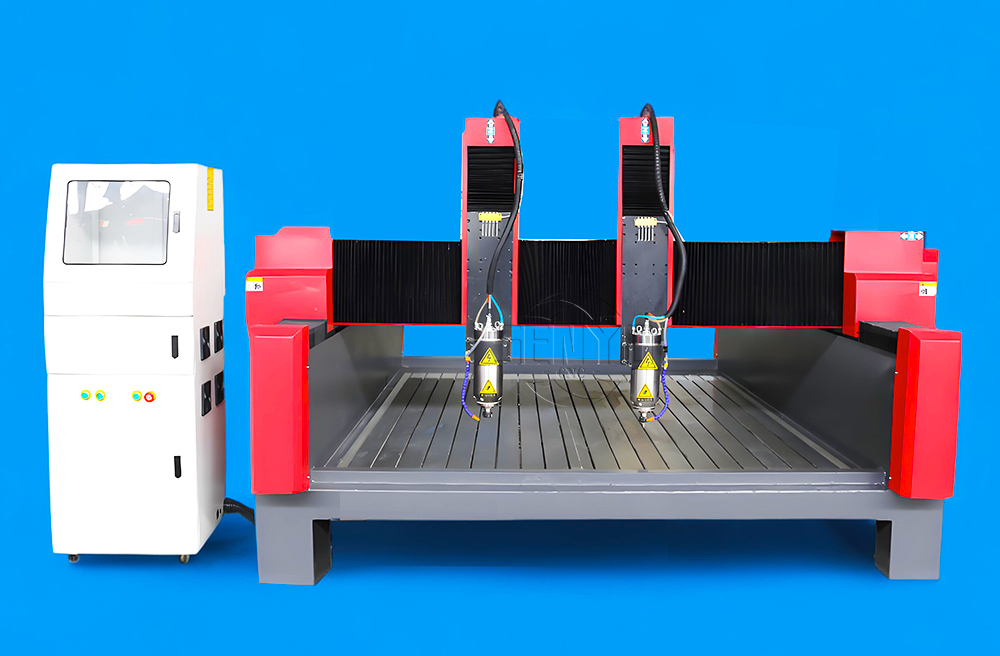

11. 1 spindle, 2 spindles or 3 spindles available upon request.

Main Features
1. Z axis feeding height 500mm
2. Square tube welded steel frame structure-8mm thickness
3. Aluminum T-slot table

4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis Ball screw
5. X, Y, Z axis Taiwan square rails PMI
6. Powerful Stepper motor and MA860H Leadshine driver or servo motor and driver

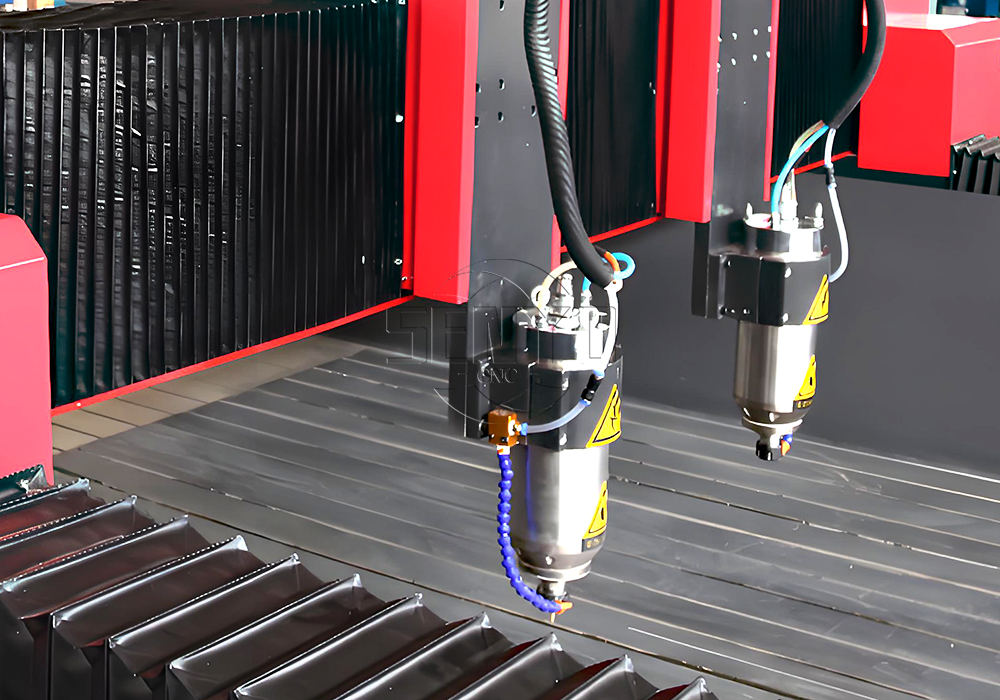

7.Water cooling spindle and 5.5kw Fuling inverter, other spindles are optional

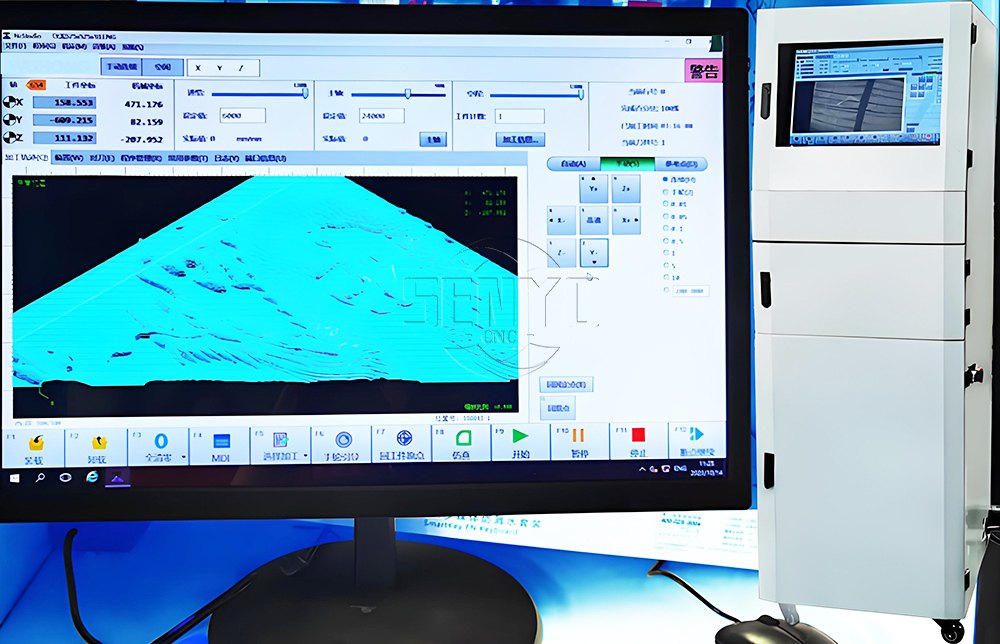

8. Nc-Studio  control system, DSP or Mach 3 is optional

Detials Parts Introduce

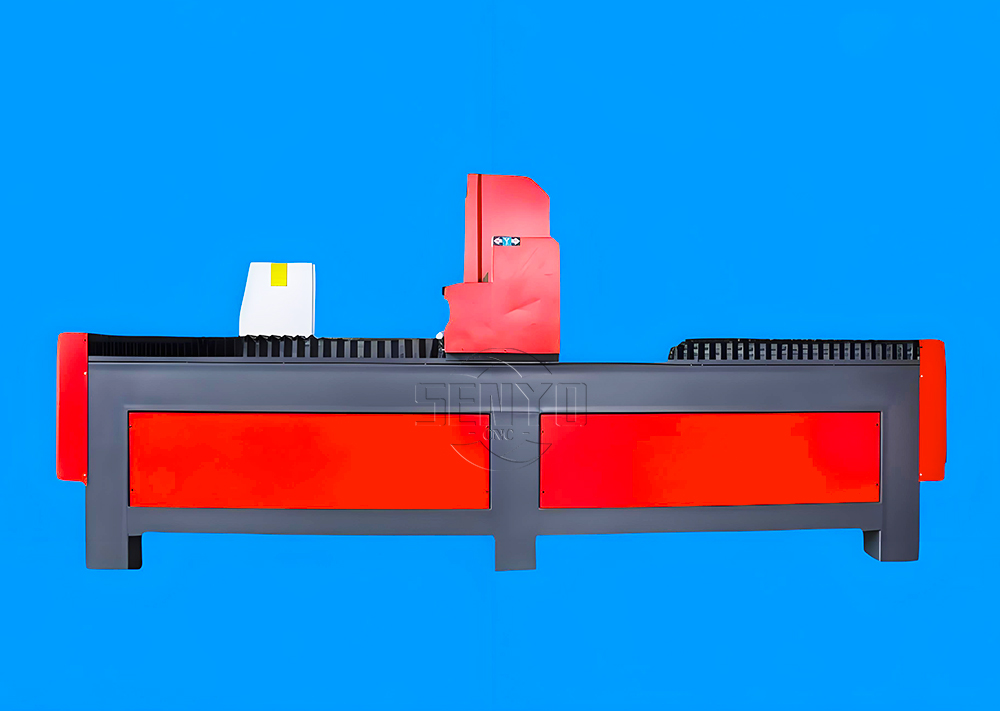

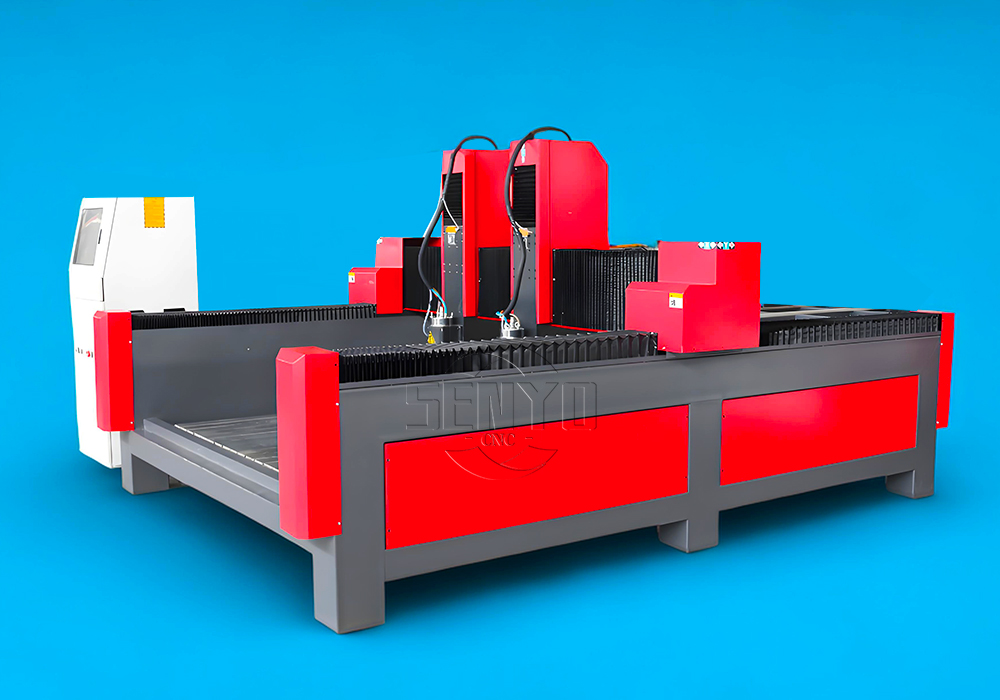

The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.

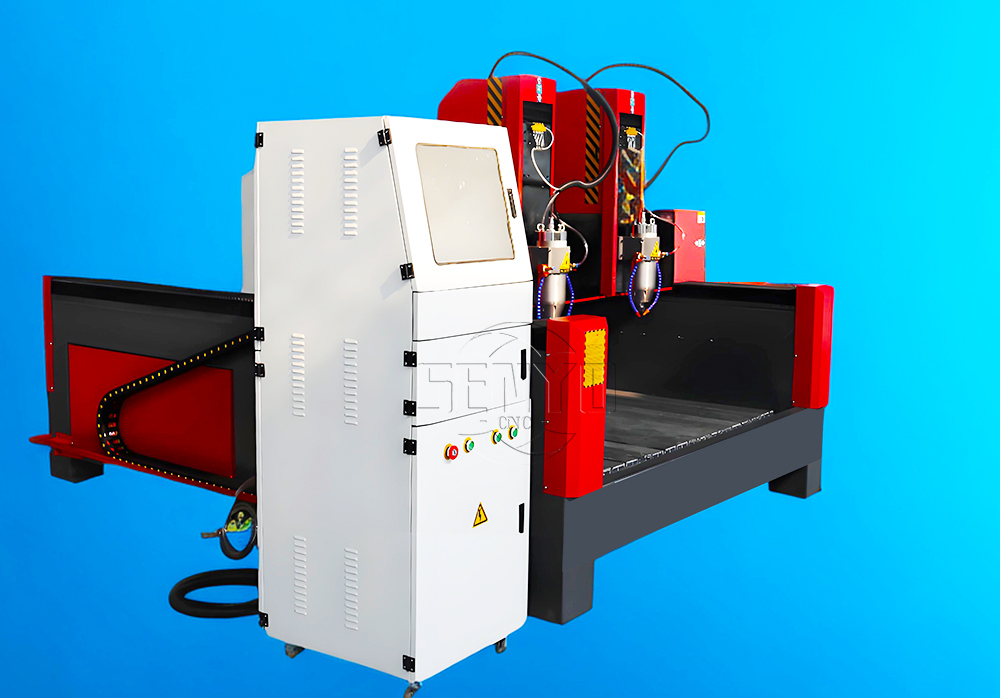

6. The Electronics of the CNC Router

All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.

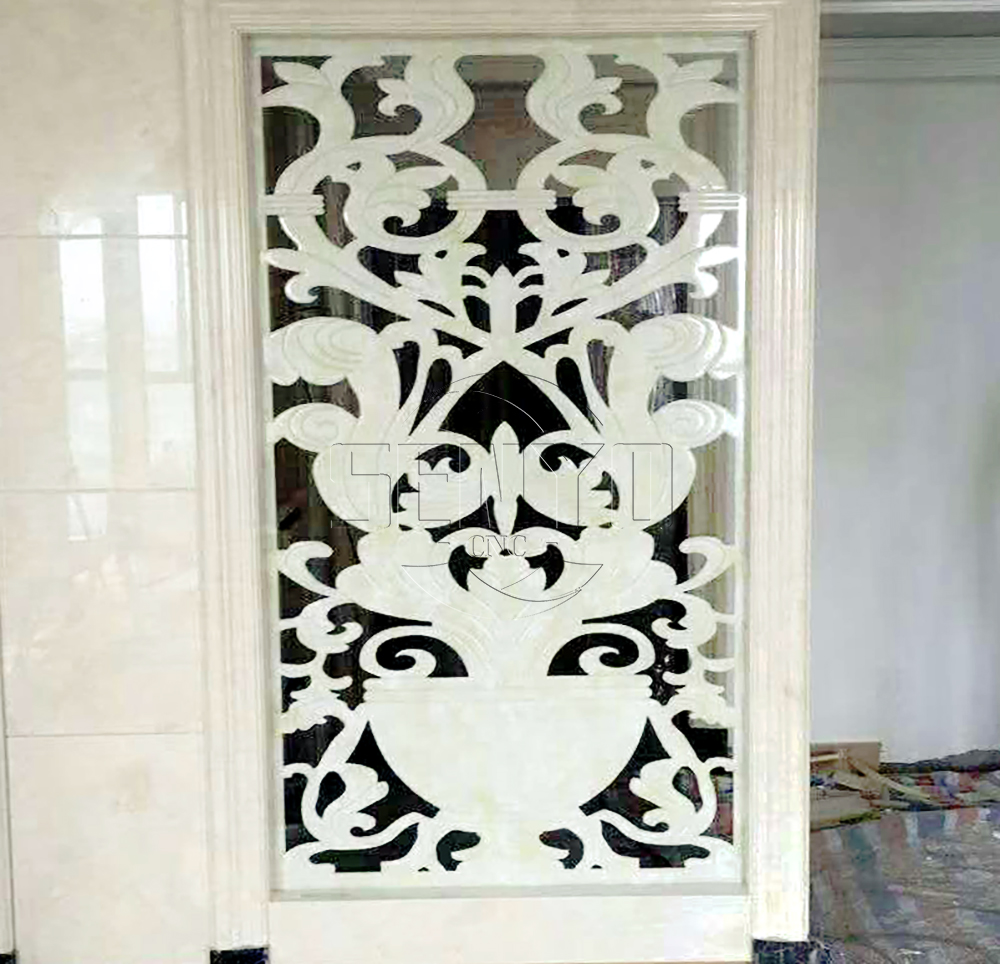

Applications  Materials

Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials includingmarble, brass, steel, and other metallic material.
Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artisticcrafts, and stiletto.
Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
Architectural models: engraving fine window, fencing and wall patterns, etc.
Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
Label: engraving character, number, and other pattern on label for products and on product directly.
Stone processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.

Applicable to stone industry, stone tablet processing industry, art relief, advertising industry, decoration and decoration industry, ceramics industry.

Applicable materials:Marble, granite, jade, bluestone, Blackstone and other stone materials, as well as ceramics, glass, plexiglass, PVC board, aluminium-plastic board, bamboo and wood materials.

Marble, granite, standstone, glass, artificialstone, headstone, tablet, such as ceramic engraving and cutting materical.

Machine Working Project

Specification and Paramater

For Our Work Steps

1.Before-sale,we will try to know your requirement  what kind of work

you will do .then we will offer our best solution for your requirement.

2.During production: we will send photos of machines during making. so you can know more details about

the procession of making your machines.

3.Before shipping,we will take delivery photo and confirm  the specification of order to avoid the mistake.

Machine will be adjusted before it is delivered.

4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the

approximate date of arrival.

5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .

6.About teaching:  there are some manual and video about how to use machine , if you have question

about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.

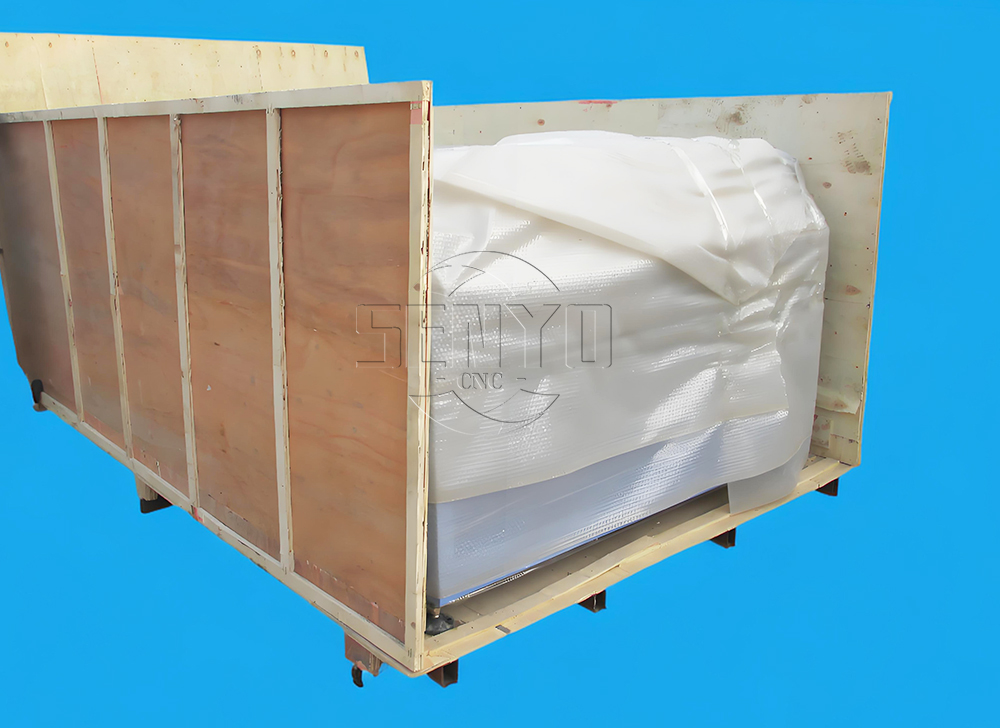

Packing & Shipping

1.Outside:Standard plywood package.

2.Inner package:Stretchy film and plastic film for humidity.

And we can package according to you requests

Delivery Detail:For standard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients’ specific requirements,it will be 15-30 working days after payment.

Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. If you need any component of the machine, we will provide most affordable price for you.

5. Friendly English version manual and operation video CD disk.
