Features

1. High precision and speed. Marking depth can be controlled easily. Continue working no need maintenance.

2. Imported tube together with high speed galvanometer and path expander fans system. stable path fast marking

3. With glass CO2 tube .High power big working site with lower price.

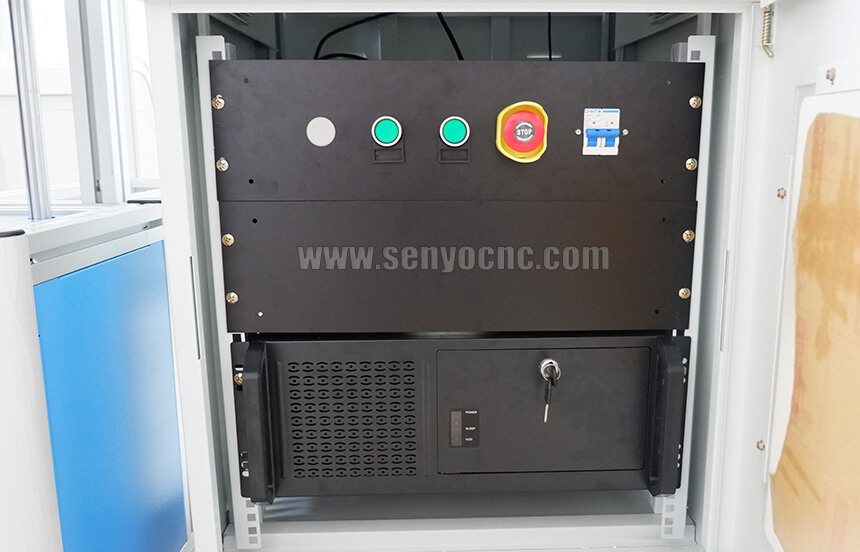

4. Industry computer, strong anti-interference and adaptation stable working position for 24 working.

5. Red position system avoids material waste.

6. Multi-function software with friendly interface support win7/xp/2000 together with many languages version. Supporting True Type font and single line font JSP, DMF, One-dimensional code and VIN code.

7. supporting bmp, jpg, gif, tga, png, tif file together with ai, dxf, dst, plt. Work on 256 level grey image. Image processing for grey conversion, black white conversion and dot.

8. Free control system and outside equipment.

Advantage

1.Non- contact marking: Laser marking is processed to non- mechanical "knife", can mark on the printing surface of any regular or irregular, and mark the workpiece without exerting stress,which ensure the accuracy of the workpiece. No corrosion on the work surface, no "tool" wear, no poison, no pollution.
2. Permanent: The markings don't subside with the environmental factors such as touch, acid and reducing gases, high temperature, low temperature, etc.
3. High engraving precision: laser marking machine engrave items with fine lines, minimum line width is up to 0.04mm. The markings are clear, durable and beautiful. Laser marking can meet the needs of printing large quantities of data on minimal plastic parts. For example, we can print two-dimensional barcode with higher precision and higher definition, and have stronger market competitiveness compared with the way of stamping .

4. The running cost is low: the marking speed is fast and the mark is formed fast, and the energy consumption is small, so the running cost is low. Although the laser marking machine has more equipment investment than the traditional marking equipment at the begining, it is much lower running cost and longer lifetime from a long term.
5. High Efficiency: The laser beam is controlled by the computer and can move at high speed (5~7 meters per second), the marking process can be completed in a few seconds.
6. Anti-fake:Applying laser marking technology, the mark carved is not easy to be imitated and changed, to a certain extent, has a good anti-fake effect.

Paramaters

Parts Detials

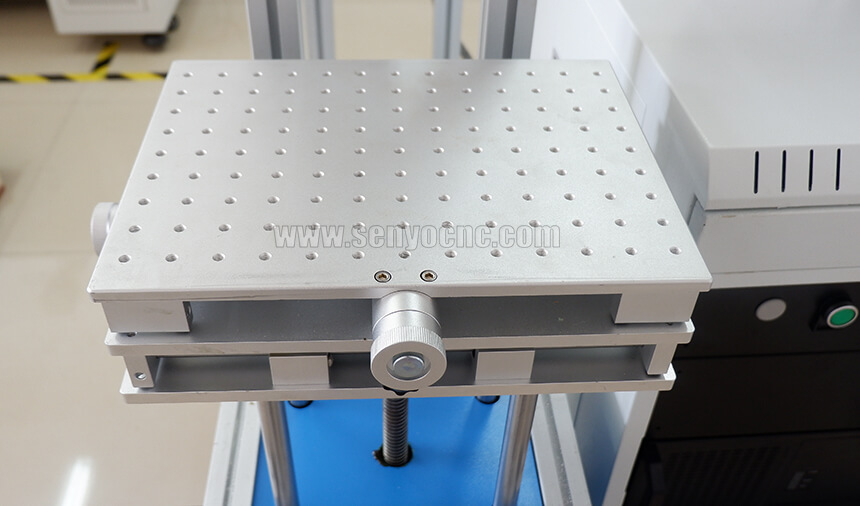

Working table

Aluminum working table. Flat and smooth, compact

Structure, flexible processing direction adjustable control.

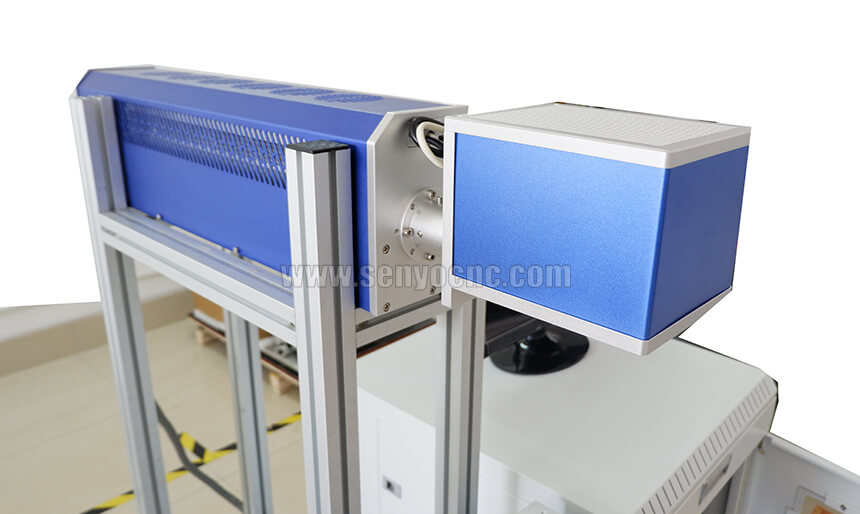

High speed galvanometer scanning head adopts scanning laboratory technology, digital signal, high precision.

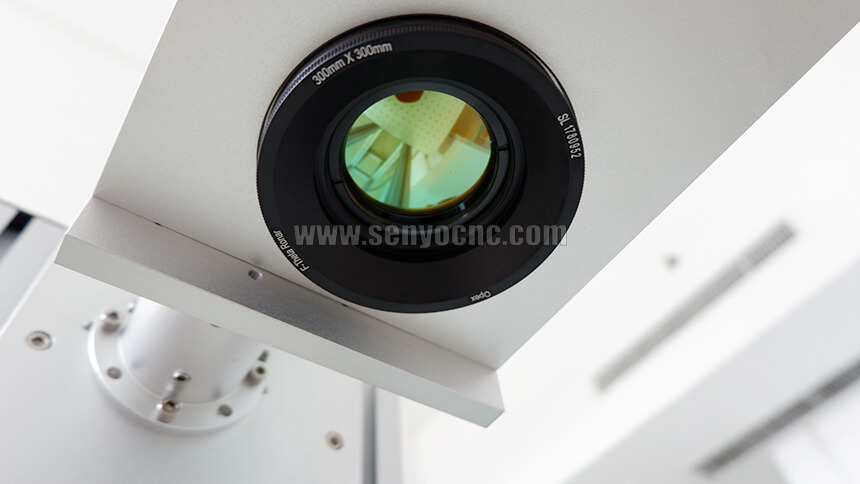

Smart f theta lens with working area 110*110,200 * 200,300 x 300(mm)
The fiber laser beam through its focus to the work piece surface, so the energy is enough.This optical accessories control marking area.Using high performance photoelectric digital mirror, excellent performance

Laser source we use famous brand laser source, high stability, long life, no consumables.This is the key part of fiber laser marking machine.

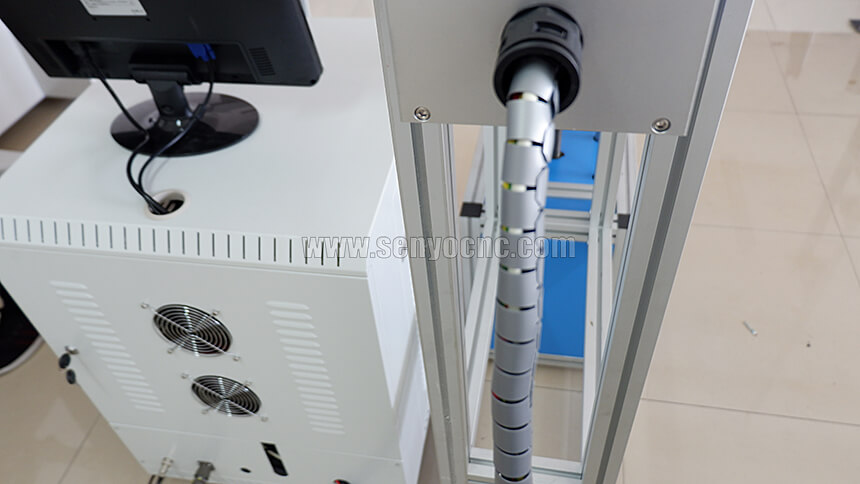

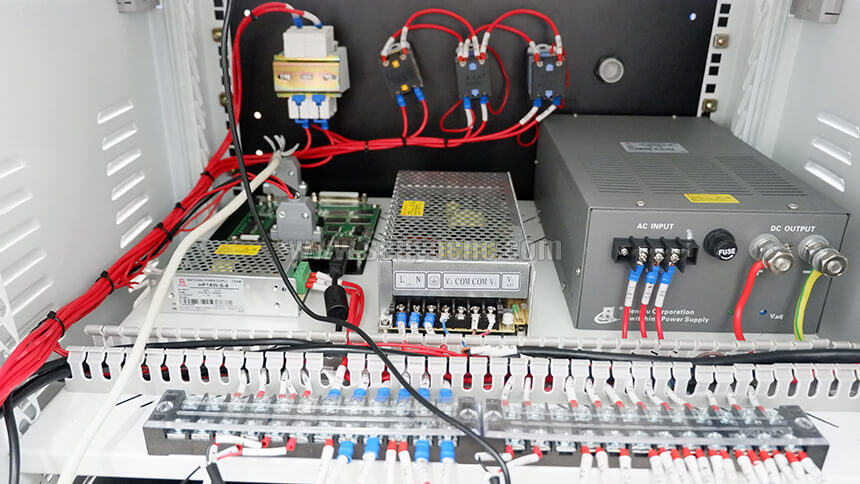

Professional parts and wire connection

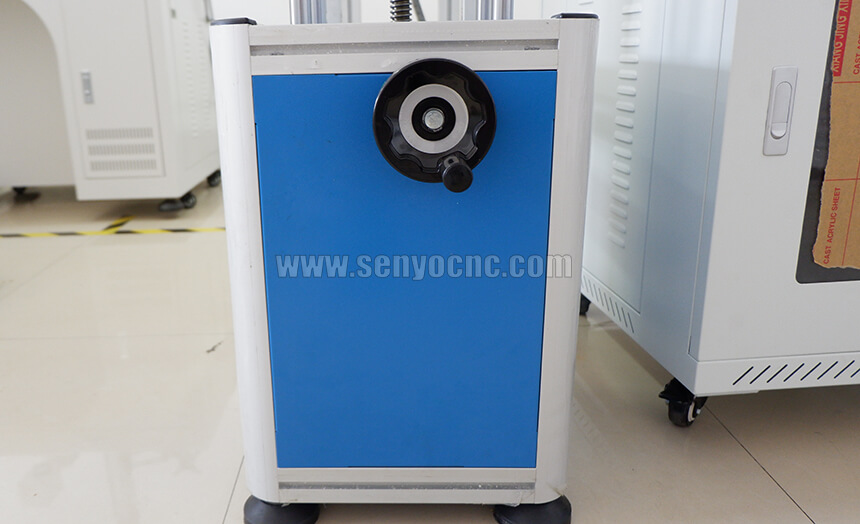

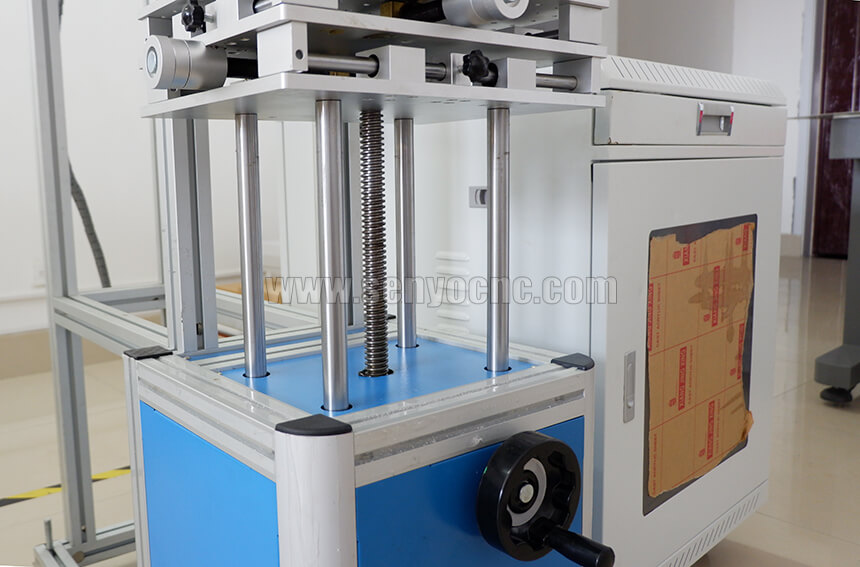

Heavy Structure

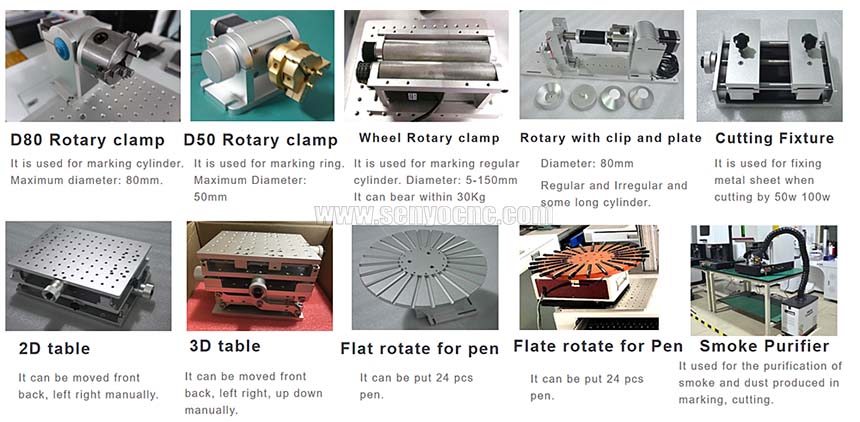

Optional Parts

Applicable Industry
Craft gifts, furniture, leather garments, advertising signs, model making, food packaging, electronic components, pharmaceutical packaging, printing plate, shell plate and so on.

Applicable Materials
Leather, rubber, wood, bamboo products, organic glass, tile, plastic, marble, jade, crystal, cloth and other non-metallic materials.

Applicable materials:  laser marking machine is good at processing glass items,crystal items,and it can process many metal items and non-metallic materials,like Highly combustion-retardant materials,ceramic,Sapphire pieces,glass,Light transmittance polymer materials,Plastic etc.

Application industries: It’s widely used for:Electronics,Electrical appliance case marking,Package marking of Food,medicine and some high polymer materials;Coating Removal of metal or non-metal items;Processing of various materials scribing and blind slot;   Micropore making of ultrathin metal foil etc,like flexible PCB marking and wafer dicing; Processing of silicon wafer micropore and blind hole;LCD glass QR code marking,glassware surface drilling,Metal coating surface marking,super-precision processing industry,Package marking etc.
