The main varieties of CNC intersecting wire cutting machines include the following
2. CNC Plasma Intersecting Wire Cutting Machine
The above two forms refer to the cutting method of the intersecting line CNC cutting machine
1.CNC flame intersecting wire cutting machine, with large thickness of carbon steel cutting ability, lower cutting cost, but there are large cutting deformation, cutting accuracy is not high, and cutting speed is low, cutting preheating time, piercing time is longer Difficult to adapt to the needs of fully automated operations. Its application is mainly limited to the cutting of carbon steel and large thickness plates, and it will gradually be replaced by plasma cutting in the cutting of medium and thin carbon steel plates.
2. CNC plasma intersecting line cutting machine. Plasma cutting has a wide cutting area and can cut all metal pipes. The cutting speed is fast and the efficiency is high. The cutting speed can reach more than 10m / min. The use of fine plasma cutting has brought the cutting quality close to the level of laser cutting.

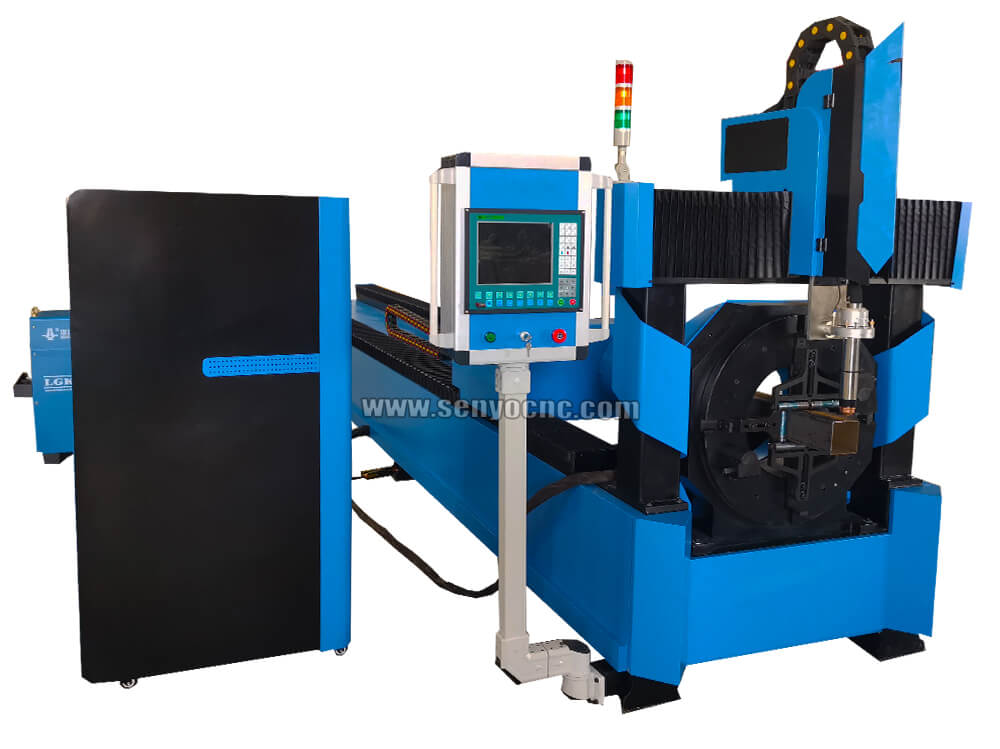

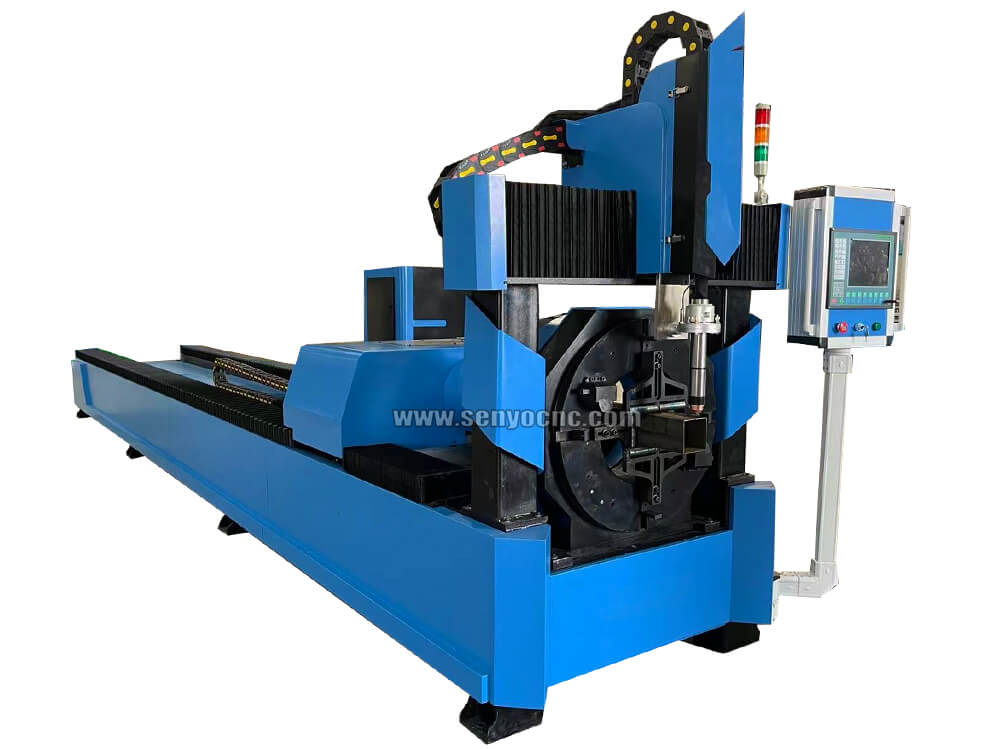

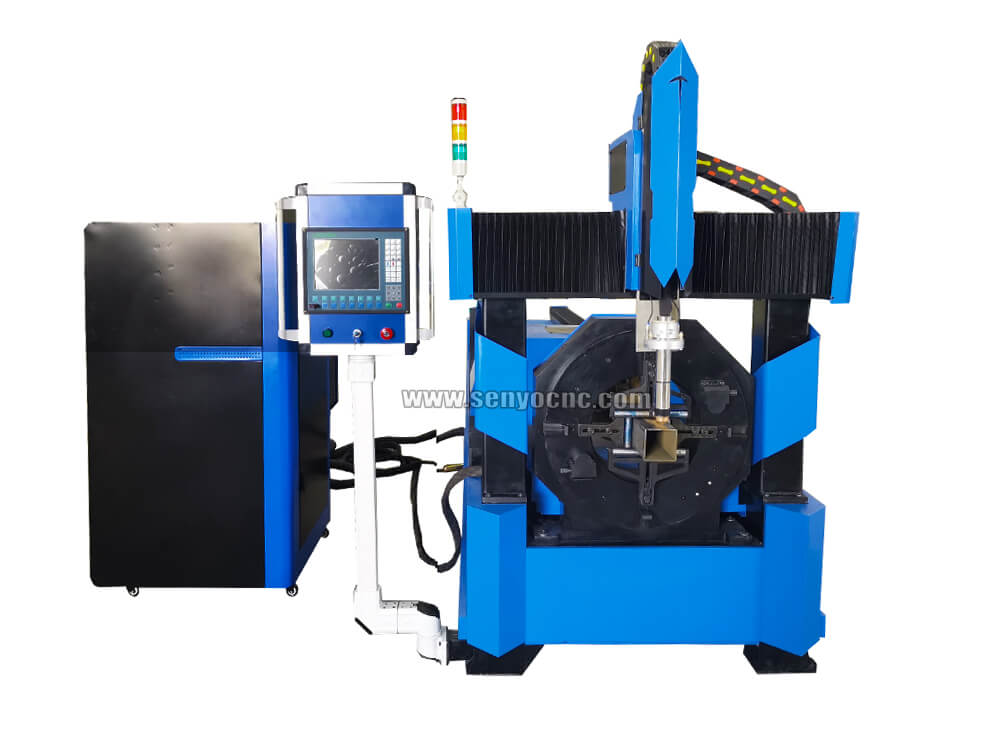

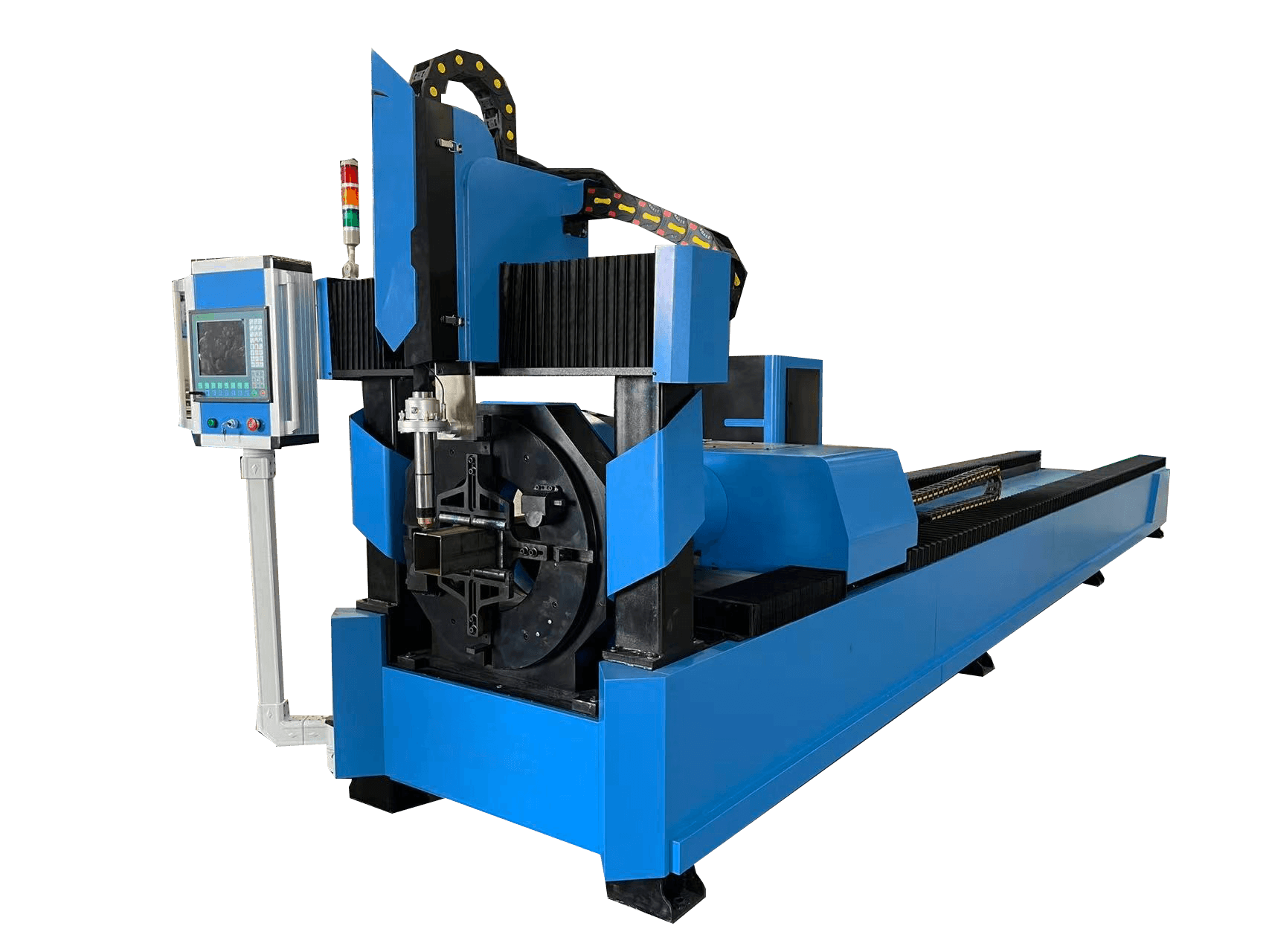

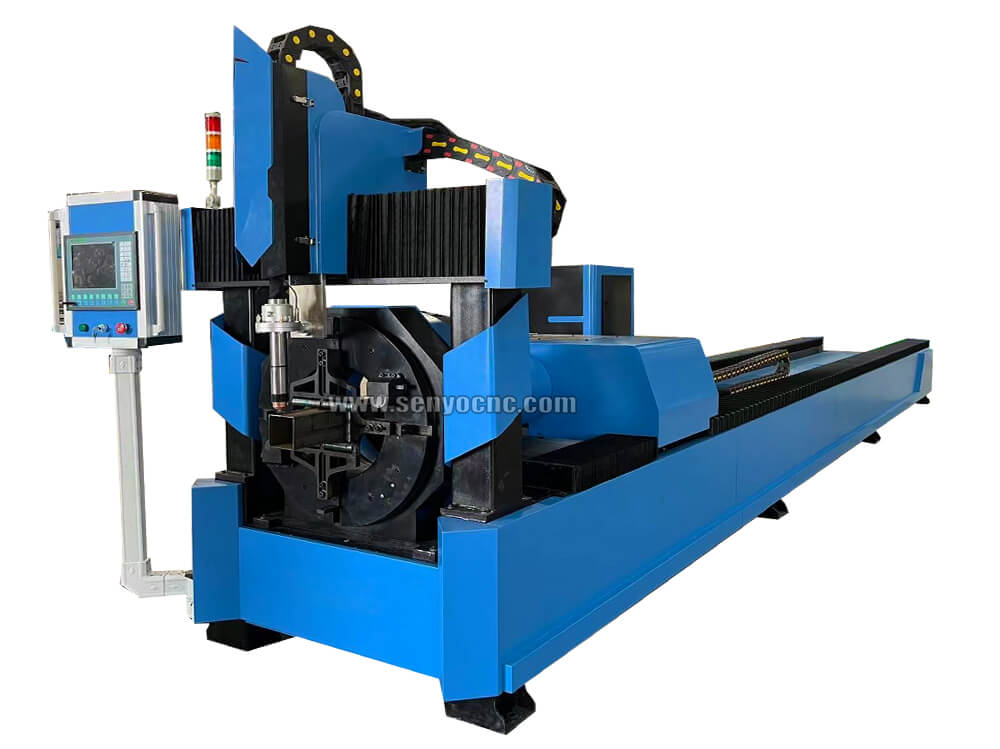

Advantage of cnc plasma tube pipe cutting machine plasma pipe cutter
Pneumatic chuck, dual driver Two chucks can work at same time, what is to confirm cutting precision.
Pneumatic chuck is more smart, it can open and fix pipe by switch automatic, easy to confirm the center place than normal chuck.

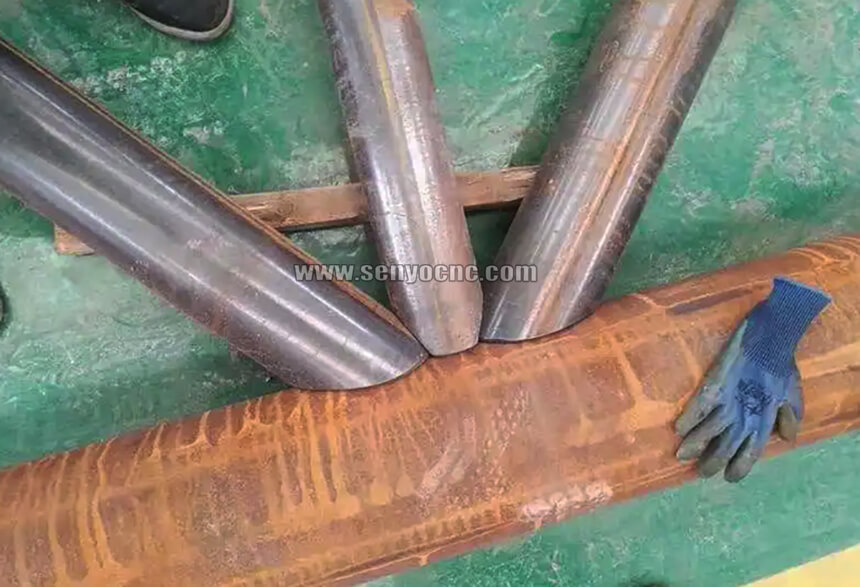

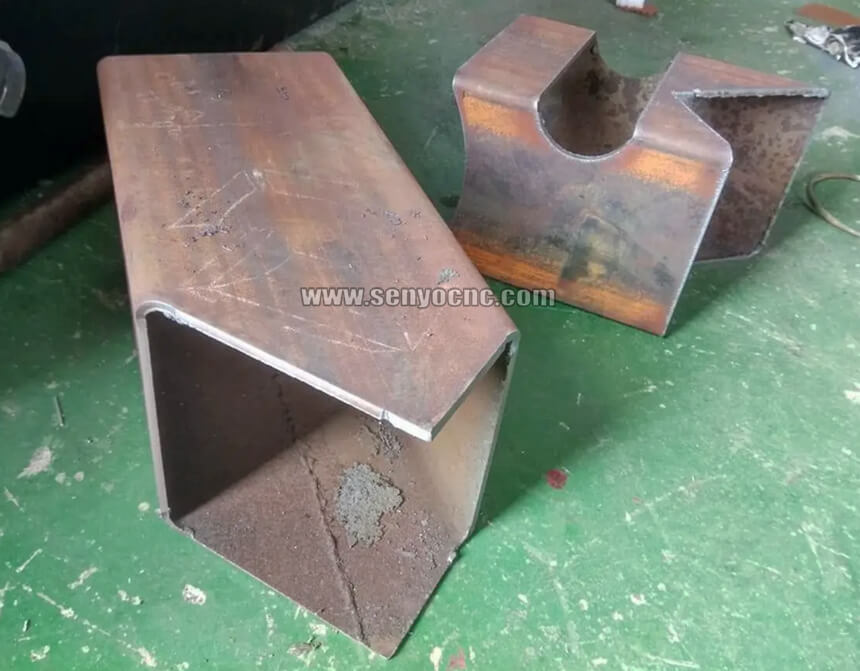

It not only can cut square pipe, also can cut round pipe, rectangular tube etc. Besides, it not only can cut square pipe surface, also can cut pipe angle.
Double driver is more strong power to make front and behind chuck rotate in same frequency to avoid smaller pipe be twisted when working to confirm cutting precision.
Specification of cnc plasma tube pipe cutting machine plasma pipe cutter
Description | SYP3060 |
Working Size | 300(Diameter)*3000mm(Length) |
Z Axis Clearance | 150mm (200 And Higher Is Optional) |
Table Type | Chuck rotary |
Transmission System | Rack Pinion And Hiwin Linear Rails For X/Y |
Driving System | Servo motor( YASKAWA/PANASONIC ,also according to your needs and budget.) |
Max. Cutting Speed | 12000mm/Min(different configuration and different material and thickness speed is different) |
Max. Travelling Speed | 30000mm/Min(different configuration speed is different) |
Working Voltage | 380V/3ph(220V/3ph is optional) |
Plasma Generator | Huayuan China and USA power as your requirements |
Arc Mode | Jiaoda fangling |
Output Current | 63/100/120A/160A/200A China (45/65/85/105/125/200A USA) |
Max. Cutting Thickness | 6/15/18/20/30mm (This is approximate,It also according to power and kinds metal) |
Operating System | JiaoDa fangling FX430A controller (Professional for tube cutting) |
Working Material | Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal square tube/Circle tube |
Detials of cnc plasma tube pipe cutting machine plasma pipe cutter

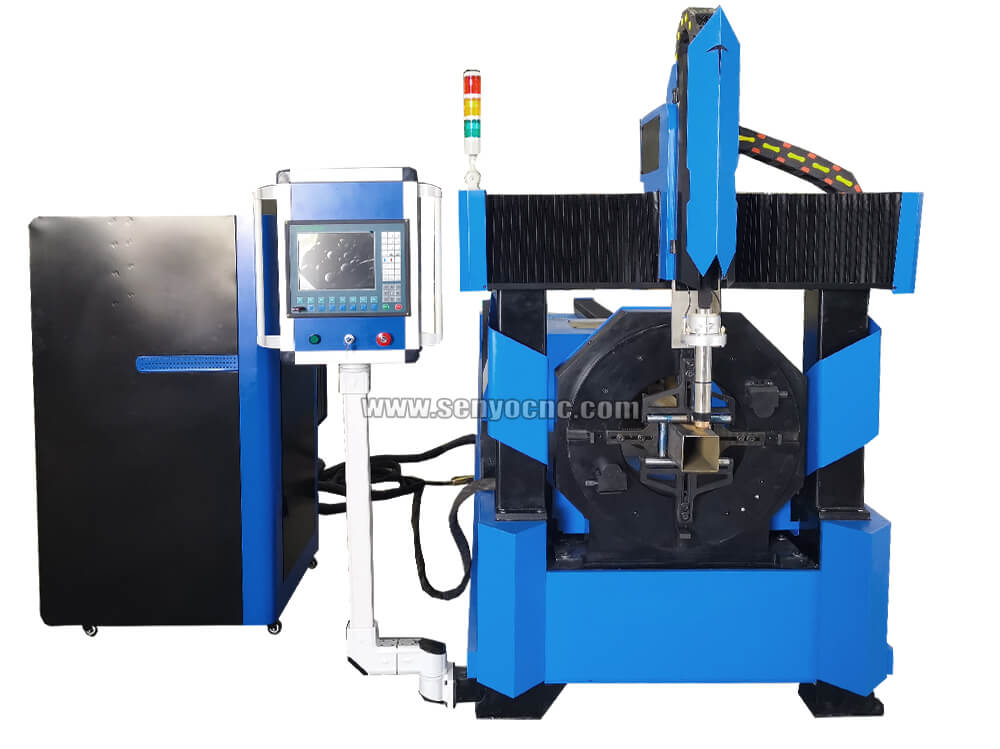

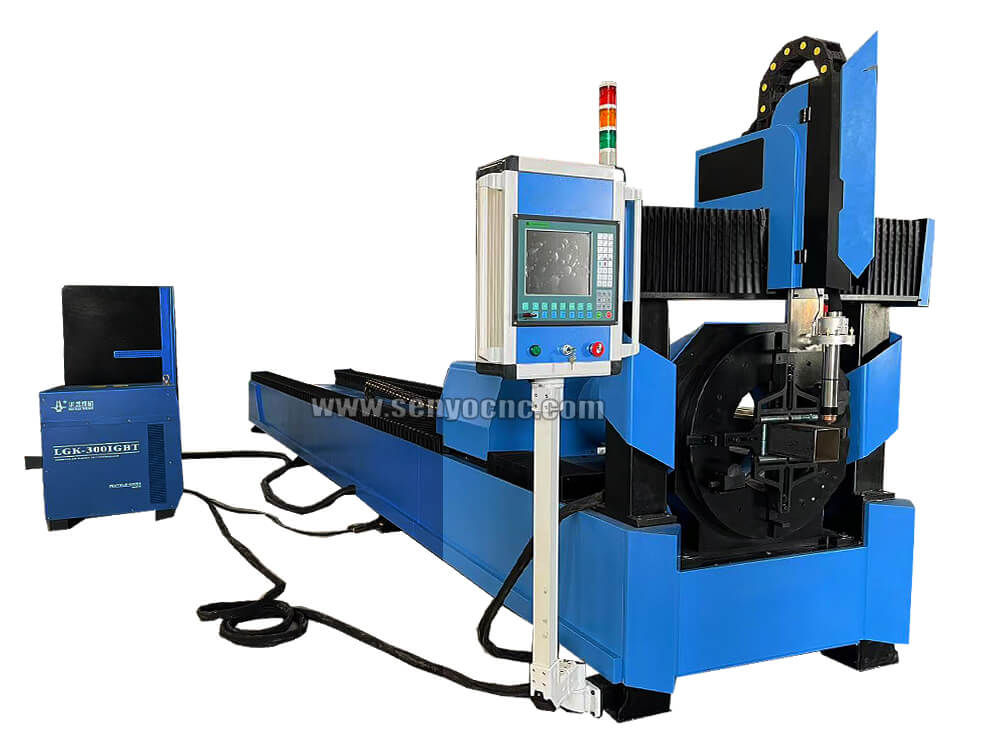

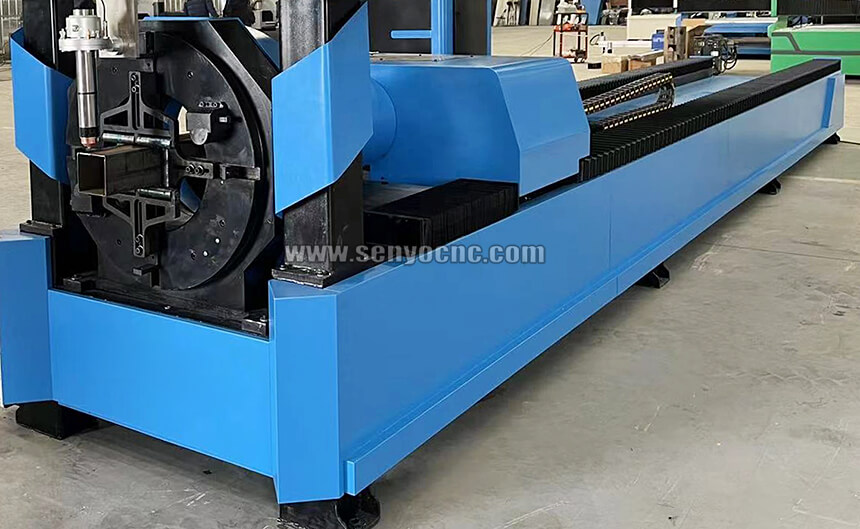

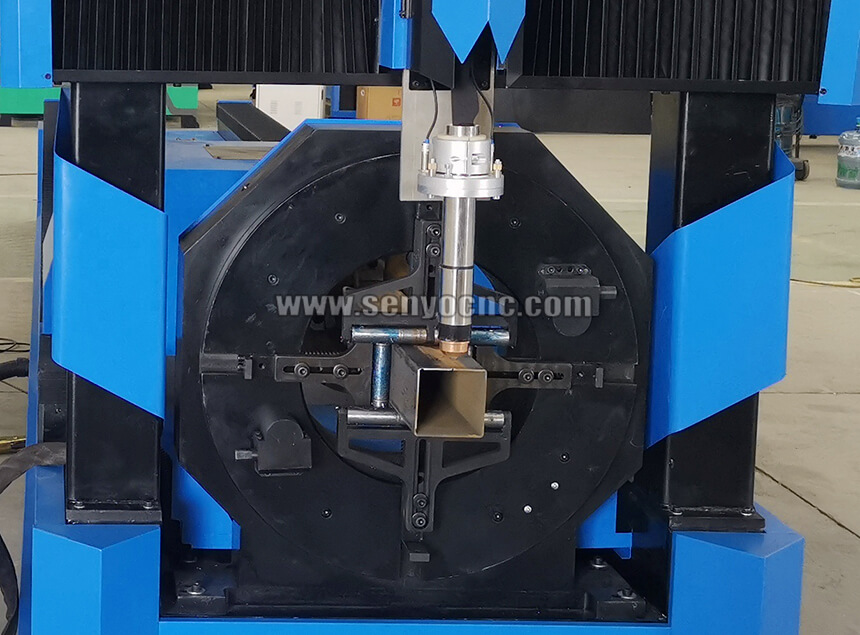

Plasma torch and Rotating shaft Automatic pneumatic chuck tube plsama cutting machine

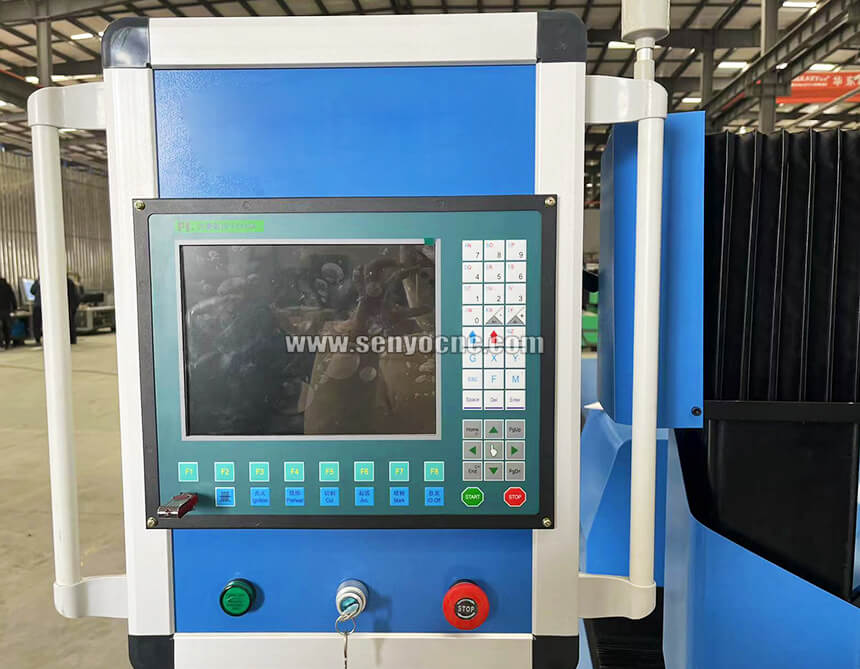

10 inches LED control panel with 5 axis control system, independent control cabinet,wireless handhold controller.
JiaoDa fangling FX430A controller

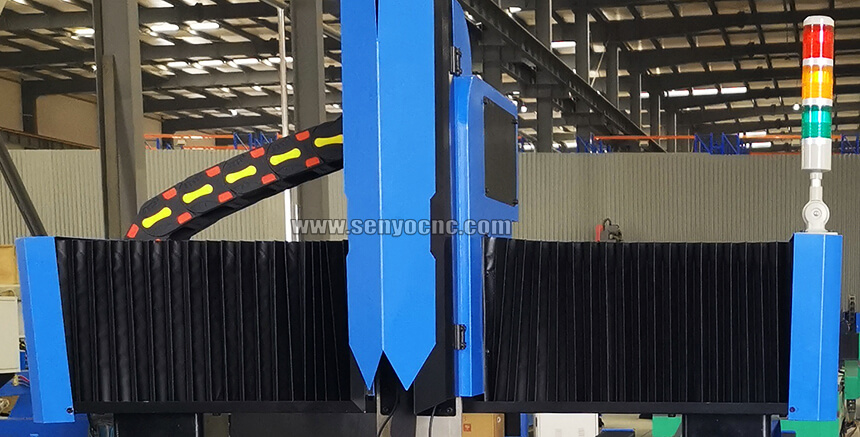

Alarm and dust cover for rail guide
Seamless welded structure, taiwan square orbits, Automatic lubrication device keep machine stable working performance.

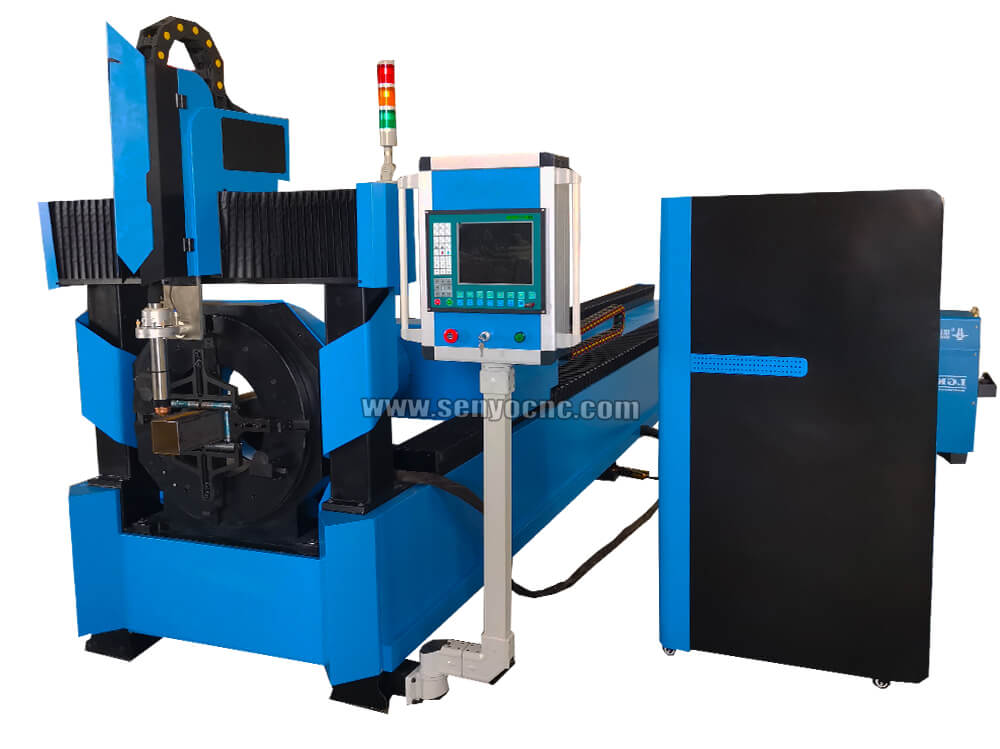

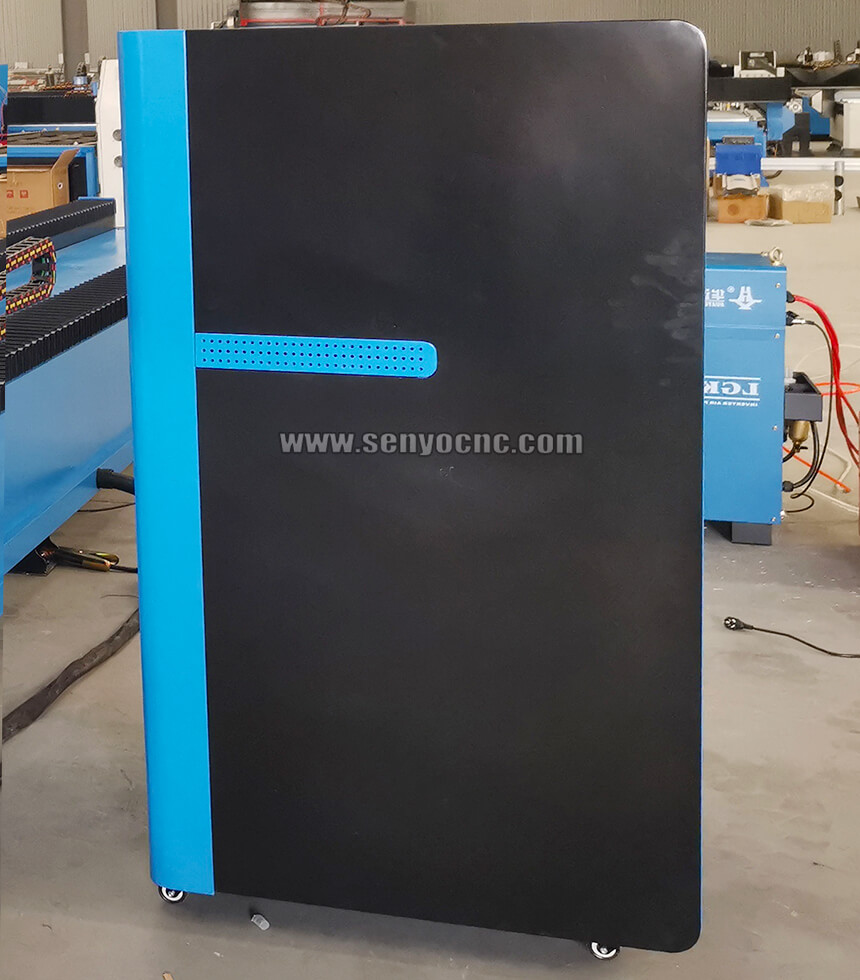

Independent control box with wheels for easy move

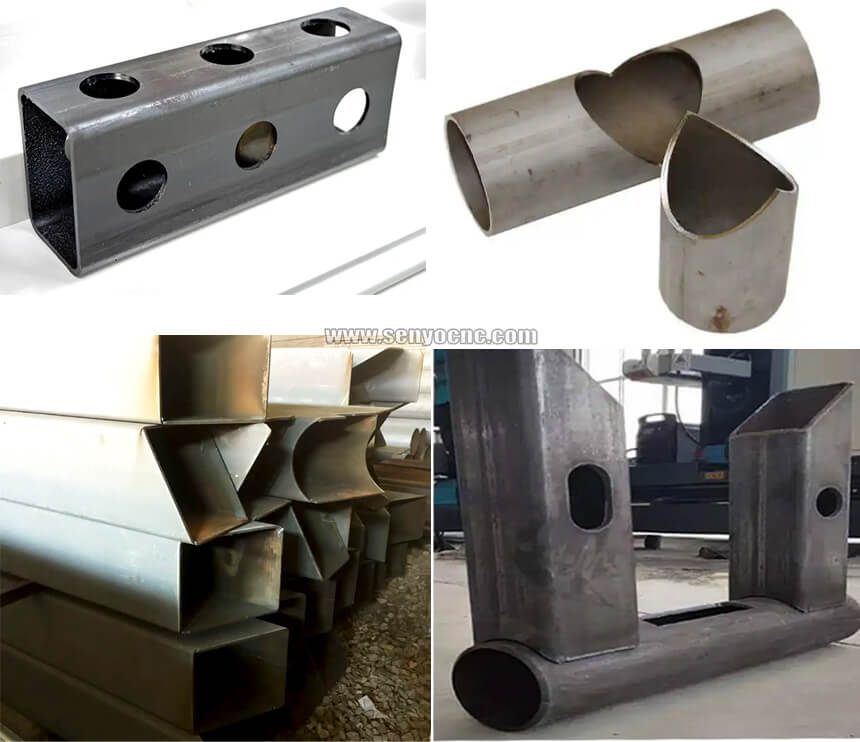

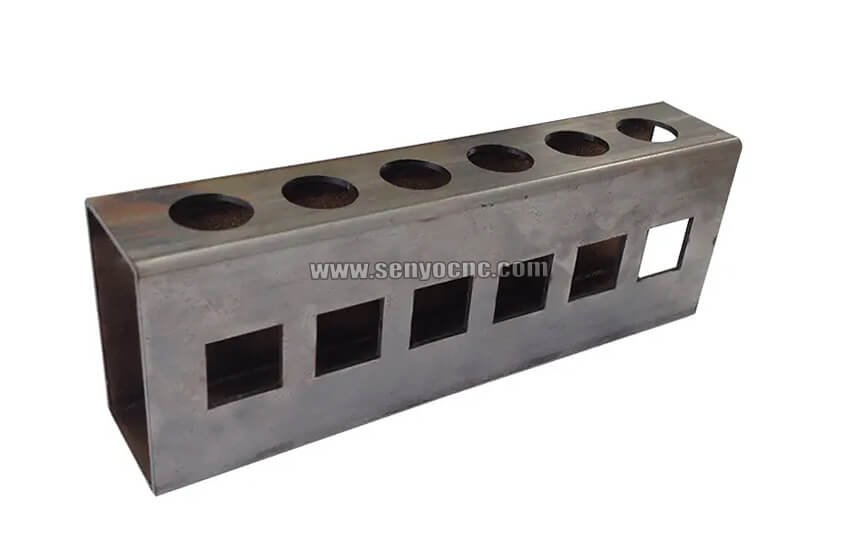

Applications of cnc plasma tube pipe cutting machine plasma pipe cutter
Working material:Stainless steel/Iron sheets, Aluminum sheets, Galvanized sheets, Titanium
Applicable Materials
To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel,titanium sheet. stainless steel, iron etc.
Advertising industry
Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.
Mold Industry: Engraving metal molds made of copper, aluminum, iron and so on.
Metal
industry: For steel, Carbon Steel, Stainless steel, alloy steel, spring
steel, copper plate, aluminium plate, gold, silver, Titanium and other
metal plate and tube.
Shipping detail
1) CNC Router machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
3) Some extra spare parts (Pipe,limit switches etc)
Our Service
1). 2
years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge(some parts will be
maintained) when if any problem during the warranty period.
2). Lifetime maintenance free of charge.
3). Free training course at our plant.
4). 18
hours on line service and email each day, free technical support.We
will reply you in 24 hours after receive your problem of the machine.
5). Machine has been tested and adjusted before delivery.We will take machine photos and make
machine working image for you ,after getting your agreement ,then we will book a ship.
6).
Provide technical services to the door(We have professional engineers
to offer machine installation commissioning and maintenance) if
customers pay the charges of ticket.
7).if you have any problem during your use.you need our technician to judge
where the problem is and help you to solve it. We can provide team viewer and skype with cam till all of your problems solved.
FAQS
Can we visit your factory?
Yes, of course , welcome you visit our factory and check our machine qualtiy on spot. after you confirm the coming time , tell me in advance , then we will go to air port or train station to pick you up on time.
And one professional engineer will together with you in the factory , any question will be solved on spot at first time.
Any benefits can we get if introduce new customer to you ?
Yes , of course , some gifts you will get , and the commission regarding the new customer amount.
Does the machine can be customized according to my requirements?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
We usually accept all kinds of payment terms. Such as T/T, L/C, Western Union, PayPal, Cash.
International Shipping
Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
