We supports color customization, this equipment is 3015 cutting table, full stainless steel protective structure, good protection, no rust, oil immersed structure, long service life of ball screw and linear guide, fully aluminum alloy cutting head, light weight, reduce the load of the cutting table

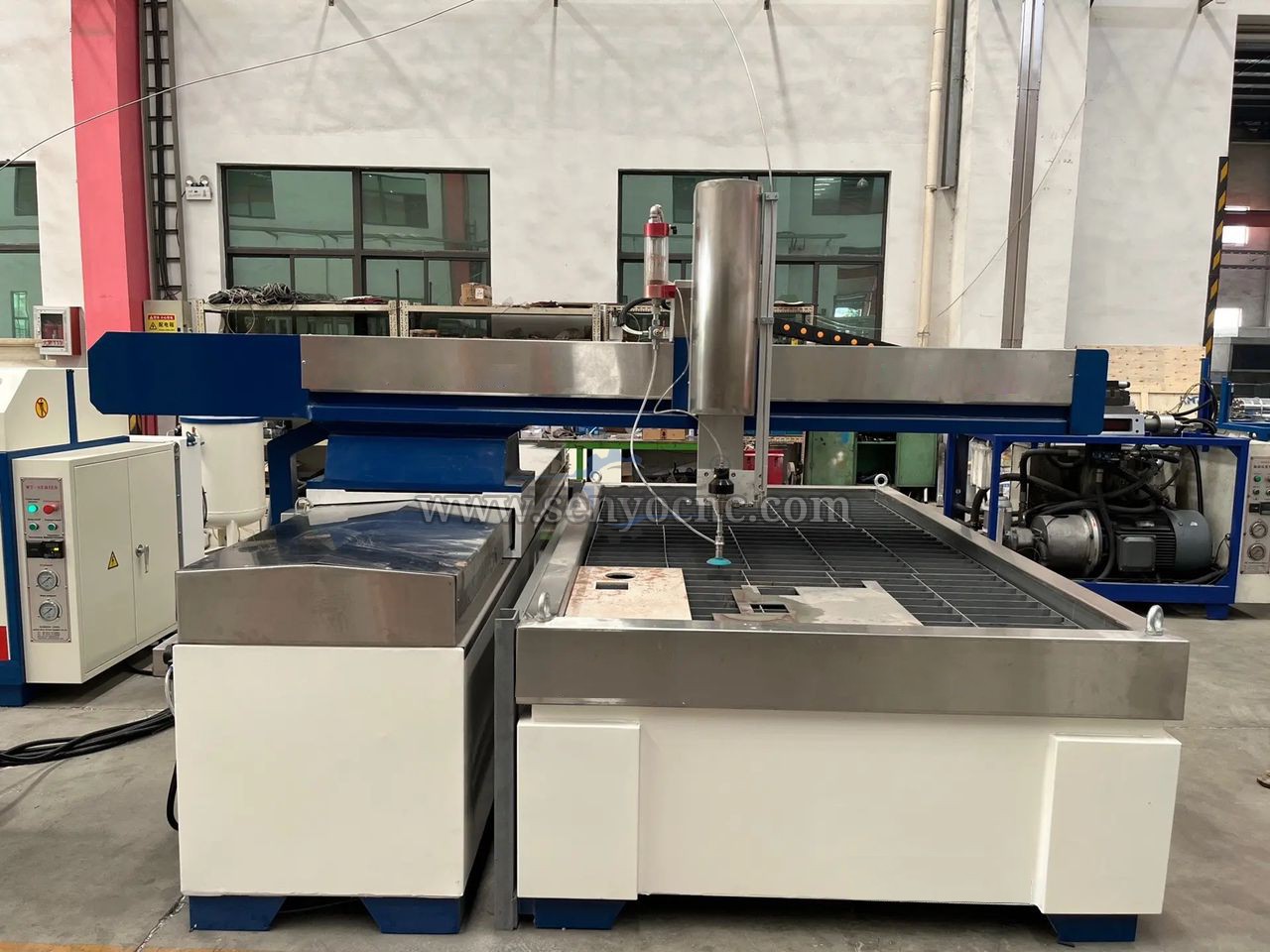

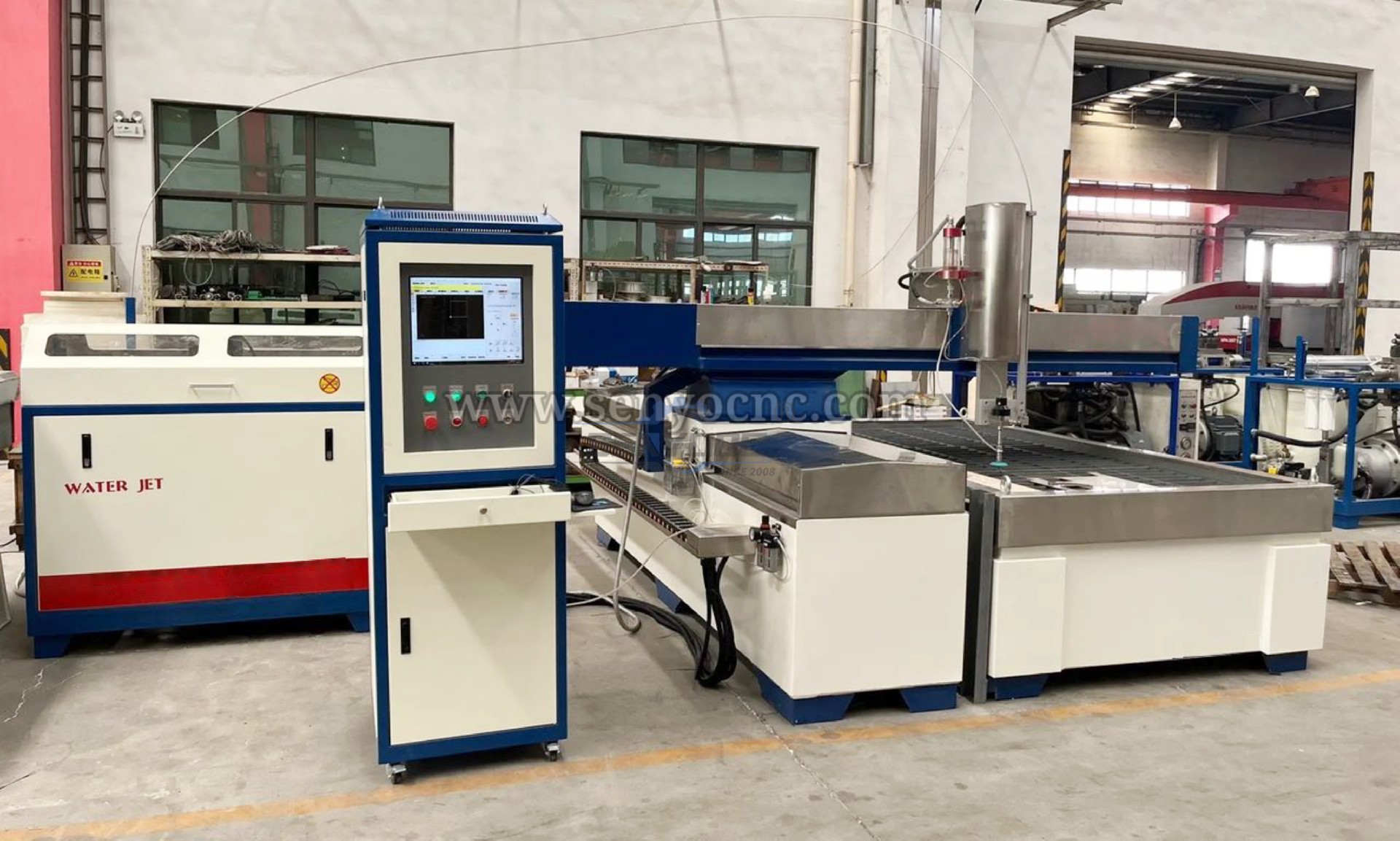

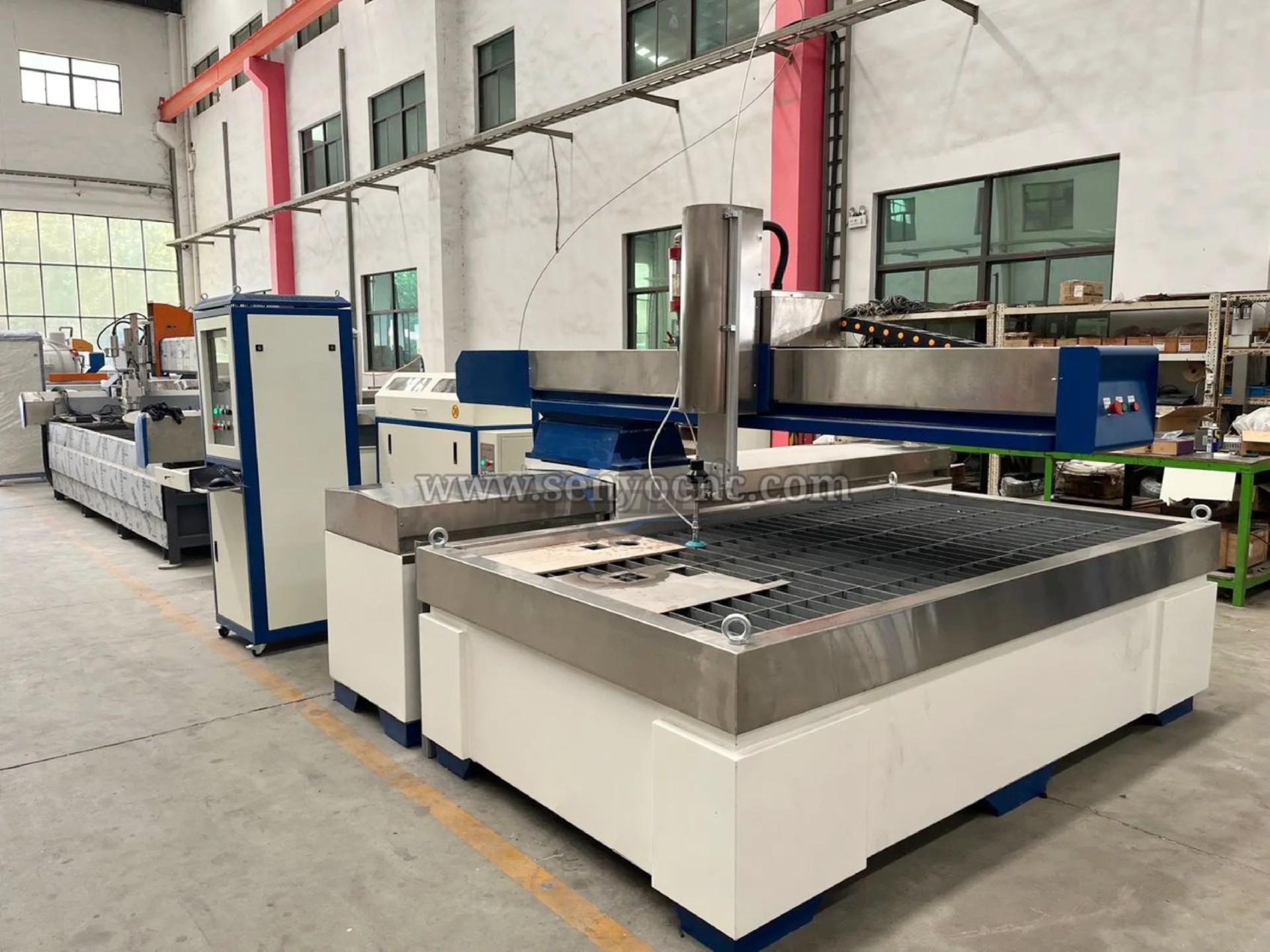

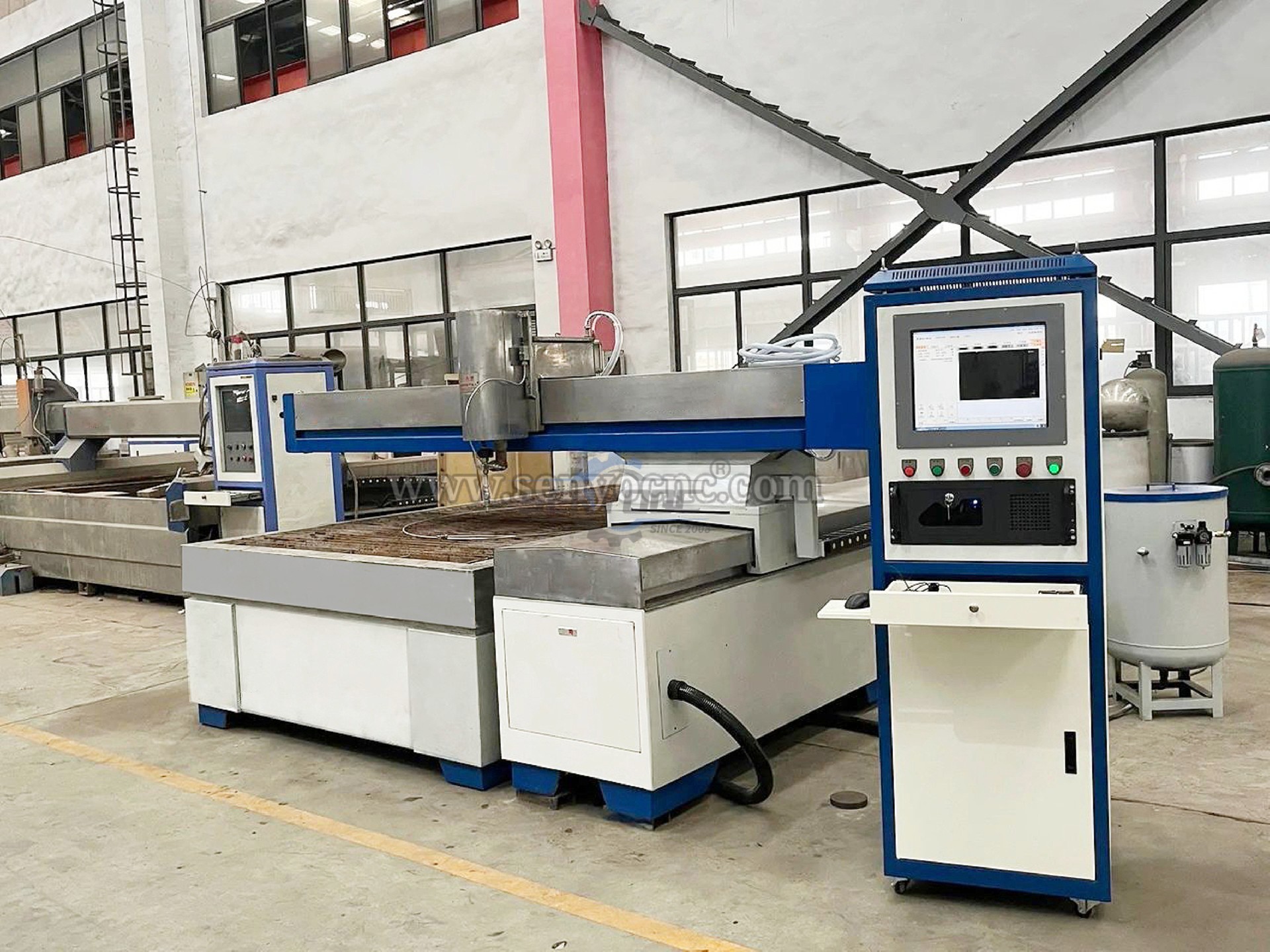

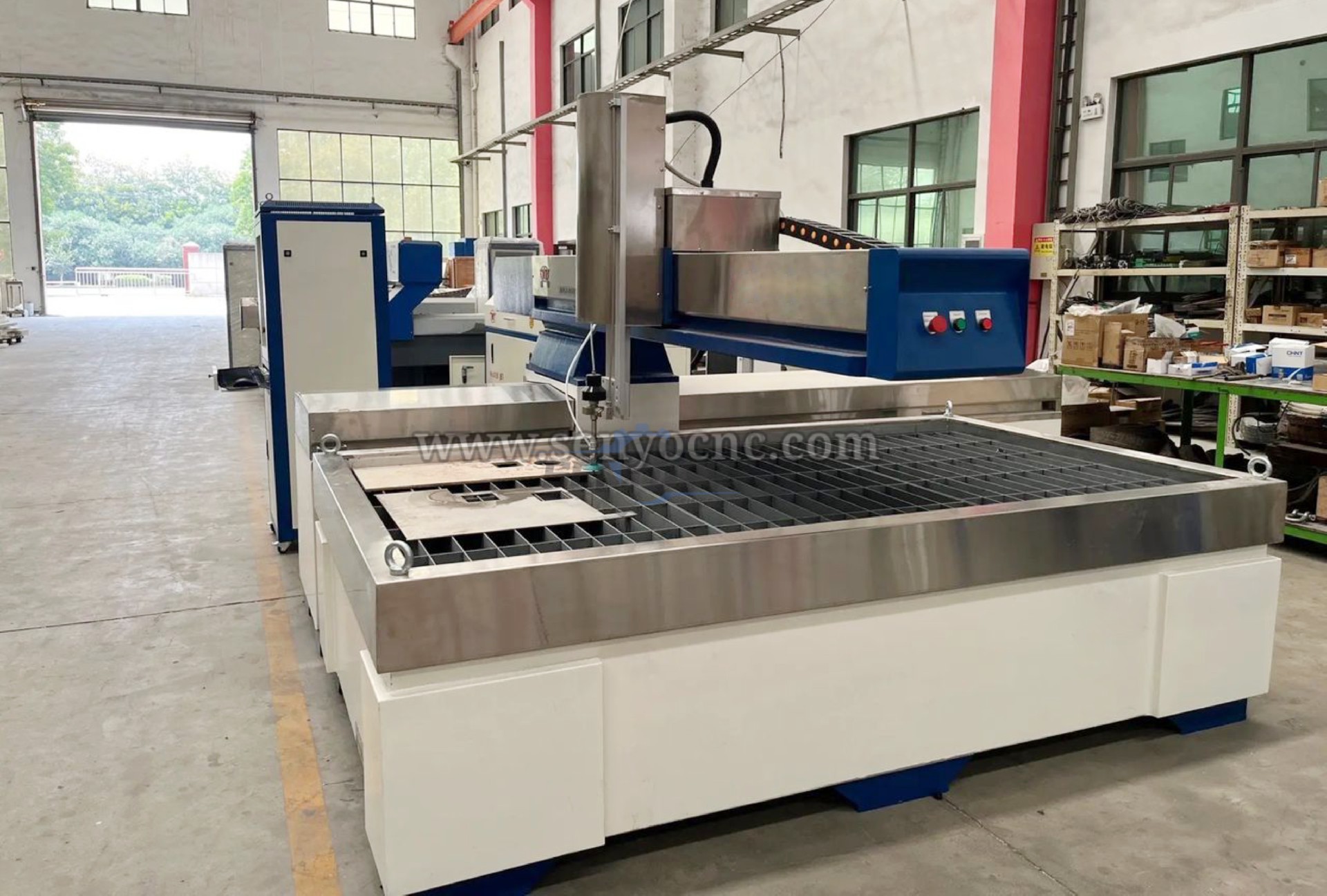

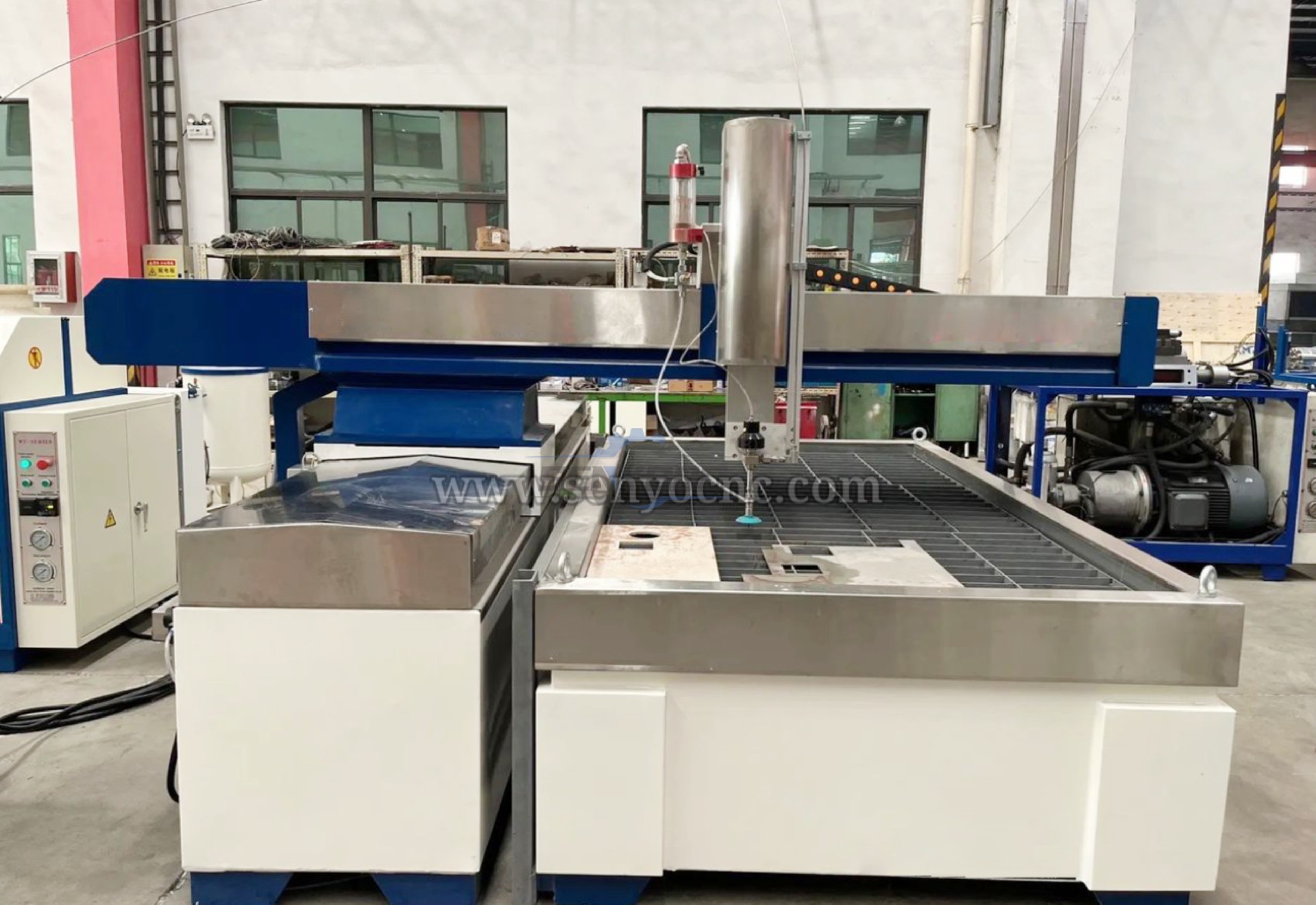

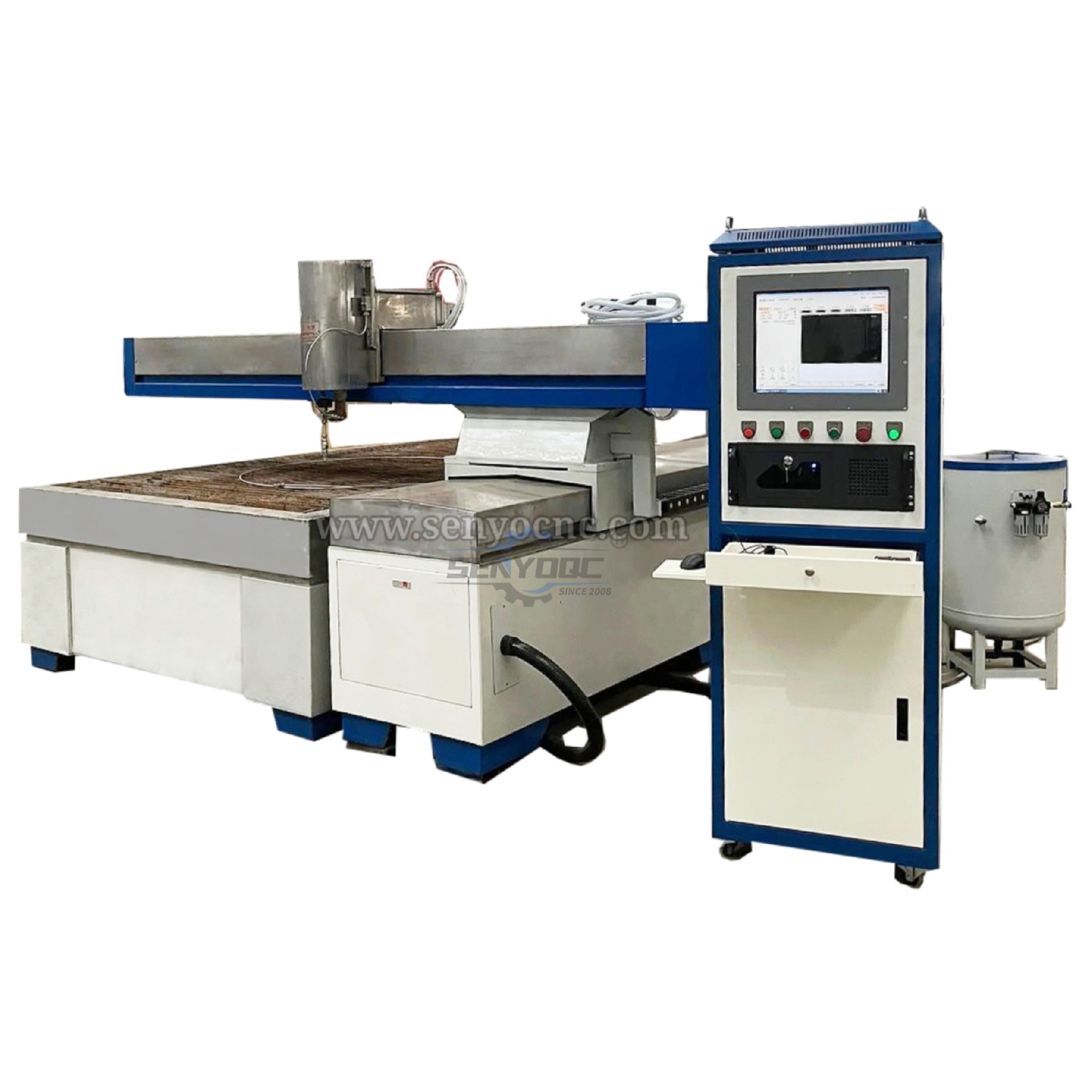

Gantry structure waterjet cutting table
Heavy-duty machine tools, high-temperature forging, so that the machine will not be deformed during use.
Features
1. Smooth cutting quality is perfect.German Rexroth hydrualic and siemens motor and eletric part.
2.The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and waterjet cutting can also make very complex puzzles and murals.
3.Cutting speed is fast, and product consistency and interchangeability are very good.
4. Drilling, cutting and forming can be done at once.
5. Improve the working environment and reduce the impact of dust and noise on the operator.
6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material.
7. It is the only machine for processing composite materials and fragile porcelain.
8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble,glass, etc.

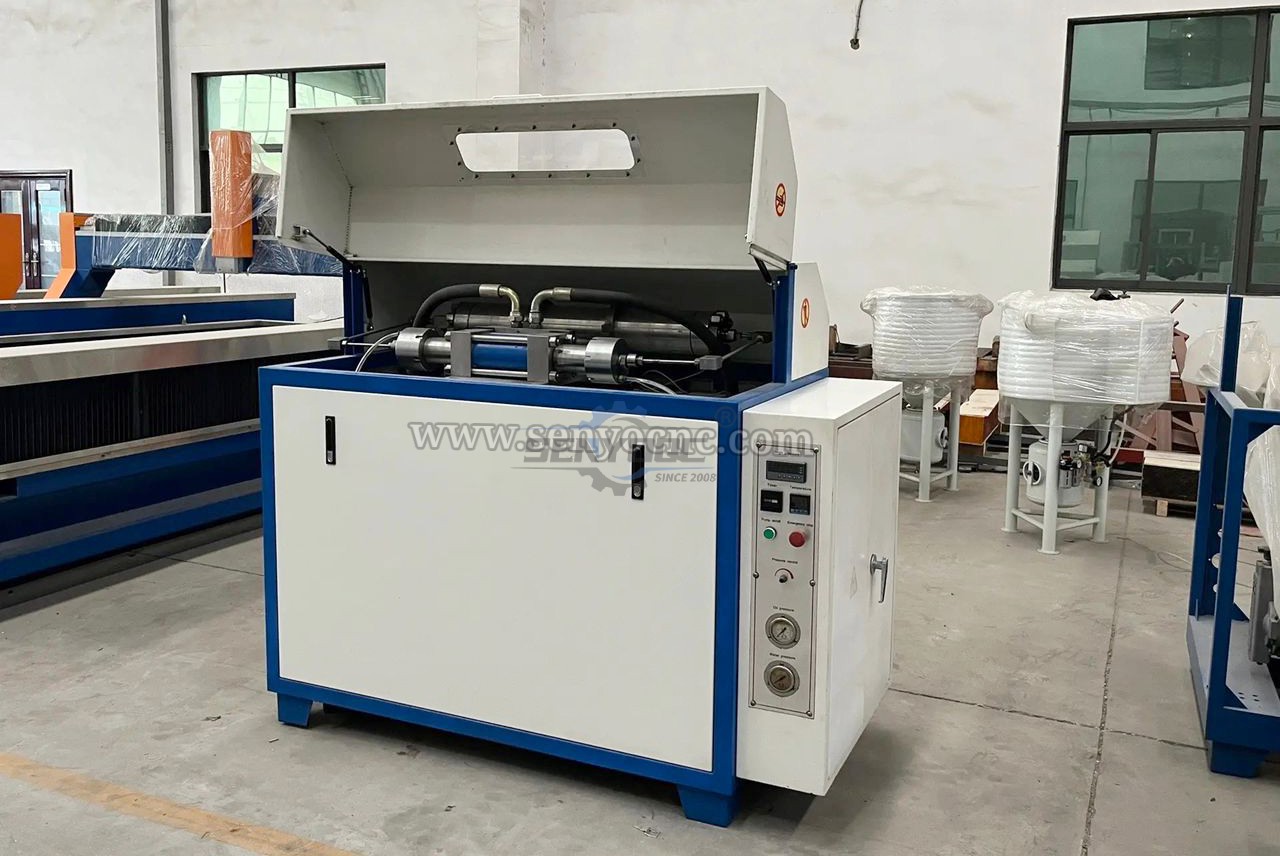

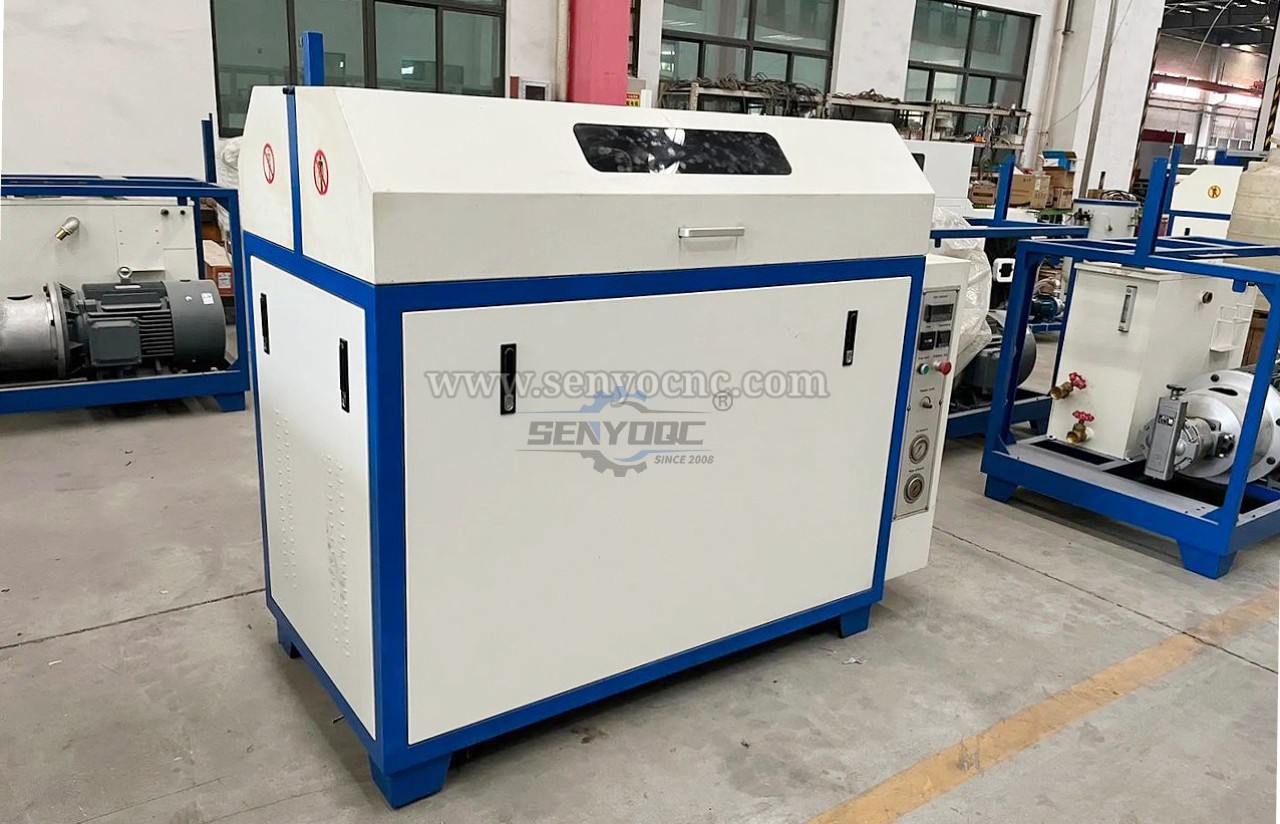

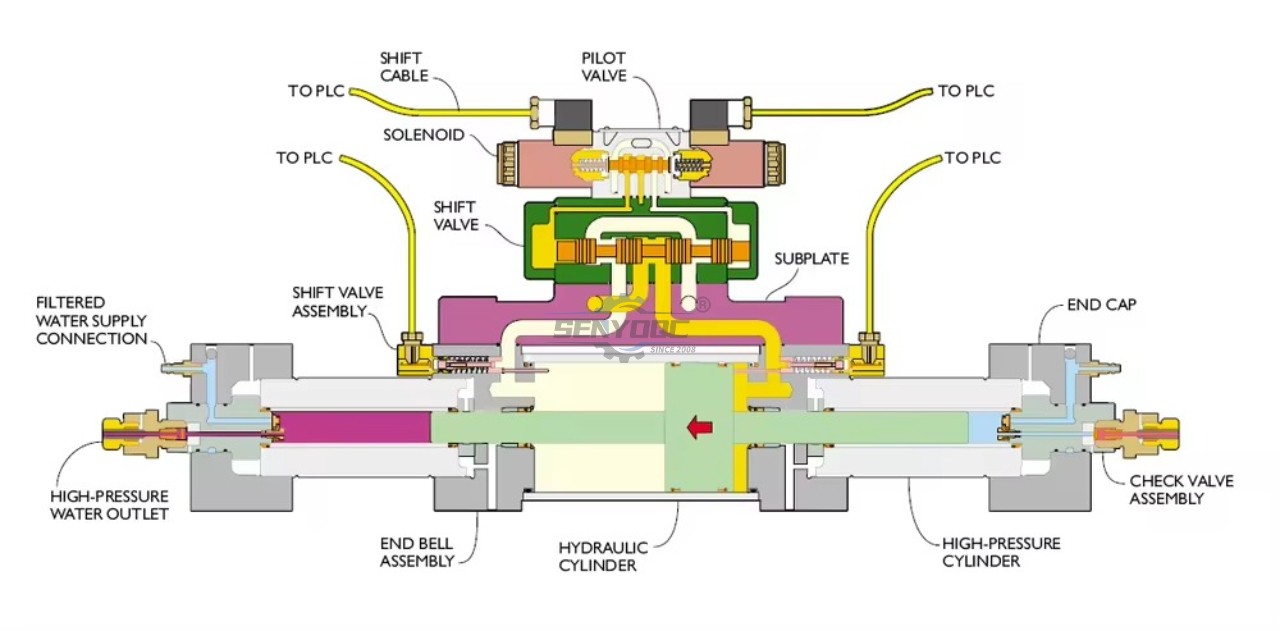

What's Intensifier Pump for Water Jet Cutting Machine ?
The linear intensifier pump is the original, and most common
technology used in waterjet cutting. Intensifier pumps use the “intensification principle” to pressurize water.
The “intensification principle”, or ratio, uses the difference in biscuit/plunger area to intensify,
or increase the pressure. Hydraulic oil is pressurized and the low pressure oil pushes against a biscuit,
which has a face area 20 times greater than the face of the high pressure plunger that pushes against the water.
Therefore, the pressure is “intensified” twenty times. E.g., 3,000 psi of oil pressure will generate 60,000 psi of water pressure due to the 20:1 ratio of
biscuit area to plunger area.
Parts Detials
Auto abrasive delivery system & Cooling system

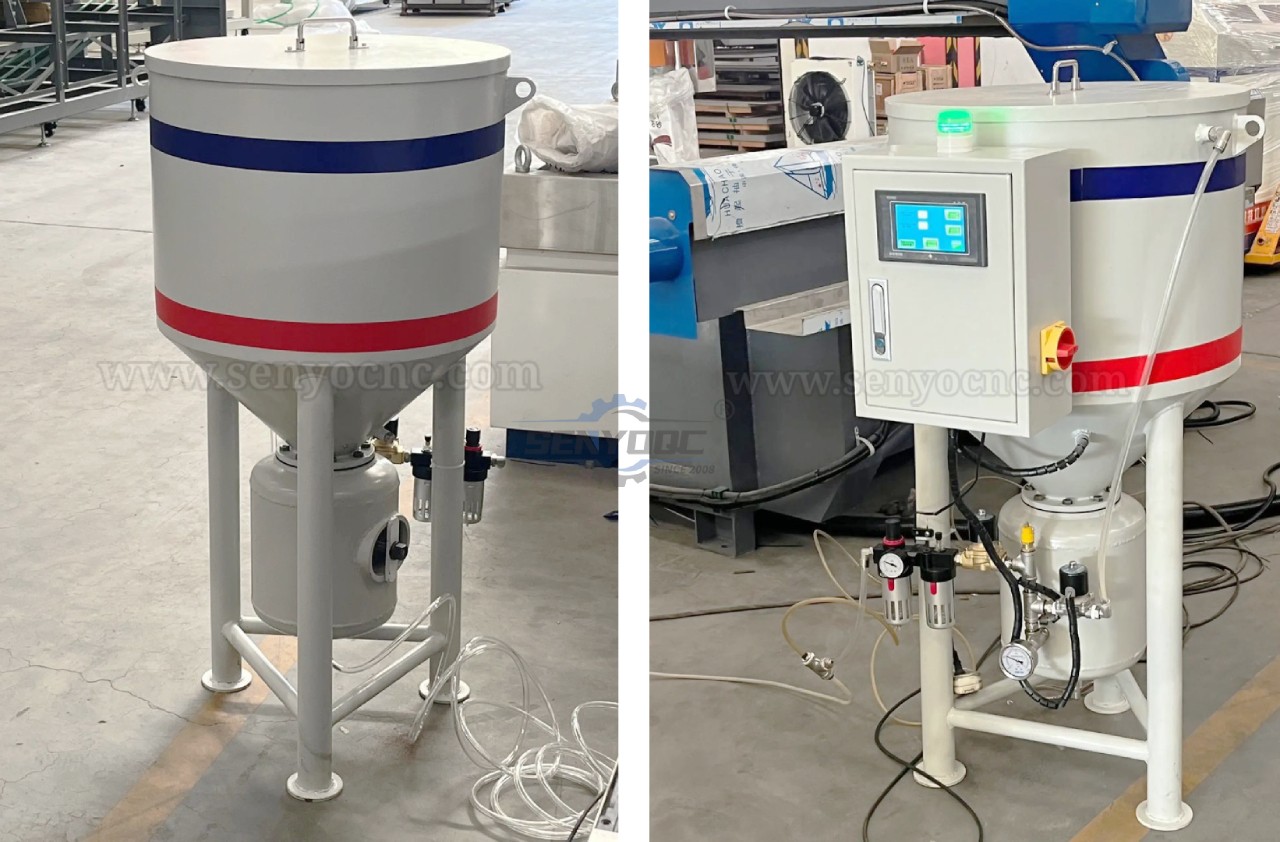

Abrasive Delivery System
1. Provide abrasives for water jet cutting machine.
2. It can improve the automation of the machine and reduce the labor intensity
of the operator.
3. High-precision sensor reminds the operator when to replenish the abrasive material.
4. No need for electric control, simple, reliable and maintenance-free operation.

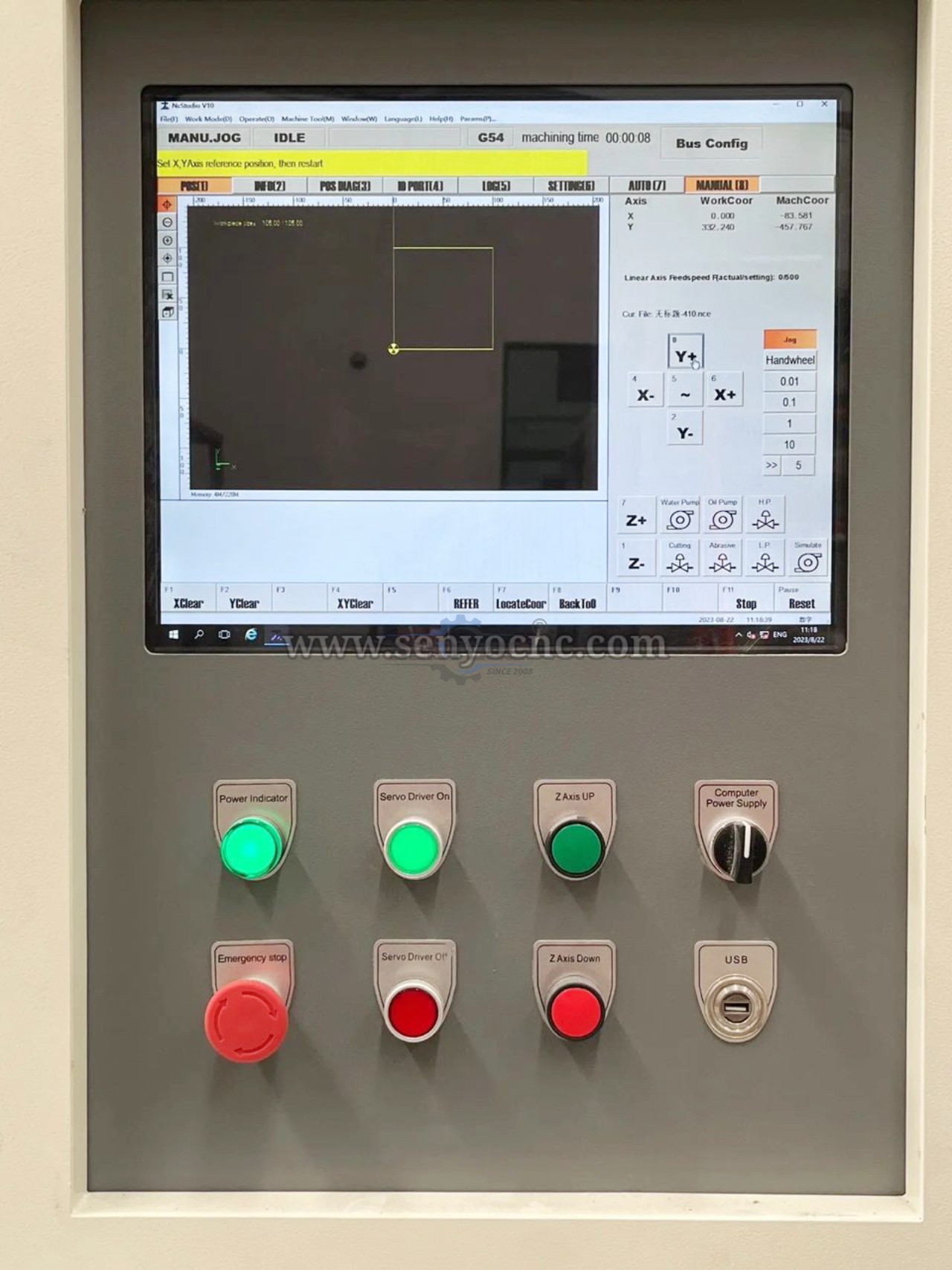

Waterjet CNC Controller
| 1. 17 LCD liquid crystal display. | 2. DNC on-line working function. |
3. Functions of returningarbitrary point bending and circular working auto deceleration. | 4. Function of cutting figure imitation display. |
| 5. 80GB memory hard disk. | 6. MITSUBISHI AC servo driver and motor. |
| 7. 1GB memory card. | 8. Multilingual function |
| 9. Drive-by-wire and hand-hold controller. | 10. NAIKY PCIMC-6A special software is special for YC. |
Machine Applicaton
| Glass. Waterjets are used for a number of glass projects, including kitchen and bathroom splashbacks, stained glass for mosaics or lamp shades, frameless shower screens, laminated and bullet-proof glass, and inlays of floor, walls, and table tops. | Metals.One of the most common uses for waterjet cutting is cutting metals like steel, aluminum, titanium, brass, and nickel. |
| Stone.Waterjets are used for cutting floor and wall inlays, custom stepping stones, custom border tiles, and bench tops for kitchens and vanities. | Soft Materials. Waterjets are often used for cutting soft materials like dense foams, components for car interiors and bodies, rubber, plastics, and cork. |
| Automotive. Waterjets are used in the automotive industry for truck bed liners, bumpers, fiberglass body components, interior trim, and foam | Electronics. Waterjets are used in the electronics industry for cable stripping and circuit boards. |
| Aerospace. Waterjets are used in the aerospace industry for cutting engine parts, interior cabin panels, aluminum body parts | Food. Waterjets are often used in the food industry for jobs such as slicing mass quantities of vegetables and processing meat like chicken nuggets and frozen fish. |
| Fiberglass. Waterjets are used to cut fiberglass for home insulation, boat bodies, panel insulation, and personal watercraft bodies. | Textiles. Because of their ability to cut multiple layers at once, waterjets are popular for cutting textiles like sports lettering, fabrics, healthcare products, feminine hygiene products, and diaper |
| Munitions Demilitarization. Waterjets are used in the arms industry for chemical weapons and high explosives. | Titanium bodies for military aircrafts. |

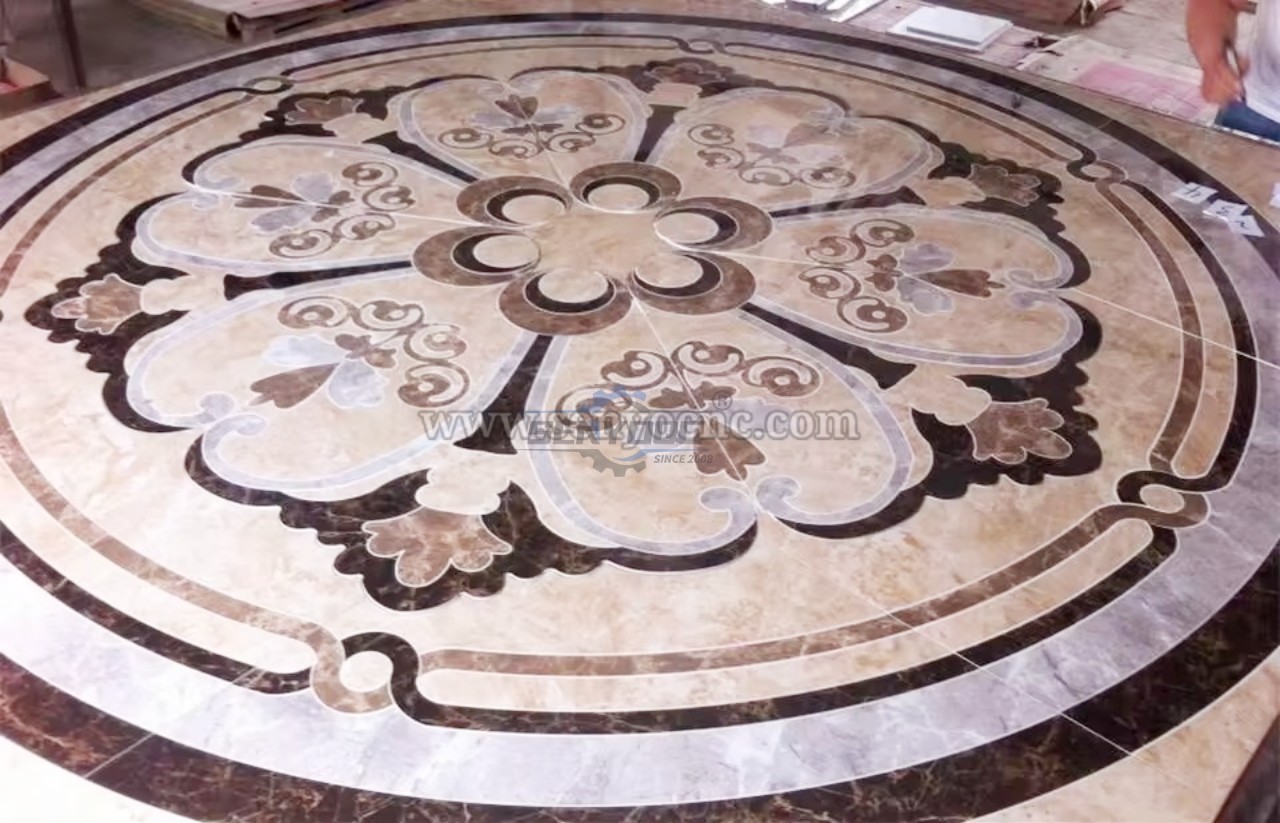

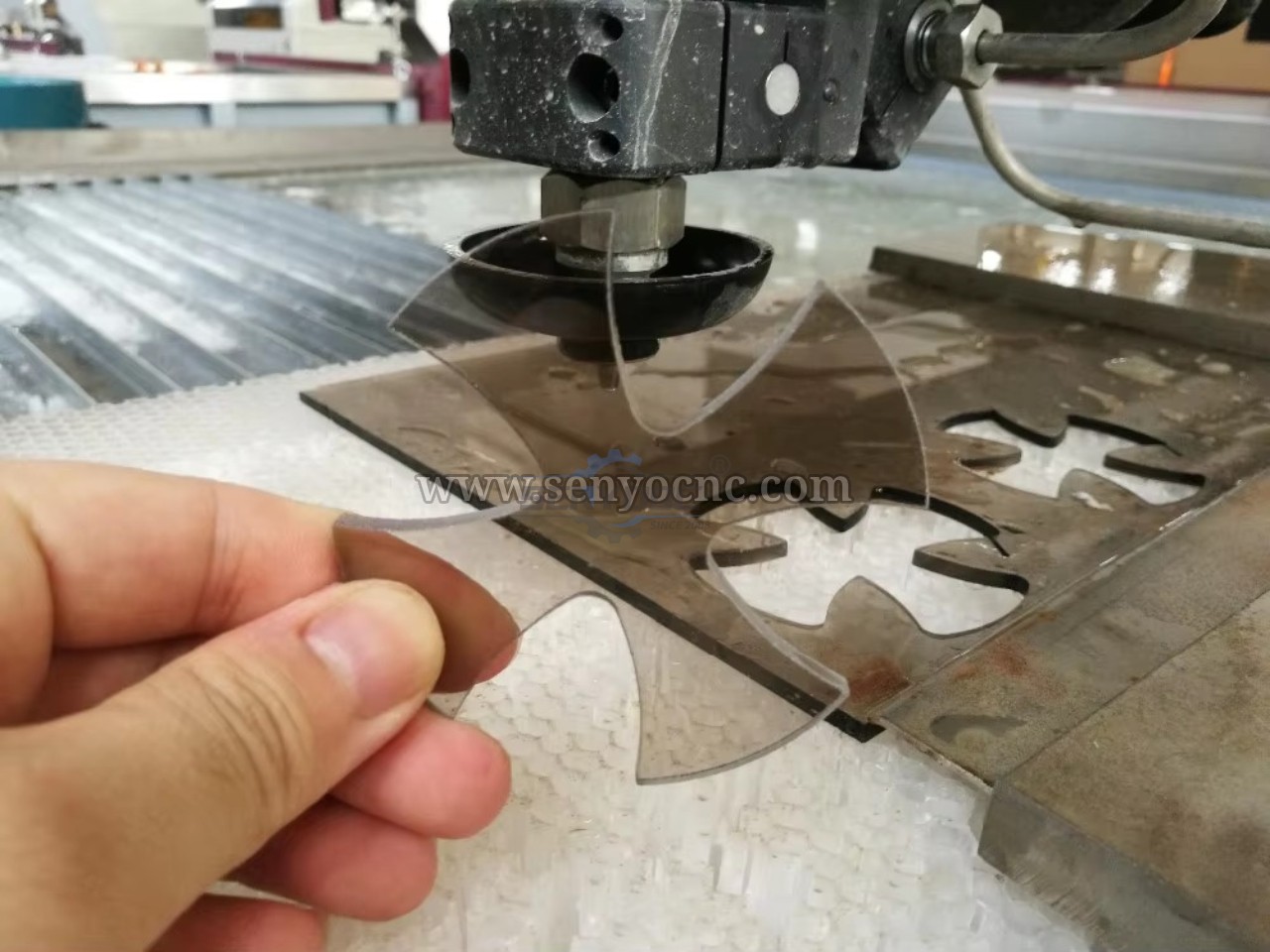

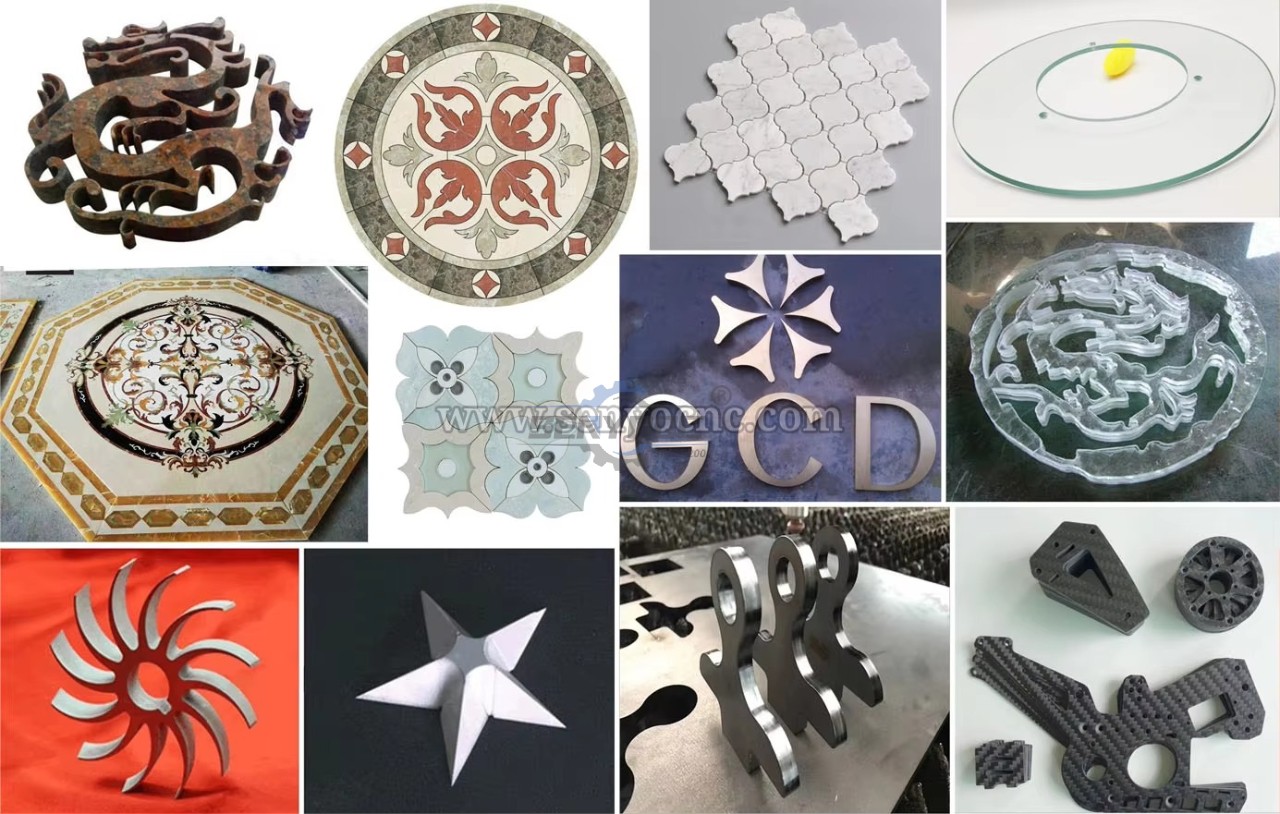

Work Samples

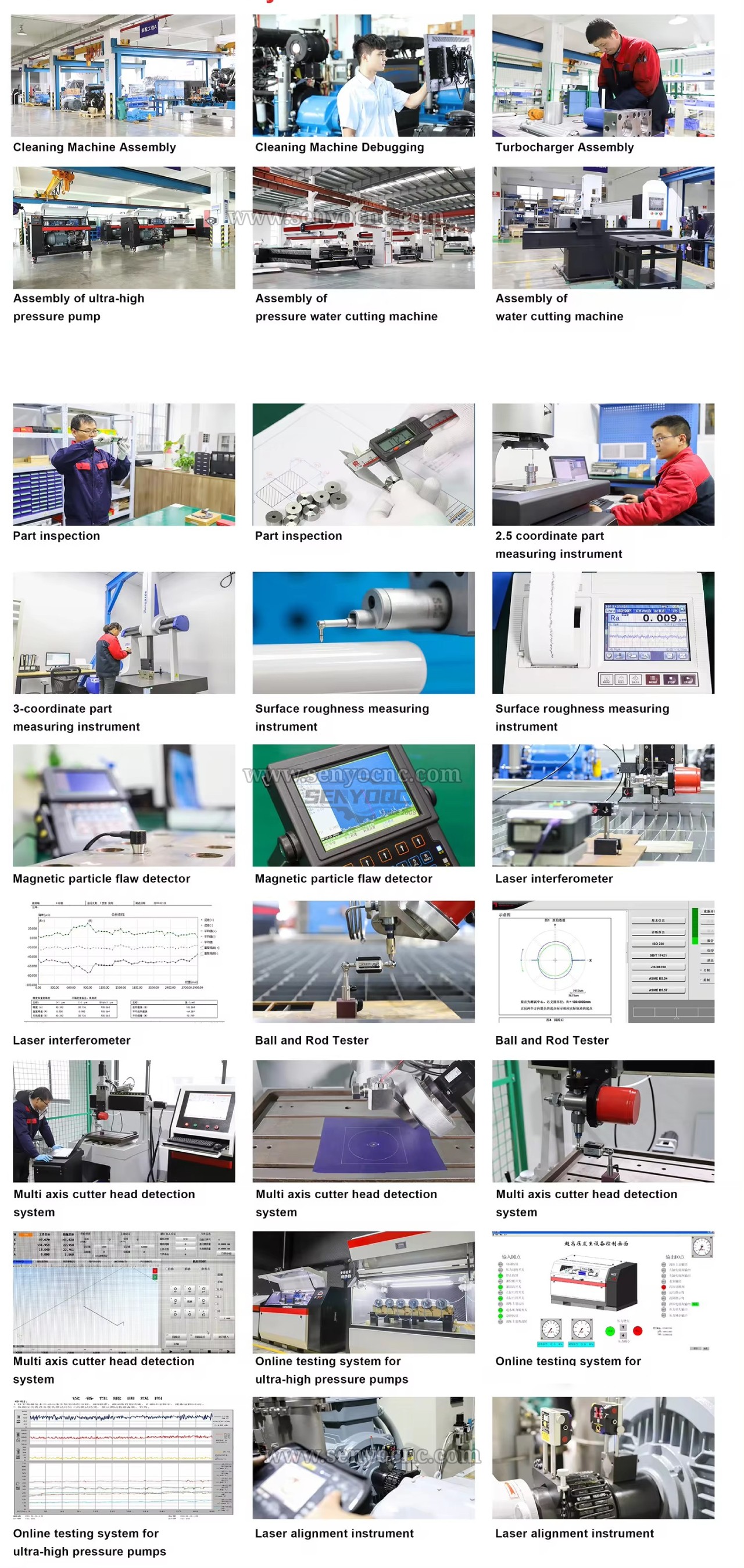

Enginner Test Process And Quality Control Detials

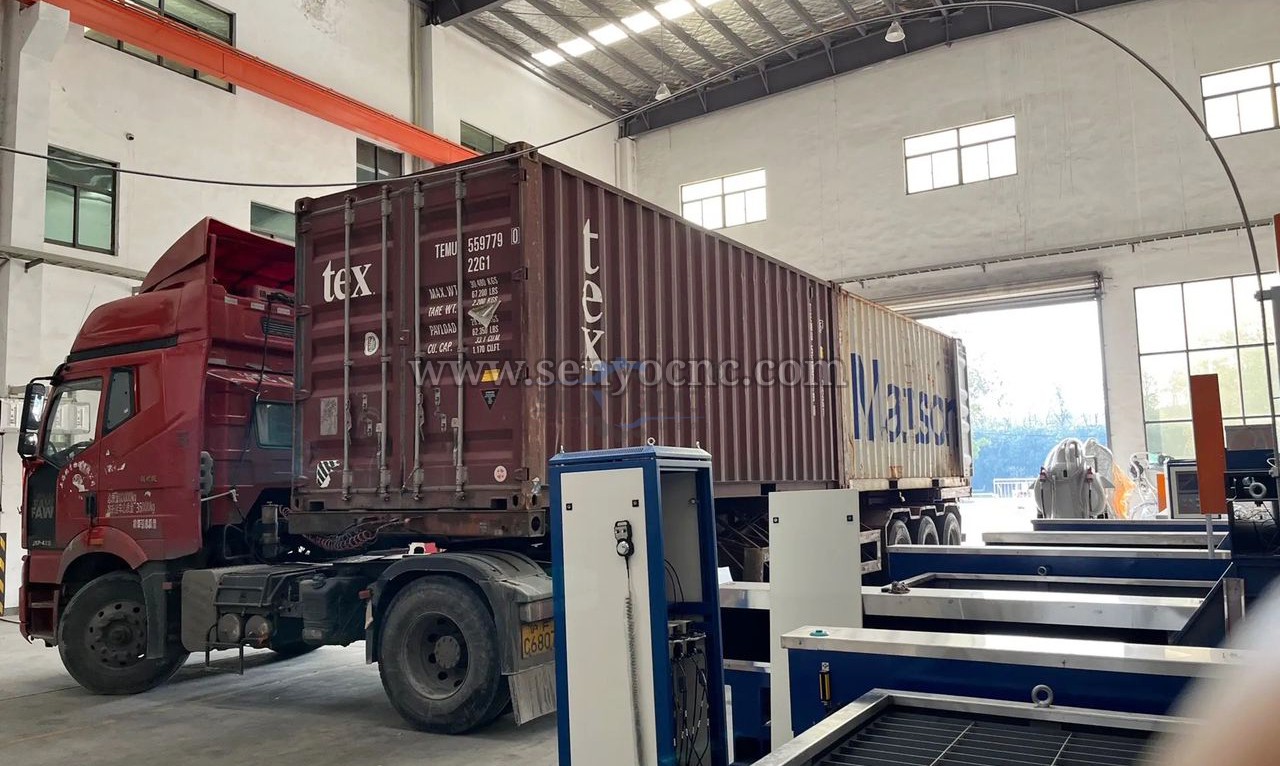

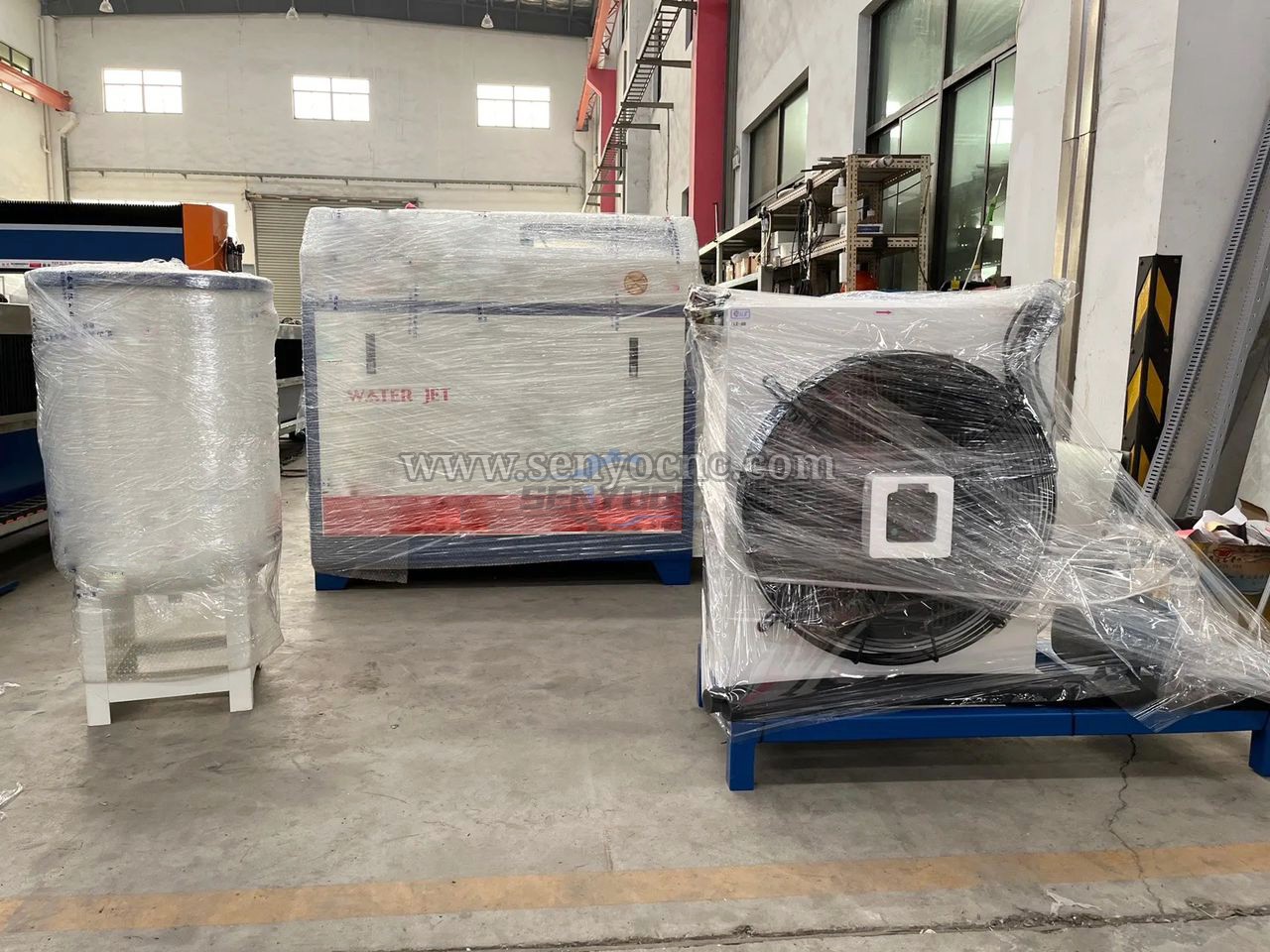

Package Shipping

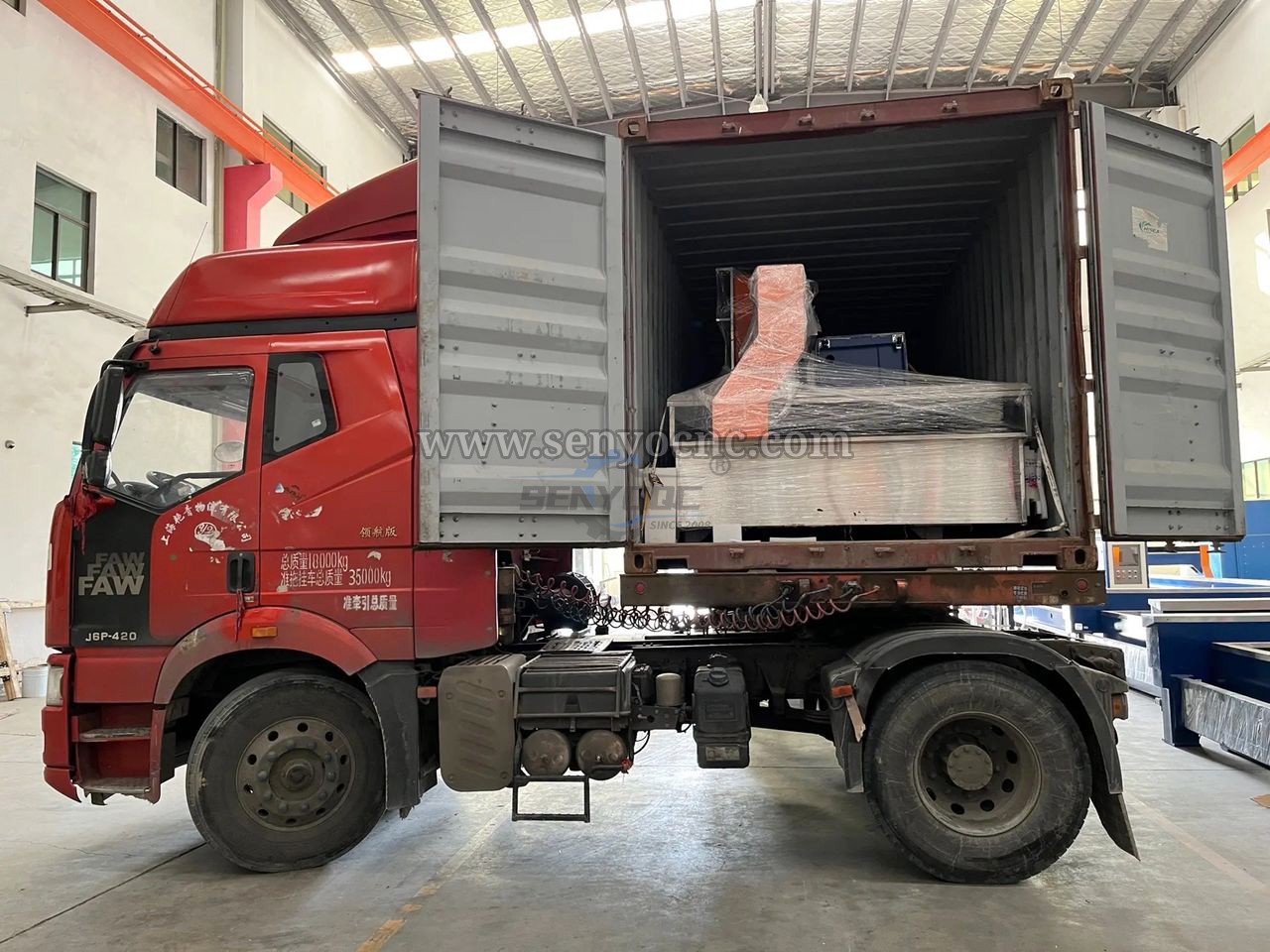

International Shipping
Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL. FEDEX. UPS. You are welcome to get a free guotation by fling up the form with name, email, detailed address.Product and recuirements. We will shortly contact you with the full information includina the most suitable delivery method fast secure discreet and freight.
waterjet , cnc water jet machine, waterjet cutter, marble cutting machine, glass cutting waterjet,metal cutting machine water jet ,cnc water jet
