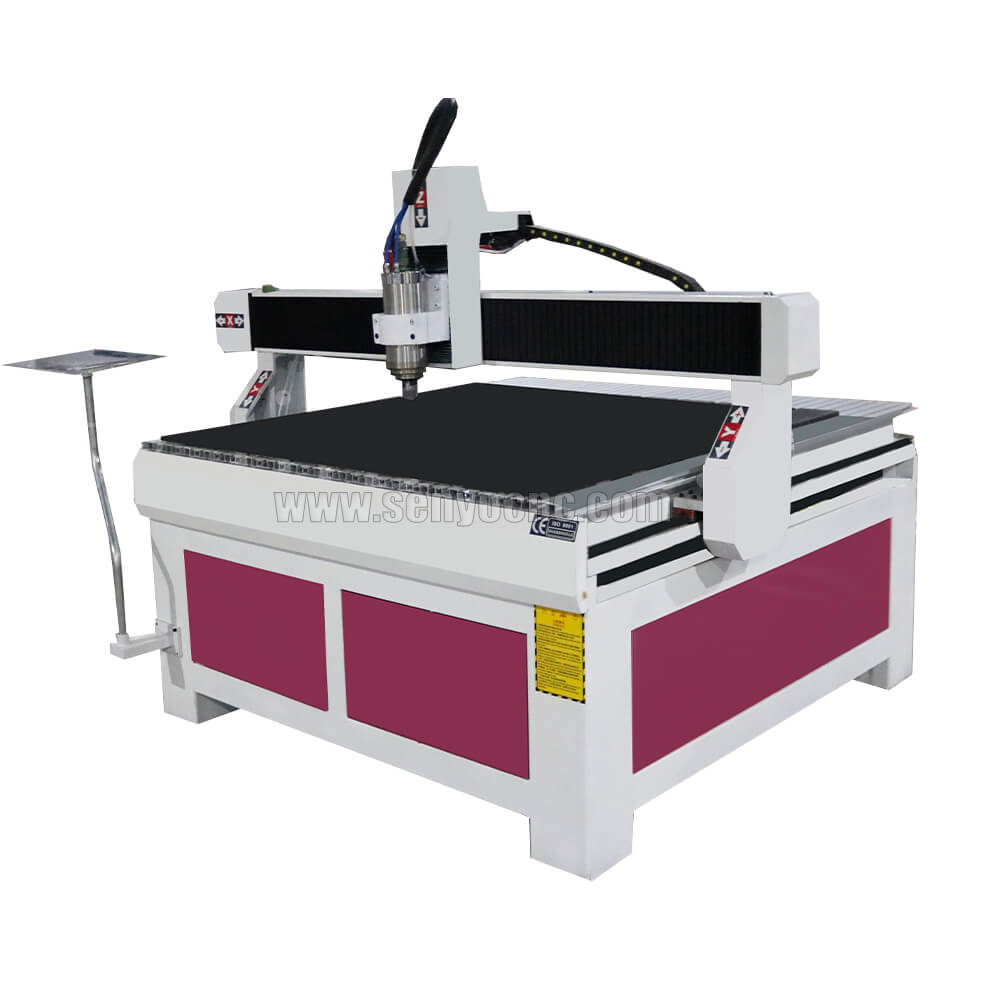

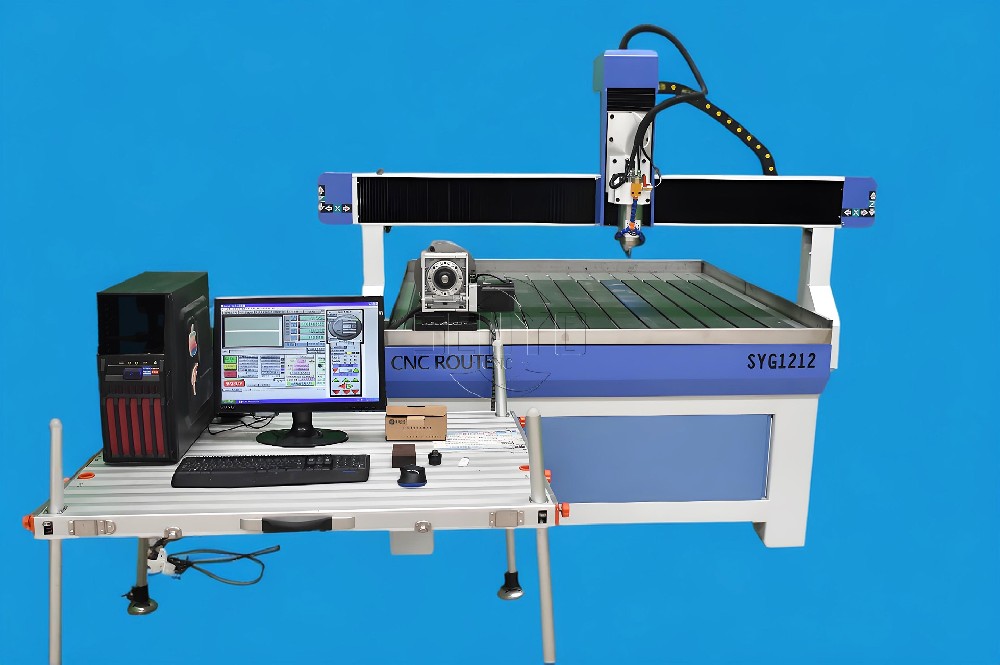

The SYG1212-4 AXIS machine can process different material.
It’s widely used in label, seal, chest plate, craft, mould, meter panel and so on.
This machine is good at both accurately engraving and strong cutting. structure is exquisite, durable and is convenient to use.
High speed and human design and large functions which applies in varies lines.
At the same time, high Ratio of performance and price make the investment more economical.
What Is A 4x4 CNC Router?
4x4
CNC router is a type of automatic hobby CNC machine with a 48" x 48"
(4x4 feet or 1200x1200 mm)
tabletop with a NC-Studio controller for small business, home use, or school education.
4x4 CNC router table is suitable for a variety of materials, including wood, plywood, MDF, foam, plastic, stone, copper, brass, and aluminum.

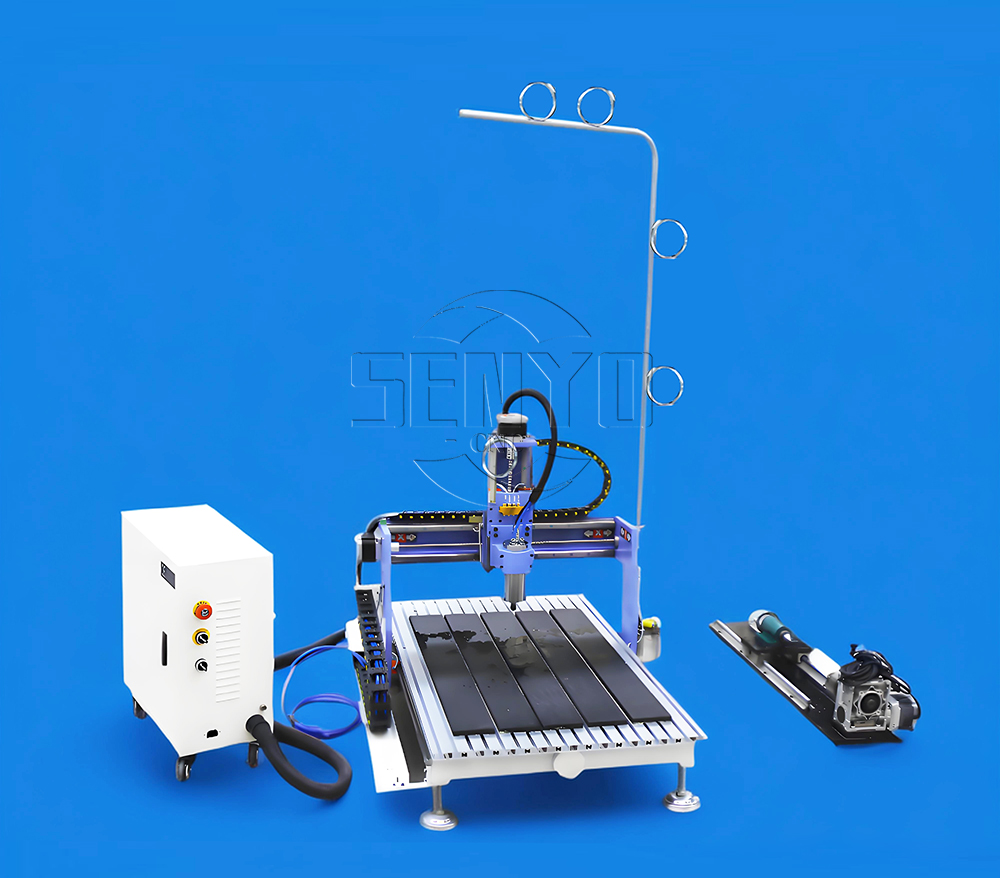

What Is A 4 Axis CNC Router?
A 4-axis CNC router is a type of basic CNC machine with an X axis, Y axis, and Z axis, And Rotary
The X-axis will move from left to right, the Y-axis will move from front to back, and the Z-axis will move up and down.
4-axis CNC machines are used primarily for machining flat, 2D, and 2.5D parts.3D
Machine Features
1.High accuracy, long service time, steady movement
2. Adopt Taiwan intime imported linear guide rail, make sure the machine square the accuracy and can withstand large load
3. Mechanical and electrical design, selection of straight-a excellent brand electrical accessories,will failure rate to a minimum.
4.Breakpoint power function for carving
5. Auto lubricating system, one touch can finish periodic maintenance easily.
6. Intelligent protection work to prevent incorrect operation etc mesa, may cause the damage of mesa. Intelligent processing
7. Cross-border protection, prevent to design board face more than processing wide of the mechanical collision caused phenomenon
Machine Parts Detials

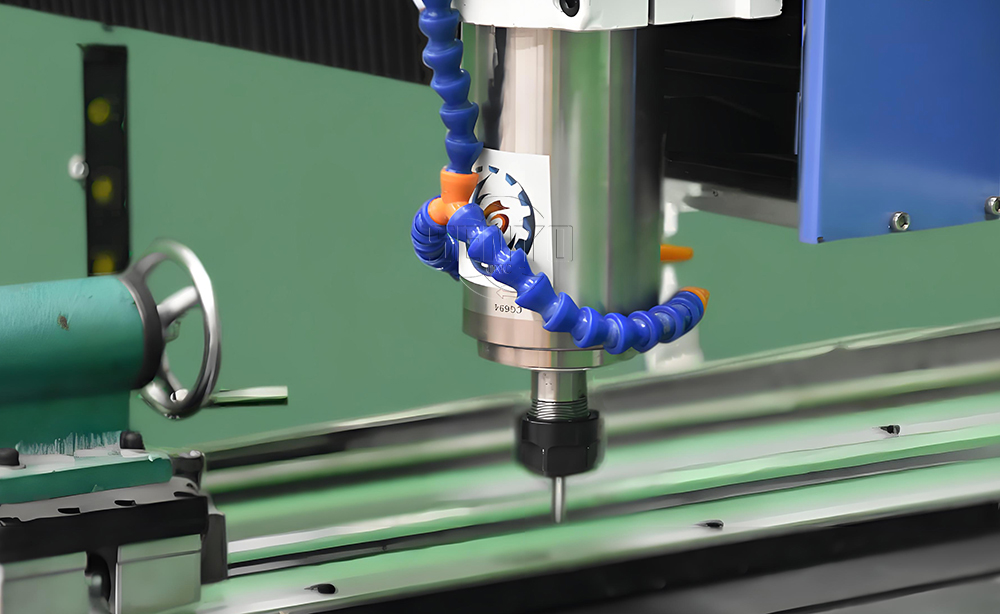

HQD 2.2kw water cooled Spindle, Famous In china ,Good working and powerful.
If you work on metal cutting and marble engraving we advine use bigger power , like 3.2kw 4.5kw 5.5kw. its good for hard materials work.
T-slot Table suitable for different working materials

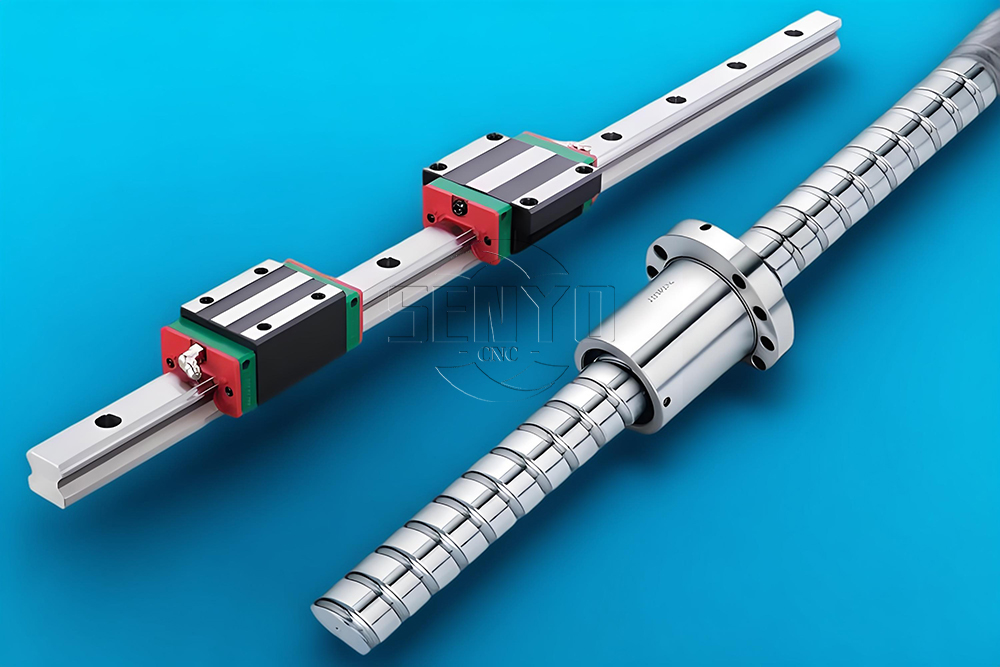

Taiwan Hiwin Square Ril guide, Fast running speed and strong bearing capacity

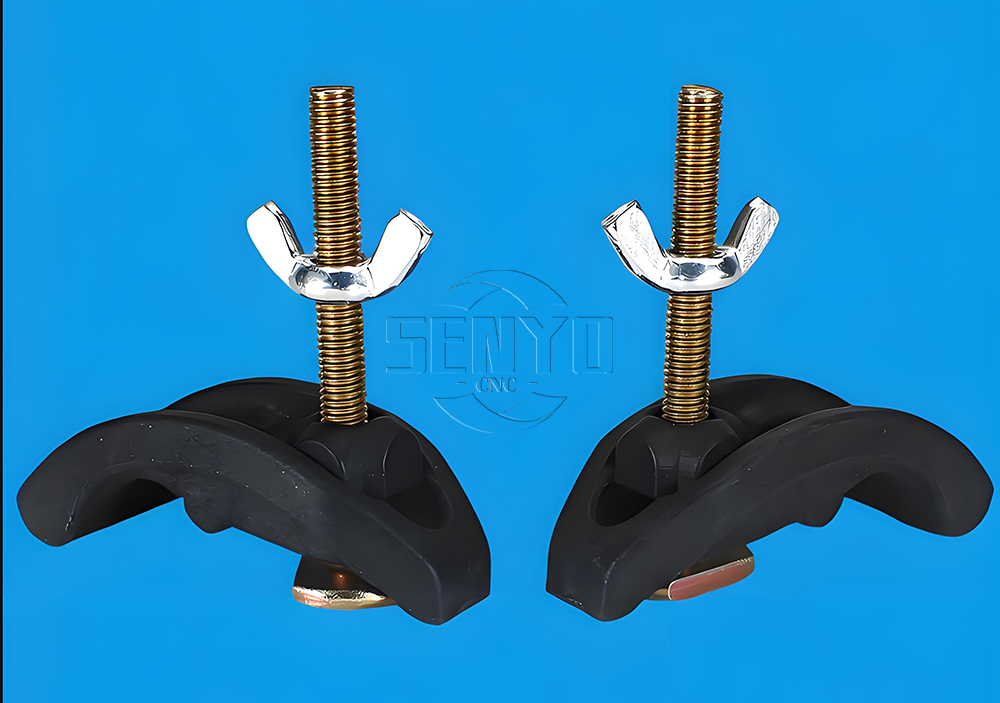

The Fixture for worktable , Machine with all parts for your operation .

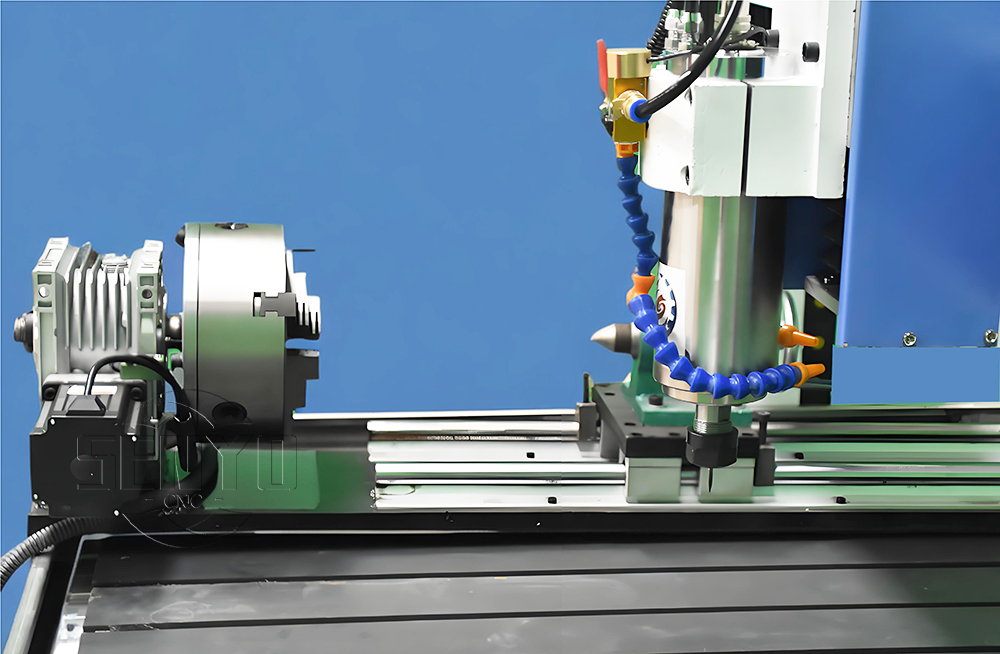

Rotary do 3d works

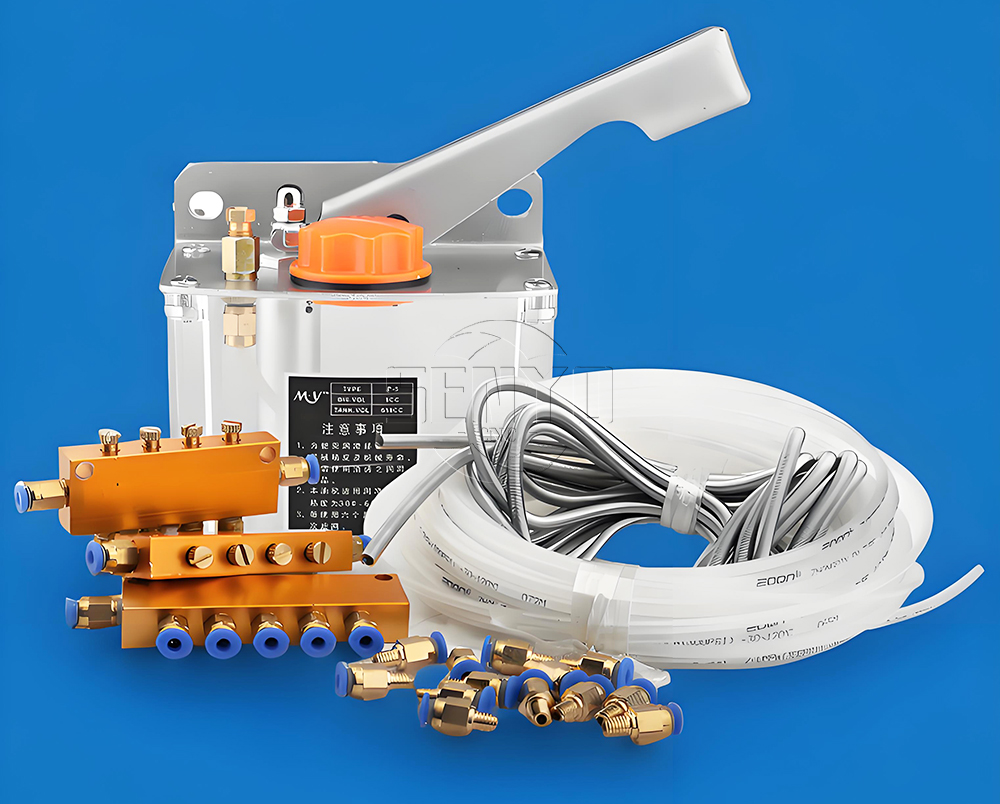

Oil Lubrication system .It will Protect Machine Rail Guide Working in Best condition .

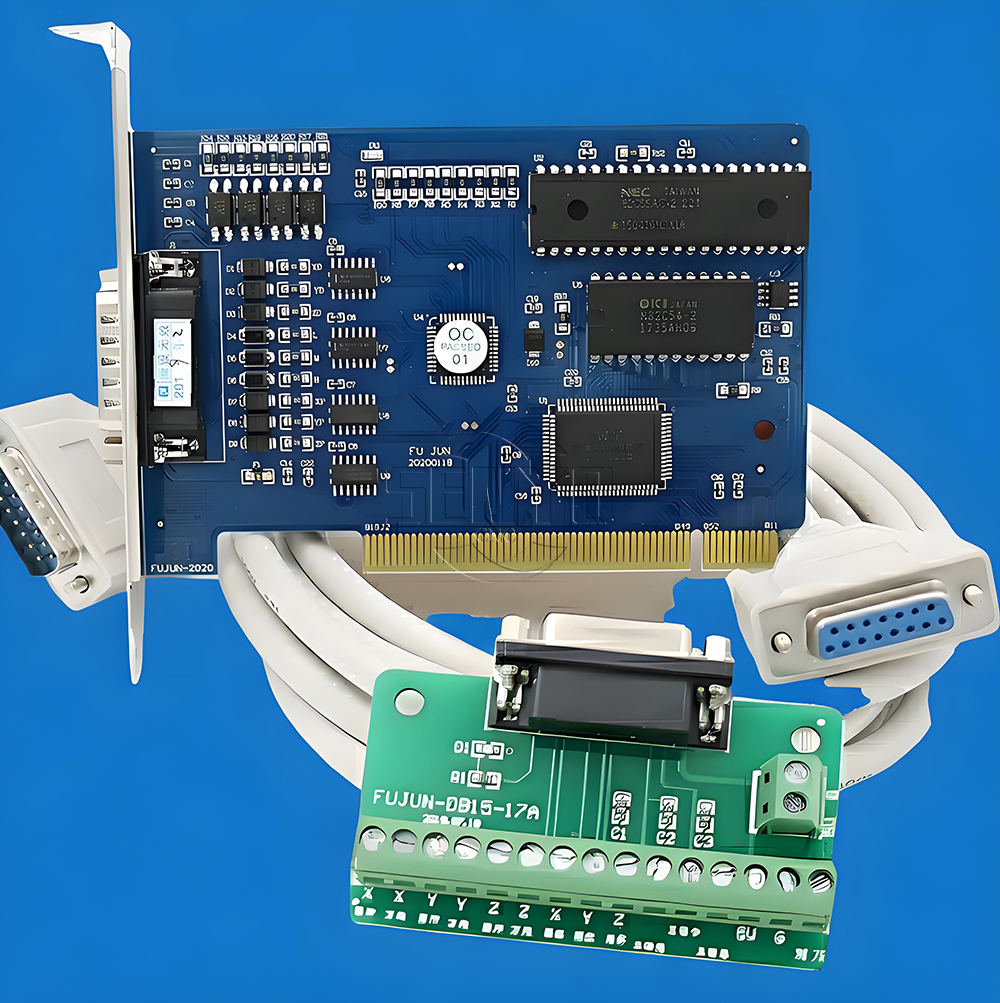

NC-Studio control system , Professional controller for machine working . If you buy computer , we will install controller and software well on computer.

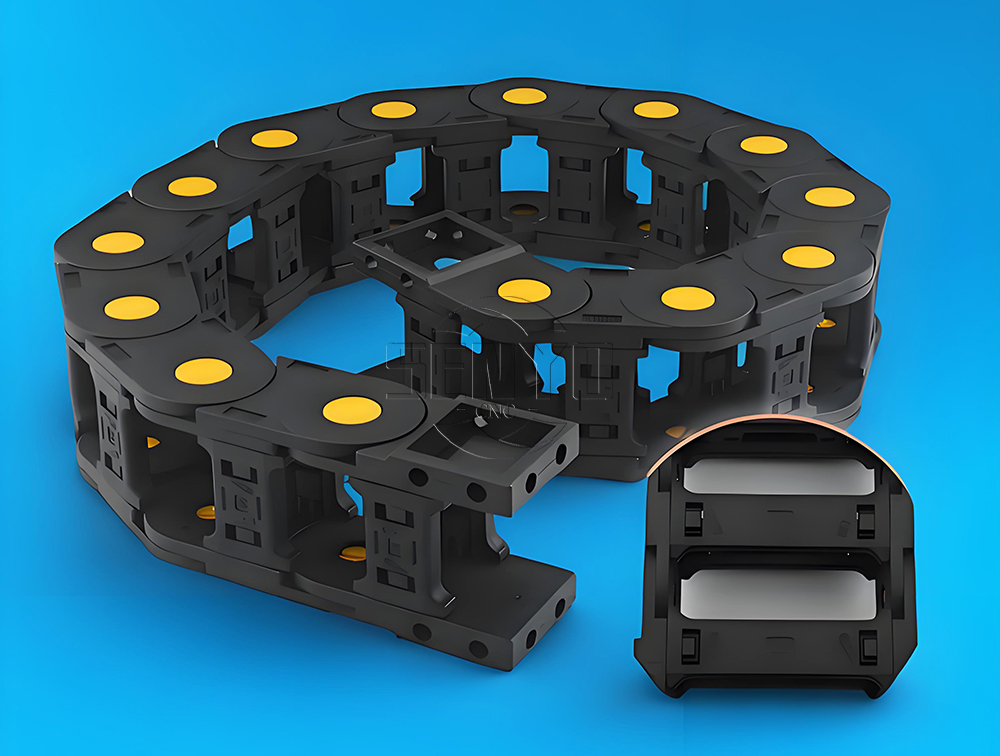

Machine belt For collect electric wires , Big size for good collecting wires.
Application & Industry

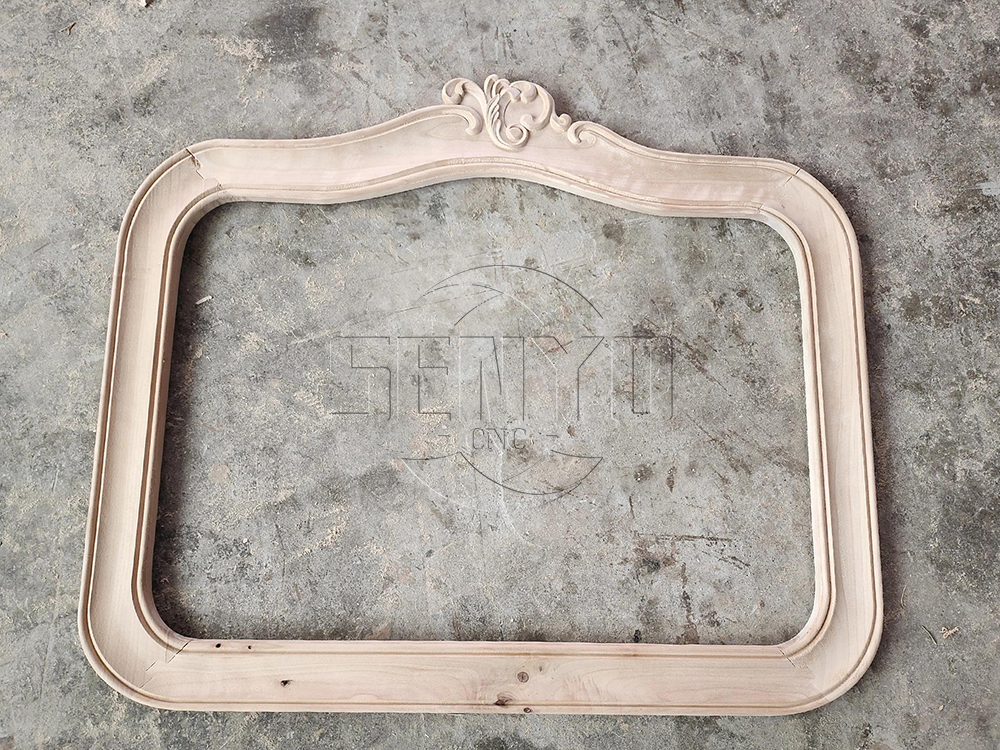

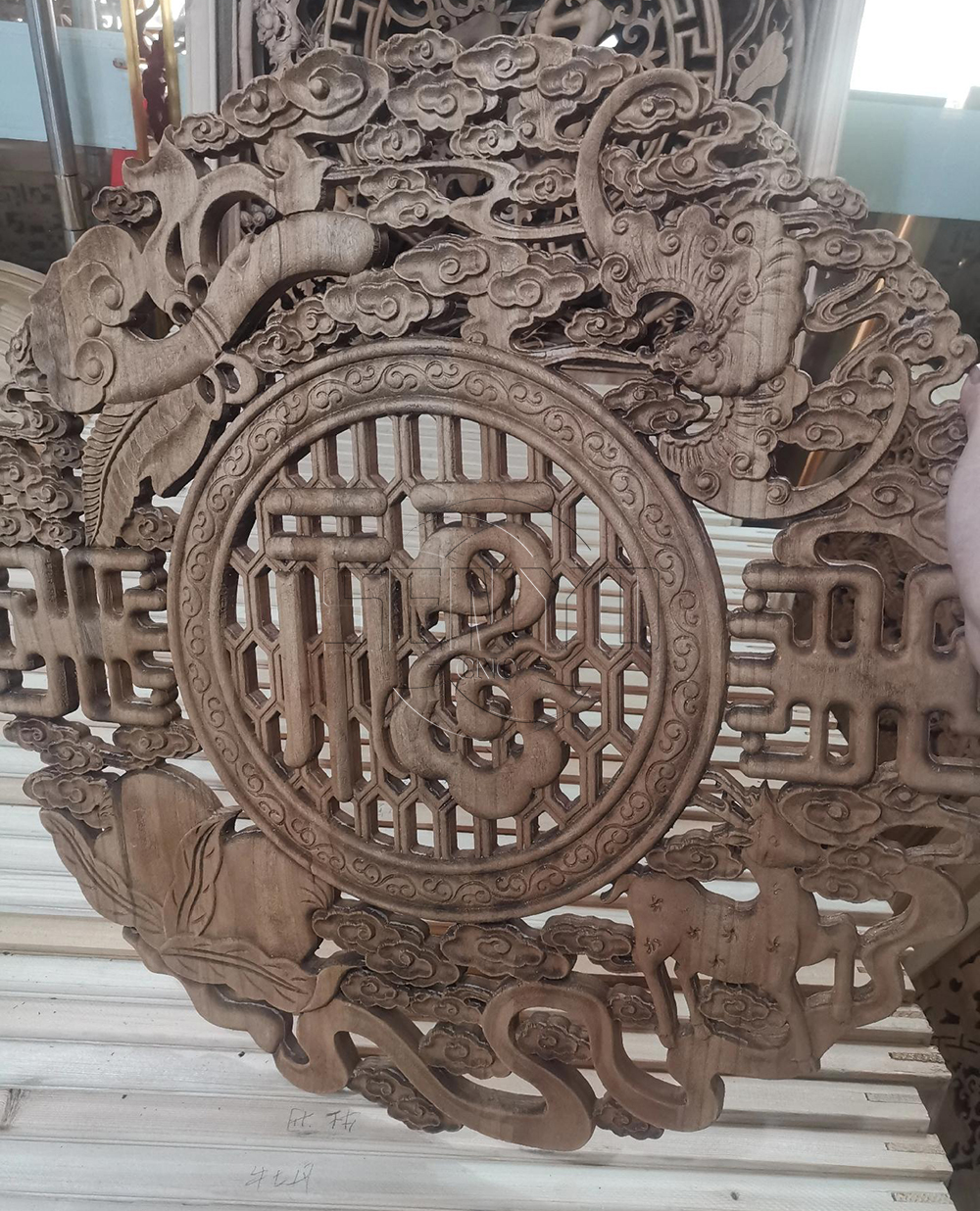

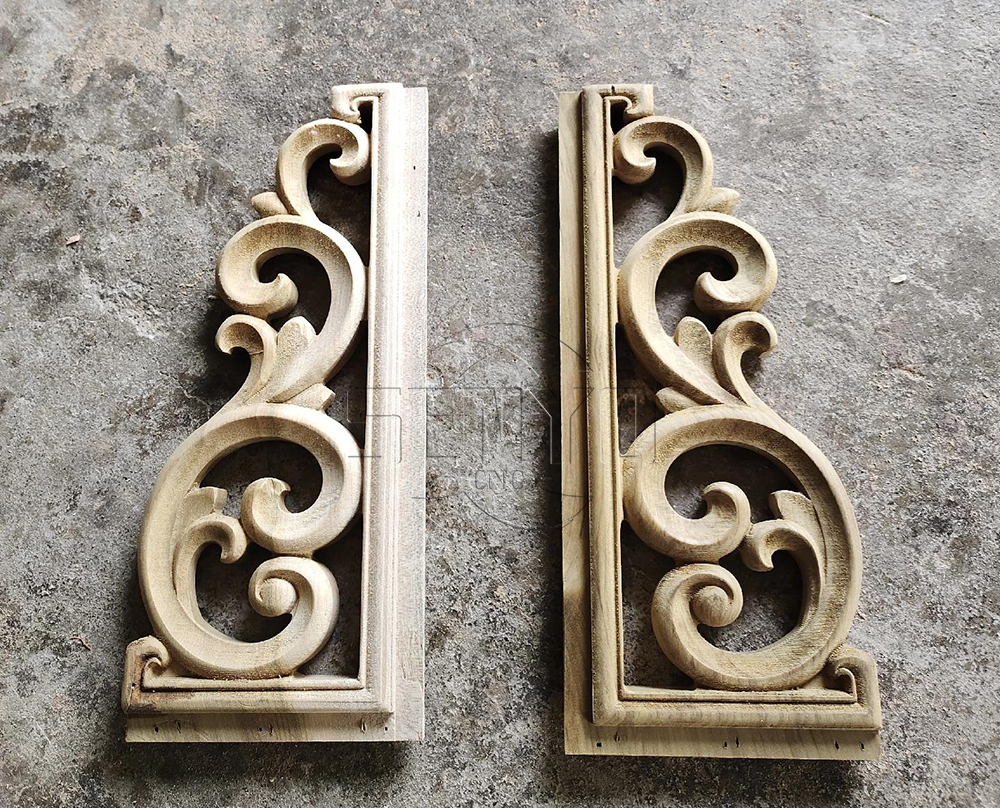

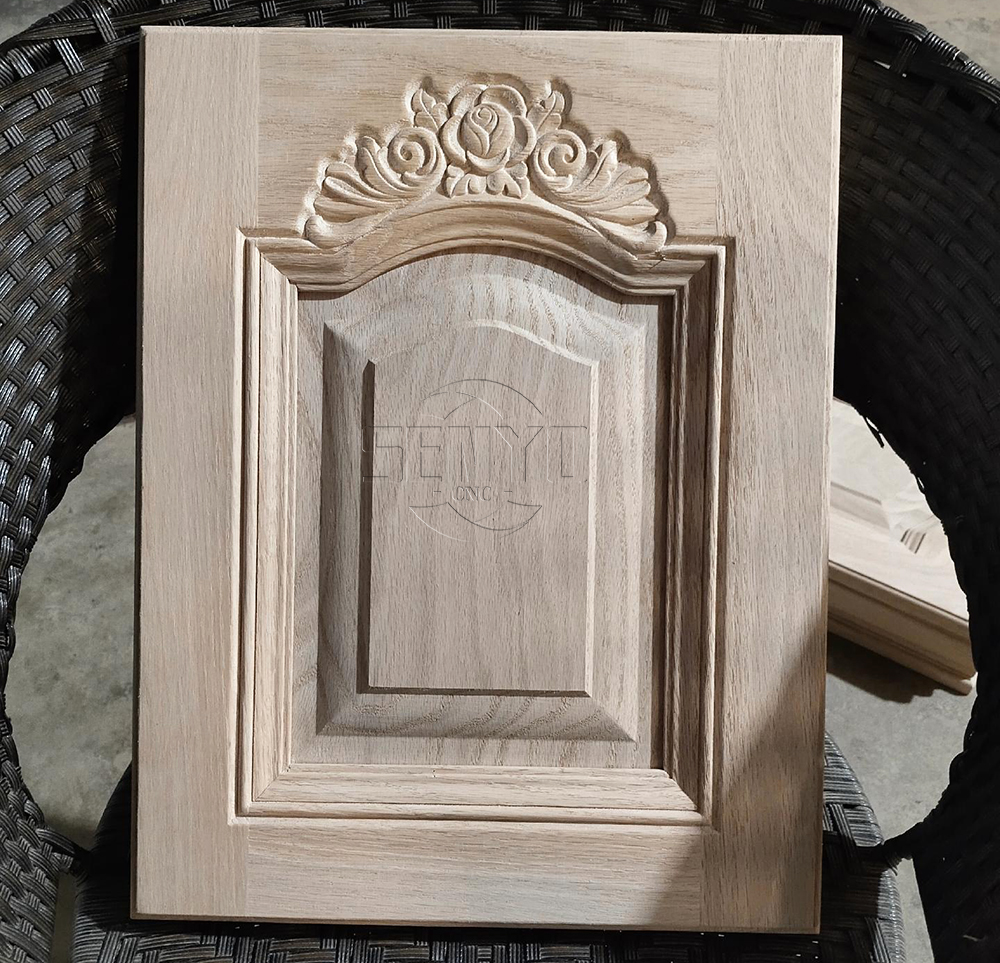

Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.

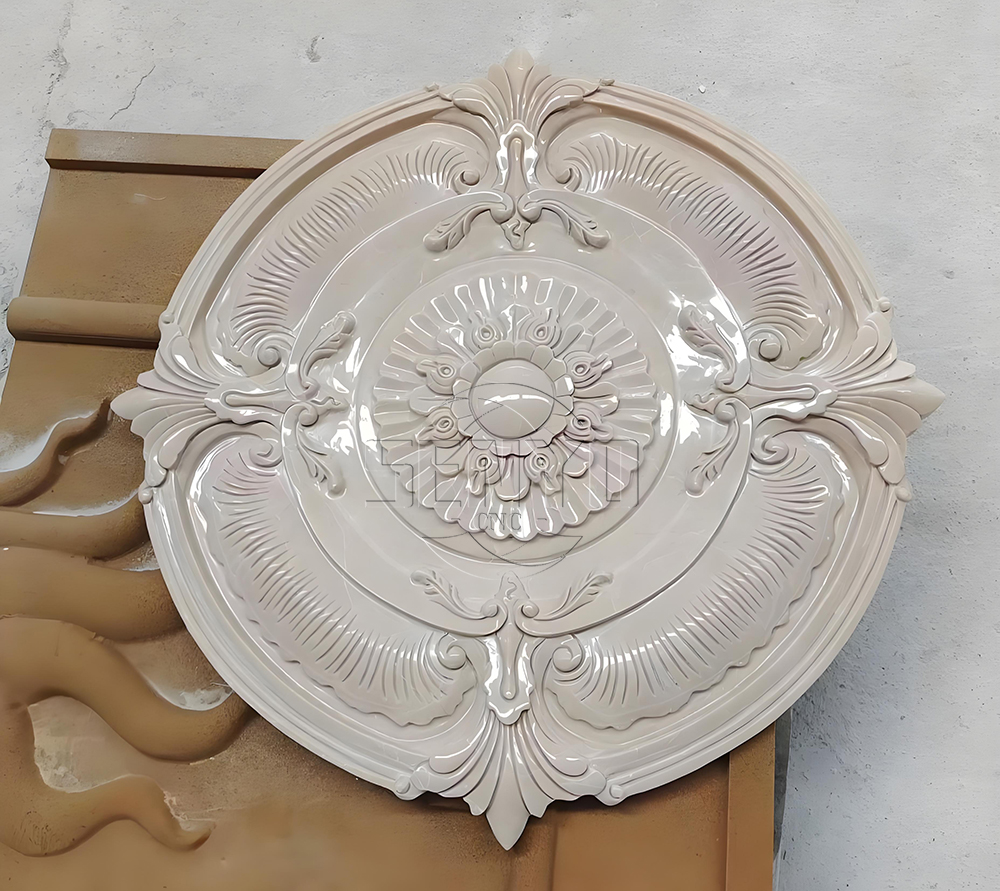

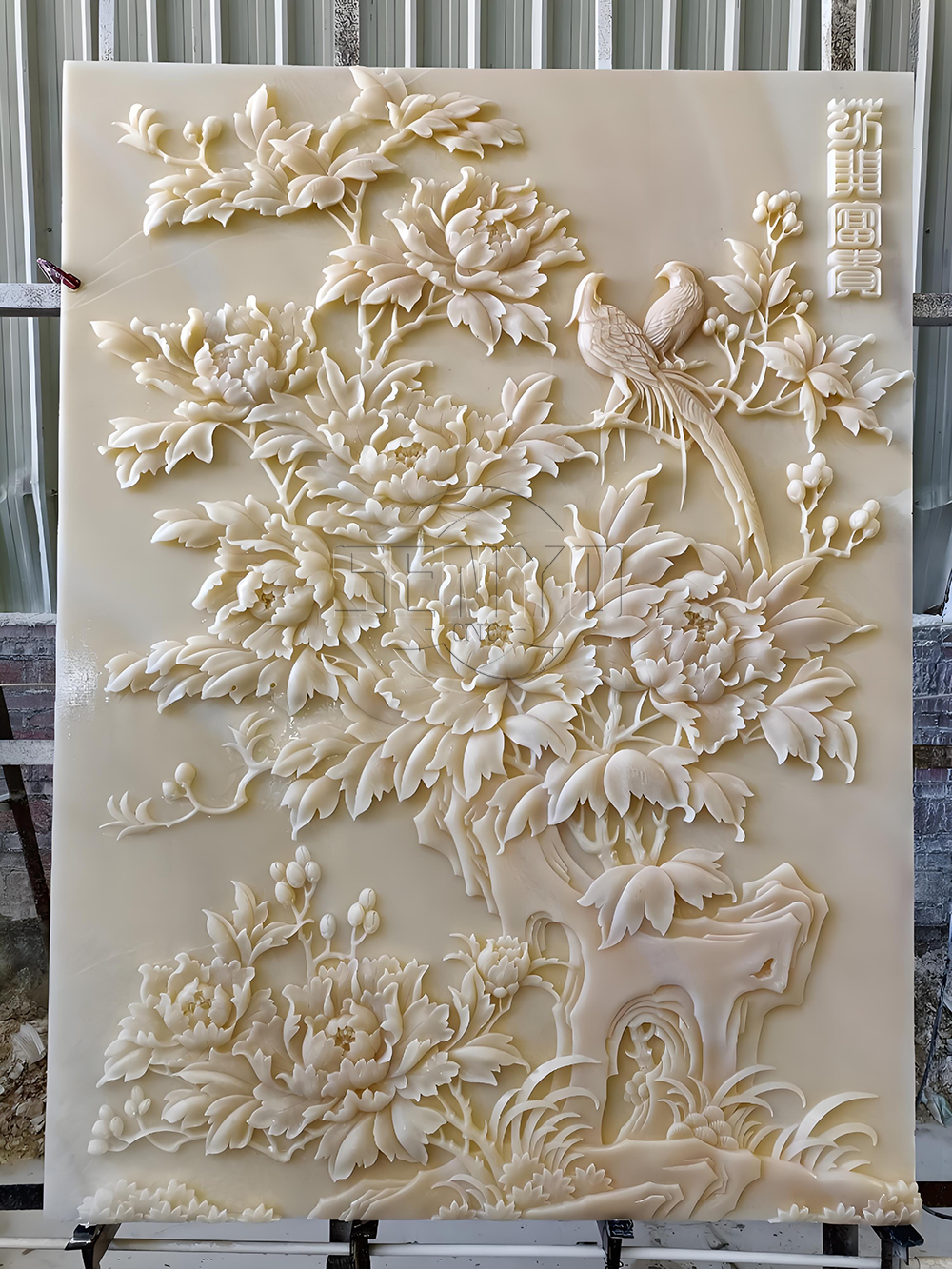

Marble engraving

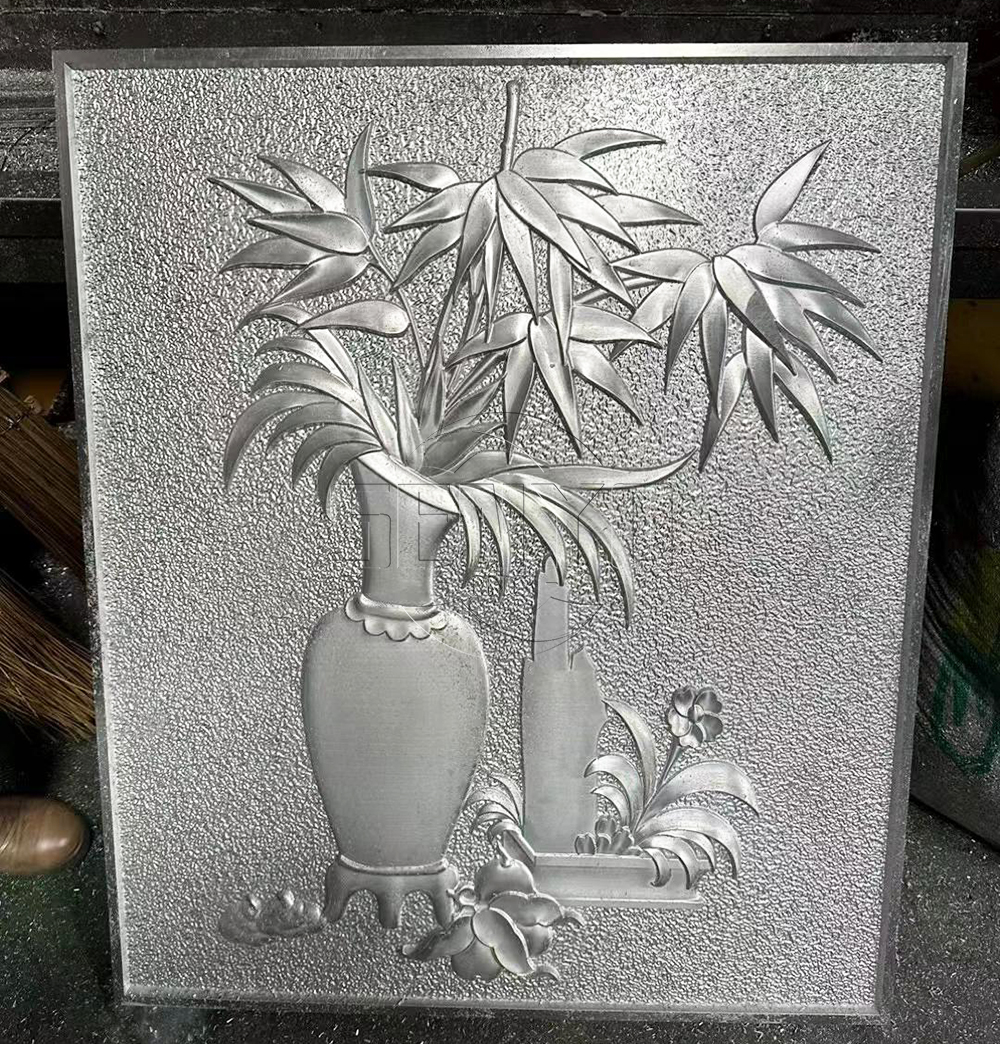

Aluminum engraving
Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble,grave, plastic board, PVC, board etc.
Other industry: image engraving, embossing, craft and gift industry

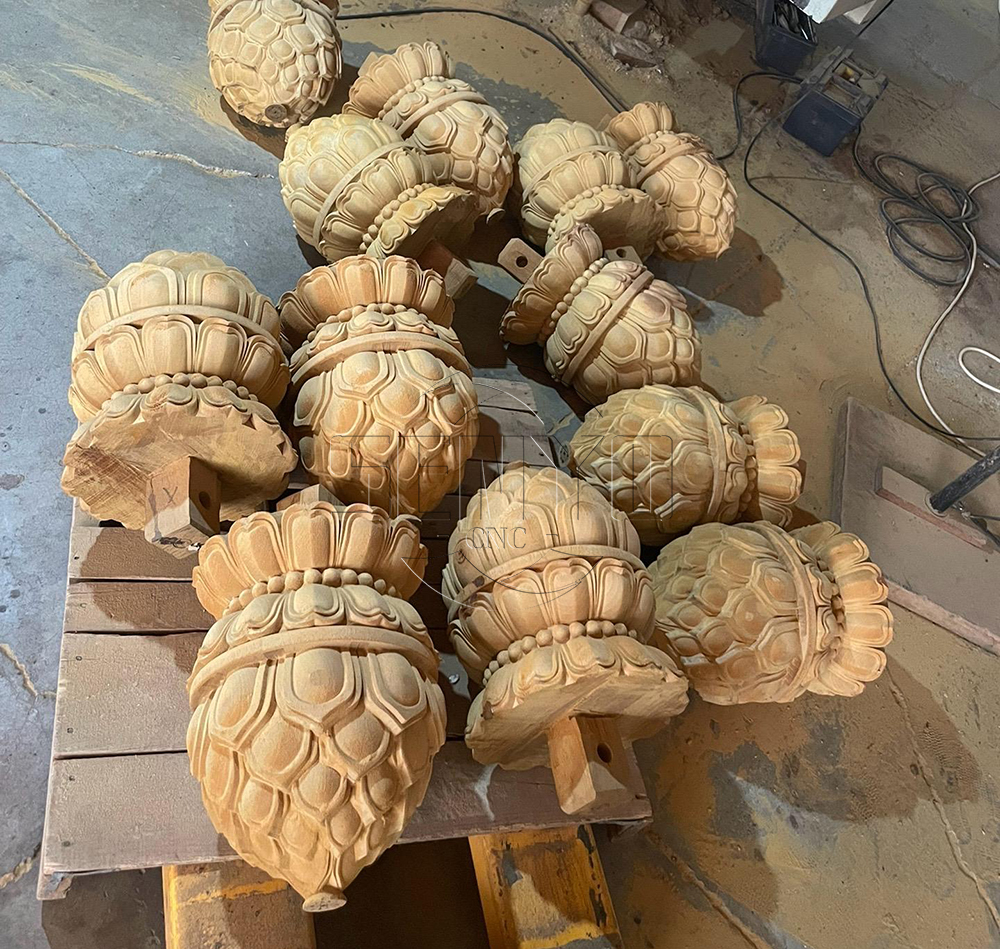

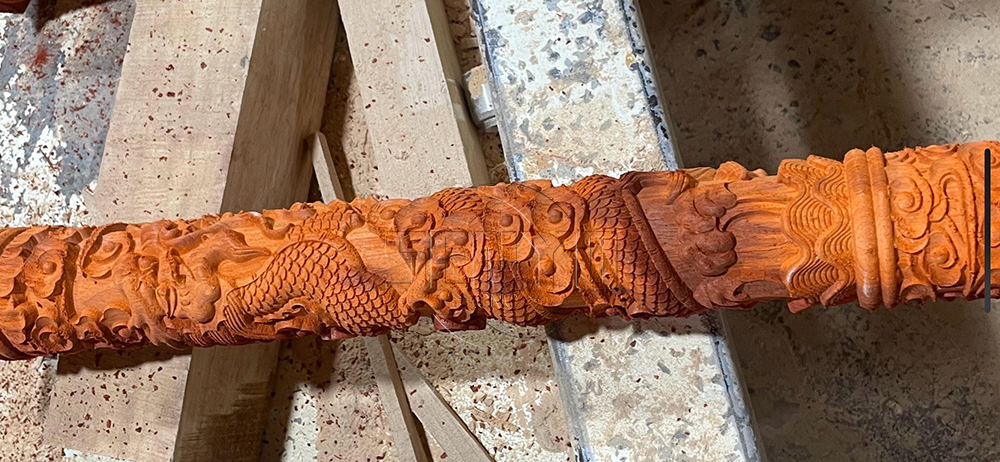

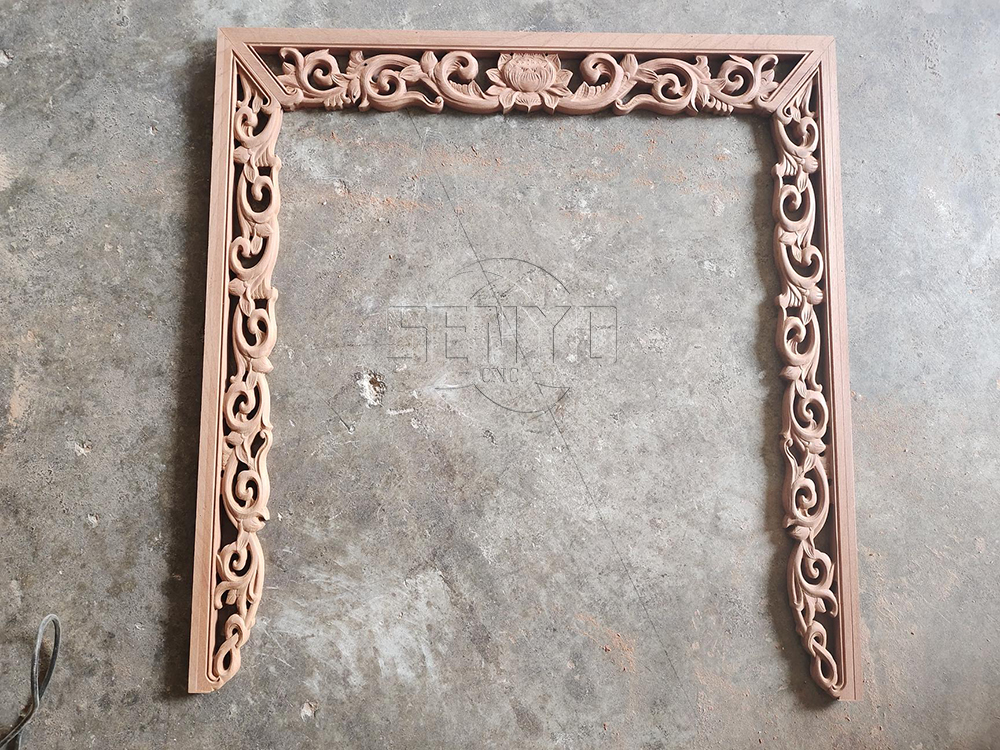

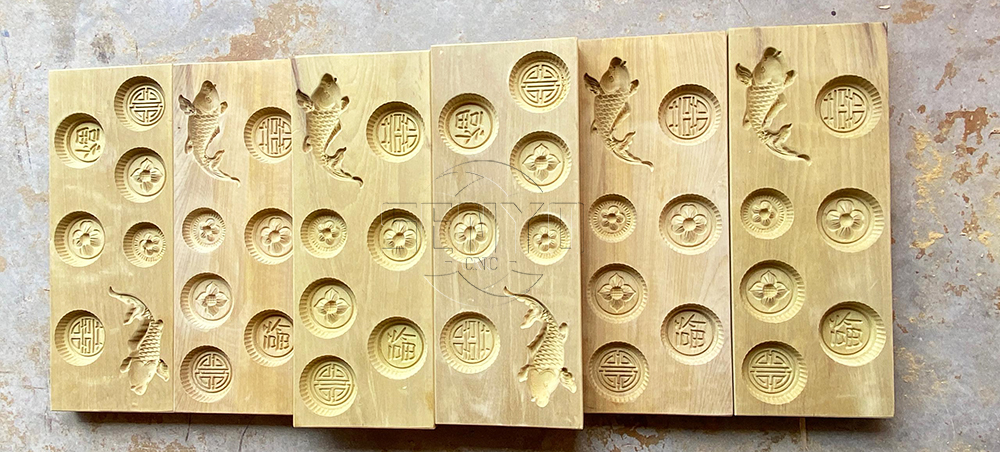

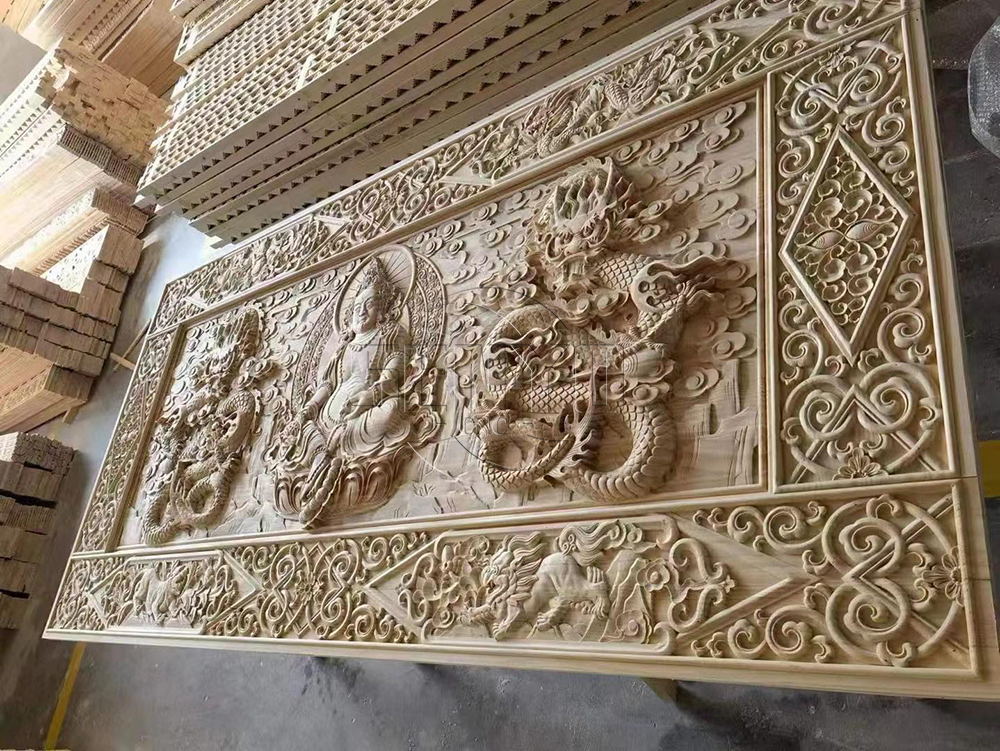

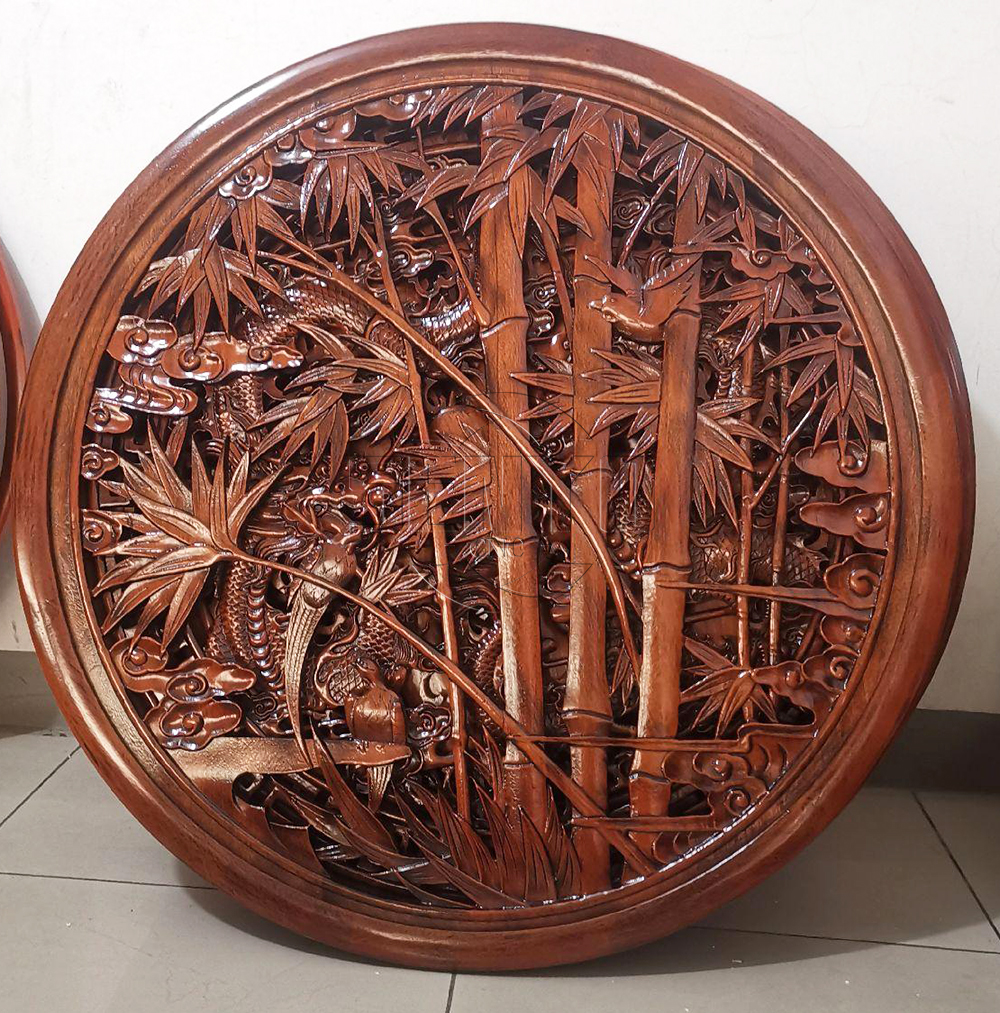

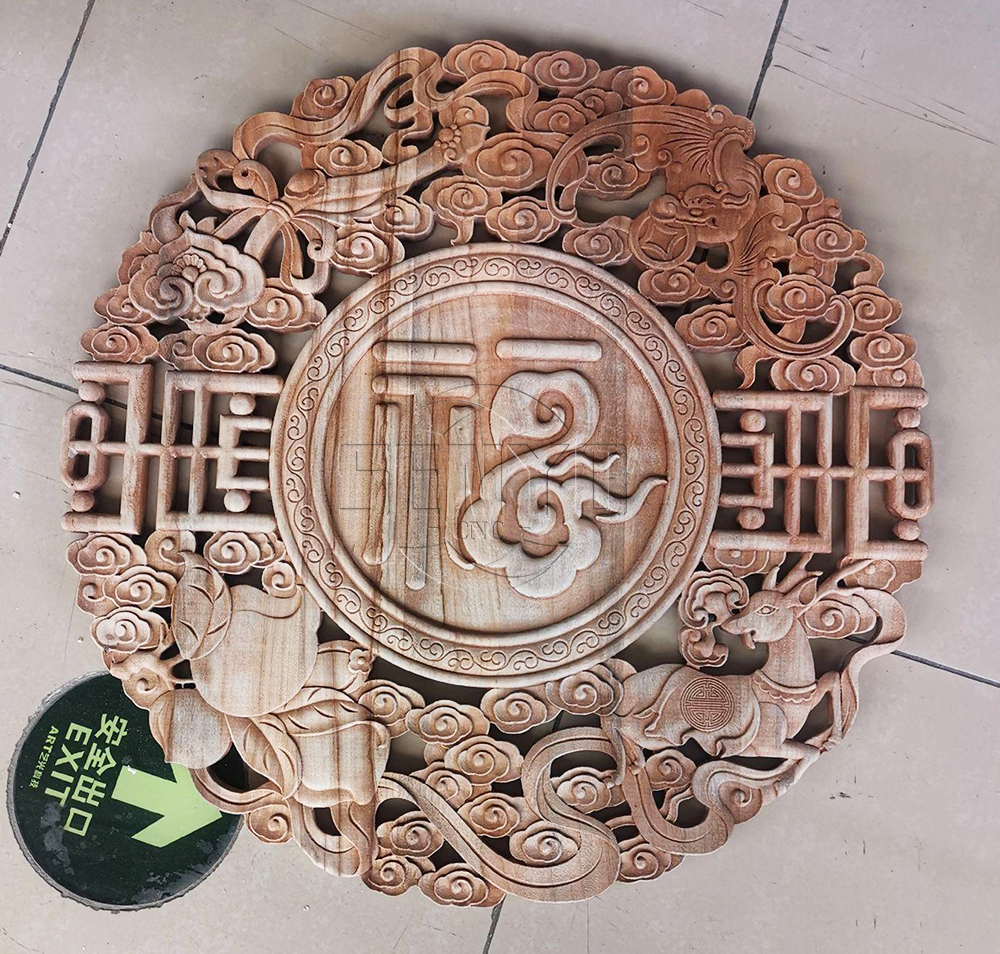

4 AXIS Rotary Work Project
Technical Parameters
Brand | SENYOCNC |
Model | SYG1212-4AXIS |
Table Size | 4' x 4' |
Working Area | 1200x1200x200mm |
Traveling Positioning Accuracy | ±0.03/300mm |
Repositioning Positioning Accuracy | ±0.02mm |
Lathe Structure | Welded Structure |
Frame | Welding Steel |
X, Z Structure | Ball Screw |
Y Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max Power Consumption | 6.5Kw |
Max Rapid Travel Rate | 15000mm/min |
Max Working Speed | 6000mm/min |
Spindle Power Motor | 2.2kw water cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Stepper System |
Working Voltage | AC220V/50/60Hz |
Command Language | G code |
Operating System | NC-Studio control system |
Interface | USB |
Flash Memory | 128M (U Disk) |
Collet | ER20 |
X, Y Resolution | <0.01mm |
Software Compatibility | Artcut Software (Option: Type3 software, Ucancam software) |
Packing Size | 1950*1950*1850mm |
Net Weight | 450KG |
Gross Weight | 560KG |
For Our Work Steps
1.Before-sale,we will try to know your requirement about our cnc finer laser specification and what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.
Packing & Shipping
The machine is packed with great care and tough material.
The machine is packed with cling films first and then film bags.

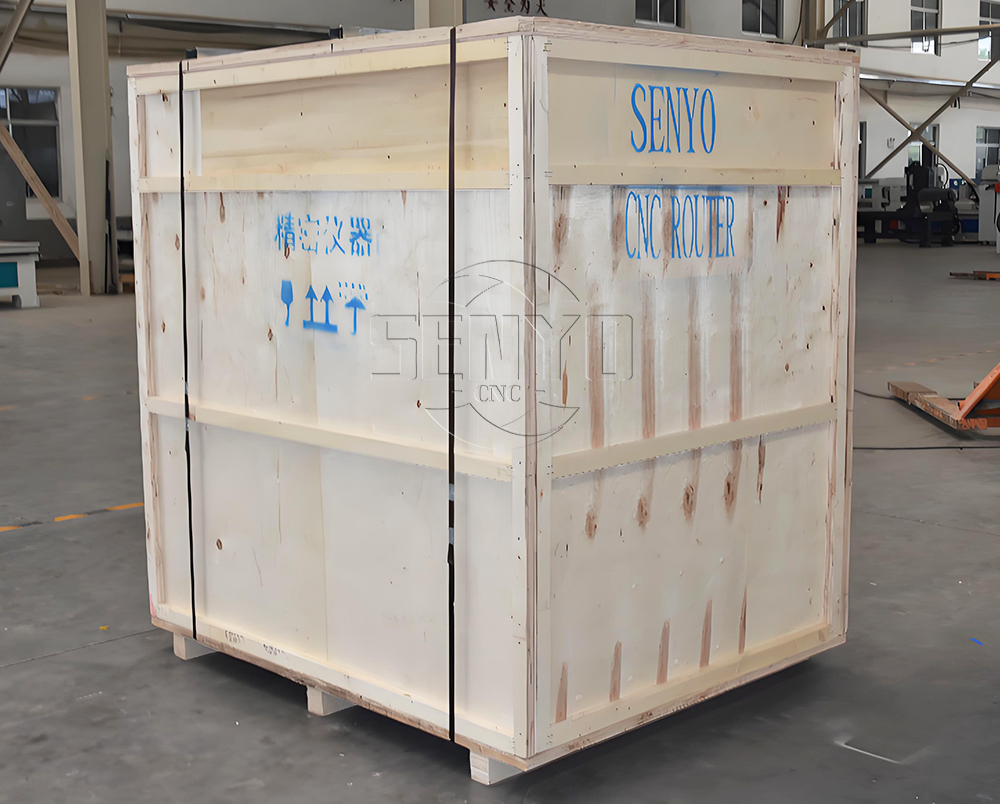

The machine is packed with wooden case which is reinforced with the iron bar on the top and bottom.
With this kind of package, all our laser machine can protect well during long trip by sea or by train.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. If you need any component of the machine, we will provide most affordable price for you.
5. Friendly English version manual and operation video CD disk.
Best 1212 CNC Machine for Signage Woodworking Metal Engraving Acrylic Cutting 4 Axis for DIY Projects
SYG1212-4AXIS
2500usd - 6000usd
6090 Rotary 4th Axis Hobby CNC Router for Sign Making with Wood, MDF, Aluminum
SYM6090-2H2R
3500usd - 6000usd

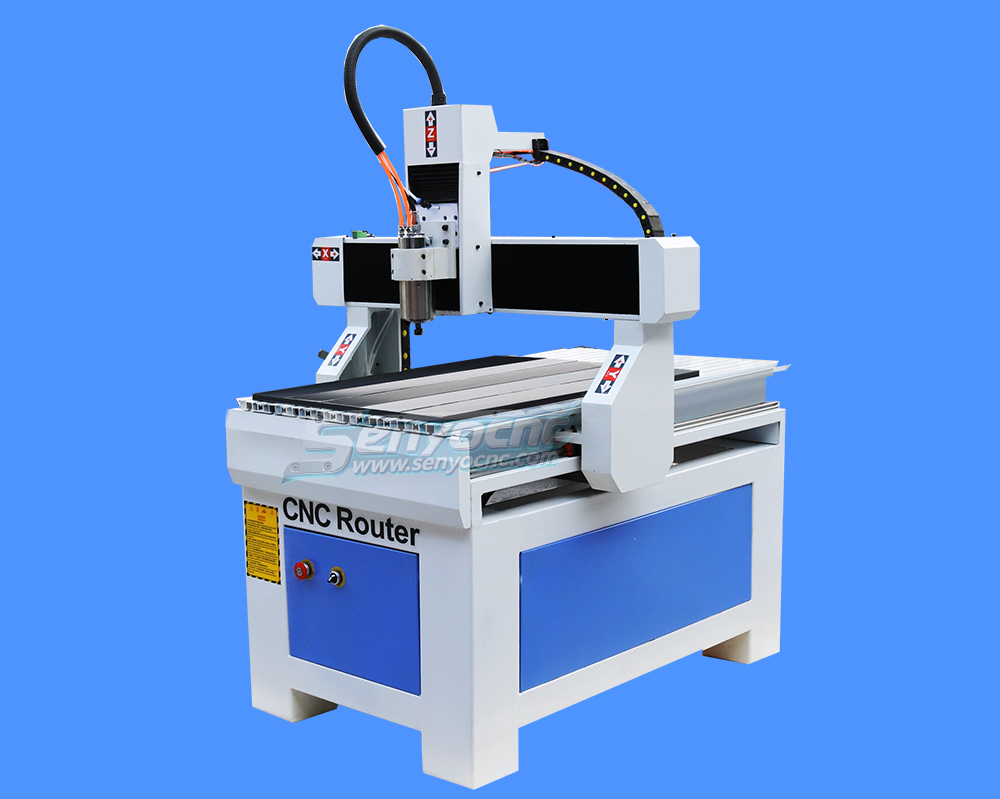

2x3 Top Rated Mini Desktop CNC Router for Small Business
SYGS6090-4AXIS
2000usd - 6000usd

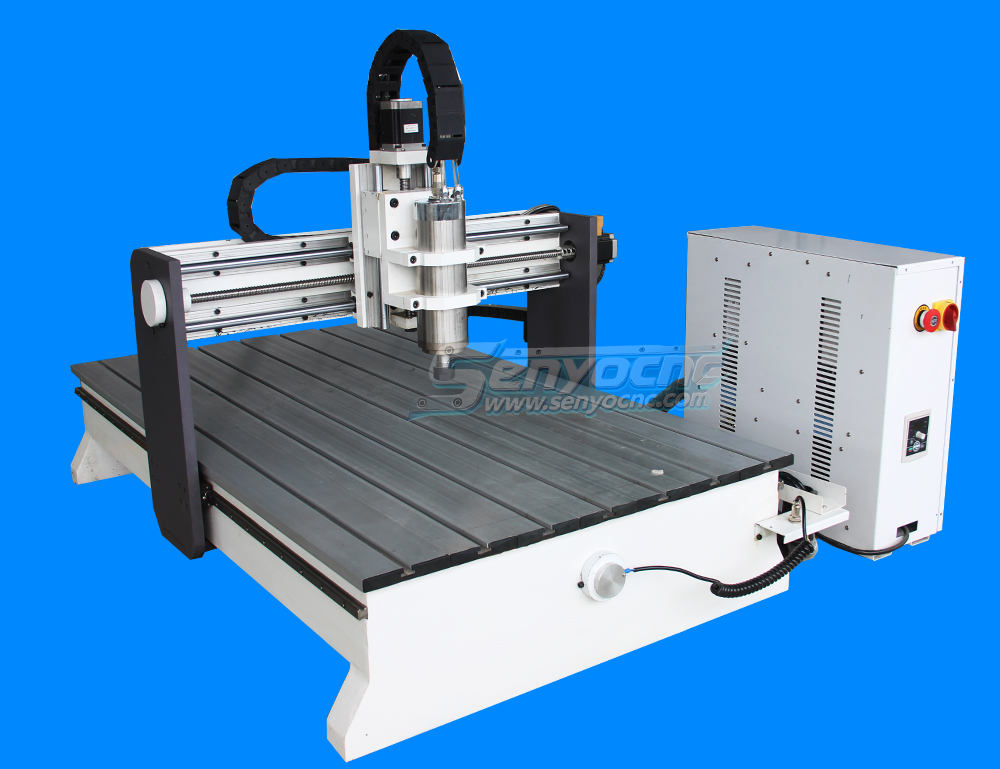

Low Cost 3 Axis 4x4 CNC Router Machine
SYG1212
2300usd - 6000usd
Top Rated Mini Desktop CNC Router for Small Business
SYM4040
2000usd - 3000usd

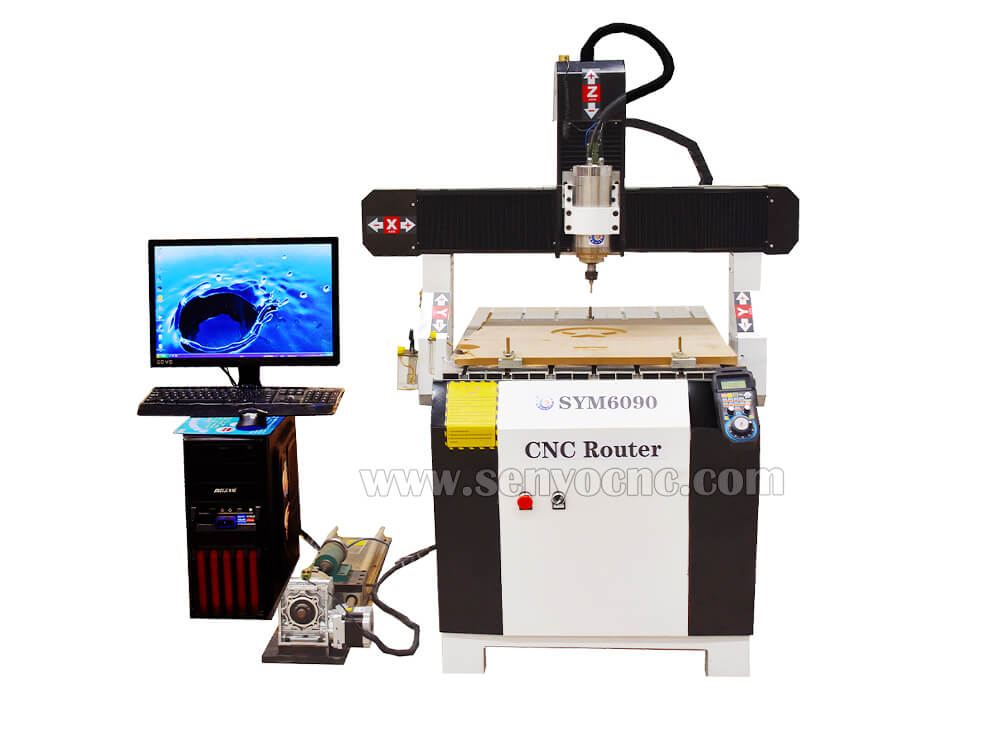

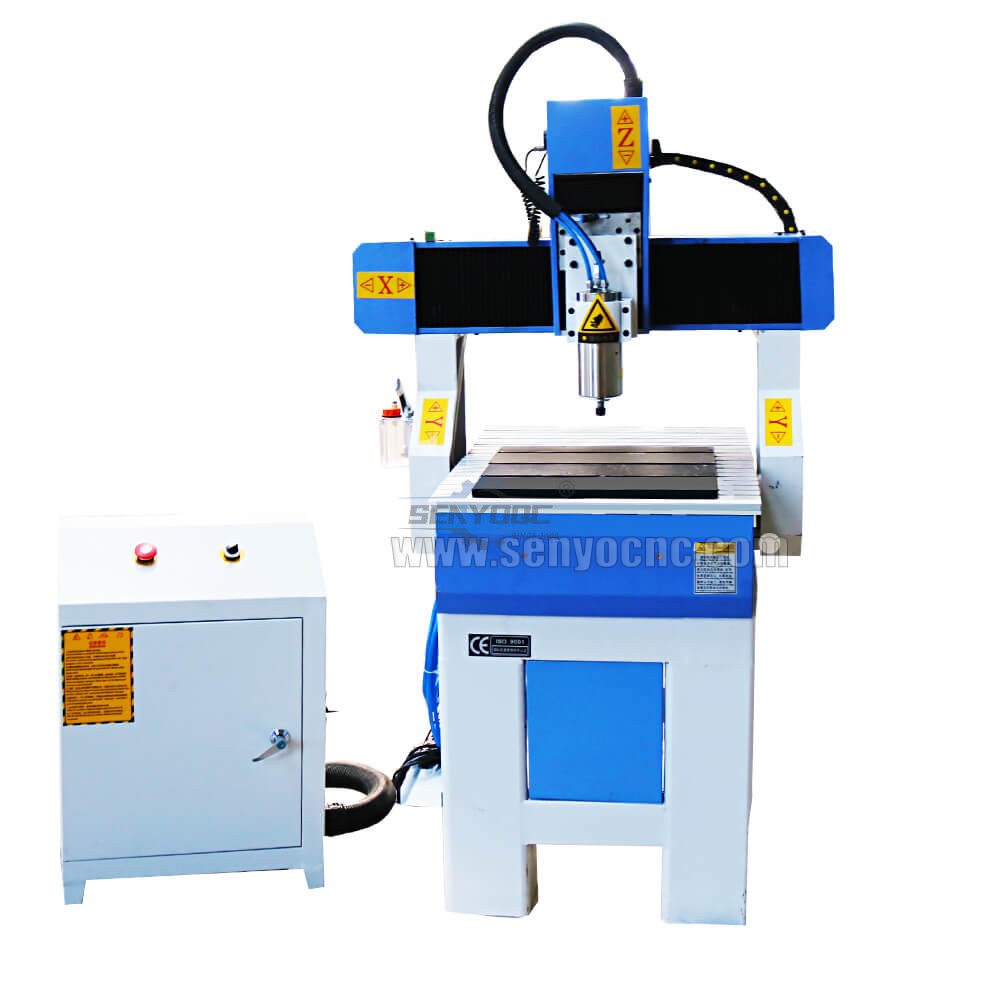

4 axis mini 6090 small cnc engraving machine router for Sale
SYM6090
2600usd - 3500usd

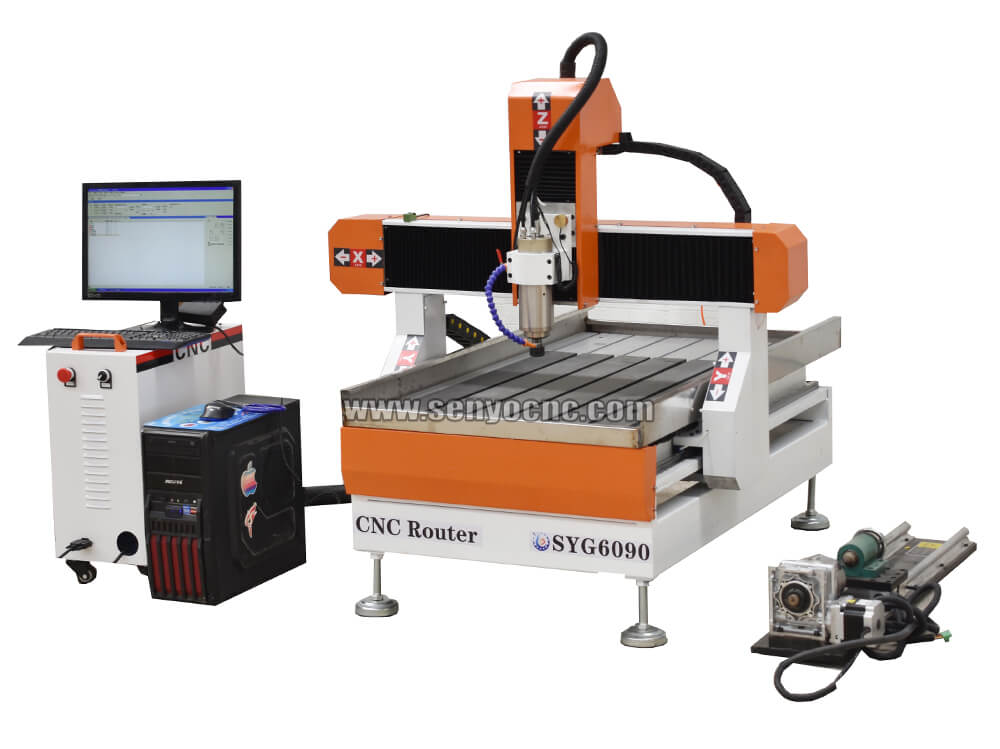

600x900mm 4 axis mini wood router machine mach3(usb) controller 3d cnc router 6090 wood carving cutting engraving machinery
