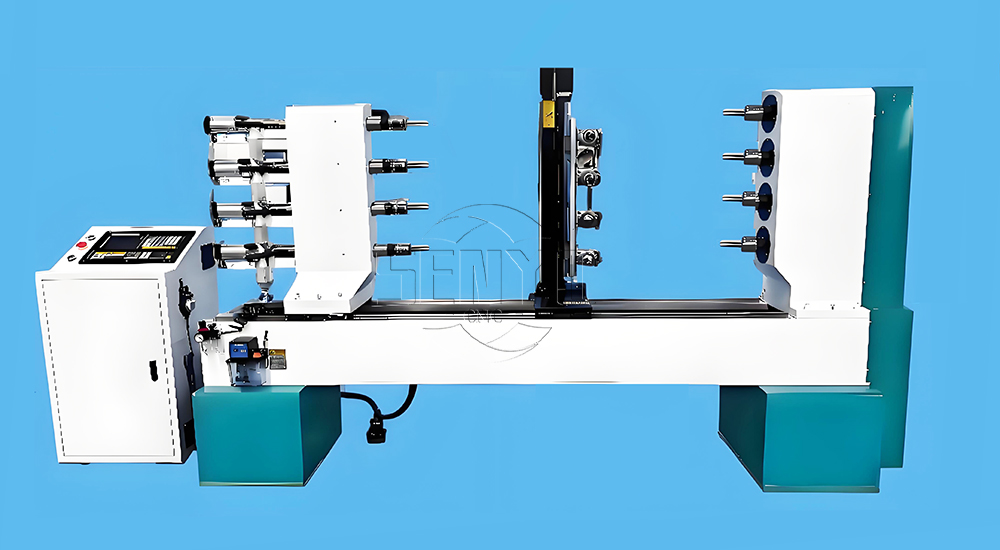

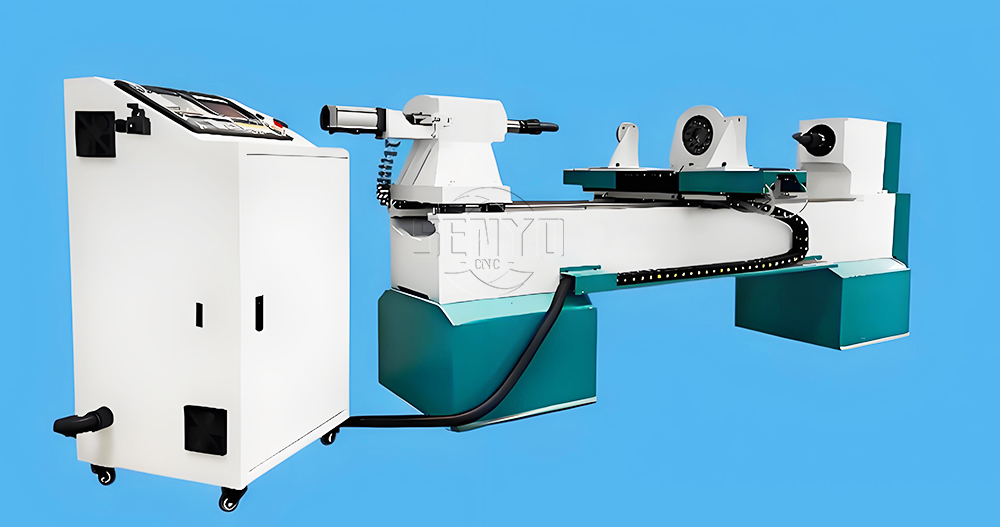

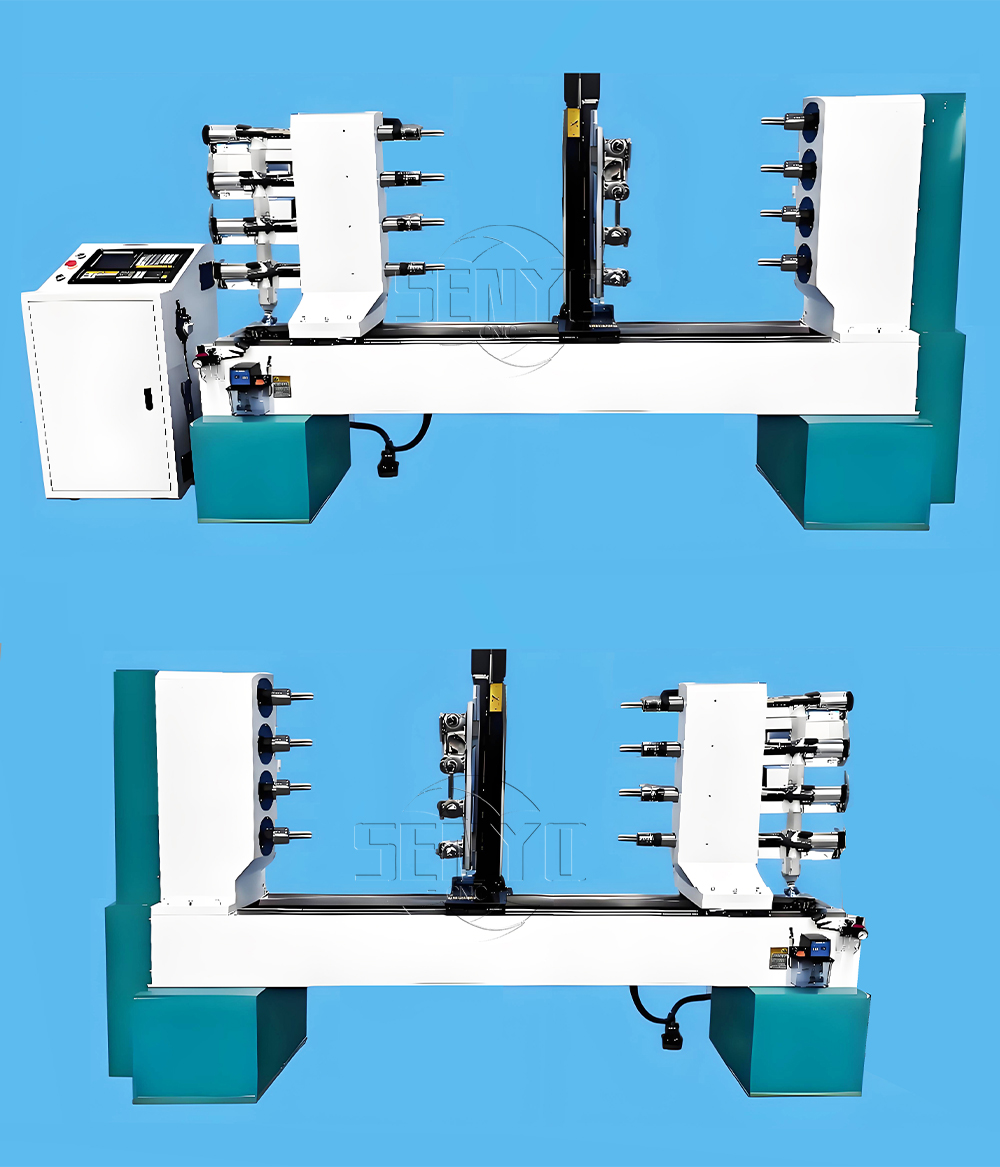

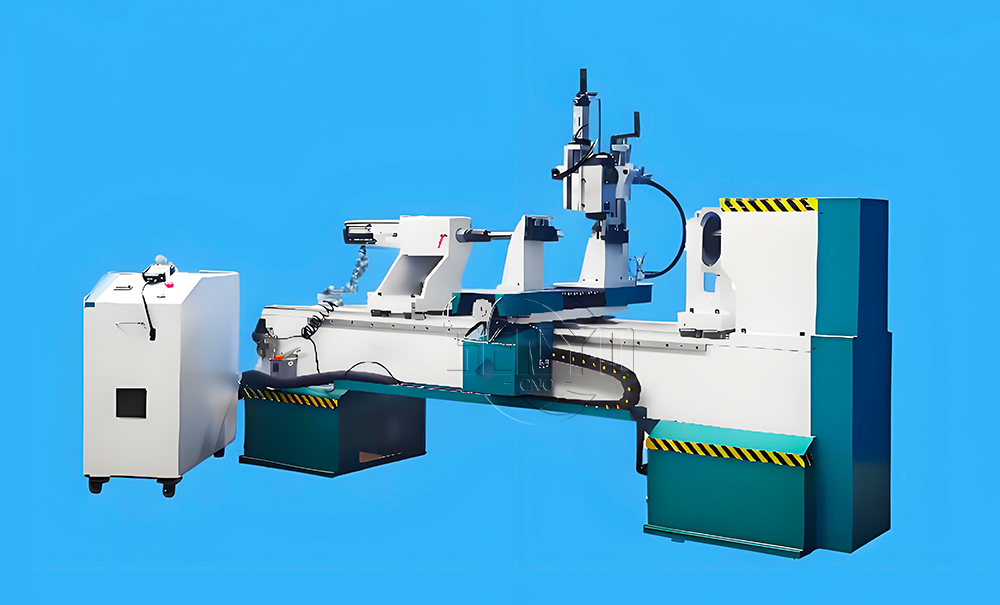

This 3 axis CNC wood lathe is specially designed for pool cue making. It will turning 4pcs billiard cue together at the same time, fast speed, high working efficiency.
Machine Detials Parts

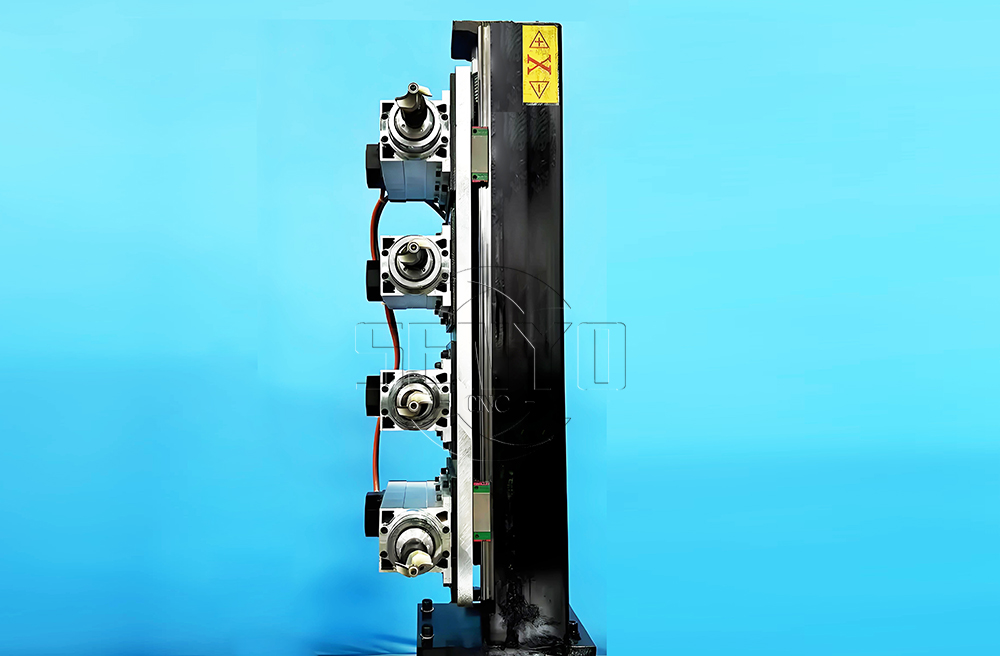

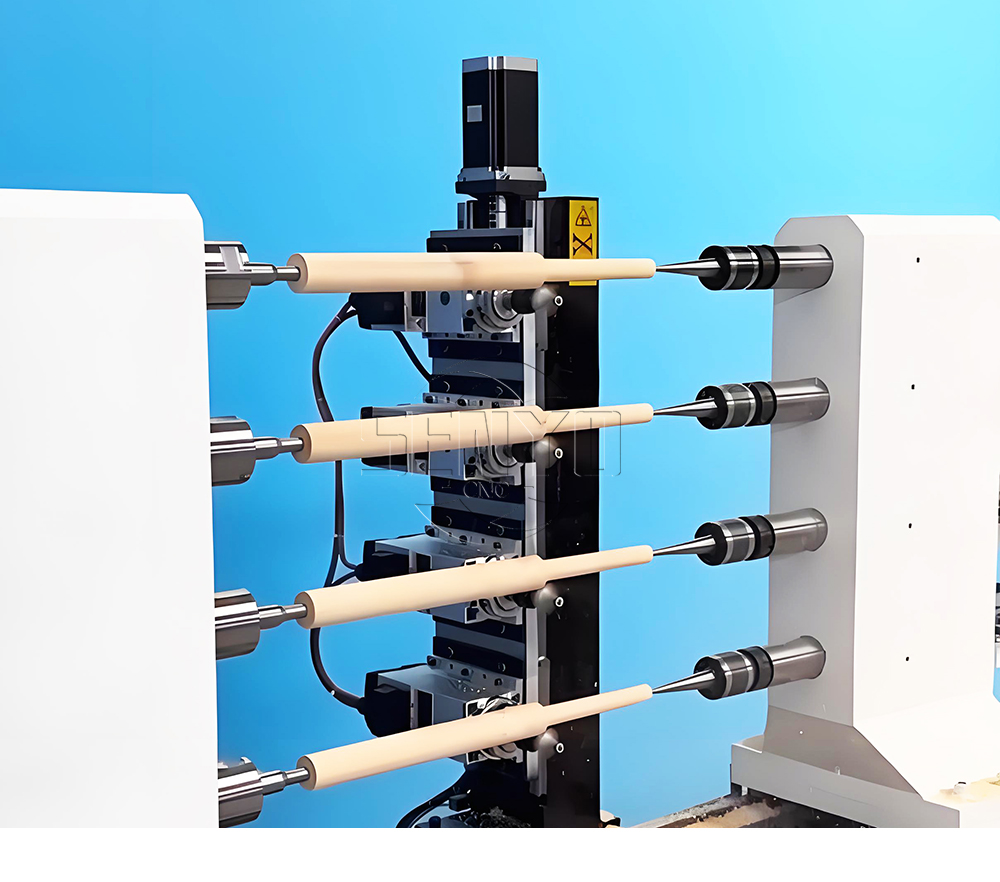

4 units cnc milling spindle

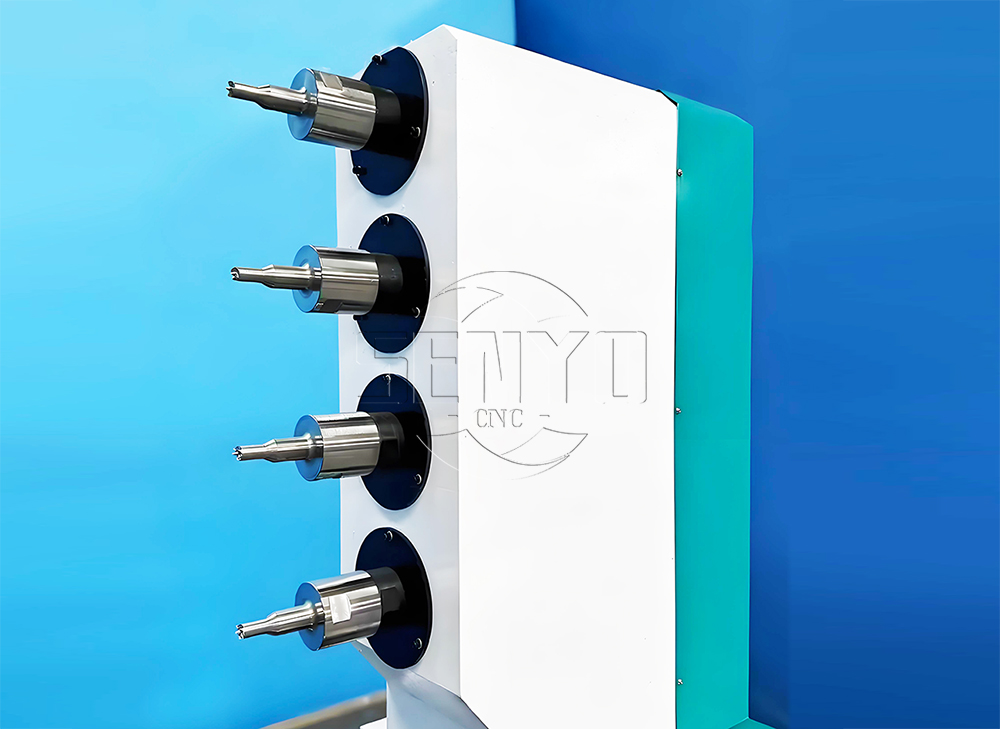

4 units fixing thimble
Heavy machine frame

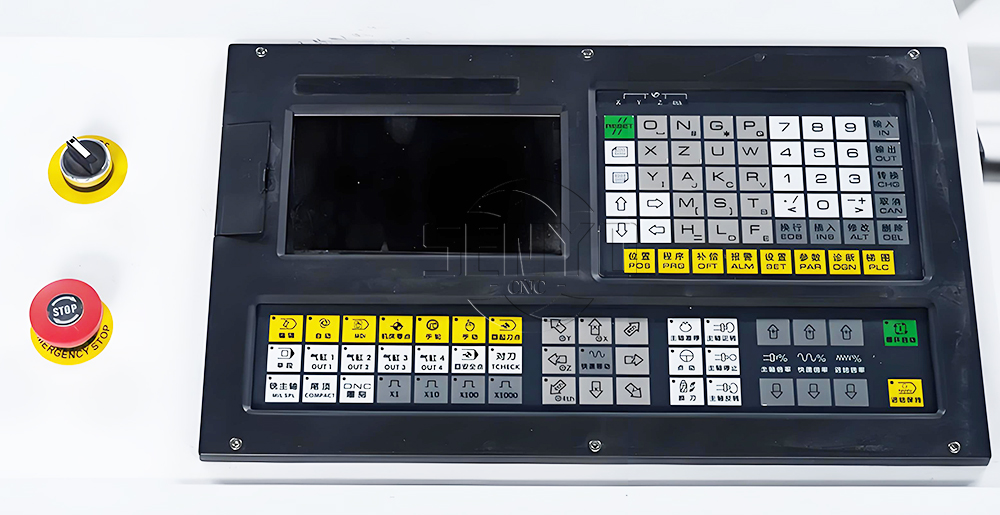

LCD screen control system

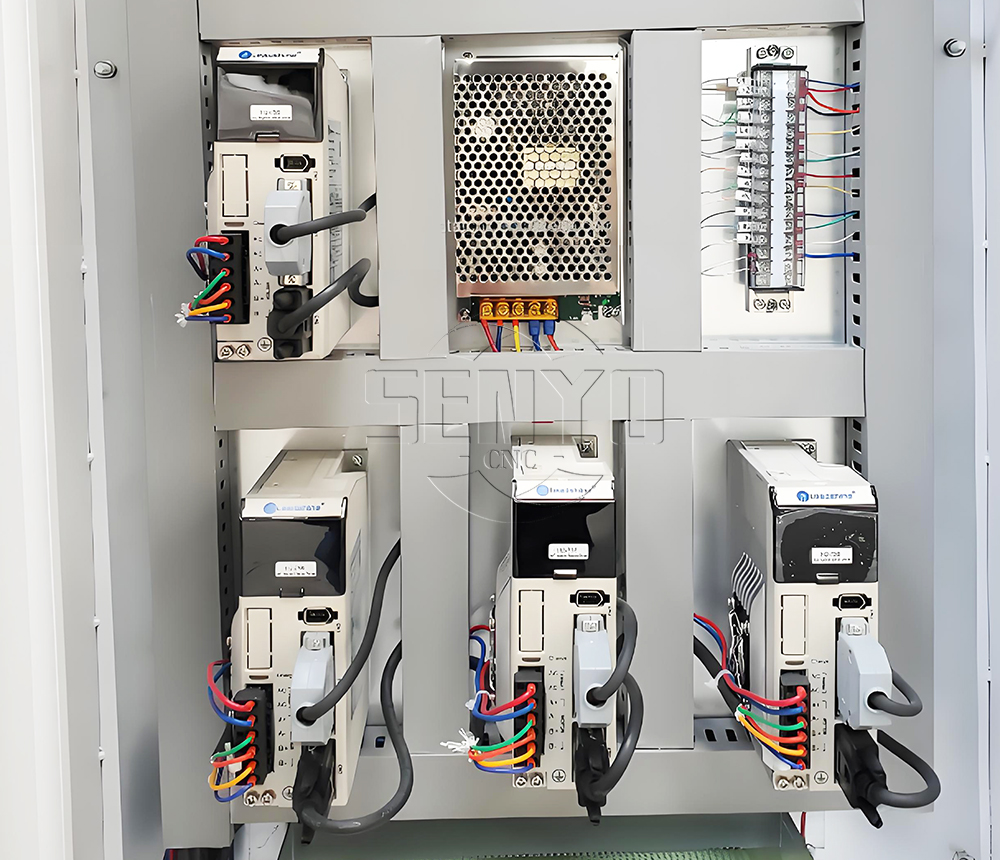

Yako driver
Cylinder
Specifications of cnc wood lathe
Machine Techology Paramaters
| 1 | Model | SYL1512-4S |
2 | Max processing length | 1500mm(can custom 2000/2500/3000mm) |
3 | Max turning diameter | 120mm |
4 | Air pressure | 0.6-0.8Mpa |
5 | Power supply | AC 380V 3 phase 50HZ/60HZ（can custom 220V） |
6 | Max feed rate | 2000mm/min |
7 | min setting unit | 0.01cm |
8 | Transmission type | Ball screw for Y axis |
9 | Guider | Taiwan Hiwin orbit |
10 | Main shaft rotating speed | 0-3000r/min |
11 | Motor power | 8kw |
12 | Spindle | 4*3.5KW air cooling spindle with servo motor |
13 | Control System | LCD controller(RichAuto A136 handheld optional) |
14 | Hand controller recognise file | *.dxf |
15 | Drawing Software | AutoCAD |
16 | Command Language | G code |
Application

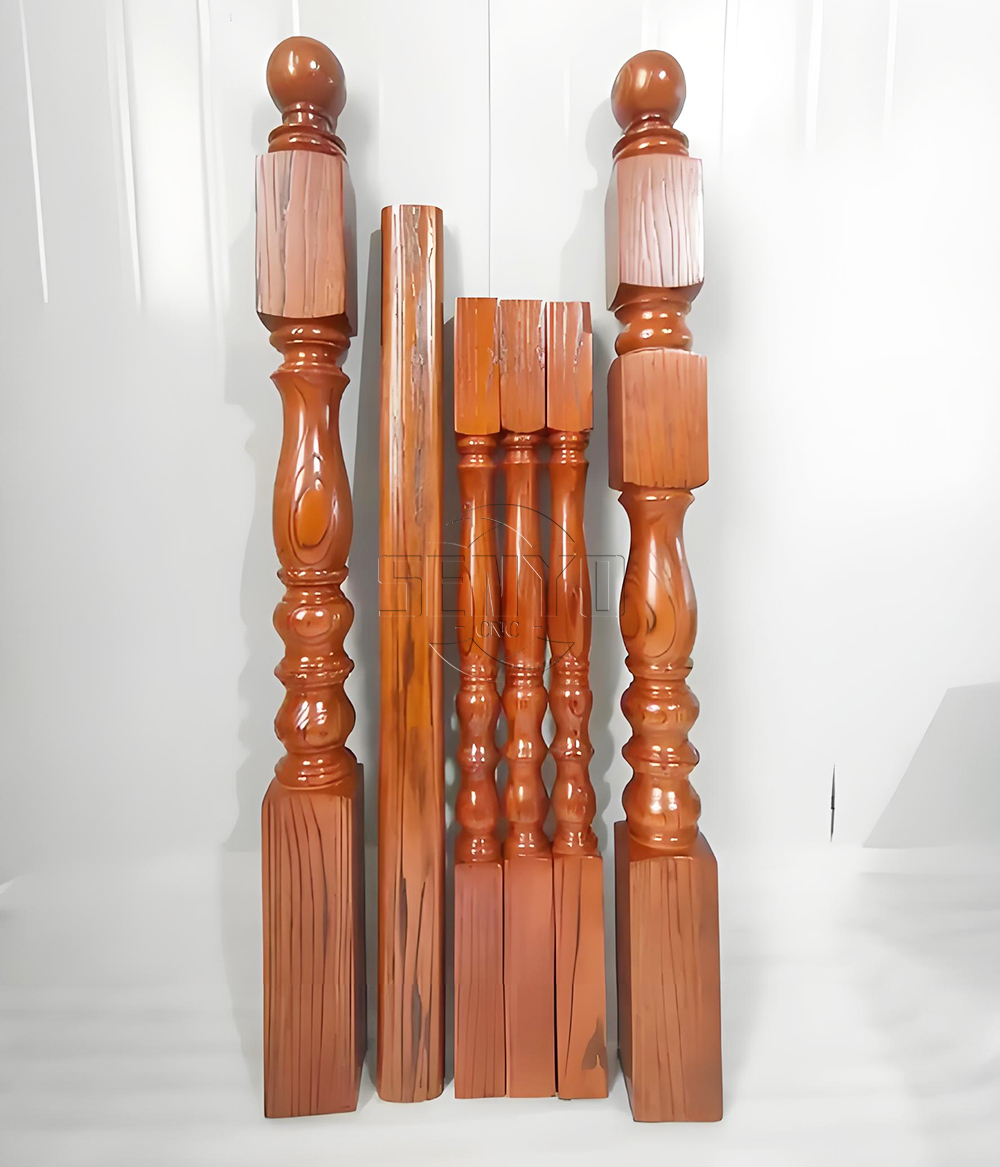

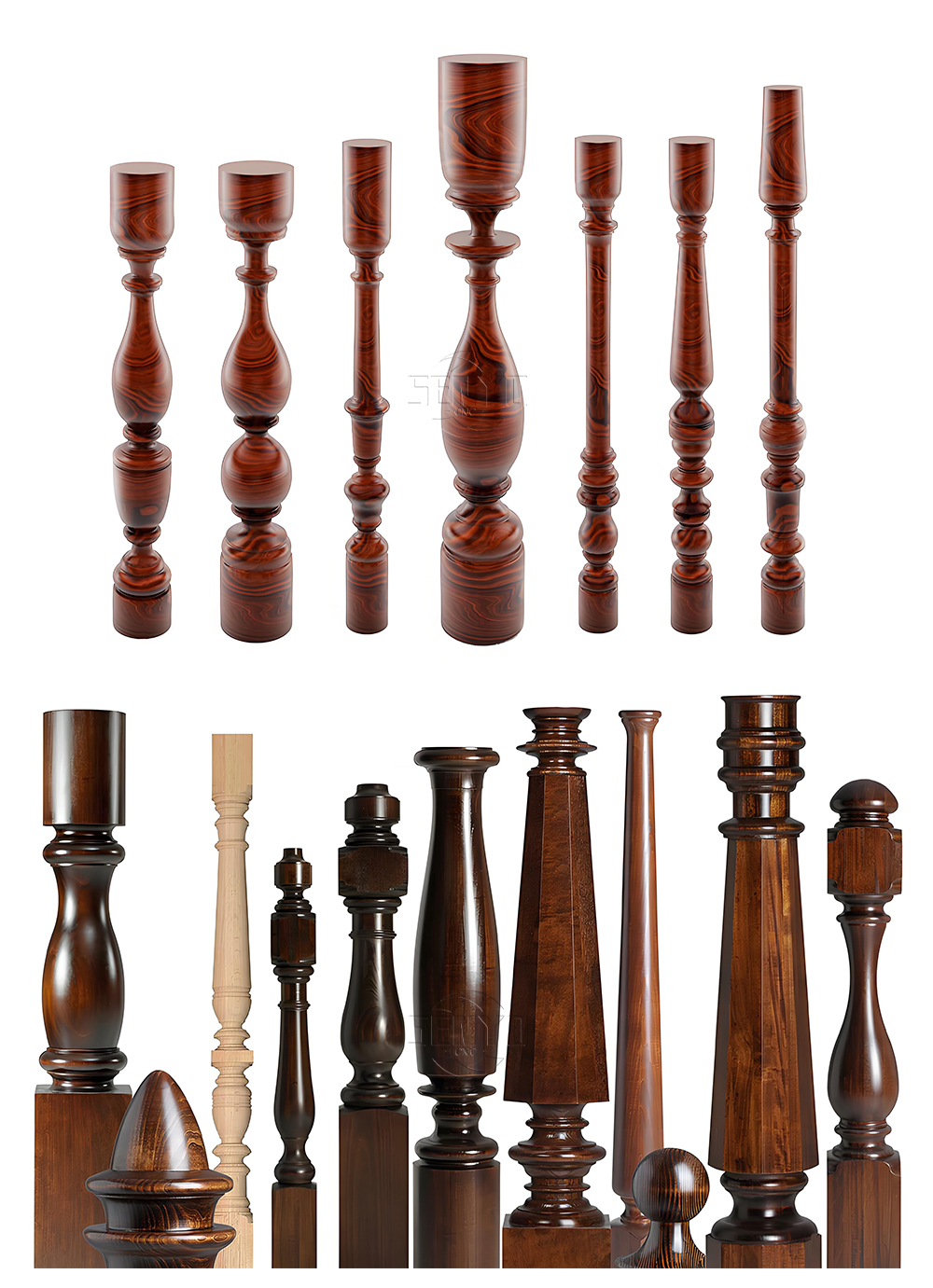

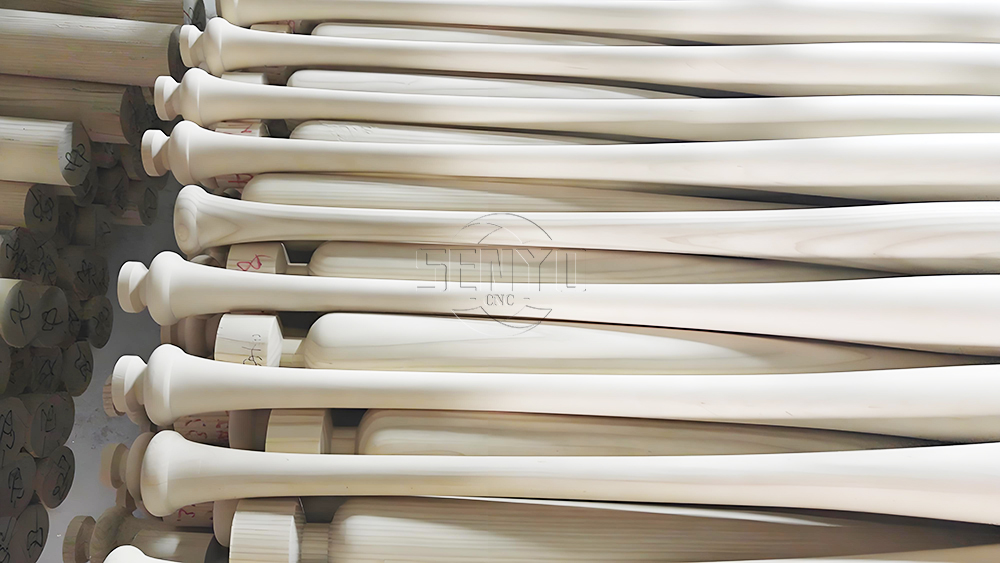

Staircases, stairway balusters, stairway newel posts; dining table legs; end table Legs; sofa table legs;bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails, lamp posts,baseball bats
For Our Work Steps
1.Before-sale,we will try to know your requirement what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.

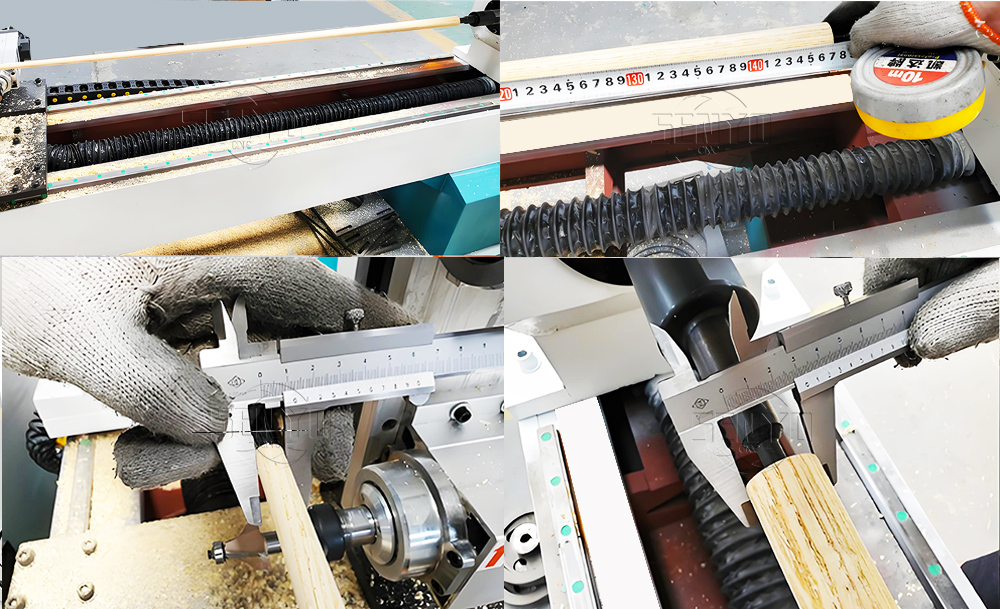

3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.

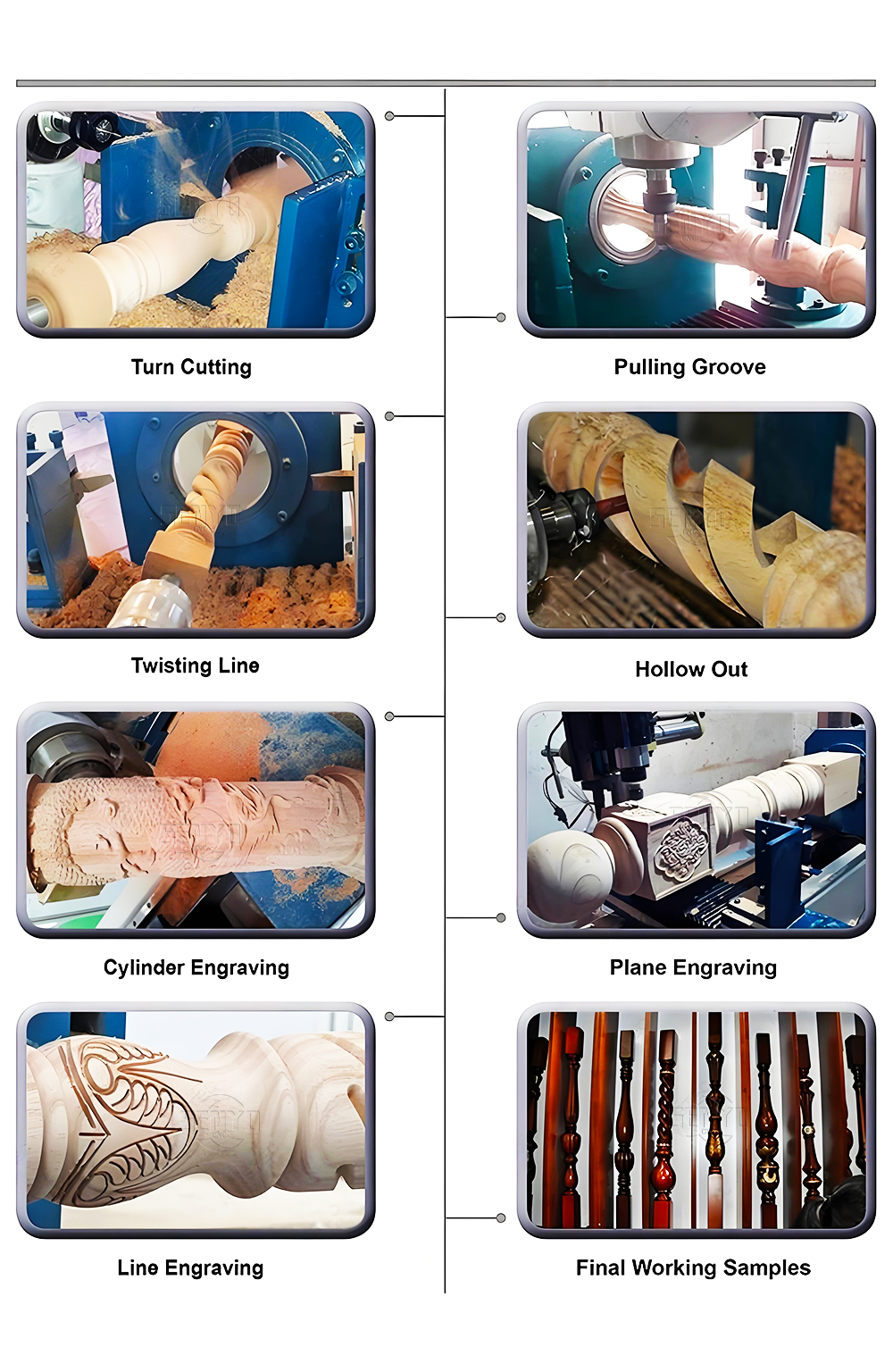

Machine More Detials Functions Show, Welcome option depend on your work requirement.

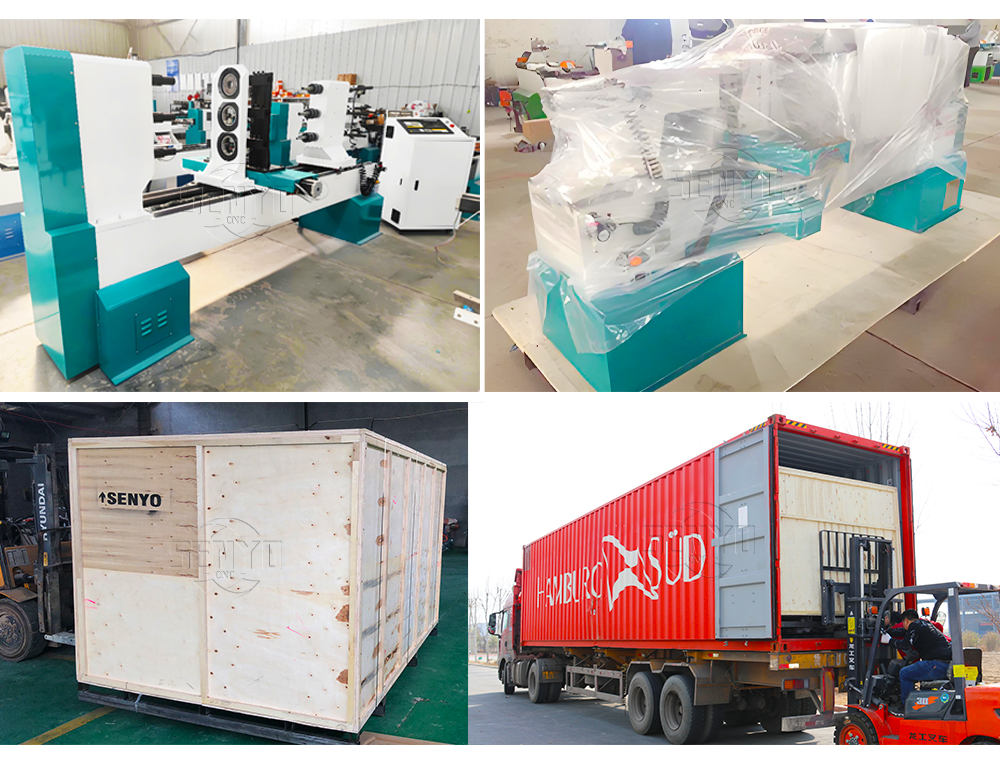

Packing & Shipping
1.Outside:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity.
And we can package according to you requests
Delivery Detail:For standard machines,
it will be 7-15 working days after payment;
For non-standard machines and customized machines according to clients’ specific requirements,it will be 15-30 working days after payment.
For LCL Shipping (Less than Container Load),it is recommended to use export standard fumigation-free wooden boxes.
Which are stronger and suitable for long-distance transportation.
For FCL Shipping (Full Container Load),it can be loaded directly at the factory without wooden boxes.
And the maximum number of machines can be loaded to reduce costs.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. If you need any component of the machine, we will provide most affordable price for you.
5. Friendly English version manual and operation video CD disk.
4 Spindle 3 Axis CNC Wood Turning Lathe For Pool Cue Billiard Cue Making
SYL1512-4S
7500 - 9500usd

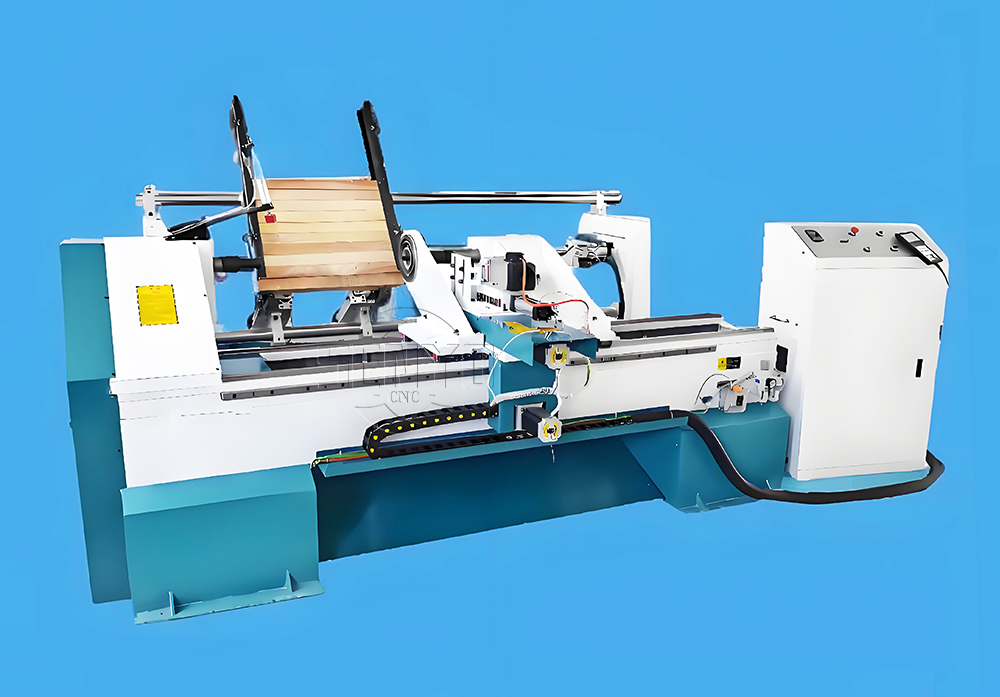

Auto Feeding CNC Wood Lathe Machine for Woodworking
