Product Introduction

Buyer's Reviews

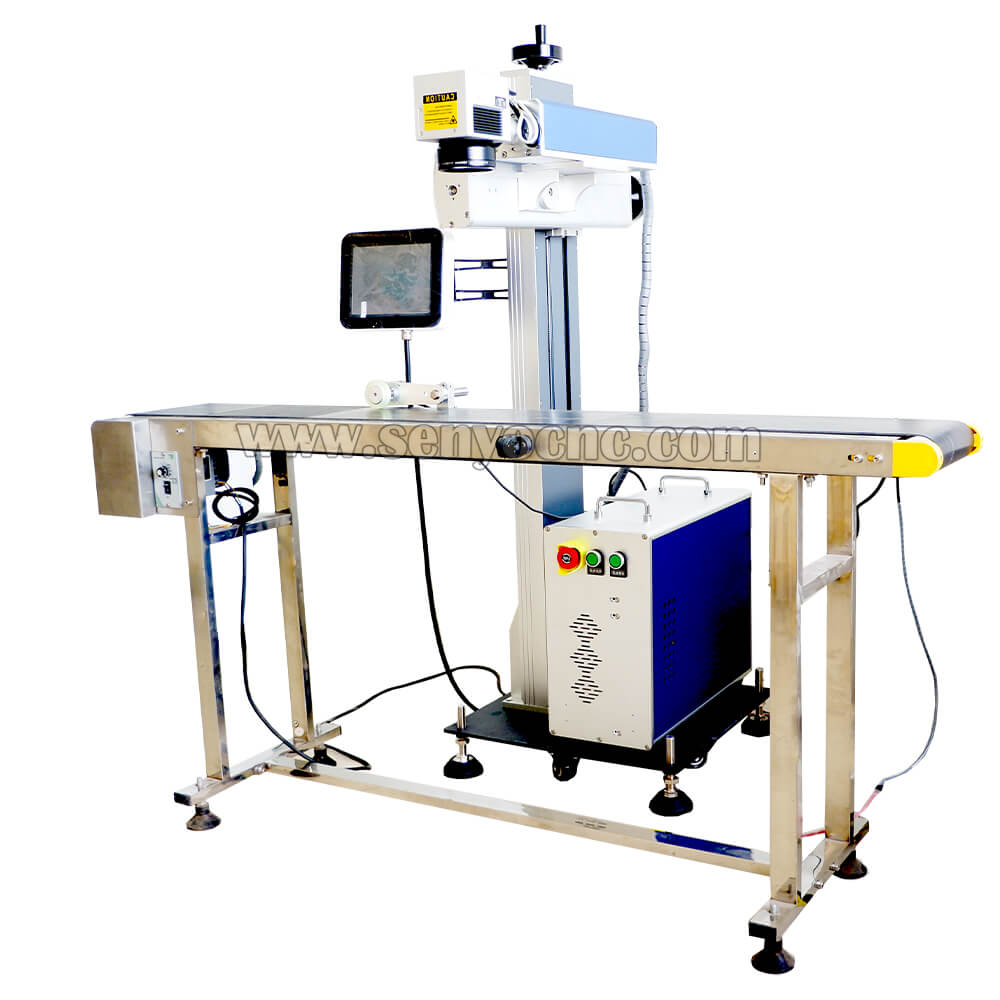

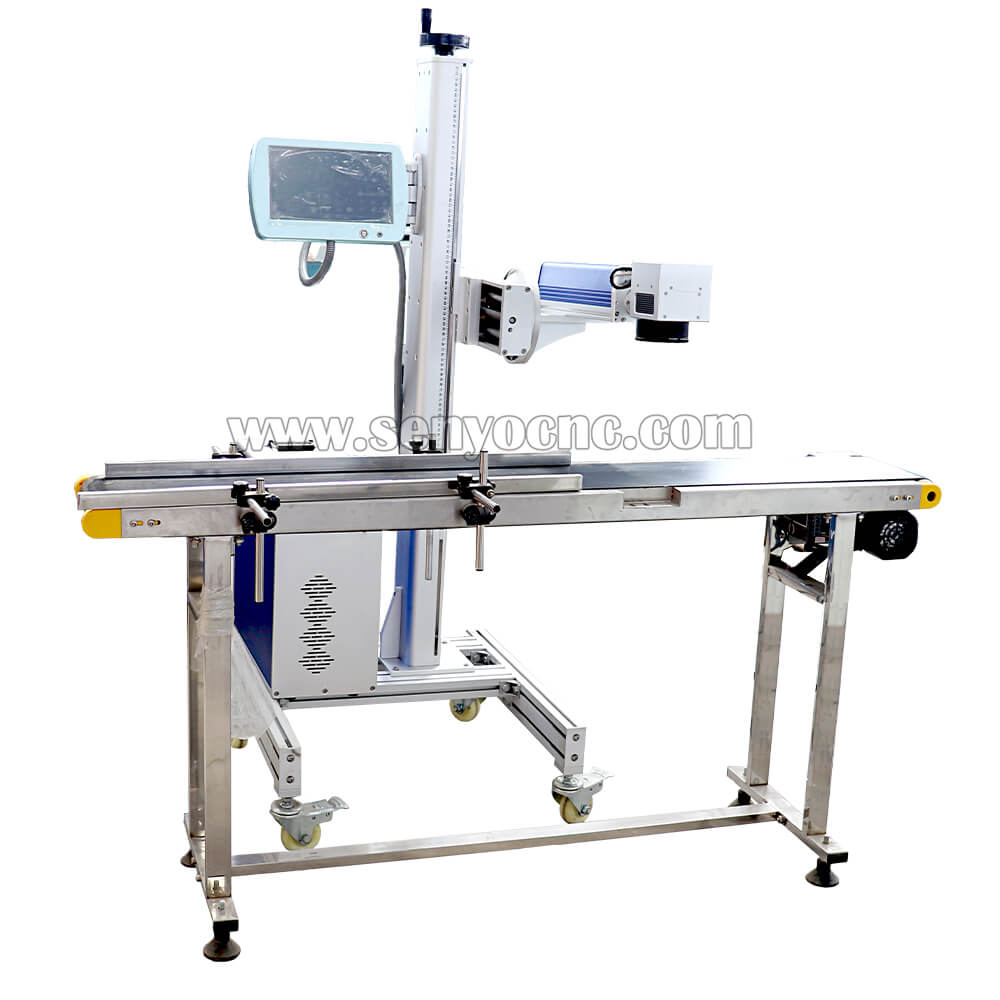

Flying fiber laser marking machine footprint is easy to move, can be easily integrated into all kinds exisiting production lines.
Demonstration Video


Product Descriptions

fly fiber marking machine 30w 50w  (2).jpg

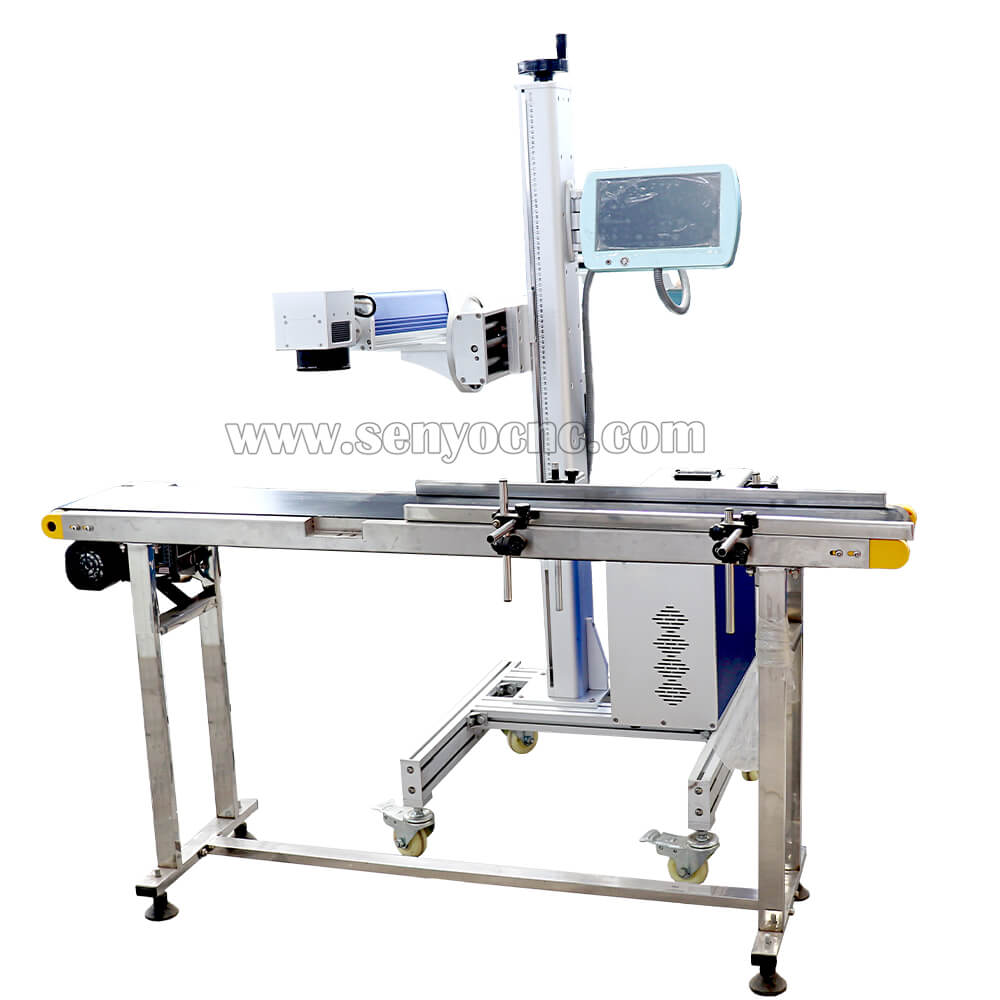

The automatic laser marker with CCD visual positioning is mainly for batch and irregular products.

It can achieve high precision positioning and marking at any angle, number and position of materials.

Visual positioning solves the problems of difficult feeding, inaccurate positioning and slow speed

caused by the difficulties in fixture design and manufacture.

It can be solved by taking real-time pictures with an external camera and capturing the feature points.

With the cooperation of vibration disc,assembly line, XY platform and other components,

unmanned and automated production can be achieved, greatly improving product quality and production efficiency.

fly fiber marking machine 30w 50w  (14).jpg


Industrial products on the assembly line in the present is the production line flow.

Which in turn in the industrialized production efficiency effectively, thus to increase production efficiency and effective.

The pursuit of automation, intelligent laser line processing, the principle of flying laser marking machine.

Vibration will mirror scanning the movement of the workpiece on the assembly line and combination.

Constitute the laser marking system is called laser printing system, also known as flying marking system.

Laser marking on the fly for continuous production lines, marking “on the fly” .

Offers great solution flexibility by enabling marking/engraving of the product while it is moving.

Flying fiber laser marking machine footprint is easy to move.

Easily integrated into all kinds exisiting production lines.

High adaptability: Machine adopts good quality laser source and fast speed galvo head.

Which maintaining excellent marking quality. Can be used on many materials like metal.

Plastic, alloy etc. Can be used in many industries like Jewelry engraving, Medical devices.

Phone case engraving, Hardware industry, stainless steel tableware, electron components marking etc.



Techology Paramaters


1

Laser power

20W/30W/50W/100W

2

Working area

100*100mm/200*200mm/300*300mm

3

Laser Wavelength

1064nm

4

Response time

0.5ms

5

Frequency of pulse

20-100KHz

6

Max marking depth

≤0.5mm

7

Marking speed

≤7000mm/s

8

Marking lines

1-10 lines(in the marking area)

9

Minimum line width

0.1mm

10

Minimum character

0.15mm

11

Repeatability accuracy

±0.002mm

12

Resolution ratio

0.1mm

13

Marking content

Text,pattern,date,bar code,etc

14

Operation system

Microsoft Windows XP, Vista,7,8,10(32 and 64Bit)

15

Control software

EZCAD CCD Control Software

16

Graphic format supported

bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.

17

Unit power

≤1.2KW

18

Operation temperature

5℃-40℃

19

Relative moisture

≤ 90%,no fog

20

Supply Voltage

220V/50Hz/10A

21

Machine Size

960*870*1550mm

22

Net Weight

150KG



Machine Design Advantage


1. It is required that the contents of the code should not be too complex, otherwise, the marking     speed will be affected;
2. Cooperate with the assembly line directly, reduce loading and unloading manpower, and operators can avoid bad production environment;
3. Automatic production, greatly improving the efficiency;
4. The speed of spraying code is fast and the output is increased.


Materials And Application


Materials

MARK

Materials

MARK

Alloy

Chemical and food packaging

Copper

Medical instruments

Aluminium

Metallic oxide

Tool accessories

Motor accessories

Precision equipment

ABS

Brass

Auto spare parts

Commodity

Printed material

Plate surface

Alarm

Pvc pipe

Plastic buttons

Electrical applicances

Clocks and watches

Integrated circuits

Eye glass frames

Electronic components

Mobile phones

Rare metals

Hardware

Zinc

Building material

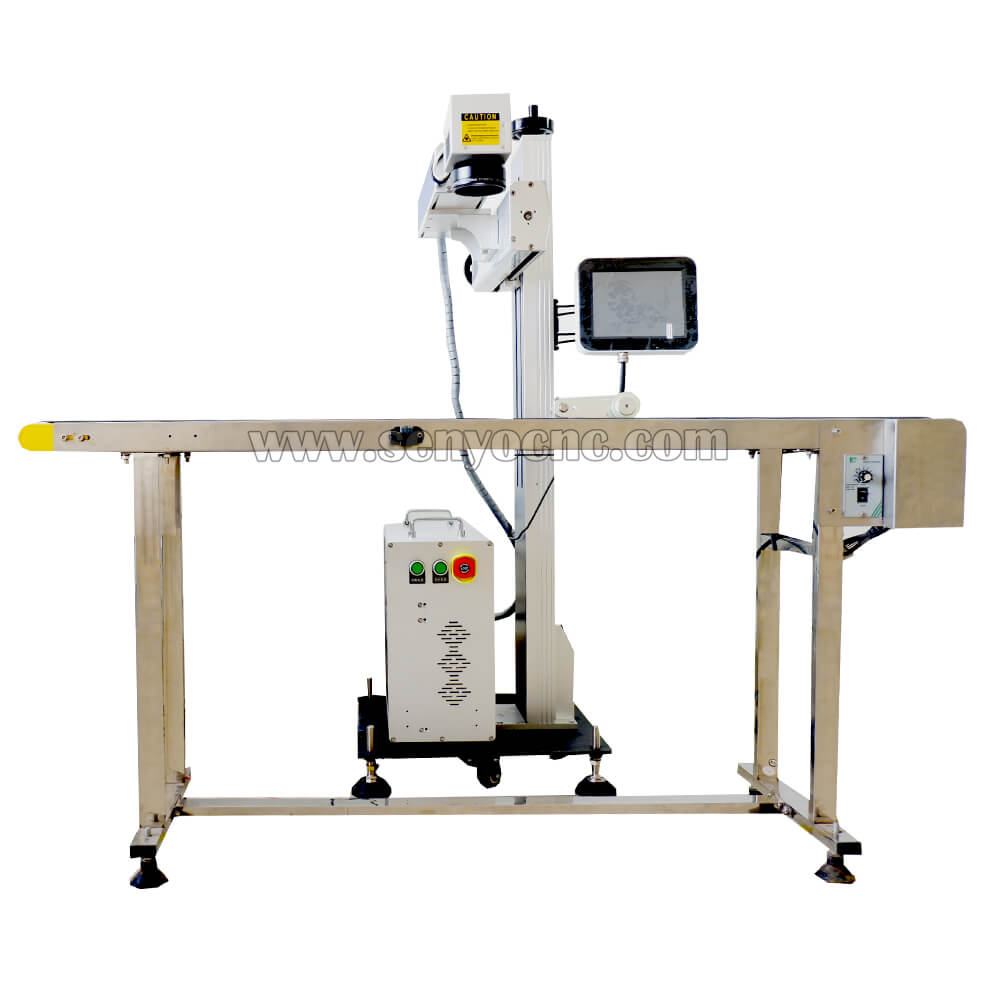

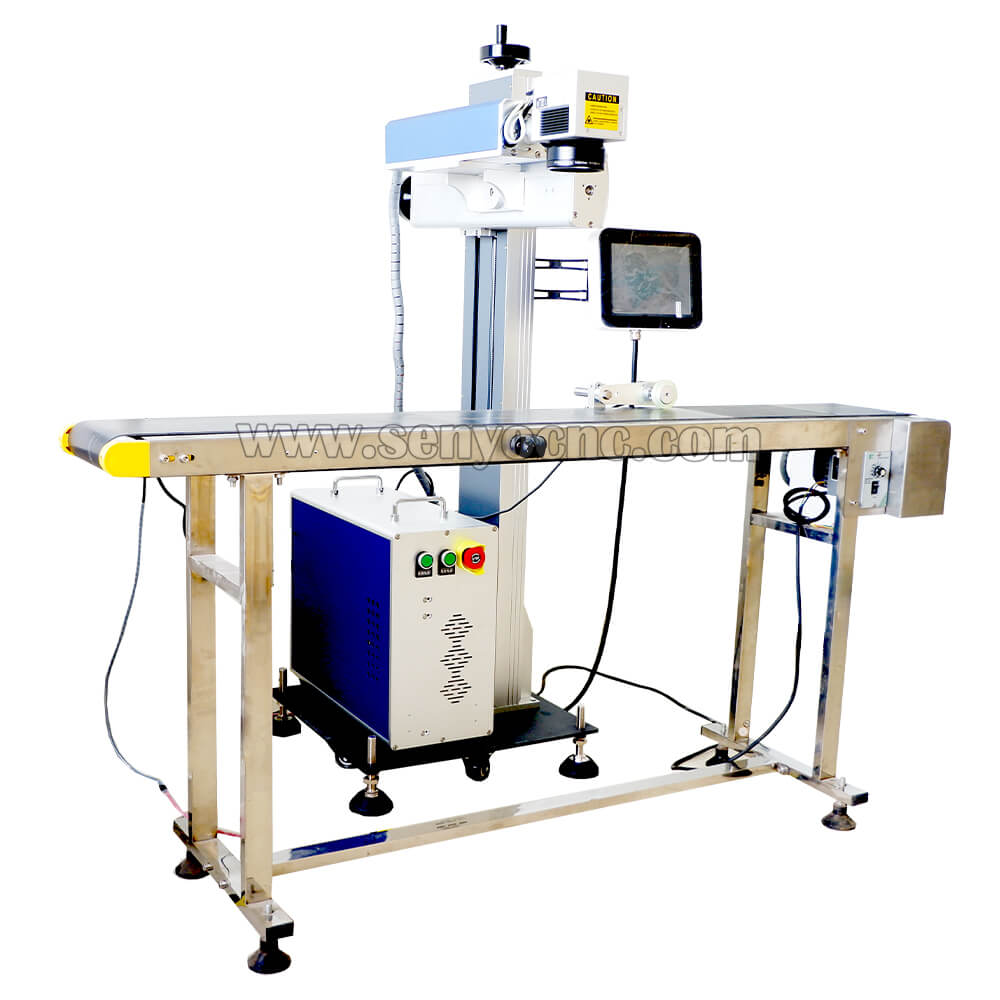

Detials Parts


The Flying Fiber laser marking machine adopts imported packaged fiber laser.

Equipped with high-speed scanning galvanometer and beam expanding focusing system.

High marking accuracy and high speed; The laser height can be adjusted up and down .

It can replace all kinds of marking lenses. Long continuous working time, clear and beautiful mark.

Powerful software function; Fixed laser marking design, simple operation, perfect up and down suction system, environmental protection and safety.


fly fiber marking machine 30w 50w  (7).jpg


Laser Source
Using high quality laser source, with exquisite beam quality, stable power output, high marking precision, long working life time.

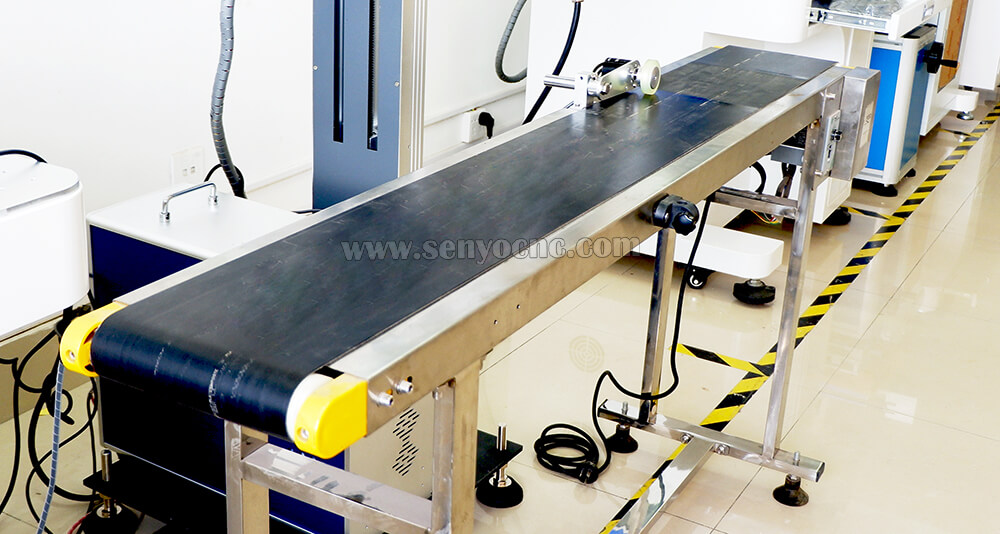

Working Platform

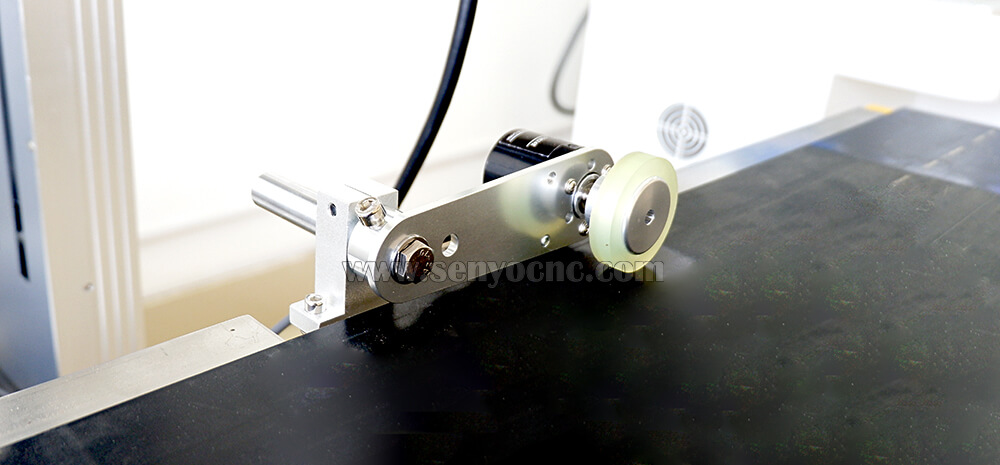

Using best encoders, the moving speed of the work platform can be transmitted in real time.

fly fiber marking machine 30w 50w  (6).jpg

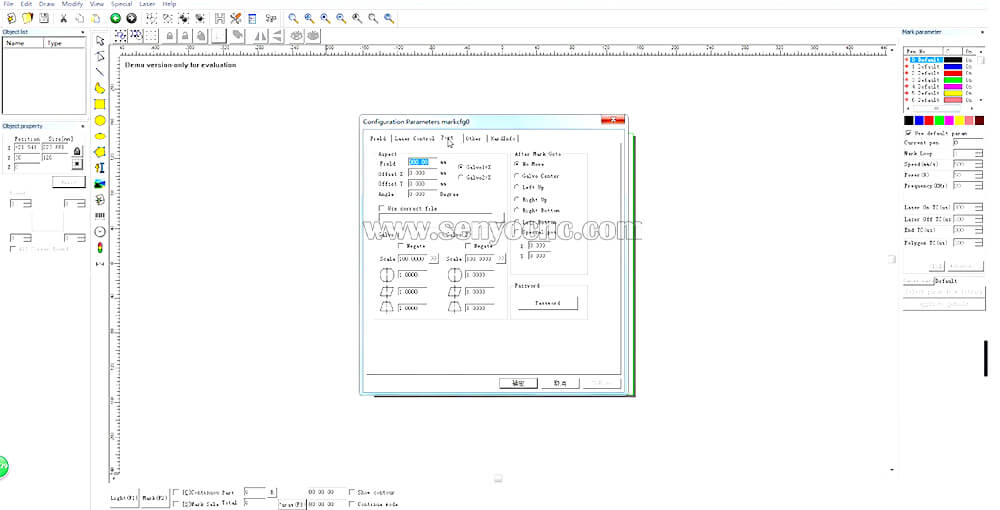

And the laser marking software can handle marking by itself according to different moving speeds.


fly fiber marking machine 30w 50w  (4).jpg

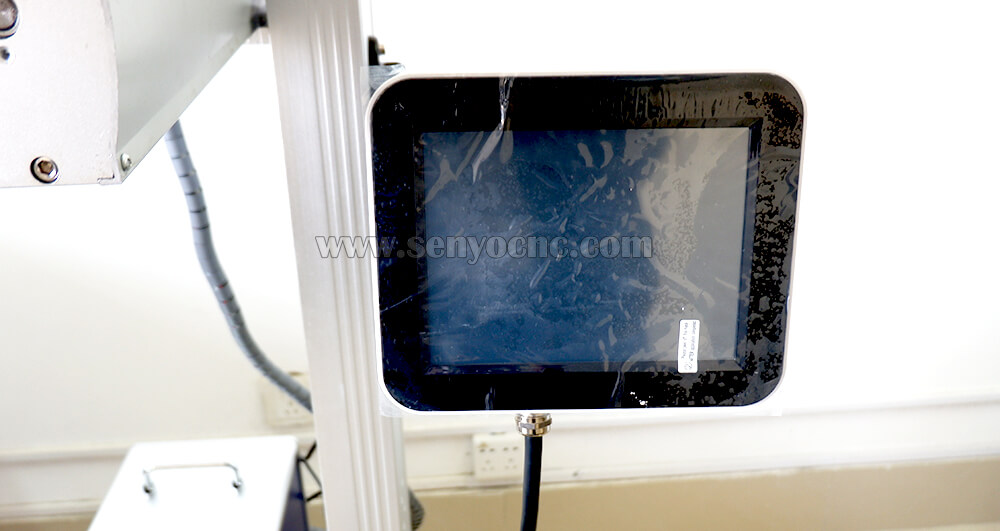

Computer: touch screen,without computer host,and the control system is easy to operate,for you is simple to learn.


fly fiber marking machine 30w 50w  (5).jpg



Project Show

Widely used in electronics separation components, integrated circuit (IC) electronics circuit,

mobile communication, precision devices, personalized gift customization, glasses, clocks,

computer keyboards, jewelry, hardware products, kitchen utensils, tool accessories,

automotive accessories, plastic buttons, water heating accessories, PVC pipes, medical devices, packaging bottles,sanitary utensils and

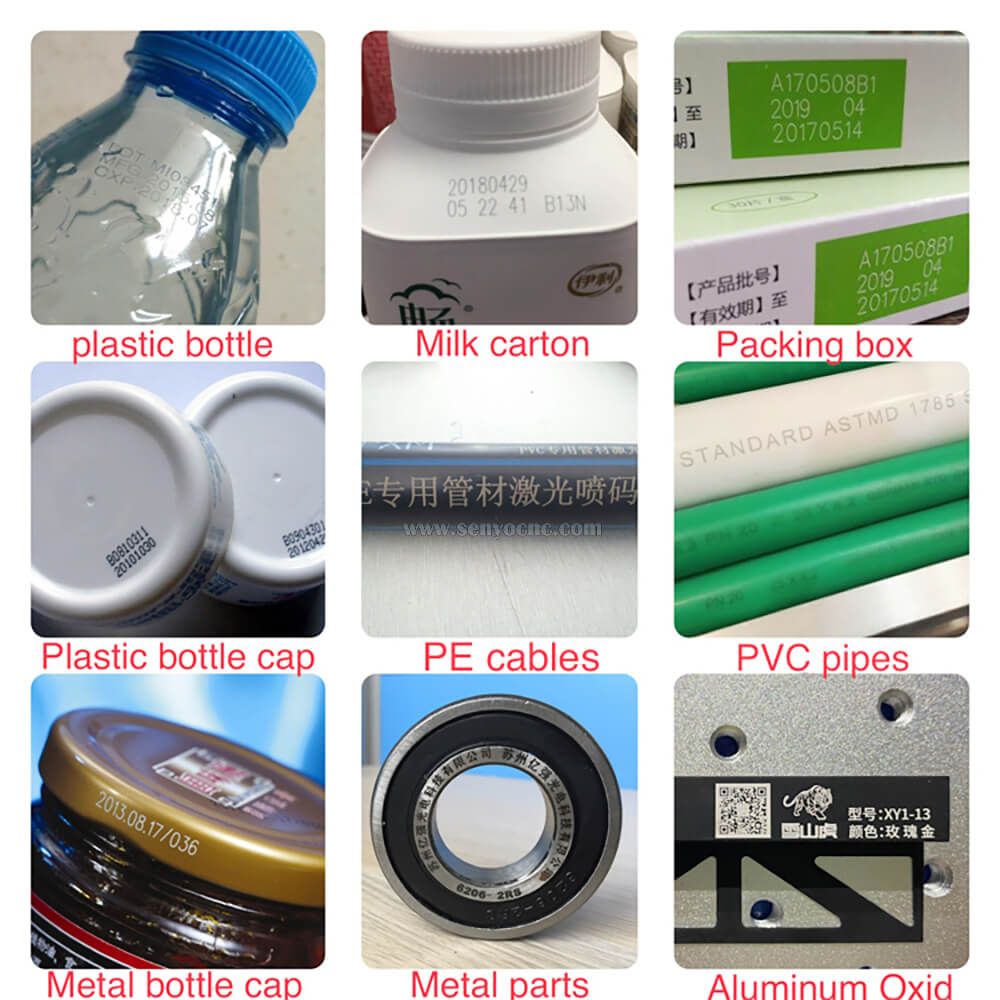

The operation of the current type of flight laser marking machine not only brings considerable prospect to industrial efficiency.

Black PE: Marking white on it

Black HDPE pipes: Marking white on it.

White PVC pipes: Marking black on it

Orange PVC pipes: Marking black on it

Support input logo, text, digitals, serial number, date, times, etc.

Support every 1m or 2m marking

Support working on production line, also support static marking.

Support PLT output and imput

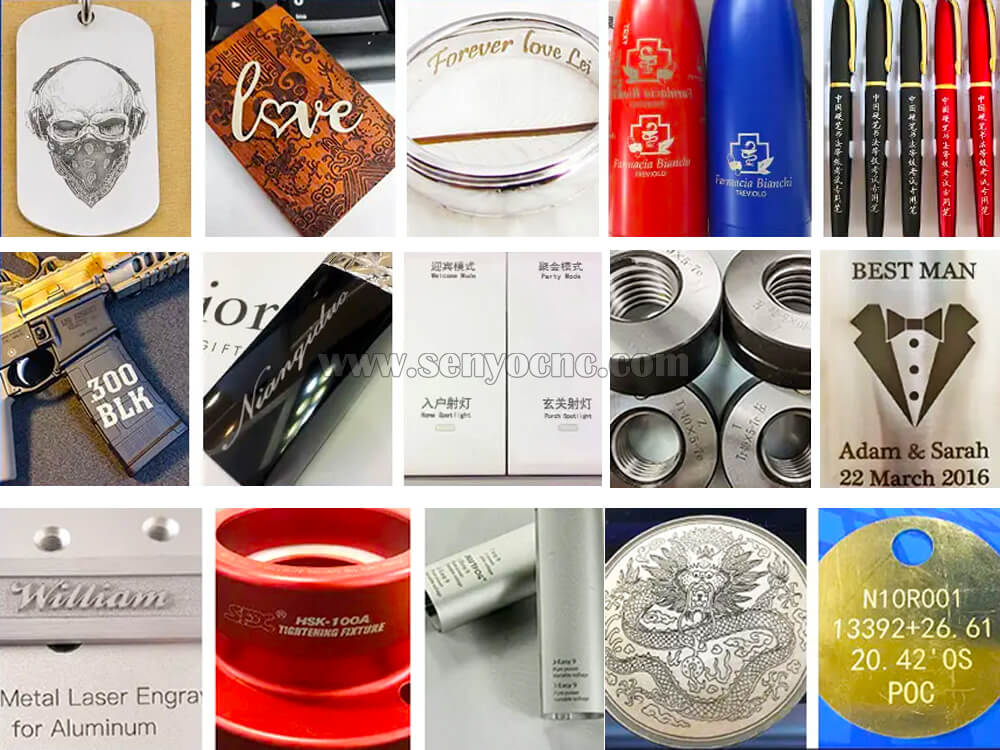

LASER work sample.jpg


Also for other metal products, or some plastic products.

fiber laser work samples.jpg


Metals (including rare metals), engineering plastics, electroplating materials, coating materials.

Coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS.

Gold, sliver, brass, steel, titanium, copper and other materials.


fly fiber marking machine 30w 50w  (11).jpg



Package And Shipping

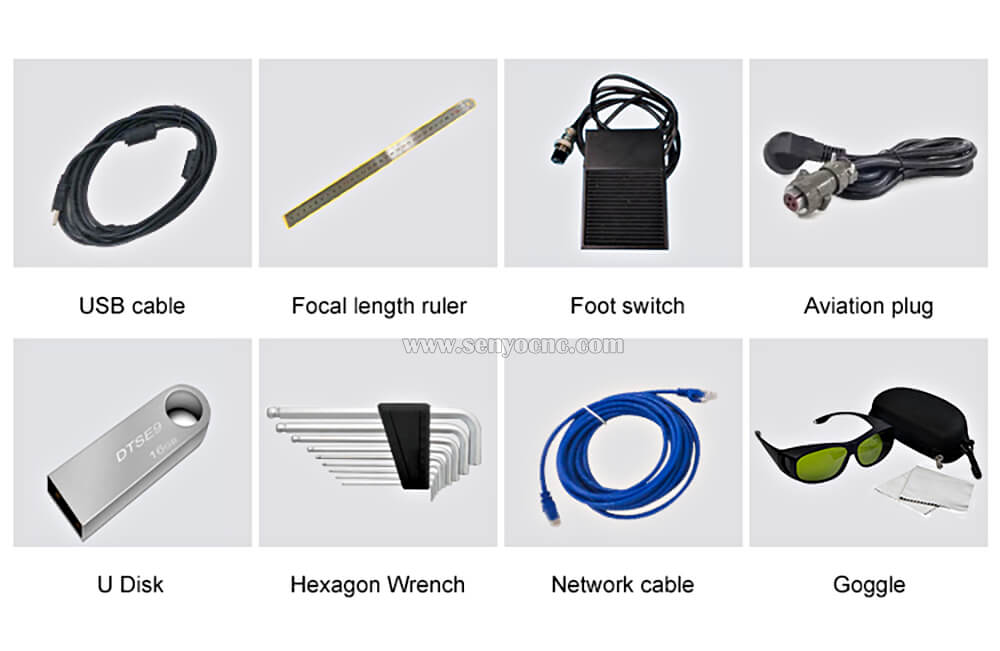

Before Shipping we check all accessories in the package .

FIBER pARTS.jpg

Then start to package .

We have 3 layers package.

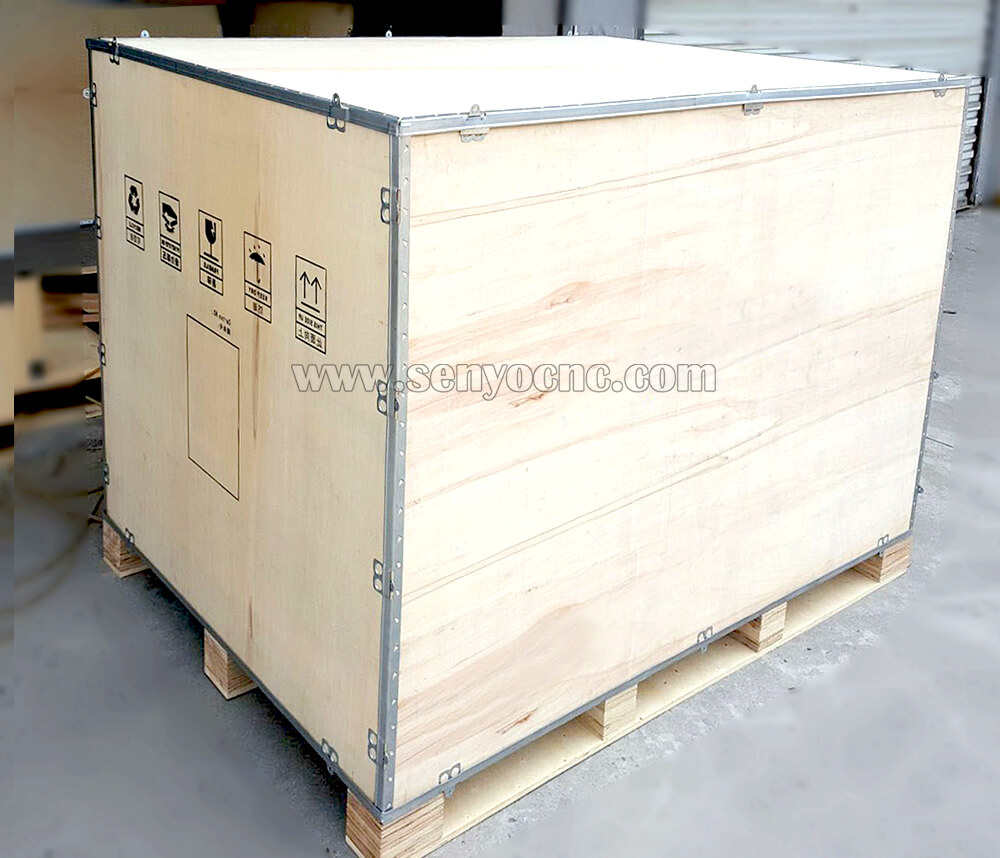

For the outside, we adopt wood craft case.

In the middle, the machine is covered by foam, to protect the machine from shaking.

For the inside layer, the machine is covered by thickening plastic bag for waterproof.


fly fiber marking machine 30w 50w  (9).jpg



International Shipping

Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL. FEDEX. UPS. You are welcome to get a free guotation by fling up the form with name, email, detailed address.Product and recuirements. We will shortly contact you with the full information includina the most suitable delivery method fast secure discreet and freight.
