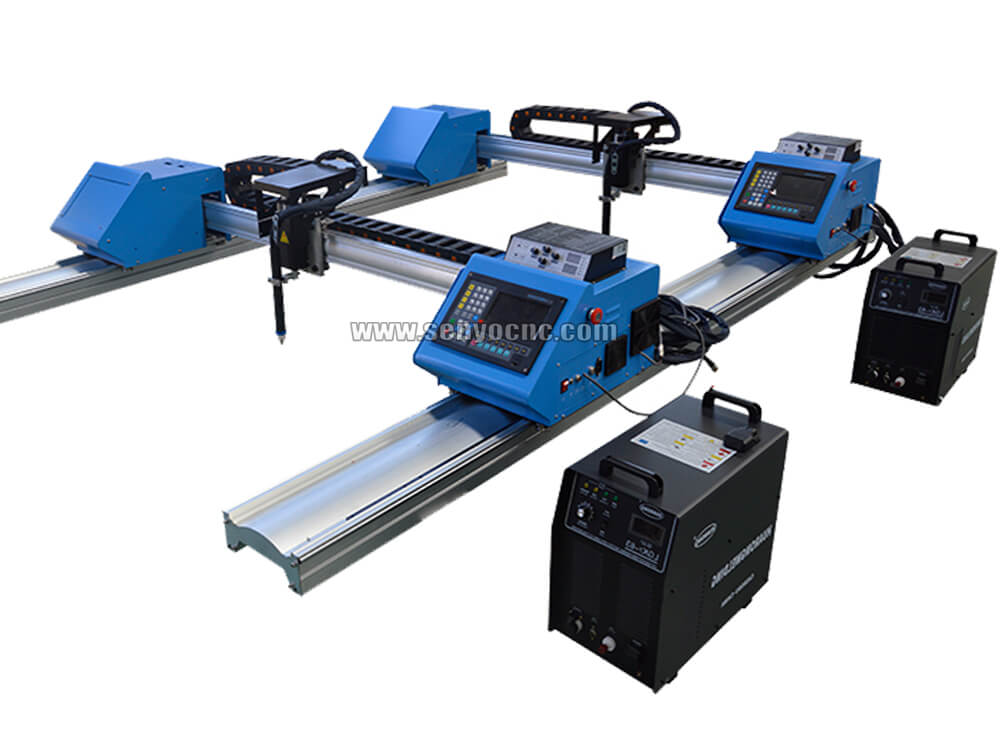

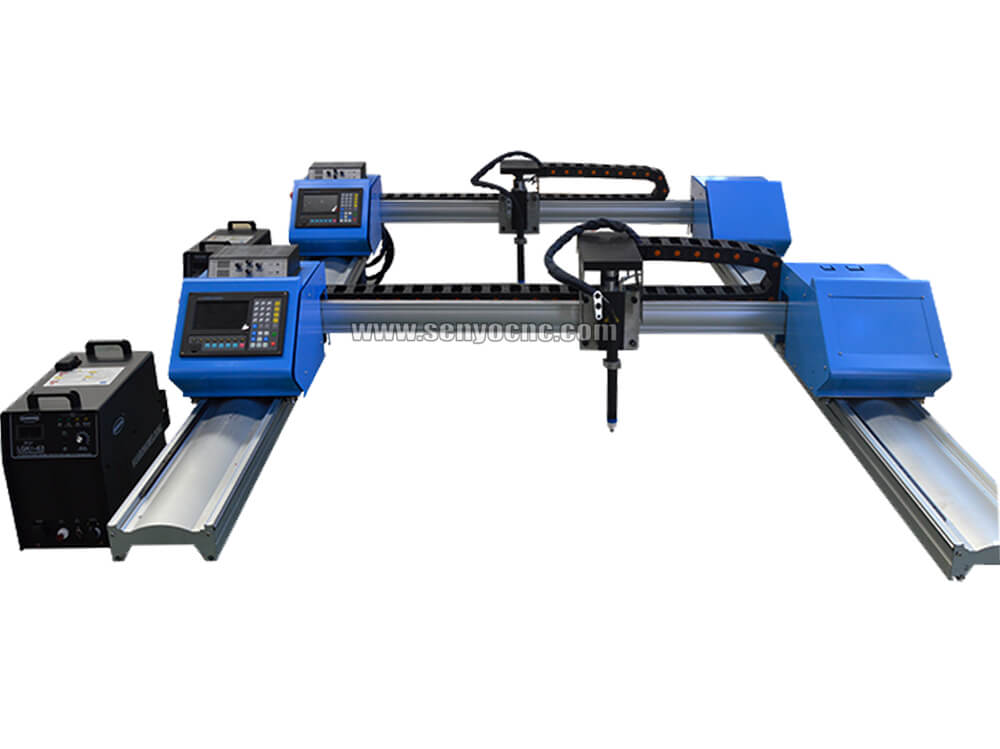

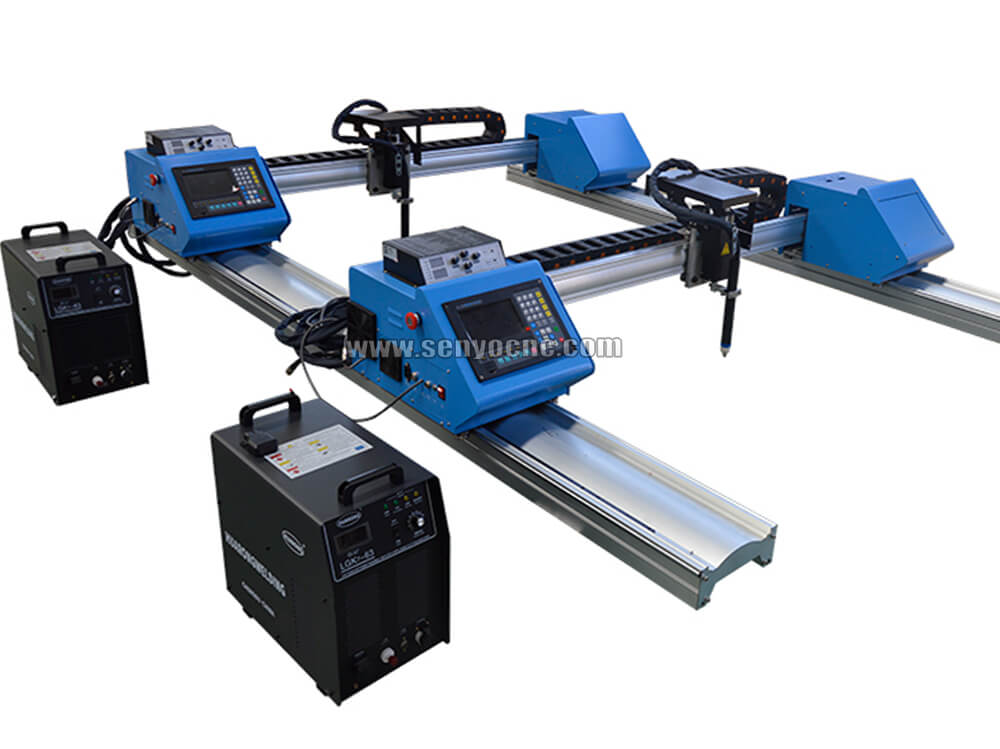

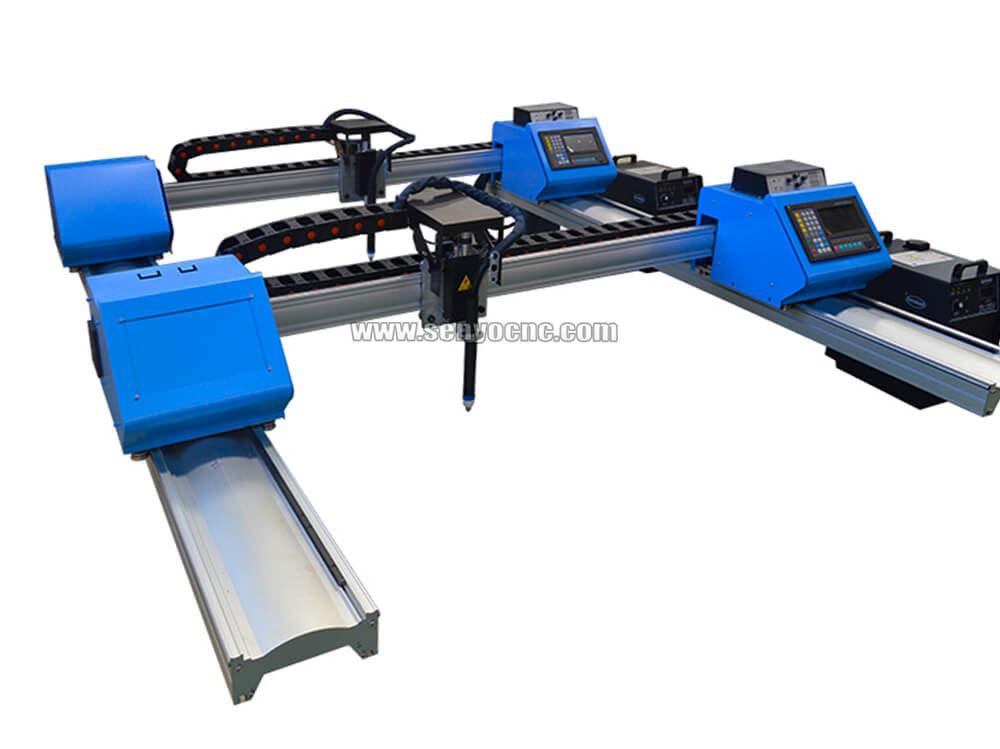

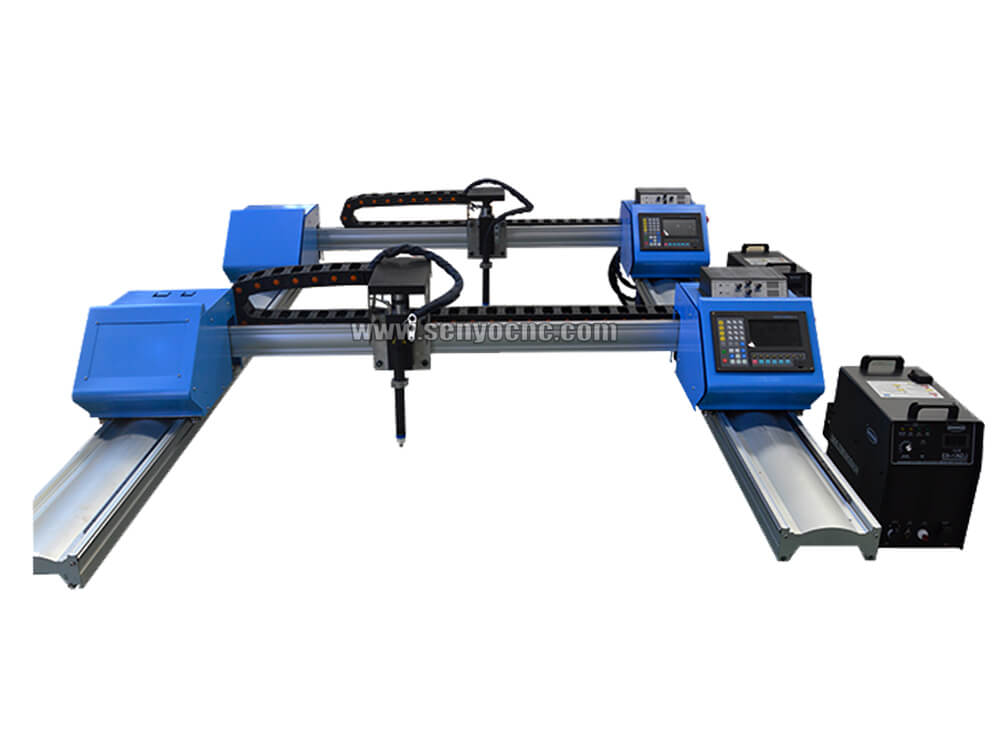

SYP1530 cnc plasma It can be programmed to cut any plane shape parts composed of beeline and arc ,which are same as large gantry cutting machines . It is equipped with a 5.7 inch LED with dynamic and static graphical display .It is directly perceived and very easy to learn .

Machine rogrammed to cutting parts directly , and also can be operated in computer translating instructions into a program file by CAD program , and then deducing it via U hardware .The standard positioning of this machine is flame cutting ,external hanging plasma cutter is also workable .

Operating Steps

1.)Drawing picture(CAD or other drawing software)

2.)Nesting it in the fastcam software

3.)Transfer files

4.)inser the u disk on the machine cutting directly.

Advantages

Able to cut off various metal materials of any graphs.

Good finish.Without fixed site and with random moving.

It is applicable to inside/outside cutting.provided with advantages such as high automation, easy operation

High accuracy, high reliability, low price, and simple operation & maintenance and so on.

Features of Portable Cnc Plasma Oxyfuel Sheet Metal Cutting Machine for sale

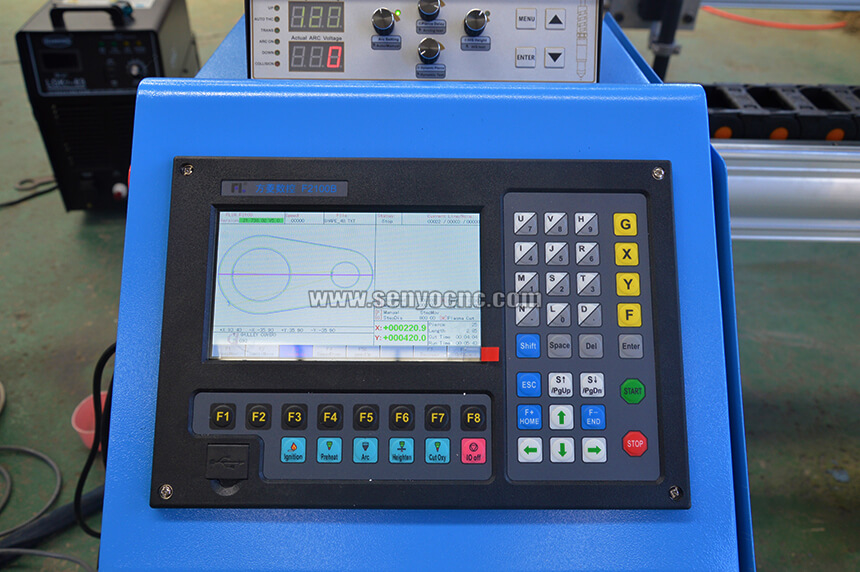

Contorl Panel , machine with software and designs inside for choose.

Functions:

l Compact keyboard design and easy to input files.

l Shape have some operations such as Proportion, Rotate, and Mirror.

l Shape can be arrayed in matrix, interaction, stacked modes.

l Steel plate can be adjusted according to any steel side.

l Coordinate system can be customized to support two dimensional coordinates of all eight kinds.

l All input and output port type and the number can be customized

l Self-diagnostic function, to diagnose the key status and all the IO status, facilitate inspection and debug.

l Provide a front USB interface for copying files.

l System can be upgraded by USB interface easily, and we provide lifetime upgrade service.

l All functions and techniques can upgrade online and don’t worry about the after sale service.

l Import and export files by single or all files.

l Parameters backup and parameter restore.

l Support the Flame, Plasma, Marker and Demonstration four kinds of mode.

l Including various types of processing parameters to meet the needs of different processes.

l Flame and Plasma are separated in the control IO ports.

        l Support THC(Torch Height Control), two-level preheat, three-level pierce in flame mod

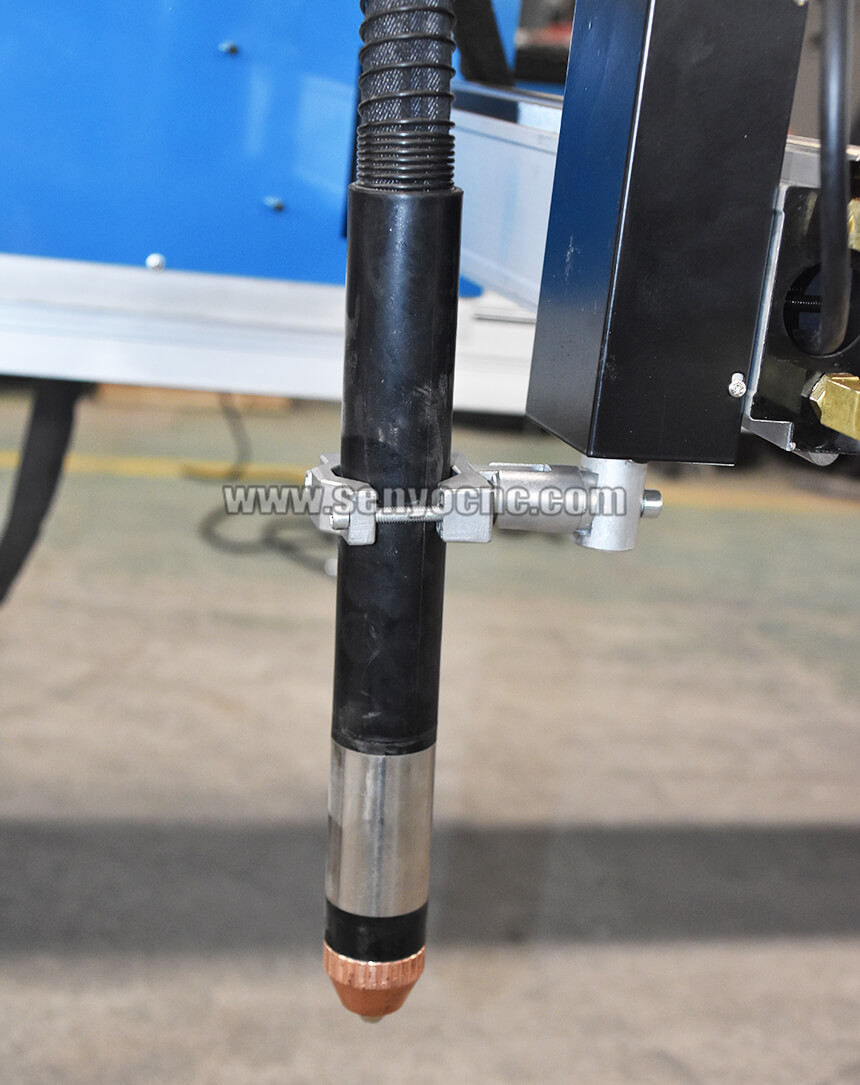

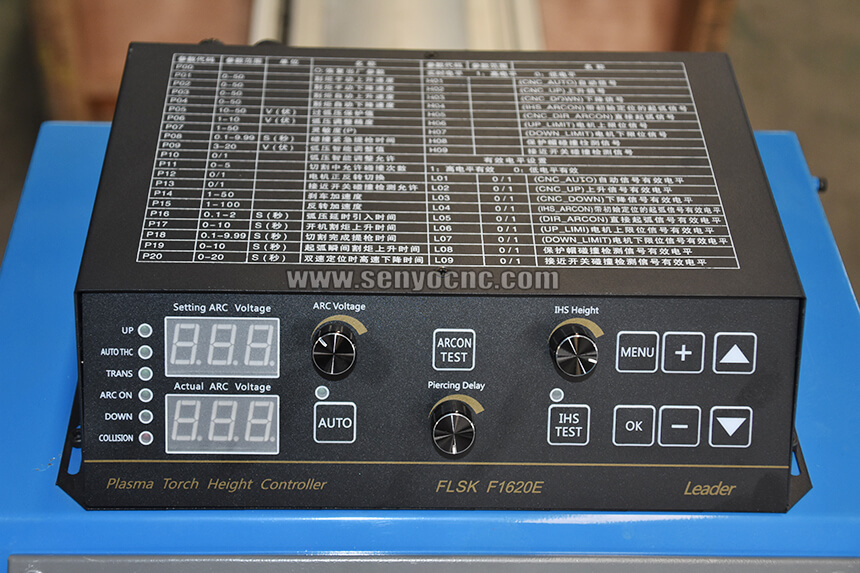

THC system

Main Features:

l Use Keys and digital buttons for parameter adjustment and operation, easy using.

l Inner arc voltage dividing PCB, covered by metal all angle, compact size, better anti-interference.

l Arcing relay and arcing ok relay adopt Omron power relay, stable working.

l Input signal real-time electric level can be observed during all working process.

l Different work process closured independently, make sure no wrong operate.

l In the cutting process, can real-time monitor if arcing real happens. If arcing break in the middle way, THC will inform CNC system and close arcing relay, avoid blank arcing under arc breaking.

l In the process of automatically THC, make sure actual arcing always follow set arc, without static difference.

l Arc voltage set value can be changed, to adjust the cutting torch height during cutting.

l Collision signal can feedback to CNC system, avoid CNC system running after collision.

l After finished cutting, the THC will automatic hoisting cutting torch, hoisting height can be set freely.

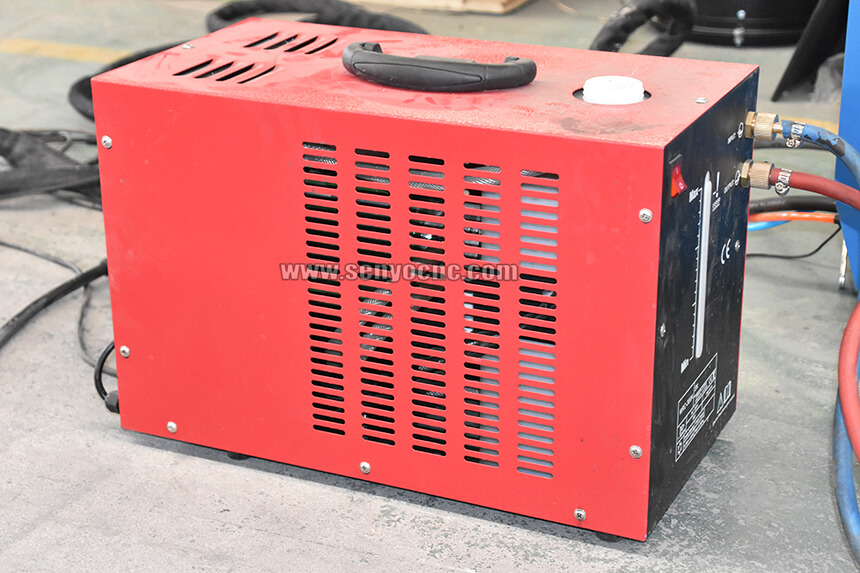

Water chiller for big plasma power soruce

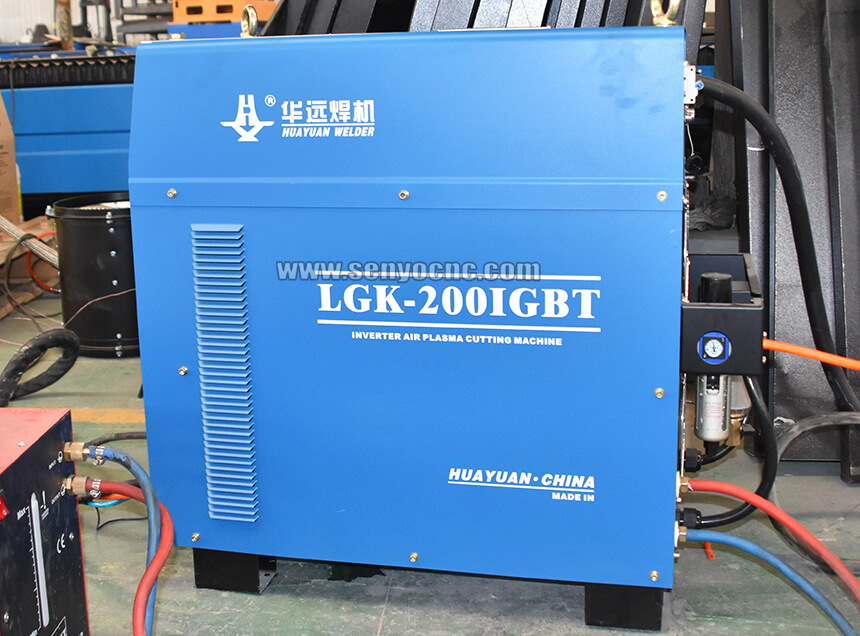

Huayuan Power Supplier , 63A 100A 120A 160A 200A for choose .

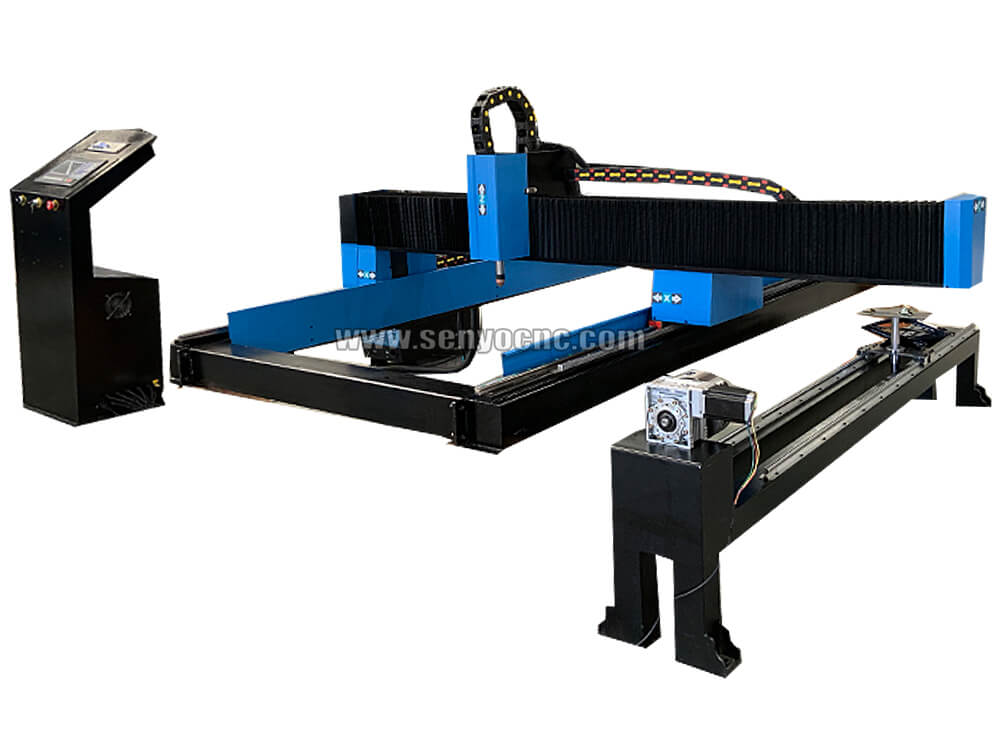

Profiling cutting machine and semi-auto cutting trolley.

High quality imagine software,Operated easily and flexibly.

This is a fully automated system with a high level of automation and a focus on saving time.

Which is based on AutoCAD drawing.

The software is easy to learn can can automatically convert the AutoCAD drawing int to  G-code file

and then transfer G-code file into CNC cutting mahcine by USB key which is convient to operate.

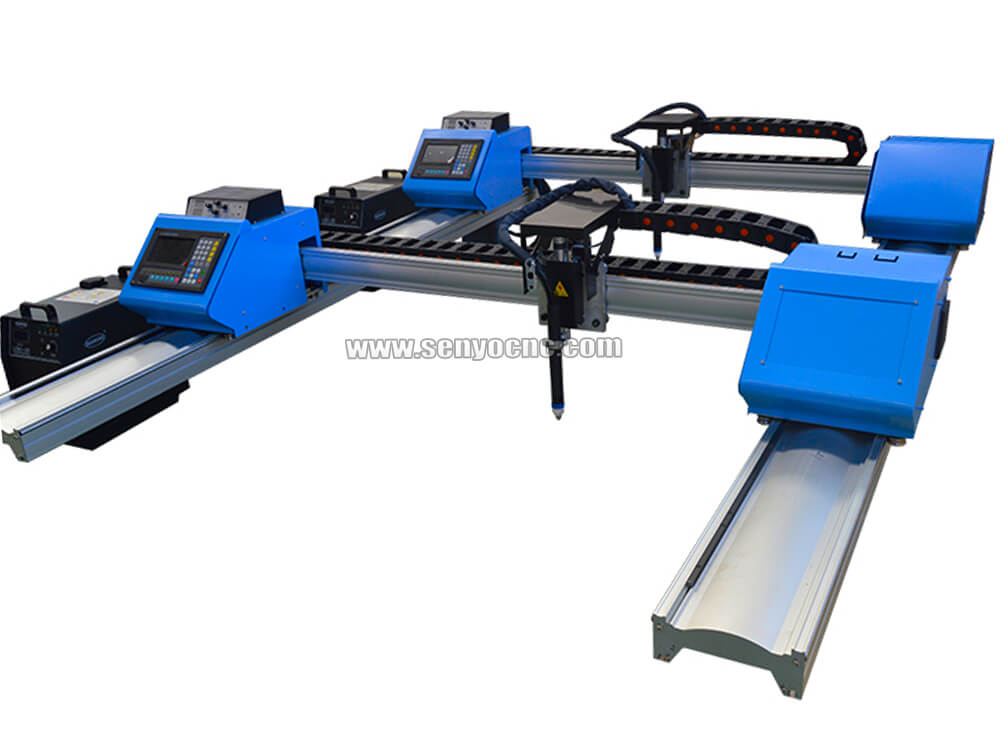

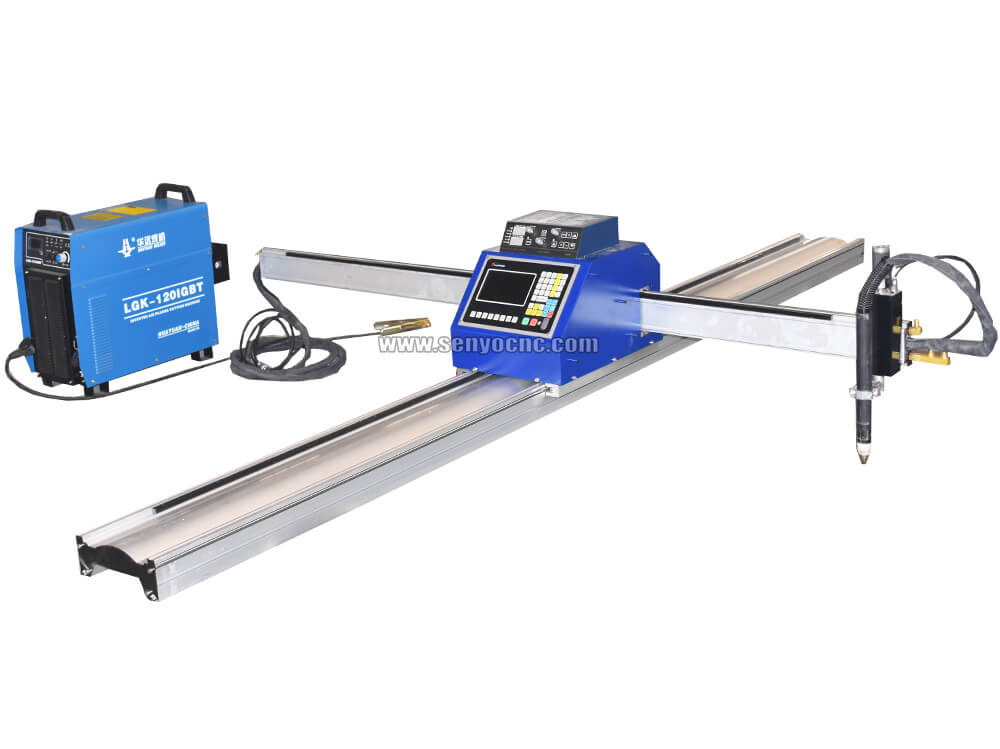

Portable cnc plasma cutting machine is an integrally compact mini structure and is an ideal updating and upgrading

product for replacing handheld flame cutting equipment, handheld plasma cutting device

Application Materials

Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc.

Application Industry

Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military-industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets,

Elevator manufacturers, Textile Machinery, Environmental protection equipment, etc.

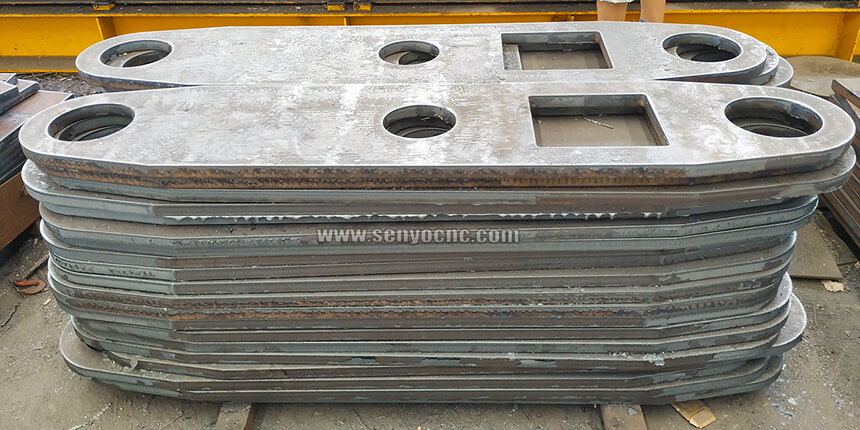

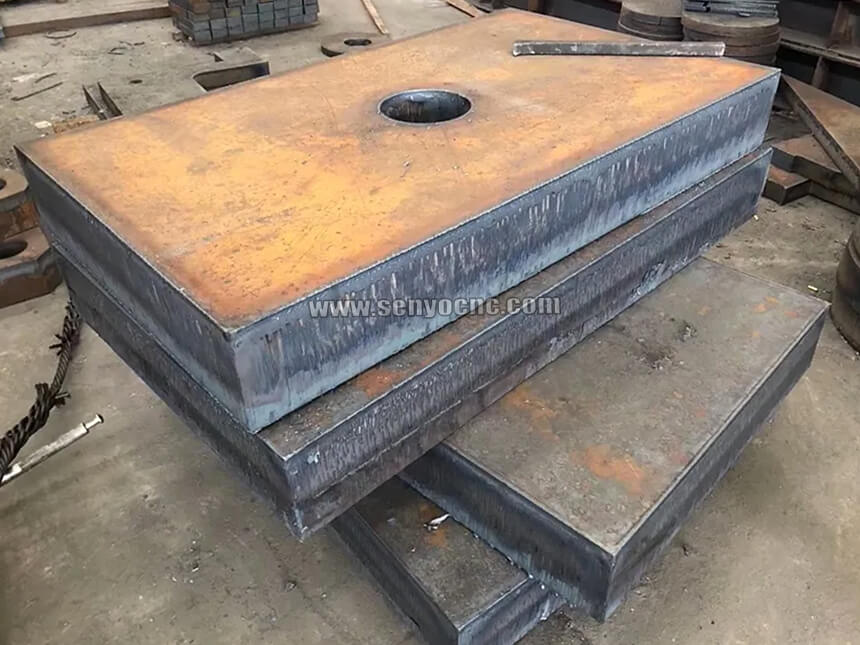

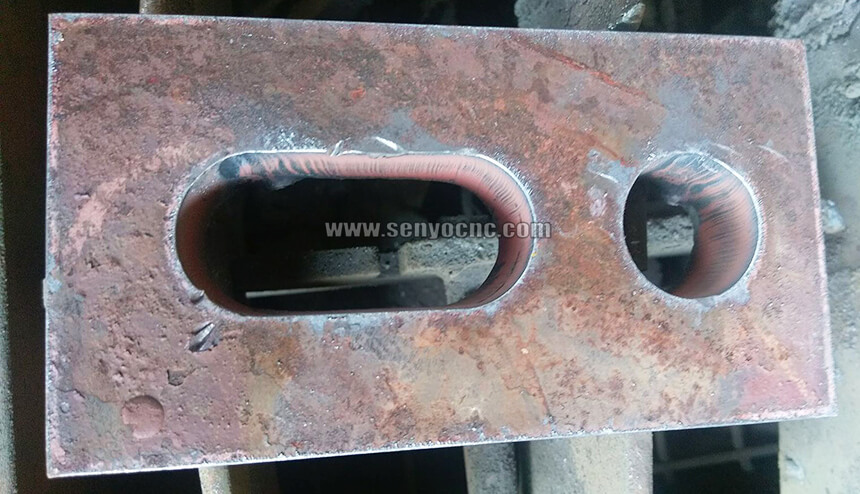

Samples of Portable Cnc Plasma Oxyfuel Sheet Metal Cutting Machine for sale

Plasma Cutting Capacity of Portable Cnc Plasma Oxyfuel Sheet Metal Cutting Machine for sale

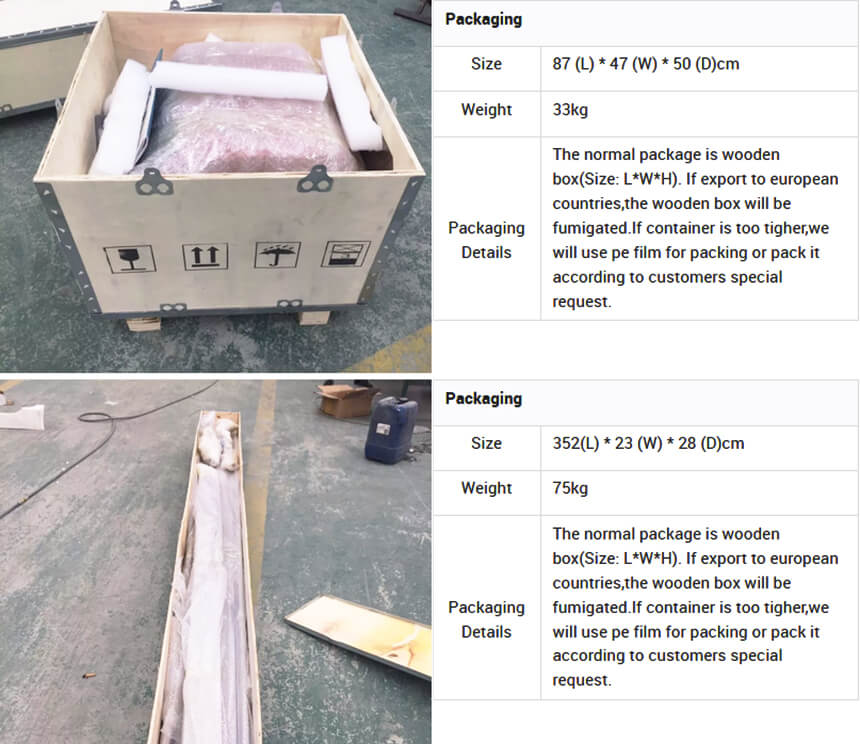

Package and Delivery for of Portable Cnc Plasma Oxyfuel Sheet Metal Cutting Machine for sale

We have been cooperating with several big transport agents and shipping companies for long terms, and the goods are packed with standard plywood case for export, it can be transported to you safety as soon as possible.

Shipping detail

1) CNC Router machine has been adjusted and test 48 hours before delivery.

2) English software, User manual and detailed installation & training video in USB

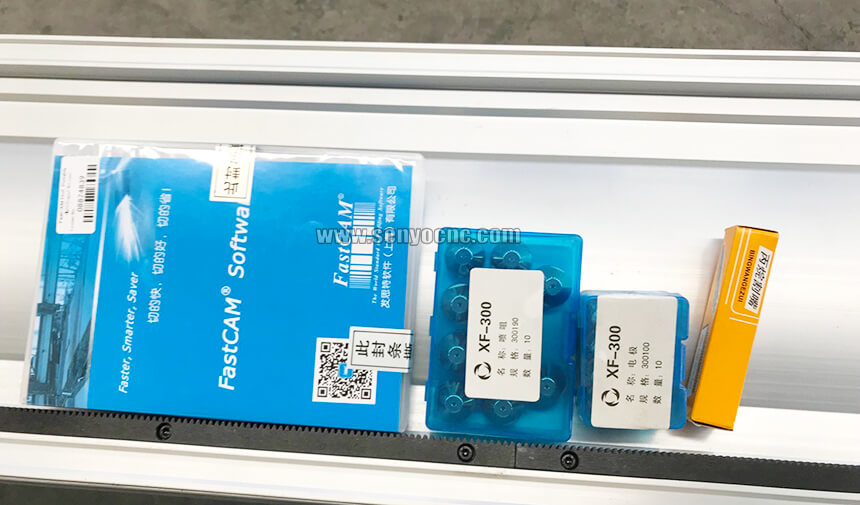

3) Some extra spare parts (Pipe,limit switches etc)

Service & Support

1.Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.

FAQs

Where is your factory located? How can I visit there?

Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.

What's the delivery time?

10-15 working days to delivery port.

What's the usually delivery terms?

FOB, CNF, CIF, Exworks will be OK.

What's your delivery port?

Usually Qingdao port, Shanghai port. or requirement any port is ok.

What's the packing?

Plywood cases,or depend on your requirment .

Can you place OEM orders?

Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.

International Shipping

Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
