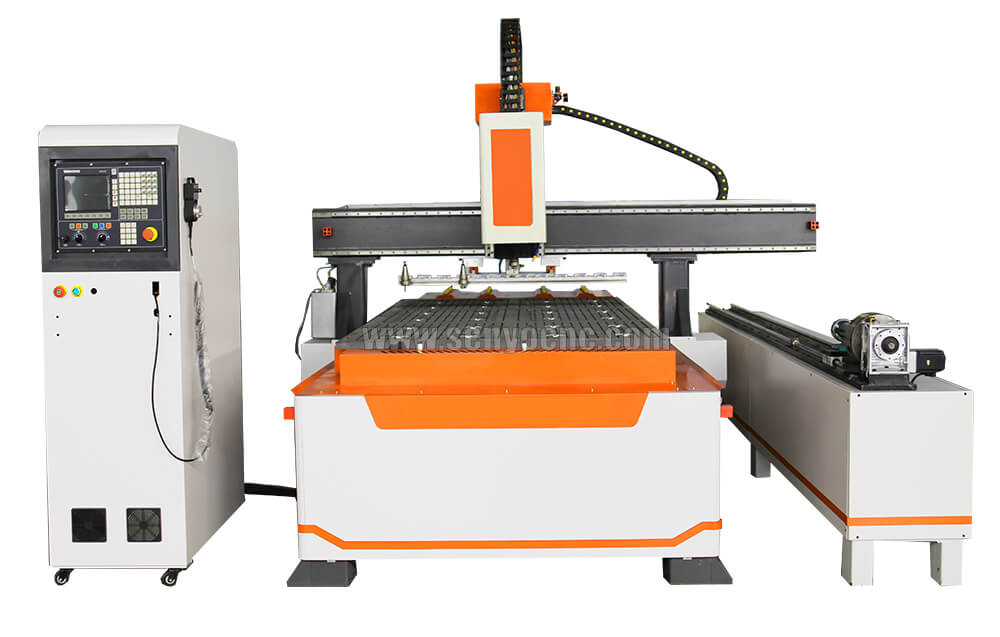

Multi-functional 4x8 ATC CNC wood router machine comes with an automatic tool changer of 12 tools for cabinet furniture making

And 4th axis rotary table for 3D woodworking.

ATC CNC router is a type of automatic CNC machine with automatic tool changer spindle.
usually carries tools magazine of 12 cutters.

It adopts high-torque servo motor, which has the advantages of low noise, high speed and high positioning accuracy.

The CNC router tools can automatically change according to the working requirements when the CNC router works.

No need of manual operation, with good starting performance and large torque, Equipped with a unique tool-changing mechanism.

You can exchange the required tools at will, and the dedicated tool setting table can accurately compensate the tool length error.

The tool change time only takes in second, which will improve the working efficiency greatly.

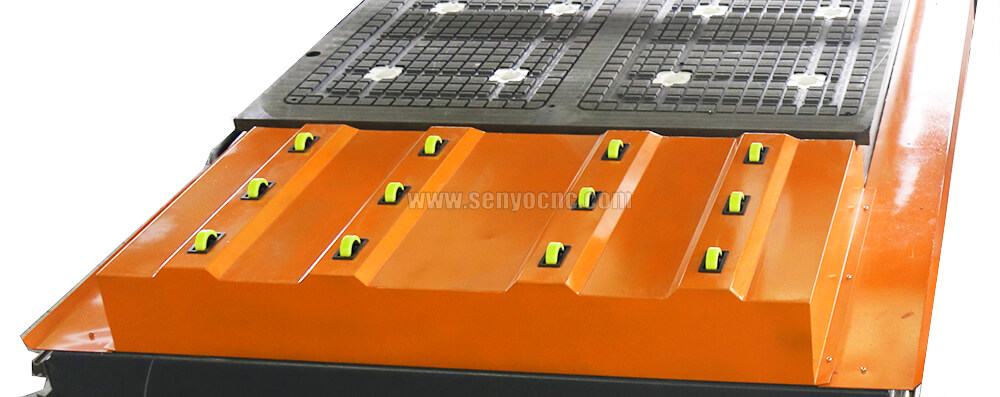

Pneumatic pressure roller Solve the problem of air leakage caused by plate deformation, reduce waste rate and improve adsorption efficiency

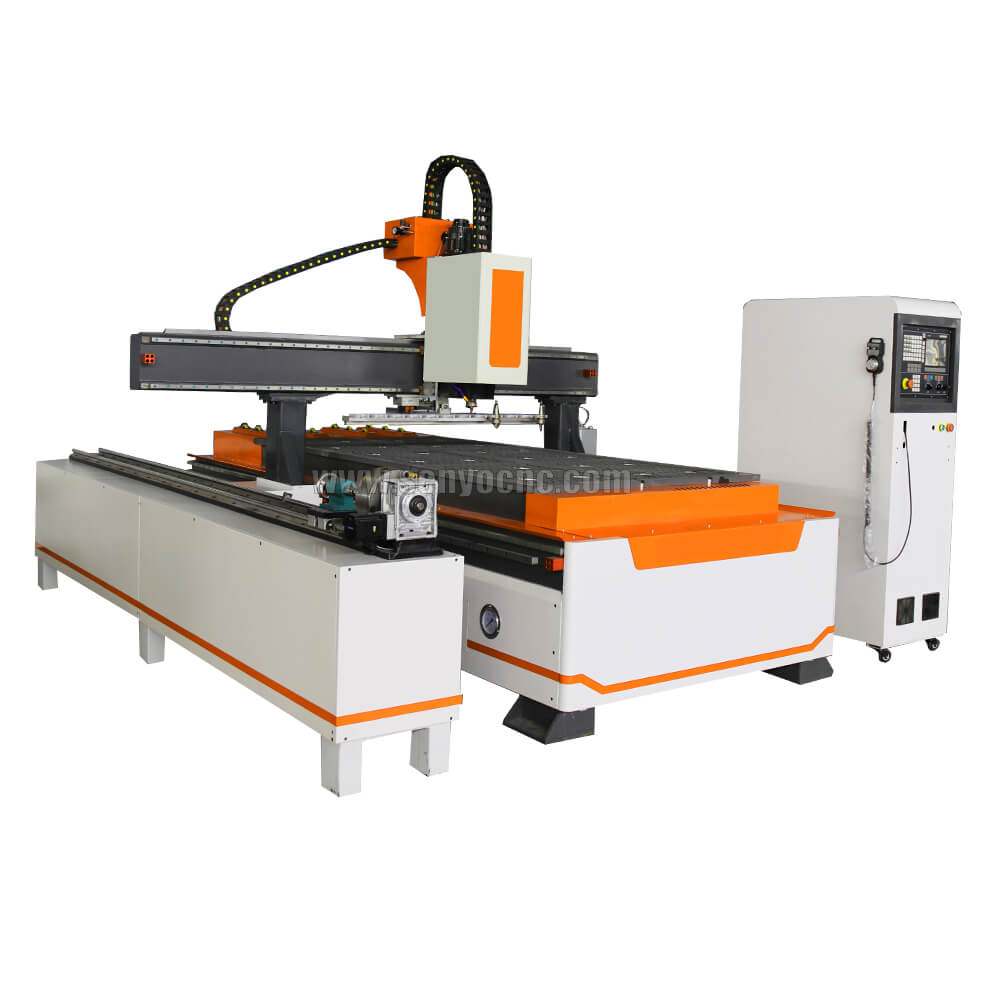

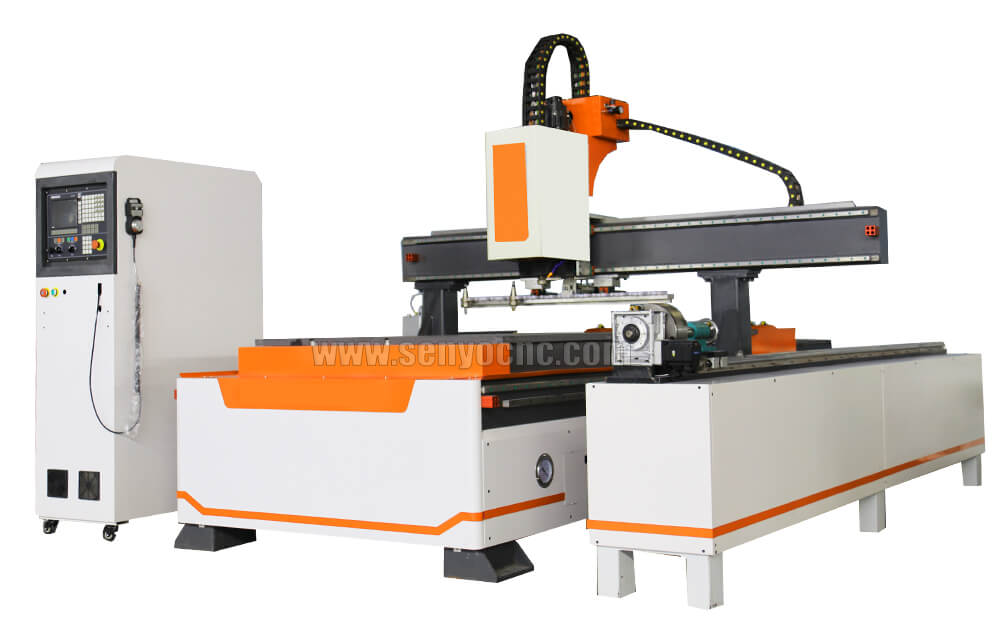

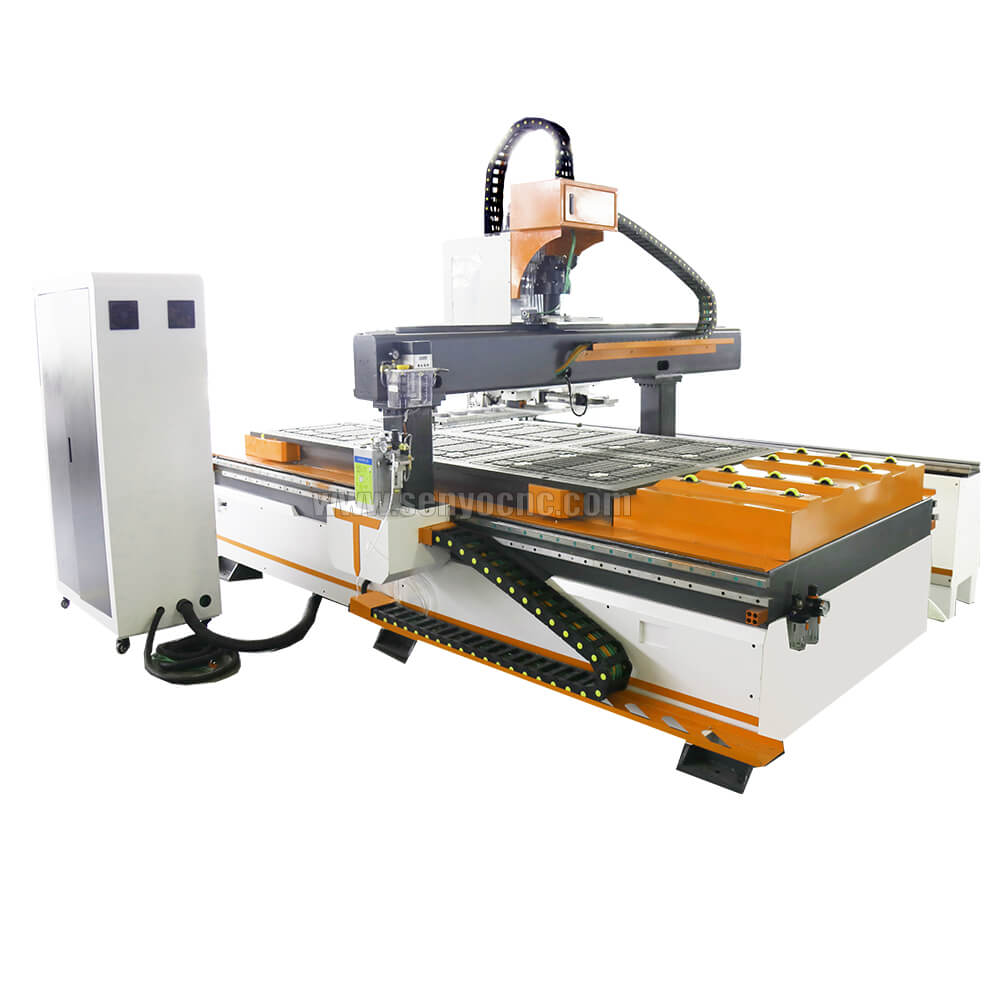

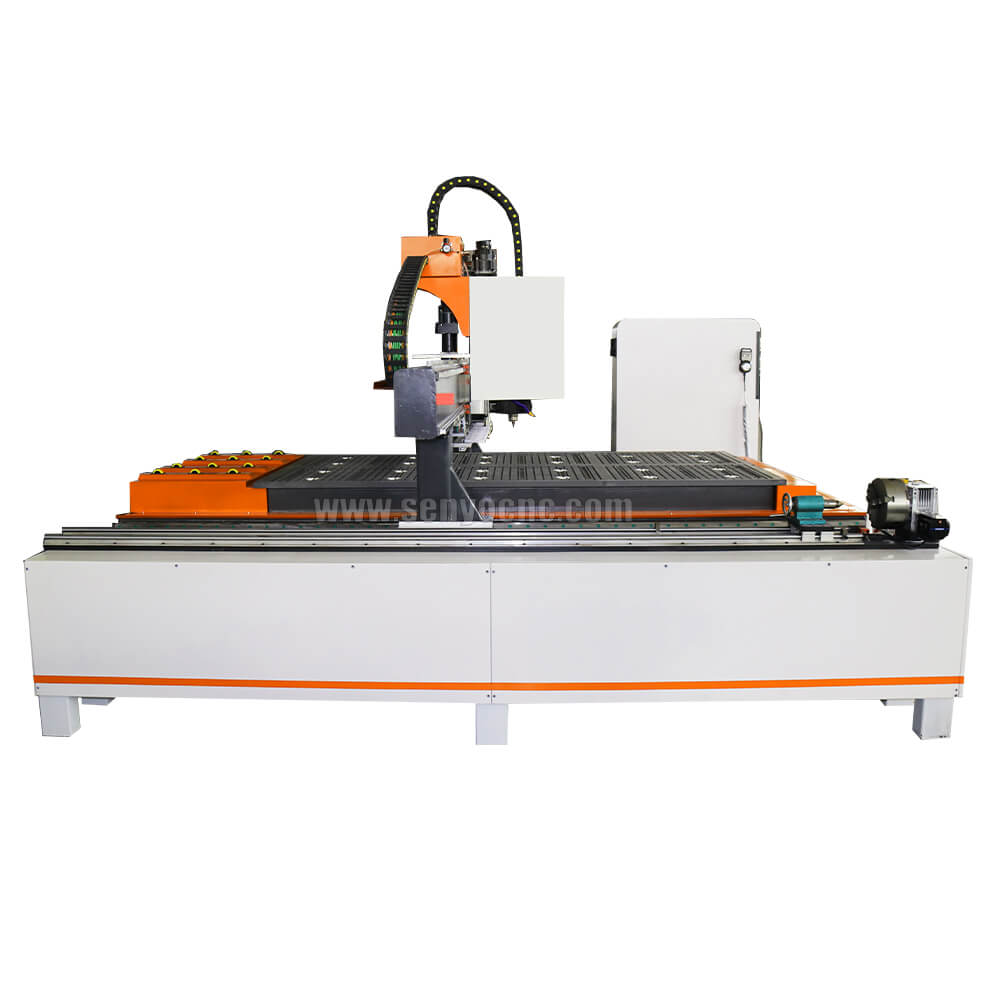

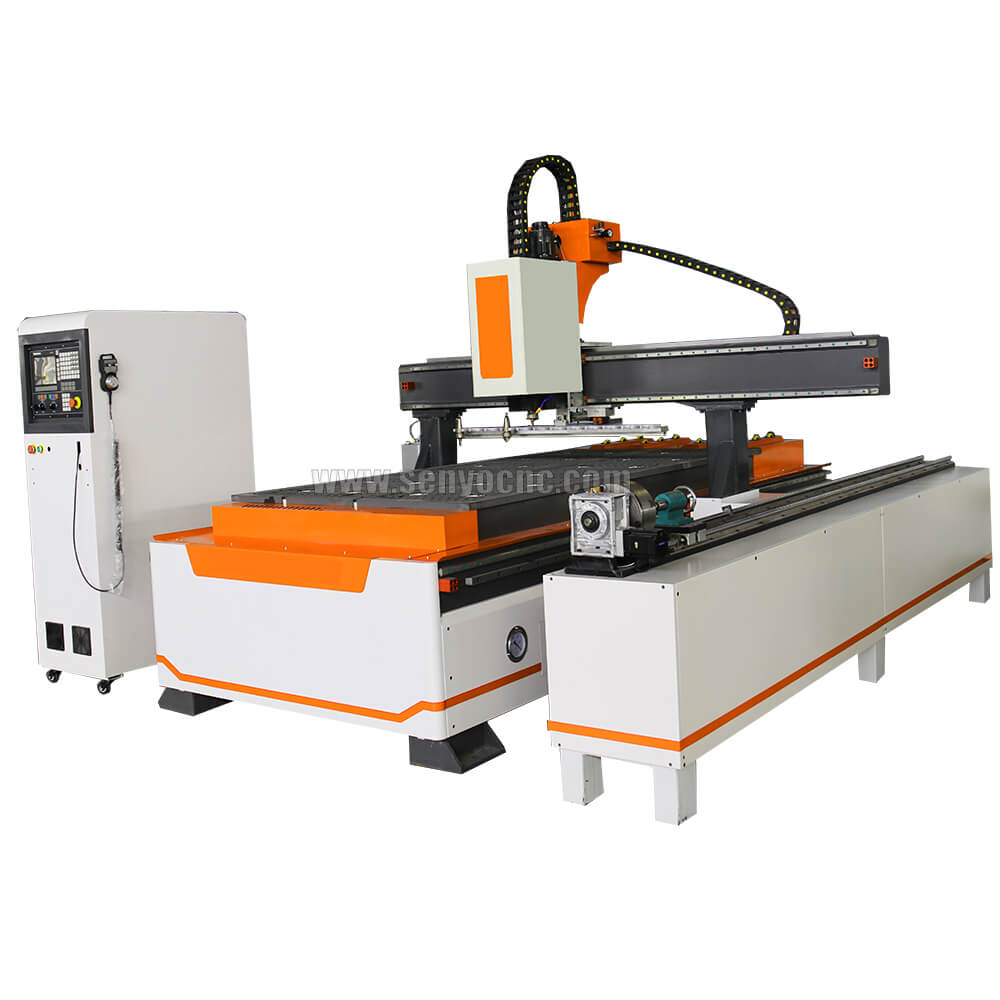

Features of ATC 3D CNC Woodworking Router Machine with 4th Axis Rotary Table

We have two types tool magazine, one is linear tool magazine, which can hold 12 knives.
Another is disc tool magazine, it can hold 20 knives, and we also can customize tool magazine according to your needs.

Stronger power 9KW automatic tool changer spindle.

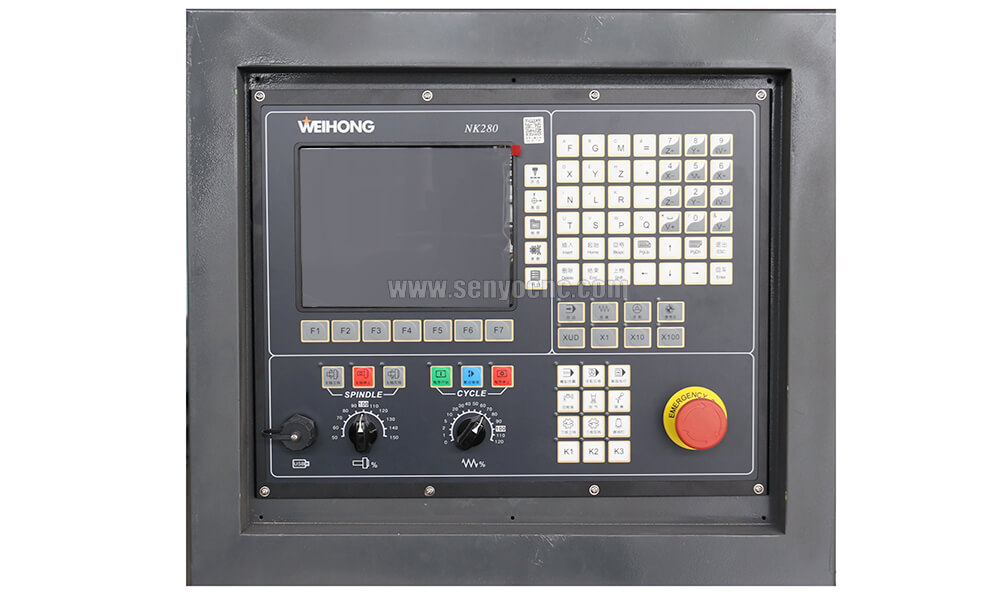

WEIHONG NK280/ Taiwan LNC Control System from Taiwan with high performance and competitive price.

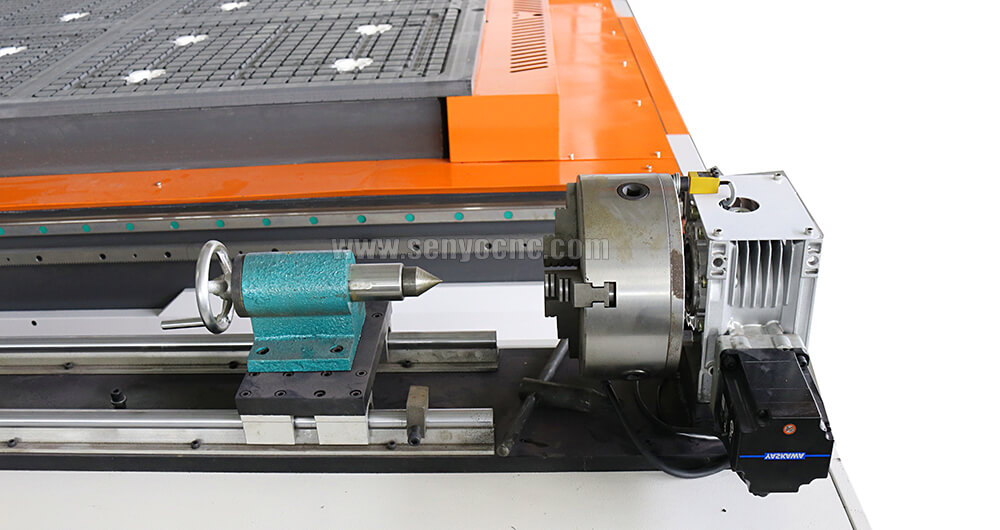

Working Table: 1300*2500*300mm, 4th Rotary Axis:360 degree.

12 pieces Linear type tool changer with ISO30 tool holder,suitable for different bits.

Wireless handwheel, keyboard, mouse. The unlimited range can control the machine from a distance.

Automatic Tool Calibration make sure each bits level automatically. Machine with unloading roller .

T-Slot Table with Vacuum Table: Use clamp or pump to fix materials.

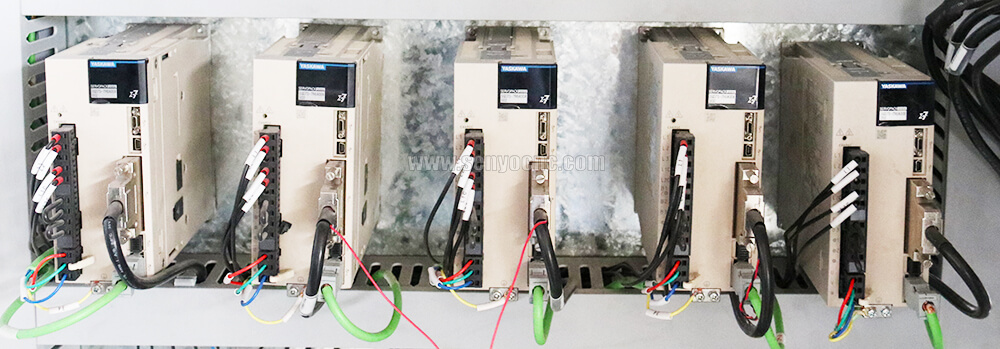

Big torque Servo Motor and Drives with high precision and long life.

The bed is welded with steel pipe, high-temperature tempering, durable.

Schneider electrical components: original brand from France.

Japanese Omron switch with long life.

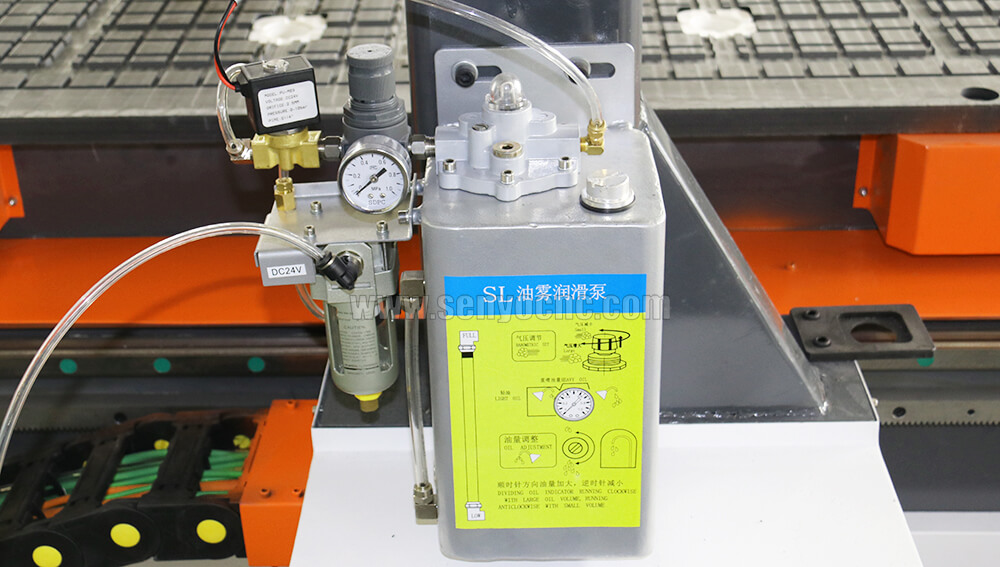

A central oiler is sufficient to keep your machine lubricated.

Applications of ATC 3D CNC Woodworking Router Machine with 4th Axis Rotary Table

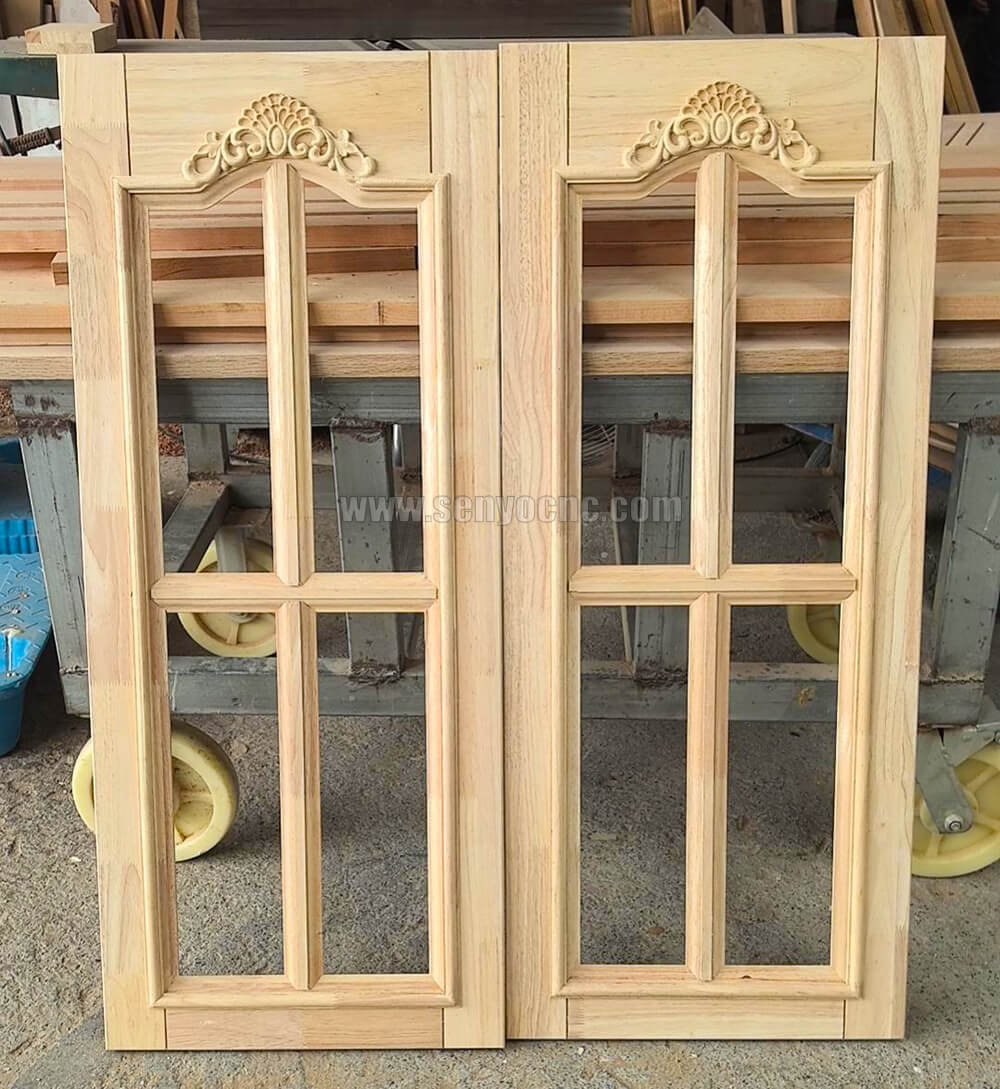

Furniture Making

Wooden doors

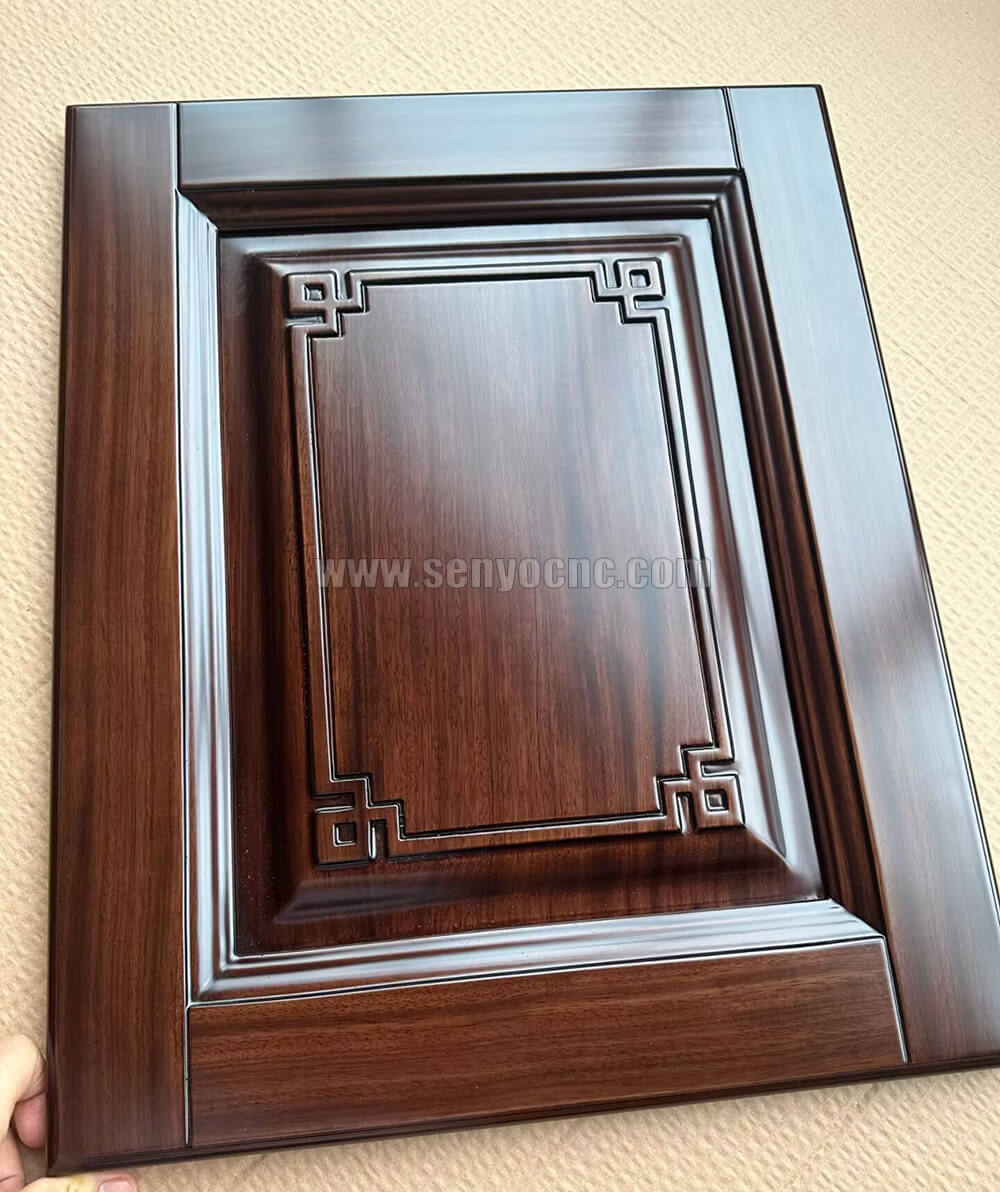

Cabinets, plate, office and wood furniture

Tables, chair, doors, and windows.

Inner body of car, bowling tracks, stairs

Chair legs , wood stairs

Rotary works

Woodworking

Voice box, game cabinets

Computer tables, sewing machine table, instruments.

Plate Processing

Insulation part, plastic chemical components, PBC

Anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

Decorate Industry

Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metals.

Technical Parameters of ATC 3D CNC Woodworking Router Machine with 4th Axis Rotary Table

Things To Consider

Drive System

At present, the driving system of the engraving machine is mainly divided into two types: the stepping system and the AC servo system.

The stepping system belongs to the semi-closed loop system, and the precision is calculated by the step angle.

The AC servo system belongs to the closed-loop mode completely, and there is a measurement feedback system inside,

so the accuracy is relatively high. If the funds are sufficient,

Users who have higher requirements on the engraving machine can choose the machine with the AC servo drive system.

CNC Controller

The control system of the 5x10 CNC machine is currently dominated by Weihong controller, DSP controller,

MACH3 controller, LNC control system, and SYNTEC controller. The difference is not too more, and users can choose according to their actual needs.

CAD/CAM Software

There are many CAD/CAM softwares for CNC machines, but the most common ones on the market are TYPE3 and Artcam.

These softwares can import CAD drawings well, and can further do simple graphic processing.

Transmission Mode

There are three transmission modes of the CNC machine, namely screw drive, rack drive and synchronous belt drive.

The advantages and disadvantages of different transmission modes are different. You can choose according to your actual needs.

Trial Machining Before Buying

Before the official purchase of the machine, you can conduct a trial machining first,

use the pattern that needs to be cut from yourself, and see what the sample actually cut by the machine is, so that you can know what you want.

Linear Tool Changer VS Disc Tool Changer - Which Is Better?

Automatic tool changer kits come in linear and disc tool changers.

The mostly used linear tool changers include 8-tool, 10-tool, and 12-tool.

Nowadays, most users choose the 12-tool tool magazine.

The linear tool magazine can be installed under the gantry or behind the bed.

In comparison, the tool magazine under the gantry has faster tool changing speed and lower guide rail wear.

 In addition, The linear tool changer does not rely on drives and motors like servo tool magazines,

so it lacks a set of drives and motors. The cost will be lower and the price is more affordable than conventional ones.

Disc tool changer (also known as drum tool changer) is typically installed next to the spindle or on the side of the gantry.

The advantage of the former is that the tool change speed is faster, usually within 14 tools, and 16 or 20 tools for option.

If 20 tools are used, the load-bearing requirements of the Z-axis and the gantry are too high,

 especially the screw rod and the guide rail slider require high strength.

After long-term use, the accuracy decreases quickly. The tool magazine installed on one side of the gantry can hold 12-20 tools with strong stability.

The tool changing speed is a little slower than that next to the spindle, but the machine accuracy and stability are not affected.

Compared with the linear tool changer, the disc tool changer can change tools faster and with higher accuracy.

However, the cost of the disc tool magazine is higher for an additional set of servo drives and motors.

The automatic tool changer kits typically works with Yaskawa servo and SYNTEC control system,

and the cost is relatively higher. WEIHONG and LNC CNC controller are optional with corresponding servo and lower cost, but there is not much difference in performance.
