Product Introduction

Buyer's Reviews
Fiber Laser Marking Machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron, etc. and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.
Demonstration Video


Product Descriptions

fiber marking machine  (2).jpg


High precision carving

Laser marking machine engraving items texture fine, minimum line width up to 0.04 mm. Mark clear, durable and beautiful.

Laser printed label can meet the minimum needs of huge amounts of data can be printed on the plastic parts.

Better marking result, for example, more accurate, higher resolution of the QR code.

Compared with the embossing or jet marking way, have stronger market competitiveness.


fiber marking machine  (3).jpg


Low operating costs

High marking speed ,small energy consumption, and low consumables cost.

Although laser marking machine equipment investment than traditional equipment is big,

fiber marking machine  (14).jpg

In terms of operating costs, using a laser marking machine is much lower, make you quickly saving cost , improve benefits.





fiber marking machine  (1).jpg




Technical Parameters


Item
Laser Marking Machine Fiber
Application
Laser Marking METAL AND NONMETAL
Working Accuracy
0.02MM
Graphic Format Supported
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Laser Type
Fiber Laser
Cooling Mode
Air Cooling
Control Software
EZCAD
Key Selling Points
Easy to Operate
Warranty
2 years

Online support, Video technical support
Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops,

Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops,

Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

Marking Area
100mm*100mm/110*110/150*150/175*175/ 200mm*200mm /300mm*300mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Core Components
Laser Source
Working voltage
AC220V 110V /50Hz 60HZ(option)
Lifting pillar
500mm(customize)
Cooling system
Air Cooling
Minimum character
0.1mm
Minimum line width
0.01mm
Repeatability accuracy
0.003mm
Resolution
0.001mm
Marking speed
0-7000mm/s
Working environment
0~35°C humidity≤90%
Model
SYJF-50W
Surface stripping of aluminum oxide sheet
The substrate is easy to deform, form convex hulls, and rough shading
Anodized aluminum black
Only limited quality dusting
Metal deep carving
Strong force, suitable for deep carving, rough shading
Stainless steel color marking
Need to defocus, the effect is more difficult to adjust
ABS and other plastic processing
The effect is prone to yellowing, the hand feels heavy and the speed is fast
Peeling paint on translucent plastic buttons
More difficult to clean

PCB board marking barcode,

two-dimensional code

Single pulse energy is high, but epoxy resin is more sensitive to laser energy
Mopa Laser
With small pulse width, small heat residue, no deformation of the substrate, fine and bright shading
Through wide-area parameter settings, you can mark different shades of gray, black and black processing
The carving depth is weak, but the shading is fine, the taper is small, and it can be brightened

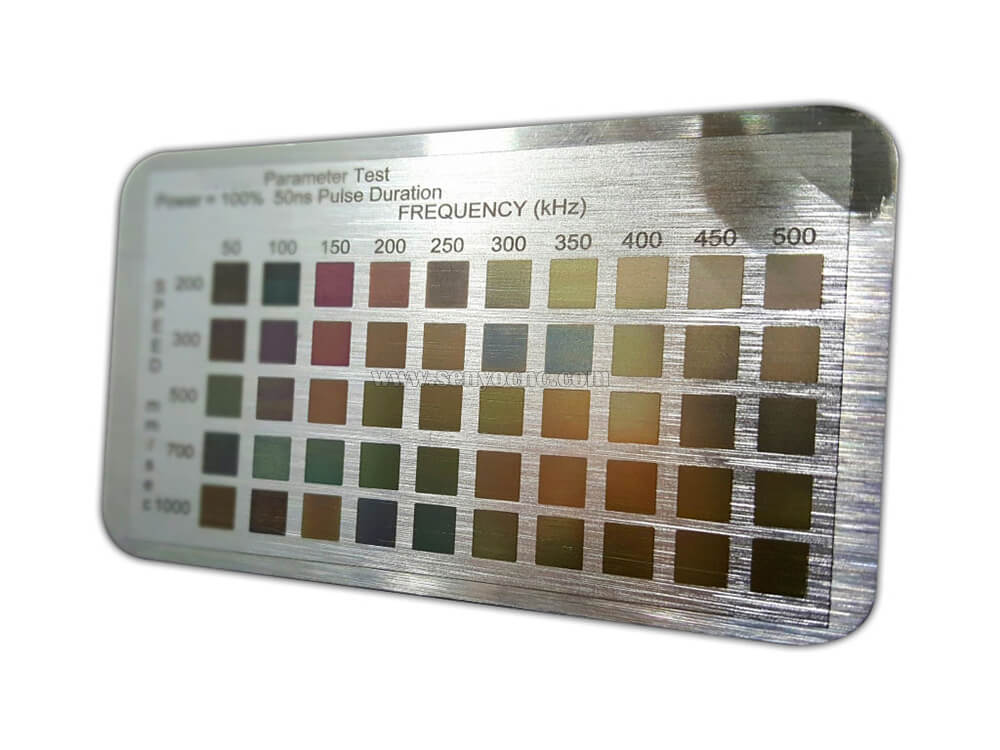

Various colors can be produced by adjusting the combination of pulse width and frequency
No hand feeling, not easy to yellow, fine processing
Easy to clean, clear edge contour, better light transmission, high efficiency
Using small pulse width, medium frequency, bar code, two-dimensional code is clearer, not easy to remove and easy to scan


Application Materials


Both metal and some non-metal.

LASEER STONE SAMPLES (49).jpg


Metal: carbon steel/ mild steel, stainless steel, aluminum, copper, magnesium, zinc;


LASEER STONE SAMPLES (38).jpg

rare metal and alloy steel ( gold, silver, titanium, etc. ) specail surface treatment

( aluminum anodized, plating surface, surface oxygen breaking of alumimum and magnesium alloy)

Non-metals: plastics such as ABS, PVC, HDPE , PP, PC, PE, rubber, resin , etc.


fiber marking machine  (12).jpg

Applied Industries

3C, food, medicines, gifts, trademark signs, the phone keypad, plastic translucent keys.

Electronic components, integrated circuits (IC), electrical appliances, communication products.

Sanitary ware, tool accessories, knives, watches, jewelry, cars accessories, luggage buckle.

Cooking utensils, stainless steel products and other industries.


fiber laser sample.jpg



Marking Content

Identification text, serial numbers, corporate logos, 2-D data matrix, bar coding

Graphic and digital images, or any individual process data can be produced with laser engraving.


fiber marking machine  (13).jpg

Parts Detials

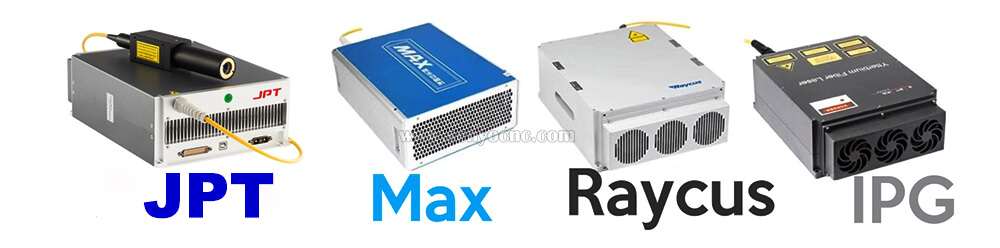

Laser Source Optional

High peak power, high single pulse energy, and optional spot diameter.

They can be widely used in non-metallic materials, such as gold, silver, copper, aluminum and non-high reflective materials.

Such as stainless steel. In the fields of marking, precisionmachining, graphic engraving, etc.

its marking application process is cheaper than traditional lasers and has more stable performance.


FIBER LASER SOURCE.jpg

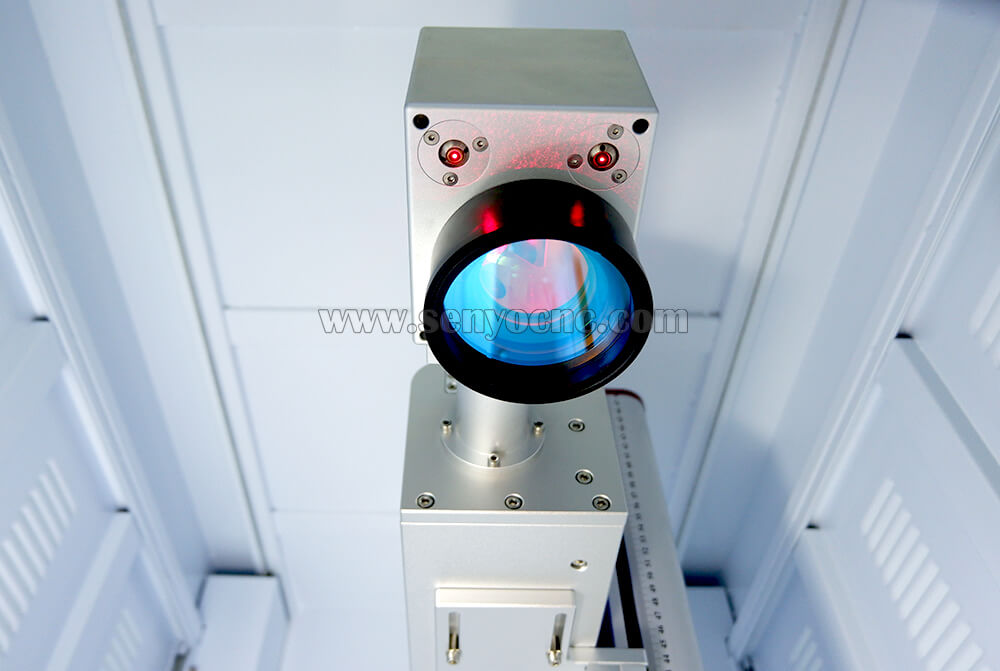

Wavelength F-Theta Lens

1.High processing precision, high uniformity.

2. Optional marking area: 110*110mm/150*150mm/175*175mm/200*200mm/250*250mm/300*300mm.


fiber marking machine  (5).jpg


Sino Galvo Scanning Head

1. Marking Speed: 7000mm/s
2. Positioning Speed: 10000mm/s
3. Tracking Error: ≤180us

4. Small step response time: ≤0.4ms

fiber marking machine  (7).jpg

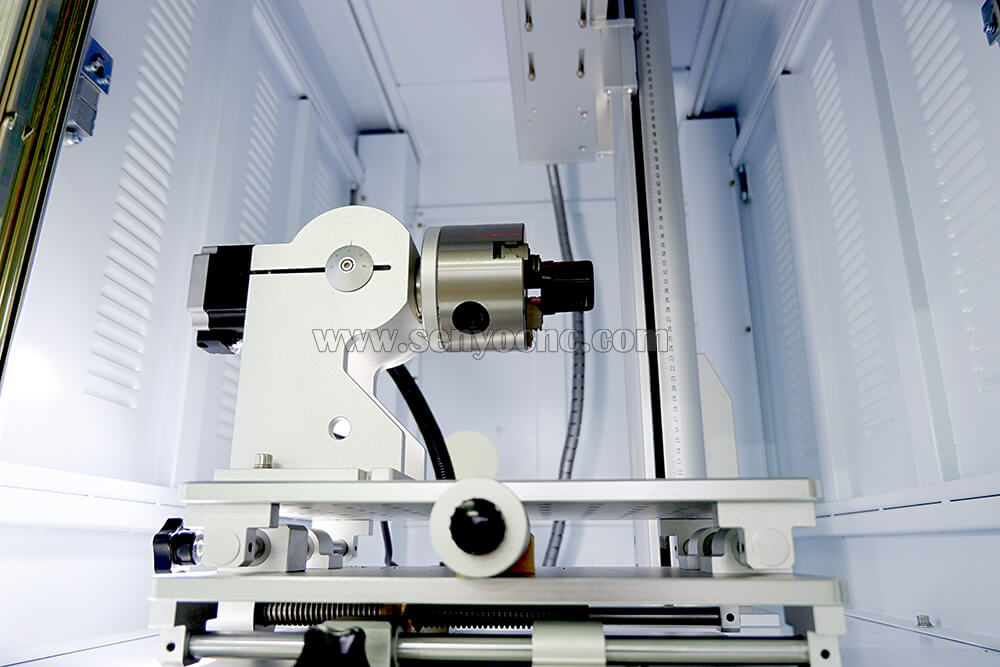

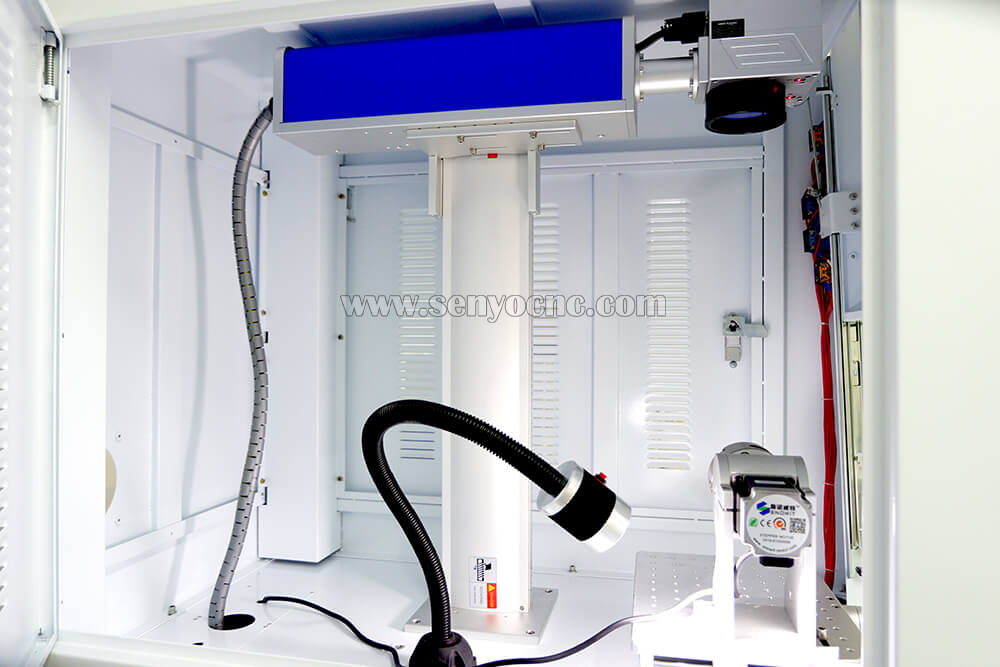

Rotary Device And 2D Worktable Option


fiber marking machine  (6).jpg

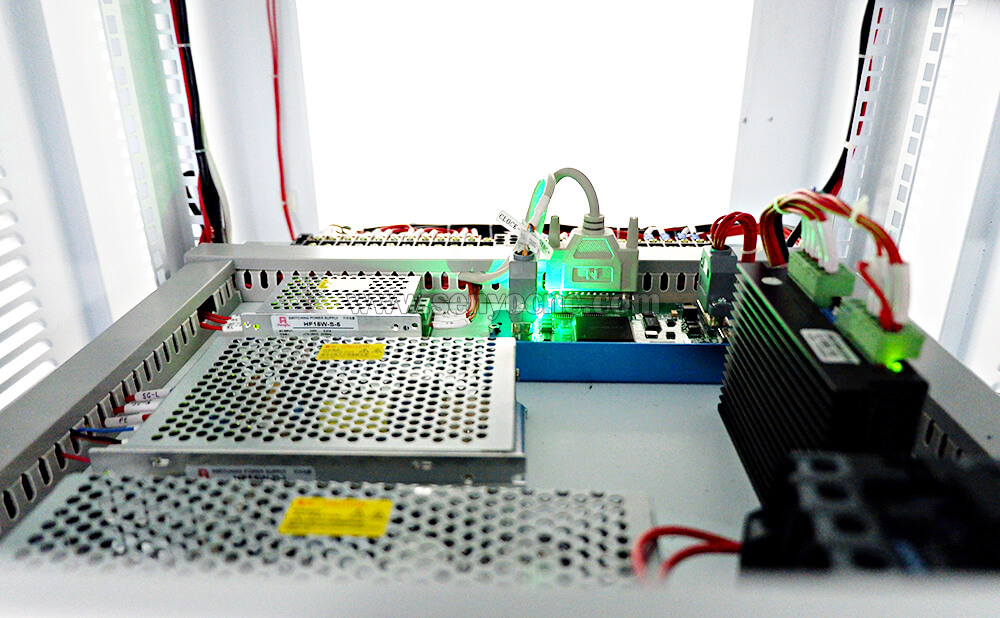

Professional Wire Connection


fiber marking machine  (8).jpg

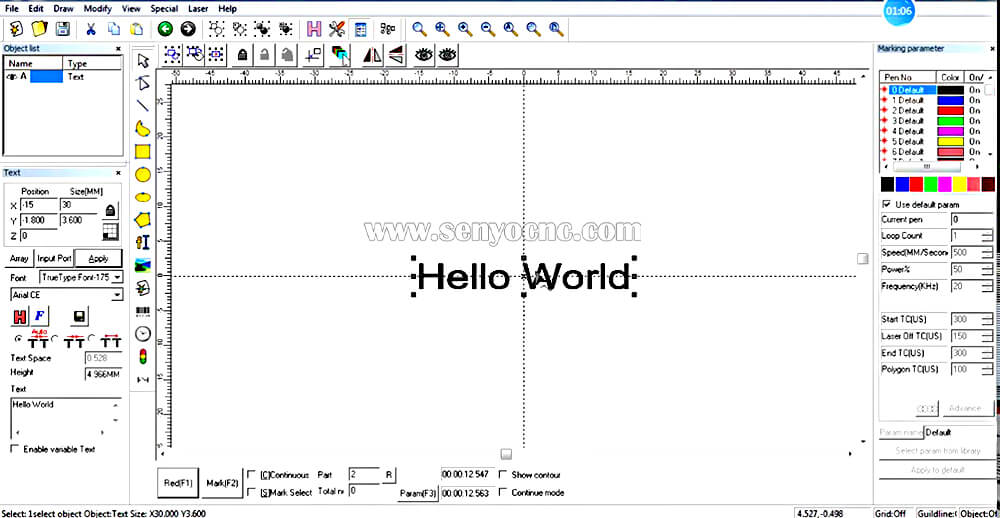

Professional Marking Software Genuine Jinchengzi Control Operating System.

1.Powerful editing function. 2.Friendly interface. 3.Easy to use. 4.Support Windows XP,Win 7,Win 10 system.

5.Support DXF,PLT and other file formats.


fiber marking machine  (9).jpg


BJJCZ Main Board With Original EZCAD

BJJCZ main board, control system with EZCADsoftware, stable performance

High reliability, complete functions, to ensure long time work, compatible with Win7 / Win10 32 bit / 64 bit.


fiber marking machine  (4).jpg

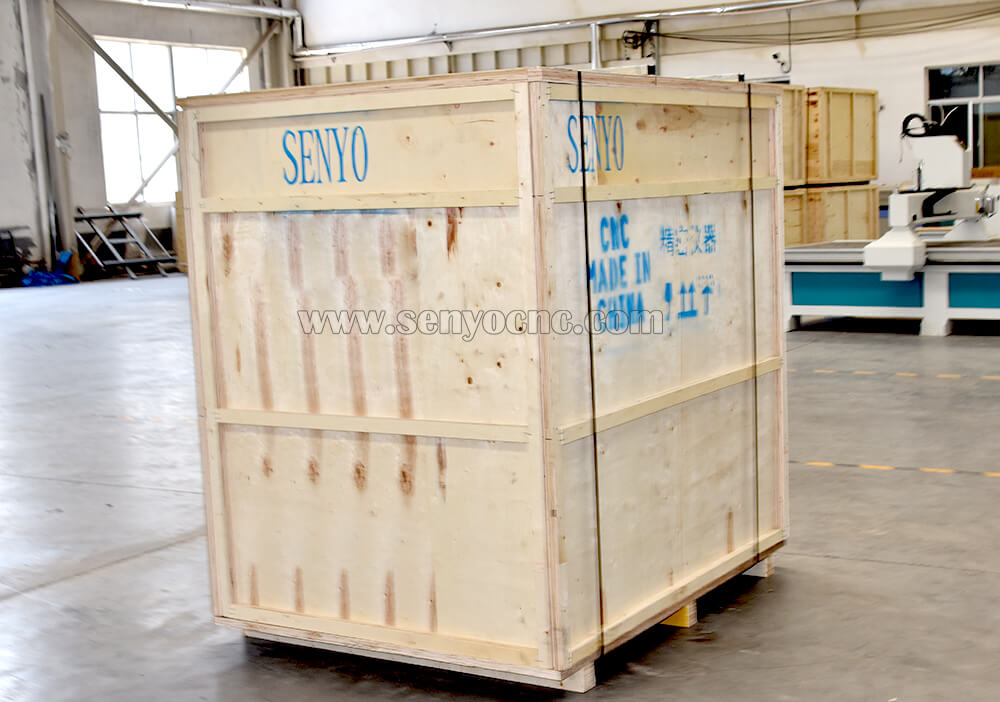

Regarding the packaging of the machine:
1. first we will wrap it with plastic wrap to prevent dust;
2. then wrap a layer of foam to protect the corners and corners;
3. wrap the carton with another layer to fix the machine,
4. and finally use a wooden box on the outside.


fiber marking machine.jpg

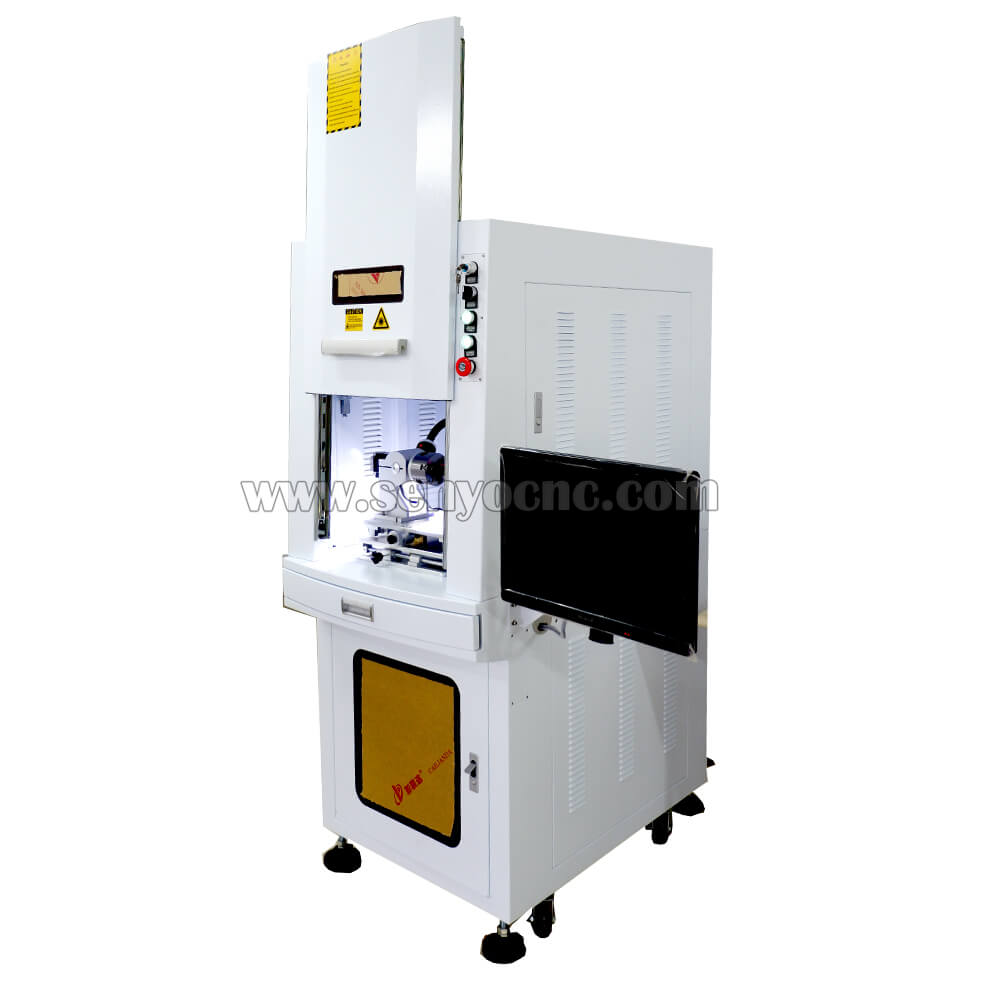

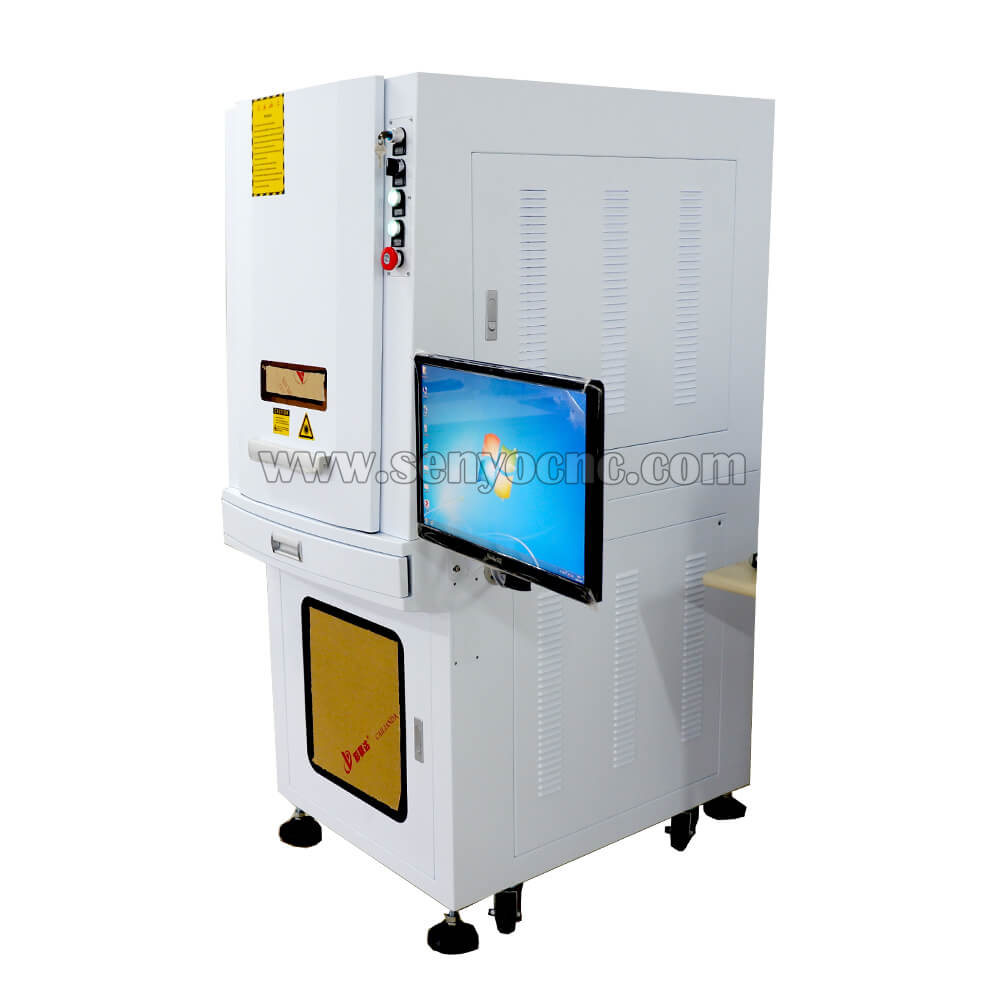

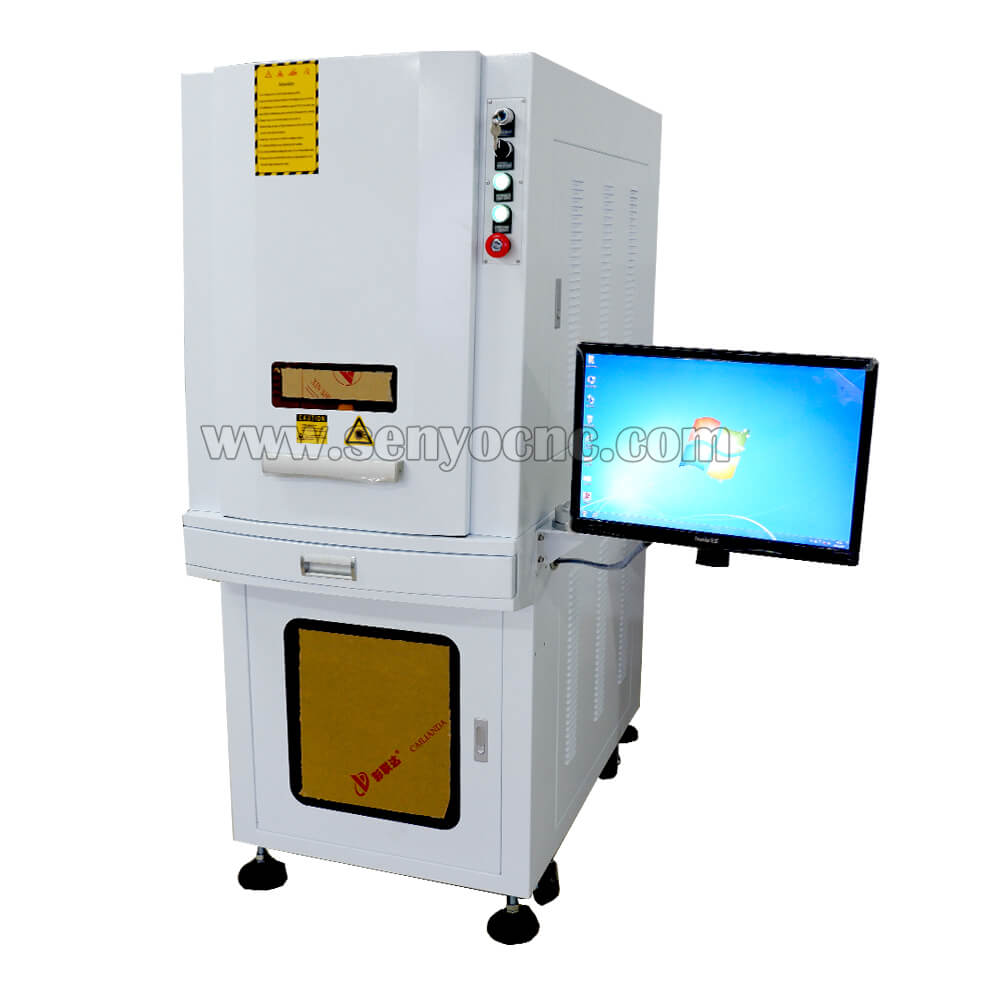

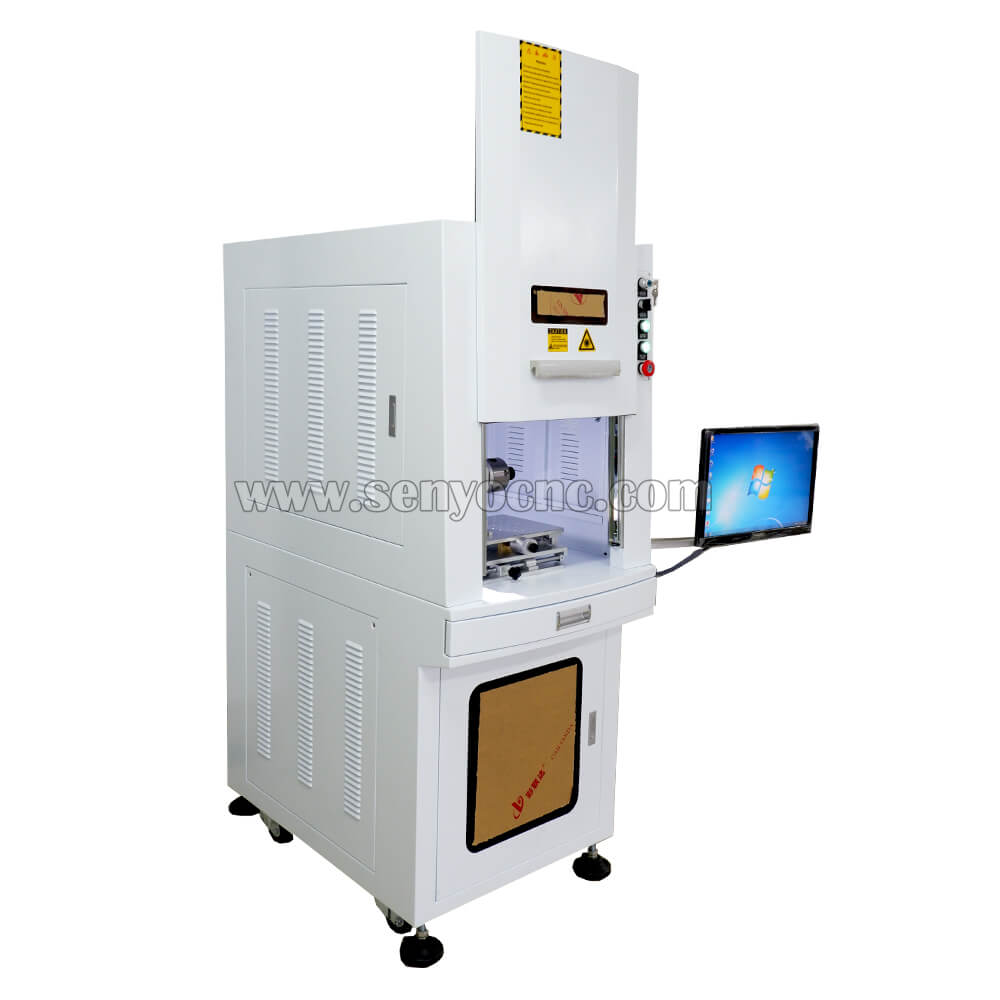

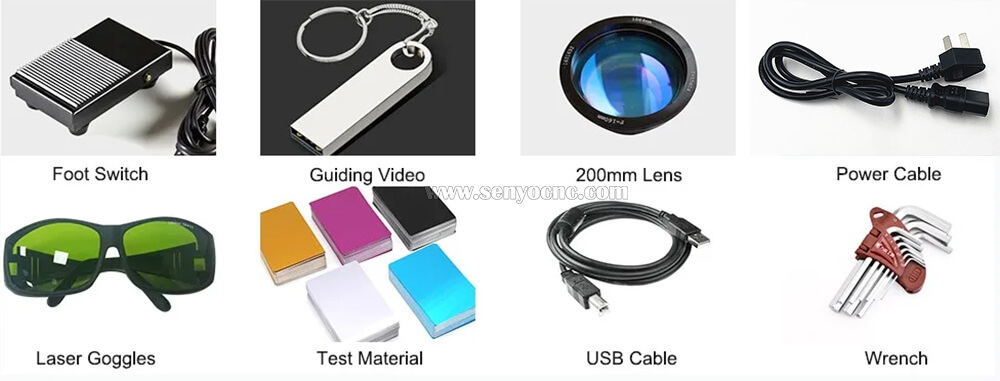

Full Enclosed Fiber Laser Marking Machine

1 SET

Guiding Video

1 Piece

Wrench

1 Piece

Fixed Position Bar

2 Pieces

Foot Switch

1 Piece

Test Metal Cards

1 Package

Power Cable

1 Piece

USB Cable

1 Piece

Screw

1 Package

Laser Goggles

1 Piece



fiber marking machine  (11).jpg


Kindly Reminder

1. If you need for ring , jewelry , bracelet engraving , or tumbler marking .We have different models rotary device here , suitable for different work .

So let us know in advance , we will recommend the suitable accessories device for you.


2. If you do gold , silver , stainless steel , aluminum cutting mostly , kindly suggest take the fixture together.

These two are the most popular , there are also have many option accessories , like pen rotary for pen fast speed marking .

X Y table for help to adjust product height when working , without moving product etc .

kindly list you request , we will recommend suitable accessories based on our professional laser device knowledge.


International Shipping Around the World

All the CNC routers can be shipped worldwide by sea.

by air or by international express logistics via DHL, FEDEX, UPS

You are welcome to get a free quotation by filling up the form with name, email, detailed address

product and requirements we will shortly contact you with the ful information including the most suitable delivery method (fast, secure. discreet) and freight.
