The
fiber laser generator is high integrated, has superior laser beam and
uniform power density.
Output laser power is stable. This design highly
increase the machine’s anti-reflection ability with optical isolator.
Be
able to mark on most high reflective materials such as aluminum,
copper.
Gold and silver without the shadow and virtual open phenomenon.
Adopts
advanced digital high speed scanning galvanometer, quick speed without
deviation.
small volume, good stability, and performance reached the
international advanced level.
Modular
design, separate laser generator and lifter, more flexible, can mark on
bigger area and complicated surface.
Air-cooled inside, small
occupation, easy to install.
Adopt
the embedded operating system, which the performance is leading
domestic peers.
Good touch interface and powerful control system, can
meet the demand of most industry application process in market.
High
efficiency for photoelectric conversion, simple operation.
Compact in
structure, support harsh working environment, no consumables.
This type fiber laser marking machine is portable. Power box and laser
source can be separated.
Easy transport and can be displayed separately
according to user’s site space situation.
Techology Paramaters
Work Area
| 100*100mm/110*110mm/150*150mm/200*200mm/300*300mm
|
Laser Power | JPT100W |
Laser generator | Fiber Laser
|
Laser Pulse Frequency | 20KHz – 200KHz |
Laser scanner | Sino-Galvo
|
Output power of laser
| 10%~100% continuously to be adjusted |
Power supply | JCZ
|
Wavelength | 1064±10nm |
Beam Quality M2 | <2 |
Min Line Width | 0.01mm |
Min Character | 0.15mm |
Marking Speed | ≤10000mm/s |
Repeat Precision | ±0.01mm |
Marking Depth | ≤0.5mm |
Power Supply | 110V /220V(±10%)/50Hz/4A |
Working temperature
| 5-45 centigrade |
Laser Module Life | 100000h |
Cooling Style | Air Cooling |
System operation enviroment
| WindowsXP/Window 7/8/10 32/64bit |
Power
| AC220V, 50HZ AC110V, 60HZ Voltage
|
Software supported
| Coreldraw, Autocad,Artcut, Illustrator |
Graphic format supported
| BMP, PCX, TGA,TIF,PLT ,CDR, etc |
Parts Detials
Galvo Scanner
The Sino-Galvo Scanner Head stands out in the laser industry for its exceptional performance and precision.
Its high-accuracy galvanometer mirror system can precisely position the laser beam in a very short time.
Making it suitable for complex marking tasks. The Sino-Galvo is compact in design and robust in construction.
Ensuring stable operation over long periods and low maintenance costs.
Whether it's for detailed engraving or rapid large-area marking, the Sino-Galvo Scanner
Head delivers consistently high-quality results, making it an ideal choice for various industrial-grade applications.

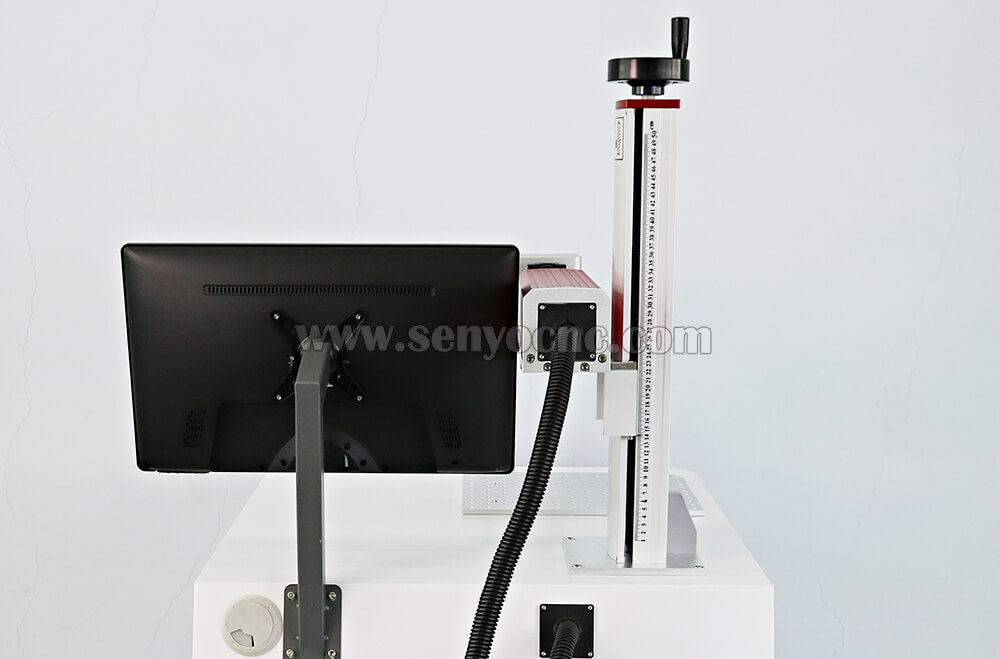

Maual up and down for finding the correct focus length
Laser Source
Our fiber laser source collection delivers top-tier performance and reliability to meet all your precision processing needs.
Our products provide the optimal solution to ensure the success of your projects.

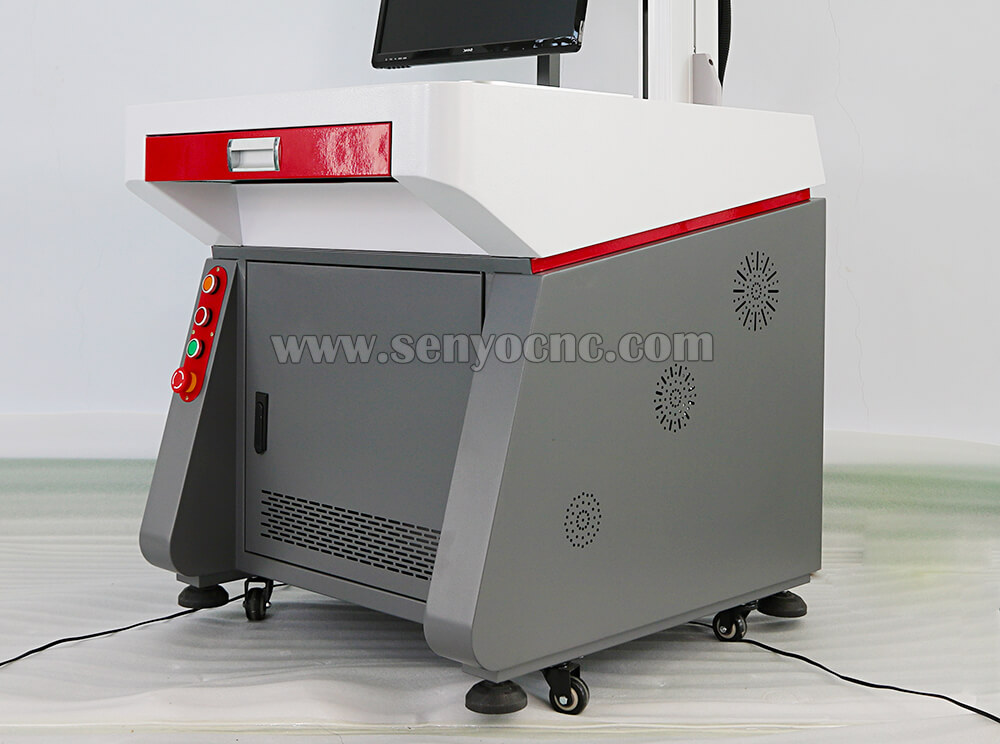

Heavy New Structure With Convient Worktable
Rotary
Rotary device can aslo add rotary and rotary table , suitable for ring ,pens and other ring items
F-Theta Lens
Our F-Theta lens is precision-engineered to provide uniform focusing and scanning capabilities across a range from 100×100 mm to 300×300 mm.
Designed specifically for high-precision laser systems, it ensures a constant focal length and exceptional image
quality across the entire scanning plane. Whether for detailed material processing or rapid industrial marking, our F-Theta lens
offers unmatched accuracy and efficiency, enhancing the performance of your laser system.
Control card
Control card is seamlessly integrated with EZCAD software, renowned for its user-friendly interface and powerful features.
Designed for precision control in laser marking, engraving, and cutting systems.
This card ensures smooth operation and compatibility with a wide range of laser types and power outputs.
The EZCAD software provides intuitive design and layout tools, enabling complex task programming with ease.
Ideal for both novice and professional users, this control card is the key to unlocking efficiency and creativity in your laser processing projects.
Applicable Material
Fiber laser marking machine is used for marking and engraving on metals .
(stainless steel, aluminum, alloy, brass, sliver, gold,titanium, iron) and nonmetal surface, such as guns, firearms.
rings, bearings, gears, automotive parts, hardware and tools, aerospace components, integrated circuit chips.
computer accessories, watches, electronics and communications products, home appliances, wire and cable.
Jewelry, adornments,necklace, bracelet and many other areas of graphics and text markup.
The fiber laser marking machine can also cut thin metals, such as stainless steel, aluminum, alloy, brass, sliver, gold,titanium,etc.
Metals: carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel
(gold,silver,titanium, etc.);
Special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy)
Applicable Industrial
Electronic components, hardware tool products, electrical products, consumer goods, sensors, auto parts.
Graphic and text marking
in many fields such as electronic parts, various auto parts, home
appliances
Hardware tools, mold jewelry, tobacco and military affairs
3C electronics, handicrafts, precision equipment, gift jewelry, equipment, high and low voltage electrical appliances.
bathroom industry, battery industry, IT industry and other fields.
Package and Shipping
1.Collect all accessories and spare parts one by one according to the order list, and double check all parts again to ensure that all parts are included.
2. Our packaging standards:
+ Thick plastic wrap
+ Six-sided pearl cotton
+ High-strength wooden box
+Packing straps then fix the machine to ensure the safety of the machine during transportation.
3. Attach shipping marks to ensure that the buyer can easily identify the correct machine
4.Posting the safety signs can remind the transporters to properly keep our equipment during the transportation process.
International Shipping
Around
the World All the CNC routers can be shipped worldwide by sea.
By air
or by international express logistics viaDHL. FEDEX. UPS.
You are
welcome to get a free quotation by flling up the form with name, email,
detailed addressoroduct and requirements.
We will shortly contact vou with
the full information including the most suitable delivery method(fast,
secure, discreet) and freight.
