The advantage of UV laser marking machine is that the ultraviolet laser wavelength is short, generally 355nm,

which can efficiently carry out fine marking on the material, not only does not damage the surface of the material,

but also makes the marking track clearly visible, and can produce small and clear marks on the surface of the material,

which is widely used in glass crafts, glassware and other scenes; Some metal materials, rubber, ceramics,

paper and fiber materials are suitable for UV laser marking machines.

The machine adopts all-solid-state nanosecond laser and adopts high-speed galvanometer scanning system to reduce delay,

 ensure accuracy and improve marking speed. Field mirror adopts imported film, can be used in harsh environment,

good light transmission, focusing spot fine. And with a water cooler, in the water cooling mode, the laser efficiency can reach more than 25%.

UV laser marking machines are widely used in high-precision and high-definition marking of various materials,

especially in the high-end market of fine processing, such as surface marking of polymer packaging bottles of cosmetics,

medicines, auxiliary materials, LCD glass QR code marking, glassware surface drilling, metal surface coating marking, etc.

Machine Advantage

It can process a variety of metal and non-metal materials, especially those with high hardness, high melting point and
brittleness. Material.

non-contact processing, does not damage the product, has no tool wear, and has good marking
quality.

High precision: Due to the short wavelength of UV laser, higher light focusing ability can be achieved,

so as to achieve accurate marking of small text and patterns.

Small heat affected area: UV laser completes the marking process in a short time, with almost no heat conduction,

so thermal deformation or thermal damage to the material can be avoided.

Long life and stability: UV laser uses high-quality laser devices, has a long service life, and high working stability.

After the laser beam is focused, the focus diameter can be as small as several microns, so the processing material
consumption is very small and the processing heat-affected zone is small.

Fast processing speed and high efficiency.

Easy torealize automatic operation, can be controlled by computer, and can mark numbers, characters, vectors,uantity graphics, bitmap
graphics, etc.

Low processing noise and no pollution to the environment; 7: Laser marking is different from traditional
printing methods. The marking traces are not easy to be erased and can be stored permanently.

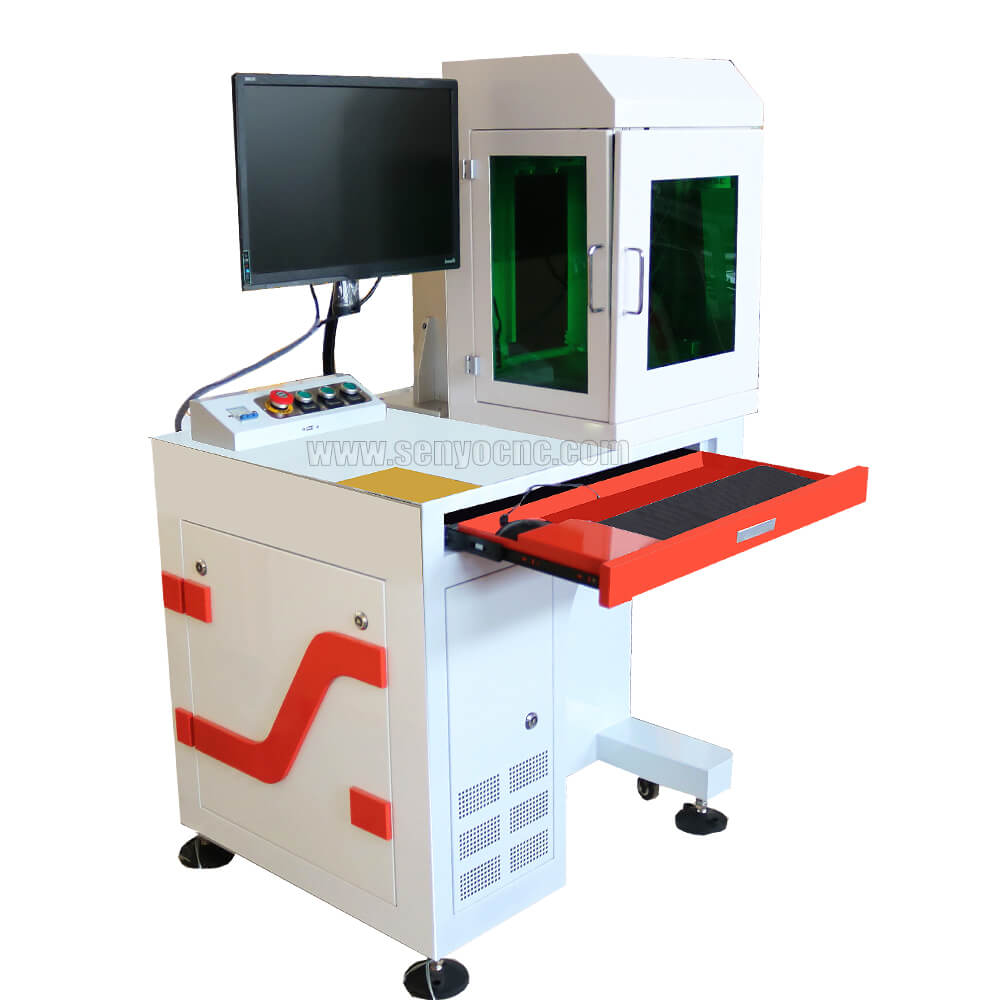

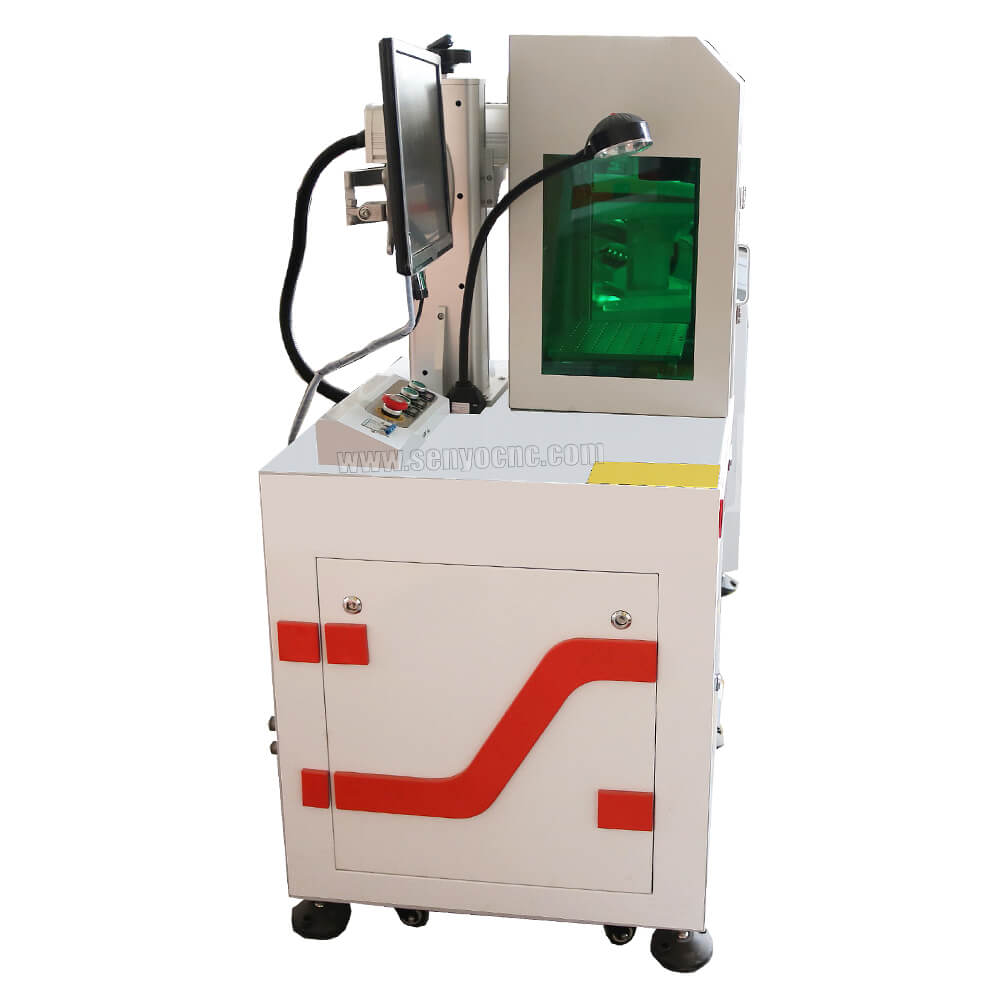

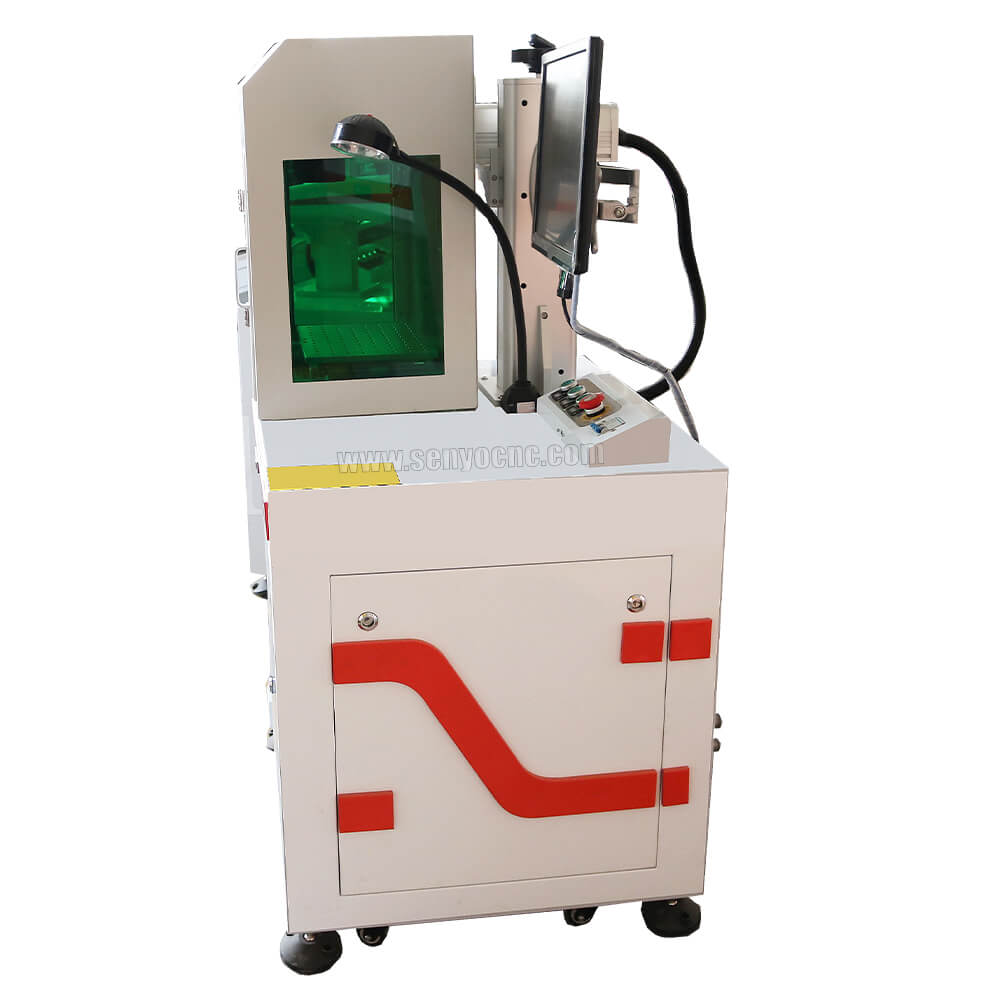

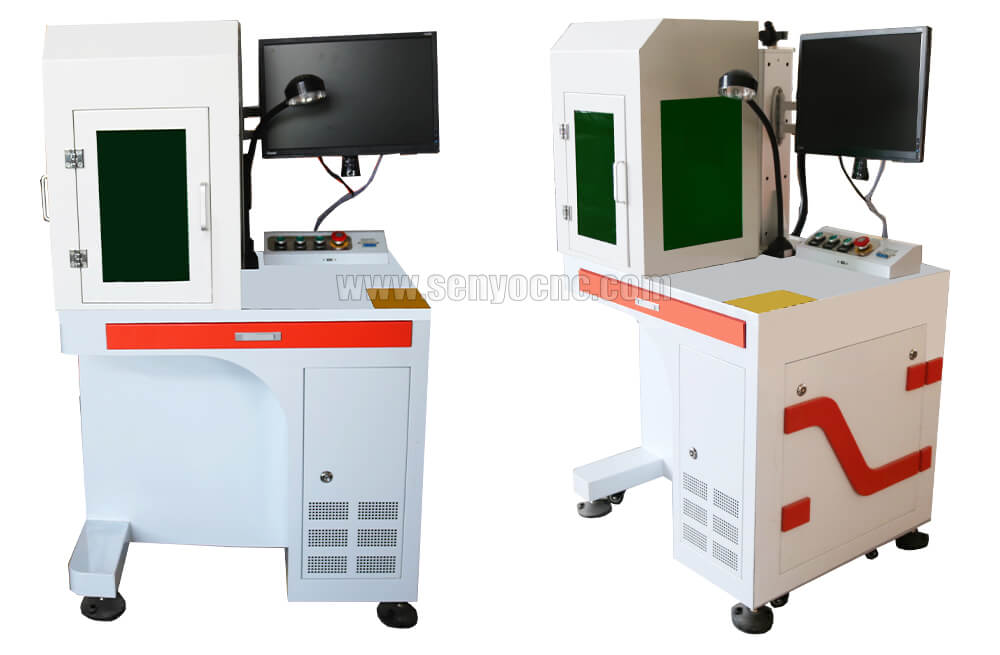

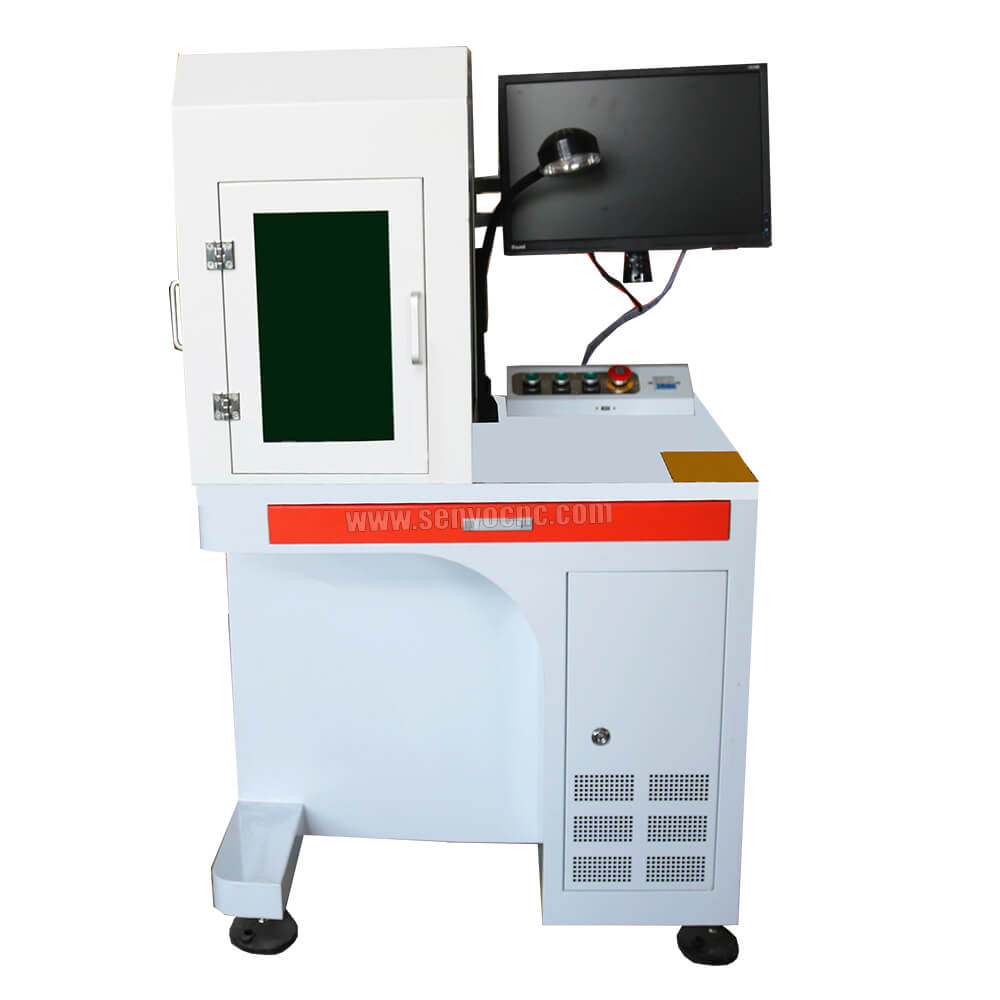

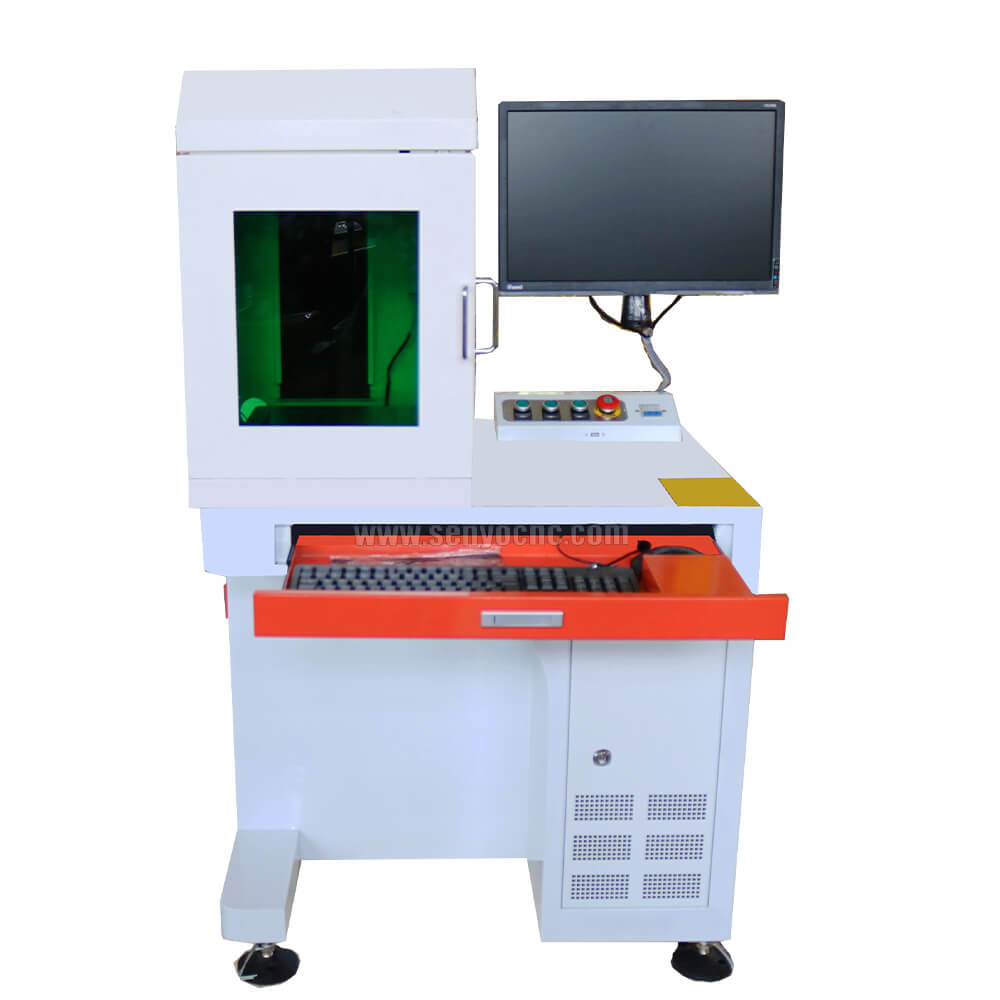

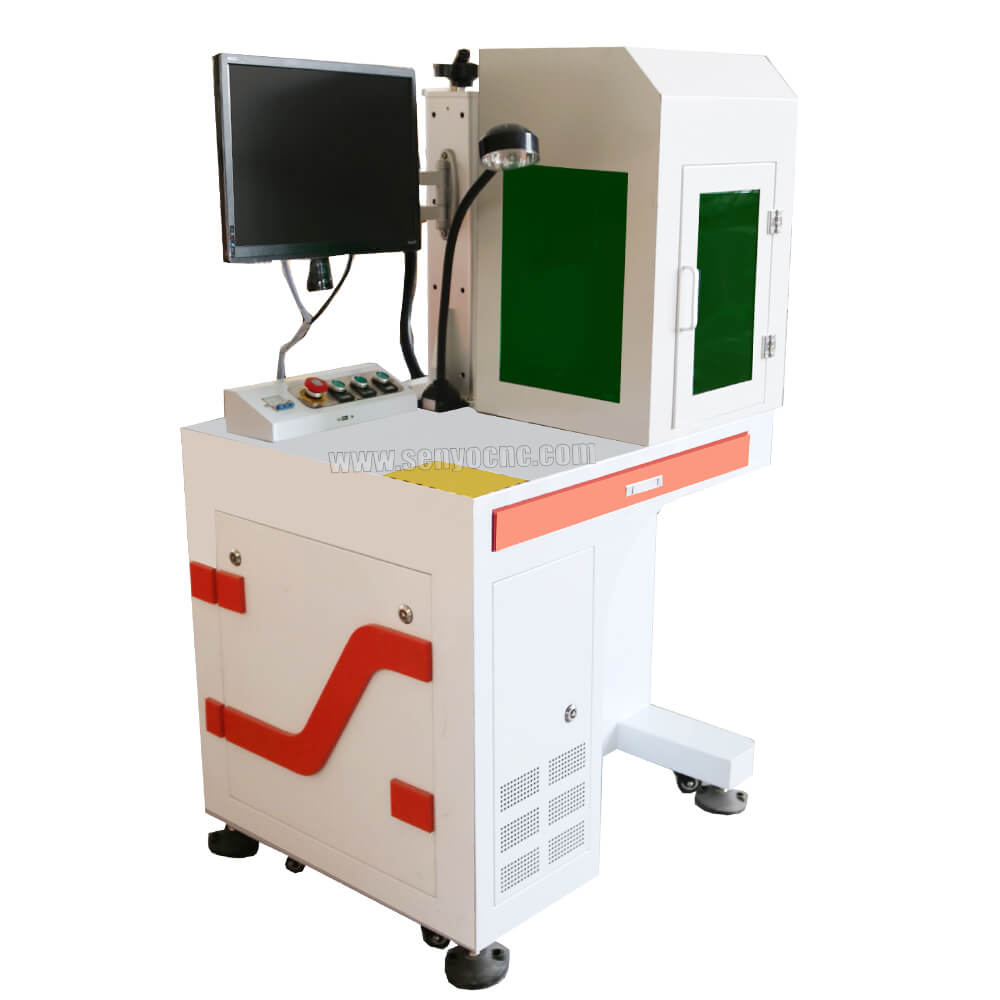

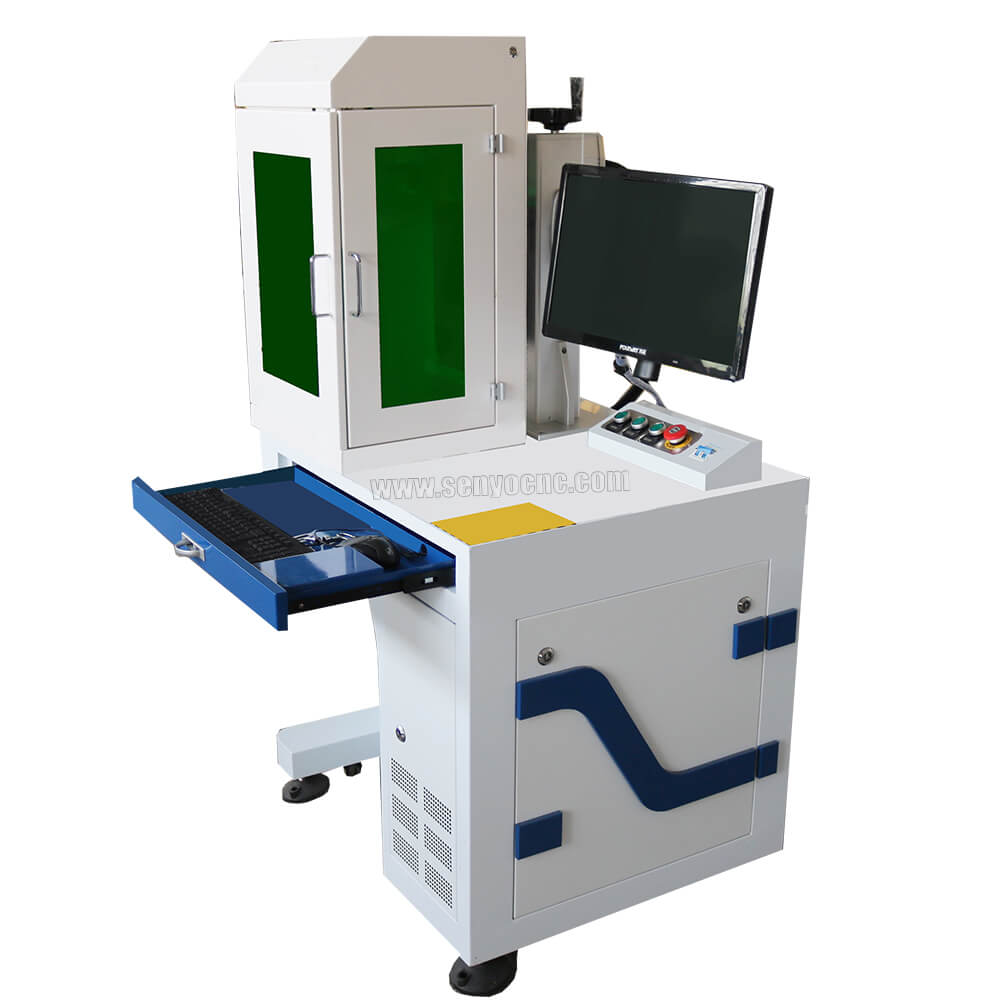

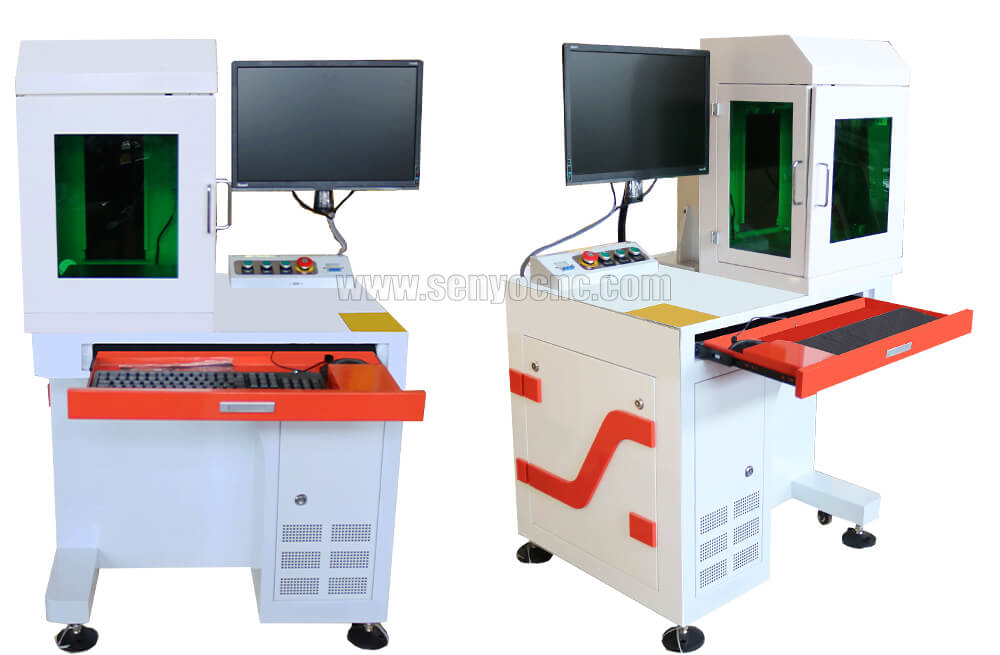

Machine color design optional

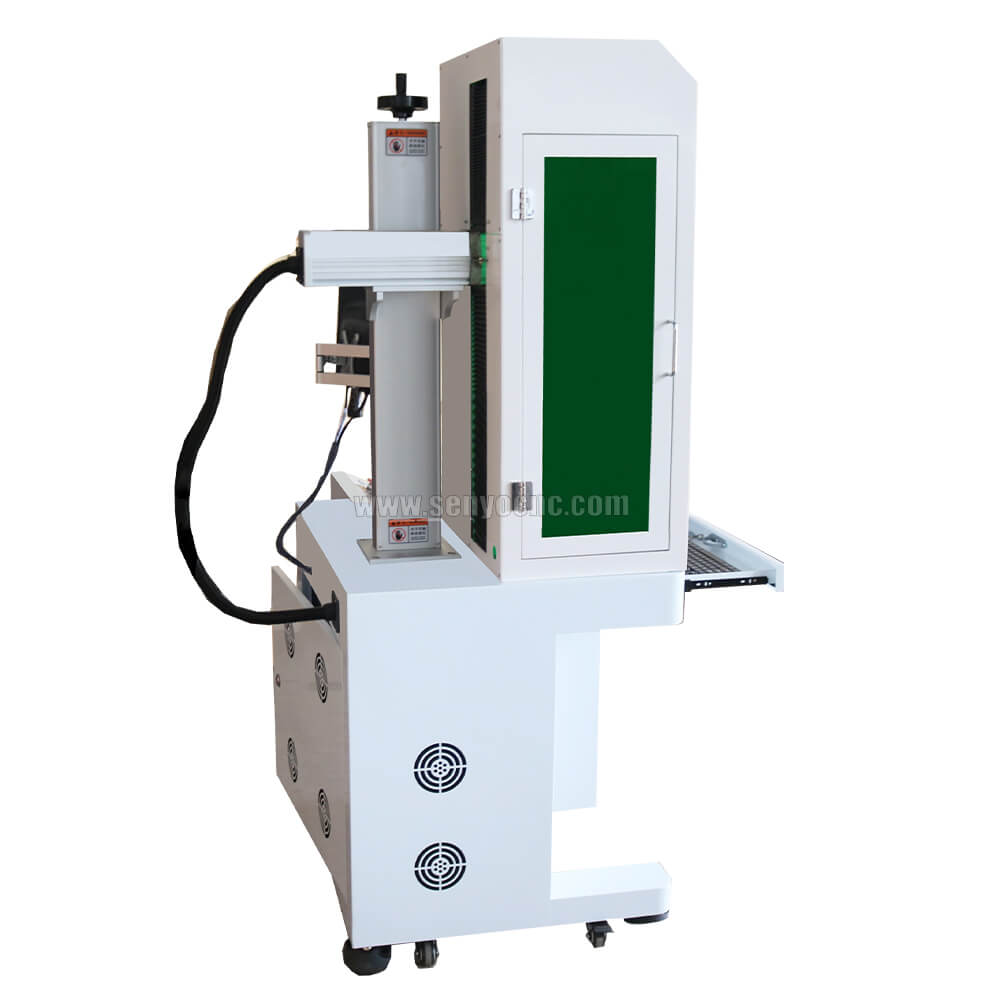

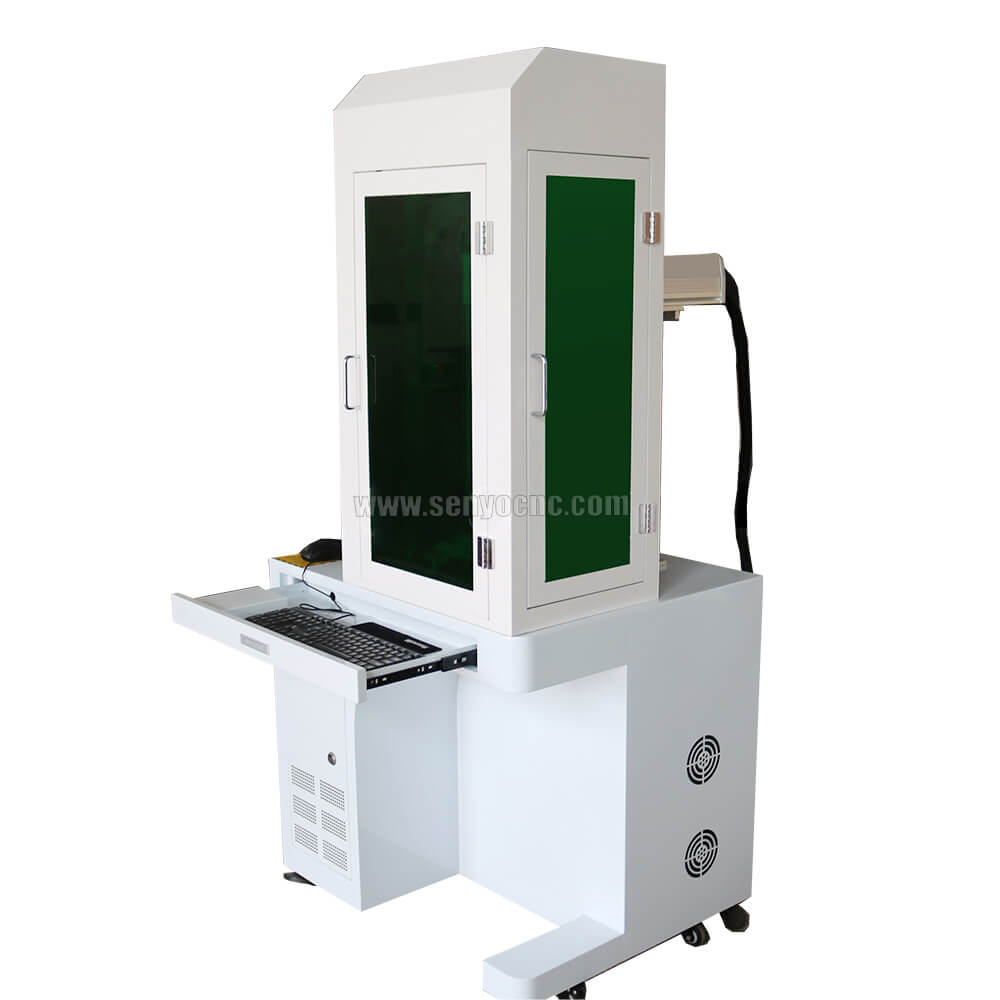

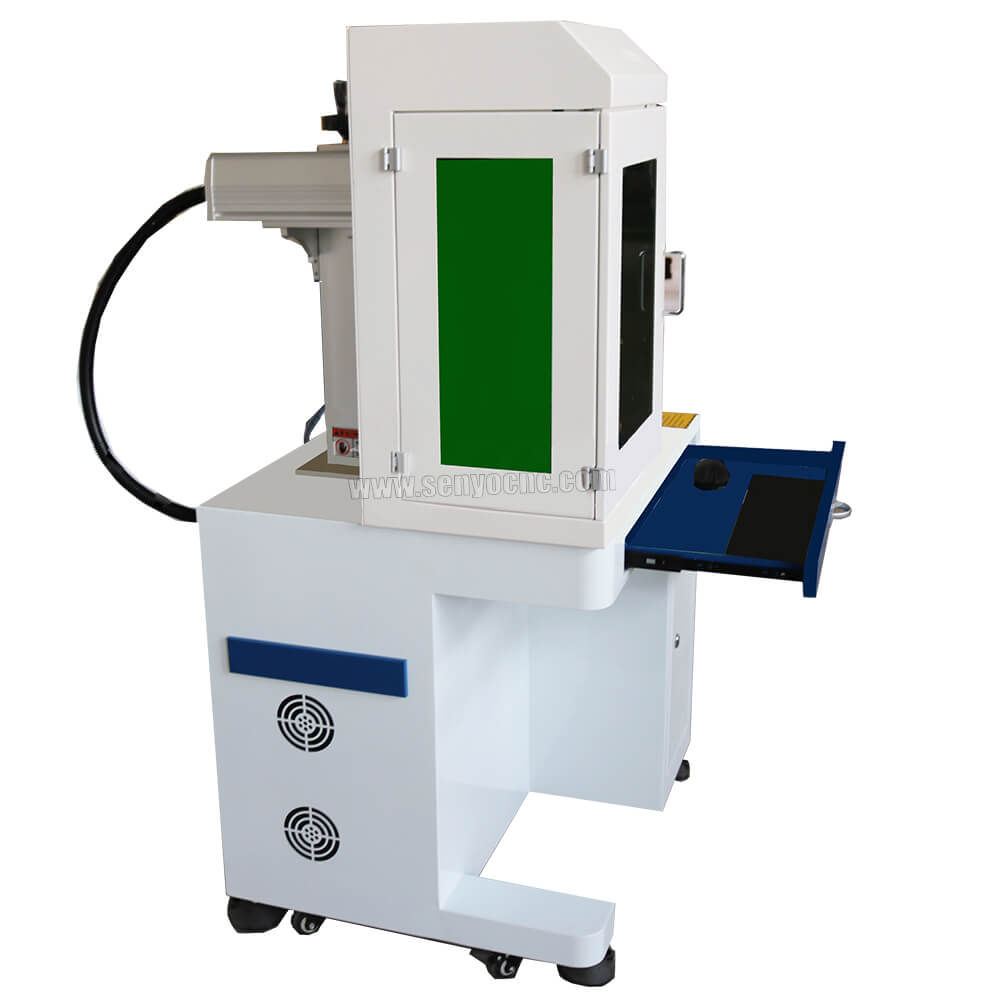

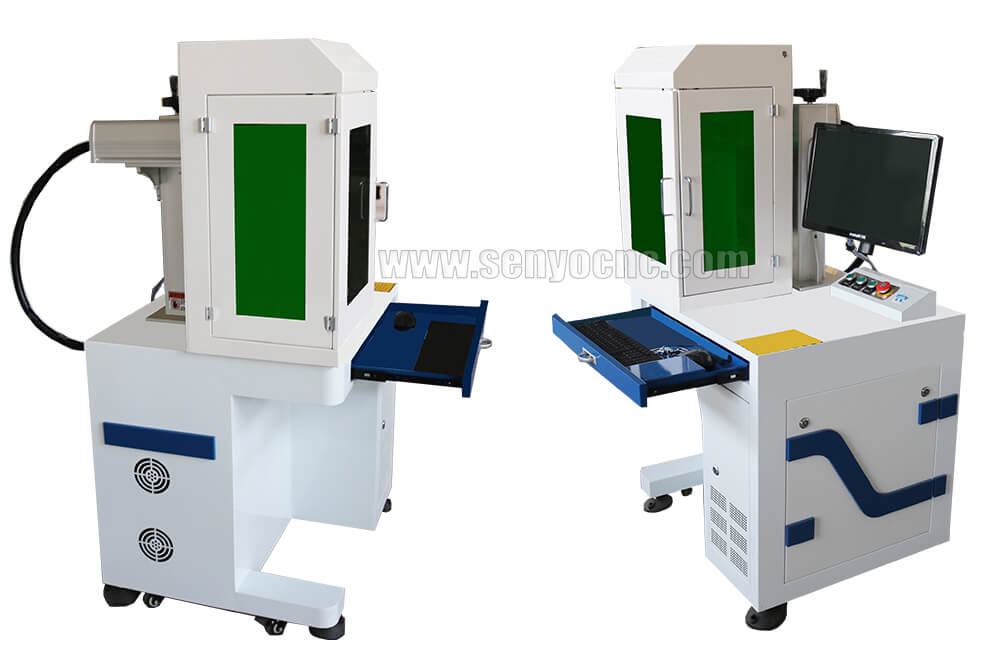

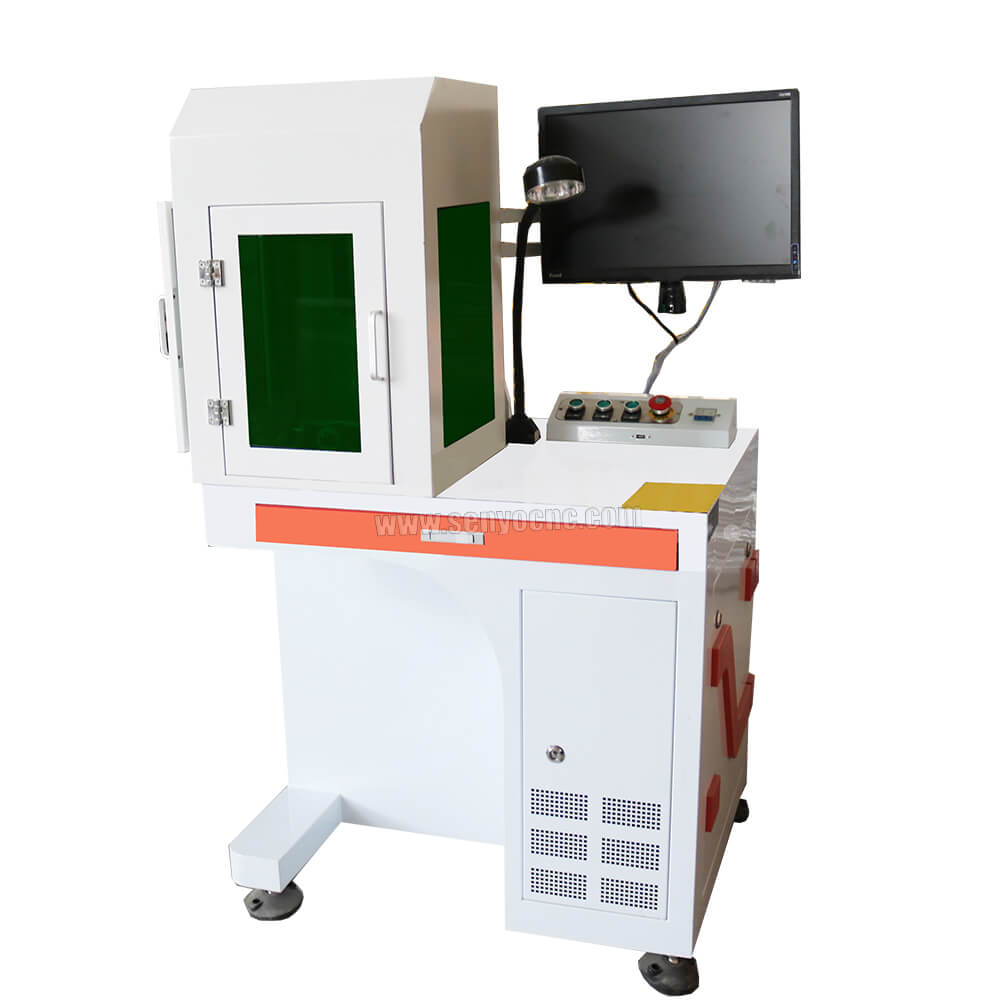

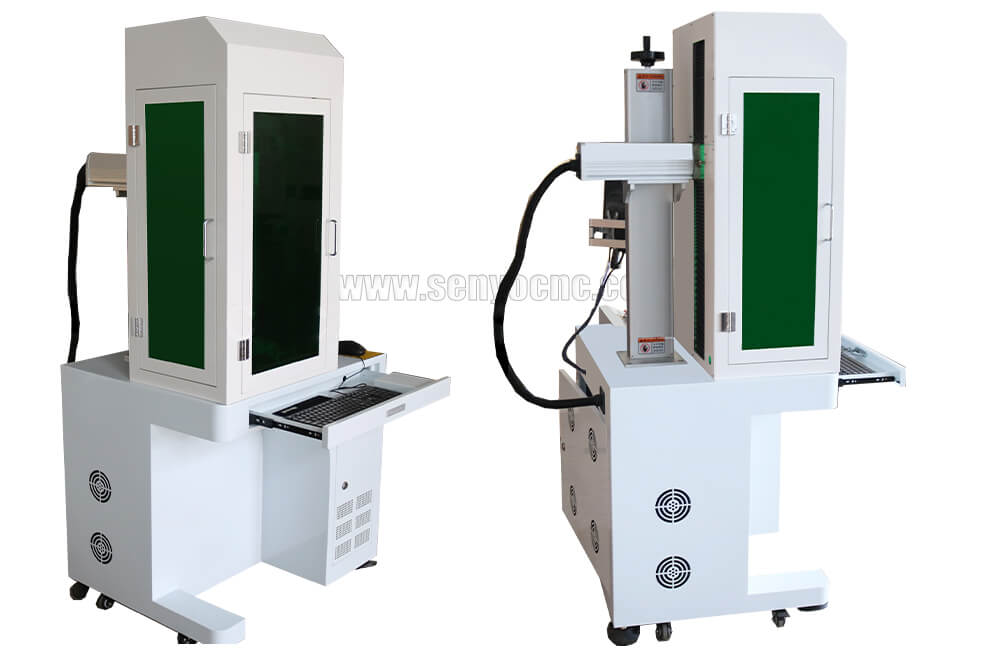

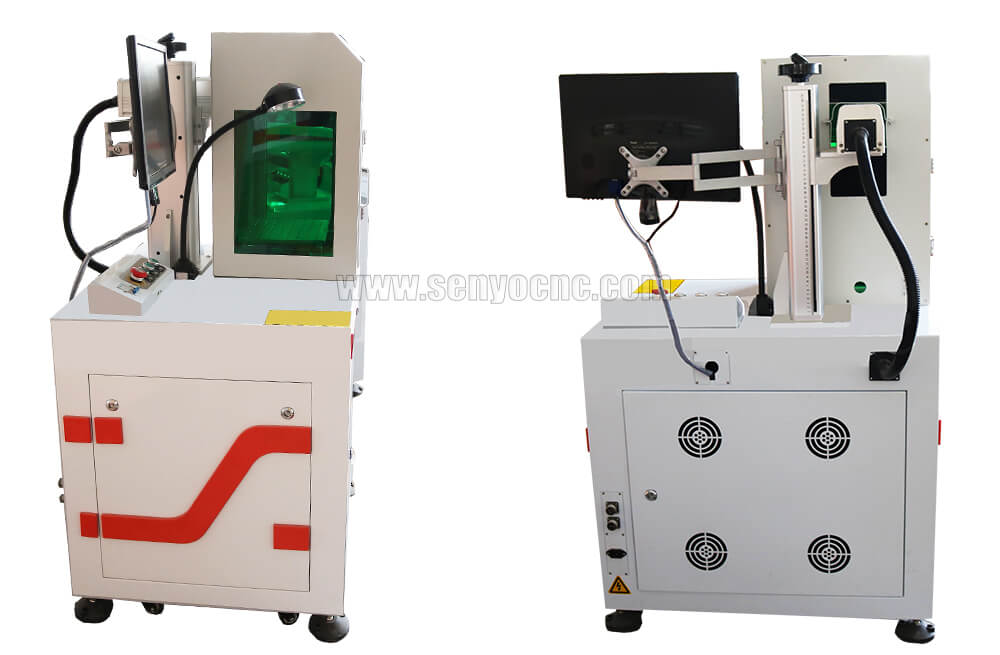

Machine with big dust hood design optional

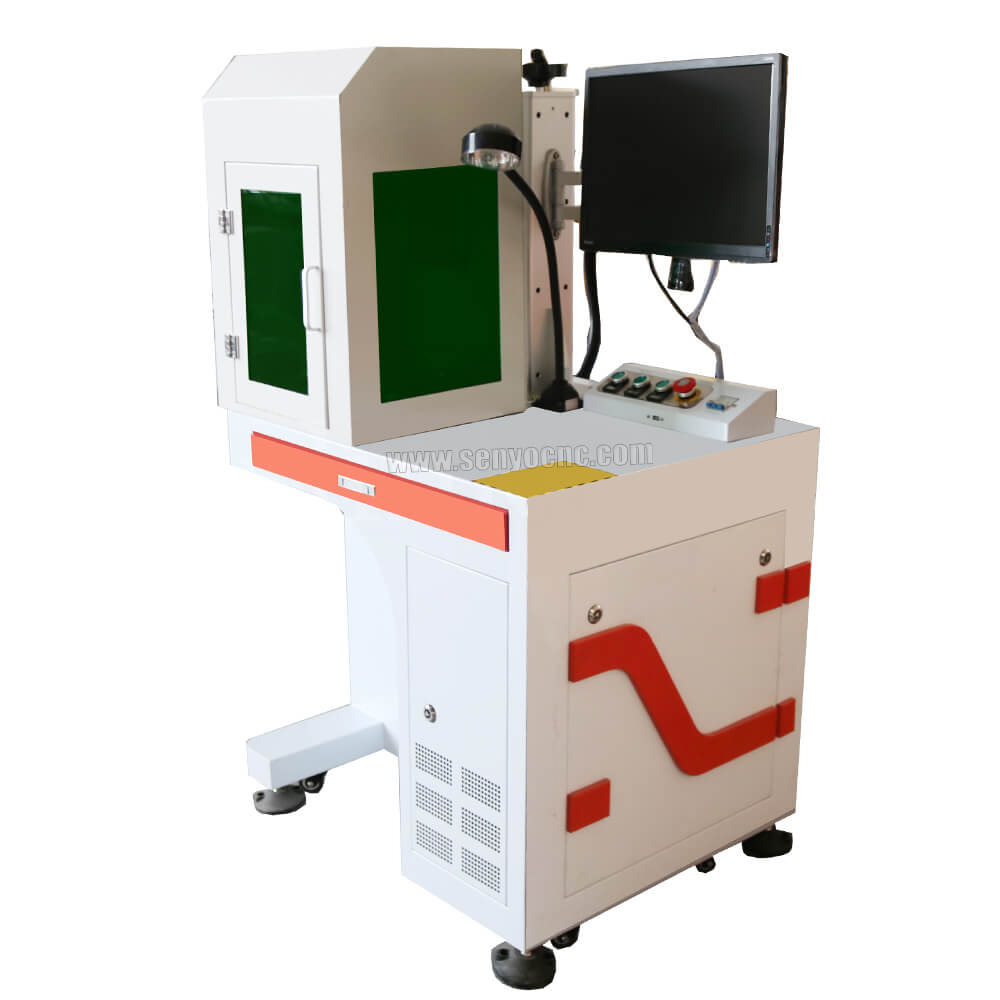

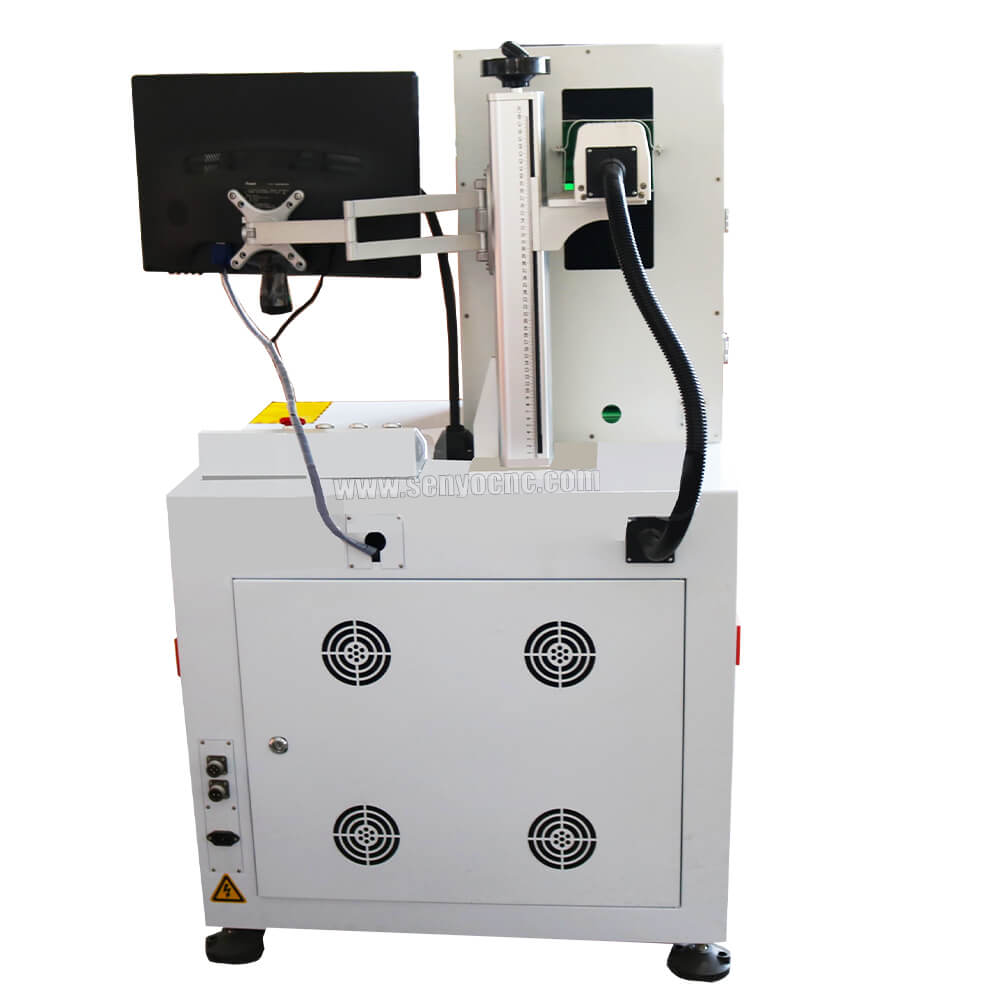

Machine Features with parts detials

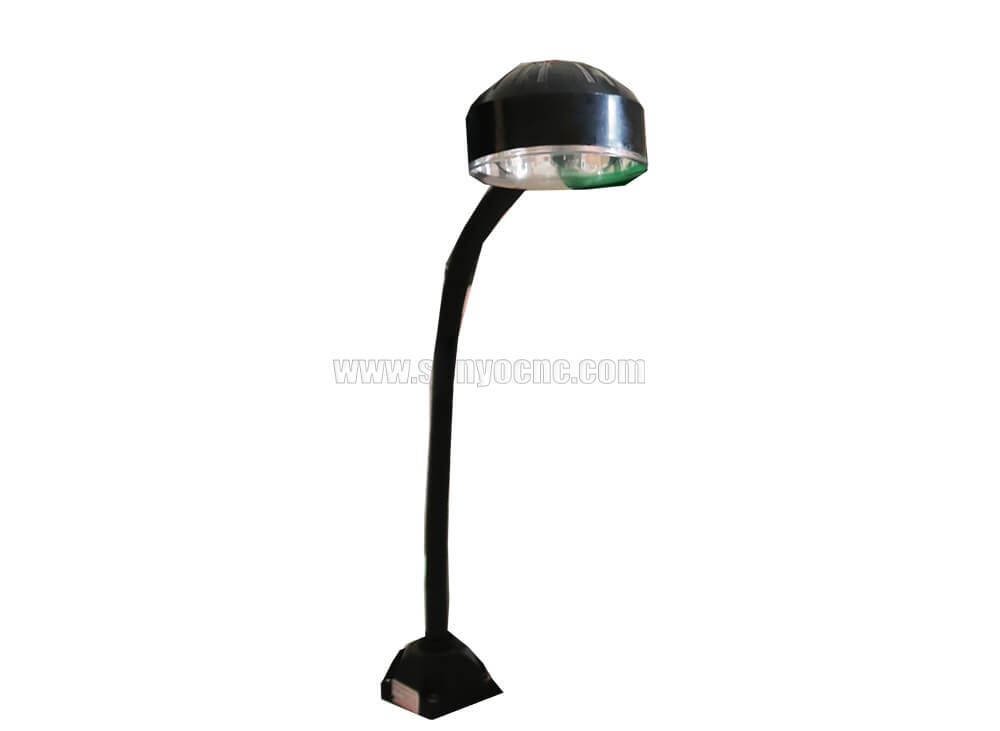

Table light

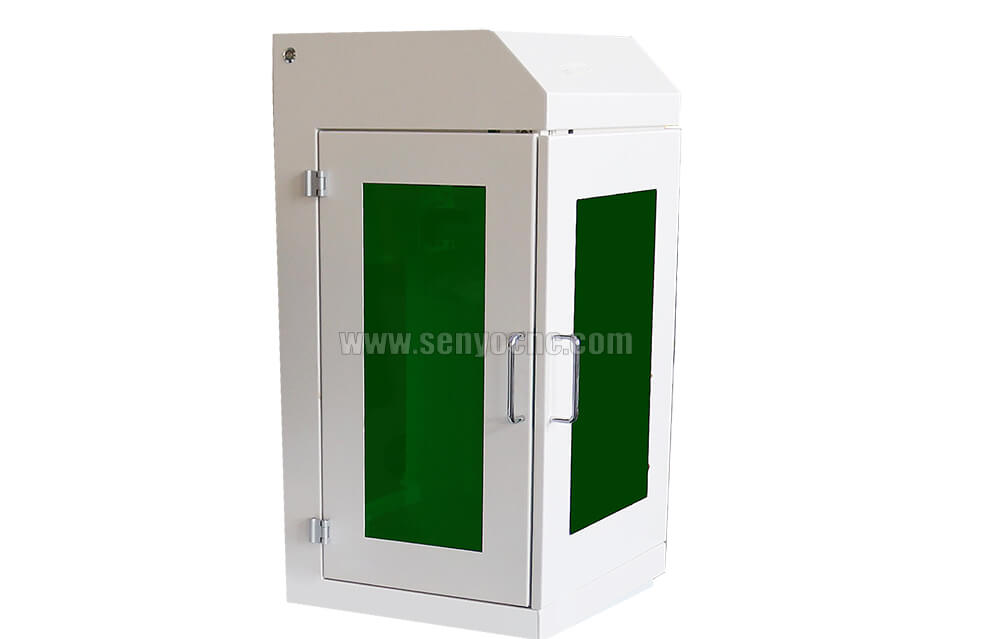

Dust hood for choose

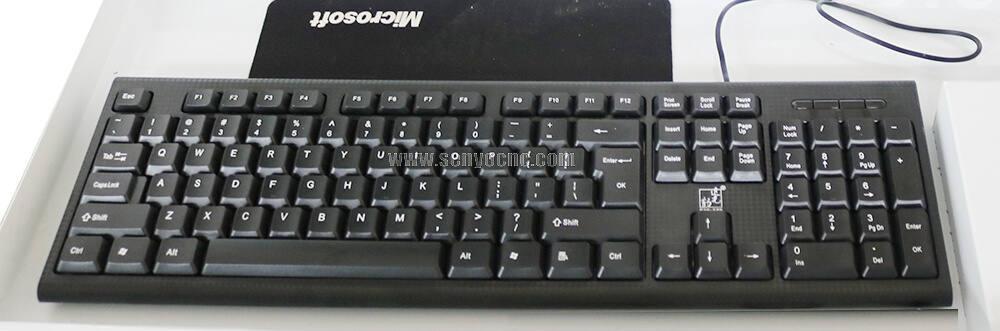

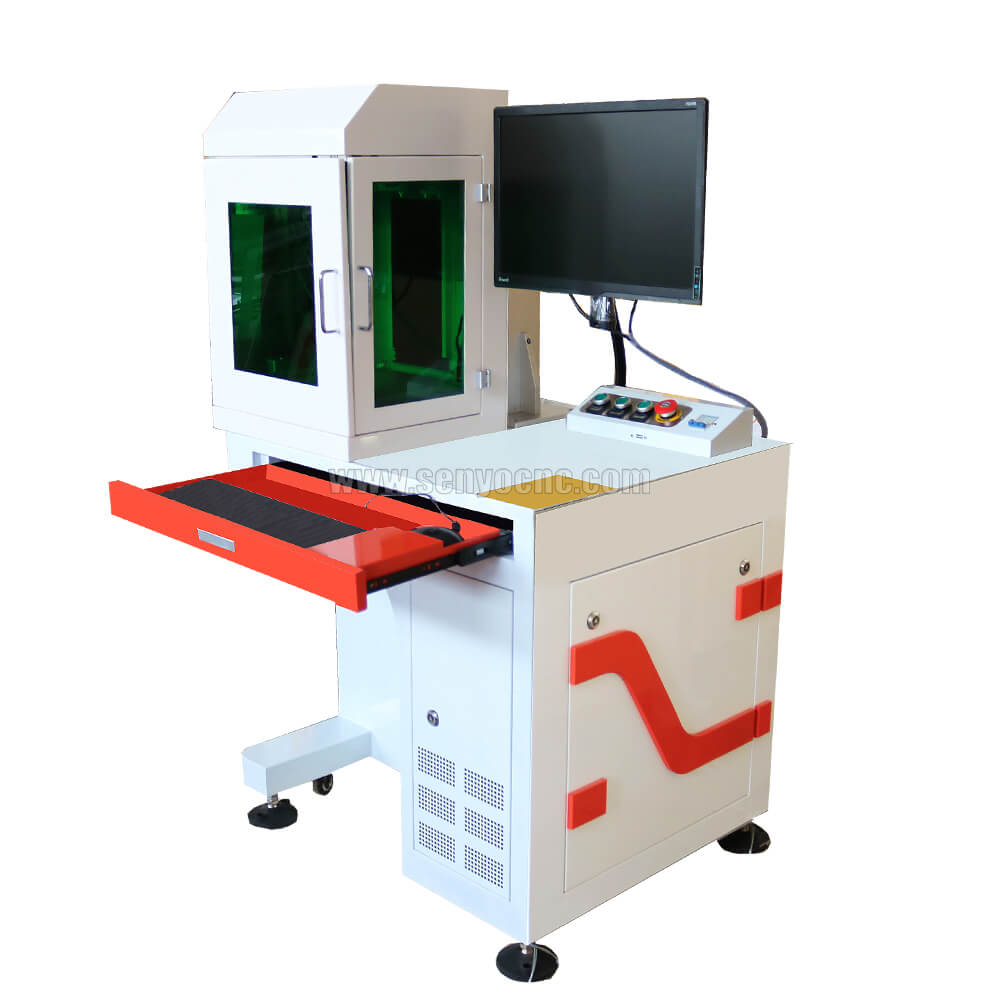

Machine with computer and keyboard

Plug-in Connector

Used to connect the power supply to the foot pedal

Control Panel

Key controlled power switch Emergence：The machine encounters an error and stops immediately to reduce losses

Machine Features with detials pictures

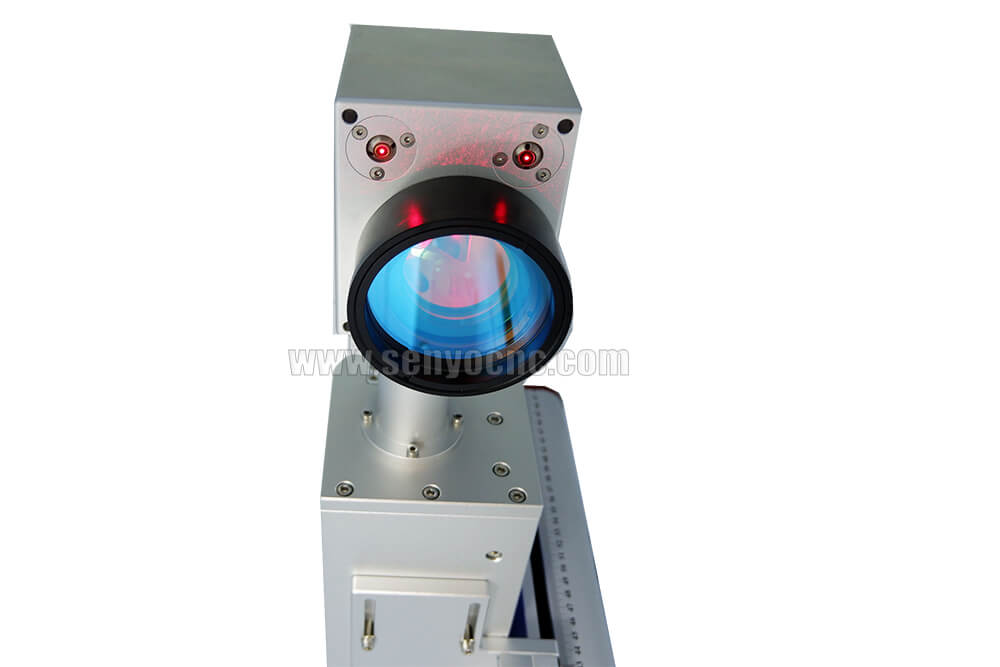

Galvo Head

Faster, more accurate, and can be used 24 hours a day. Sino-gavlo is a world famous brand,the No.1 sale in the world.

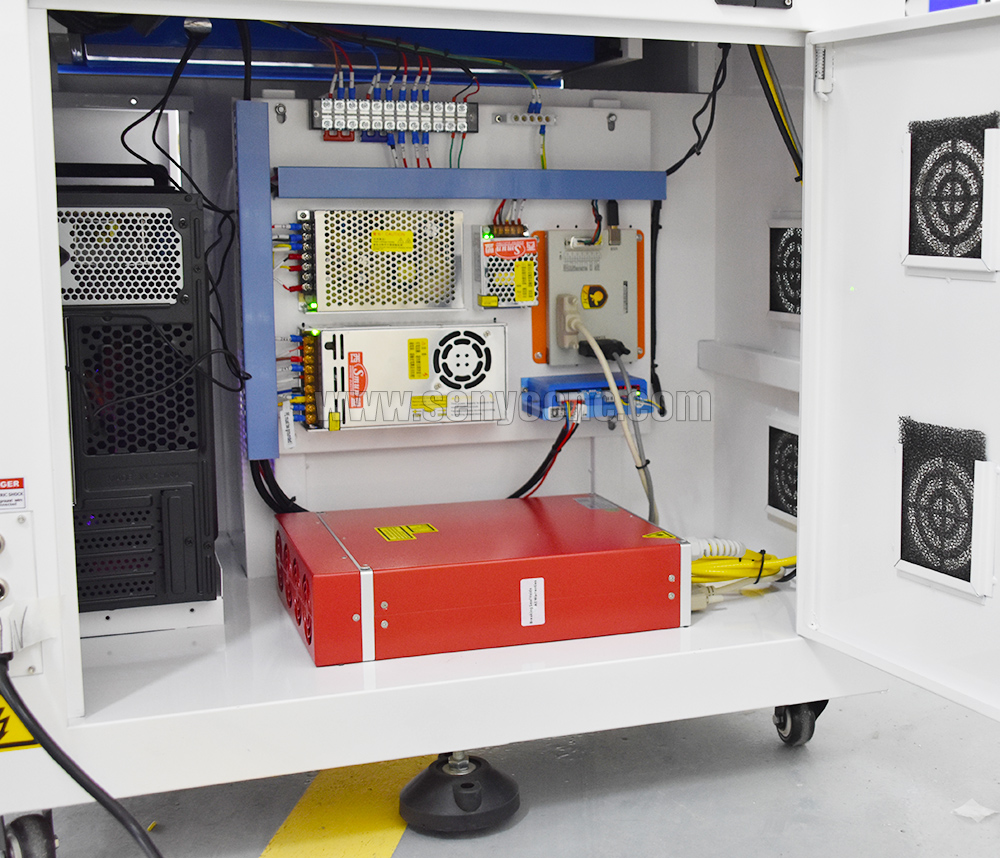

Switching power supply and wiring

24V power supply and scientific wiring layout can minimize the equipment failure caused by the wiring.

Workbench

Aluminum plate with positioning holes

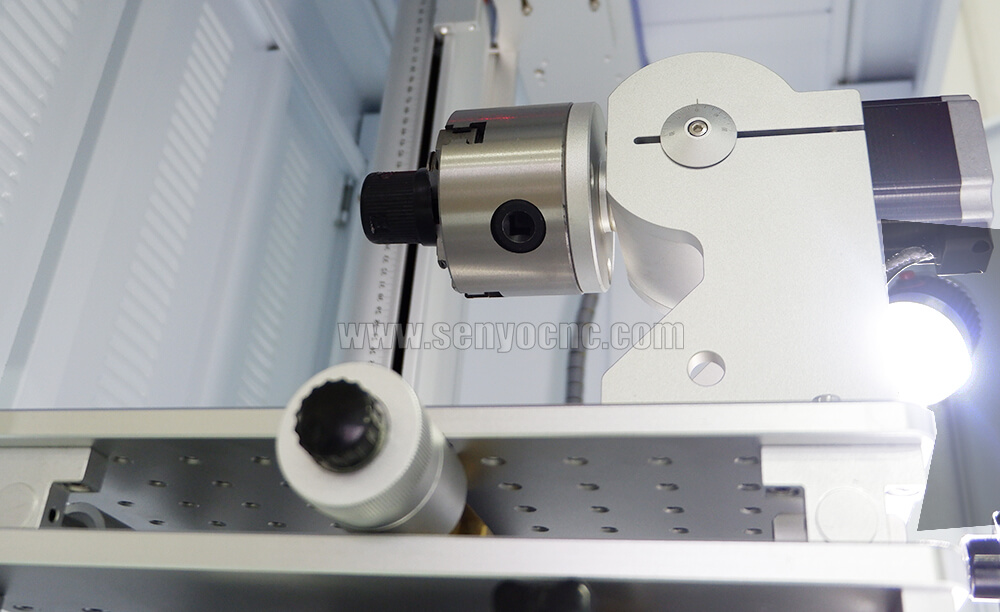

Rotary for optional

EZACD Software

Stable performance and high reliability. More than 90% laser marking machine are using EZcad controller, ensuring higher stability
and shield-utilizing part of complex functions

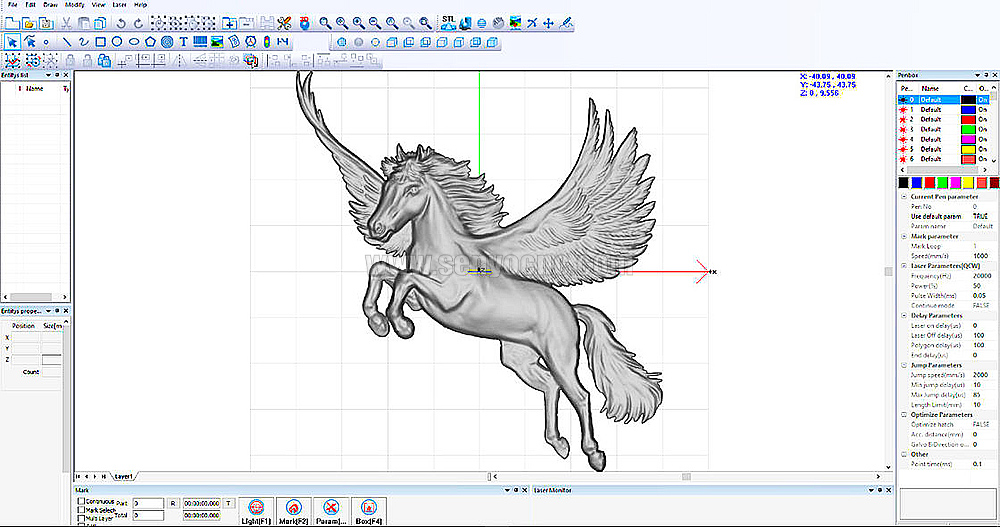

Marking Software：

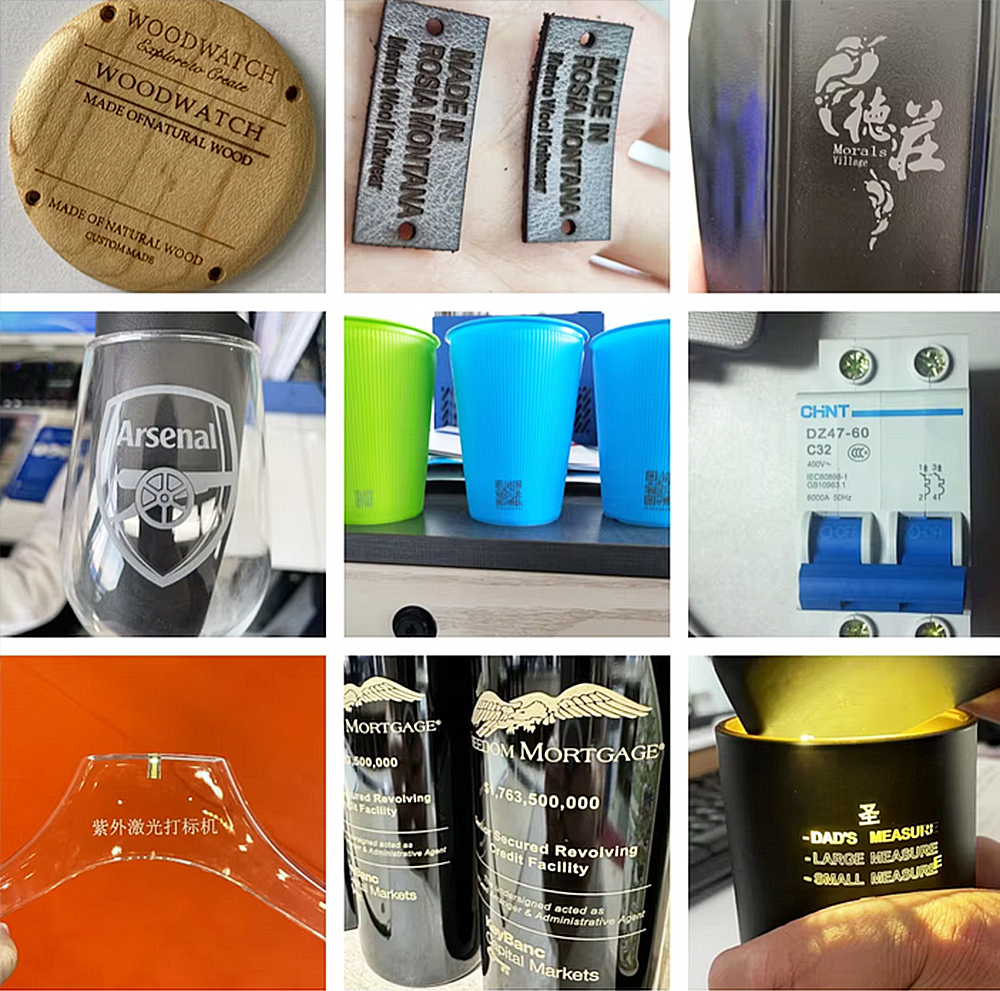

Application Materials and Projects detials

1. Plastic parts such as air binding
2. Gold plating, silver and other surface marking
3. UV oil plastic material surface marking,eg: samsung panel, melamine
4. Mark the surface of dehalogenated elemental materials, eg: IPHONE charger, connection wire and other peripheral products
5. Daily necessities (beverage packaging, food packaging)
6. Marking of cables and cables
7. Various pipe surface marks
8. Flexible materials and carbon fiber cutting (the material thickness is only 200um)

Marking Materials:Both metals and some non-metals Metals: carbon steel/mild steel, stainless steel, aluminum, copper,

magnesium, zinc; rare metal and alloy steel (gold, silver,titanium, etc.); special surface treatment

(aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy)

Non-metals: glass,plastics, rubber, resin, carton box, etc.

Marking Content:logo, character, serial number, bar code, data matrix

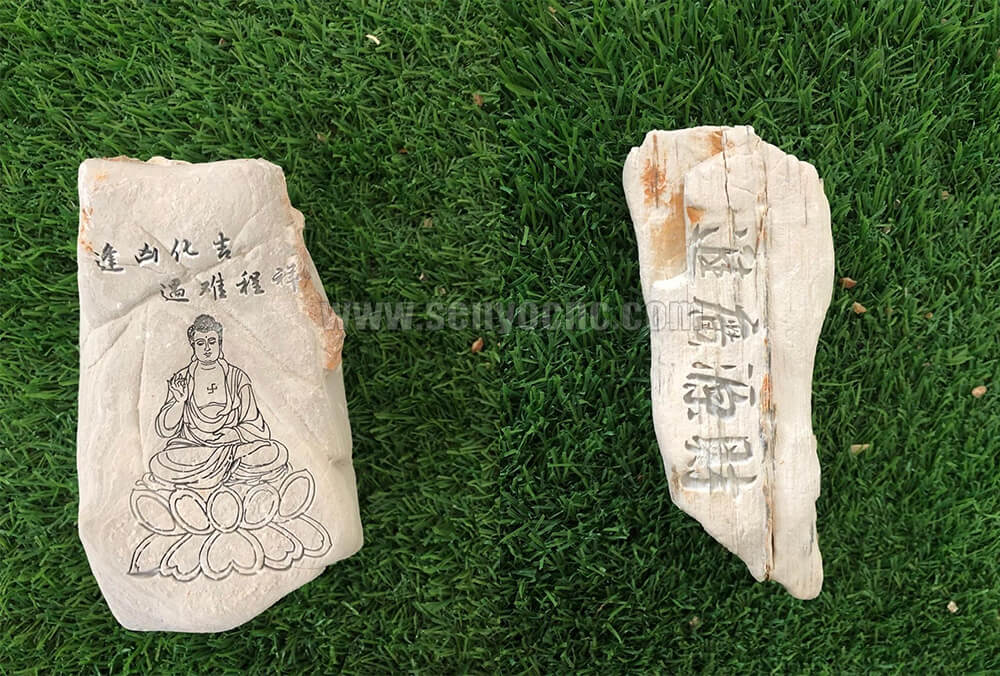

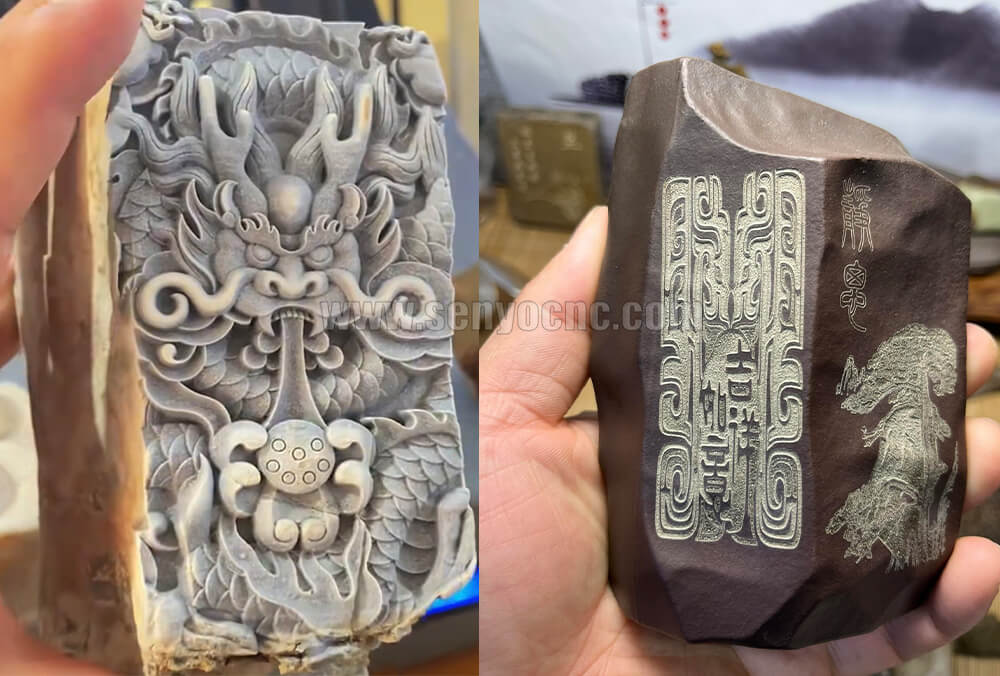

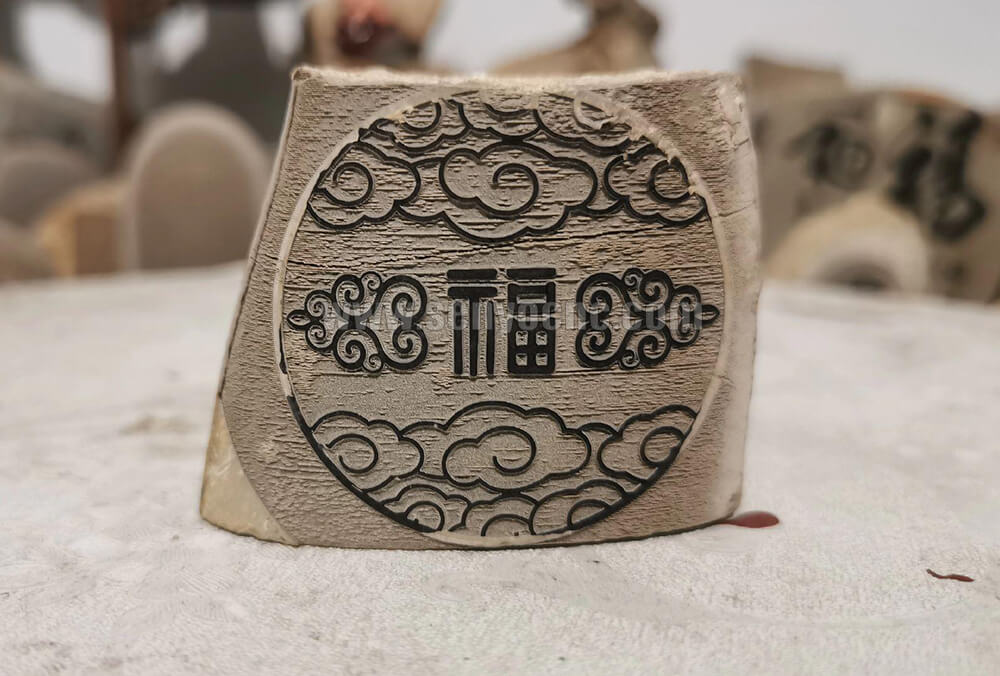

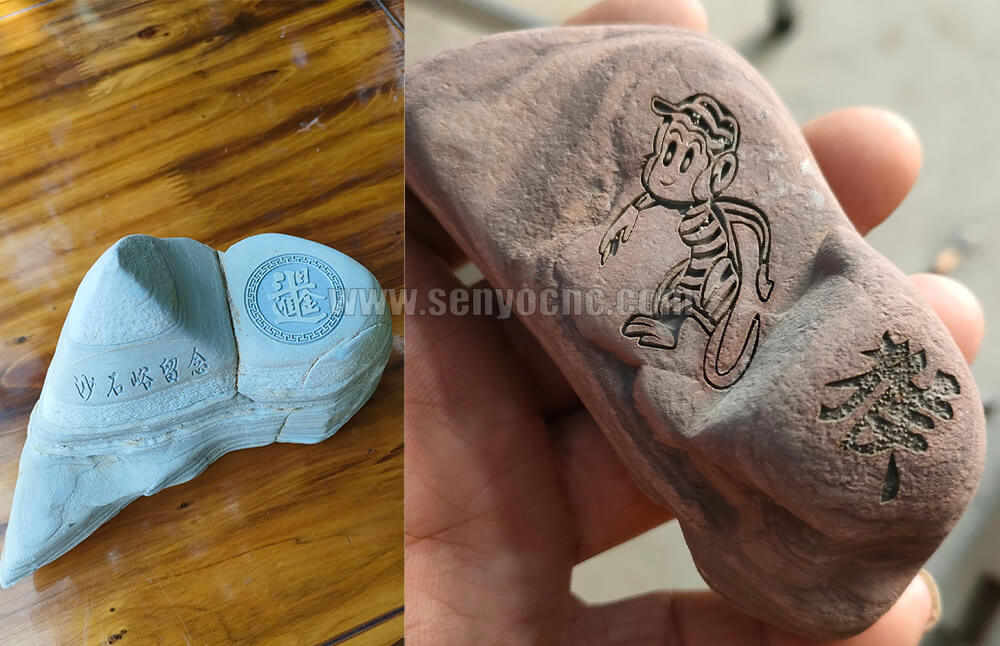

stone surface engraving

agate jade engraving

stone deep engraving

leaf engraving

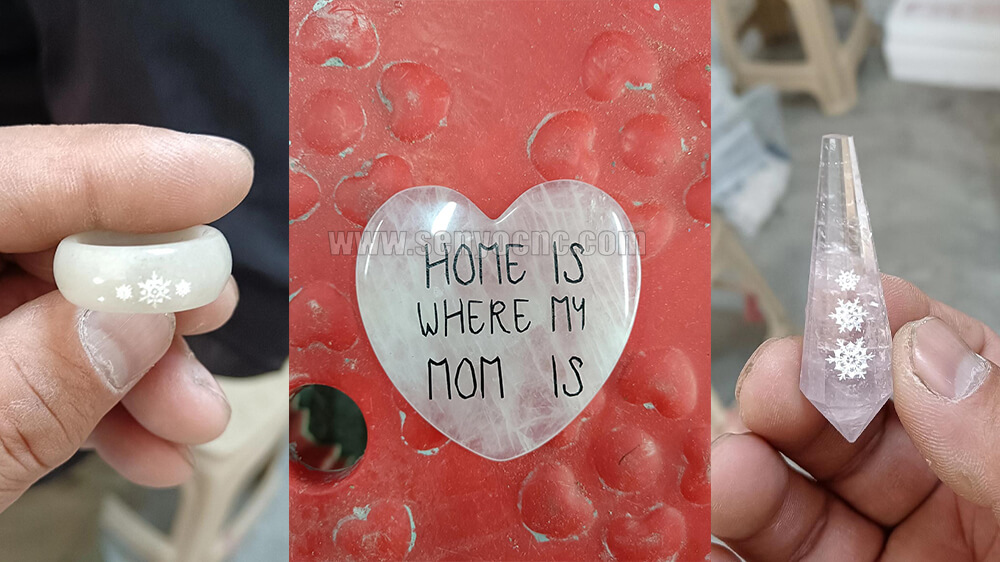

Agate deep engraving

stone deep engraving

Machine Paramaters

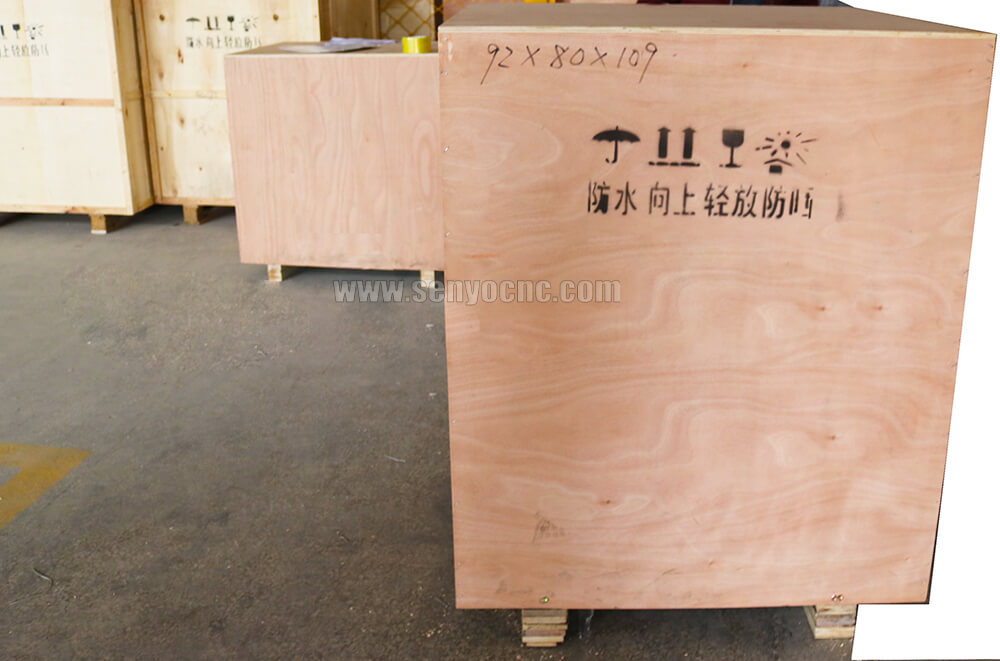

Packing & Shipping

1. Outside package: Standard plywood package.

2. Inner package:Stretchy film and plastic protective film for humidity.

3. We can package according to your requirements.

For standard machines, 7-15 working days after payment.

Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.
